Unified Messaging and Data Streaming 101

Unified Messaging and Data Streaming 101

• 2.
  Tim Spann Developer Advocate ●FLiP(N) Stack = Flink, Pulsar and NiFi Stack ● Streaming Systems/ Data Architect ● Experience: ○ 15+ years of experience with batch and streaming technologies including Pulsar, Flink, Spark, NiFi, Spring, Java, Big Data, Cloud, MXNet, Hadoop, Datalakes, IoT and more.
• 3.
  101 Unified Messaging Platform Guaranteed Message Delivery Resiliency Infinite Scalability
• 4.

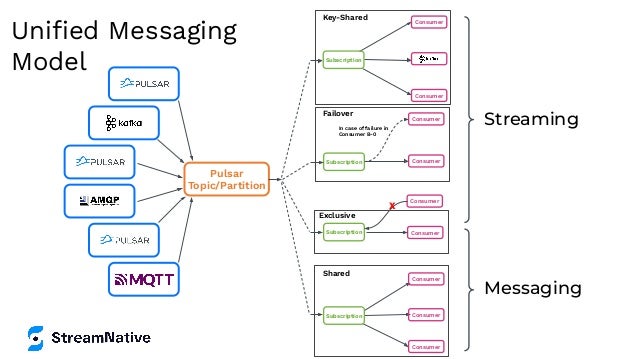

  Streaming Consumer Consumer Consumer Subscription Shared Failover Consumer Consumer Subscription In case offailure in Consumer B-0 Consumer Consumer Subscription Exclusive X Consumer Consumer Key-Shared Subscription Pulsar Topic/Partition Messaging Unified Messaging Model
• 5.

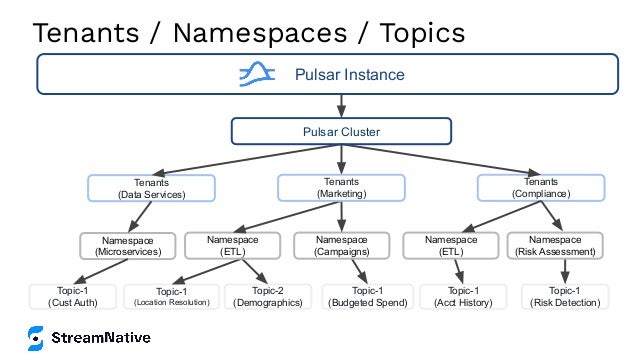

  Tenants / Namespaces/ Topics Tenants (Compliance) Tenants (Data Services) Namespace (Microservices) Topic-1 (Cust Auth) Topic-1 (Location Resolution) Topic-2 (Demographics) Topic-1 (Budgeted Spend) Topic-1 (Acct History) Topic-1 (Risk Detection) Namespace (ETL) Namespace (Campaigns) Namespace (ETL) Tenants (Marketing) Namespace (Risk Assessment) Pulsar Instance Pulsar Cluster
• 6.

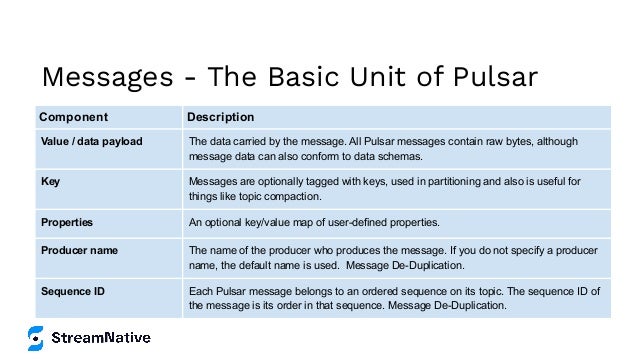

  Component Description Value /data payload The data carried by the message. All Pulsar messages contain raw bytes, although message data can also conform to data schemas. Key Messages are optionally tagged with keys, used in partitioning and also is useful for things like topic compaction. Properties An optional key/value map of user-defined properties. Producer name The name of the producer who produces the message. If you do not specify a producer name, the default name is used. Message De-Duplication. Sequence ID Each Pulsar message belongs to an ordered sequence on its topic. The sequence ID of the message is its order in that sequence. Message De-Duplication. Messages - The Basic Unit of Pulsar
• 7.

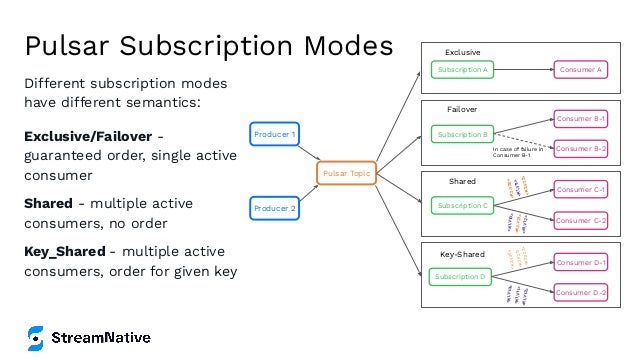

  Pulsar Subscription Modes Differentsubscription modes have different semantics: Exclusive/Failover - guaranteed order, single active consumer Shared - multiple active consumers, no order Key_Shared - multiple active consumers, order for given key Producer 1 Producer 2 Pulsar Topic Subscription D Consumer D-1 Consumer D-2 Key-Shared < K 1, V 10 > < K 1, V 11 > < K 1, V 12 > < K 2 ,V 2 0 > < K 2 ,V 2 1> < K 2 ,V 2 2 > Subscription C Consumer C-1 Consumer C-2 Shared < K 1, V 10 > < K 2, V 21 > < K 1, V 12 > < K 2 ,V 2 0 > < K 1, V 11 > < K 2 ,V 2 2 > Subscription A Consumer A Exclusive Subscription B Consumer B-1 Consumer B-2 In case of failure in Consumer B-1 Failover
• 8.

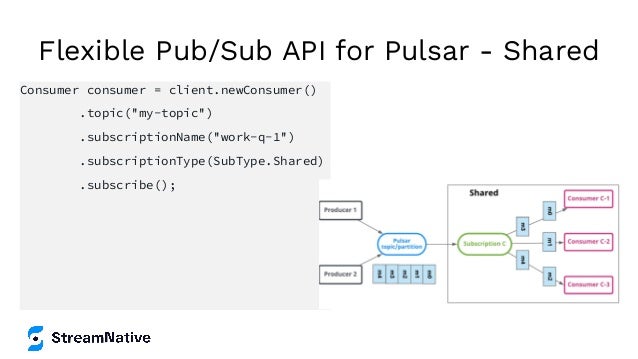

  Flexible Pub/Sub APIfor Pulsar - Shared Consumer consumer = client.newConsumer() .topic("my-topic") .subscriptionName("work-q-1") .subscriptionType(SubType.Shared) .subscribe();
• 9.

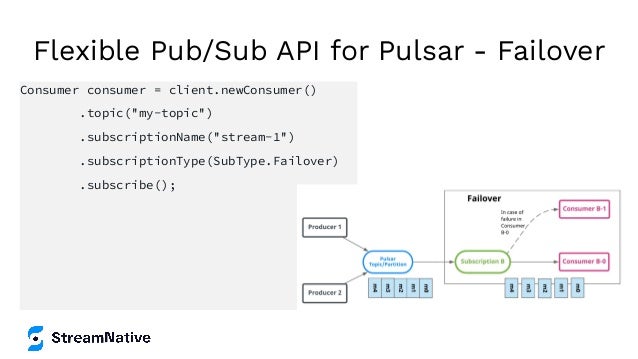

  Consumer consumer =client.newConsumer() .topic("my-topic") .subscriptionName("stream-1") .subscriptionType(SubType.Failover) .subscribe(); Flexible Pub/Sub API for Pulsar - Failover
• 10.

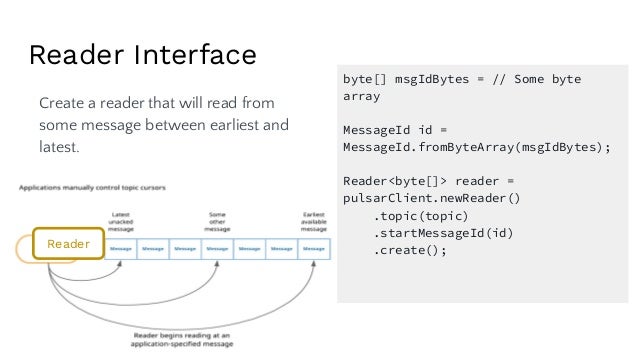

  Reader Interface byte[] msgIdBytes= // Some byte array MessageId id = MessageId.fromByteArray(msgIdBytes); Reader<byte[]> reader = pulsarClient.newReader() .topic(topic) .startMessageId(id) .create(); Create a reader that will read from some message between earliest and latest. Reader
• 11.

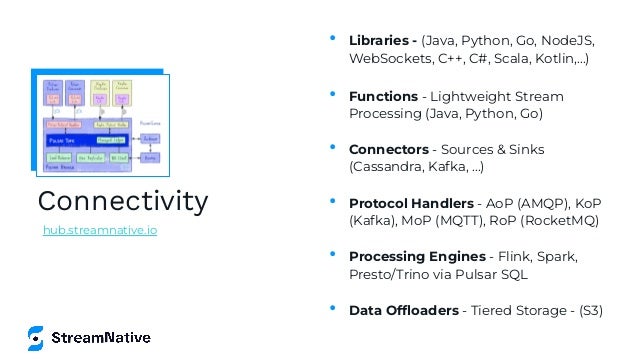

  Connectivity • Libraries -(Java, Python, Go, NodeJS, WebSockets, C++, C#, Scala, Kotlin,...) • Functions - Lightweight Stream Processing (Java, Python, Go) • Connectors - Sources & Sinks (Cassandra, Kafka, …) • Protocol Handlers - AoP (AMQP), KoP (Kafka), MoP (MQTT), RoP (RocketMQ) • Processing Engines - Flink, Spark, Presto/Trino via Pulsar SQL • Data Offloaders - Tiered Storage - (S3) hub.streamnative.io
• 12.

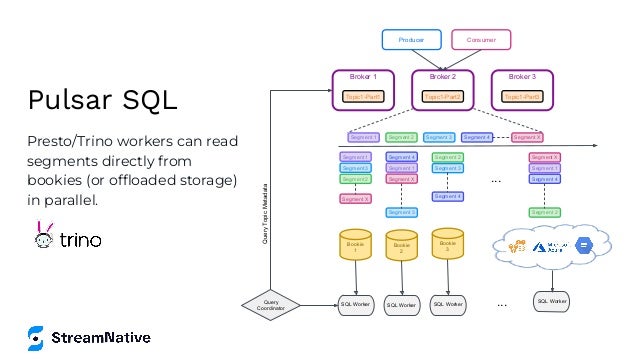

  Pulsar SQL Presto/Trino workerscan read segments directly from bookies (or offloaded storage) in parallel. Bookie 1 Segment 1 Producer Consumer Broker 1 Topic1-Part1 Broker 2 Topic1-Part2 Broker 3 Topic1-Part3 Segment 2 Segment 3 Segment 4 Segment X Segment 1 Segment 1 Segment 1 Segment 3 Segment 3 Segment 3 Segment 2 Segment 2 Segment 2 Segment 4 Segment 4 Segment 4 Segment X Segment X Segment X Bookie 2 Bookie 3 Query Coordinator ... ... SQL Worker SQL Worker SQL Worker SQL Worker Query Topic Metadata
• 13.

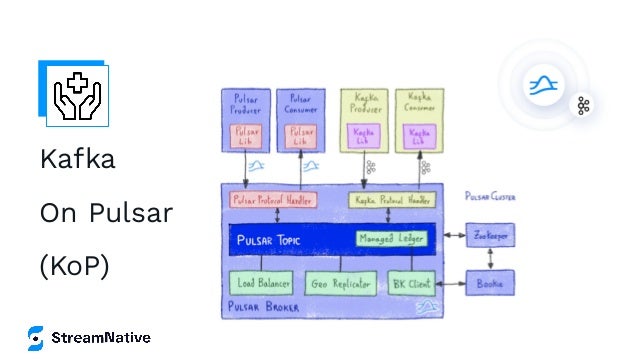

  Kafka On Pulsar (KoP)
• 14.

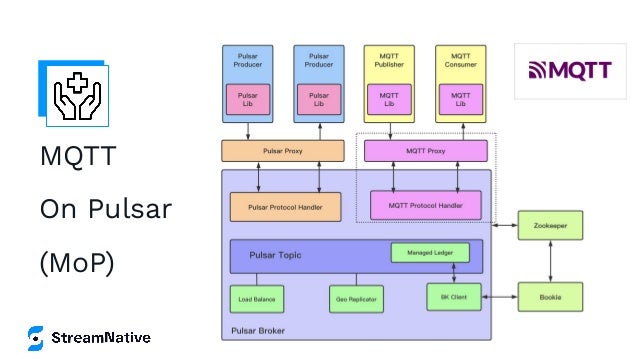

  MQTT On Pulsar (MoP)
• 15.

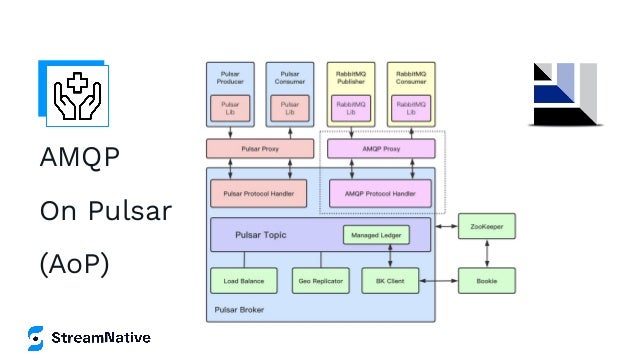

  AMQP On Pulsar (AoP)
• 16.

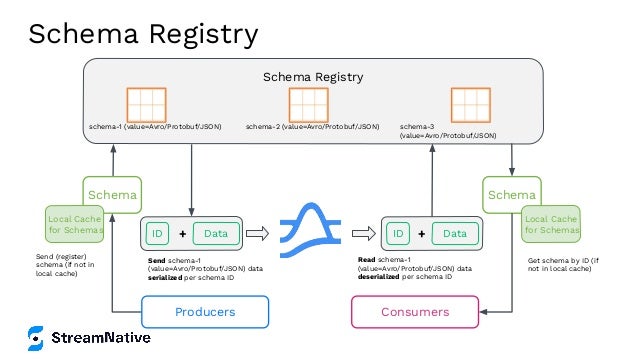

  Schema Registry Schema Registry schema-1(value=Avro/Protobuf/JSON) schema-2 (value=Avro/Protobuf/JSON) schema-3 (value=Avro/Protobuf/JSON) Schema Data ID Local Cache for Schemas + Schema Data ID + Local Cache for Schemas Send schema-1 (value=Avro/Protobuf/JSON) data serialized per schema ID Send (register) schema (if not in local cache) Read schema-1 (value=Avro/Protobuf/JSON) data deserialized per schema ID Get schema by ID (if not in local cache) Producers Consumers
• 17.

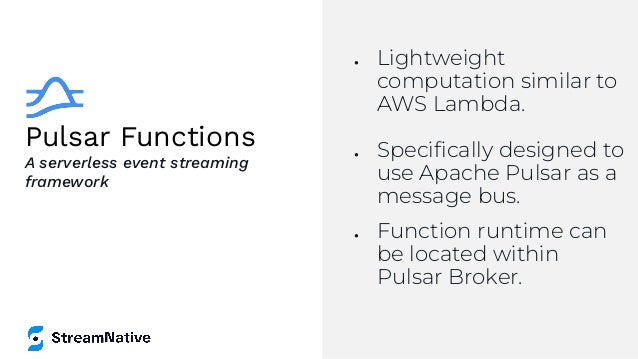

  Pulsar Functions ● Lightweight computationsimilar to AWS Lambda. ● Specifically designed to use Apache Pulsar as a message bus. ● Function runtime can be located within Pulsar Broker. A serverless event streaming framework
• 18.

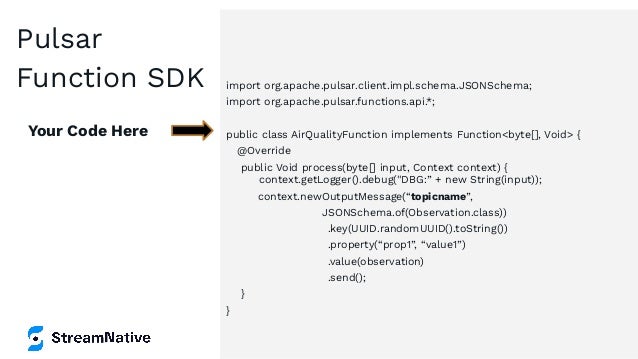

  import org.apache.pulsar.client.impl.schema.JSONSchema; import org.apache.pulsar.functions.api.*; publicclass AirQualityFunction implements Function<byte[], Void> { @Override public Void process(byte[] input, Context context) { context.getLogger().debug("DBG:” + new String(input)); context.newOutputMessage(“topicname”, JSONSchema.of(Observation.class)) .key(UUID.randomUUID().toString()) .property(“prop1”, “value1”) .value(observation) .send(); } } Your Code Here Pulsar Function SDK
• 19.

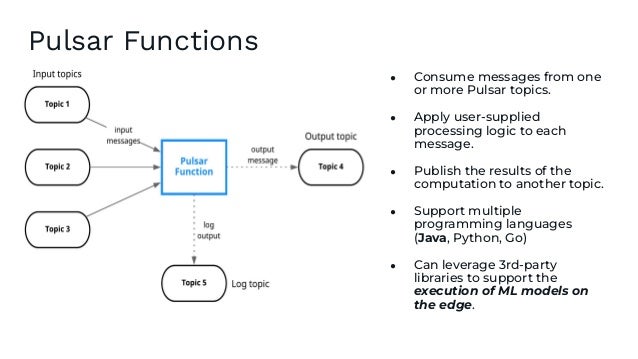

  ● Consume messagesfrom one or more Pulsar topics. ● Apply user-supplied processing logic to each message. ● Publish the results of the computation to another topic. ● Support multiple programming languages (Java, Python, Go) ● Can leverage 3rd-party libraries to support the execution of ML models on the edge. Pulsar Functions
• 20.

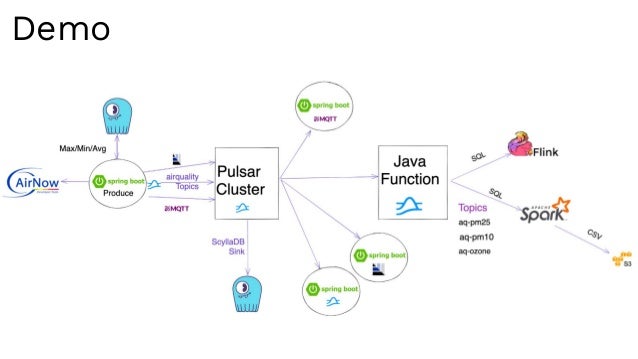

  Demo
• 21.
  Apache Pulsar Training ●Instructor-led courses ○ Pulsar Fundamentals ○ Pulsar Developers ○ Pulsar Operations ● On-demand learning with labs ● 300+ engineers, admins and architects trained! StreamNative Academy Now Available On-Demand Pulsar Training Academy.StreamNative.io
• 22.

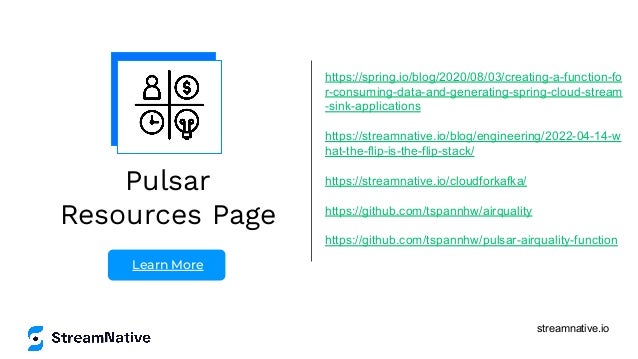

  streamnative.io Pulsar Resources Page Learn More https://spring.io/blog/2020/08/03/creating-a-function-fo r-consuming-data-and-generating-spring-cloud-stream -sink-applications https://streamnative.io/blog/engineering/2022-04-14-w hat-the-flip-is-the-flip-stack/ https://streamnative.io/cloudforkafka/ https://github.com/tspannhw/airquality https://github.com/tspannhw/pulsar-airquality-function
• 23.
  FLiP Stack Weekly Thisweek in Apache Flink, Apache Pulsar, Apache NiFi, Apache Spark, Java and Open Source friends. https://bit.ly/32dAJft
• 24.
  streamnative.io Passionate and dedicatedteam. Founded by the original developers of Apache Pulsar. StreamNative helps teams to capture, manage, and leverage data using Pulsar’s unified messaging and streaming platform.
• 25.

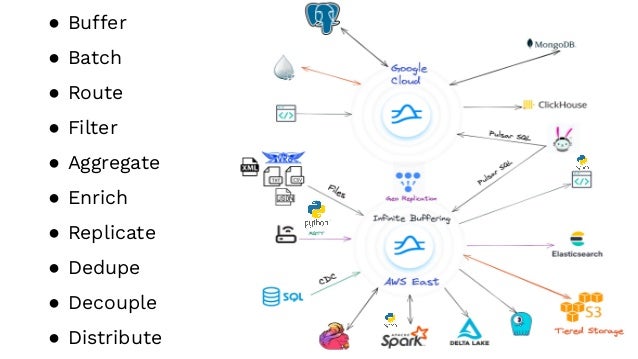

  ● Buffer ● Batch ●Route ● Filter ● Aggregate ● Enrich ● Replicate ● Dedupe ● Decouple ● Distribute
• 26.
  Let’s Keep in Touch! TimSpann Developer Advocate PaaSDev https://www.linkedin.com/in/timothyspann https://github.com/tspannhw
• 27.

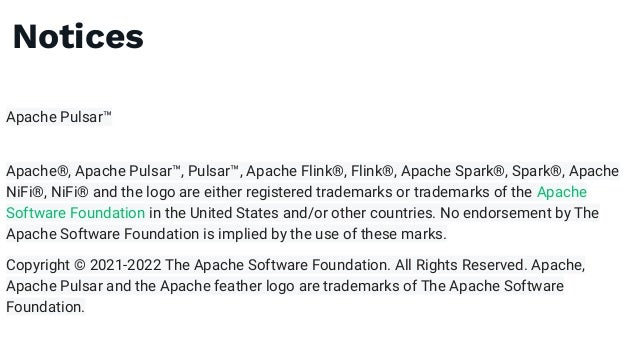

  Notices Apache Pulsar™ Apache®, ApachePulsar™, Pulsar™, Apache Flink®, Flink®, Apache Spark®, Spark®, Apache NiFi®, NiFi® and the logo are either registered trademarks or trademarks of the Apache Software Foundation in the United States and/or other countries. No endorsement by The Apache Software Foundation is implied by the use of these marks. Copyright © 2021-2022 The Apache Software Foundation. All Rights Reserved. Apache, Apache Pulsar and the Apache feather logo are trademarks of The Apache Software Foundation.
