Understanding Translational and Rotational Motion in Machines for Efficient Design

Explore how translational and rotational motions work together in machines, their forces, and applications to improve efficiency and ease everyday tasks through interactive activities and problem-solving.

Education◦
Translational and Rotational Motion in Machines
OBJECTIVES: Understand how translational and rotational motion applies to machines.
Today, we will discover how machines use translational and rotational motion together to make everyday tasks easier and more efficient. By the end of the lesson, you will be able to identify these motions and explain how they are applied in different machines."

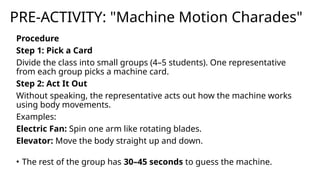

PRE-ACTIVITY: "Machine Motion Charades" Procedure Step 1: Pick a Card Divide the class into small groups (4–5 students). One representative from each group picks a machine card. Step 2: Act It Out Without speaking, the representative acts out how the machine works using body movements. Examples: Electric Fan: Spin one arm like rotating blades. Elevator: Move the body straight up and down. • The rest of the group has 30–45 seconds to guess the machine.
Processing Questions: What similarities did you notice among the machines? Which type of motion was easier to identify? Why? How do rotational and translational motions help machines perform work?
a)What machines do you use every day? b)How do they function in terms of motion?
Why is it important to understand translational & rotational motion? How does motion affect the design and efficiency of machines?
Efficient machines use motion (linear, rotational, or oscillatory) to minimize energy loss due to friction or resistance and to maximize output with the least input force.

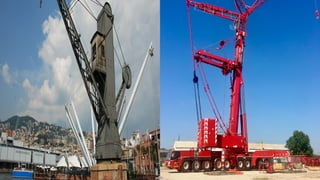

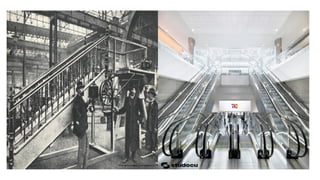

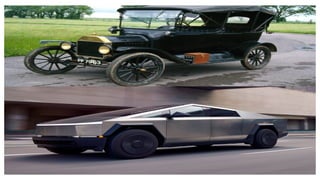

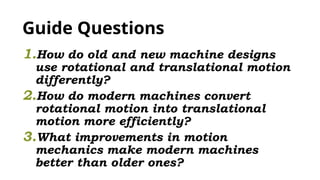

Guide Questions 1.How do old and new machine designs use rotational and translational motion differently? 2.How do modern machines convert rotational motion into translational motion more efficiently? 3.What improvements in motion mechanics make modern machines better than older ones?
Problem Situation • Hypothetically, The class is helping a community garden move small potted plants that are too heavy to lift by hand. The plants weigh about 500 grams each, and you only have simple materials in your classroom: a ruler, a block (as a fulcrum), and the plant pots as the load. • Your goal is to design a simple lever system to lift each pot using as little effort force as possible. • Key Question: How does changing the fulcrum affect lifting?
KEY FORCES ACTING ON MACHINES

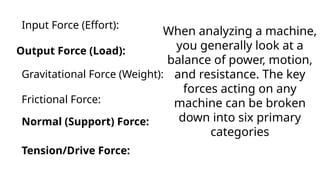

When analyzing a machine, you generally look at a balance of power, motion, and resistance. The key forces acting on any machine can be broken down into six primary categories Input Force (Effort): Output Force (Load): Gravitational Force (Weight): Frictional Force: Normal (Support) Force: Tension/Drive Force:
Input force (also known as effort) is the initial push or pull applied to a system or machine to perform work. It initiates the machine's operation and allows it to generate a desired output force (the load)

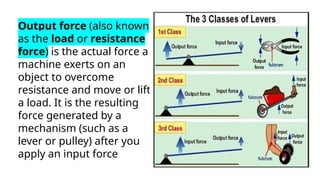

Output force (also known as the load or resistance force) is the actual force a machine exerts on an object to overcome resistance and move or lift a load. It is the resulting force generated by a mechanism (such as a lever or pulley) after you apply an input force

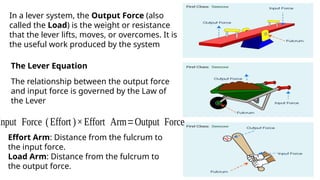

In a lever system, the Output Force (also called the Load) is the weight or resistance that the lever lifts, moves, or overcomes. It is the useful work produced by the system The Lever Equation The relationship between the output force and input force is governed by the Law of the Lever Input Force (Effort )×Effort Arm=Output Force Effort Arm: Distance from the fulcrum to the input force. Load Arm: Distance from the fulcrum to the output force.

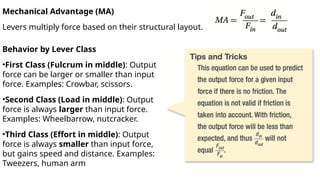

Mechanical Advantage (MA) Levers multiply force based on their structural layout. Behavior by Lever Class •First Class (Fulcrum in middle): Output force can be larger or smaller than input force. Examples: Crowbar, scissors. •Second Class (Load in middle): Output force is always larger than input force. Examples: Wheelbarrow, nutcracker. •Third Class (Effort in middle): Output force is always smaller than input force, but gains speed and distance. Examples: Tweezers, human arm

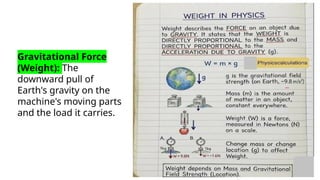

Gravitational Force (Weight): The downward pull of Earth's gravity on the machine's moving parts and the load it carries.

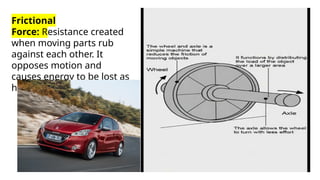

Frictional Force: Resistance created when moving parts rub against each other. It opposes motion and causes energy to be lost as heat

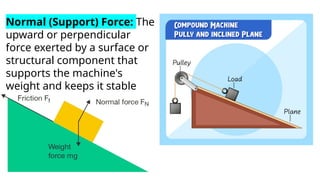

Normal (Support) Force: The upward or perpendicular force exerted by a surface or structural component that supports the machine's weight and keeps it stable
Tension/Drive Force: The internal pulling forces transferred through cables, belts, chains, or gears that drive the machine's mechanisms
Machine Translational Motion Rotational Motion Application Bicycle Bicycle moves forward. Pedals and wheels rotate. Rotating pedals and wheels produce forward motion. Car Car moves along the road. Engine, axles, and wheels rotate. Engine rotation is converted into the car's forward movement. Electric Fan Air moves outward in a straight path. Fan blades rotate. Rotating blades generate airflow. Conveyor Belt Boxes move in a straight line. Rollers rotate. Rotating rollers move the conveyor belt to transport objects. Sewing Machine Needle moves up and down. Motor and handwheel rotate. Rotational motion is converted into the needle's translational motion. Applications of Translational and Rotational Motion in Machines
Activity: Complete the Table Directions: Observe each machine and complete the table by identifying the type of motion involved. Write the rotating part, the part that moves translationally (if any), and briefly describe how the motions help the machine function.

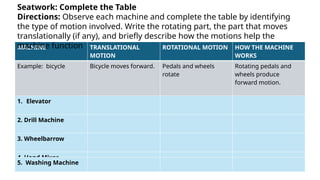

MACHINE TRANSLATIONAL MOTION ROTATIONAL MOTION HOW THE MACHINE WORKS Example: bicycle Bicycle moves forward. Pedals and wheels rotate Rotating pedals and wheels produce forward motion. 1. Elevator 2. Drill Machine 3. Wheelbarrow 4. Hand Mixer 5. Washing Machine Seatwork: Complete the Table Directions: Observe each machine and complete the table by identifying the type of motion involved. Write the rotating part, the part that moves translationally (if any), and briefly describe how the motions help the machine function
THANK YOU!
