SIMPLE AND COMPOUND MACHINE

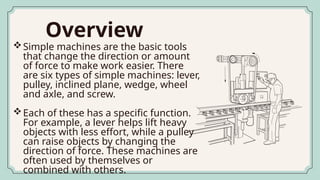

Overview Simple machines are the basic tools that change the direction or amount of force to make work easier. There are six types of simple machines: lever, pulley, inclined plane, wedge, wheel and axle, and screw. Each of these has a specific function. For example, a lever helps lift heavy objects with less effort, while a pulley can raise objects by changing the direction of force. These machines are often used by themselves or combined with others.
INTRODUCTION A simple machine is a basic mechanical device that helps make work easier by changing the direction or amount of force applied. Simple Machine A compound machine is a device made up of two or more simple machines working together to complete a task. Compound Machine Simple and compound machines are tools that help make work easier Purpose:

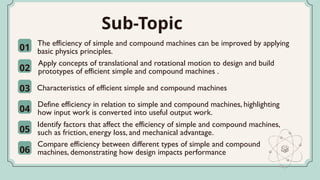

02 03 04 05 06 01 Sub-Topic The efficiency of simple and compound machines can be improved by applying basic physics principles. Define efficiency in relation to simple and compound machines, highlighting how input work is converted into useful output work. Identify factors that affect the efficiency of simple and compound machines, such as friction, energy loss, and mechanical advantage. Characteristics of efficient simple and compound machines Apply concepts of translational and rotational motion to design and build prototypes of efficient simple and compound machines . Compare efficiency between different types of simple and compound machines, demonstrating how design impacts performance

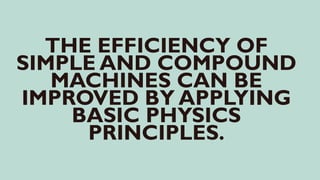

THE EFFICIENCY OF SIMPLE AND COMPOUND MACHINES CAN BE IMPROVED BY APPLYING BASIC PHYSICS PRINCIPLES.

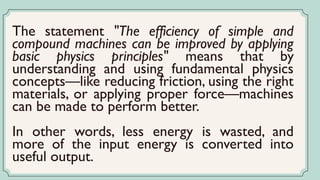

The statement "The efficiency of simple and compound machines can be improved by applying basic physics principles" means that by understanding and using fundamental physics concepts—like reducing friction, using the right materials, or applying proper force—machines can be made to perform better. In other words, less energy is wasted, and more of the input energy is converted into useful output.

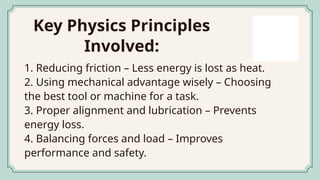

Key Physics Principles Involved: 1. Reducing friction – Less energy is lost as heat. 2. Using mechanical advantage wisely – Choosing the best tool or machine for a task. 3. Proper alignment and lubrication – Prevents energy loss. 4. Balancing forces and load – Improves performance and safety.
EXAMPLE of SIMPLE MACHINE

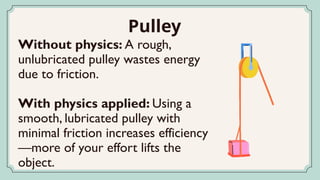

Without physics: A rough, unlubricated pulley wastes energy due to friction. With physics applied: Using a smooth, lubricated pulley with minimal friction increases efficiency —more of your effort lifts the object. Pulley
EXAMPLE of COMPOUND MACHINE

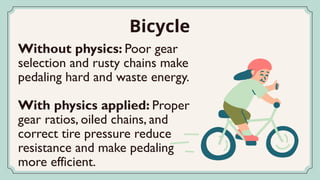

Without physics: Poor gear selection and rusty chains make pedaling hard and waste energy. With physics applied: Proper gear ratios, oiled chains, and correct tire pressure reduce resistance and make pedaling more efficient. Bicycle
By understanding and applying basic physics principles, machines can do the same job with less effort and energy loss—making them more efficient and effective.

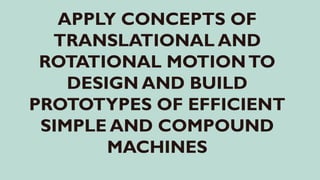

APPLY CONCEPTS OF TRANSLATIONAL AND ROTATIONAL MOTIONTO DESIGN AND BUILD PROTOTYPES OF EFFICIENT SIMPLE AND COMPOUND MACHINES

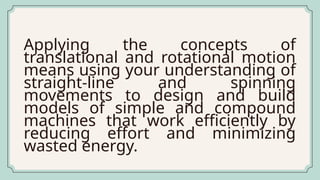

Applying the concepts of translational and rotational motion means using your understanding of straight-line and spinning movements to design and build models of simple and compound machines that work efficiently by reducing effort and minimizing wasted energy.
There are two main kinds of motion that we study: Translational Motion — when an object’s center of mass moves in a straight line. Rotational Motion — when an object spins around an axis through its body.

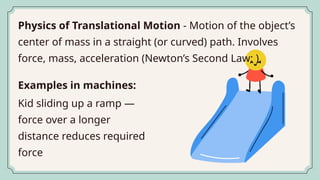

Physics of Translational Motion - Motion of the object’s center of mass in a straight (or curved) path. Involves force, mass, acceleration (Newton’s Second Law: ). Kid sliding up a ramp — force over a longer distance reduces required force Examples in machines:

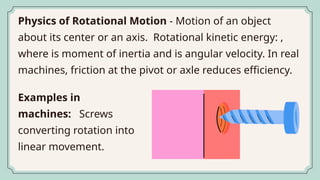

Physics of Rotational Motion - Motion of an object about its center or an axis. Rotational kinetic energy: , where is moment of inertia and is angular velocity. In real machines, friction at the pivot or axle reduces efficiency. Examples in machines: Screws converting rotation into linear movement.

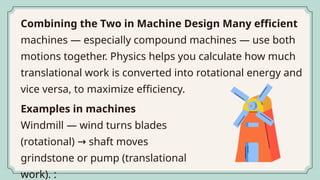

Combining the Two in Machine Design Many efficient machines — especially compound machines — use both motions together. Physics helps you calculate how much translational work is converted into rotational energy and vice versa, to maximize efficiency. Examples in machines Windmill — wind turns blades (rotational) shaft moves → grindstone or pump (translational work). :
In physics, understanding translational and rotational motion allows you to design and build prototypes of simple and compound machines that are efficient, effective, and minimize wasted energy. You use equations of motion, work, energy, and torque to decide the best size, shape, and arrangement of machine parts.
Characteristics of Efficient Simple and Compound Machines:

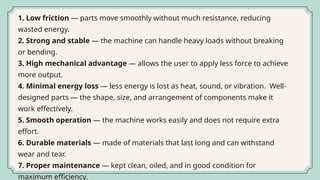

1. Low friction — parts move smoothly without much resistance, reducing wasted energy. 2. Strong and stable — the machine can handle heavy loads without breaking or bending. 3. High mechanical advantage — allows the user to apply less force to achieve more output. 4. Minimal energy loss — less energy is lost as heat, sound, or vibration. Well- designed parts — the shape, size, and arrangement of components make it work effectively. 5. Smooth operation — the machine works easily and does not require extra effort. 6. Durable materials — made of materials that last long and can withstand wear and tear. 7. Proper maintenance — kept clean, oiled, and in good condition for maximum efficiency.

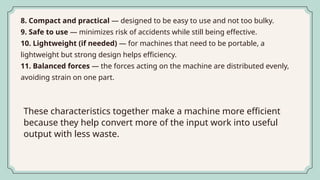

8. Compact and practical — designed to be easy to use and not too bulky. 9. Safe to use — minimizes risk of accidents while still being effective. 10. Lightweight (if needed) — for machines that need to be portable, a lightweight but strong design helps efficiency. 11. Balanced forces — the forces acting on the machine are distributed evenly, avoiding strain on one part. These characteristics together make a machine more efficient because they help convert more of the input work into useful output with less waste.
DEFINE EFFICIENCY IN RELATION TO SIMPLE AND COMPOUND MACHINES, HIGHLIGHTING HOW INPUT WORK IS CONVERTED INTO USEFUL OUTPUT WORK.

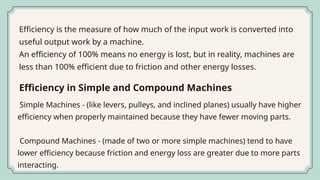

Efficiency is the measure of how much of the input work is converted into useful output work by a machine. An efficiency of 100% means no energy is lost, but in reality, machines are less than 100% efficient due to friction and other energy losses. Simple Machines - (like levers, pulleys, and inclined planes) usually have higher efficiency when properly maintained because they have fewer moving parts. Compound Machines - (made of two or more simple machines) tend to have lower efficiency because friction and energy loss are greater due to more parts interacting. Efficiency in Simple and Compound Machines
EXAMPLES

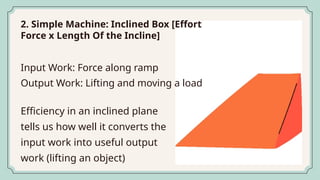

2. Simple Machine: Inclined Box [Effort Force x Length Of the Incline] Efficiency in an inclined plane tells us how well it converts the input work into useful output work (lifting an object) Input Work: Force along ramp Output Work: Lifting and moving a load
2. Compound Machine: Wheelbarrow (lever + wheel and axle) Input Work: Pushing the handles Output Work: Lifting and moving a load Efficiency is lower than a single lever due to wheel friction.
3. Scissors (compound machine using levers and wedges) Input Work: Hand force Output Work: Cutting an object Friction at the pivot and resistance from the material reduce efficiency.

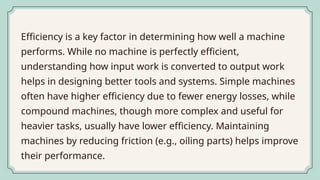

Efficiency is a key factor in determining how well a machine performs. While no machine is perfectly efficient, understanding how input work is converted to output work helps in designing better tools and systems. Simple machines often have higher efficiency due to fewer energy losses, while compound machines, though more complex and useful for heavier tasks, usually have lower efficiency. Maintaining machines by reducing friction (e.g., oiling parts) helps improve their performance.
IDENTIFY FACTORS THAT AFFECT THE EFFICIENCY OF SIMPLE AND COMPOUND MACHINES, SUCH AS FRICTION, ENERGY LOSS, AND MECHANICAL ADVANTAGE.

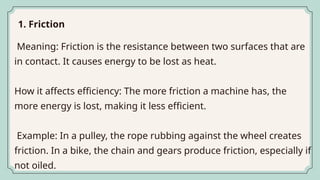

Meaning: Friction is the resistance between two surfaces that are in contact. It causes energy to be lost as heat. How it affects efficiency: The more friction a machine has, the more energy is lost, making it less efficient. Example: In a pulley, the rope rubbing against the wheel creates friction. In a bike, the chain and gears produce friction, especially if not oiled. 1. Friction

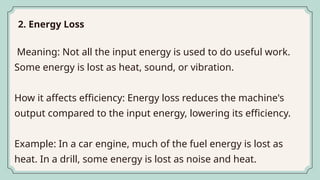

Meaning: Not all the input energy is used to do useful work. Some energy is lost as heat, sound, or vibration. How it affects efficiency: Energy loss reduces the machine's output compared to the input energy, lowering its efficiency. Example: In a car engine, much of the fuel energy is lost as heat. In a drill, some energy is lost as noise and heat. 2. Energy Loss

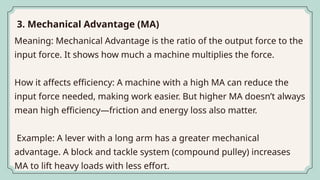

Meaning: Mechanical Advantage is the ratio of the output force to the input force. It shows how much a machine multiplies the force. How it affects efficiency: A machine with a high MA can reduce the input force needed, making work easier. But higher MA doesn’t always mean high efficiency—friction and energy loss also matter. Example: A lever with a long arm has a greater mechanical advantage. A block and tackle system (compound pulley) increases MA to lift heavy loads with less effort. 3. Mechanical Advantage (MA)

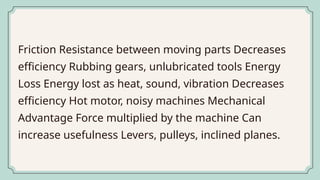

Friction Resistance between moving parts Decreases efficiency Rubbing gears, unlubricated tools Energy Loss Energy lost as heat, sound, vibration Decreases efficiency Hot motor, noisy machines Mechanical Advantage Force multiplied by the machine Can increase usefulness Levers, pulleys, inclined planes.
COMPARE EFFICIENCY BETWEEN DIFFERENT TYPES OF SIMPLE AND COMPOUND MACHINES, DEMONSTRATING HOW DESIGN IMPACTS PERFORMANCE

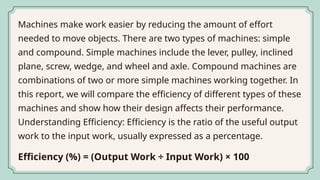

Machines make work easier by reducing the amount of effort needed to move objects. There are two types of machines: simple and compound. Simple machines include the lever, pulley, inclined plane, screw, wedge, and wheel and axle. Compound machines are combinations of two or more simple machines working together. In this report, we will compare the efficiency of different types of these machines and show how their design affects their performance. Understanding Efficiency: Efficiency is the ratio of the useful output work to the input work, usually expressed as a percentage. Efficiency (%) = (Output Work ÷ Input Work) × 100

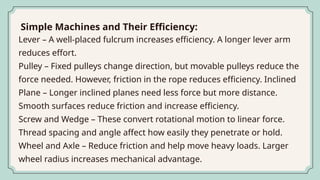

Lever – A well-placed fulcrum increases efficiency. A longer lever arm reduces effort. Pulley – Fixed pulleys change direction, but movable pulleys reduce the force needed. However, friction in the rope reduces efficiency. Inclined Plane – Longer inclined planes need less force but more distance. Smooth surfaces reduce friction and increase efficiency. Screw and Wedge – These convert rotational motion to linear force. Thread spacing and angle affect how easily they penetrate or hold. Wheel and Axle – Reduce friction and help move heavy loads. Larger wheel radius increases mechanical advantage. Simple Machines and Their Efficiency:

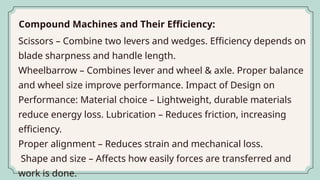

Scissors – Combine two levers and wedges. Efficiency depends on blade sharpness and handle length. Wheelbarrow – Combines lever and wheel & axle. Proper balance and wheel size improve performance. Impact of Design on Performance: Material choice – Lightweight, durable materials reduce energy loss. Lubrication – Reduces friction, increasing efficiency. Proper alignment – Reduces strain and mechanical loss. Shape and size – Affects how easily forces are transferred and work is done. Compound Machines and Their Efficiency:

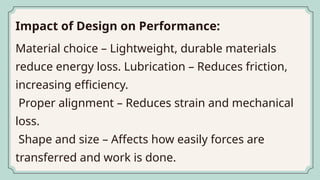

Impact of Design on Performance: Material choice – Lightweight, durable materials reduce energy loss. Lubrication – Reduces friction, increasing efficiency. Proper alignment – Reduces strain and mechanical loss. Shape and size – Affects how easily forces are transferred and work is done.

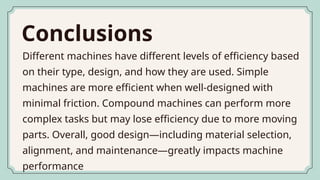

Conclusions Different machines have different levels of efficiency based on their type, design, and how they are used. Simple machines are more efficient when well-designed with minimal friction. Compound machines can perform more complex tasks but may lose efficiency due to more moving parts. Overall, good design—including material selection, alignment, and maintenance—greatly impacts machine performance
Thank you! Do you have any questions?

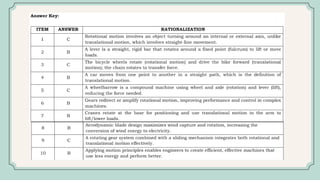

Multiple Choice: Read each question carefully and choose the best answer. 1. Which of the following best describes rotational motion? A. An object moves along a straight path B. An object vibrates in place C. An object spins around a fixed axis D. An object stays at rest 2. What type of simple machine is a lever? A. A wheel with a rope B. A rigid bar that pivots on a fulcrum C. A flat surface raised at an angle D. A circular ramp
3. Which parts of a bicycle demonstrate both rotational and translational motion? A. Frame and handlebar B. Seat and pedals C. Wheels and chain D. Bell and lights 4. Which of the following are examples of translational motion? A. Clock hand turning B. Car driving on a highway C. Blender spinning D. Ceiling fan rotating
5. Why is it more efficient to use a wheelbarrow (compound machine) than to carry heavy loads by hand? A. It has a nice design B. It is fun to use C. It combines simple machines to reduce effort D. It can only be used by adults 6. How do gears contribute to the efficiency of a compound machine? A. They slow down the machine B. They transfer rotational motion to different parts C. They stop friction completely D. They change color under pressure

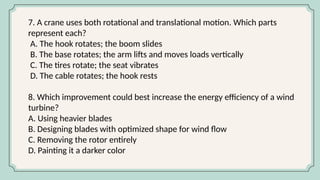

7. A crane uses both rotational and translational motion. Which parts represent each? A. The hook rotates; the boom slides B. The base rotates; the arm lifts and moves loads vertically C. The tires rotate; the seat vibrates D. The cable rotates; the hook rests 8. Which improvement could best increase the energy efficiency of a wind turbine? A. Using heavier blades B. Designing blades with optimized shape for wind flow C. Removing the rotor entirely D. Painting it a darker color

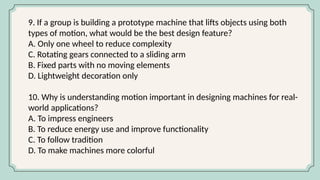

9. If a group is building a prototype machine that lifts objects using both types of motion, what would be the best design feature? A. Only one wheel to reduce complexity C. Rotating gears connected to a sliding arm B. Fixed parts with no moving elements D. Lightweight decoration only 10. Why is understanding motion important in designing machines for real- world applications? A. To impress engineers B. To reduce energy use and improve functionality C. To follow tradition D. To make machines more colorful
