Understanding Pascal’s Principle and Hydraulic Systems in Fluid Physics

Editor's Notes

• #1 Welcome the class. Today's topic is The Physics of Fluids .

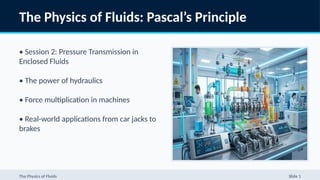

• #2 Welcome back, class. Today we are shifting from general pressure concepts to one of the most powerful principles in engineering: Pascal’s Principle. We’ll learn how small forces can move massive objects. By the end of this session, you'll understand why a technician can lift an entire SUV with just a hand pump.

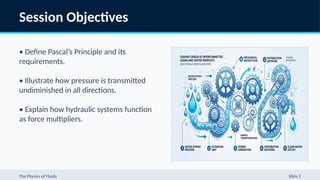

• #3 Our goals for today are clear. We need to define Pascal's Principle, visualize how pressure moves through a fluid, and calculate how machines 'cheat' physics to multiply force. Let's start with a quick recap of our P = F/A formula from last time.

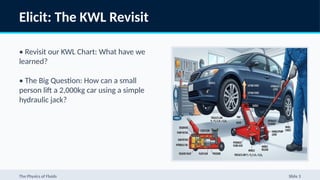

• #4 Think back to our KWL chart. We knew what pressure was. But look at this car. It weighs 2,000 kilograms. If I told you a child could lift this car using just their arm strength and some oil, would you believe me? That is the mystery we are solving today.

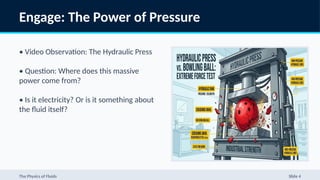

• #5 You've likely seen videos of hydraulic presses crushing everything from diamonds to engine blocks. The machine might only be plugged into a standard wall outlet. The secret isn't just in the motor; it's in how the fluid inside the machine handles the pressure we give it.

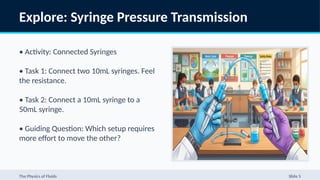

• #6 Now it's your turn. You have your syringe kits. When you push on the small syringe connected to the large one, pay close attention to the force your thumb feels versus how much the other syringe moves. This is the physical proof of Pascal's Principle in your hands.
• #7 Blaise Pascal discovered that in an enclosed system, you can't 'lose' pressure. If you add 10 Pascals of pressure at one end, every single molecule of that liquid feels those 10 Pascals. Because Pressure is Force divided by Area, if we make the output area bigger, the force has to get bigger too to keep the ratio the same.

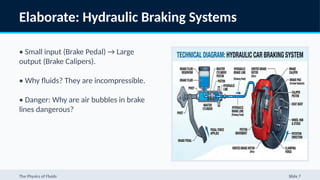

• #8 In your car, your foot doesn't have the strength to stop a ton of moving metal. But when you hit the brake, you push a small piston. The fluid carries that pressure to large pistons at the wheels. If there's air in the lines, the air just squishes (compresses) and the pressure doesn't reach the brakes. That's why we 'bleed' brakes to remove air.

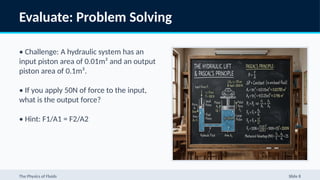

• #9 Let's do the math. If A2 is ten times larger than A1, what does that do to the force? Since the pressure is equal, the force must also be ten times larger. 50 Newtons in becomes 500 Newtons out. You've just created a force multiplier!

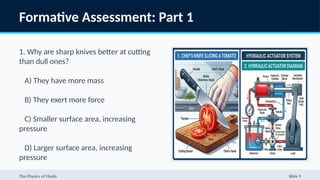

• #10 Let's check your understanding. For question 1, remember our first session on P=F/A. The answer is C. For question 2, what is the core of Pascal's Principle? The answer is C—Pressure remains constant throughout the fluid.

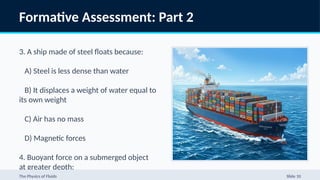

• #11 Question 3 touches on buoyancy—the answer is B, Archimedes' Principle. For question 4, as long as the density of the water is constant, the buoyant force doesn't change with depth. The answer is C.

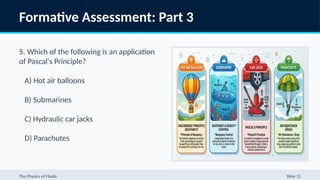

• #12 Final question. Which one uses enclosed fluid to transmit force? Hot air balloons use buoyancy, submarines use displacement, and parachutes use air resistance. The answer is C, the hydraulic car jack.

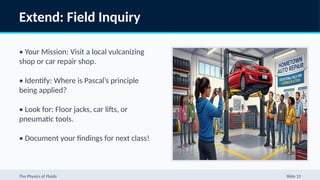

• #13 Science isn't just in the classroom. This weekend, visit a repair shop. Look at the equipment. Ask the mechanics how their lifts work. You'll see Pascal's Principle in action everywhere. Stay safe and happy exploring!
