1. Understanding Intrusion Detection
Systems
Dr. K. V. Arya
Multimedia & Information Security Research Group
ABV-Indian Institute of Information Technology &
Management Gwalior, India
kvarya@iiitm.ac.in

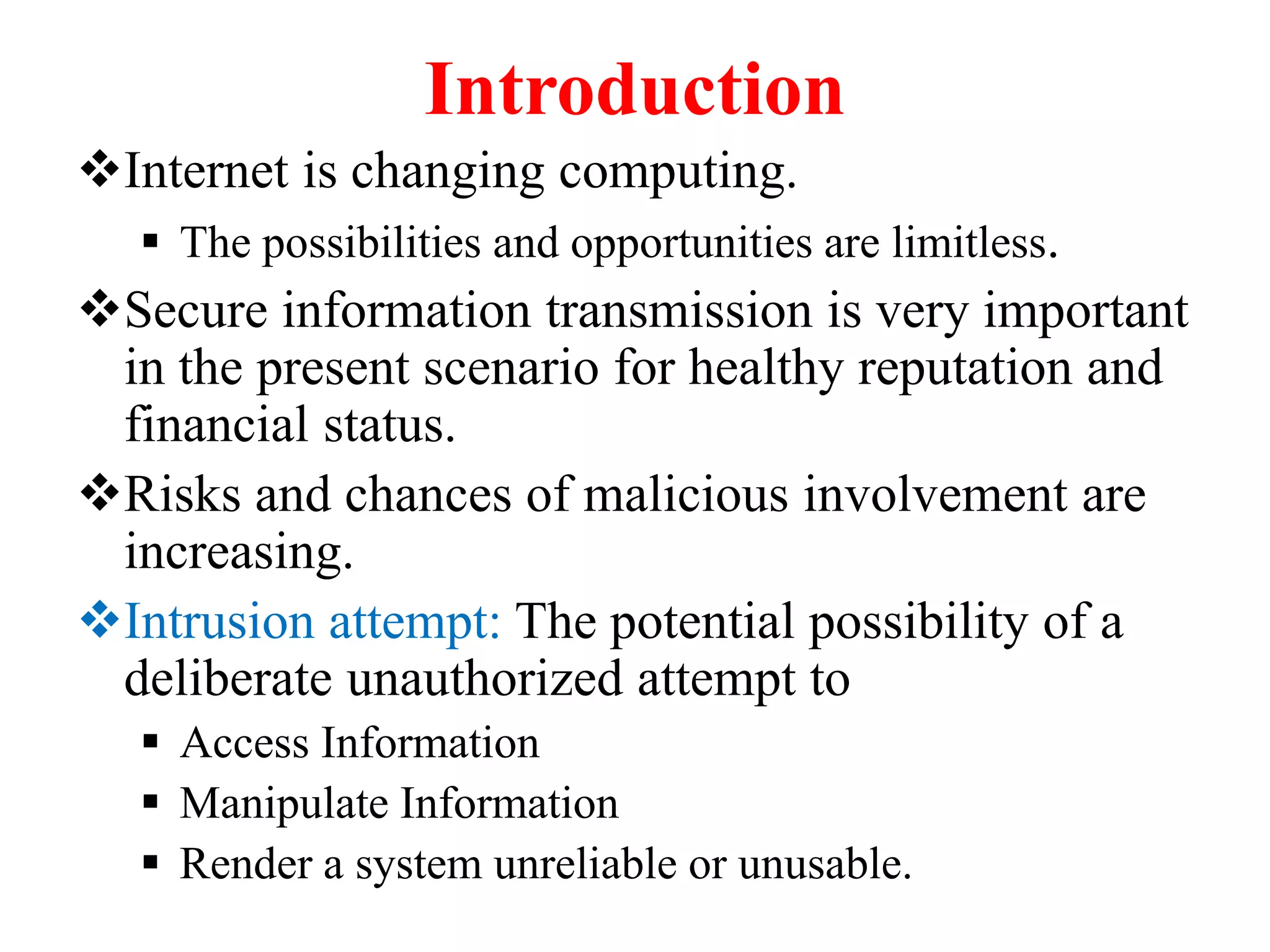

2. Introduction
Internet is changing computing.
 The possibilities and opportunities are limitless.
Secure information transmission is very important
in the present scenario for healthy reputation and
financial status.
Risks and chances of malicious involvement are
increasing.
Intrusion attempt: The potential possibility of a
deliberate unauthorized attempt to
 Access Information
 Manipulate Information
 Render a system unreliable or unusable.

3. Introduction
An Intrusion Detection system (IDS)
 Detects attacks as soon as possible and takes
appropriate action.
 Does not usually take preventive measures when
an attack is detected.
 It is a reactive rather than a pro-active agent.
 It plays a role of informant rather than a police
officer.

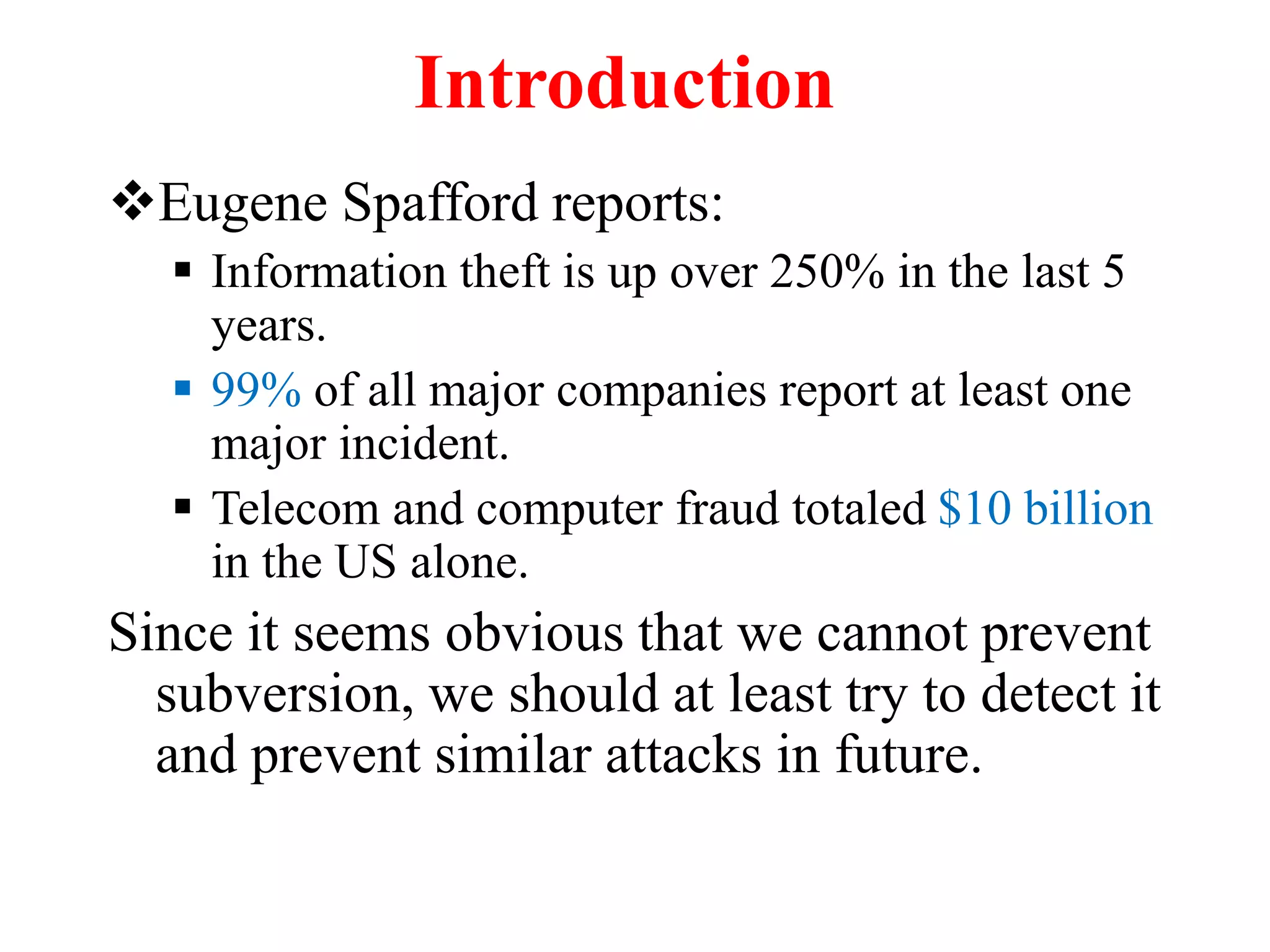

4. Introduction
Eugene Spafford reports:
 Information theft is up over 250% in the last 5
years.
 99% of all major companies report at least one
major incident.
 Telecom and computer fraud totaled $10 billion
in the US alone.
Since it seems obvious that we cannot prevent
subversion, we should at least try to detect it
and prevent similar attacks in future.

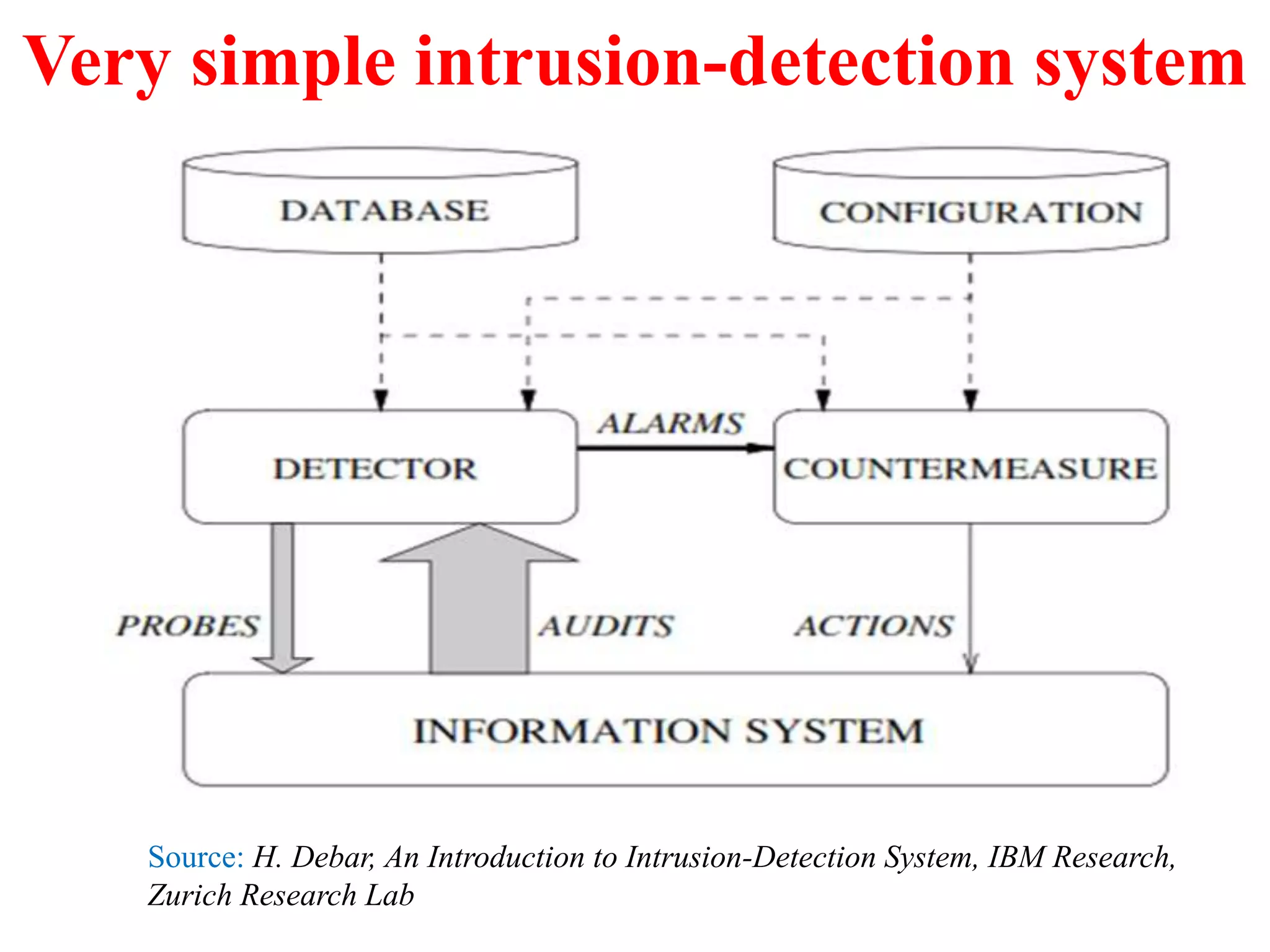

5. Very simple intrusion-detection system
Source: H. Debar, An Introduction to Intrusion-Detection System, IBM Research,
Zurich Research Lab

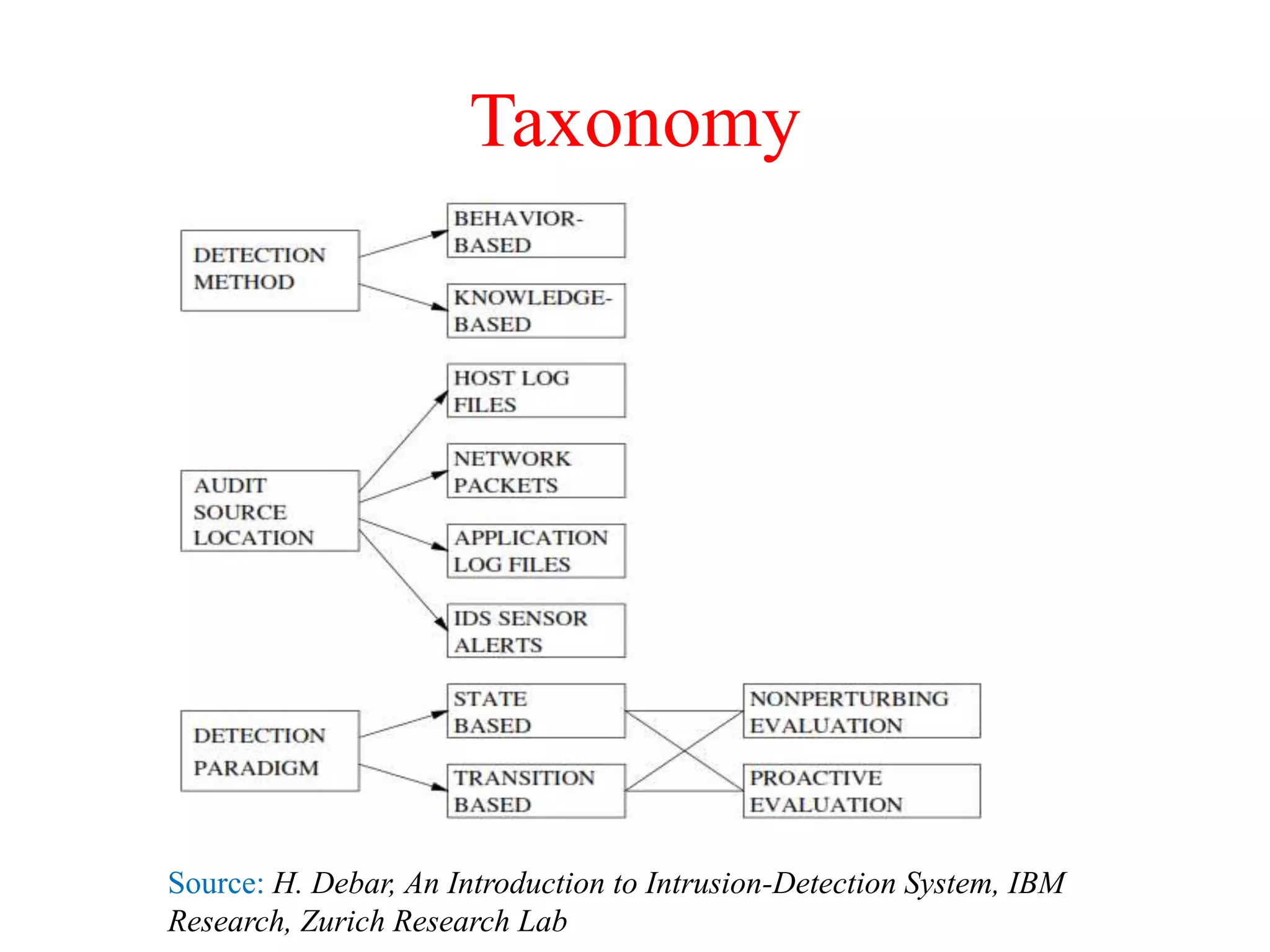

6. Taxonomy
Source: H. Debar, An Introduction to Intrusion-Detection System, IBM
Research, Zurich Research Lab

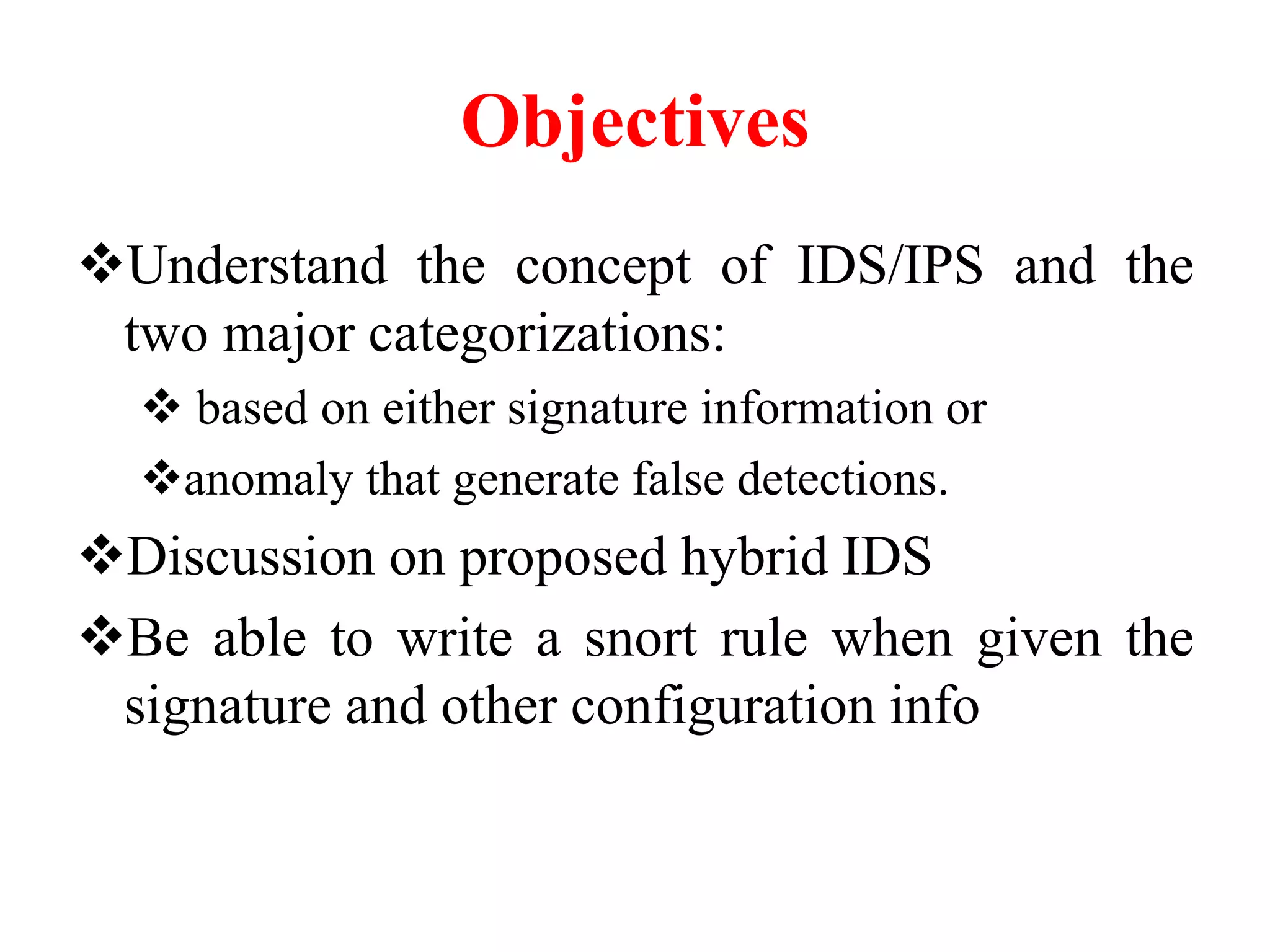

7. Objectives
Understand the concept of IDS/IPS and the
two major categorizations:
 based on either signature information or
anomaly that generate false detections.
Discussion on proposed hybrid IDS
Be able to write a snort rule when given the
signature and other configuration info

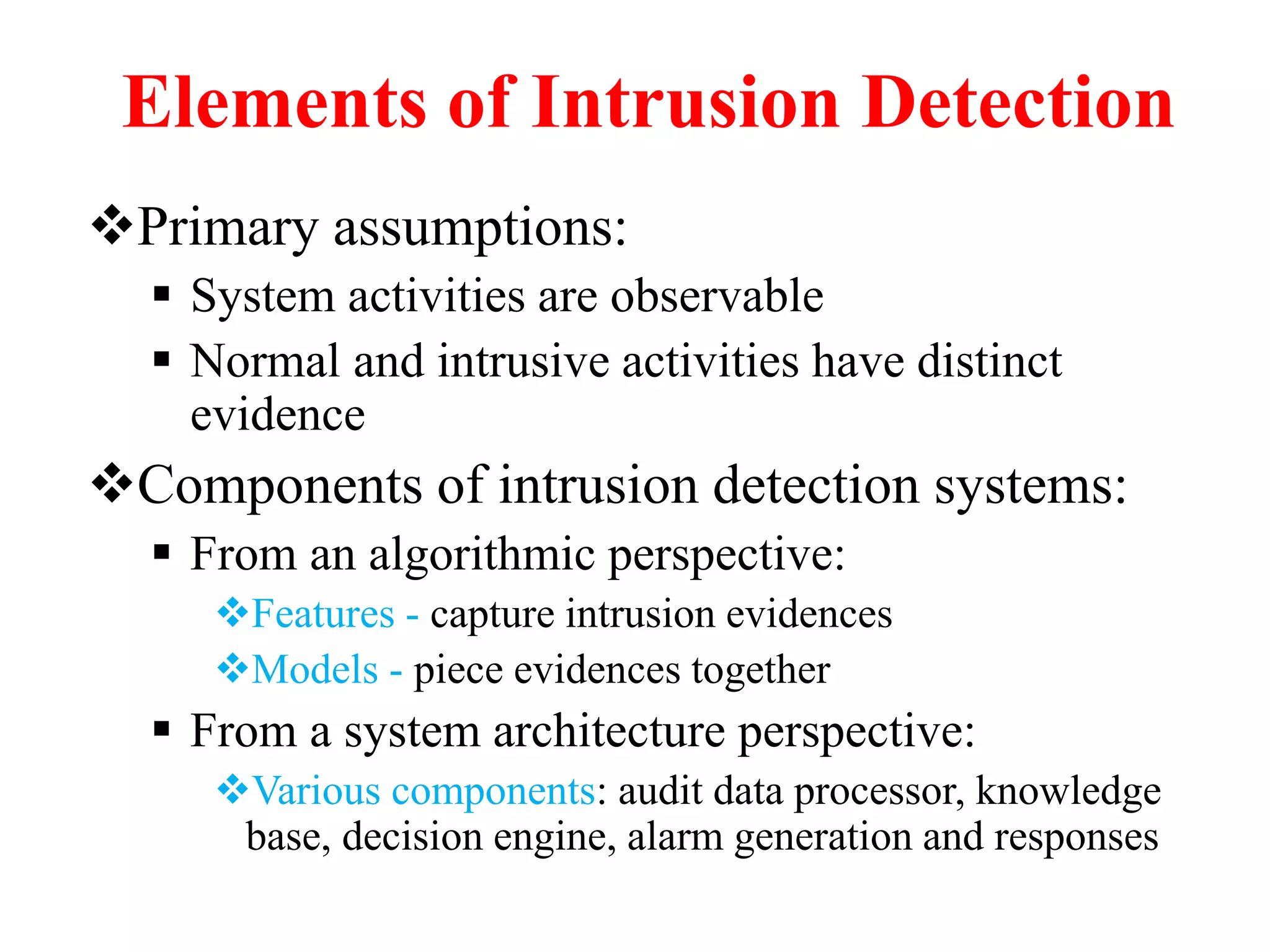

8. Elements of Intrusion Detection
Primary assumptions:
 System activities are observable
 Normal and intrusive activities have distinct
evidence
Components of intrusion detection systems:
 From an algorithmic perspective:
Features - capture intrusion evidences
Models - piece evidences together
 From a system architecture perspective:
Various components: audit data processor, knowledge
base, decision engine, alarm generation and responses

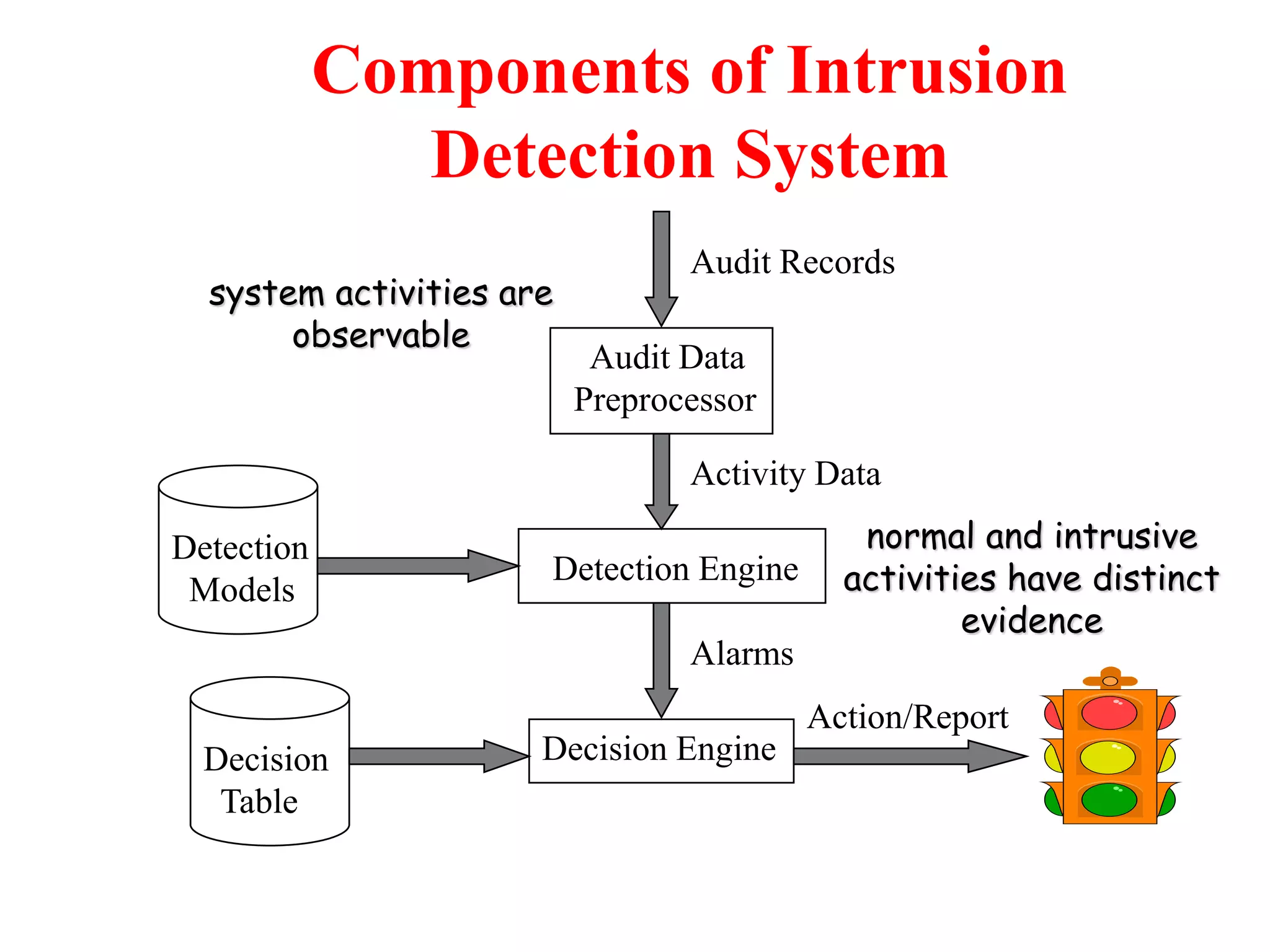

9. Components of Intrusion
Detection System
Audit Data
Preprocessor
Audit Records
Activity Data
Detection
Models
Detection Engine
Alarms
Decision
Table
Decision Engine
Action/Report
system activities are
observable
normal and intrusive
activities have distinct
evidence

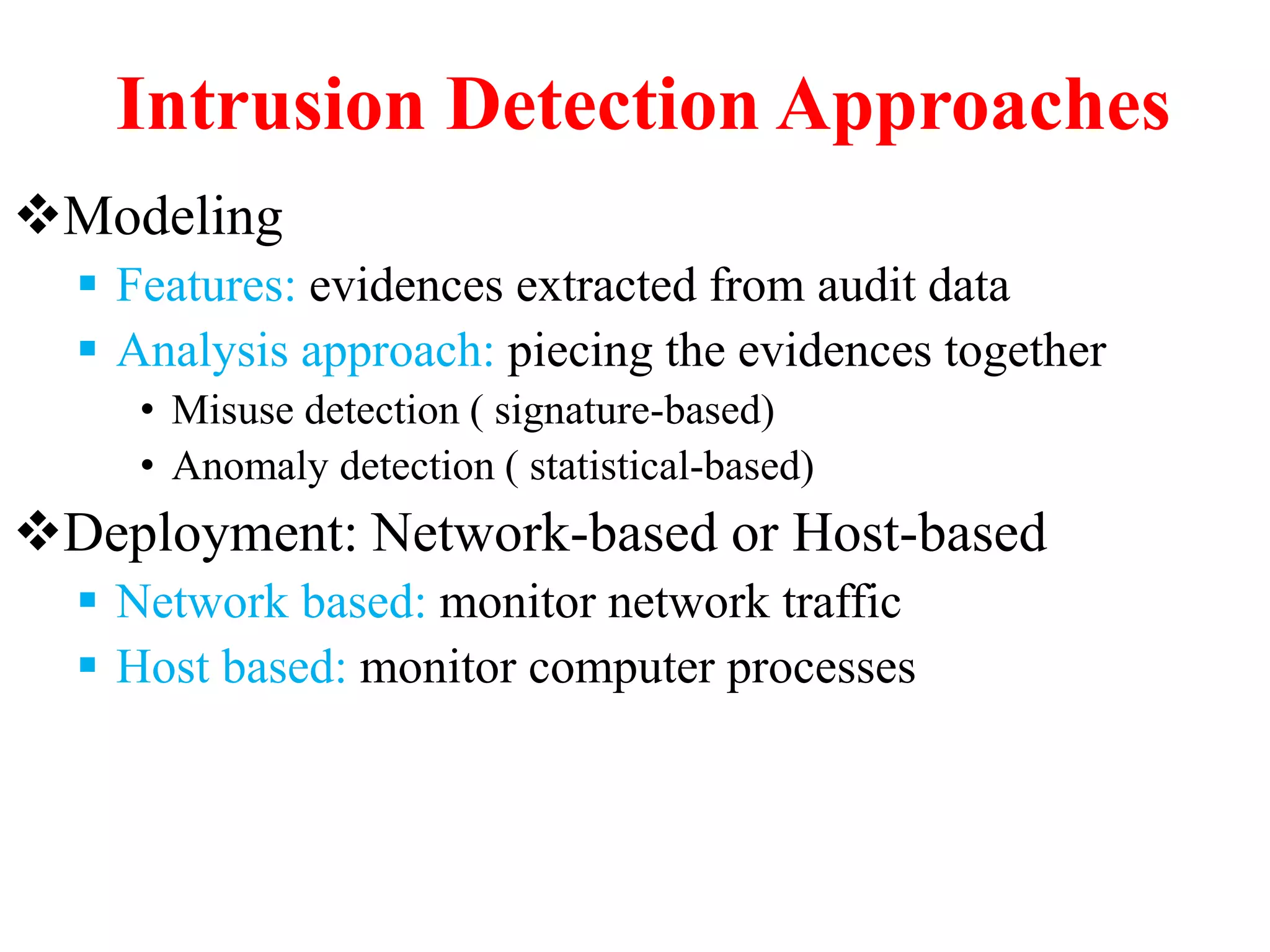

10. Intrusion Detection Approaches
Modeling
 Features: evidences extracted from audit data
 Analysis approach: piecing the evidences together
• Misuse detection ( signature-based)
• Anomaly detection ( statistical-based)
Deployment: Network-based or Host-based
 Network based: monitor network traffic
 Host based: monitor computer processes

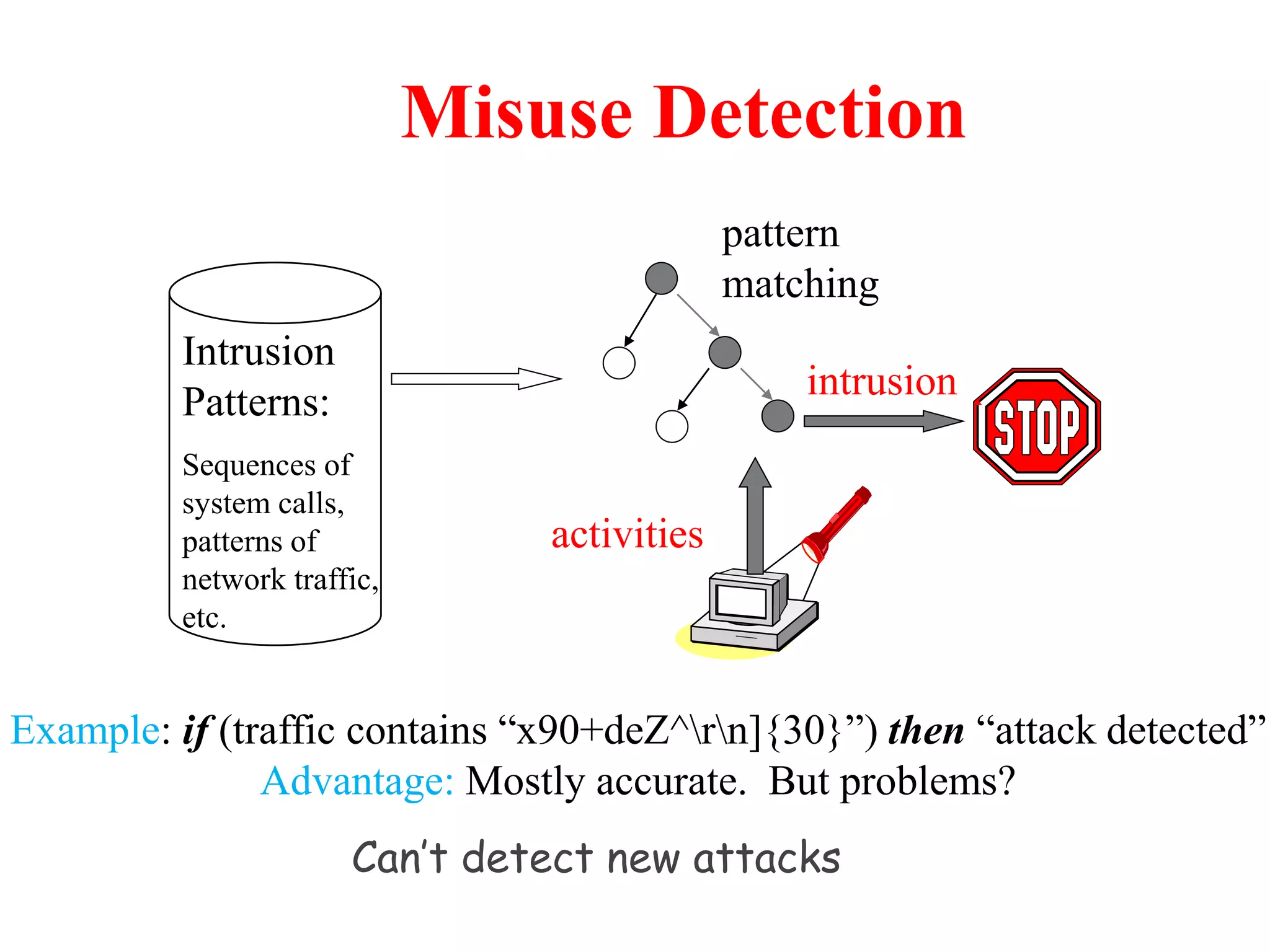

11. Misuse Detection
Intrusion
Patterns:
Sequences of
system calls,
patterns of
network traffic,
etc.
activities
pattern
matching
intrusion
Can’t detect new attacks
Example: if (traffic contains “x90+deZ^rn]{30}”) then “attack detected”
Advantage: Mostly accurate. But problems?

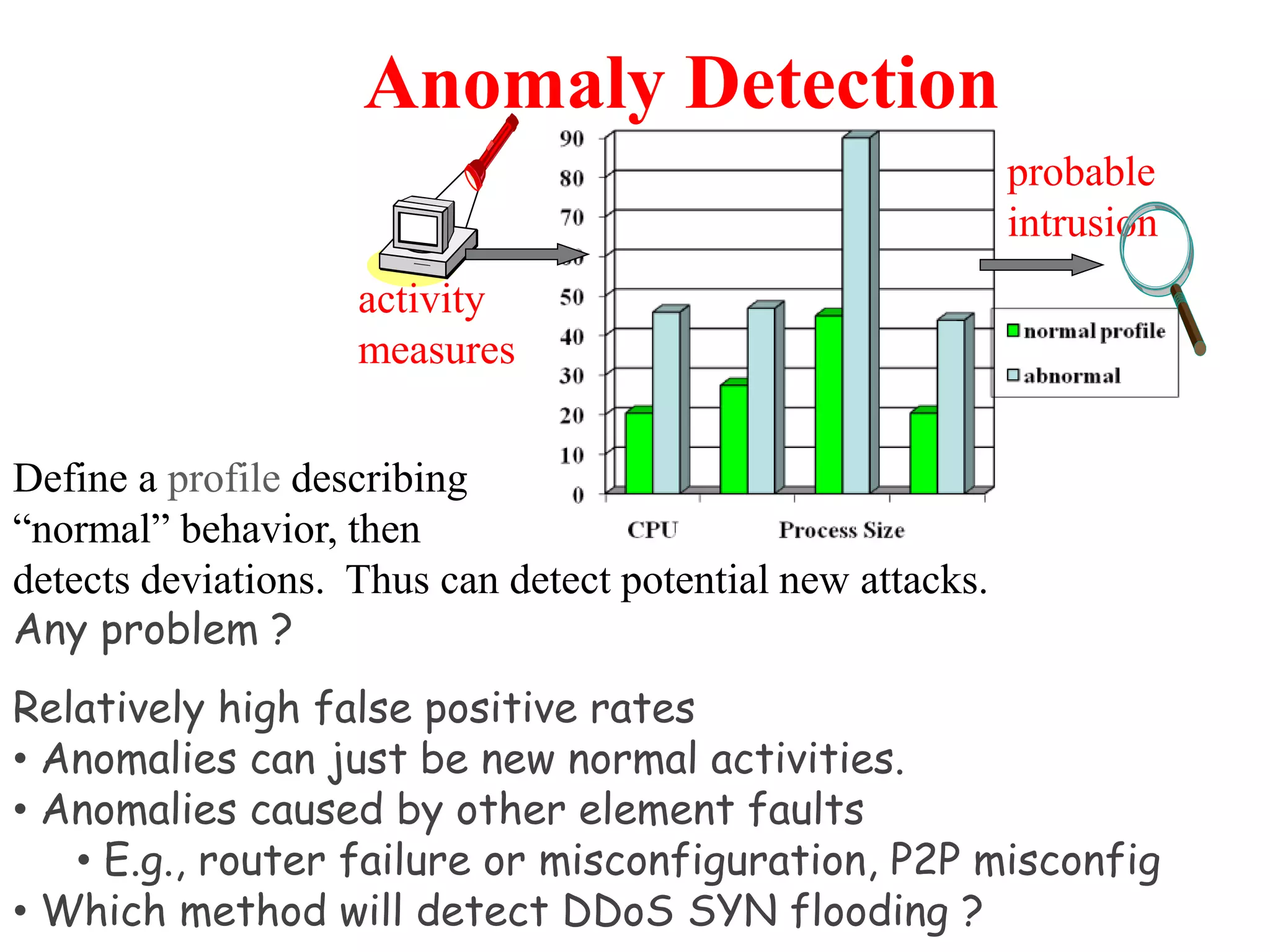

12. Anomaly Detection
activity
measures
probable
intrusion
Relatively high false positive rates
• Anomalies can just be new normal activities.
• Anomalies caused by other element faults
• E.g., router failure or misconfiguration, P2P misconfig
• Which method will detect DDoS SYN flooding ?
Define a profile describing
“normal” behavior, then
detects deviations. Thus can detect potential new attacks.
Any problem ?

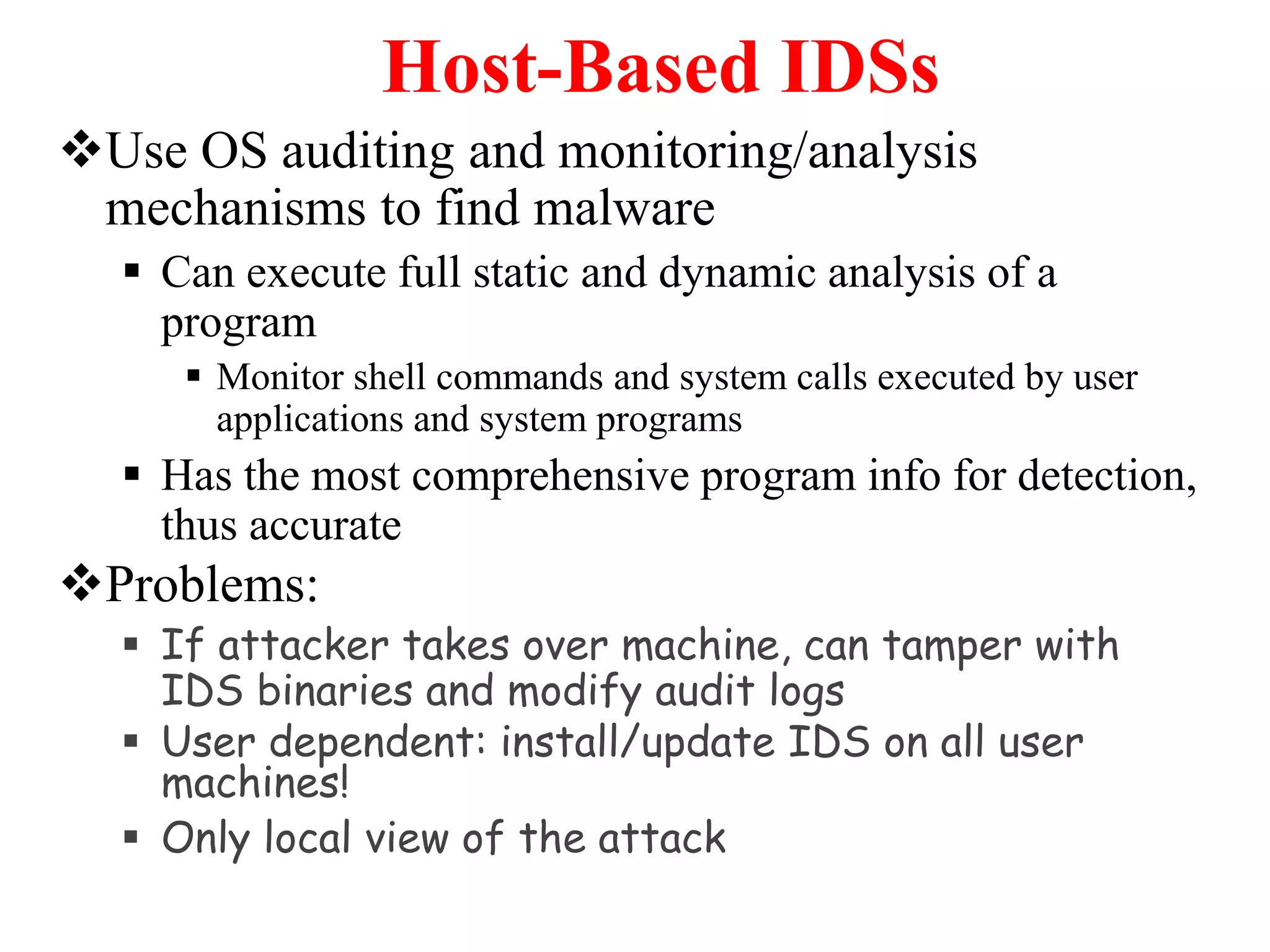

13. Host-Based IDSs
Use OS auditing and monitoring/analysis
mechanisms to find malware
 Can execute full static and dynamic analysis of a
program
 Monitor shell commands and system calls executed by user
applications and system programs
 Has the most comprehensive program info for detection,
thus accurate
Problems:
 If attacker takes over machine, can tamper with
IDS binaries and modify audit logs
 User dependent: install/update IDS on all user
machines!
 Only local view of the attack

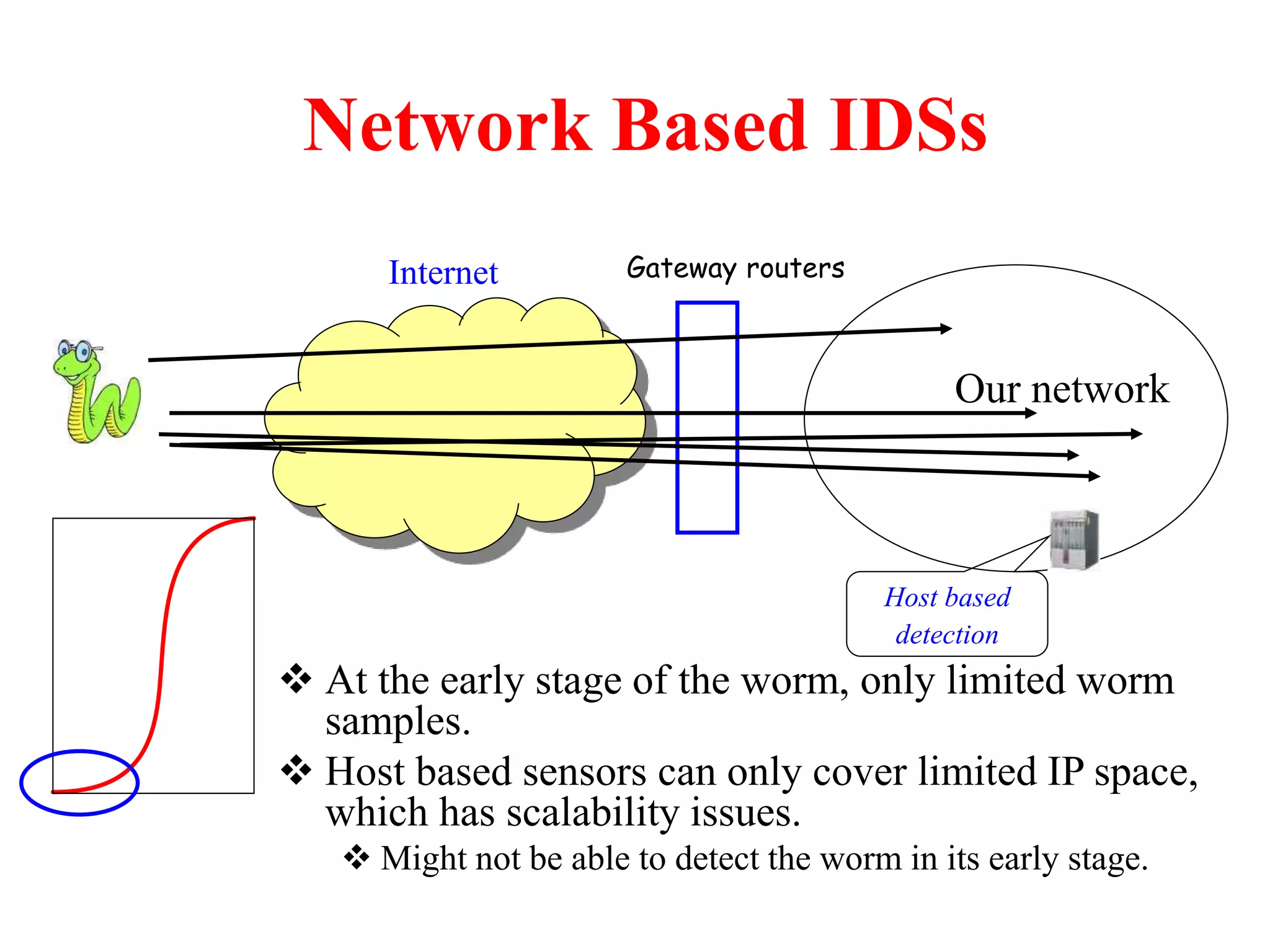

14. Network Based IDSs
 At the early stage of the worm, only limited worm
samples.
 Host based sensors can only cover limited IP space,
which has scalability issues.
 Might not be able to detect the worm in its early stage.
Gateway routers
Internet
Our network
Host based
detection

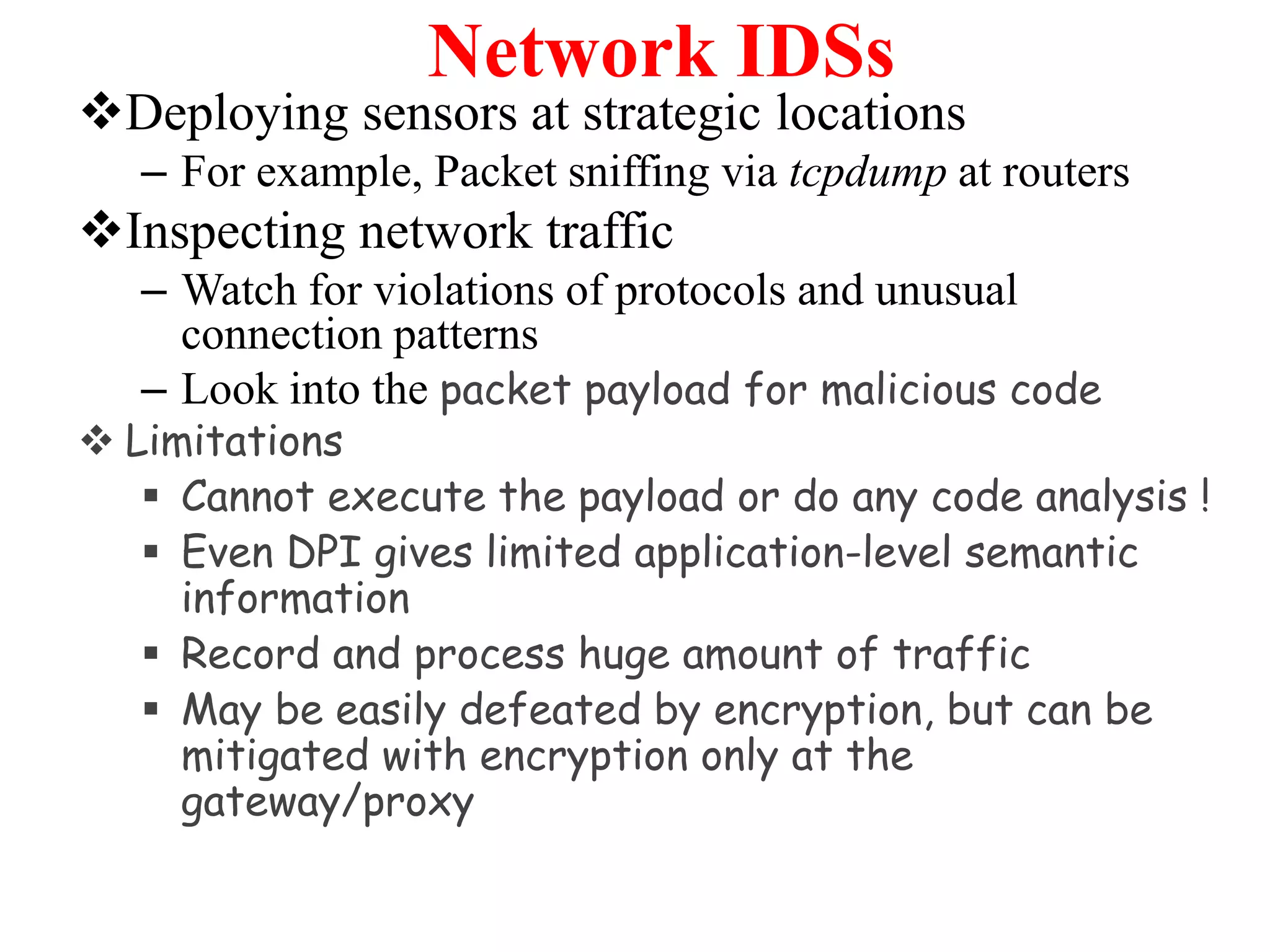

15. Network IDSs
Deploying sensors at strategic locations
– For example, Packet sniffing via tcpdump at routers
Inspecting network traffic
– Watch for violations of protocols and unusual
connection patterns
– Look into the packet payload for malicious code
 Limitations
 Cannot execute the payload or do any code analysis !
 Even DPI gives limited application-level semantic
information
 Record and process huge amount of traffic
 May be easily defeated by encryption, but can be
mitigated with encryption only at the
gateway/proxy

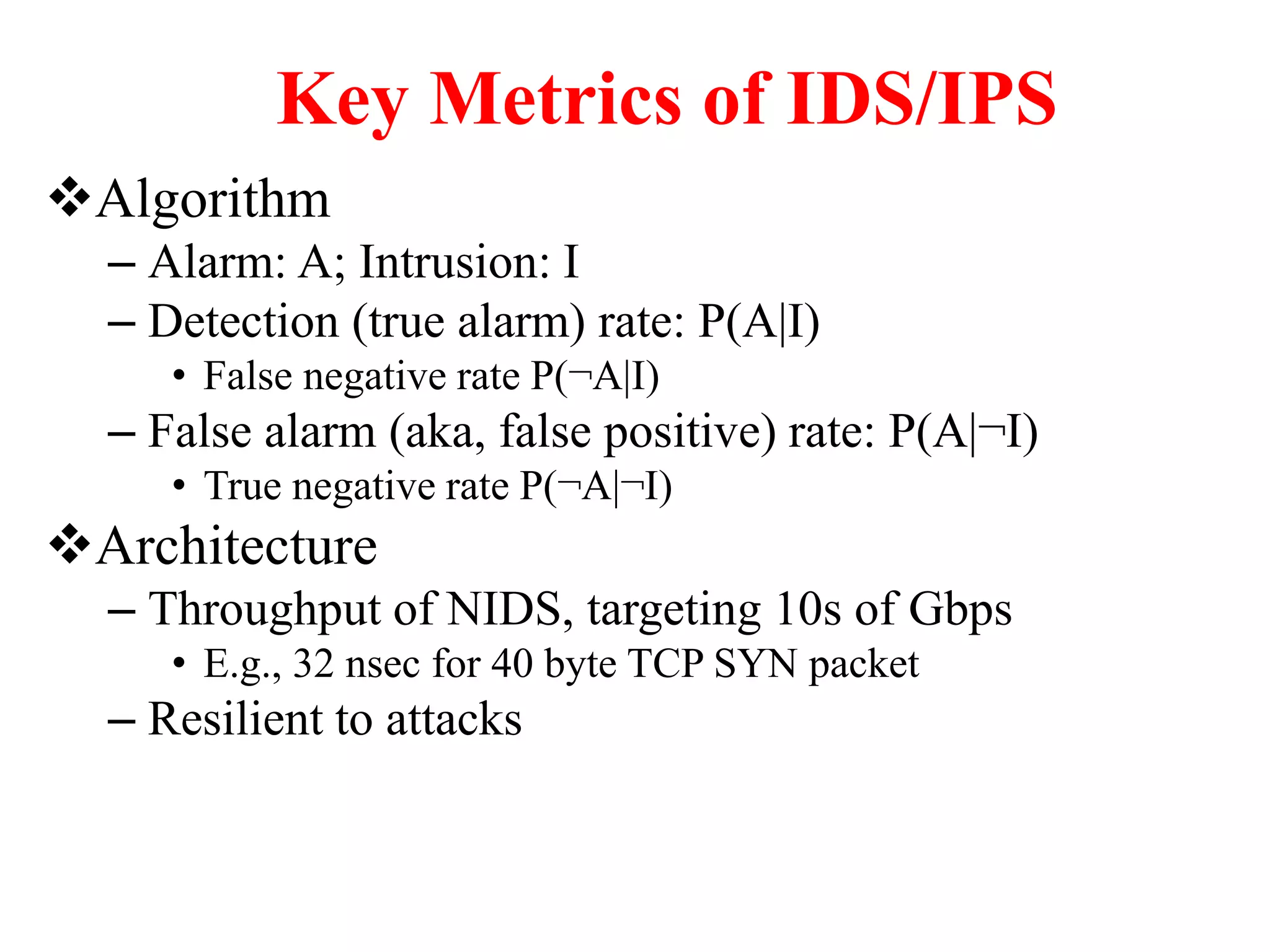

16. Key Metrics of IDS/IPS
Algorithm
– Alarm: A; Intrusion: I
– Detection (true alarm) rate: P(A|I)
• False negative rate P(¬A|I)
– False alarm (aka, false positive) rate: P(A|¬I)
• True negative rate P(¬A|¬I)
Architecture
– Throughput of NIDS, targeting 10s of Gbps
• E.g., 32 nsec for 40 byte TCP SYN packet
– Resilient to attacks

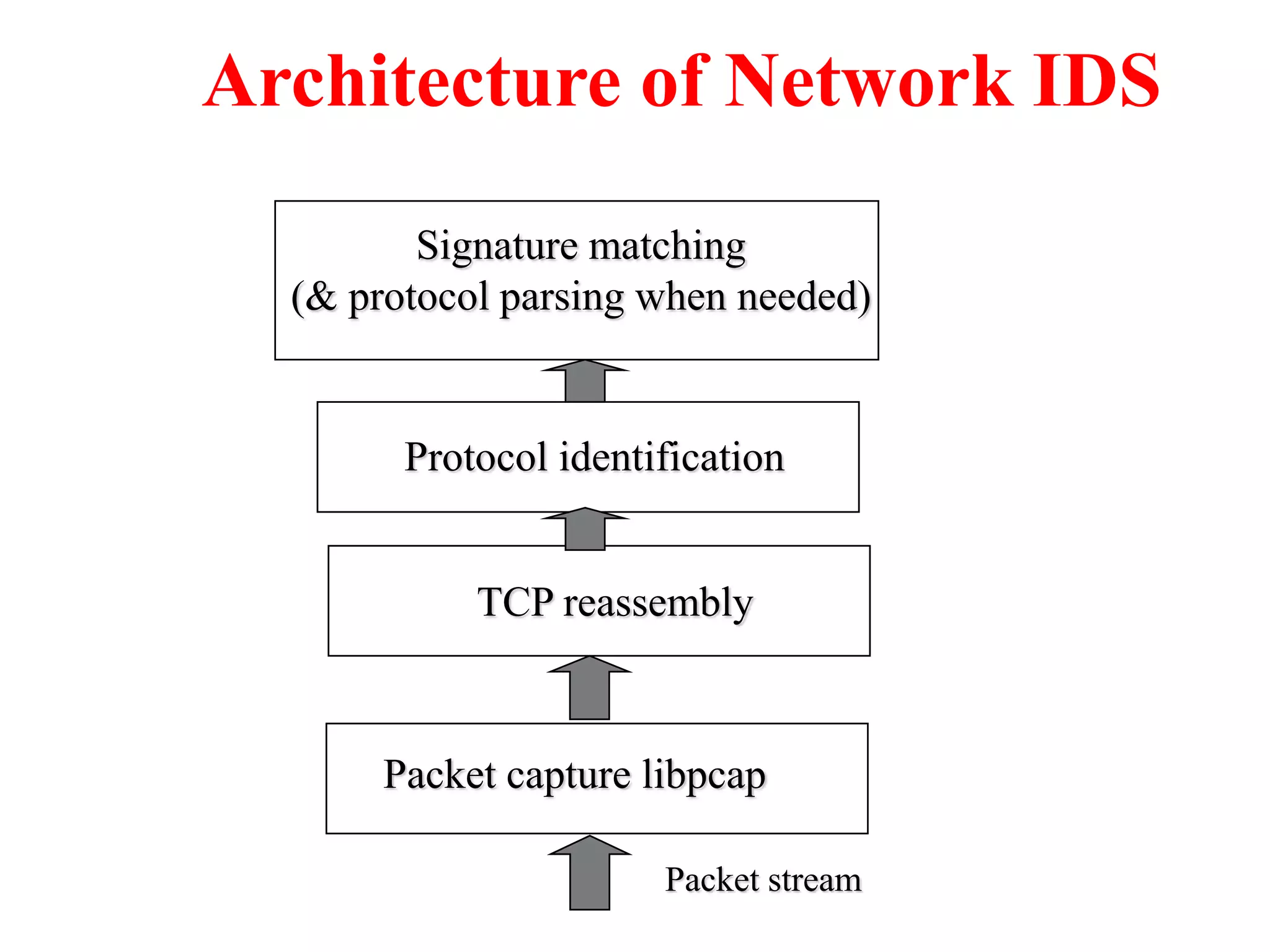

17. Architecture of Network IDS
Packet capture libpcap
TCP reassembly
Protocol identification
Packet stream
Signature matching
(& protocol parsing when needed)

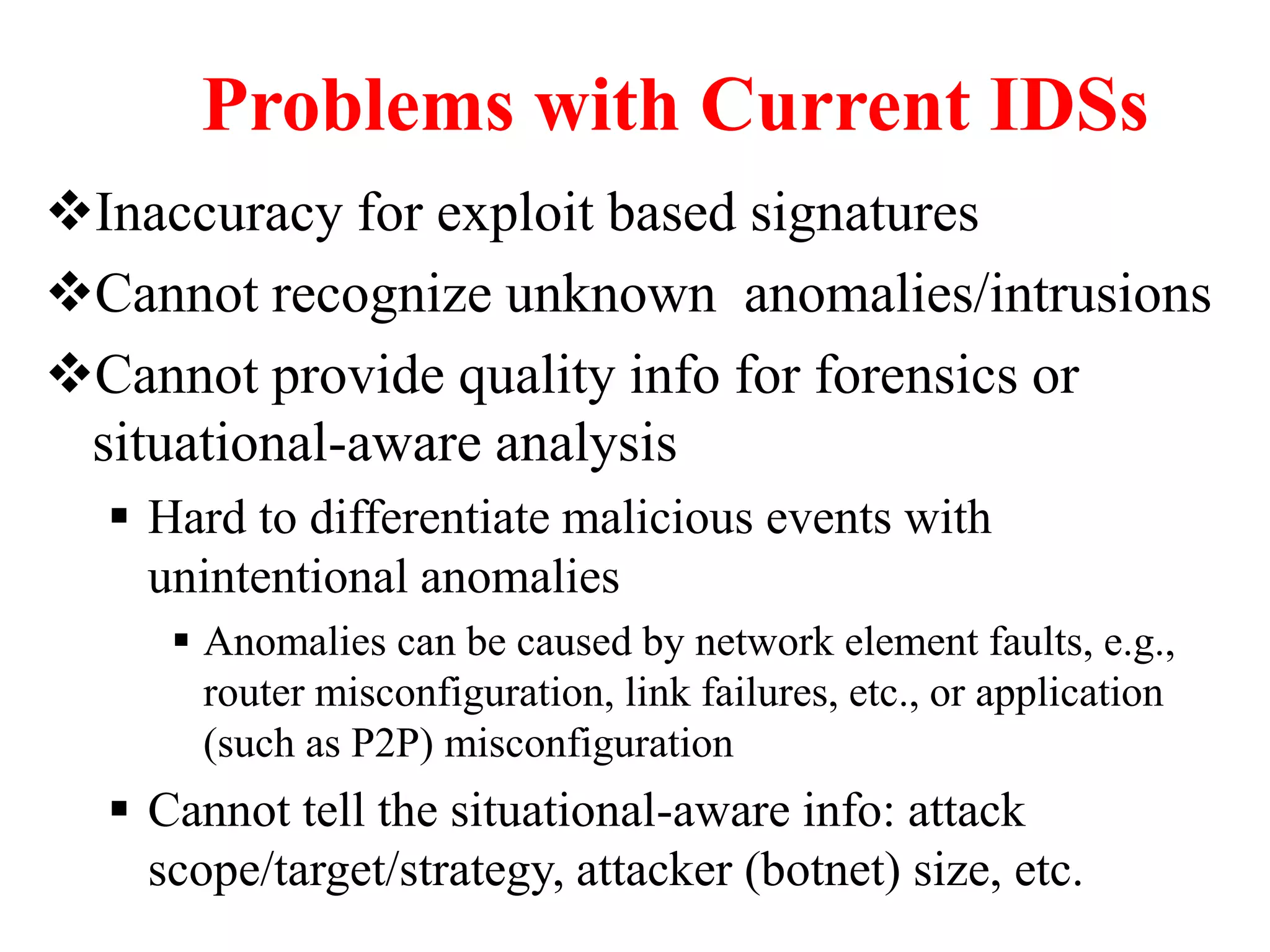

18. Problems with Current IDSs
Inaccuracy for exploit based signatures
Cannot recognize unknown anomalies/intrusions
Cannot provide quality info for forensics or
situational-aware analysis
 Hard to differentiate malicious events with
unintentional anomalies
 Anomalies can be caused by network element faults, e.g.,
router misconfiguration, link failures, etc., or application
(such as P2P) misconfiguration
 Cannot tell the situational-aware info: attack
scope/target/strategy, attacker (botnet) size, etc.

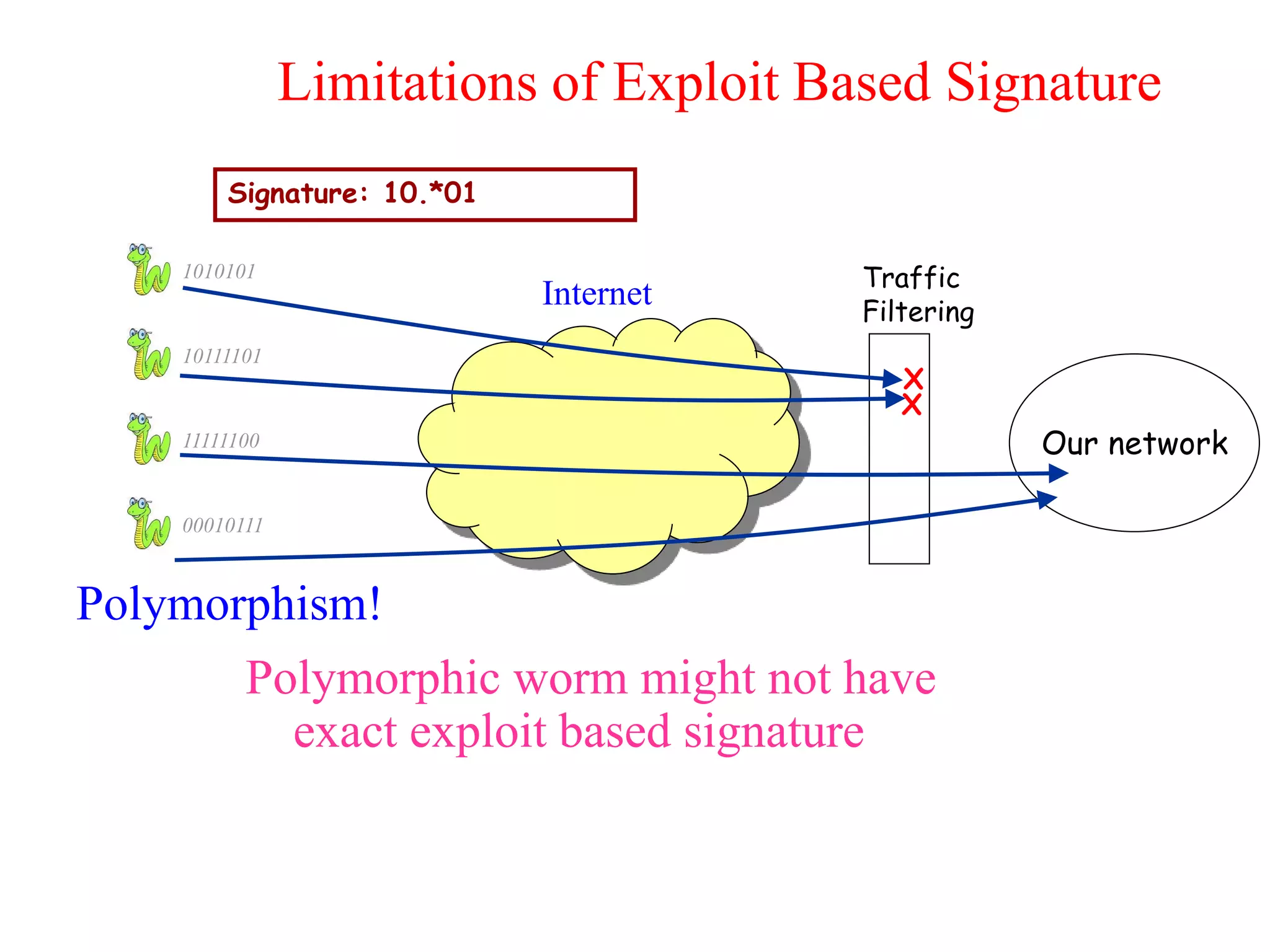

19. Limitations of Exploit Based Signature
1010101
10111101
11111100
00010111
Our network
Traffic
Filtering
Internet
Signature: 10.*01
X
X
Polymorphic worm might not have
exact exploit based signature
Polymorphism!

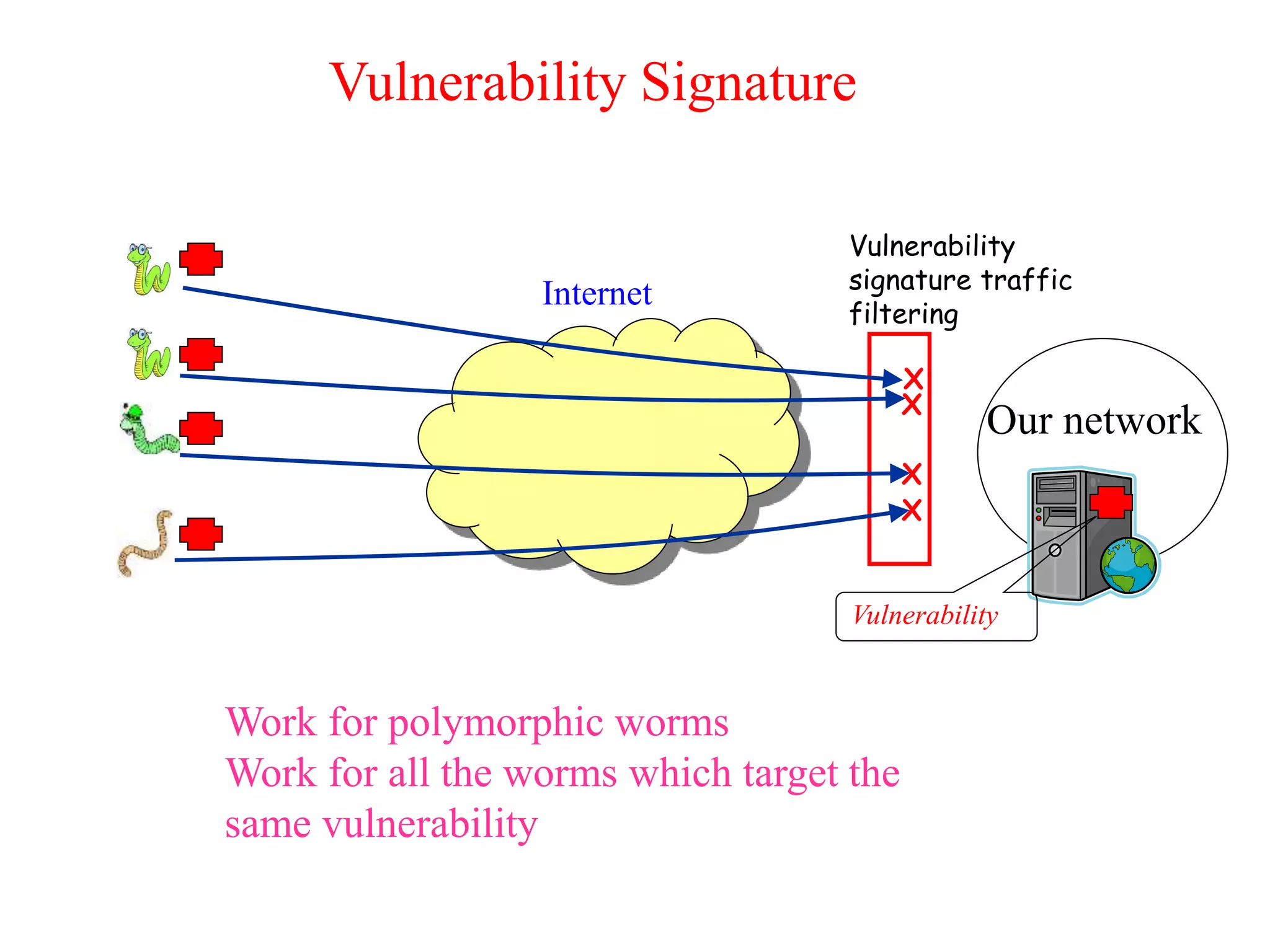

20. Vulnerability Signature
Work for polymorphic worms
Work for all the worms which target the
same vulnerability
Vulnerability
signature traffic
filtering
Internet
X
X
Our network
Vulnerability
X
X

21. Example of Vulnerability Signatures
 At least 75% vulnerabilities are
due to buffer overflow
 Sample vulnerability signature
 Field length corresponding to
vulnerable buffer > certain
threshold
 Intrinsic to buffer overflow
vulnerability and hard to evade Vulnerable
buffer
Protocol message
Overflow!

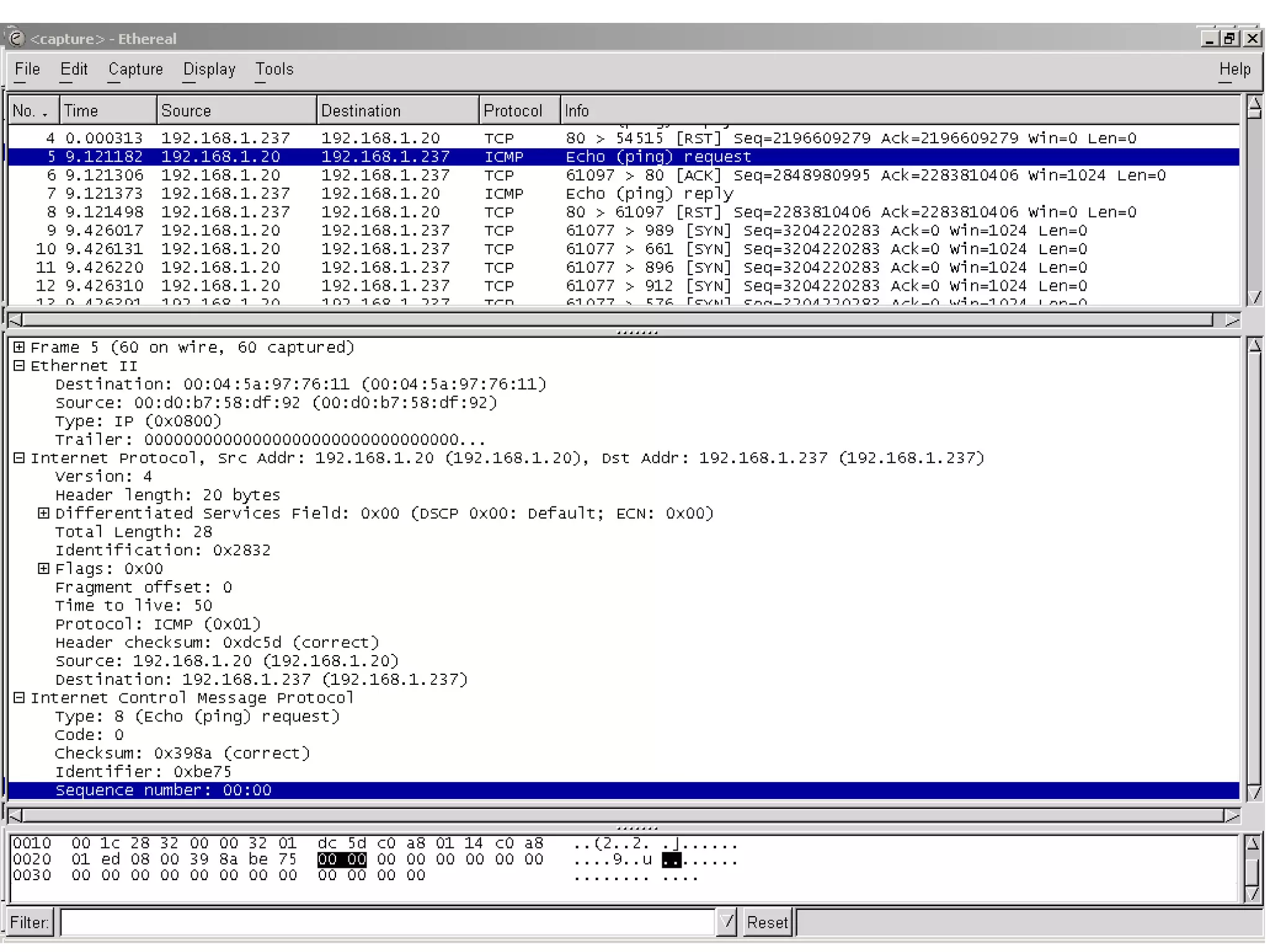

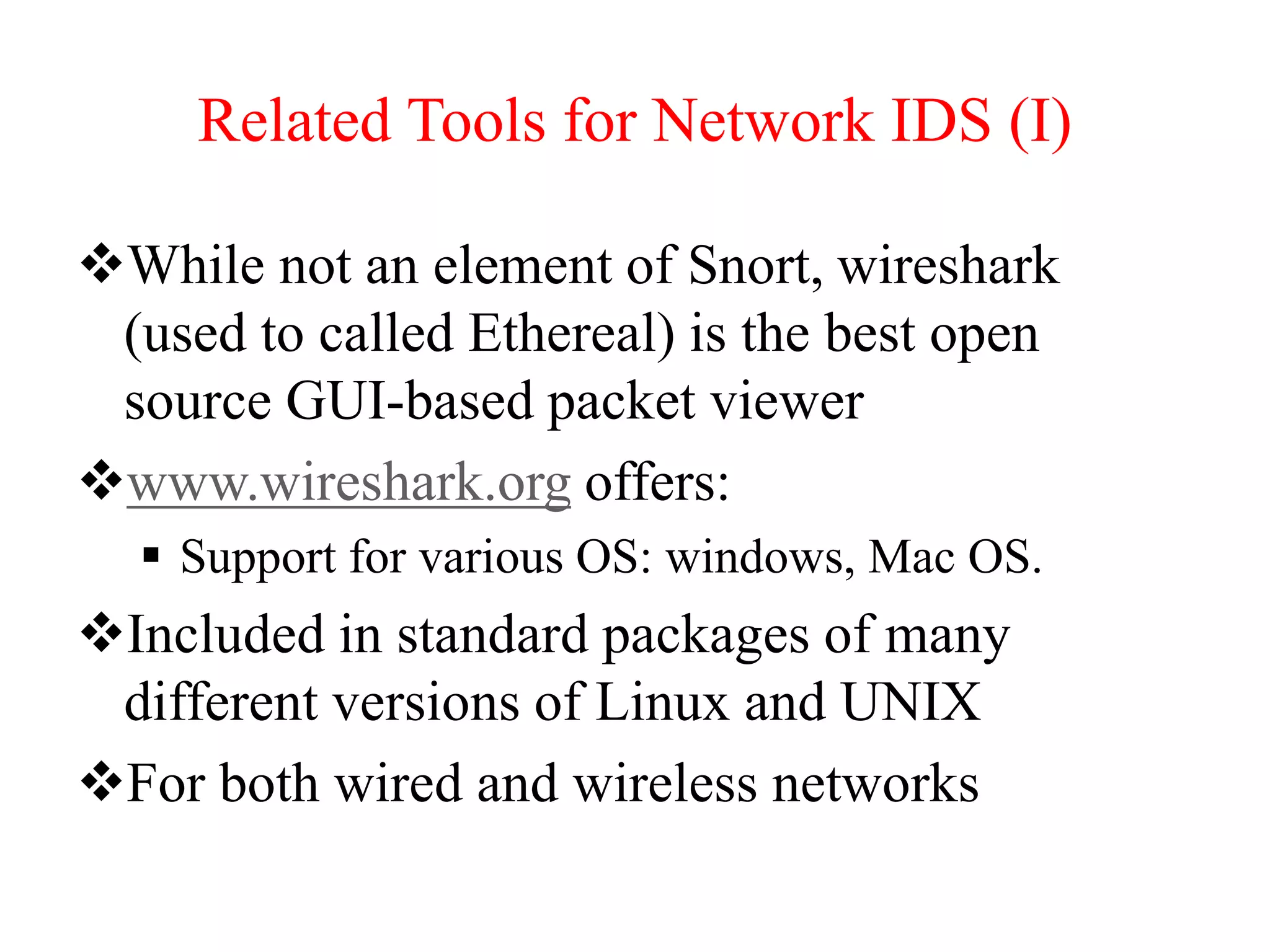

22. Related Tools for Network IDS (I)
While not an element of Snort, wireshark
(used to called Ethereal) is the best open
source GUI-based packet viewer
www.wireshark.org offers:
 Support for various OS: windows, Mac OS.
Included in standard packages of many
different versions of Linux and UNIX
For both wired and wireless networks

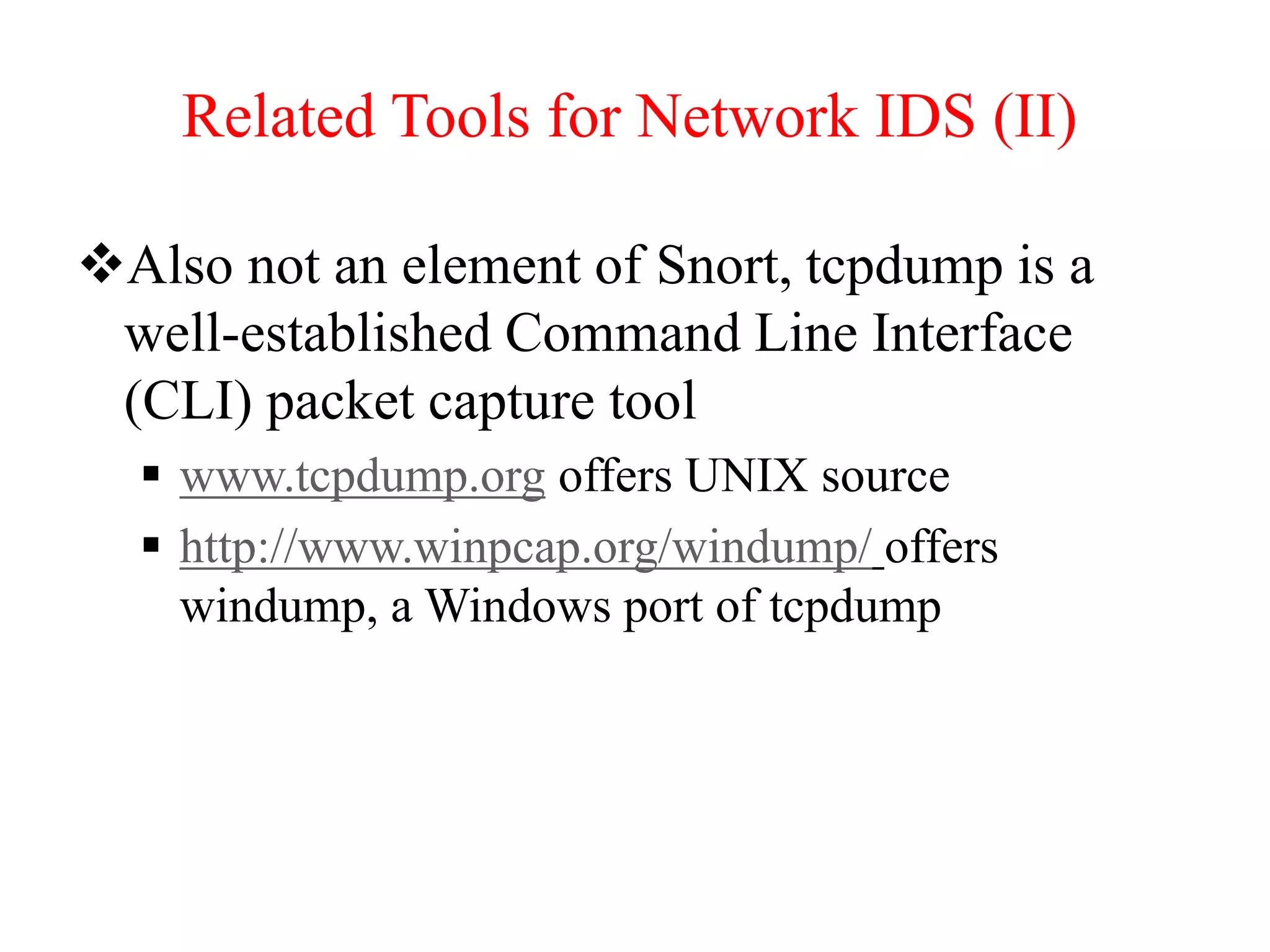

24. Related Tools for Network IDS (II)
Also not an element of Snort, tcpdump is a
well-established Command Line Interface
(CLI) packet capture tool
 www.tcpdump.org offers UNIX source
 http://www.winpcap.org/windump/ offers
windump, a Windows port of tcpdump

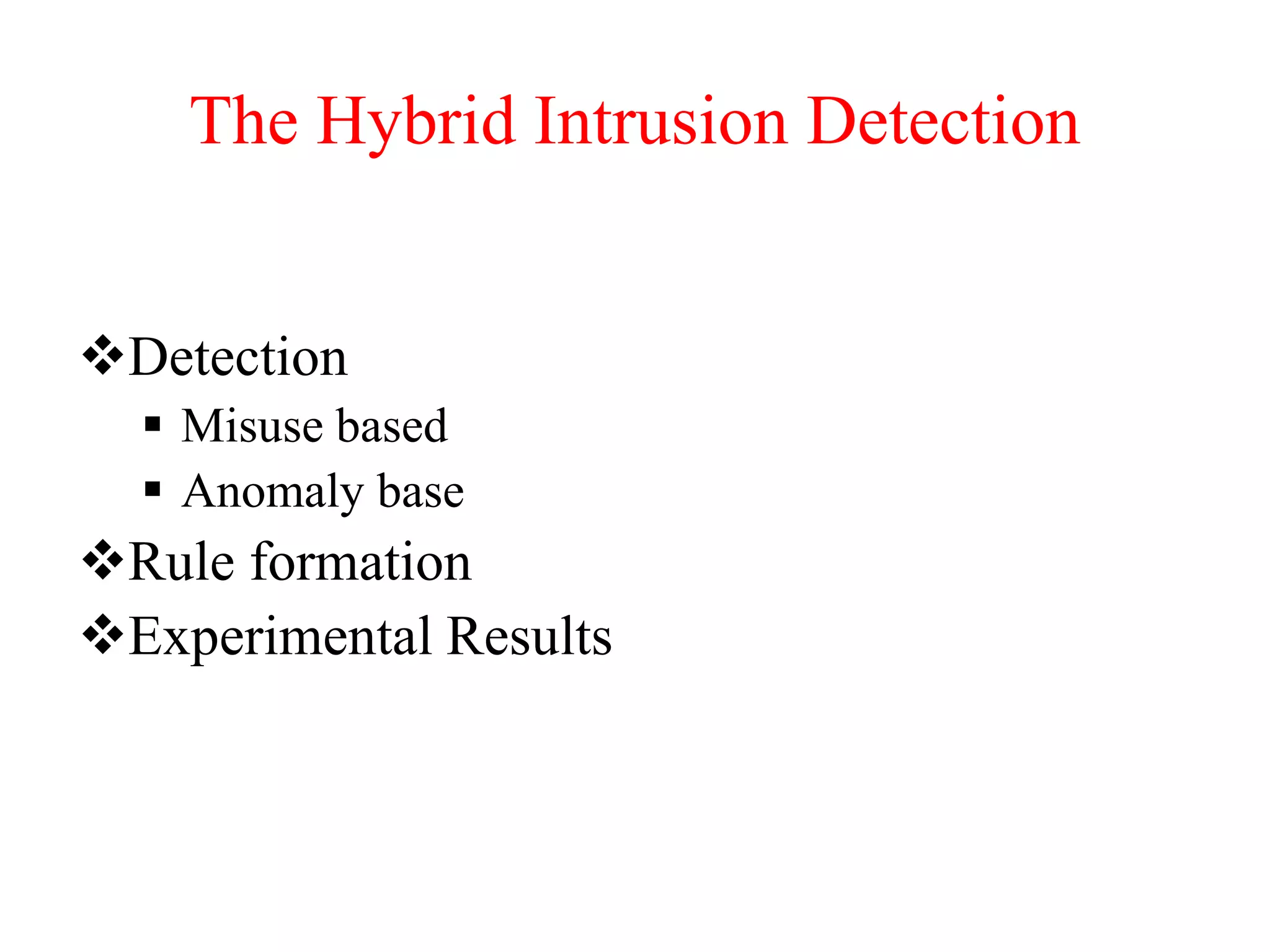

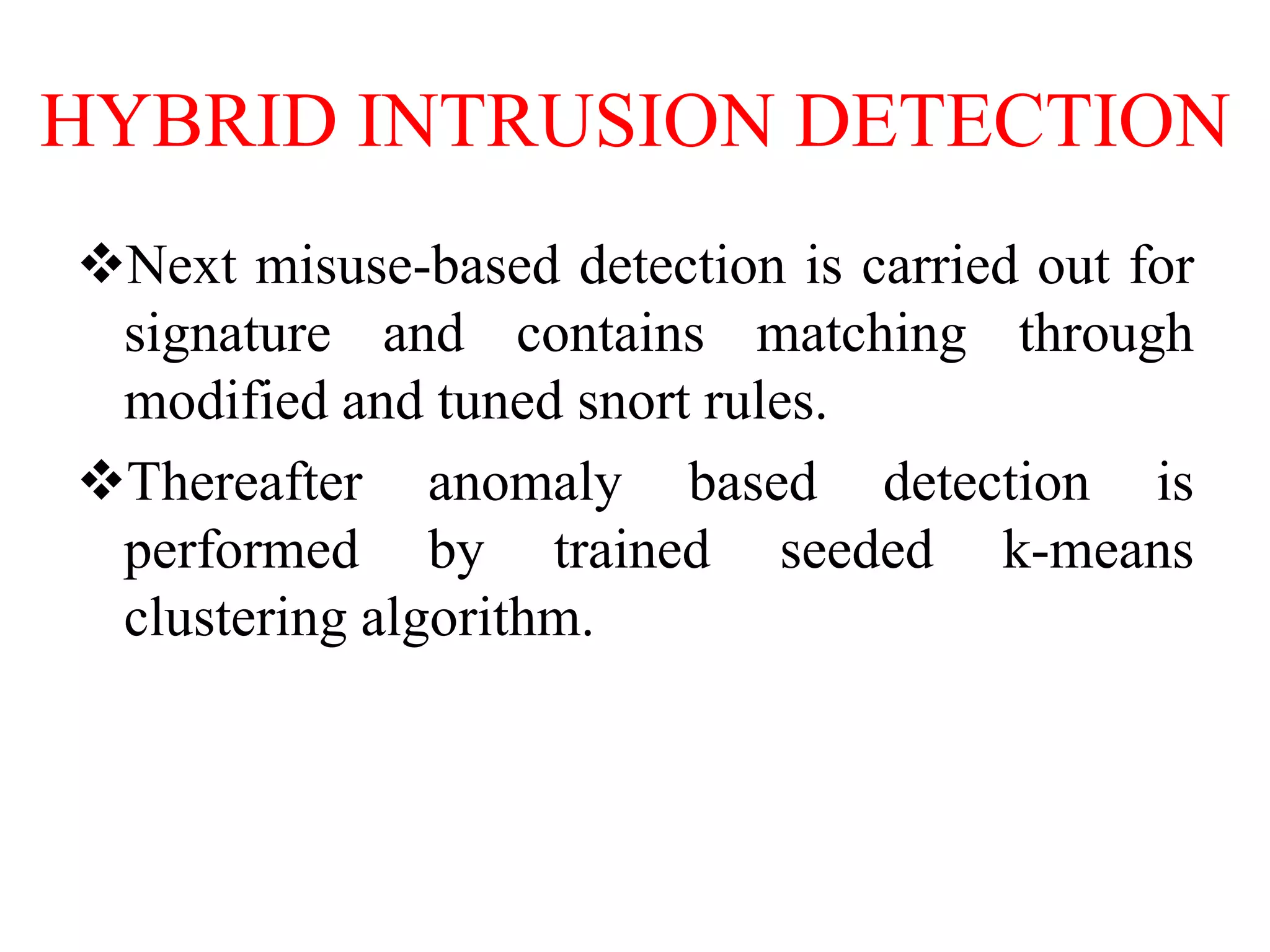

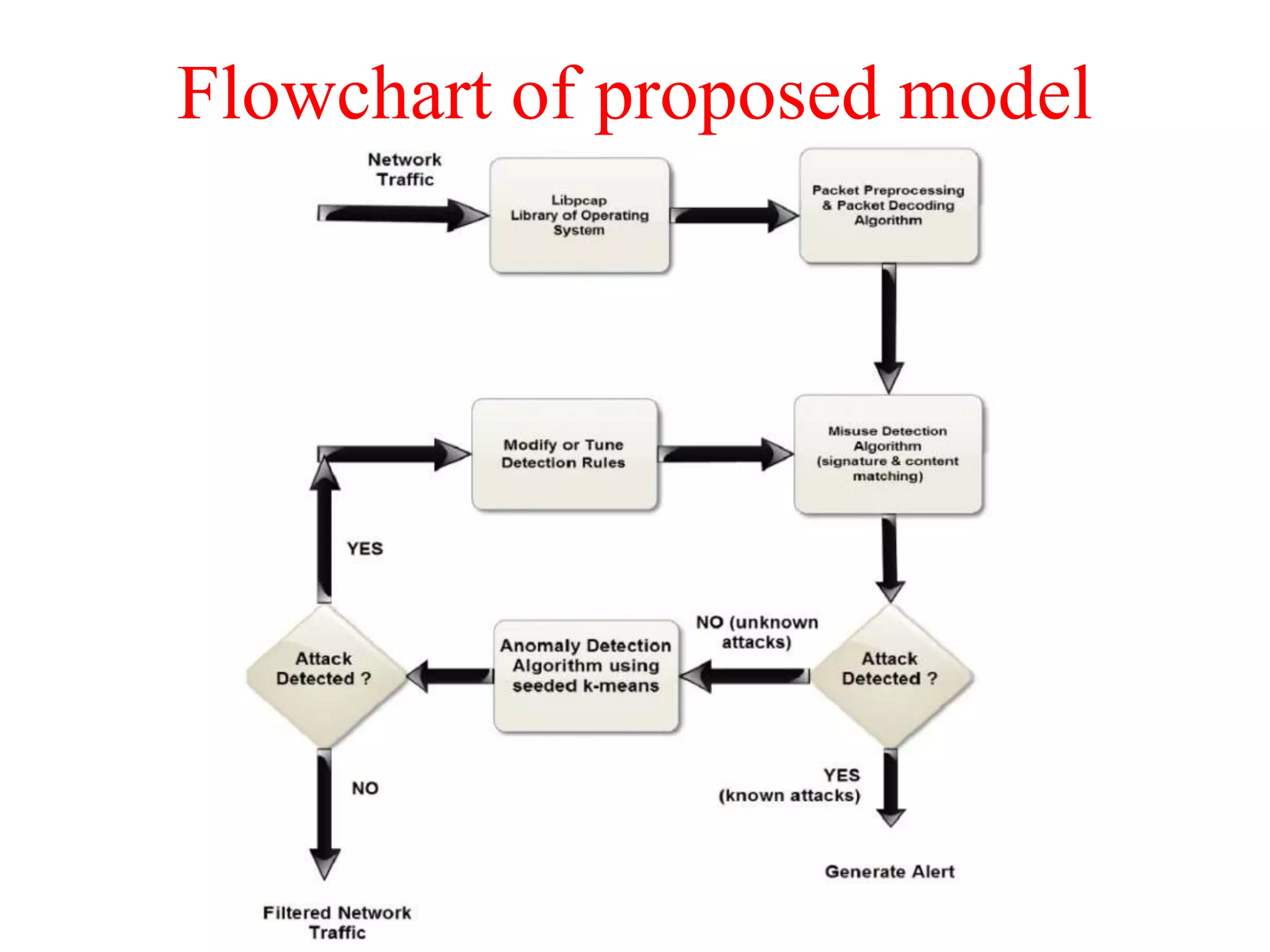

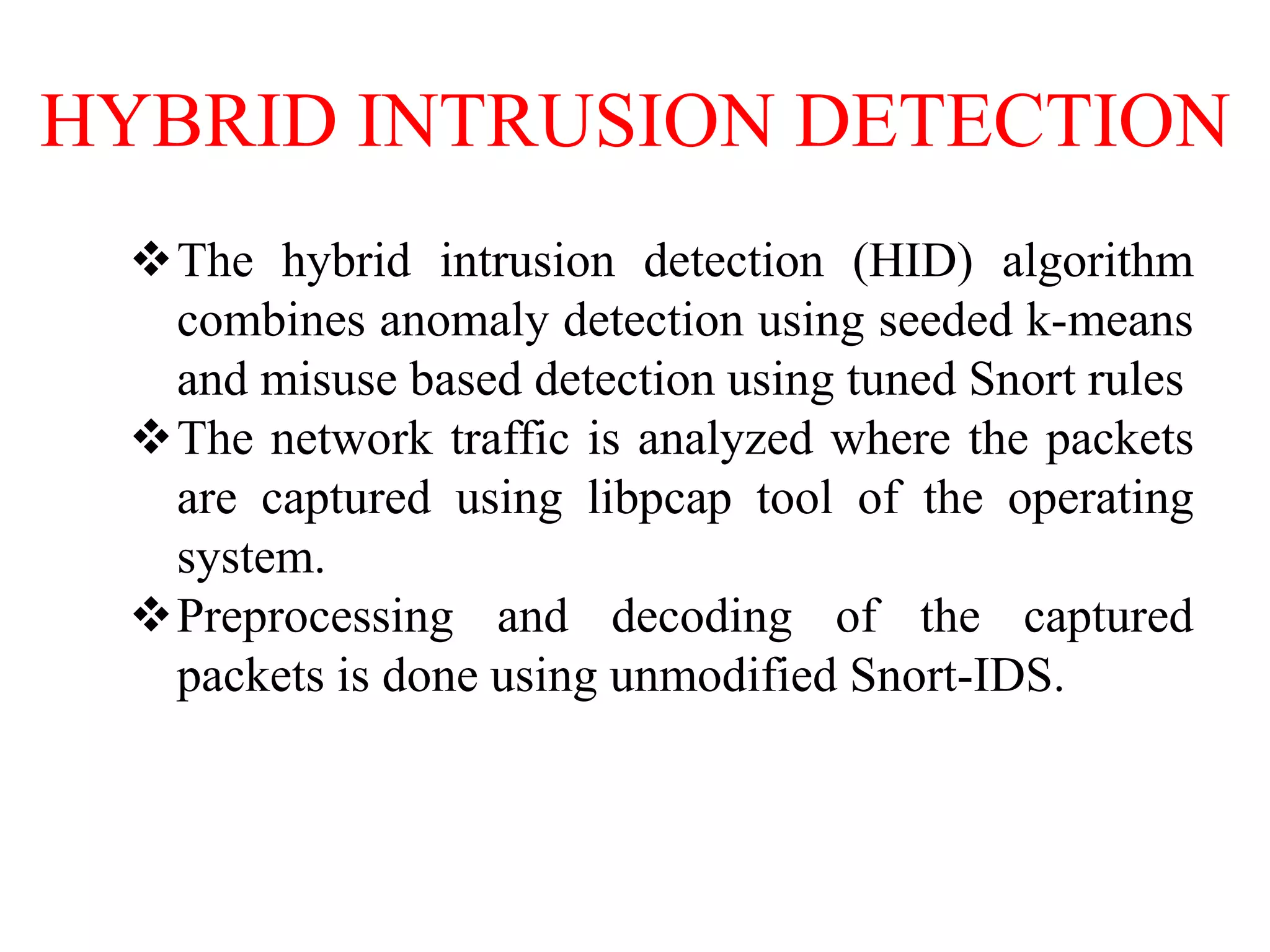

25. The Hybrid Intrusion Detection
Detection
 Misuse based
 Anomaly base

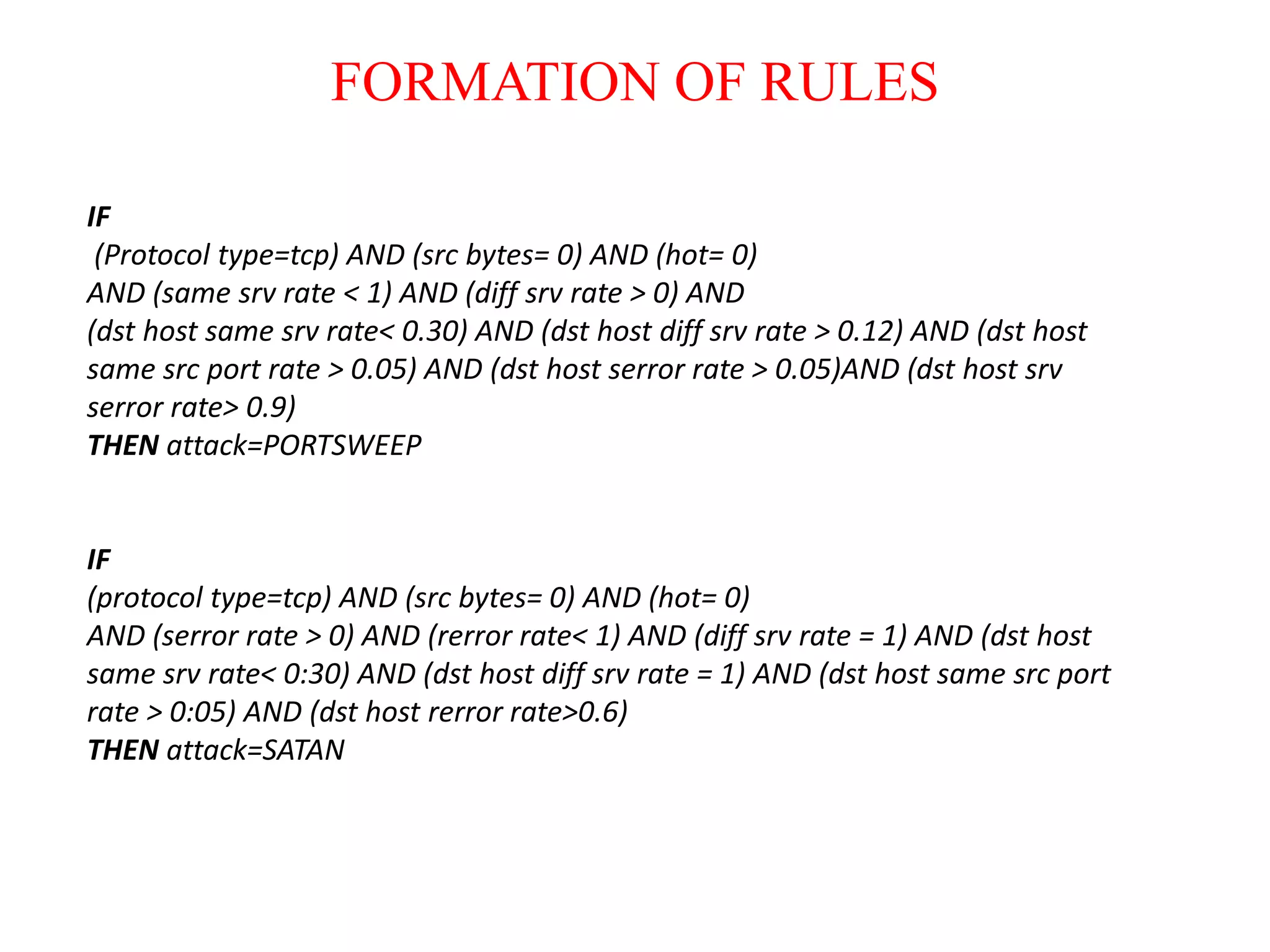

Rule formation

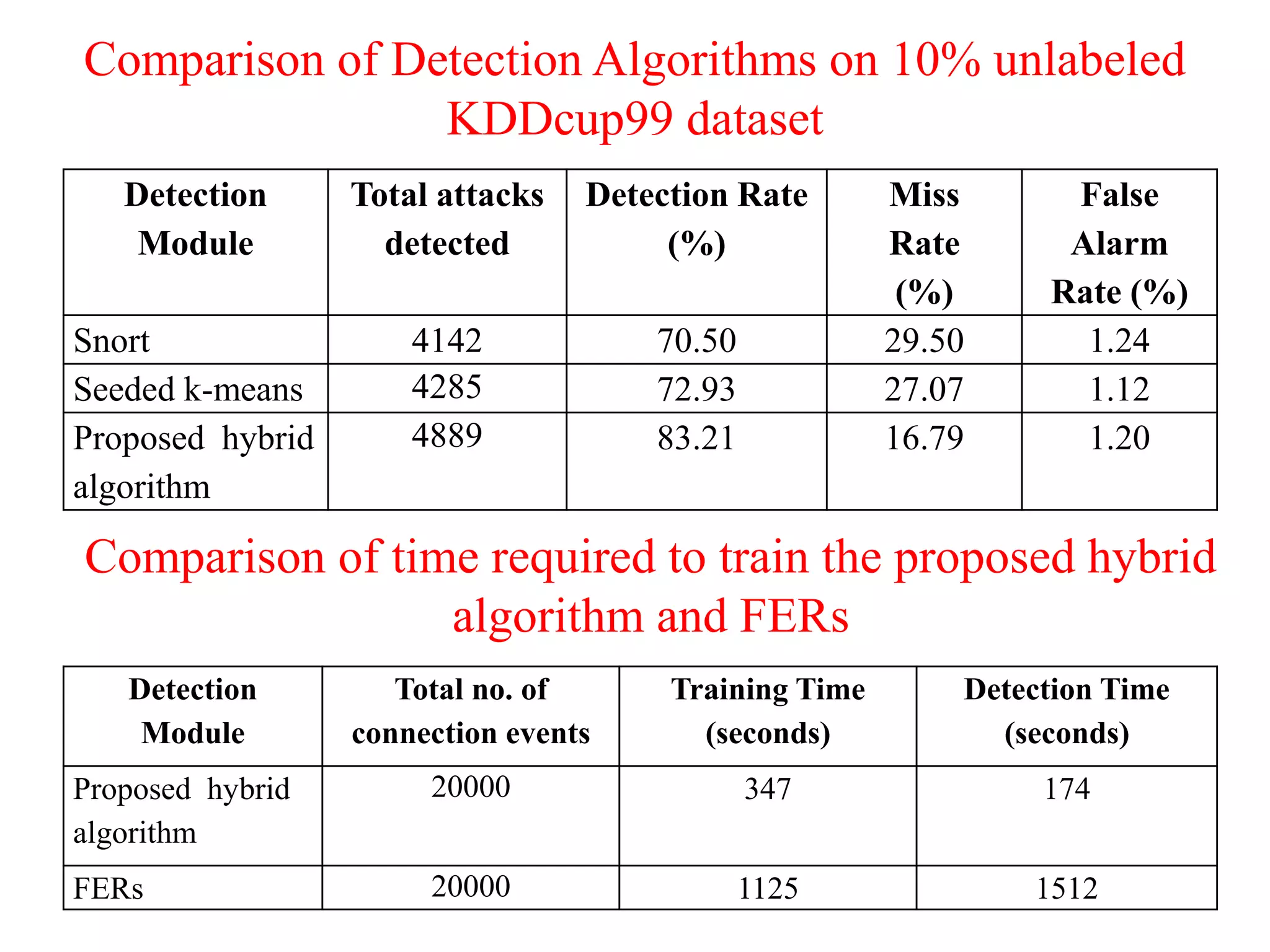

Experimental Results

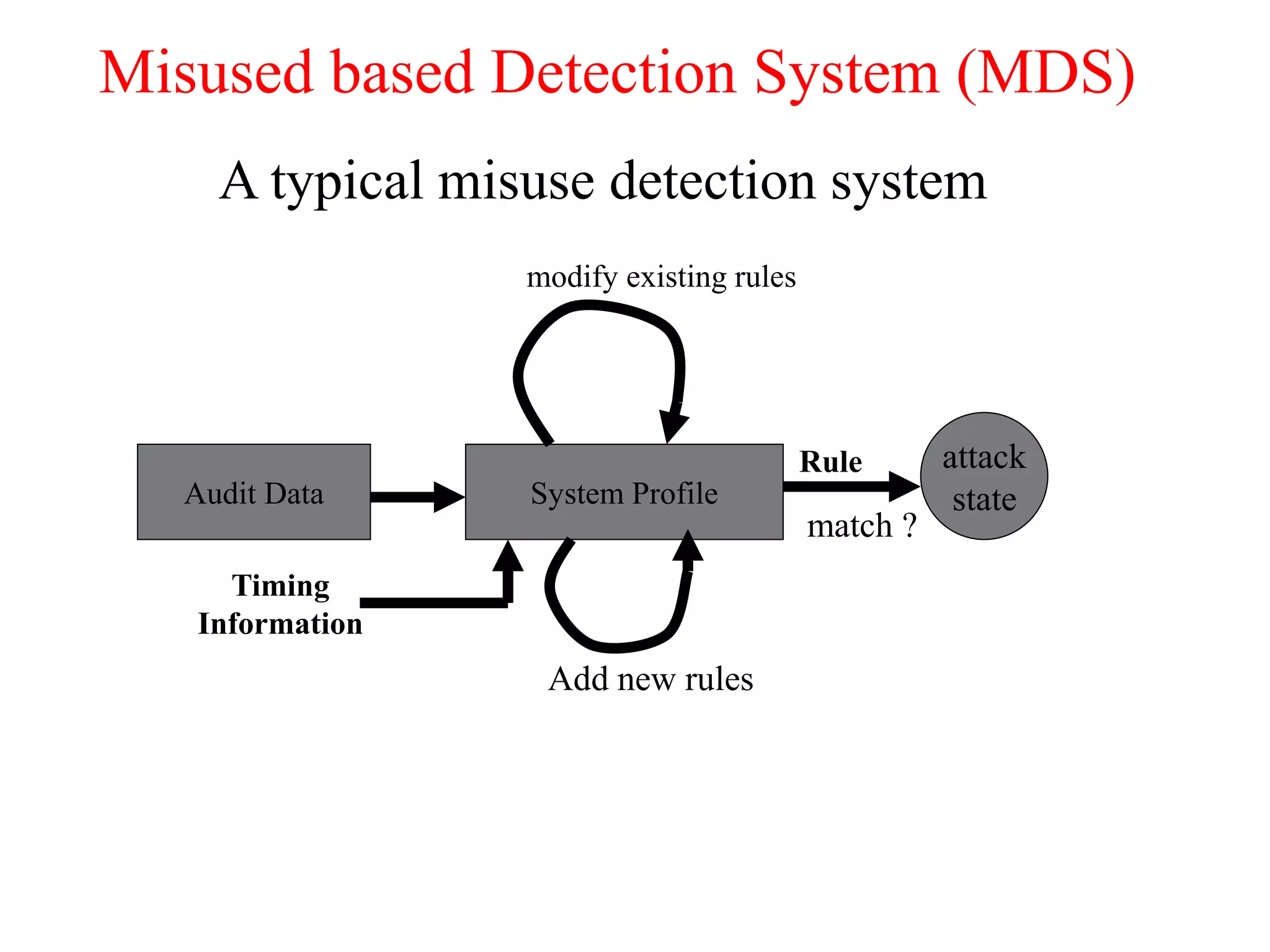

26. Misused based Detection System (MDS)
A typical misuse detection system
Audit Data System Profile
attack
state
Rule
match ?
modify existing rules
Add new rules
Timing
Information

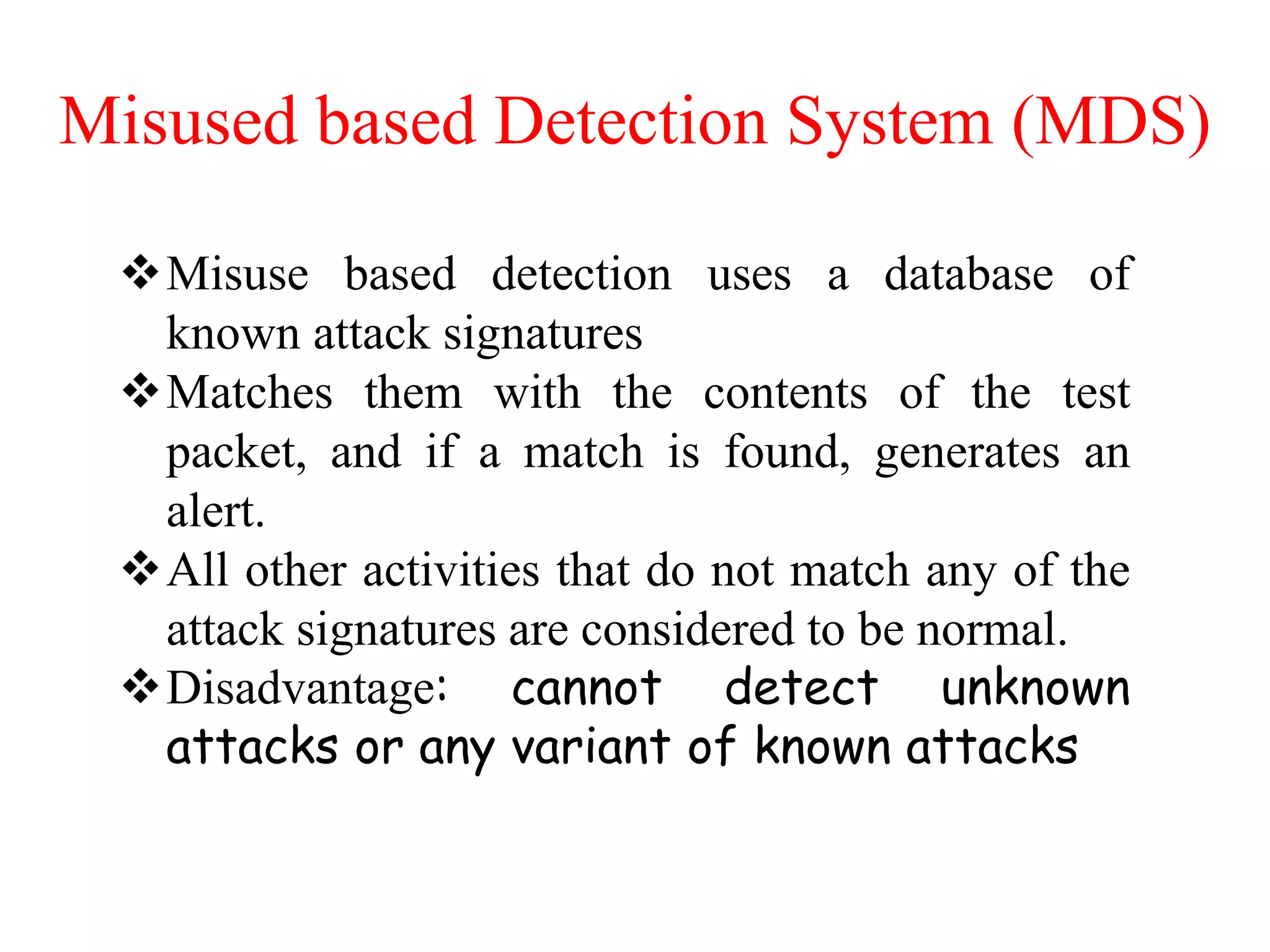

27. Misused based Detection System (MDS)
Misuse based detection uses a database of
known attack signatures
Matches them with the contents of the test
packet, and if a match is found, generates an
alert.
All other activities that do not match any of the
attack signatures are considered to be normal.
Disadvantage: cannot detect unknown
attacks or any variant of known attacks

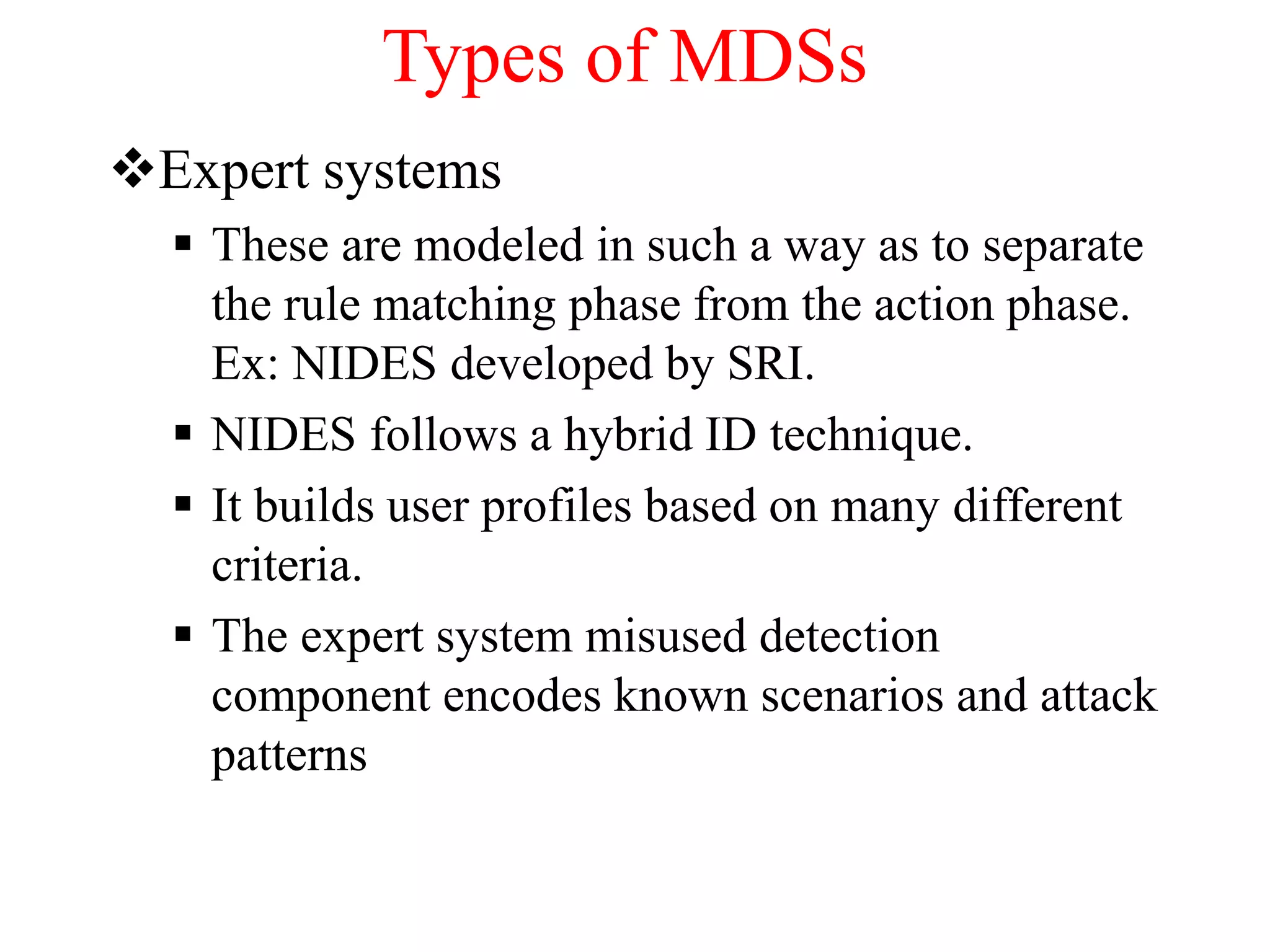

28. Types of MDSs
Expert systems
 These are modeled in such a way as to separate
the rule matching phase from the action phase.
Ex: NIDES developed by SRI.
 NIDES follows a hybrid ID technique.
 It builds user profiles based on many different
criteria.
 The expert system misused detection
component encodes known scenarios and attack
patterns

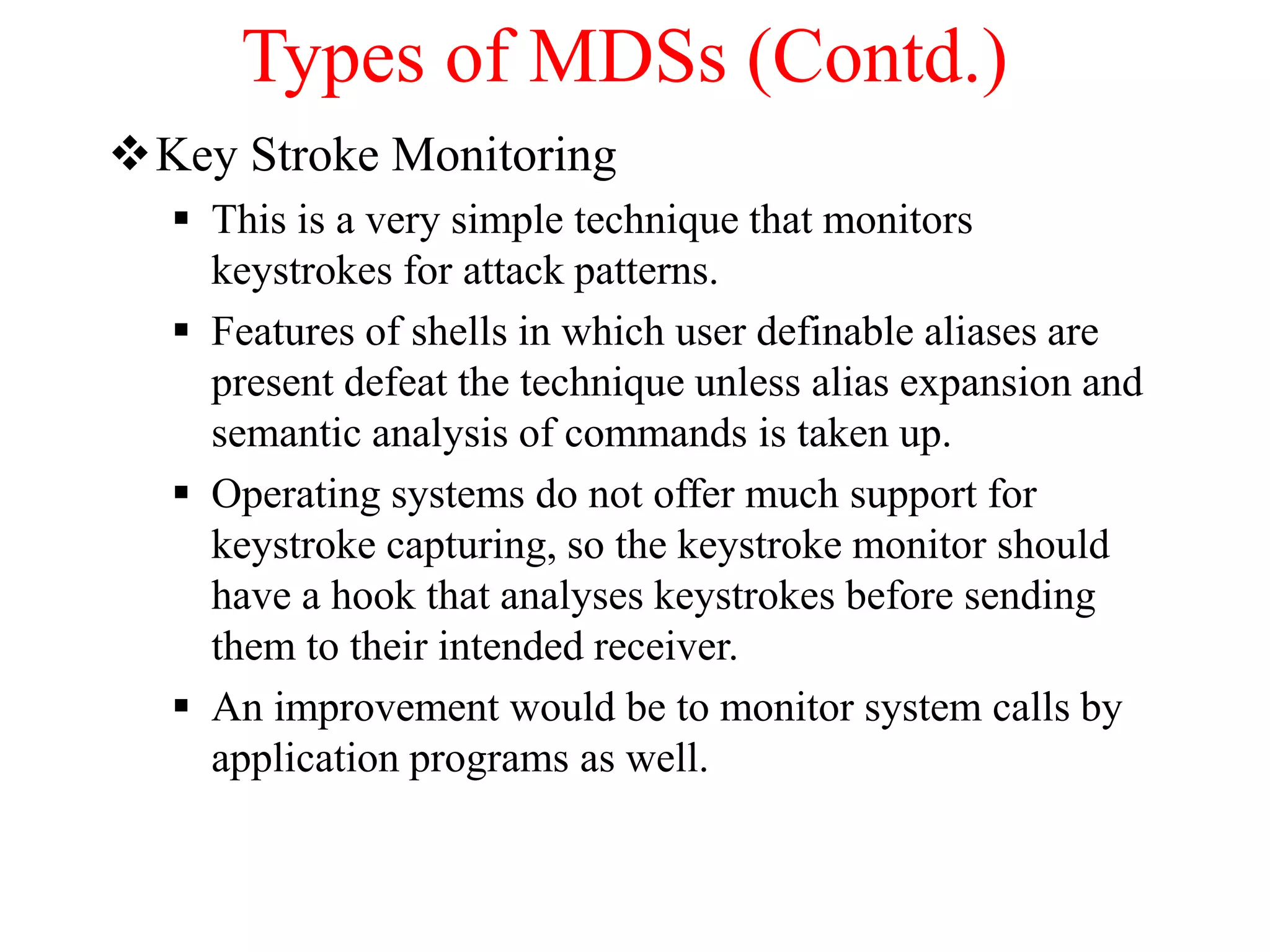

29. Types of MDSs (Contd.)
Key Stroke Monitoring
 This is a very simple technique that monitors
keystrokes for attack patterns.
 Features of shells in which user definable aliases are
present defeat the technique unless alias expansion and
semantic analysis of commands is taken up.
 Operating systems do not offer much support for
keystroke capturing, so the keystroke monitor should
have a hook that analyses keystrokes before sending
them to their intended receiver.
 An improvement would be to monitor system calls by
application programs as well.

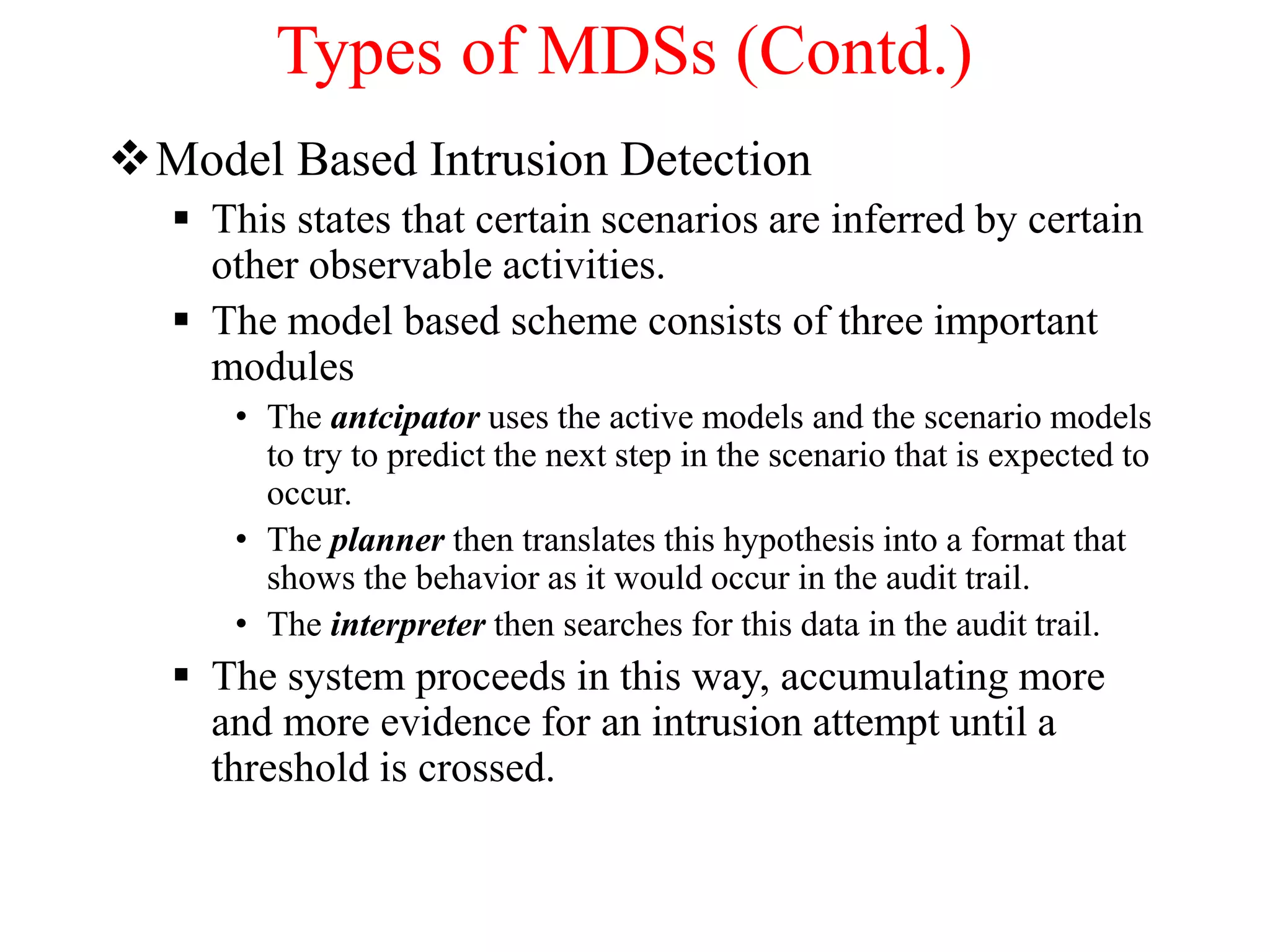

30. Types of MDSs (Contd.)
Model Based Intrusion Detection
 This states that certain scenarios are inferred by certain
other observable activities.
 The model based scheme consists of three important
modules
• The antcipator uses the active models and the scenario models
to try to predict the next step in the scenario that is expected to
occur.
• The planner then translates this hypothesis into a format that
shows the behavior as it would occur in the audit trail.
• The interpreter then searches for this data in the audit trail.
 The system proceeds in this way, accumulating more
and more evidence for an intrusion attempt until a
threshold is crossed.

31. Types of MDSs (Contd.)
State Transition Analysis
 The monitored system is presented as a state transition
diagram.
 As data is analyzed, the system makes transitions from
one state to another.
 A transition takes place on some Boolean condition
being true.
Drawbacks
 Attack patterns can specify only a sequence of
events, rather than more complex forms.
 There are no general purpose methods to prune
the search except through the assertion
primitives.
 They can’t detect denial of service attacks.

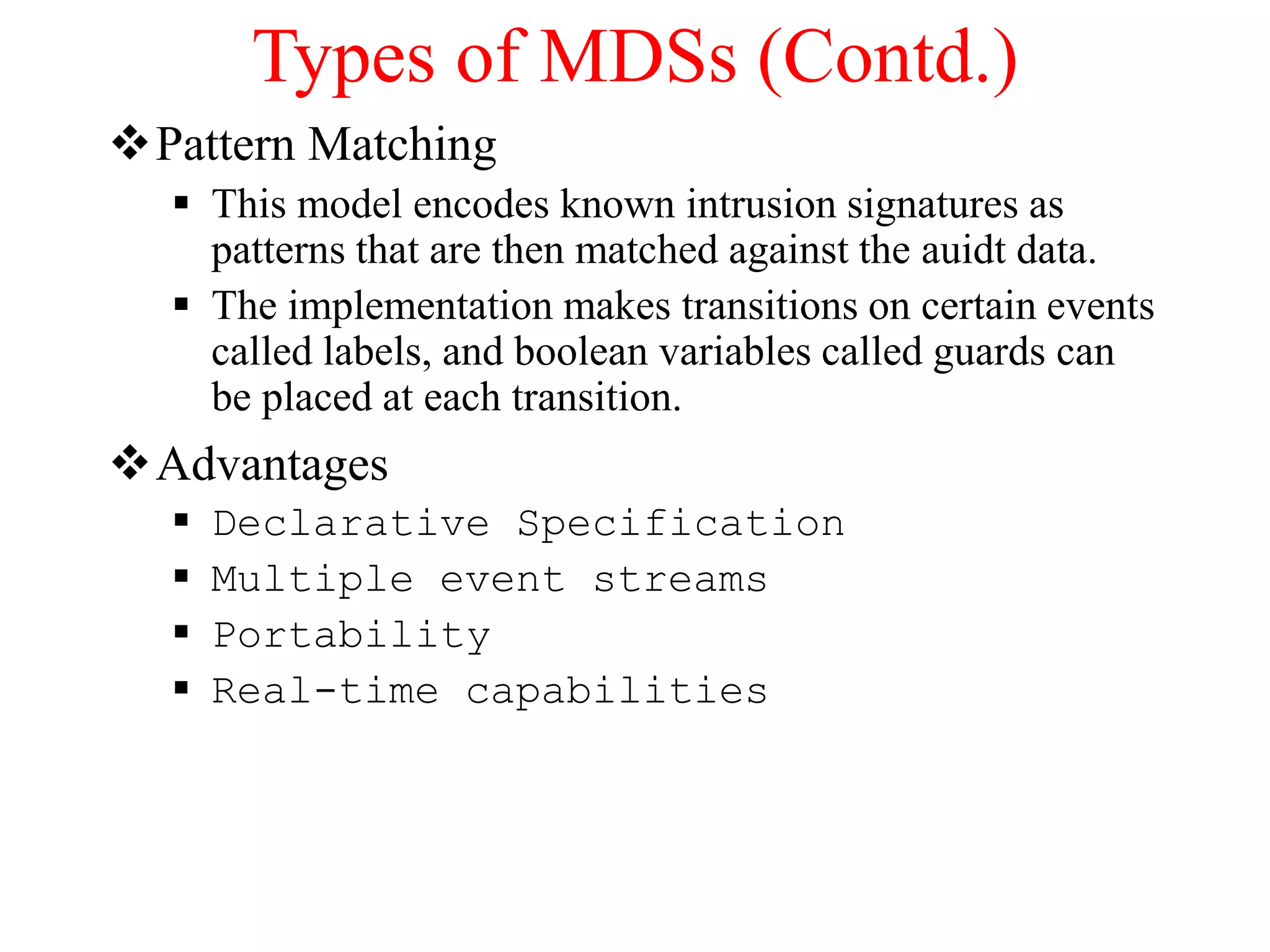

32. Types of MDSs (Contd.)
Pattern Matching
 This model encodes known intrusion signatures as
patterns that are then matched against the auidt data.
 The implementation makes transitions on certain events
called labels, and boolean variables called guards can
be placed at each transition.
Advantages
 Declarative Specification
 Multiple event streams
 Portability
 Real-time capabilities

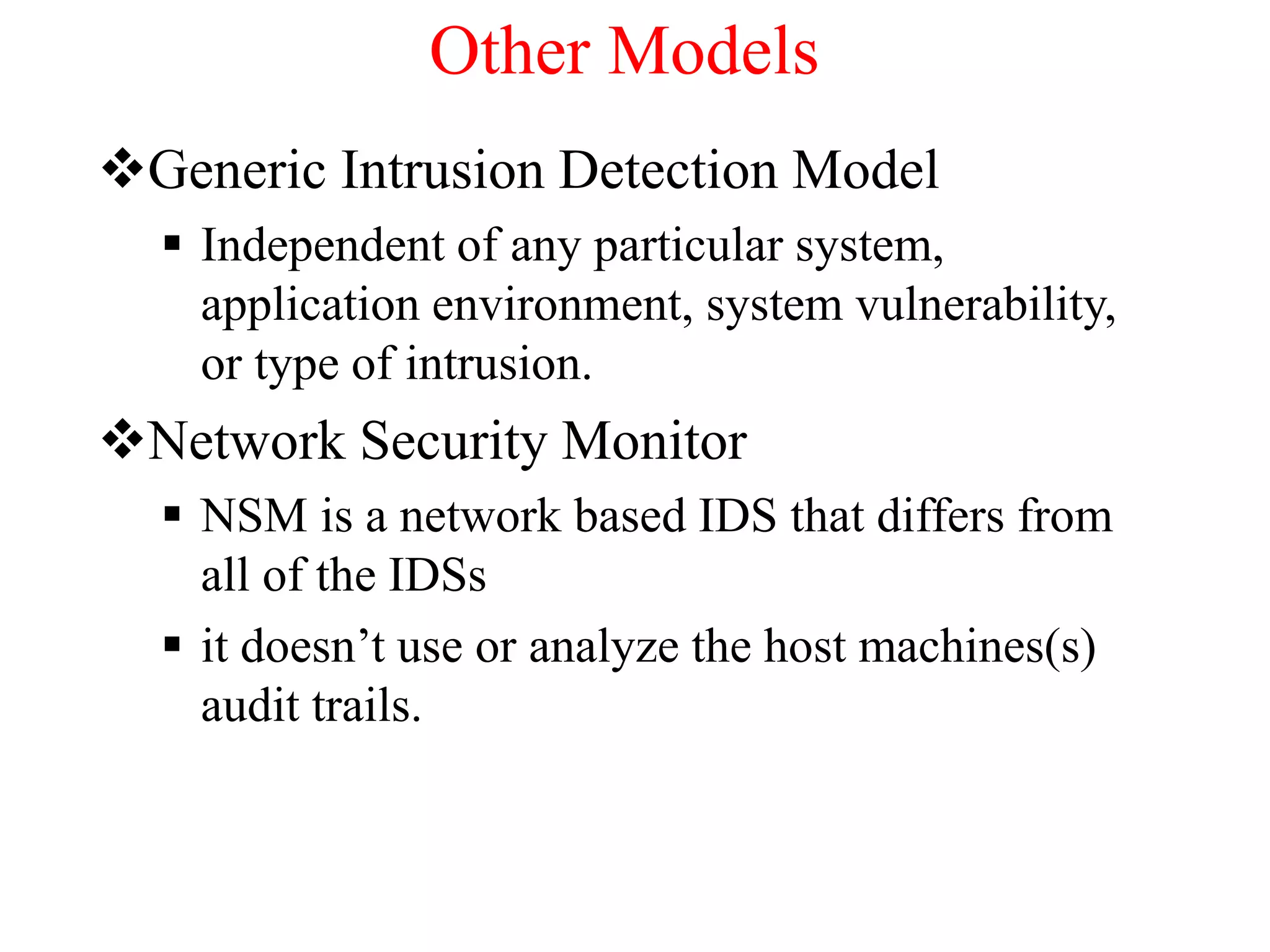

33. Other Models
Generic Intrusion Detection Model
 Independent of any particular system,
application environment, system vulnerability,
or type of intrusion.
Network Security Monitor
 NSM is a network based IDS that differs from
all of the IDSs
 it doesn’t use or analyze the host machines(s)
audit trails.

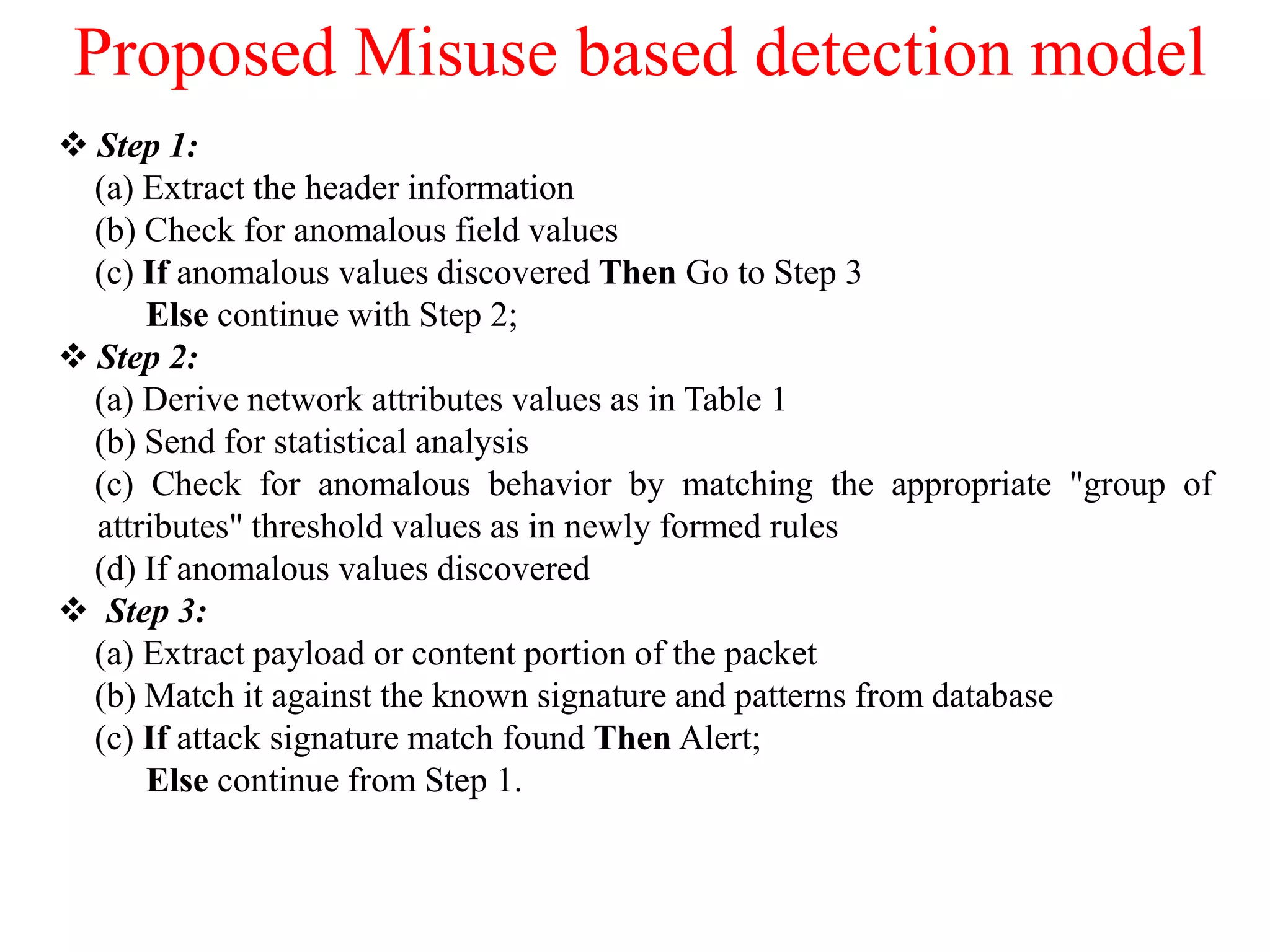

34. Proposed Misuse based detection model
 Step 1:
(a) Extract the header information
(b) Check for anomalous field values
(c) If anomalous values discovered Then Go to Step 3
Else continue with Step 2;
 Step 2:
(a) Derive network attributes values as in Table 1
(b) Send for statistical analysis
(c) Check for anomalous behavior by matching the appropriate "group of
attributes" threshold values as in newly formed rules
(d) If anomalous values discovered
 Step 3:
(a) Extract payload or content portion of the packet
(b) Match it against the known signature and patterns from database
(c) If attack signature match found Then Alert;
Else continue from Step 1.

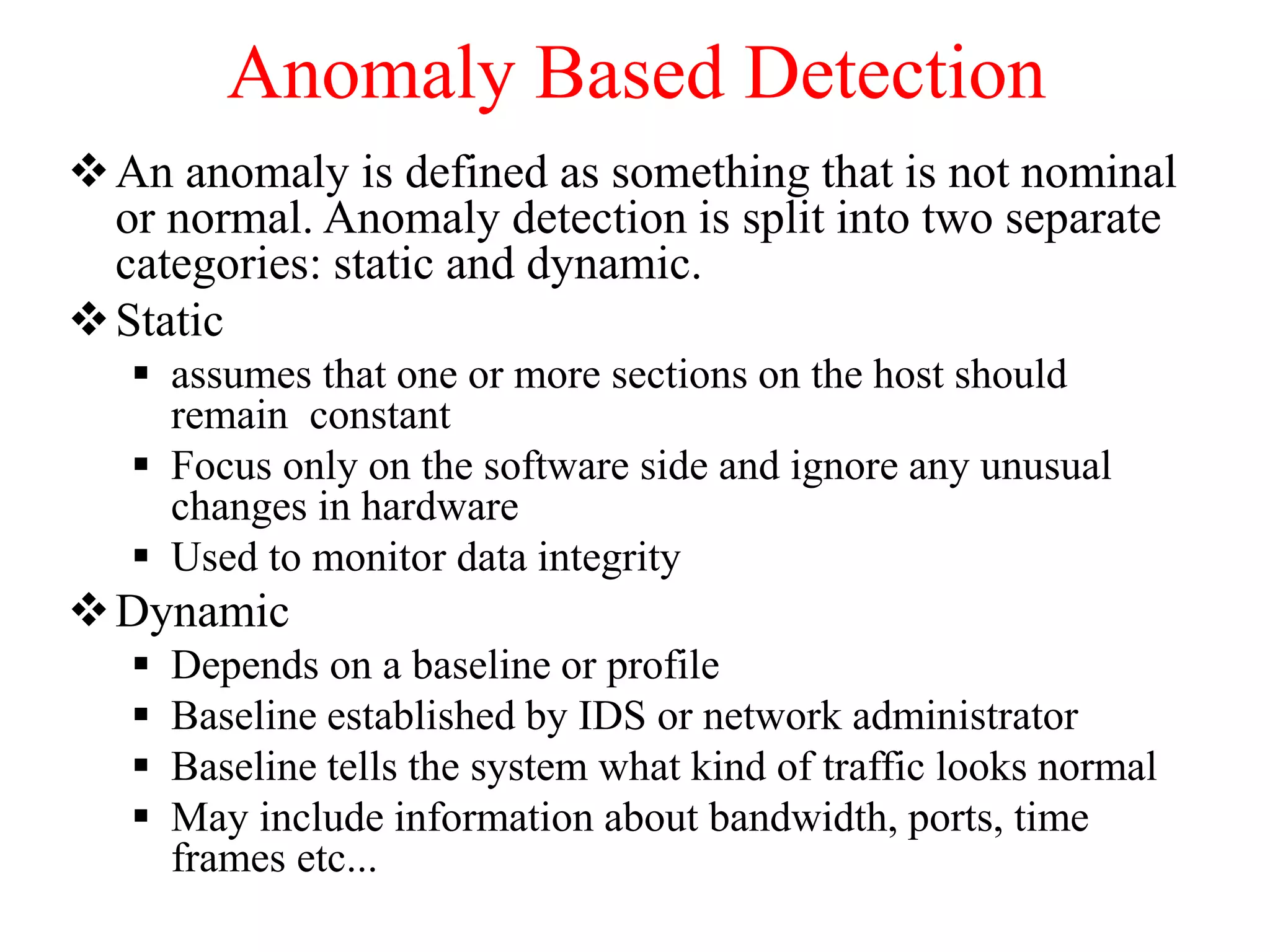

35. Anomaly Based Detection
An anomaly is defined as something that is not nominal
or normal. Anomaly detection is split into two separate
categories: static and dynamic.
Static
 assumes that one or more sections on the host should
remain constant
 Focus only on the software side and ignore any unusual
changes in hardware
 Used to monitor data integrity
Dynamic
 Depends on a baseline or profile
 Baseline established by IDS or network administrator
 Baseline tells the system what kind of traffic looks normal
 May include information about bandwidth, ports, time
frames etc...

36. Advantages of Anomaly Based
Detection
The network can be in an unprotected state as
the system builds its profile.
 If malicious activity looks like normal traffic
to the system it will never send an alarm.
False positives can become cumbersome with
an anomaly based setup. Normal usage
such as checking e-mail after a meeting
has the potential to signal an alarm.

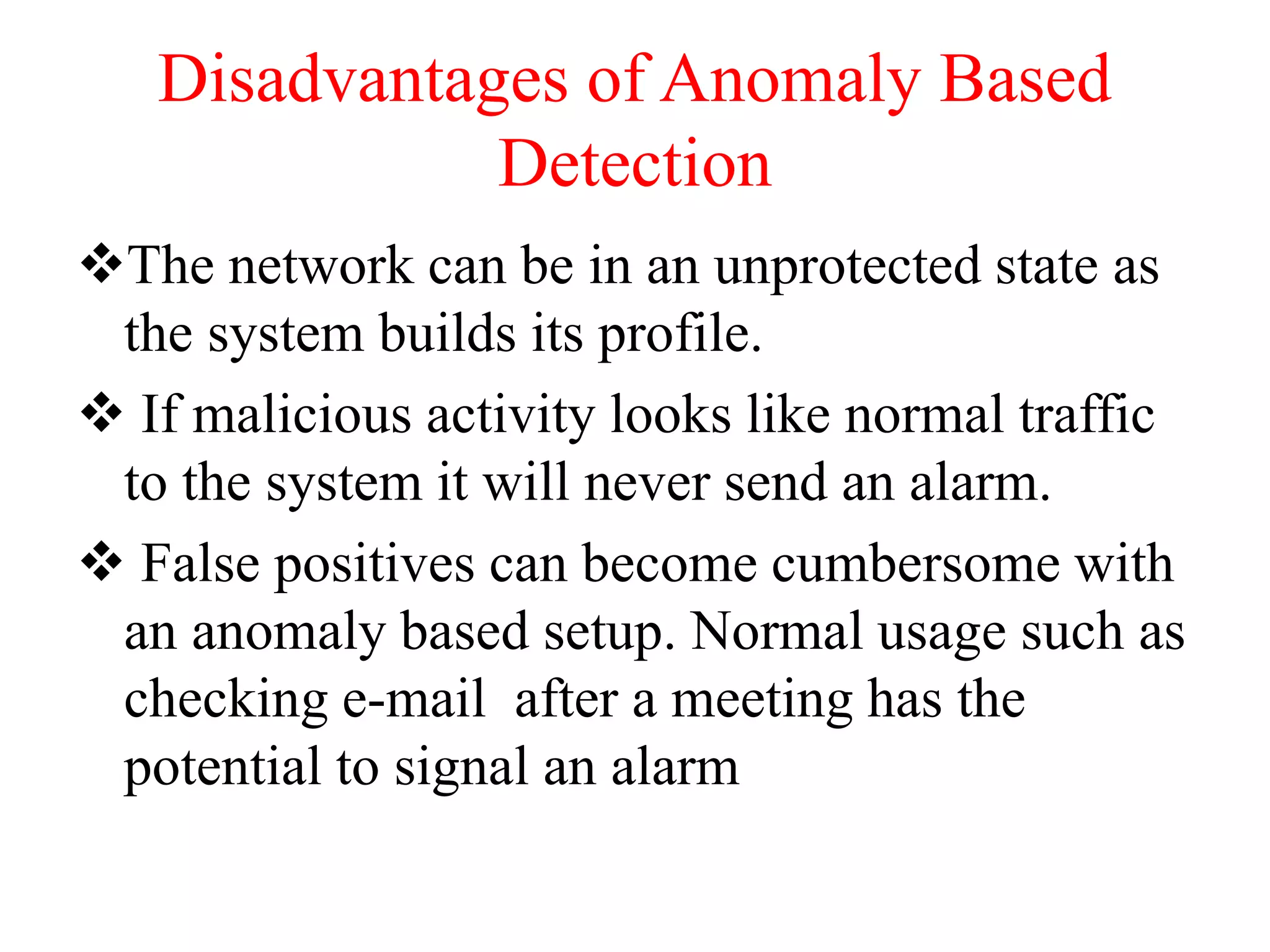

37. Disadvantages of Anomaly Based
Detection
The network can be in an unprotected state as
the system builds its profile.
 If malicious activity looks like normal traffic
to the system it will never send an alarm.
 False positives can become cumbersome with
an anomaly based setup. Normal usage such as
checking e-mail after a meeting has the
potential to signal an alarm

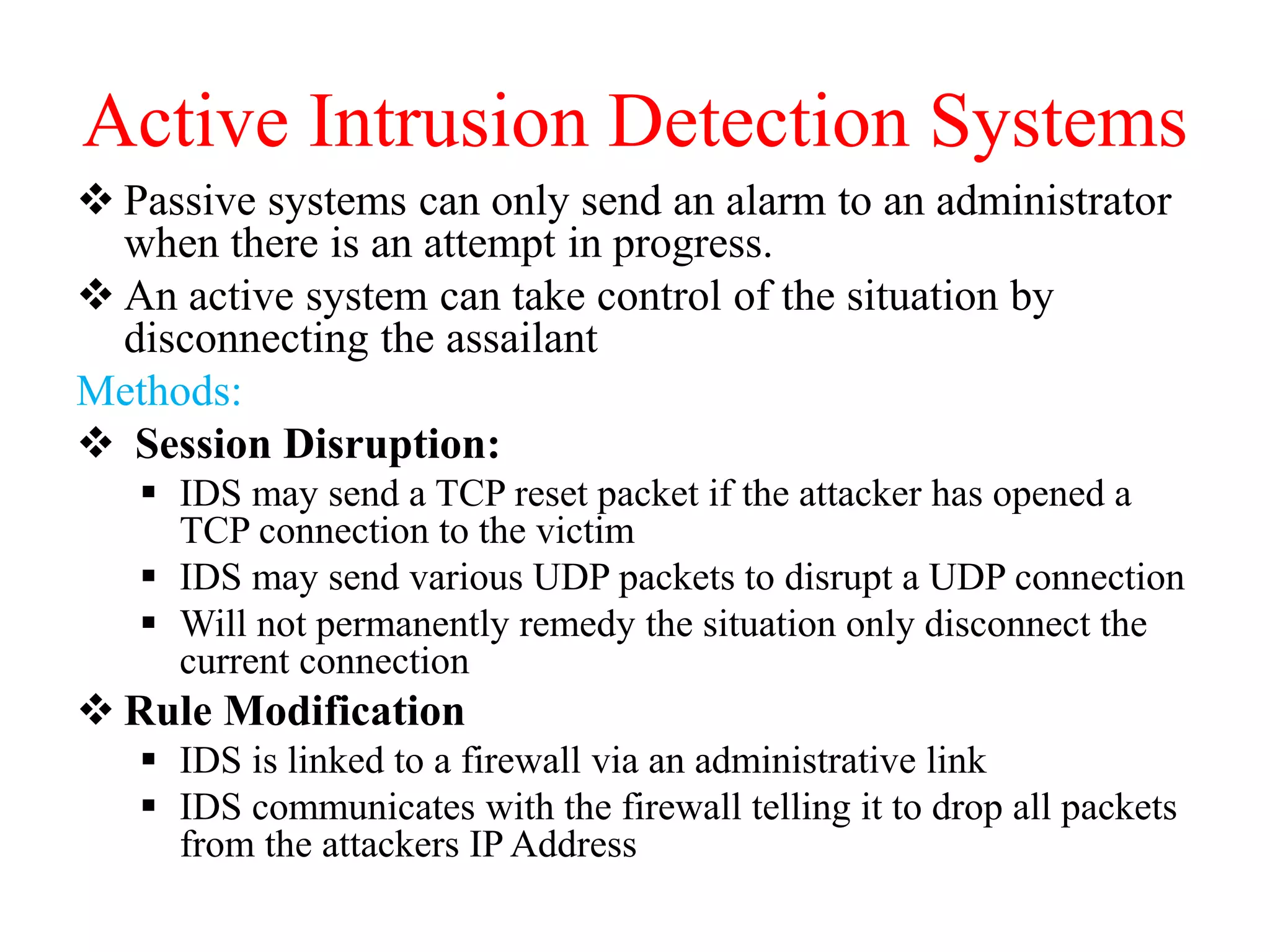

38. Active Intrusion Detection Systems
 Passive systems can only send an alarm to an administrator
when there is an attempt in progress.
 An active system can take control of the situation by
disconnecting the assailant
Methods:
 Session Disruption:
 IDS may send a TCP reset packet if the attacker has opened a
TCP connection to the victim
 IDS may send various UDP packets to disrupt a UDP connection
 Will not permanently remedy the situation only disconnect the
current connection
 Rule Modification
 IDS is linked to a firewall via an administrative link
 IDS communicates with the firewall telling it to drop all packets
from the attackers IP Address

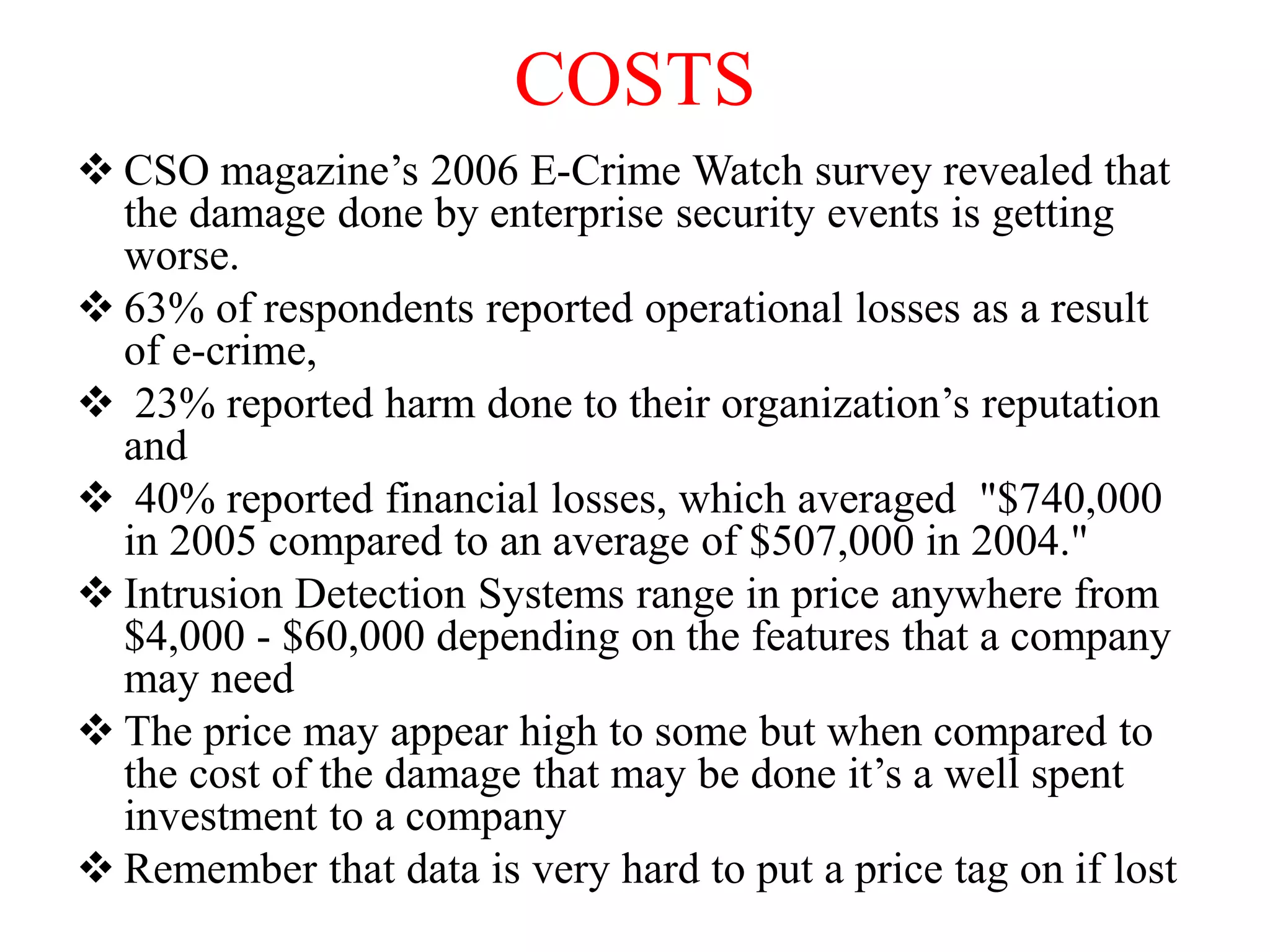

39. COSTS
 CSO magazine’s 2006 E-Crime Watch survey revealed that
the damage done by enterprise security events is getting
worse.
 63% of respondents reported operational losses as a result
of e-crime,
 23% reported harm done to their organization’s reputation
and
 40% reported financial losses, which averaged "$740,000
in 2005 compared to an average of $507,000 in 2004."
 Intrusion Detection Systems range in price anywhere from
$4,000 - $60,000 depending on the features that a company
may need
 The price may appear high to some but when compared to
the cost of the damage that may be done it’s a well spent
investment to a company
 Remember that data is very hard to put a price tag on if lost

40. Anomaly based detection
Anomaly based detection algorithms create a model
of normal use.
Look for deviation in the activities that do not
conform to normal behavior.
Data mining and artificial intelligence can be used to
find outlier patterns.
Advantage: can detect unknown or new attacks.
Most of the available IDSs use one of the two
detection algorithms. To improve the detection
process misuse detection can be combined with
anomaly

41. HYBRID INTRUSION DETECTION
The hybrid intrusion detection (HID) algorithm
combines anomaly detection using seeded k-means
and misuse based detection using tuned Snort rules
The network traffic is analyzed where the packets
are captured using libpcap tool of the operating
system.
Preprocessing and decoding of the captured
packets is done using unmodified Snort-IDS.

42. HYBRID INTRUSION DETECTION
Next misuse-based detection is carried out for
signature and contains matching through
modified and tuned snort rules.
Thereafter anomaly based detection is
performed by trained seeded k-means
clustering algorithm.

43. Flowchart of proposed model

44. Anomaly based detection of proposed model
Seeded k-means for anomaly based detection
Input: Data set X = {xi} for all , number of clusters K, and set of
initial seeds S = {Sl} for all
Output: Disjoint K partitioning of such that K-means objective
function is optimized.
Process:
1. Initialize:
2. Assign Clusters: Assign each data point x to the cluster h* i. e.,
Xh*
(t + 1) , for h* = argmin || xi – xh
(t) ||2
3. Estimate Mean:
4.
5. Repeat Step 3 through 5 till convergence is achieved.
0
;
,
,
1
,
1
)
0
(




t
K
h
for
x
S
h
S
x
h
h 

 




1
1
)
1
( 1
t
h
X
x
t
h
t
h
x
X

1

t
t

45. FORMATION OF RULES
IF
(Protocol type=tcp) AND (src bytes= 0) AND (hot= 0)
AND (same srv rate < 1) AND (diff srv rate > 0) AND
(dst host same srv rate< 0.30) AND (dst host diff srv rate > 0.12) AND (dst host
same src port rate > 0.05) AND (dst host serror rate > 0.05)AND (dst host srv
serror rate> 0.9)
THEN attack=PORTSWEEP
IF
(protocol type=tcp) AND (src bytes= 0) AND (hot= 0)
AND (serror rate > 0) AND (rerror rate< 1) AND (diff srv rate = 1) AND (dst host
same srv rate< 0:30) AND (dst host diff srv rate = 1) AND (dst host same src port
rate > 0:05) AND (dst host rerror rate>0.6)
THEN attack=SATAN

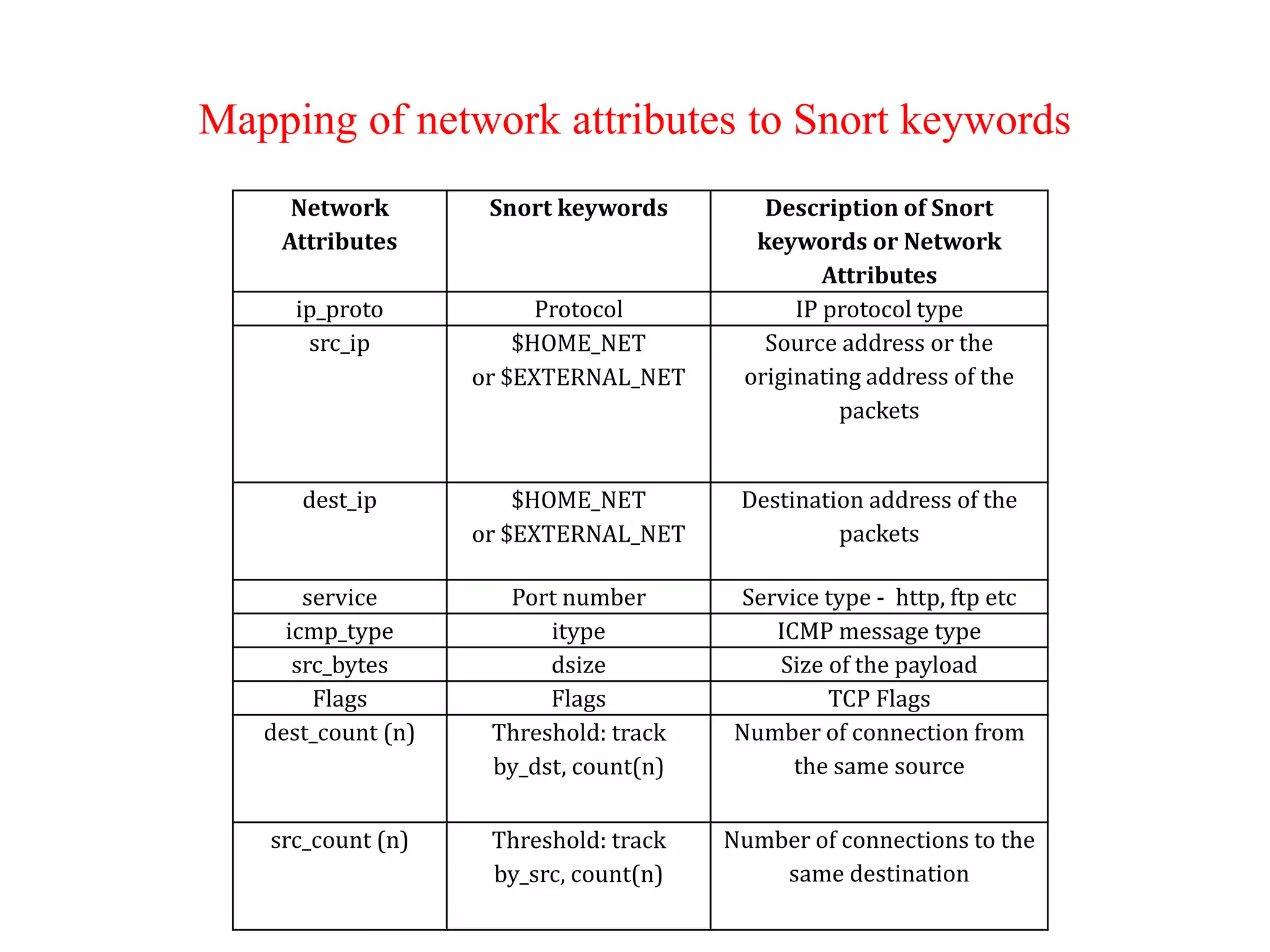

46. Mapping of network attributes to Snort keywords
Network
Attributes
Snort keywords Description of Snort
keywords or Network
Attributes
ip_proto Protocol IP protocol type
src_ip $HOME_NET
or $EXTERNAL_NET
Source address or the
originating address of the
packets
dest_ip $HOME_NET
or $EXTERNAL_NET
Destination address of the
packets
service Port number Service type - http, ftp etc
icmp_type itype ICMP message type
src_bytes dsize Size of the payload
Flags Flags TCP Flags
dest_count (n) Threshold: track
by_dst, count(n)
Number of connection from
the same source
src_count (n) Threshold: track
by_src, count(n)
Number of connections to the
same destination

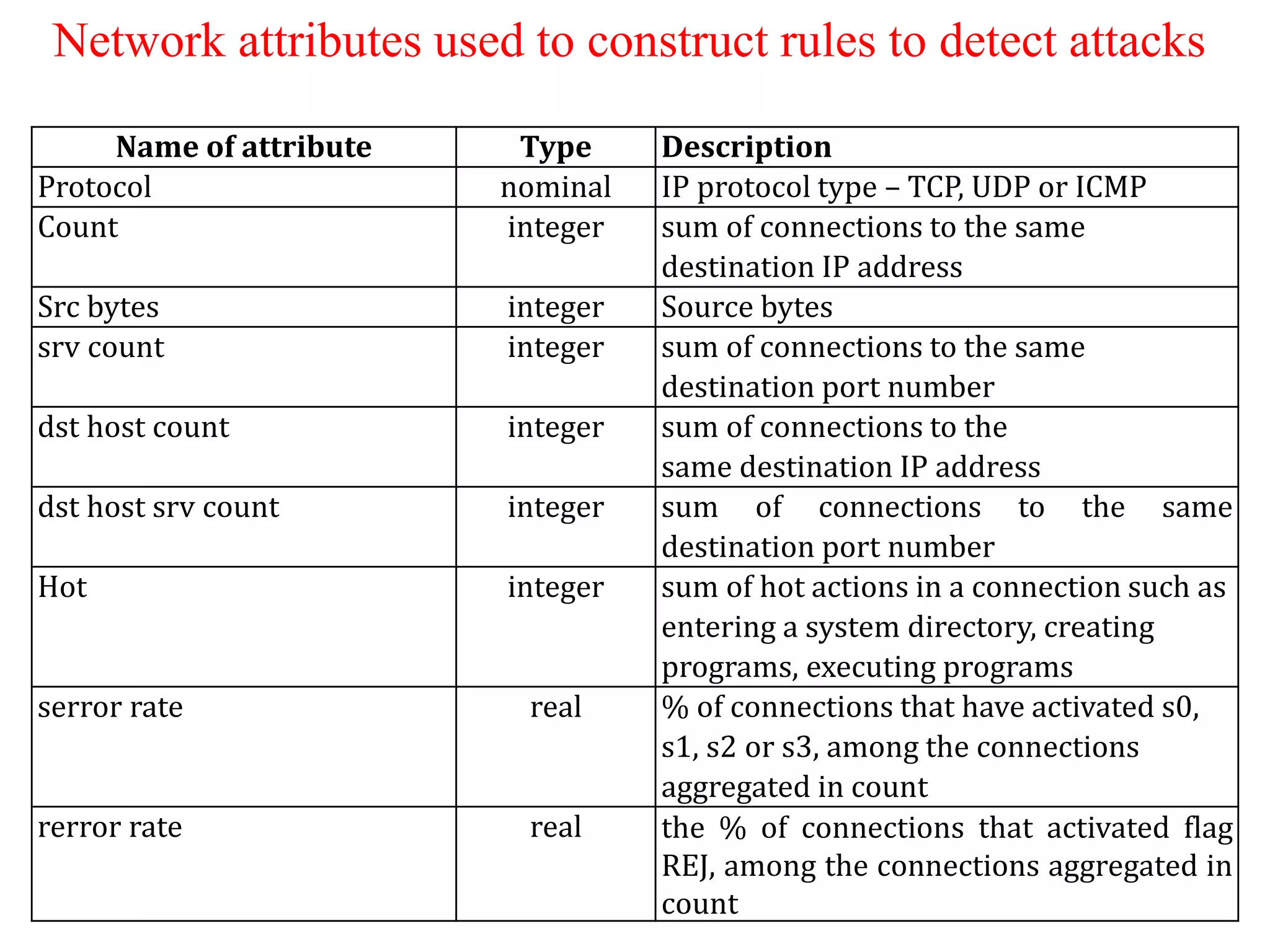

47. Name of attribute Type Description
Protocol nominal IP protocol type – TCP, UDP or ICMP
Count integer sum of connections to the same
destination IP address
Src bytes integer Source bytes
srv count integer sum of connections to the same
destination port number
dst host count integer sum of connections to the
same destination IP address
dst host srv count integer sum of connections to the same
destination port number
Hot integer sum of hot actions in a connection such as
entering a system directory, creating
programs, executing programs
serror rate real % of connections that have activated s0,
s1, s2 or s3, among the connections
aggregated in count
rerror rate real the % of connections that activated flag
REJ, among the connections aggregated in
count
Network attributes used to construct rules to detect attacks

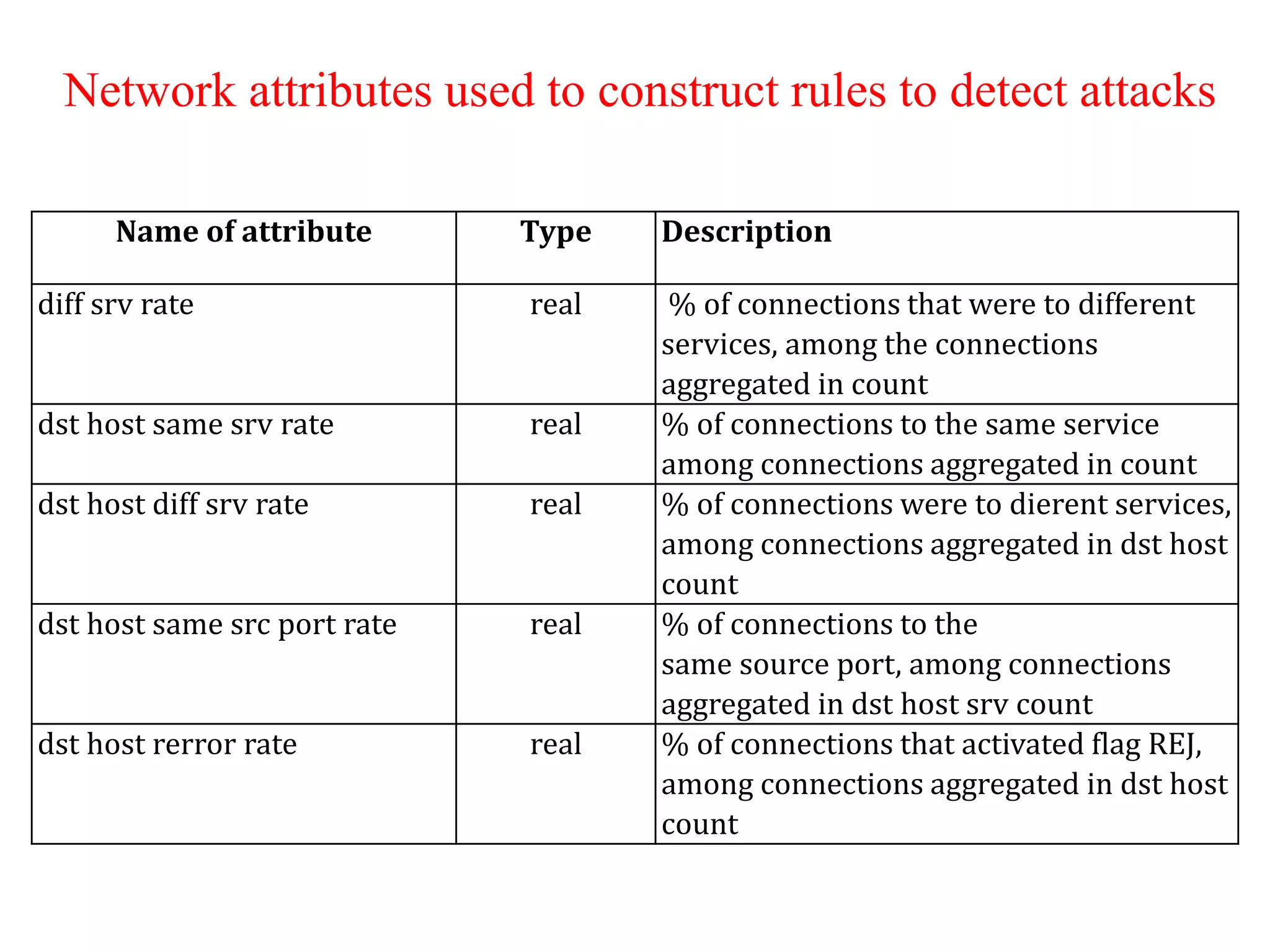

48. Name of attribute Type Description
diff srv rate real % of connections that were to different
services, among the connections
aggregated in count
dst host same srv rate real % of connections to the same service
among connections aggregated in count
dst host diff srv rate real % of connections were to dierent services,
among connections aggregated in dst host
count
dst host same src port rate real % of connections to the
same source port, among connections
aggregated in dst host srv count
dst host rerror rate real % of connections that activated flag REJ,
among connections aggregated in dst host
count
Network attributes used to construct rules to detect attacks

49. Detection
Module
Total attacks
detected
Detection Rate
(%)
Miss
Rate
(%)
False
Alarm
Rate (%)
Snort 4142 70.50 29.50 1.24
Seeded k-means 4285 72.93 27.07 1.12
Proposed hybrid
algorithm
4889 83.21 16.79 1.20
Detection
Module
Total no. of
connection events
Training Time
(seconds)
Detection Time
(seconds)
Proposed hybrid
algorithm
20000 347 174
FERs 20000 1125 1512
Comparison of Detection Algorithms on 10% unlabeled
KDDcup99 dataset
Comparison of time required to train the proposed hybrid
algorithm and FERs

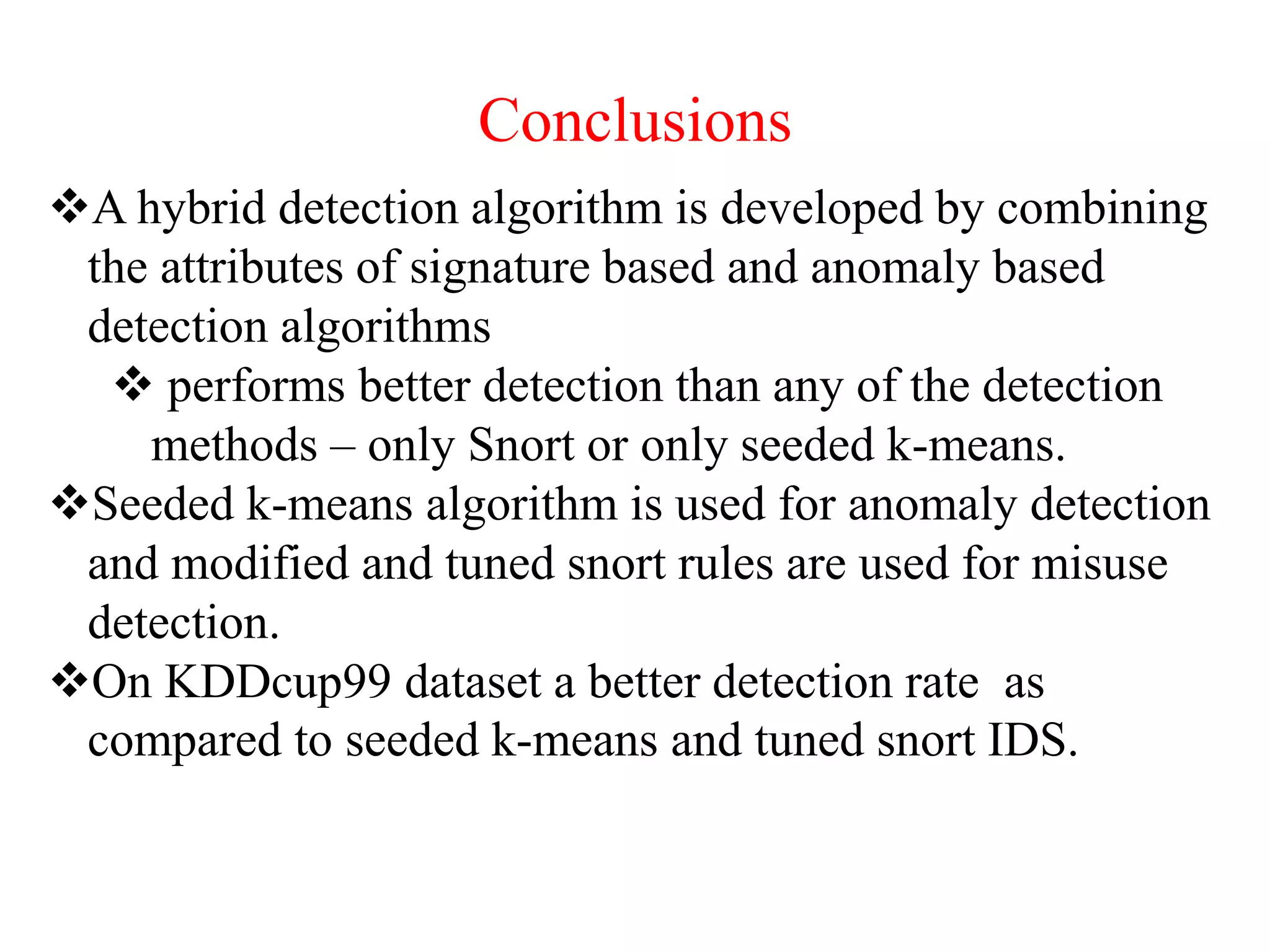

50. Conclusions
A hybrid detection algorithm is developed by combining
the attributes of signature based and anomaly based
detection algorithms
 performs better detection than any of the detection
methods – only Snort or only seeded k-means.
Seeded k-means algorithm is used for anomaly detection
and modified and tuned snort rules are used for misuse
detection.
On KDDcup99 dataset a better detection rate as
compared to seeded k-means and tuned snort IDS.

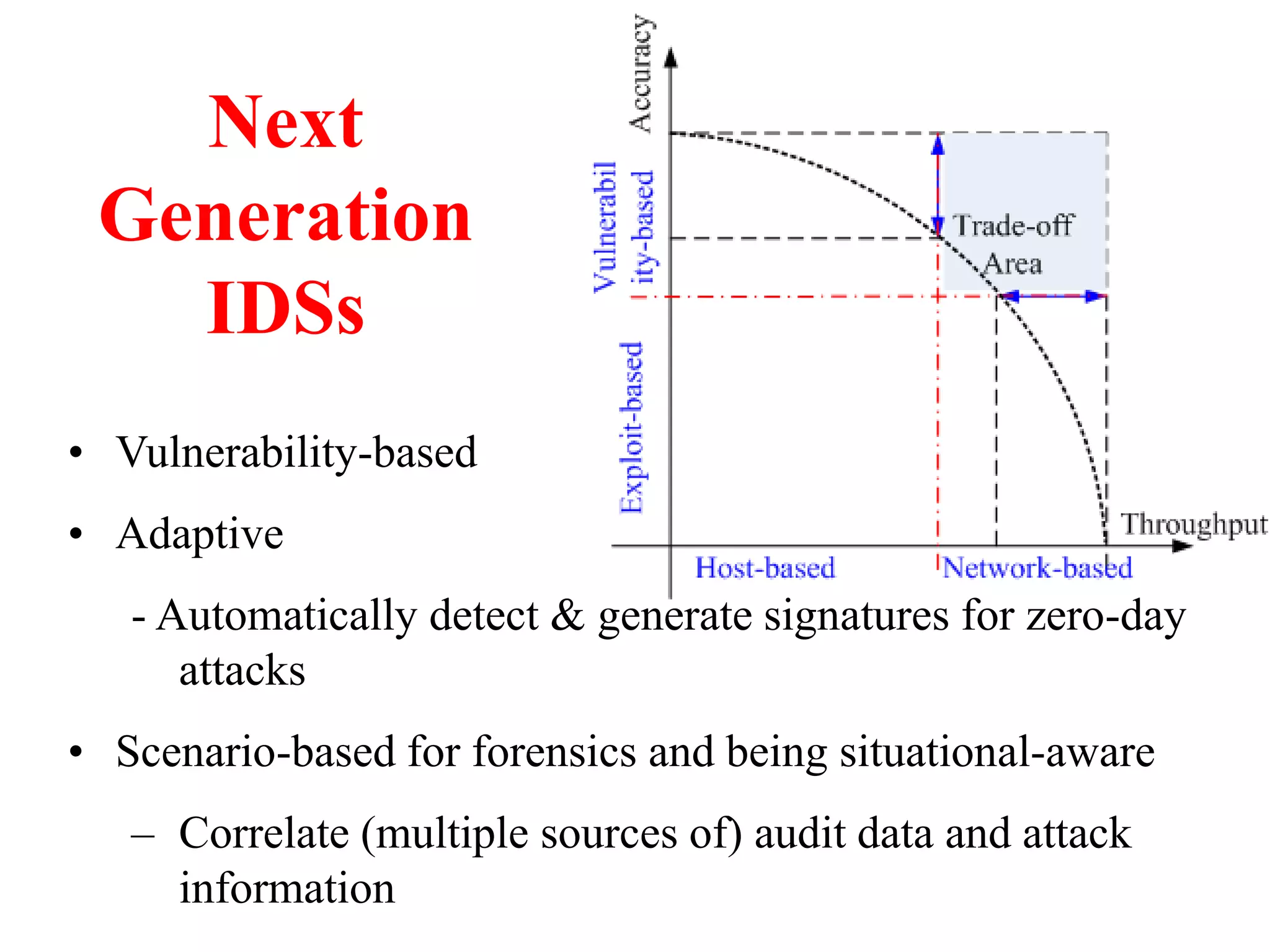

51. Next
Generation
IDSs
• Vulnerability-based
• Adaptive
- Automatically detect & generate signatures for zero-day
attacks
• Scenario-based for forensics and being situational-aware
– Correlate (multiple sources of) audit data and attack
information
