Understanding Fluid Physics: Hydraulic Systems and Buoyancy Principles for Grade 11 Science

Understanding Fluid Physics: Hydraulic Systems and Buoyancy Principles for Grade 11 Science

• 1.
  The Physics of Fluids ExploringHydraulic Systems and Buoyancy Grade 11 General Science
• 2.

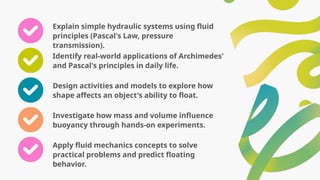

  Explain simple hydraulicsystems using fluid principles (Pascal's Law, pressure transmission). Identify real-world applications of Archimedes' and Pascal's principles in daily life. Design activities and models to explore how shape affects an object's ability to float. Investigate how mass and volume influence buoyancy through hands-on experiments. Apply fluid mechanics concepts to solve practical problems and predict floating behavior.
• 3.
  Explain it to aChild A fluid is anything that flows and takes the shape of its container—like water in a glass or air in a balloon! Fluids have special properties: density (how heavy they are), pressure (how much they push), viscosity (how thick they are), and incompressibility (liquids can't be squeezed smaller).
• 4.
  Pressure in Fluids Pressure (P)= Force (F) / Area (A), measured in Pascals (Pa). Pressure increases with depth: P = ρgh (density × gravity × height) The deeper you go, the greater the pressure!
• 5.
  Pascal's Principle Imagine squeezing atoothpaste tube—pressure spreads equally everywhere! Pascal's Principle states that pressure applied to a confined fluid transmits equally in all directions. Formula: F₁/A₁ = F₂/A₂. This means a small force on a small area creates a large force on a large area!
• 6.

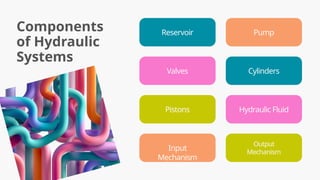

  Components of Hydraulic Systems Pump Cylinders Hydraulic Fluid Output Mechanism Reservoir Valves Pistons Input Mechanism
• 7.
  How Hydraulic Systems Work Incompressible fluid transmits forcefrom the input piston to the output piston throughout the closed system. Force Multiplication Formula: F₂ = F₁ × (A₂/A₁) Distance Trade-off: The input piston moves farther than the output piston. Closed systems maintain constant pressure throughout.
• 8.

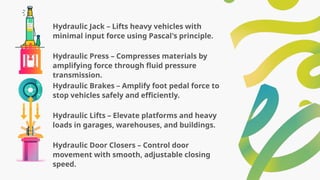

  Hydraulic Jack –Lifts heavy vehicles with minimal input force using Pascal's principle. Hydraulic Press – Compresses materials by amplifying force through fluid pressure transmission. Hydraulic Brakes – Amplify foot pedal force to stop vehicles safely and efficiently. Hydraulic Lifts – Elevate platforms and heavy loads in garages, warehouses, and buildings. Hydraulic Door Closers – Control door movement with smooth, adjustable closing speed.
• 9.

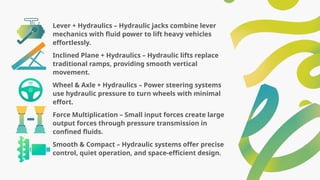

  Lever + Hydraulics– Hydraulic jacks combine lever mechanics with fluid power to lift heavy vehicles effortlessly. Inclined Plane + Hydraulics – Hydraulic lifts replace traditional ramps, providing smooth vertical movement. Wheel & Axle + Hydraulics – Power steering systems use hydraulic pressure to turn wheels with minimal effort. Force Multiplication – Small input forces create large output forces through pressure transmission in confined fluids. Smooth & Compact – Hydraulic systems offer precise control, quiet operation, and space-efficient design.
• 10.

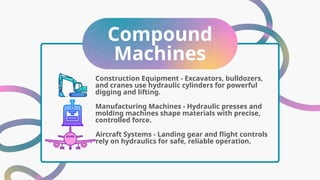

  Compound Machines Manufacturing Machines -Hydraulic presses and molding machines shape materials with precise, controlled force. Construction Equipment - Excavators, bulldozers, and cranes use hydraulic cylinders for powerful digging and lifting. Aircraft Systems - Landing gear and flight controls rely on hydraulics for safe, reliable operation.
• 11.
  Archimedes ' Principle Explained An objectimmersed in fluid experiences an upward buoyant force equal to the weight of the displaced fluid. Formula: Fb = ρfluid × Vdisplaced × g Key Conditions: • Float: Fb = object weight • Sink: weight > Fb • Rise: Fb > weight Density comparison determines buoyancy!
• 12.

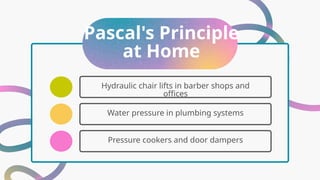

  Pascal's Principle at Home Hydraulicchair lifts in barber shops and offices Water pressure in plumbing systems Pressure cookers and door dampers
• 13.
  Archimedes' Principle at Home Bath toys& ice cubes floating Soap bars sink or float by density Hot air balloons rise up!
• 14.

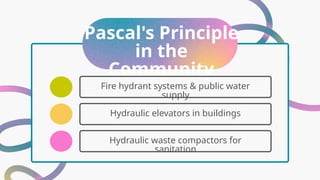

  Pascal's Principle in the Community Firehydrant systems & public water supply Hydraulic elevators in buildings Hydraulic waste compactors for sanitation
• 15.

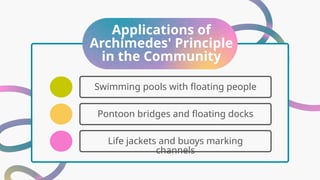

  Applications of Archimedes' Principle inthe Community Swimming pools with floating people Pontoon bridges and floating docks Life jackets and buoys marking channels
• 16.

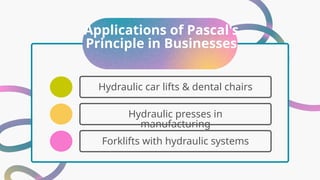

  Applications of Pascal's Principlein Businesses Hydraulic car lifts & dental chairs Hydraulic presses in manufacturing Forklifts with hydraulic systems
• 17.

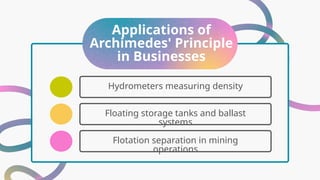

  Applications of Archimedes' Principle inBusinesses Hydrometers measuring density Floating storage tanks and ballast systems Flotation separation in mining operations
• 18.

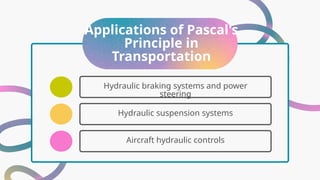

  Applications of Pascal's Principlein Transportation Hydraulic braking systems and power steering Hydraulic suspension systems Aircraft hydraulic controls
• 19.

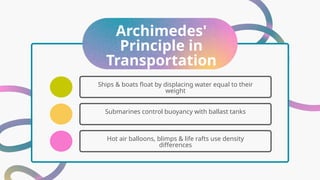

  Archimedes' Principle in Transportation Ships &boats float by displacing water equal to their weight Submarines control buoyancy with ballast tanks Hot air balloons, blimps & life rafts use density differences
• 20.
  Factors Affecting Floating: Shape Imagineyou're explaining today's lesson to a 10-year-old. How would you explain it in the simplest way possible so they would understand?
• 21.
  Mass & Volume: FloatingFactors Heavier objects need more buoyant force to float. Larger volume displaces more fluid, increasing buoyancy. The volume-to-mass ratio is critical: Density = Mass ÷ Volume determines if an object floats or sinks!
• 22.
  Clay Boat Challenge Materials: modelingclay, water, weights. Test how much weight different clay boat shapes hold before sinking. Variables: shape, wall thickness. Measure load capacity and water displacement.
• 23.
  Aluminum Foil Boats Materials: foil,coins, water container. Fold different shapes, add coins until sinking. Measure coins held. Calculate density and buoyant force!
• 24.
  Floating vs. Sinking Objects Materials:objects with different densities, scale, graduated cylinder, water. Measure mass and volume, predict float or sink, then test. Calculate densities and explain your results!
• 25.
  Cartesian Diver Model Materials: plasticbottle, dropper, water. Squeeze the bottle to change pressure and density, then observe the diver sinking and rising— demonstrating both Pascal's and Archimedes' principles!
• 26.

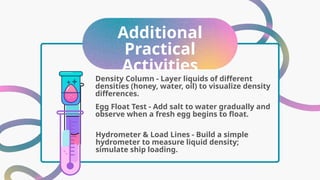

  Additional Practical Activities Egg Float Test- Add salt to water gradually and observe when a fresh egg begins to float. Density Column - Layer liquids of different densities (honey, water, oil) to visualize density differences. Hydrometer & Load Lines - Build a simple hydrometer to measure liquid density; simulate ship loading.
• 27.

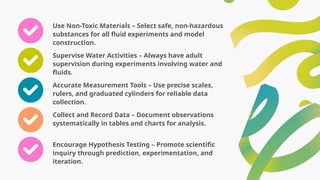

  Use Non-Toxic Materials– Select safe, non-hazardous substances for all fluid experiments and model construction. Supervise Water Activities – Always have adult supervision during experiments involving water and fluids. Accurate Measurement Tools – Use precise scales, rulers, and graduated cylinders for reliable data collection. Collect and Record Data – Document observations systematically in tables and charts for analysis. Encourage Hypothesis Testing – Promote scientific inquiry through prediction, experimentation, and iteration.
• 28.
  3-2-1 Reflection 3 key takeaways:Fluid principles power hydraulic systems, Pascal's & Archimedes' principles are foundational, shape/mass/volume affect buoyancy 2 applications: How can you apply fluid principles in daily life? What hydraulic systems do you use? 1 surprise: What surprised you most about the floating experiments?
• 29.
  Questions & Discussion Thank youfor your attention! What questions do you have about hydraulic systems, buoyancy, or fluid principles? Let's explore together!
• 30.
  Explore Fluid Physics Around You! Staycurious and keep experimenting with science!
