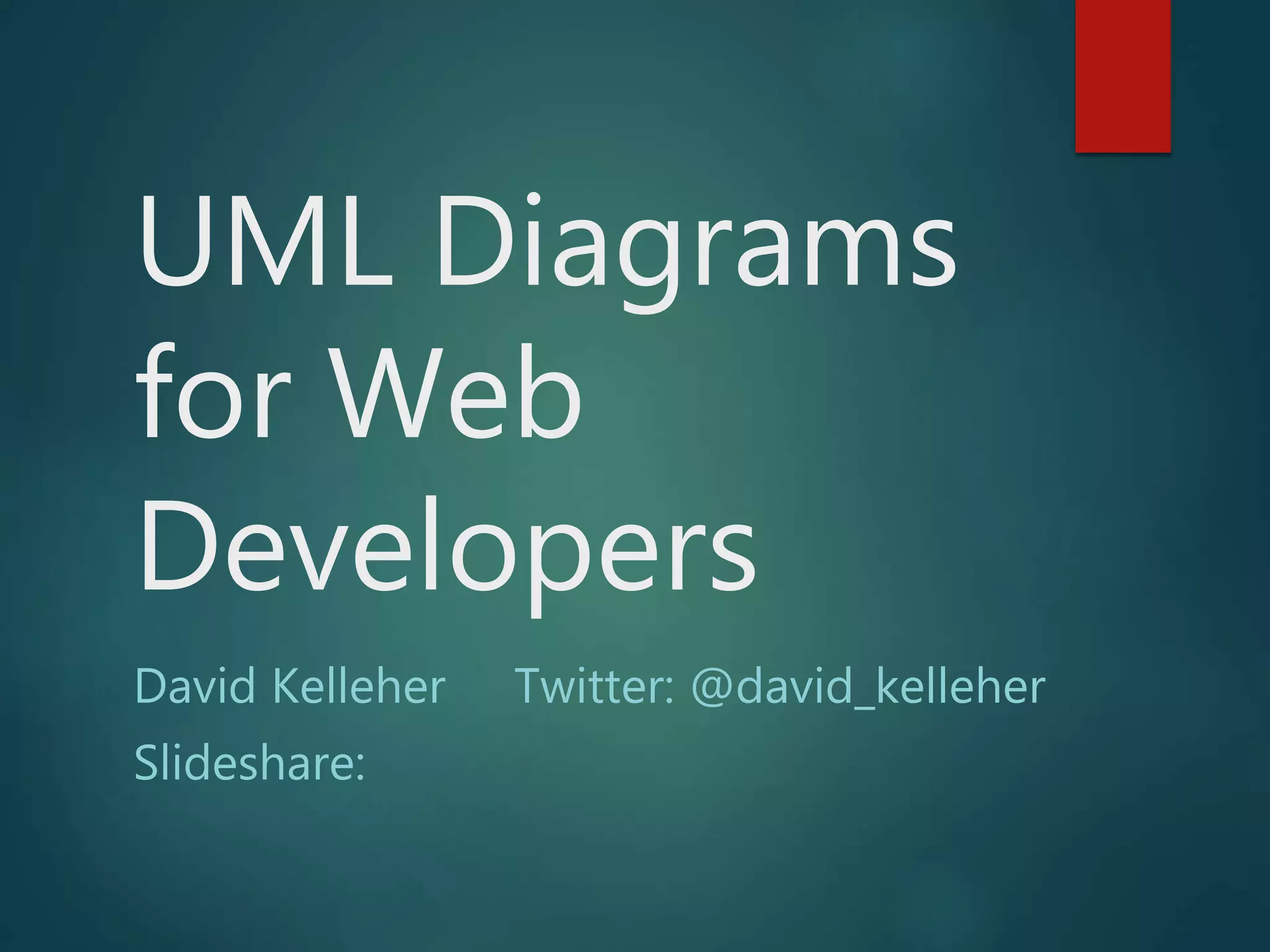

UML Diagrams
for Web
Developers
David Kelleher Twitter: @david_kelleher
Slideshare: www.slideshare.net/DaveKelleher/

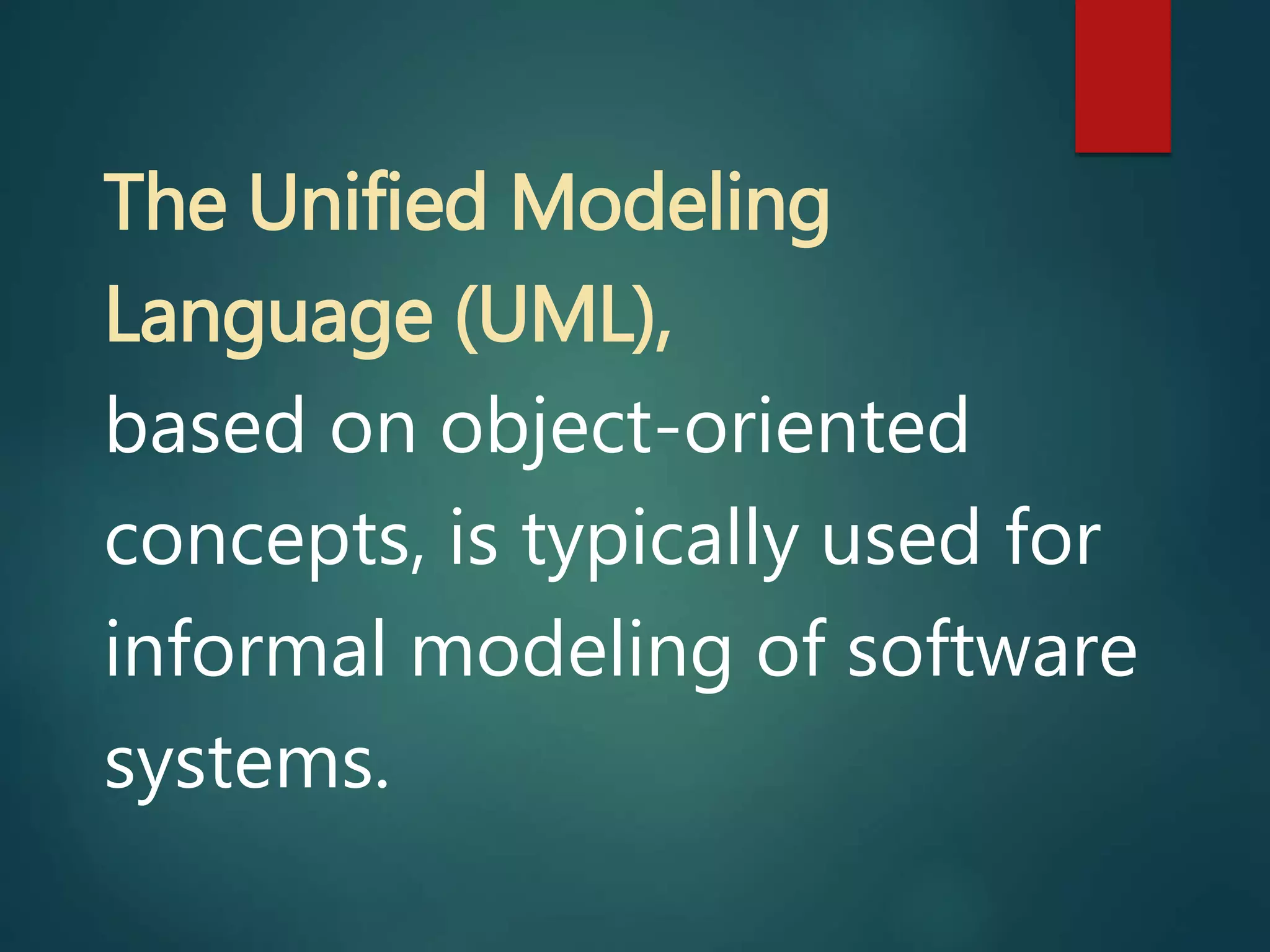

The Unified Modeling
Language (UML),
based on object-oriented
concepts, is typically used for
informal modeling of software
systems.
UML Pros and Cons
Pros Cons
Effective at informally
describing OO designs
Both complicated and
limited
No other widely known
alternatives exist for OO
Round trip to code was
never practical
How to use UML
 Validate your solution
 Brainstorm with developers
 Share ideas with stakeholders
 Limit size of diagrams
 Use only when necessary
Familiar elements
 Boxes, arrows, and lines
 Flowcharts
 Entity diagrams
 Swimlanes
Boxes, Arrows, and Lines
A B
C D
relationship
flow
Boxes, Arrows, and Lines
A
CB
composition
Flowchart
Start
Cook Tasty Crepe
Eat Tasty Crepe
End
Swimlane
Sales Warehouse Billing
Get Order Check Stock
In Stock? Check Card
Valid?
Process CardDeliver
Cancel Order
Yes
Yes
No
No
Relational Database Diagram
Car
id
manufacturer
model
color
…
Model
id
name
1
∞
Web System Composition
 System – web application
 Container – middle tier server
 Service – API, microservice
 Class – code implementation
Tip: Be cautious about mixing high and low level diagrams
UML Diagrams
 Use Case
 Deployment
 Sequence
 Activity
 Class
 State
Use Case Diagram
 Represents the interactions between
“actors” and parts of the system.
http://www.csci.csusb.edu/dick/cs557/r2.html
Association
Use Case Diagram
http://www.visual-paradigm.com/features/uml-and-sysml-modeling/
Deployment Diagram
 Represents nodes (physical and
virtual devices), services and
components, and connections of a
system (i.e. 3-tier, microservice)
http://www.cs.bu.edu/fac/kfoury/CVS-Working-Files/CS511-Spring07/
Handouts/HD27.how-to-draw-UML-diagrams.html
Deployment Diagram
https://pl.cs.jhu.edu/oose/projects/examples/10-group1/Iteration2.html
Sequence Diagram
 Represents a process flow
(execution of actions with
messages) using swimlanes
http://www.uml-diagrams.org/sequence-diagrams.html
message
return
message
Sequence
Diagram
http://www.ibm.com/developerworks/jp/web/library/wa-aj-multitier2/
Activity Diagram
 Represents a process flow as a
flowchart with concurrency
http://slideplayer.com/slide/4588309/
Activity
Diagram
https://www.lucidchart.com/pages/uml/activity-diagram
Class Diagram
 Represents the classes in a service
or component, including
properties, methods, and
relationships among the classes
Class Diagram
https://www.gliffy.com/examples/uml/
Generalization: “is a”
Inheritance Relationship: A car battery “is a” product.
Realization: “implements”
Polymorphism: The Image class can be realized by any class
that implements the same interface, i.e. JPG and GIF classes.
Aggregation: “has a”
Whole-part relationship: a degree “has a” course.
Note: an instance of the part could be shared with multiple
Instances of the whole
A course instance could be a part of many degree instances.
If the degree program is deleted, the course would still exist.
Composition: “contains”
Whole-part relationship: a car “contains” an engine.
Note: an instance of the part cannot be shared with multiple
Instances of the whole
An engine can be inside only one car at a time.
Association
A class instance has another kind of relationship with
another class instance.
The nature of the relationship can be labeled on the diagram.
A person “subscribes” to a magazine.
State Diagram
 Represents the change
in state of a system,
such as the different
values that can be
stored in a class
property.
https://en.wikipedia.org/wiki/State_diagram
State Diagram
http://help.axcms.net/en_help_concepts_workflow.AxCMS
Diagramming is Design
 Contrast – black on white
 Repetition – be consistent
 Alignment – snap to grid
 Proximity – group related items
Tools
 Paper sketches
 Drawing software like Visio,
Illustrator
 Online services like draw.io
UML Diagrams
for Web
Developers
David Kelleher Twitter: @david_kelleher
Slideshare: www.slideshare.net/DaveKelleher/
