1. Umbraco UK Festival 2013
J&Js adventures with agency best practice
& the hybrid MVC framework
Sharing our shit:
Jeavon Leopold - Twitter: @crumpled_Jeavon
Jeroen Breuer - Twitter: @j_breuer

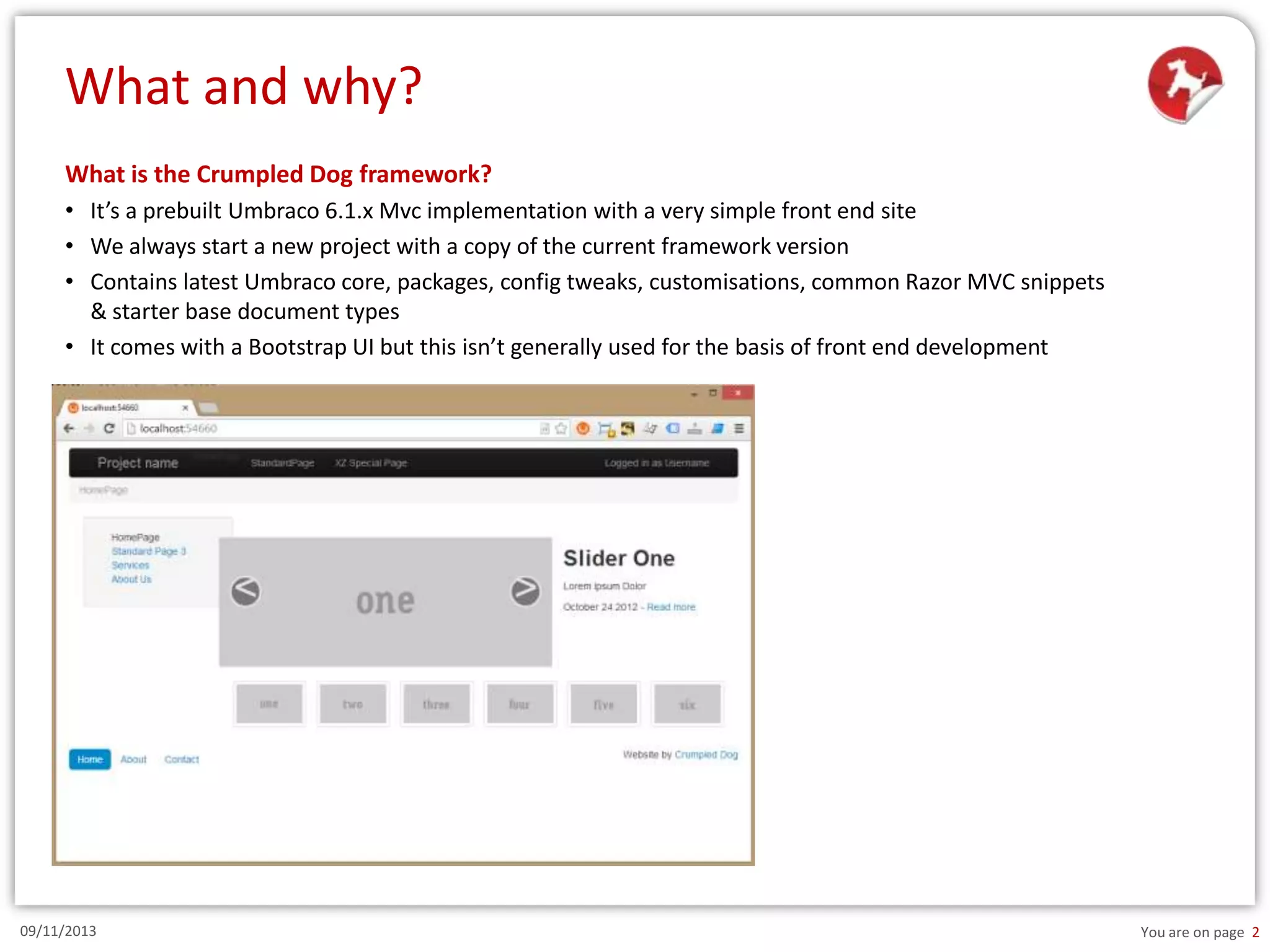

2. What and why?
What is the Crumpled Dog framework?
• It’s a prebuilt Umbraco 6.1.x Mvc implementation with a very simple front end site
• We always start a new project with a copy of the current framework version
• Contains latest Umbraco core, packages, config tweaks, customisations, common Razor MVC snippets
& starter base document types
• It comes with a Bootstrap UI but this isn’t generally used for the basis of front end development
09/11/2013
You are on page 2

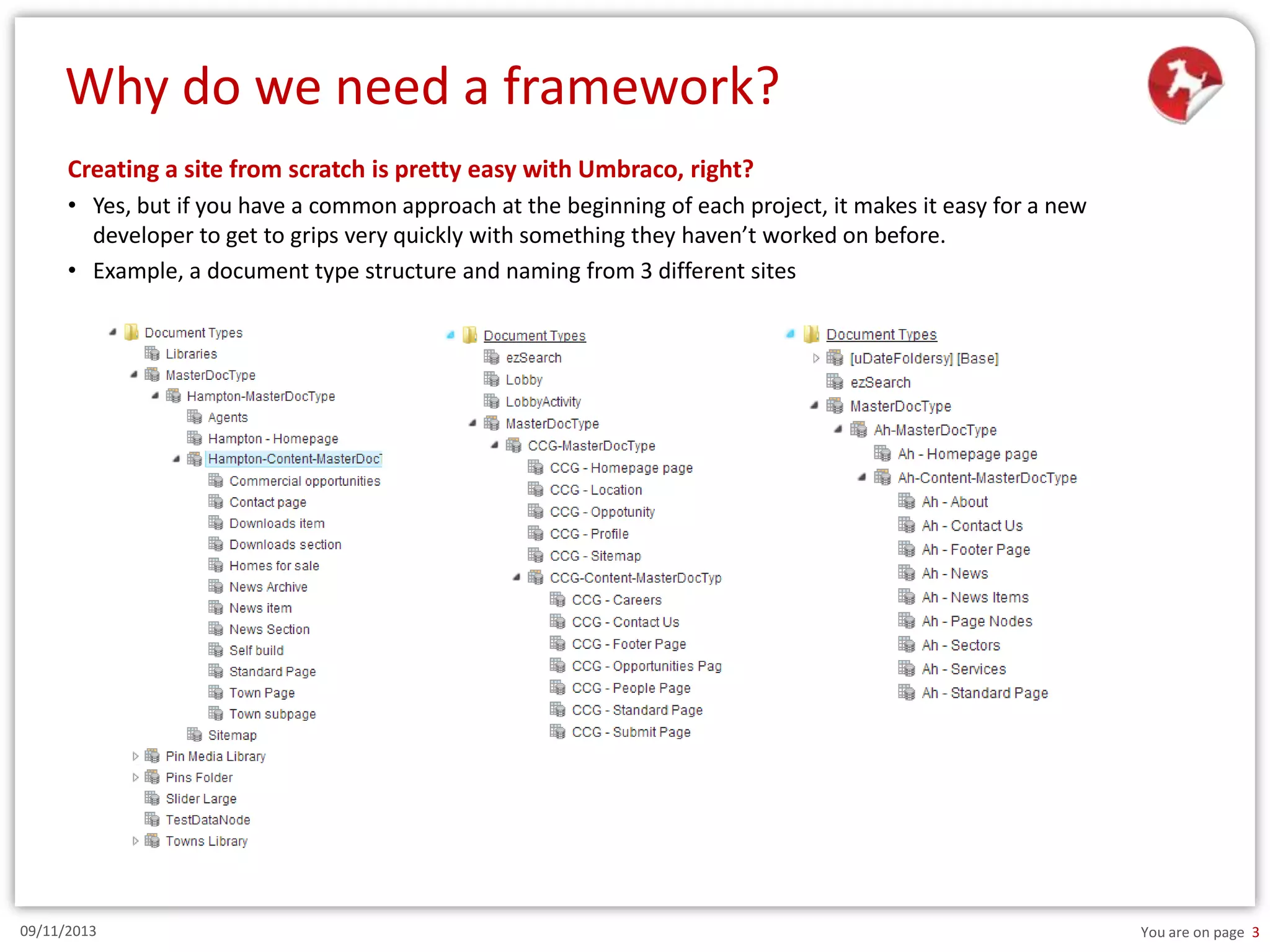

3. Why do we need a framework?
Creating a site from scratch is pretty easy with Umbraco, right?
• Yes, but if you have a common approach at the beginning of each project, it makes it easy for a new
developer to get to grips very quickly with something they haven’t worked on before.
• Example, a document type structure and naming from 3 different sites
09/11/2013
You are on page 3

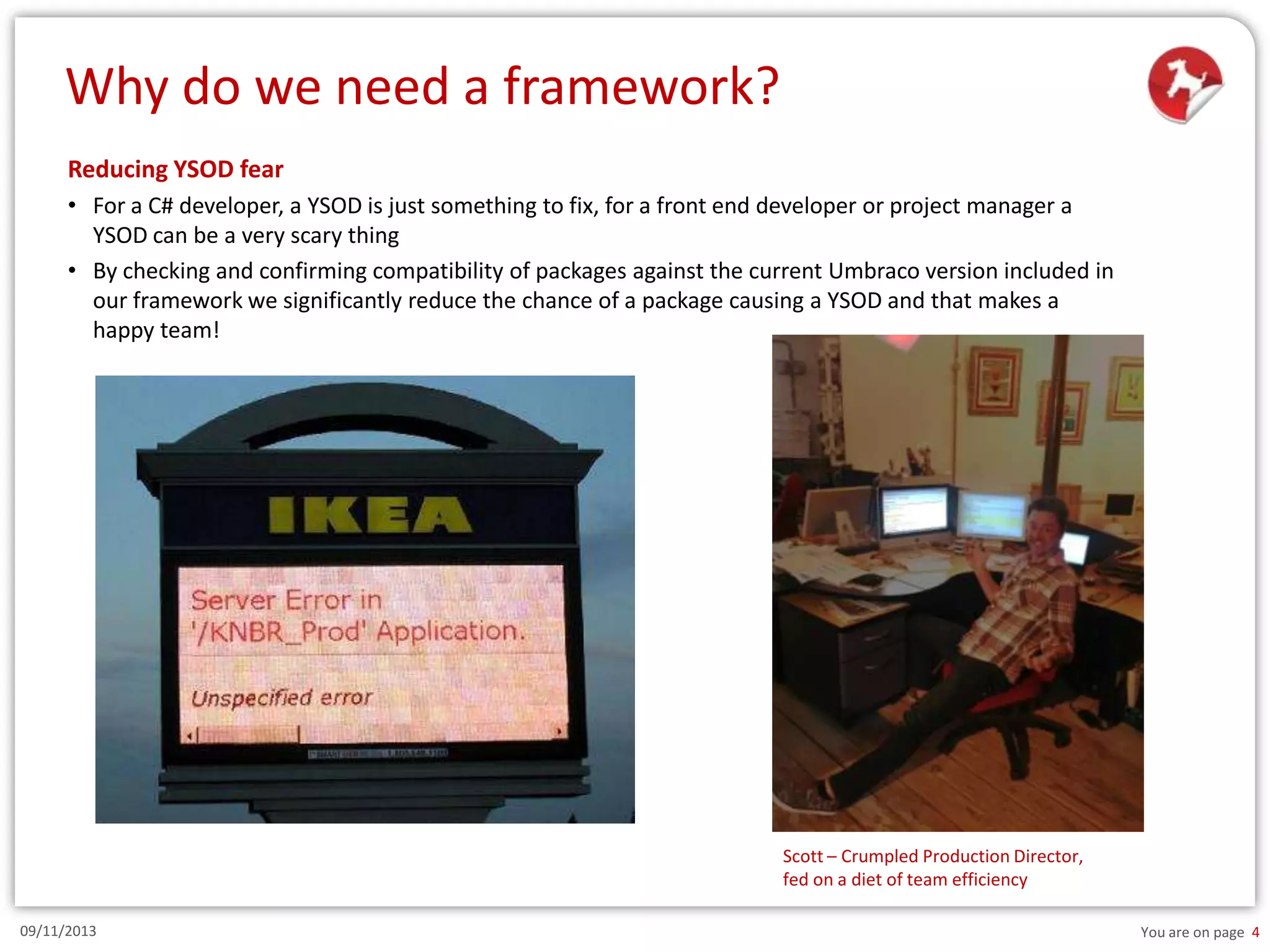

4. Why do we need a framework?
Reducing YSOD fear
• For a C# developer, a YSOD is just something to fix, for a front end developer or project manager a
YSOD can be a very scary thing
• By checking and confirming compatibility of packages against the current Umbraco version included in
our framework we significantly reduce the chance of a package causing a YSOD and that makes a
happy team!
Scott – Crumpled Production Director,
fed on a diet of team efficiency
09/11/2013
You are on page 4

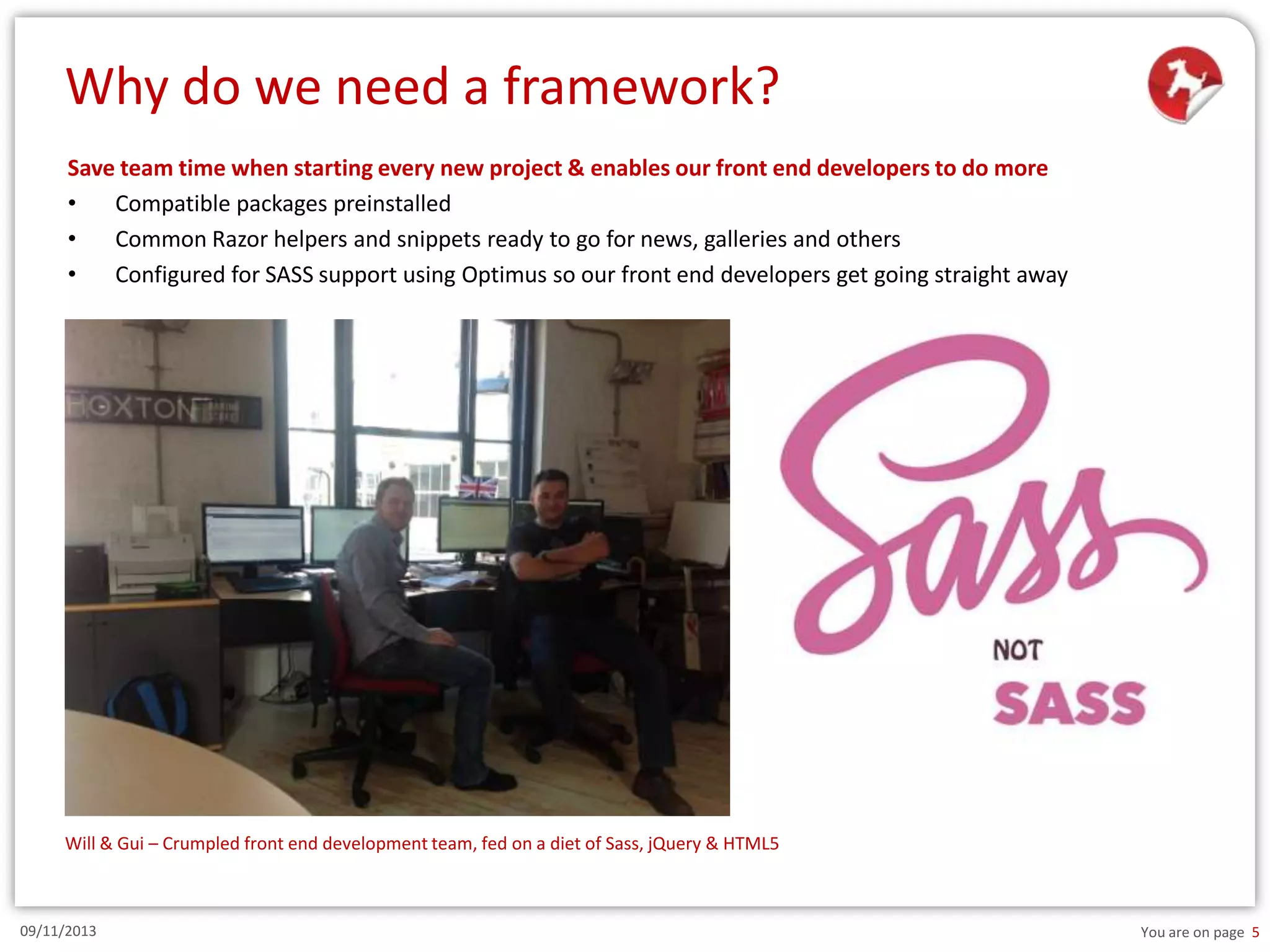

5. Why do we need a framework?
Save team time when starting every new project & enables our front end developers to do more
•
Compatible packages preinstalled
•
Common Razor helpers and snippets ready to go for news, galleries and others
•
Configured for SASS support using Optimus so our front end developers get going straight away
Will & Gui – Crumpled front end development team, fed on a diet of Sass, jQuery & HTML5
09/11/2013
You are on page 5

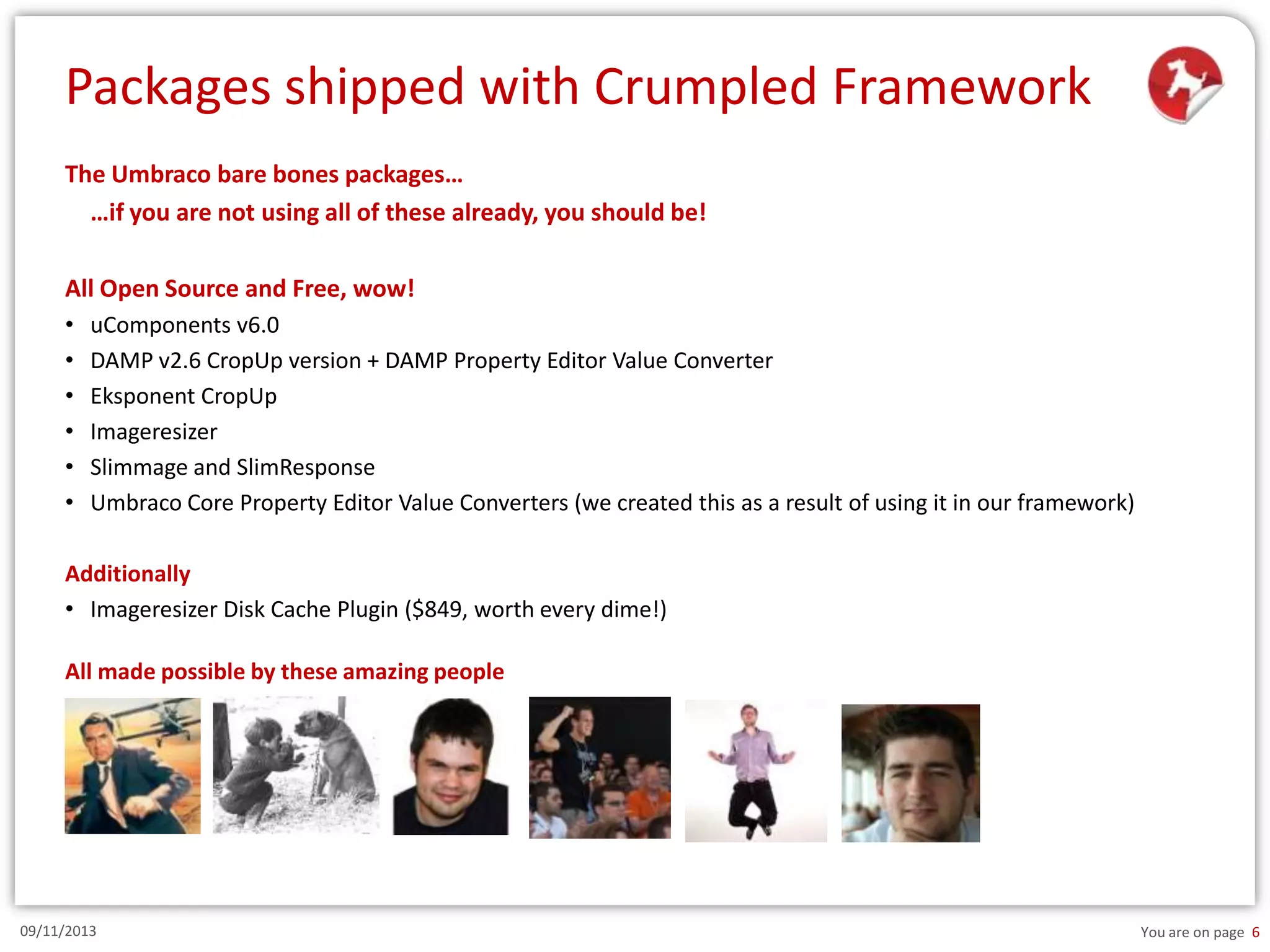

6. Packages shipped with Crumpled Framework
The Umbraco bare bones packages…
…if you are not using all of these already, you should be!
All Open Source and Free, wow!
•
•
•
•
•
•
uComponents v6.0
DAMP v2.6 CropUp version + DAMP Property Editor Value Converter
Eksponent CropUp
Imageresizer
Slimmage and SlimResponse
Umbraco Core Property Editor Value Converters (we created this as a result of using it in our framework)
Additionally
• Imageresizer Disk Cache Plugin ($849, worth every dime!)
All made possible by these amazing people
09/11/2013
You are on page 6

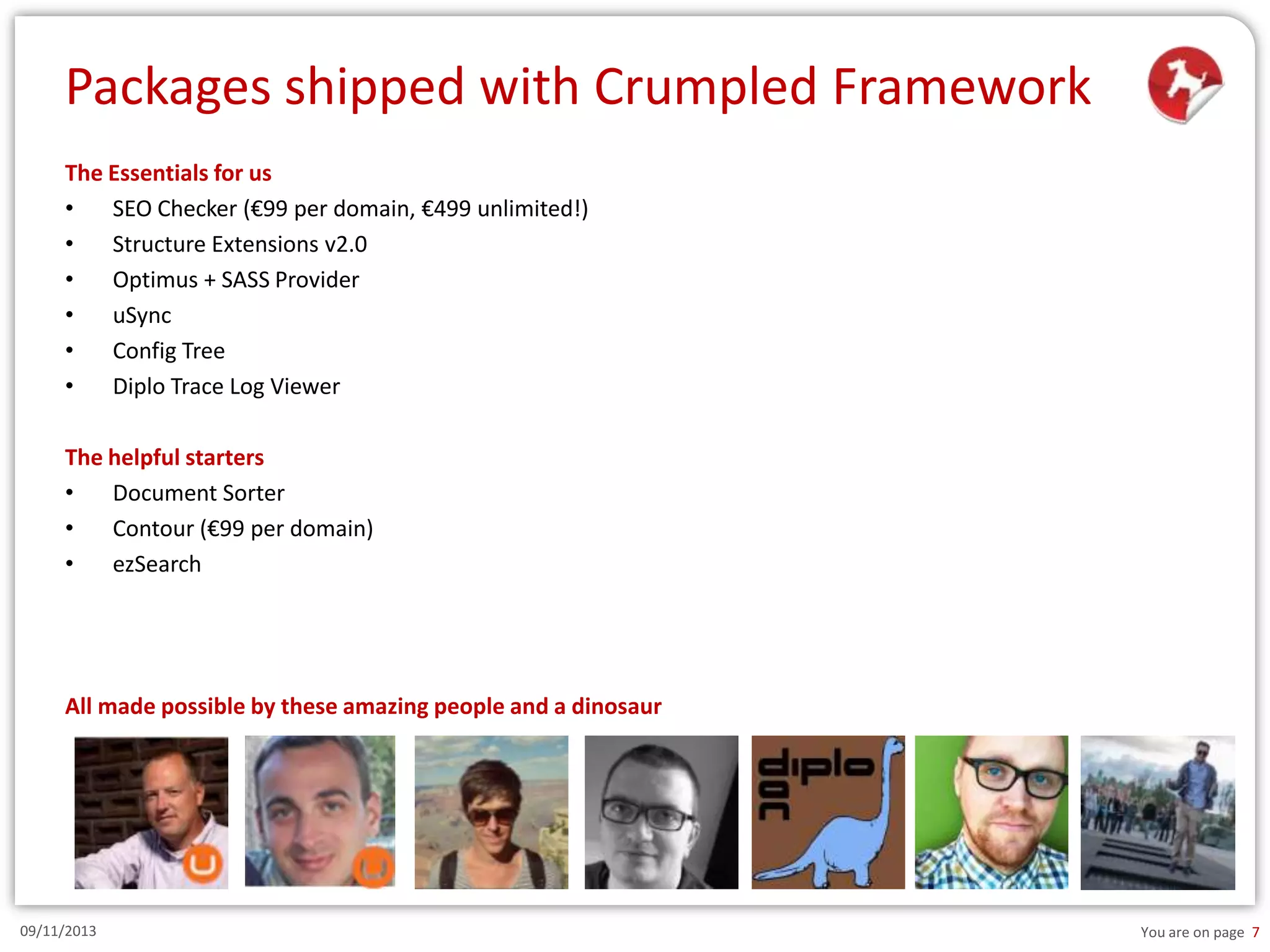

7. Packages shipped with Crumpled Framework
The Essentials for us
•
SEO Checker (€99 per domain, €499 unlimited!)
•
Structure Extensions v2.0
•
Optimus + SASS Provider
•
uSync
•
Config Tree
•
Diplo Trace Log Viewer
The helpful starters
•
Document Sorter
•
Contour (€99 per domain)
•
ezSearch
All made possible by these amazing people and a dinosaur
09/11/2013
You are on page 7

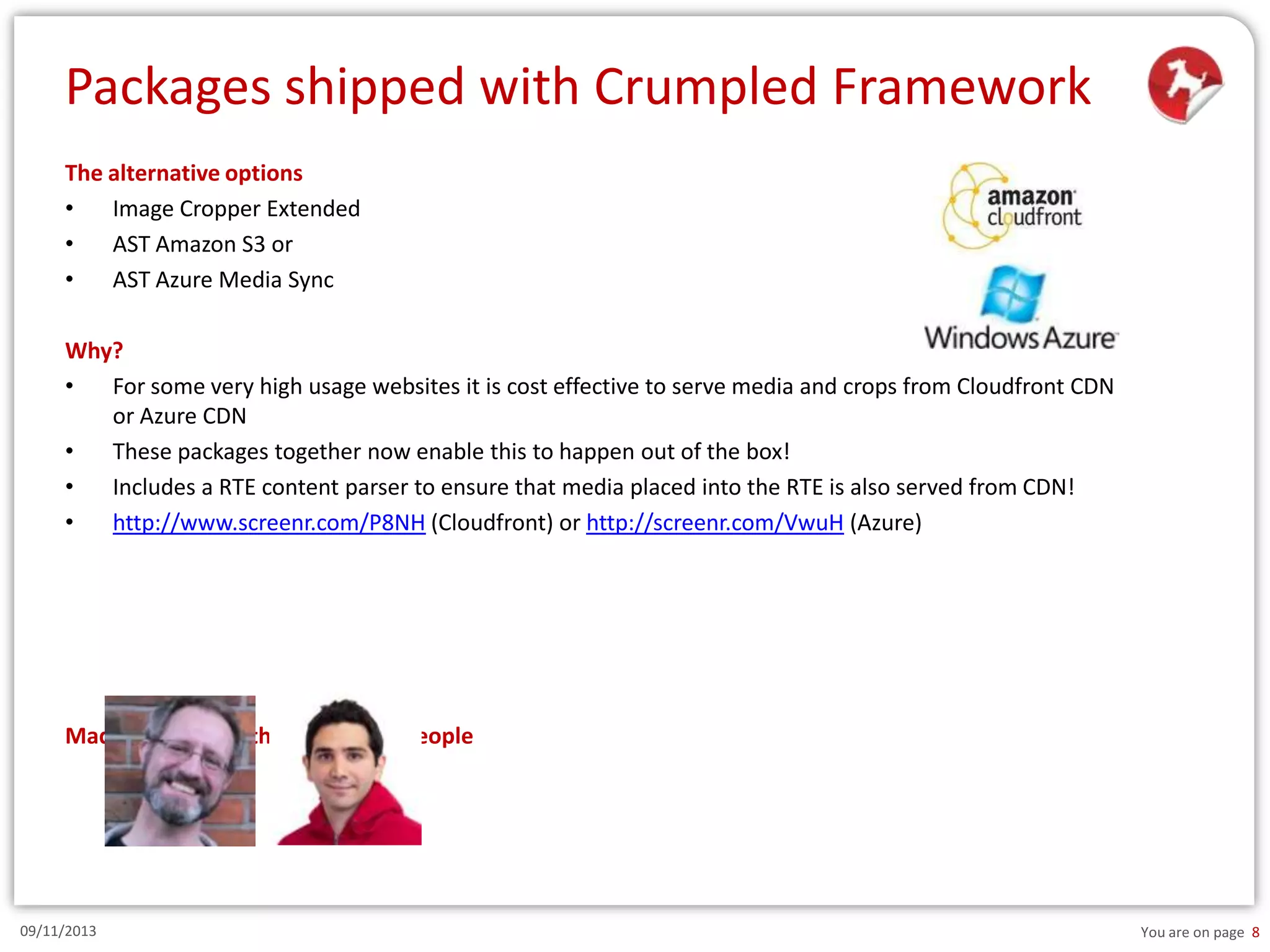

8. Packages shipped with Crumpled Framework
The alternative options
•
Image Cropper Extended
•
AST Amazon S3 or
•
AST Azure Media Sync
Why?
•
For some very high usage websites it is cost effective to serve media and crops from Cloudfront CDN
or Azure CDN
•
These packages together now enable this to happen out of the box!
•
Includes a RTE content parser to ensure that media placed into the RTE is also served from CDN!
•
http://www.screenr.com/P8NH (Cloudfront) or http://screenr.com/VwuH (Azure)
Made possible by these amazing people
09/11/2013
You are on page 8

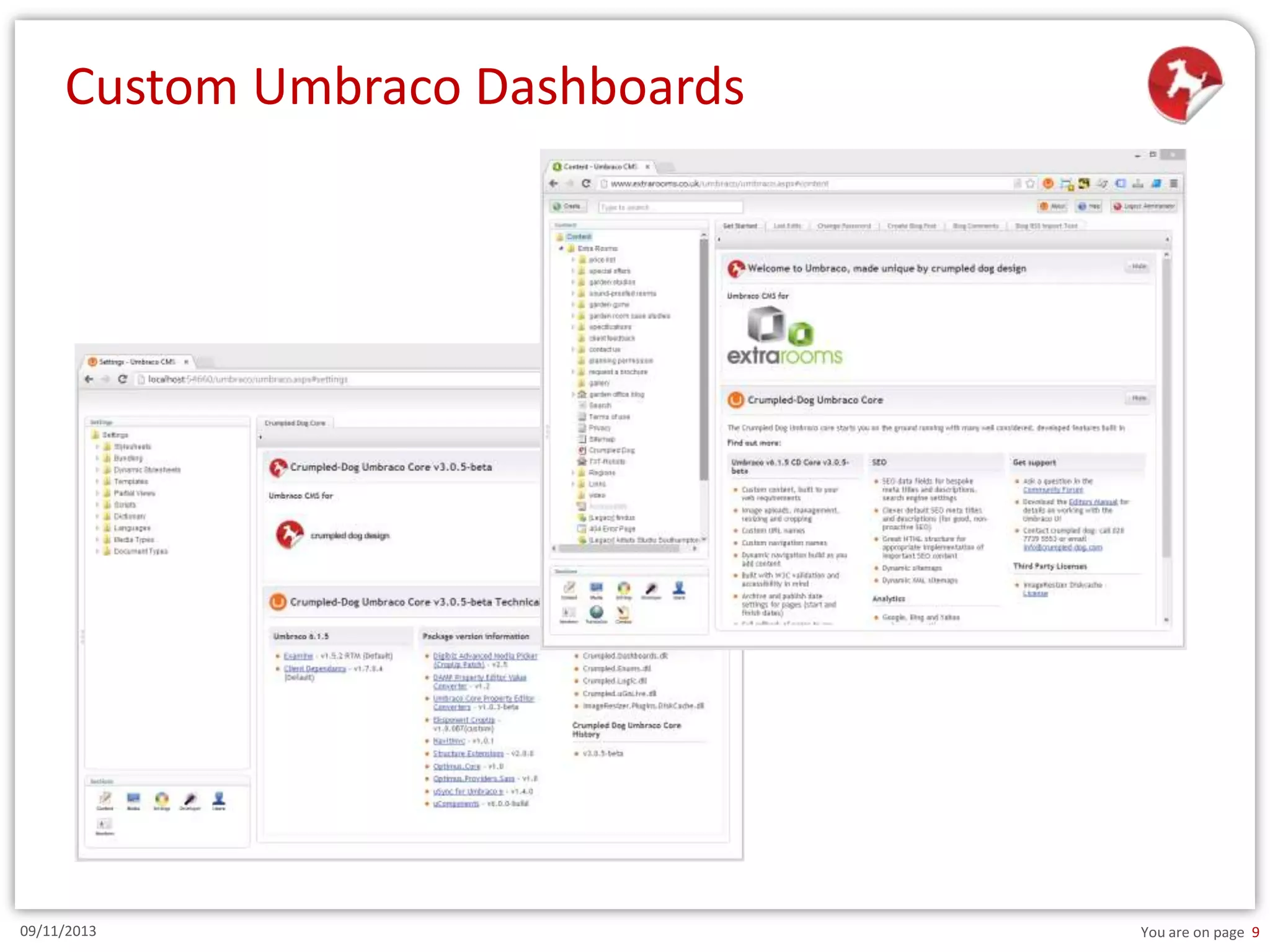

9. Custom Umbraco Dashboards
09/11/2013
You are on page 9

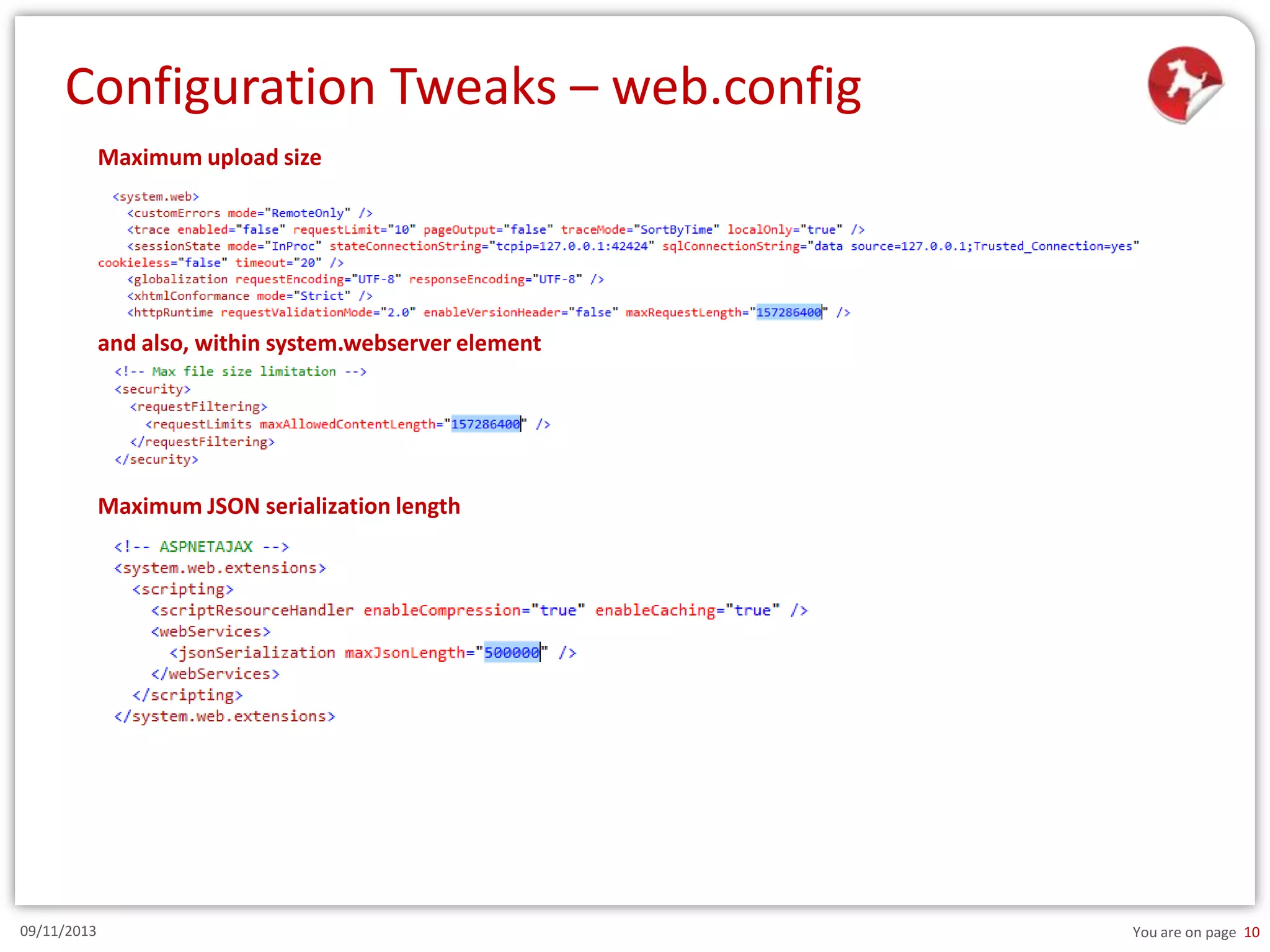

10. Configuration Tweaks – web.config
Maximum upload size
and also, within system.webserver element
Maximum JSON serialization length
09/11/2013
You are on page 10

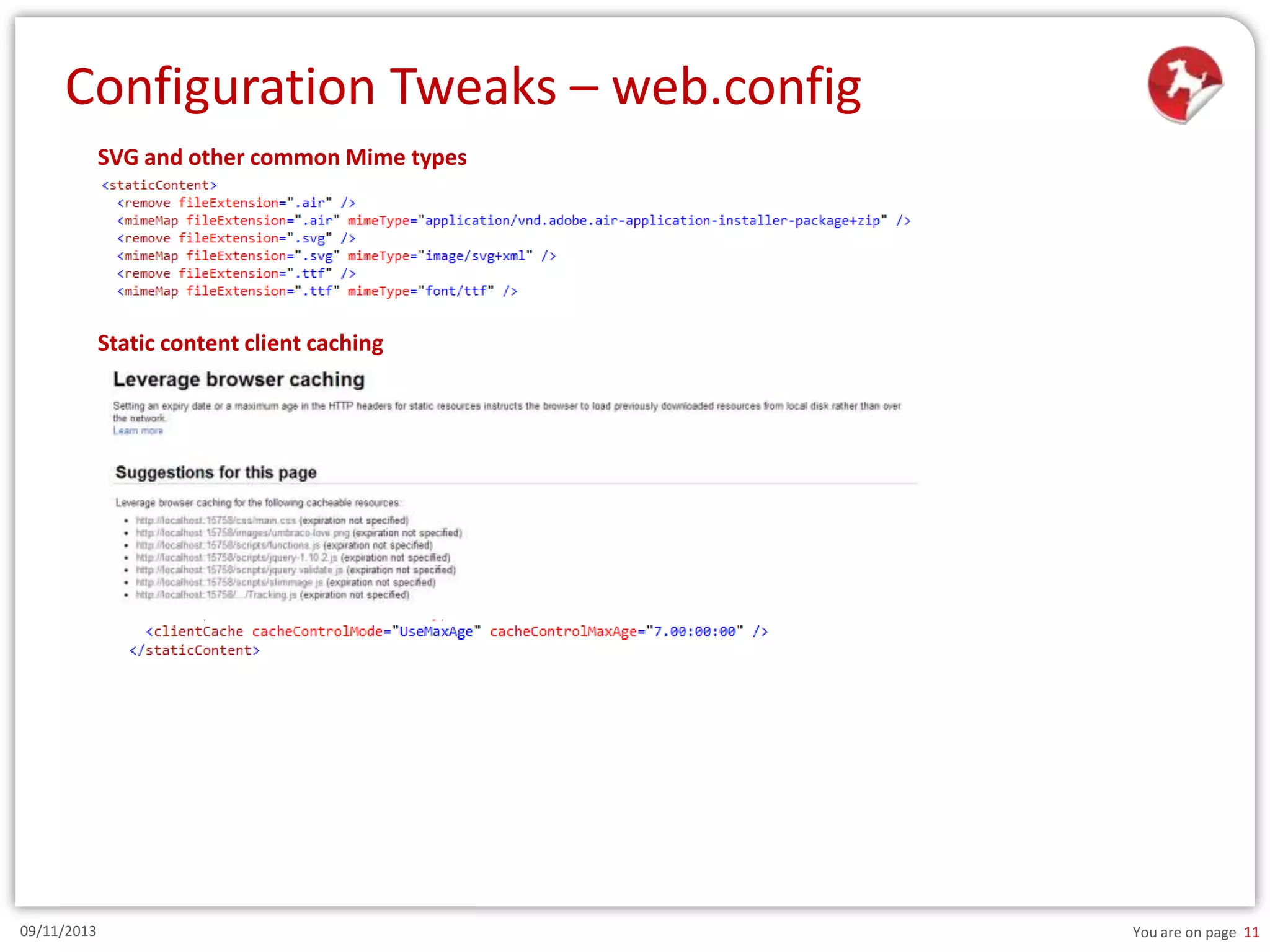

11. Configuration Tweaks – web.config
SVG and other common Mime types
Static content client caching
09/11/2013
You are on page 11

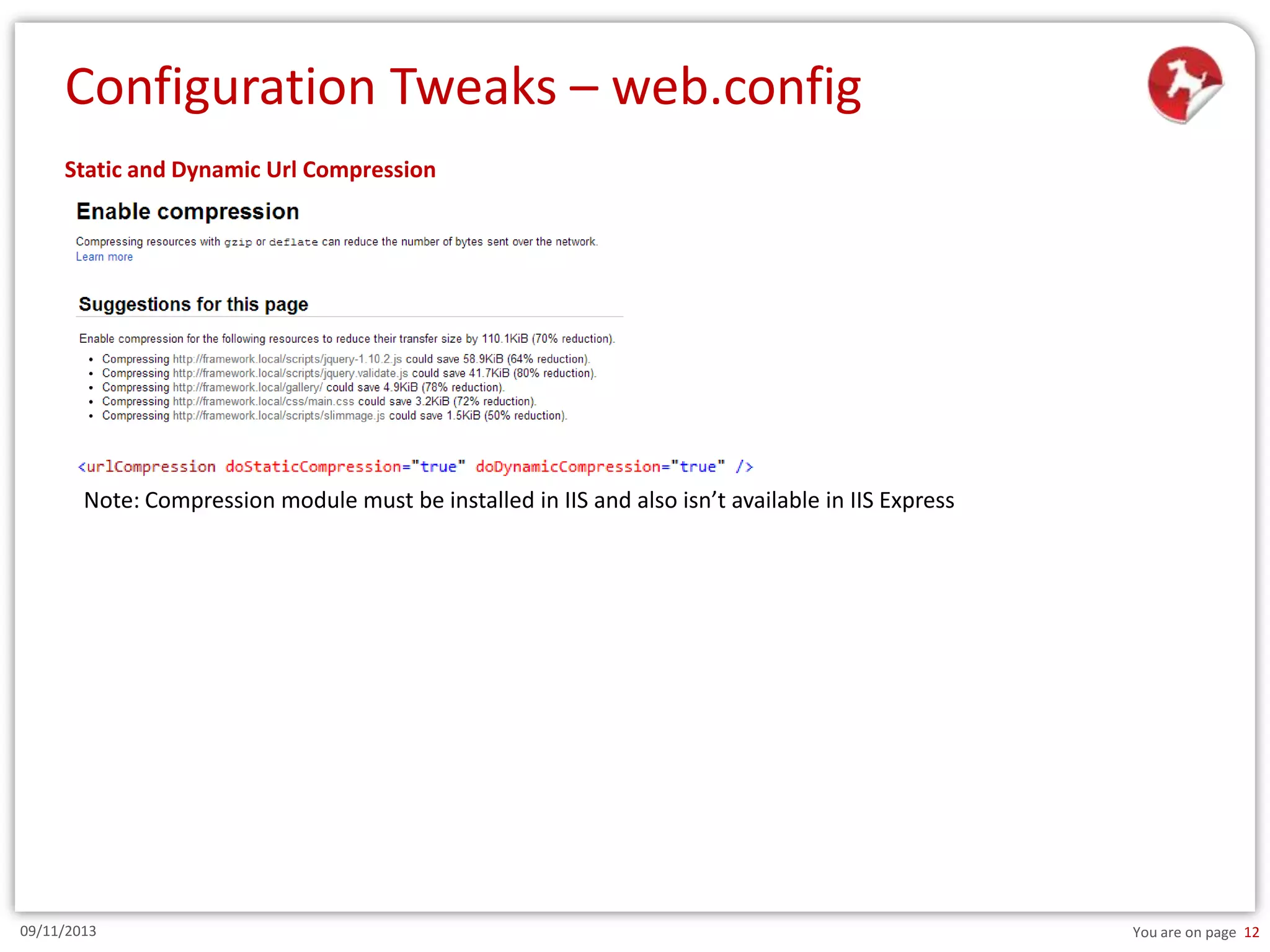

12. Configuration Tweaks – web.config
Static and Dynamic Url Compression
Note: Compression module must be installed in IIS and also isn’t available in IIS Express
09/11/2013
You are on page 12

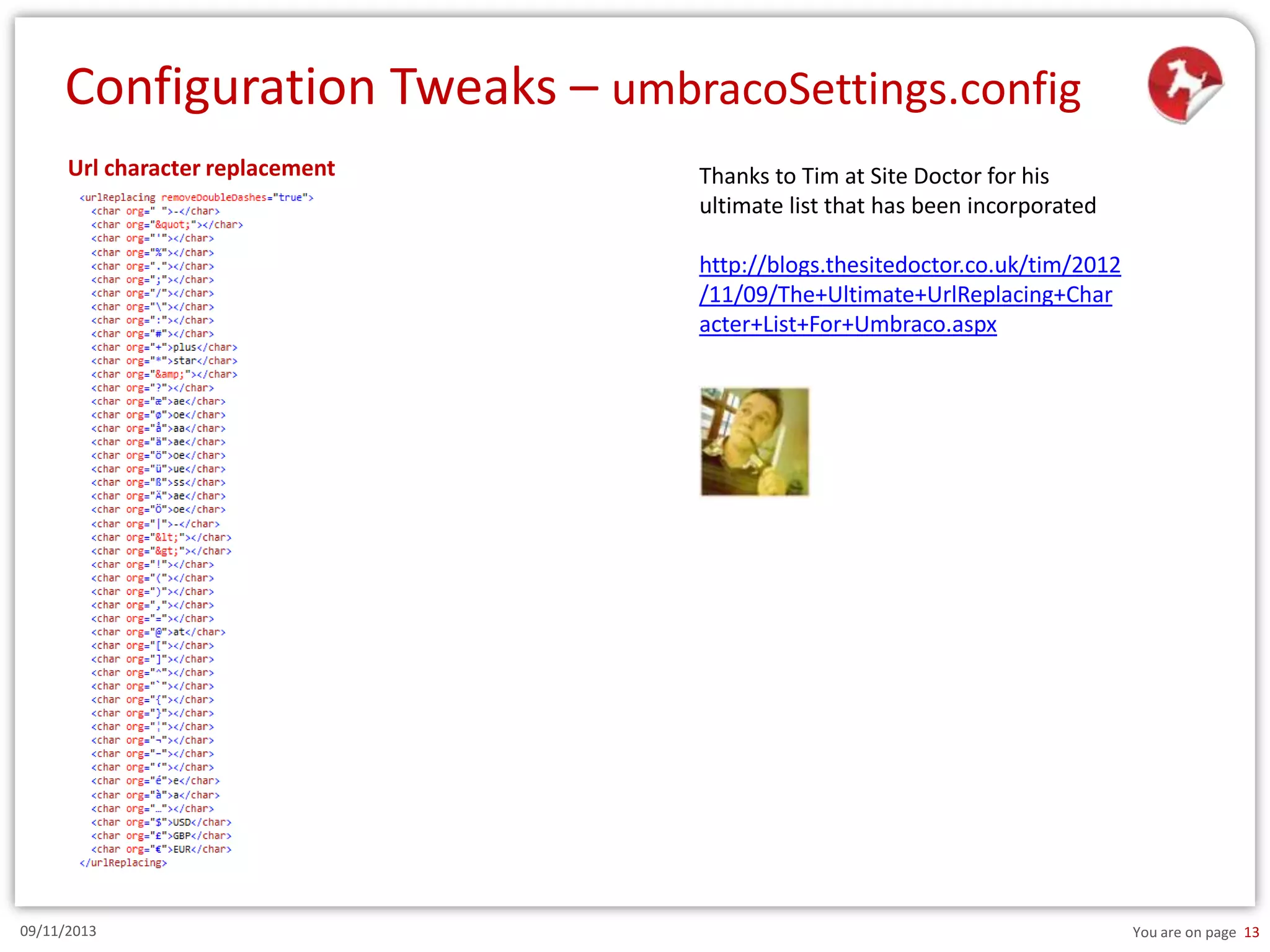

13. Configuration Tweaks – umbracoSettings.config
Url character replacement
Thanks to Tim at Site Doctor for his
ultimate list that has been incorporated
http://blogs.thesitedoctor.co.uk/tim/2012
/11/09/The+Ultimate+UrlReplacing+Char
acter+List+For+Umbraco.aspx
09/11/2013
You are on page 13

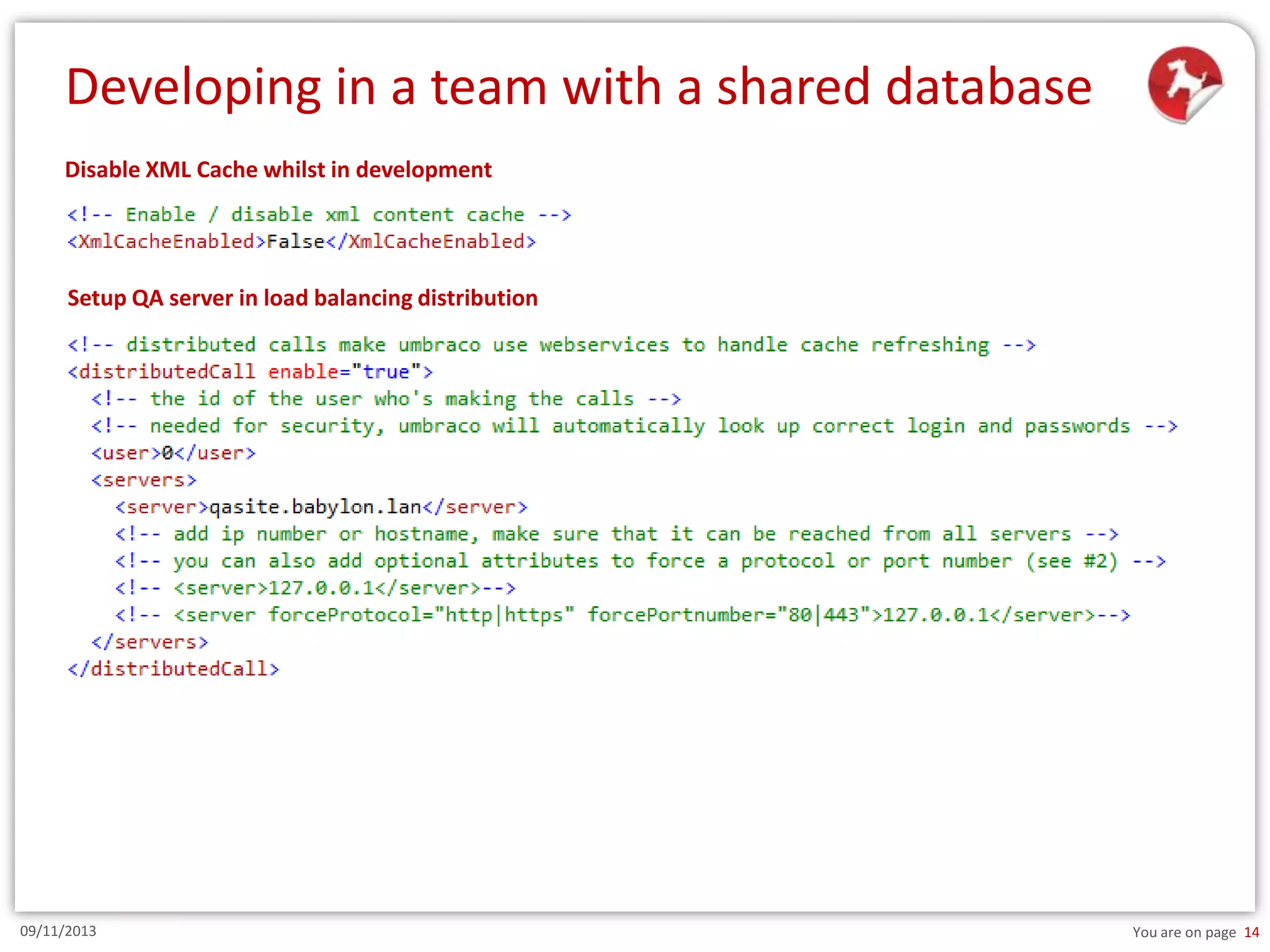

14. Developing in a team with a shared database
Disable XML Cache whilst in development
Setup QA server in load balancing distribution
09/11/2013
You are on page 14

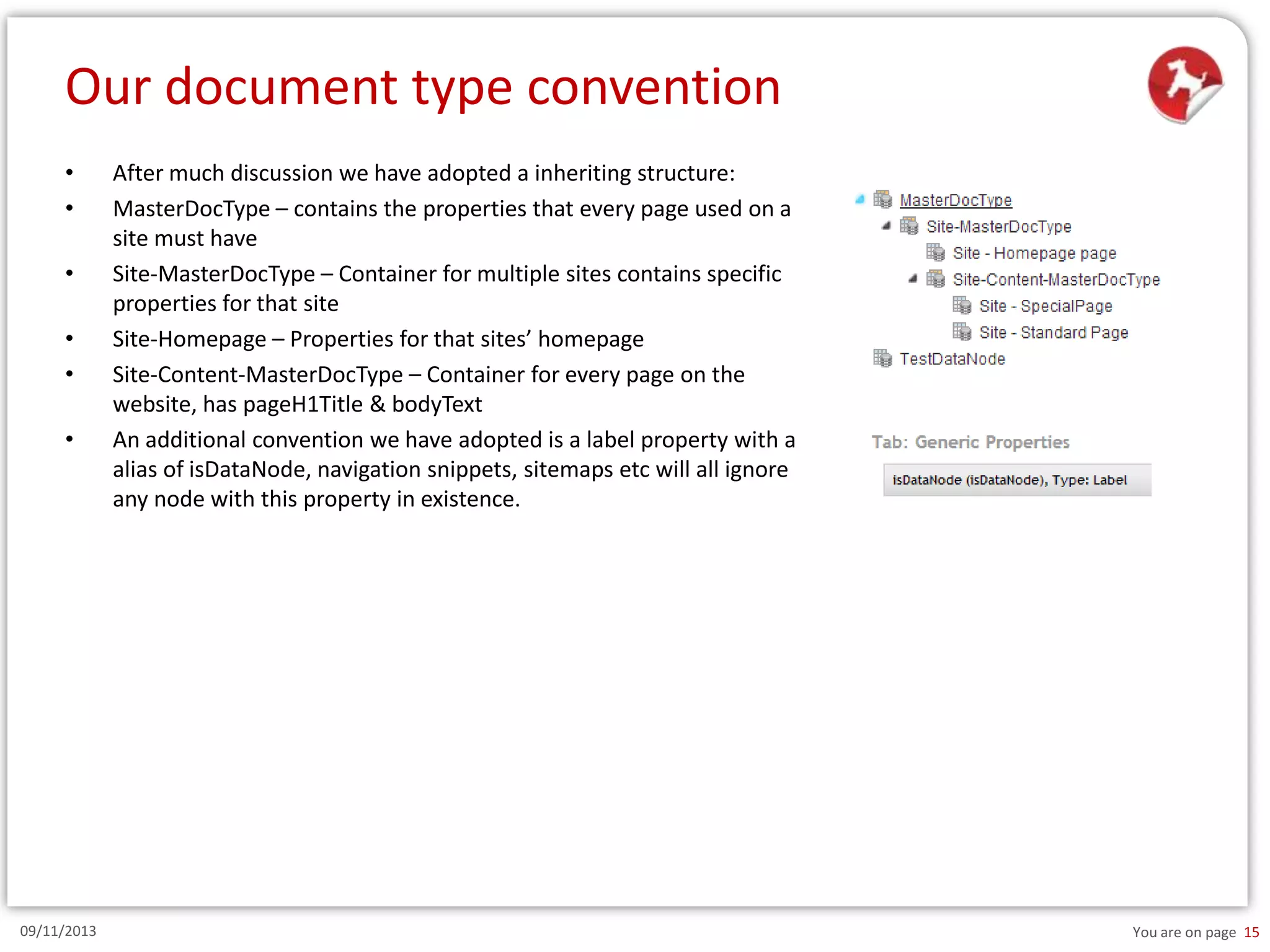

15. Our document type convention
•
•
•
•
•
•
09/11/2013
After much discussion we have adopted a inheriting structure:
MasterDocType – contains the properties that every page used on a
site must have
Site-MasterDocType – Container for multiple sites contains specific
properties for that site
Site-Homepage – Properties for that sites’ homepage
Site-Content-MasterDocType – Container for every page on the
website, has pageH1Title & bodyText
An additional convention we have adopted is a label property with a
alias of isDataNode, navigation snippets, sitemaps etc will all ignore
any node with this property in existence.
You are on page 15

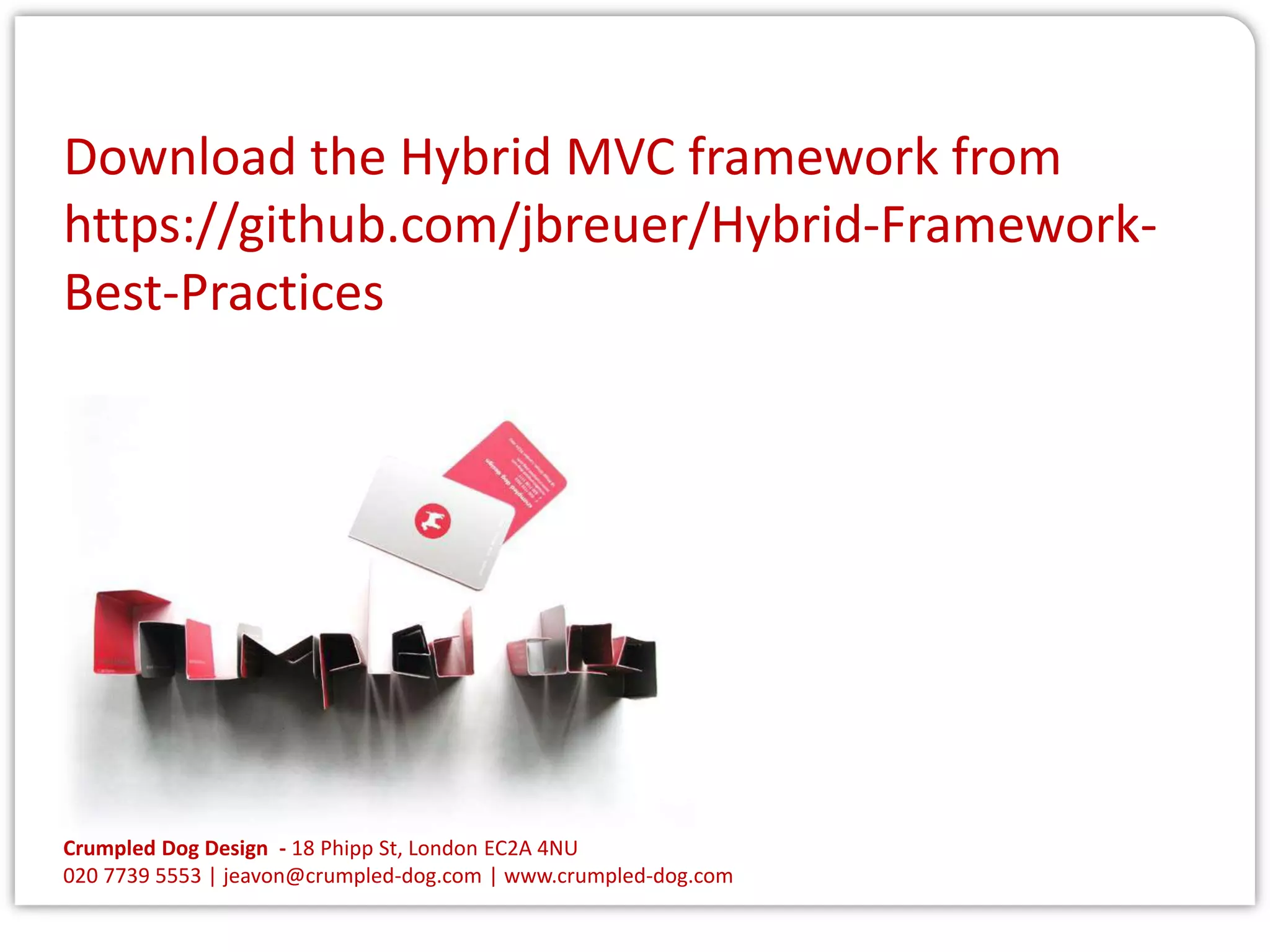

16. Download the Hybrid MVC framework from
https://github.com/jbreuer/Hybrid-FrameworkBest-Practices
