TYPES OF SHACKLES (With Pictures)

The document describes different types of shackles used in construction and other industries. It discusses bow/anchor shackles, chain/dee shackles, headboard shackles, snap shackles, twist shackles, and karabiners. Each type of shackle has a different shape and intended use. For example, bow shackles can take loads from many directions while dee shackles are designed to take high loads in-line. The document also compares galvanized and stainless steel shackles, noting that stainless steel is more corrosion resistant, especially for marine applications.

Devices & Hardware◦
Downloaded 139 times
TYPES OF SHACKLES By Gaurav.U.Paliwal B.E (Civil)
Types of shackles • Bow/anchor shackles • Chain/Dee shackle • Headboard shackle. • Snap shackle. • Twist shackle. • Karabiner (a kind of shackle)

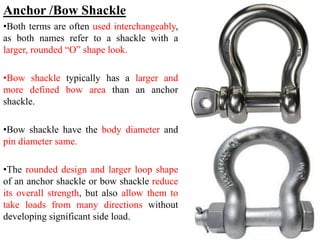

Anchor /Bow Shackle •Both terms are often used interchangeably, as both names refer to a shackle with a larger, rounded “O” shape look. •Bow shackle typically has a larger and more defined bow area than an anchor shackle. •Bow shackle have the body diameter and pin diameter same. •The rounded design and larger loop shape of an anchor shackle or bow shackle reduce its overall strength, but also allow them to take loads from many directions without developing significant side load.

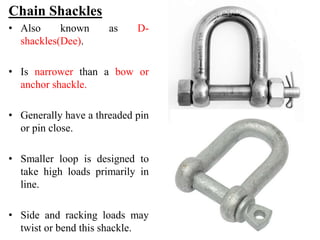

Chain Shackles • Also known as D- shackles(Dee). • Is narrower than a bow or anchor shackle. • Generally have a threaded pin or pin close. • Smaller loop is designed to take high loads primarily in line. • Side and racking loads may twist or bend this shackle.
Headboard Shackle • Longer version of a Dee-shackle

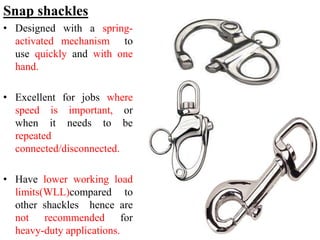

Snap shackles • Designed with a spring- activated mechanism to use quickly and with one hand. • Excellent for jobs where speed is important, or when it needs to be repeated connected/disconnected. • Have lower working load limits(WLL)compared to other shackles hence are not recommended for heavy-duty applications.

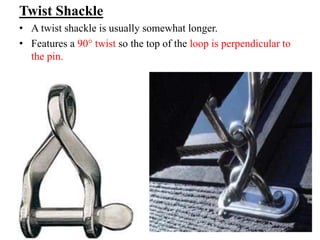

Twist Shackle • A twist shackle is usually somewhat longer. • Features a 90° twist so the top of the loop is perpendicular to the pin.

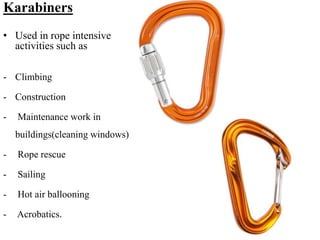

Karabiners • Used in rope intensive activities such as - Climbing - Construction - Maintenance work in buildings(cleaning windows) - Rope rescue - Sailing - Hot air ballooning - Acrobatics.

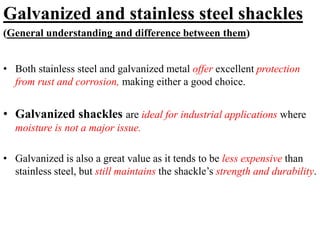

Galvanized and stainless steel shackles (General understanding and difference between them) • Both stainless steel and galvanized metal offer excellent protection from rust and corrosion, making either a good choice. • Galvanized shackles are ideal for industrial applications where moisture is not a major issue. • Galvanized is also a great value as it tends to be less expensive than stainless steel, but still maintains the shackle’s strength and durability.

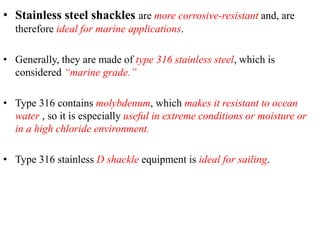

• Stainless steel shackles are more corrosive-resistant and, are therefore ideal for marine applications. • Generally, they are made of type 316 stainless steel, which is considered “marine grade.” • Type 316 contains molybdenum, which makes it resistant to ocean water , so it is especially useful in extreme conditions or moisture or in a high chloride environment. • Type 316 stainless D shackle equipment is ideal for sailing.

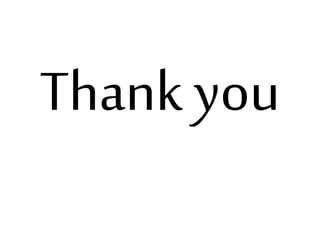

Thank you
