tvOS: An Introduction for iOS Developers

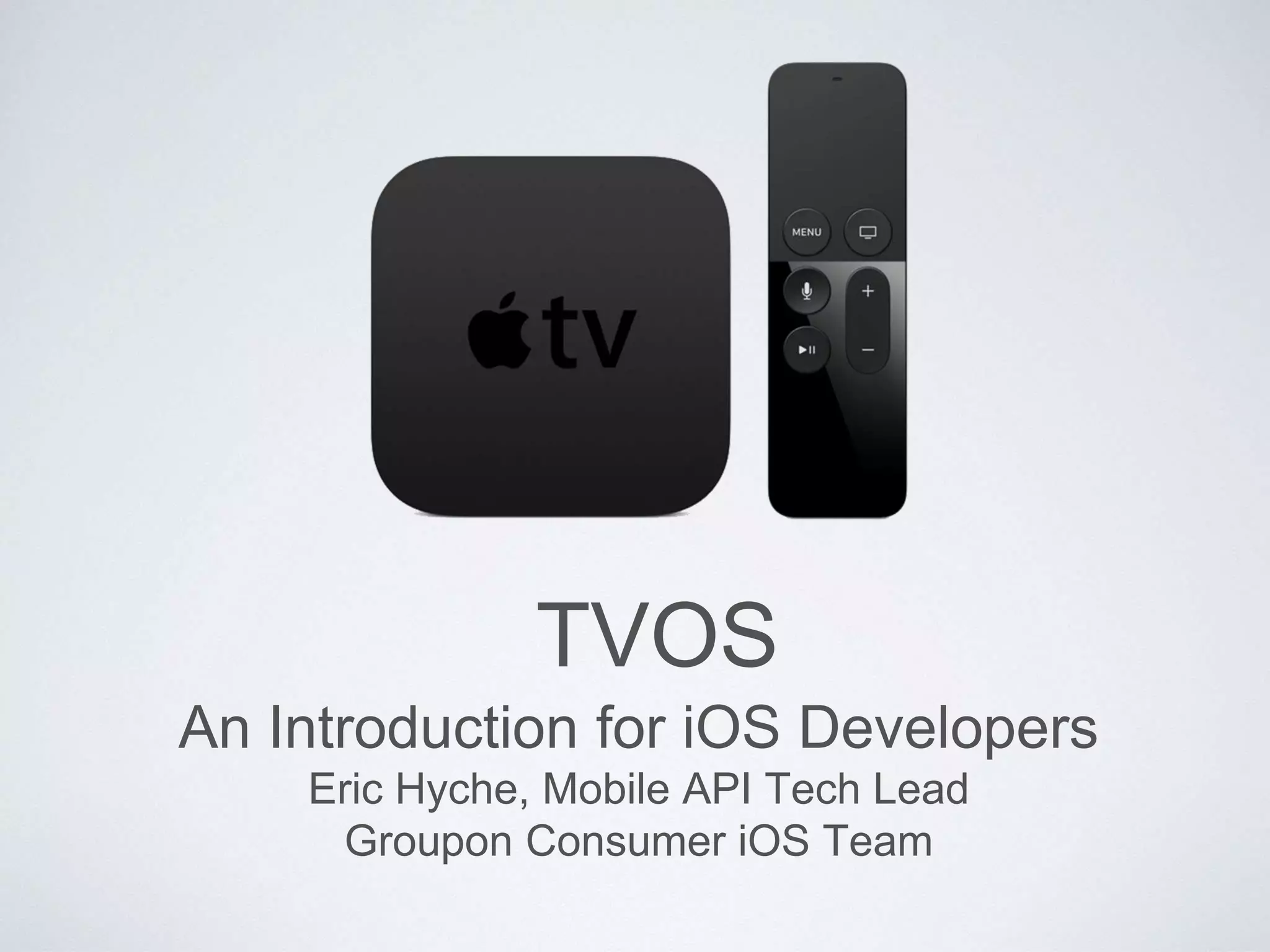

- 1. TVOS An Introduction foriOS Developers Eric Hyche, Mobile API Tech Lead Groupon Consumer iOS Team

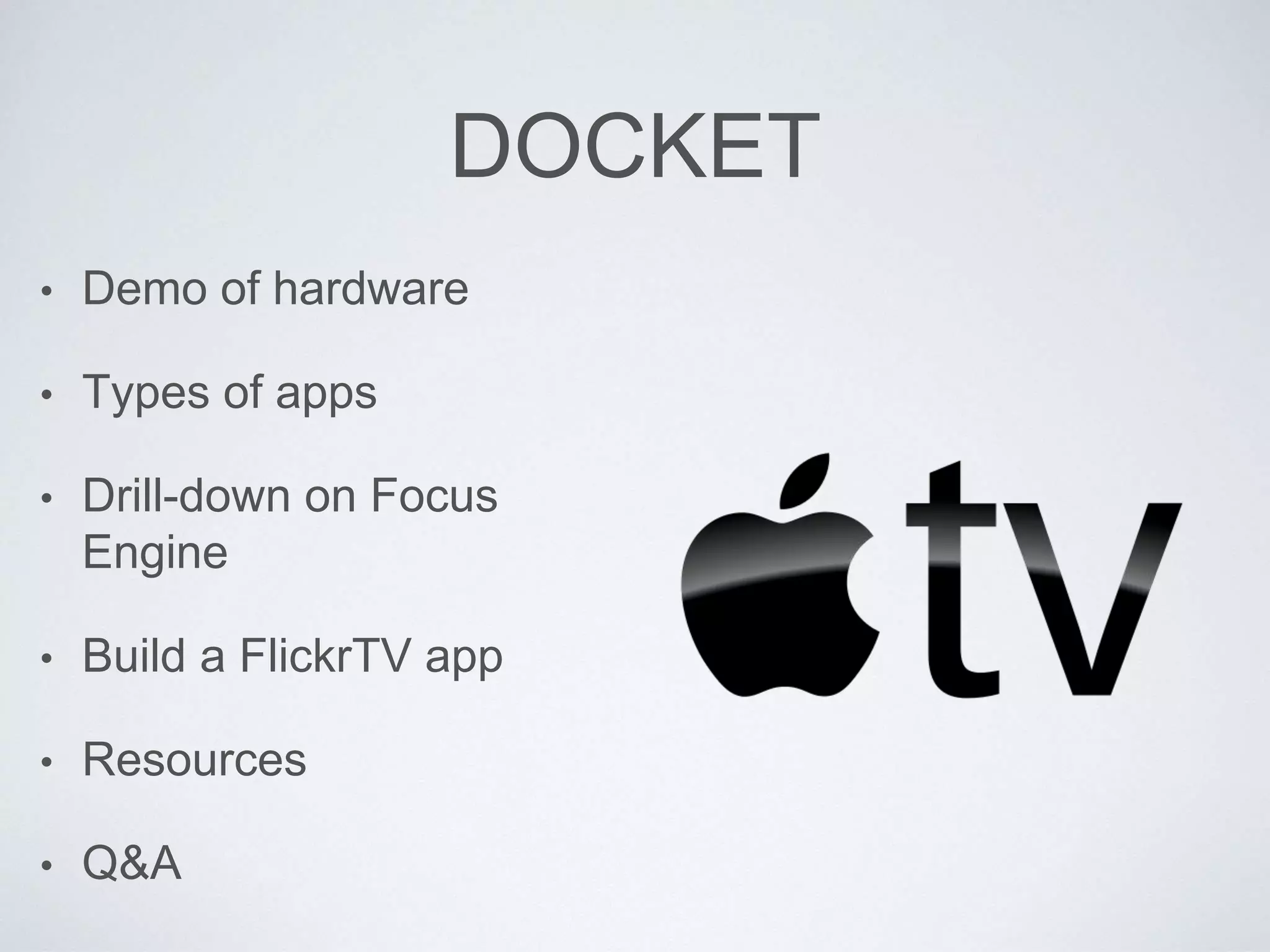

- 2. DOCKET • Demo ofhardware • Types of apps • Drill-down on Focus Engine • Build a FlickrTV app • Resources • Q&A

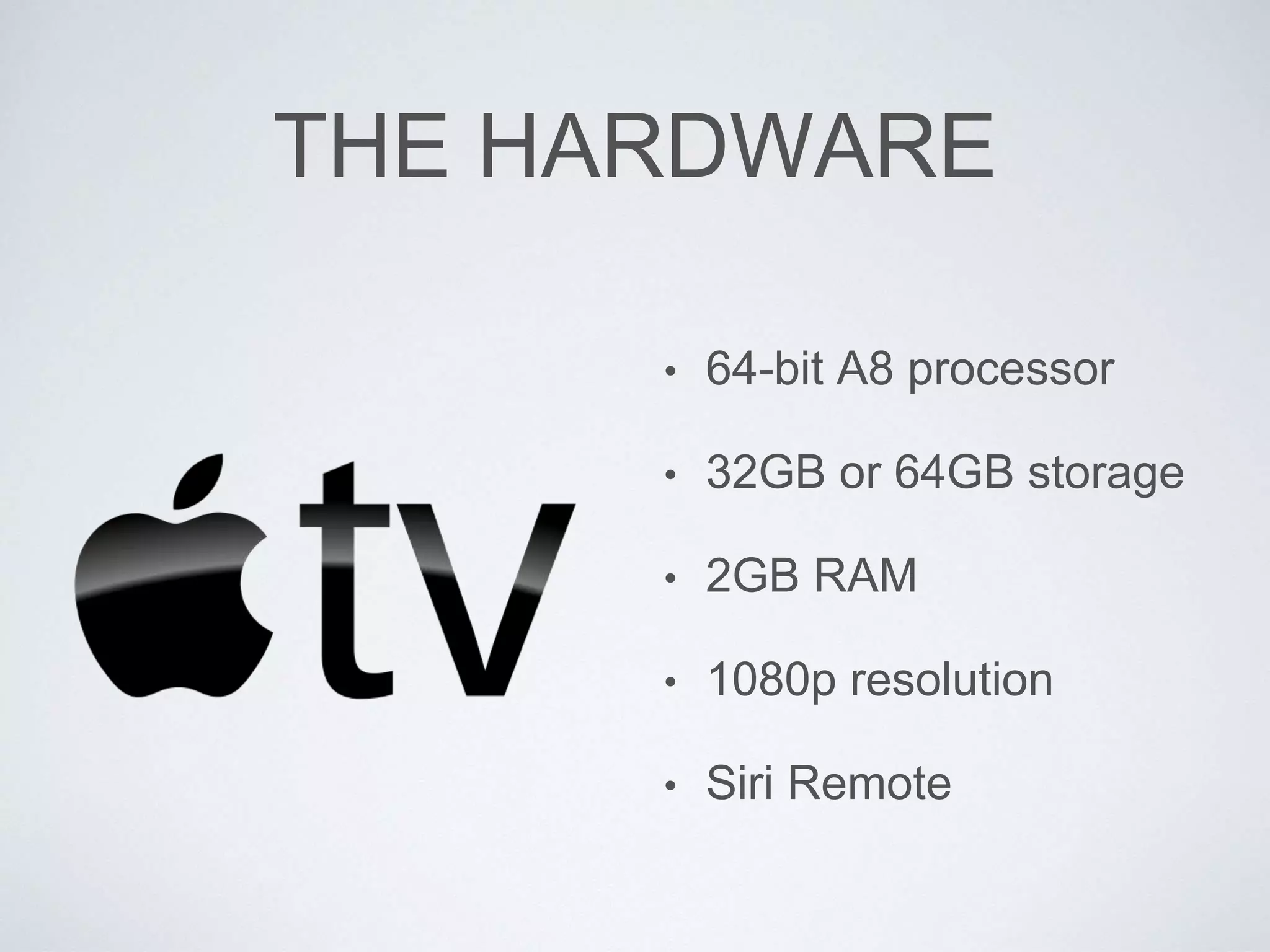

- 3. THE HARDWARE • 64-bitA8 processor • 32GB or 64GB storage • 2GB RAM • 1080p resolution • Siri Remote

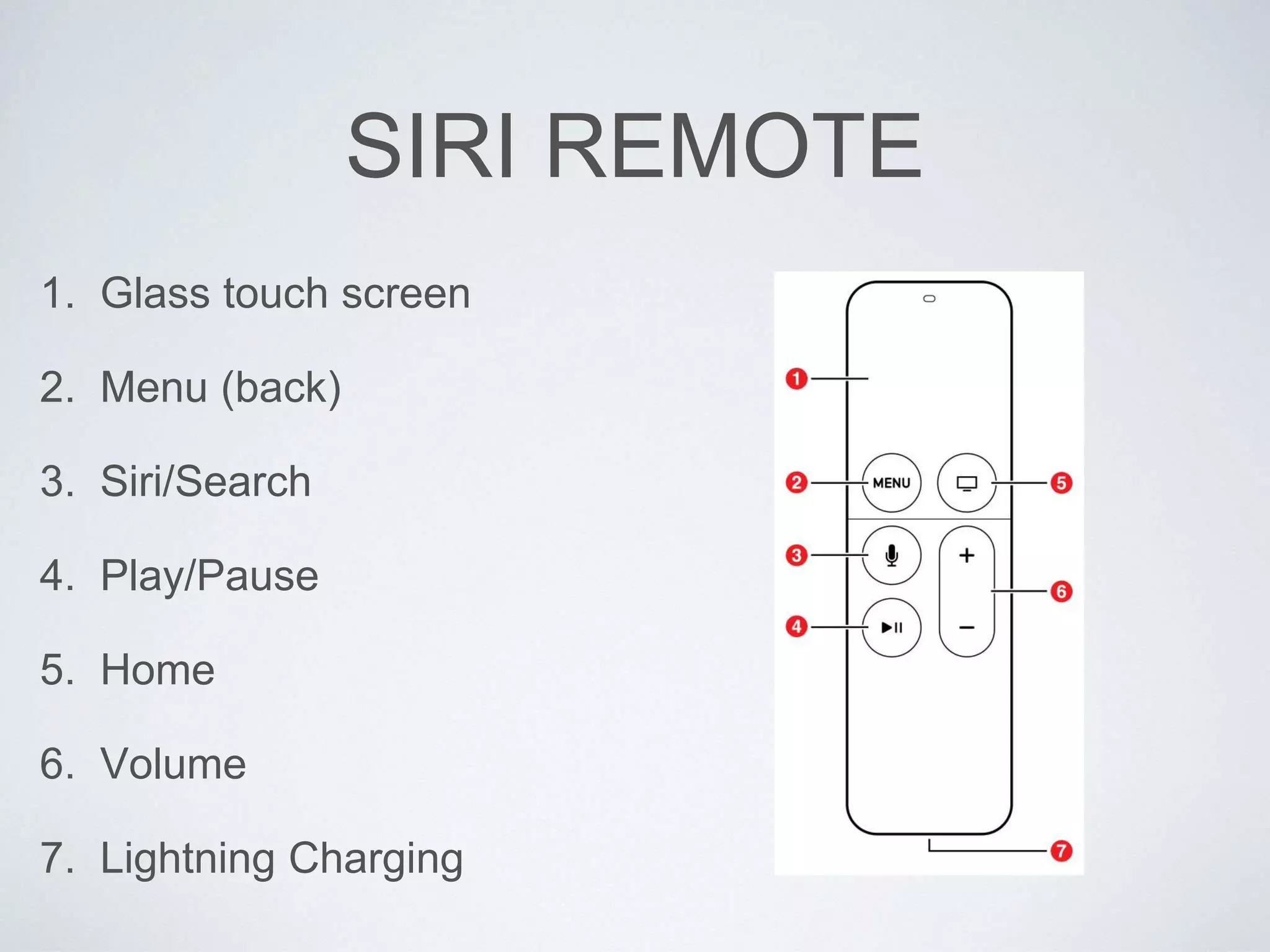

- 4. SIRI REMOTE 1. Glasstouch screen 2. Menu (back) 3. Siri/Search 4. Play/Pause 5. Home 6. Volume 7. Lightning Charging

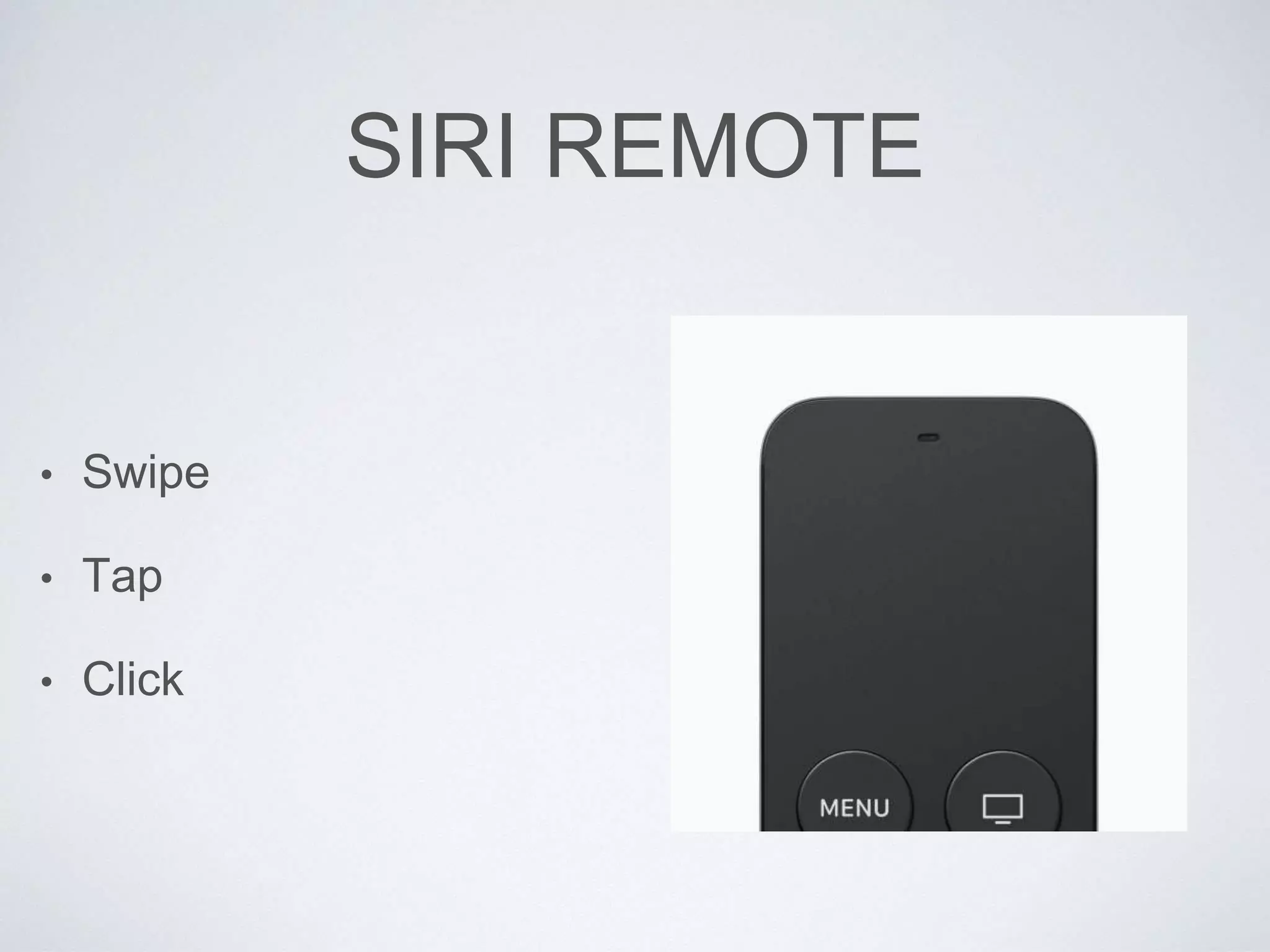

- 5. SIRI REMOTE • Swipe •Tap • Click
- 6. SIRI REMOTE • Swipe •Tap • Click
- 7. SIRI REMOTE • Swipe •Tap • Click

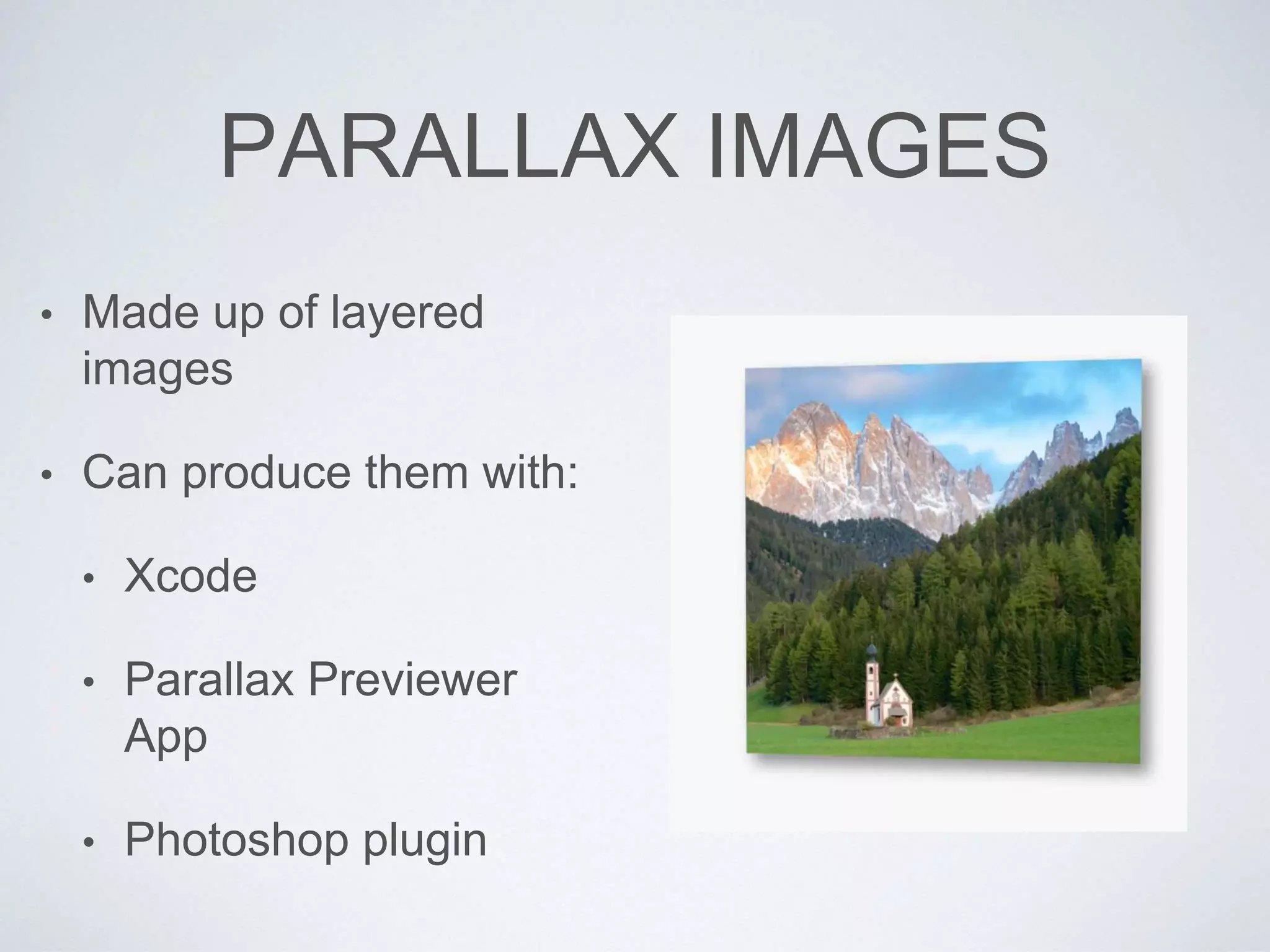

- 8. PARALLAX IMAGES • Madeup of layered images • Can produce them with: • Xcode • Parallax Previewer App • Photoshop plugin

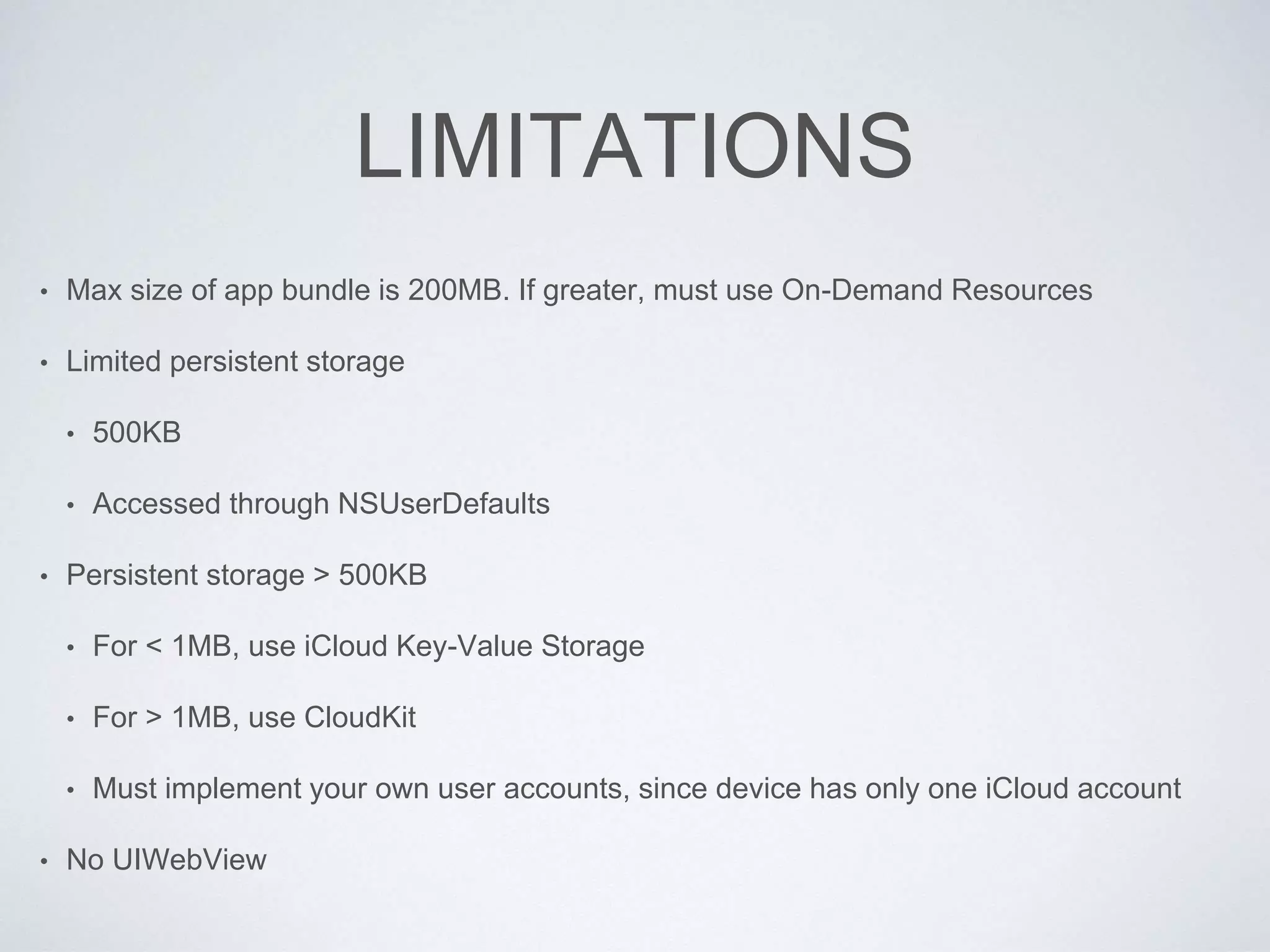

- 9. LIMITATIONS • Max sizeof app bundle is 200MB. If greater, must use On-Demand Resources • Limited persistent storage • 500KB • Accessed through NSUserDefaults • Persistent storage > 500KB • For < 1MB, use iCloud Key-Value Storage • For > 1MB, use CloudKit • Must implement your own user accounts, since device has only one iCloud account • No UIWebView

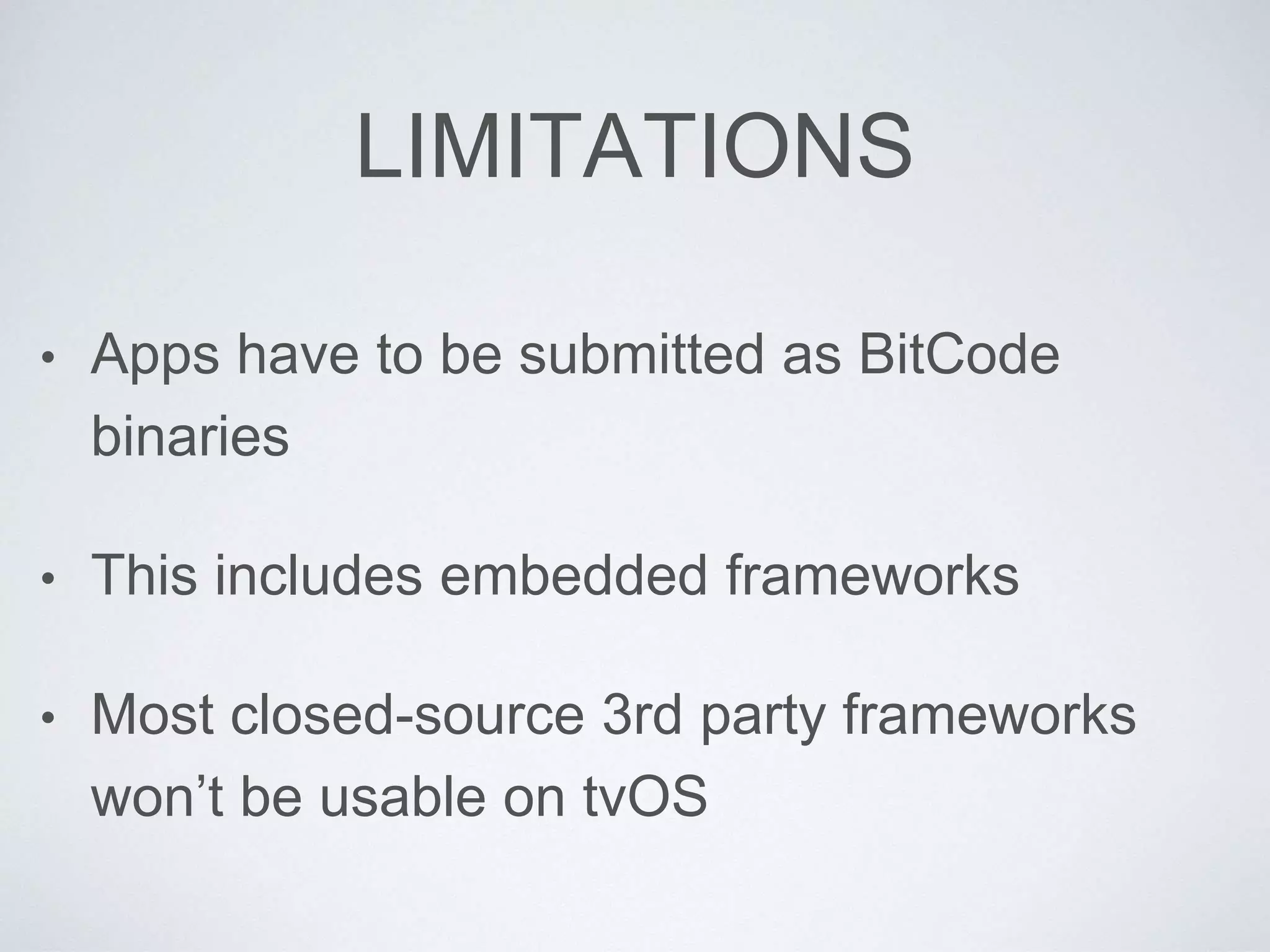

- 10. LIMITATIONS • Apps haveto be submitted as BitCode binaries • This includes embedded frameworks • Most closed-source 3rd party frameworks won’t be usable on tvOS

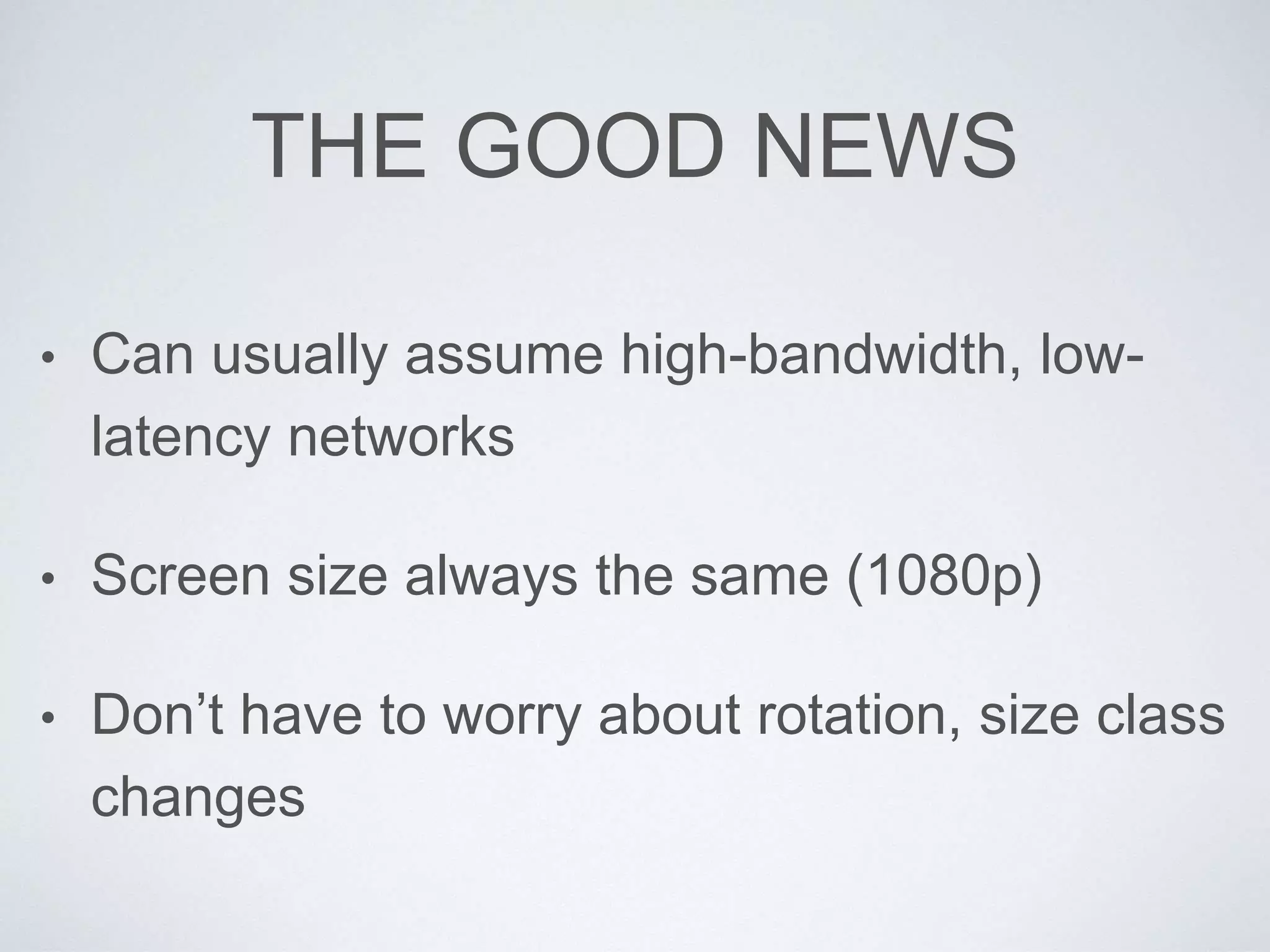

- 11. THE GOOD NEWS •Can usually assume high-bandwidth, low- latency networks • Screen size always the same (1080p) • Don’t have to worry about rotation, size class changes

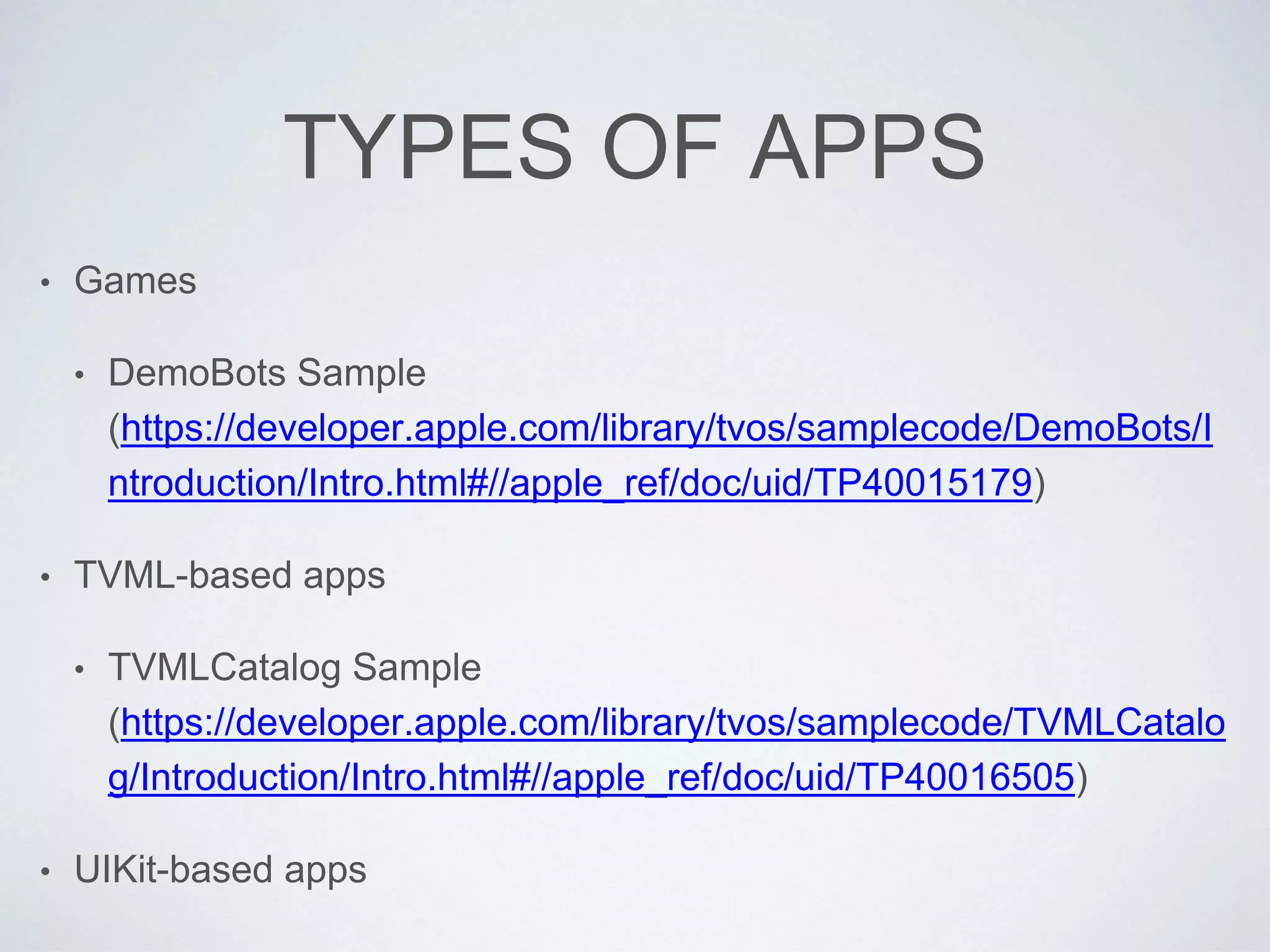

- 12. TYPES OF APPS •Games • DemoBots Sample (https://developer.apple.com/library/tvos/samplecode/DemoBots/I ntroduction/Intro.html#//apple_ref/doc/uid/TP40015179) • TVML-based apps • TVMLCatalog Sample (https://developer.apple.com/library/tvos/samplecode/TVMLCatalo g/Introduction/Intro.html#//apple_ref/doc/uid/TP40016505) • UIKit-based apps

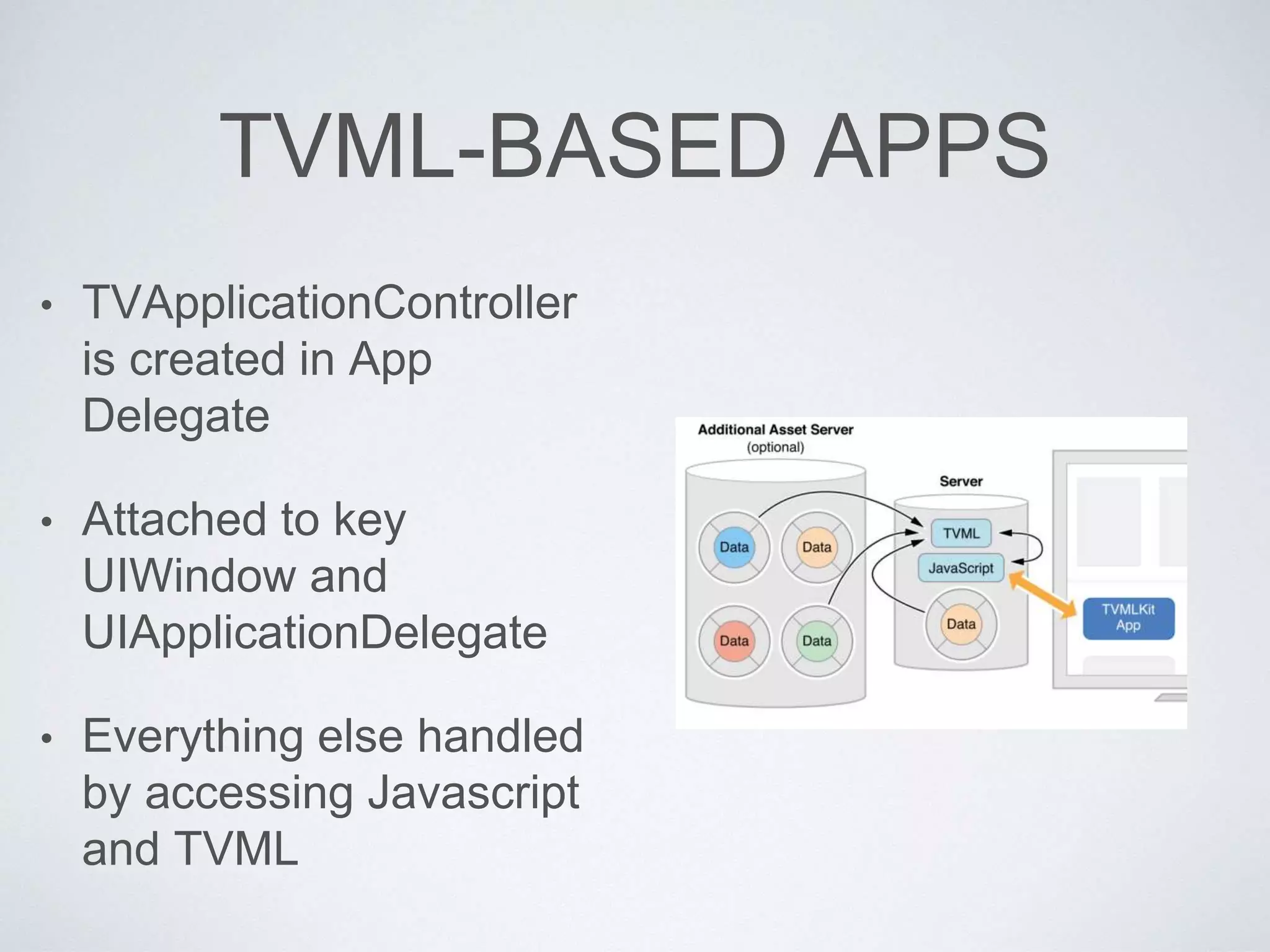

- 13. TVML-BASED APPS • TVApplicationController iscreated in App Delegate • Attached to key UIWindow and UIApplicationDelegate • Everything else handled by accessing Javascript and TVML

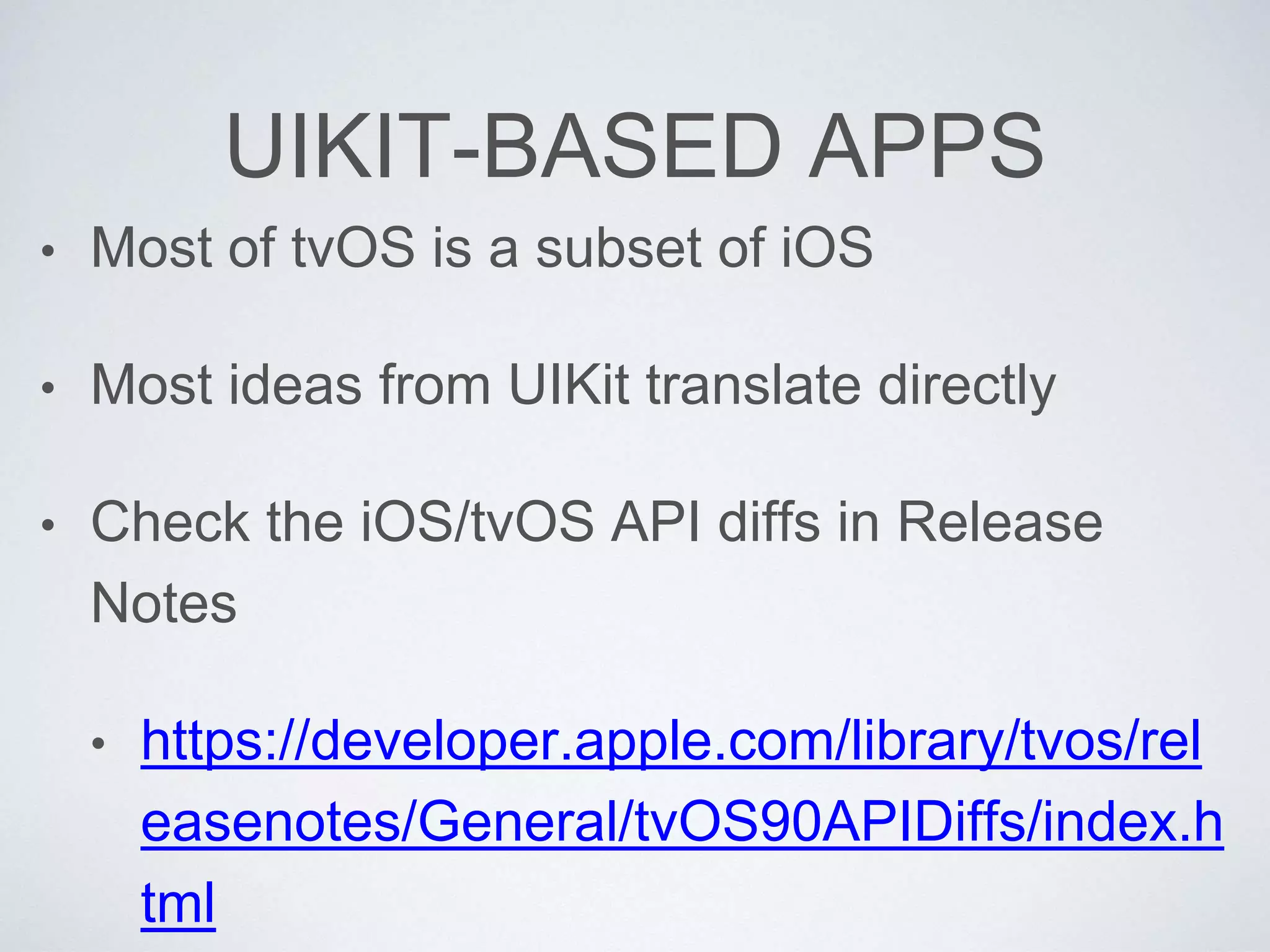

- 14. UIKIT-BASED APPS • Mostof tvOS is a subset of iOS • Most ideas from UIKit translate directly • Check the iOS/tvOS API diffs in Release Notes • https://developer.apple.com/library/tvos/rel easenotes/General/tvOS90APIDiffs/index.h tml

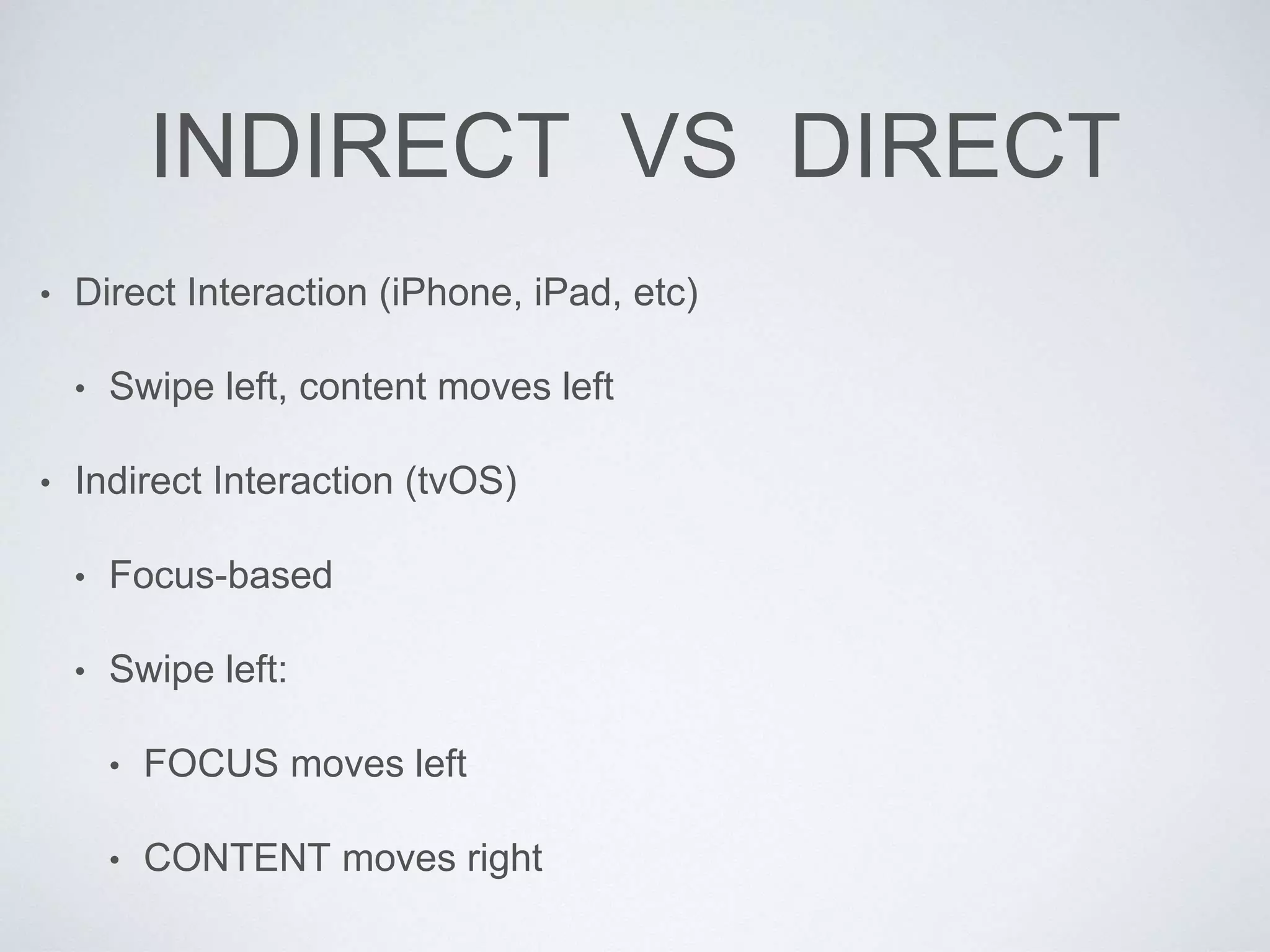

- 15. INDIRECT VS DIRECT •Direct Interaction (iPhone, iPad, etc) • Swipe left, content moves left • Indirect Interaction (tvOS) • Focus-based • Swipe left: • FOCUS moves left • CONTENT moves right

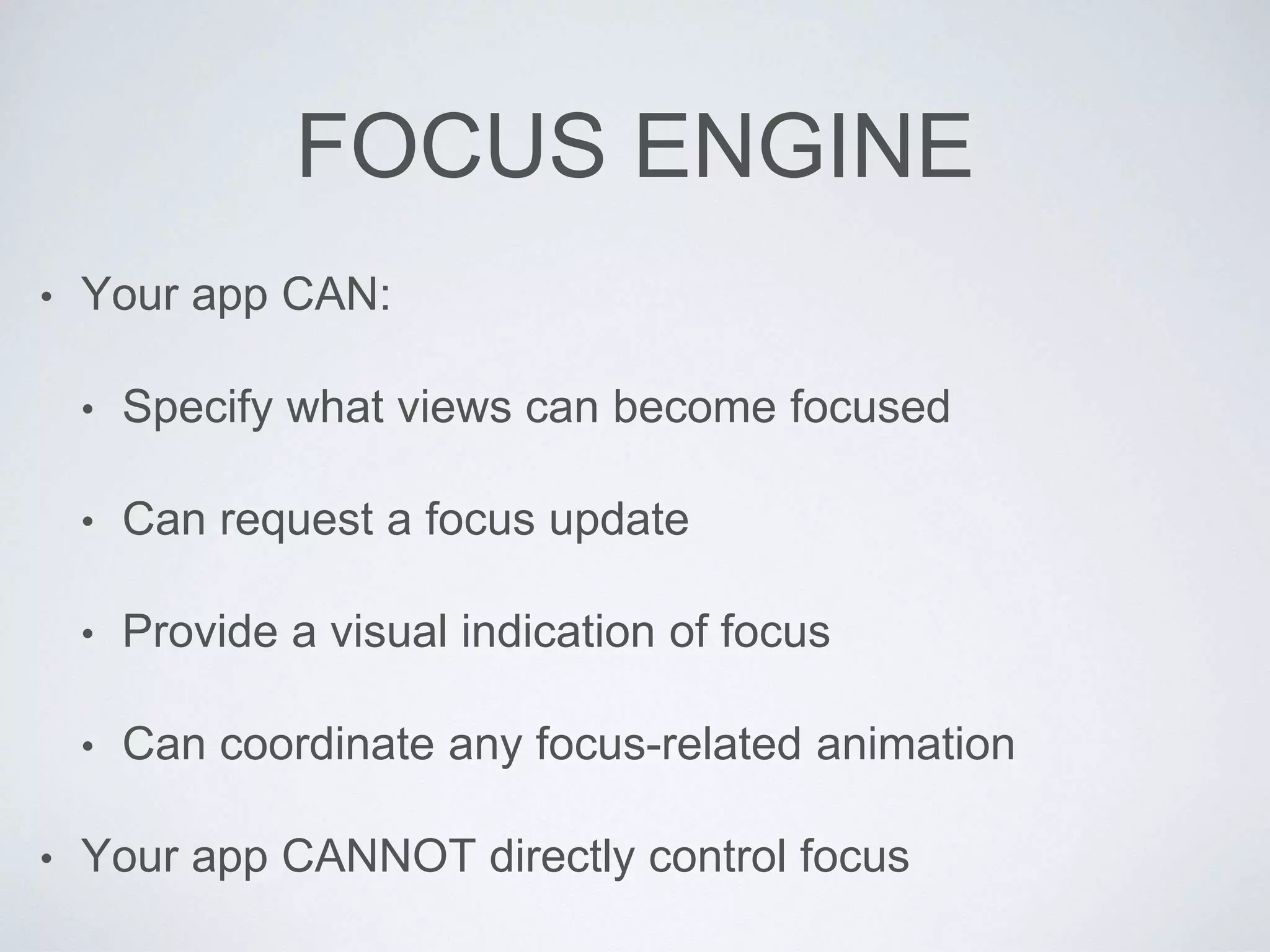

- 16. FOCUS ENGINE • Yourapp CAN: • Specify what views can become focused • Can request a focus update • Provide a visual indication of focus • Can coordinate any focus-related animation • Your app CANNOT directly control focus

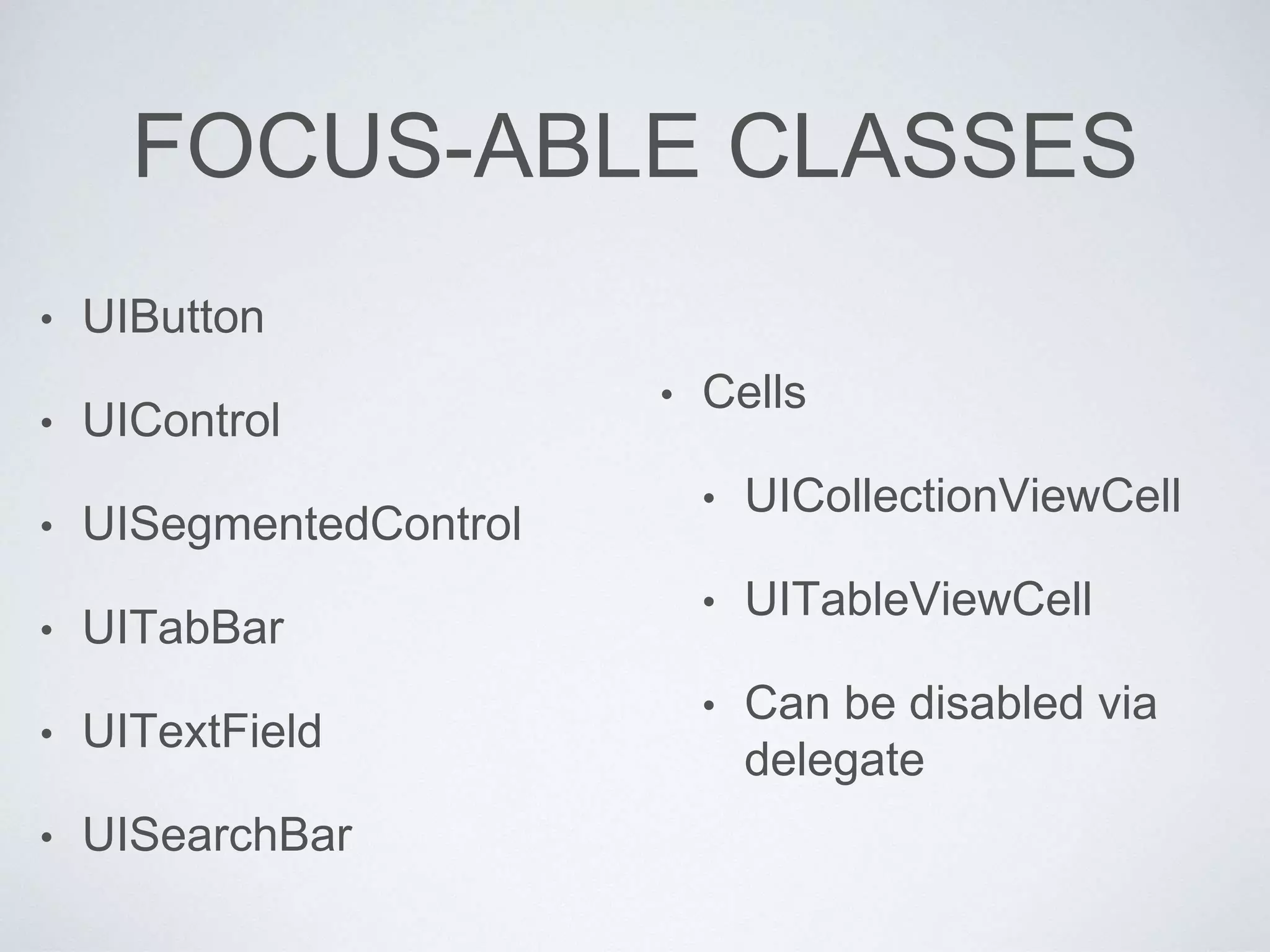

- 17. FOCUS-ABLE CLASSES • UIButton •UIControl • UISegmentedControl • UITabBar • UITextField • UISearchBar • Cells • UICollectionViewCell • UITableViewCell • Can be disabled via delegate

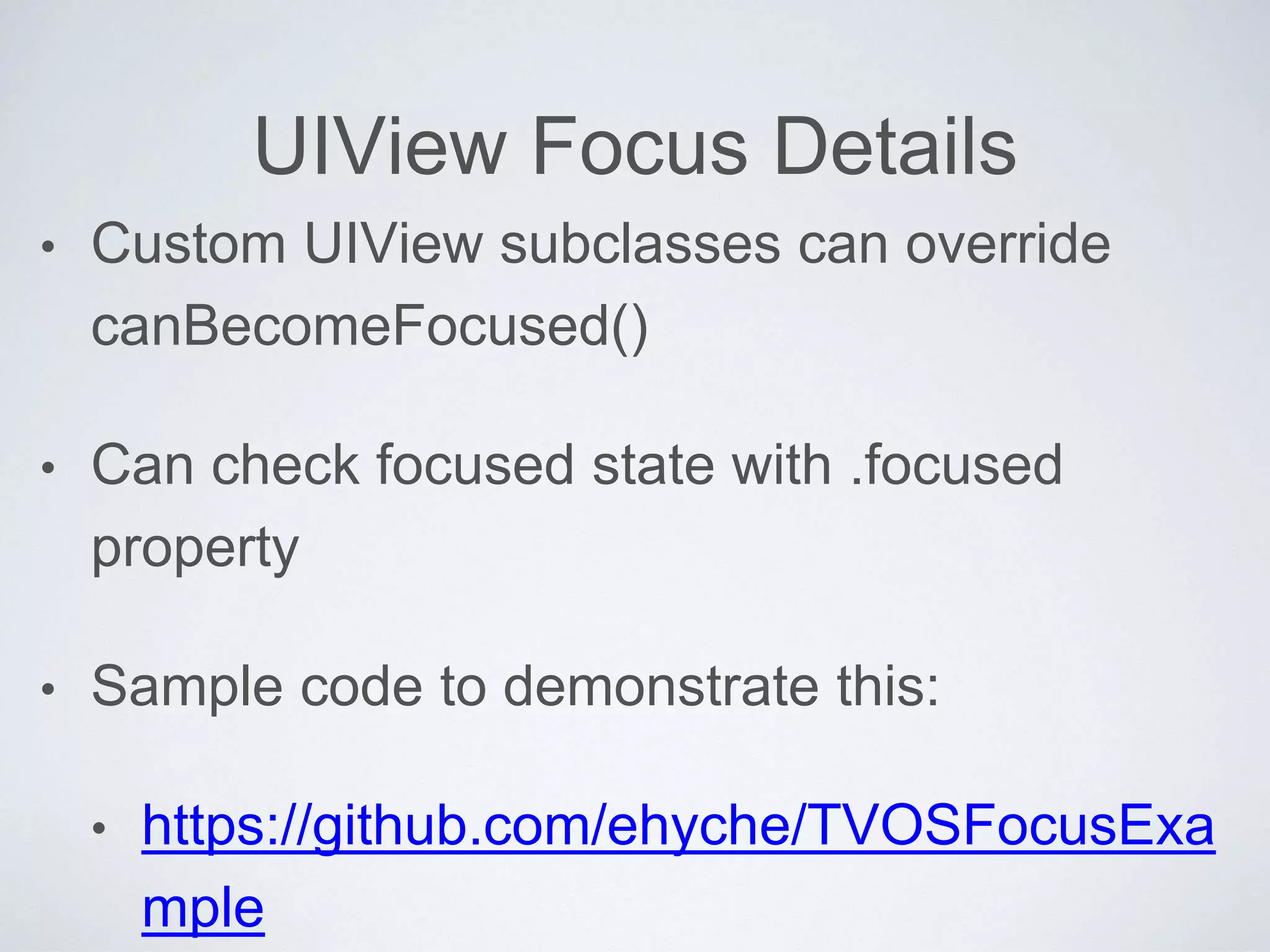

- 18. UIView Focus Details •Custom UIView subclasses can override canBecomeFocused() • Can check focused state with .focused property • Sample code to demonstrate this: • https://github.com/ehyche/TVOSFocusExa mple

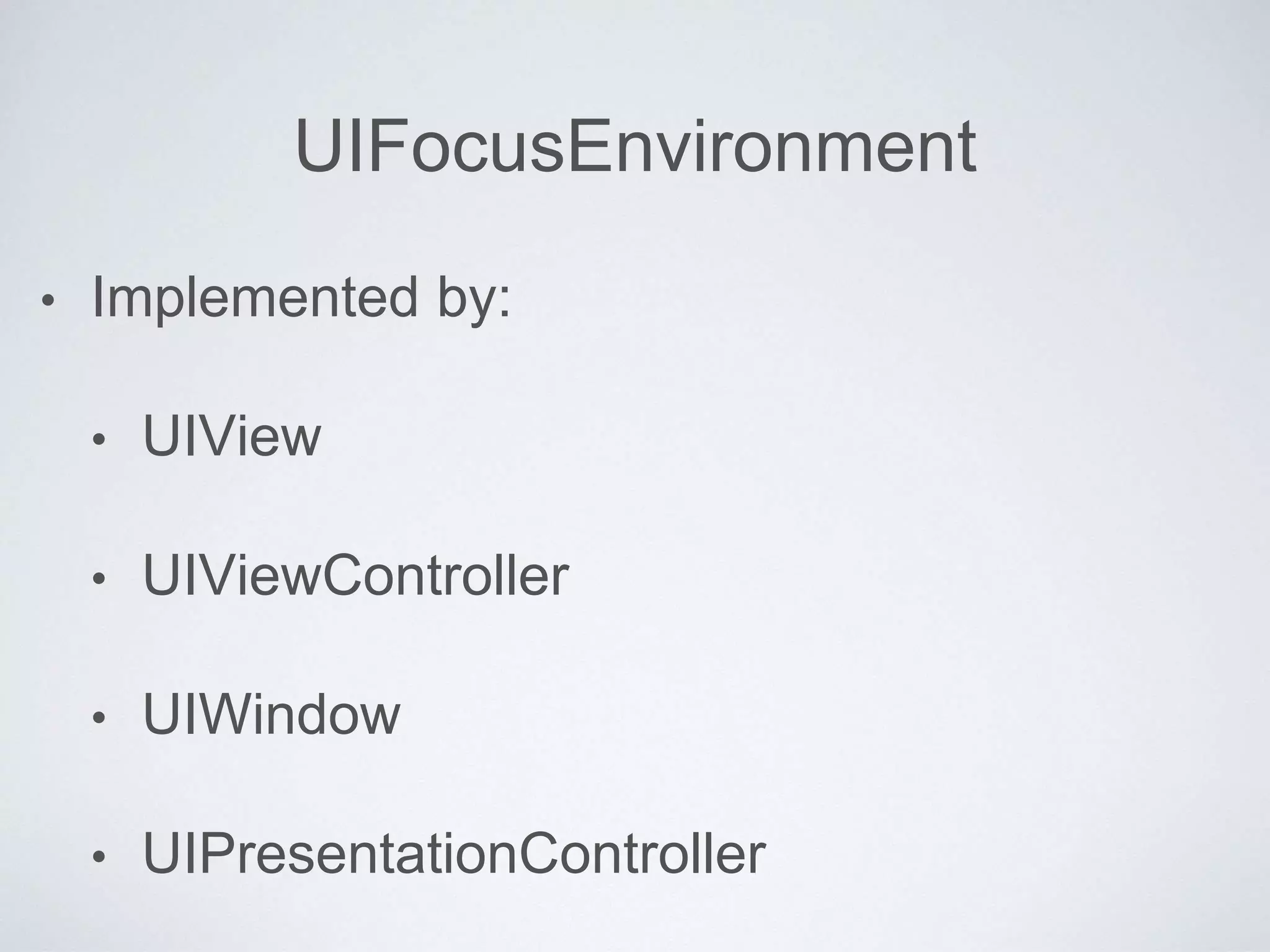

- 19. UIFocusEnvironment • Implemented by: •UIView • UIViewController • UIWindow • UIPresentationController

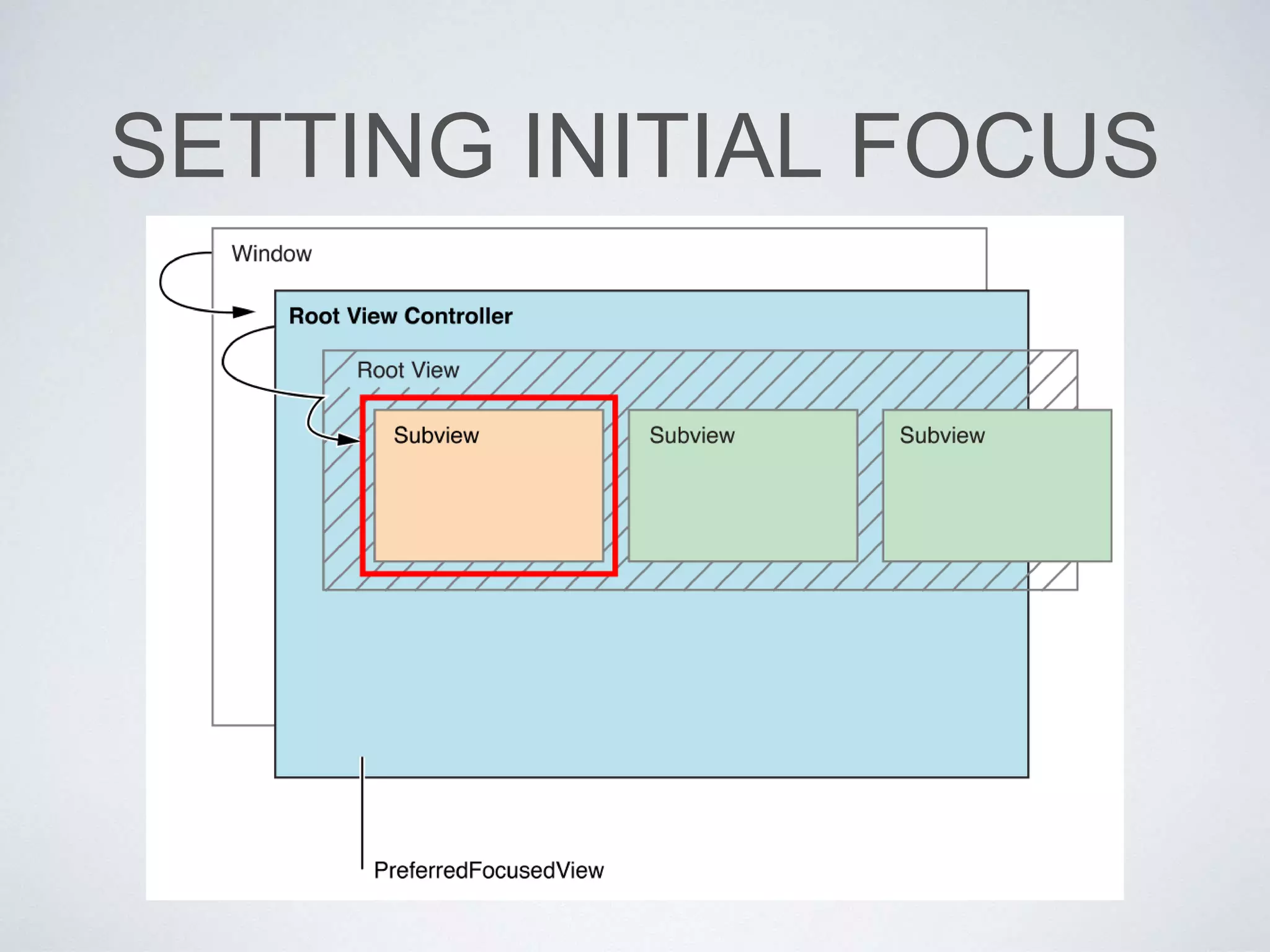

- 20.

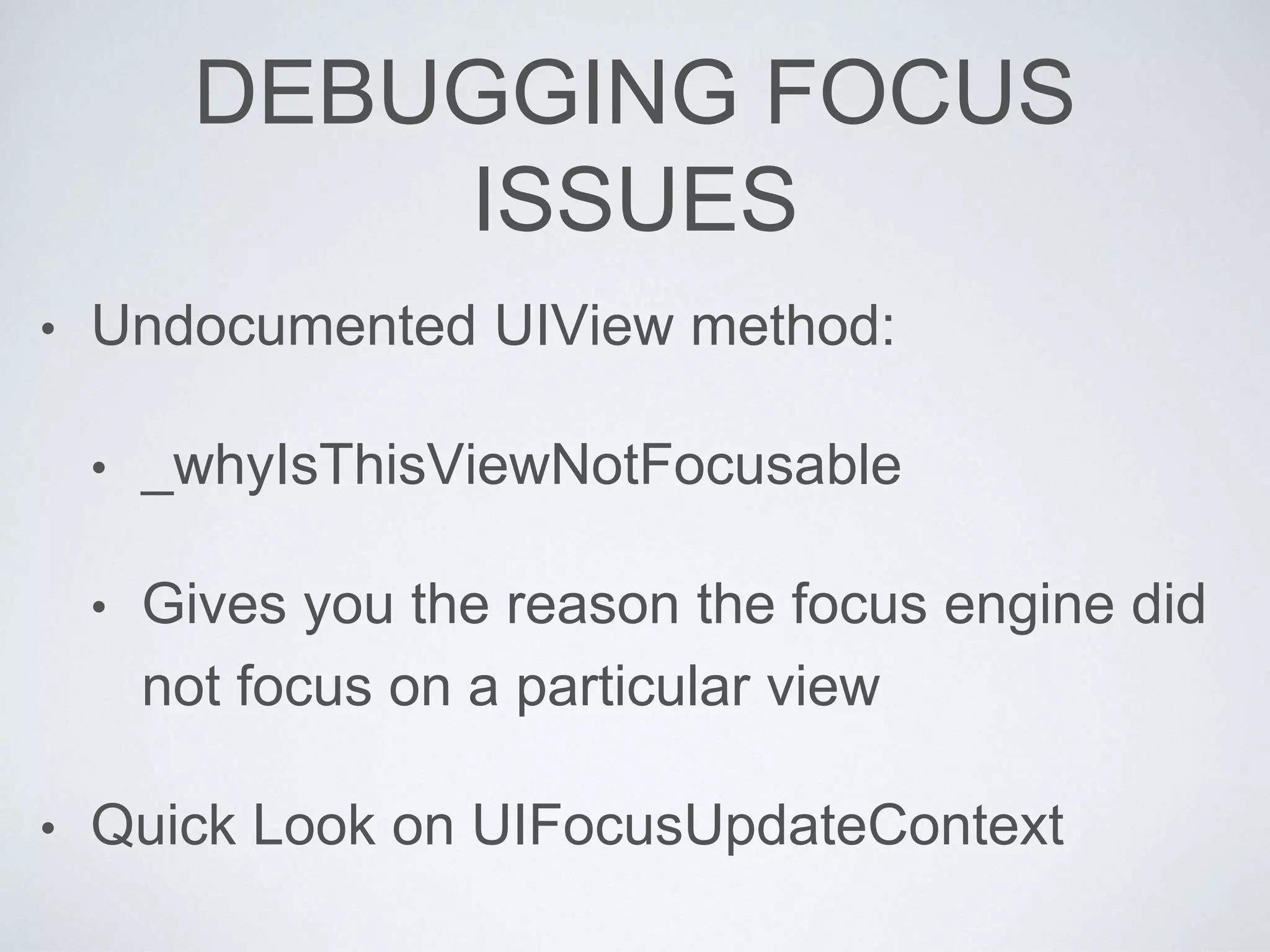

- 21. DEBUGGING FOCUS ISSUES • UndocumentedUIView method: • _whyIsThisViewNotFocusable • Gives you the reason the focus engine did not focus on a particular view • Quick Look on UIFocusUpdateContext

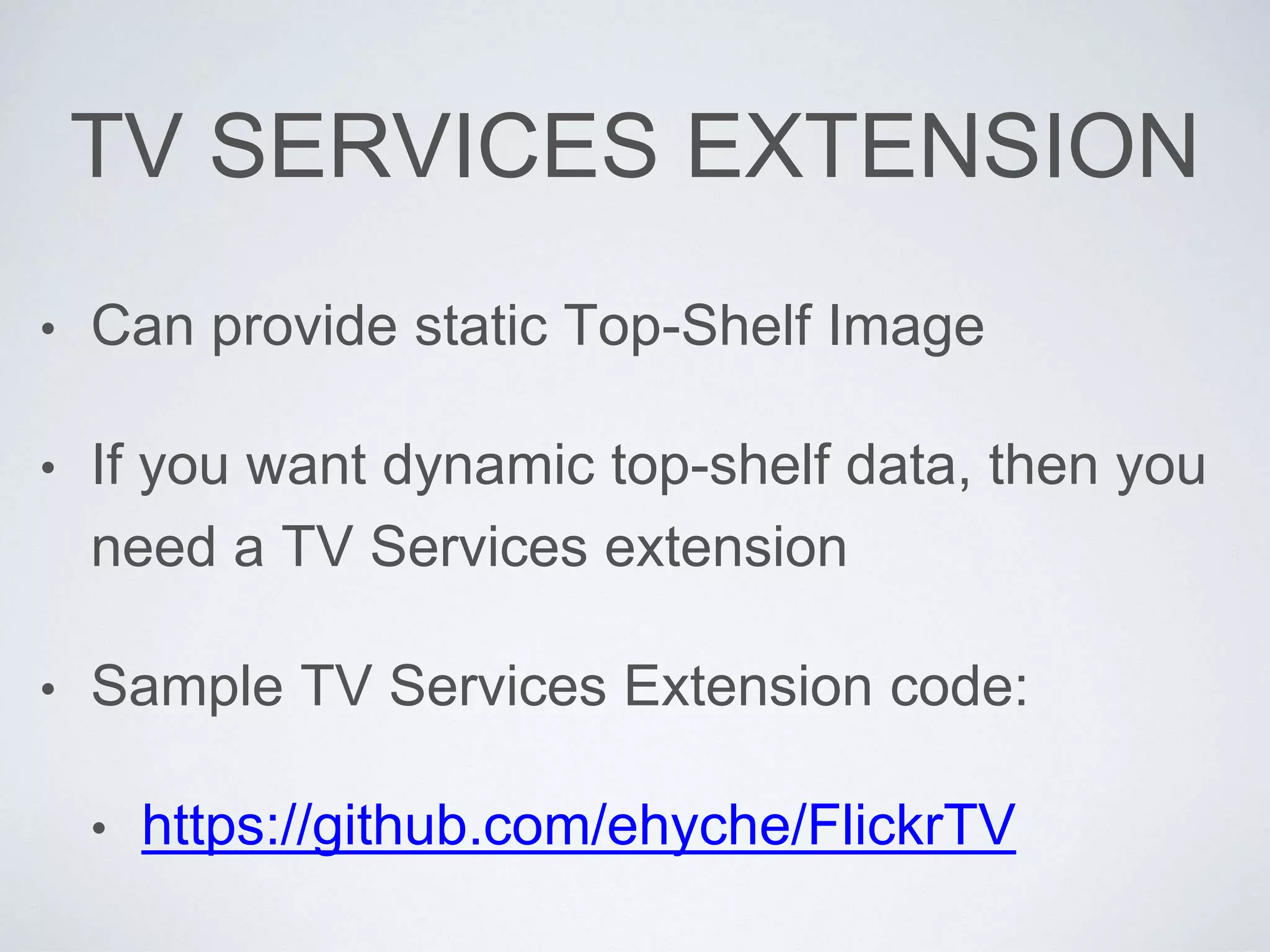

- 22. TV SERVICES EXTENSION •Can provide static Top-Shelf Image • If you want dynamic top-shelf data, then you need a TV Services extension • Sample TV Services Extension code: • https://github.com/ehyche/FlickrTV

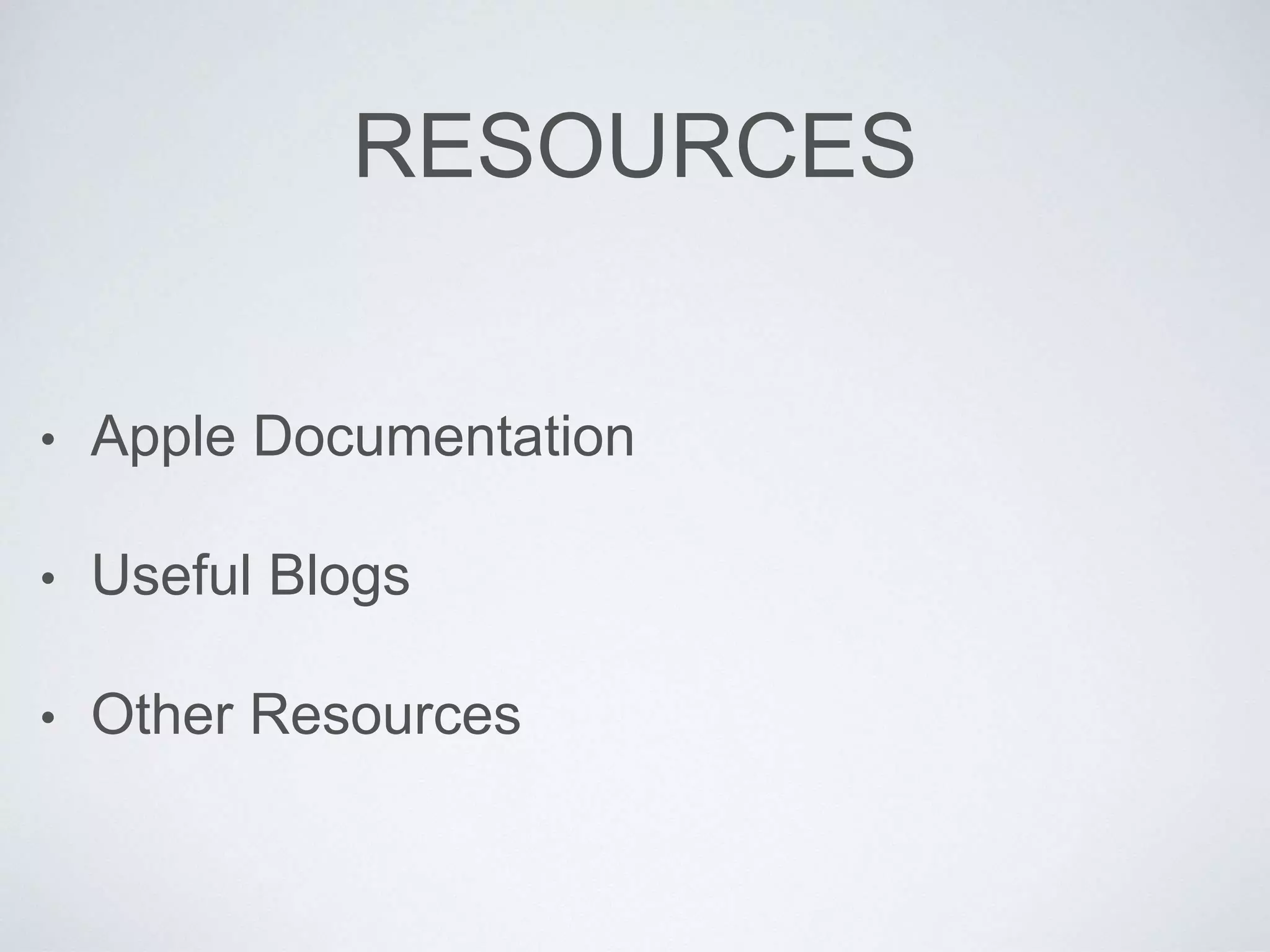

- 23. RESOURCES • Apple Documentation •Useful Blogs • Other Resources

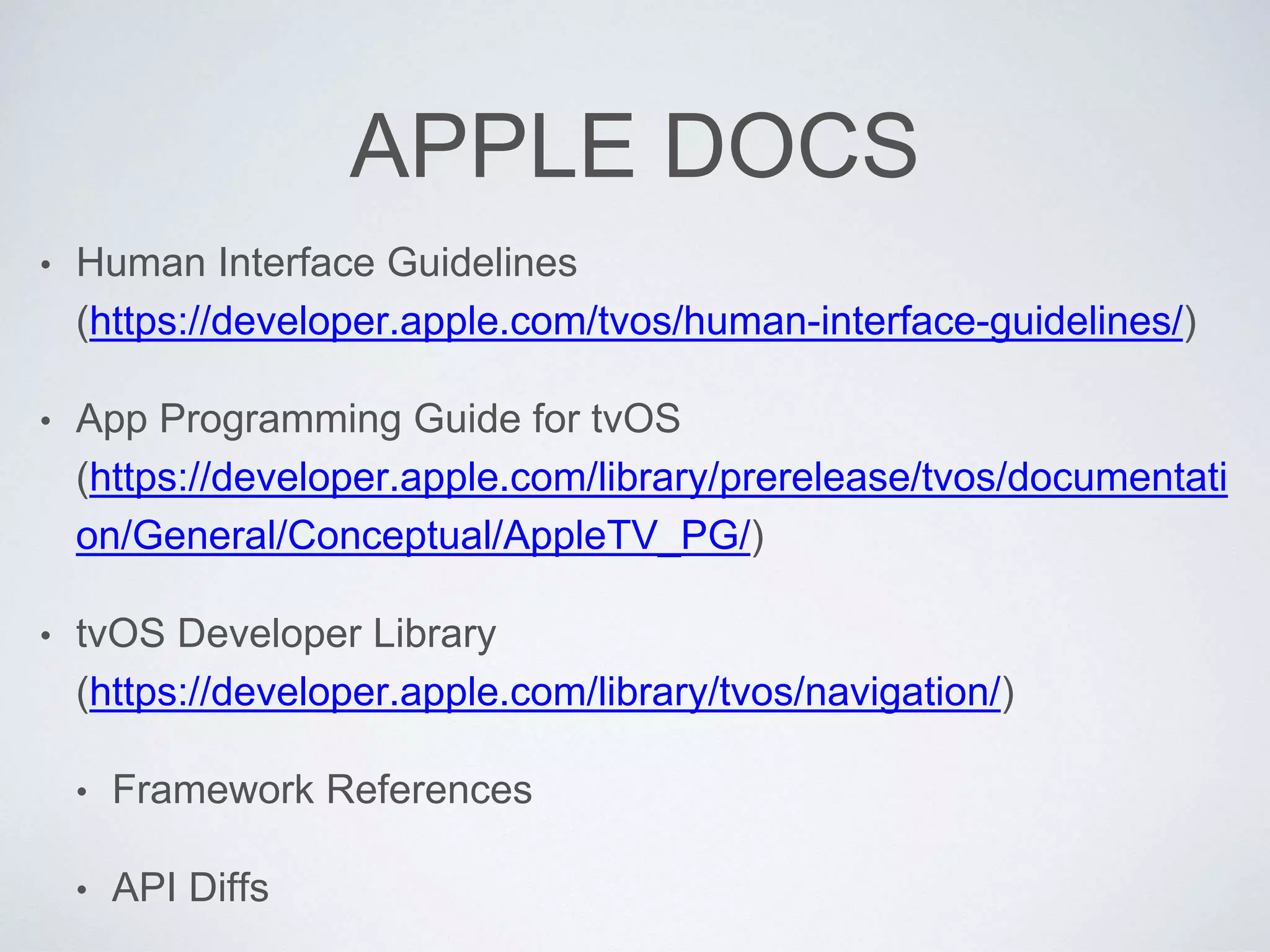

- 24. APPLE DOCS • HumanInterface Guidelines (https://developer.apple.com/tvos/human-interface-guidelines/) • App Programming Guide for tvOS (https://developer.apple.com/library/prerelease/tvos/documentati on/General/Conceptual/AppleTV_PG/) • tvOS Developer Library (https://developer.apple.com/library/tvos/navigation/) • Framework References • API Diffs

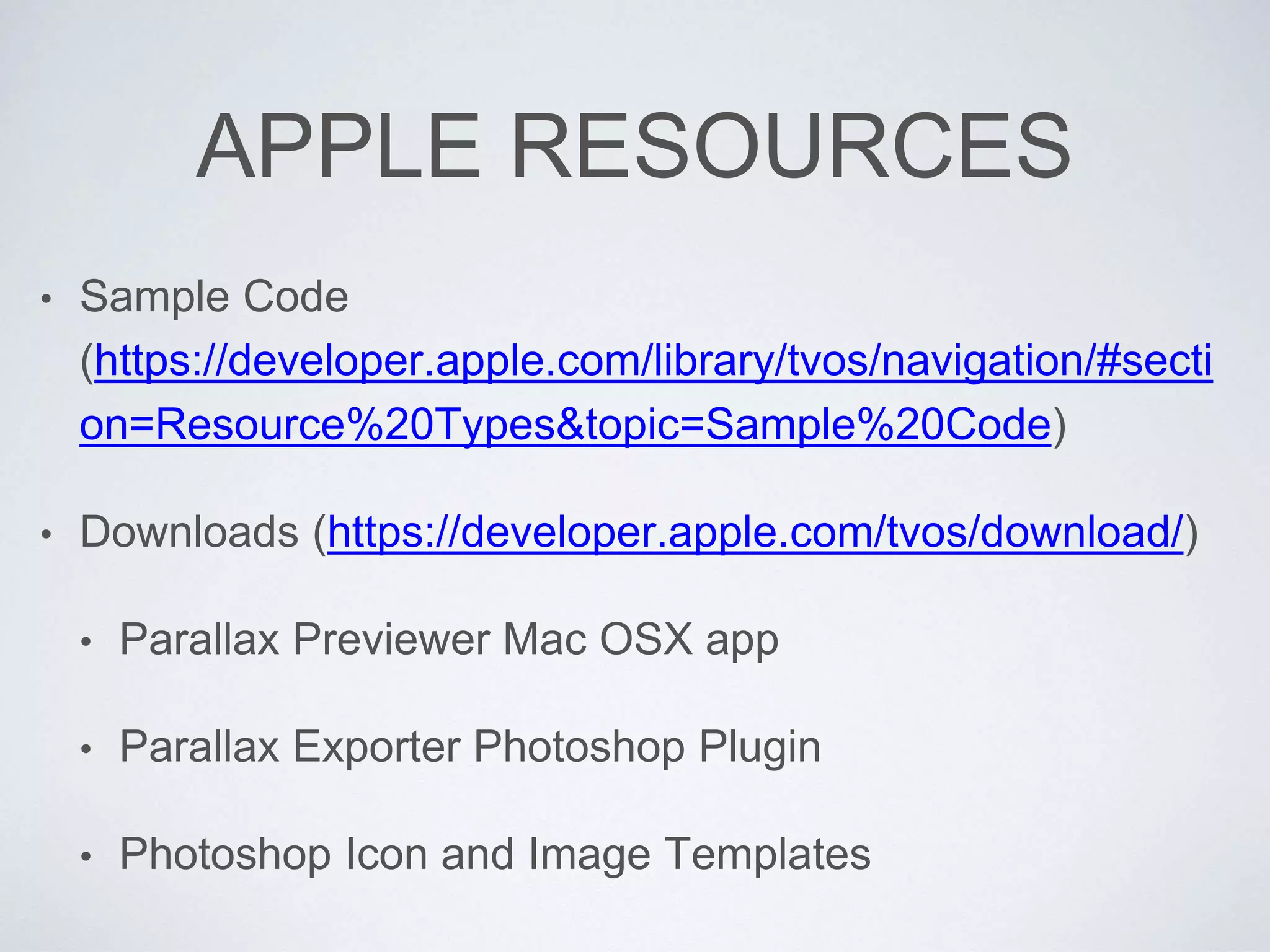

- 25. APPLE RESOURCES • SampleCode (https://developer.apple.com/library/tvos/navigation/#secti on=Resource%20Types&topic=Sample%20Code) • Downloads (https://developer.apple.com/tvos/download/) • Parallax Previewer Mac OSX app • Parallax Exporter Photoshop Plugin • Photoshop Icon and Image Templates

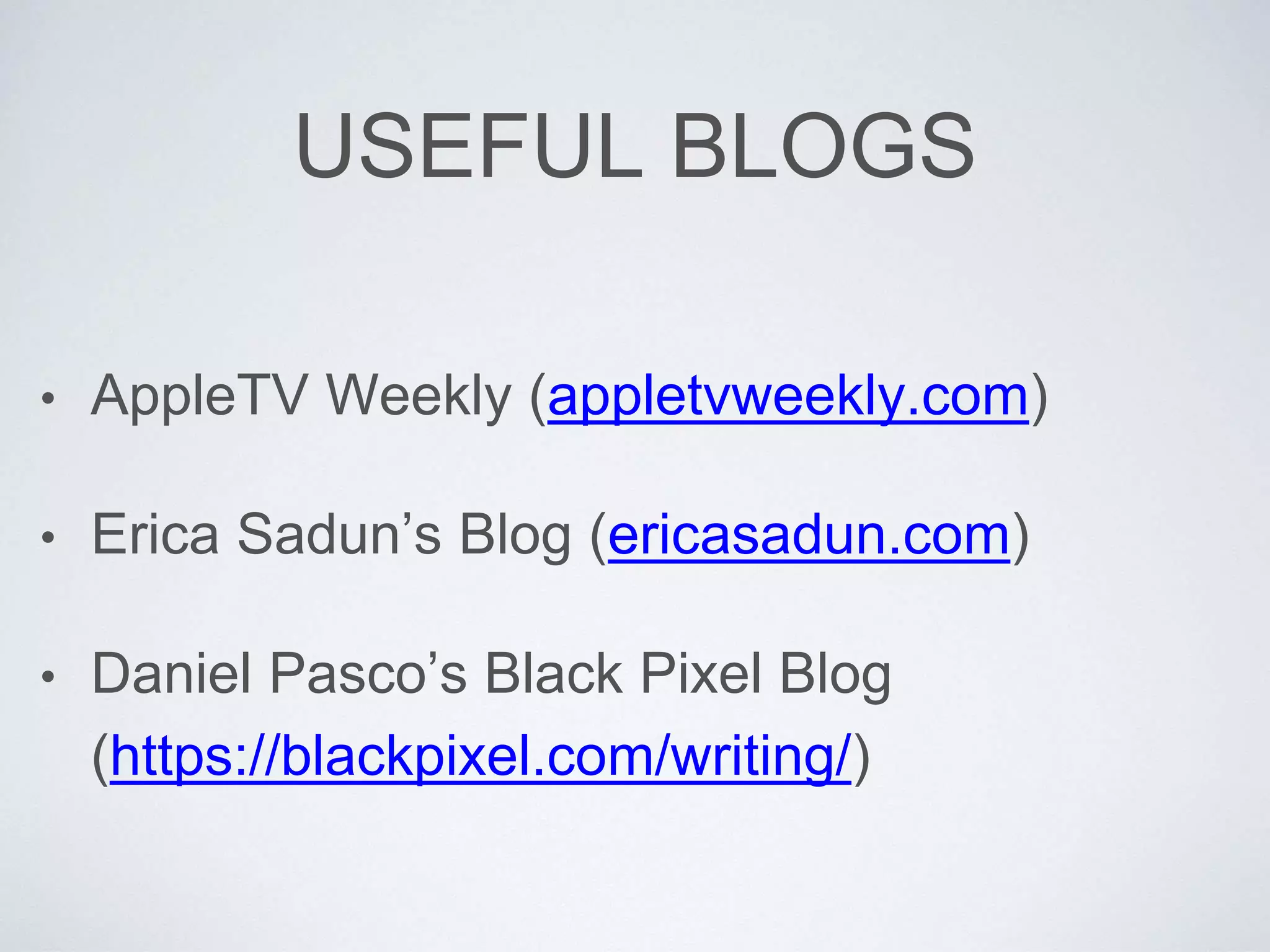

- 26. USEFUL BLOGS • AppleTVWeekly (appletvweekly.com) • Erica Sadun’s Blog (ericasadun.com) • Daniel Pasco’s Black Pixel Blog (https://blackpixel.com/writing/)

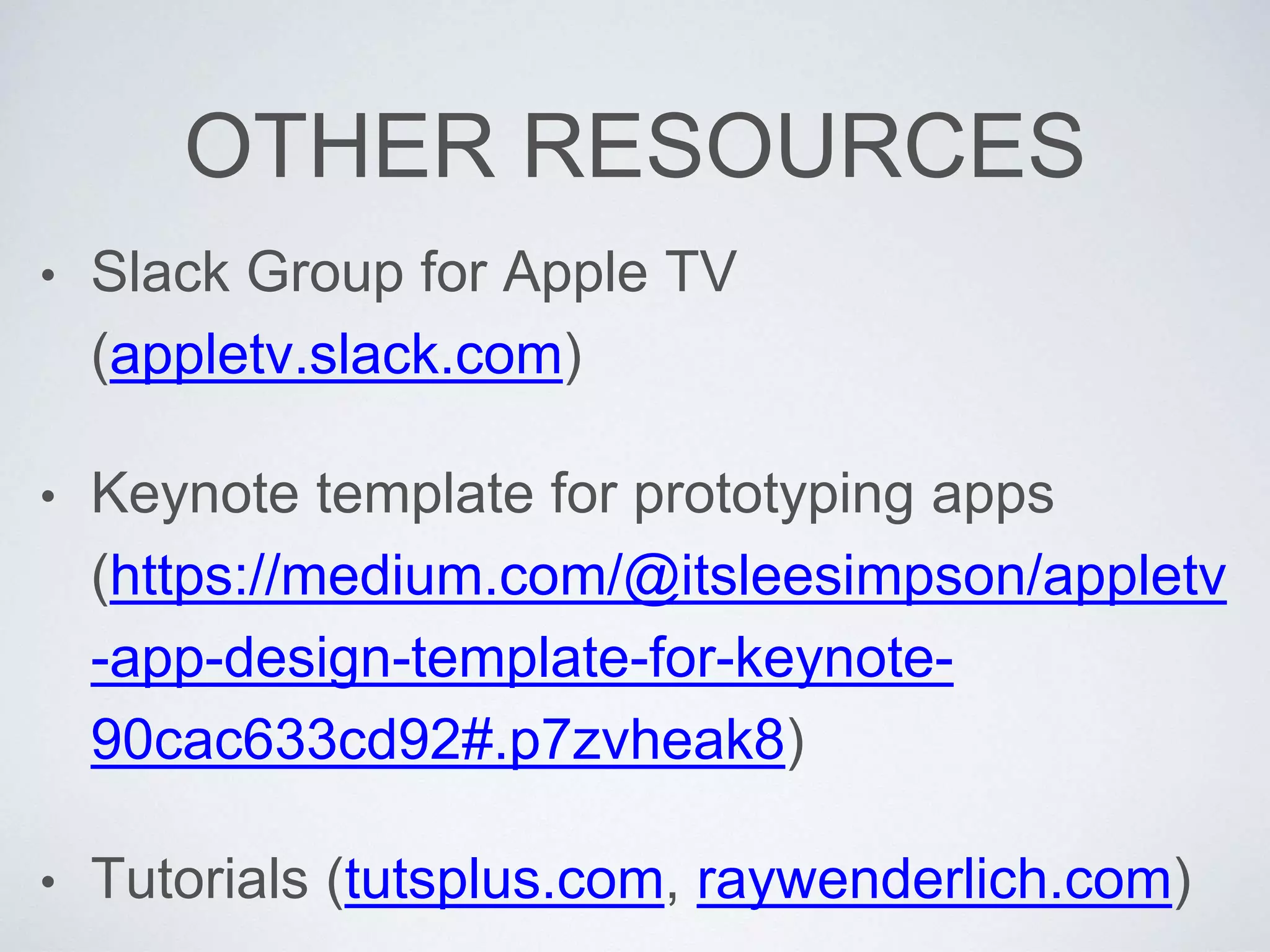

- 27. OTHER RESOURCES • SlackGroup for Apple TV (appletv.slack.com) • Keynote template for prototyping apps (https://medium.com/@itsleesimpson/appletv -app-design-template-for-keynote- 90cac633cd92#.p7zvheak8) • Tutorials (tutsplus.com, raywenderlich.com)
- 28.
