Triosteel and Engineering LLP- API5L Grade B PSL 2 Seamless Pipe

http://www.triosteel.com/products/api-5l-
pipe/seamless/api5l-grade-b-psl-2-seamless-pipe/

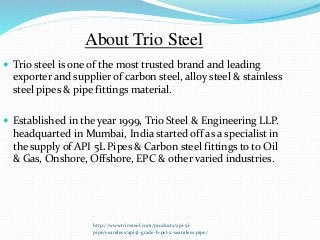

About Trio Steel
 Trio steel is one of the most trusted brand and leading
exporter and supplier of carbon steel, alloy steel & stainless
steel pipes & pipe fittings material.
 Established in the year 1999, Trio Steel & Engineering LLP.
headquarted in Mumbai, India started off as a specialist in
the supply of API 5L Pipes & Carbon steel fittings to to Oil
& Gas, Onshore, Offshore, EPC & other varied industries.

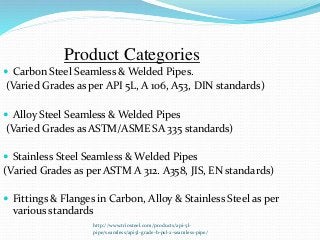

Product Categories
 Carbon Steel Seamless & Welded Pipes.
(Varied Grades as per API 5L, A 106, A53, DIN standards)
 Alloy Steel Seamless & Welded Pipes
(Varied Grades as ASTM/ASME SA 335 standards)
 Stainless Steel Seamless & Welded Pipes
(Varied Grades as per ASTM A 312. A358, JIS, EN standards)
 Fittings & Flanges in Carbon, Alloy & Stainless Steel as per
various standards

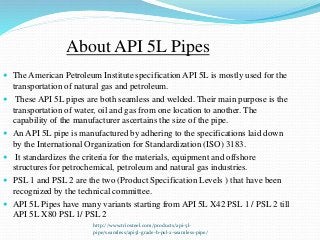

About API 5L Pipes
 The American Petroleum Institute specification API 5L is mostly used for the
transportation of natural gas and petroleum.
 These API 5L pipes are both seamless and welded. Their main purpose is the
transportation of water, oil and gas from one location to another. The
capability of the manufacturer ascertains the size of the pipe.
 An API 5L pipe is manufactured by adhering to the specifications laid down
by the International Organization for Standardization (ISO) 3183.
 It standardizes the criteria for the materials, equipment and offshore
structures for petrochemical, petroleum and natural gas industries.
 PSL 1 and PSL 2 are the two (Product Specification Levels ) that have been
recognized by the technical committee.
 API 5L Pipes have many variants starting from API 5L X42 PSL 1 / PSL 2 till
API 5L X80 PSL 1/ PSL 2

VARIANTS OF API 5L PIPE
1. PSL1
2. PSL2
3. Seamless
4. LSAW
5. DSAW

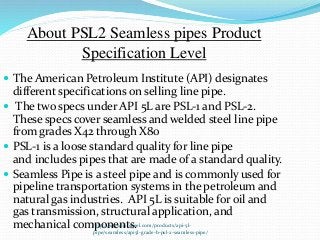

About PSL2 Seamless pipes Product
Specification Level
 The American Petroleum Institute (API) designates
different specifications on selling line pipe.
 The two specs under API 5L are PSL-1 and PSL-2.
These specs cover seamless and welded steel line pipe
from grades X42 through X80
 PSL-1 is a loose standard quality for line pipe
and includes pipes that are made of a standard quality.
 Seamless Pipe is a steel pipe and is commonly used for
pipeline transportation systems in the petroleum and
natural gas industries. API 5L is suitable for oil and
gas transmission, structural application, and
mechanical components.

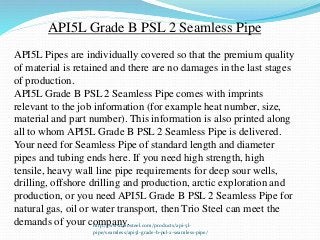

API5L Grade B PSL 2 Seamless Pipe
API5L Pipes are individually covered so that the premium quality
of material is retained and there are no damages in the last stages
of production.
API5L Grade B PSL 2 Seamless Pipe comes with imprints
relevant to the job information (for example heat number, size,
material and part number). This information is also printed along
all to whom API5L Grade B PSL 2 Seamless Pipe is delivered.
Your need for Seamless Pipe of standard length and diameter
pipes and tubing ends here. If you need high strength, high
tensile, heavy wall line pipe requirements for deep sour wells,
drilling, offshore drilling and production, arctic exploration and
production, or you need API5L Grade B PSL 2 Seamless Pipe for
natural gas, oil or water transport, then Trio Steel can meet the
demands of your company.http://www.triosteel.com/products/api-5l-

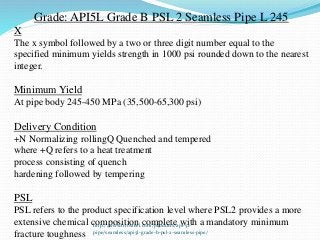

Grade: API5L Grade B PSL 2 Seamless Pipe L 245
X
The x symbol followed by a two or three digit number equal to the
specified minimum yields strength in 1000 psi rounded down to the nearest
integer.
Minimum Yield
At pipe body 245-450 MPa (35,500-65,300 psi)
Delivery Condition
+N Normalizing rollingQ Quenched and tempered
where +Q refers to a heat treatment
process consisting of quench
hardening followed by tempering
PSL
PSL refers to the product specification level where PSL2 provides a more
extensive chemical composition complete with a mandatory minimum
fracture toughness

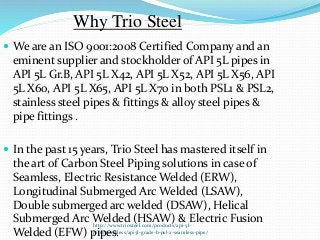

Why Trio Steel
 We are an ISO 9001:2008 Certified Company and an
eminent supplier and stockholder of API 5L pipes in
API 5L Gr.B, API 5L X42, API 5L X52, API 5L X56, API
5L X60, API 5L X65, API 5L X70 in both PSL1 & PSL2,
stainless steel pipes & fittings & alloy steel pipes &
pipe fittings .
 In the past 15 years, Trio Steel has mastered itself in
the art of Carbon Steel Piping solutions in case of
Seamless, Electric Resistance Welded (ERW),
Longitudinal Submerged Arc Welded (LSAW),
Double submerged arc welded (DSAW), Helical
Submerged Arc Welded (HSAW) & Electric Fusion
Welded (EFW) pipes.

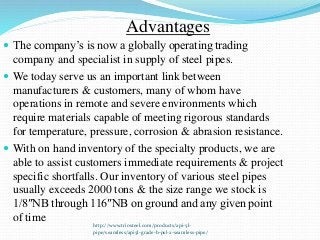

Advantages
 The company’s is now a globally operating trading
company and specialist in supply of steel pipes.
 We today serve us an important link between
manufacturers & customers, many of whom have
operations in remote and severe environments which
require materials capable of meeting rigorous standards
for temperature, pressure, corrosion & abrasion resistance.
 With on hand inventory of the specialty products, we are
able to assist customers immediate requirements & project
specific shortfalls. Our inventory of various steel pipes
usually exceeds 2000 tons & the size range we stock is
1/8″NB through 116″NB on ground and any given point
of time

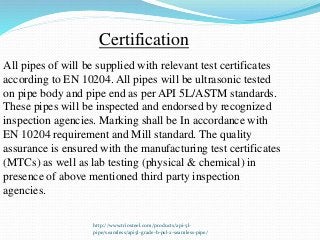

Certification
All pipes of will be supplied with relevant test certificates
according to EN 10204. All pipes will be ultrasonic tested
on pipe body and pipe end as per API 5L/ASTM standards.
These pipes will be inspected and endorsed by recognized
inspection agencies. Marking shall be In accordance with
EN 10204 requirement and Mill standard. The quality
assurance is ensured with the manufacturing test certificates
(MTCs) as well as lab testing (physical & chemical) in
presence of above mentioned third party inspection
agencies.

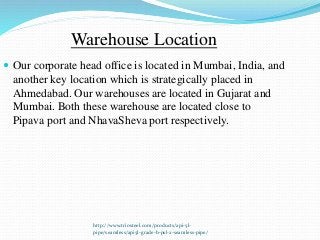

Warehouse Location
 Our corporate head office is located in Mumbai, India, and
another key location which is strategically placed in
Ahmedabad. Our warehouses are located in Gujarat and
Mumbai. Both these warehouse are located close to
Pipava port and NhavaSheva port respectively.

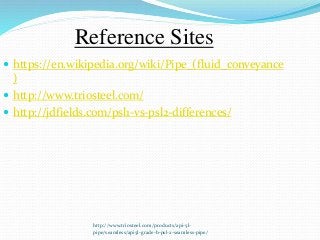

Reference Sites
 https://en.wikipedia.org/wiki/Pipe_(fluid_conveyance
)
 http://www.triosteel.com/
 http://jdfields.com/psl1-vs-psl2-differences/

THANK YOU!
