1. TREES

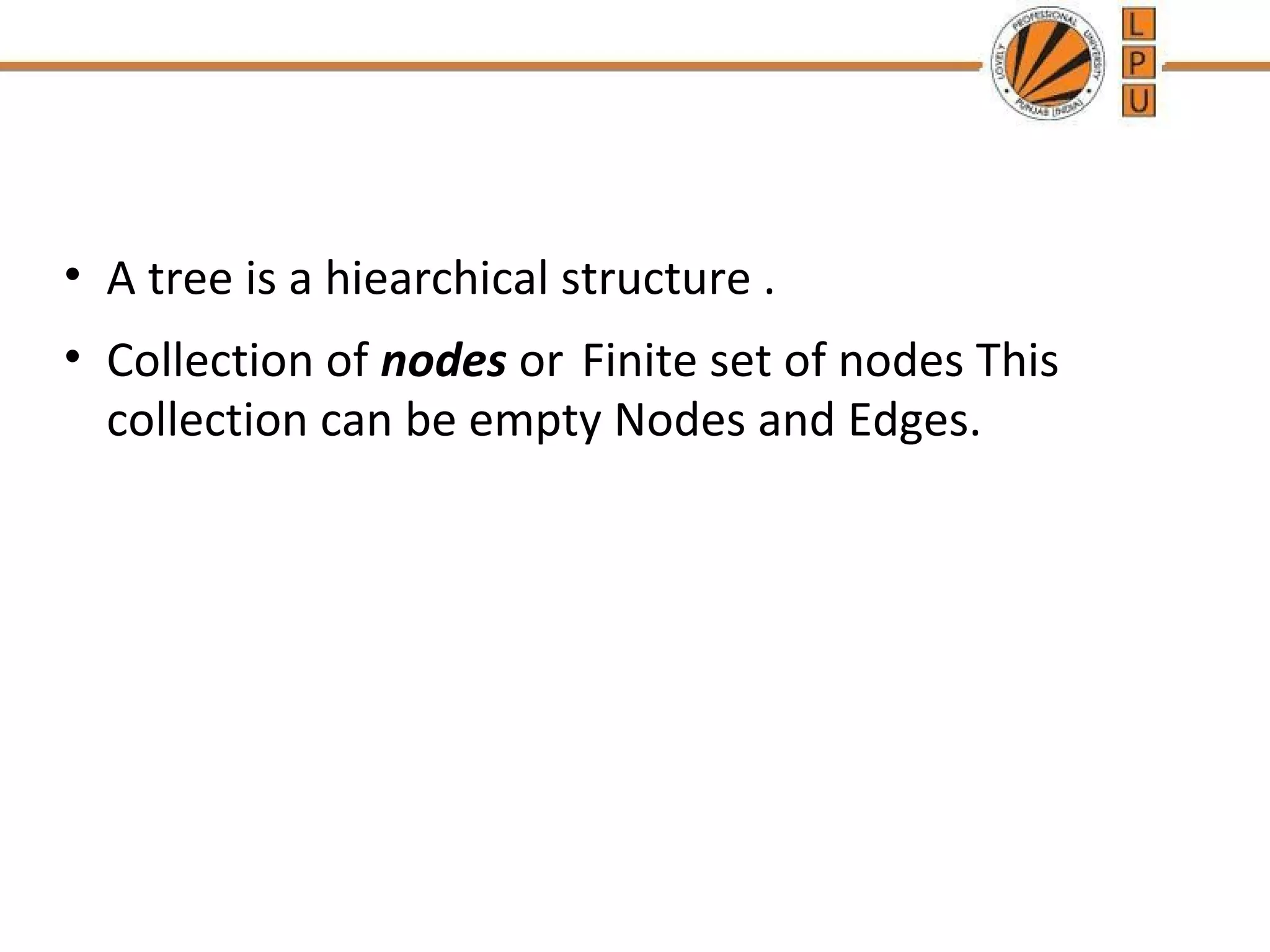

2. • A tree is a hiearchical structure .
• Collection of nodes or Finite set of nodes This
collection can be empty Nodes and Edges.

3. TREE TERMINOLOGY

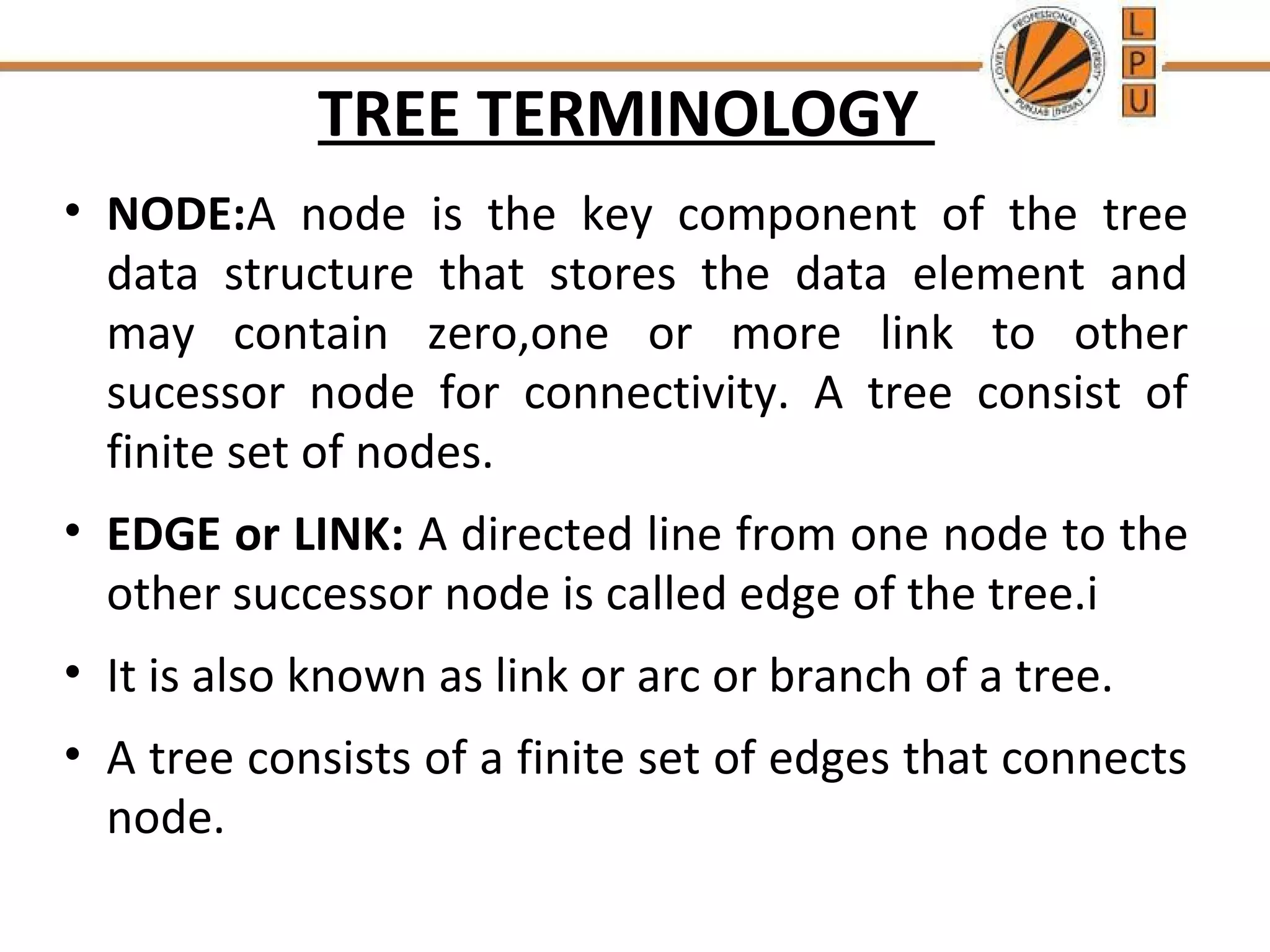

• NODE:A node is the key component of the tree
data structure that stores the data element and
may contain zero,one or more link to other
sucessor node for connectivity. A tree consist of
finite set of nodes.
• EDGE or LINK: A directed line from one node to the
other successor node is called edge of the tree.i
• It is also known as link or arc or branch of a tree.
• A tree consists of a finite set of edges that connects
node.

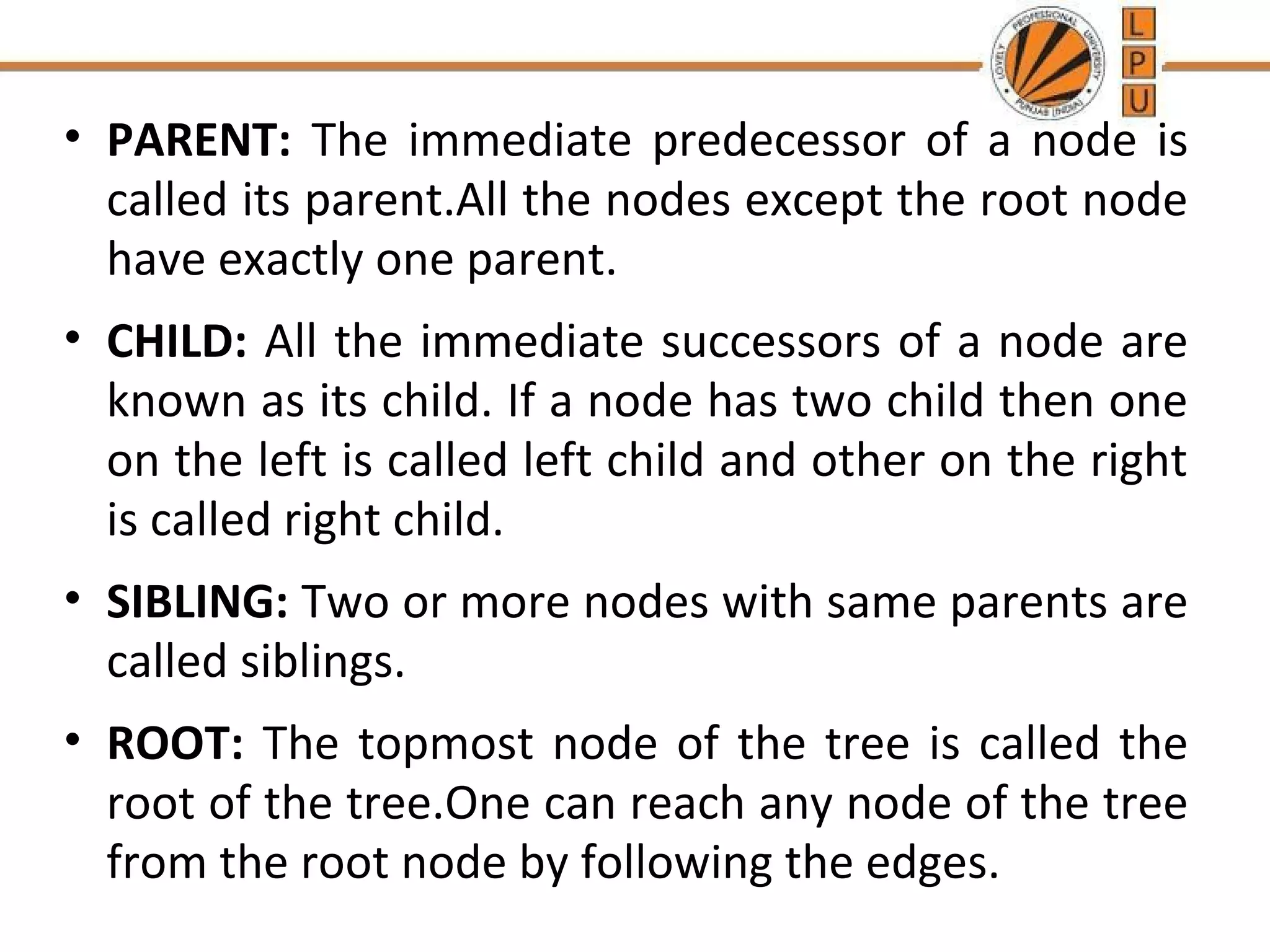

4. • PARENT: The immediate predecessor of a node is
called its parent.All the nodes except the root node
have exactly one parent.
• CHILD: All the immediate successors of a node are
known as its child. If a node has two child then one
on the left is called left child and other on the right
is called right child.
• SIBLING: Two or more nodes with same parents are
called siblings.
• ROOT: The topmost node of the tree is called the
root of the tree.One can reach any node of the tree
from the root node by following the edges.

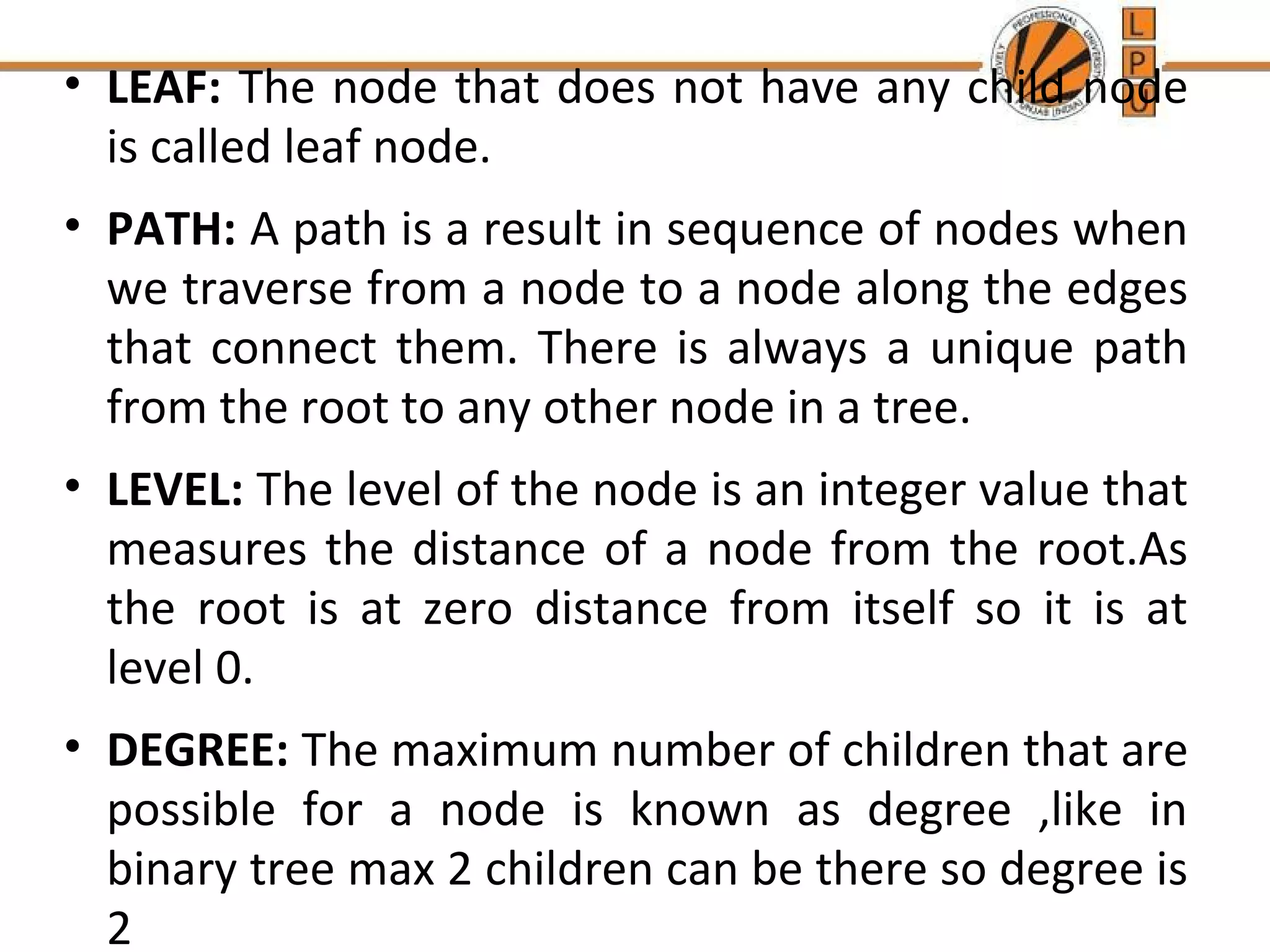

5. • LEAF: The node that does not have any child node
is called leaf node.
• PATH: A path is a result in sequence of nodes when
we traverse from a node to a node along the edges
that connect them. There is always a unique path
from the root to any other node in a tree.
• LEVEL: The level of the node is an integer value that
measures the distance of a node from the root.As
the root is at zero distance from itself so it is at
level 0.
• DEGREE: The maximum number of children that are
possible for a node is known as degree ,like in
binary tree max 2 children can be there so degree is
2

6. • DEPTH: The depth of a node is the length(number
of edges) of the path from the root to the node of
the tree.
• Depth of the node is sometimes also referred to the level of a node.
• HEIGHT: The height of a tree is the length (number
of edges) of the path from the node to its furthest
leaf .

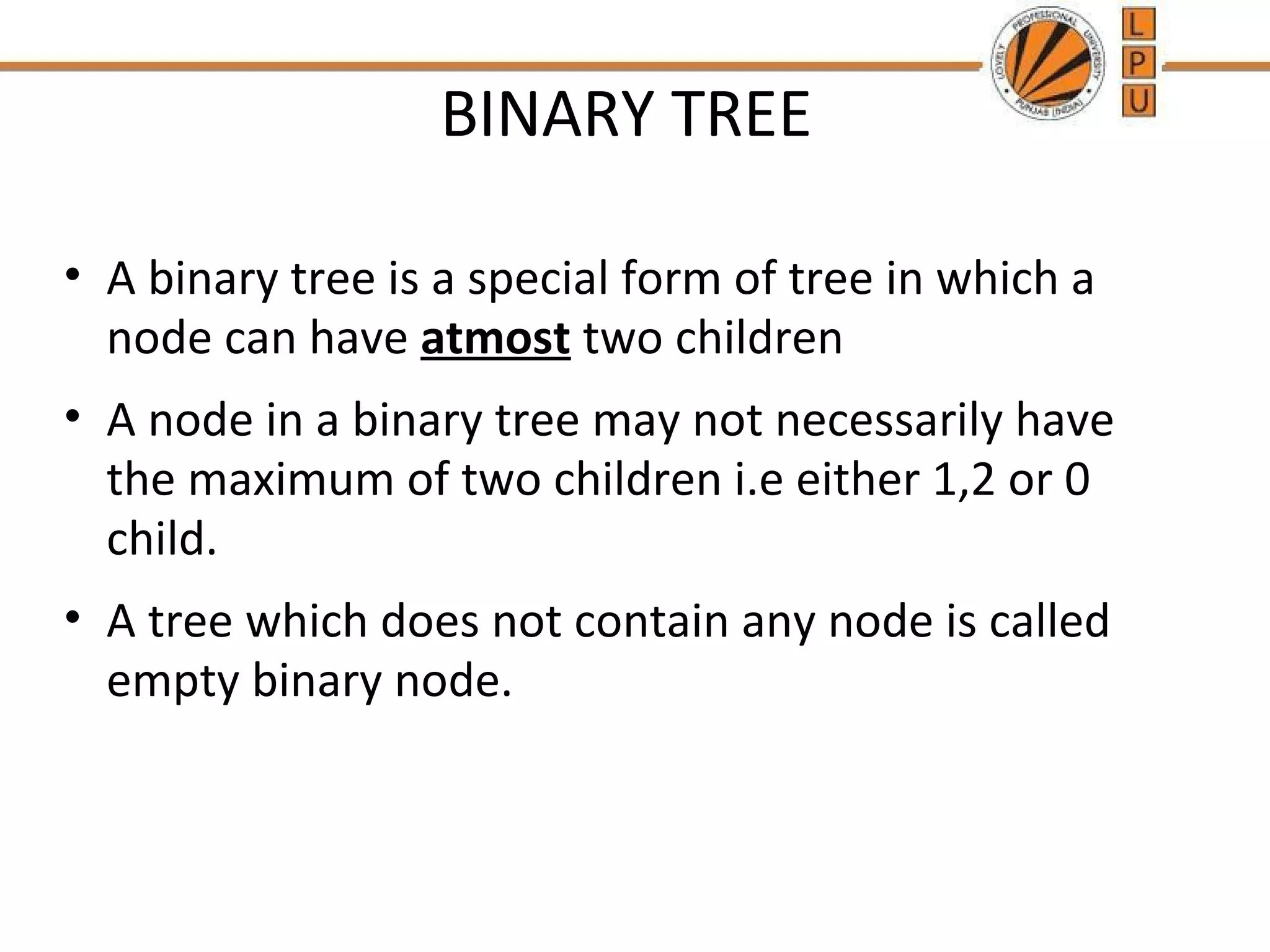

7. BINARY TREE
• A binary tree is a special form of tree in which a
node can have atmost two children
• A node in a binary tree may not necessarily have
the maximum of two children i.e either 1,2 or 0
child.
• A tree which does not contain any node is called
empty binary node.

8. Binary Tree
Full binary tree Complete binary tree

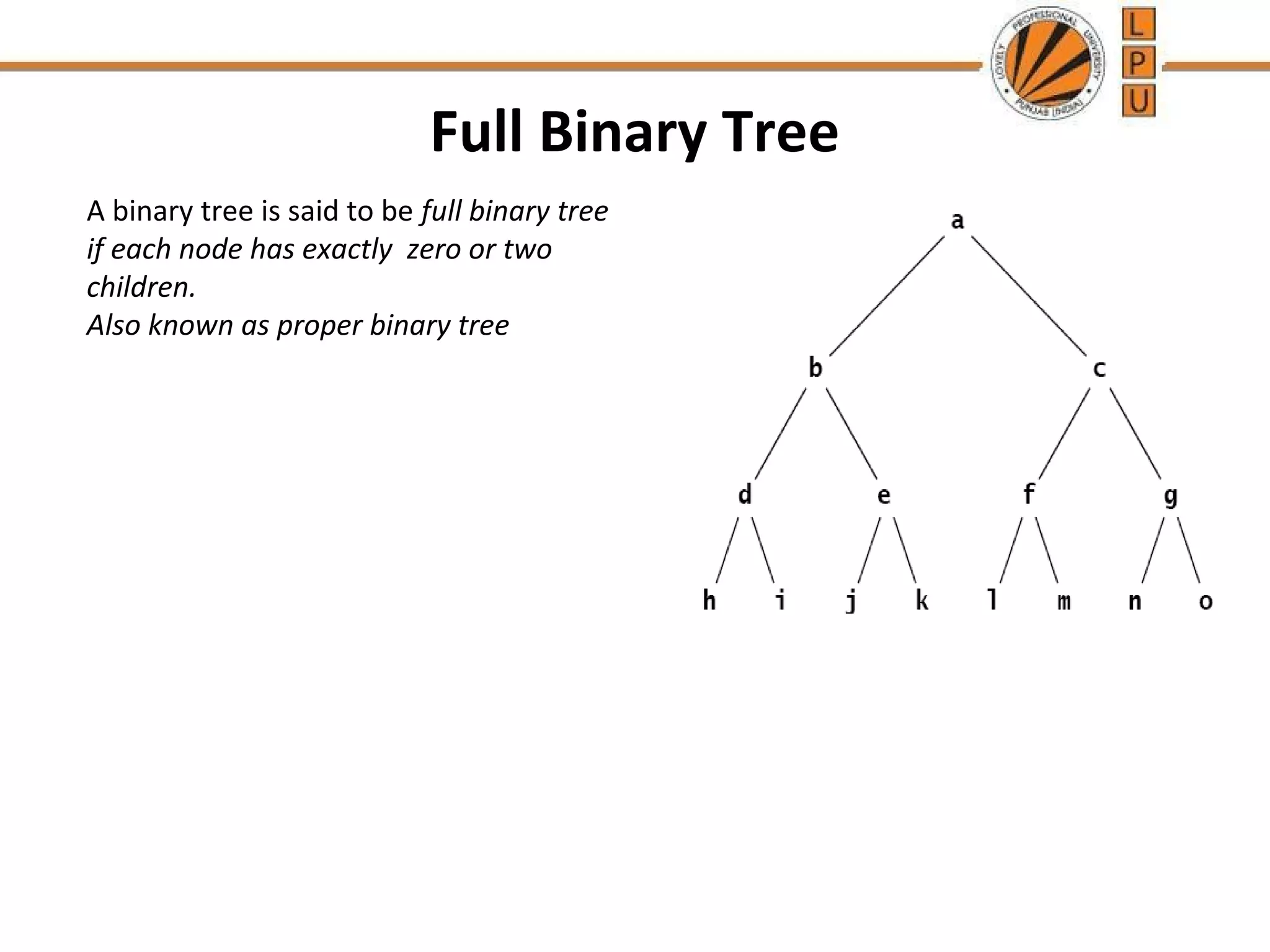

9. Full Binary Tree
A binary tree is said to be full binary tree
if each node has exactly zero or two
children.
Also known as proper binary tree

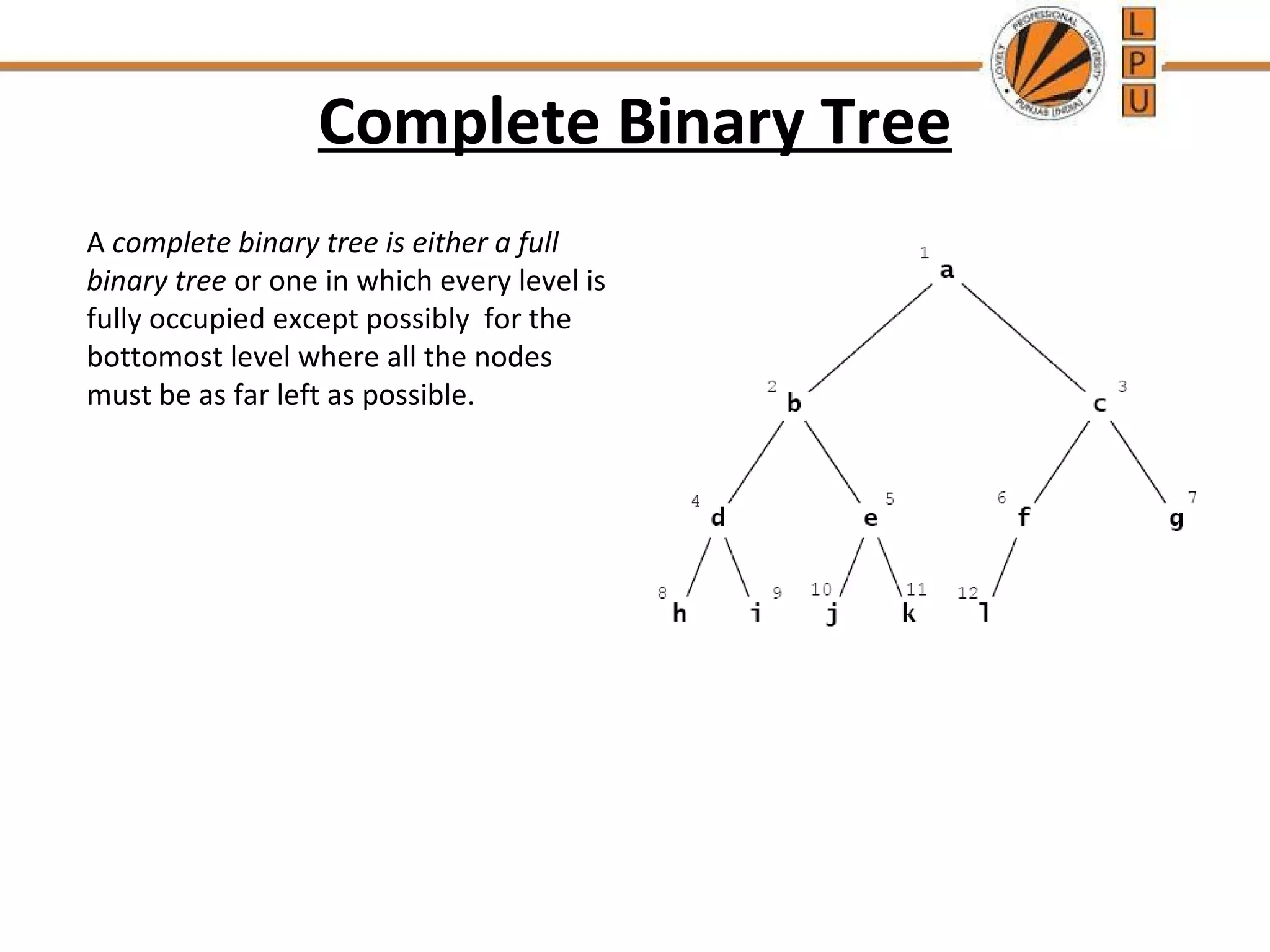

10. Complete Binary Tree
A complete binary tree is either a full
binary tree or one in which every level is
fully occupied except possibly for the
bottomost level where all the nodes
must be as far left as possible.

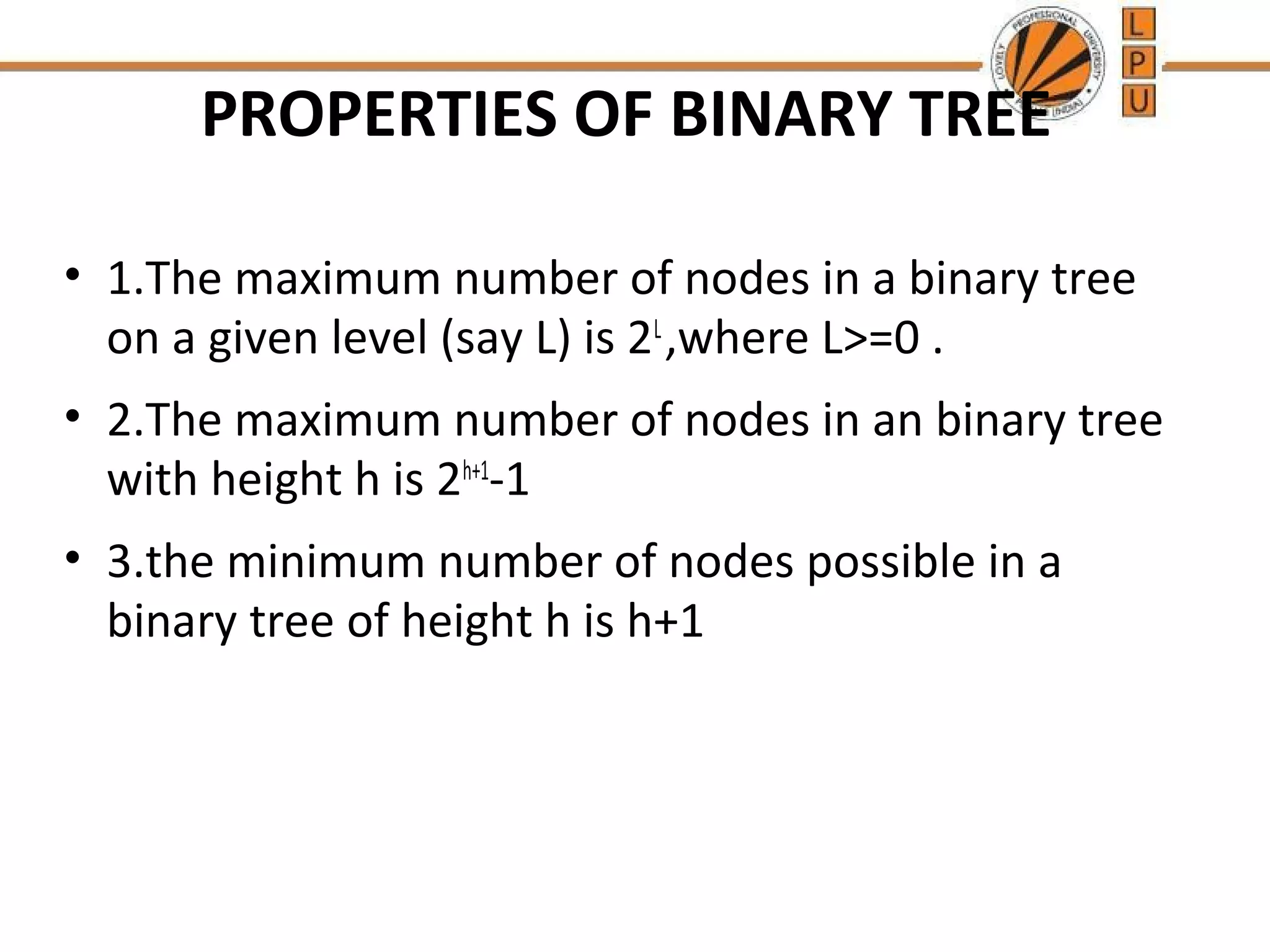

11. PROPERTIES OF BINARY TREE
• 1.The maximum number of nodes in a binary tree
on a given level (say L) is 2L ,where L>=0 .
• 2.The maximum number of nodes in an binary tree
with height h is 2h+1-1
• 3.the minimum number of nodes possible in a
binary tree of height h is h+1

12. • 4.if n is the number of nodes and e is the number of
edges in an non-empty binary tree then n=e+1.
• 5.if n0 is the number of leaf nodes (no child) and n2 is
the number of nodes with two children in a non-empty
binary tree then n0= n2+1
• 6.for a complete binary tree T with n nodes ,the
height is floor[log2(n+1) -1]

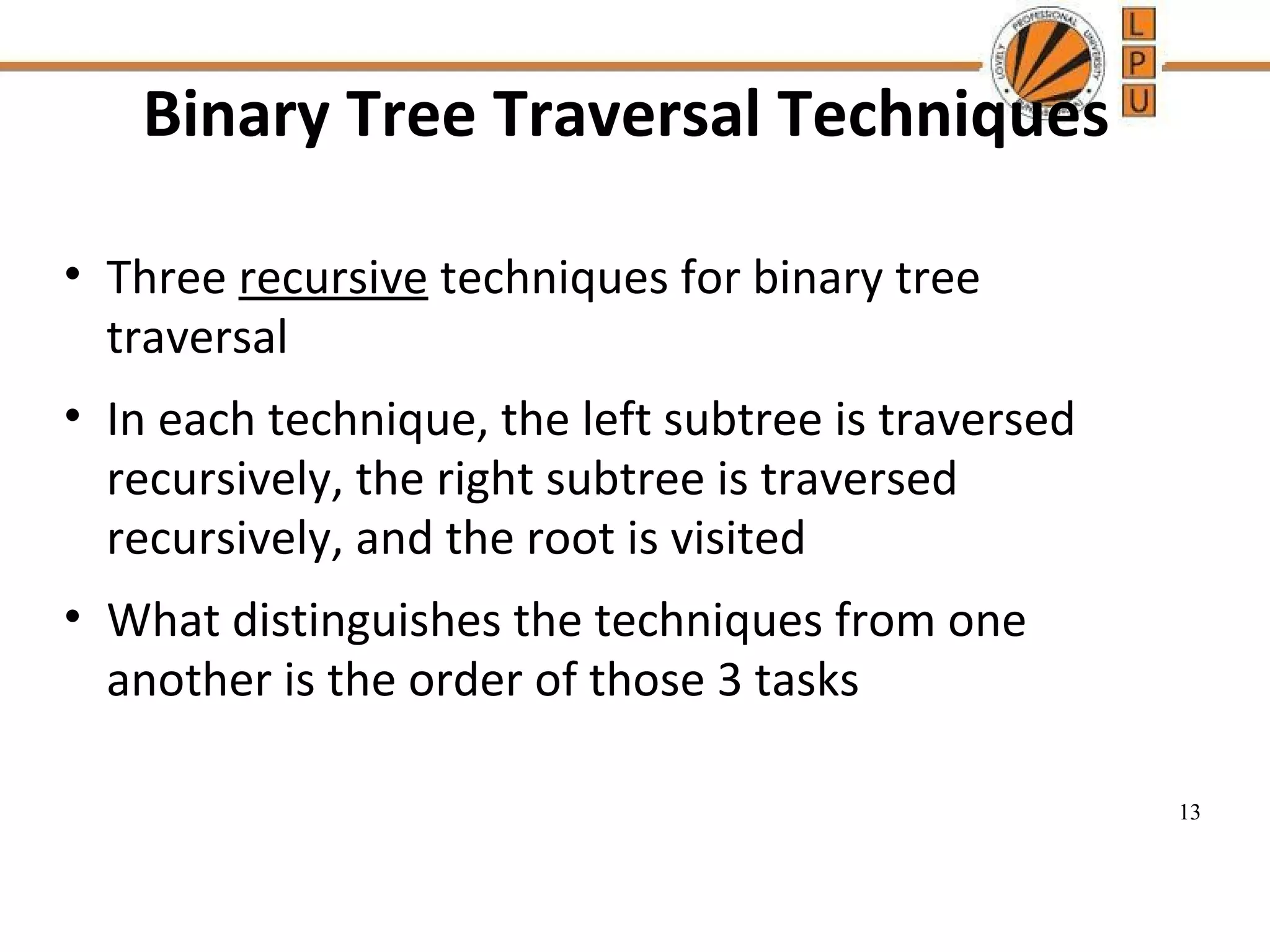

13. Binary Tree Traversal Techniques
• Three recursive techniques for binary tree
traversal
• In each technique, the left subtree is traversed
recursively, the right subtree is traversed
recursively, and the root is visited
• What distinguishes the techniques from one
another is the order of those 3 tasks
13

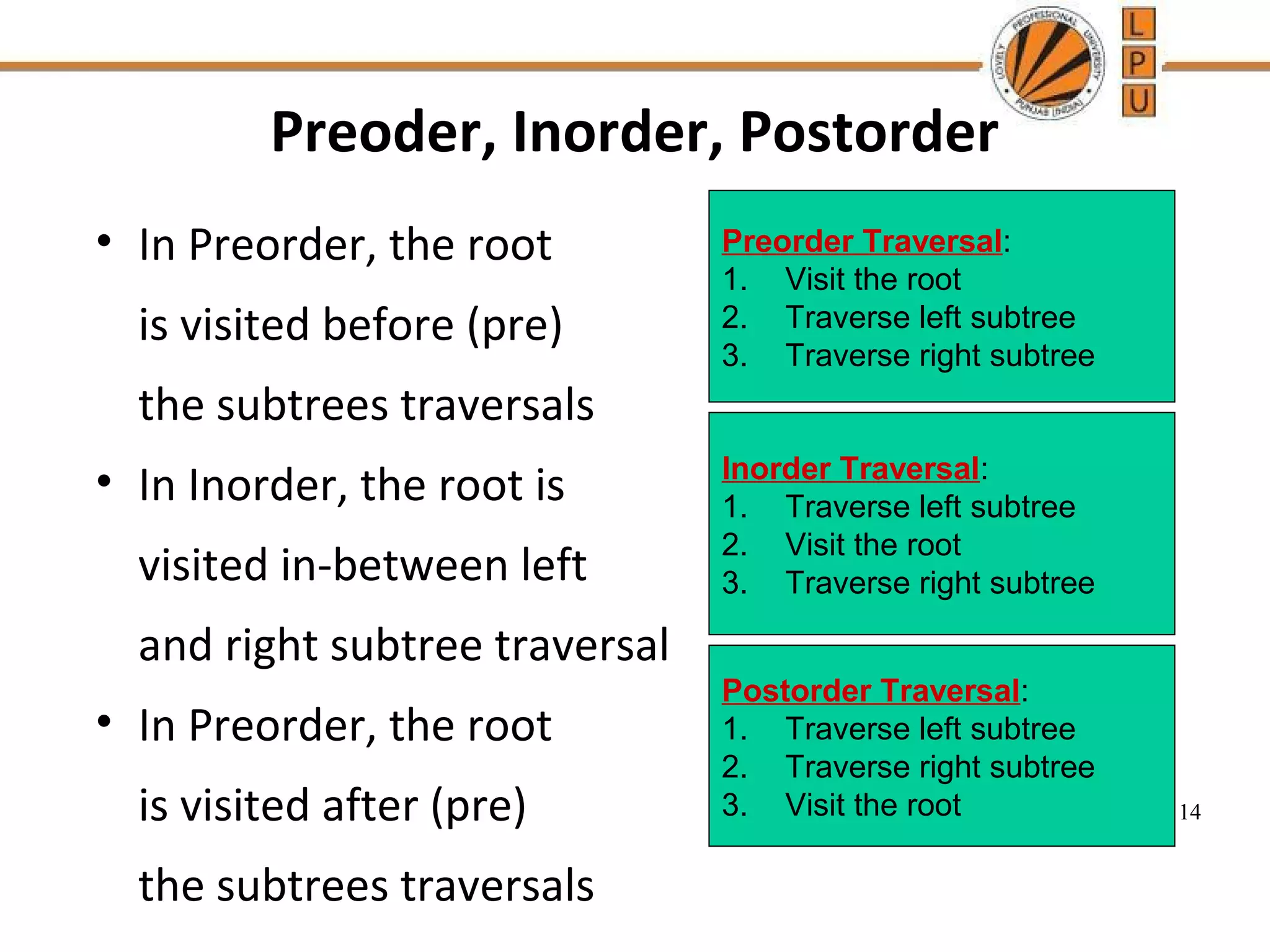

14. Preoder, Inorder, Postorder
• In Preorder, the root
is visited before (pre)
the subtrees traversals
• In Inorder, the root is
visited in-between left
and right subtree traversal
• In Preorder, the root
is visited after (pre)
the subtrees traversals
Preorder Traversal:
1. Visit the root
2. Traverse left subtree
3. Traverse right subtree
Inorder Traversal:
1. Traverse left subtree
2. Visit the root
3. Traverse right subtree
Postorder Traversal:
1. Traverse left subtree
2. Traverse right subtree
3. Visit the root 14

15. Illustrations for Traversals
1
3
8 9
11
5
4 6
7
10
12
15

16. Illustrations for Traversals
• Assume: visiting a node
is printing its label
• Preorder:
1 3 5 4 6 7 8 9 10 11 12
• Inorder:
4 5 6 3 1 8 7 9 11 10 12
• Postorder:
4 6 5 3 8 11 12 10 9 7 1
1
3
8 9
11
5
4 6
7
10
12
16

17. Illustrations for Traversals (Contd.)
6
15
8
2
3 7
11
10
14
12
20
27
22 30
17

18. Illustrations for Traversals (Contd.)
• Assume: visiting a node
is printing its data
• Preorder: 15 8 2 6 3 7
11 10 12 14 20 27 22 30
• Inorder: 3 6 7 2 8 10 11
12 14 15 20 22 27 30
• Postorder: 3 7 6 2 10 14
12 11 8 22 30 27 20 15
6
15
8
2
3 7
11
10
14
12
20
27
22 30
18

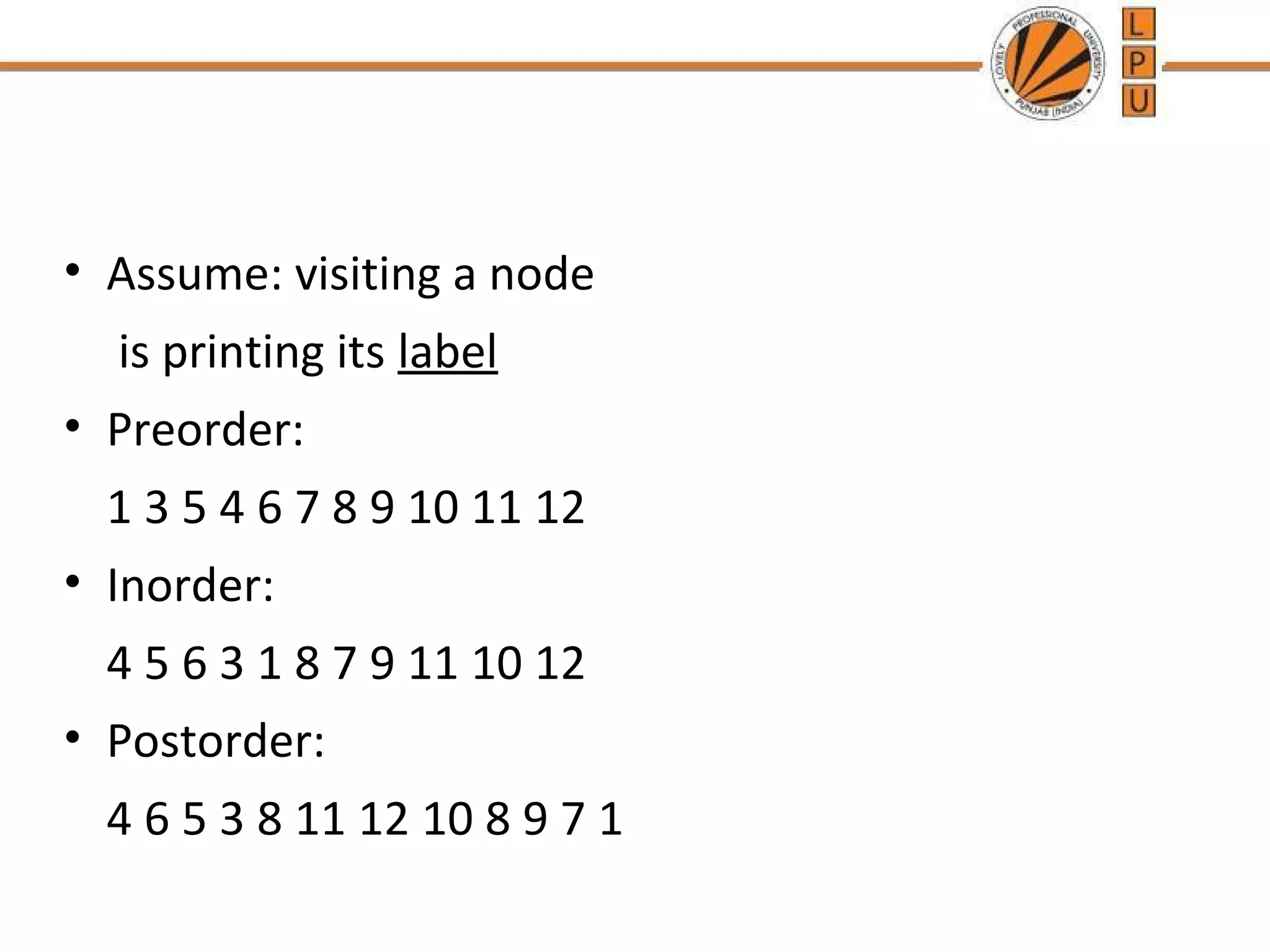

19. • Assume: visiting a node
is printing its label
• Preorder:
1 3 5 4 6 7 8 9 10 11 12
• Inorder:
4 5 6 3 1 8 7 9 11 10 12
• Postorder:
4 6 5 3 8 11 12 10 8 9 7 1

20. Assume: visiting a node
is printing its data
Preorder: 15 8 2 6 3 7
11 10 12 14 20 27 22 30
Inorder: 3 6 7 2 8 10 11
12 14 15 20 22 27 30
Postorder: 3 7 6 2 10 14
12 11 8 22 30 27 20 15

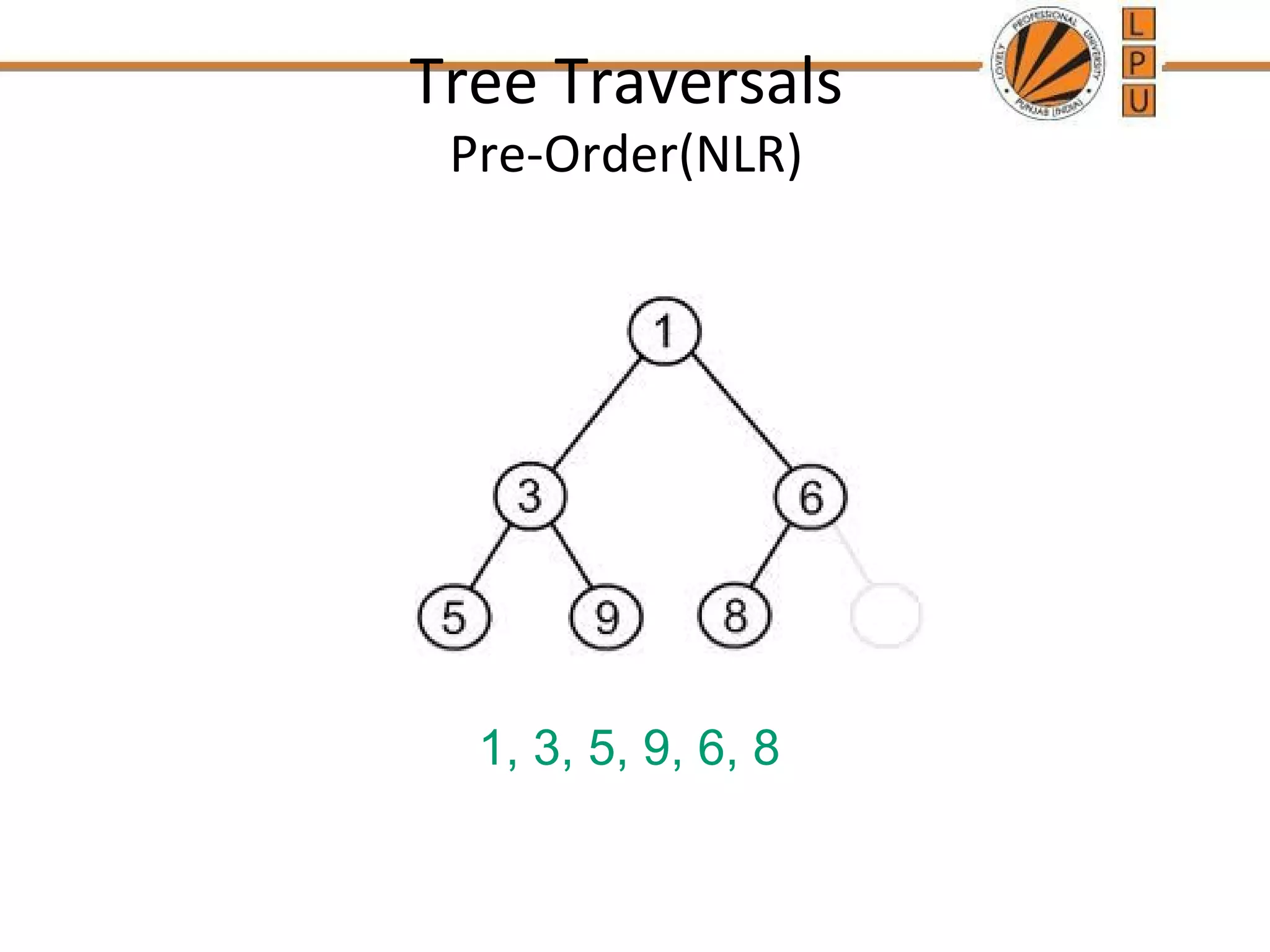

21. Tree Traversals
Pre-Order(NLR)
1, 3, 5, 9, 6, 8

22. Tree Traversals
In-Order(LNR)
5, 3, 9, 1, 8, 6

23. Tree Traversals
Post-Order(LRN)
5, 9, 3, 8, 6, 1

24. PRE-ORDER USING STACK
• PREORD(INFO,LEFT,RIGHT,ROOT): A binary tree
T is in memory .The algorithm does a
preorder traversal of T, applying an
operation PROCESS to each of its node. An
array STACK is used to temporarily hold the
addresses of nodes.

25. • 1.[Initiaaly push NULL onto STACK and initialize
PTR]
Set TOP1.STACK[1]NULL and PTRROOT
2.Repeat steps 3 to 5 while PTR!=NULL
3.Apply PROCESS to INFO[PTR]
4.[Right Child?]
If RIGHT[PTR]!=NULL [Push on STACK]
TOPTOP+1
STACK[TOP]RIGHT[PTR]
[End of if structure]

26. • 5.[Left Child ?]
If LEFT[PTR]!=NULL,
Set PTRLEFT[PTR]
Else [pop from stack]
PTRSTACK[TOP]
TOPTOP-1
[End of if strucutre]
[End of step 2 loop]
6.Exit

27. IN-ORDER
• INORDER(INFO,LEFT,RIGHT,ROOT):A binary tree is
in memory. This algorithm does an inorder traversal
.applying PROCESS to each of its node.An array
STACK is used to temporarily hold the addresses of
node.

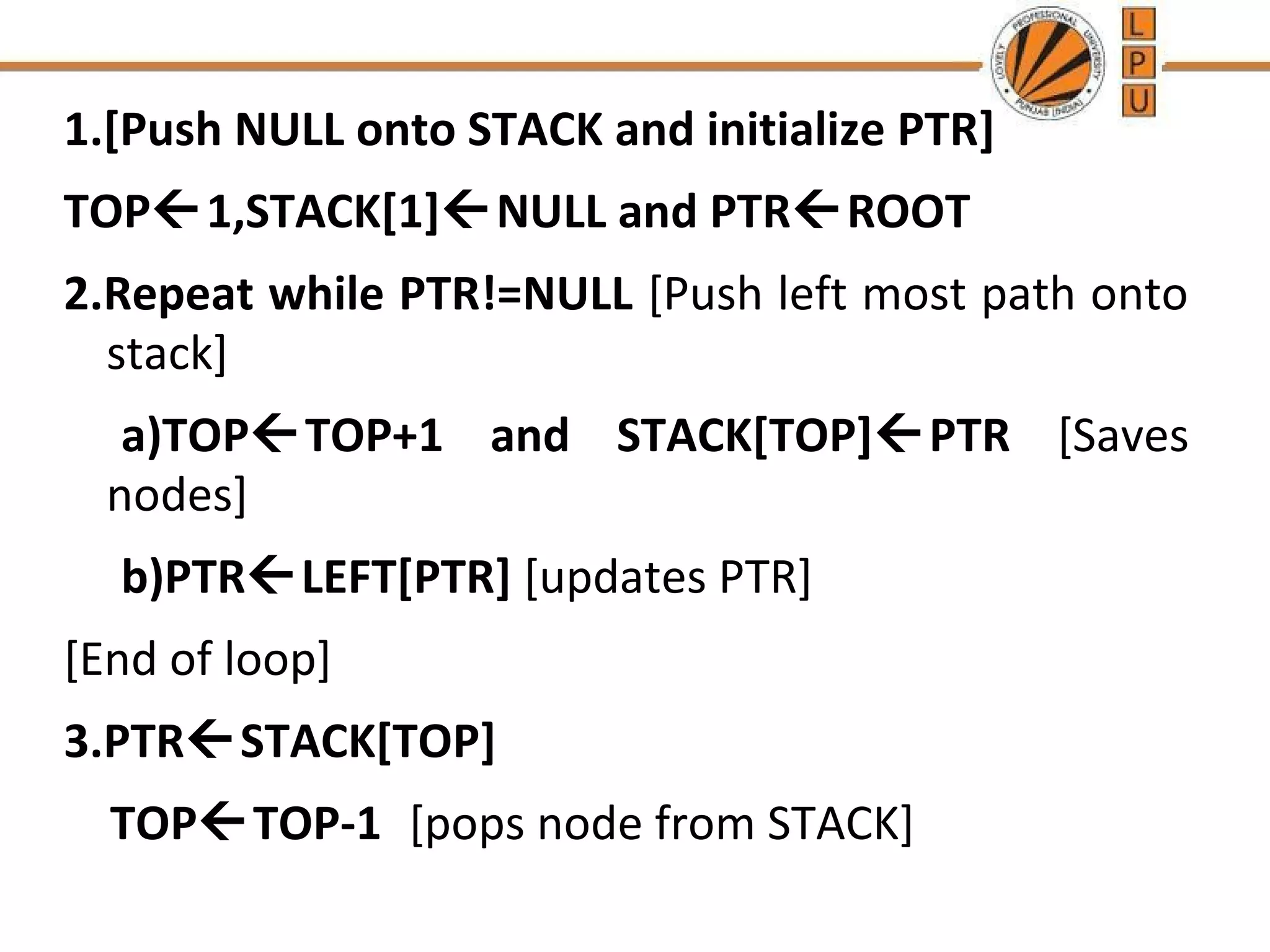

28. 1.[Push NULL onto STACK and initialize PTR]
TOP1,STACK[1]NULL and PTRROOT
2.Repeat while PTR!=NULL [Push left most path onto
stack]
a)TOPTOP+1 and STACK[TOP]PTR [Saves
nodes]
b)PTRLEFT[PTR] [updates PTR]
[End of loop]
3.PTRSTACK[TOP]
TOPTOP-1 [pops node from STACK]

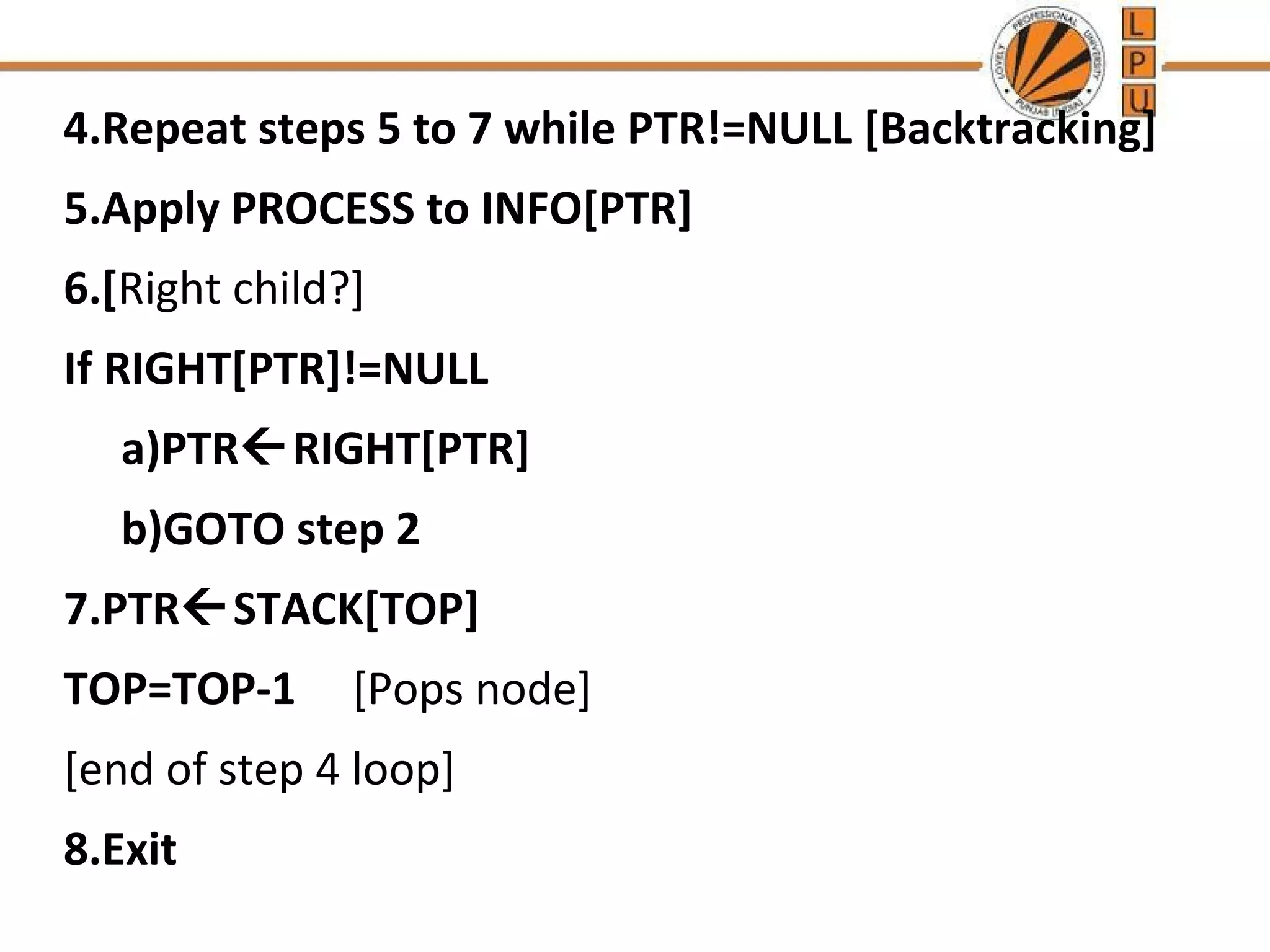

29. 4.Repeat steps 5 to 7 while PTR!=NULL [Backtracking]
5.Apply PROCESS to INFO[PTR]
6.[Right child?]
If RIGHT[PTR]!=NULL
a)PTRRIGHT[PTR]
b)GOTO step 2
7.PTRSTACK[TOP]
TOP=TOP-1 [Pops node]
[end of step 4 loop]
8.Exit

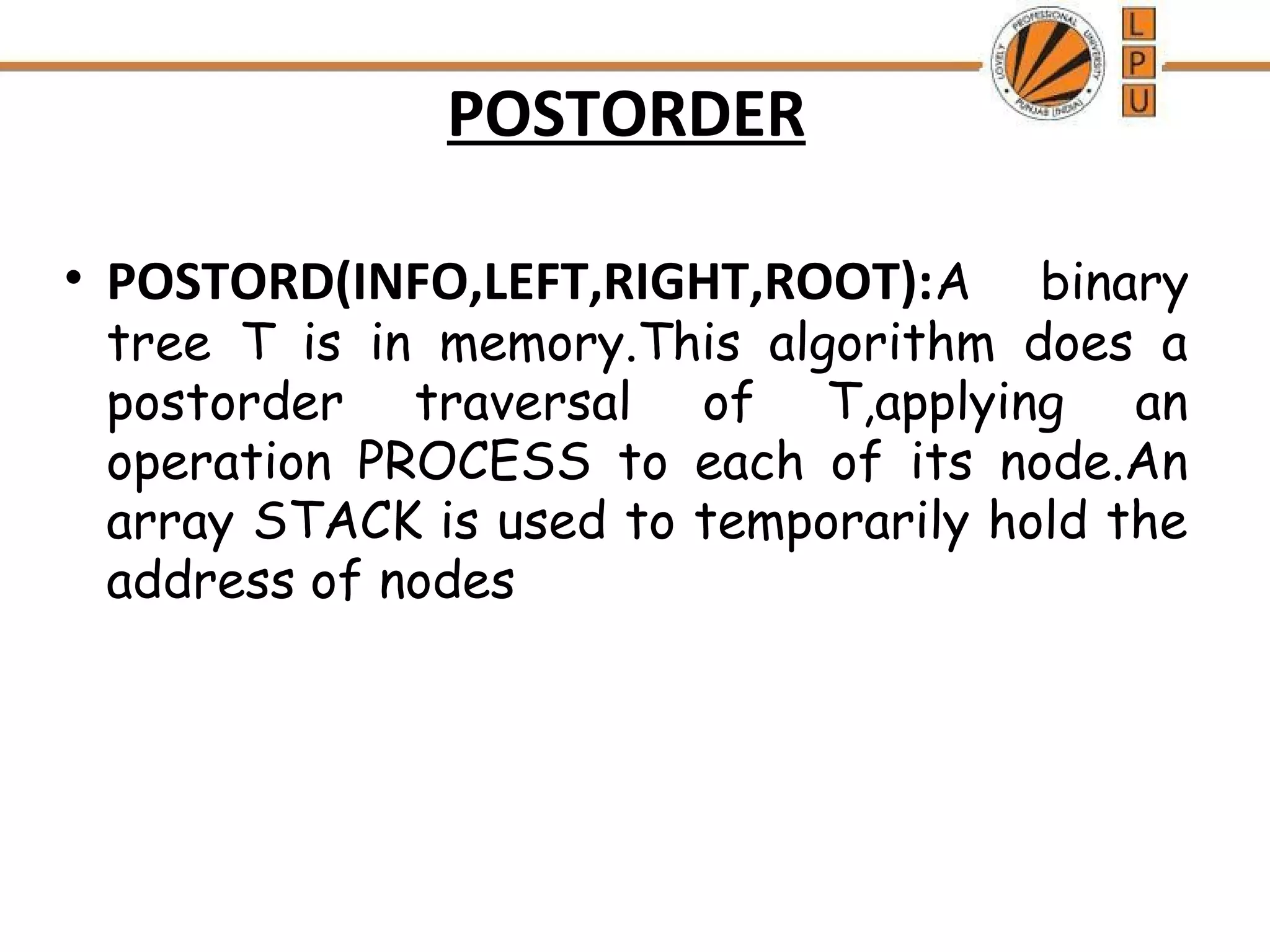

30. POSTORDER
• POSTORD(INFO,LEFT,RIGHT,ROOT):A binary
tree T is in memory.This algorithm does a
postorder traversal of T,applying an
operation PROCESS to each of its node.An
array STACK is used to temporarily hold the
address of nodes

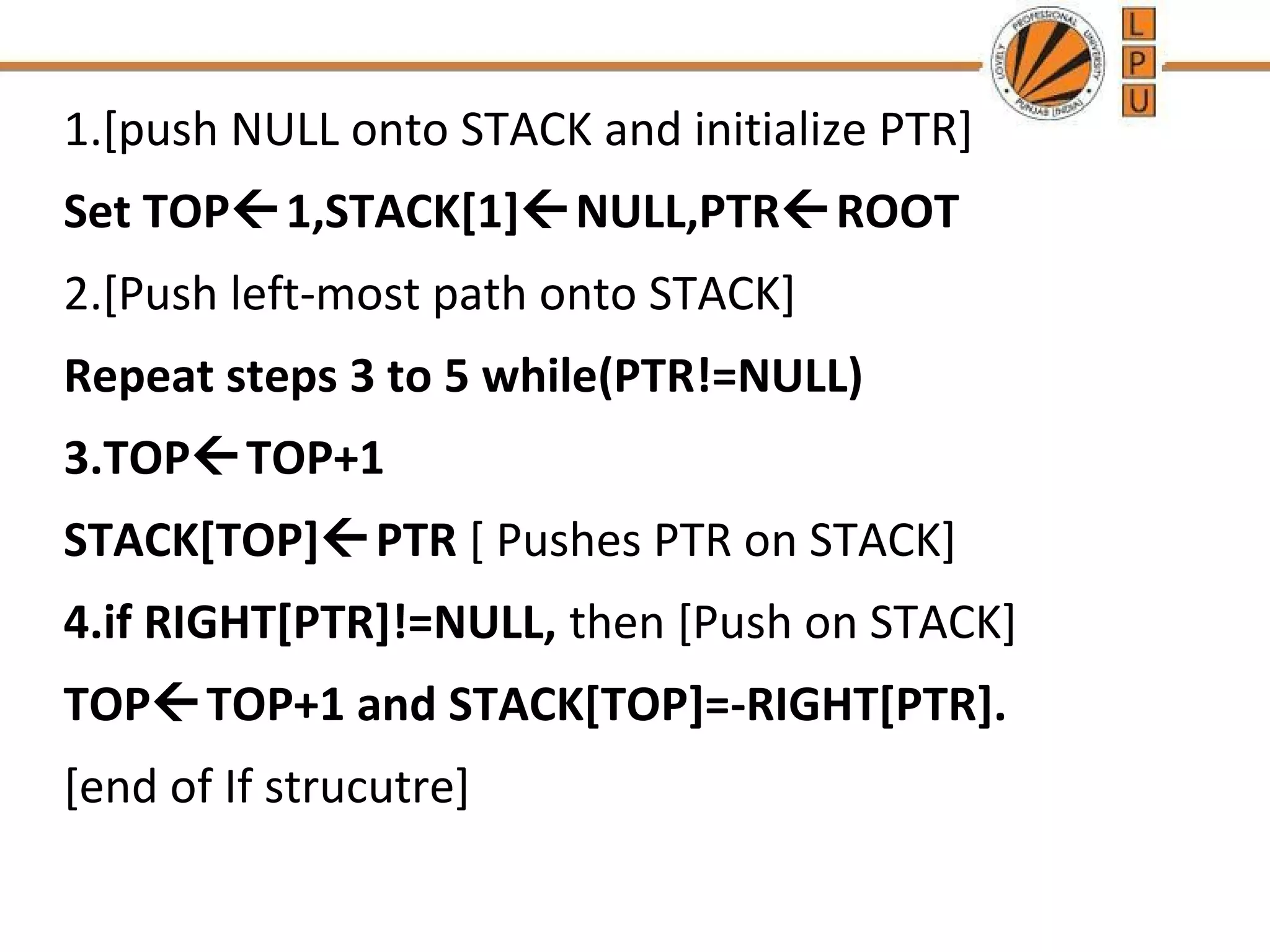

31. 1.[push NULL onto STACK and initialize PTR]
Set TOP1,STACK[1]NULL,PTRROOT
2.[Push left-most path onto STACK]
Repeat steps 3 to 5 while(PTR!=NULL)
3.TOPTOP+1
STACK[TOP]PTR [ Pushes PTR on STACK]
4.if RIGHT[PTR]!=NULL, then [Push on STACK]
TOPTOP+1 and STACK[TOP]=-RIGHT[PTR].
[end of If strucutre]

32. Set PTRLEFT[PTR] [Updates pointer PTR]
[End of Step 2 loop]
6.Set PTRSTACK[TOP] and TOPTOP-1 [Pops node from
STACK]
7.Repeat while PTR>0.
A)Apply PROCESS to INFO[PTR]
B)Set PTRSTACK[TOP] and TOPTOP-1 [pops node
from STACK]
8.If PTR<0 ,then:
a)PTR-PTR
b)Goto step 2.
[End of If structure]
9.EXIT

33. Binary Search Tree

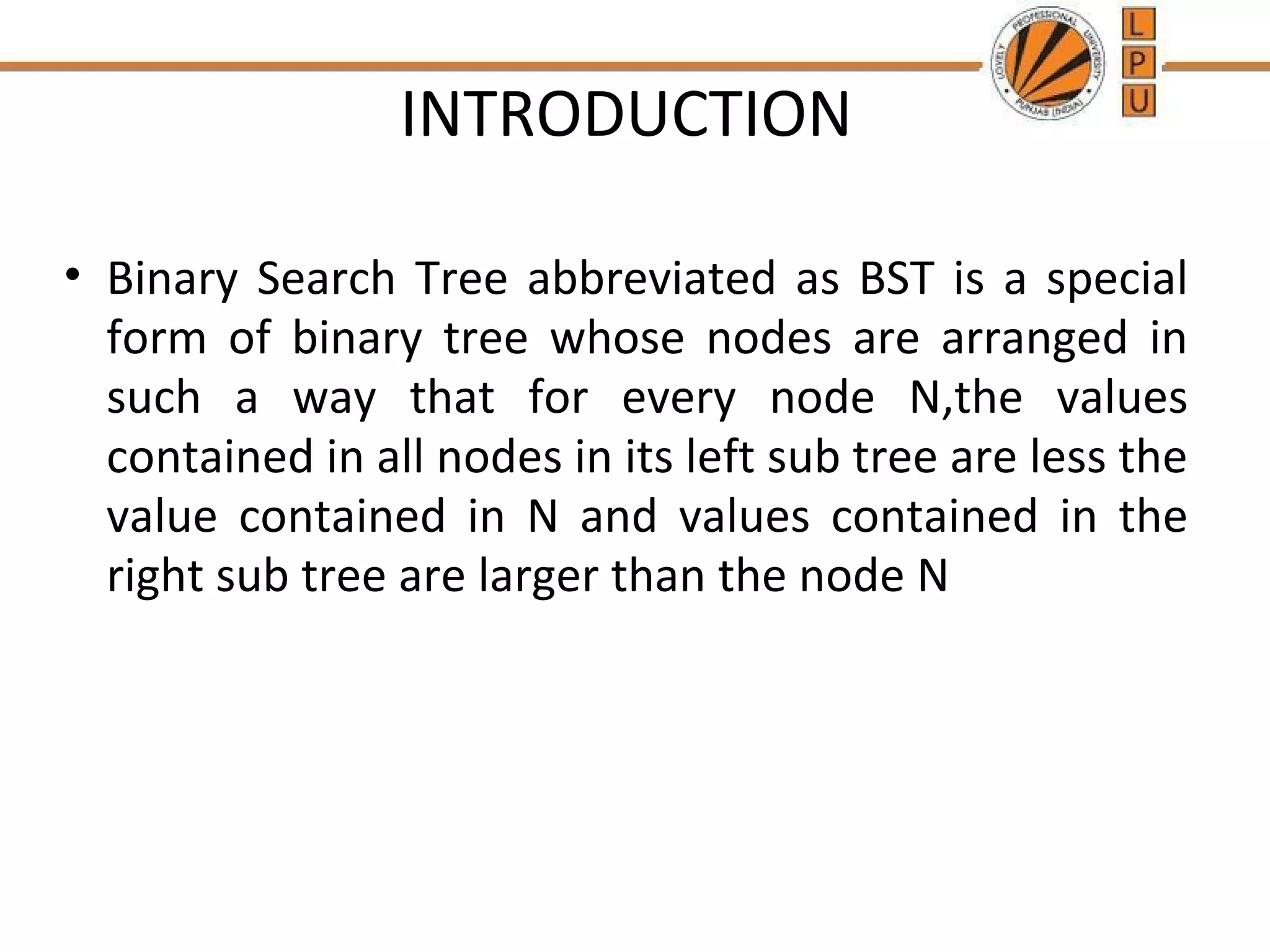

34. INTRODUCTION
• Binary Search Tree abbreviated as BST is a special
form of binary tree whose nodes are arranged in
such a way that for every node N,the values
contained in all nodes in its left sub tree are less the
value contained in N and values contained in the
right sub tree are larger than the node N

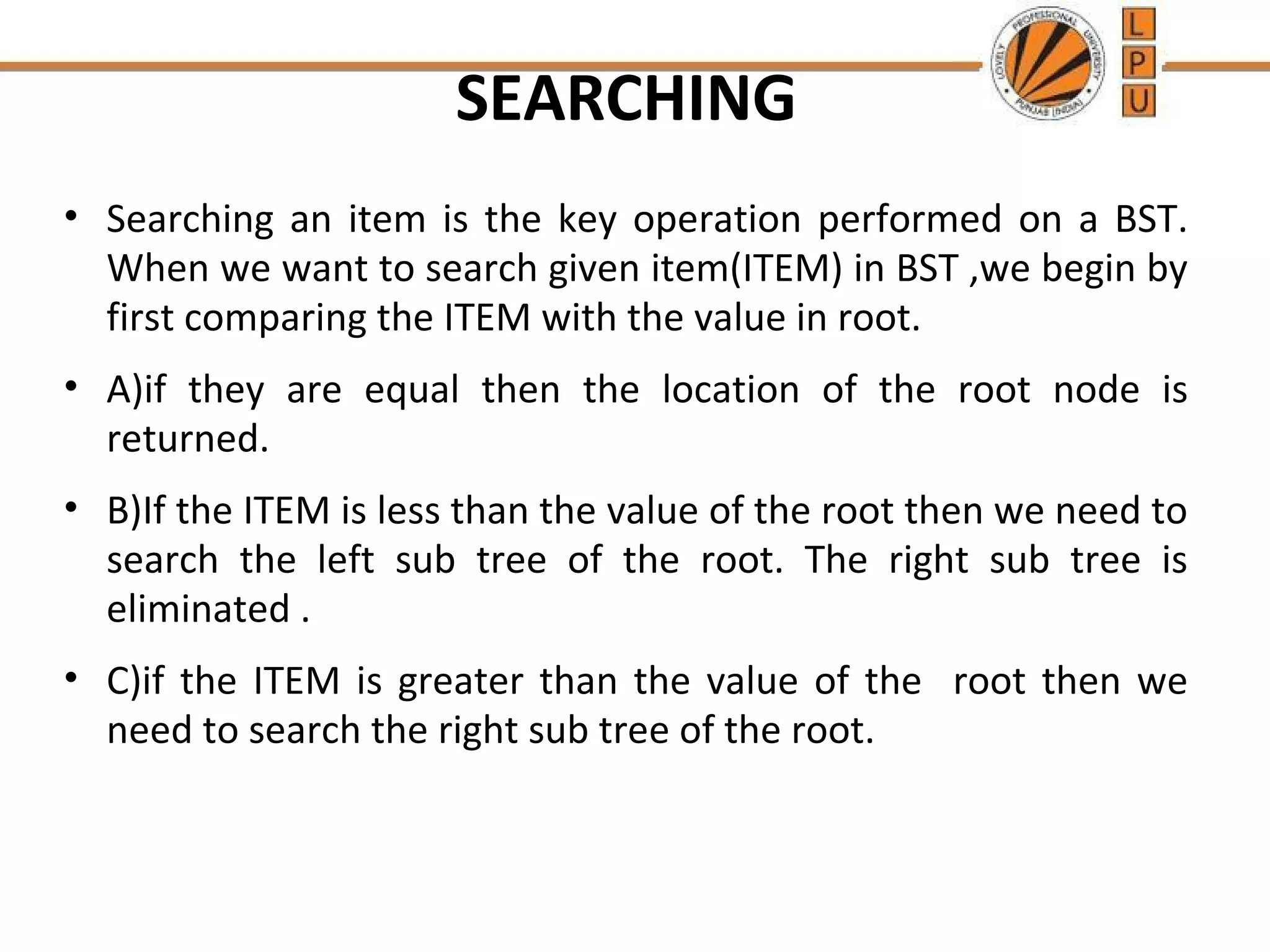

35. SEARCHING
• Searching an item is the key operation performed on a BST.
When we want to search given item(ITEM) in BST ,we begin by
first comparing the ITEM with the value in root.
• A)if they are equal then the location of the root node is
returned.
• B)If the ITEM is less than the value of the root then we need to
search the left sub tree of the root. The right sub tree is
eliminated .
• C)if the ITEM is greater than the value of the root then we
need to search the right sub tree of the root.

36. Searching in BST
• BSTSEARCH(ROOT,ITEM): Given linked BST whose root
node is pointed to by pointer ROOT. A variable PTR is
used which is a pointer that points to the current node
being processed. Another local variable LOC returns the
location of a given ITEM. The local variable FLAG contains
Boolean value which is TRUE(i.e. 1) if search is successful
otherwise FALSE(i.e. 0) . This algo searches for a given
ITEM from BST.

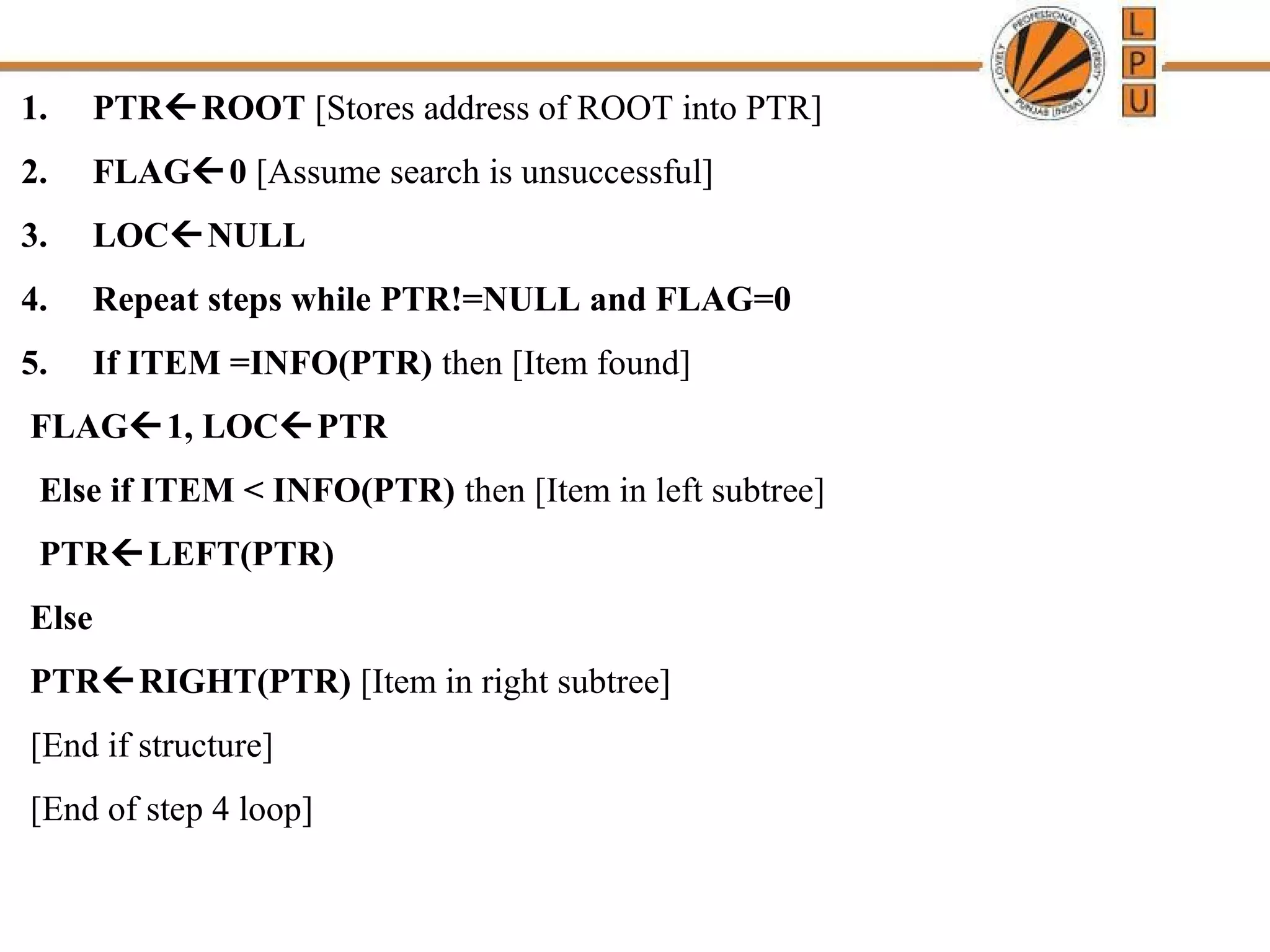

37. 1. PTRROOT [Stores address of ROOT into PTR]
2. FLAG0 [Assume search is unsuccessful]
3. LOCNULL
4. Repeat steps while PTR!=NULL and FLAG=0
5. If ITEM =INFO(PTR) then [Item found]
FLAG1, LOCPTR
Else if ITEM < INFO(PTR) then [Item in left subtree]
PTRLEFT(PTR)
Else
PTRRIGHT(PTR) [Item in right subtree]
[End if structure]
[End of step 4 loop]

38. INSERTION IN BST
• Insertion of new node into binary search tree is
very simple operation based on the search
operation.
• In order to insert a node with given item into
BST ,we begin searching at the root and descend
level by level moving left or right subtree as
appropriate comparing the value of the current
node and node being inserted.
• When we reach a node with empty subtree(i.e leaf)
then we insert the new node as its left or right child
depending on ITEM.

39. • While searching if the ITEM to be inserted is
already in the tree then do nothing as we know
binary tree cannot hold the duplicate values.
• Also note that as insertion take place only at leaf
node so we only need ITEM to be inserted and not
the location of the insertion

40. • BST_INSERT(ROOT,ITEM,AVAIL) –Given a linked
list BST whose root node is pointed to by a pointer
ROOT.A local variable PTR is used which points to the
current node being processed. The variable PPTR is a
pointer that points to the parent of the new node
containing ITEM in its INFO part. The pointer
variable NEW points to the new node and the AVAIL
pointer points to the first node in the availability
list.This algorithm inserts the given ITEM into BST.

41. 1. If AVAIL=NULL then [No space for new node]
Write “ Overflow”.
return
[End of if structure]
2. [Get new node from availability list]
a) NEWAVIAL
b) AVAILLEFT(AVAIL)
c) INFO(NEW)ITEM [Copy ITEM into INFO part of new node]
3.[New node has no children]
a) LEFT(NEW)NULL
b) RIGHT(NEW)NULL
4.If ROOT=NULL then [Tree is empty]
ROOTNEW [Insert new node as root]
return
[End of if structure]

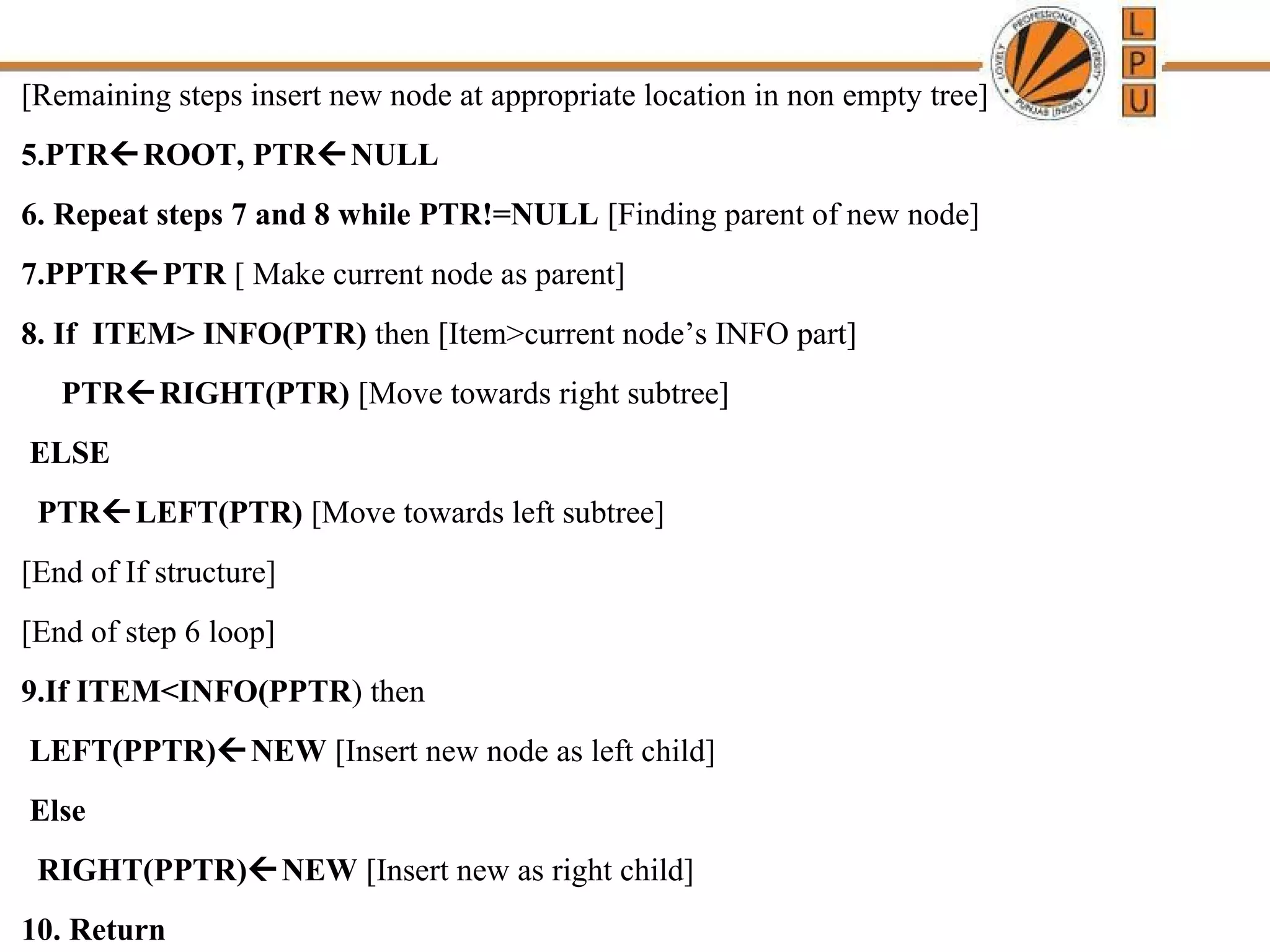

42. [Remaining steps insert new node at appropriate location in non empty tree]
5.PTRROOT, PTRNULL
6. Repeat steps 7 and 8 while PTR!=NULL [Finding parent of new node]
7.PPTRPTR [ Make current node as parent]
8. If ITEM> INFO(PTR) then [Item>current node’s INFO part]
PTRRIGHT(PTR) [Move towards right subtree]
ELSE
PTRLEFT(PTR) [Move towards left subtree]
[End of If structure]
[End of step 6 loop]
9.If ITEM<INFO(PPTR) then
LEFT(PPTR)NEW [Insert new node as left child]
Else
RIGHT(PPTR)NEW [Insert new as right child]
10. Return

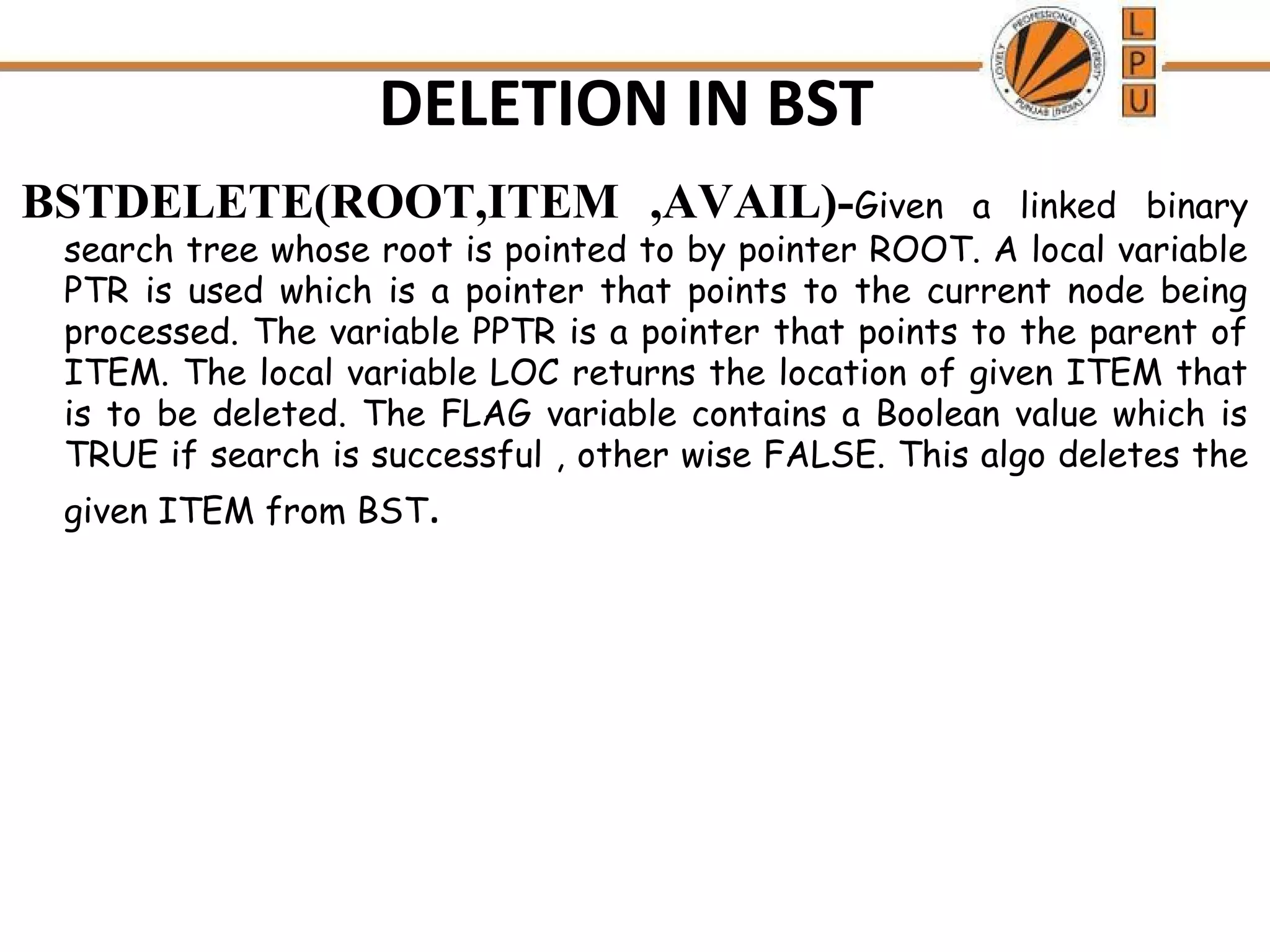

43. DELETION IN BST
BSTDELETE(ROOT,ITEM ,AVAIL)-Given a linked binary
search tree whose root is pointed to by pointer ROOT. A local variable
PTR is used which is a pointer that points to the current node being
processed. The variable PPTR is a pointer that points to the parent of
ITEM. The local variable LOC returns the location of given ITEM that
is to be deleted. The FLAG variable contains a Boolean value which is
TRUE if search is successful , other wise FALSE. This algo deletes the
given ITEM from BST.

44. 1.PTRROOT, FLAG0 [Initialize PTR, assume search successful]
2. Repeat steps 3 while PTR!=NULL [All nodes served ] and FLAG=0 [Search
Unsuccessful]
3. If ITEM=INFO(PTR) then [Node to be deleted found]
FLAG1, LOCPTR
Else If ITEM < INFO(PTR) then [ITEM in left subtree]
PPTRPTR [Make current node as a parent]
PTRLEFT(PTR) [Make a left child as current node]
Else [ITEM in right subtree]
PPTRPTR
PTRRIGHT(PTR)
[End of If structure]
[End of step 3 loop]
4. If LOC=NULL then
Write “ITEM does not exist”
return

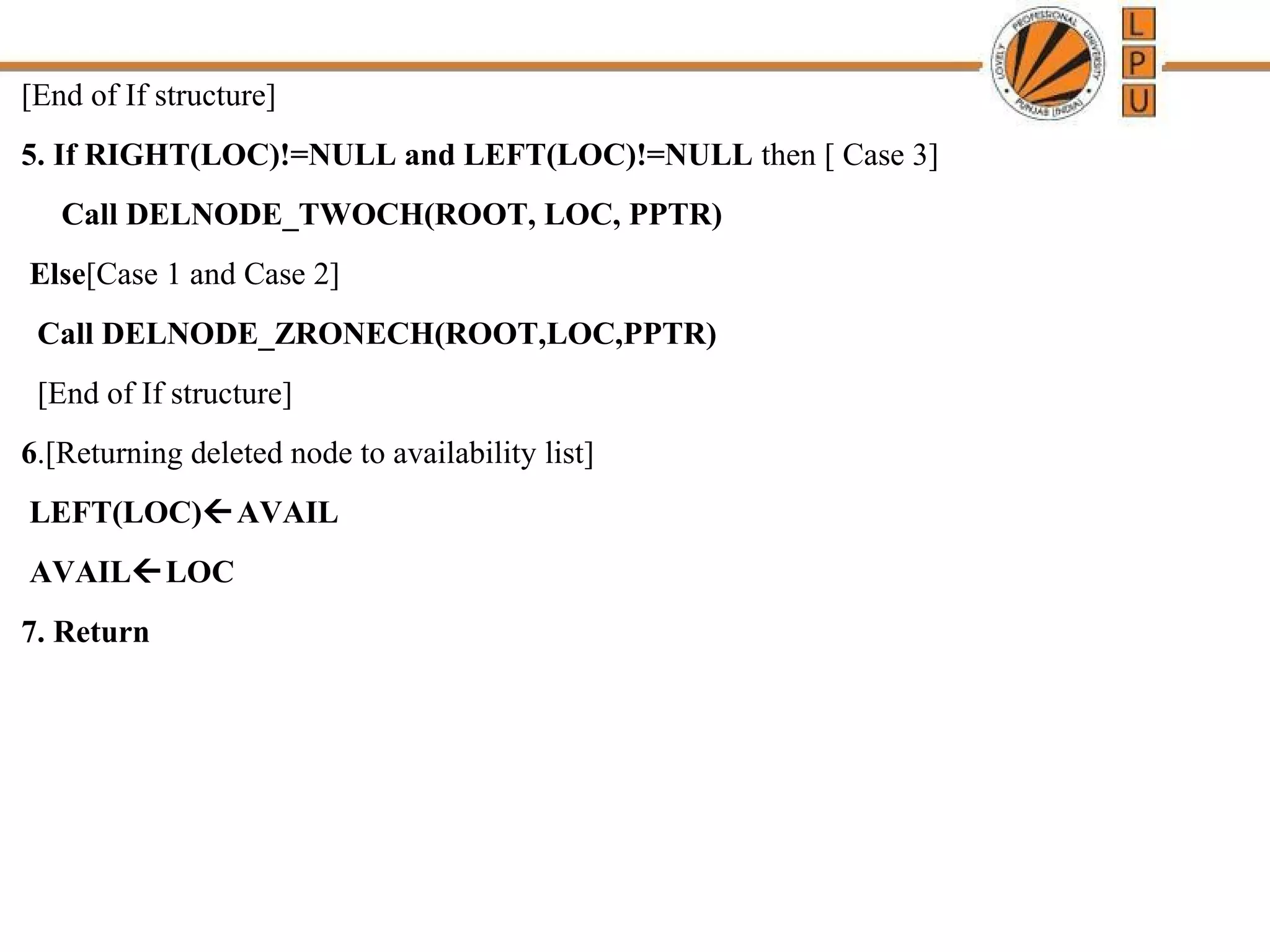

45. [End of If structure]
5. If RIGHT(LOC)!=NULL and LEFT(LOC)!=NULL then [ Case 3]
Call DELNODE_TWOCH(ROOT, LOC, PPTR)
Else[Case 1 and Case 2]
Call DELNODE_ZRONECH(ROOT,LOC,PPTR)
[End of If structure]
6.[Returning deleted node to availability list]
LEFT(LOC)AVAIL
AVAILLOC
7. Return

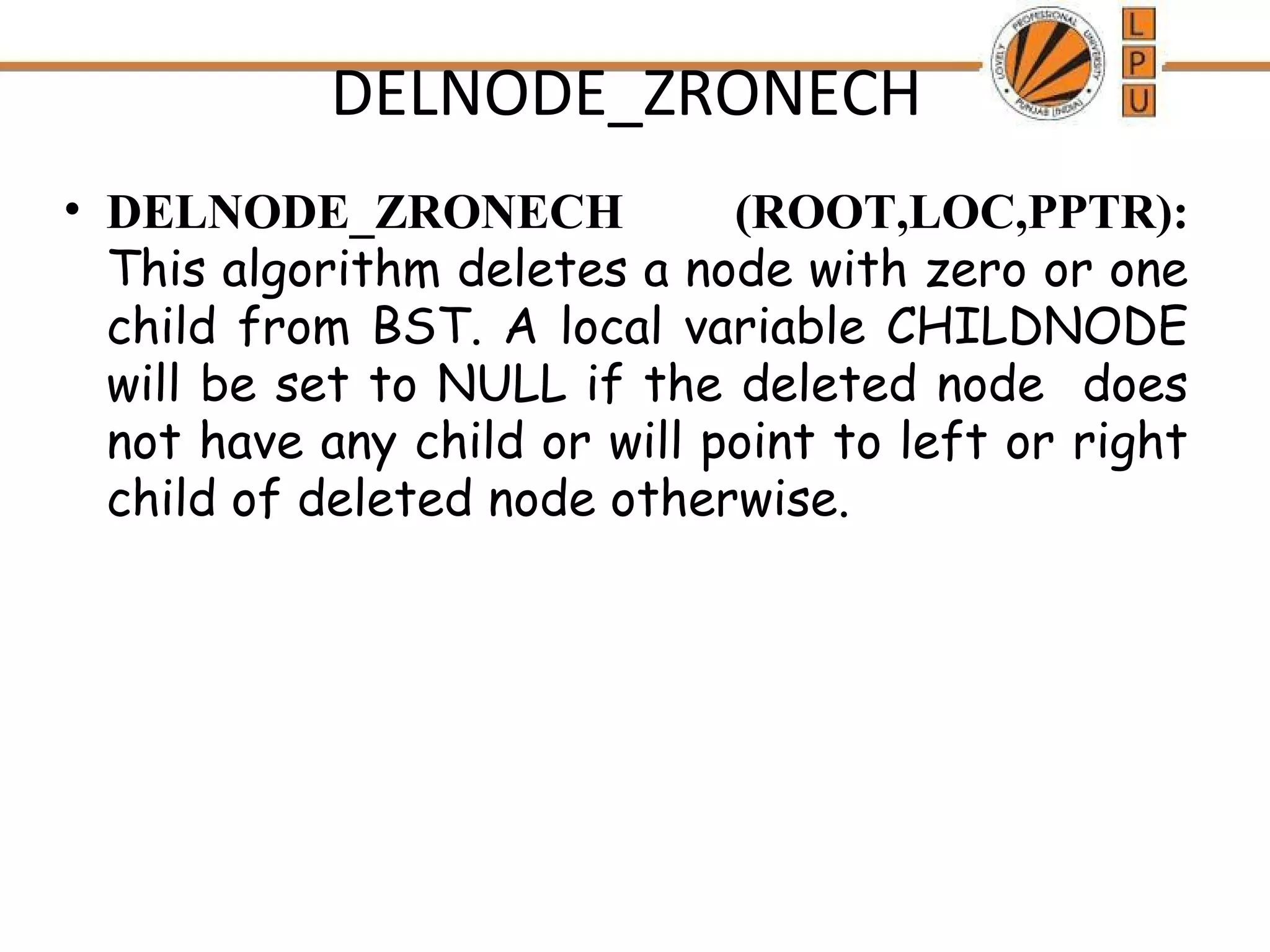

46. DELNODE_ZRONECH
• DELNODE_ZRONECH (ROOT,LOC,PPTR):
This algorithm deletes a node with zero or one
child from BST. A local variable CHILDNODE
will be set to NULL if the deleted node does
not have any child or will point to left or right
child of deleted node otherwise.

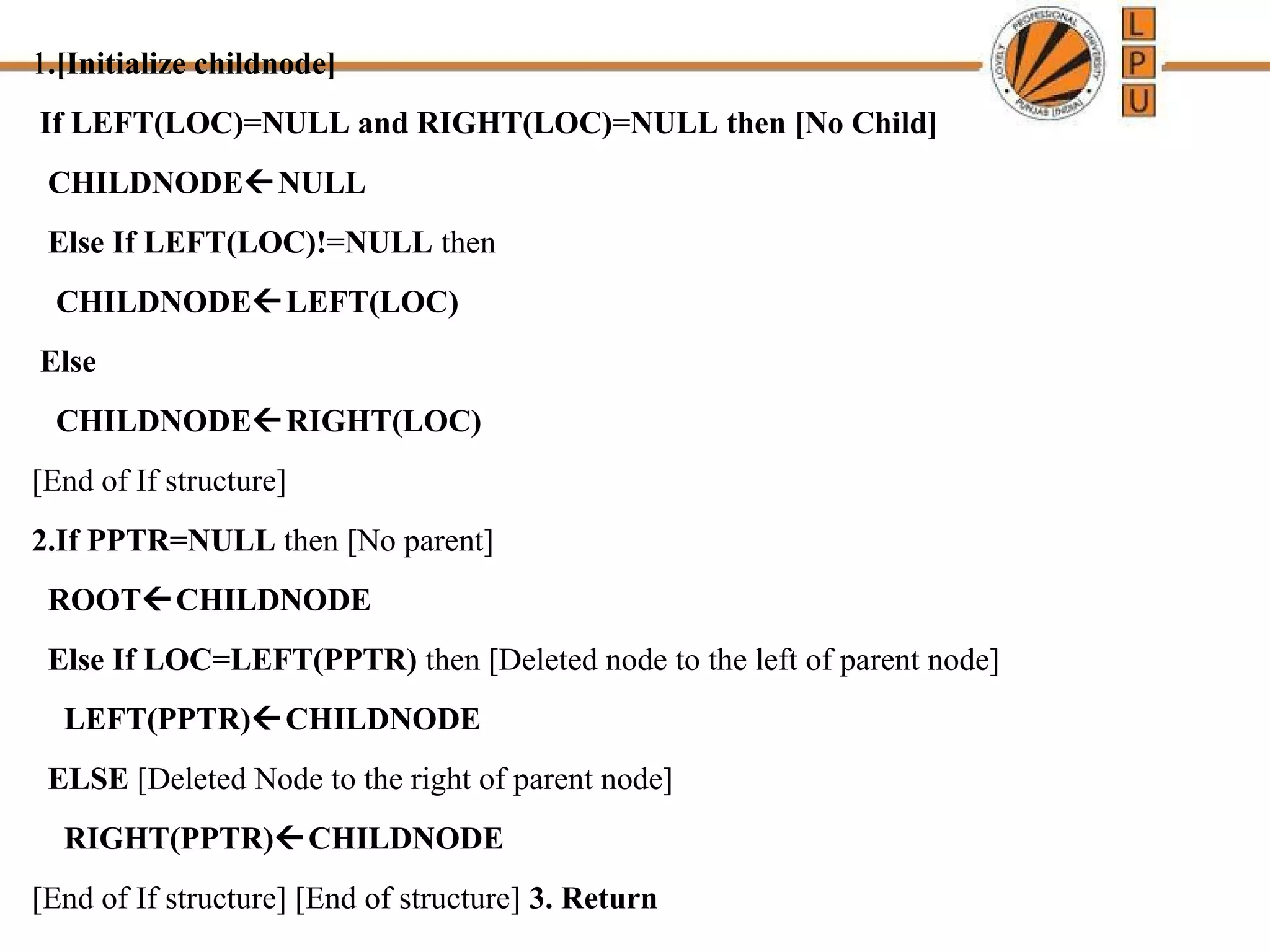

47. 1.[Initialize childnode]
If LEFT(LOC)=NULL and RIGHT(LOC)=NULL then [No Child]
CHILDNODENULL
Else If LEFT(LOC)!=NULL then
CHILDNODELEFT(LOC)
Else
CHILDNODERIGHT(LOC)
[End of If structure]
2.If PPTR=NULL then [No parent]
ROOTCHILDNODE
Else If LOC=LEFT(PPTR) then [Deleted node to the left of parent node]
LEFT(PPTR)CHILDNODE
ELSE [Deleted Node to the right of parent node]
RIGHT(PPTR)CHILDNODE
[End of If structure] [End of structure] 3. Return

48. DELNODE_TWOCH
DELNODE_TWOCH(ROOT,LOC,PPTR): This algorithm
deletes a node with two children from BST . LOC points to
the node to be deleted and PPTR points to its parent. A
local variable SUCC points to the inorder successor of
node to be deleted. The local variable PARSUCC points to
the parent of inorder successor.

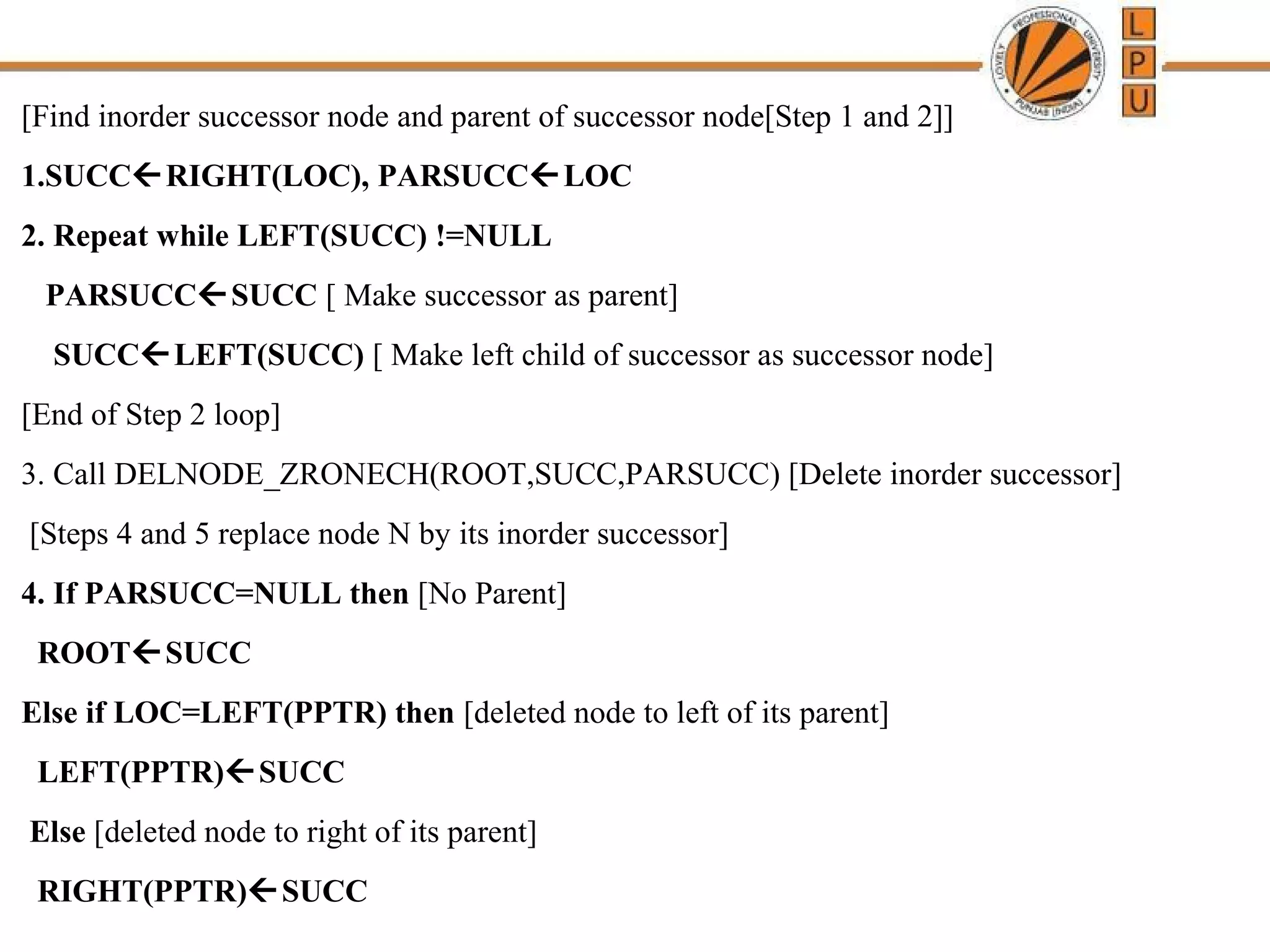

49. [Find inorder successor node and parent of successor node[Step 1 and 2]]
1.SUCCRIGHT(LOC), PARSUCCLOC
2. Repeat while LEFT(SUCC) !=NULL
PARSUCCSUCC [ Make successor as parent]
SUCCLEFT(SUCC) [ Make left child of successor as successor node]
[End of Step 2 loop]
3. Call DELNODE_ZRONECH(ROOT,SUCC,PARSUCC) [Delete inorder successor]
[Steps 4 and 5 replace node N by its inorder successor]
4. If PARSUCC=NULL then [No Parent]
ROOTSUCC
Else if LOC=LEFT(PPTR) then [deleted node to left of its parent]
LEFT(PPTR)SUCC
Else [deleted node to right of its parent]
RIGHT(PPTR)SUCC

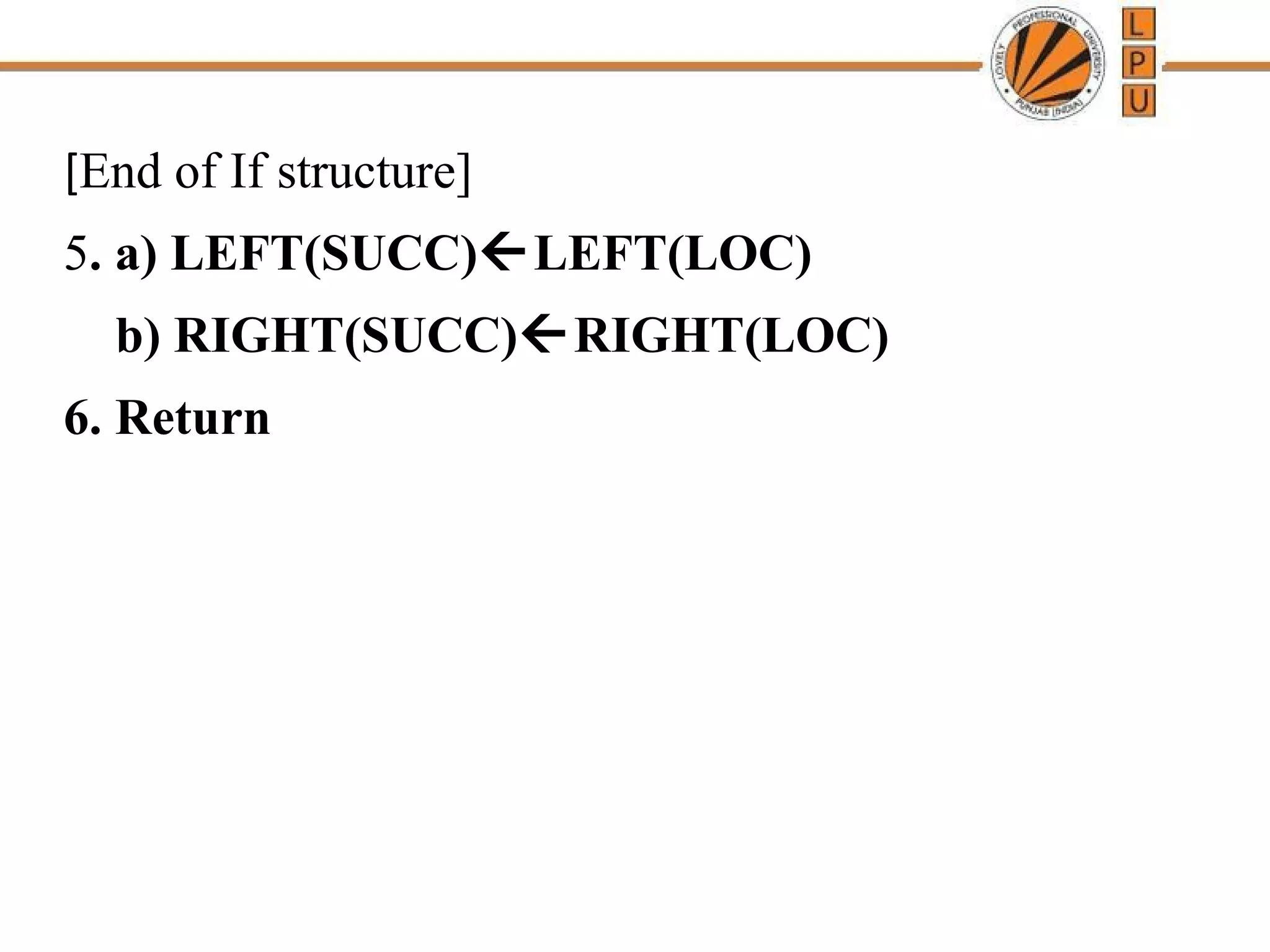

50. [End of If structure]
5. a) LEFT(SUCC)LEFT(LOC)
b) RIGHT(SUCC)RIGHT(LOC)
6. Return
