Transforming Intelligence Analysis with
Knowledge Graphs

2. Transforming
Intelligence
Analysis with
Knowledge
Graphs
Presented to:
Neo4j Government Conference
Oct 25, 2023

3. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.

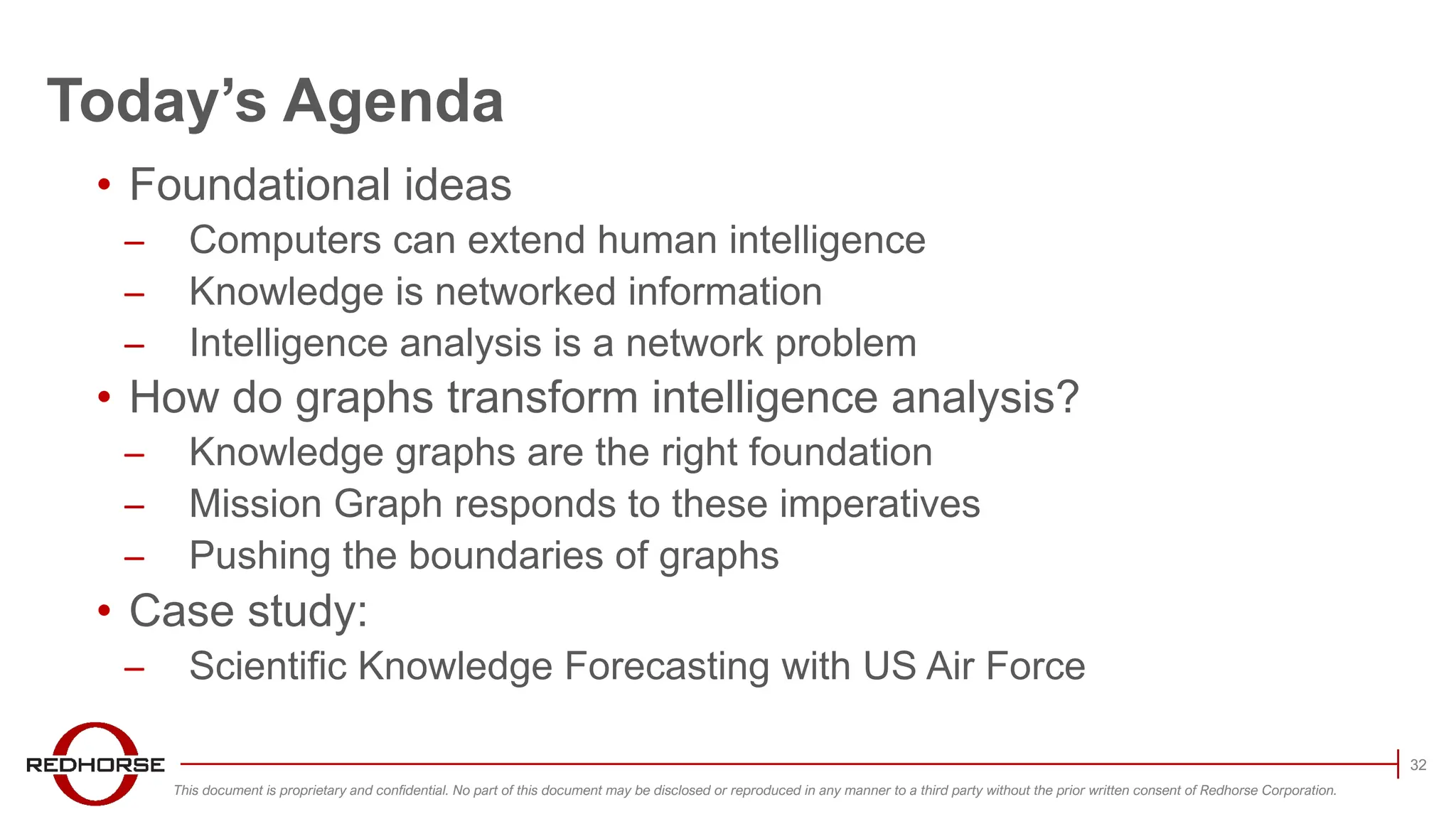

• Foundational ideas
̶ Computers can extend human intelligence
̶ Knowledge is networked information
̶ Intelligence analysis is a network problem
• How do graphs transform intelligence analysis?
̶ Knowledge graphs are the right foundation
̶ Mission Graph responds to these imperatives
̶ Pushing the boundaries of graphs
• Case study:
̶ Scientific Knowledge Forecasting with US Air Force
Today’s Agenda
32

4. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.

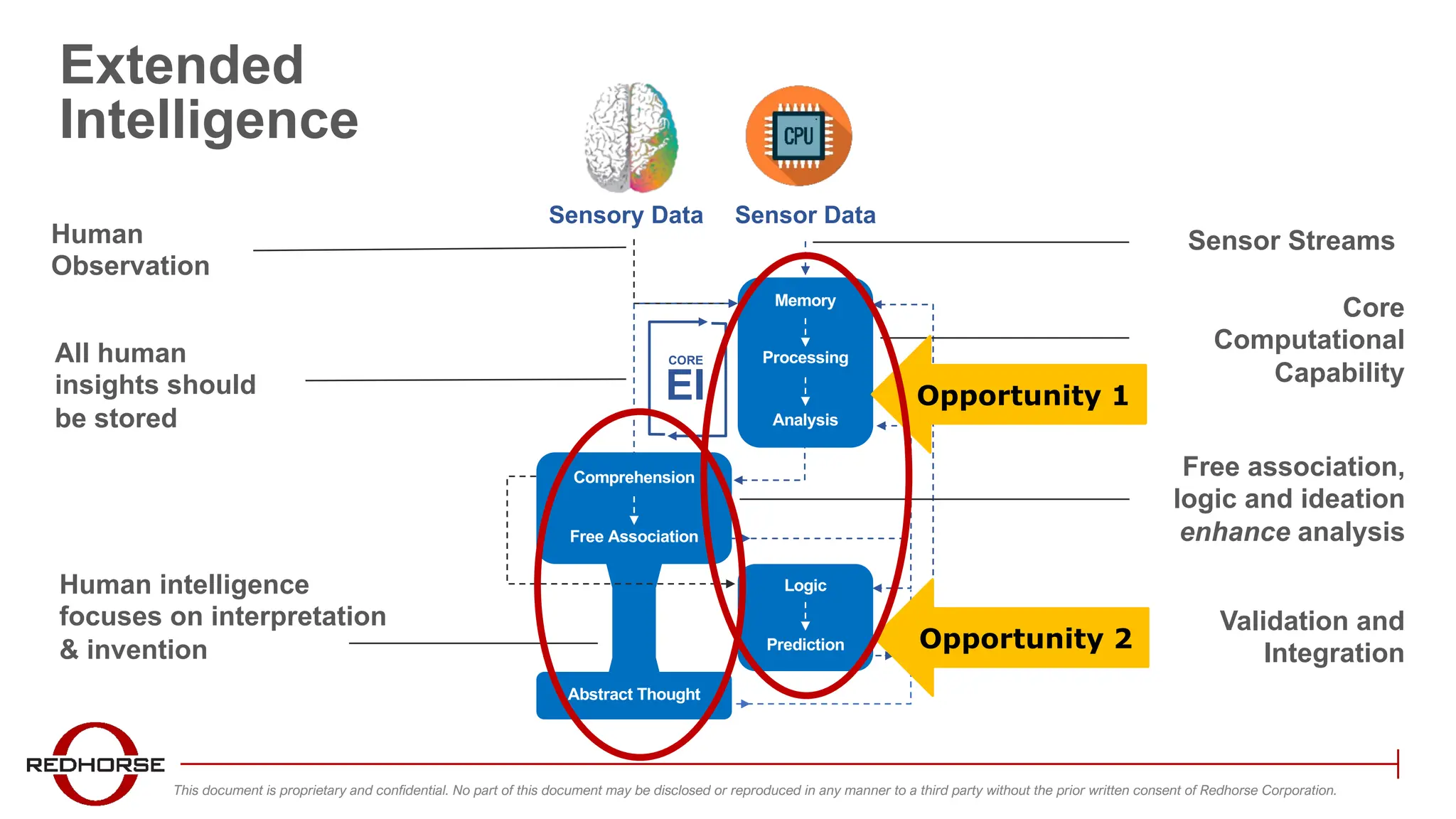

Extended
Intelligence
Sensor Streams
Core
Computational
Capability
Free association,
logic and ideation
enhance analysis
Validation and
Integration
Human
Observation
All human
insights should
be stored
Human intelligence
focuses on interpretation
& invention
Sensor Data
Sensory Data
CORE
EI
Prediction
Logic
Free Association
Comprehension
Memory
Processing
Analysis
Abstract Thought
Opportunity 1
Opportunity 2

5. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.
data
information
knowledge
wisdom
understanding
relations
understanding
patterns
understanding
principles
connectedness
understanding

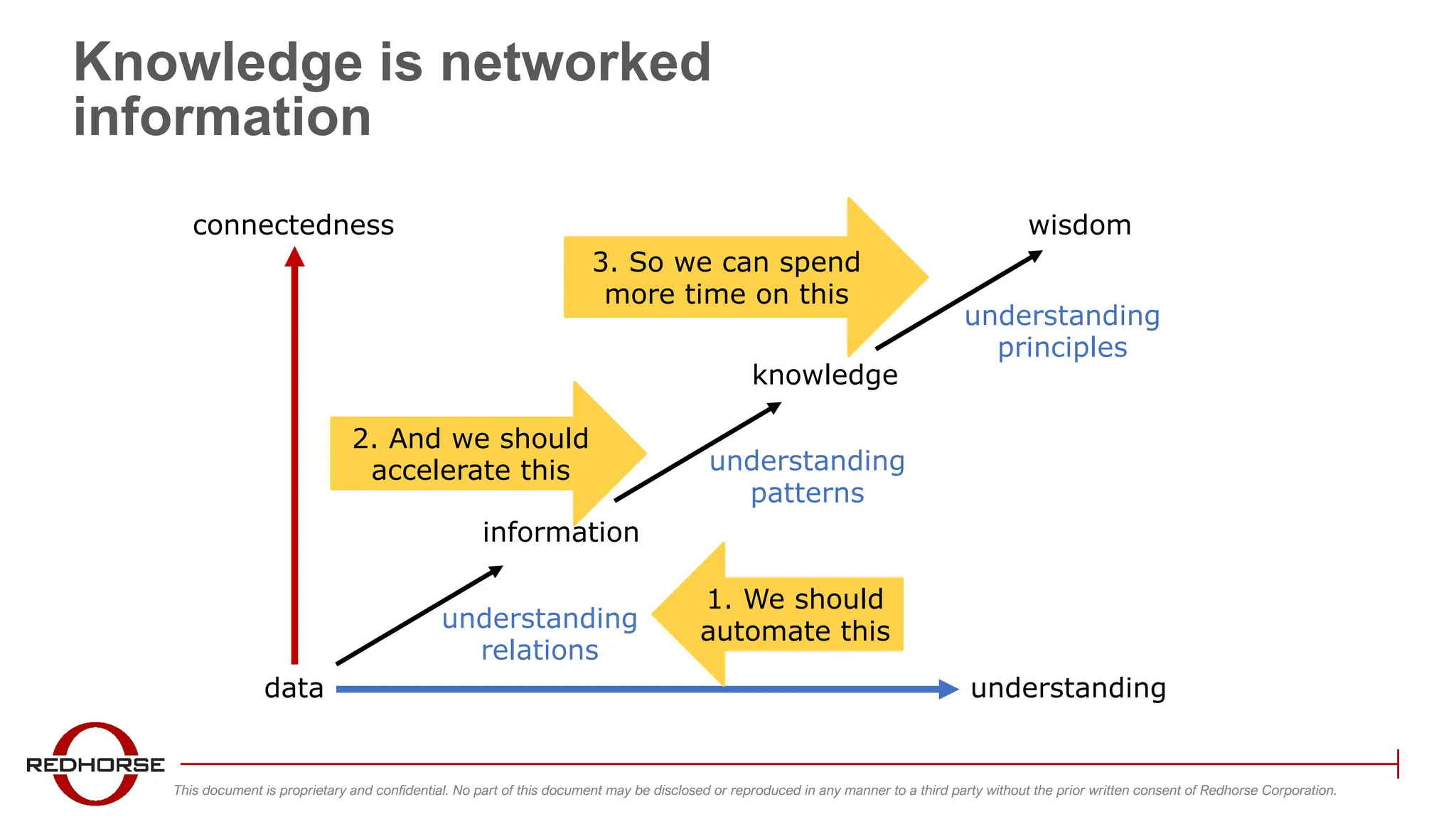

Knowledge is networked
information
1. We should
automate this
3. So we can spend
more time on this
2. And we should
accelerate this

6. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.
“There are no single-node targets in intelligence. Even when
we are concerned with a person, organization, object or
location, our target is associated with some network –
usually many networks – that are essential to
understanding the target. These networks have become
more complex over the years, largely because of advances
in communications technologies…….The toughest job for
intelligence analysts in any field….is to deal with networks”
Target-Centric Network Modeling: Case Studies in Analyzing Complex Intelligence Issues
Robert M. Clark (Author), William L. Mitchell (Author)
CQ Press; 1st edition (April 24, 2015)
Intelligence analysis is a
network problem

7. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.
Examples of network problems in intelligence
36
Cyber Security Transnational
Crime
Counter Terrorism Counterintelligence
Military Operations Counter
Disinformation
Technology Watch

8. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.
Manual
Visual
Digital
Canvas
Digital
Networks

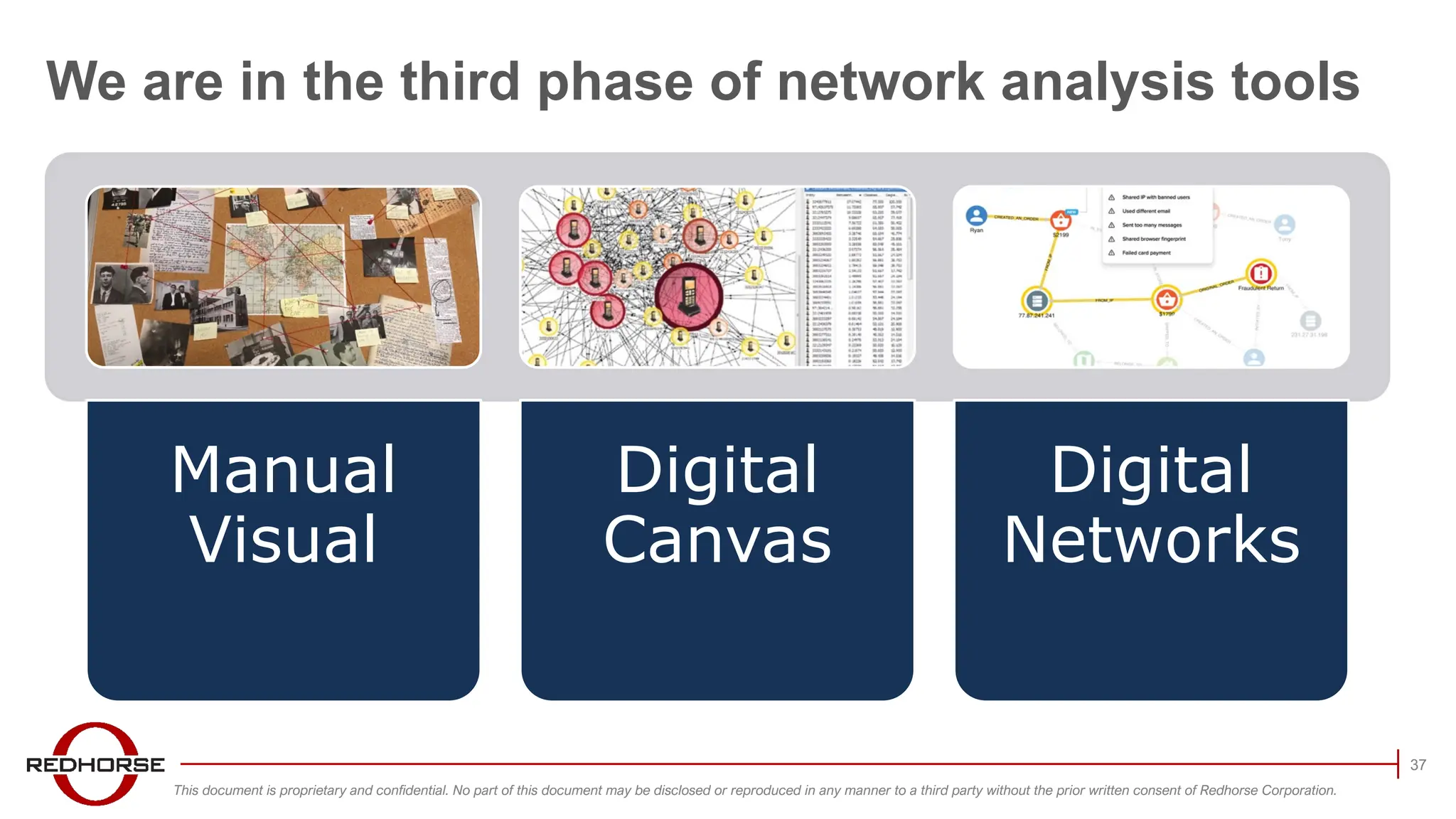

We are in the third phase of network analysis tools
37

9. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.

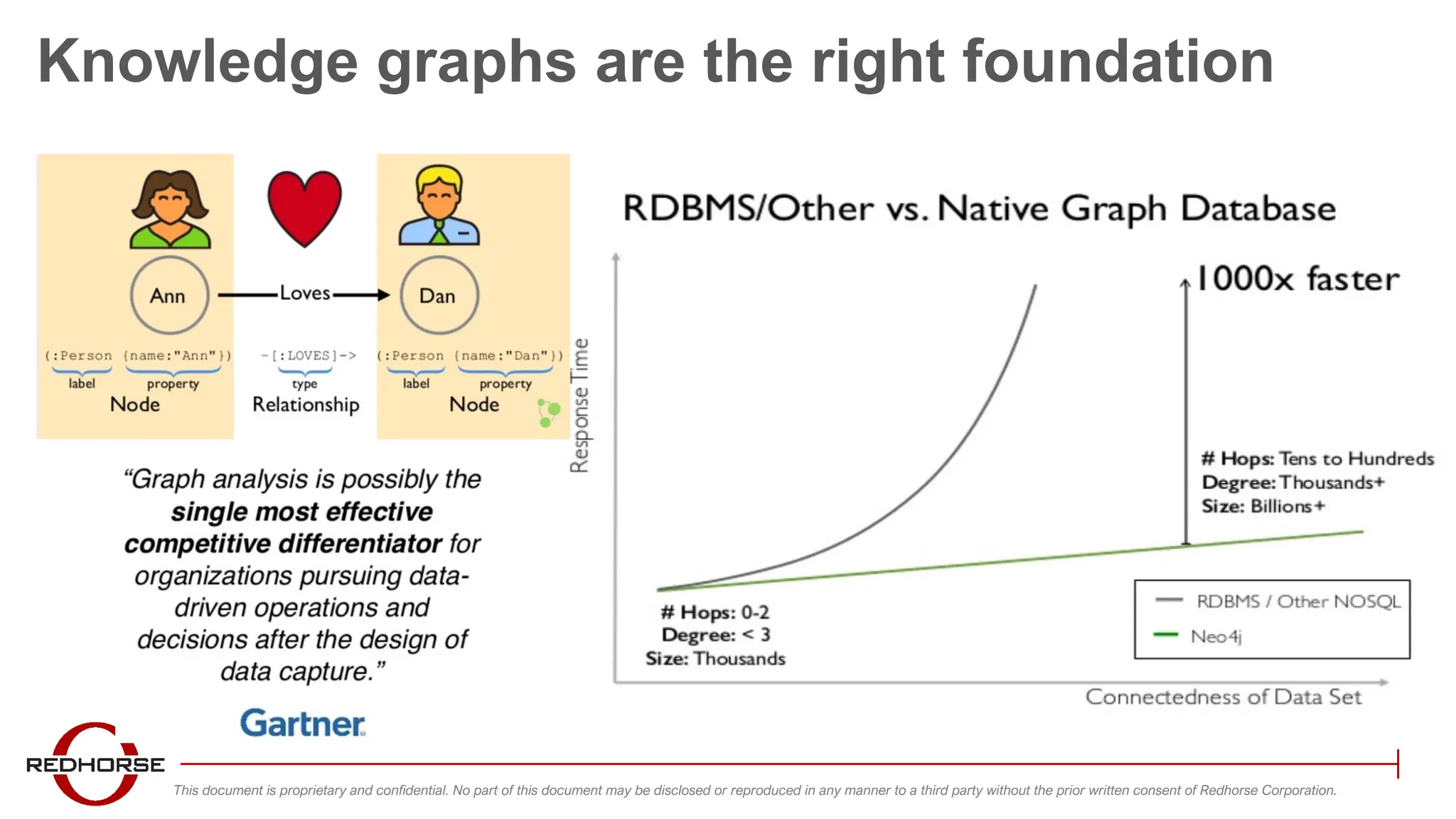

Knowledge graphs are the right foundation

10. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.

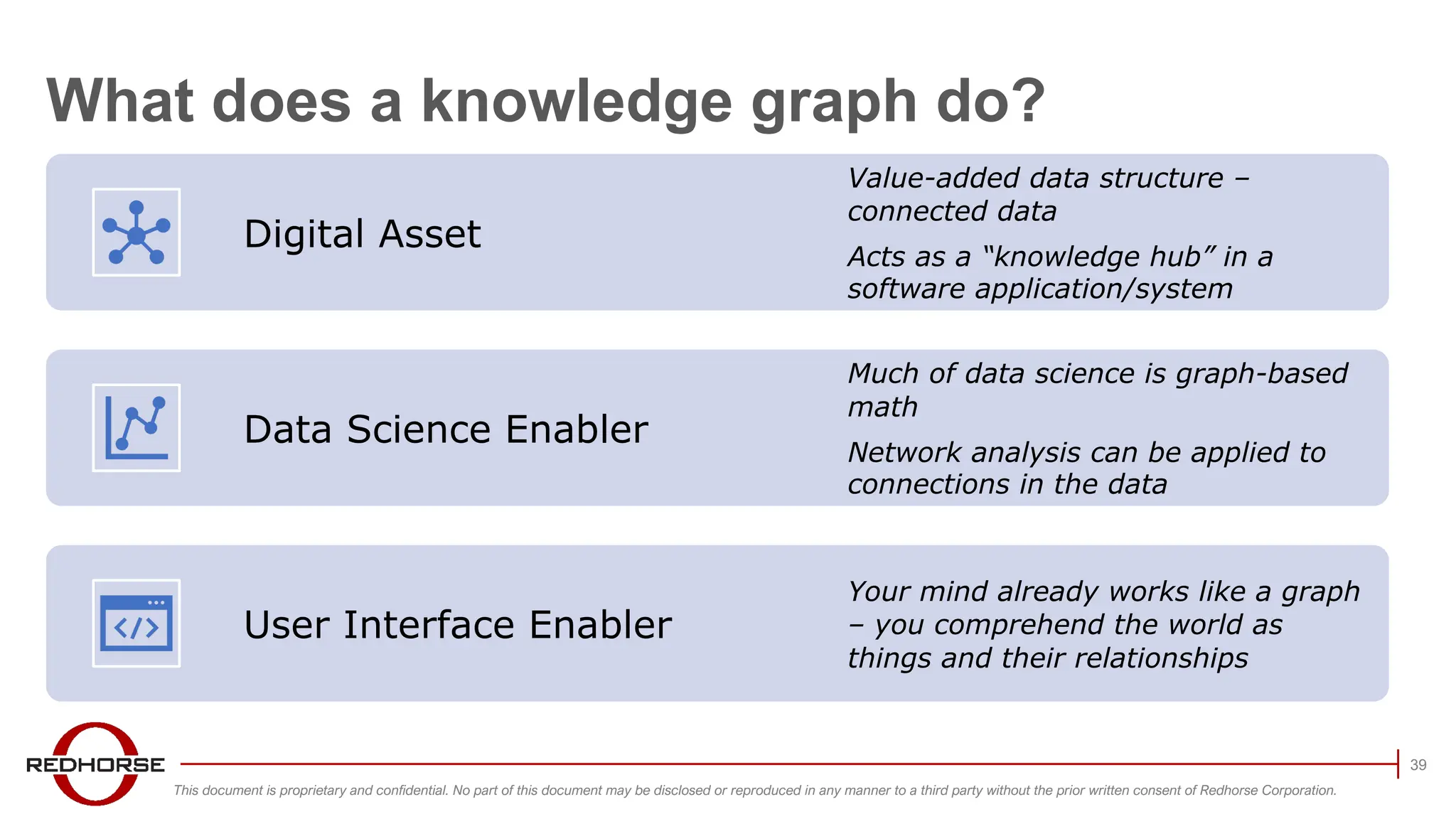

What does a knowledge graph do?
39
Digital Asset
Value-added data structure –
connected data
Acts as a “knowledge hub” in a
software application/system
Data Science Enabler
Much of data science is graph-based
math
Network analysis can be applied to
connections in the data
User Interface Enabler
Your mind already works like a graph
– you comprehend the world as
things and their relationships

11. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.
40

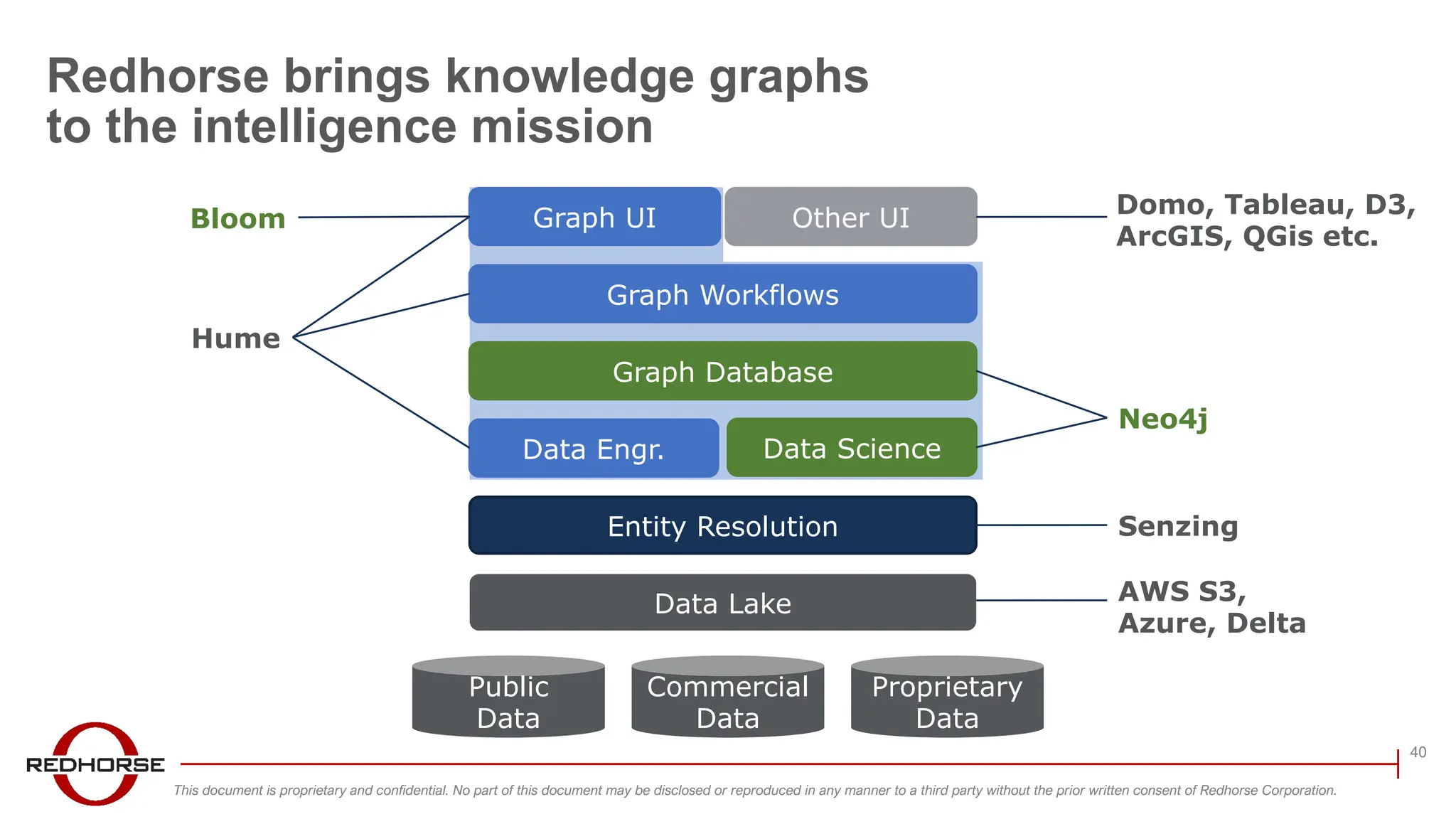

Redhorse brings knowledge graphs
to the intelligence mission
Data Lake
Entity Resolution
Data Engr.
Graph Workflows
Graph UI
Graph Database
Other UI
Public
Data
Commercial
Data
Proprietary
Data
Domo, Tableau, D3,
ArcGIS, QGis etc.
Bloom
Senzing
Hume
AWS S3,
Azure, Delta
Neo4j
Data Science

12. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.

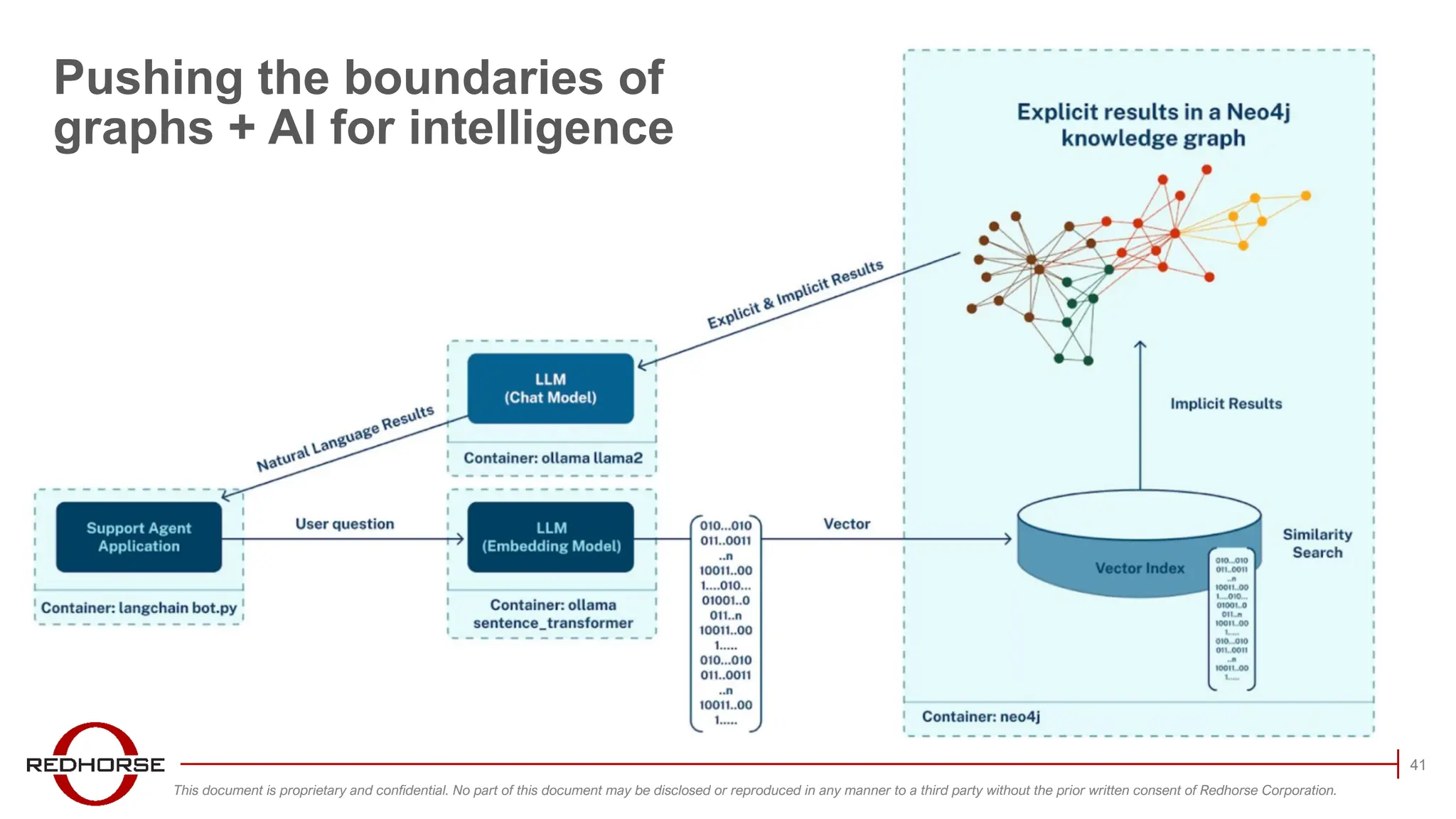

Pushing the boundaries of
graphs + AI for intelligence
41

13. This document is proprietary and confidential. No part of this document may be disclosed or reproduced in any manner to a third party without the prior written consent of Redhorse Corporation.
42
Case Study:
Scientific Forecasting with
Temporal Knowledge Graphs
for the
United States Air Force

14. UNCLASSIFIED
UNCLASSIFIED
UNCLASSIFIED
UNCLASSIFIED
Science Knowledge Forecasting
Graph Summit for Government
Oct 2023
Distribution A: Approved for public release. 18 OCT 2023.
Requests for this document must be referred to
SAF/CDM/CDMR, ATTN: ISSO

15. 44
UNCLASSIFIED
UNCLASSIFIED
March 2021
Repeated calls to
discover and
understand
emerging & disruptive
science and technology
Expedite generating insight:
“speed to insight à speed to decision”
NSPM-33
NDAAs FY18-FY24
October 2020
February 2022
“… (B) develop machine learning tools
to identify possible future technologies;
…”
NDAA FY24

16. 45
UNCLASSIFIED
UNCLASSIFIED
How do we enable forecasting of
emerging or disruptive technologies
and their impact?
What and where are technologies emerging globally?
How do they apply to government programs?
What government programs will they impact?
How does the USA compare to others?
Are we influencing their research or vice versa?

17. 46
UNCLASSIFIED
UNCLASSIFIED
What if…

18. 47
UNCLASSIFIED
UNCLASSIFIED

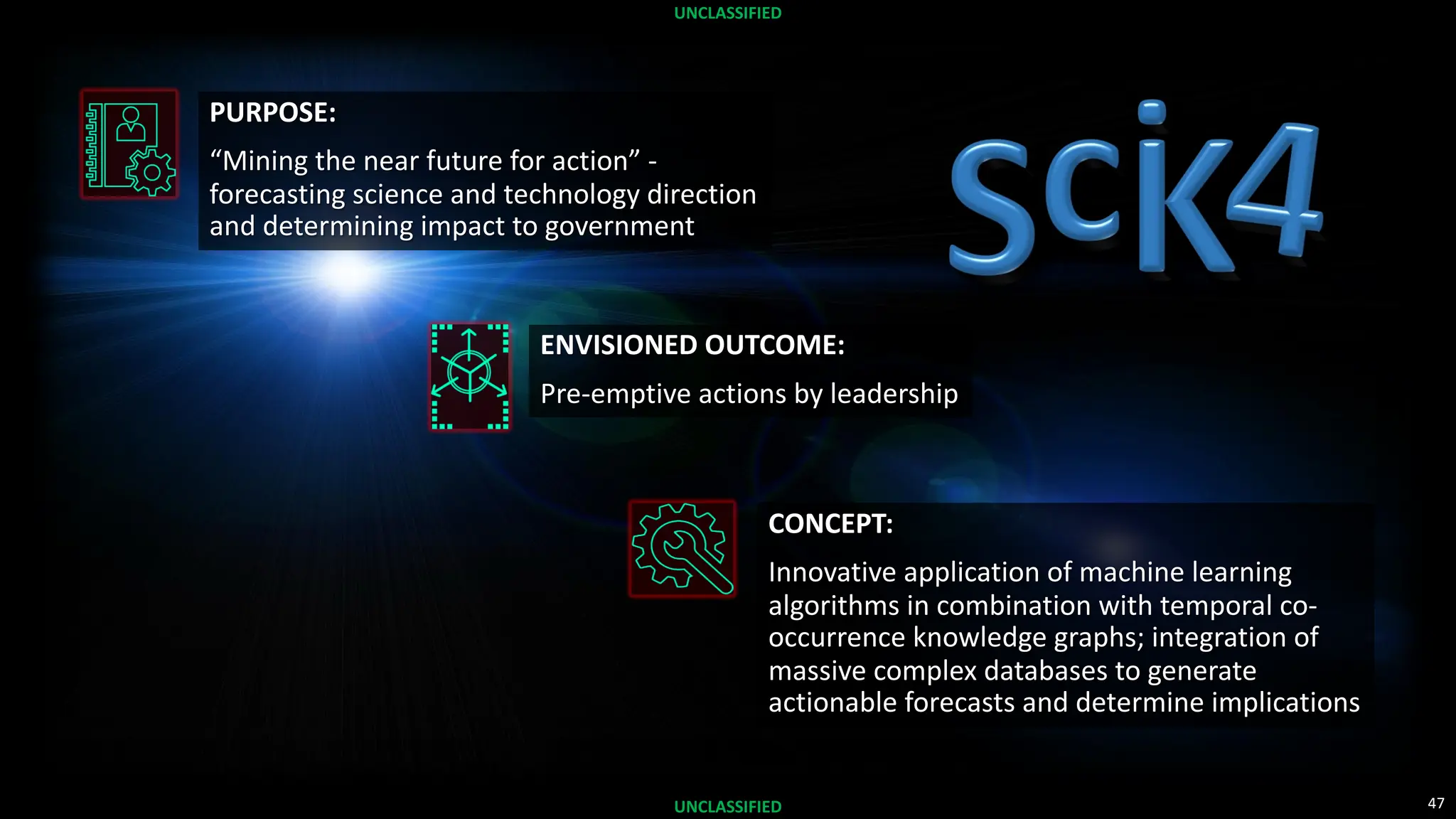

PURPOSE:
“Mining the near future for action” -
forecasting science and technology direction
and determining impact to government
ENVISIONED OUTCOME:
Pre-emptive actions by leadership
CONCEPT:
Innovative application of machine learning
algorithms in combination with temporal co-
occurrence knowledge graphs; integration of
massive complex databases to generate
actionable forecasts and determine implications

19. 48
UNCLASSIFIED
UNCLASSIFIED

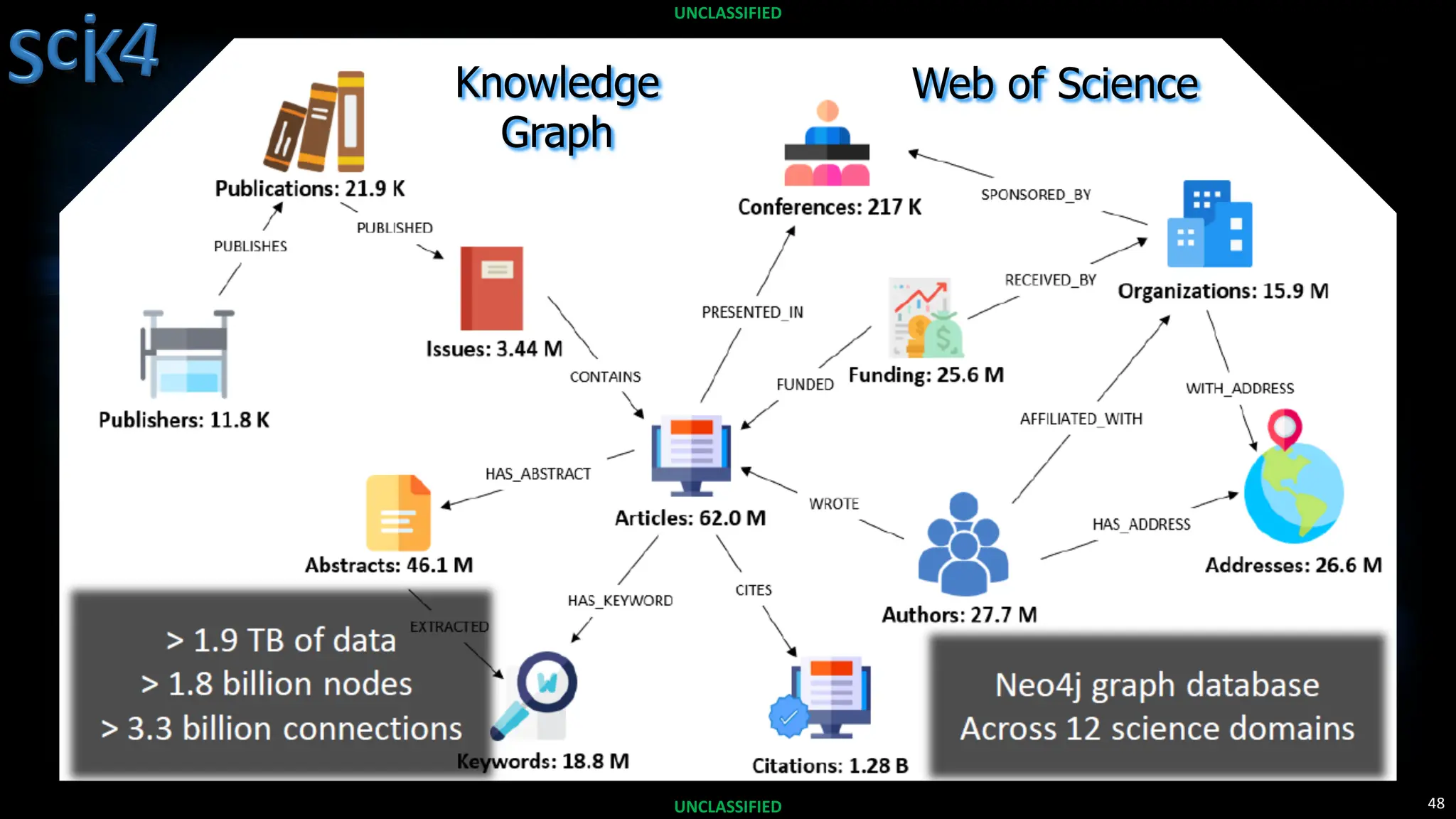

Knowledge
Graph
Web of Science

20. 49
UNCLASSIFIED
UNCLASSIFIED
66M
articles
817k
articles
Web of
Science
Initial data set

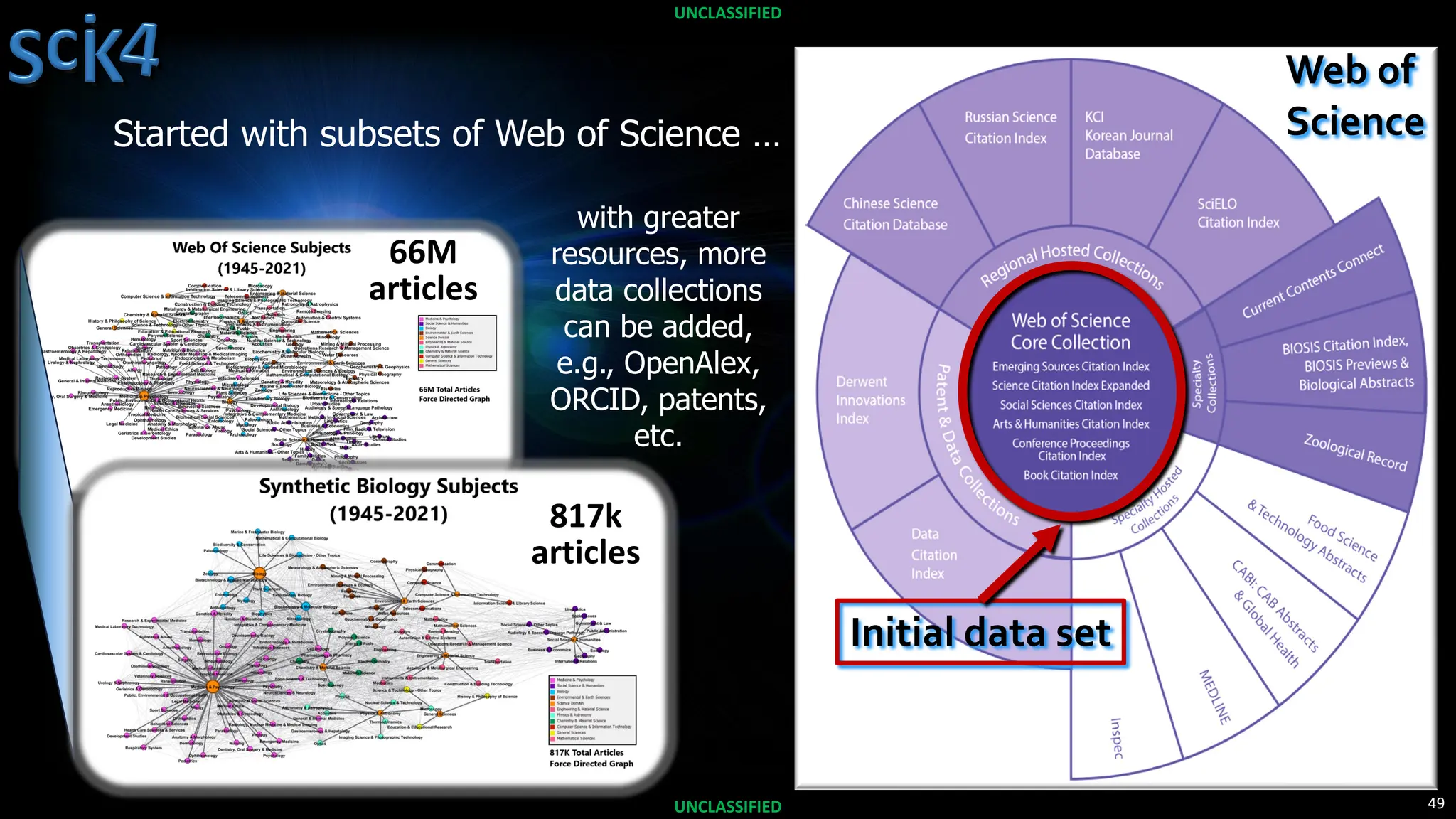

Started with subsets of Web of Science …
with greater
resources, more
data collections
can be added,
e.g., OpenAlex,
ORCID, patents,
etc.

21. 50
UNCLASSIFIED
UNCLASSIFIED
Examples
Putting
Science Knowledge Forecasting
Into action !

22. 51
UNCLASSIFIED
UNCLASSIFIED

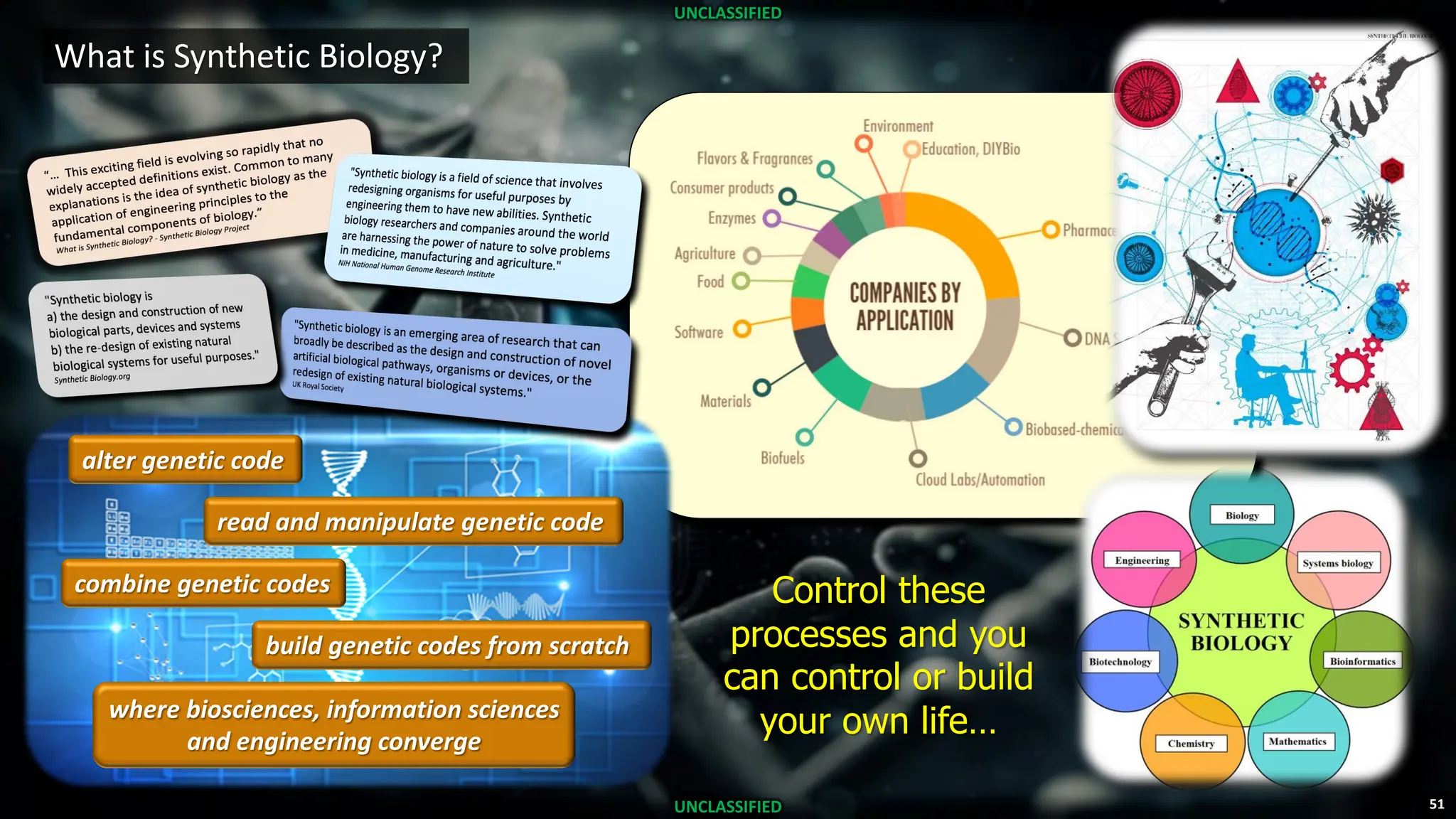

What is Synthetic Biology?
alter genetic code
read and manipulate genetic code
combine genetic codes
build genetic codes from scratch
where biosciences, information sciences
and engineering converge
Control these
processes and you
can control or build
your own life…

23. 52
UNCLASSIFIED
UNCLASSIFIED

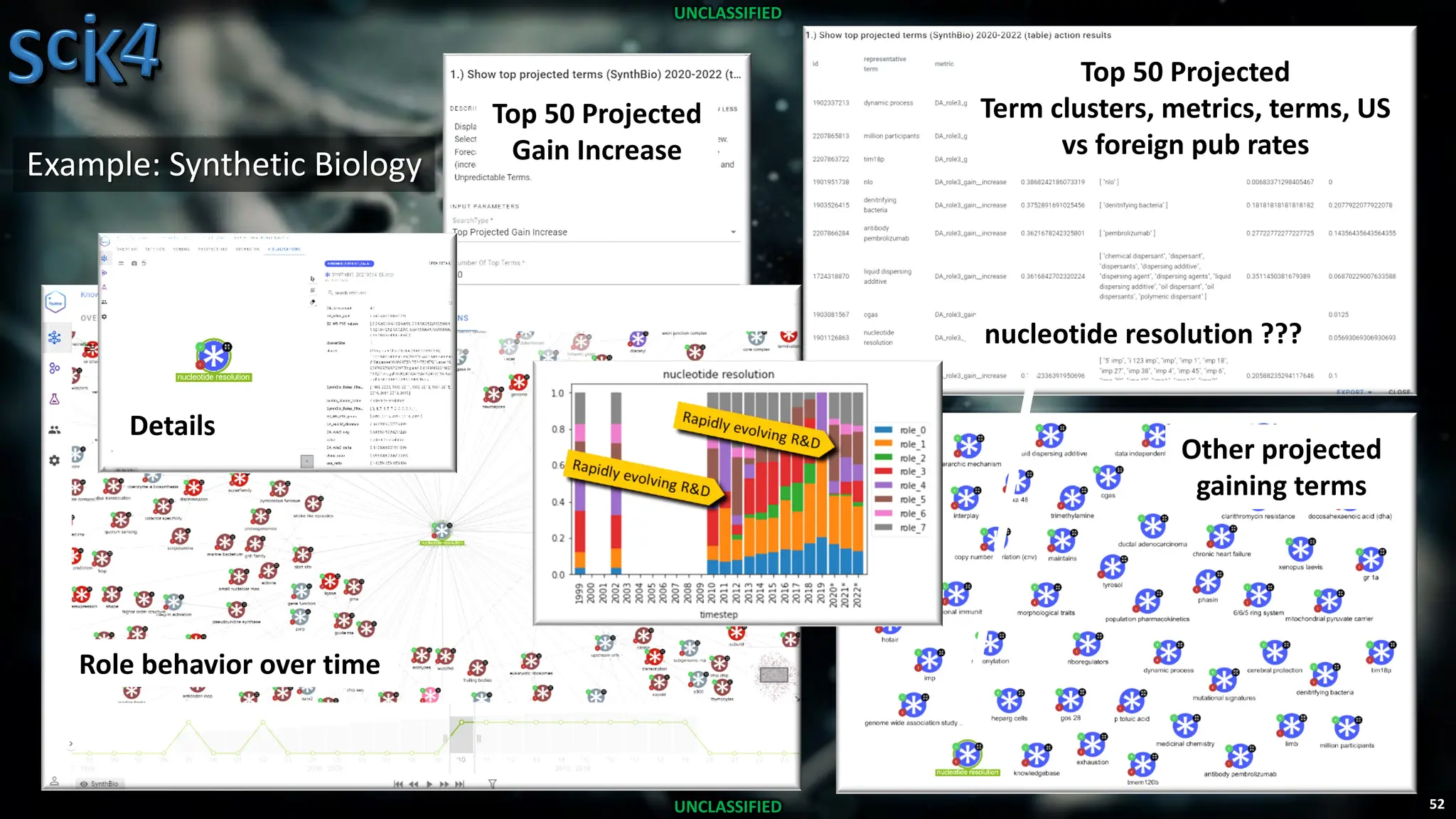

Top 50 Projected
Gain Increase
nucleotide resolution ???
Details
Role behavior over time
Other projected
gaining terms
Top 50 Projected
Term clusters, metrics, terms, US
vs foreign pub rates
Example: Synthetic Biology

24. 53
UNCLASSIFIED
UNCLASSIFIED

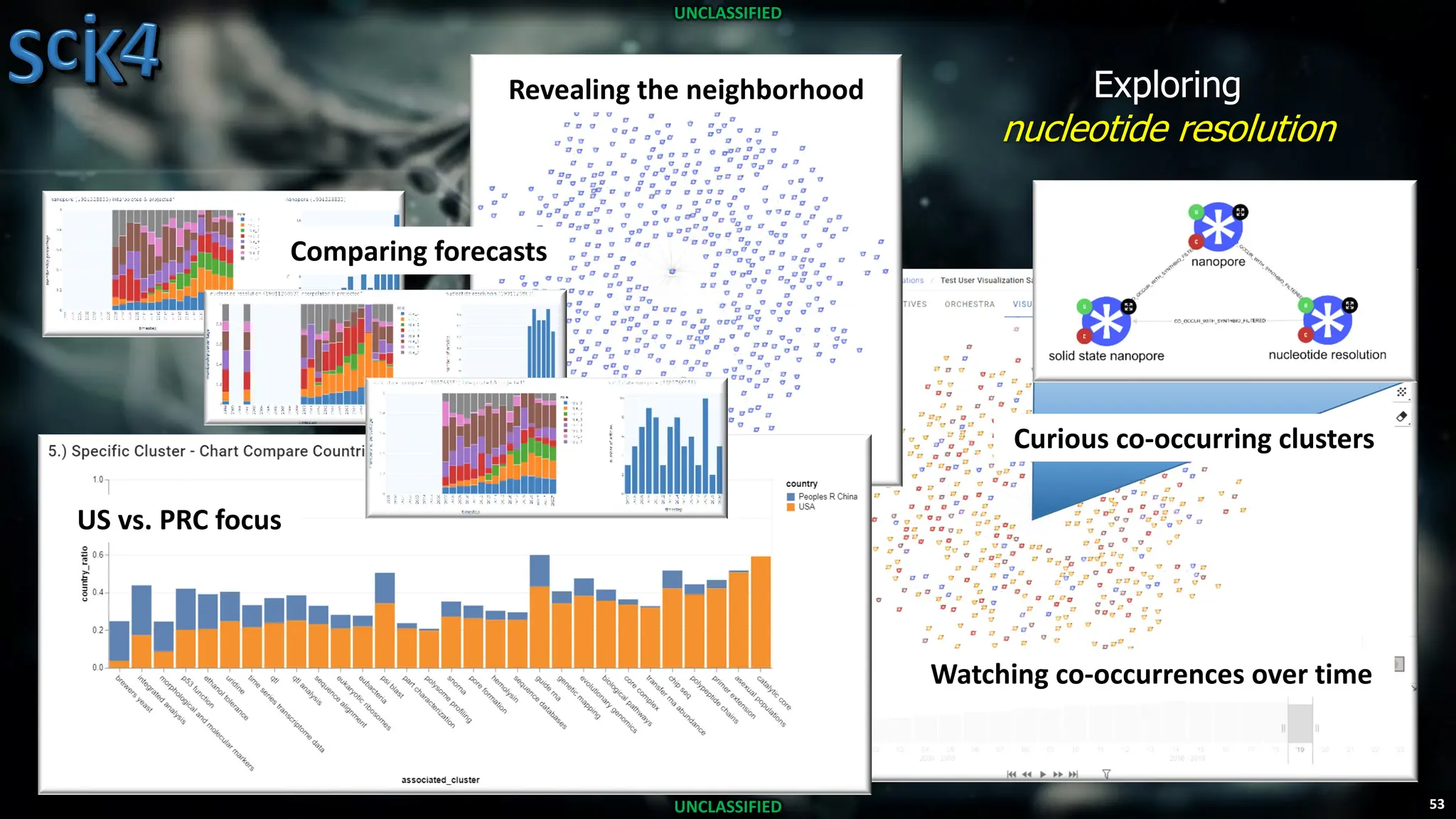

Exploring
nucleotide resolution
Curious co-occurring clusters
US vs. PRC focus
Comparing forecasts
Revealing the neighborhood
Watching co-occurrences over time

25. 54
UNCLASSIFIED
UNCLASSIFIED

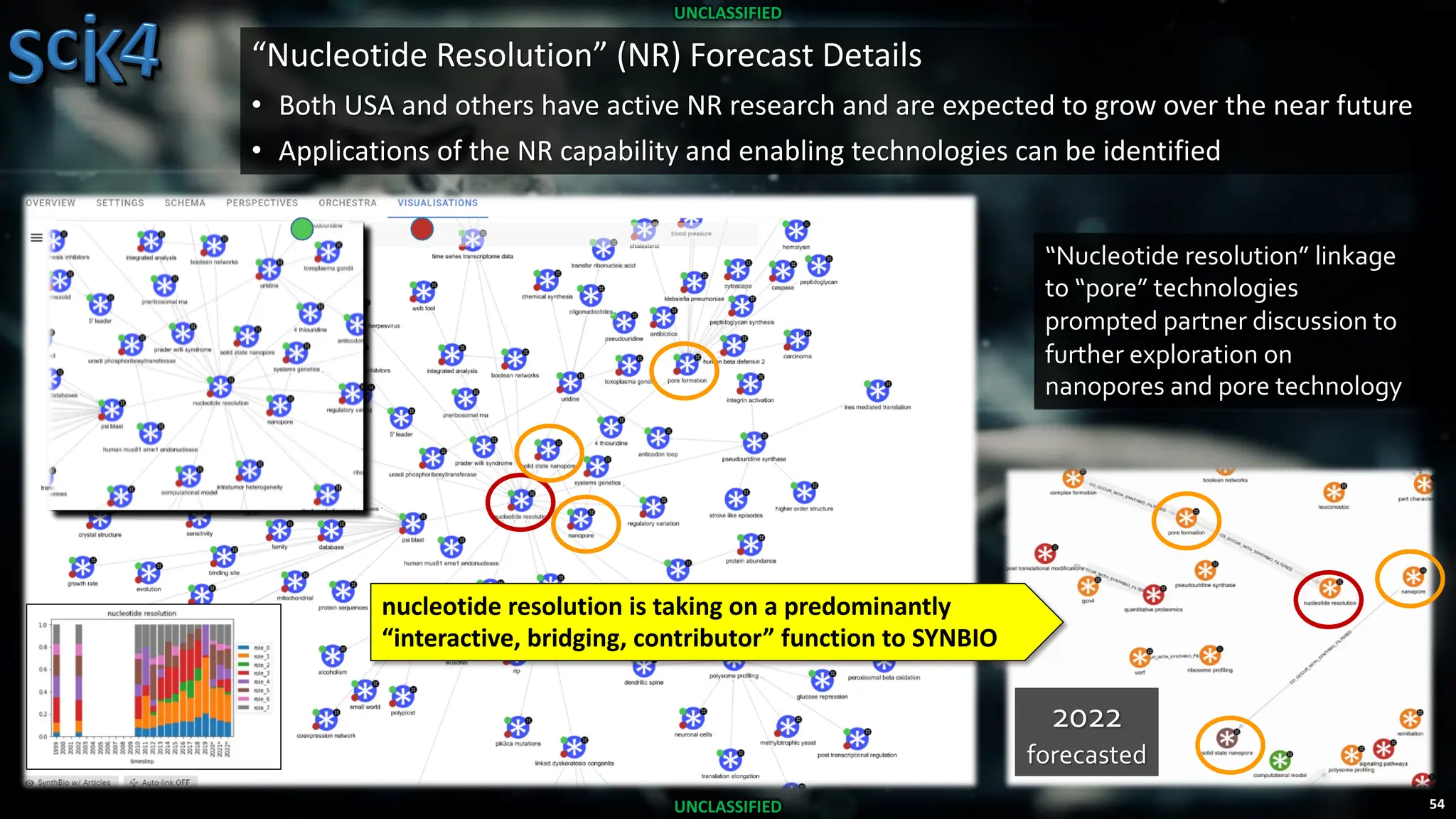

“Nucleotide Resolution” (NR) Forecast Details
• Both USA and others have active NR research and are expected to grow over the near future
• Applications of the NR capability and enabling technologies can be identified
“Nucleotide resolution” linkage
to “pore” technologies
prompted partner discussion to
further exploration on
nanopores and pore technology
2022
forecasted
nucleotide resolution is taking on a predominantly
“interactive, bridging, contributor” function to SYNBIO

26. 55
UNCLASSIFIED
UNCLASSIFIED

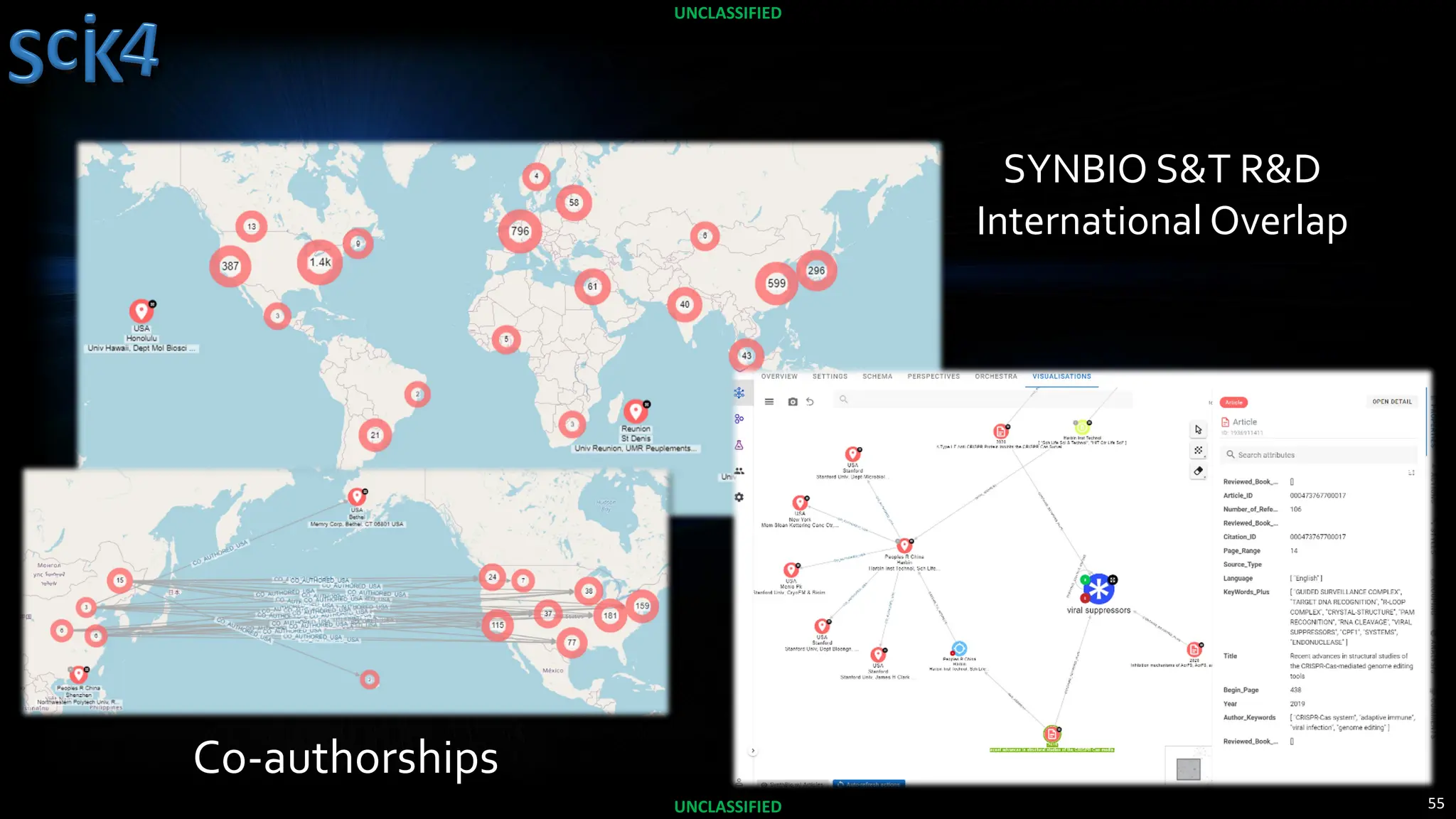

SYNBIO S&T R&D
International Overlap
Co-authorships

27. 56
UNCLASSIFIED
UNCLASSIFIED
SYNBIO
and the
HOLSTEIN COW ?

28. 57
UNCLASSIFIED
UNCLASSIFIED
URINALYSIS and QUANTUM SENSING ?

29. 58
UNCLASSIFIED
UNCLASSIFIED
Questions
SAF/CDM/CDMR (ISSO)
Pelayo Fernandez
pelayo.fernandez.1@us.af.mil
