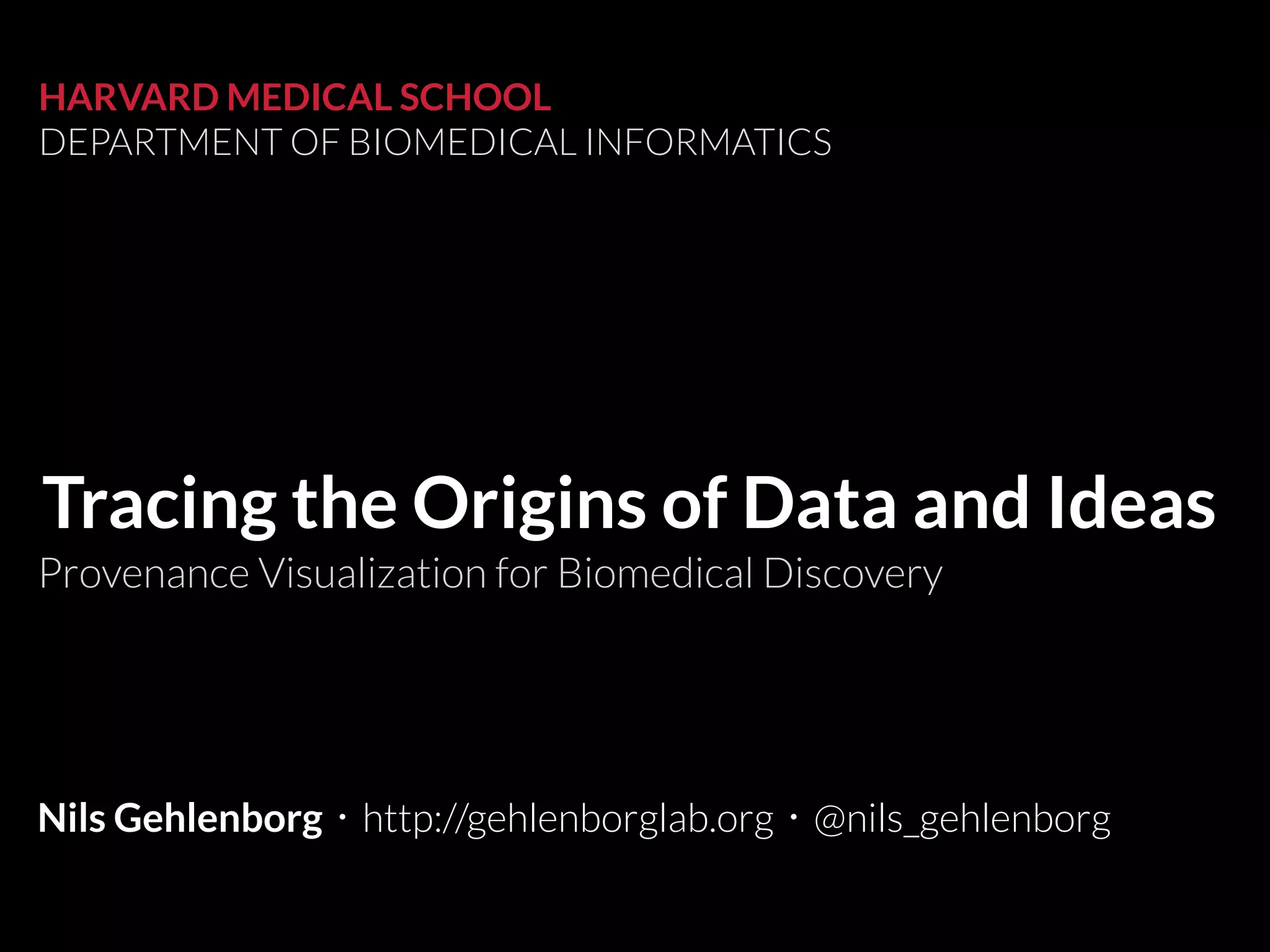

- 1. Provenance Visualization forBiomedical Discovery HARVARD MEDICAL SCHOOL DEPARTMENT OF BIOMEDICAL INFORMATICS Nils Gehlenborg・http://gehlenborglab.org・@nils_gehlenborg Tracing the Origins of Data and Ideas

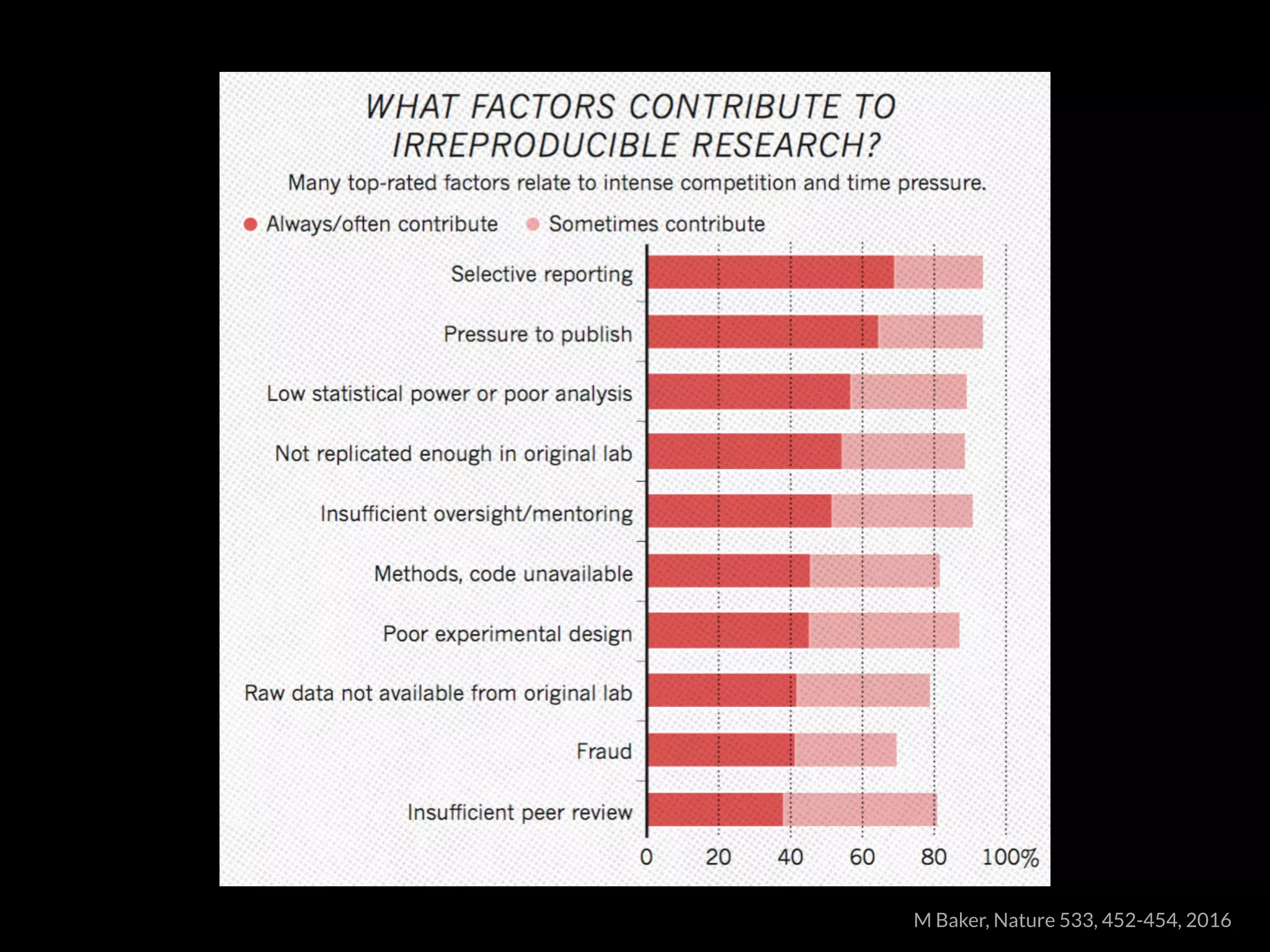

- 2. Nature asked 1,576researchers if there is a reproducibility crisis in science. M Baker, Nature 533, 452-454, 2016

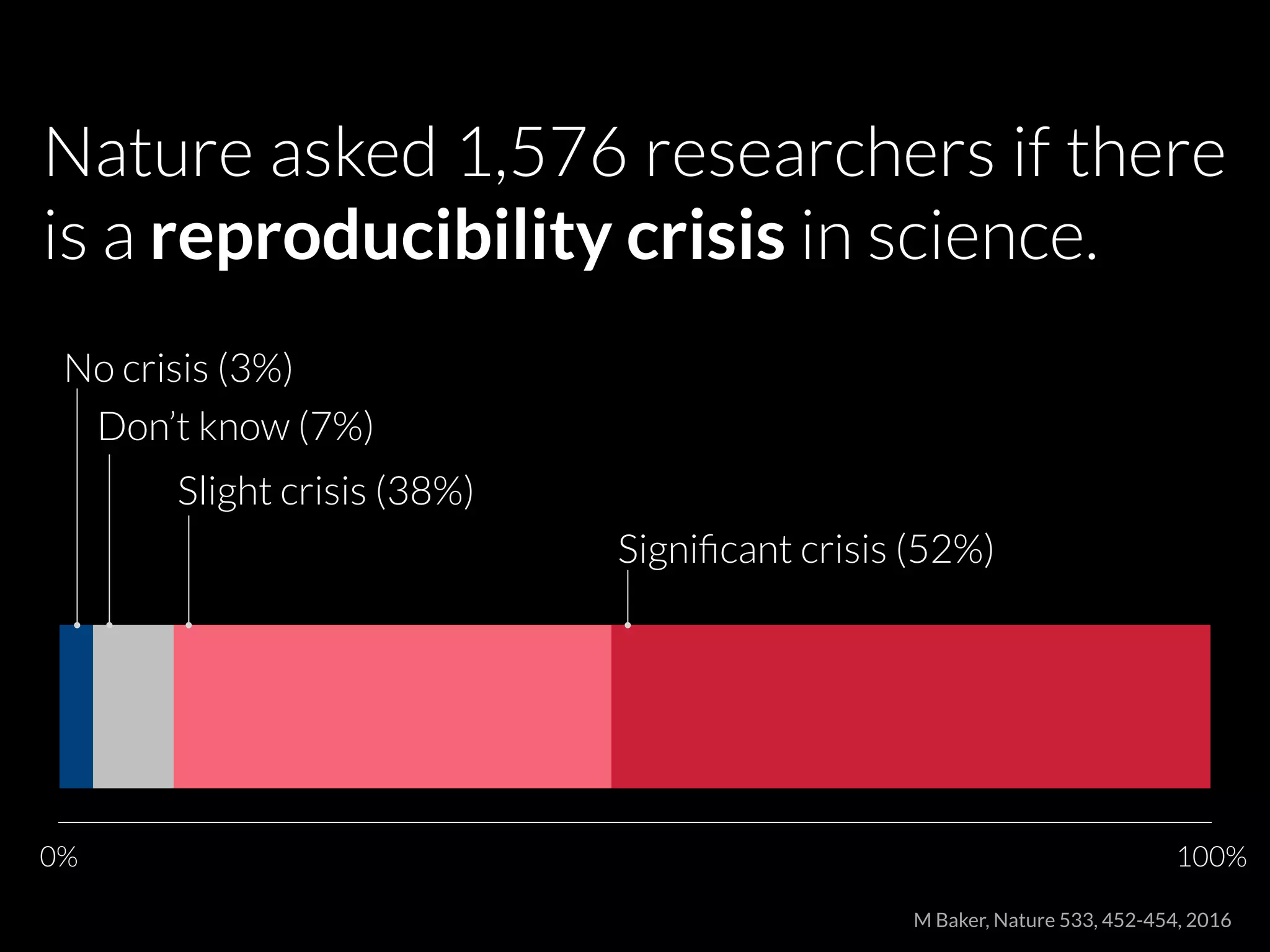

- 3. 0% 100% No crisis(3%) Don’t know (7%) Slight crisis (38%) M Baker, Nature 533, 452-454, 2016 Significant crisis (52%) Nature asked 1,576 researchers if there is a reproducibility crisis in science.
- 4. M Baker, Nature533, 452-454, 2016

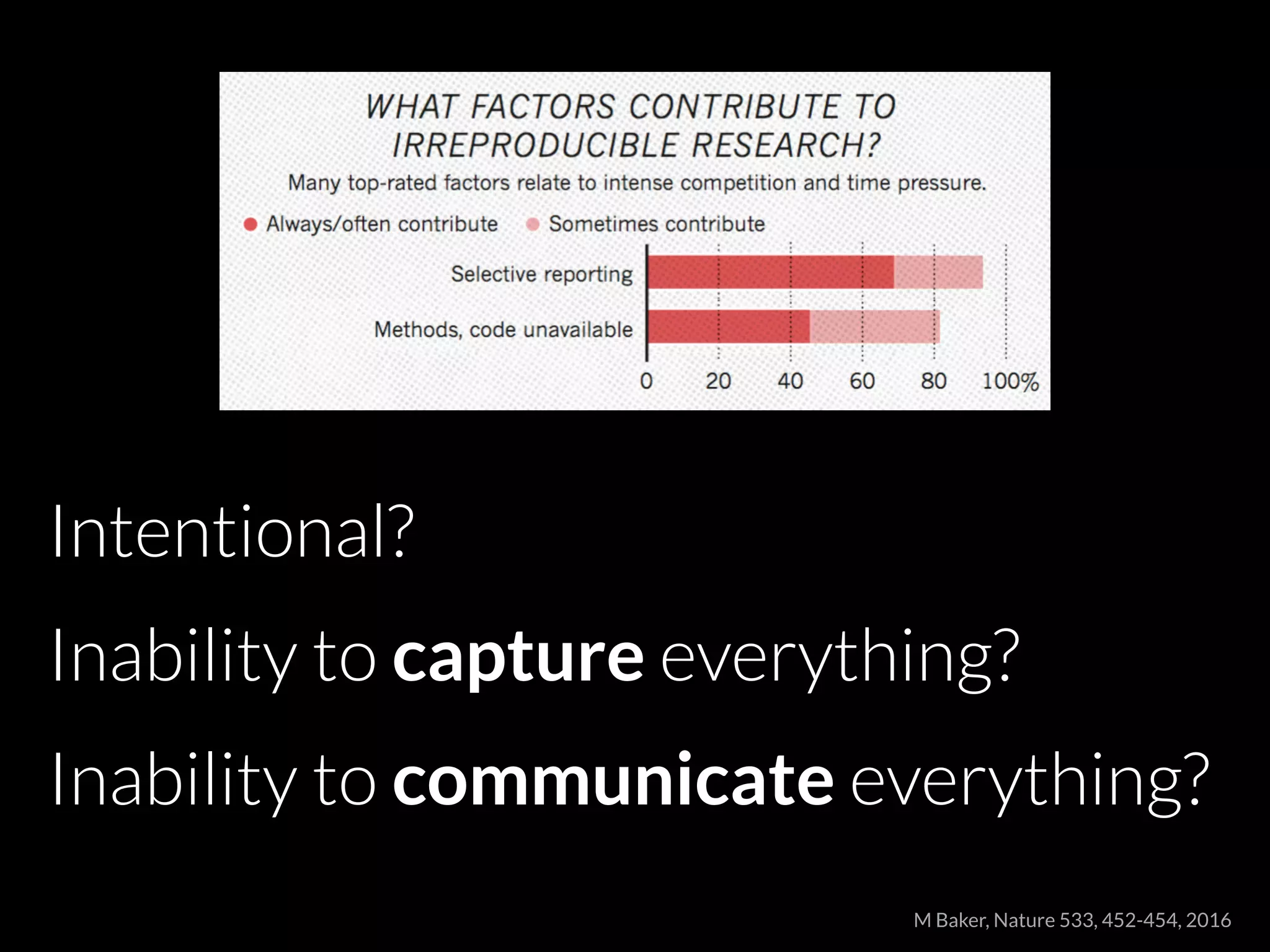

- 5. M Baker, Nature533, 452-454, 2016 Intentional? Inability to capture everything? Inability to communicate everything?

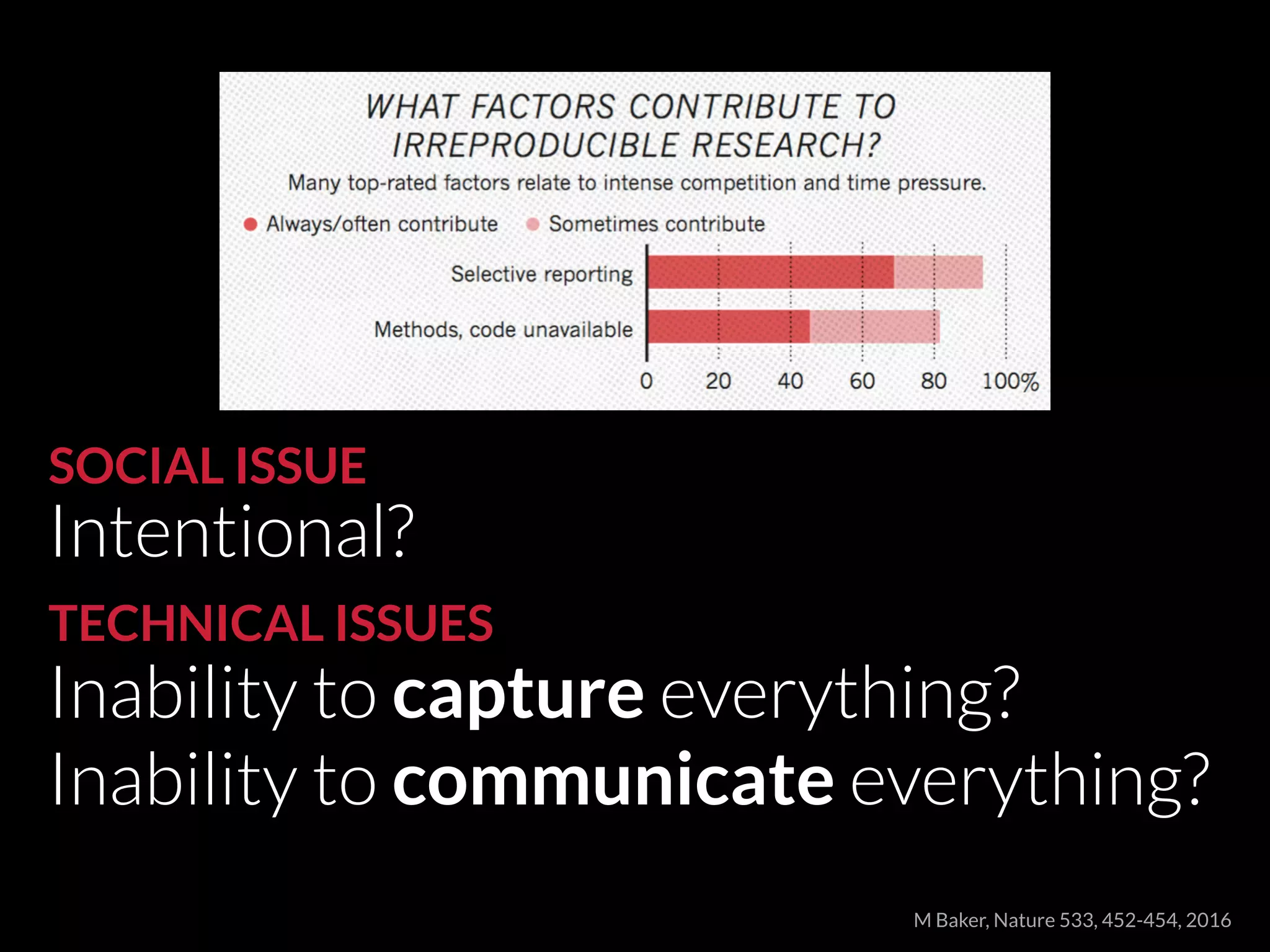

- 6. M Baker, Nature533, 452-454, 2016 Intentional? Inability to capture everything? Inability to communicate everything? SOCIAL ISSUE TECHNICAL ISSUES
- 7.
- 8. The term, provenance,has been used in a variety of ways to describe different types of origins and histories. ED Ragan et al., IEEE Transactions on Visualization and Computer Graphics 22, 31 – 40, 2015

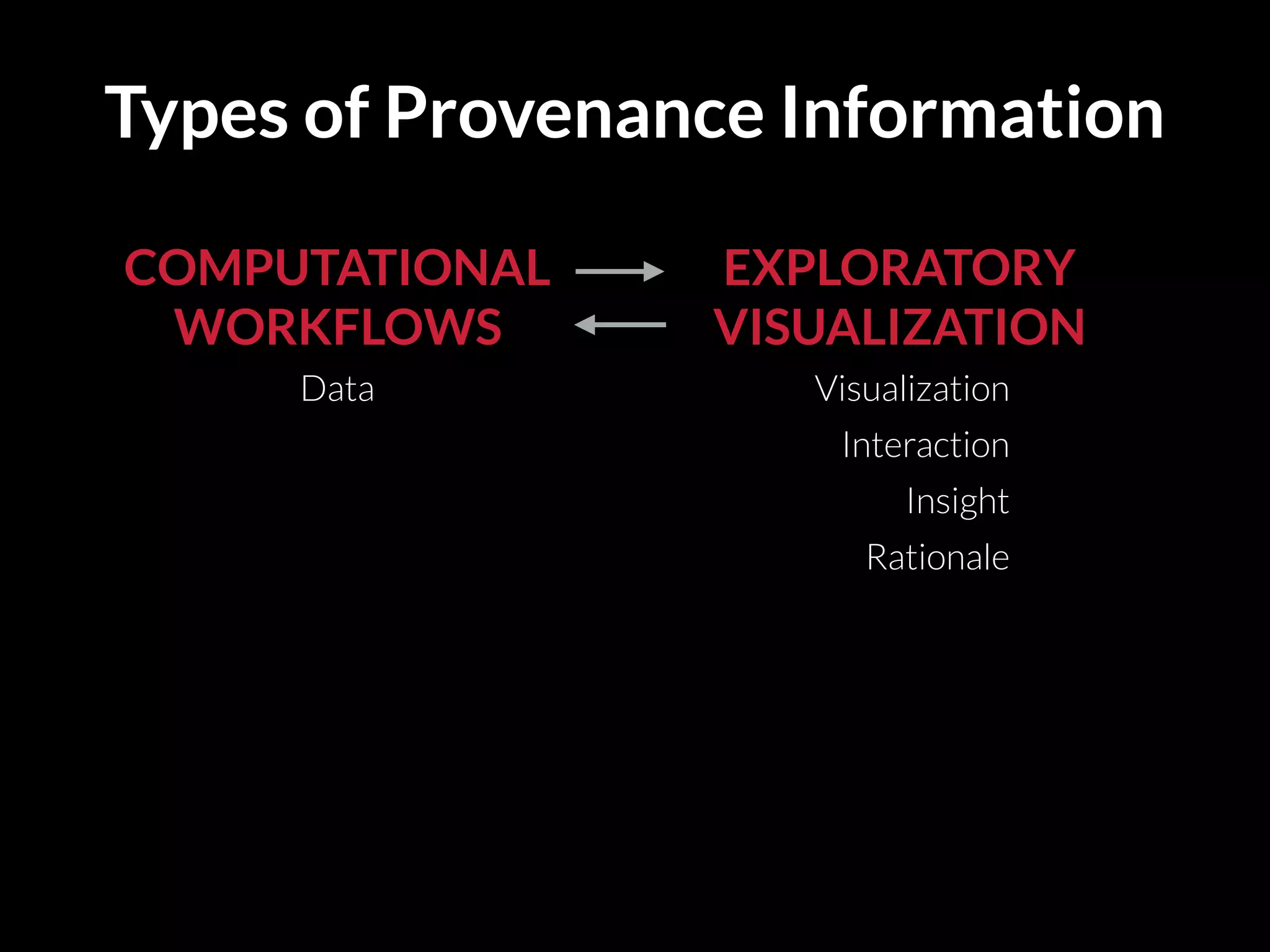

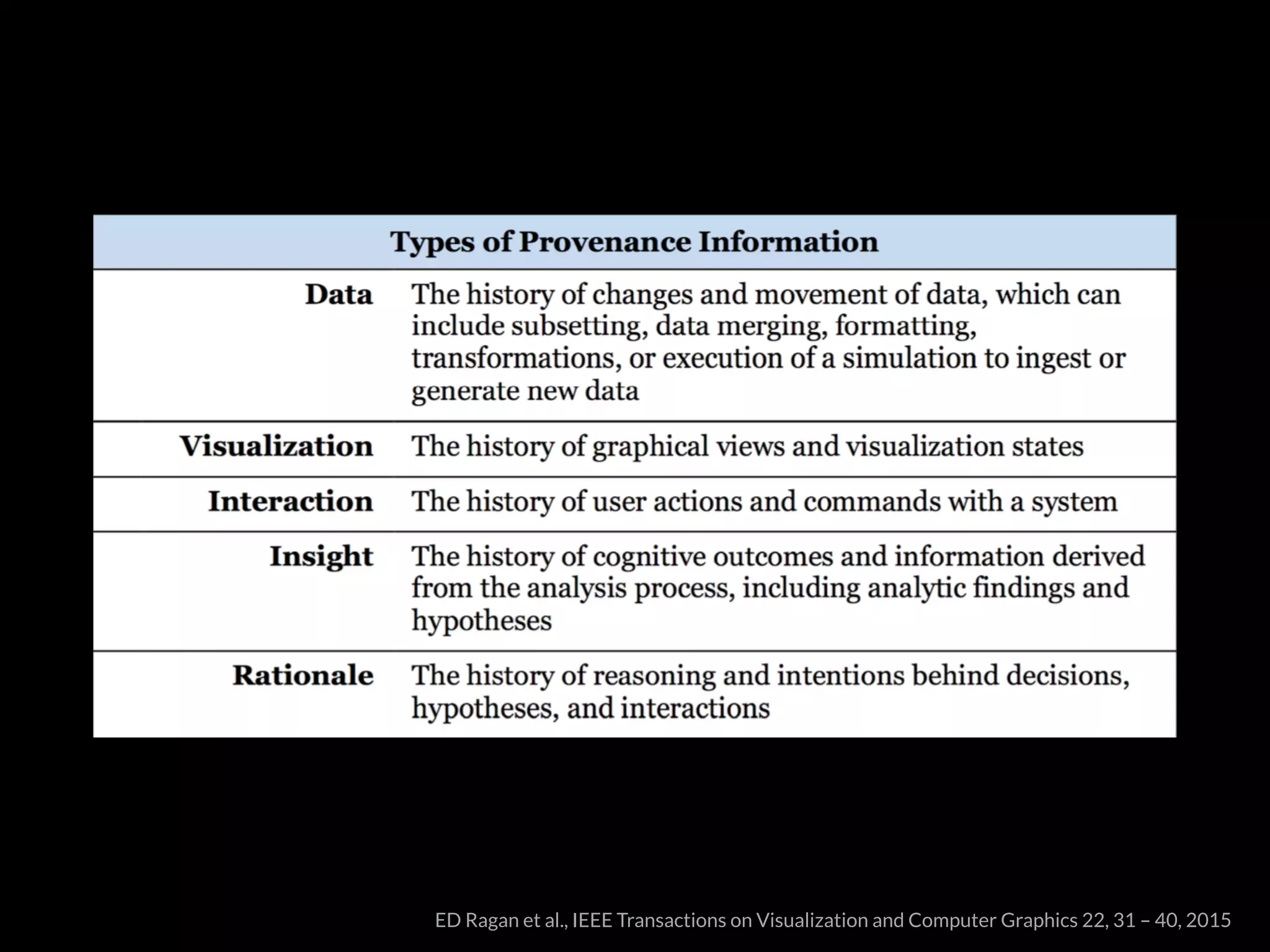

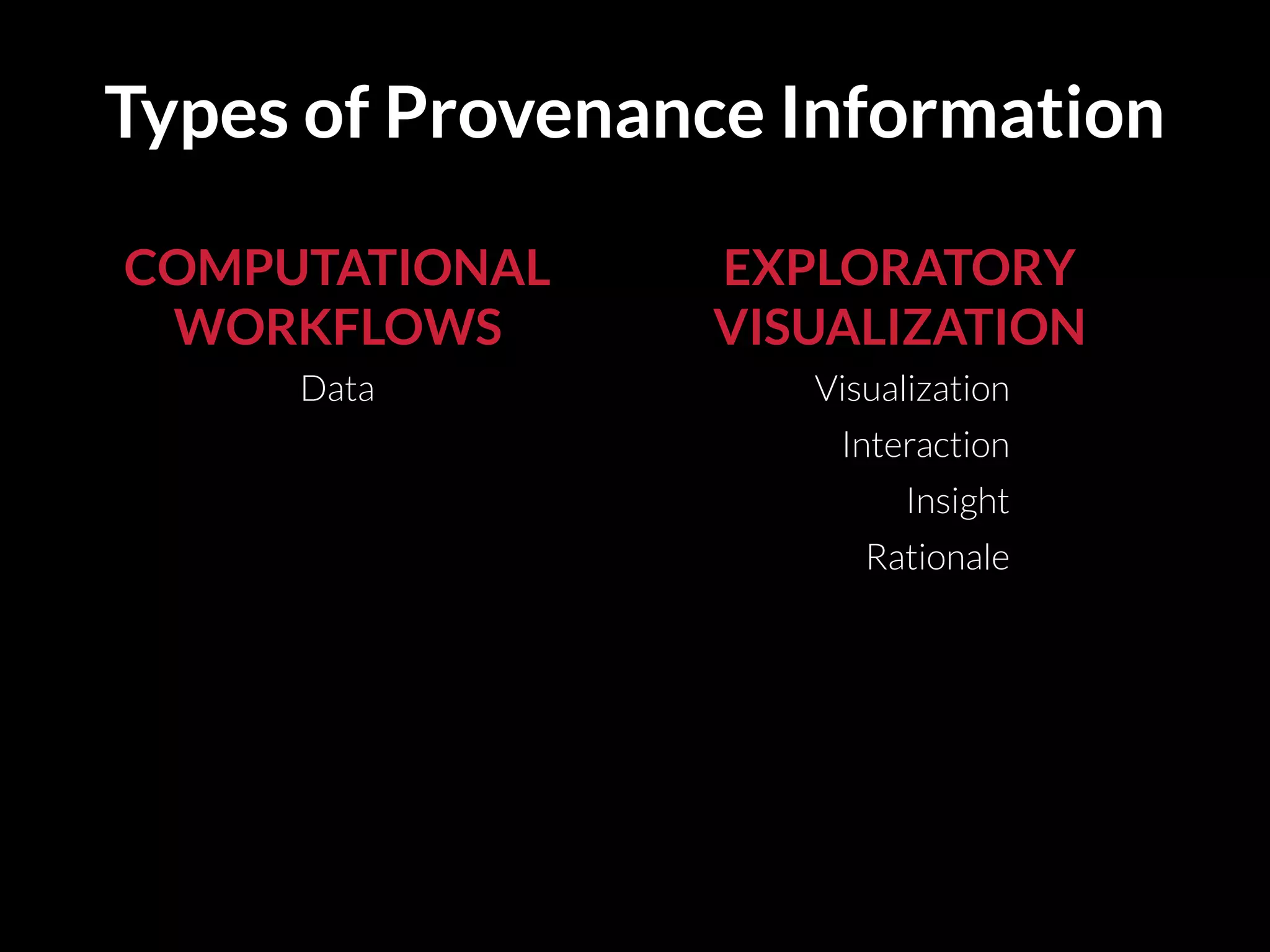

- 9. Types of ProvenanceInformation ED Ragan et al., IEEE Transactions on Visualization and Computer Graphics 22, 31 – 40, 2015
- 10.
- 11.

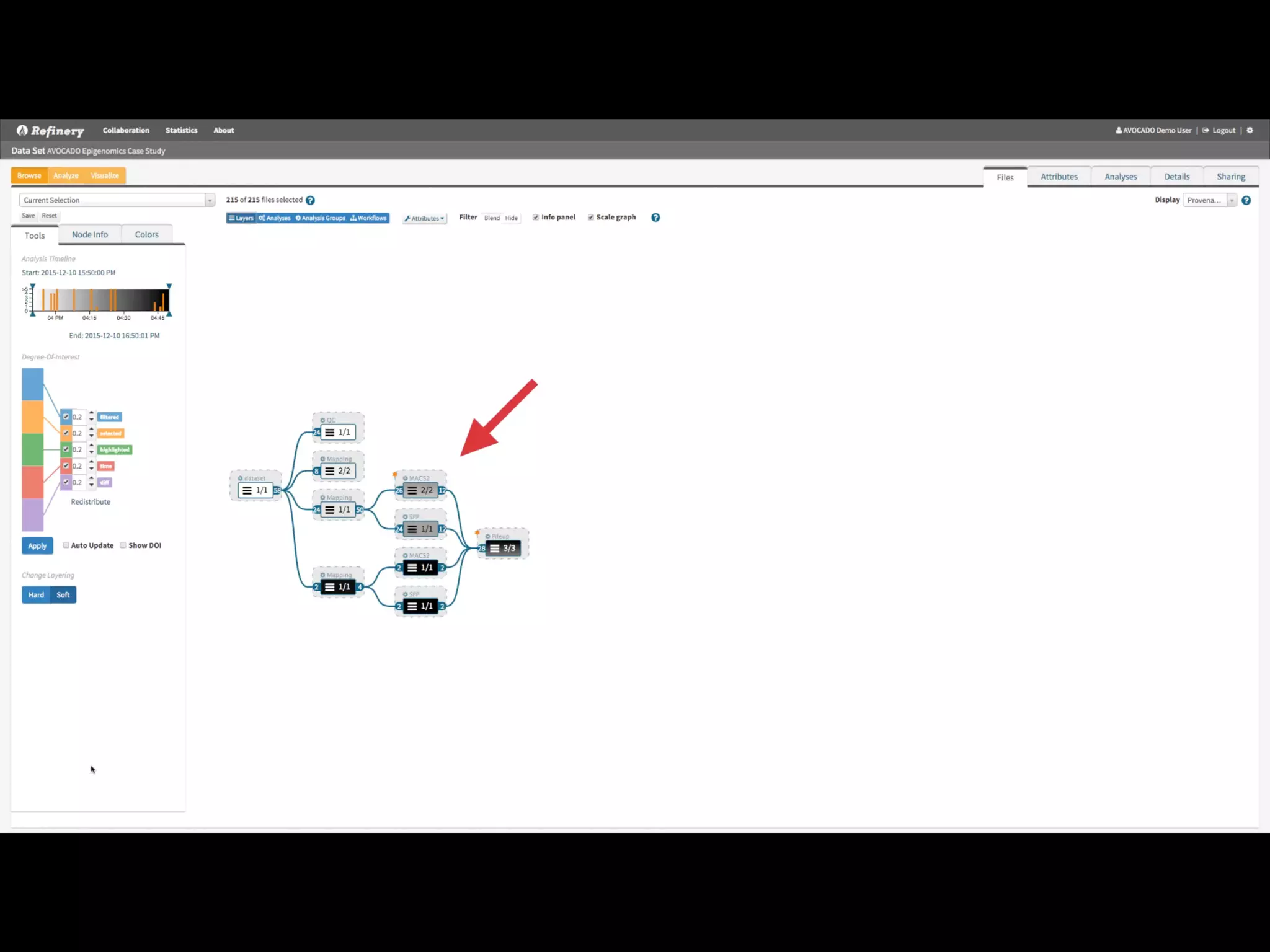

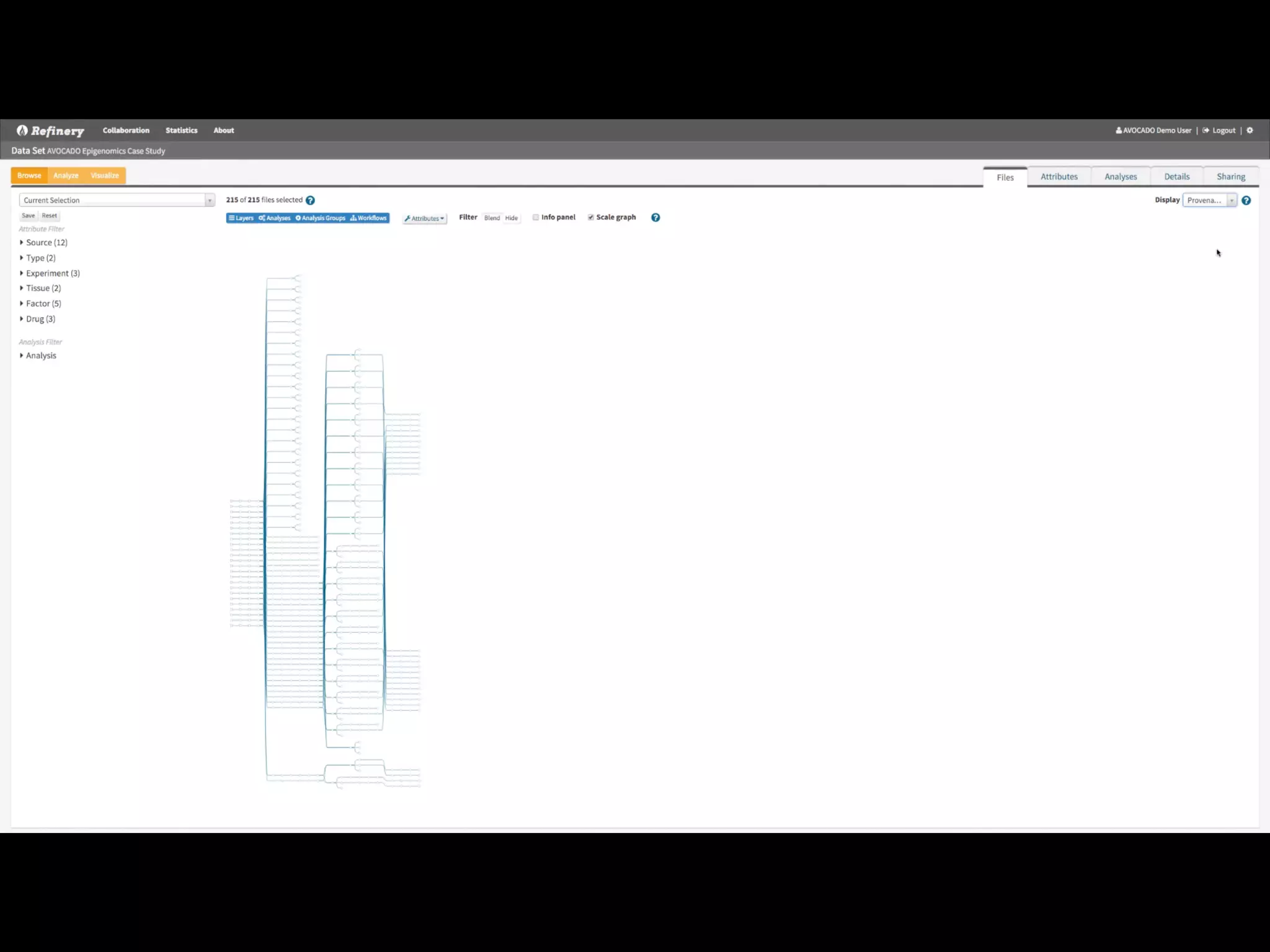

- 16.

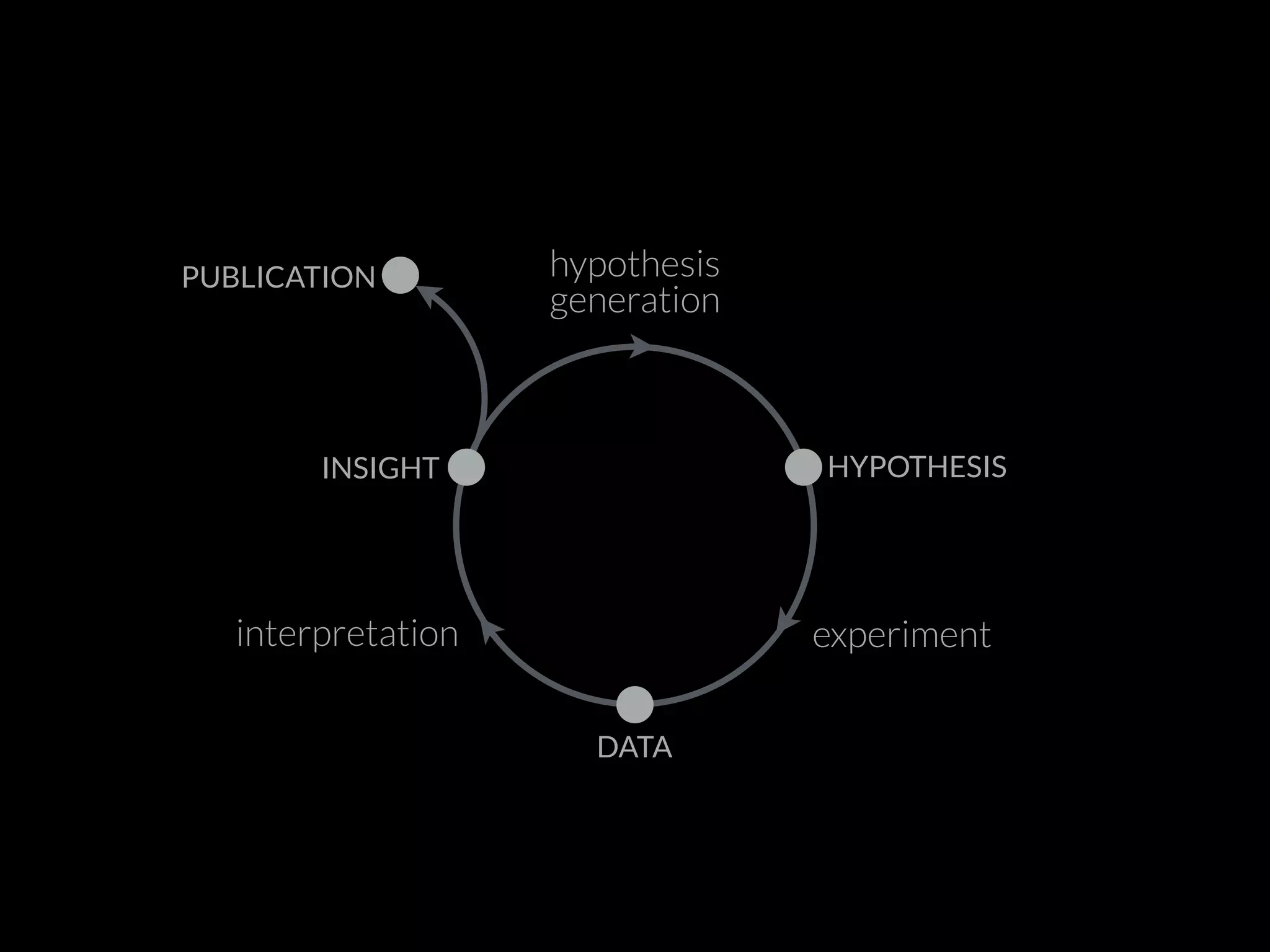

- 17.

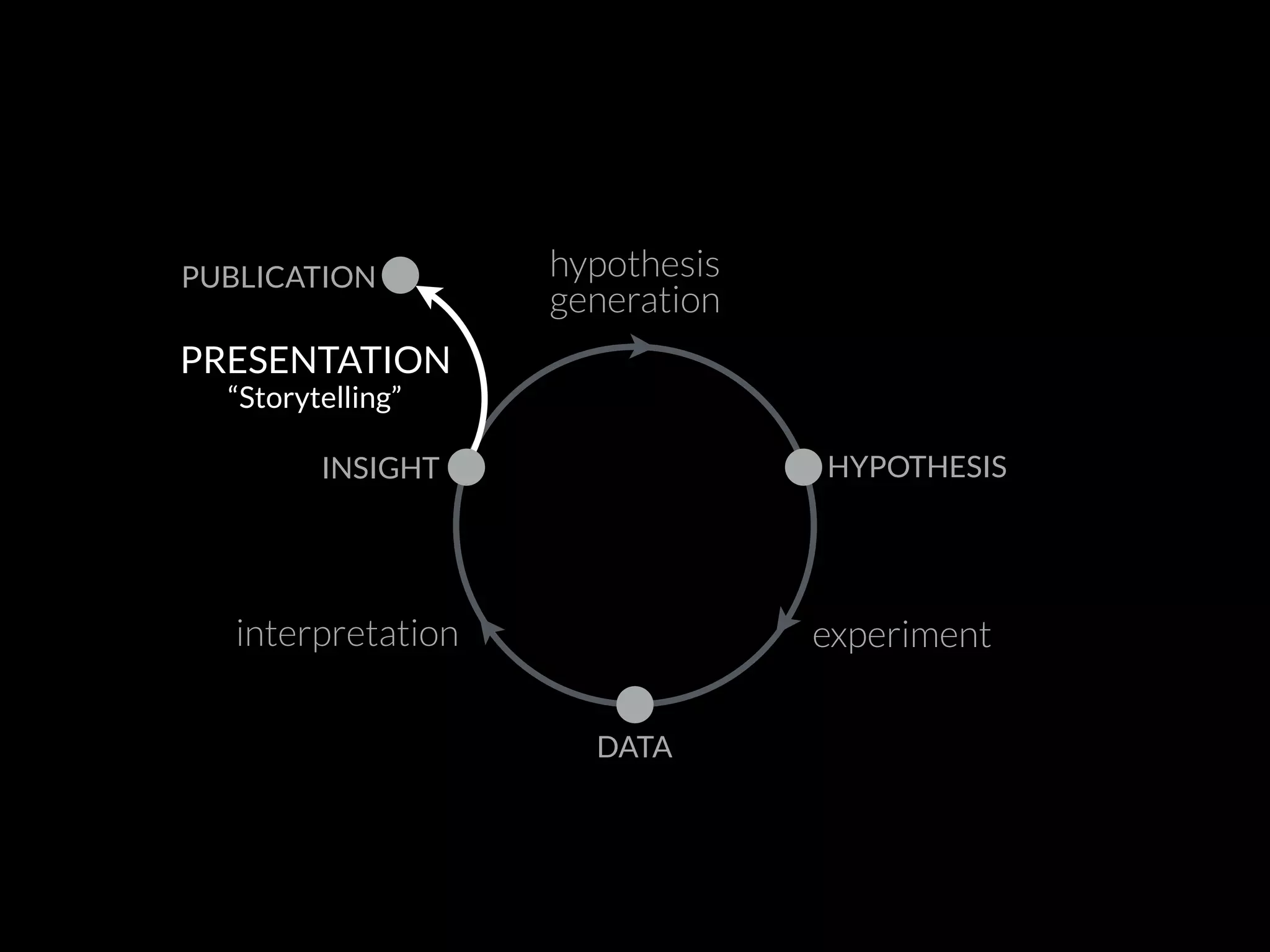

- 18.

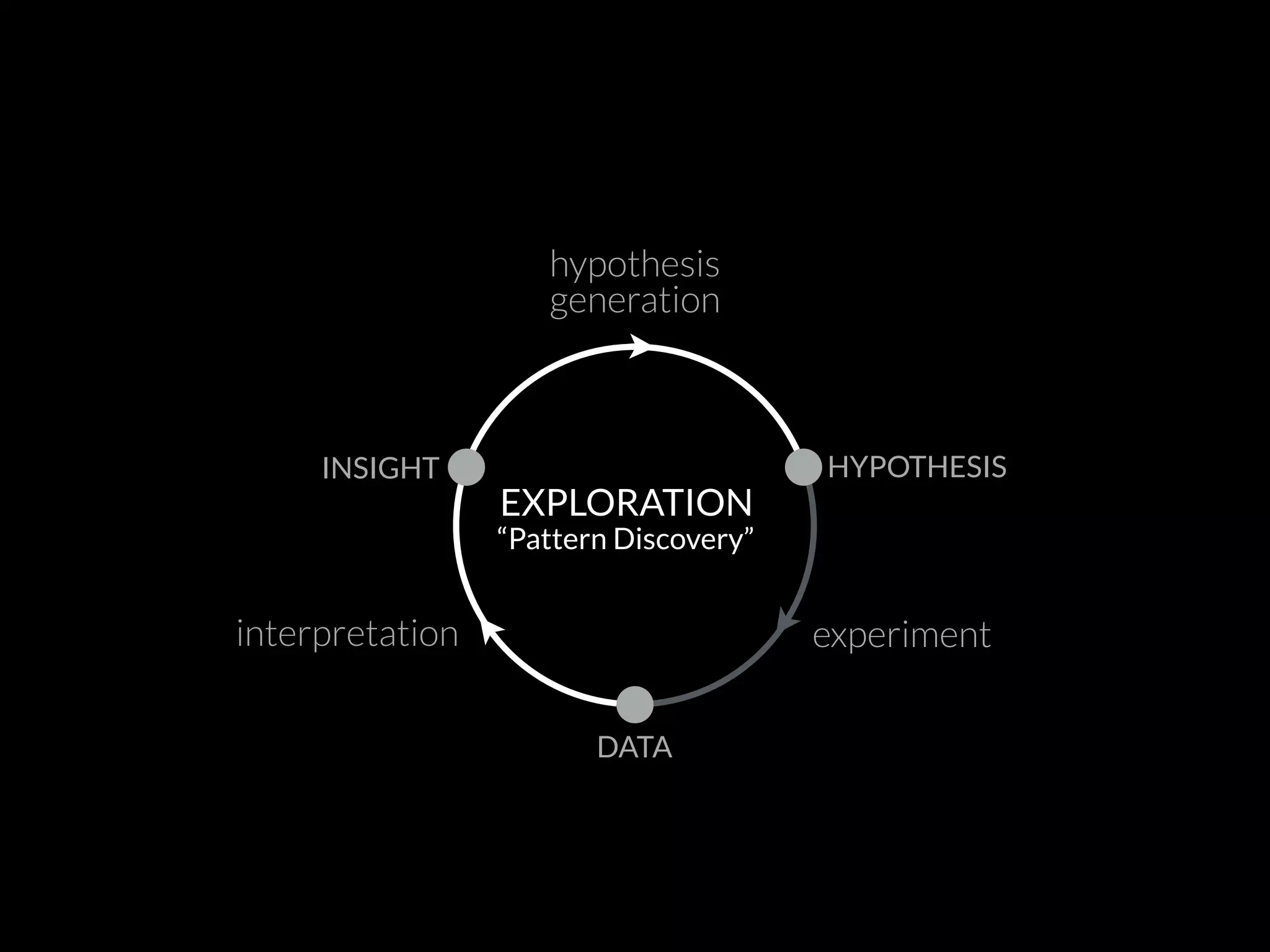

- 19.

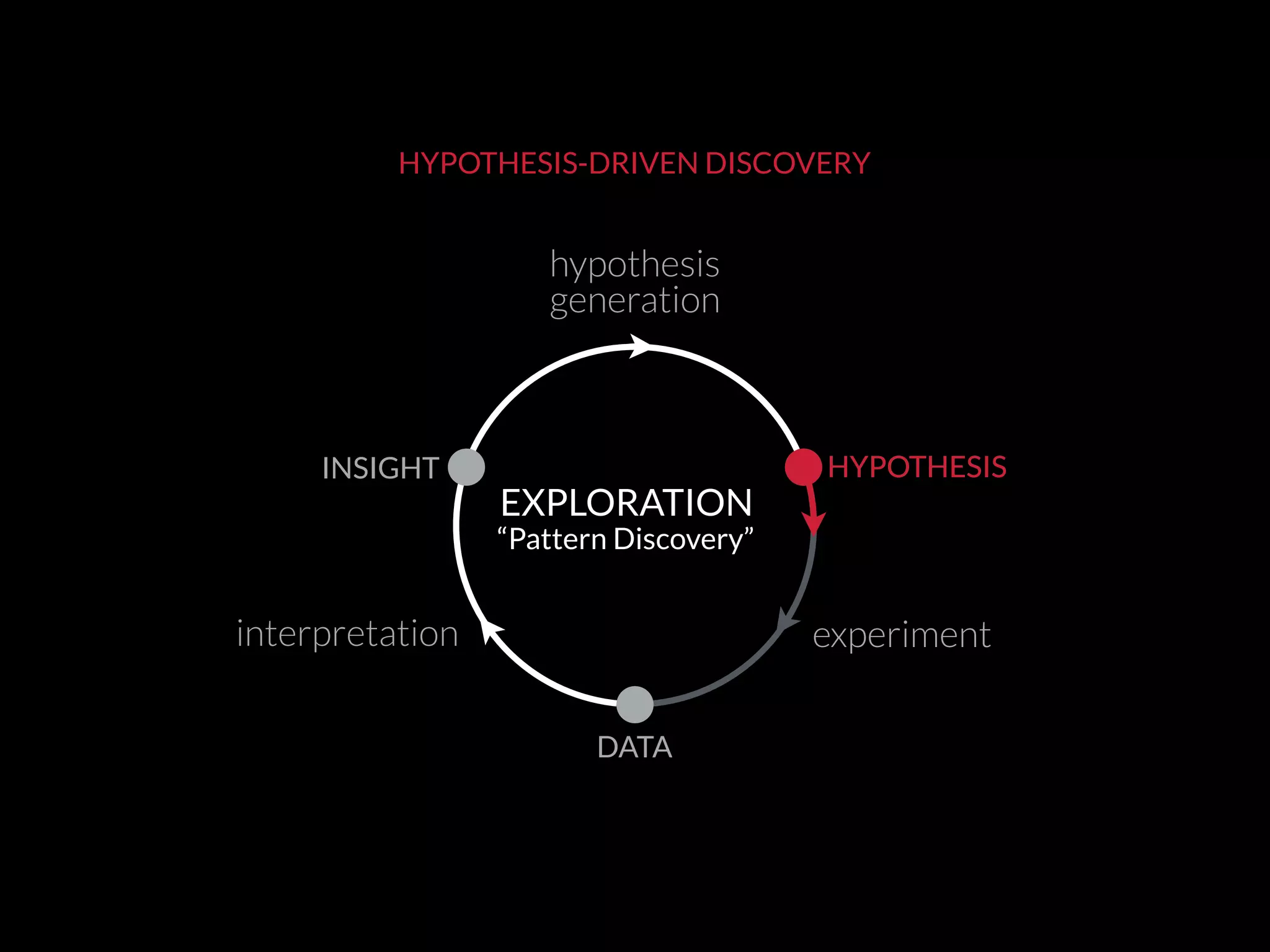

- 20.

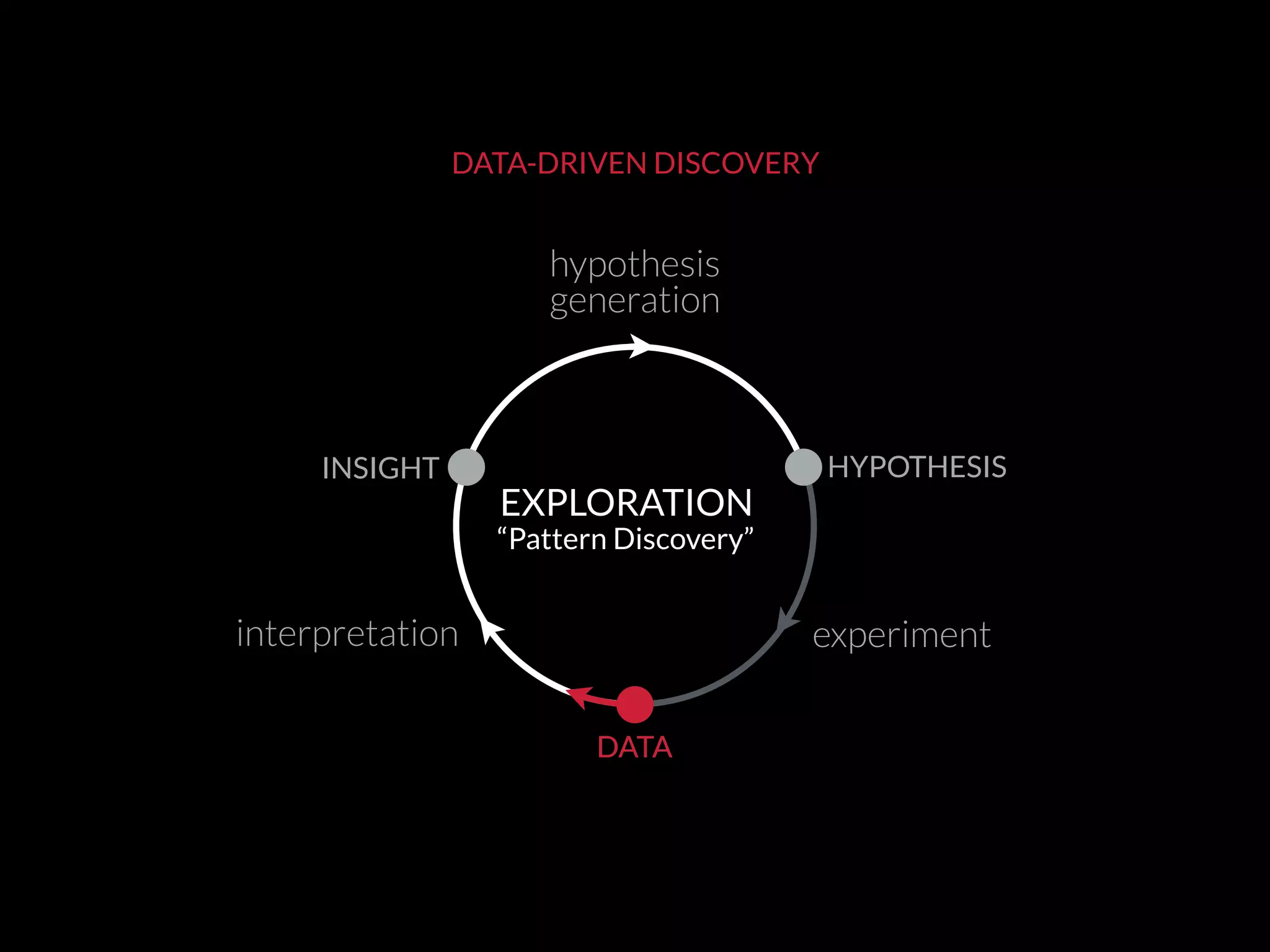

- 21.

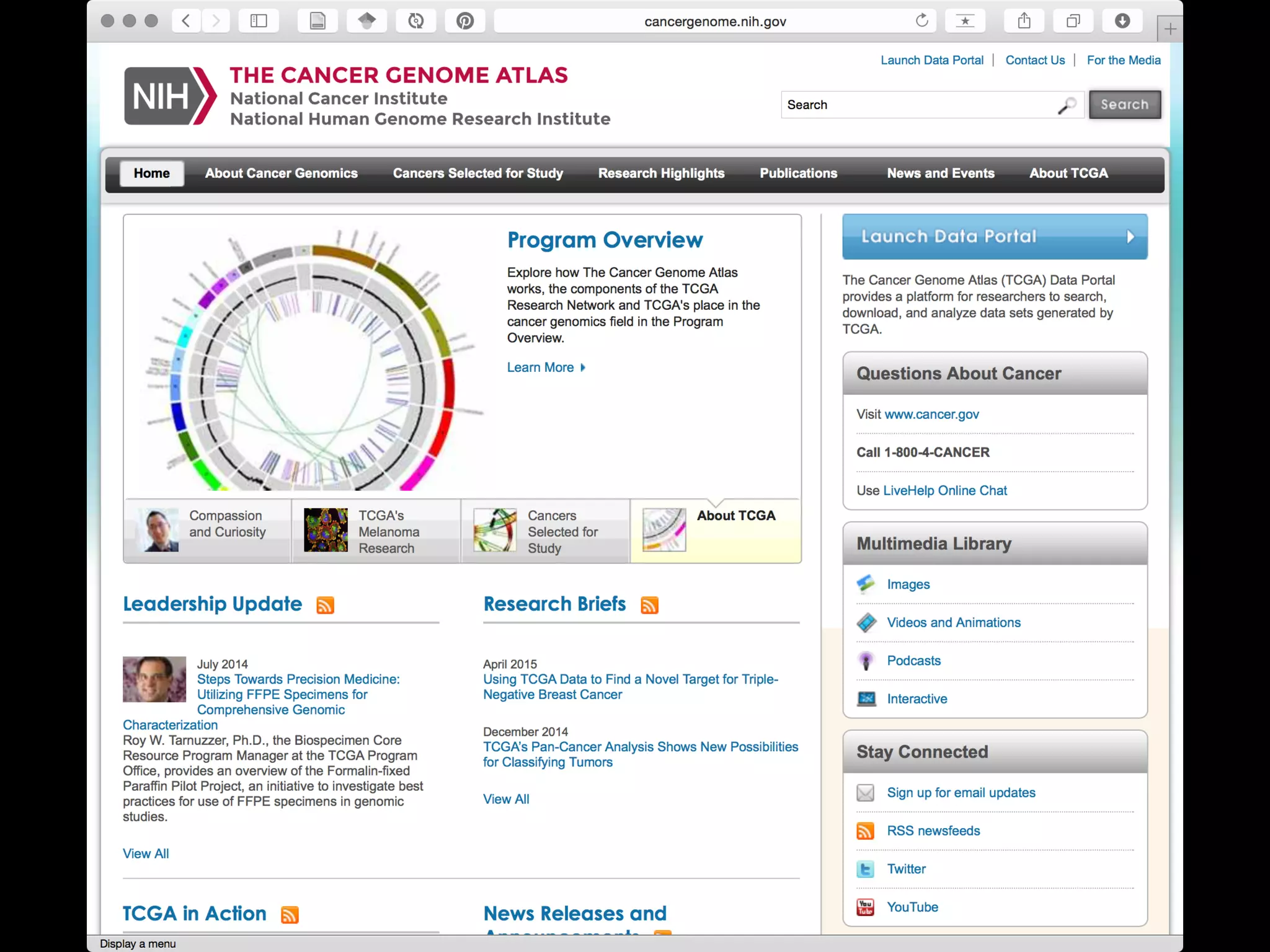

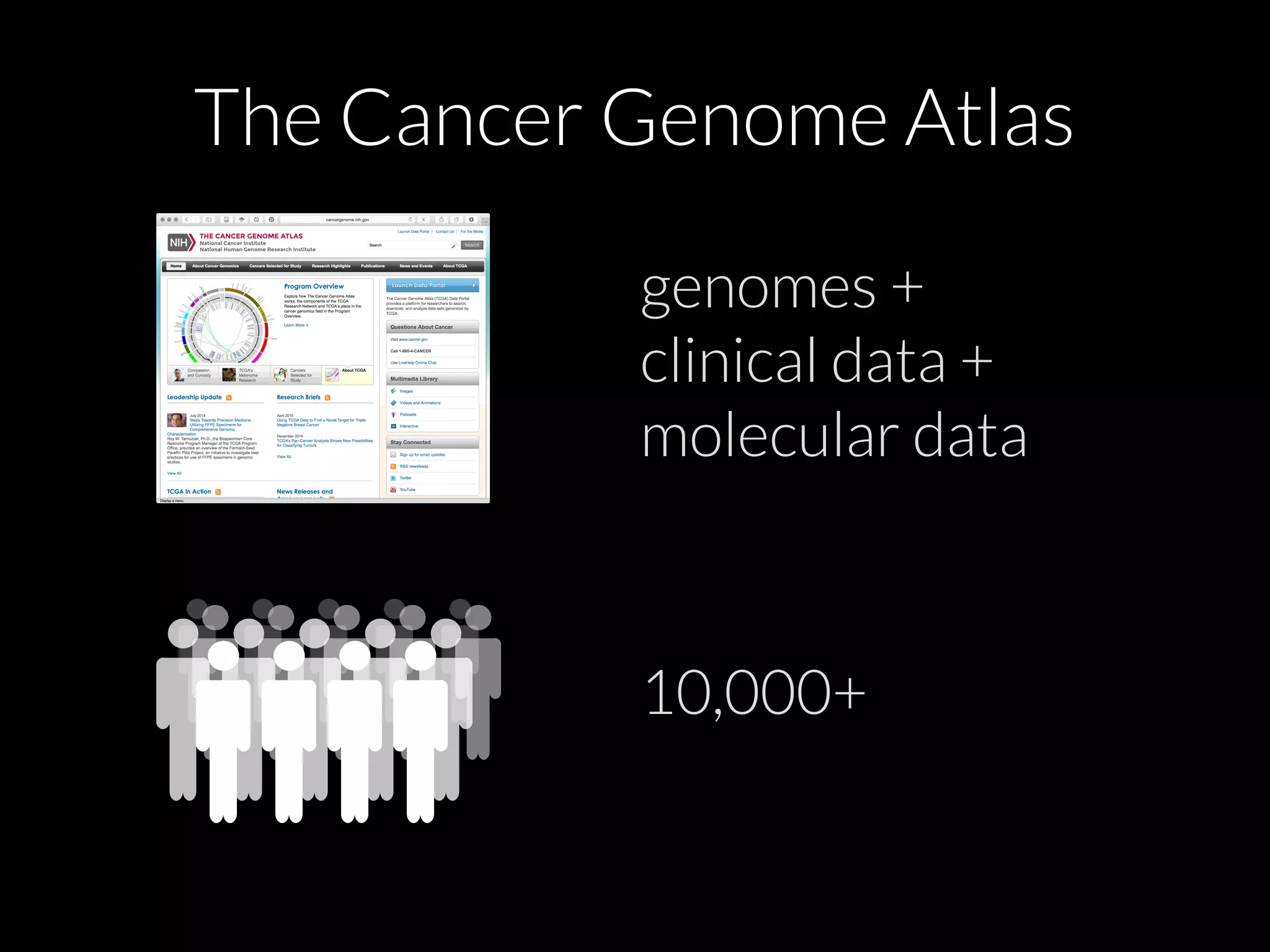

- 23. The Cancer GenomeAtlas 10,000+ genomes + clinical data + molecular data
- 25.

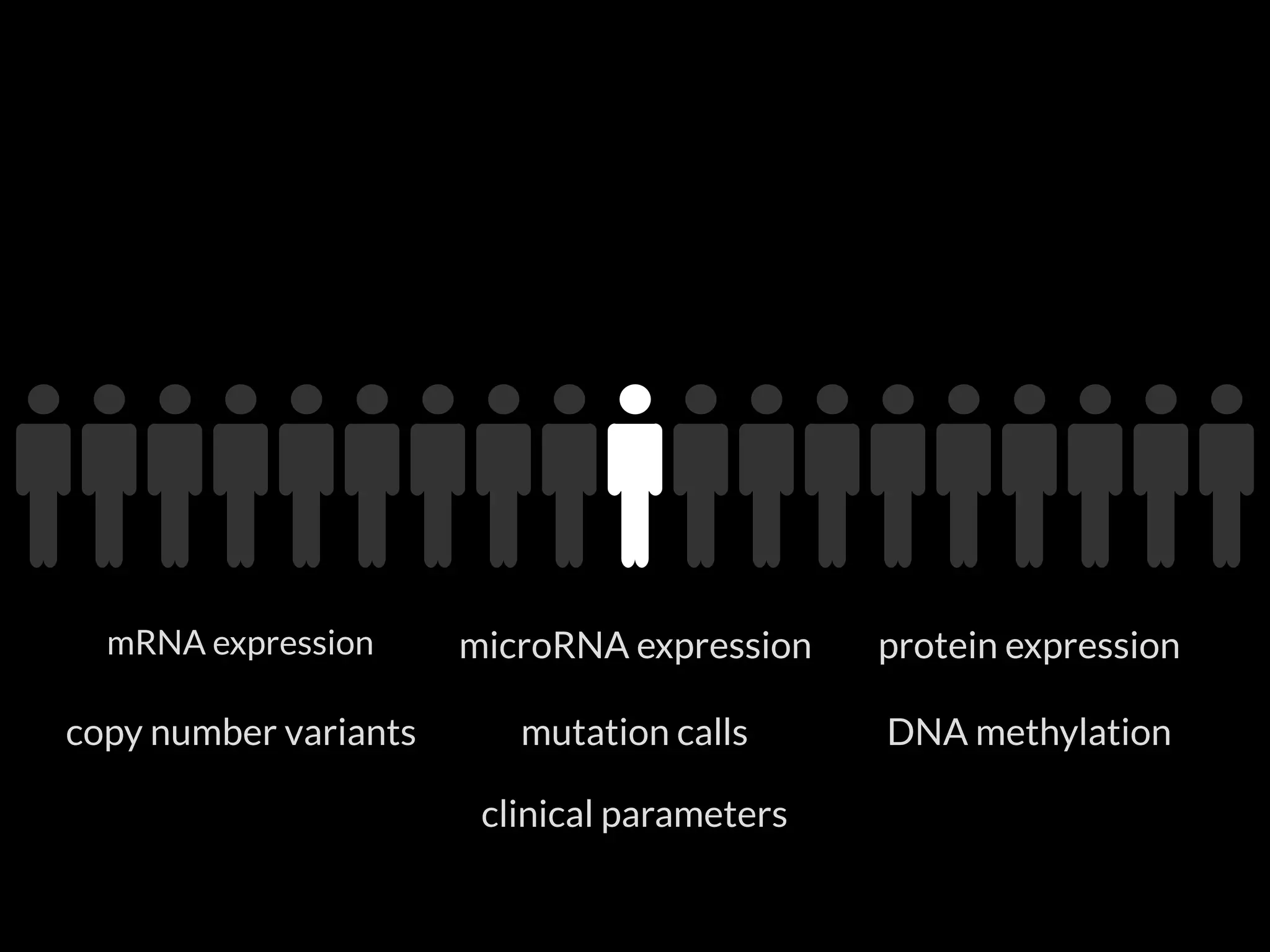

- 28. mRNA expression microRNAexpression DNA methylation protein expression copy number variants mutation calls clinical parameters

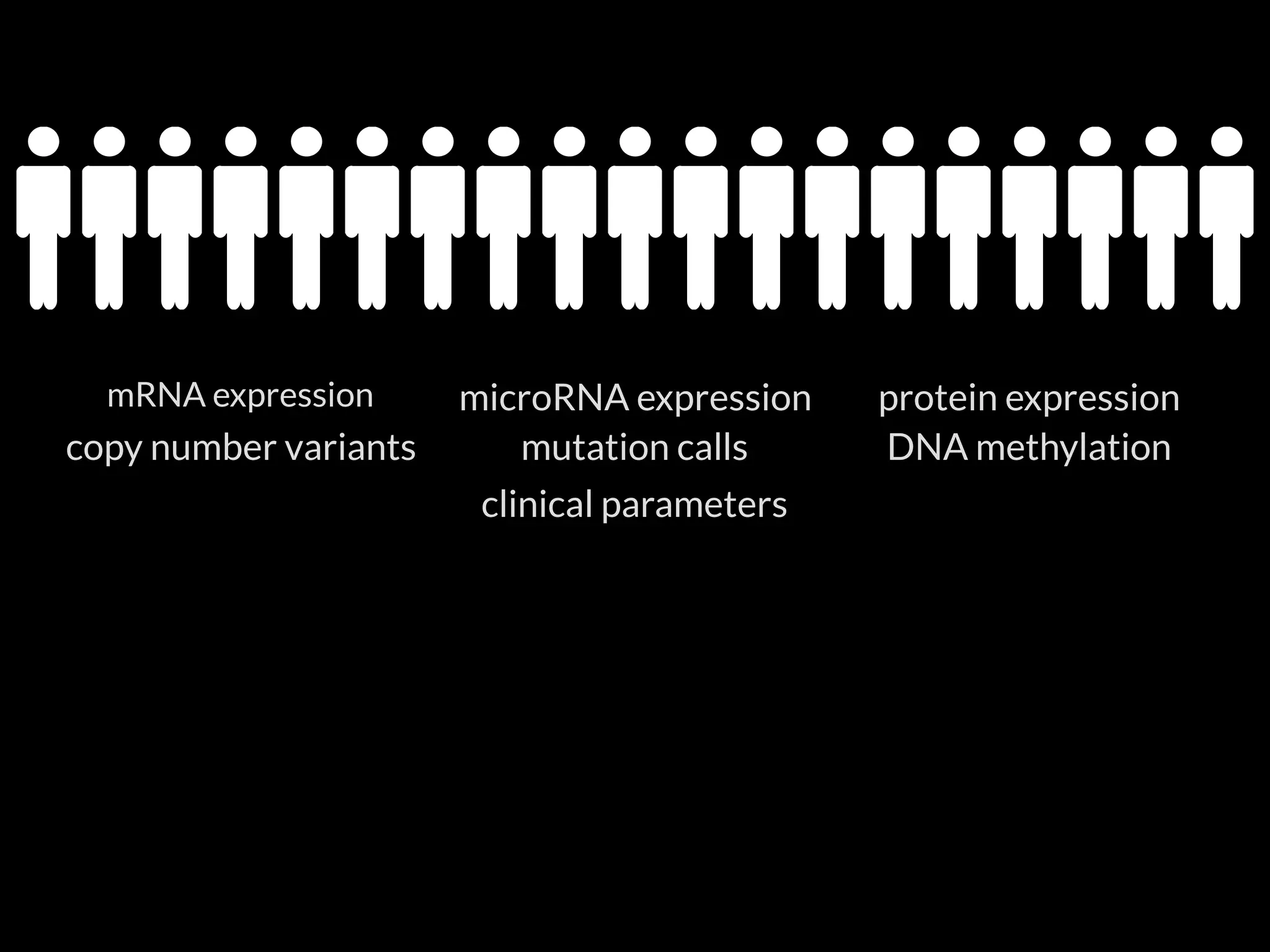

- 29. mRNA expression microRNAexpression DNA methylation protein expression copy number variants mutation calls clinical parameters
- 30.

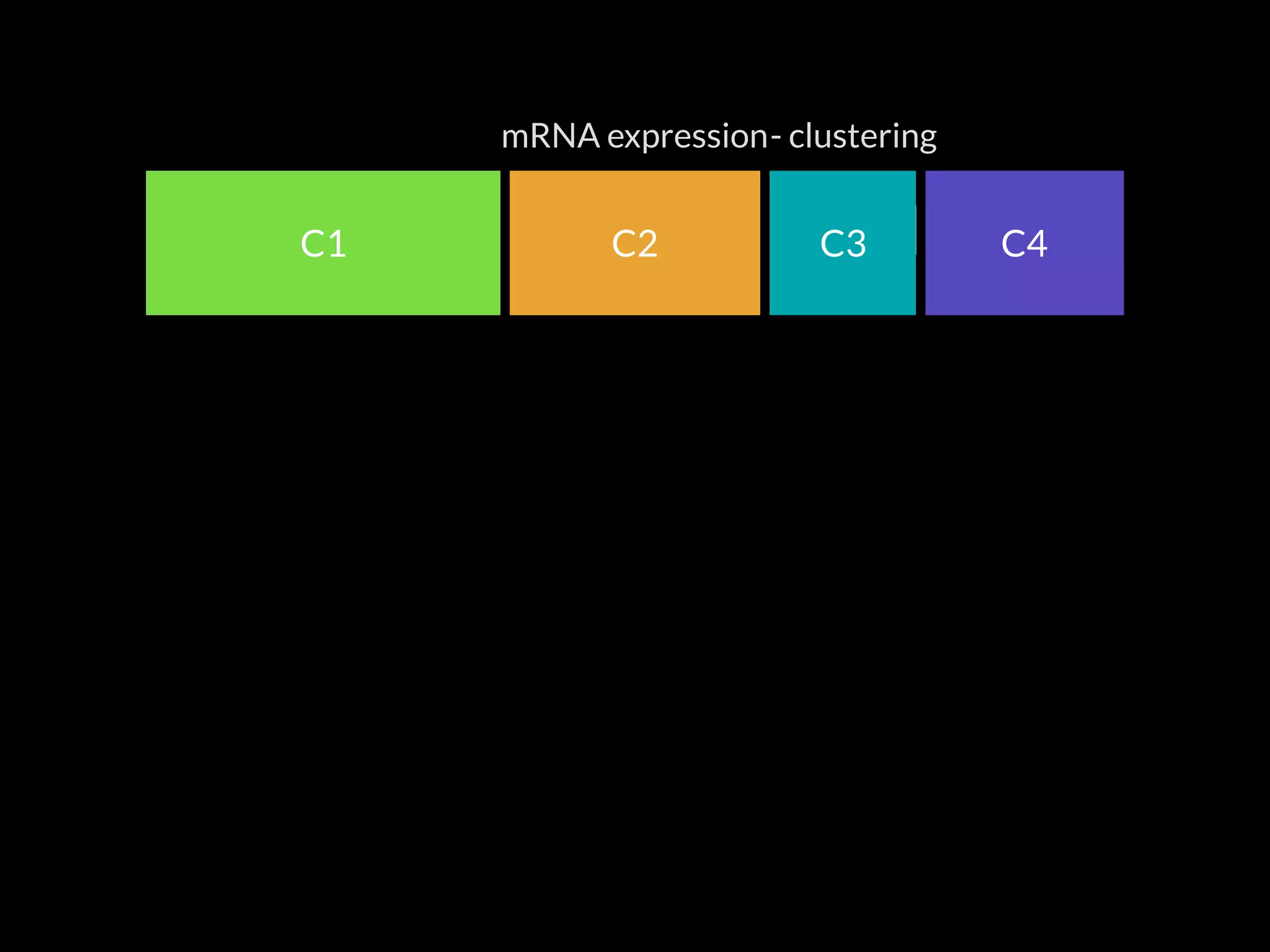

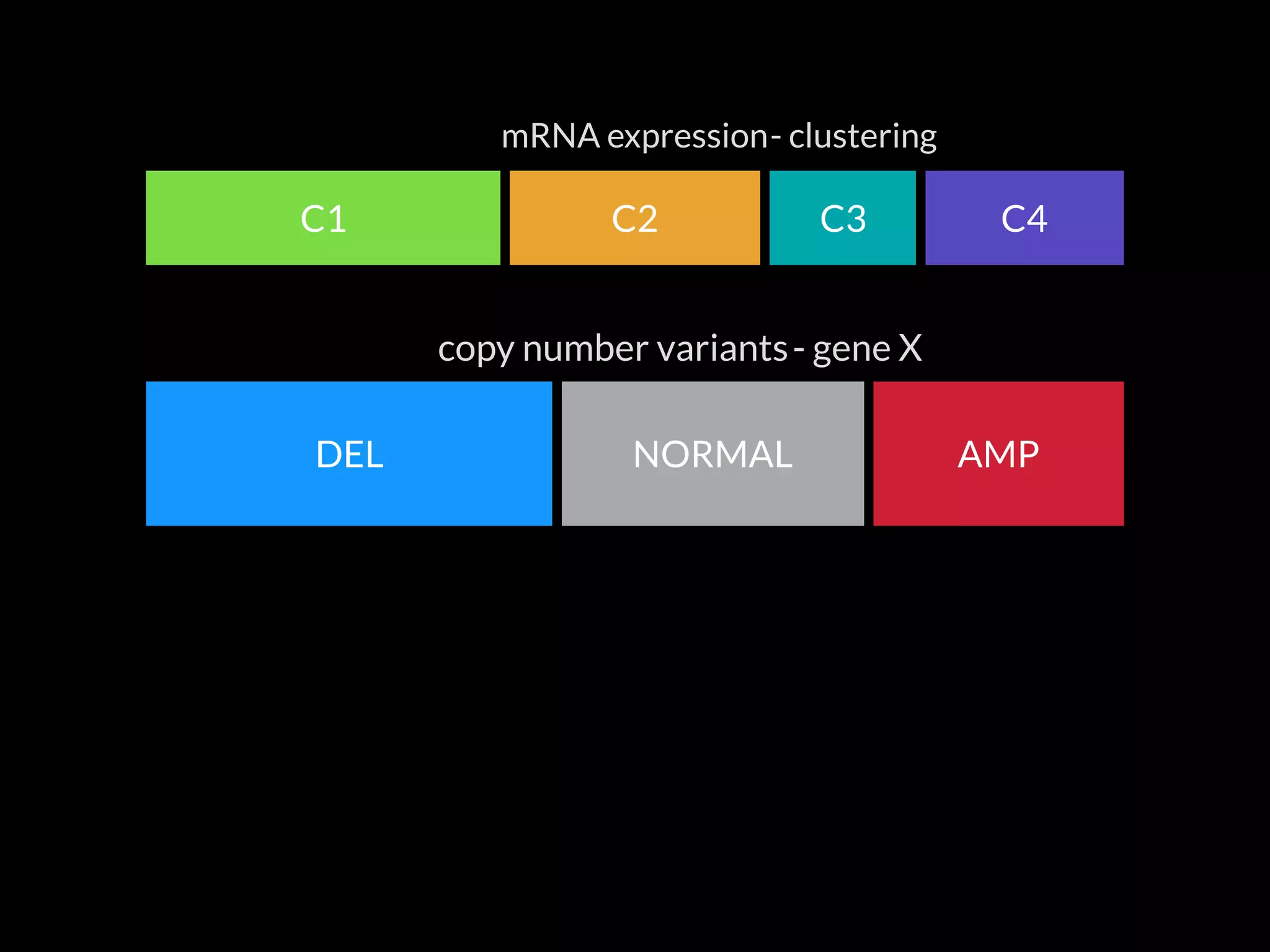

- 31. C4C3C2C1 mRNA expression copy numbervariants DEL NORMAL AMP - clustering - gene X

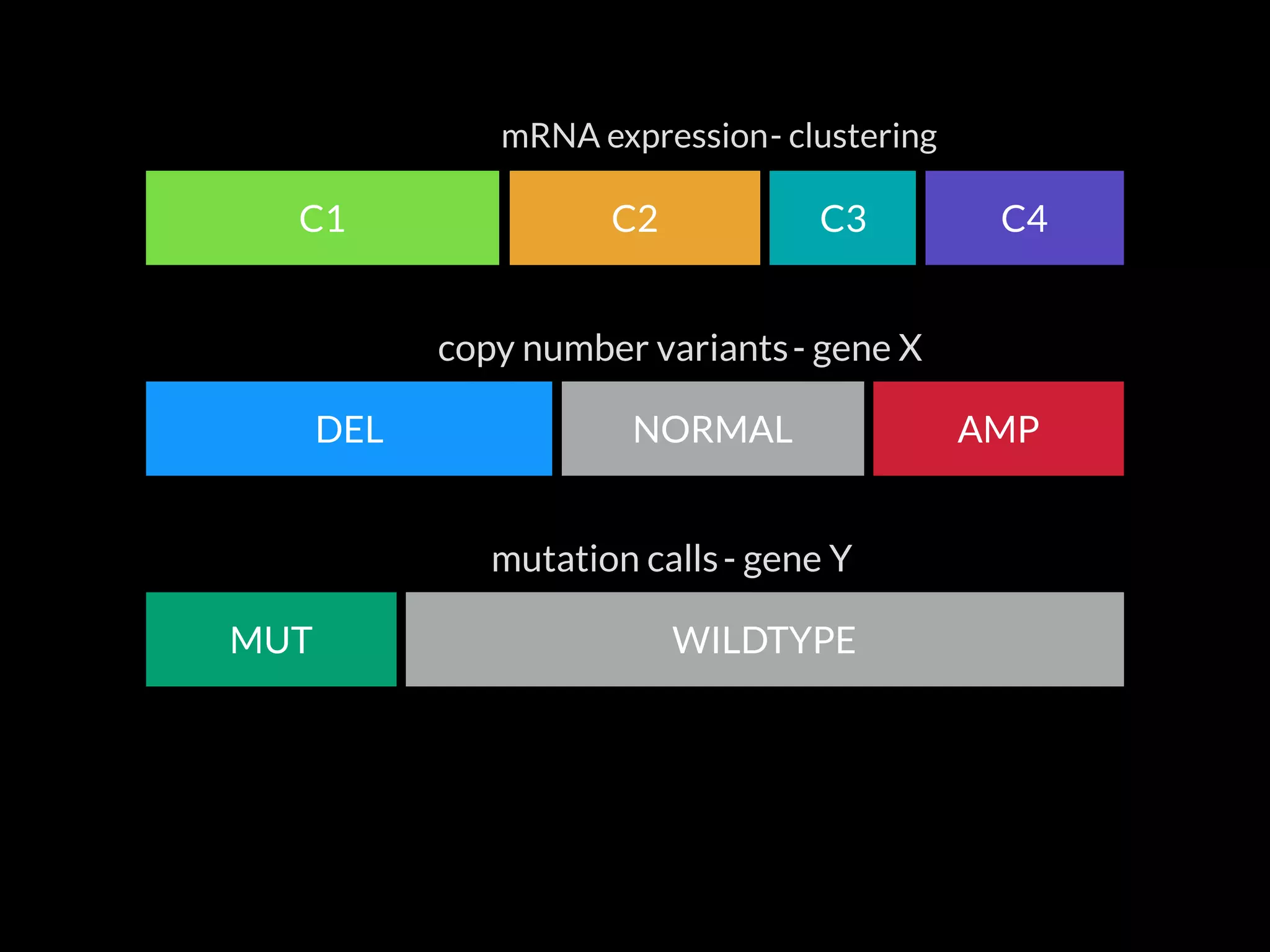

- 32. DEL NORMAL AMP C4C3C2C1 mRNAexpression copy number variants mutation calls WILDTYPEMUT - clustering - gene X - gene Y

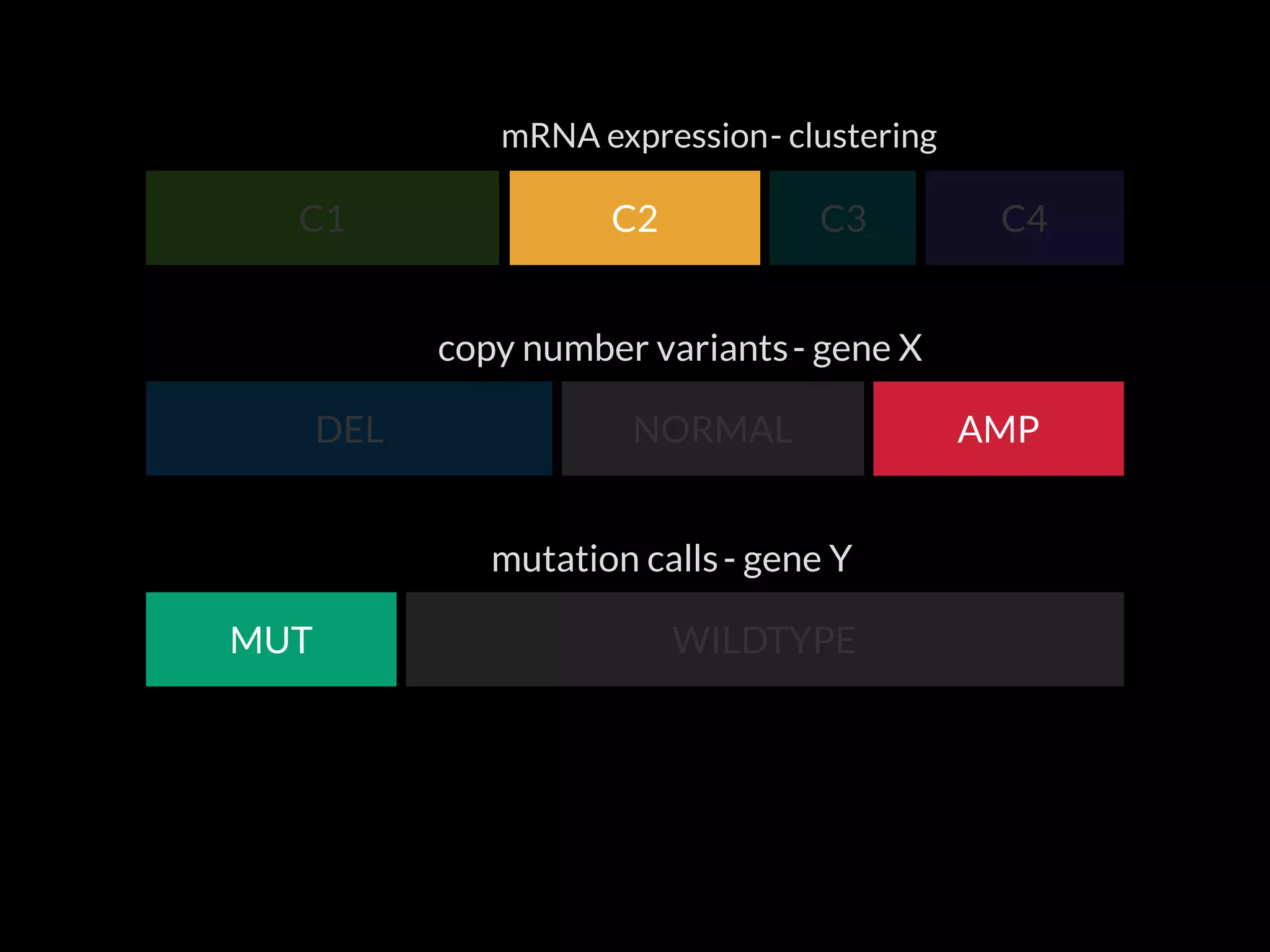

- 33. DEL NORMAL AMP C4C3C2C1 mRNAexpression copy number variants mutation calls WILDTYPEMUT - clustering - gene X - gene Y
- 34. L NORMAL AMP C4C3C2C1 mRNAexpression copy number variants mutation calls WILDTYPEMUT - clustering - gene X - gene Y

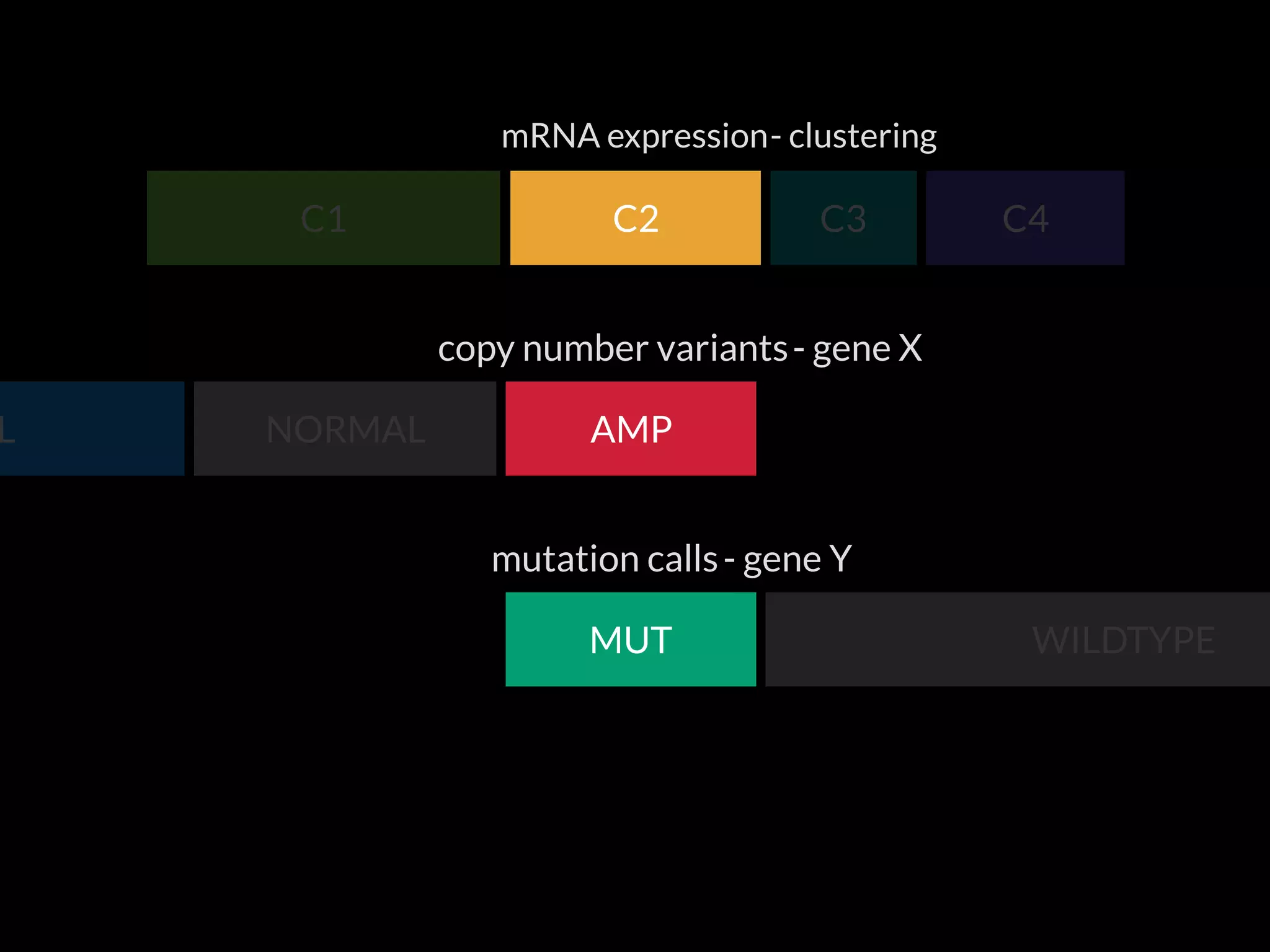

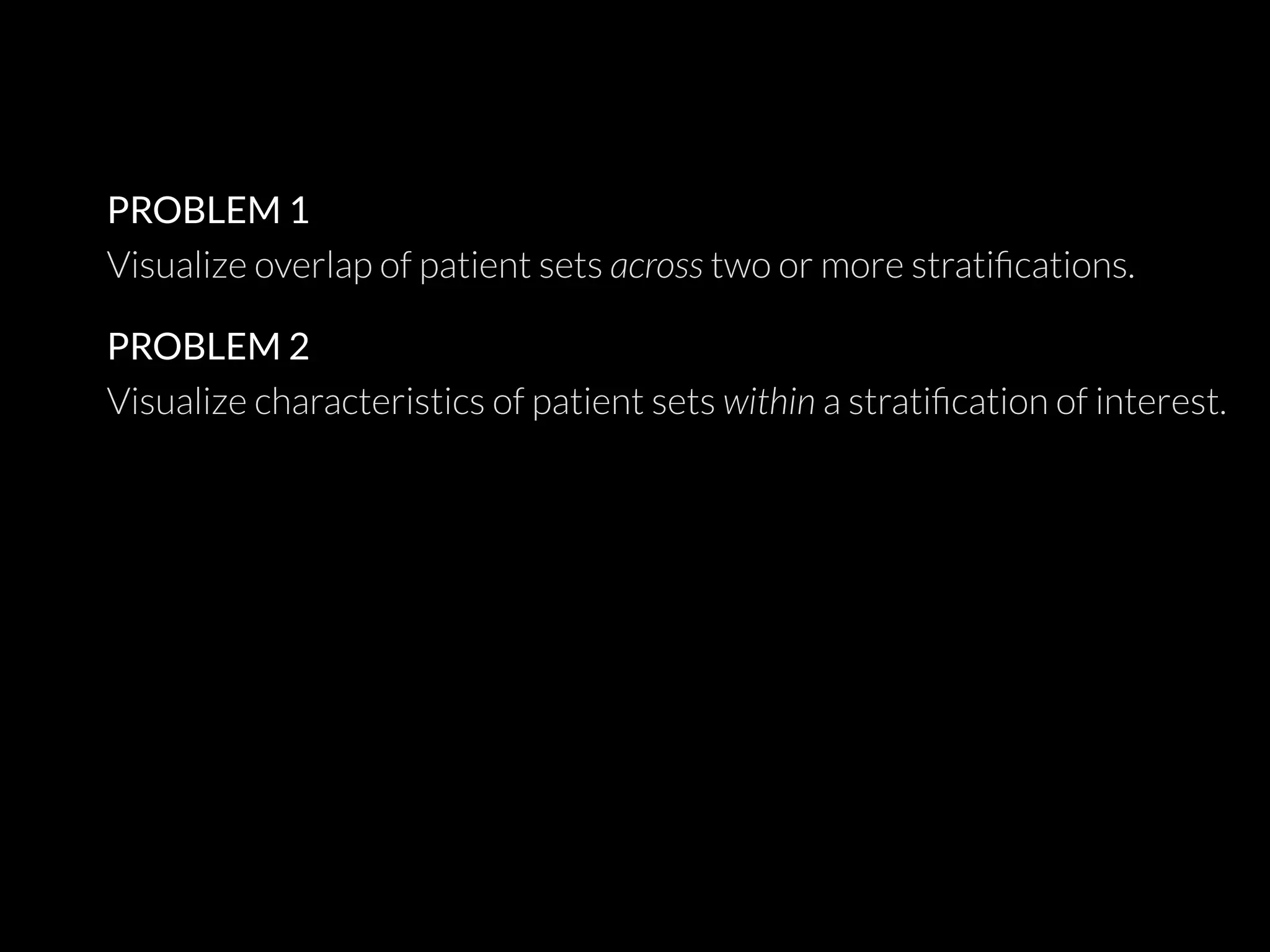

- 35. PROBLEM 1 Visualize overlapof patient sets across two or more stratifications. PROBLEM 2 Visualize characteristics of patient sets within a stratification of interest.

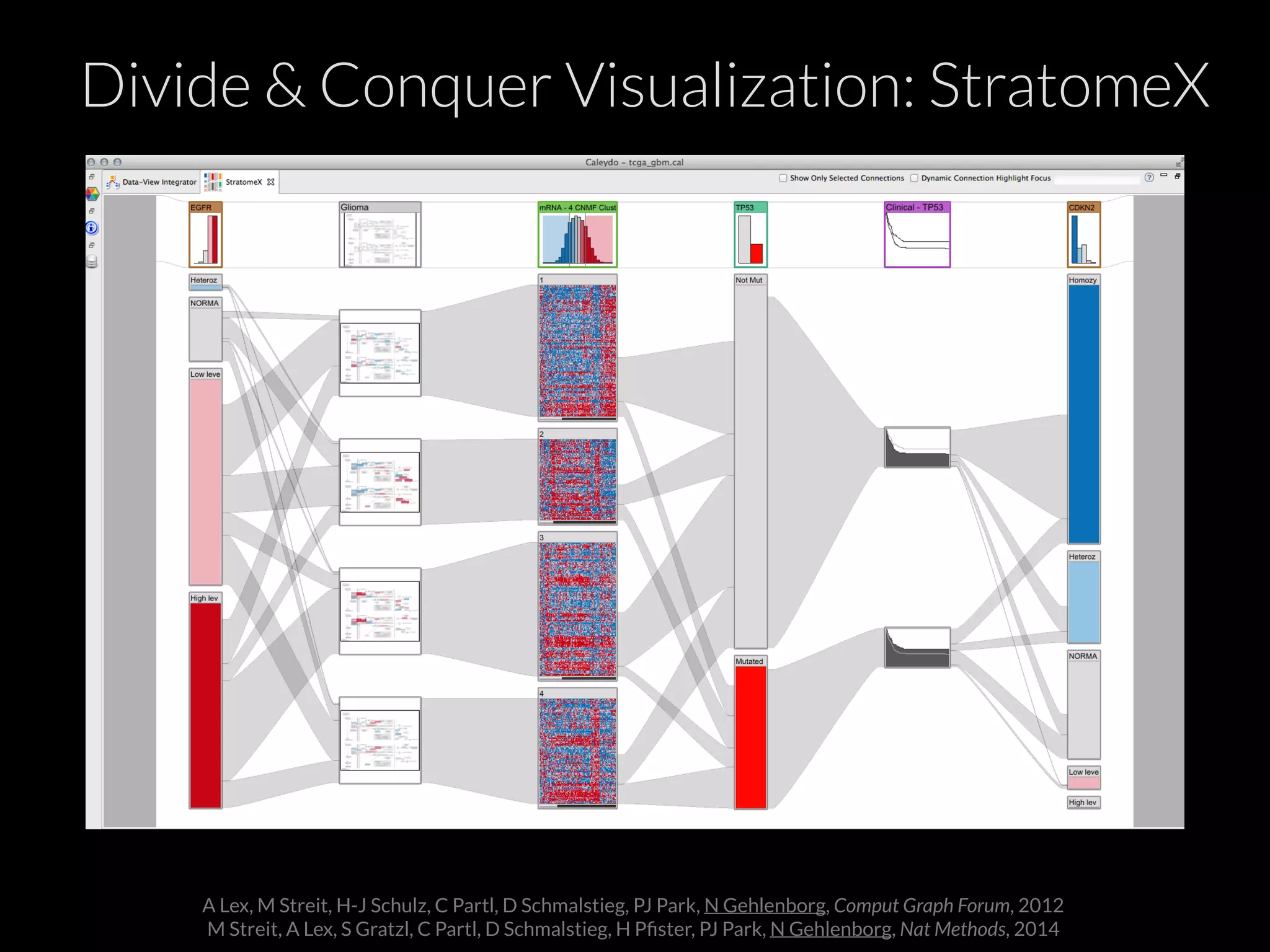

- 36. A Lex, MStreit, H-J Schulz, C Partl, D Schmalstieg, PJ Park, N Gehlenborg, Comput Graph Forum, 2012 M Streit, A Lex, S Gratzl, C Partl, D Schmalstieg, H Pfister, PJ Park, N Gehlenborg, Nat Methods, 2014 Divide & Conquer Visualization: StratomeX
- 37. PROBLEM 1 Visualize overlapof patient sets across two or more stratifications. PROBLEM 2 Visualize characteristics of patient sets within a stratification of interest. PROBLEM 3 Identify relevant stratifications, pathways, and clinical variables.

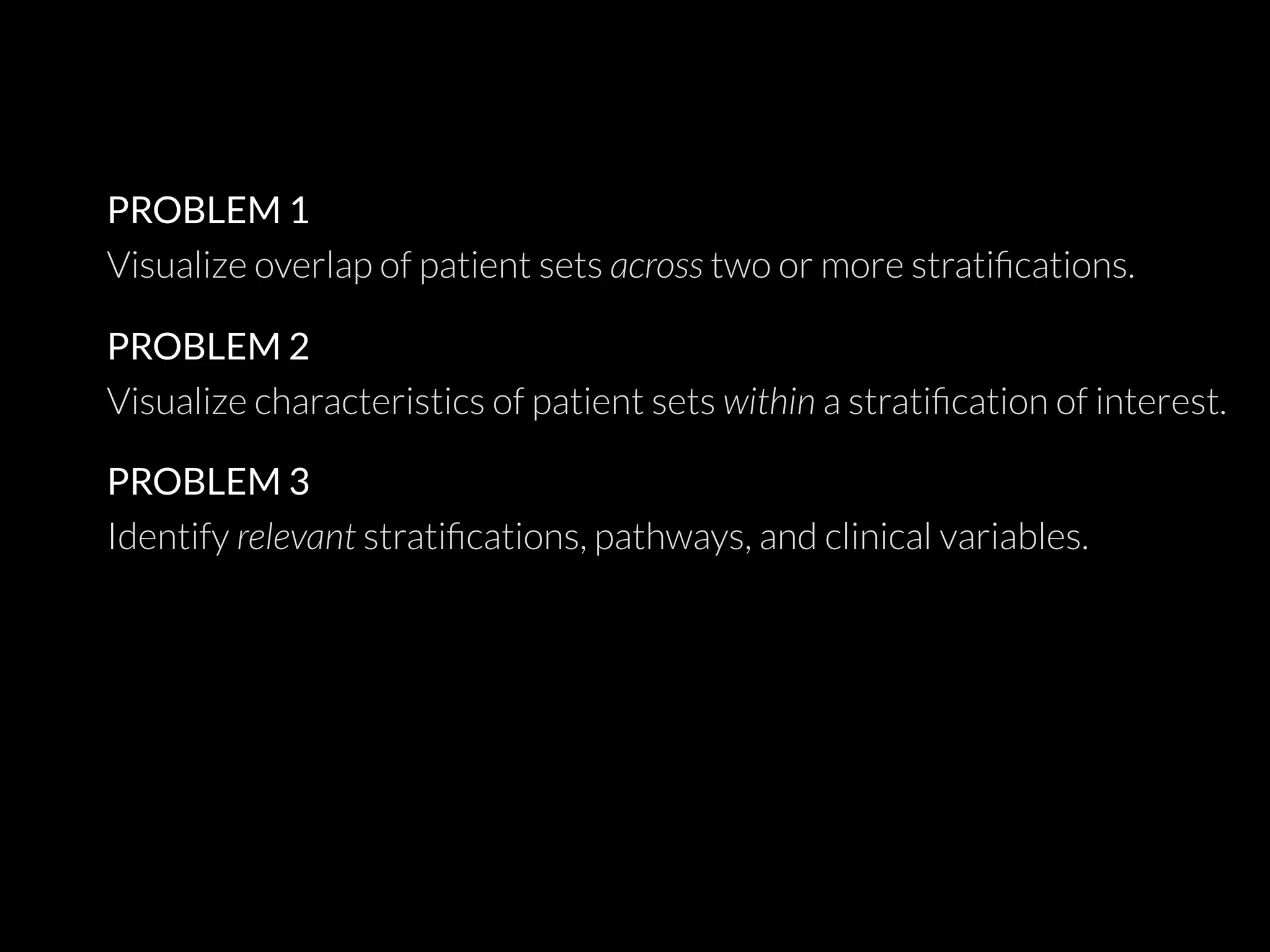

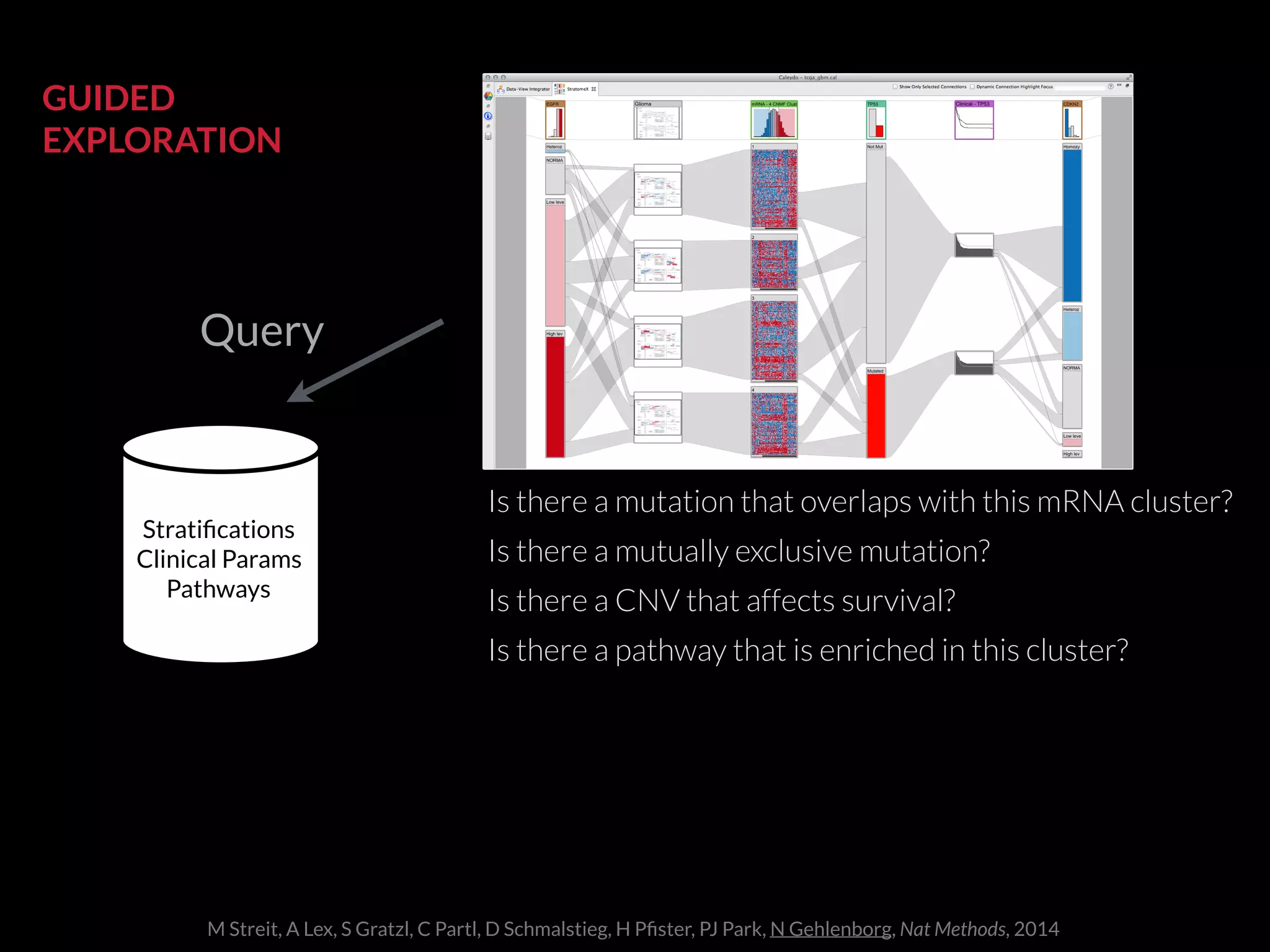

- 38. Is there amutation that overlaps with this mRNA cluster? Is there a CNV that affects survival? Is there a pathway that is enriched in this cluster? Is there a mutually exclusive mutation? Query Stratifications Clinical Params Pathways GUIDED EXPLORATION M Streit, A Lex, S Gratzl, C Partl, D Schmalstieg, H Pfister, PJ Park, N Gehlenborg, Nat Methods, 2014

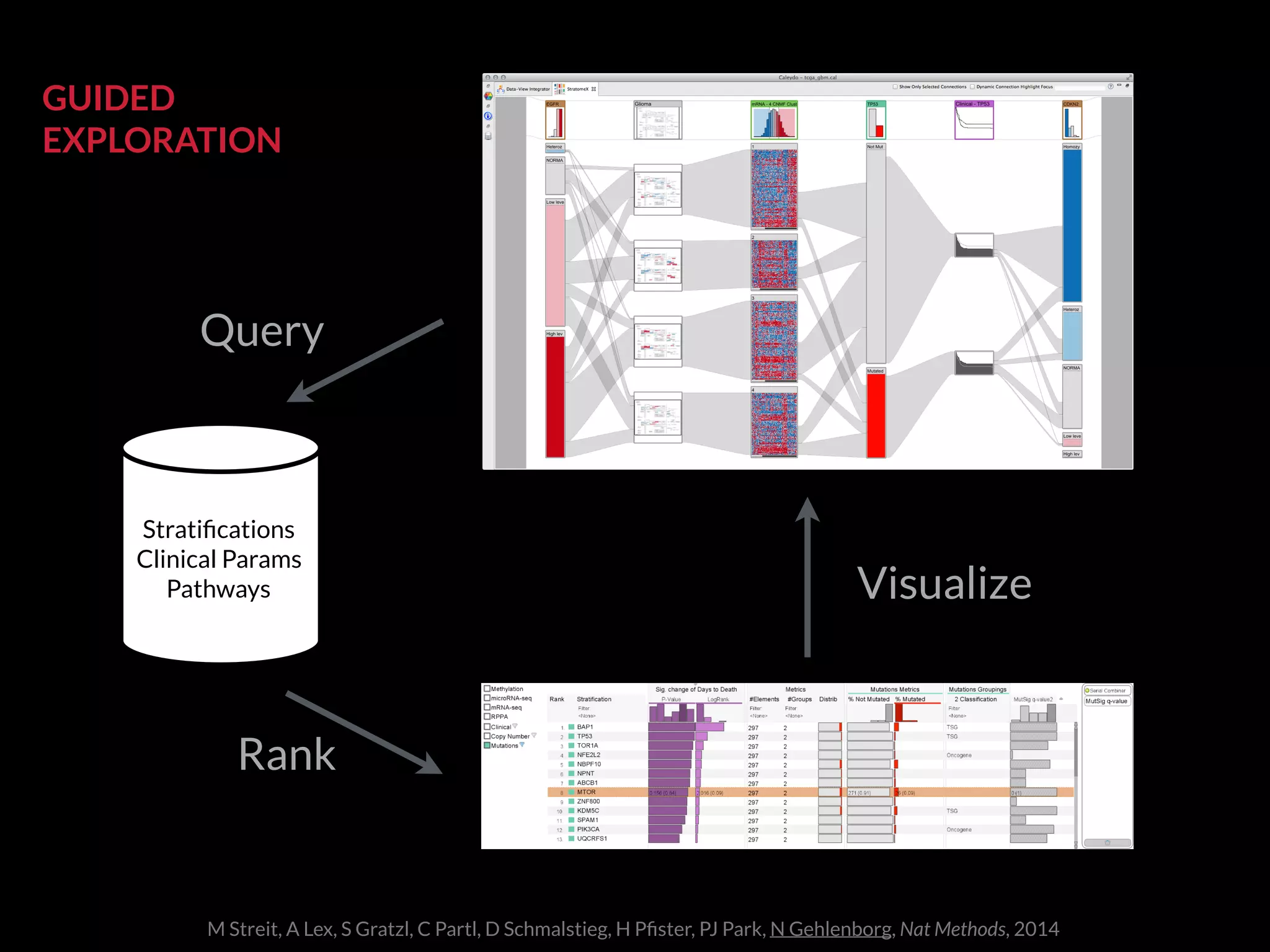

- 39. Query Rank Visualize Stratifications Clinical Params Pathways GUIDED EXPLORATION M Streit,A Lex, S Gratzl, C Partl, D Schmalstieg, H Pfister, PJ Park, N Gehlenborg, Nat Methods, 2014
- 40.
- 41.
- 42.
- 43.

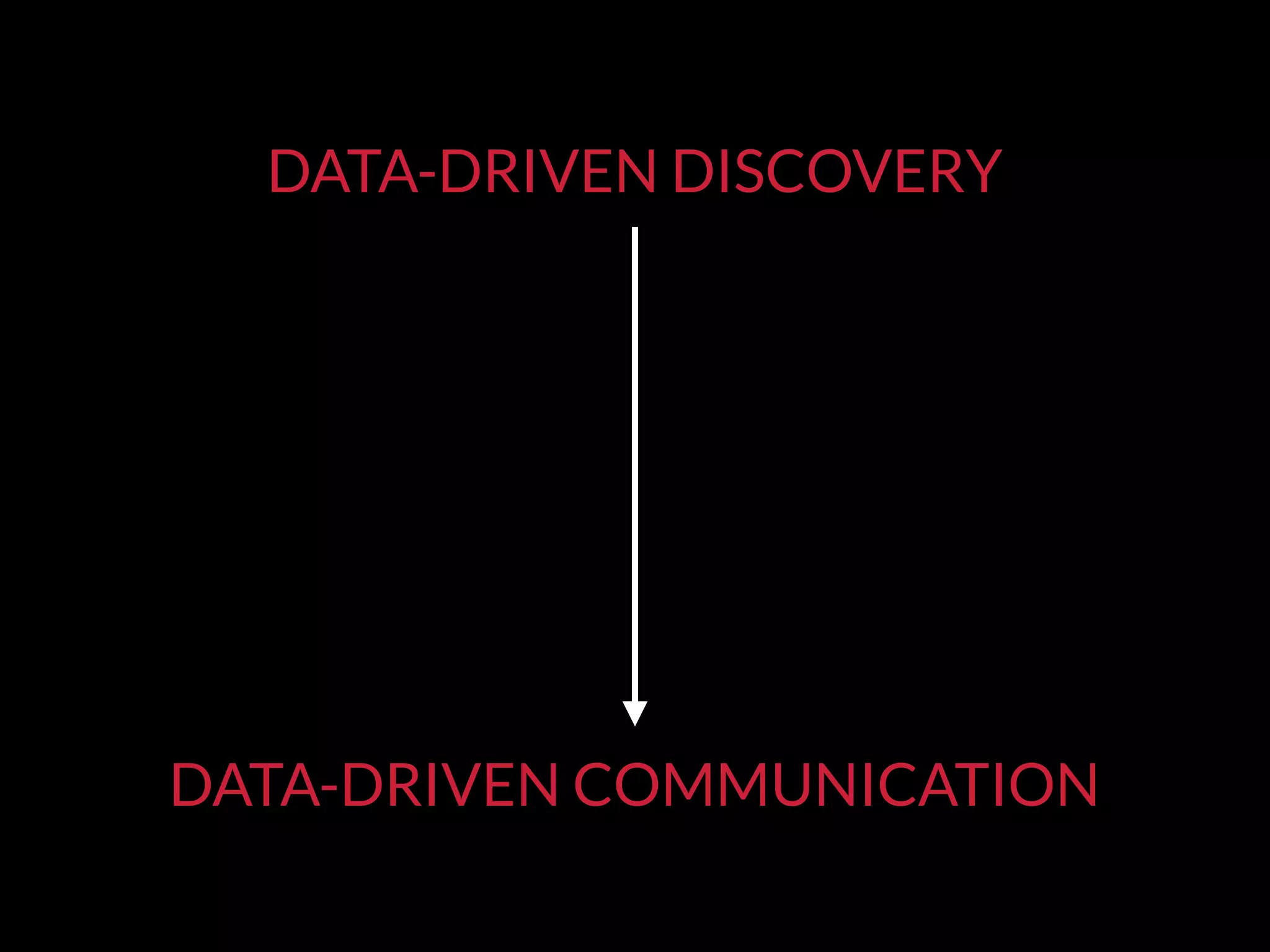

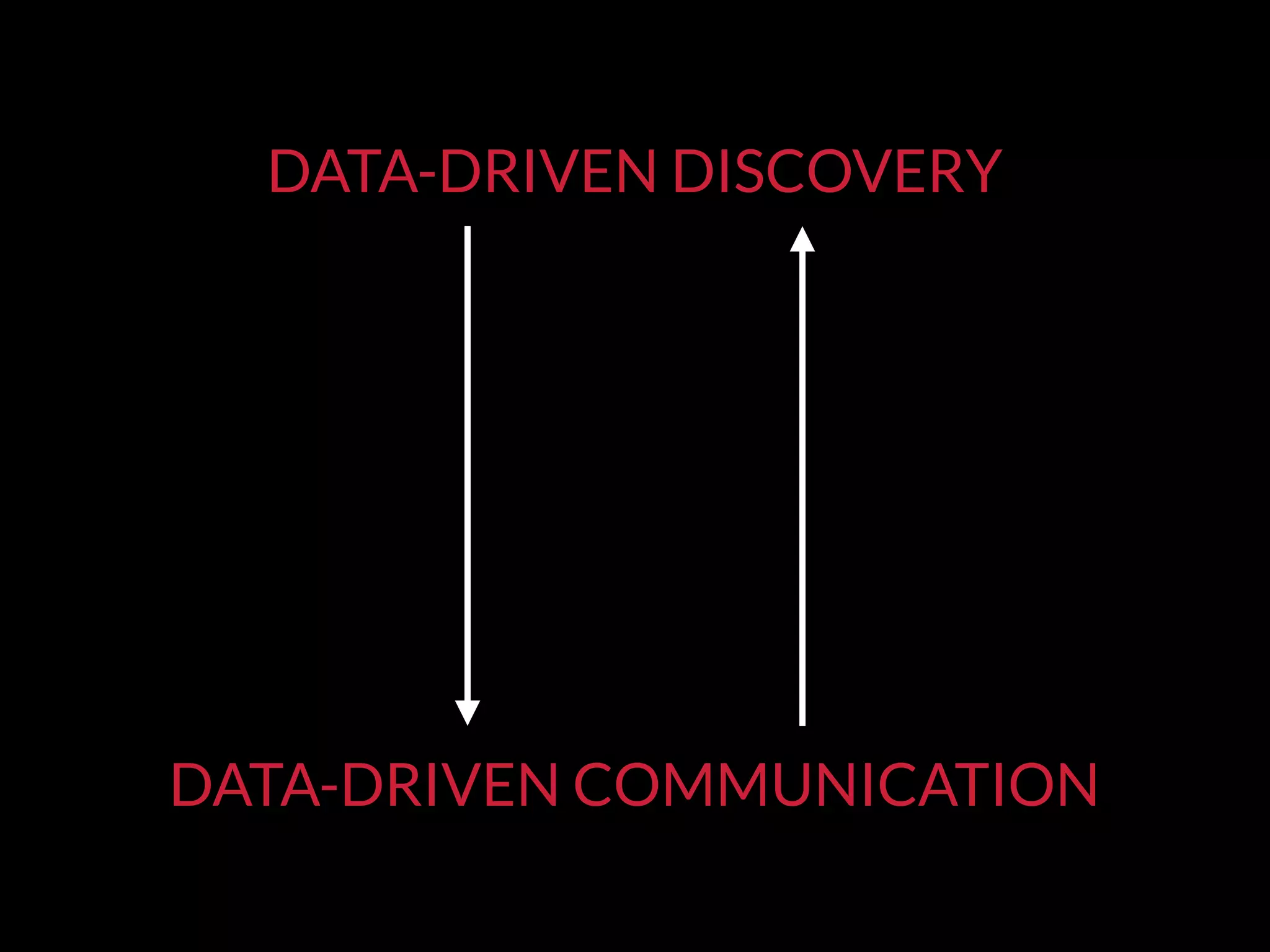

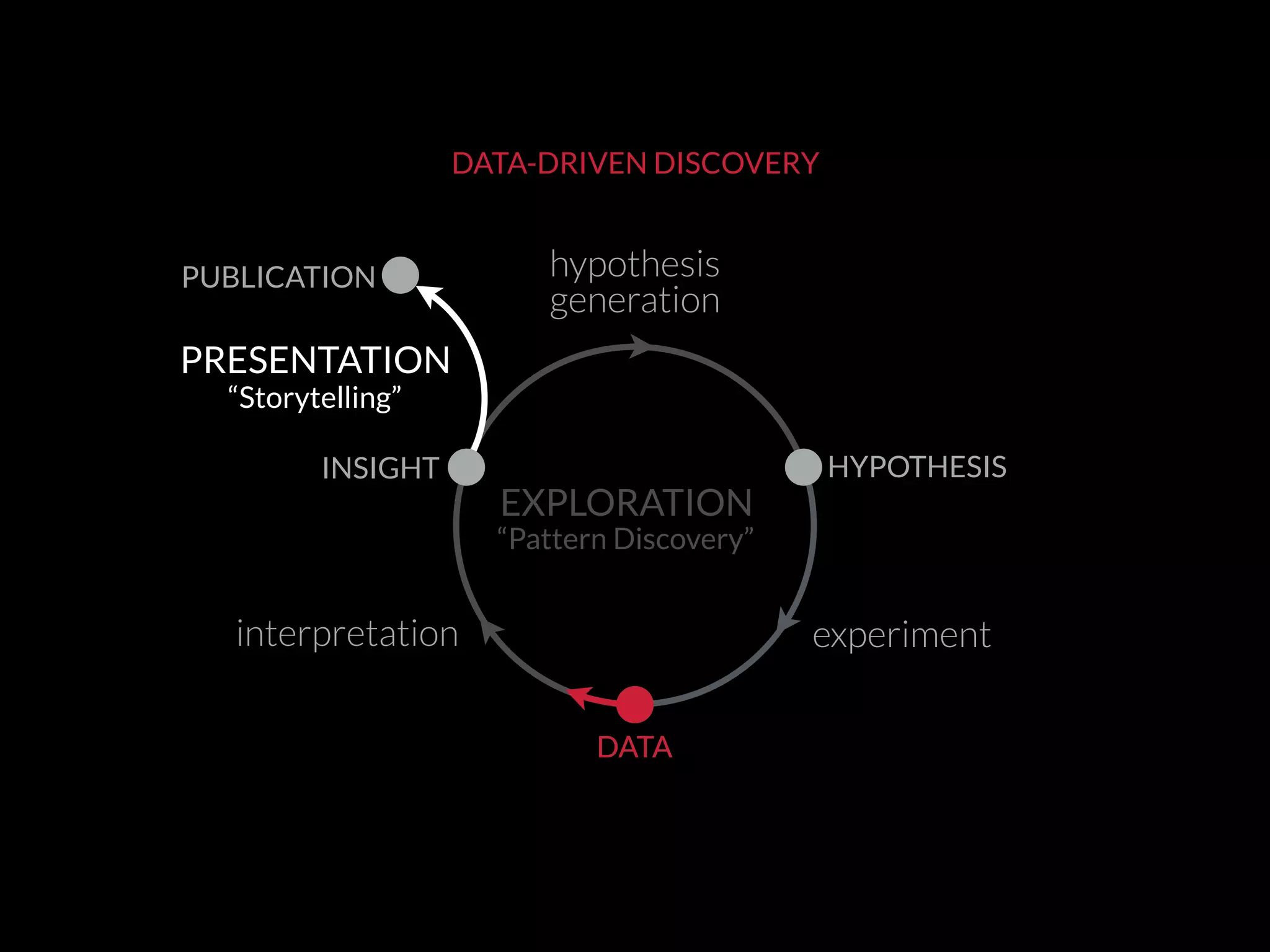

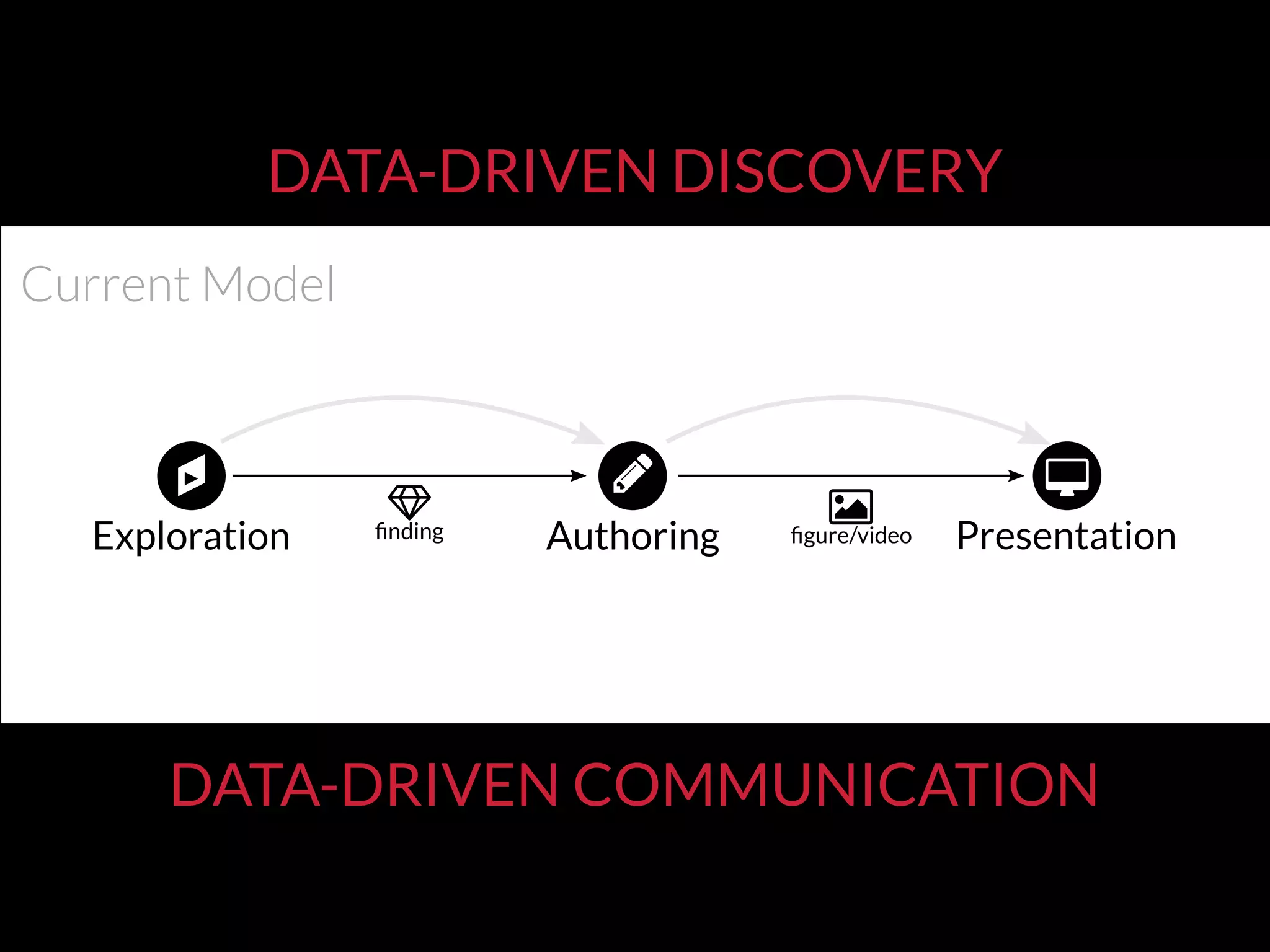

- 44. finding figure/videoAuthoringExploration Presentation DATA-DRIVENDISCOVERY DATA-DRIVEN COMMUNICATION finding figure/videoAuthoringExploration Presentation Current Model

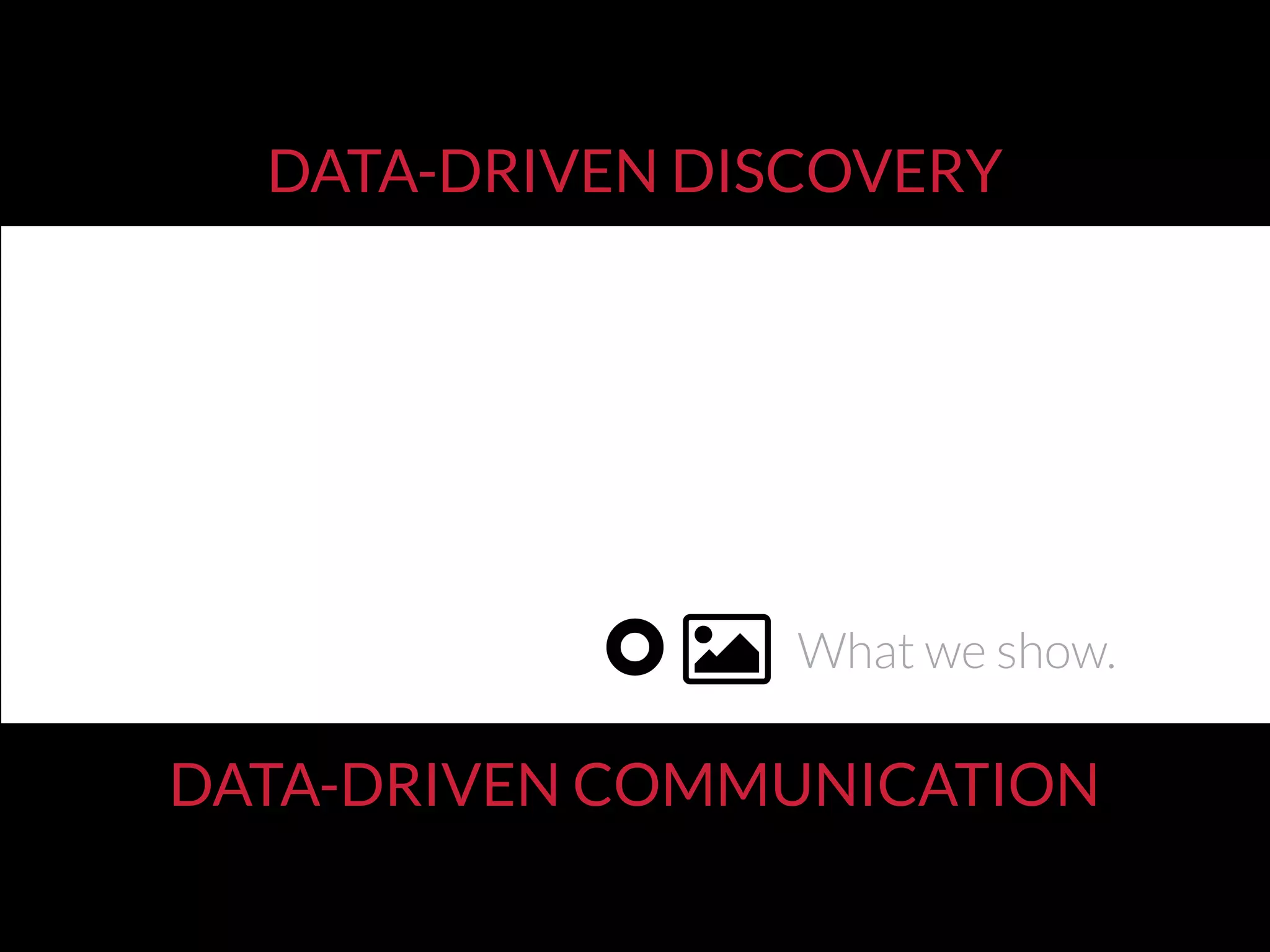

- 45. DATA-DRIVEN DISCOVERY DATA-DRIVEN COMMUNICATION figure/videoAuthoringPresentat What we show.

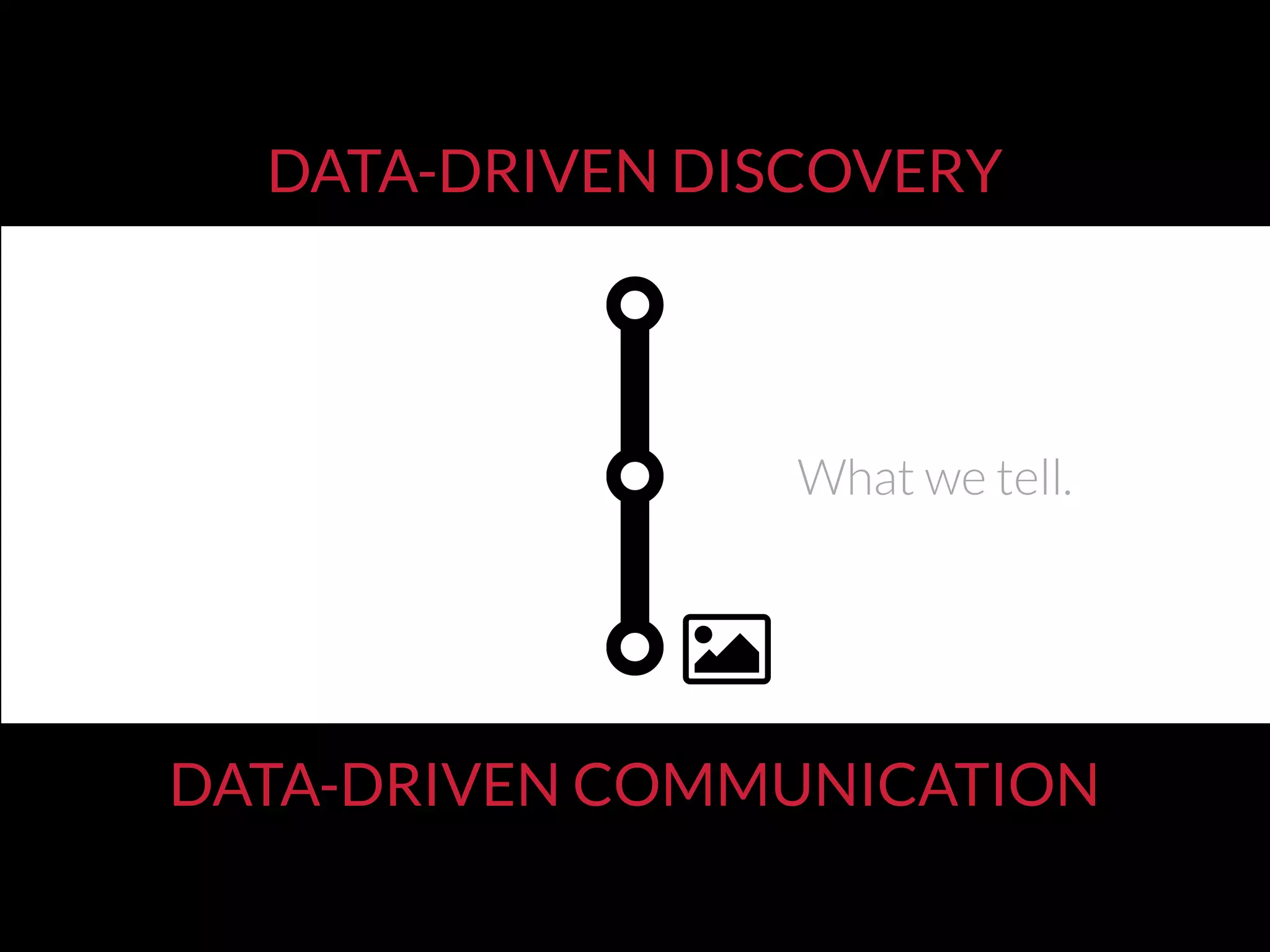

- 46. DATA-DRIVEN DISCOVERY DATA-DRIVEN COMMUNICATION figure/videoAuthoringPresentat What we tell.
- 47. DATA-DRIVEN DISCOVERY DATA-DRIVEN COMMUNICATION figure/videoAuthoringPresentat What we did.

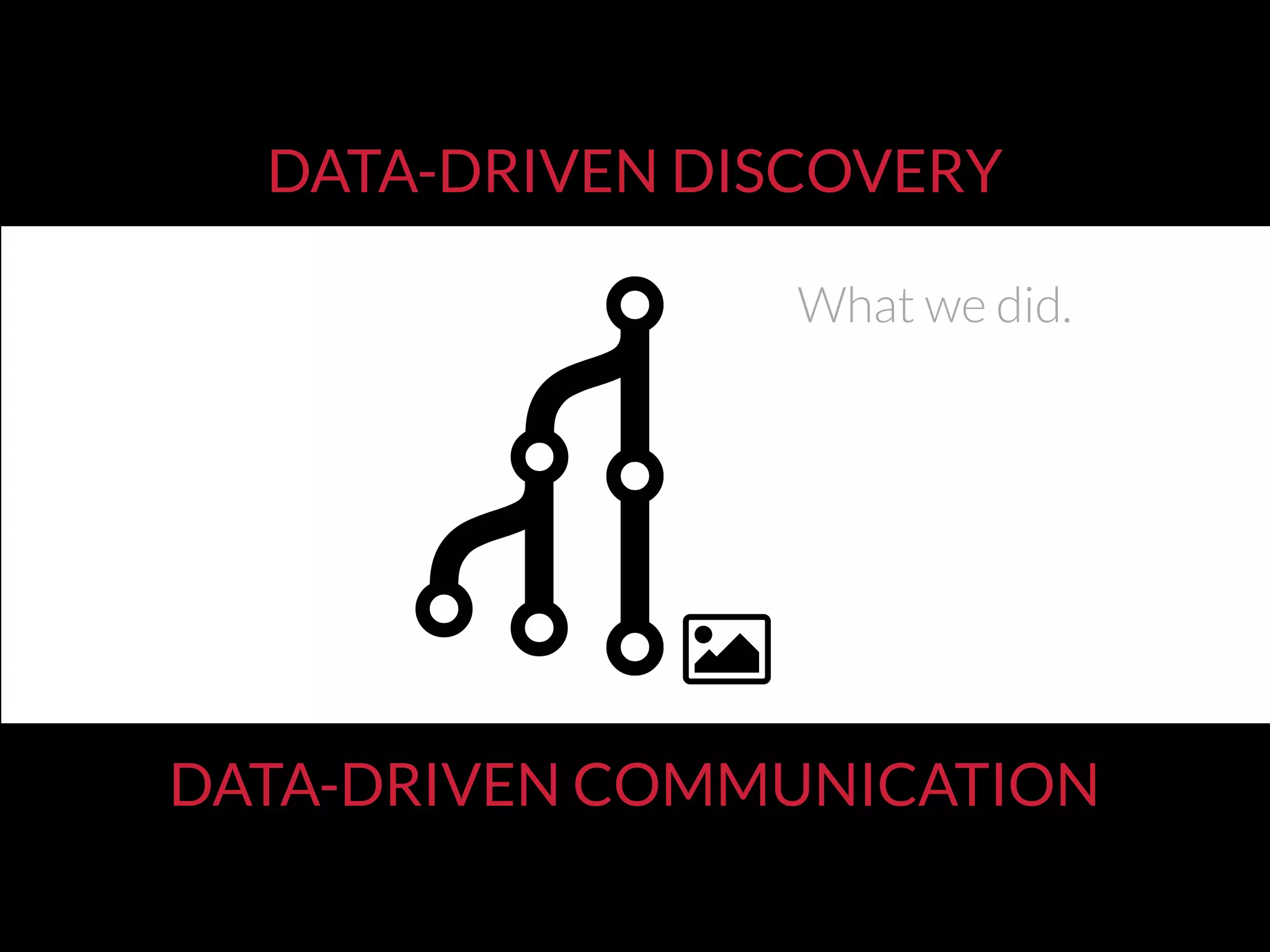

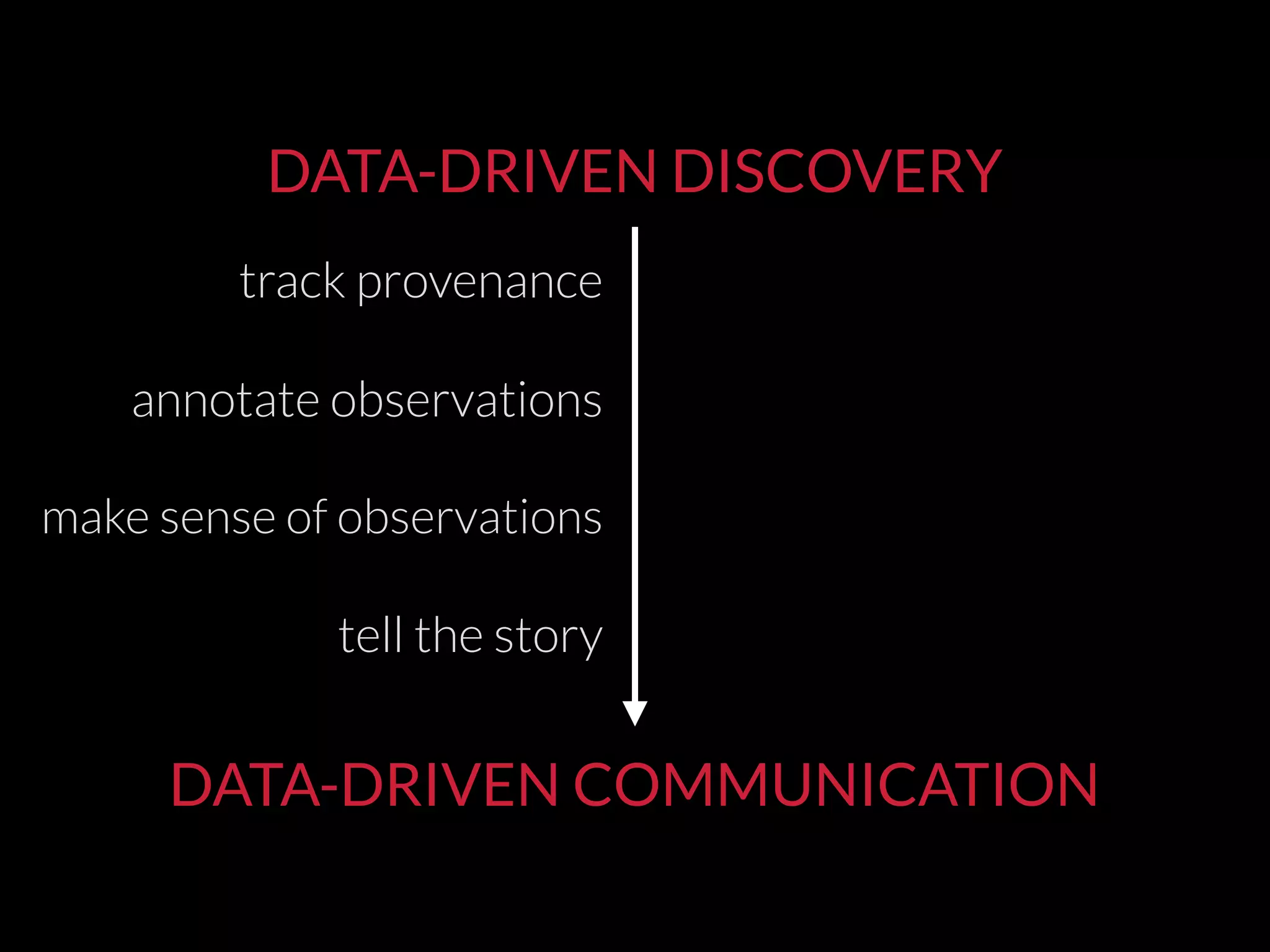

- 48. DATA-DRIVEN DISCOVERY DATA-DRIVEN COMMUNICATION trackprovenance annotate observations make sense of observations tell the story

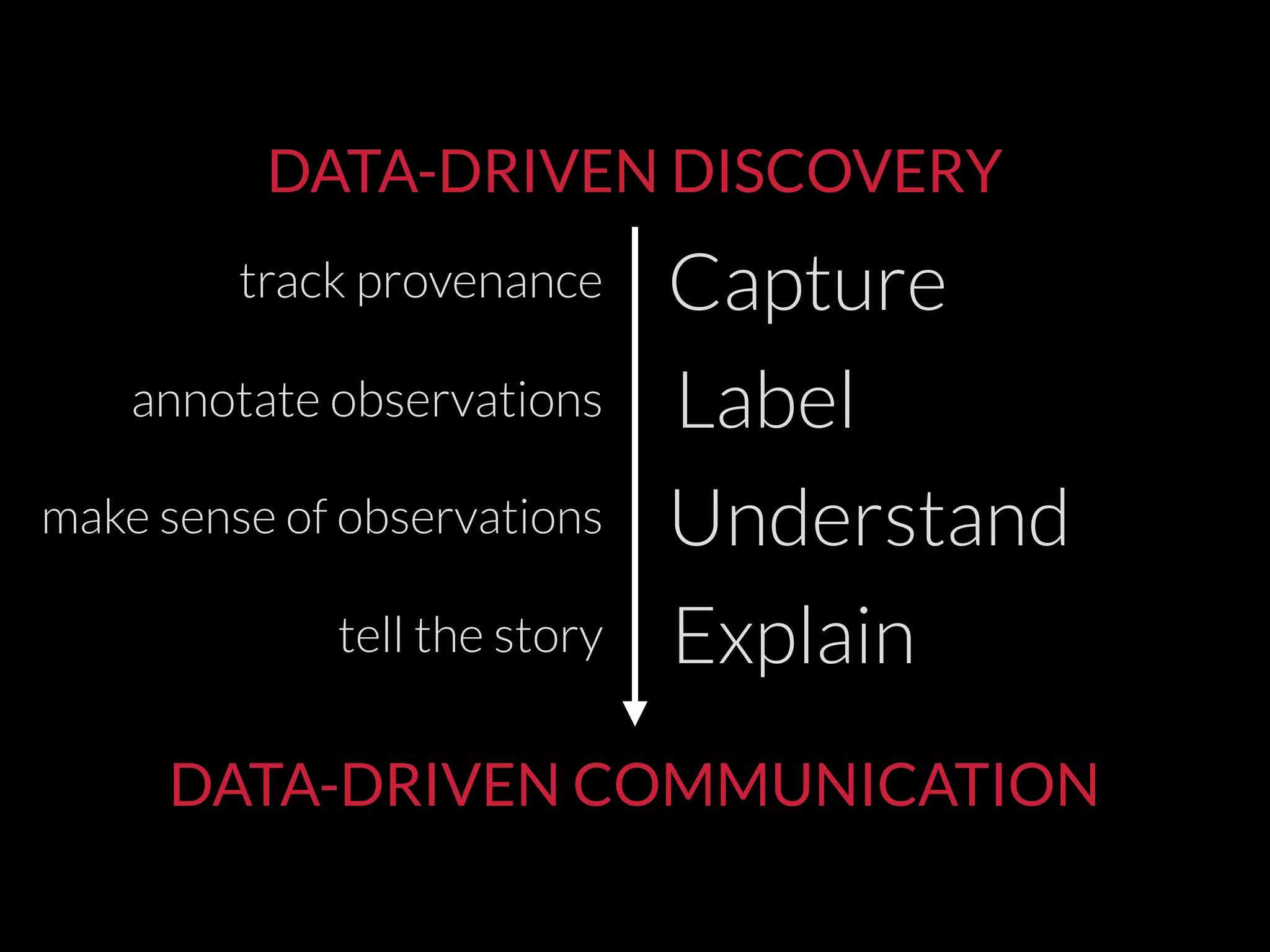

- 49. DATA-DRIVEN DISCOVERY DATA-DRIVEN COMMUNICATION Capture Label Understand Explain trackprovenance annotate observations make sense of observations tell the story

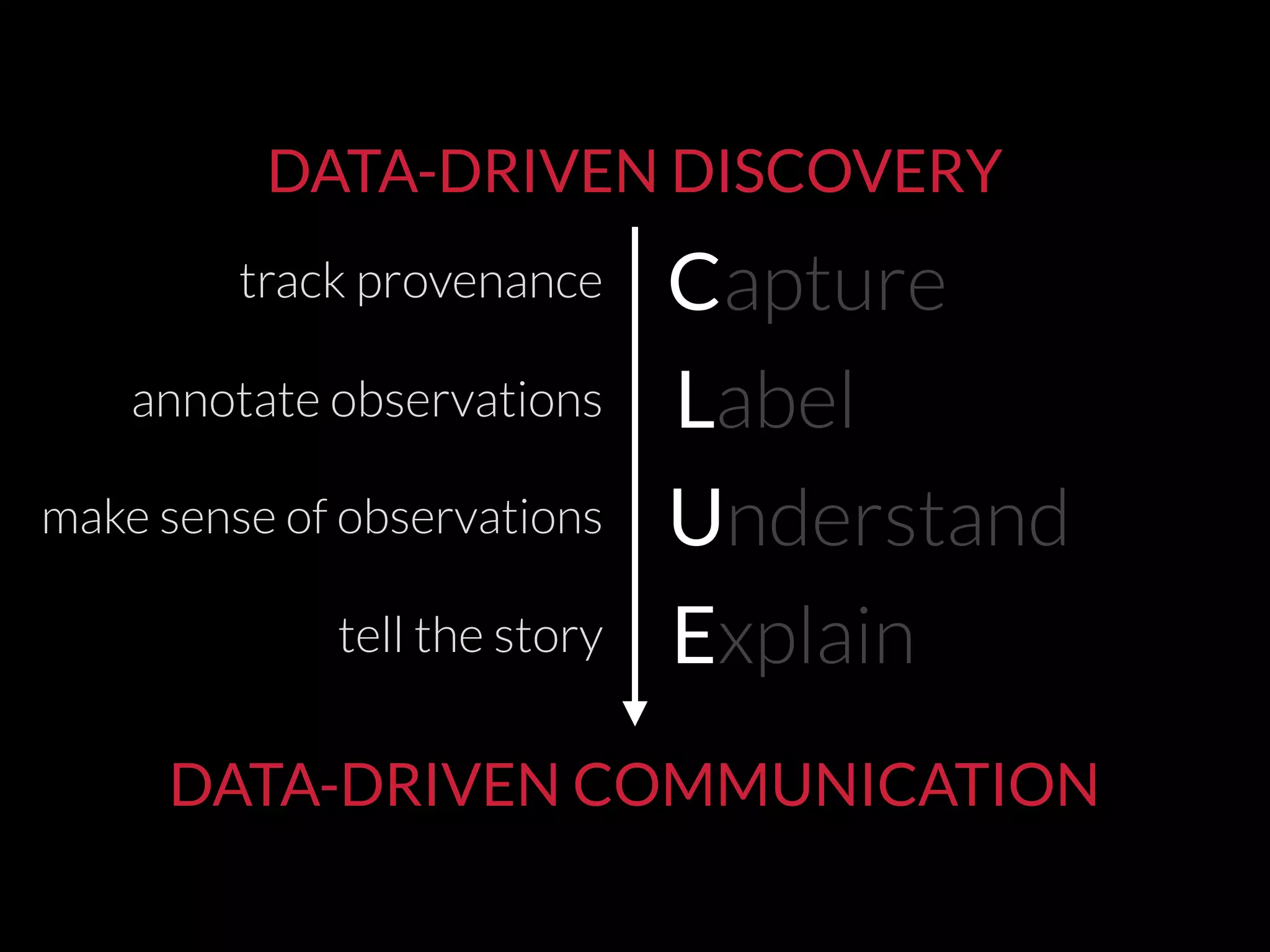

- 50. DATA-DRIVEN DISCOVERY DATA-DRIVEN COMMUNICATION Capture Label Understand Explain trackprovenance annotate observations make sense of observations tell the story C L U E

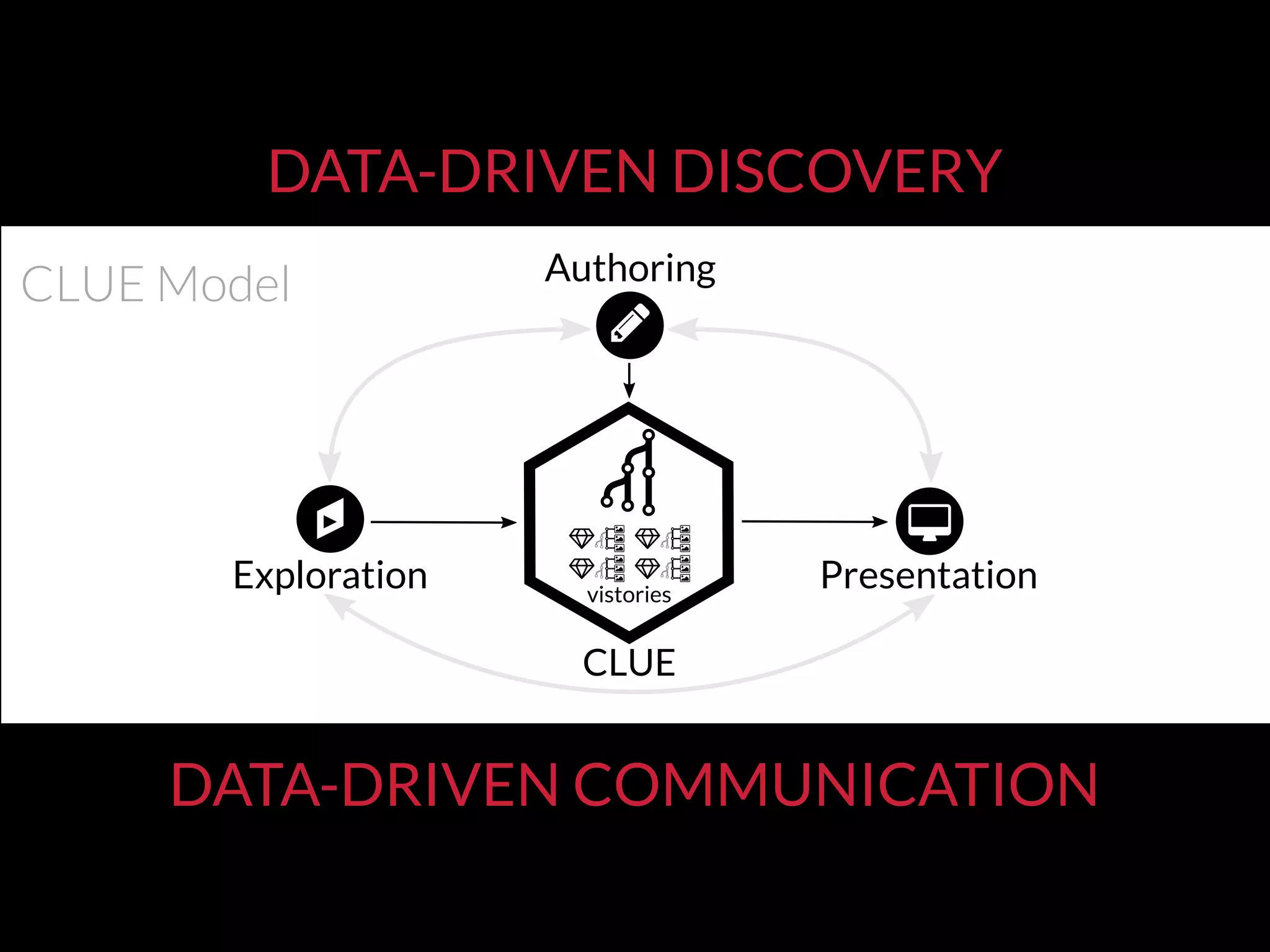

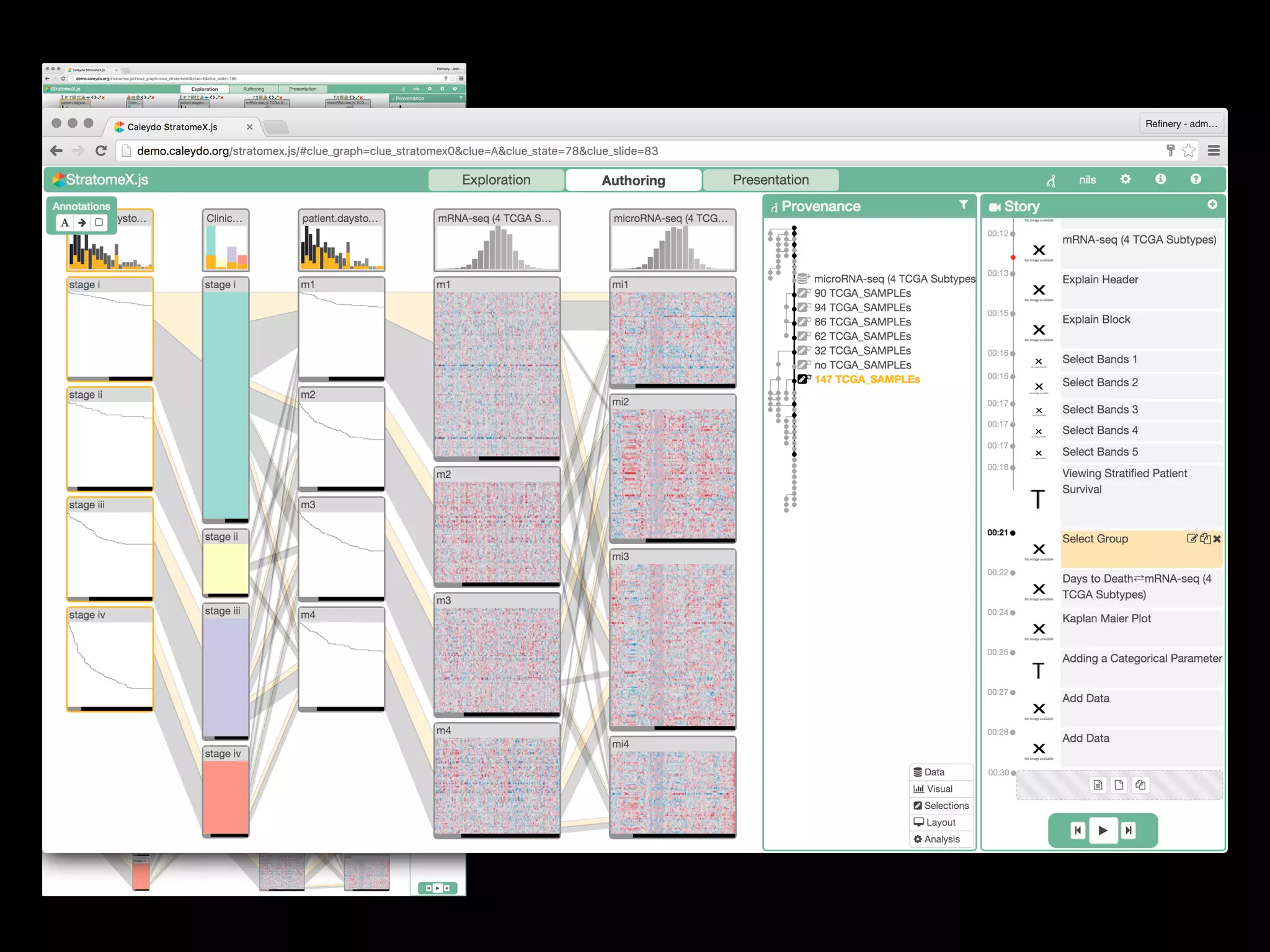

- 51. CLUE vistories Authoring Exploration Presentation DATA-DRIVEN DISCOVERY DATA-DRIVENCOMMUNICATION CLUE Model

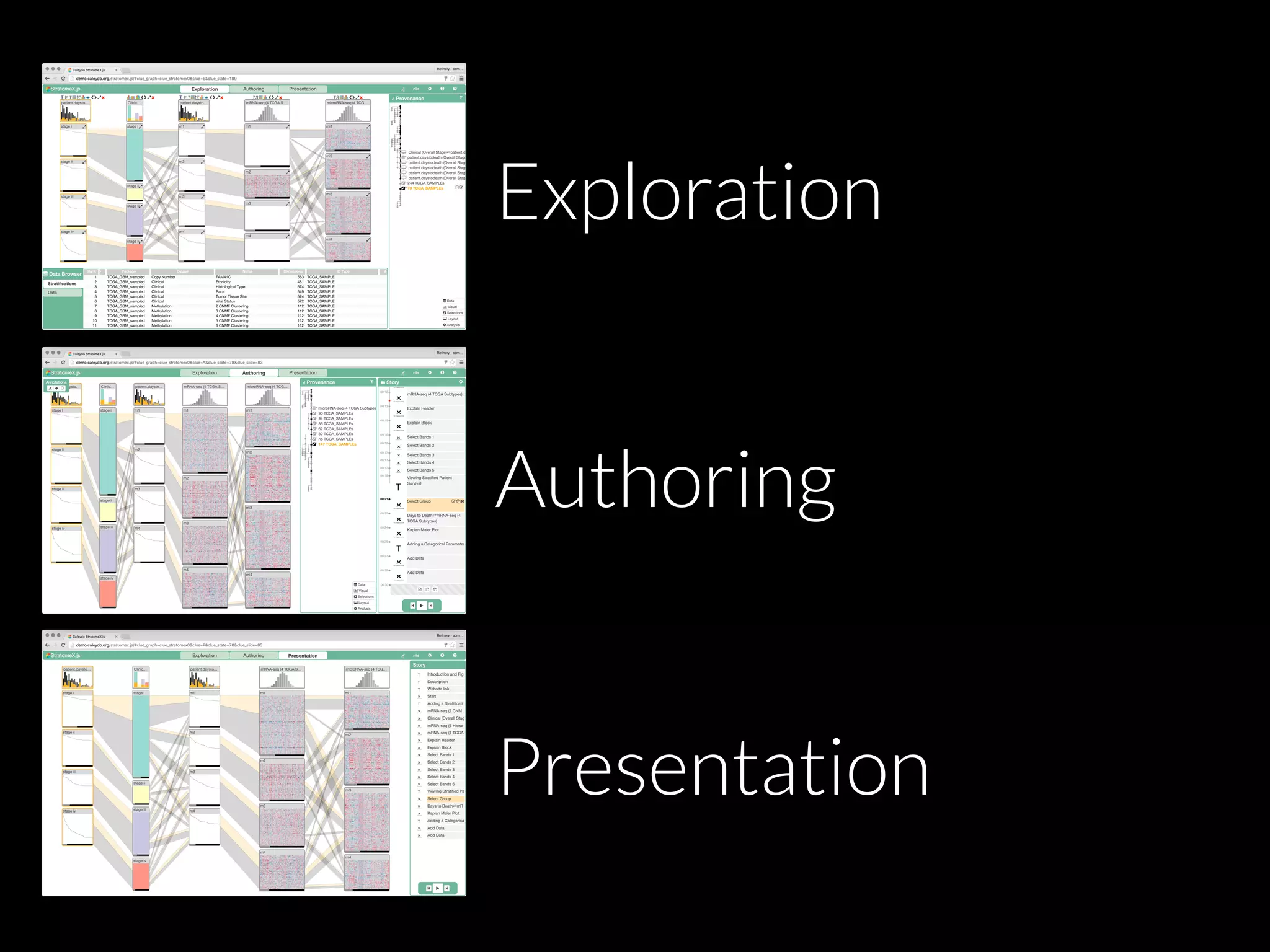

- 52.

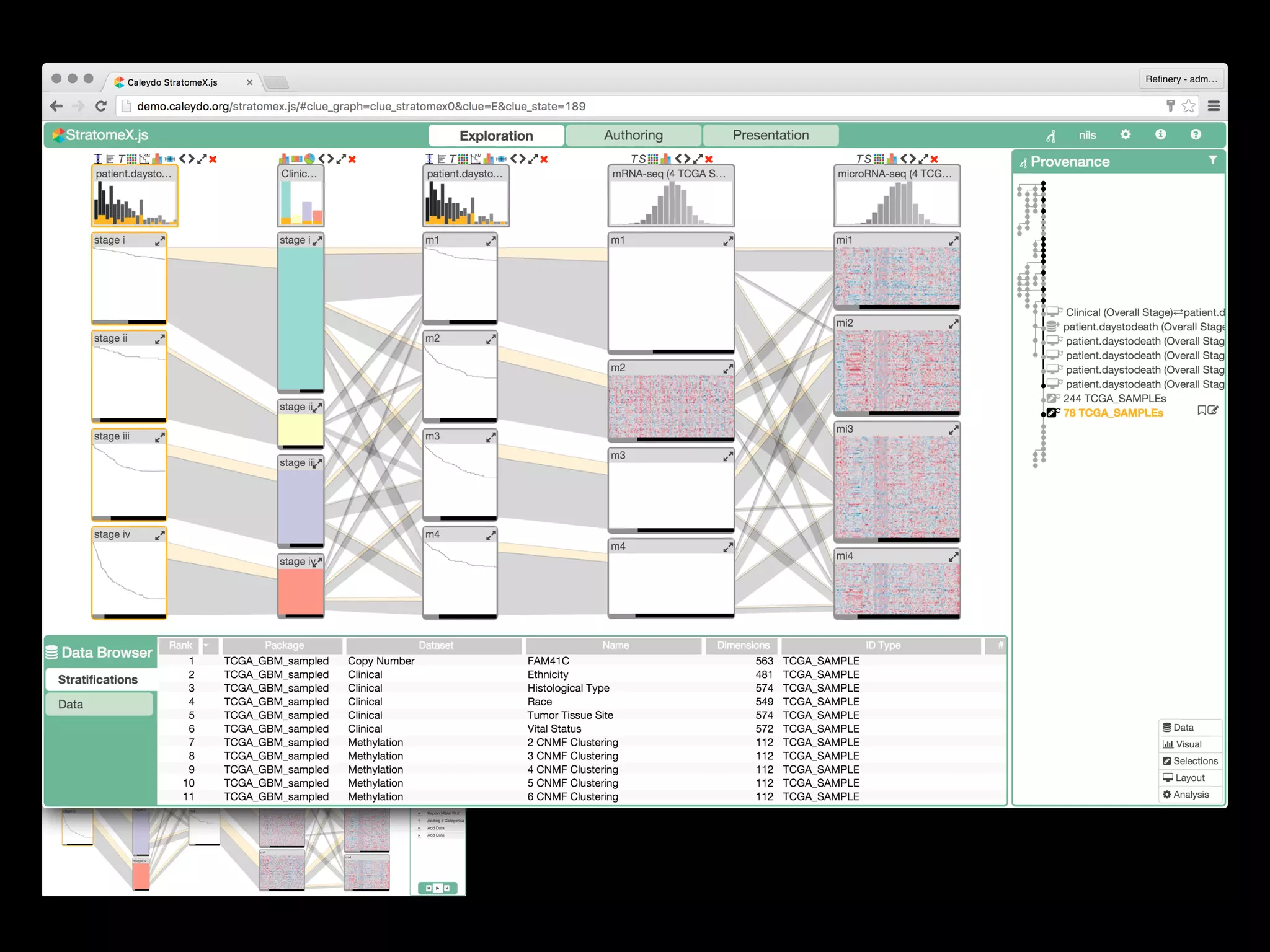

- 53.
- 54.
- 55.
- 56.

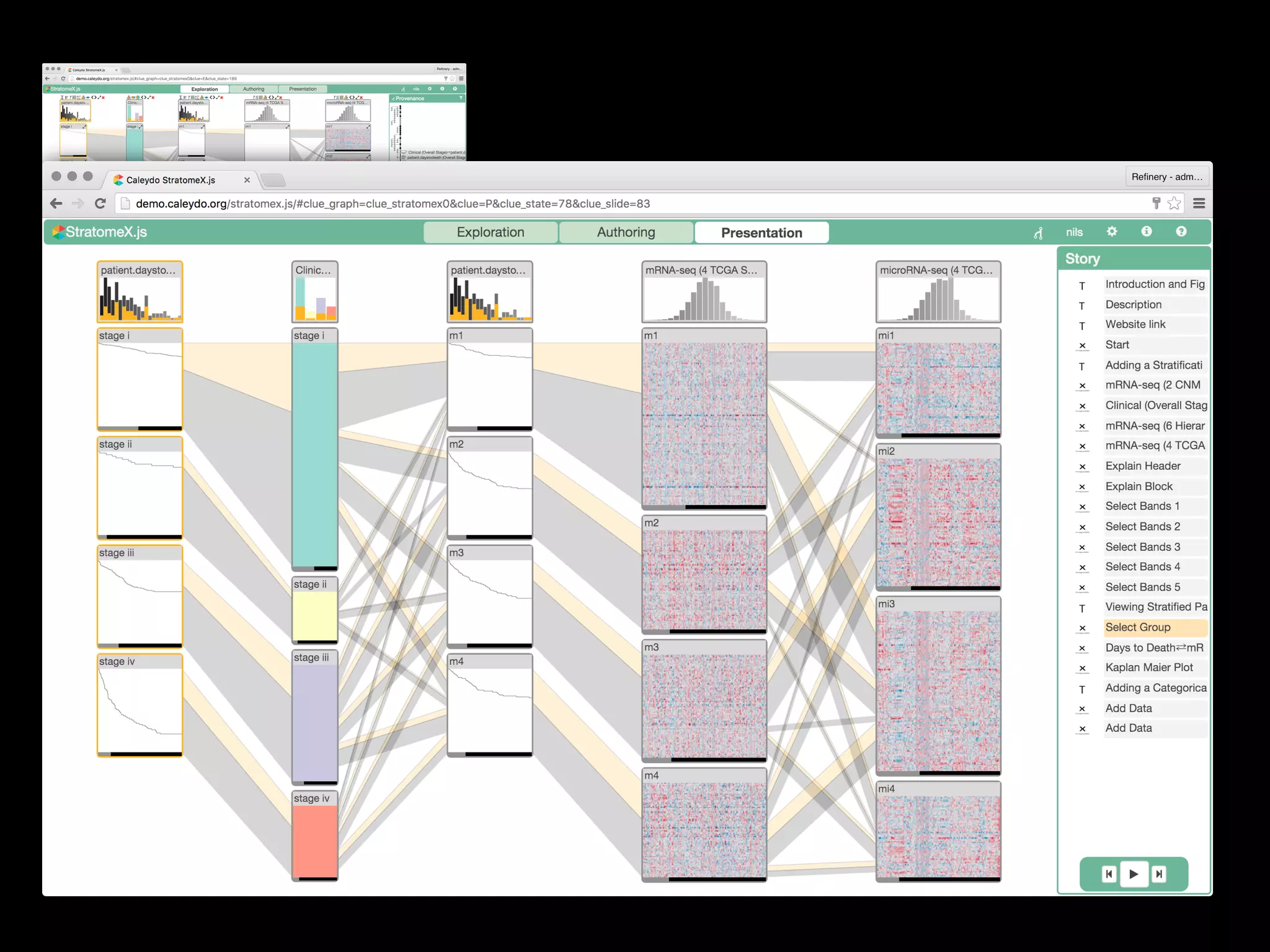

- 57.
- 58.
- 59.

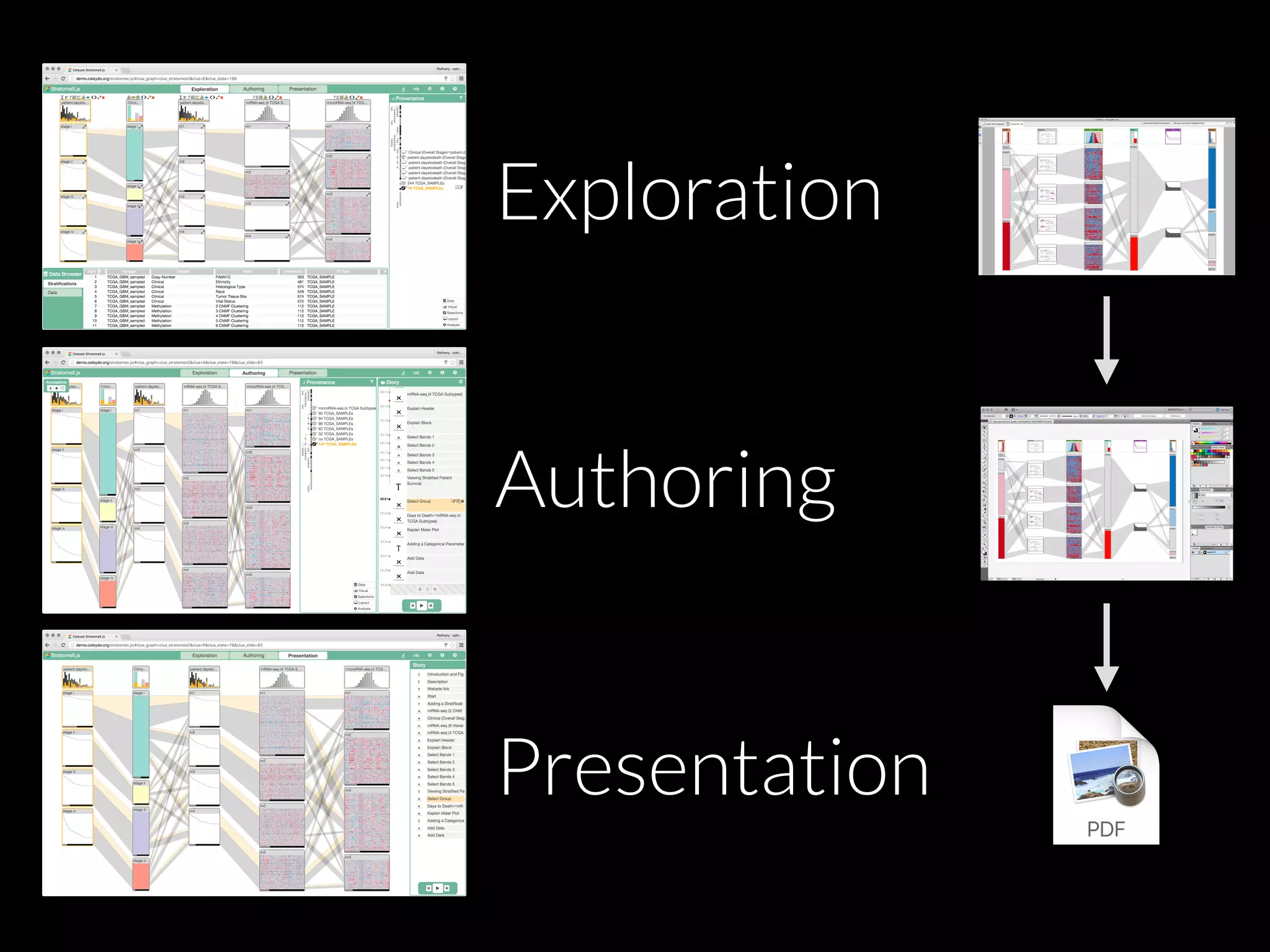

- 60. VISTORY = visualization+ story + history

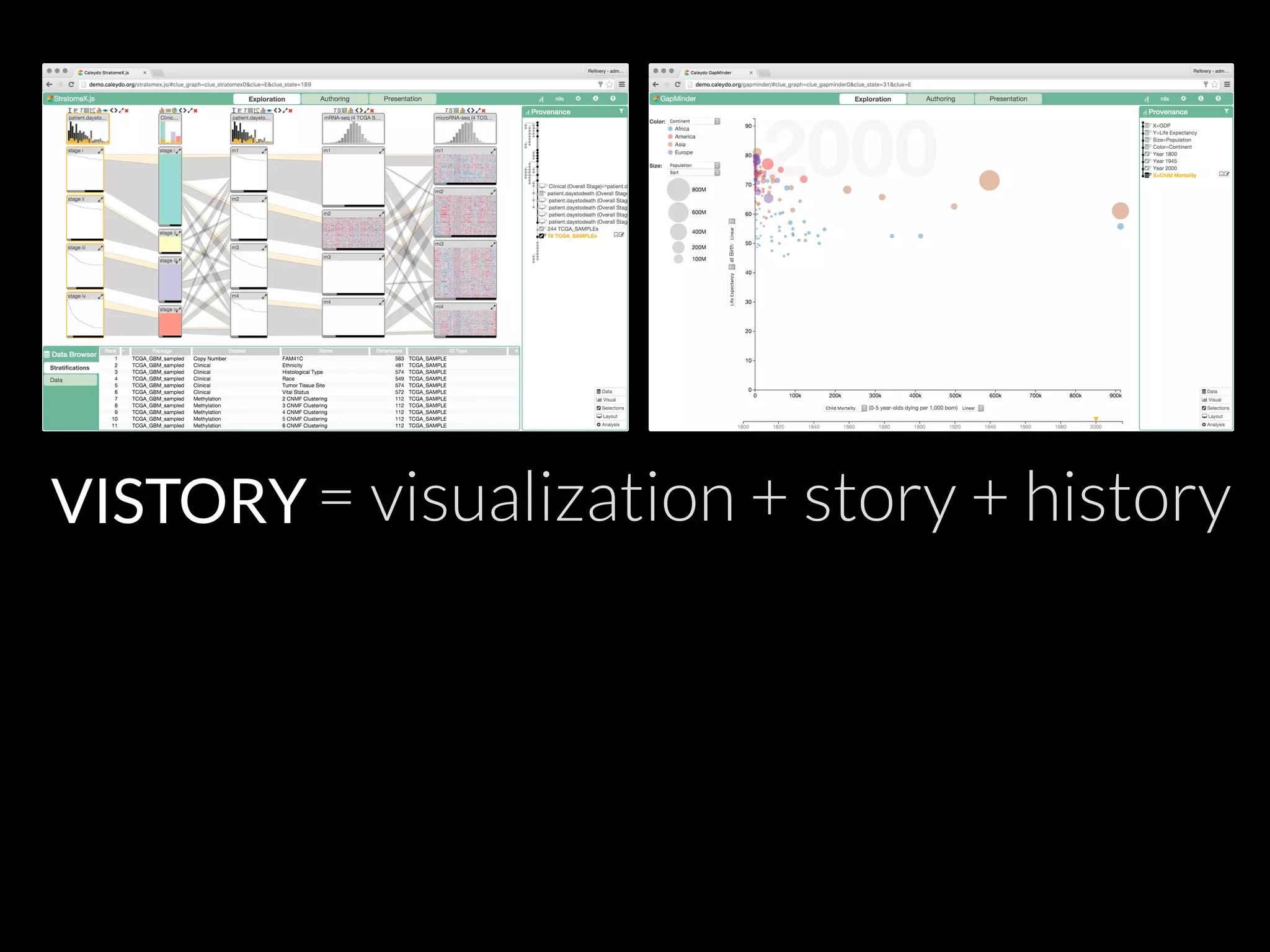

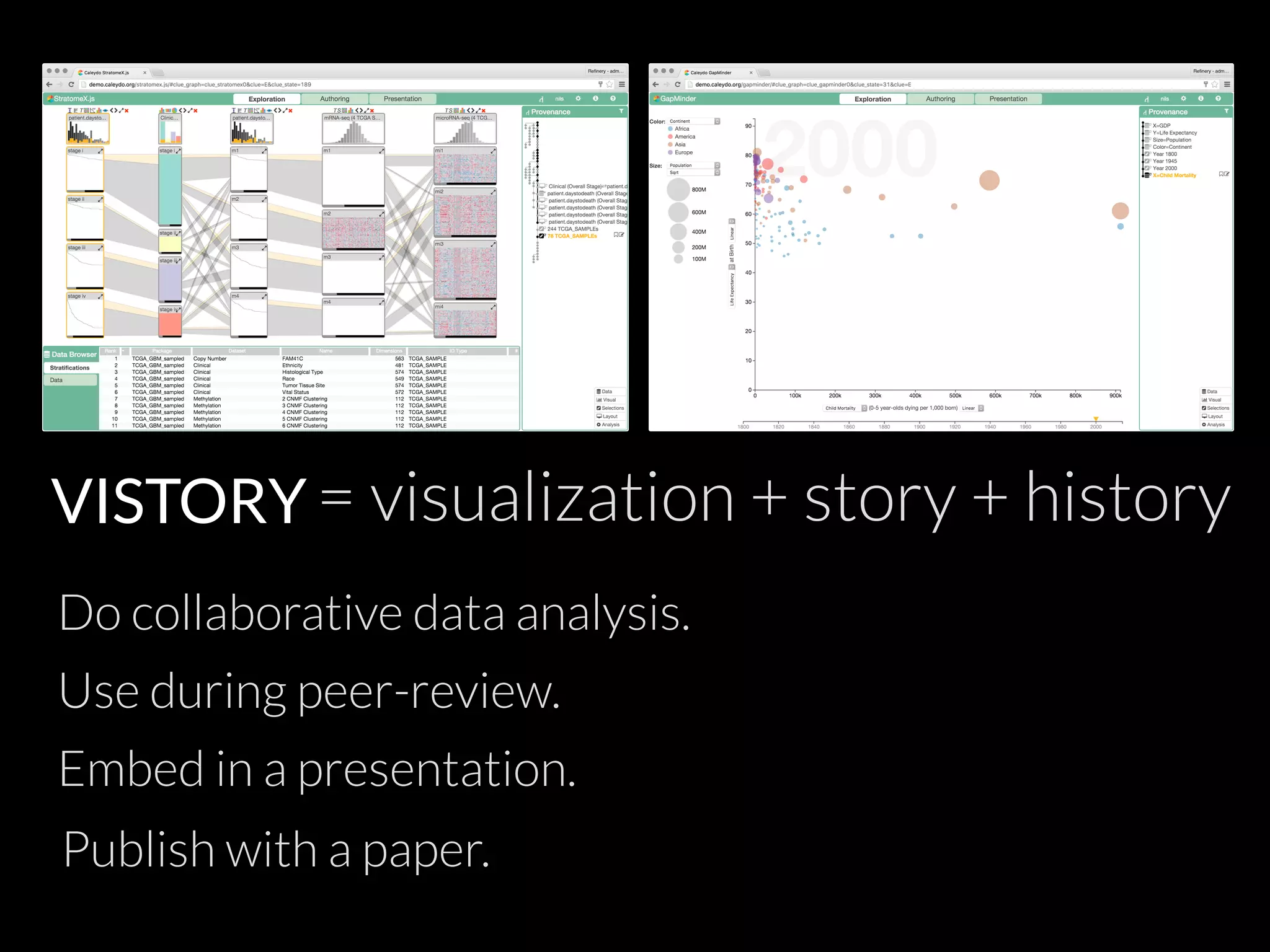

- 61. VISTORY = visualization+ story + history Do collaborative data analysis. Use during peer-review. Publish with a paper. Embed in a presentation.
- 62.
- 63.
- 64. DATA-DRIVEN DISCOVERY DATA-DRIVEN COMMUNICATION http://vistories.org Demosand prototypes built with

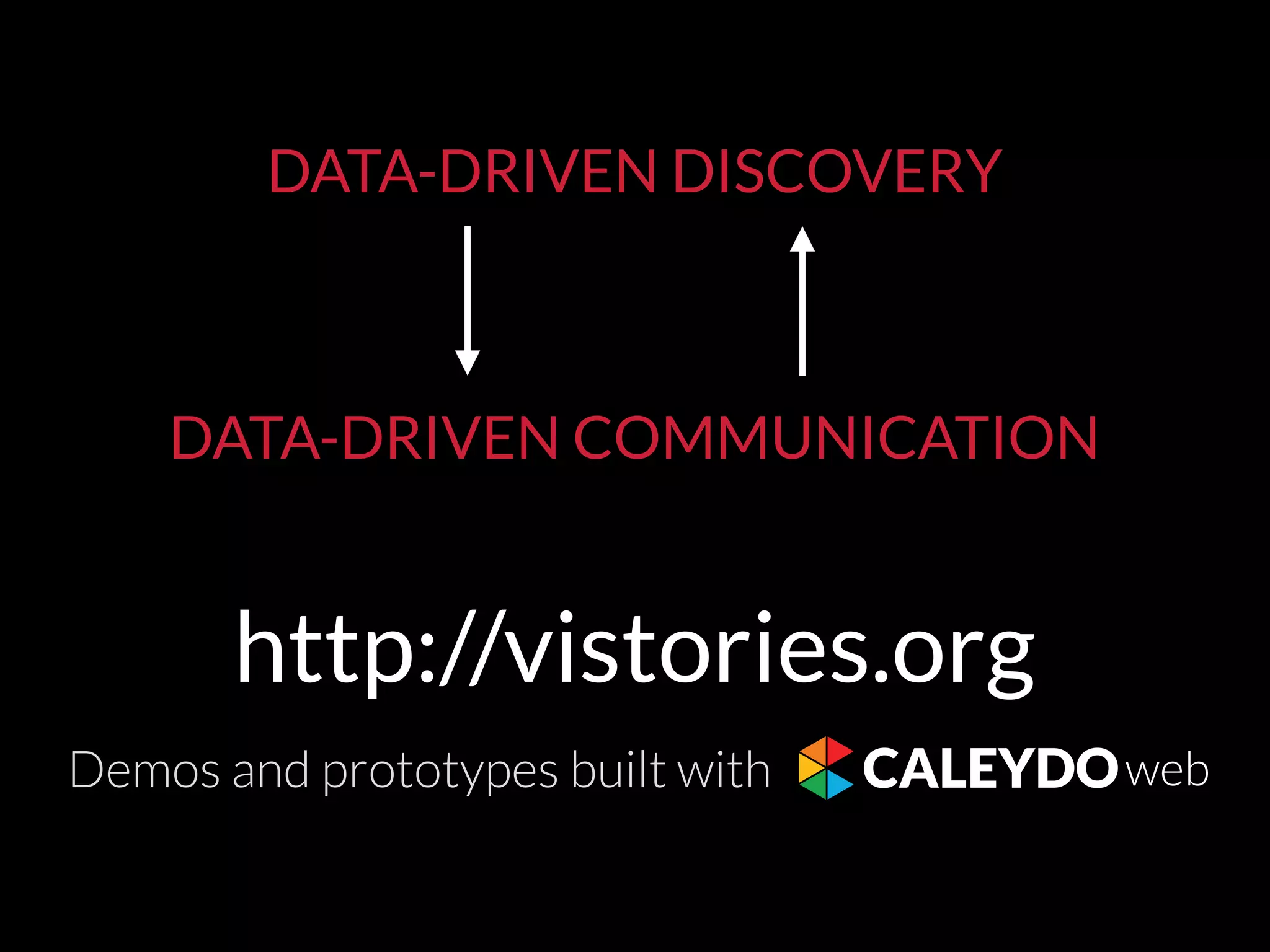

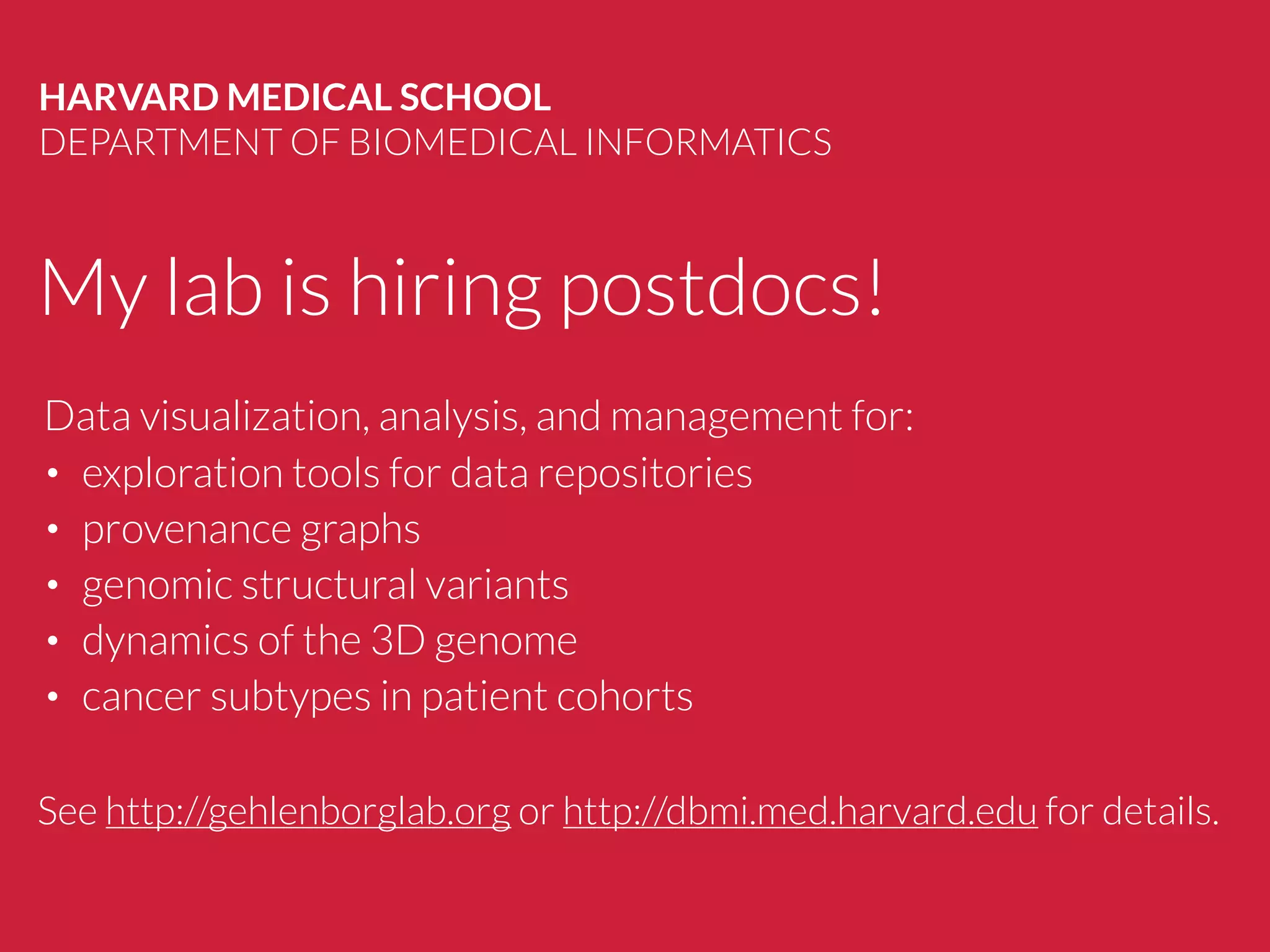

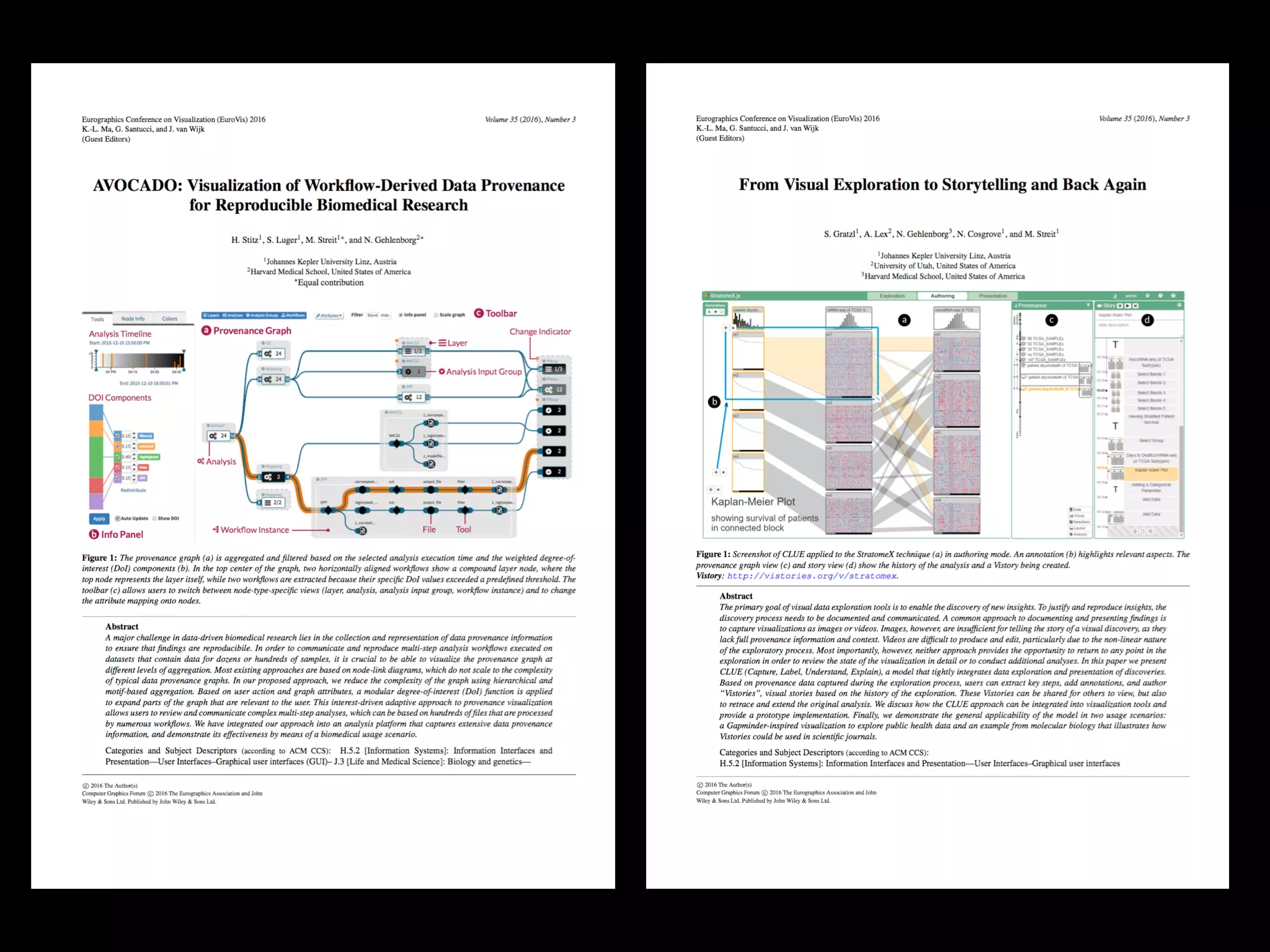

- 66. SAMUEL GRATZL JOHANNES KEPLERUNIVERSITY LINZ ALEXANDER LEX UNIVERSITY OF UTAH MARC STREIT JOHANNES KEPLER UNIVERSITY LINZ HOLGER STITZ JOHANNES KEPLER UNIVERSITY LINZ
