Togaf Version 9.1 Introduction Overview
- 1. Copyright © TheOpen Group 2011 Jorge Sebastiao, CISSP ICT Expert Huawei http://linkedin.com/in/sebastiao/ Twitter: @4jorge An Overview of TOGAF® Version 9.1 TOGAF is a registered trademark of The Open Group in the United States and other countries

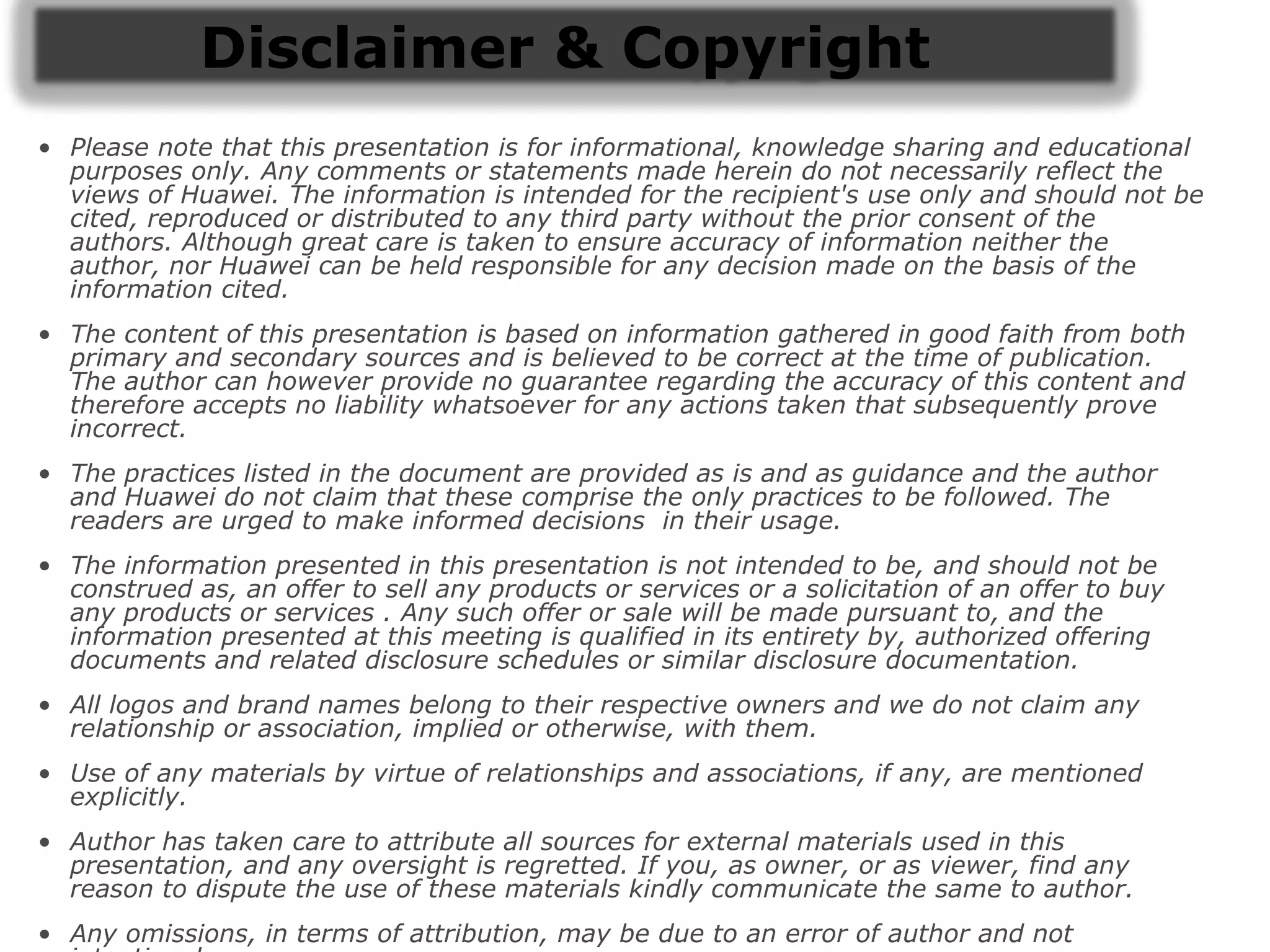

- 2. Disclaimer & Copyright •Please note that this presentation is for informational, knowledge sharing and educational purposes only. Any comments or statements made herein do not necessarily reflect the views of Huawei. The information is intended for the recipient's use only and should not be cited, reproduced or distributed to any third party without the prior consent of the authors. Although great care is taken to ensure accuracy of information neither the author, nor Huawei can be held responsible for any decision made on the basis of the information cited. • The content of this presentation is based on information gathered in good faith from both primary and secondary sources and is believed to be correct at the time of publication. The author can however provide no guarantee regarding the accuracy of this content and therefore accepts no liability whatsoever for any actions taken that subsequently prove incorrect. • The practices listed in the document are provided as is and as guidance and the author and Huawei do not claim that these comprise the only practices to be followed. The readers are urged to make informed decisions in their usage. • The information presented in this presentation is not intended to be, and should not be construed as, an offer to sell any products or services or a solicitation of an offer to buy any products or services . Any such offer or sale will be made pursuant to, and the information presented at this meeting is qualified in its entirety by, authorized offering documents and related disclosure schedules or similar disclosure documentation. • All logos and brand names belong to their respective owners and we do not claim any relationship or association, implied or otherwise, with them. • Use of any materials by virtue of relationships and associations, if any, are mentioned explicitly. • Author has taken care to attribute all sources for external materials used in this presentation, and any oversight is regretted. If you, as owner, or as viewer, find any reason to dispute the use of these materials kindly communicate the same to author. • Any omissions, in terms of attribution, may be due to an error of author and not

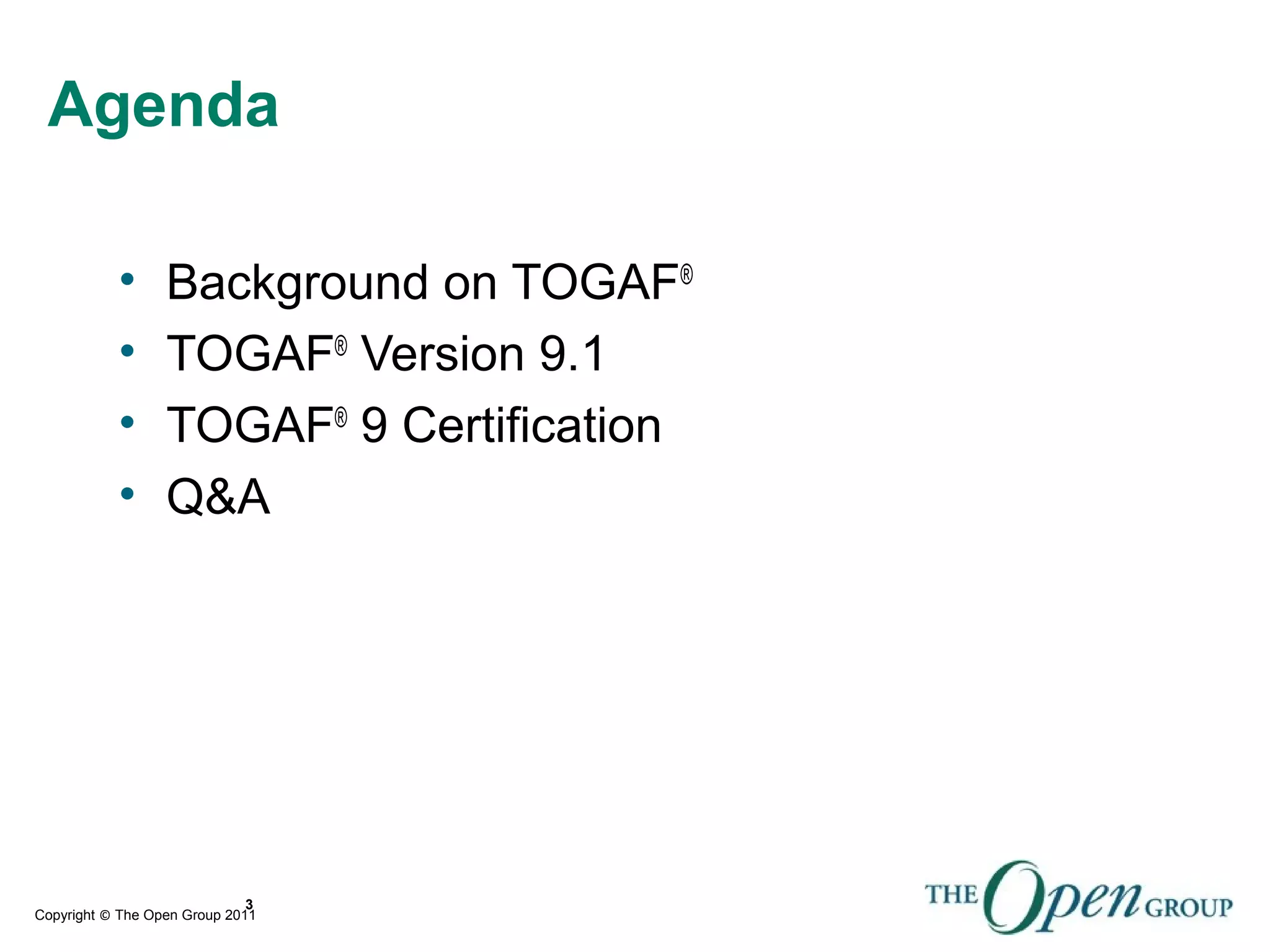

- 3. Copyright © TheOpen Group 2011 Agenda • Background on TOGAF® • TOGAF® Version 9.1 • TOGAF® 9 Certification • Q&A 3

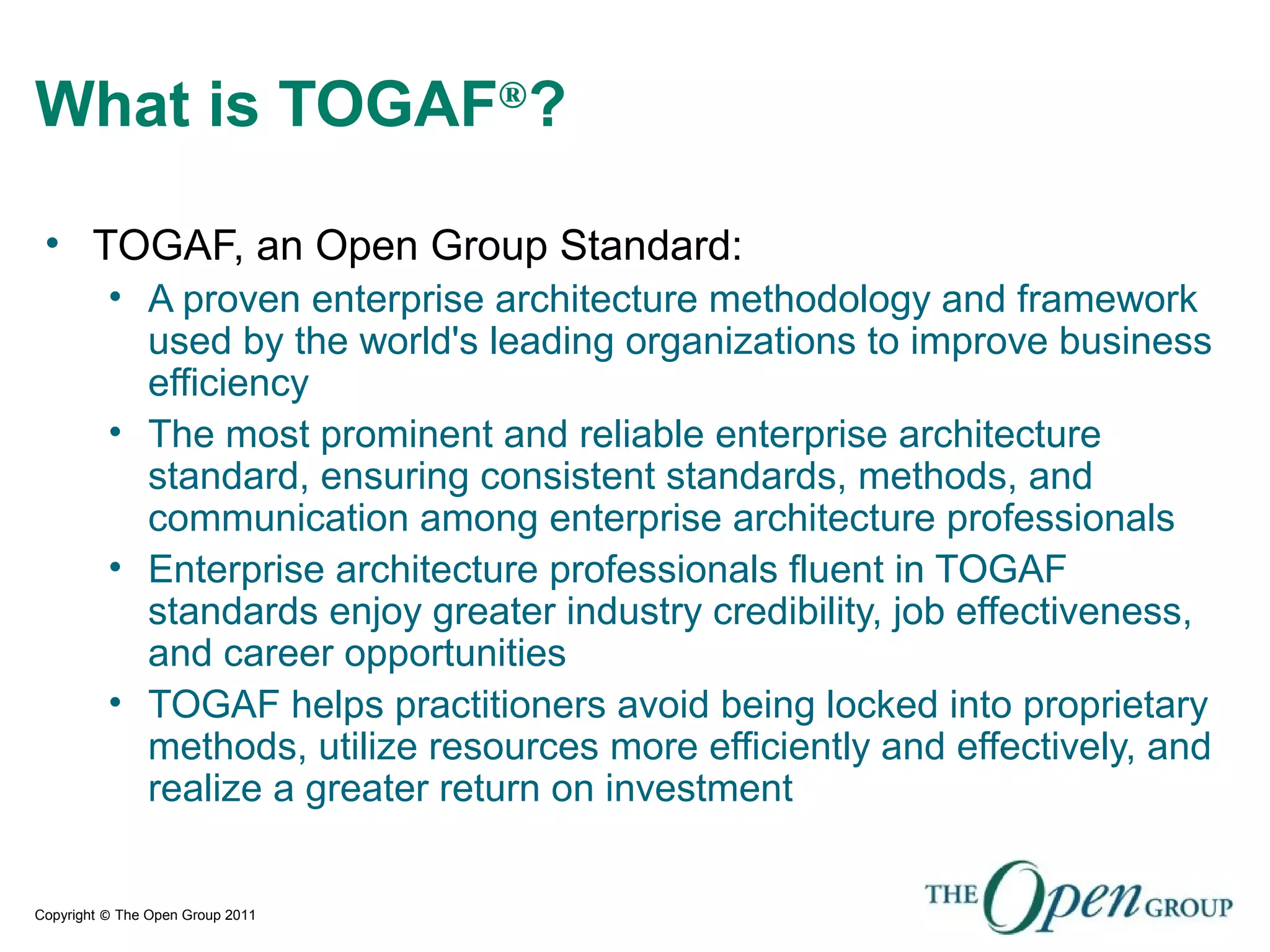

- 4. Copyright © TheOpen Group 2011 What is TOGAF® ? • TOGAF, an Open Group Standard: • A proven enterprise architecture methodology and framework used by the world's leading organizations to improve business efficiency • The most prominent and reliable enterprise architecture standard, ensuring consistent standards, methods, and communication among enterprise architecture professionals • Enterprise architecture professionals fluent in TOGAF standards enjoy greater industry credibility, job effectiveness, and career opportunities • TOGAF helps practitioners avoid being locked into proprietary methods, utilize resources more efficiently and effectively, and realize a greater return on investment

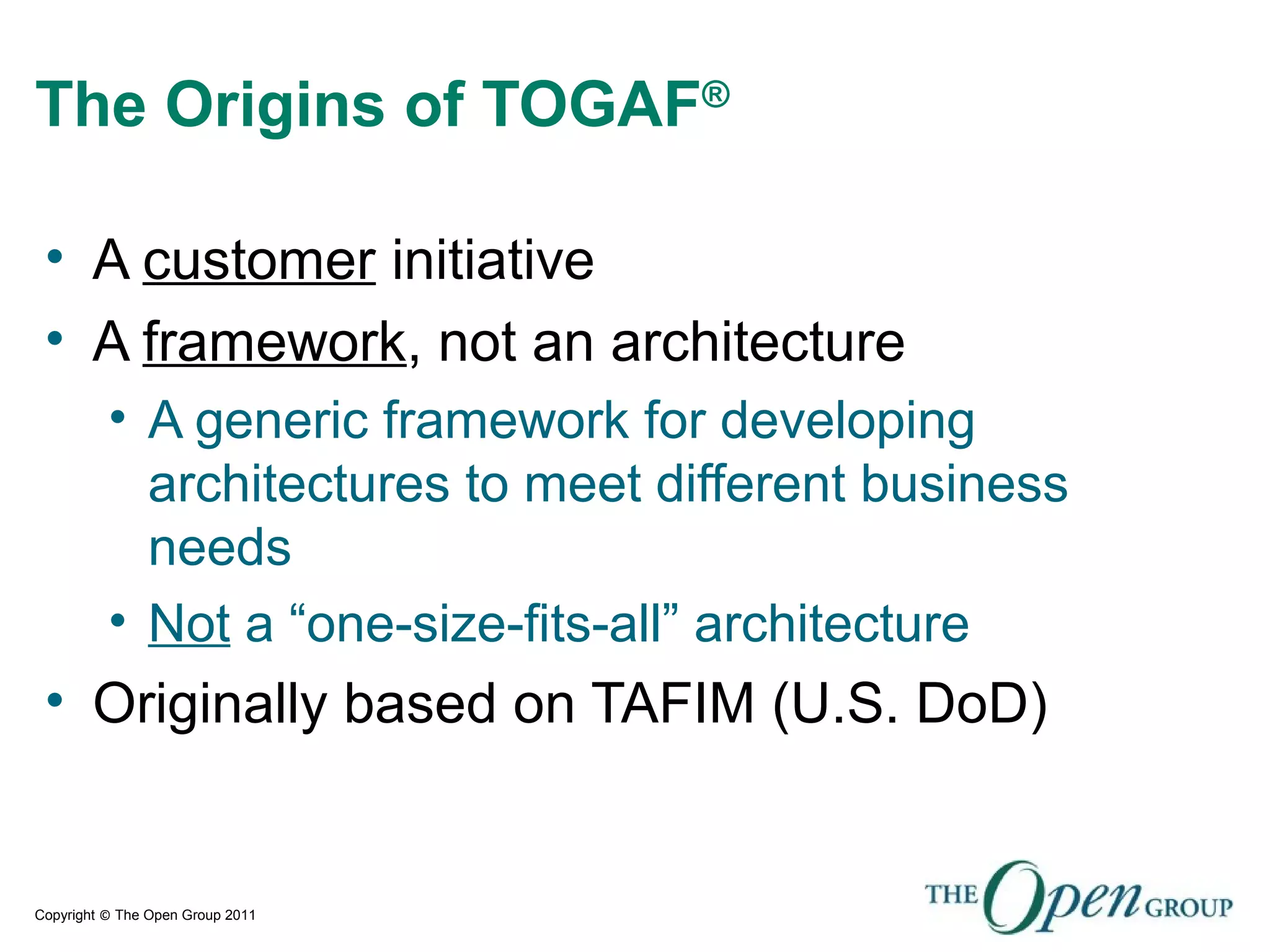

- 5. Copyright © TheOpen Group 2011 The Origins of TOGAF® • A customer initiative • A framework, not an architecture • A generic framework for developing architectures to meet different business needs • Not a “one-size-fits-all” architecture • Originally based on TAFIM (U.S. DoD)

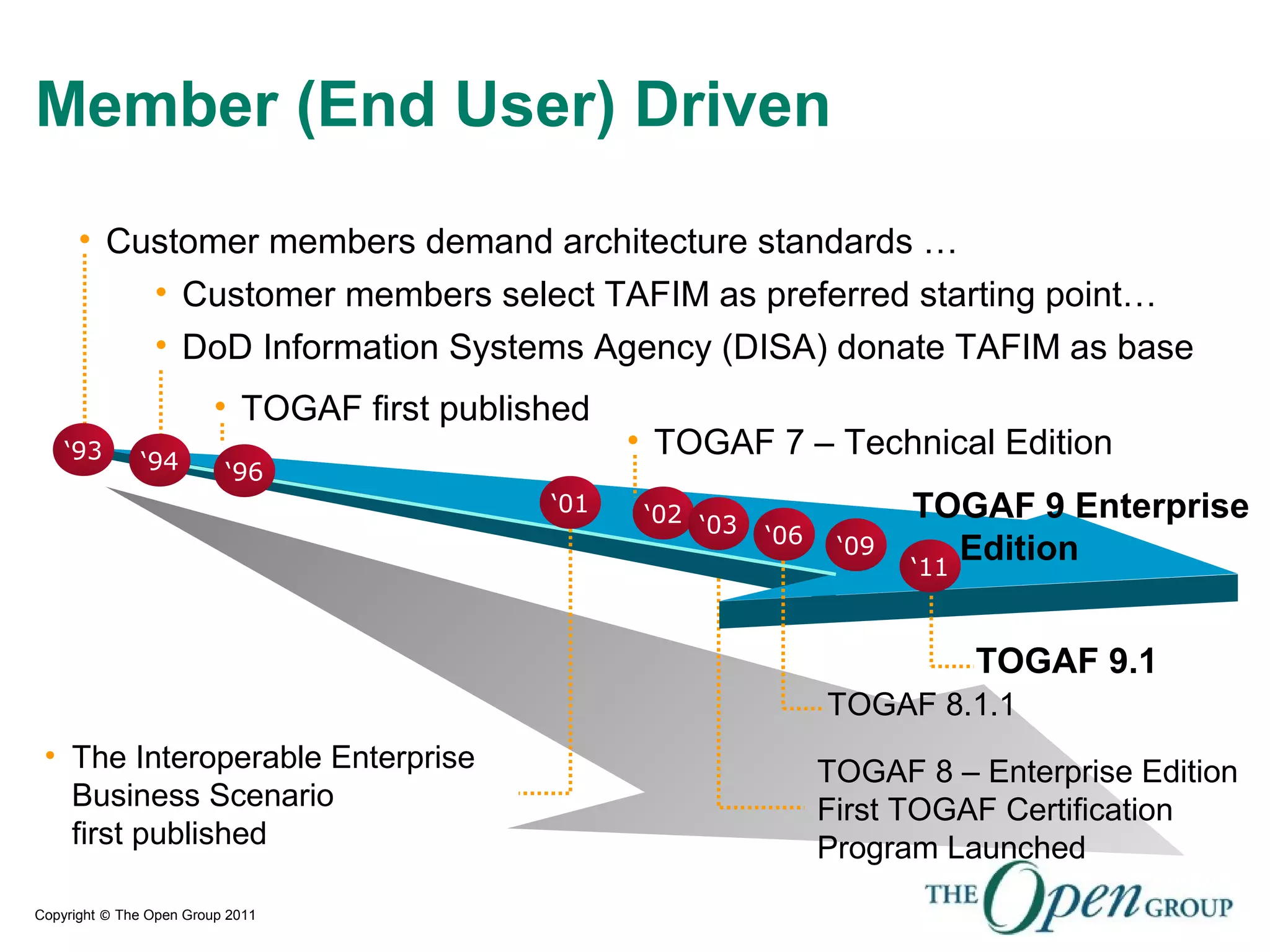

- 6. Copyright © TheOpen Group 2011 Member (End User) Driven • Customer members demand architecture standards … • DoD Information Systems Agency (DISA) donate TAFIM as base • TOGAF first published • Customer members select TAFIM as preferred starting point… ‘93 • TOGAF 7 – Technical Edition‘94 ‘96 ‘02 TOGAF 8 – Enterprise Edition First TOGAF Certification Program Launched TOGAF 9 Enterprise Edition • The Interoperable Enterprise Business Scenario first published ‘01 ‘03 ‘09‘06 TOGAF 8.1.1 TOGAF 9.1 ‘11

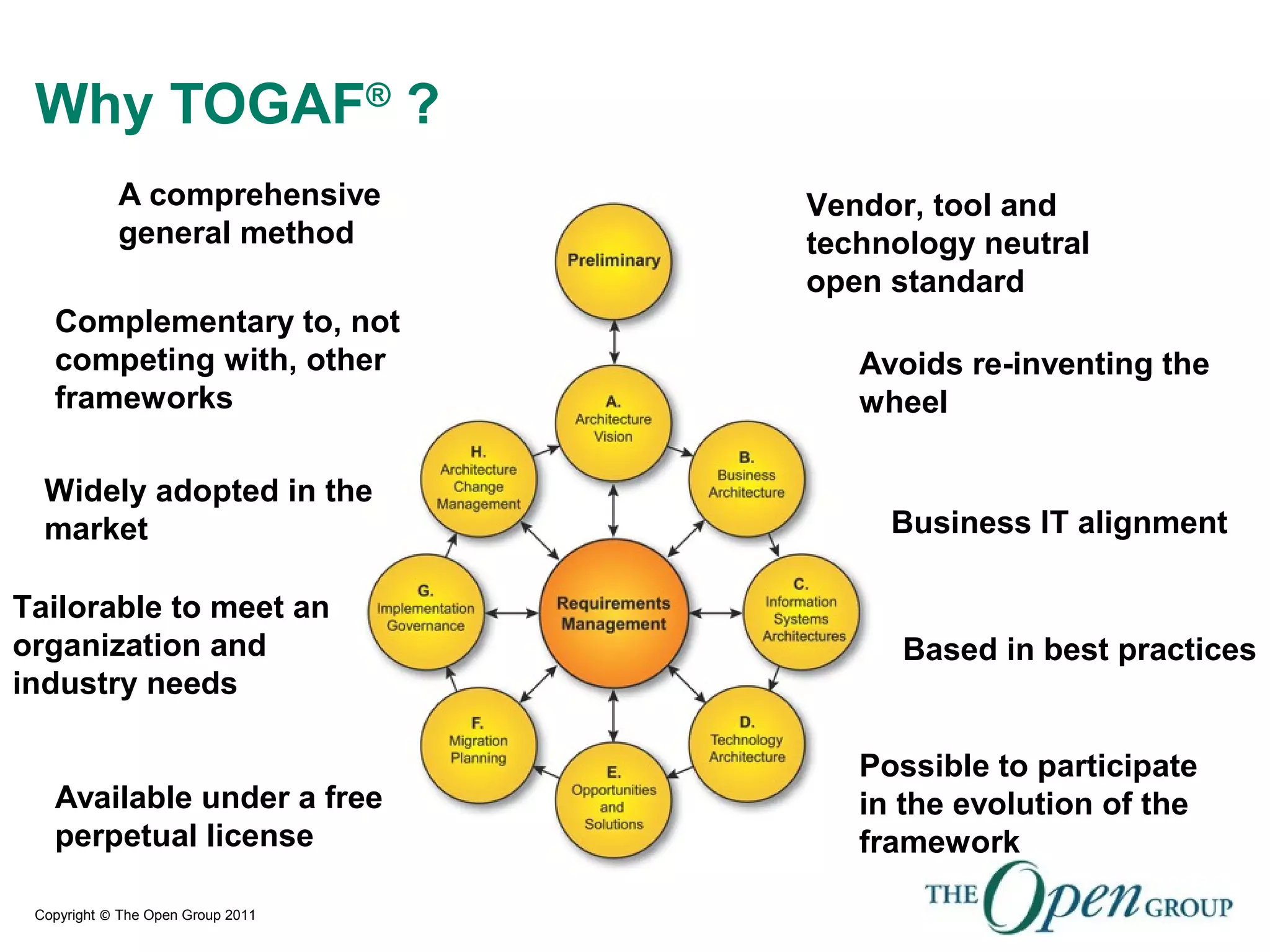

- 7. Copyright © TheOpen Group 2011 Why TOGAF® ? Vendor, tool and technology neutral open standard Avoids re-inventing the wheel A comprehensive general method Widely adopted in the market Available under a free perpetual license Tailorable to meet an organization and industry needs Possible to participate in the evolution of the framework Based in best practices Business IT alignment Complementary to, not competing with, other frameworks

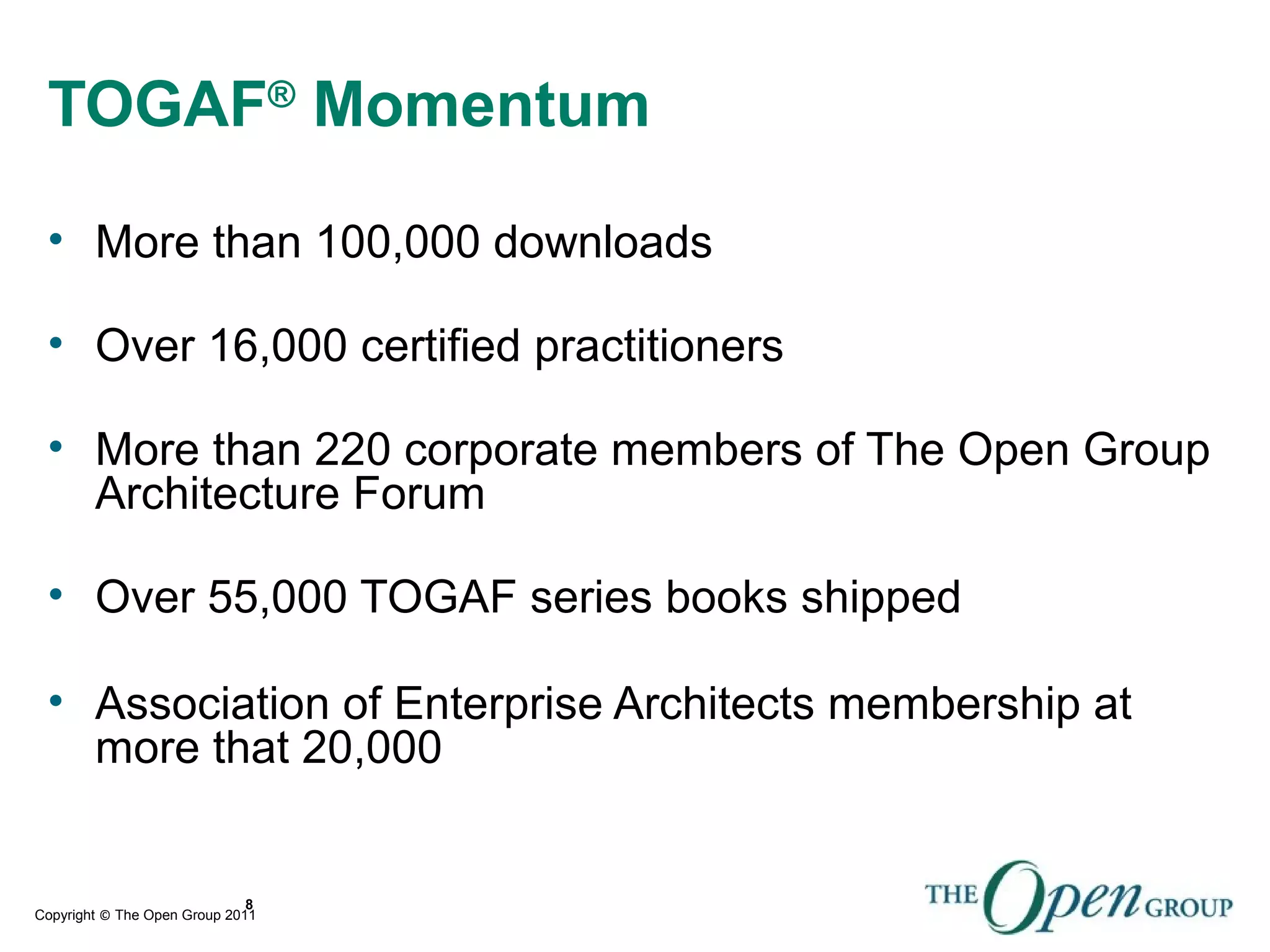

- 8. Copyright © TheOpen Group 2011 TOGAF® Momentum • More than 100,000 downloads • Over 16,000 certified practitioners • More than 220 corporate members of The Open Group Architecture Forum • Over 55,000 TOGAF series books shipped • Association of Enterprise Architects membership at more that 20,000 8

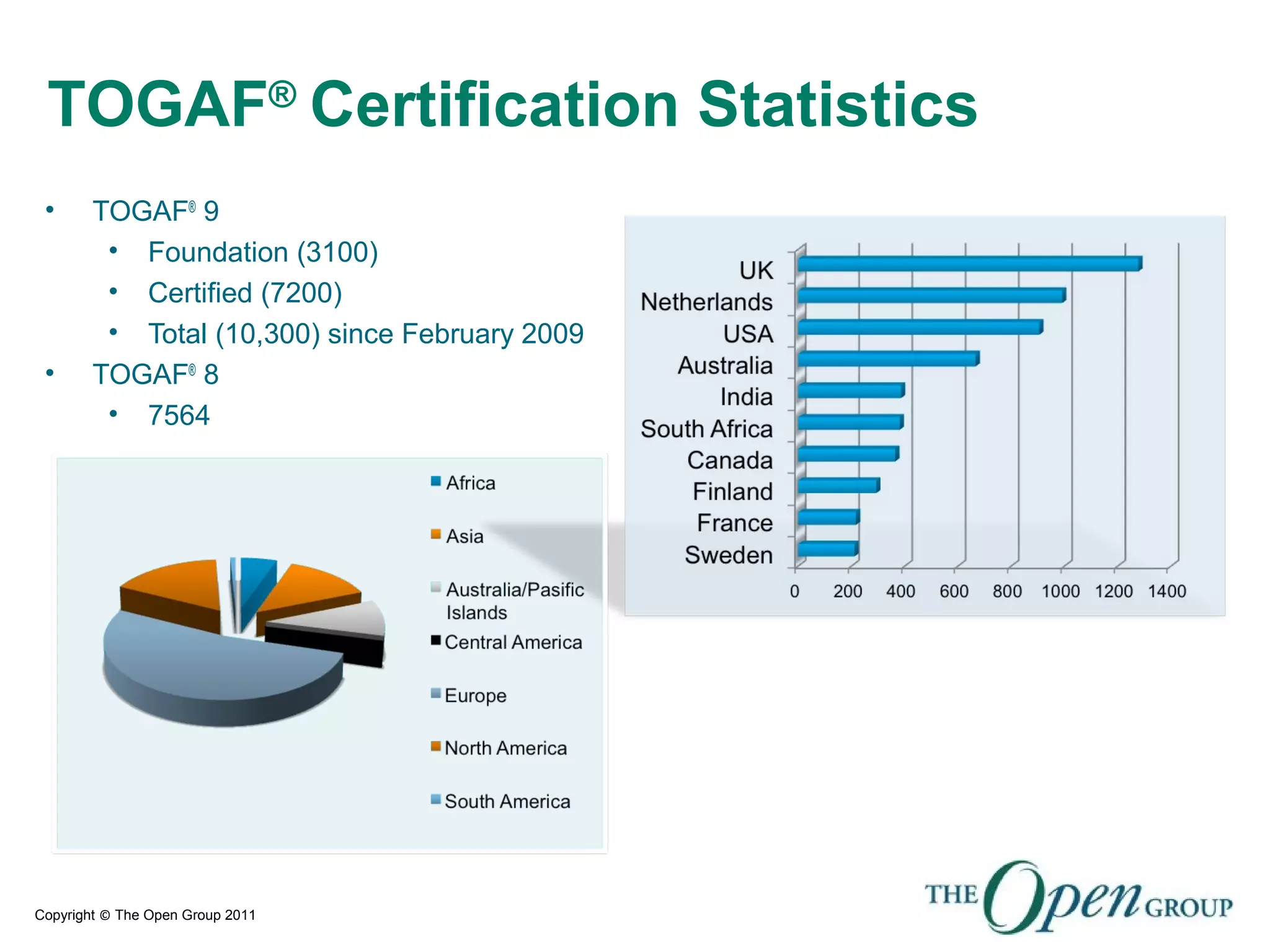

- 9. Copyright © TheOpen Group 2011 • TOGAF® 9 • Foundation (3100) • Certified (7200) • Total (10,300) since February 2009 • TOGAF® 8 • 7564 TOGAF® Certification Statistics

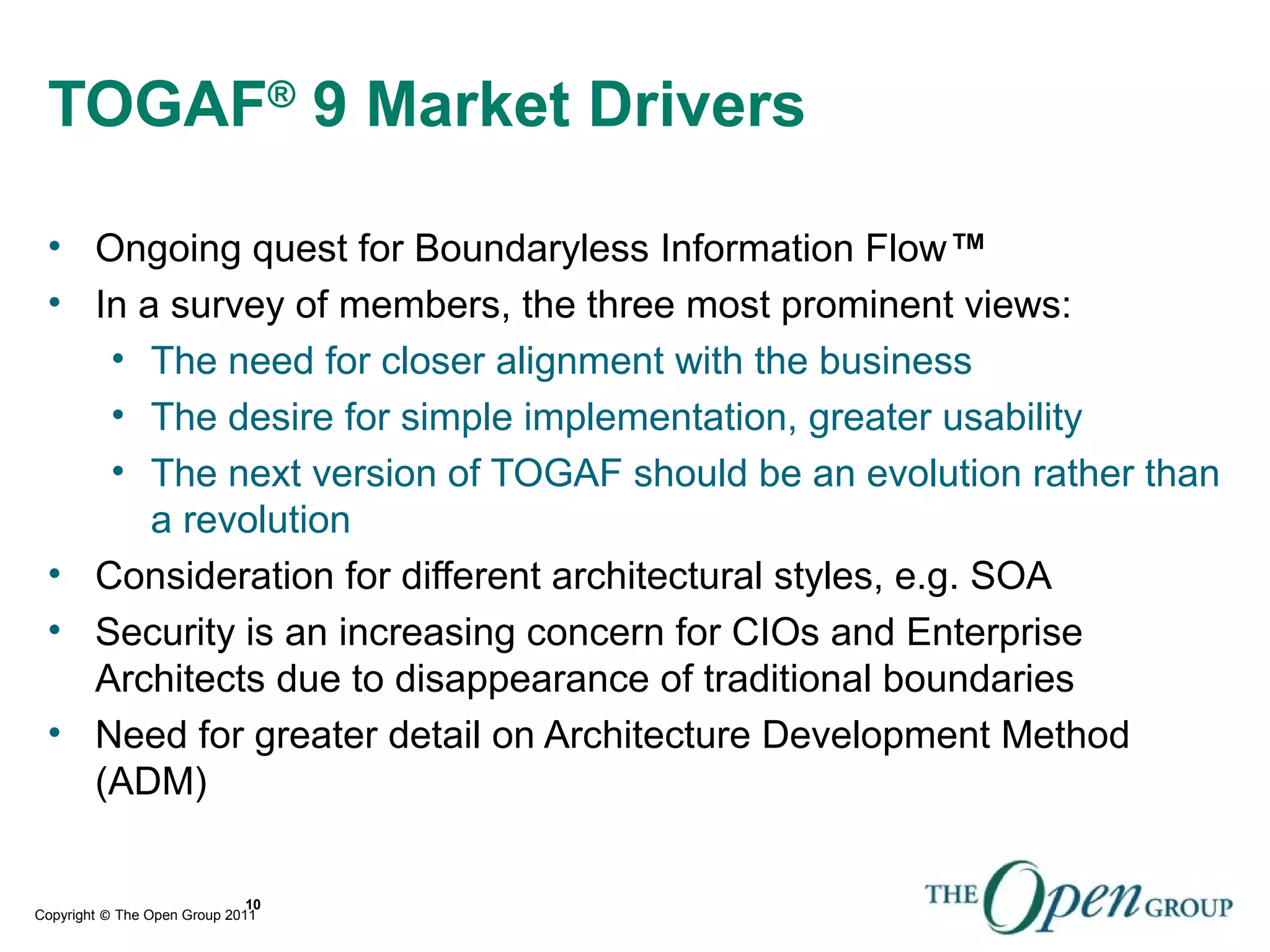

- 10. Copyright © TheOpen Group 2011 TOGAF® 9 Market Drivers • Ongoing quest for Boundaryless Information Flow™ • In a survey of members, the three most prominent views: • The need for closer alignment with the business • The desire for simple implementation, greater usability • The next version of TOGAF should be an evolution rather than a revolution • Consideration for different architectural styles, e.g. SOA • Security is an increasing concern for CIOs and Enterprise Architects due to disappearance of traditional boundaries • Need for greater detail on Architecture Development Method (ADM) 10

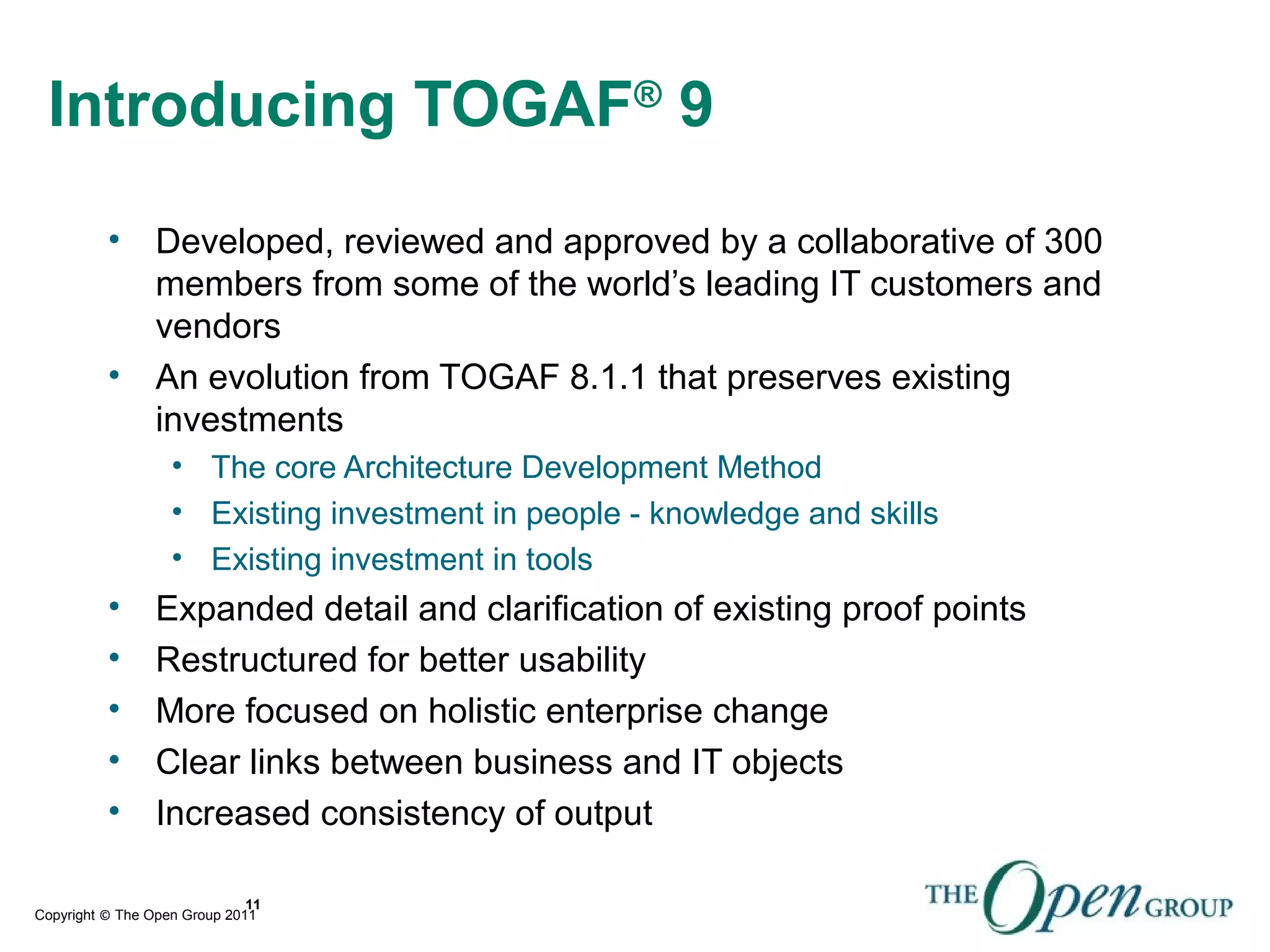

- 11. Copyright © TheOpen Group 2011 11 Introducing TOGAF® 9 • Developed, reviewed and approved by a collaborative of 300 members from some of the world’s leading IT customers and vendors • An evolution from TOGAF 8.1.1 that preserves existing investments • The core Architecture Development Method • Existing investment in people - knowledge and skills • Existing investment in tools • Expanded detail and clarification of existing proof points • Restructured for better usability • More focused on holistic enterprise change • Clear links between business and IT objects • Increased consistency of output

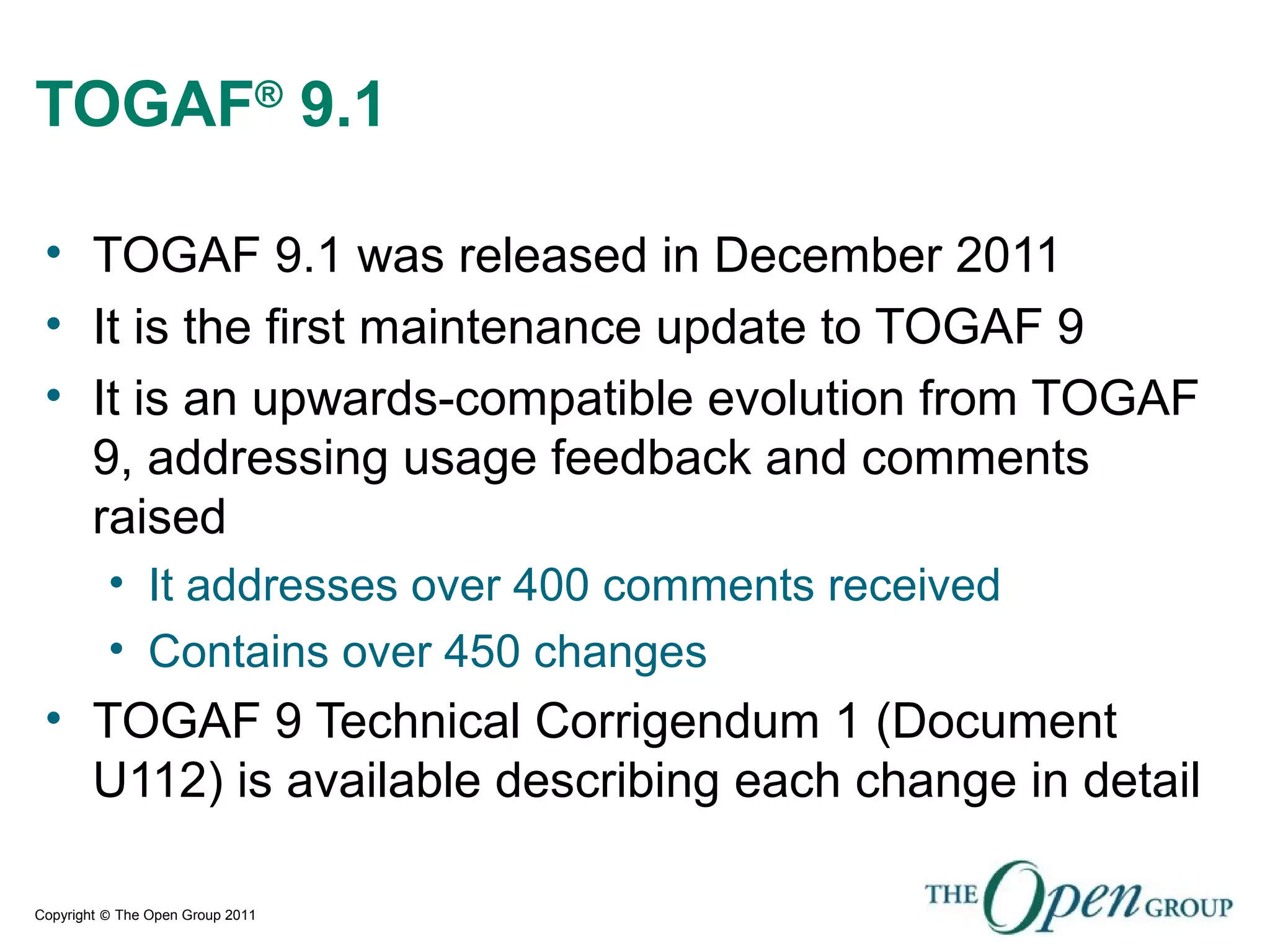

- 12. Copyright © TheOpen Group 2011 TOGAF® 9.1 • TOGAF 9.1 was released in December 2011 • It is the first maintenance update to TOGAF 9 • It is an upwards-compatible evolution from TOGAF 9, addressing usage feedback and comments raised • It addresses over 400 comments received • Contains over 450 changes • TOGAF 9 Technical Corrigendum 1 (Document U112) is available describing each change in detail

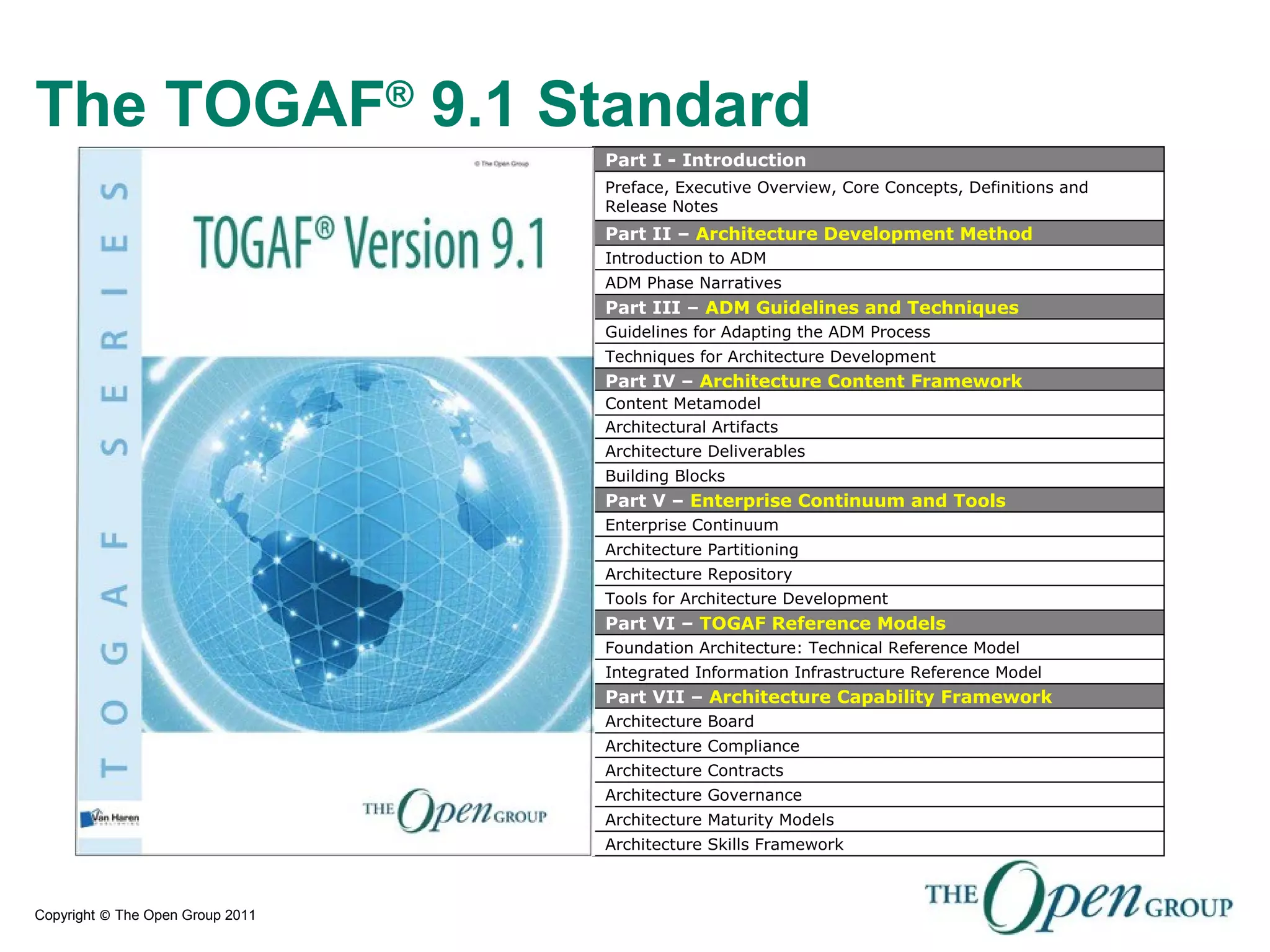

- 13. Copyright © TheOpen Group 2011 Part I - Introduction Part II – Architecture Development Method Part III – ADM Guidelines and Techniques Part IV – Architecture Content Framework Part V – Enterprise Continuum and Tools Part VI – TOGAF Reference Models Part VII – Architecture Capability Framework Preface, Executive Overview, Core Concepts, Definitions and Release Notes Introduction to ADM ADM Phase Narratives Architectural Artifacts Architecture Deliverables Building Blocks Guidelines for Adapting the ADM Process Techniques for Architecture Development Enterprise Continuum Architecture Partitioning Architecture Repository Tools for Architecture Development Foundation Architecture: Technical Reference Model Integrated Information Infrastructure Reference Model Architecture Board Architecture Compliance Architecture Contracts Architecture Governance Architecture Maturity Models Architecture Skills Framework Content Metamodel The TOGAF® 9.1 Standard

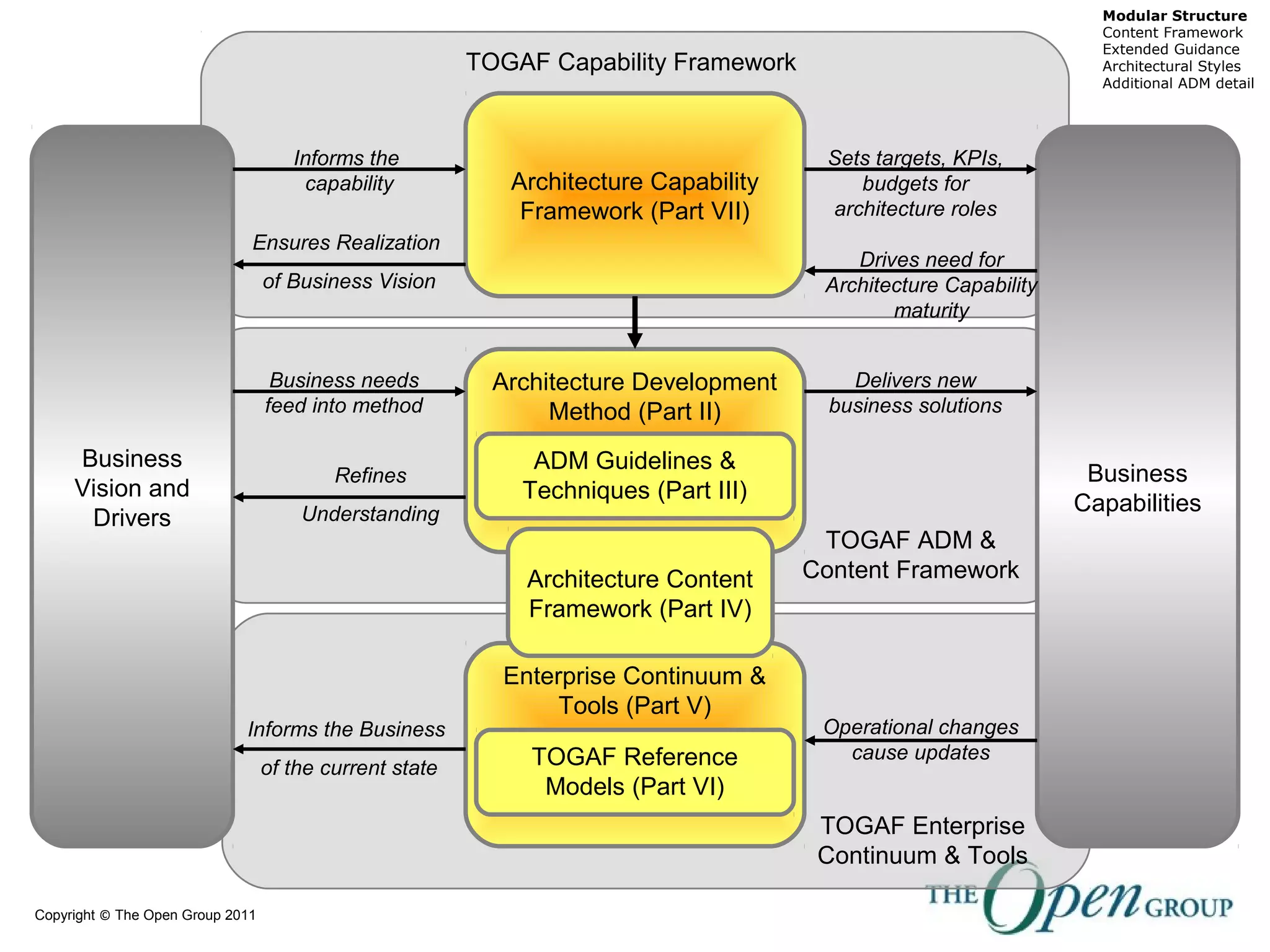

- 14. Copyright © TheOpen Group 2011 TOGAF Enterprise Continuum & Tools TOGAF ADM & Content Framework TOGAF Capability Framework Architecture Development Method (Part II) Architecture Capability Framework (Part VII) Enterprise Continuum & Tools (Part V) ADM Guidelines & Techniques (Part III) Architecture Content Framework (Part IV) TOGAF Reference Models (Part VI) Business Vision and Drivers Business Capabilities Informs the Business of the current state Ensures Realization of Business Vision Informs the capability Refines Understanding Business needs feed into method Delivers new business solutions Operational changes cause updates Sets targets, KPIs, budgets for architecture roles Drives need for Architecture Capability maturity Modular Structure Content Framework Extended Guidance Architectural Styles Additional ADM detail

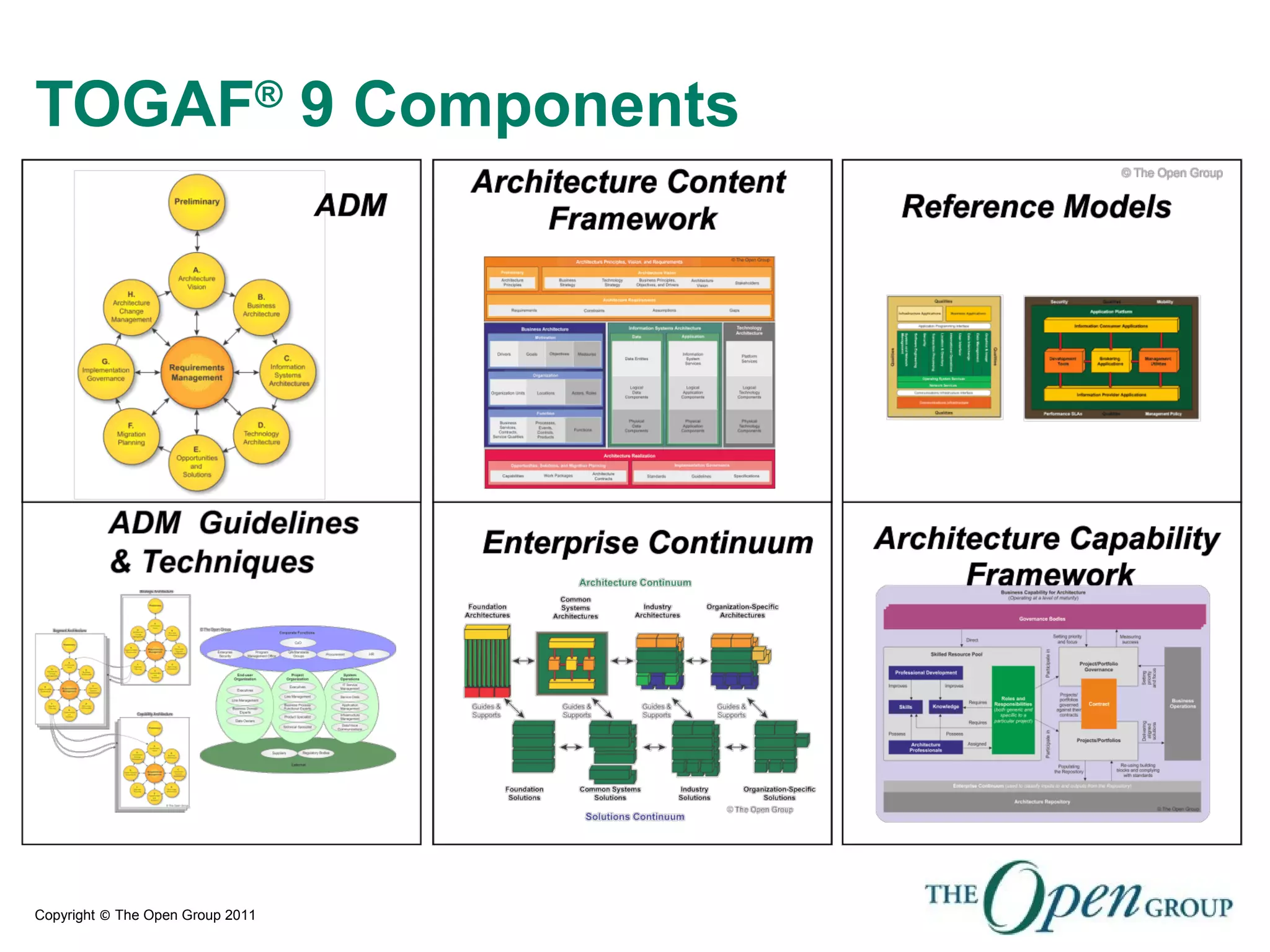

- 15. Copyright © TheOpen Group 2011 TOGAF® 9 Components

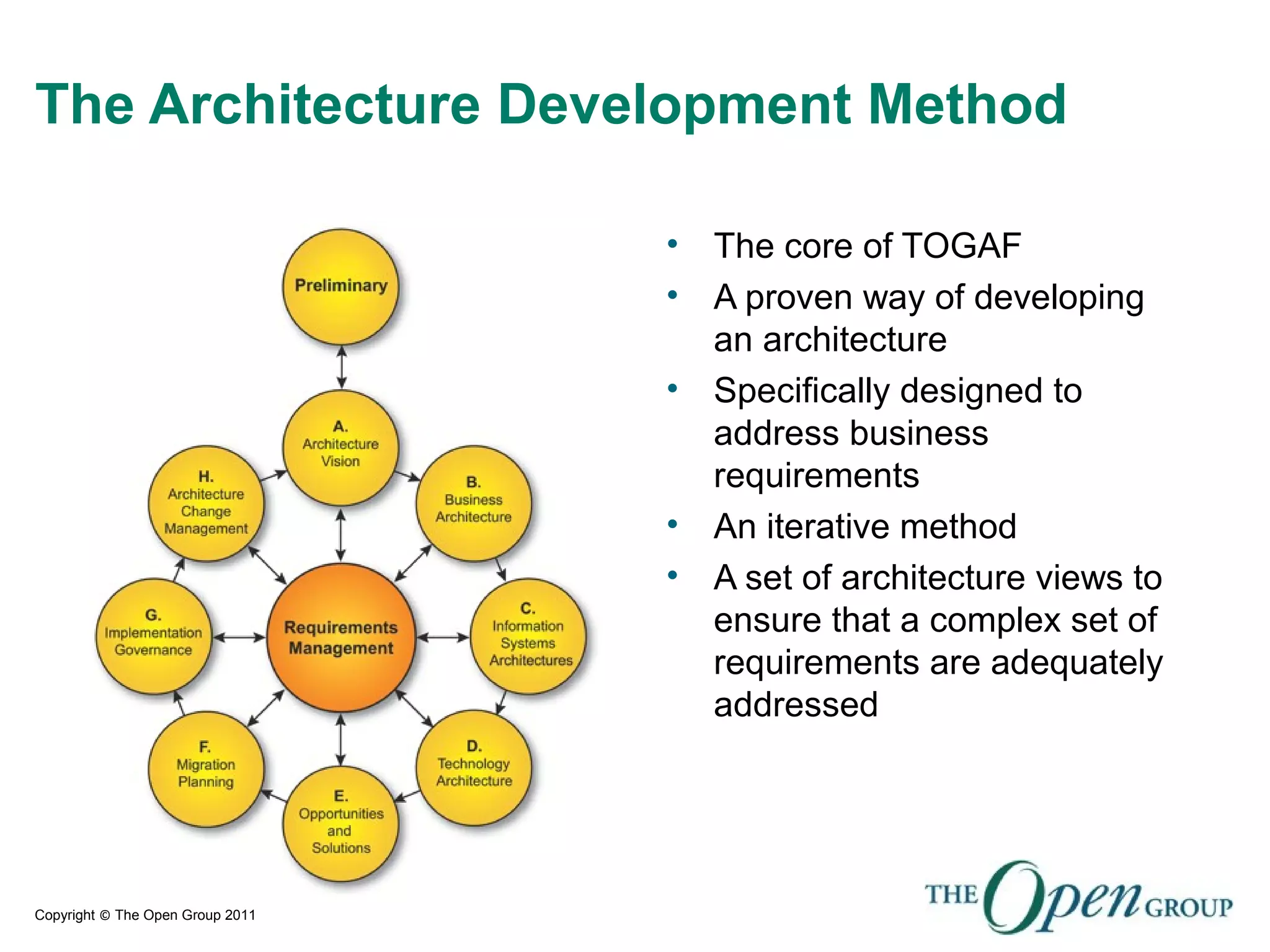

- 16. Copyright © TheOpen Group 2011 The Architecture Development Method • The core of TOGAF • A proven way of developing an architecture • Specifically designed to address business requirements • An iterative method • A set of architecture views to ensure that a complex set of requirements are adequately addressed

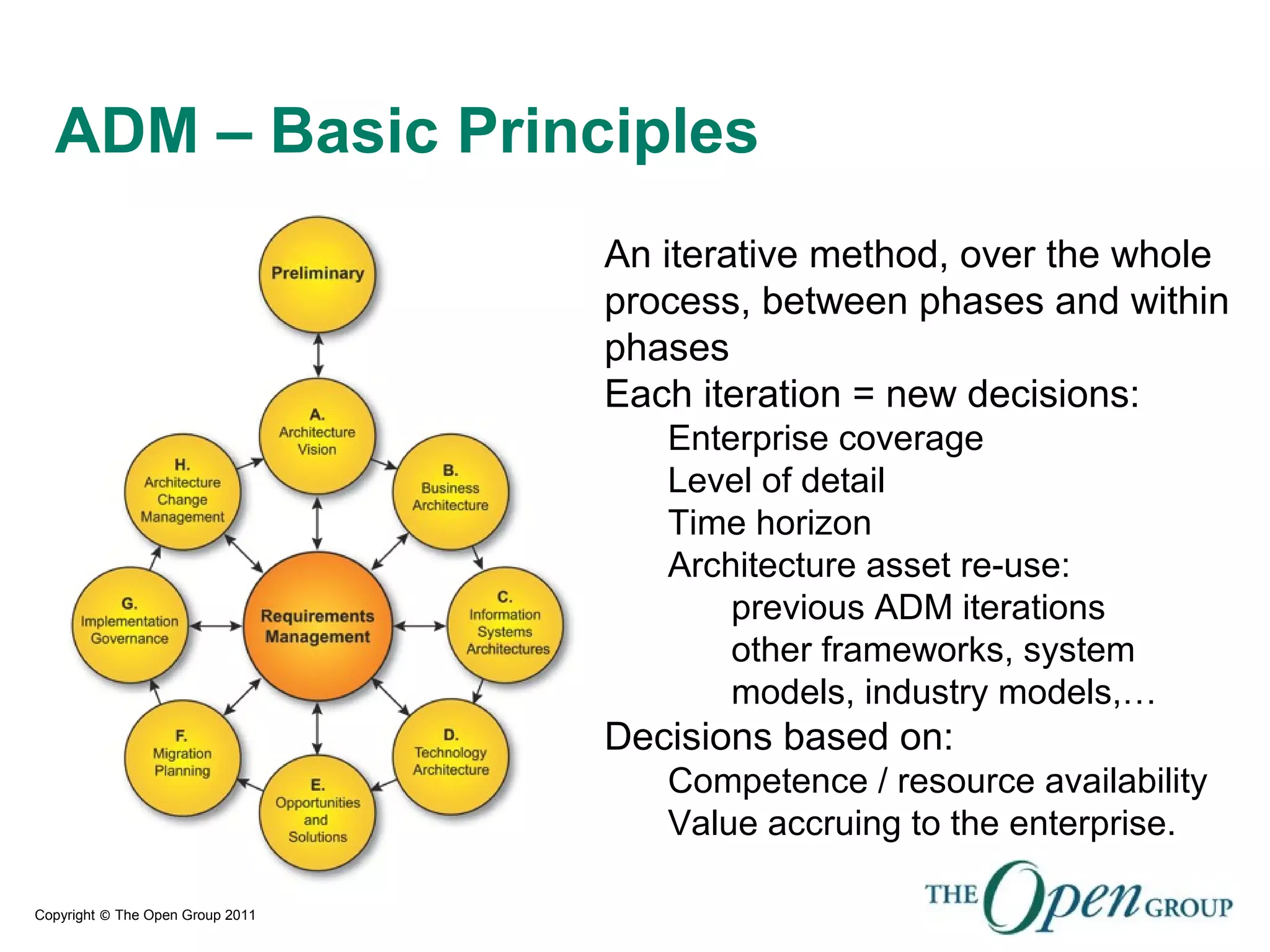

- 17. Copyright © TheOpen Group 2011 ADM – Basic Principles An iterative method, over the whole process, between phases and within phases Each iteration = new decisions: Enterprise coverage Level of detail Time horizon Architecture asset re-use: previous ADM iterations other frameworks, system models, industry models,… Decisions based on: Competence / resource availability Value accruing to the enterprise.

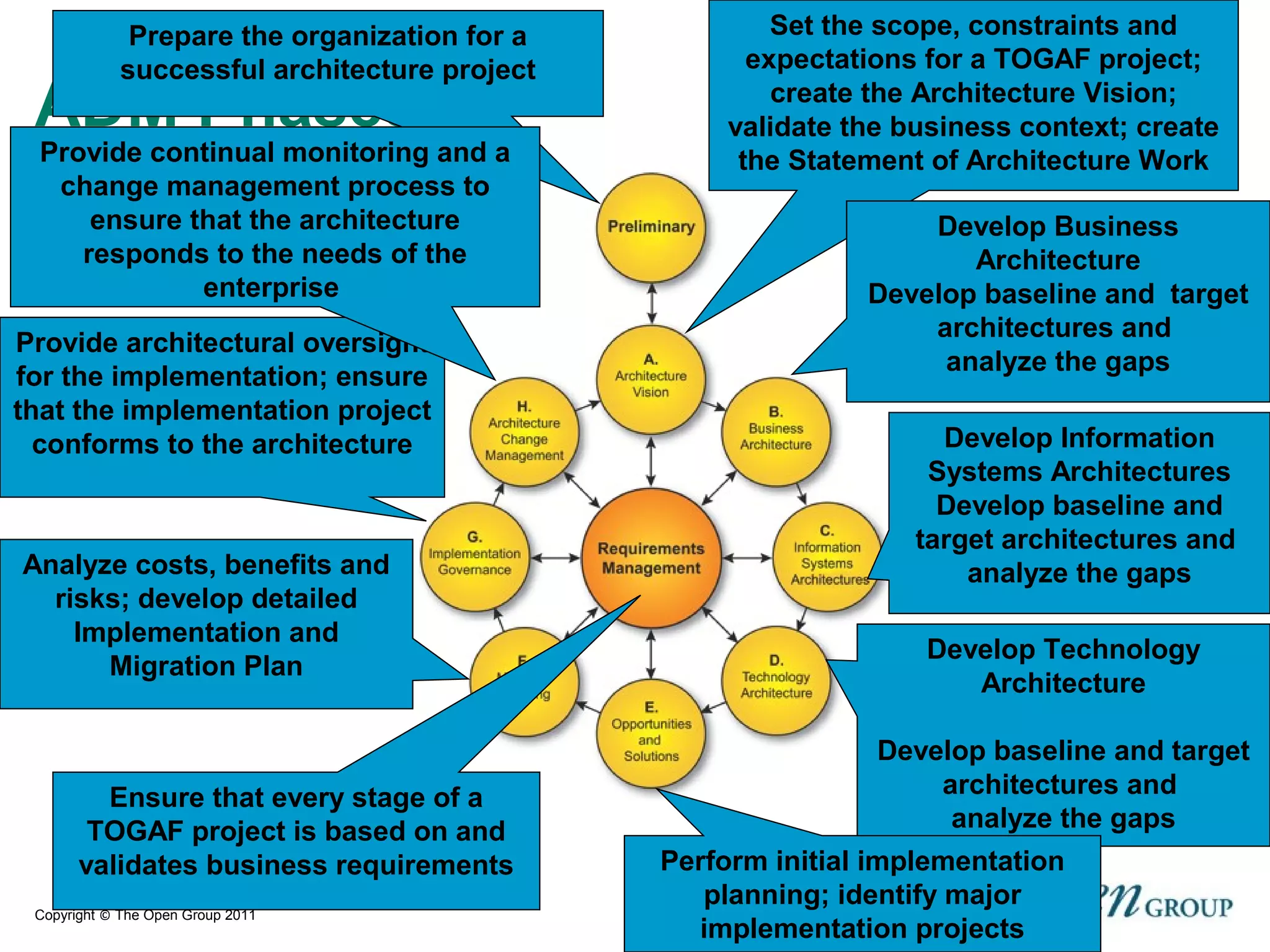

- 18. Copyright © TheOpen Group 2011 ADM Phases Prepare the organization for a successful architecture project Ensure that every stage of a TOGAF project is based on and validates business requirements Set the scope, constraints and expectations for a TOGAF project; create the Architecture Vision; validate the business context; create the Statement of Architecture Work Develop Business Architecture Develop baseline and target architectures and analyze the gaps Develop Information Systems Architectures Develop baseline and target architectures and analyze the gaps Develop Technology Architecture Develop baseline and target architectures and analyze the gaps Perform initial implementation planning; identify major implementation projects Analyze costs, benefits and risks; develop detailed Implementation and Migration Plan Provide architectural oversight for the implementation; ensure that the implementation project conforms to the architecture Provide continual monitoring and a change management process to ensure that the architecture responds to the needs of the enterprise

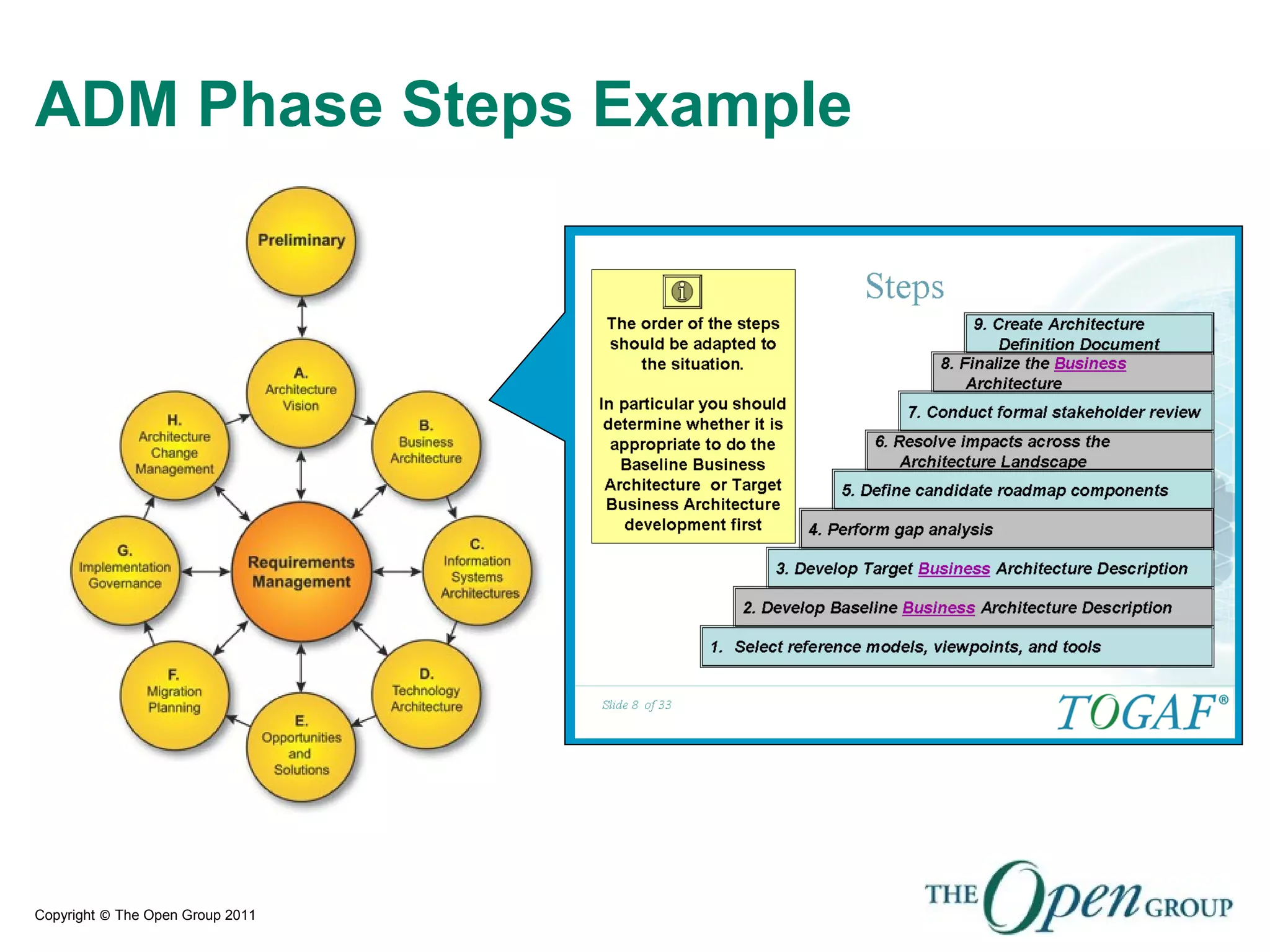

- 19. Copyright © TheOpen Group 2011 ADM Phase Steps Example

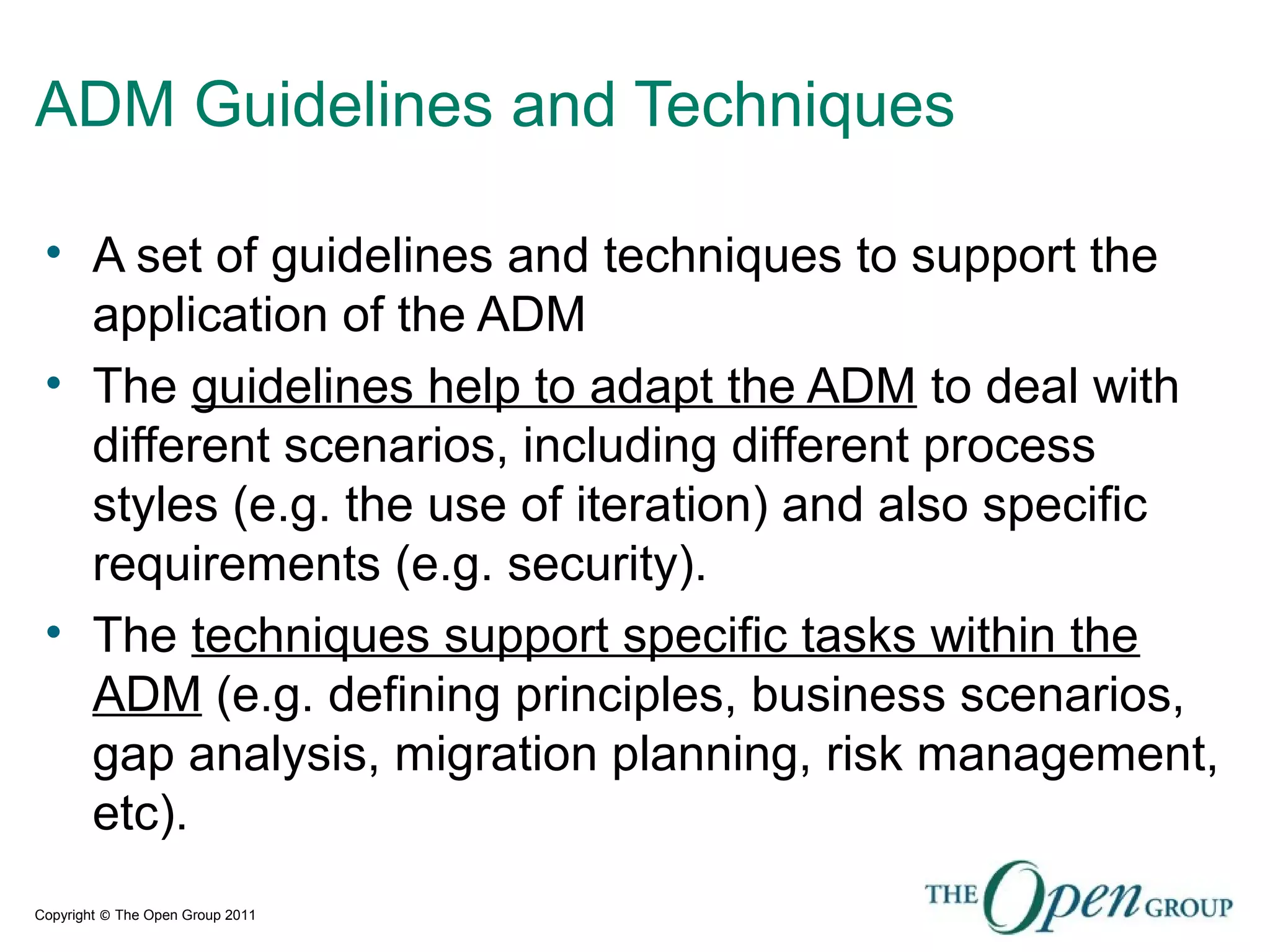

- 20. Copyright © TheOpen Group 2011 ADM Guidelines and Techniques • A set of guidelines and techniques to support the application of the ADM • The guidelines help to adapt the ADM to deal with different scenarios, including different process styles (e.g. the use of iteration) and also specific requirements (e.g. security). • The techniques support specific tasks within the ADM (e.g. defining principles, business scenarios, gap analysis, migration planning, risk management, etc).

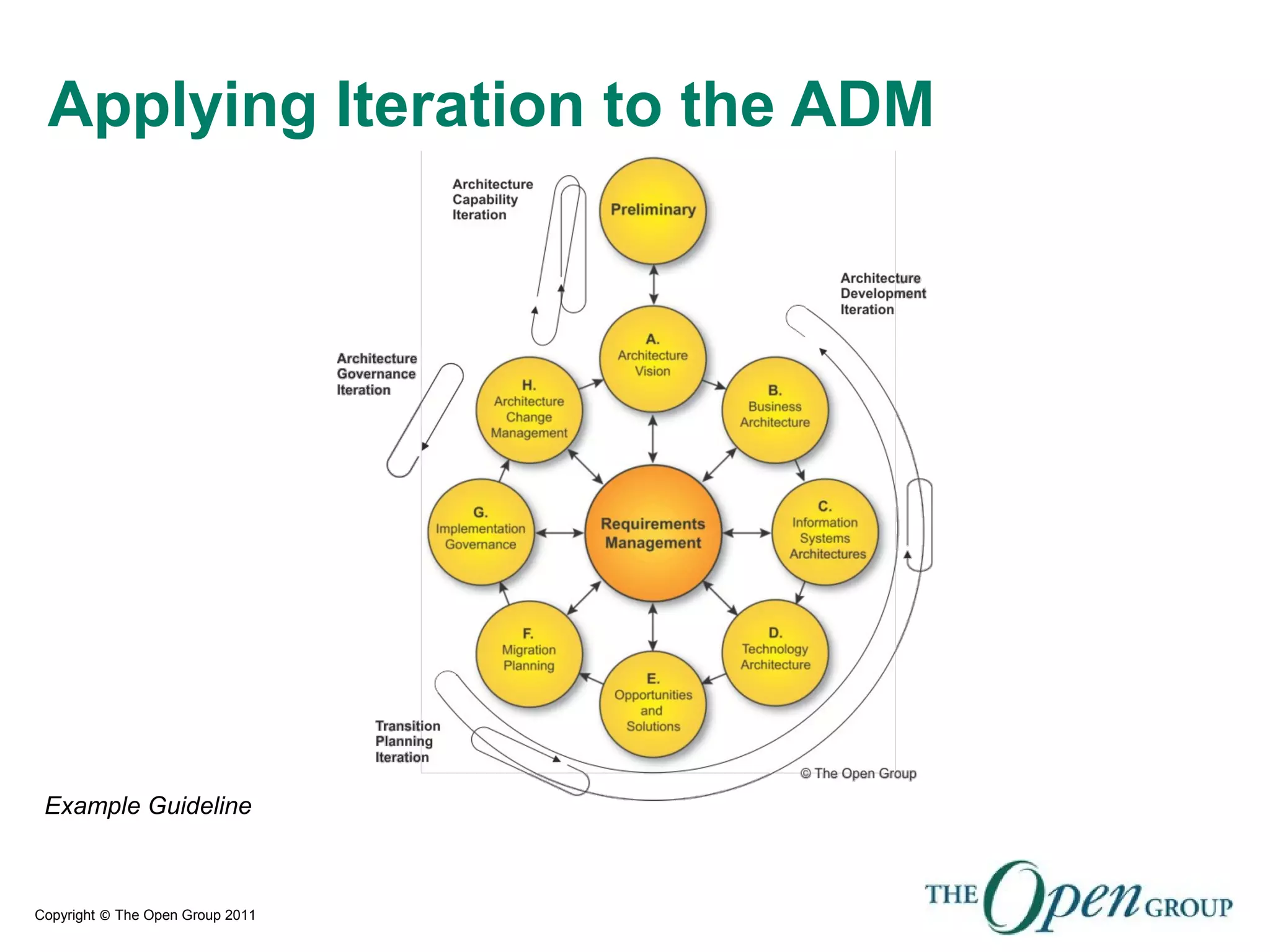

- 21. Copyright © TheOpen Group 2011 Applying Iteration to the ADM Example Guideline

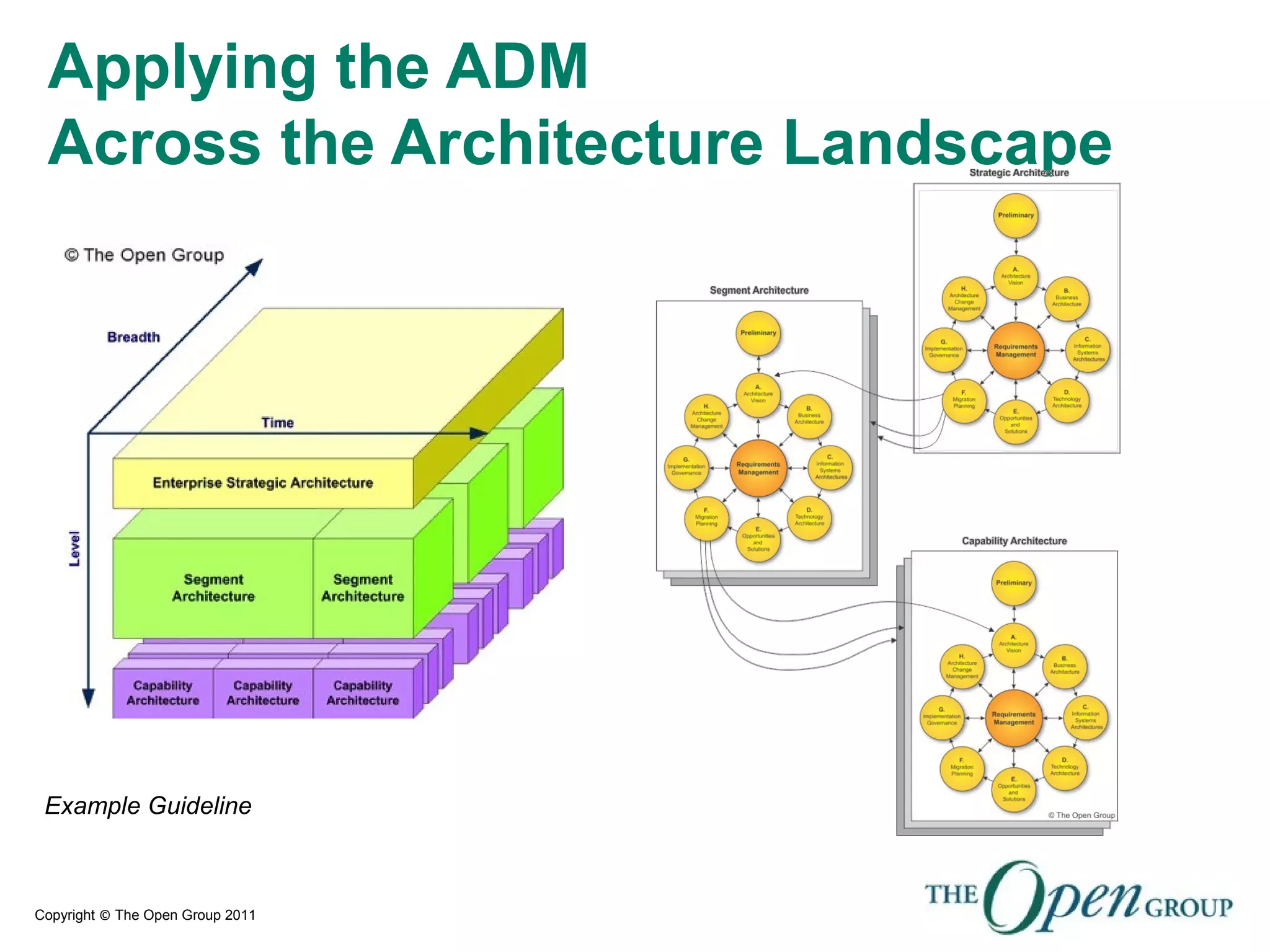

- 22. Copyright © TheOpen Group 2011 Applying the ADM Across the Architecture Landscape Example Guideline

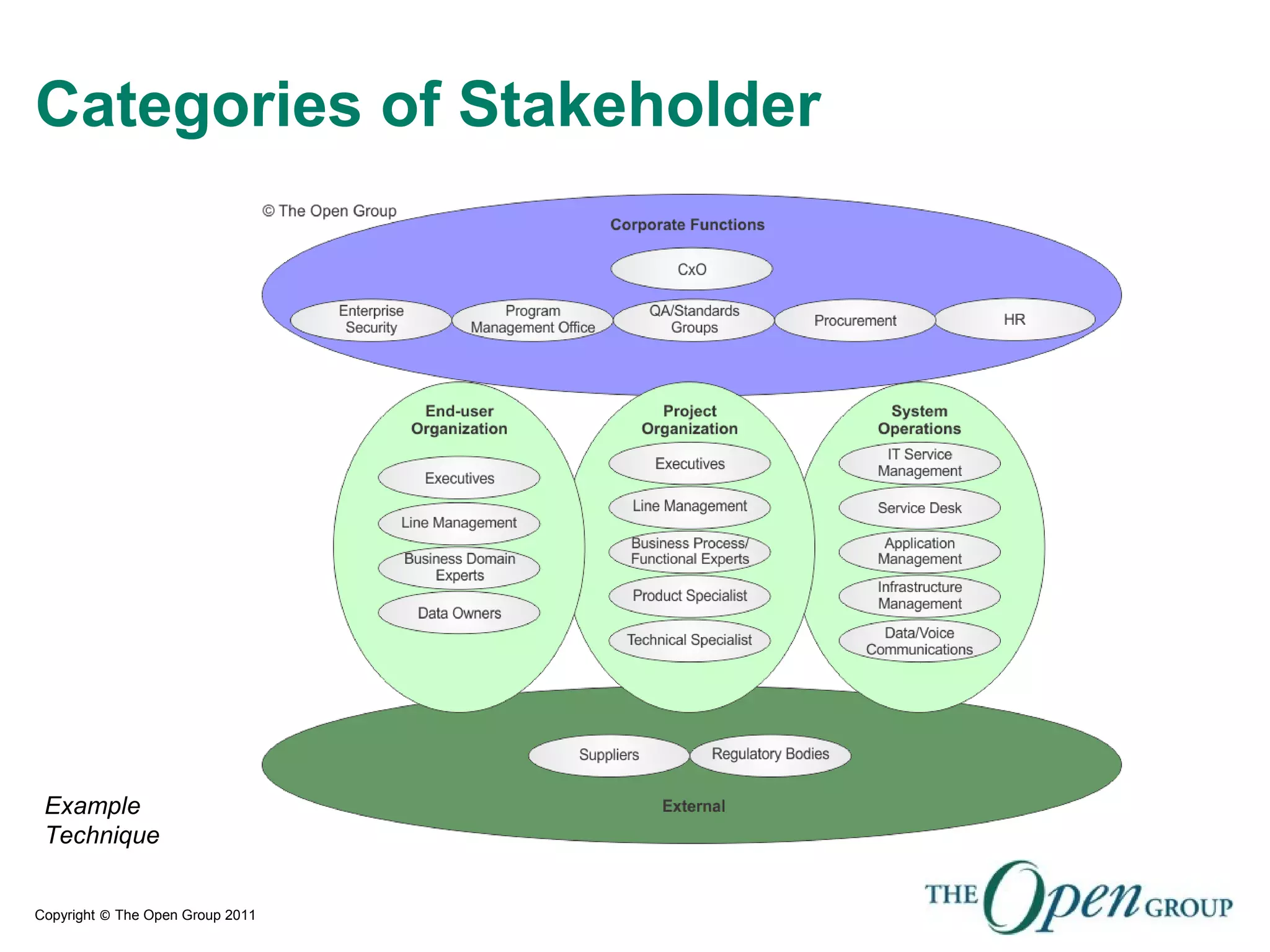

- 23. Copyright © TheOpen Group 2011 Categories of Stakeholder Example Technique

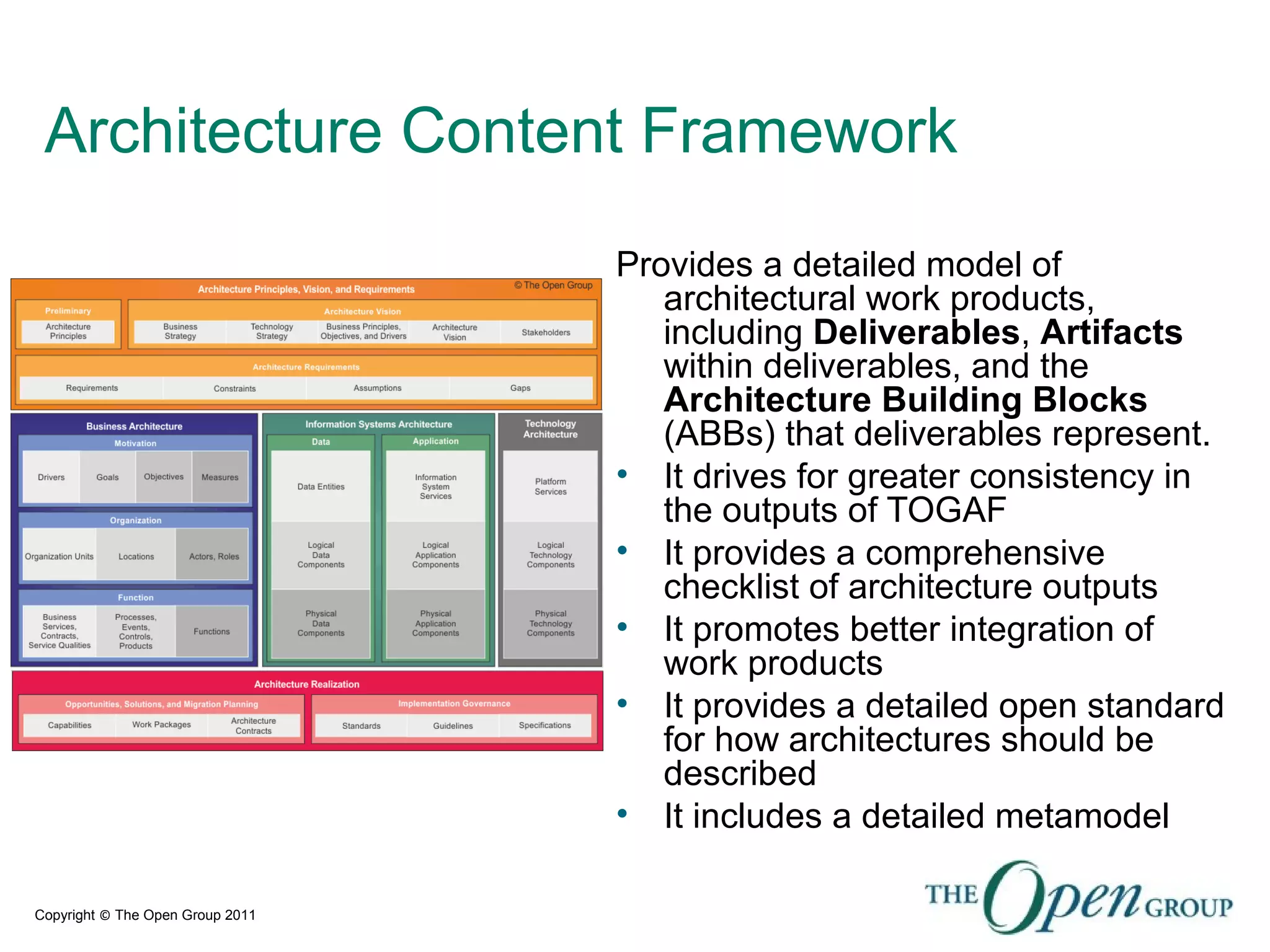

- 24. Copyright © TheOpen Group 2011 Architecture Content Framework Provides a detailed model of architectural work products, including Deliverables, Artifacts within deliverables, and the Architecture Building Blocks (ABBs) that deliverables represent. • It drives for greater consistency in the outputs of TOGAF • It provides a comprehensive checklist of architecture outputs • It promotes better integration of work products • It provides a detailed open standard for how architectures should be described • It includes a detailed metamodel

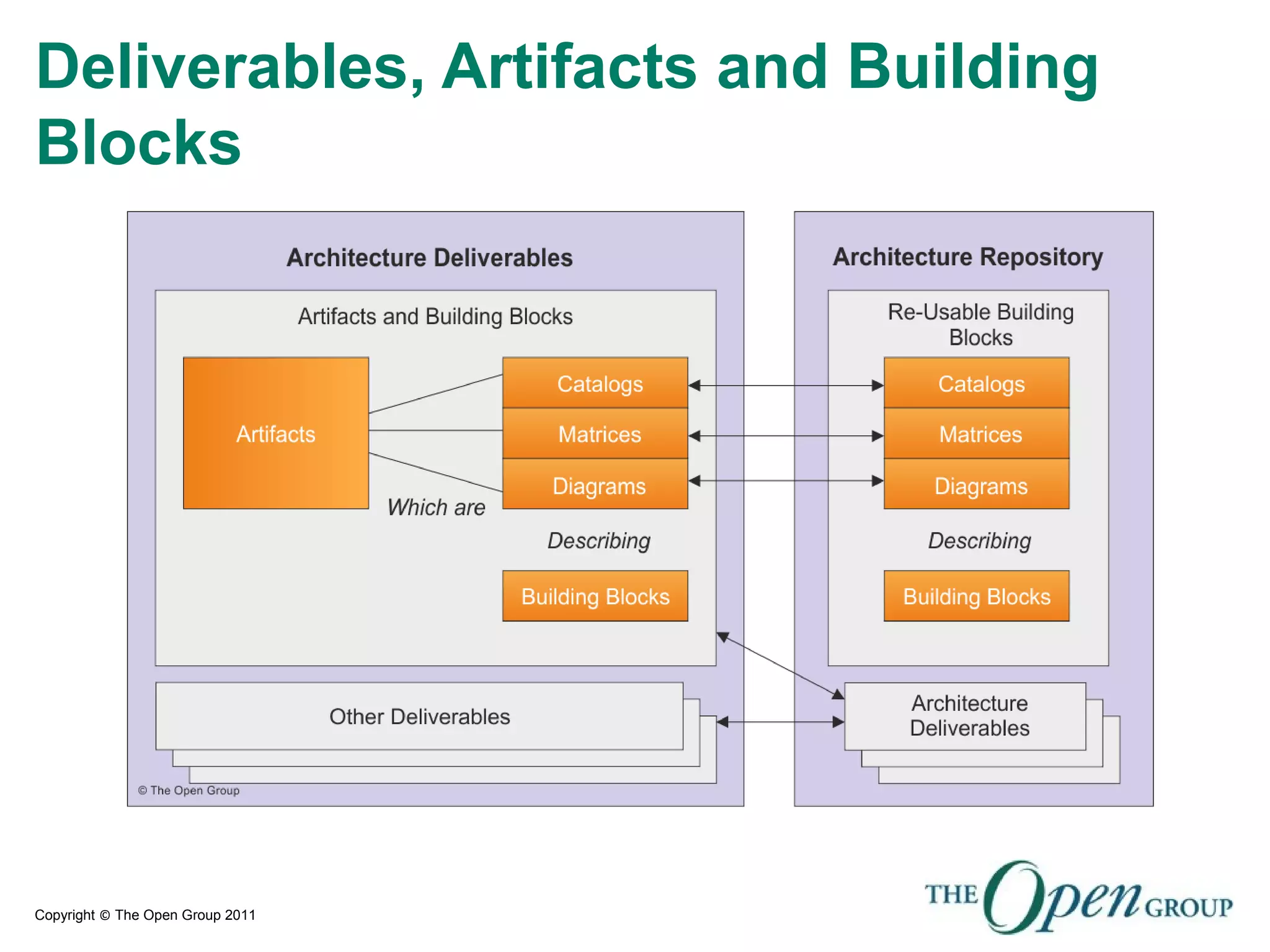

- 25. Copyright © TheOpen Group 2011 Deliverables, Artifacts and Building Blocks

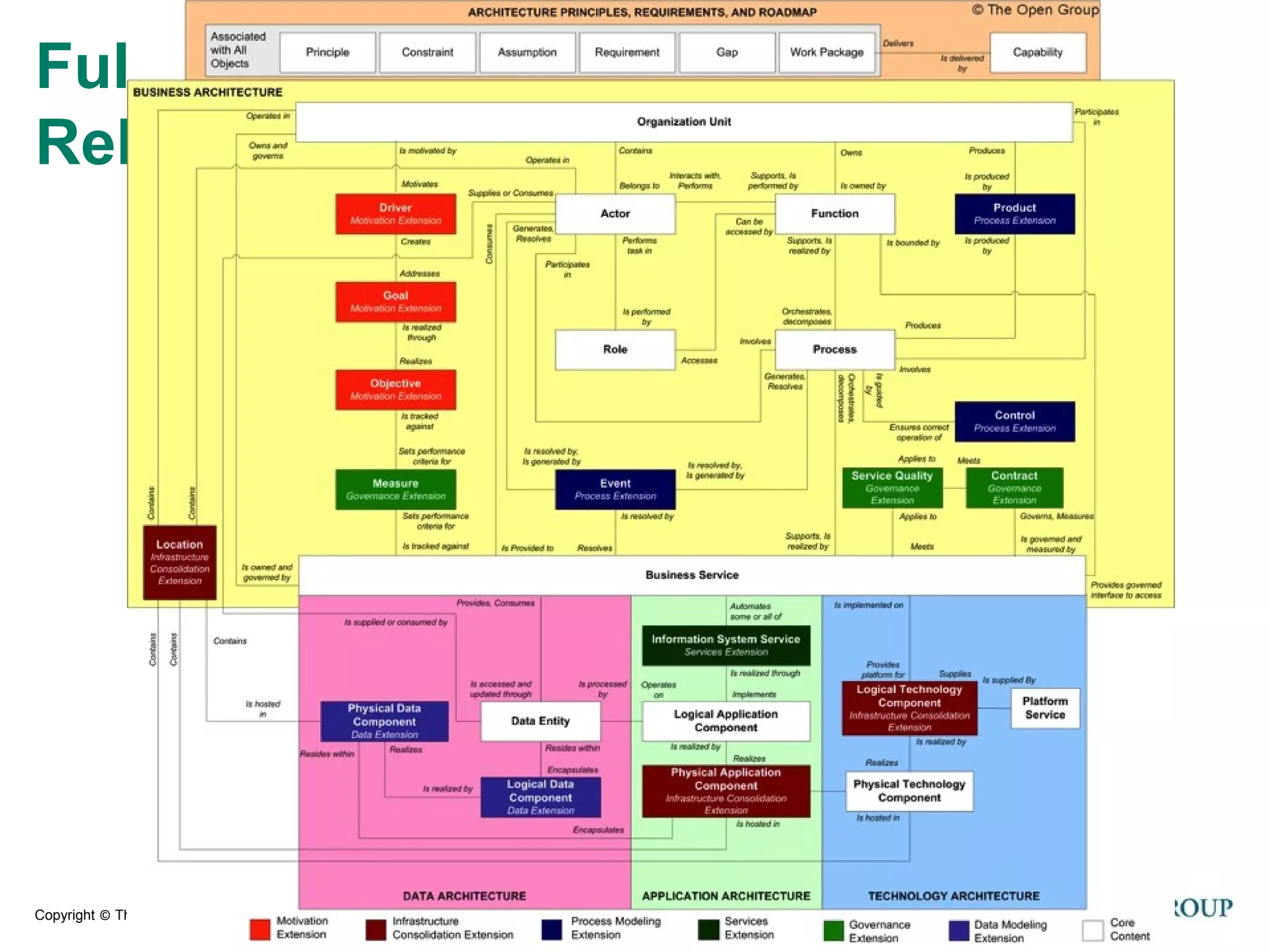

- 26. Copyright © TheOpen Group 2011 Full Content Metamodel with Relationships

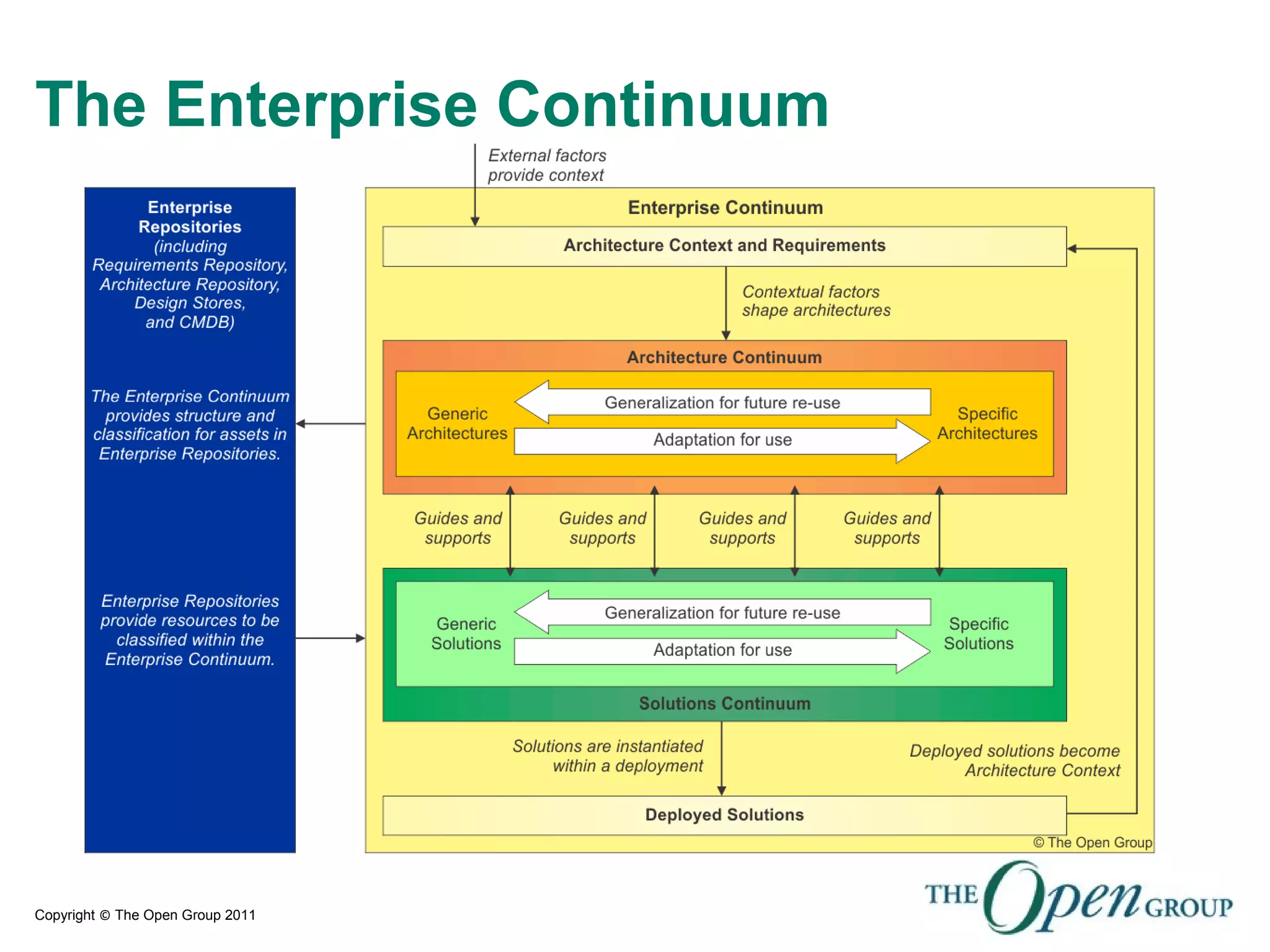

- 27. Copyright © TheOpen Group 2011 The Enterprise Continuum

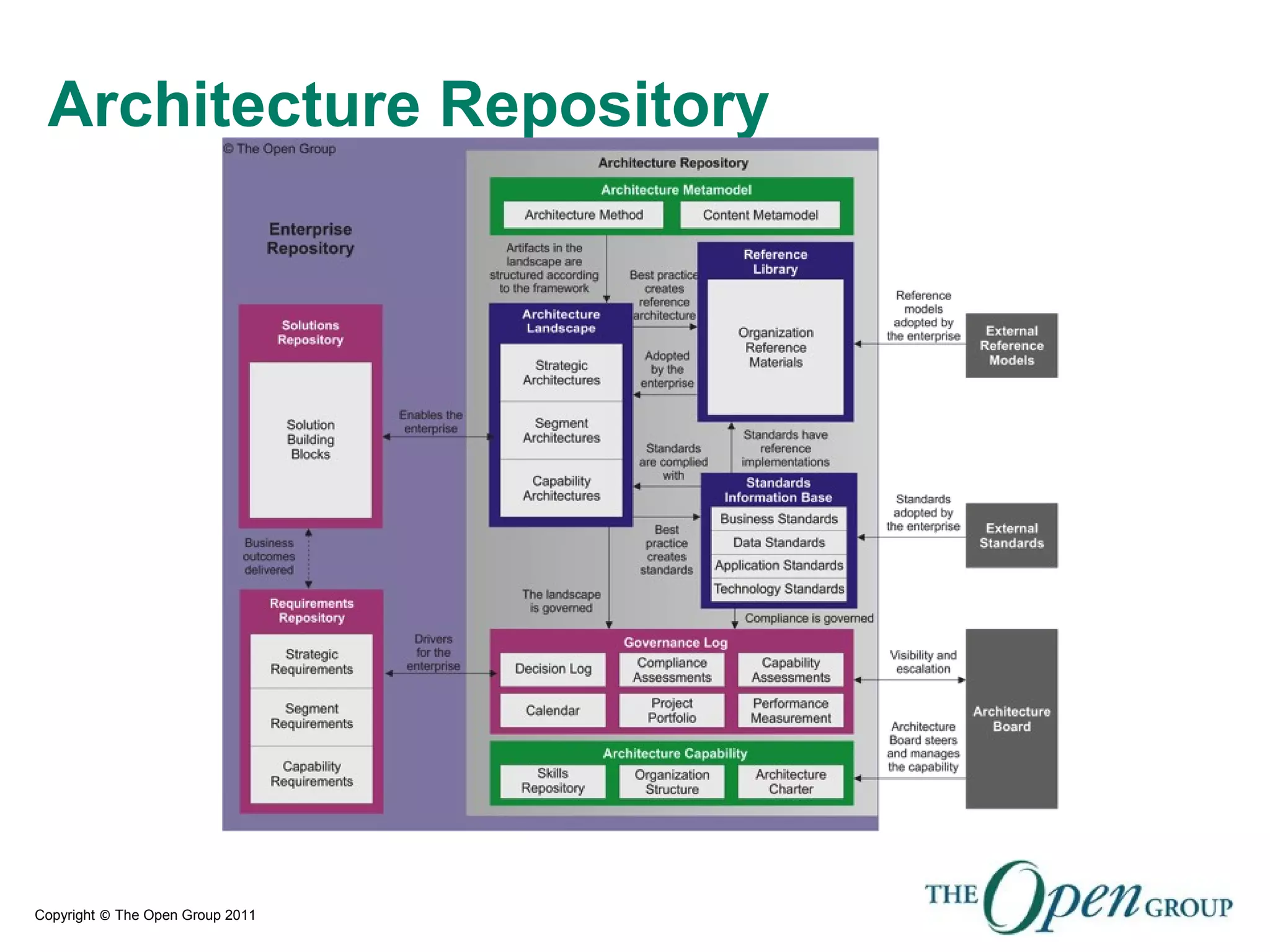

- 28. Copyright © TheOpen Group 2011 Architecture Repository

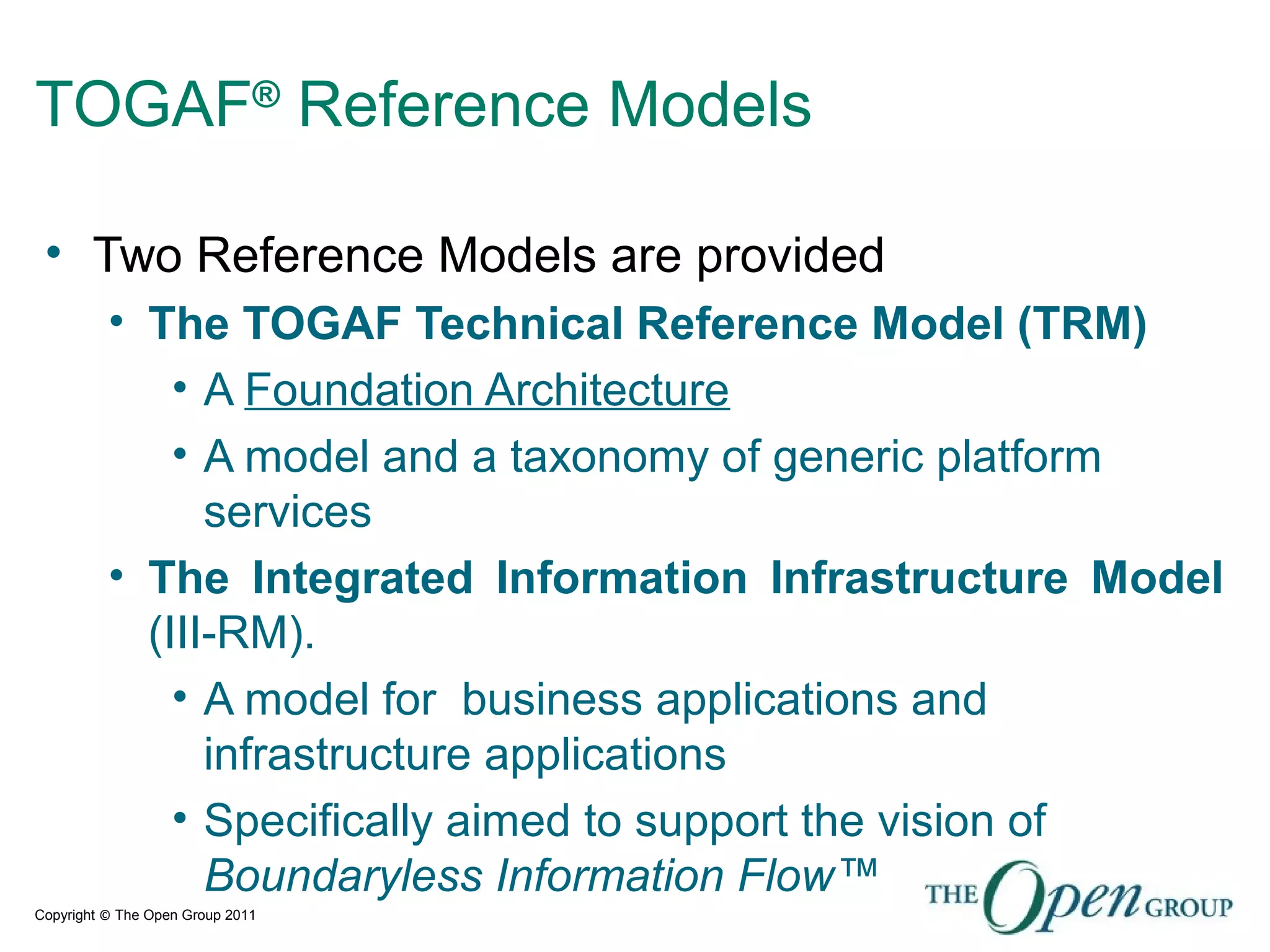

- 29. Copyright © TheOpen Group 2011 TOGAF® Reference Models • Two Reference Models are provided • The TOGAF Technical Reference Model (TRM) • A Foundation Architecture • A model and a taxonomy of generic platform services • The Integrated Information Infrastructure Model (III-RM). • A model for business applications and infrastructure applications • Specifically aimed to support the vision of Boundaryless Information Flow™

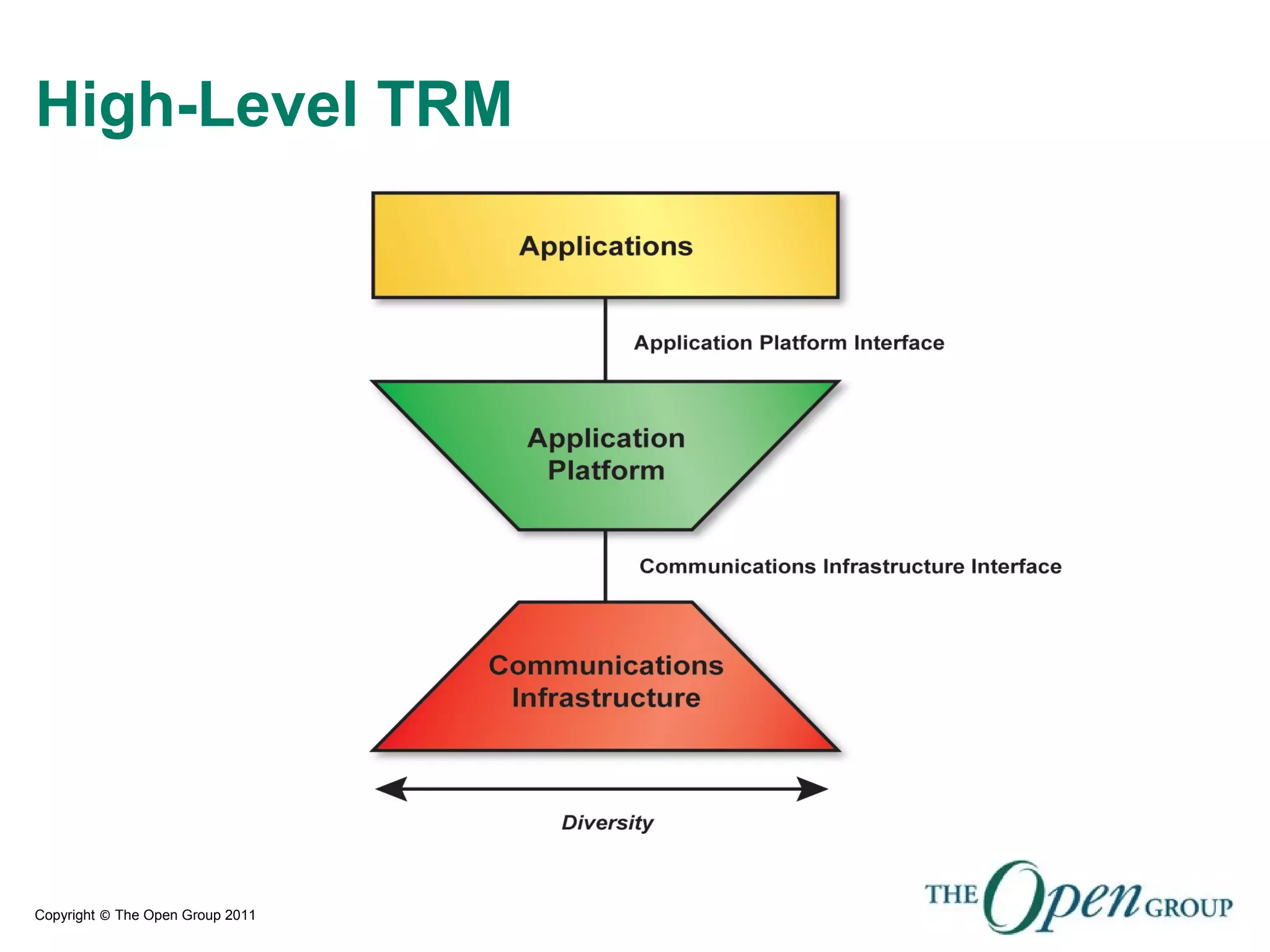

- 30. Copyright © TheOpen Group 2011 High-Level TRM

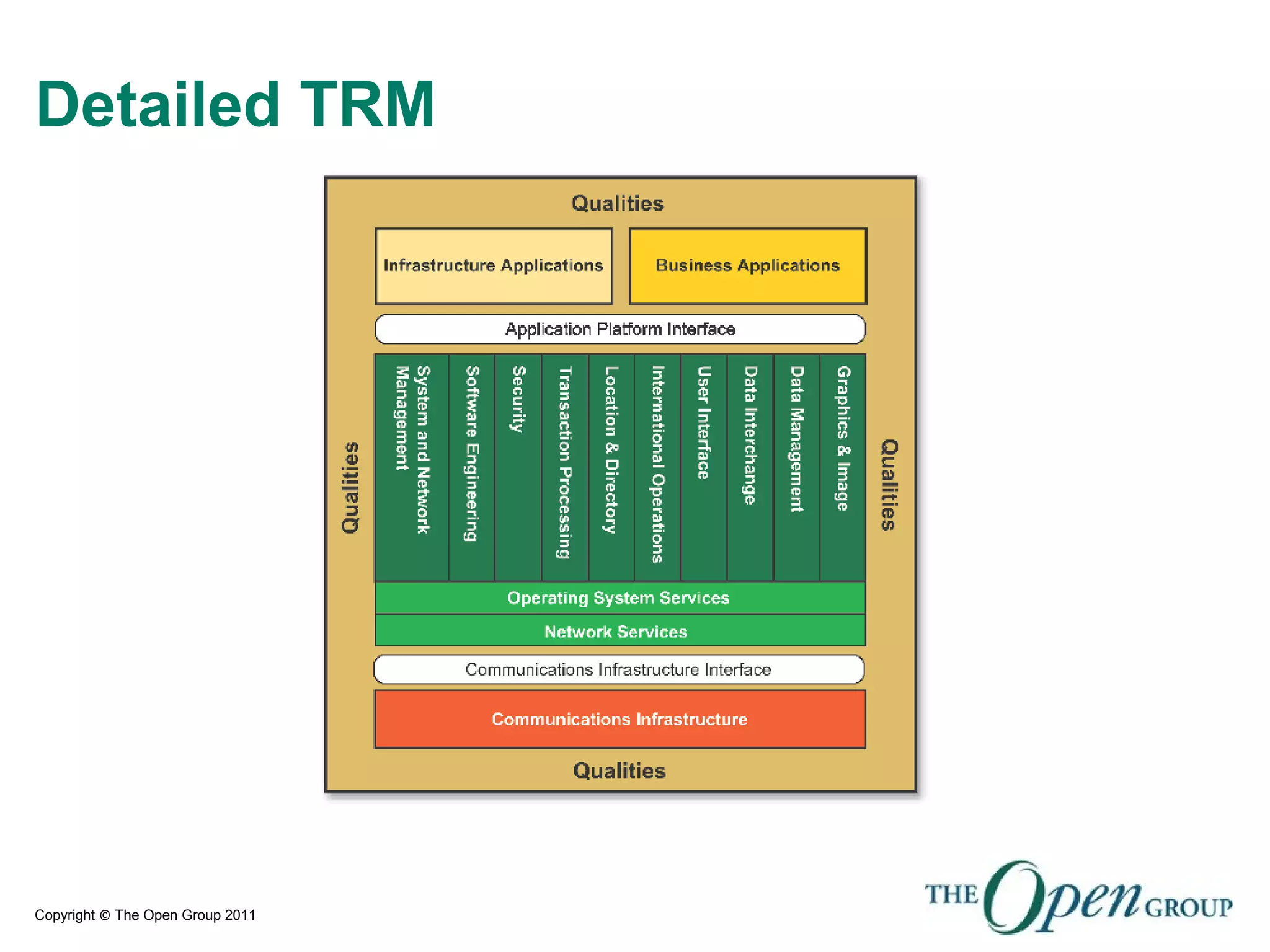

- 31. Copyright © TheOpen Group 2011 Detailed TRM

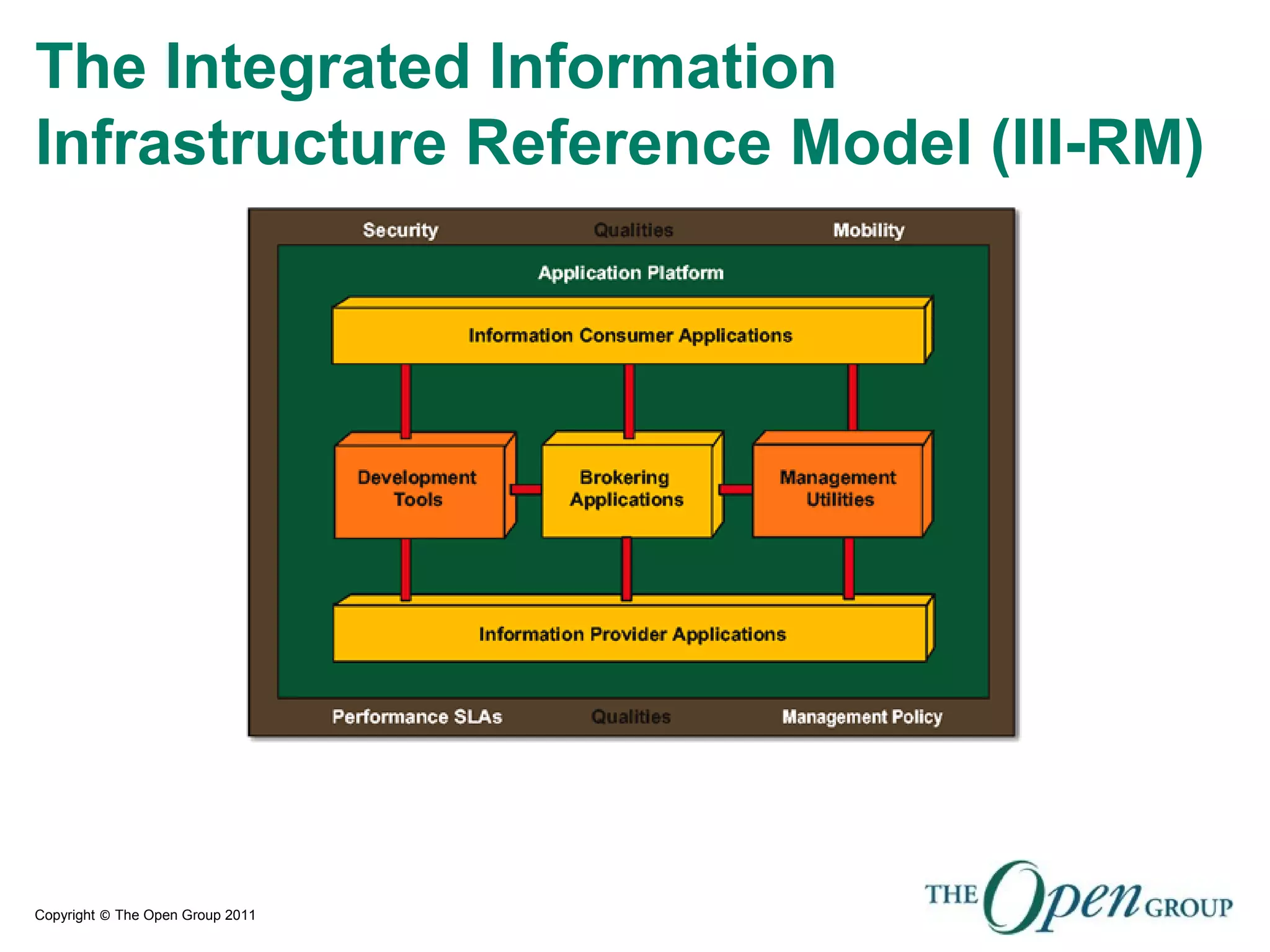

- 32. Copyright © TheOpen Group 2011 The Integrated Information Infrastructure Reference Model (III-RM)

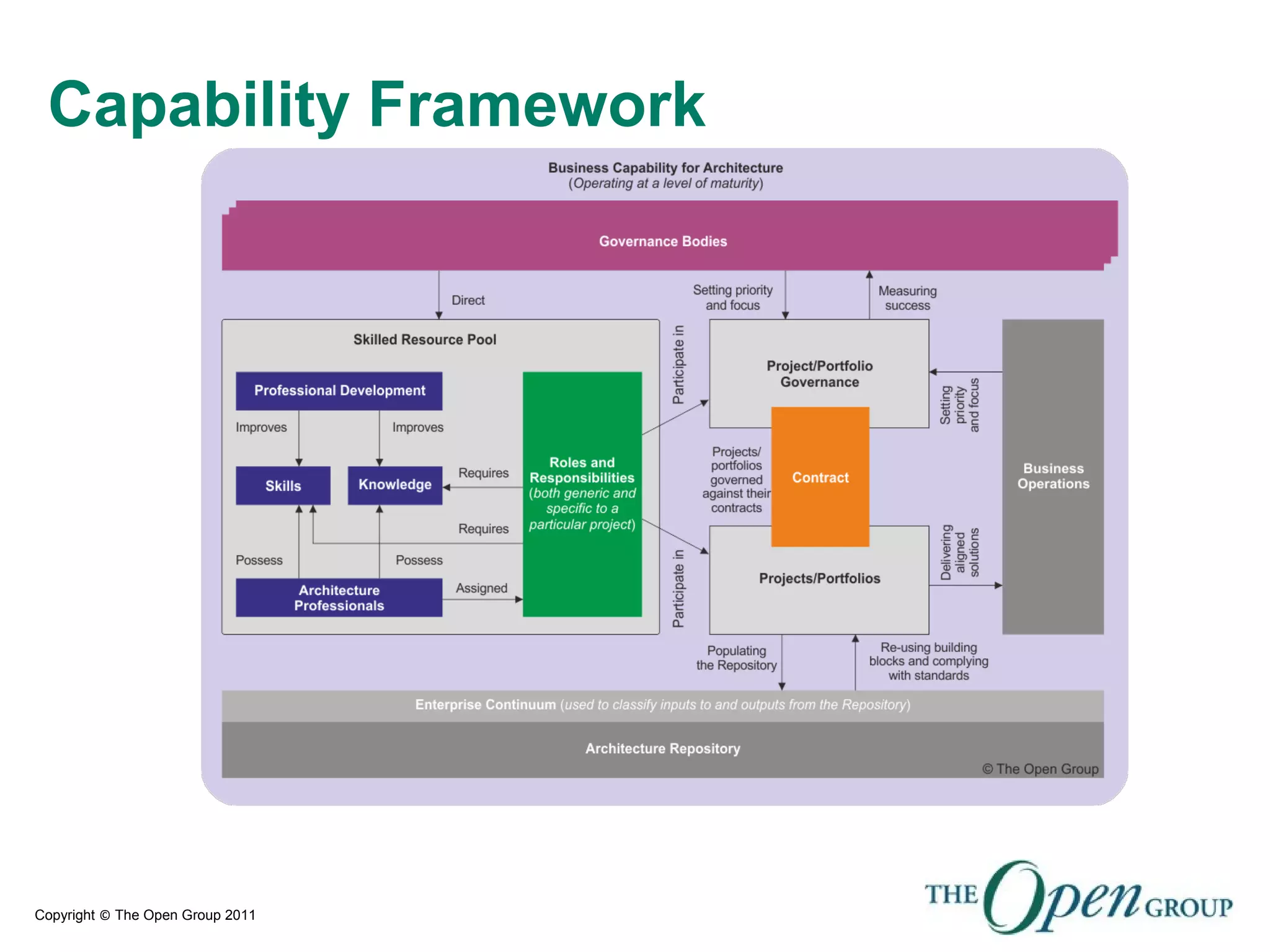

- 33. Copyright © TheOpen Group 2011 Capability Framework

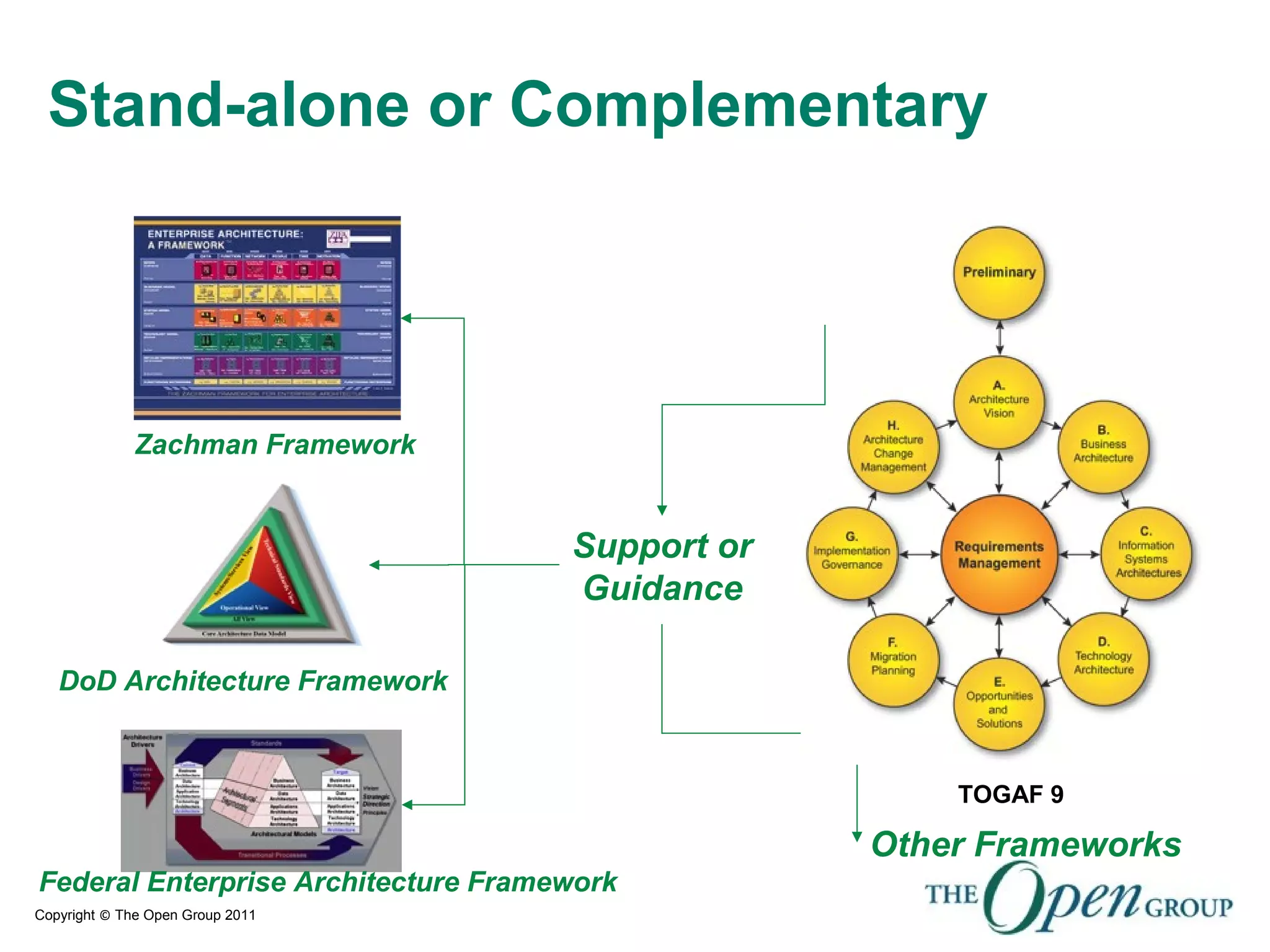

- 34. Copyright © TheOpen Group 2011 Stand-alone or Complementary Zachman Framework Federal Enterprise Architecture Framework Other Frameworks Support or Guidance DoD Architecture Framework TOGAF 9

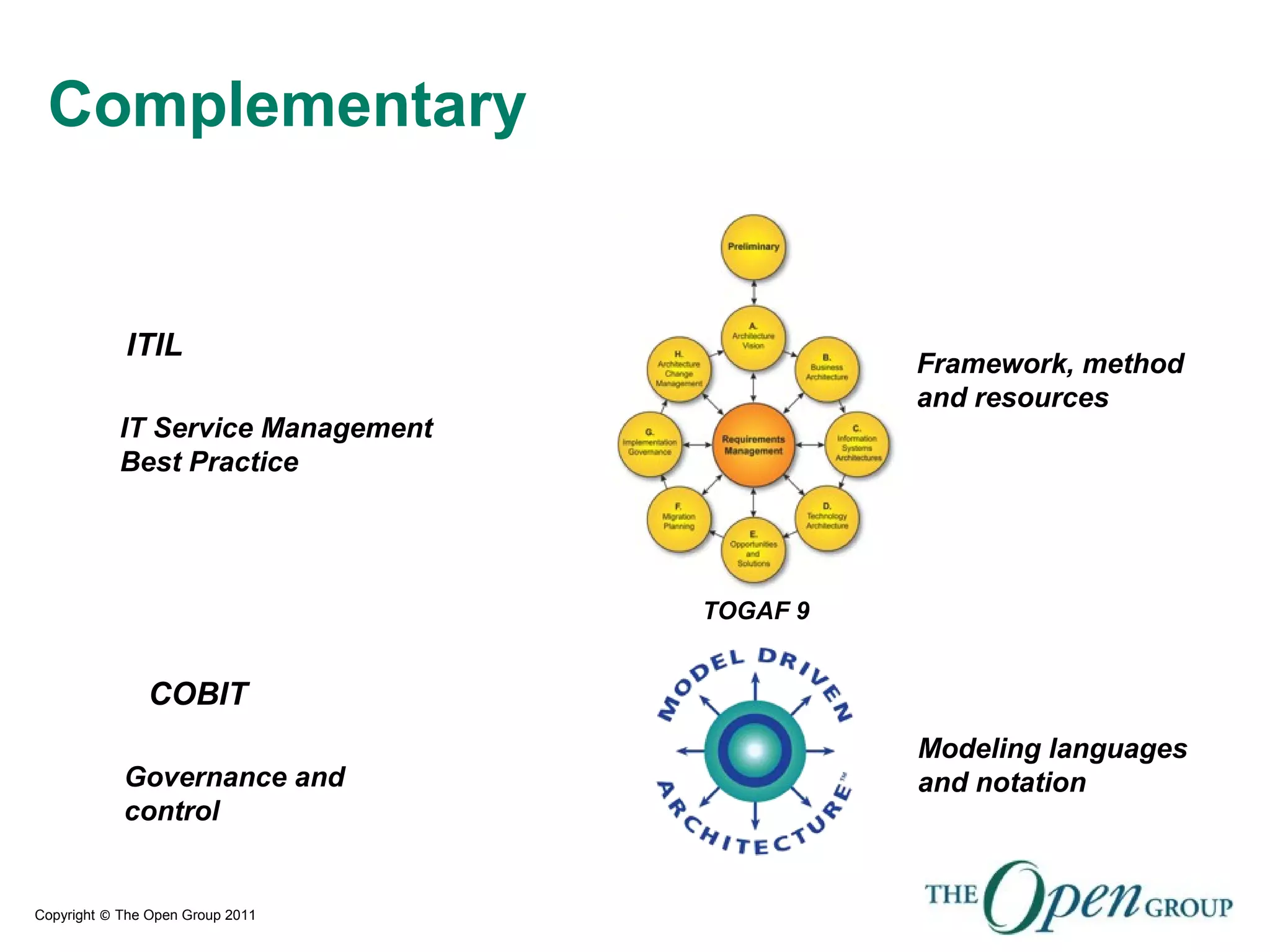

- 35. Copyright © TheOpen Group 2011 Complementary TOGAF 9 Modeling languages and notation Framework, method and resources ITIL IT Service Management Best Practice COBIT Governance and control

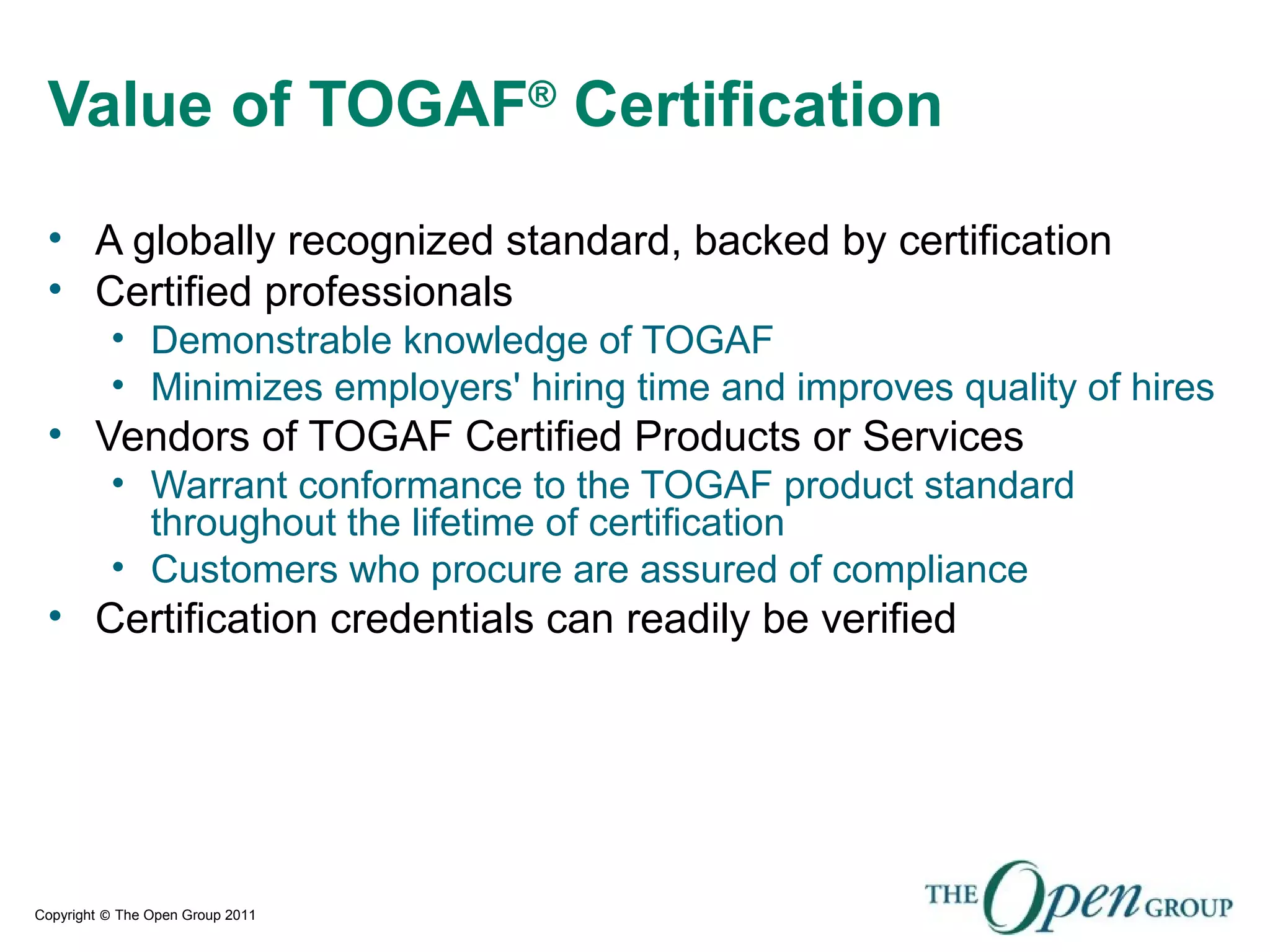

- 36. Copyright © TheOpen Group 2011 Value of TOGAF® Certification • A globally recognized standard, backed by certification • Certified professionals • Demonstrable knowledge of TOGAF • Minimizes employers' hiring time and improves quality of hires • Vendors of TOGAF Certified Products or Services • Warrant conformance to the TOGAF product standard throughout the lifetime of certification • Customers who procure are assured of compliance • Certification credentials can readily be verified

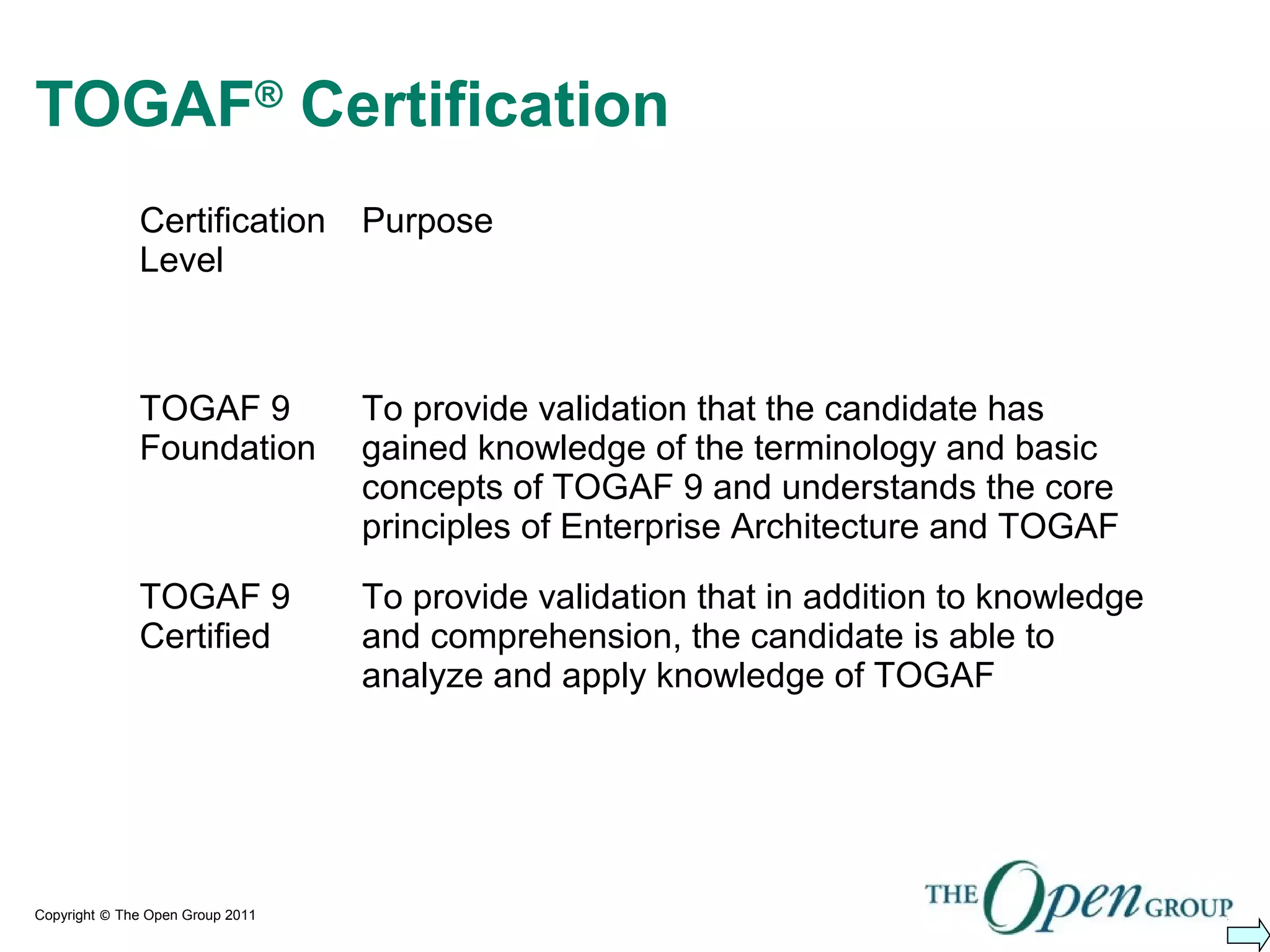

- 37. Copyright © TheOpen Group 2011 TOGAF® Certification Certification Level Purpose TOGAF 9 Foundation To provide validation that the candidate has gained knowledge of the terminology and basic concepts of TOGAF 9 and understands the core principles of Enterprise Architecture and TOGAF TOGAF 9 Certified To provide validation that in addition to knowledge and comprehension, the candidate is able to analyze and apply knowledge of TOGAF

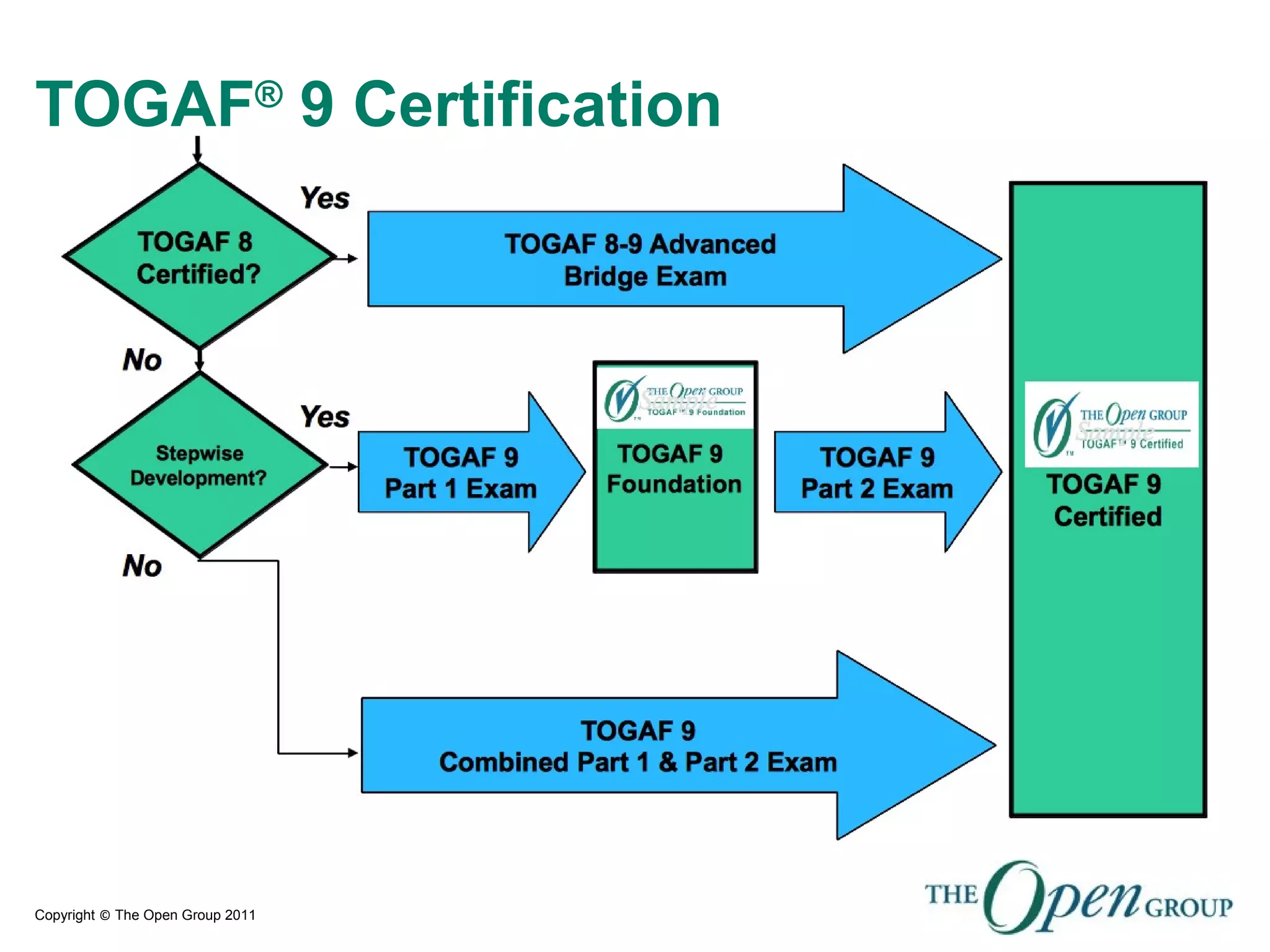

- 38. Copyright © TheOpen Group 2011 TOGAF® 9 Certification

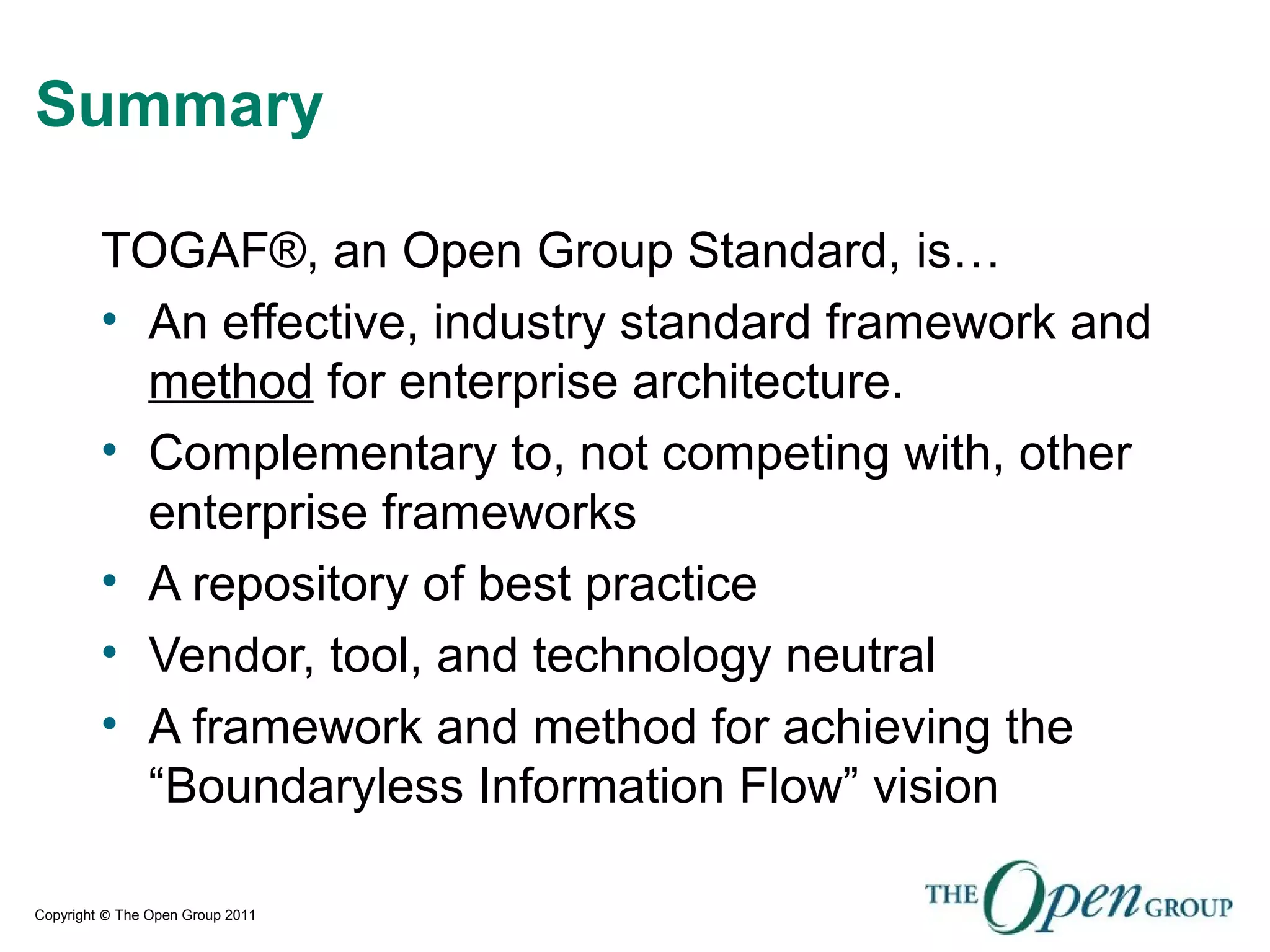

- 39. Copyright © TheOpen Group 2011 Summary TOGAF®, an Open Group Standard, is… • An effective, industry standard framework and method for enterprise architecture. • Complementary to, not competing with, other enterprise frameworks • A repository of best practice • Vendor, tool, and technology neutral • A framework and method for achieving the “Boundaryless Information Flow” vision

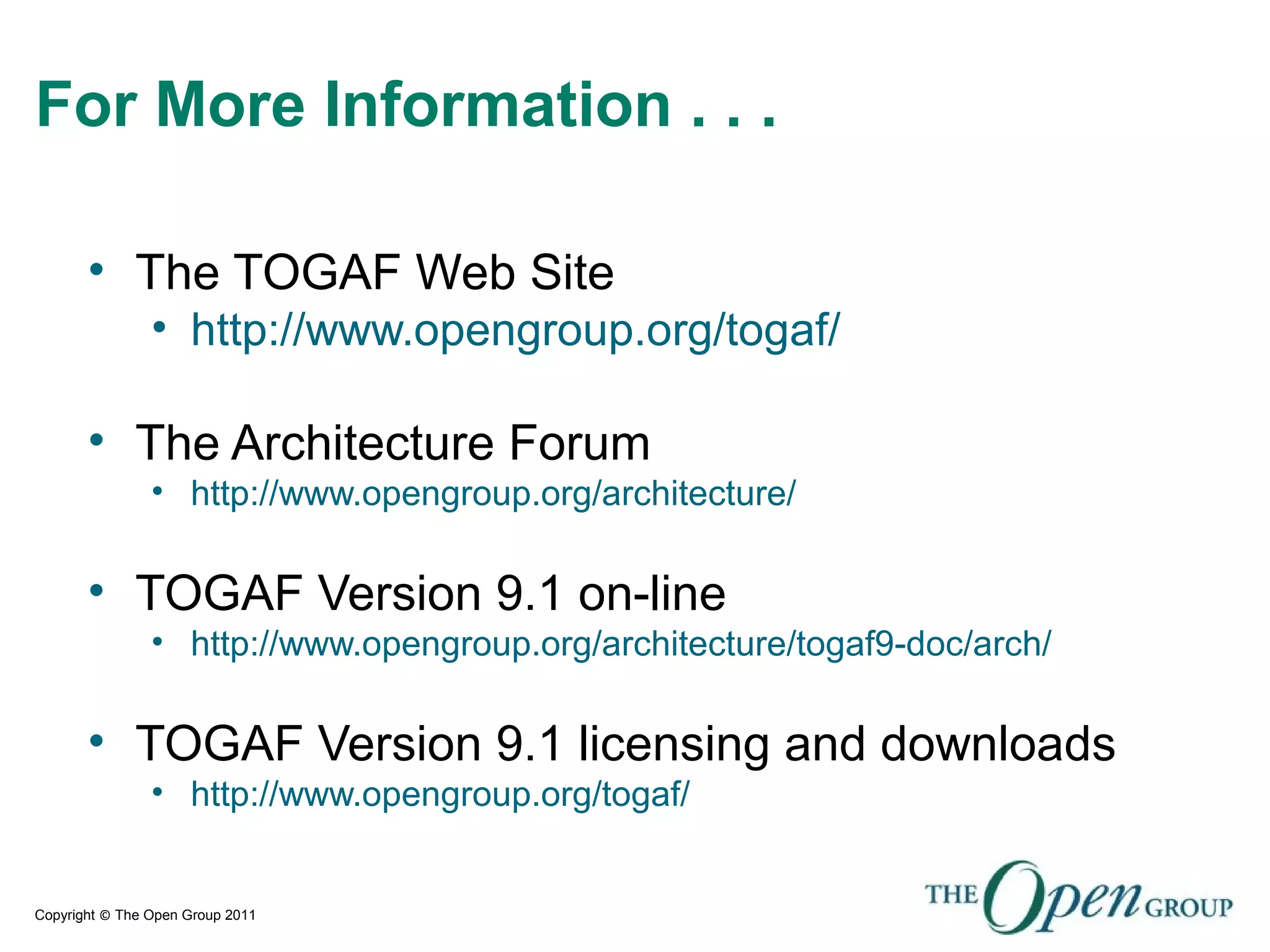

- 40. Copyright © TheOpen Group 2011 For More Information . . . • The TOGAF Web Site • http://www.opengroup.org/togaf/ • The Architecture Forum • http://www.opengroup.org/architecture/ • TOGAF Version 9.1 on-line • http://www.opengroup.org/architecture/togaf9-doc/arch/ • TOGAF Version 9.1 licensing and downloads • http://www.opengroup.org/togaf/
- 41. Copyright © TheOpen Group 2011 TOGAF® Version 9.1 • TOGAF Version 9.1, “The Book” • Document No. G116 • www.opengroup.org • www.vanharen.net

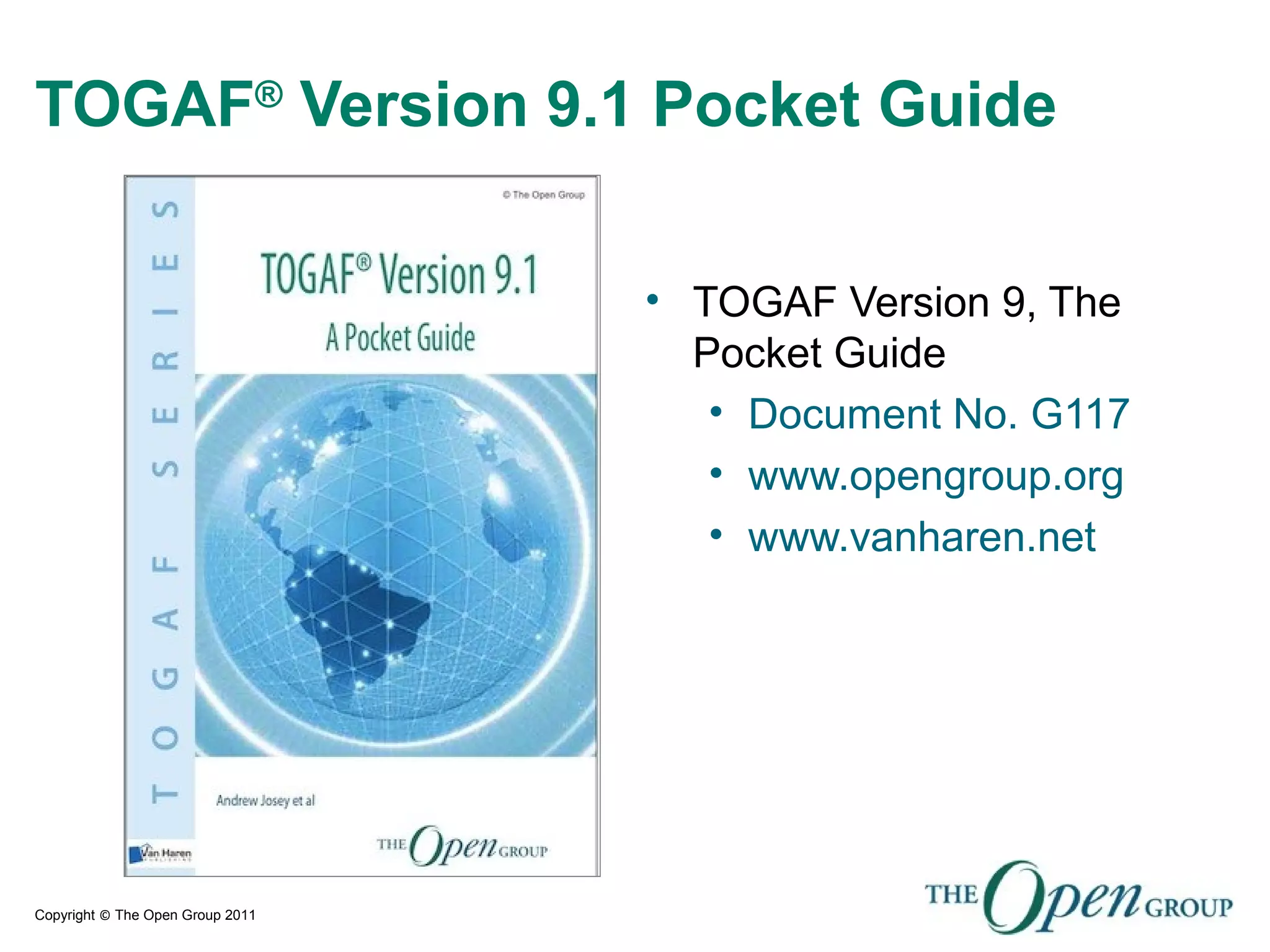

- 42. Copyright © TheOpen Group 2011 TOGAF® Version 9.1 Pocket Guide • TOGAF Version 9, The Pocket Guide • Document No. G117 • www.opengroup.org • www.vanharen.net

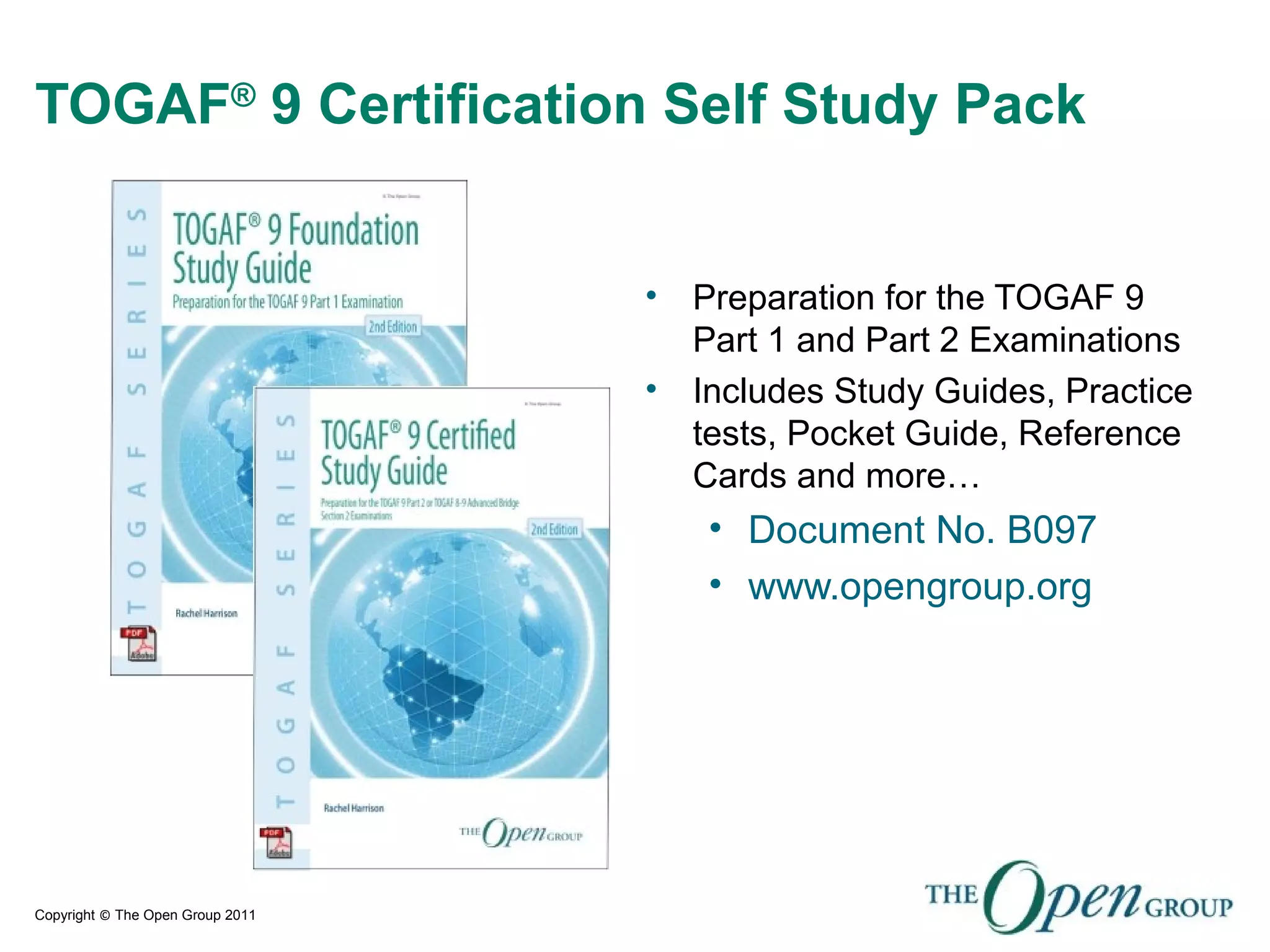

- 43. Copyright © TheOpen Group 2011 TOGAF® 9 Certification Self Study Pack • Preparation for the TOGAF 9 Part 1 and Part 2 Examinations • Includes Study Guides, Practice tests, Pocket Guide, Reference Cards and more… • Document No. B097 • www.opengroup.org
- 44. Copyright © TheOpen Group 2011 Questions? Jorge Sebastiao, CISSP ICT Expert Huawei http://linkedin.com/in/sebastiao/ Twitter: @4jorge
Editor's Notes
- #2 Slide deck for use by Open Group members only. Redistribution and commercial use prohibited without prior permission from The Open Group. If you use this deck please acknowledge the source – thank you. This is a technical overview of TOGAF, and specifically TOGAF Version 9.1
- #4 This is the agenda for this deck
- #5 TOGAF(r), an Open Group Standard, is a proven enterprise architecture methodology and framework used by the world's leading organizations to improve business efficiency. It is the most prominent and reliable enterprise architecture standard, ensuring consistent standards, methods, and communication among enterprise architecture professionals. Enterprise architecture professionals fluent in TOGAF standards enjoy greater industry credibility, job effectiveness, and career opportunities. TOGAF helps practitioners avoid being locked into proprietary methods, utilize resources more efficiently and effectively, and realize a greater return on investment.
- #6 TOGAF is developed and maintained by The Open Group Architecture Forum. The first version of TOGAF, developed in 1995, was based on the US Department of Defense Technical Architecture Framework for Information Management (TAFIM). Starting from this sound foundation, The Open Group Architecture Forum has developed successive versions of TOGAF at regular intervals and published each one on The Open Group public web site. TAFIM, Technical Architecture Framework for Information Management
- #7 This is a view of the timeline , this illustrates the long maturation cycle. As TOGAF has become more mature the time period between publications has also increased
- #8 This slide gives many of the reasons why TOGAF is suitable and widely chosen as an architecture framework The graphic shown is the conceptual overview diagram for the TOGAF ADM illustrating the iterative cyclical nature of the process. (This process model is sometimes referred as a ‘the crop circle’.)
- #9 Some stats
- #10 Some more stats
- #11 These were the market drivers behind the major revision that was TOGAF 9
- #13 TOGAF 9.1 includes a set of maintenance updates based on feedback received on the 2009 publication of TOGAF 9. As such, the changes are upwards-compatible adding clarification, consistency, and additional details where needed. A separate document describing the changes including rationale is available as TOGAF 9 Technical Corrigendum 1 (Document U112).[1] [1] TOGAF 9 Technical Corrigendum 1 can be obtained from www.opengroup.org/bookstore/catalog/u112.htm.
- #14 This slide shows the TOGAF 9.1 Specification table of contents, which remains the same as TOGAF 9
- #15 The structure of the TOGAF standard reflects the structure and content of an architecture capability within an enterprise The architecture capability operates a method (click) The method is supported by a number of guidelines and techniques (click) And produces content to be store in the repository (click) the content is classified according to the Enterprise continuum (click) which is populated initially with the TOGAF reference models. This ties to the business as follows
- #16 This shows the structure in a graphical overview format calling out the main components These are discussed briefly in the next few slides: Architecture Development Method (ADM) An iterative sequence of steps to develop an enterprise-wide architecture ADM Guidelines and Techniques Architecture Content Framework TOGAF Reference Models Technical Reference Model I3RM: Integrated Information Infrastructure Reference Model, Supporting “Boundaryless Information Flow” The Enterprise Continuum A virtual repository of architecture assets. During application of the ADM, assets are created or drawn from existing assets, used, modified and returned to the virtual repository The Architecture Capability Framework
- #17 The ADM is the core of TOGAF
- #18 The ADM is iterative and circular.
- #19 ADM Phase overview
- #20 The phases of the ADM cycle are further divided into steps; this example shows Phase B: Business Architecture phase. A similar set of steps applies to phases C and D
- #21 (TOGAF 9 Part III: ADM Guidelines and Techniques is a set of resources – guidelines, templates, checklists, and other detailed materials – that directly support application of the TOGAF ADM. The individual guidelines and techniques are described in a separate part of TOGAF so that they can be referenced from the relevant points in the ADM as necessary, rather than having the detailed text clutter the description of the ADM itself. Guidelines versus Technique The guidelines provided with TOGAF describe how the ADM process can be adapted to deal with a number of different usage scenarios, including different process styles (e.g., the use of iteration) and also specific specialty architectures (such as security). The techniques described within TOGAF 9 Part III support specific tasks within the ADM (e.g., the gap analysis technique, principles, etc.). Some examples follow
- #22 An example from ADM Guidelines and Techniques is how to apply iteration. This is a Guideline
- #23 Similarly it provides guidance on applying the ADM at different levels across the Architecture Landscape. This is another Guideline
- #24 Part III contains the Stakeholder Management Technique to support application of the ADM
- #25 Part IV of the TOGAF 9 document is the Architecture content framework. (During application of the ADM process, a number of outputs are produced; for example, process flows, architectural requirements, project plans, project compliance assessments, etc. In order to collate and present these major work products in a consistent and structured manner, TOGAF defines a structural model – the TOGAF Architecture Content Framework – in which to place them. We look at Deliverables, Artifacts and Architecture Building Blocks next
- #26 The Architecture Content Framework provides three categories to describe architectural work products The Architecture Content Framework uses the following three categories to describe the type of architectural work product within the context of use: Deliverables Formal products Contractually specified Outputs from a project A deliverable can contain many artifacts Building blocks components that can be combined with other building blocks to deliver architectures and solutions Artifacts fine grained products that describe an architecture from a specific viewpoint For example: use-case specifications, architectural requirements, network diagrams, etc. Classified as: Catalogs (lists of things), matrices (showing relationships between things) or diagrams (pictures of things). Artifacts make up the content of the Architecture Repository (longer explanations) A deliverable is a work product that is contractually specified and in turn formally reviewed, agreed, and signed off by the stakeholders. Deliverables represent the output of projects and those deliverables that are in documentation form will typically be archived at completion of a project, or transitioned into an Architecture Repository as a reference model, standard, or snapshot of the Architecture Landscape at a point in time. An artifact is an architectural work product that describes an aspect of the architecture. Artifacts are generally classified as catalogs (lists of things), matrices (showing relationships between things), and diagrams (pictures of things). Examples include a requirements catalog, business interaction matrix, and a use-case diagram.. An architectural deliverable may contain many artifacts and artifacts will form the content of the Architecture Repository. A building block represents a (potentially re-usable) component of business, IT, or architectural capability that can be combined with other building blocks to deliver architectures and solutions.
- #27 This is the full content metamodel with relationships. We won’t be going into this level of detail in this overview talk
- #28 Part V of TOGAF: The Enterprise Continuum is a “virtual repository” of all the architecture assets – models, patterns, architecture descriptions, etc. – The Enterprise Continuum, sets the broader context for an architect and explains how generic solutions can be leveraged and specialized in order to support the requirements of an individual organization. The Enterprise Continuum is a view of the Architecture Repository that provides methods for classifying architecture and solution artifacts as they evolve from generic Foundation Architectures to Organization-Specific Architectures. The Enterprise Continuum comprises two complementary concepts: the Architecture Continuum and the Solutions Continuum. This diagram shows an overview of the context and constituents of the Enterprise Continuum. The Enterprise Continuum is partitioned into three distinct continua: The Enterprise Continuum is the outermost continuum and classifies assets related to the context of the overall enterprise architecture. The Enterprise Continuum classes of assets may influence architectures, but are not directly used during the ADM architecture development. The Enterprise Continuum classifies contextual assets used to develop architectures, such as policies, standards, strategic initiatives, organizational structures, and enterprise-level capabilities. The Enterprise Continuum can also classify solutions (as opposed to descriptions or specifications of solutions). Finally, the Enterprise Continuum contains two specializations, namely the Architecture and Solutions continuum
- #29 Supporting the Enterprise Continuum is the concept of an Architecture Repository which can be used to store different classes of architectural output at different levels of abstraction, created by the ADM. In this way, TOGAF facilitates understanding and co-operation between stakeholders and practitioners at different levels. (In 9.1 we have added the Enterprise Repository explicitly to the diagram)
- #30 Part VI: The TOGAF Technical Reference Model (TRM), provides a model and taxonomy of generic platform services It is a Foundation Architecture: “An architecture of generic services and functions that provides a foundation on which more specific architectures and architectural components can be built”. III-RM The Open Group has documented the business scenario that led to the creation of the Integrated Information Infrastructure Reference Model (III-RM) in the Interoperable Enterprise Business Scenario (K022). This is freely available for download from the Business Scenarios section of The Open Group online bookstore at www.opengroup.org/bookstore.
- #31 The coarsest breakdown of the TRM is shown in Technical Reference Model - High-Level View , which shows three major entities (Application Software, Application Platform, and Communications Infrastructure) connected by two interfaces (Application Platform Interface and Communications Infrastructure Interface). The diagram says nothing about the detailed relationships between the entities; only that they exist. Each of the elements in this diagram will be discussed in detail later.
- #32 The detailed TRM is only a depiction of the TRM entities: it neither implies nor inhibits inter-relationships among them. IT architectures derived from TOGAF may differ greatly depending on the requirements of the information system. In practice, many architectures will not include all of the services discussed here, and many will include additional services to support Application Software that is specific to the organization or to its vertical industry. In building an architecture, users of TOGAF should assess their own requirements and select the services, interfaces, and standards that satisfy their own business needs. (Ch 43 of TOGAF)
- #33 This is pronounced I3-RM. Closer to the solution space than the TRM. An example of a Common Systems Architecture So a lower level abstraction than the TRM Based on the TRM Aimed at the helping the design of architectures to enable and support the vision of Boundaryless Information Flow III-RM The Open Group has documented the business scenario that led to the creation of the Integrated Information Infrastructure Reference Model (III-RM) in the Interoperable Enterprise Business Scenario (K022). This is freely available for download from the Business Scenarios section of The Open Group online bookstore at www.opengroup.org/bookstore.
- #34 TOGAF 9 provides an Architecture Capability Framework that is a set of reference materials and guidelines for establishing an architecture function or capability within an organization. A structured definition of the organizations, skills, roles and responsibilities to establish and operate an Enterprise Architecture, including: Terms of Reference for an Architecture Board Guidance on measuring levels of Architecture Compliance against Architecture contracts Processes and organization structures required to operate Architecture Governance Techniques for assessing Architecture Maturity An overview of the Skills required by practicing architects
- #38 The TOGAF For People Certification program for TOGAF 9 has two levels of certification, an entry level known as TOGAF 9 Foundation and a higher level known as TOGAF 9 Certified These are described in further detail on the next few slides
- #40 This is a brief summary of TOGAF 9.1.
- #42 The TOGAF Specification
- #43 The TOGAF Pocket Guide
- #44 The TOGAF Certification Self Study Pack 2nd edition covers TOGAF 9.1
