SURFACE
ORNAMENTATION
SURFACE DESIGN
TECHNIQUE
Project Report On
Dezyne E’cole College
106/10 Civil Line Ajmer
Tel – 0145-2624679
www.dezyneecole.com
2016-2017
At
Dezyne E’cole College
Submitted To
Dezyne E’cole College
Towards The
Partial Fulfillment of
2nd year Fashion Design
Diploma NSQF Level-6 NSDC
By –
Nistha Chandela

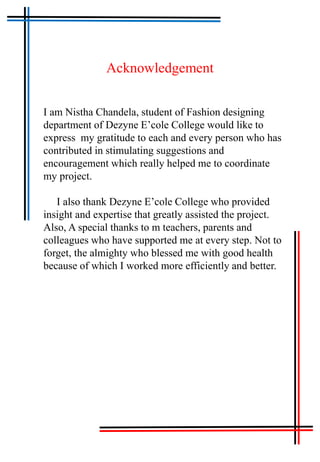

Acknowledgement
I am Nistha Chandela, student of Fashion designing
department of Dezyne E’cole College would like to
express my gratitude to each and every person who has
contributed in stimulating suggestions and
encouragement which really helped me to coordinate
my project.
I also thank Dezyne E’cole College who provided
insight and expertise that greatly assisted the project.
Also, A special thanks to m teachers, parents and
colleagues who have supported me at every step. Not to
forget, the almighty who blessed me with good health
because of which I worked more efficiently and better.

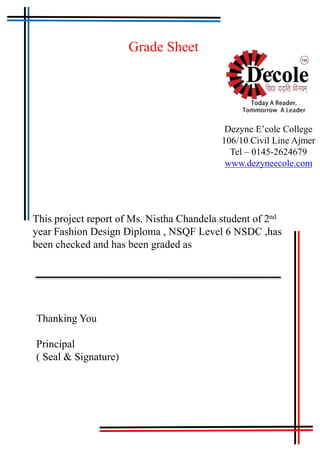

Grade Sheet
Dezyne E’cole College
106/10 Civil Line Ajmer
Tel – 0145-2624679
www.dezyneecole.com
This project report of Ms. Nistha Chandela student of 2nd
year Fashion Design Diploma , NSQF Level 6 NSDC ,has
been checked and has been graded as
Thanking You
Principal
( Seal & Signature)
Tie & Dye
Tie & Dye
Tie & Dye or tie-dyeing process. It
consists of knotting, binding, folding or
sewing certain parts of the cloth in such
a way that when it is dyed the dye
cannot penetrate into these areas which
are resisted.
In India tie & dye was known as
‘Bandhana’ work. This has become
associated with the small resist or
coloured spots which are arranged to
form patterns on a dyed ground.
Tie & Dye
• First make the pleat out
of fabric.
• Then handle it from two
ends then start twisting
the fabric.
• Twist it till it became half
the length then tie it at
intervals.
Twisting & Coiling
Tie & Dye
• Fold the fabric
lengthwise.
• Make wide pleats out
of the fabric.
• Then tie the fabric from
middle leaving the
space from both of the
side.
Folding Method
Tie & Dye

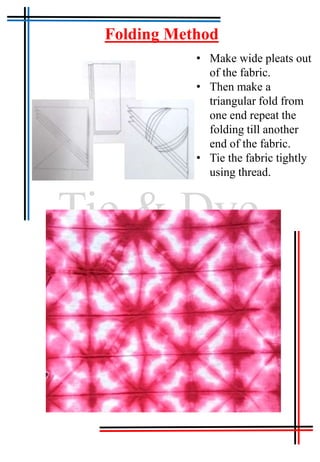

• Make wide pleats out
of the fabric.
• Then make a
triangular fold from
one end repeat the
folding till another
end of the fabric.
• Tie the fabric tightly
using thread.
Folding Method
Tie & Dye
Binding Method
• Pick the fabric from the
center and make rope out of
it.
• Tie the rope half way from
top.
• Then dye the fabric in the
colour
Tie & Dye
• Pick the fabric from the
center and make rope out
of it.
• Tie the rope criss cross at
intervals.
• Then dye the fabric in the
colour.
Binding Method
Tie & Dye
• Tie a coin in the center
of the fabric.
• Then make a line on
the remaining fabric
and gather it with the
running stitch.
• Then tie the remaining
fabric
Binding Method
Tie & Dye

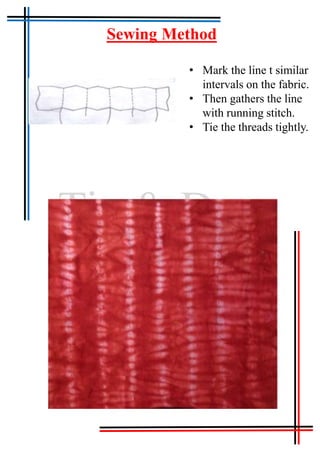

Sewing Method
• Mark the line t similar
intervals on the fabric.
• Then gathers the line
with running stitch.
• Tie the threads tightly.
Tie & Dye

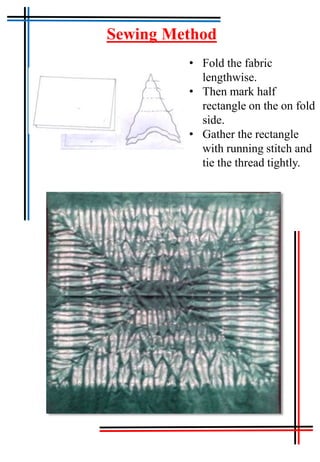

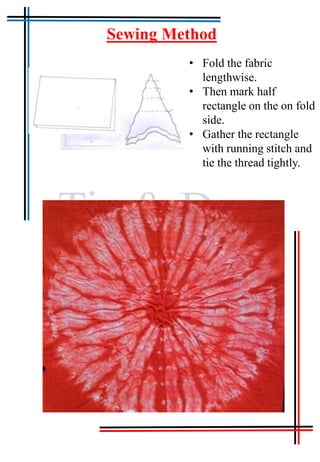

Sewing Method
• Fold the fabric
lengthwise.
• Then mark half
rectangle on the on fold
side.
• Gather the rectangle
with running stitch and
tie the thread tightly.
Tie & Dye
Sewing Method
• Fold the fabric
lengthwise.
• Then mark half
rectangle on the on fold
side.
• Gather the rectangle
with running stitch and
tie the thread tightly.
Tie & Dye

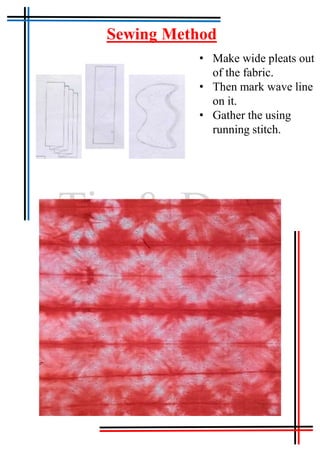

• Make wide pleats out
of the fabric.
• Then mark wave line
on it.
• Gather the using
running stitch.
Sewing Method
Tie & Dye
Twisting & Coiling
• Keep the finger tips on the center of the fabric.
• Then start twisting the fabric from the center till the
end.
• Then tie the fabric tightly
Tie & Dye
• Handle the fabric from one corner and make rope out
of it.
• Then bind the rope with thread on equal intervals.
• Than dye the fabric in the colour.
Binding Method
Tie & Dye
• First mark the dots on the fabric piece at equal
distance.
• Than pick the one with nails and start tying it.
• Then tie the dots ,marked.
Binding Method
Tie & Dye

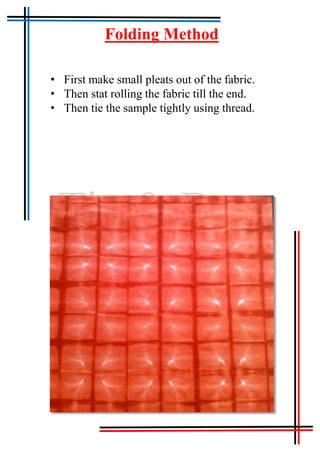

Folding Method
• First make small pleats out of the fabric.
• Then stat rolling the fabric till the end.
• Then tie the sample tightly using thread.
Tie & Dye

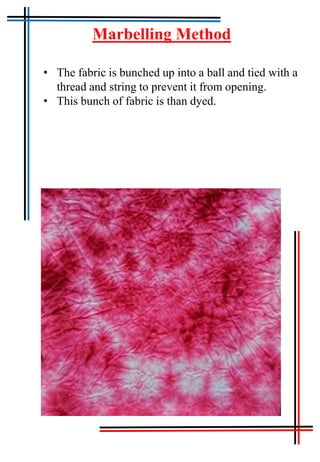

Marbelling Method
• The fabric is bunched up into a ball and tied with a
thread and string to prevent it from opening.
• This bunch of fabric is than dyed.
Tie & Dye

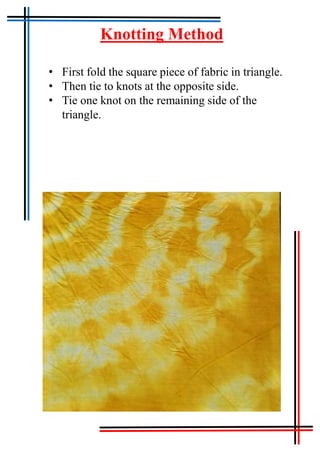

Knotting Method
• First fold the square piece of fabric in triangle.
• Then tie to knots at the opposite side.
• Tie one knot on the remaining side of the
triangle.
Tie & Dye

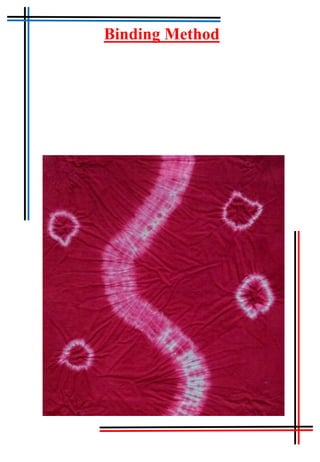

Binding Method
Tie & Dye
Binding Method
Tie & Dye

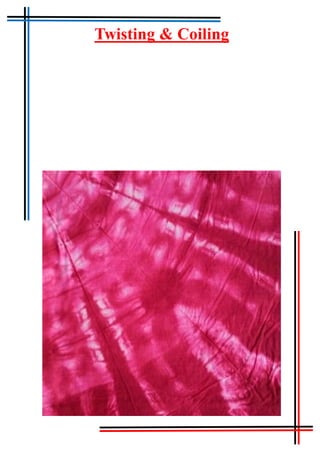

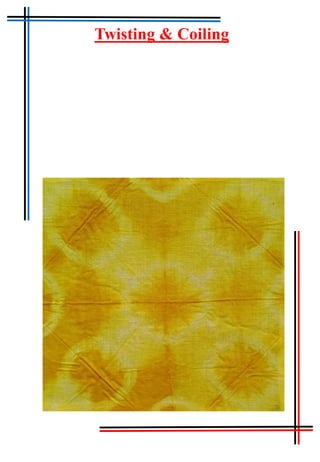

Twisting & Coiling
Tie & Dye

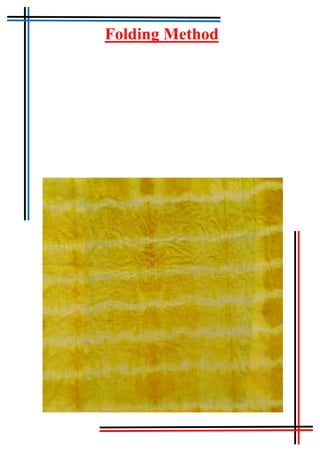

Folding Method
Tie & Dye
Binding Method
Tie & Dye
Binding Method
Tie & Dye

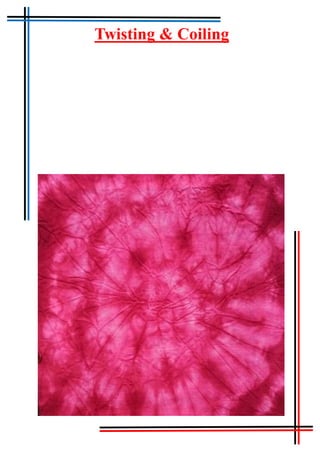

Twisting & Coiling
Tie & Dye
Twisting & Coiling
Tie & Dye
Binding Method
Tie & Dye
Binding Method
Tie & Dye

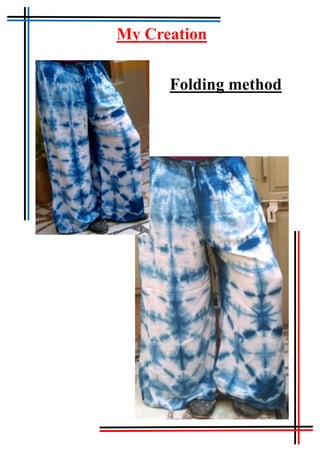

My Creation
Folding method
THANK YOU
