This document contains source code for a 3D tic-tac-toe game written in Ring and using OpenGL. It includes classes for the game logic, background, sound, cubes that make up the game board, and a game over screen. The main class initializes instances of these classes and calls their methods like loadresources, drawScene, and mouse click event handling. It renders 3D textured cubes that can be rotated and contains logic for the game play and detecting a winner.

1. Ring Documentation, Release 1.8

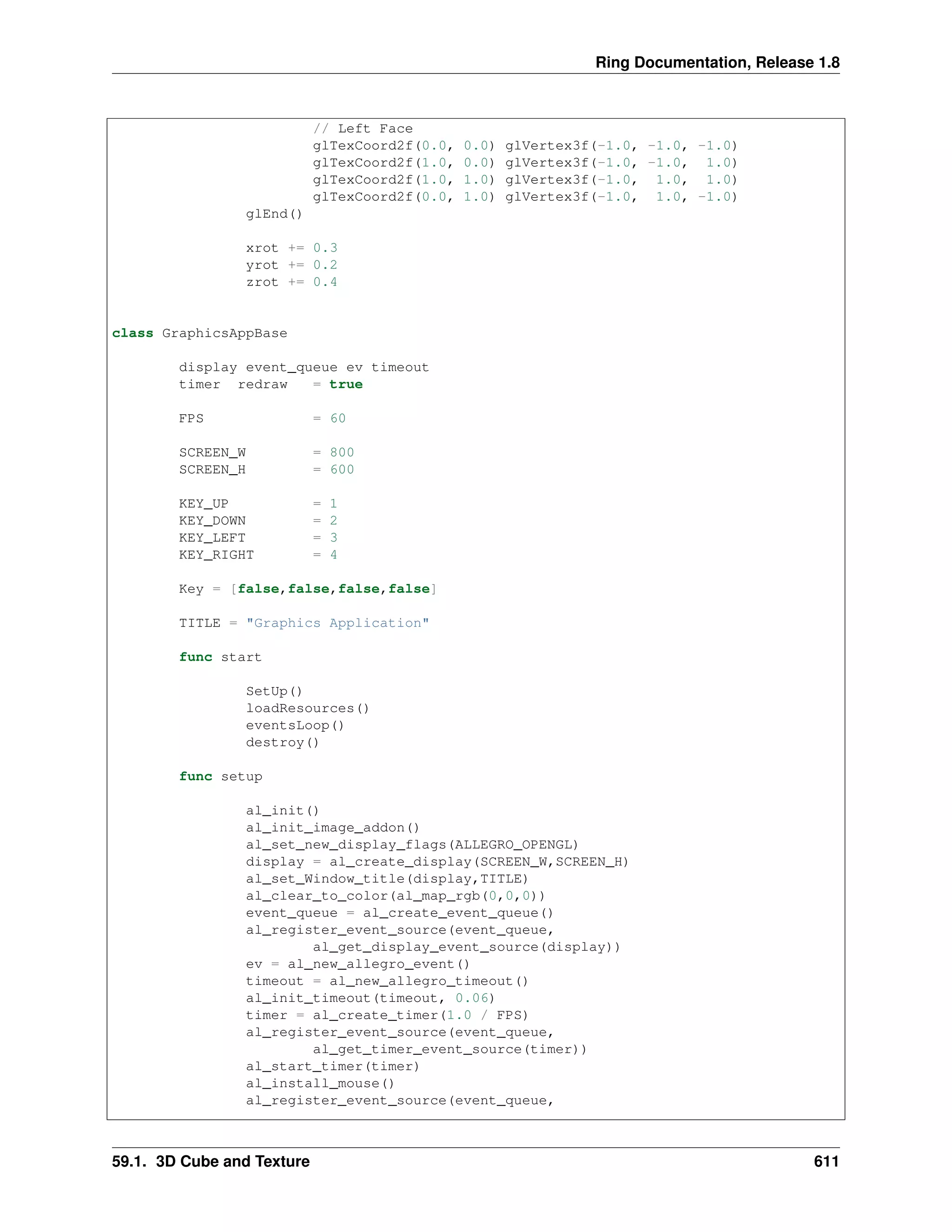

// Left Face
glTexCoord2f(0.0, 0.0) glVertex3f(-1.0, -1.0, -1.0)
glTexCoord2f(1.0, 0.0) glVertex3f(-1.0, -1.0, 1.0)
glTexCoord2f(1.0, 1.0) glVertex3f(-1.0, 1.0, 1.0)
glTexCoord2f(0.0, 1.0) glVertex3f(-1.0, 1.0, -1.0)
glEnd()
xrot += 0.3
yrot += 0.2
zrot += 0.4
class GraphicsAppBase
display event_queue ev timeout
timer redraw = true
FPS = 60
SCREEN_W = 800
SCREEN_H = 600
KEY_UP = 1
KEY_DOWN = 2
KEY_LEFT = 3
KEY_RIGHT = 4
Key = [false,false,false,false]
TITLE = "Graphics Application"
func start
SetUp()
loadResources()
eventsLoop()
destroy()
func setup
al_init()
al_init_image_addon()
al_set_new_display_flags(ALLEGRO_OPENGL)
display = al_create_display(SCREEN_W,SCREEN_H)
al_set_Window_title(display,TITLE)
al_clear_to_color(al_map_rgb(0,0,0))
event_queue = al_create_event_queue()
al_register_event_source(event_queue,
al_get_display_event_source(display))
ev = al_new_allegro_event()
timeout = al_new_allegro_timeout()
al_init_timeout(timeout, 0.06)
timer = al_create_timer(1.0 / FPS)
al_register_event_source(event_queue,
al_get_timer_event_source(timer))
al_start_timer(timer)
al_install_mouse()
al_register_event_source(event_queue,
59.1. 3D Cube and Texture 611

2. Ring Documentation, Release 1.8

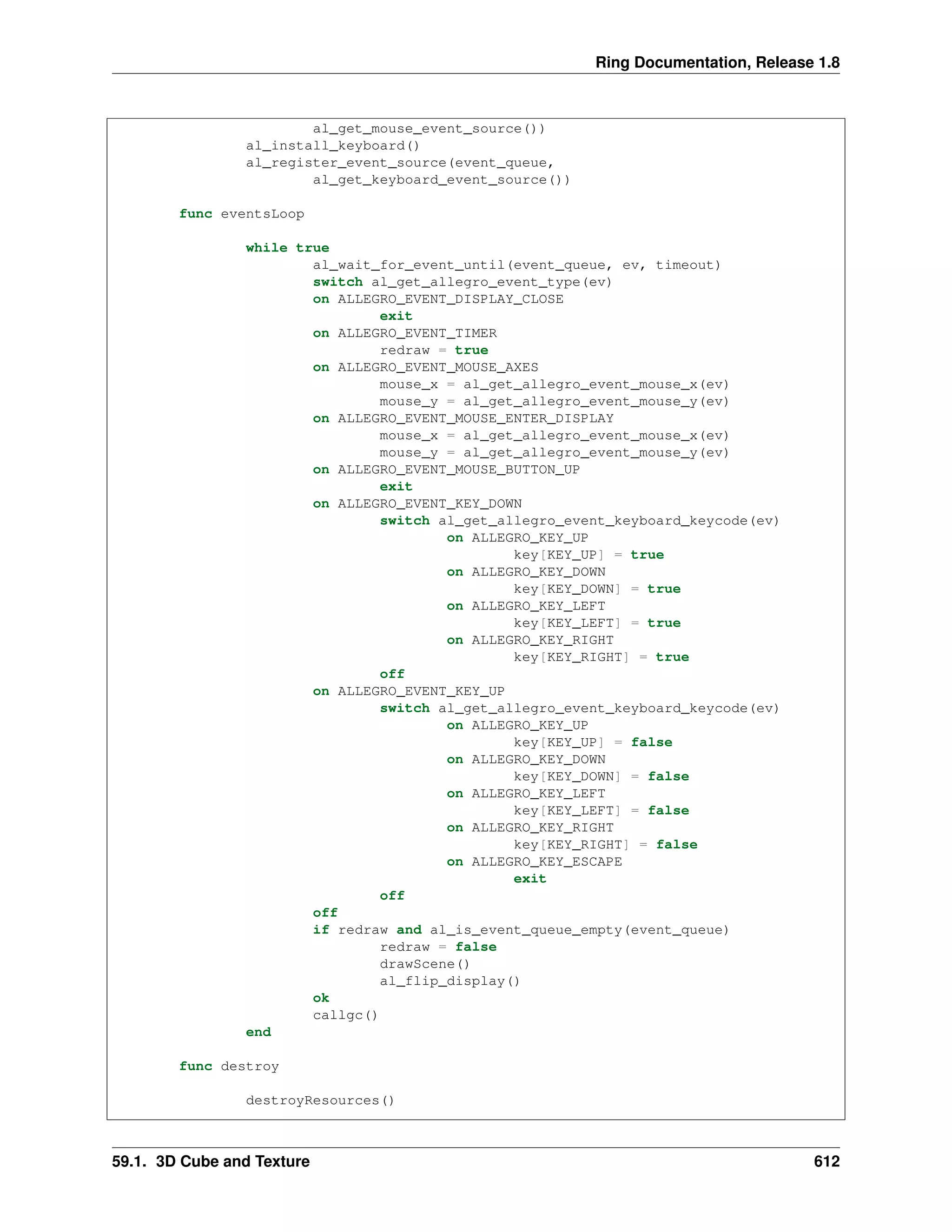

al_get_mouse_event_source())
al_install_keyboard()
al_register_event_source(event_queue,
al_get_keyboard_event_source())
func eventsLoop
while true
al_wait_for_event_until(event_queue, ev, timeout)
switch al_get_allegro_event_type(ev)
on ALLEGRO_EVENT_DISPLAY_CLOSE
exit
on ALLEGRO_EVENT_TIMER
redraw = true
on ALLEGRO_EVENT_MOUSE_AXES
mouse_x = al_get_allegro_event_mouse_x(ev)
mouse_y = al_get_allegro_event_mouse_y(ev)
on ALLEGRO_EVENT_MOUSE_ENTER_DISPLAY
mouse_x = al_get_allegro_event_mouse_x(ev)
mouse_y = al_get_allegro_event_mouse_y(ev)
on ALLEGRO_EVENT_MOUSE_BUTTON_UP
exit
on ALLEGRO_EVENT_KEY_DOWN
switch al_get_allegro_event_keyboard_keycode(ev)
on ALLEGRO_KEY_UP
key[KEY_UP] = true
on ALLEGRO_KEY_DOWN
key[KEY_DOWN] = true
on ALLEGRO_KEY_LEFT
key[KEY_LEFT] = true
on ALLEGRO_KEY_RIGHT
key[KEY_RIGHT] = true
off
on ALLEGRO_EVENT_KEY_UP
switch al_get_allegro_event_keyboard_keycode(ev)
on ALLEGRO_KEY_UP
key[KEY_UP] = false
on ALLEGRO_KEY_DOWN
key[KEY_DOWN] = false
on ALLEGRO_KEY_LEFT
key[KEY_LEFT] = false
on ALLEGRO_KEY_RIGHT
key[KEY_RIGHT] = false
on ALLEGRO_KEY_ESCAPE
exit
off
off
if redraw and al_is_event_queue_empty(event_queue)
redraw = false
drawScene()
al_flip_display()
ok
callgc()
end
func destroy
destroyResources()
59.1. 3D Cube and Texture 612

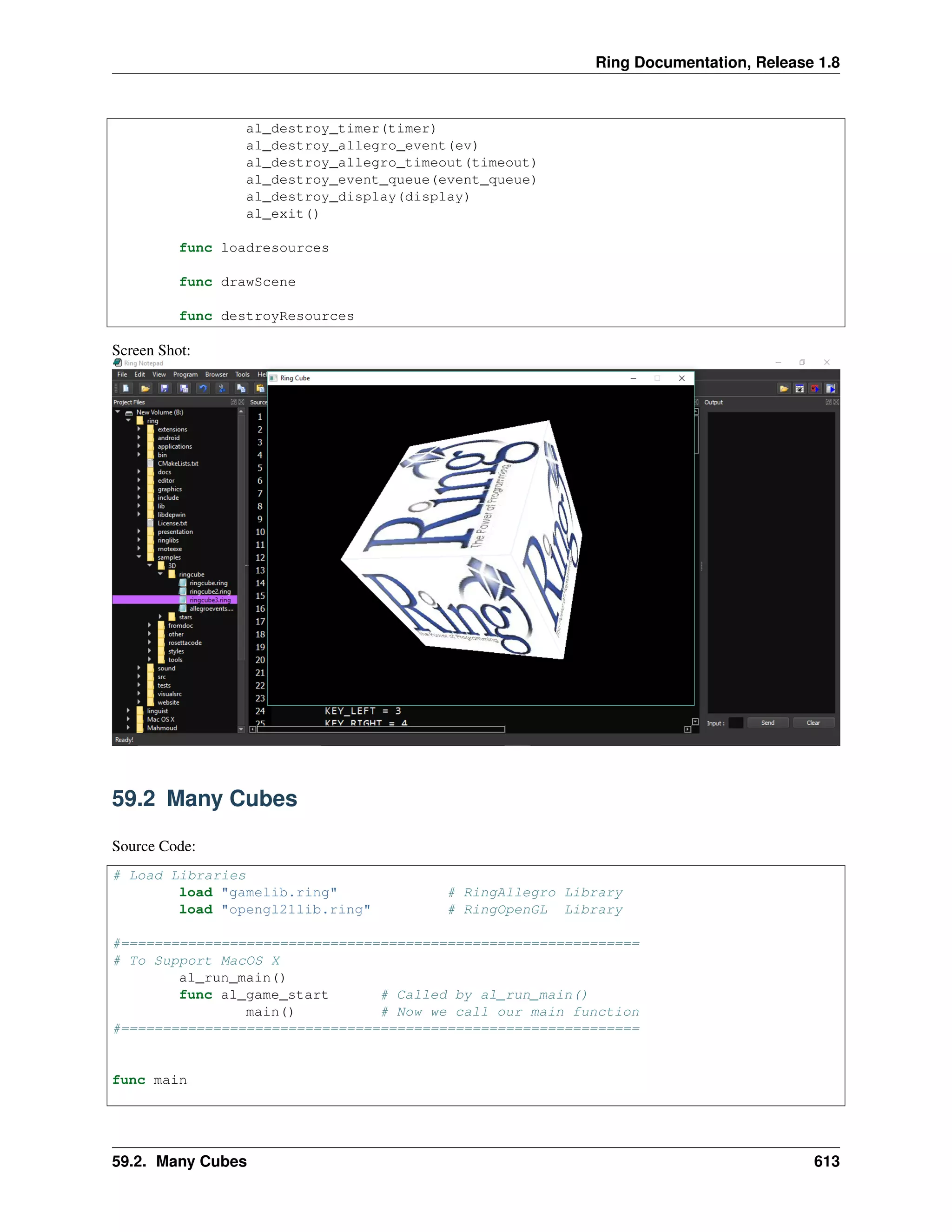

3. Ring Documentation, Release 1.8
al_destroy_timer(timer)
al_destroy_allegro_event(ev)
al_destroy_allegro_timeout(timeout)
al_destroy_event_queue(event_queue)
al_destroy_display(display)
al_exit()
func loadresources
func drawScene
func destroyResources
Screen Shot:
59.2 Many Cubes
Source Code:
# Load Libraries
load "gamelib.ring" # RingAllegro Library
load "opengl21lib.ring" # RingOpenGL Library
#==============================================================
# To Support MacOS X
al_run_main()
func al_game_start # Called by al_run_main()
main() # Now we call our main function
#==============================================================
func main
59.2. Many Cubes 613

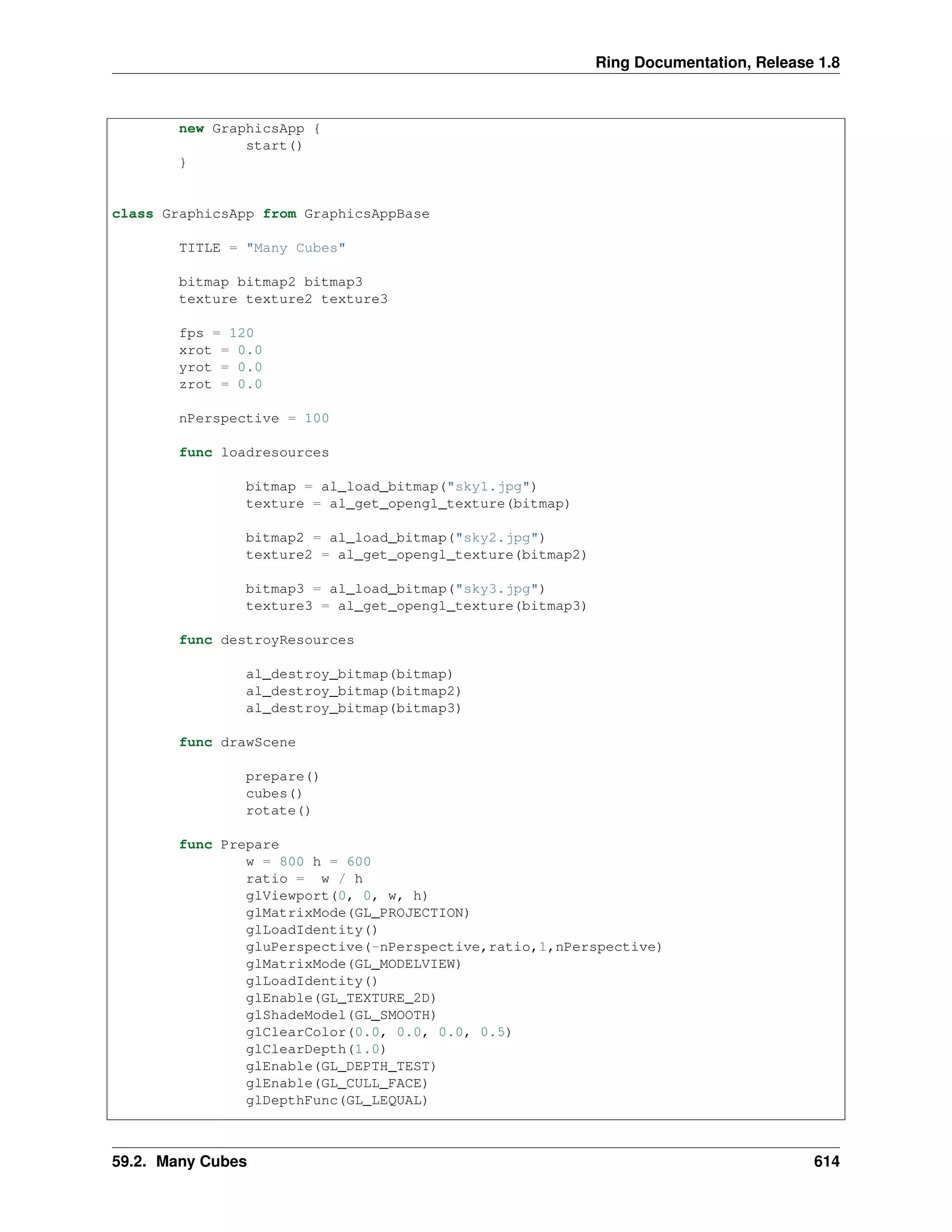

4. Ring Documentation, Release 1.8
new GraphicsApp {
start()
}
class GraphicsApp from GraphicsAppBase
TITLE = "Many Cubes"
bitmap bitmap2 bitmap3
texture texture2 texture3
fps = 120
xrot = 0.0
yrot = 0.0
zrot = 0.0
nPerspective = 100
func loadresources
bitmap = al_load_bitmap("sky1.jpg")
texture = al_get_opengl_texture(bitmap)
bitmap2 = al_load_bitmap("sky2.jpg")
texture2 = al_get_opengl_texture(bitmap2)
bitmap3 = al_load_bitmap("sky3.jpg")
texture3 = al_get_opengl_texture(bitmap3)
func destroyResources
al_destroy_bitmap(bitmap)
al_destroy_bitmap(bitmap2)
al_destroy_bitmap(bitmap3)
func drawScene
prepare()
cubes()
rotate()
func Prepare
w = 800 h = 600
ratio = w / h
glViewport(0, 0, w, h)
glMatrixMode(GL_PROJECTION)
glLoadIdentity()
gluPerspective(-nPerspective,ratio,1,nPerspective)
glMatrixMode(GL_MODELVIEW)
glLoadIdentity()
glEnable(GL_TEXTURE_2D)
glShadeModel(GL_SMOOTH)
glClearColor(0.0, 0.0, 0.0, 0.5)
glClearDepth(1.0)
glEnable(GL_DEPTH_TEST)
glEnable(GL_CULL_FACE)
glDepthFunc(GL_LEQUAL)
59.2. Many Cubes 614

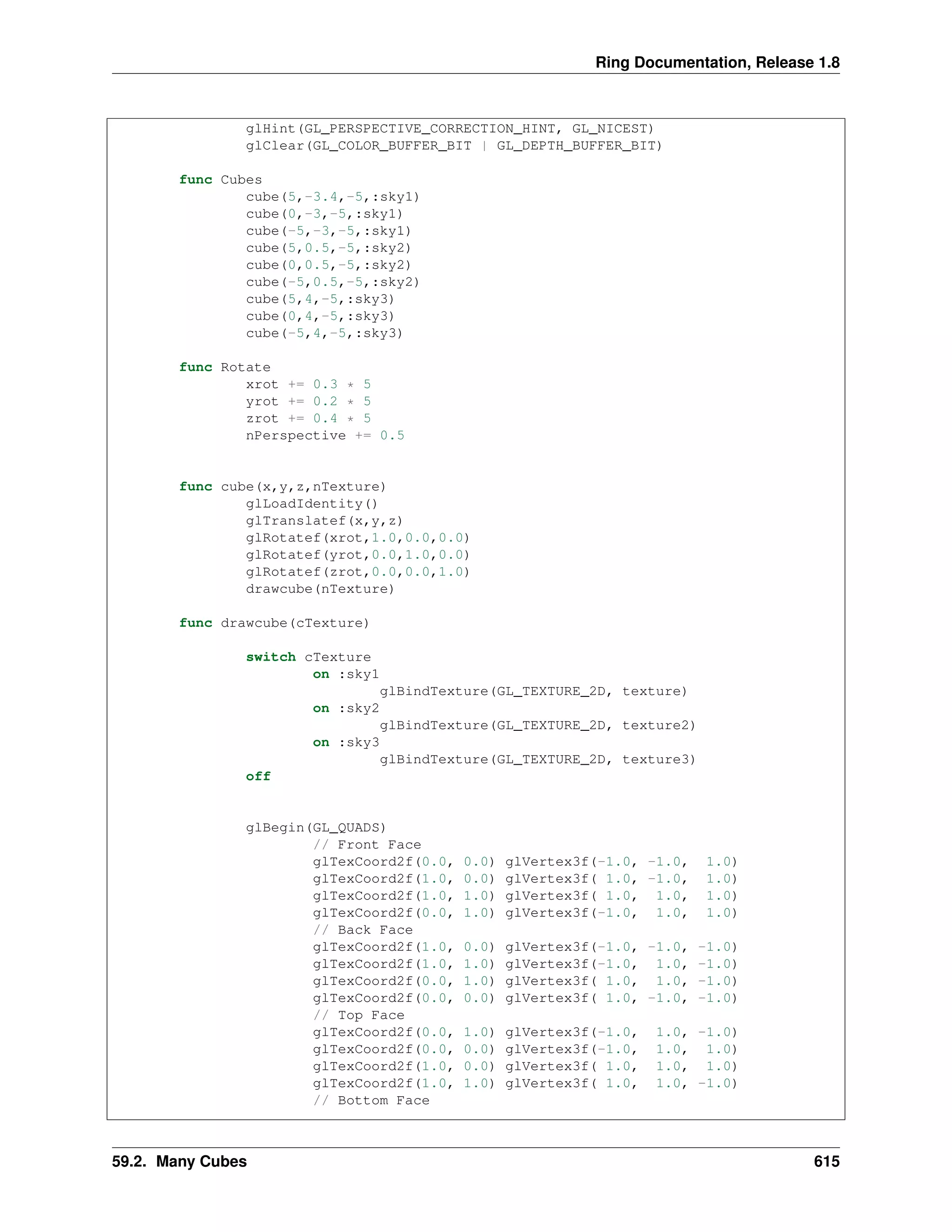

5. Ring Documentation, Release 1.8
glHint(GL_PERSPECTIVE_CORRECTION_HINT, GL_NICEST)
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)
func Cubes
cube(5,-3.4,-5,:sky1)
cube(0,-3,-5,:sky1)
cube(-5,-3,-5,:sky1)
cube(5,0.5,-5,:sky2)
cube(0,0.5,-5,:sky2)
cube(-5,0.5,-5,:sky2)
cube(5,4,-5,:sky3)
cube(0,4,-5,:sky3)
cube(-5,4,-5,:sky3)
func Rotate
xrot += 0.3 * 5
yrot += 0.2 * 5
zrot += 0.4 * 5
nPerspective += 0.5
func cube(x,y,z,nTexture)
glLoadIdentity()
glTranslatef(x,y,z)
glRotatef(xrot,1.0,0.0,0.0)
glRotatef(yrot,0.0,1.0,0.0)
glRotatef(zrot,0.0,0.0,1.0)
drawcube(nTexture)
func drawcube(cTexture)
switch cTexture
on :sky1
glBindTexture(GL_TEXTURE_2D, texture)
on :sky2
glBindTexture(GL_TEXTURE_2D, texture2)
on :sky3
glBindTexture(GL_TEXTURE_2D, texture3)
off
glBegin(GL_QUADS)
// Front Face
glTexCoord2f(0.0, 0.0) glVertex3f(-1.0, -1.0, 1.0)
glTexCoord2f(1.0, 0.0) glVertex3f( 1.0, -1.0, 1.0)
glTexCoord2f(1.0, 1.0) glVertex3f( 1.0, 1.0, 1.0)
glTexCoord2f(0.0, 1.0) glVertex3f(-1.0, 1.0, 1.0)
// Back Face
glTexCoord2f(1.0, 0.0) glVertex3f(-1.0, -1.0, -1.0)
glTexCoord2f(1.0, 1.0) glVertex3f(-1.0, 1.0, -1.0)
glTexCoord2f(0.0, 1.0) glVertex3f( 1.0, 1.0, -1.0)
glTexCoord2f(0.0, 0.0) glVertex3f( 1.0, -1.0, -1.0)
// Top Face
glTexCoord2f(0.0, 1.0) glVertex3f(-1.0, 1.0, -1.0)
glTexCoord2f(0.0, 0.0) glVertex3f(-1.0, 1.0, 1.0)
glTexCoord2f(1.0, 0.0) glVertex3f( 1.0, 1.0, 1.0)
glTexCoord2f(1.0, 1.0) glVertex3f( 1.0, 1.0, -1.0)
// Bottom Face
59.2. Many Cubes 615

6. Ring Documentation, Release 1.8

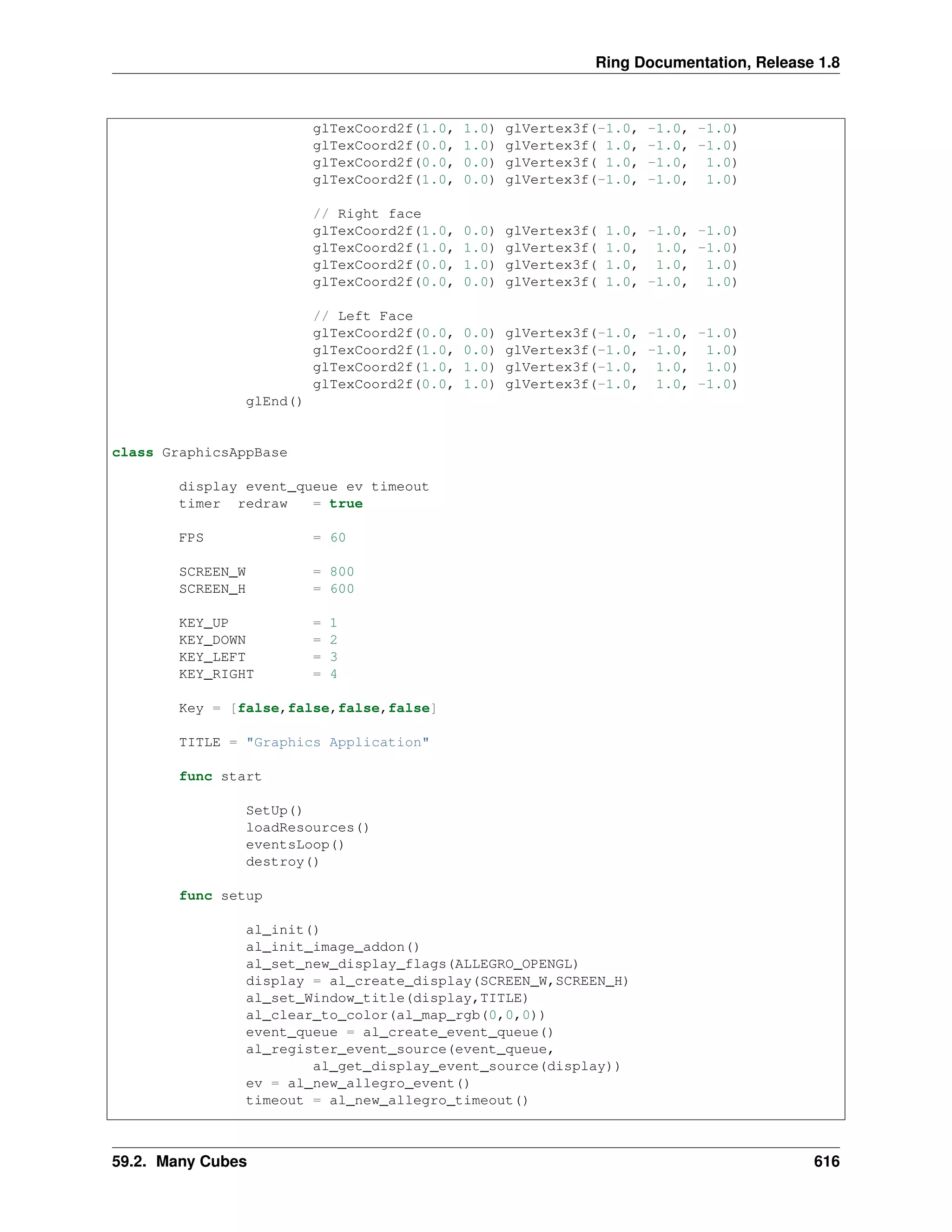

glTexCoord2f(1.0, 1.0) glVertex3f(-1.0, -1.0, -1.0)
glTexCoord2f(0.0, 1.0) glVertex3f( 1.0, -1.0, -1.0)
glTexCoord2f(0.0, 0.0) glVertex3f( 1.0, -1.0, 1.0)
glTexCoord2f(1.0, 0.0) glVertex3f(-1.0, -1.0, 1.0)
// Right face
glTexCoord2f(1.0, 0.0) glVertex3f( 1.0, -1.0, -1.0)
glTexCoord2f(1.0, 1.0) glVertex3f( 1.0, 1.0, -1.0)
glTexCoord2f(0.0, 1.0) glVertex3f( 1.0, 1.0, 1.0)
glTexCoord2f(0.0, 0.0) glVertex3f( 1.0, -1.0, 1.0)
// Left Face
glTexCoord2f(0.0, 0.0) glVertex3f(-1.0, -1.0, -1.0)
glTexCoord2f(1.0, 0.0) glVertex3f(-1.0, -1.0, 1.0)
glTexCoord2f(1.0, 1.0) glVertex3f(-1.0, 1.0, 1.0)
glTexCoord2f(0.0, 1.0) glVertex3f(-1.0, 1.0, -1.0)
glEnd()
class GraphicsAppBase
display event_queue ev timeout
timer redraw = true
FPS = 60
SCREEN_W = 800
SCREEN_H = 600
KEY_UP = 1
KEY_DOWN = 2
KEY_LEFT = 3
KEY_RIGHT = 4
Key = [false,false,false,false]
TITLE = "Graphics Application"
func start
SetUp()
loadResources()
eventsLoop()
destroy()
func setup
al_init()
al_init_image_addon()
al_set_new_display_flags(ALLEGRO_OPENGL)
display = al_create_display(SCREEN_W,SCREEN_H)
al_set_Window_title(display,TITLE)
al_clear_to_color(al_map_rgb(0,0,0))
event_queue = al_create_event_queue()
al_register_event_source(event_queue,
al_get_display_event_source(display))
ev = al_new_allegro_event()
timeout = al_new_allegro_timeout()
59.2. Many Cubes 616

7. Ring Documentation, Release 1.8

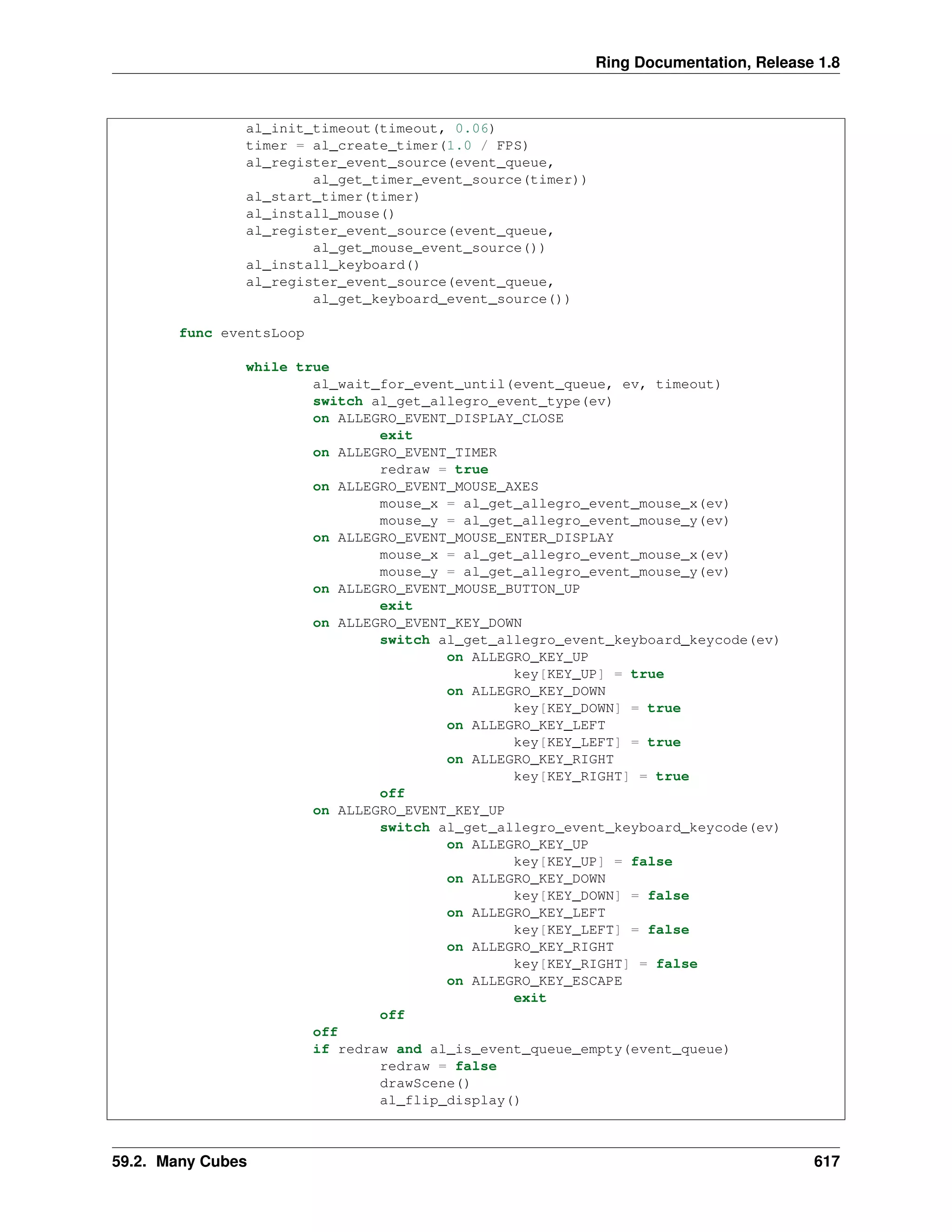

al_init_timeout(timeout, 0.06)
timer = al_create_timer(1.0 / FPS)
al_register_event_source(event_queue,
al_get_timer_event_source(timer))
al_start_timer(timer)
al_install_mouse()
al_register_event_source(event_queue,
al_get_mouse_event_source())
al_install_keyboard()
al_register_event_source(event_queue,
al_get_keyboard_event_source())
func eventsLoop
while true
al_wait_for_event_until(event_queue, ev, timeout)
switch al_get_allegro_event_type(ev)
on ALLEGRO_EVENT_DISPLAY_CLOSE
exit
on ALLEGRO_EVENT_TIMER
redraw = true
on ALLEGRO_EVENT_MOUSE_AXES
mouse_x = al_get_allegro_event_mouse_x(ev)
mouse_y = al_get_allegro_event_mouse_y(ev)
on ALLEGRO_EVENT_MOUSE_ENTER_DISPLAY
mouse_x = al_get_allegro_event_mouse_x(ev)
mouse_y = al_get_allegro_event_mouse_y(ev)
on ALLEGRO_EVENT_MOUSE_BUTTON_UP
exit
on ALLEGRO_EVENT_KEY_DOWN
switch al_get_allegro_event_keyboard_keycode(ev)
on ALLEGRO_KEY_UP
key[KEY_UP] = true
on ALLEGRO_KEY_DOWN
key[KEY_DOWN] = true
on ALLEGRO_KEY_LEFT
key[KEY_LEFT] = true
on ALLEGRO_KEY_RIGHT
key[KEY_RIGHT] = true
off
on ALLEGRO_EVENT_KEY_UP
switch al_get_allegro_event_keyboard_keycode(ev)
on ALLEGRO_KEY_UP
key[KEY_UP] = false
on ALLEGRO_KEY_DOWN
key[KEY_DOWN] = false
on ALLEGRO_KEY_LEFT
key[KEY_LEFT] = false
on ALLEGRO_KEY_RIGHT
key[KEY_RIGHT] = false
on ALLEGRO_KEY_ESCAPE
exit
off
off
if redraw and al_is_event_queue_empty(event_queue)
redraw = false
drawScene()
al_flip_display()
59.2. Many Cubes 617

8. Ring Documentation, Release 1.8
ok
callgc()
end
func destroy
destroyResources()
al_destroy_timer(timer)
al_destroy_allegro_event(ev)
al_destroy_allegro_timeout(timeout)
al_destroy_event_queue(event_queue)
al_destroy_display(display)
al_exit()
func loadresources
func drawScene
func destroyResources

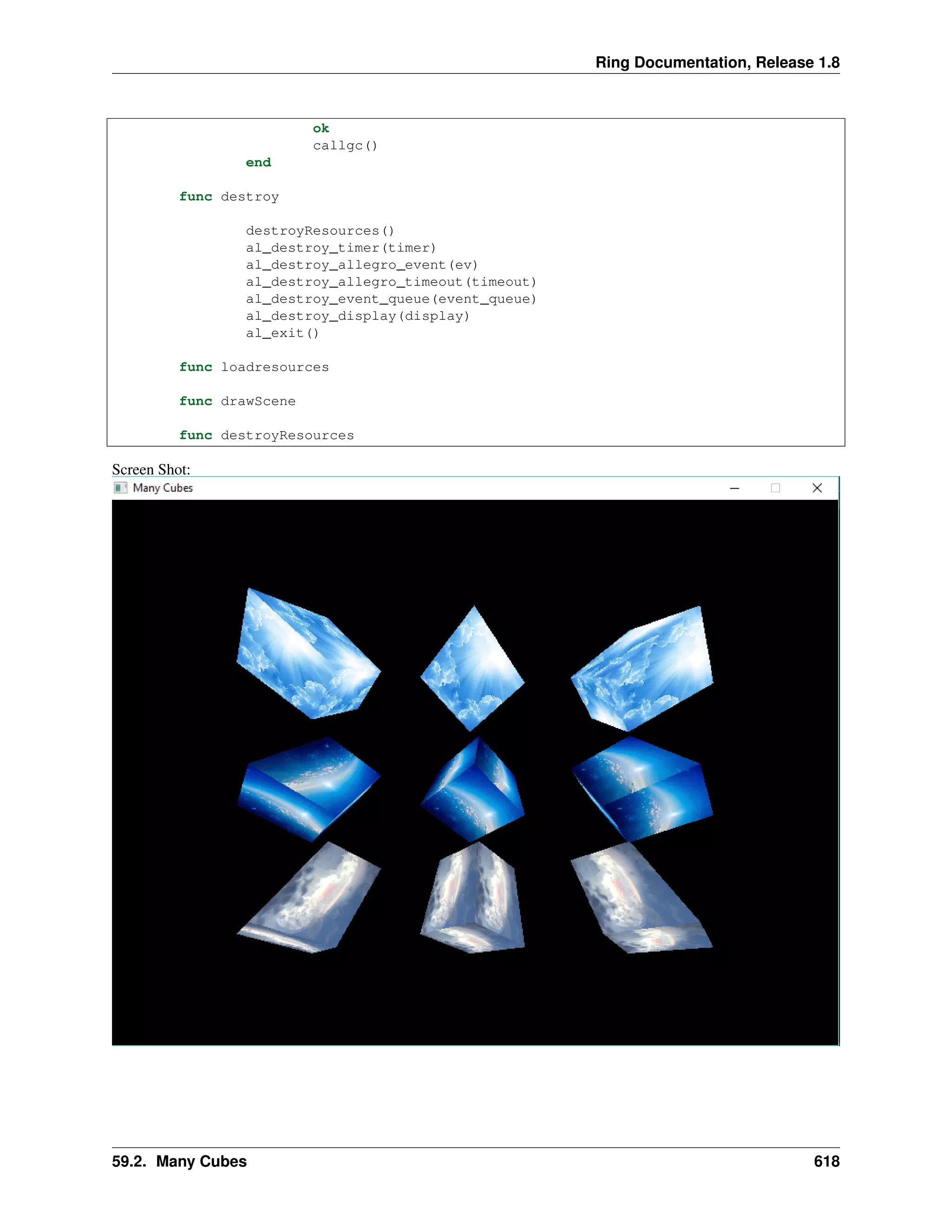

Screen Shot:
59.2. Many Cubes 618

9. Ring Documentation, Release 1.8

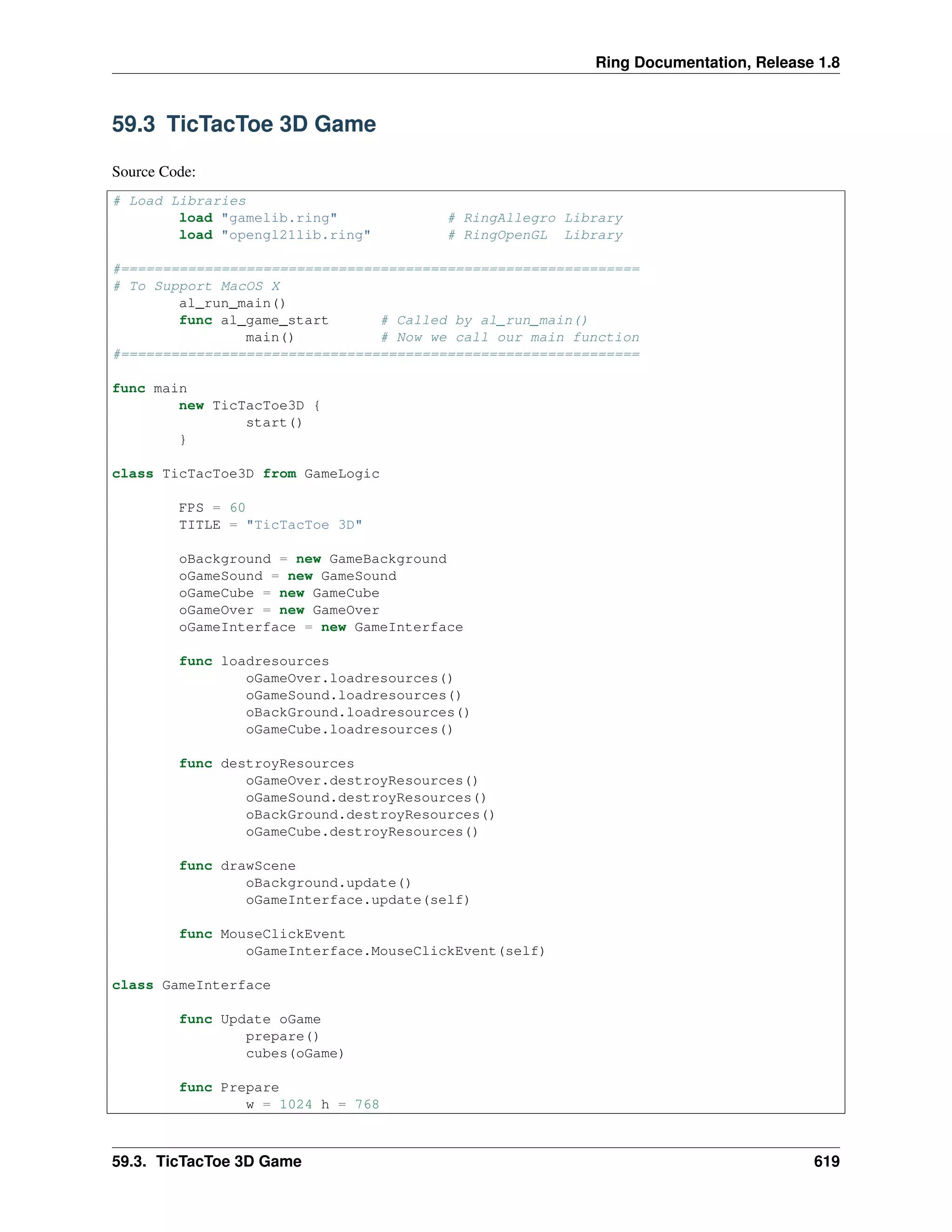

59.3 TicTacToe 3D Game
Source Code:
# Load Libraries
load "gamelib.ring" # RingAllegro Library
load "opengl21lib.ring" # RingOpenGL Library
#==============================================================
# To Support MacOS X
al_run_main()
func al_game_start # Called by al_run_main()
main() # Now we call our main function
#==============================================================
func main
new TicTacToe3D {
start()
}
class TicTacToe3D from GameLogic
FPS = 60
TITLE = "TicTacToe 3D"
oBackground = new GameBackground
oGameSound = new GameSound
oGameCube = new GameCube
oGameOver = new GameOver
oGameInterface = new GameInterface
func loadresources
oGameOver.loadresources()
oGameSound.loadresources()
oBackGround.loadresources()
oGameCube.loadresources()
func destroyResources
oGameOver.destroyResources()
oGameSound.destroyResources()
oBackGround.destroyResources()
oGameCube.destroyResources()
func drawScene
oBackground.update()
oGameInterface.update(self)
func MouseClickEvent
oGameInterface.MouseClickEvent(self)
class GameInterface
func Update oGame
prepare()
cubes(oGame)
func Prepare
w = 1024 h = 768
59.3. TicTacToe 3D Game 619

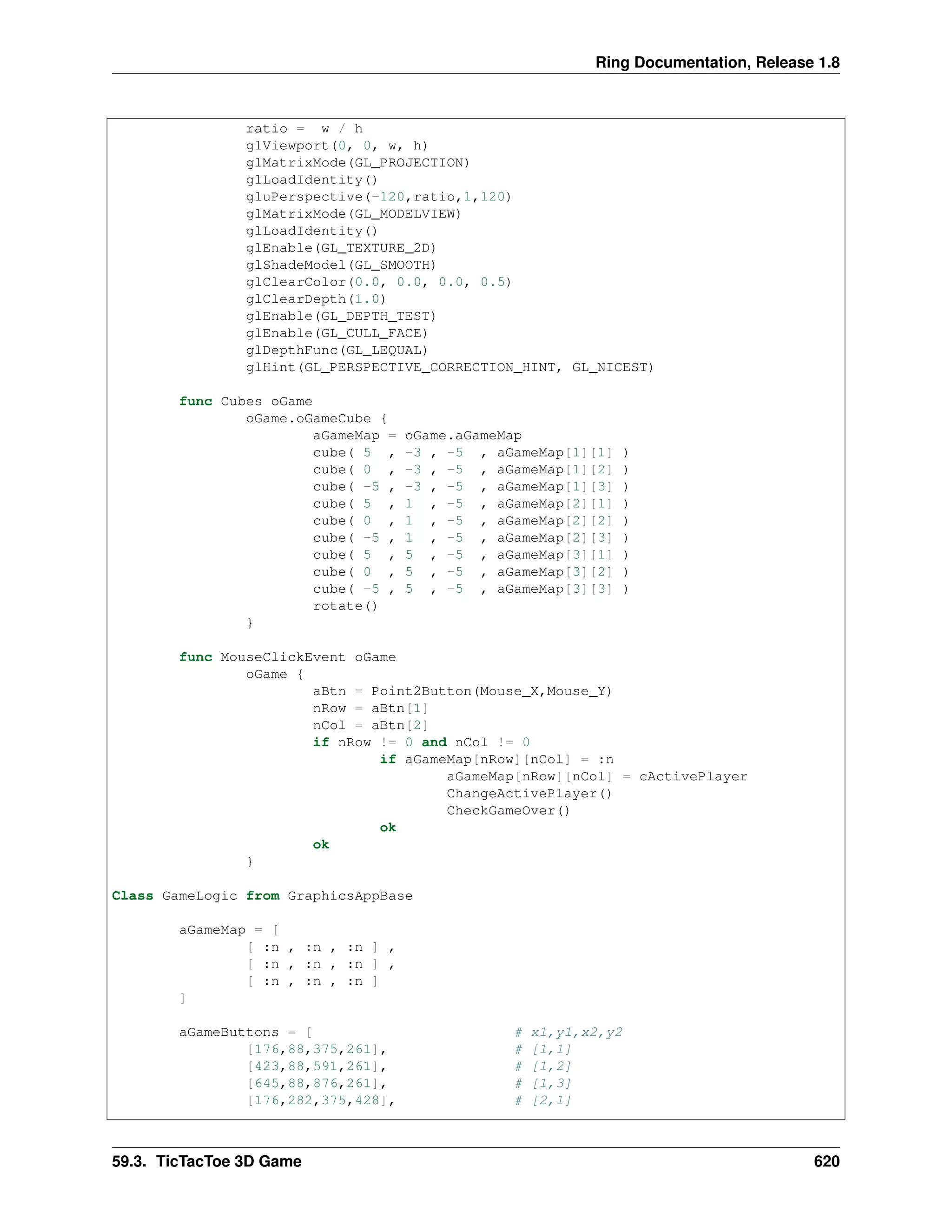

10. Ring Documentation, Release 1.8
ratio = w / h
glViewport(0, 0, w, h)
glMatrixMode(GL_PROJECTION)
glLoadIdentity()
gluPerspective(-120,ratio,1,120)
glMatrixMode(GL_MODELVIEW)
glLoadIdentity()
glEnable(GL_TEXTURE_2D)
glShadeModel(GL_SMOOTH)
glClearColor(0.0, 0.0, 0.0, 0.5)
glClearDepth(1.0)
glEnable(GL_DEPTH_TEST)
glEnable(GL_CULL_FACE)
glDepthFunc(GL_LEQUAL)
glHint(GL_PERSPECTIVE_CORRECTION_HINT, GL_NICEST)
func Cubes oGame
oGame.oGameCube {
aGameMap = oGame.aGameMap
cube( 5 , -3 , -5 , aGameMap[1][1] )
cube( 0 , -3 , -5 , aGameMap[1][2] )
cube( -5 , -3 , -5 , aGameMap[1][3] )
cube( 5 , 1 , -5 , aGameMap[2][1] )
cube( 0 , 1 , -5 , aGameMap[2][2] )
cube( -5 , 1 , -5 , aGameMap[2][3] )
cube( 5 , 5 , -5 , aGameMap[3][1] )
cube( 0 , 5 , -5 , aGameMap[3][2] )
cube( -5 , 5 , -5 , aGameMap[3][3] )
rotate()
}
func MouseClickEvent oGame
oGame {
aBtn = Point2Button(Mouse_X,Mouse_Y)
nRow = aBtn[1]
nCol = aBtn[2]
if nRow != 0 and nCol != 0
if aGameMap[nRow][nCol] = :n
aGameMap[nRow][nCol] = cActivePlayer
ChangeActivePlayer()
CheckGameOver()
ok
ok
}
Class GameLogic from GraphicsAppBase
aGameMap = [
[ :n , :n , :n ] ,
[ :n , :n , :n ] ,
[ :n , :n , :n ]
]
aGameButtons = [ # x1,y1,x2,y2
[176,88,375,261], # [1,1]
[423,88,591,261], # [1,2]
[645,88,876,261], # [1,3]
[176,282,375,428], # [2,1]
59.3. TicTacToe 3D Game 620
