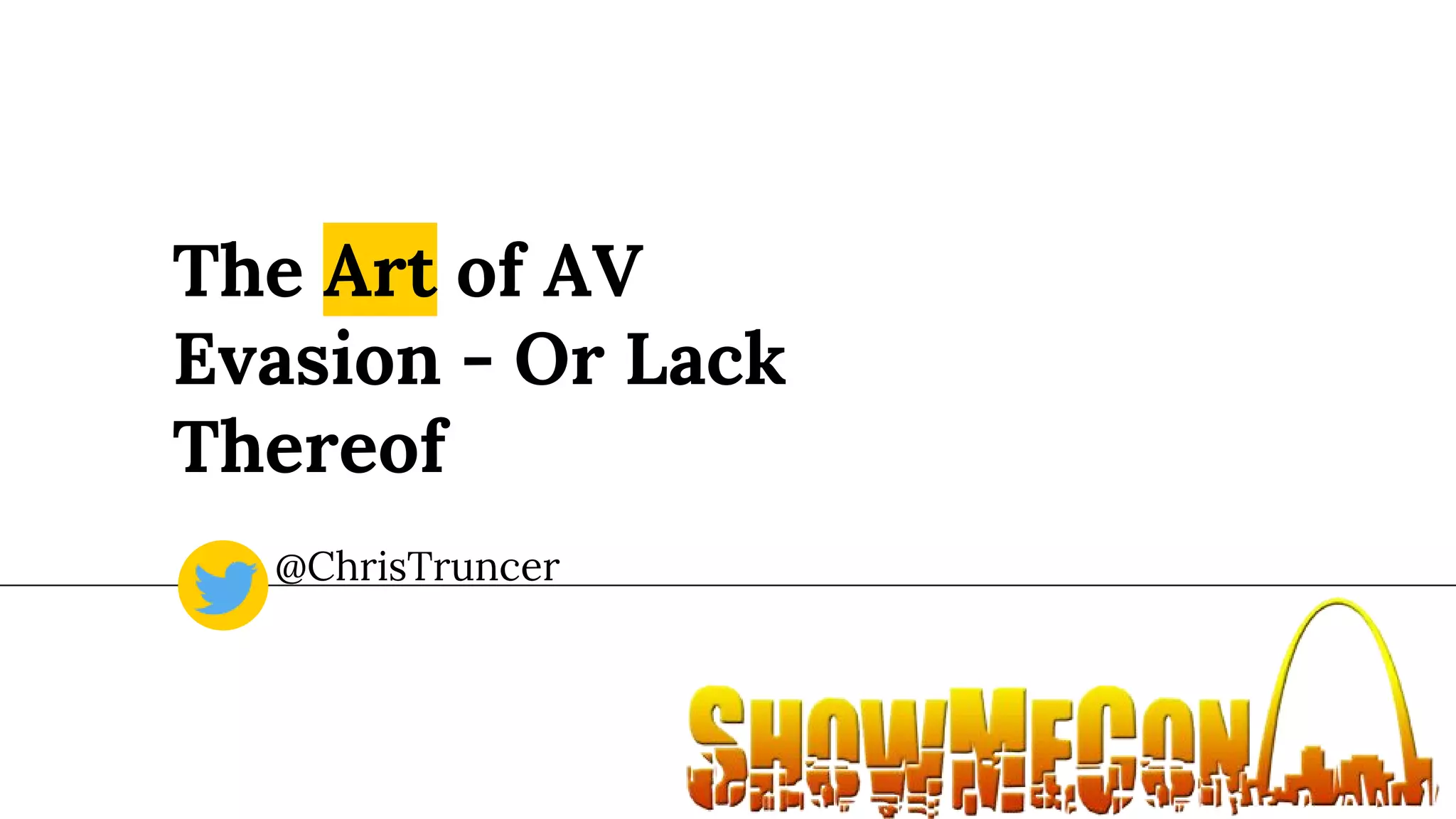

  The Art ofAV Evasion - Or Lack Thereof @ChrisTruncer
• 2.
  ◉ Sys AdminTurned Red Teamer for Mandiant ◉ Florida State Seminole ◉ Open Source Software Developer ○ Veil-Framework ○ EyeWitness ○ Egress-Assess WHOAMI

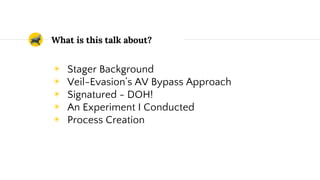

• 3.
  What is thistalk about? ◉ Stager Background ◉ Veil-Evasion’s AV Bypass Approach ◉ Signatured - DOH! ◉ An Experiment I Conducted ◉ Process Creation
• 4.
  Stagers
• 5.
  What are stagers? ◉Can be referred to as “stage 1” ○ This can be msfvenom or Veil-Evasion output ◉ The goal for these are (typically) to inject shellcode into memory ○ The shellcode’s task is usually to download and inject a reflective dll ○ Or anything you specify ◉ This is essentially a loader for your real malware

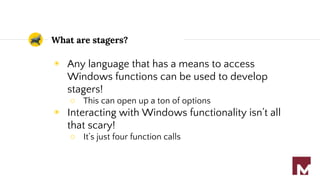

• 6.
  What are stagers? ◉Any language that has a means to access Windows functions can be used to develop stagers! ○ This can open up a ton of options ◉ Interacting with Windows functionality isn’t all that scary! ○ It’s just four function calls
• 7.

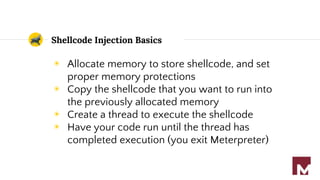

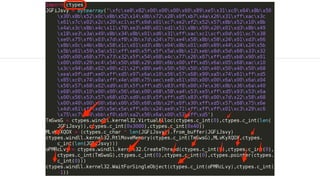

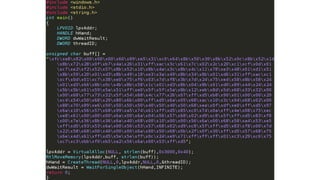

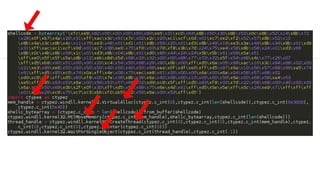

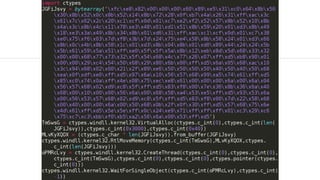

  Shellcode Injection Basics ◉Allocate memory to store shellcode, and set proper memory protections ◉ Copy the shellcode that you want to run into the previously allocated memory ◉ Create a thread to execute the shellcode ◉ Have your code run until the thread has completed execution (you exit Meterpreter)
• 8.

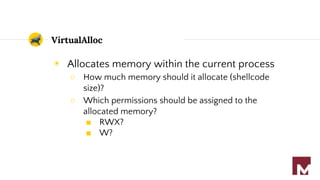

  VirtualAlloc ◉ Allocates memorywithin the current process ○ How much memory should it allocate (shellcode size)? ○ Which permissions should be assigned to the allocated memory? ■ RWX? ■ W?
• 9.

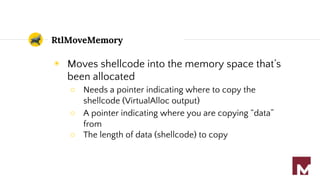

  RtlMoveMemory ◉ Moves shellcodeinto the memory space that’s been allocated ○ Needs a pointer indicating where to copy the shellcode (VirtualAlloc output) ○ A pointer indicating where you are copying “data” from ○ The length of data (shellcode) to copy
• 10.

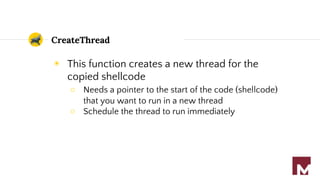

  CreateThread ◉ This functioncreates a new thread for the copied shellcode ○ Needs a pointer to the start of the code (shellcode) that you want to run in a new thread ○ Schedule the thread to run immediately
• 11.

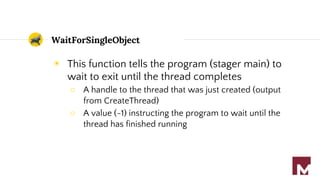

  WaitForSingleObject ◉ This functiontells the program (stager main) to wait to exit until the thread completes ○ A handle to the thread that was just created (output from CreateThread) ○ A value (-1) instructing the program to wait until the thread has finished running
• 13.
  AV’s Approach to CatchingMalware
• 14.

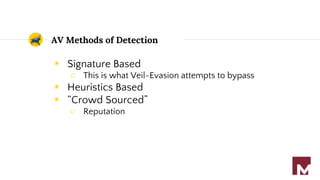

  AV Methods ofDetection ◉ Signature Based ○ This is what Veil-Evasion attempts to bypass ◉ Heuristics Based ◉ “Crowd Sourced” ○ Reputation
• 15.
  Veil-Evasion’s Approach to Bypass AV
• 16.

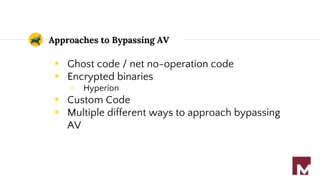

  Approaches to BypassingAV ◉ Ghost code / net no-operation code ◉ Encrypted binaries ○ Hyperion ◉ Custom Code ◉ Multiple different ways to approach bypassing AV
• 17.

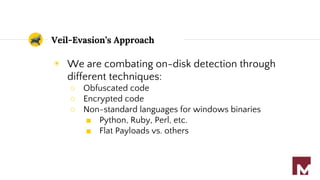

  Veil-Evasion’s Approach ◉ Weare combating on-disk detection through different techniques: ○ Obfuscated code ○ Encrypted code ○ Non-standard languages for windows binaries ■ Python, Ruby, Perl, etc. ■ Flat Payloads vs. others
• 18.

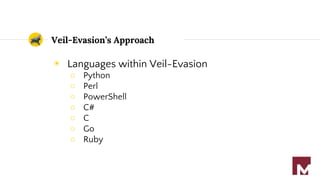

  Veil-Evasion’s Approach ◉ Languageswithin Veil-Evasion ○ Python ○ Perl ○ PowerShell ○ C# ○ C ○ Go ○ Ruby
• 19.

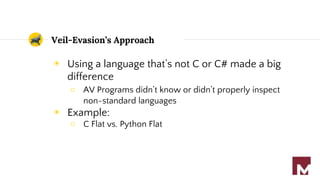

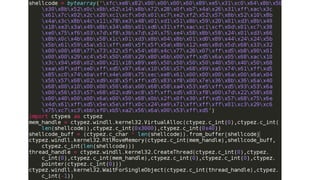

  Veil-Evasion’s Approach ◉ Usinga language that’s not C or C# made a big difference ○ AV Programs didn’t know or didn’t properly inspect non-standard languages ◉ Example: ○ C Flat vs. Python Flat
• 22.
  Simply changing the languagethe code is written in completely bypassed all signatures.
• 23.
  Time for aNew Module
• 24.

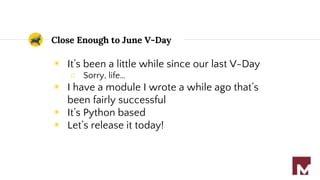

  Close Enough toJune V-Day ◉ It’s been a little while since our last V-Day ○ Sorry, life… ◉ I have a module I wrote a while ago that’s been fairly successful ◉ It’s Python based ◉ Let’s release it today!
• 25.

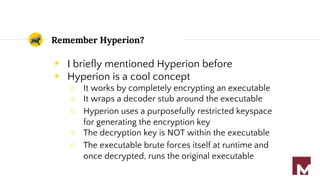

  Remember Hyperion? ◉ Ibriefly mentioned Hyperion before ◉ Hyperion is a cool concept ○ It works by completely encrypting an executable ○ It wraps a decoder stub around the executable ○ Hyperion uses a purposefully restricted keyspace for generating the encryption key ○ The decryption key is NOT within the executable ○ The executable brute forces itself at runtime and once decrypted, runs the original executable
• 26.

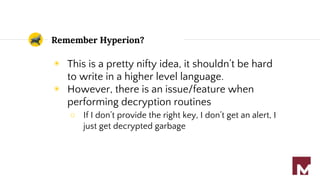

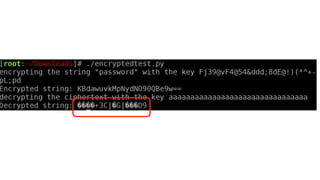

  Remember Hyperion? ◉ Thisis a pretty nifty idea, it shouldn’t be hard to write in a higher level language. ◉ However, there is an issue/feature when performing decryption routines ○ If I don’t provide the right key, I don’t get an alert, I just get decrypted garbage
• 29.

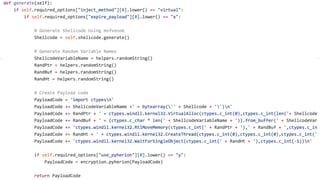

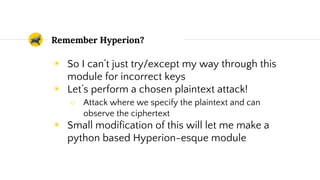

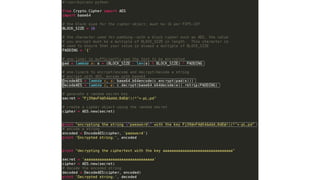

  Remember Hyperion? ◉ SoI can’t just try/except my way through this module for incorrect keys ◉ Let’s perform a chosen plaintext attack! ○ Attack where we specify the plaintext and can observe the ciphertext ◉ Small modification of this will let me make a python based Hyperion-esque module

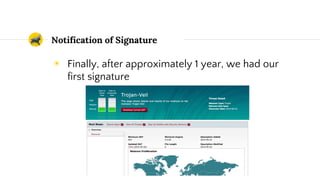

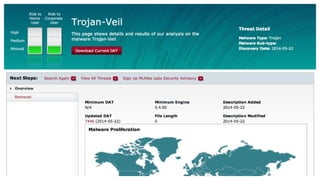

• 33.
  Notification of Signature ◉Finally, after approximately 1 year, we had our first signature
• 34.

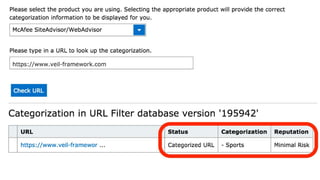

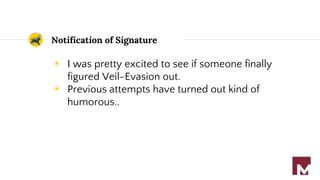

  Notification of Signature ◉I was pretty excited to see if someone finally figured Veil-Evasion out. ◉ Previous attempts have turned out kind of humorous..
• 44.

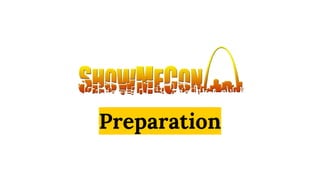

  Preparation
• 45.

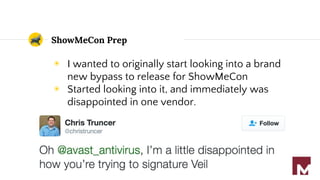

  ShowMeCon Prep ◉ Iwanted to originally start looking into a brand new bypass to release for ShowMeCon ◉ Started looking into it, and immediately was disappointed in one vendor.

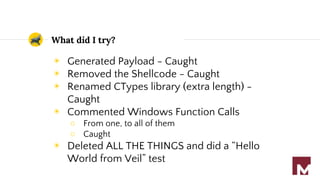

• 46.

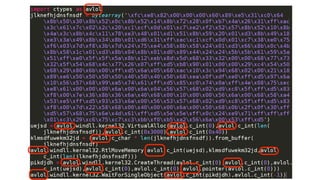

  What did Itry? ◉ Generated Payload - Caught ◉ Removed the Shellcode - Caught ◉ Renamed CTypes library (extra length) - Caught ◉ Commented Windows Function Calls ○ From one, to all of them ○ Caught ◉ Deleted ALL THE THINGS and did a “Hello World from Veil” test
• 47.

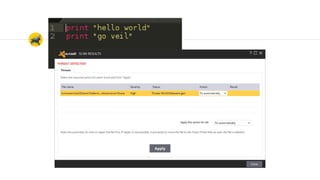

  Hello World!
• 48.

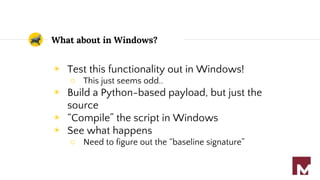

  What about inWindows? ◉ Test this functionality out in Windows! ○ This just seems odd.. ◉ Build a Python-based payload, but just the source ◉ “Compile” the script in Windows ◉ See what happens ○ Need to figure out the “baseline signature”
• 50.

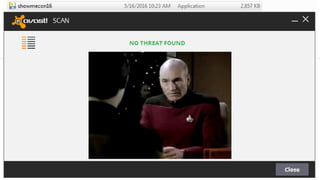

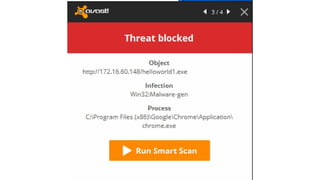

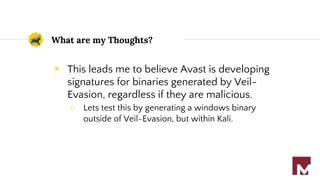

  What are myThoughts? ◉ This leads me to believe Avast is developing signatures for binaries generated by Veil- Evasion, regardless if they are malicious. ○ Lets test this by generating a windows binary outside of Veil-Evasion, but within Kali.
• 52.

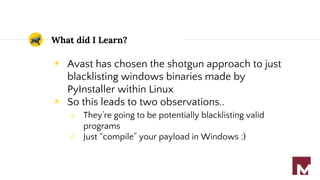

  What did ILearn? ◉ Avast has chosen the shotgun approach to just blacklisting windows binaries made by PyInstaller within Linux ◉ So this leads to two observations.. ○ They’re going to be potentially blacklisting valid programs ○ Just “compile” your payload in Windows :)
• 53.
  Let’s Experiment with AV
• 54.

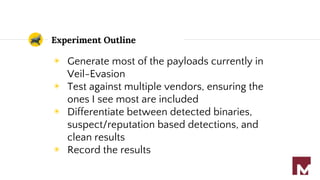

  Experiment Outline ◉ Generatemost of the payloads currently in Veil-Evasion ◉ Test against multiple vendors, ensuring the ones I see most are included ◉ Differentiate between detected binaries, suspect/reputation based detections, and clean results ◉ Record the results
• 55.

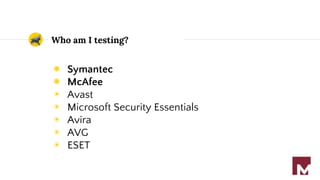

  Who am Itesting? ◉ Symantec ◉ McAfee ◉ Avast ◉ Microsoft Security Essentials ◉ Avira ◉ AVG ◉ ESET

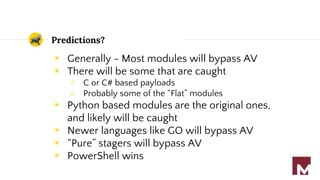

• 56.
  Predictions? ◉ Generally -Most modules will bypass AV ◉ There will be some that are caught ○ C or C# based payloads ○ Probably some of the “Flat” modules ◉ Python based modules are the original ones, and likely will be caught ◉ Newer languages like GO will bypass AV ◉ “Pure” stagers will bypass AV ◉ PowerShell wins
• 57.

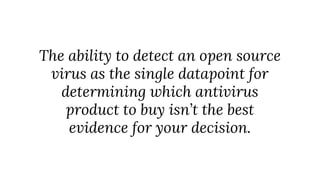

  The ability todetect an open source virus as the single datapoint for determining which antivirus product to buy isn’t the best evidence for your decision.
• 58.

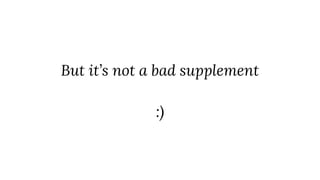

  But it’s nota bad supplement :)

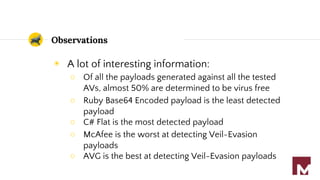

• 63.

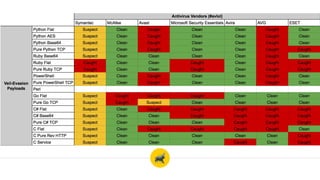

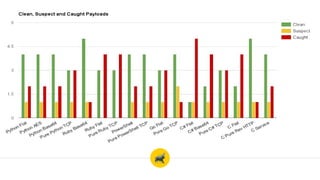

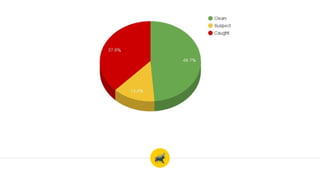

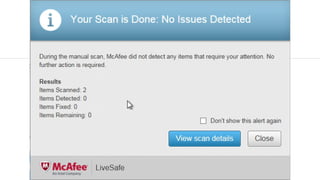

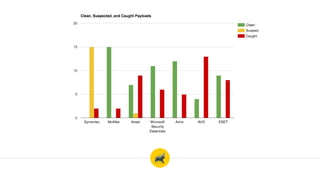

  Observations ◉ A lotof interesting information: ○ Of all the payloads generated against all the tested AVs, almost 50% are determined to be virus free ○ Ruby Base64 Encoded payload is the least detected payload ○ C# Flat is the most detected payload ○ McAfee is the worst at detecting Veil-Evasion payloads ○ AVG is the best at detecting Veil-Evasion payloads
• 64.

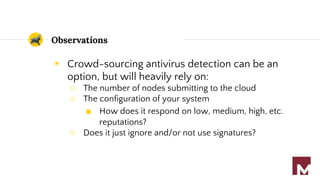

  Observations ◉ Crowd-sourcing antivirusdetection can be an option, but will heavily rely on: ○ The number of nodes submitting to the cloud ○ The configuration of your system ■ How does it respond on low, medium, high, etc. reputations? ○ Does it just ignore and/or not use signatures?
• 65.
  Wrapup

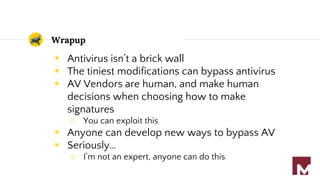

• 66.
  Wrapup ◉ Antivirus isn’ta brick wall ◉ The tiniest modifications can bypass antivirus ◉ AV Vendors are human, and make human decisions when choosing how to make signatures ○ You can exploit this ◉ Anyone can develop new ways to bypass AV ◉ Seriously… ○ I’m not an expert, anyone can do this
• 67.

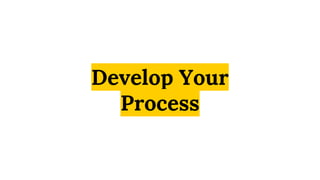

  Develop Your Process
• 68.

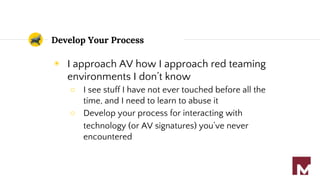

  Develop Your Process ◉I approach AV how I approach red teaming environments I don’t know ○ I see stuff I have not ever touched before all the time, and I need to learn to abuse it ○ Develop your process for interacting with technology (or AV signatures) you’ve never encountered
• 69.

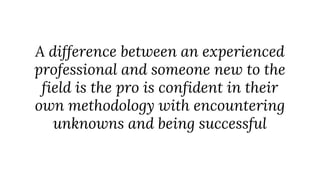

  A difference betweenan experienced professional and someone new to the field is the pro is confident in their own methodology with encountering unknowns and being successful

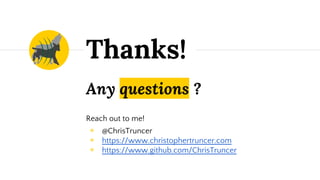

• 70.
  Any questions ? Reachout to me! ◉ @ChrisTruncer ◉ https://www.christophertruncer.com ◉ https://www.github.com/ChrisTruncer Thanks!
