1. Ray Hilton - @rayh Eliiza - @EliizaAI

2. About Us

3. Data Science
Machine Learning
Artificial Intelligence
Data Engineering
Data Ops

4. Video Multi-Classification
Audio Transcription
Predicting Renewable Energy Generation
Natural Language Processing
Operational Forecasting
Sports Data Analysis
Anomaly Detection

5. 12 8 1.5
YearsCountriesPeople

6. 33% 60% 0%
Female
Engineers
Female Data
Scientists
Academic
Background

7. @EliizaAI
info@eliiza.com.au

8. #TFDevSummit2019

10. Sunnyvale, CA 6-7 March

11. ~400 people

12. Adobe, Apple, Twitter, Microsoft,
Nike, TWiML, Small
Consultancies, Research
Institutions, Google (obviously)

13. TF2

14. Simpler APIs

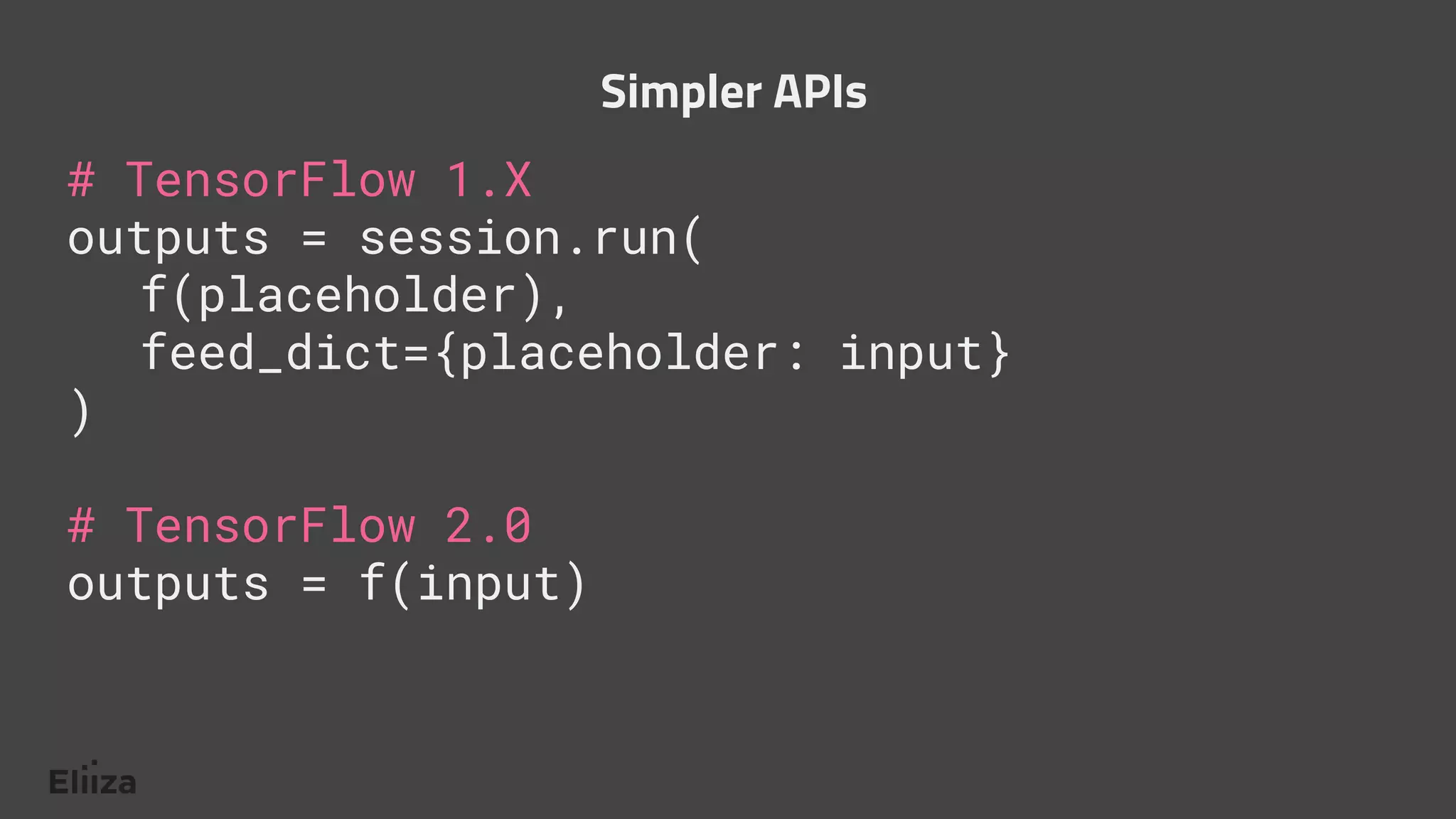

15. # TensorFlow 1.X
outputs = session.run(
f(placeholder),
feed_dict={placeholder: input}
)
# TensorFlow 2.0
outputs = f(input)
Simpler APIs

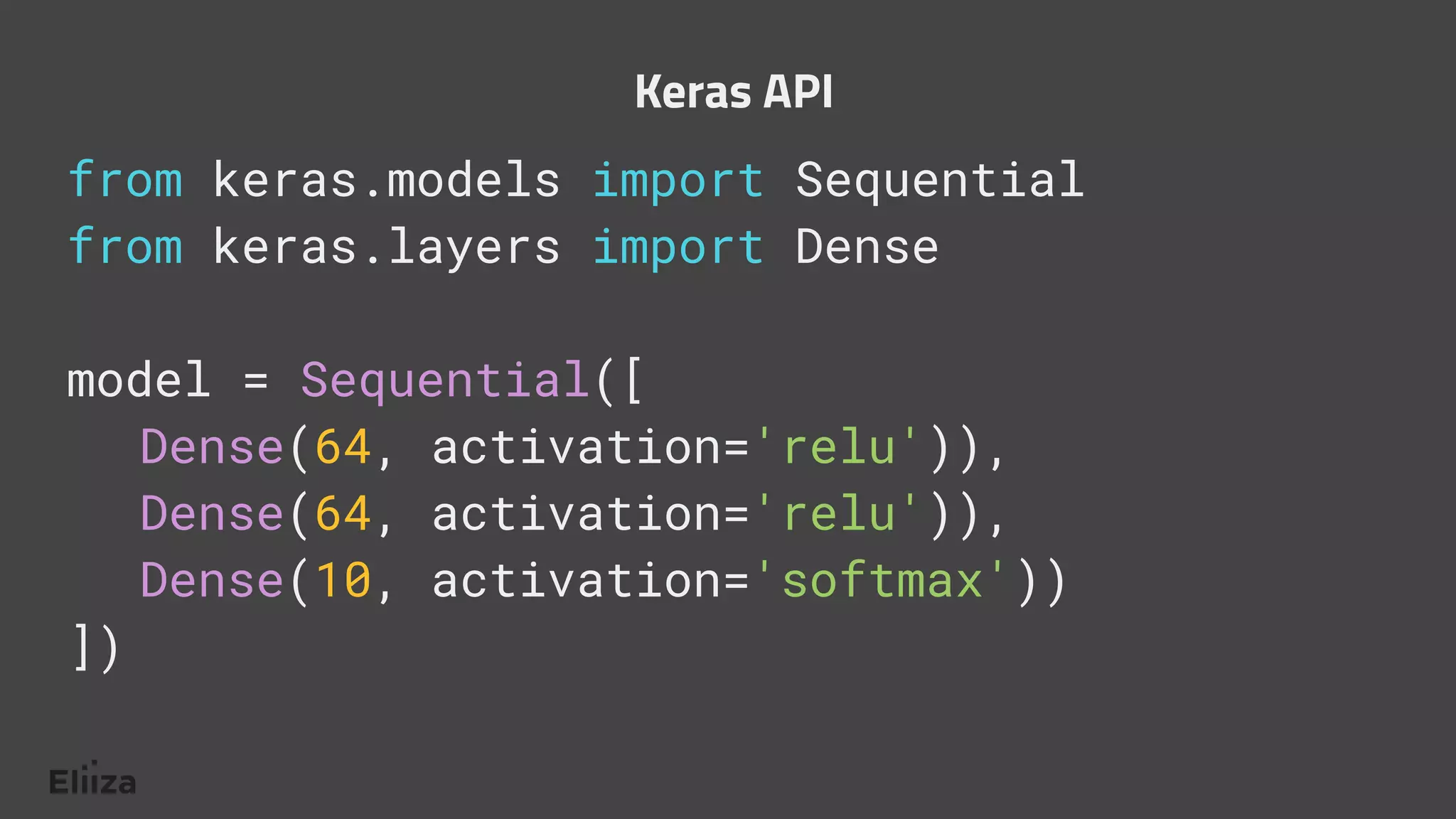

16. from keras.models import Sequential
from keras.layers import Dense
model = Sequential([
Dense(64, activation='relu')),
Dense(64, activation='relu')),
Dense(10, activation='softmax'))
])
Keras API

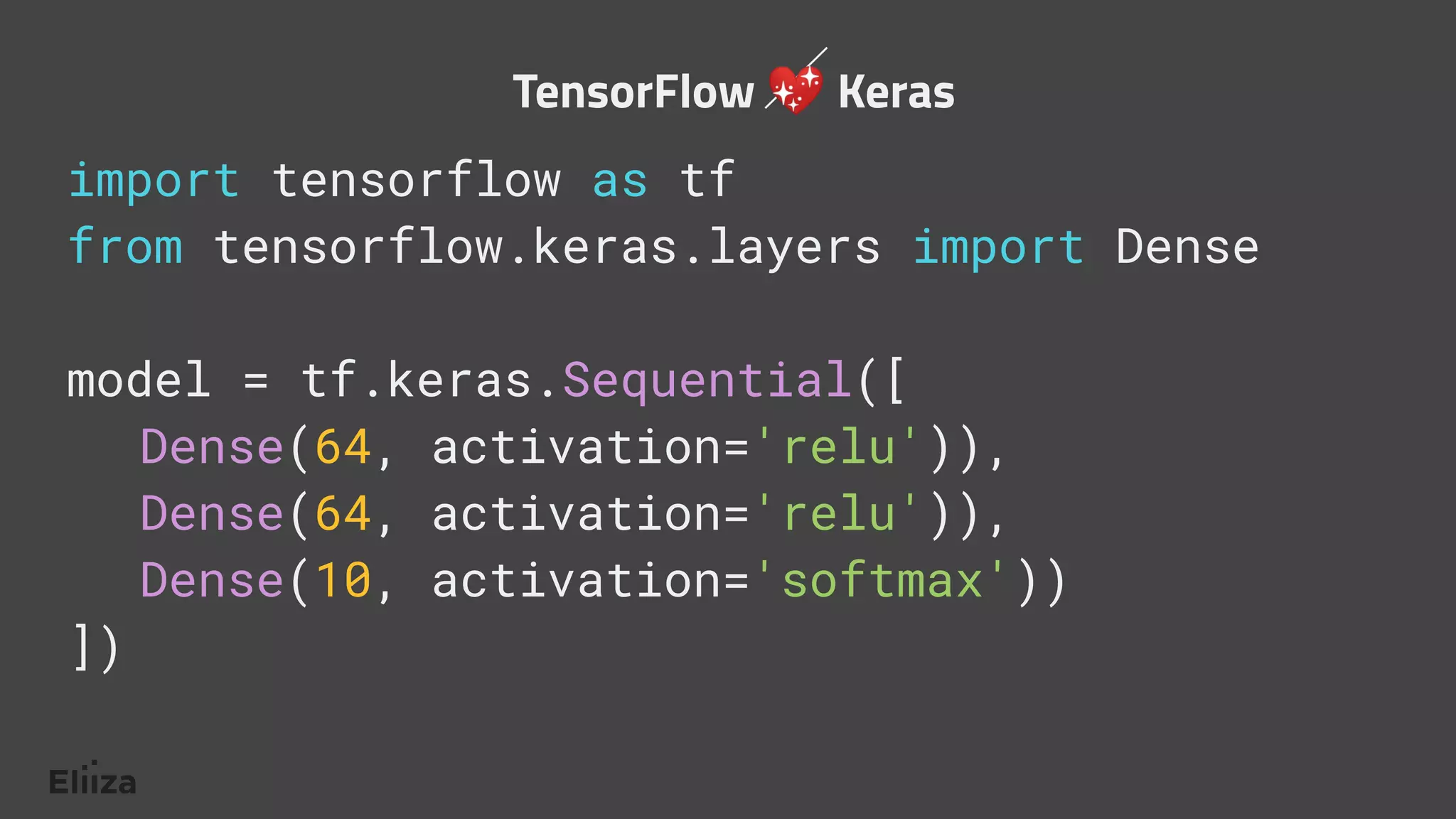

17. import tensorflow as tf
from tensorflow.keras.layers import Dense
model = tf.keras.Sequential([
Dense(64, activation='relu')),
Dense(64, activation='relu')),
Dense(10, activation='softmax'))
])
TensorFlow 💖 Keras

18. Eager & Lazy Execution

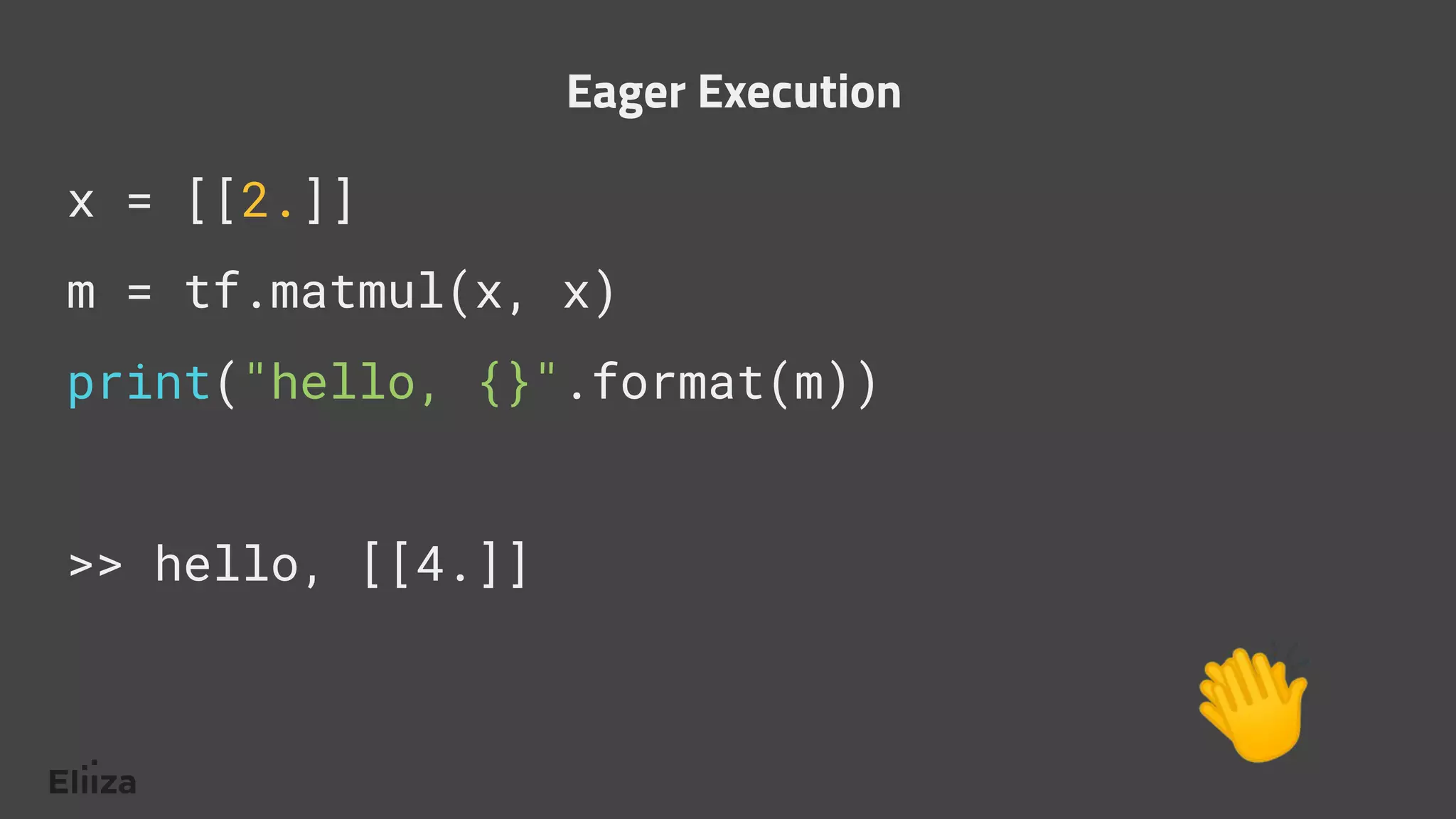

19. x = [[2.]]
m = tf.matmul(x, x)
print("hello, {}".format(m))
>> hello, [[4.]]
Eager Execution
👏

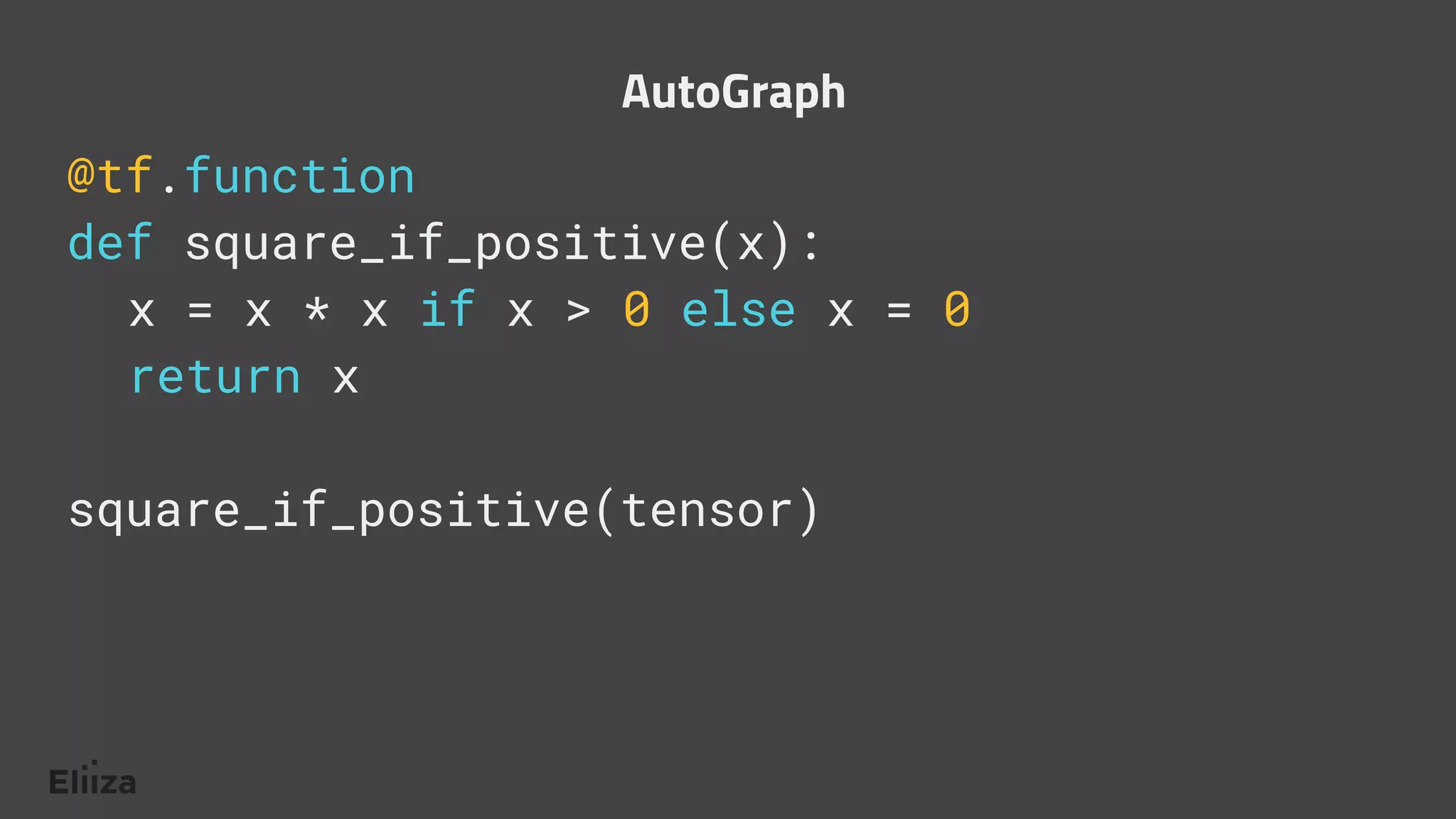

20. @tf.function
def square_if_positive(x):
x = x * x if x > 0 else x = 0
return x
square_if_positive(tensor)
AutoGraph

21. Distribution Strategies

22. model = tf.keras.Sequential(...)
model.compile(loss='mse', optimizer='sgd').
model.fit(dataset, epochs=2)
model.evaluate(dataset)
Strategy Scopes

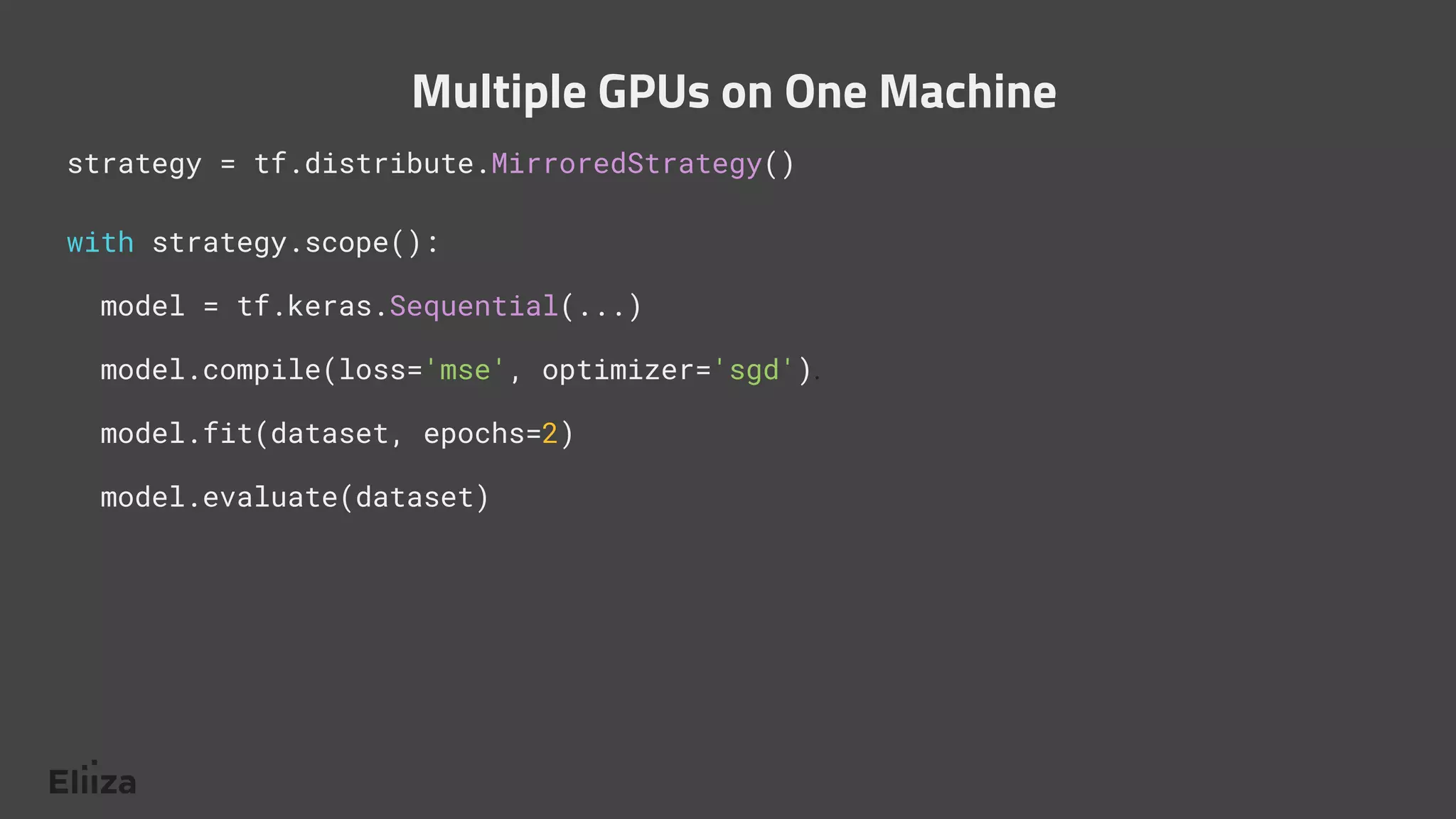

23. strategy = tf.distribute.MirroredStrategy()
with strategy.scope():
model = tf.keras.Sequential(...)
model.compile(loss='mse', optimizer='sgd').
model.fit(dataset, epochs=2)
model.evaluate(dataset)
Multiple GPUs on One Machine

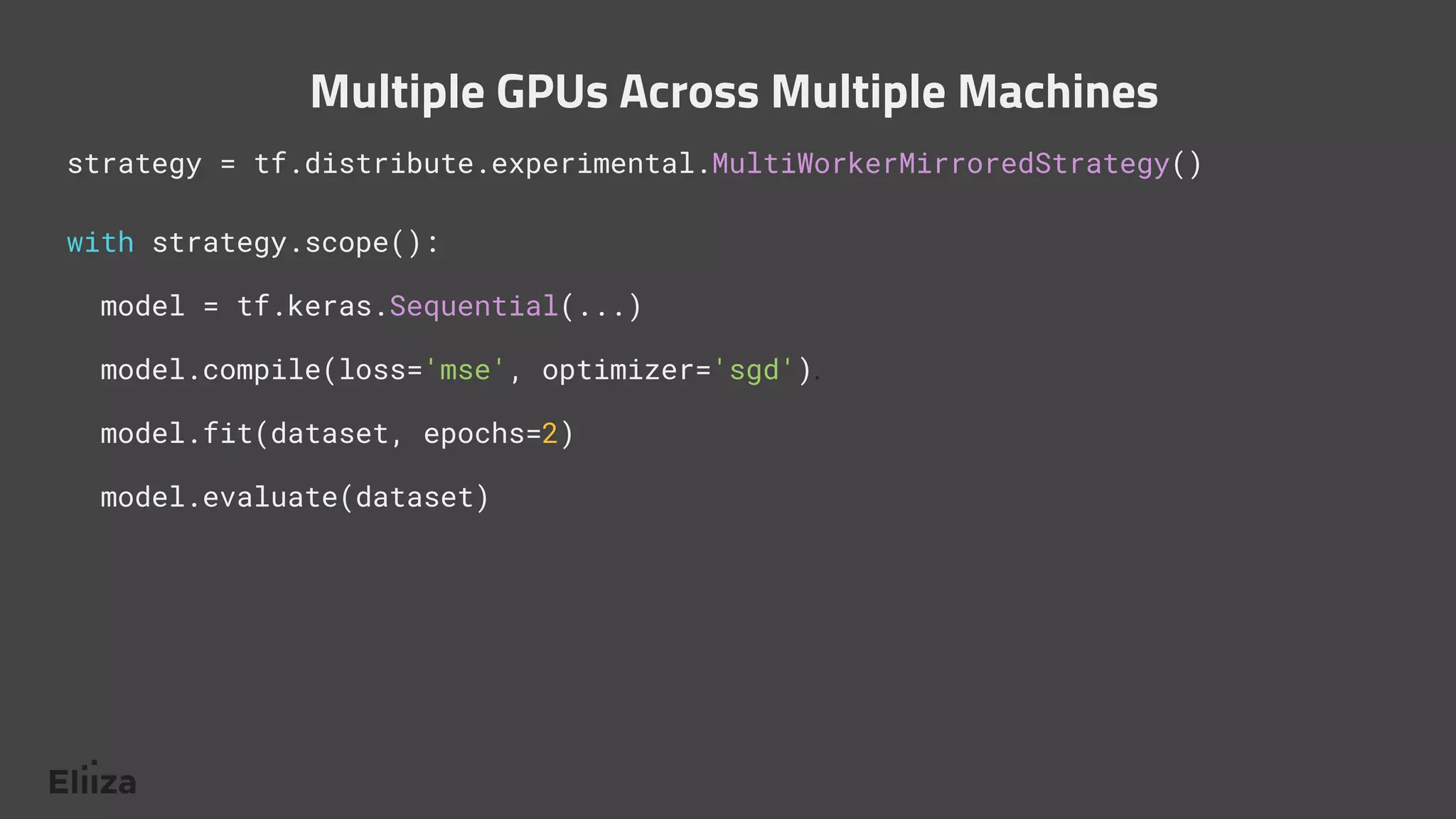

24. strategy = tf.distribute.experimental.MultiWorkerMirroredStrategy()
with strategy.scope():
model = tf.keras.Sequential(...)
model.compile(loss='mse', optimizer='sgd').
model.fit(dataset, epochs=2)
model.evaluate(dataset)
Multiple GPUs Across Multiple Machines

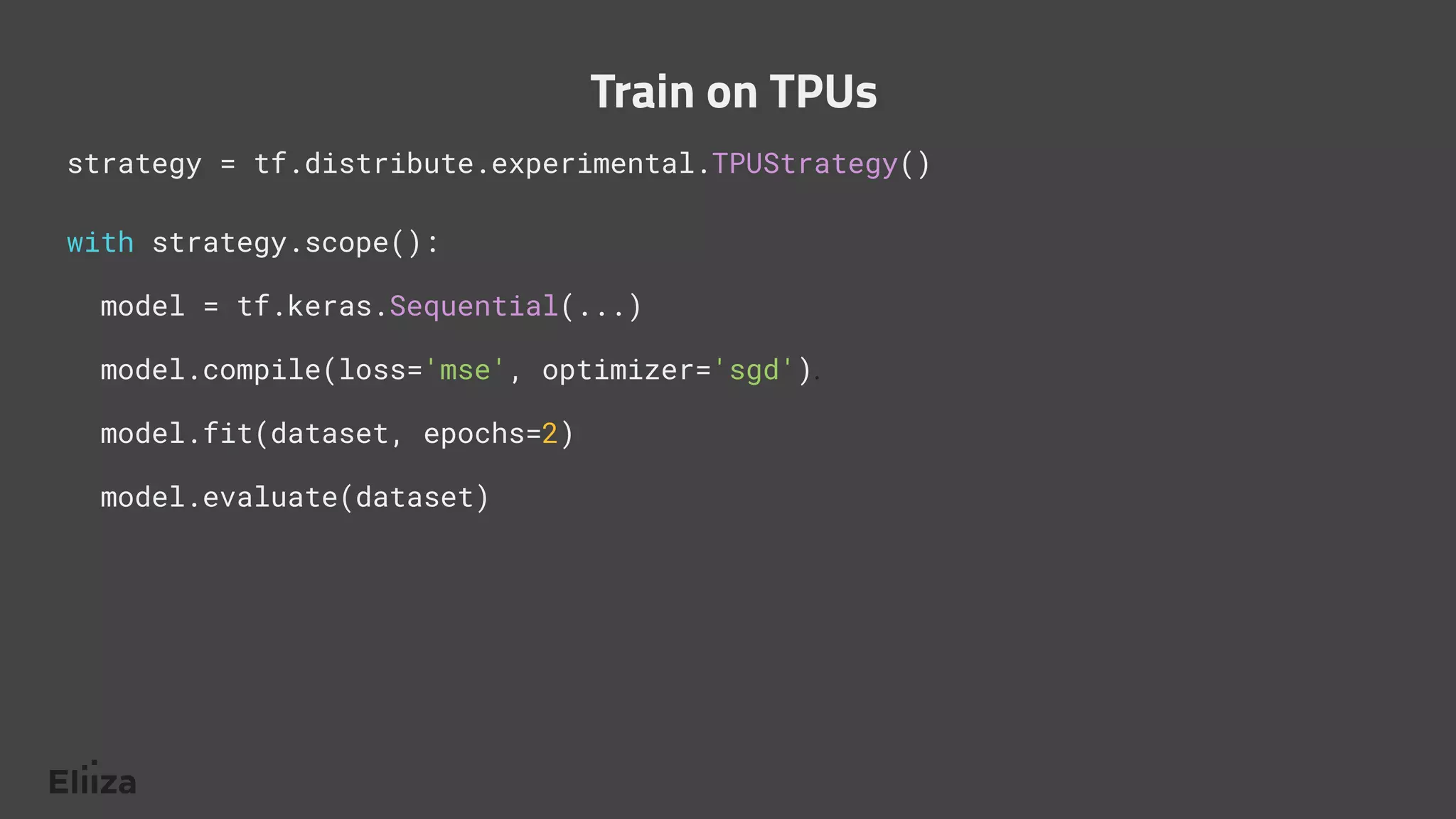

25. strategy = tf.distribute.experimental.TPUStrategy()
with strategy.scope():
model = tf.keras.Sequential(...)
model.compile(loss='mse', optimizer='sgd').
model.fit(dataset, epochs=2)
model.evaluate(dataset)
Train on TPUs

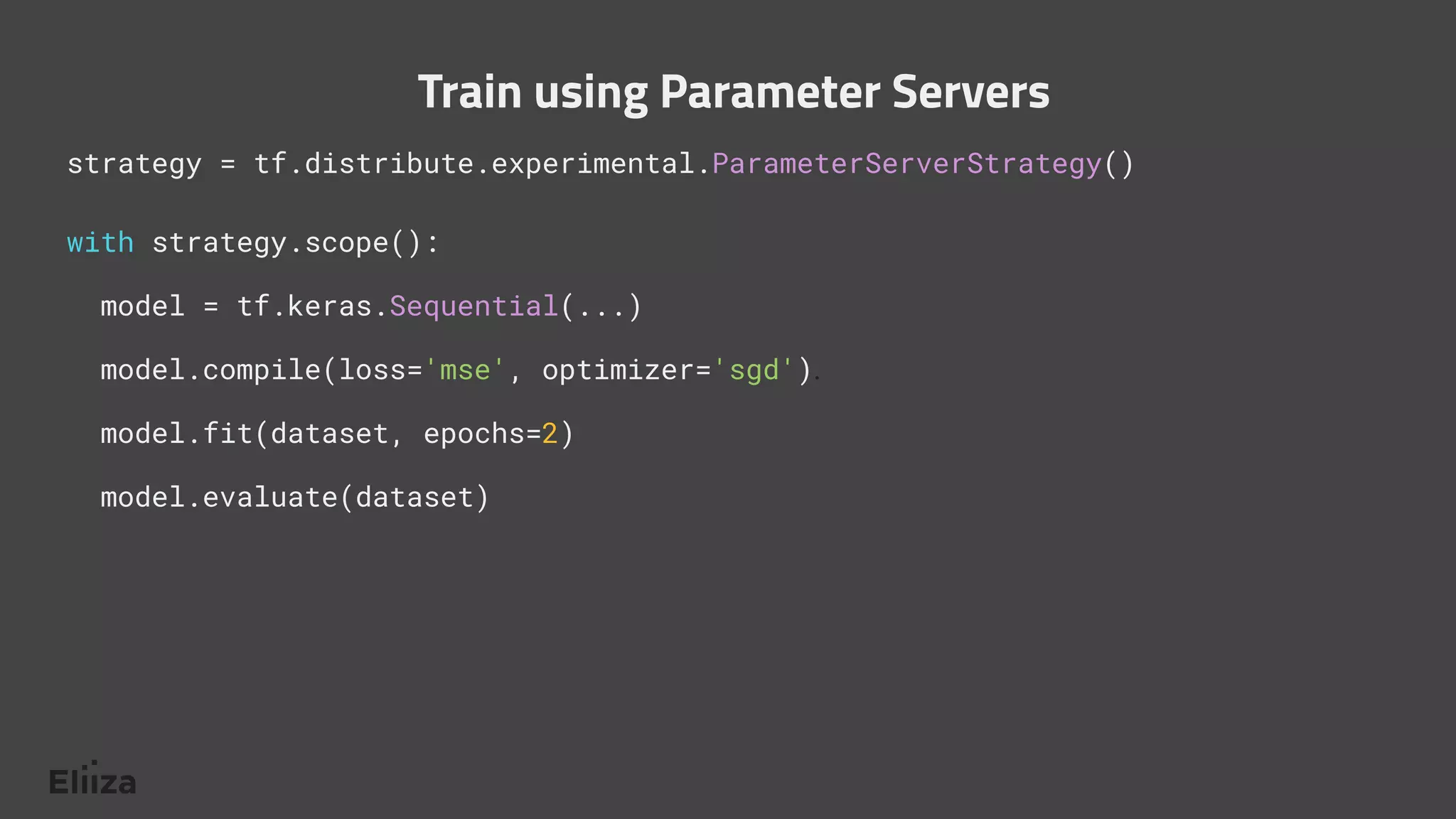

26. strategy = tf.distribute.experimental.ParameterServerStrategy()
with strategy.scope():
model = tf.keras.Sequential(...)
model.compile(loss='mse', optimizer='sgd').
model.fit(dataset, epochs=2)
model.evaluate(dataset)
Train using Parameter Servers

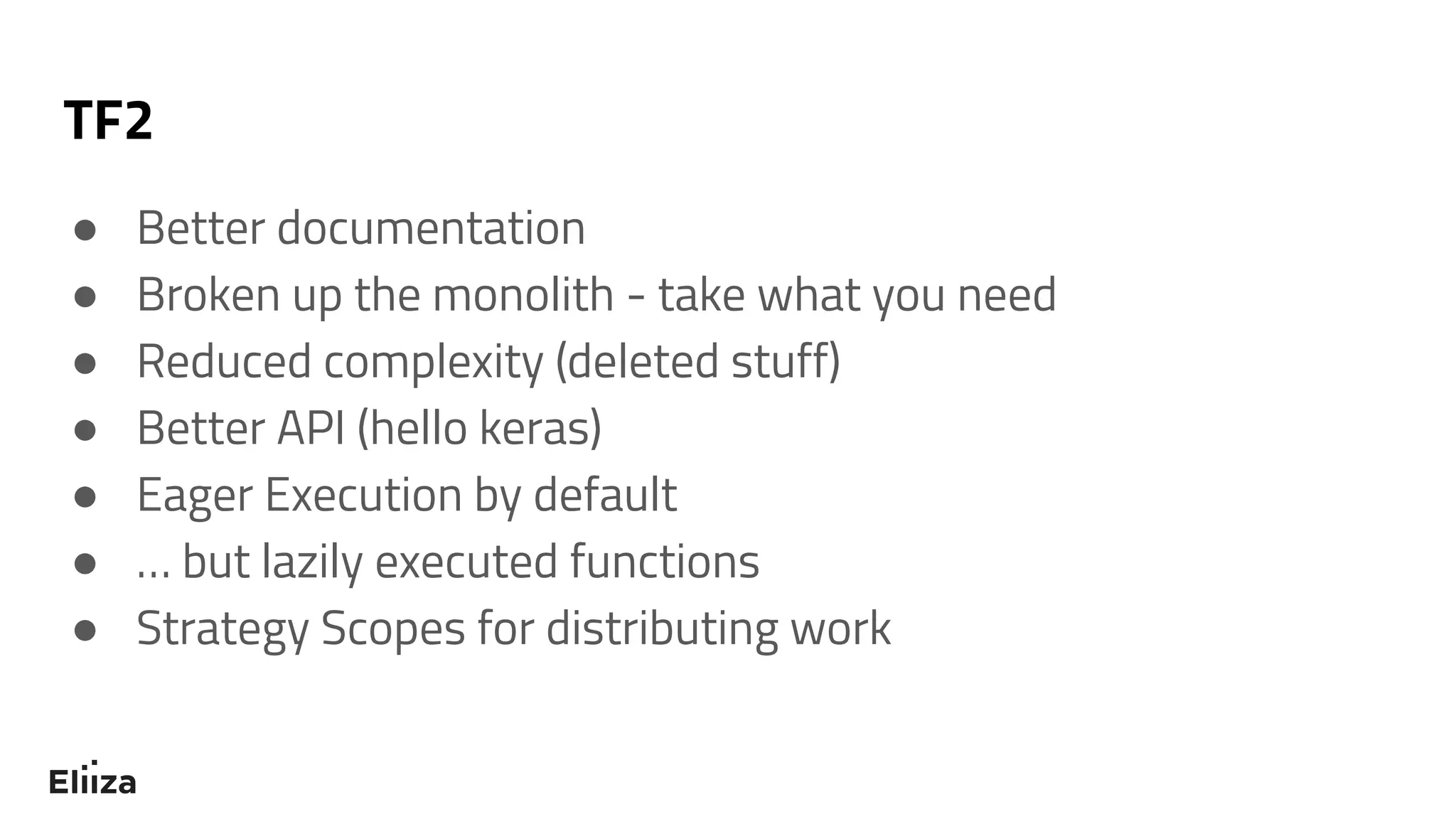

27. TF2
● Better documentation
● Broken up the monolith - take what you need
● Reduced complexity (deleted stuff)
● Better API (hello keras)
● Eager Execution by default
● … but lazily executed functions
● Strategy Scopes for distributing work

28. TFX

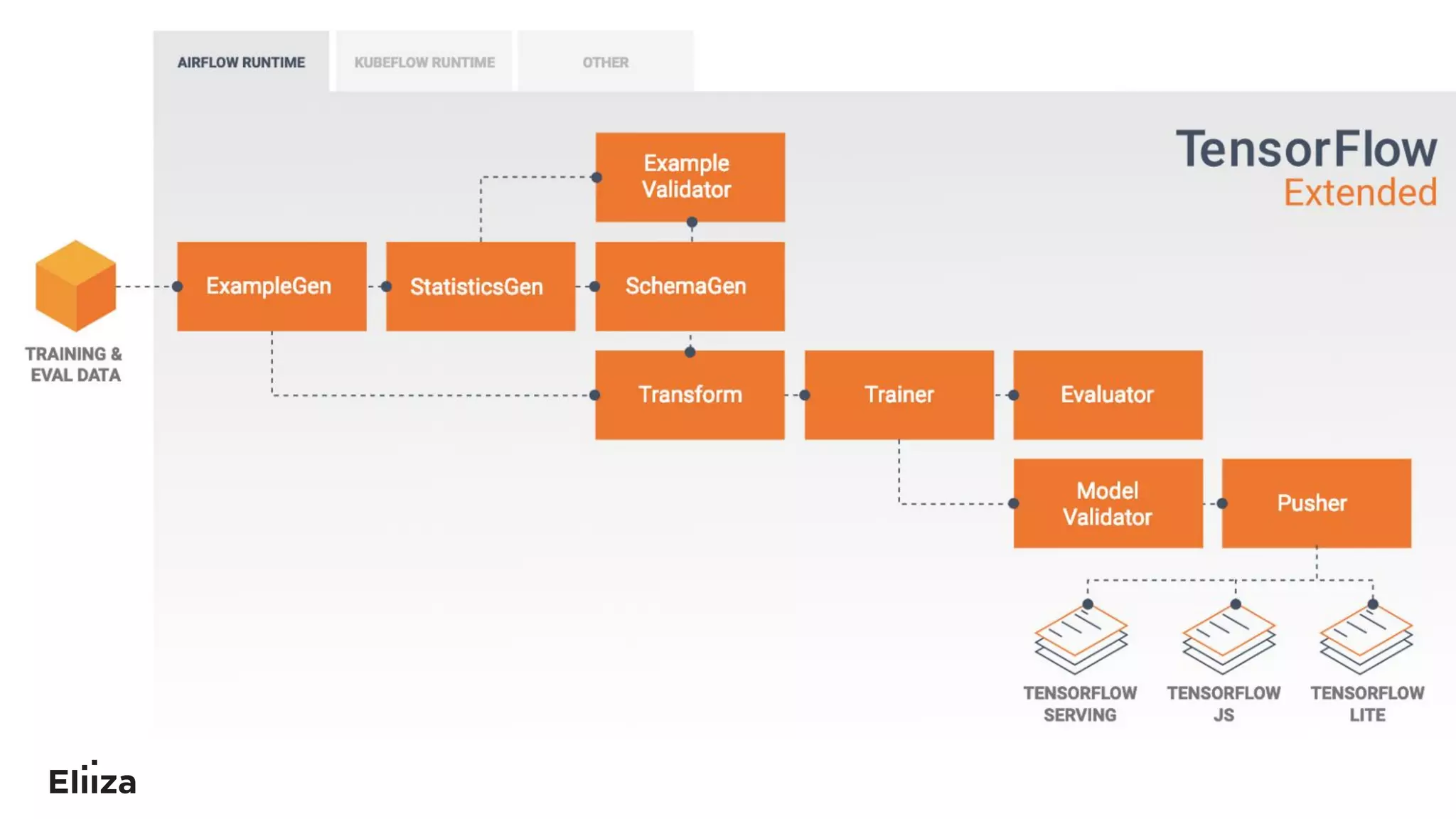

29. What is TFX

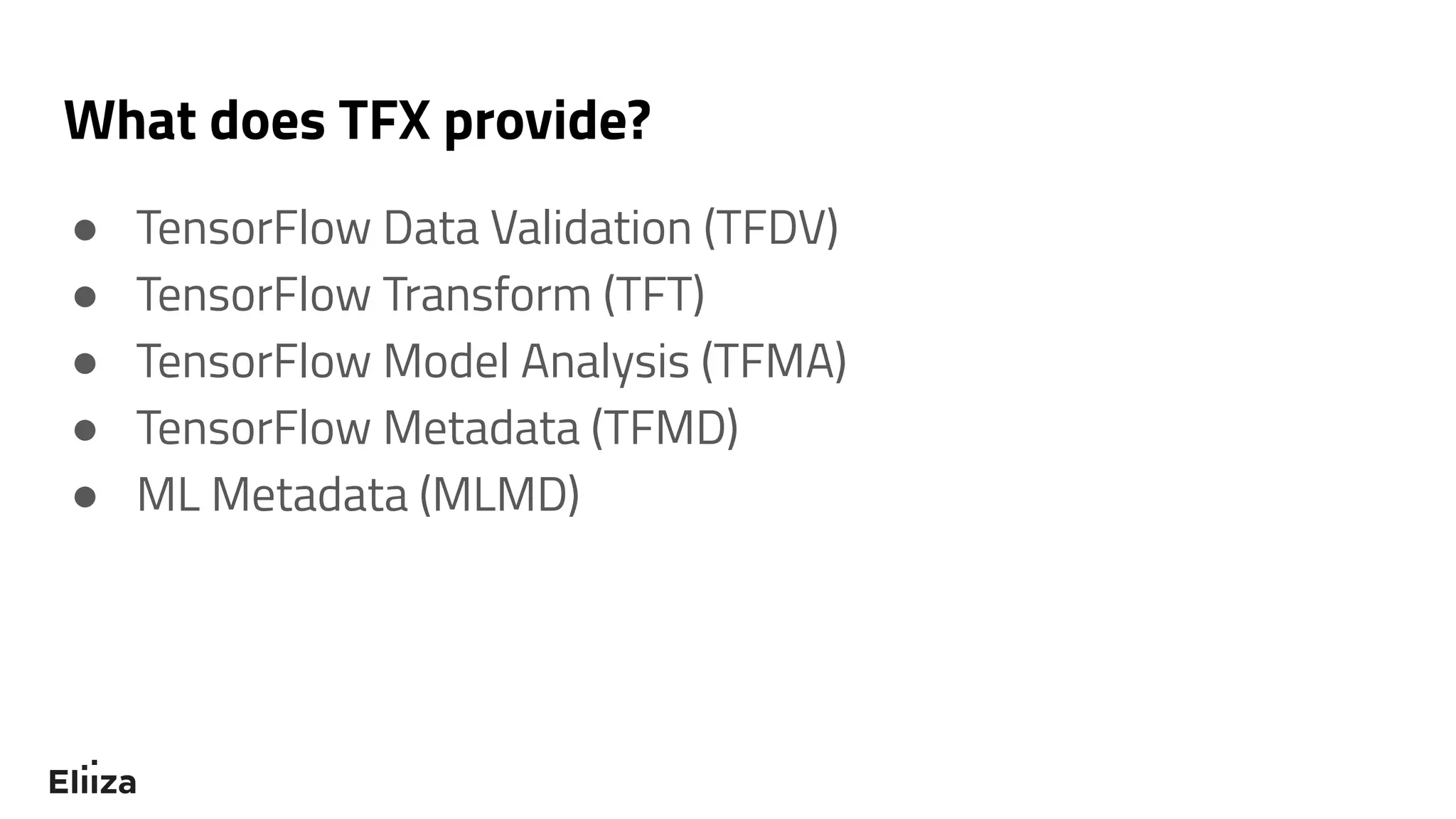

30. What does TFX provide?
● TensorFlow Data Validation (TFDV)
● TensorFlow Transform (TFT)
● TensorFlow Model Analysis (TFMA)
● TensorFlow Metadata (TFMD)
● ML Metadata (MLMD)

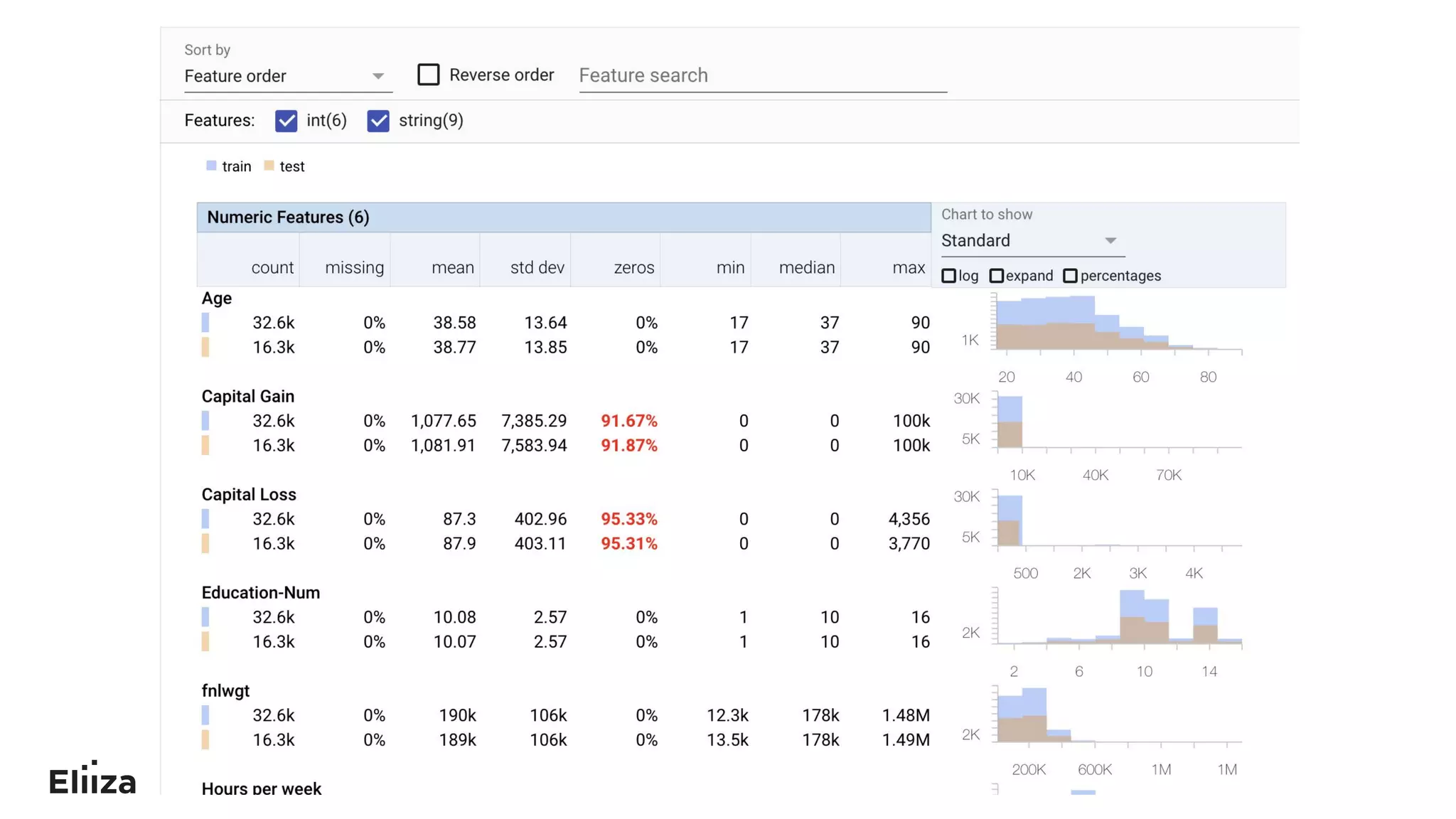

31. Data Validation

33. Transform

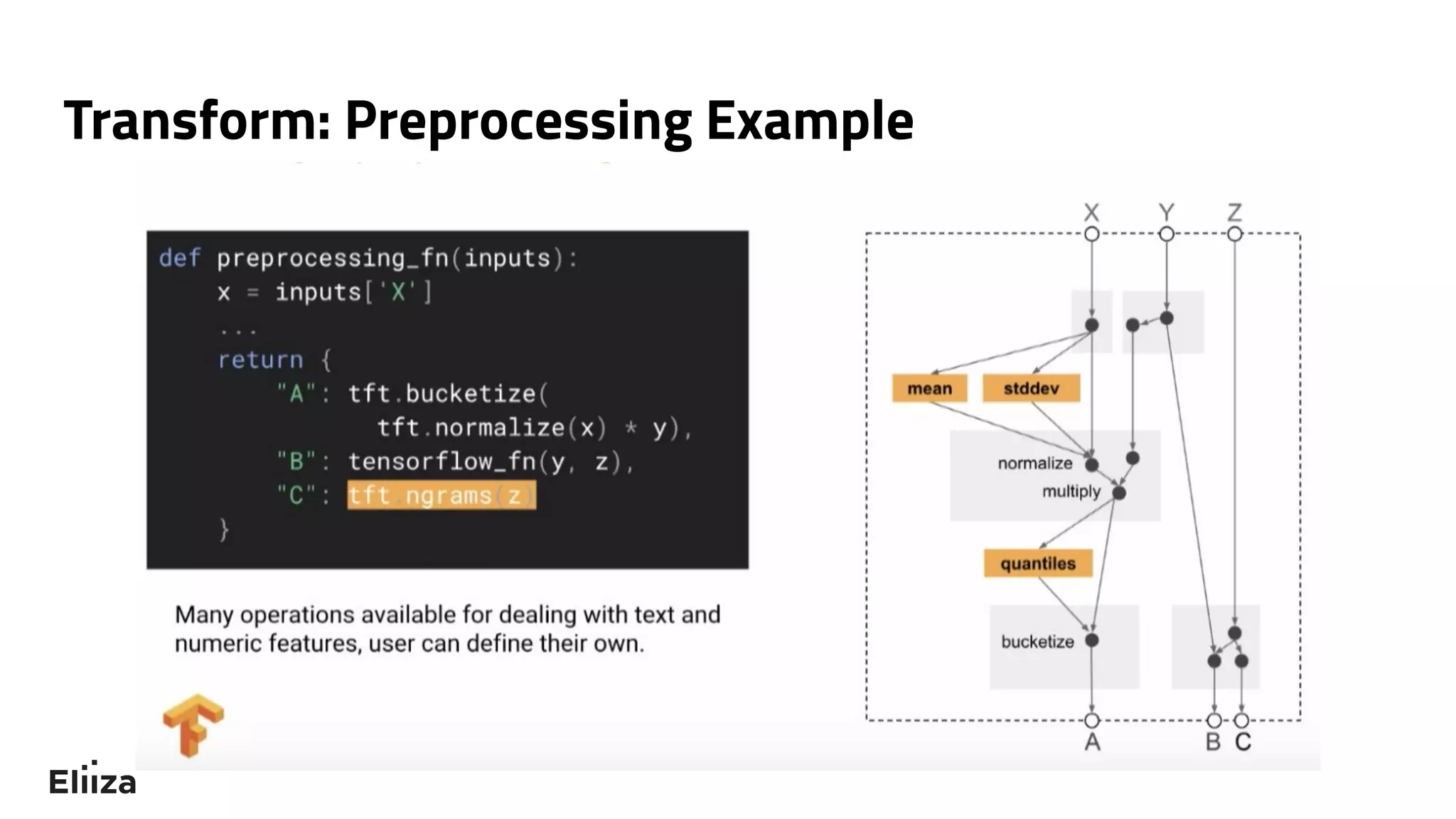

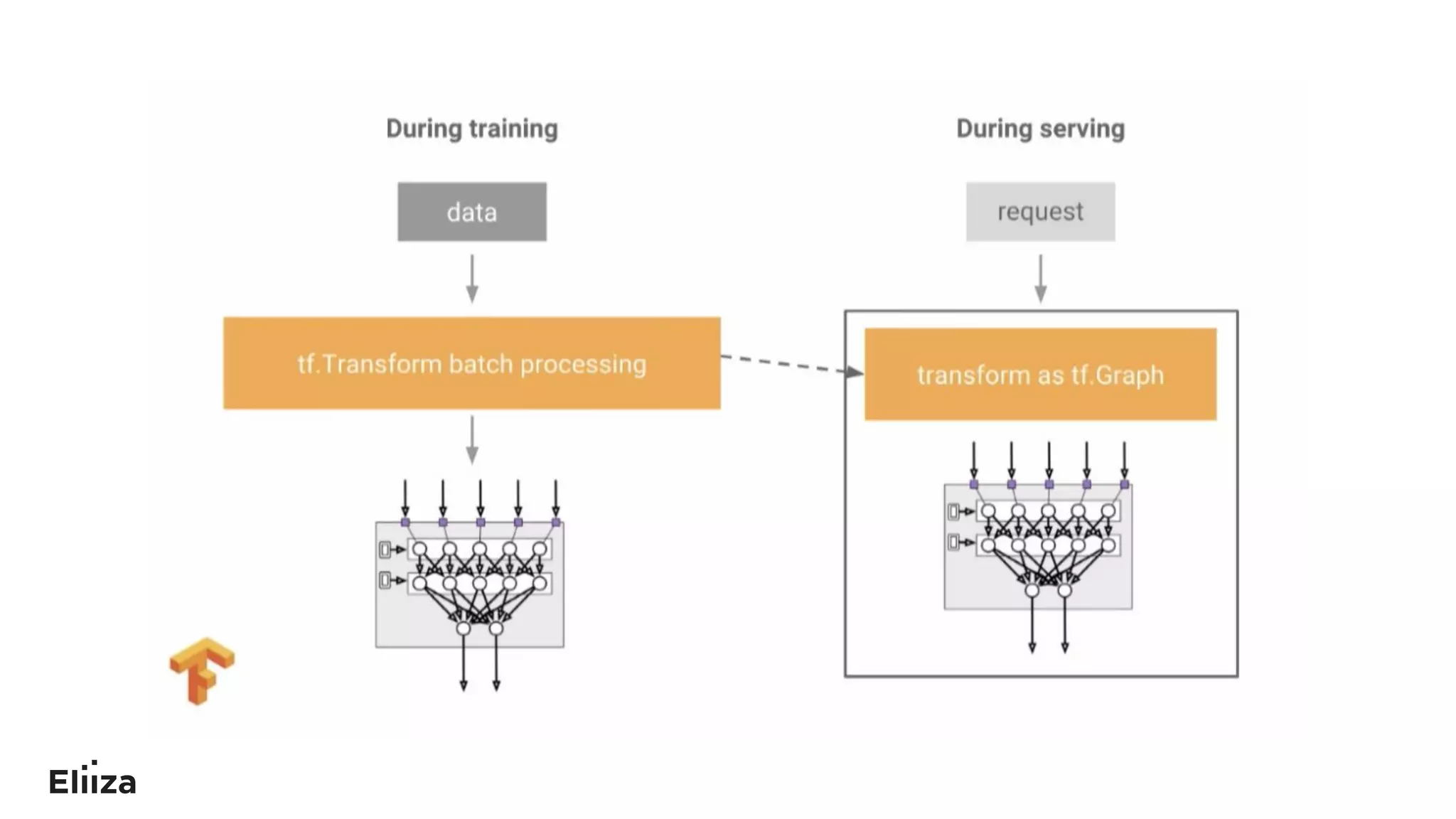

35. Transform: Preprocessing Example

36. Model Analysis

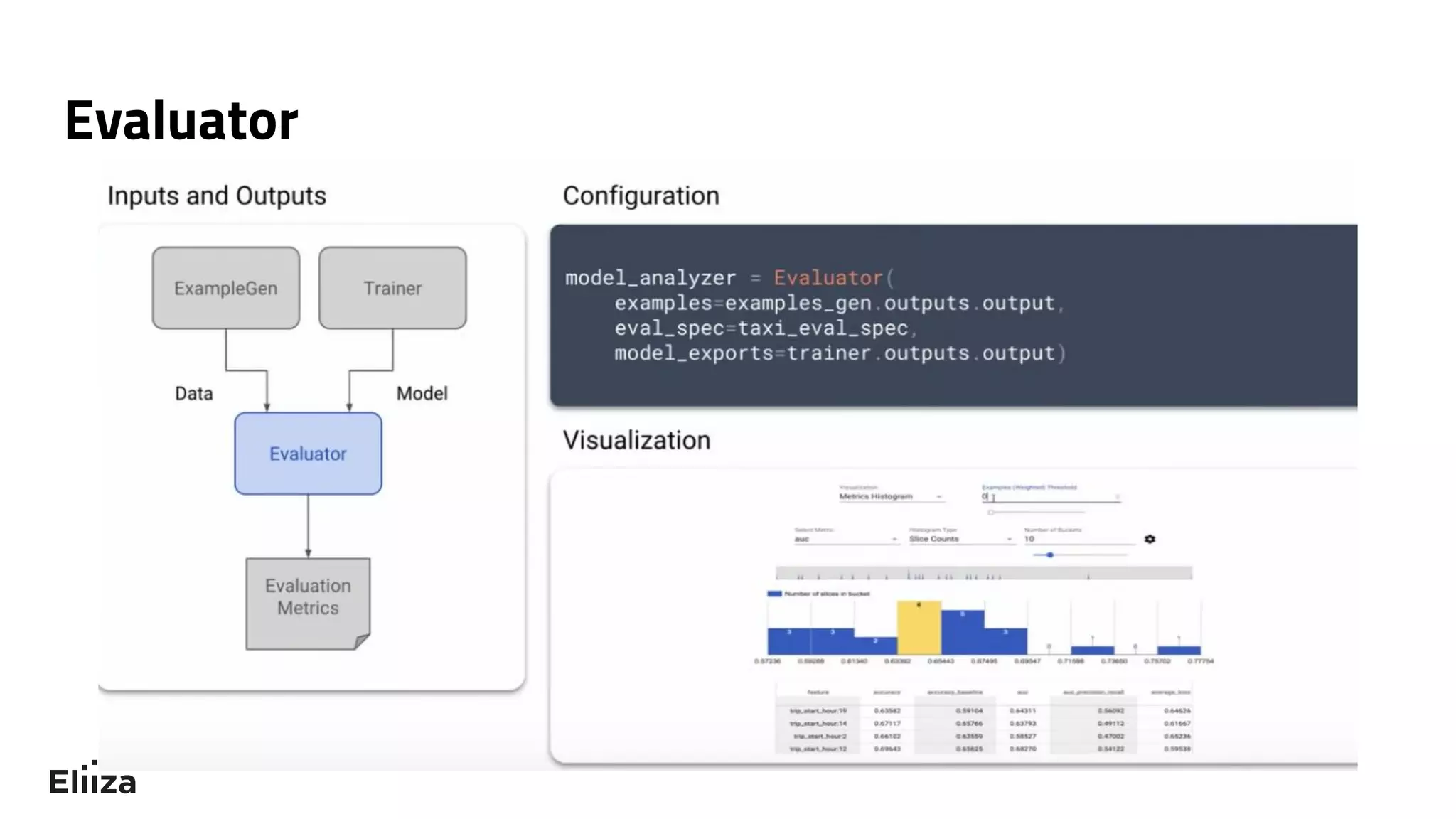

37. Evaluator

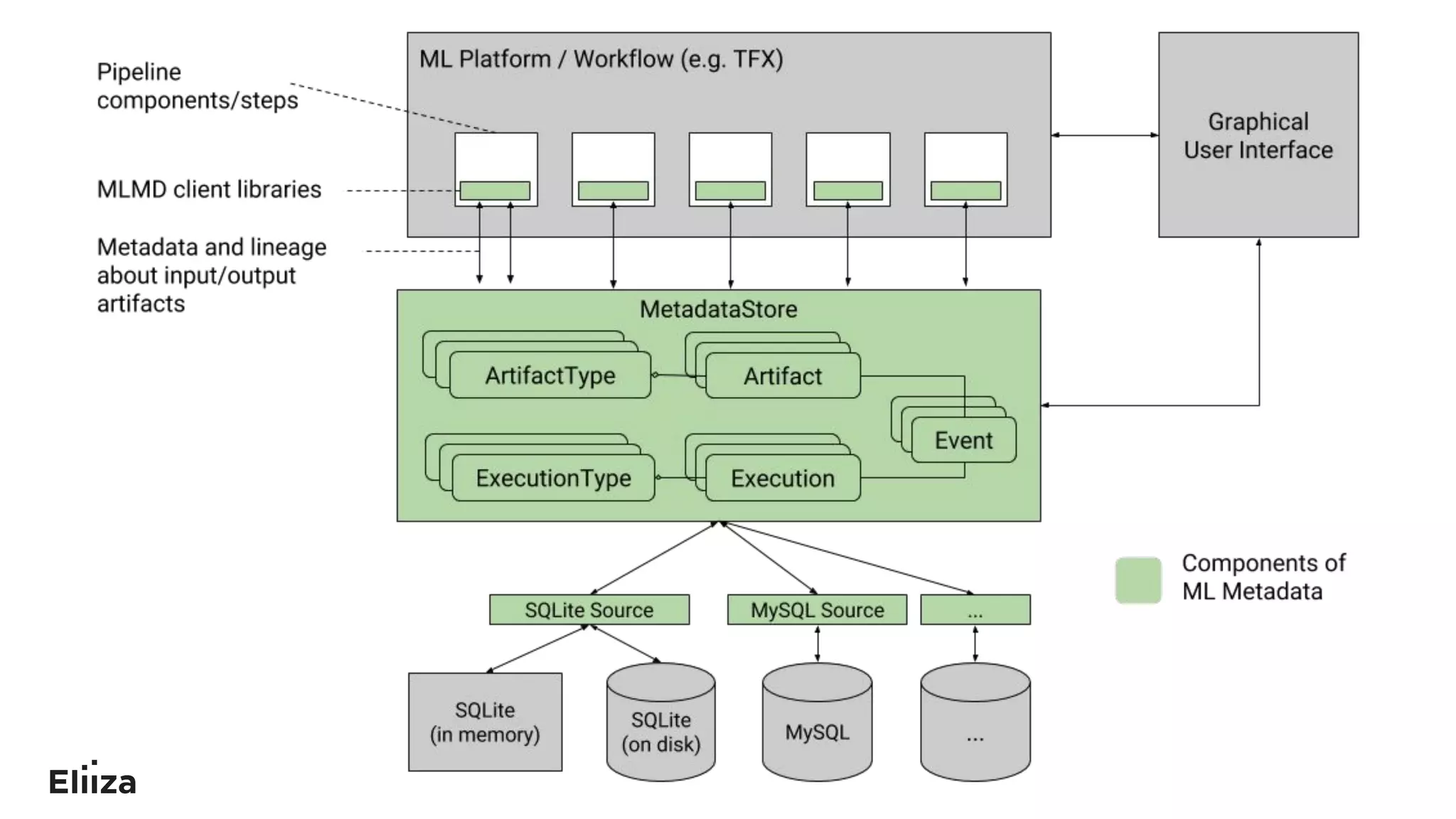

38. Metadata

40. TFJS

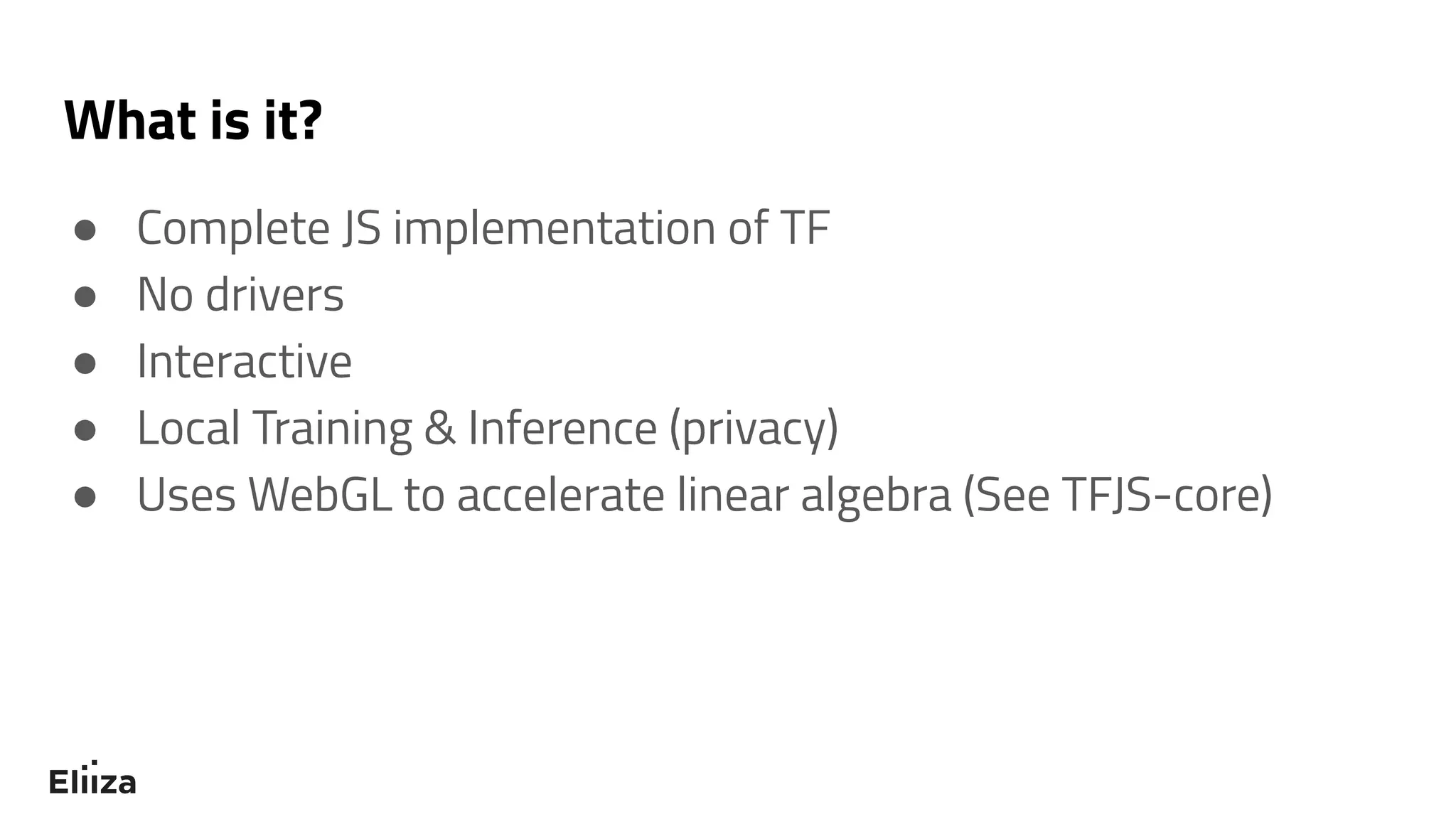

41. What is it?
● Complete JS implementation of TF
● No drivers
● Interactive
● Local Training & Inference (privacy)
● Uses WebGL to accelerate linear algebra (See TFJS-core)

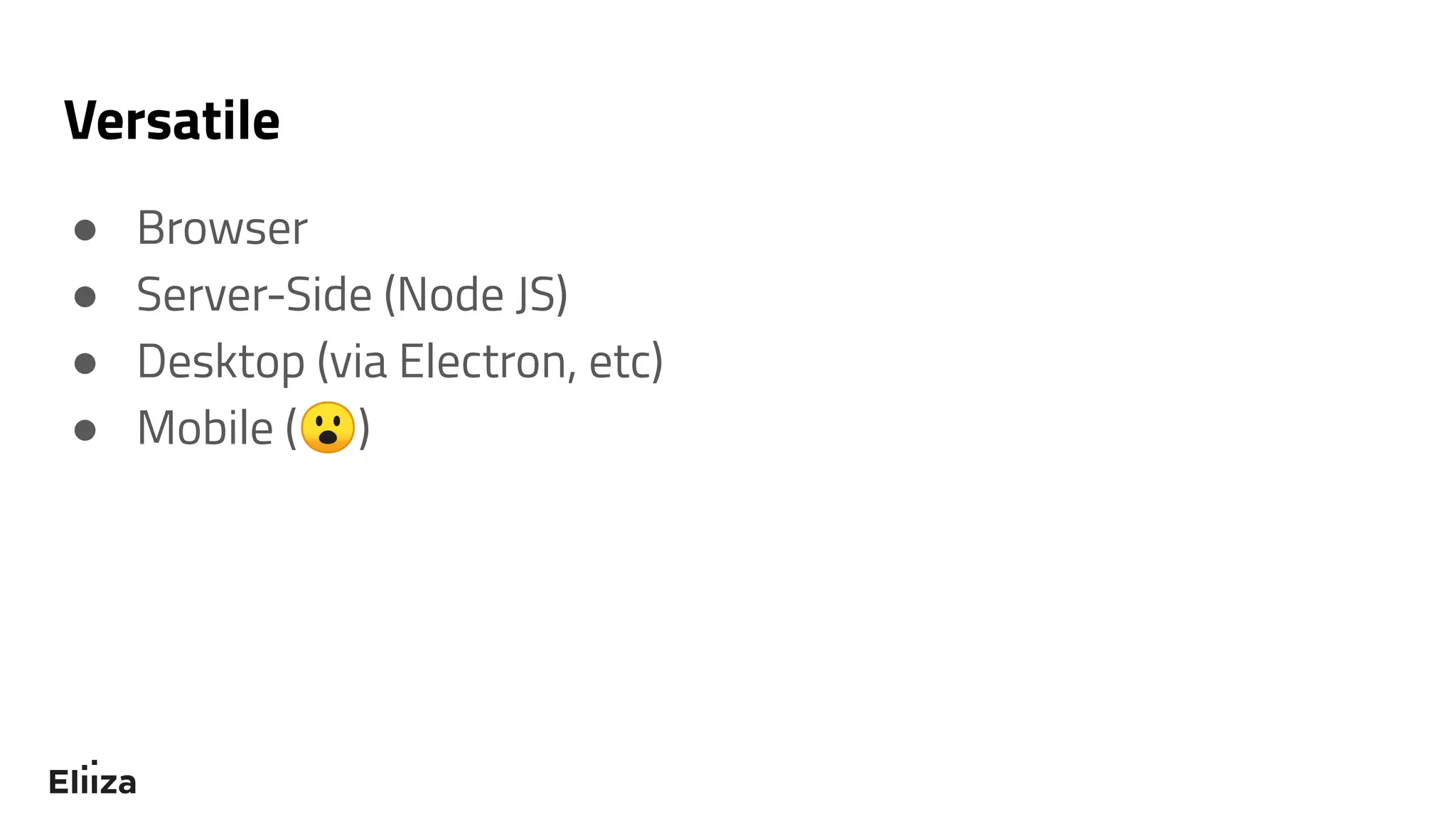

42. Versatile
● Browser
● Server-Side (Node JS)
● Desktop (via Electron, etc)
● Mobile (😮)

43. Browser

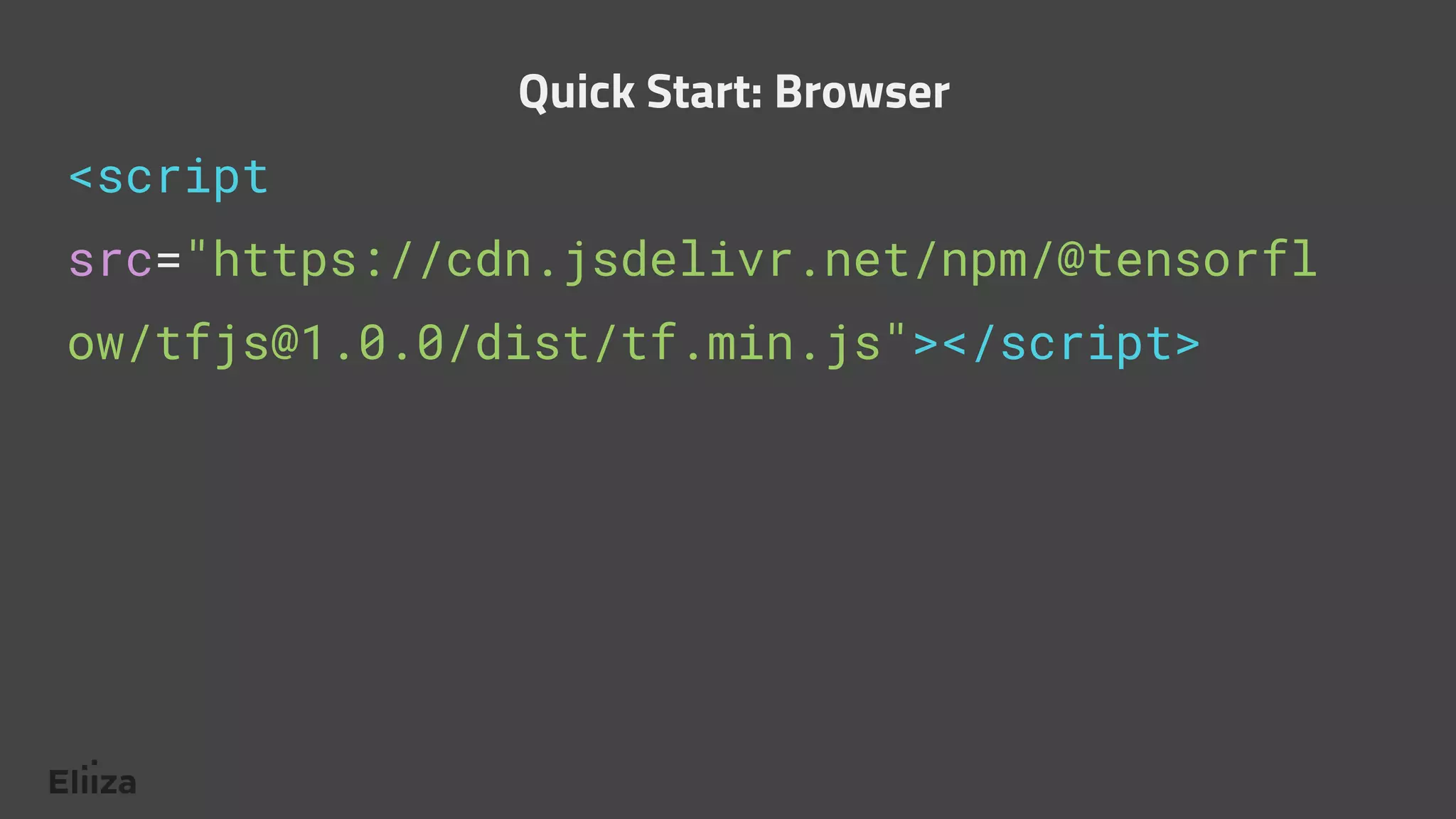

44. <script
src="https://cdn.jsdelivr.net/npm/@tensorfl
ow/tfjs@1.0.0/dist/tf.min.js"></script>
Quick Start: Browser

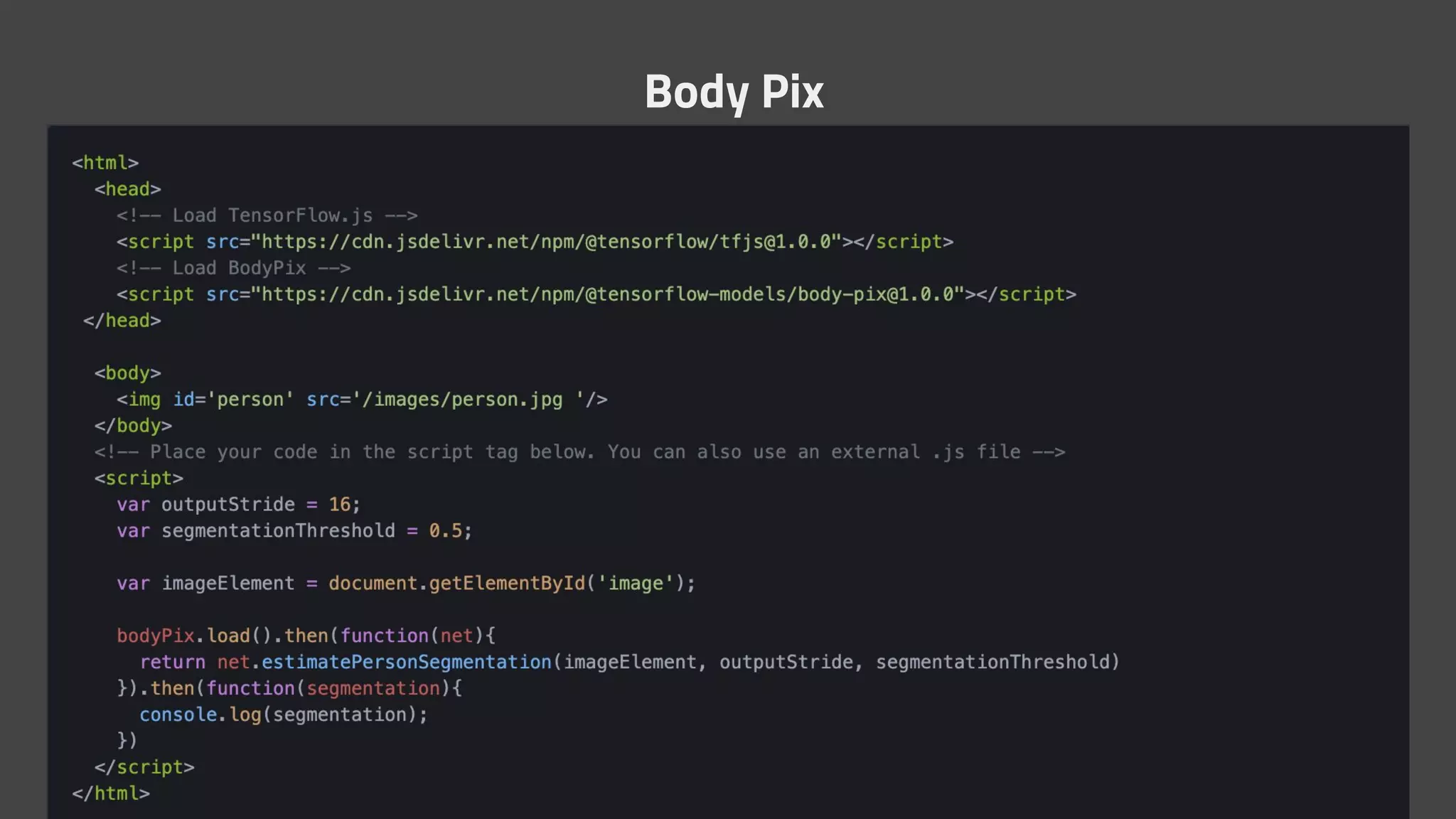

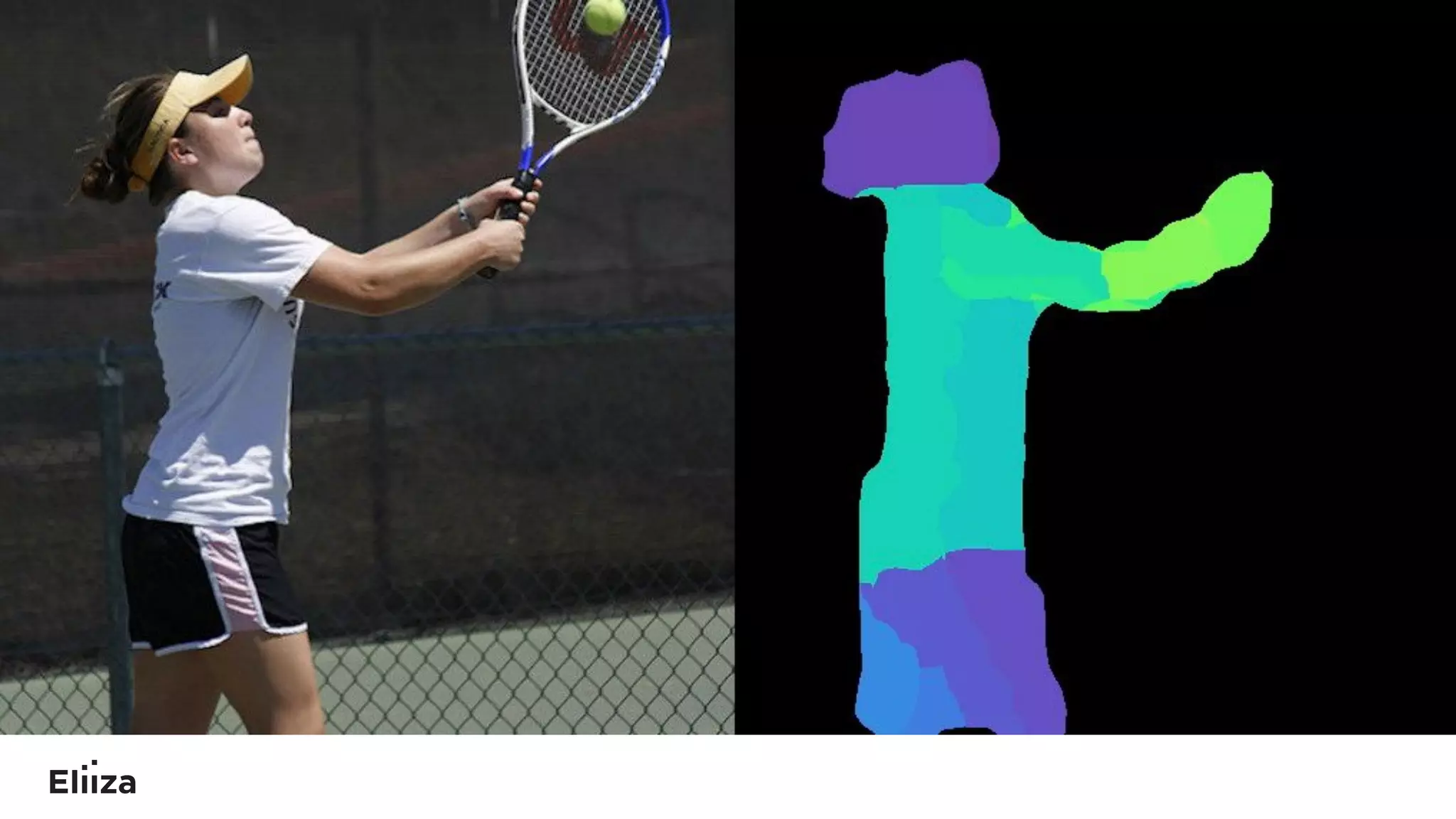

45. Body Pix

49. Node JS

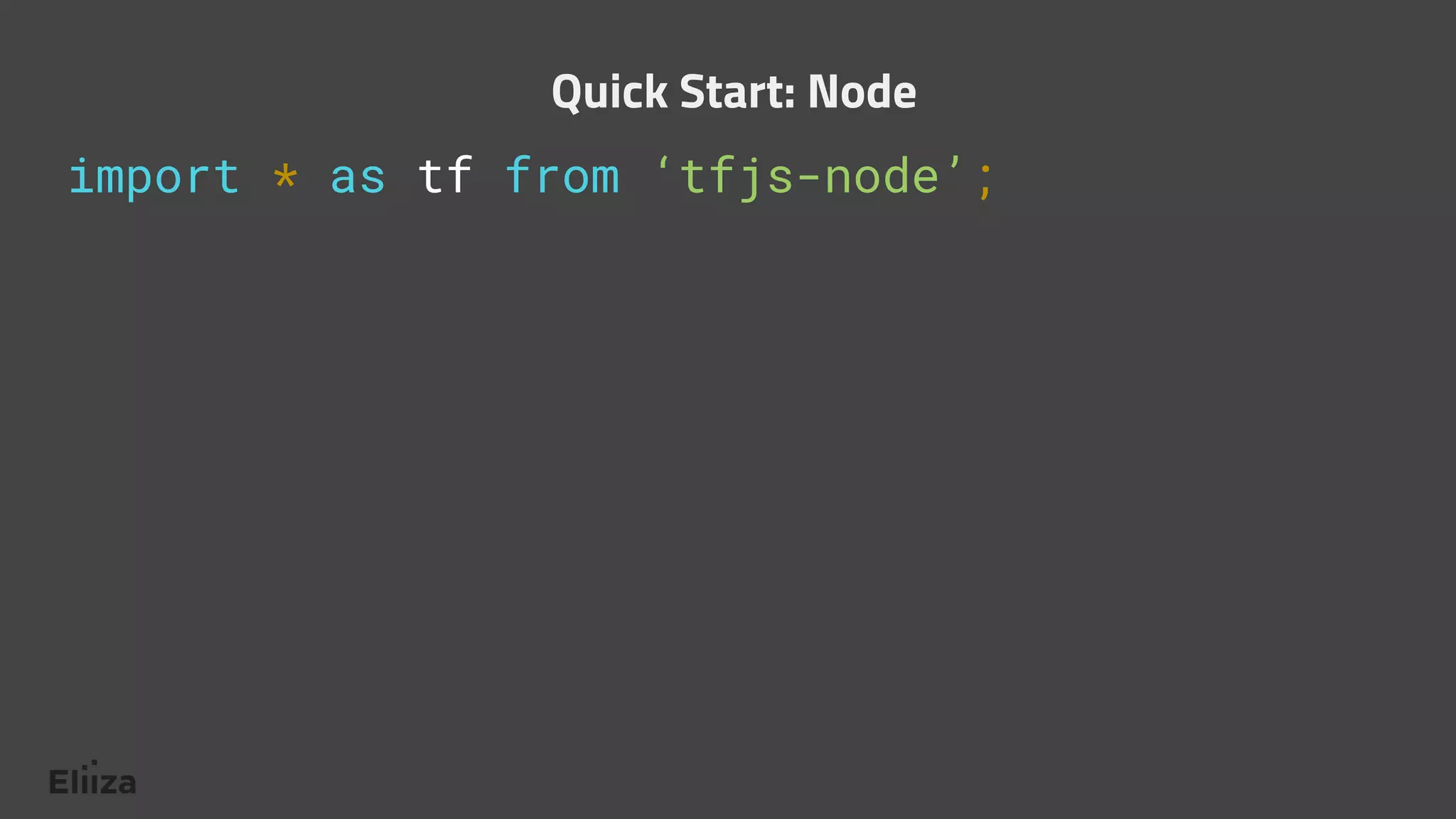

50. import * as tf from ‘tfjs-node’;
Quick Start: Node

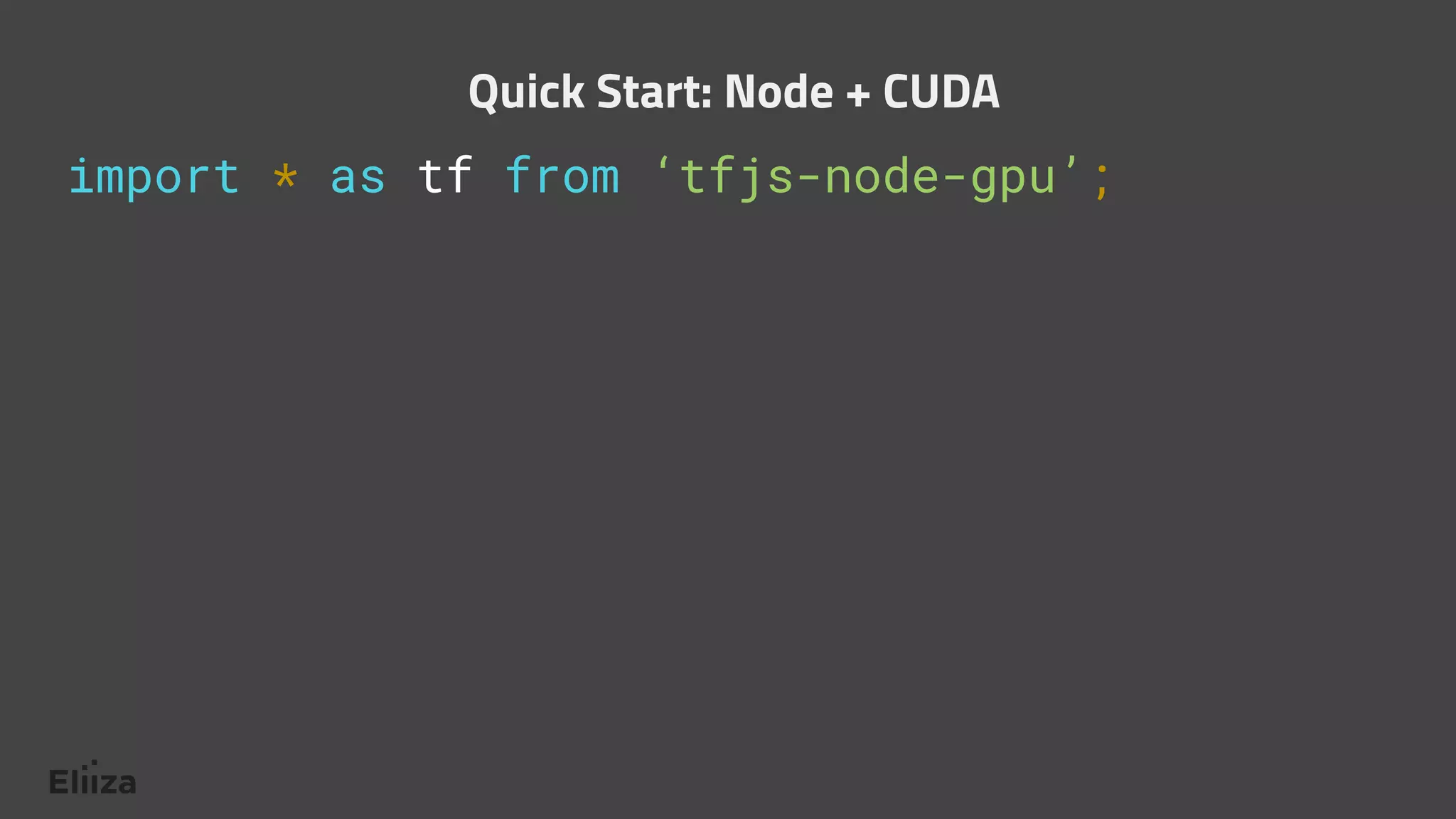

51. import * as tf from ‘tfjs-node-gpu’;
Quick Start: Node + CUDA

52. TFLite

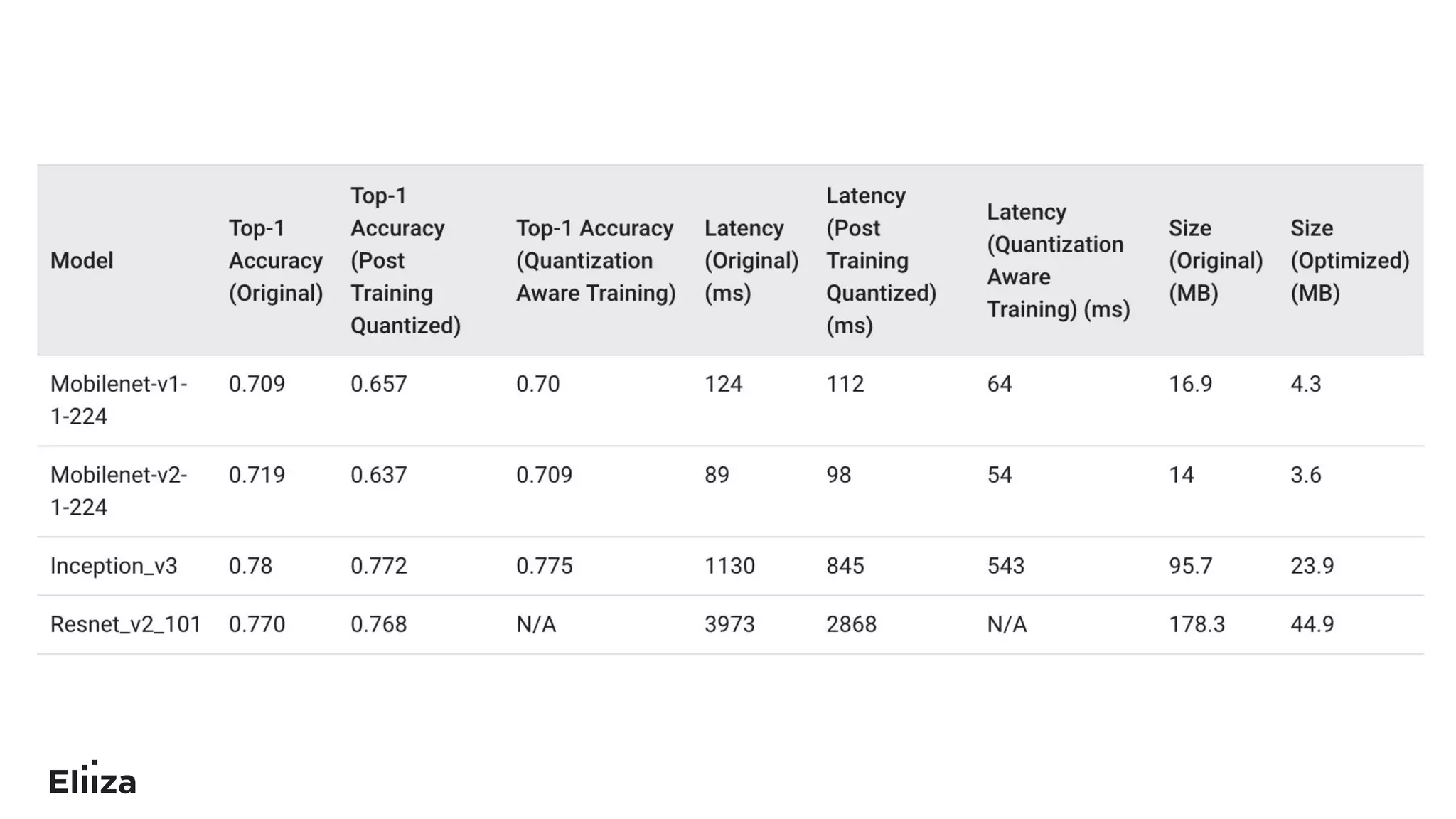

53. Quantizing

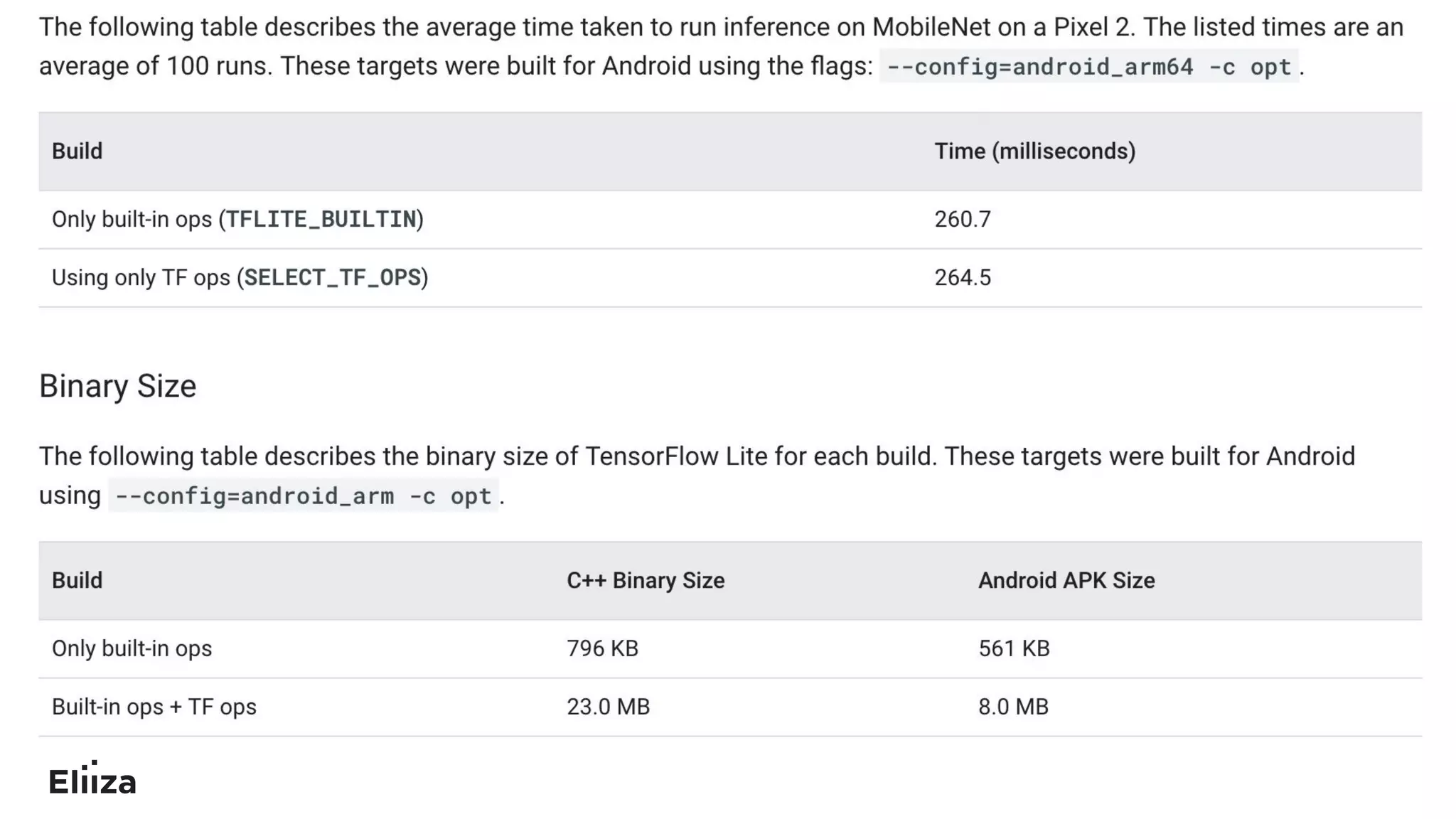

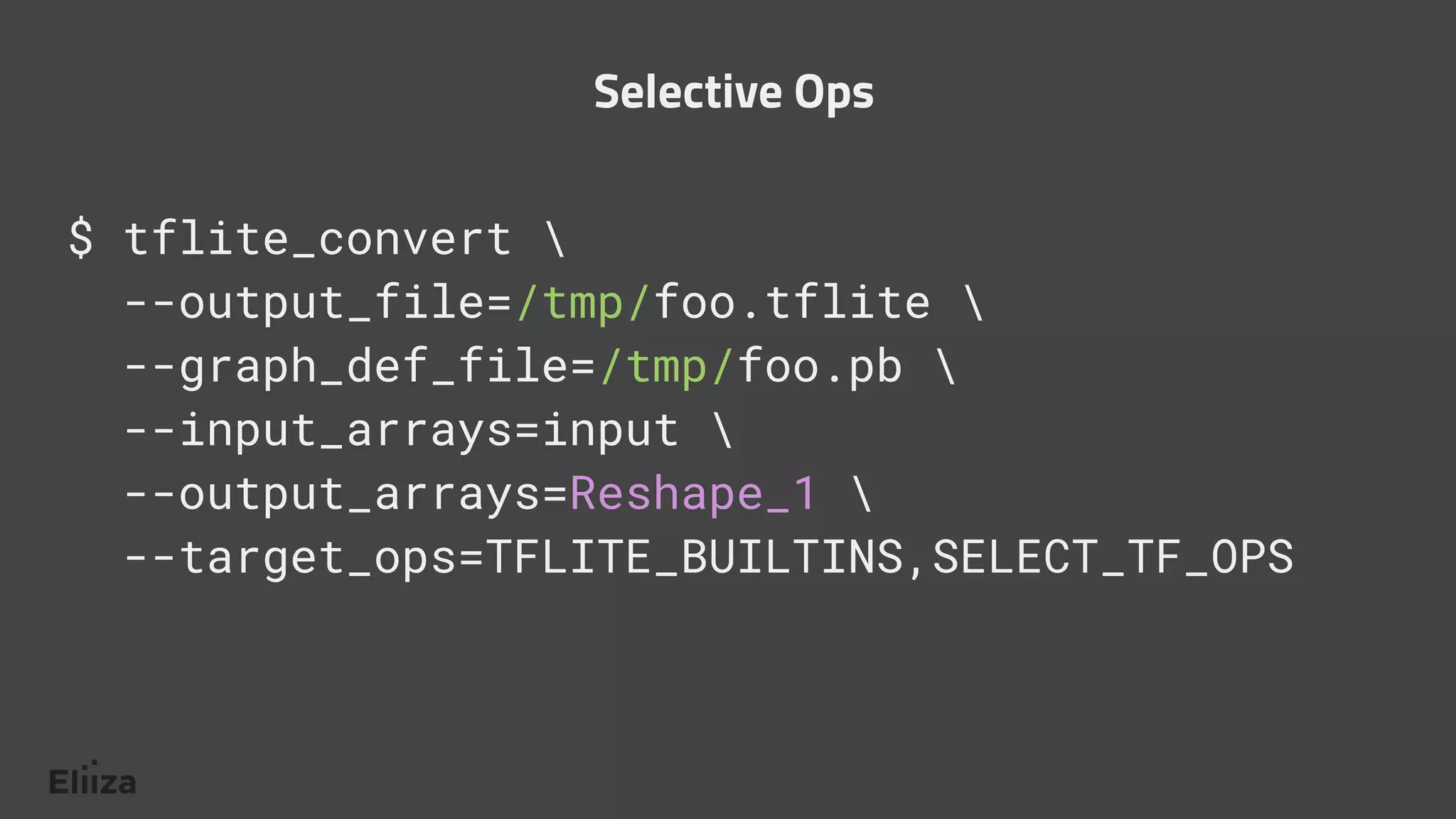

55. Selective Ops

56. $ tflite_convert
--output_file=/tmp/foo.tflite
--graph_def_file=/tmp/foo.pb
--input_arrays=input
--output_arrays=Reshape_1
--target_ops=TFLITE_BUILTINS,SELECT_TF_OPS
Selective Ops

58. GPU Delegate

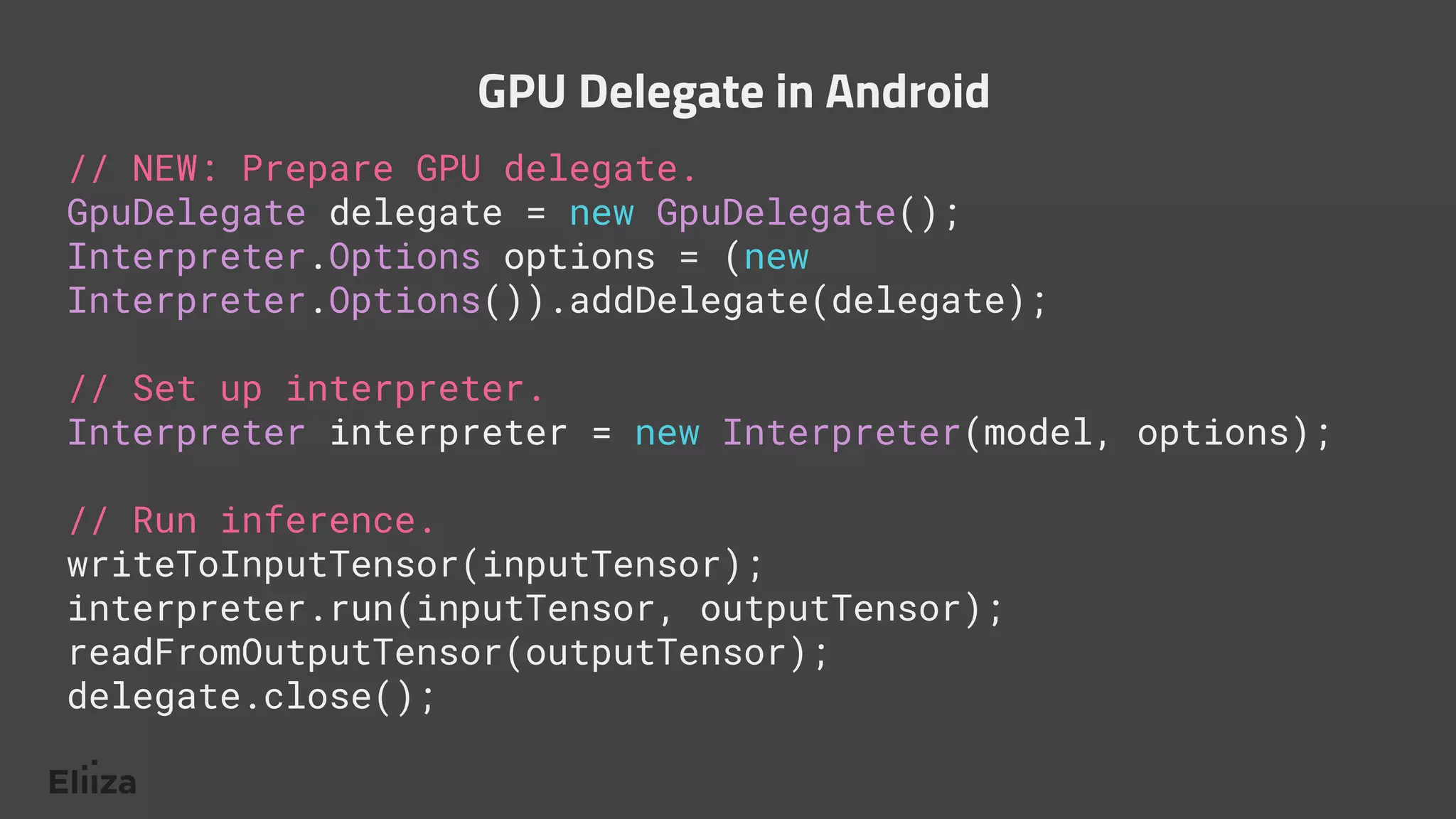

59. // NEW: Prepare GPU delegate.
GpuDelegate delegate = new GpuDelegate();
Interpreter.Options options = (new
Interpreter.Options()).addDelegate(delegate);
// Set up interpreter.
Interpreter interpreter = new Interpreter(model, options);
// Run inference.
writeToInputTensor(inputTensor);
interpreter.run(inputTensor, outputTensor);
readFromOutputTensor(outputTensor);
delegate.close();
GPU Delegate in Android

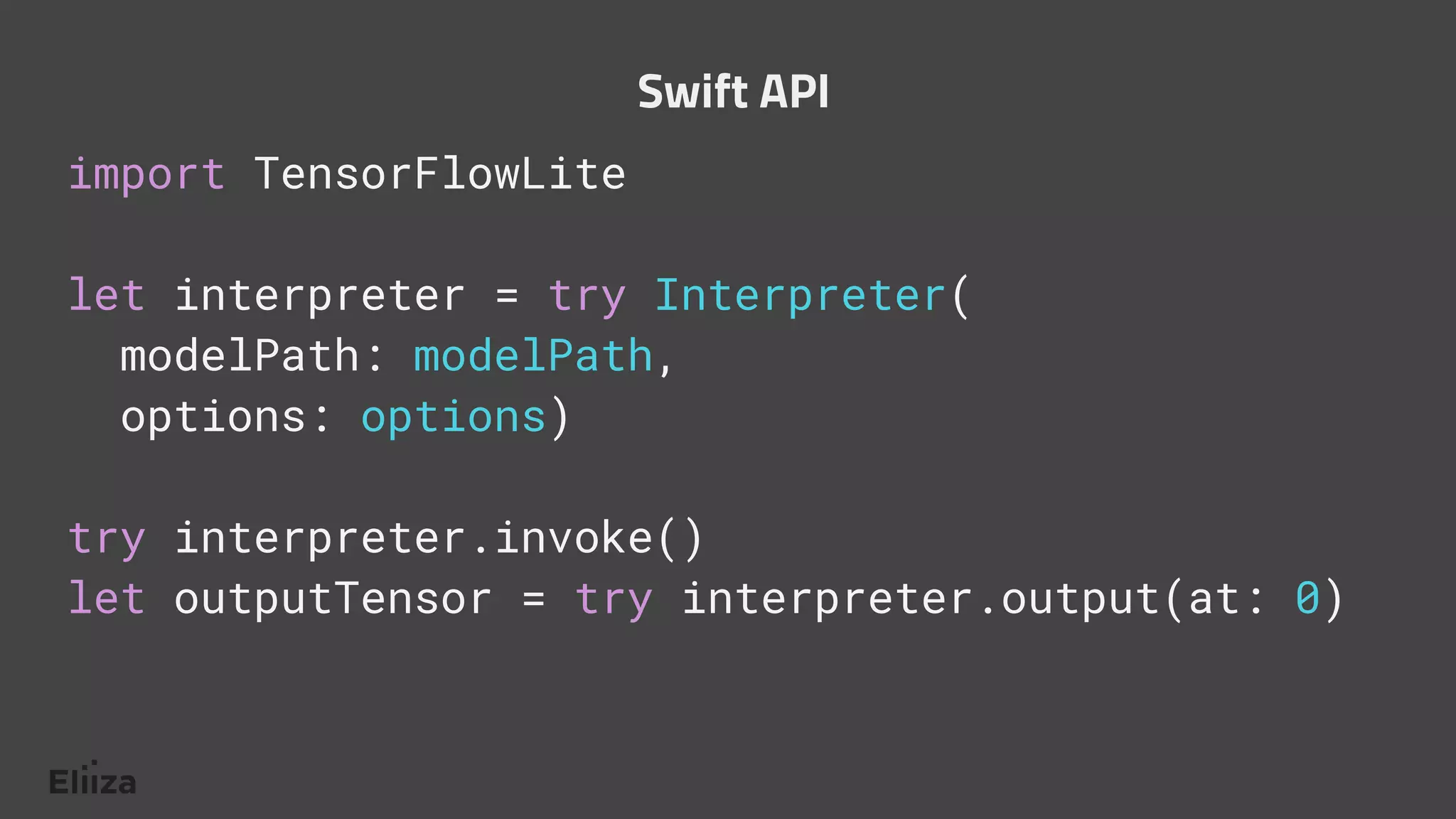

60. Swift API!

61. import TensorFlowLite
let interpreter = try Interpreter(
modelPath: modelPath,
options: options)
try interpreter.invoke()
let outputTensor = try interpreter.output(at: 0)
Swift API

62. Questions?

63. Thanks 🙏
References: elz.ai/tf2
Ray Hilton - @rayh Eliiza - @EliizaAI

64. Quickly mention...

65. tf.data & tf.datasets

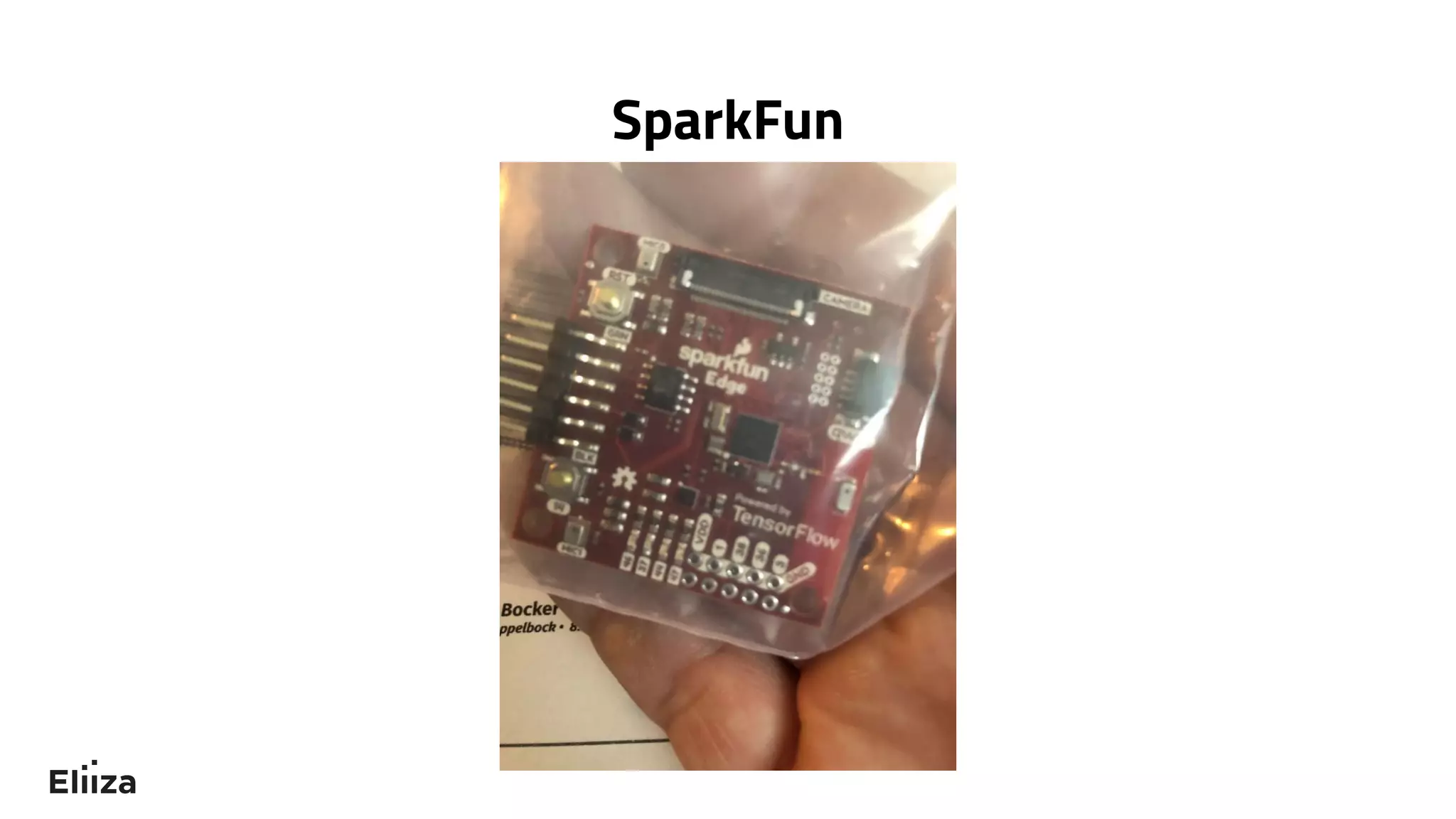

66. SparkFun

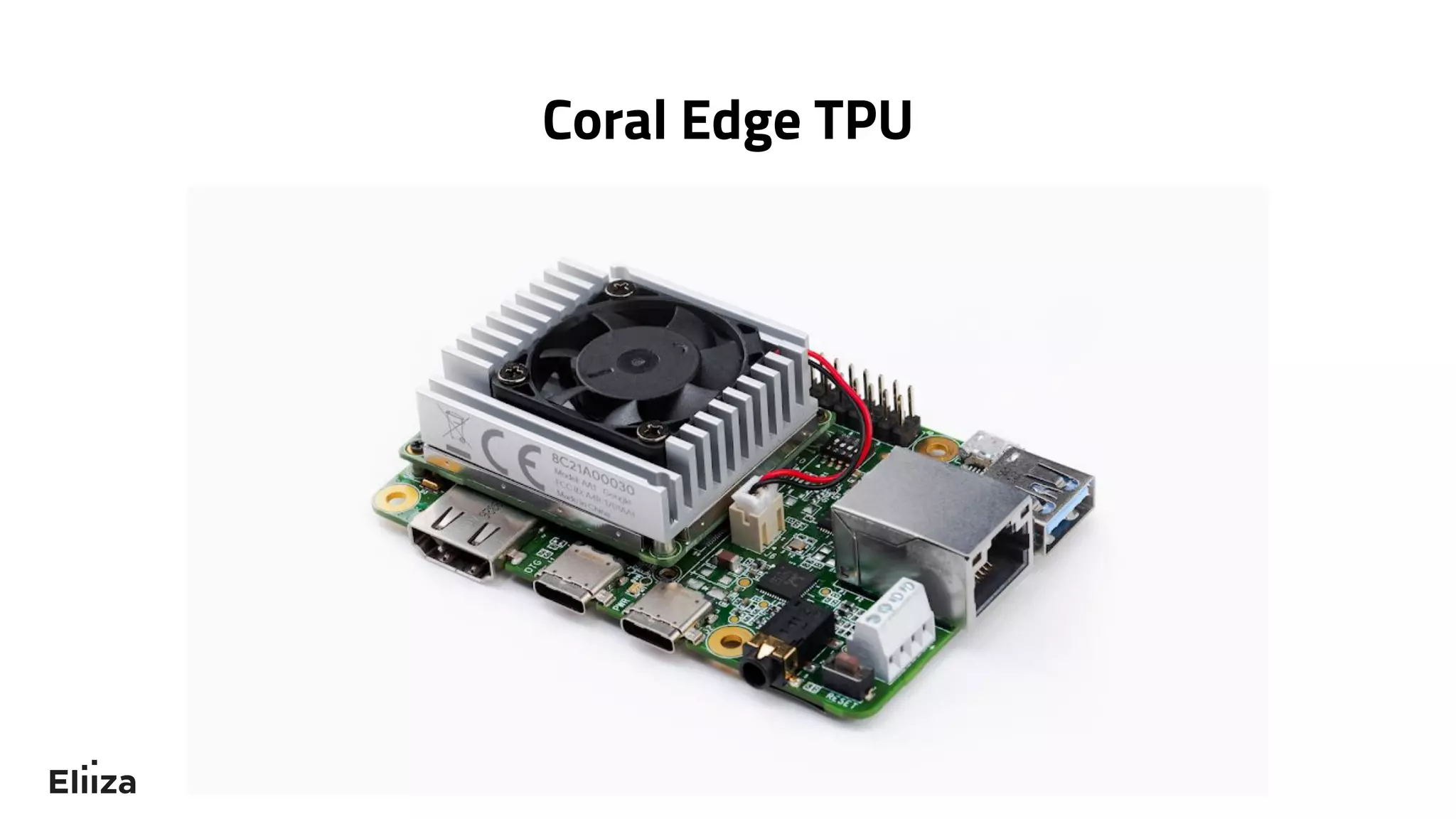

67. Coral Edge TPU

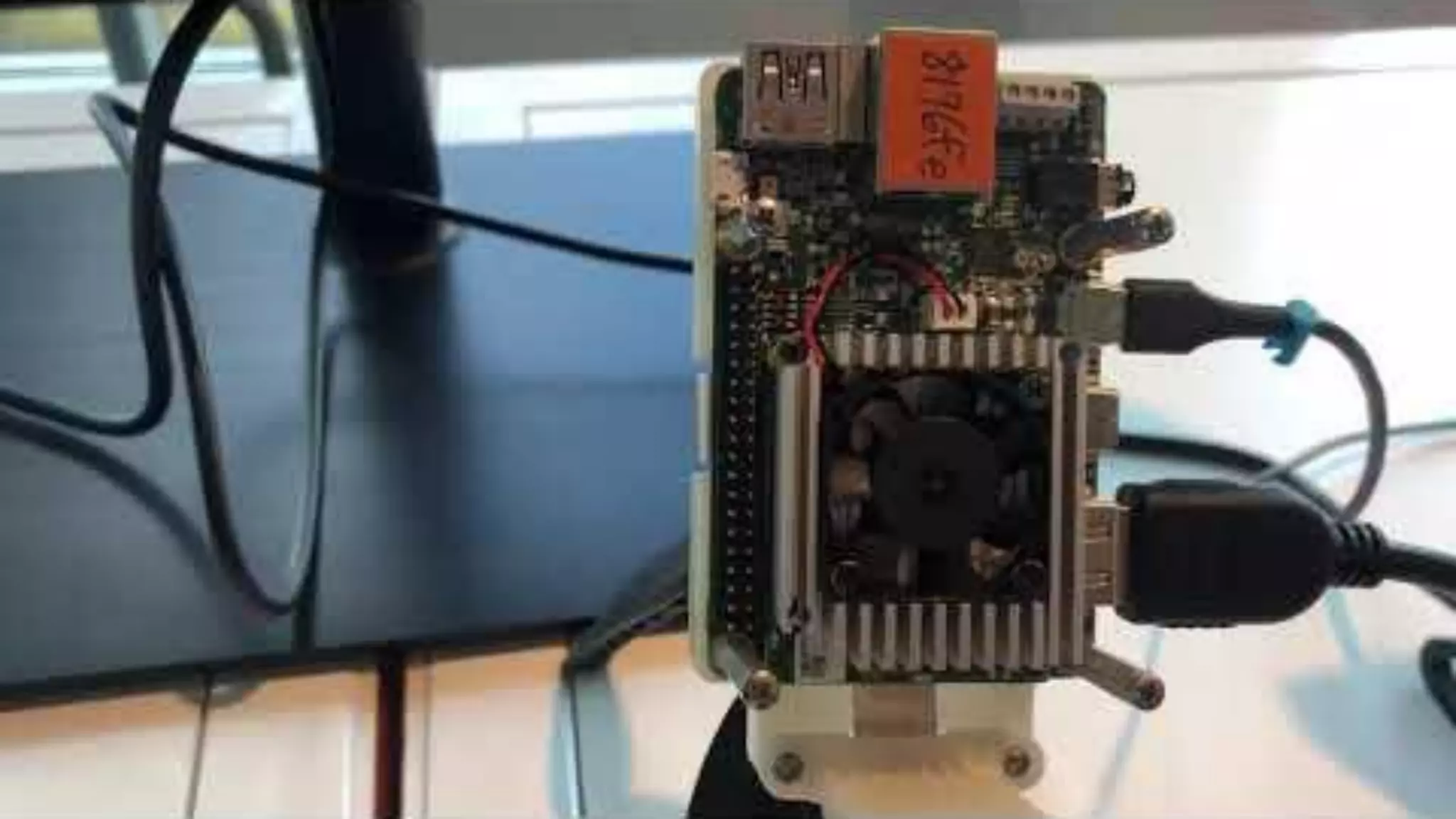

68. Coral Edge TPU

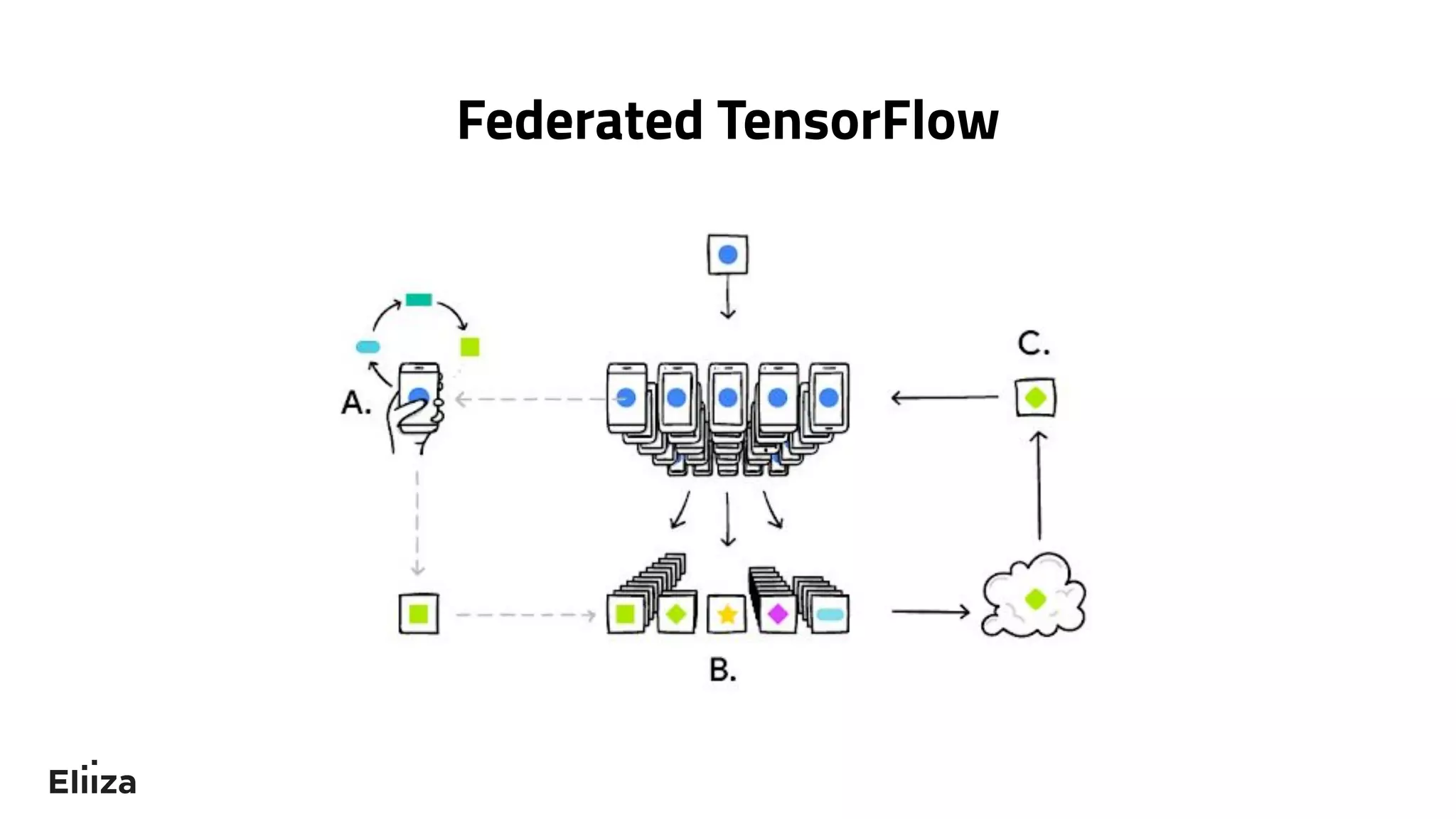

69. Federated TensorFlow

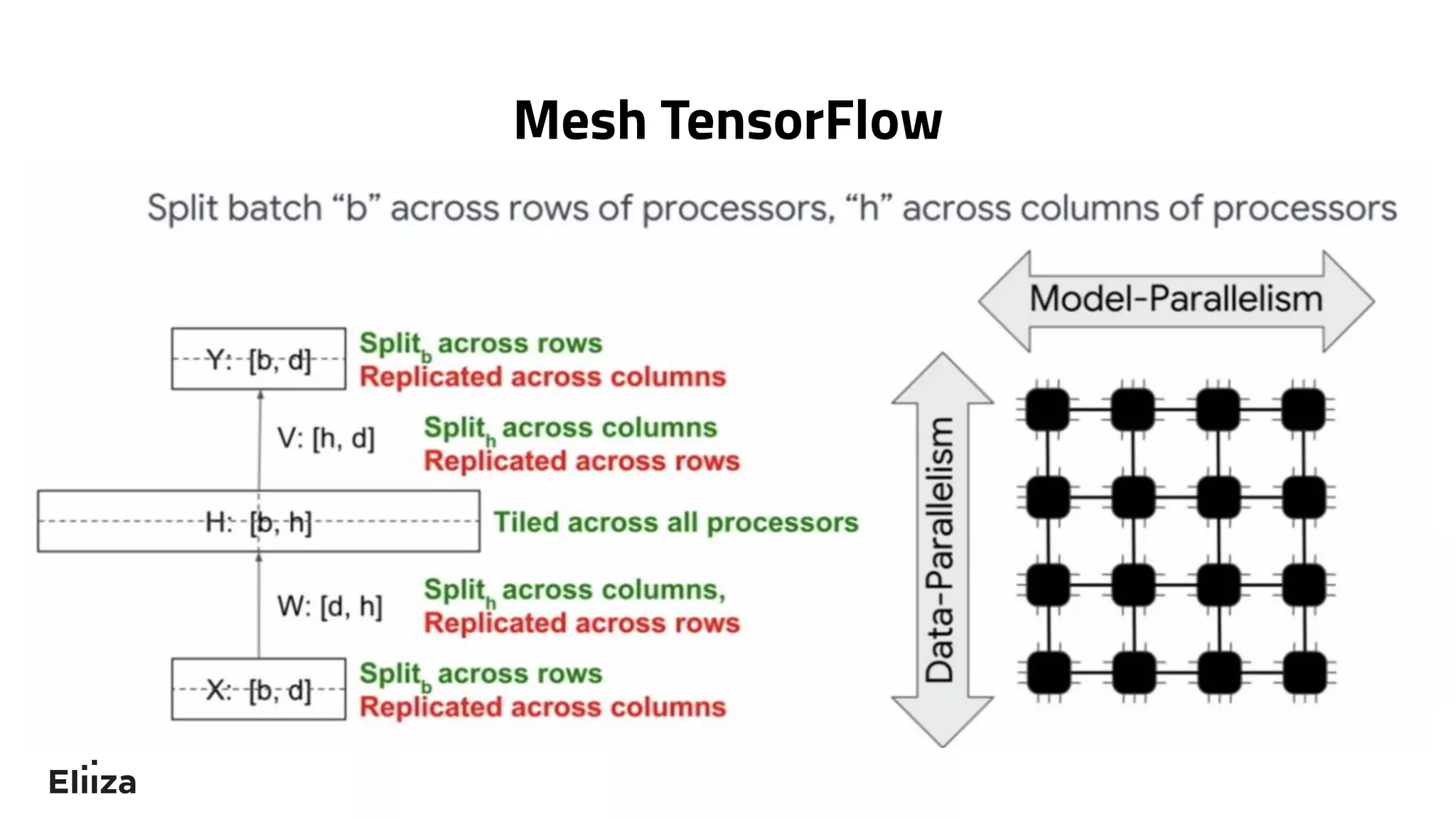

70. Mesh TensorFlow

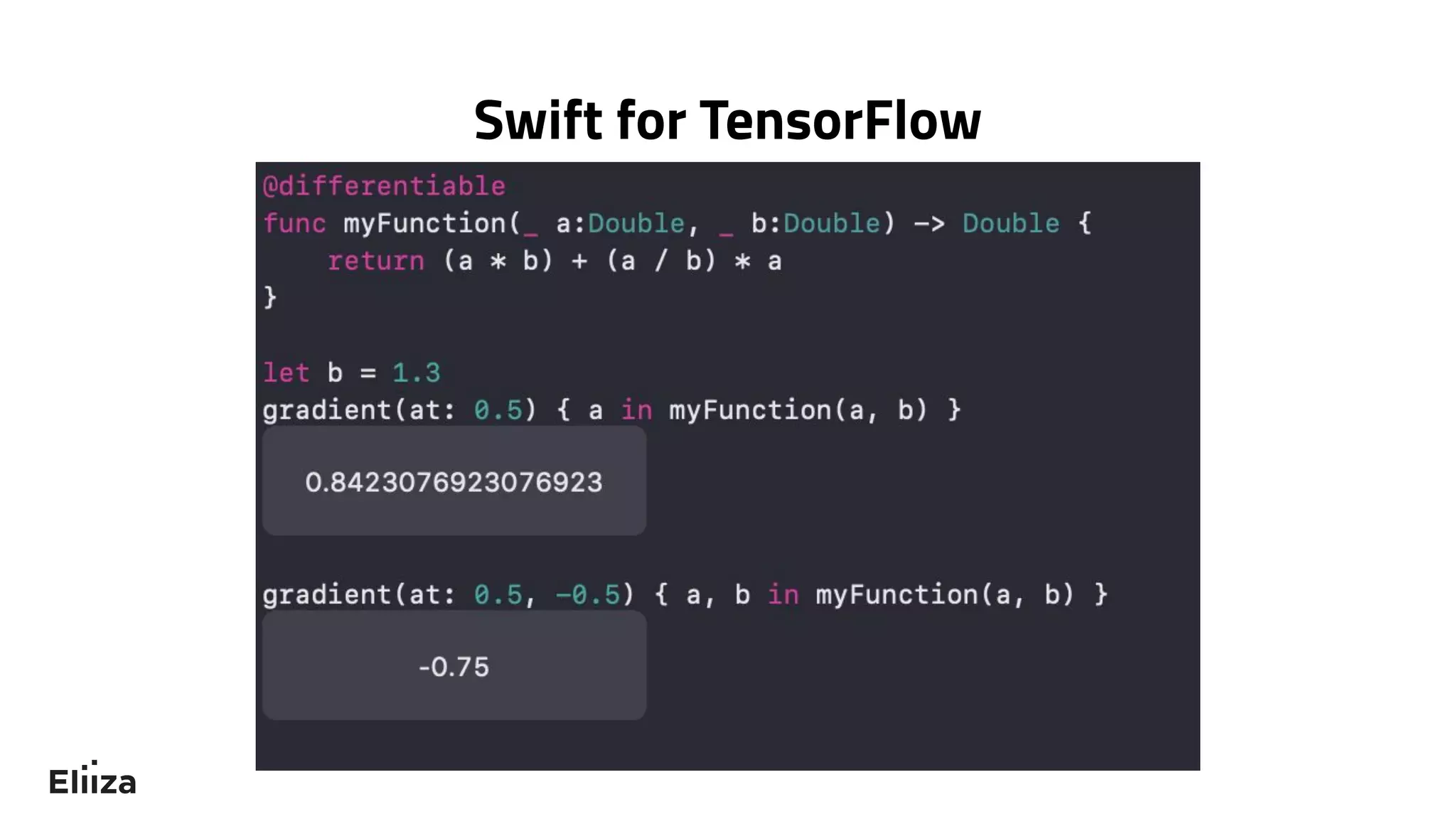

71. Swift for TensorFlow

72. Thanks (Again)
References: elz.ai/tf2
Ray Hilton - @rayh Eliiza - @EliizaAI
