Testing and Quality Control of VRF Copper Joints

Explore how testing and quality control of VRF copper joints supports reliable HVAC performance. This guide covers joint inspection, dimensional checks, material quality, brazing, pressure testing, leak detection, vacuum testing, insulation inspection, and documentation. Learn how proper joint selection and installation can reduce refrigerant leakage, prevent commissioning problems, maintain efficient refrigerant flow, and improve the long-term reliability of VRF refrigerant piping systems for commercial and residential HVAC applications and projects.

Engineering◦
Download to read offline

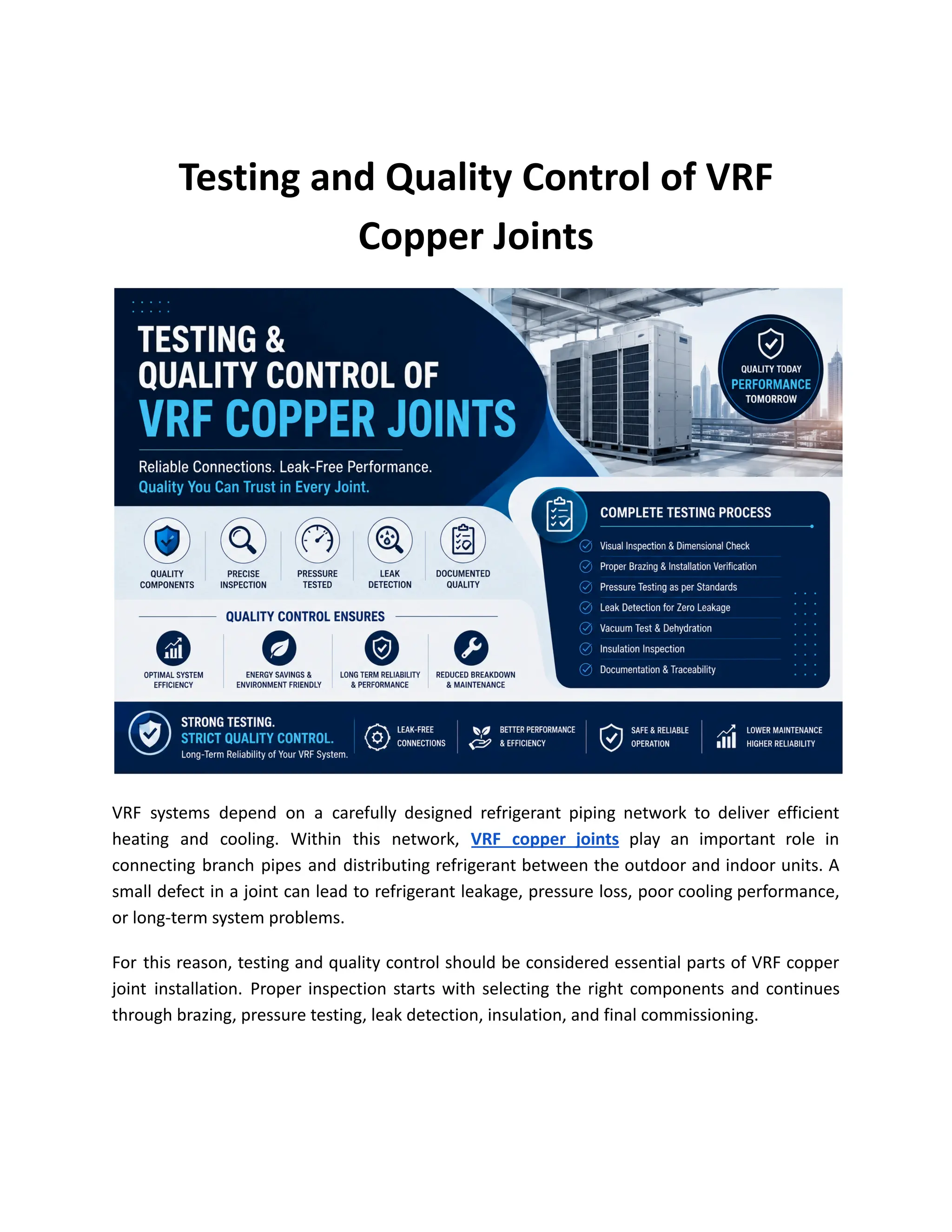

Testing and Quality Control of VRF Copper Joints VRF systems depend on a carefully designed refrigerant piping network to deliver efficient heating and cooling. Within this network, VRF copper joints play an important role in connecting branch pipes and distributing refrigerant between the outdoor and indoor units. A small defect in a joint can lead to refrigerant leakage, pressure loss, poor cooling performance, or long-term system problems. For this reason, testing and quality control should be considered essential parts of VRF copper joint installation. Proper inspection starts with selecting the right components and continues through brazing, pressure testing, leak detection, insulation, and final commissioning.

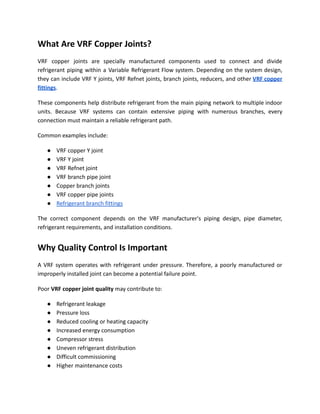

What Are VRF Copper Joints? VRF copper joints are specially manufactured components used to connect and divide refrigerant piping within a Variable Refrigerant Flow system. Depending on the system design, they can include VRF Y joints, VRF Refnet joints, branch joints, reducers, and other VRF copper fittings. These components help distribute refrigerant from the main piping network to multiple indoor units. Because VRF systems can contain extensive piping with numerous branches, every connection must maintain a reliable refrigerant path. Common examples include: ●​ VRF copper Y joint ●​ VRF Y joint ●​ VRF Refnet joint ●​ VRF branch pipe joint ●​ Copper branch joints ●​ VRF copper pipe joints ●​ Refrigerant branch fittings The correct component depends on the VRF manufacturer's piping design, pipe diameter, refrigerant requirements, and installation conditions. Why Quality Control Is Important A VRF system operates with refrigerant under pressure. Therefore, a poorly manufactured or improperly installed joint can become a potential failure point. Poor VRF copper joint quality may contribute to: ●​ Refrigerant leakage ●​ Pressure loss ●​ Reduced cooling or heating capacity ●​ Increased energy consumption ●​ Compressor stress ●​ Uneven refrigerant distribution ●​ Difficult commissioning ●​ Higher maintenance costs

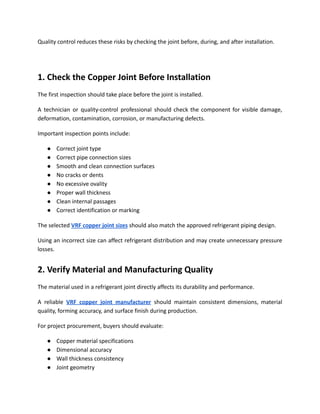

Quality control reduces these risks by checking the joint before, during, and after installation. 1. Check the Copper Joint Before Installation The first inspection should take place before the joint is installed. A technician or quality-control professional should check the component for visible damage, deformation, contamination, corrosion, or manufacturing defects. Important inspection points include: ●​ Correct joint type ●​ Correct pipe connection sizes ●​ Smooth and clean connection surfaces ●​ No cracks or dents ●​ No excessive ovality ●​ Proper wall thickness ●​ Clean internal passages ●​ Correct identification or marking The selected VRF copper joint sizes should also match the approved refrigerant piping design. Using an incorrect size can affect refrigerant distribution and may create unnecessary pressure losses. 2. Verify Material and Manufacturing Quality The material used in a refrigerant joint directly affects its durability and performance. A reliable VRF copper joint manufacturer should maintain consistent dimensions, material quality, forming accuracy, and surface finish during production. For project procurement, buyers should evaluate: ●​ Copper material specifications ●​ Dimensional accuracy ●​ Wall thickness consistency ●​ Joint geometry

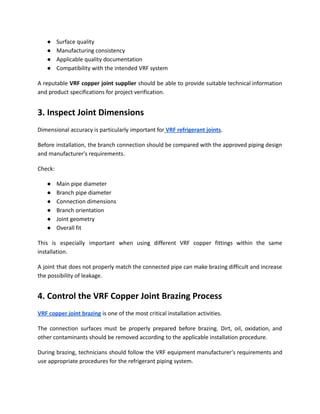

●​ Surface quality ●​ Manufacturing consistency ●​ Applicable quality documentation ●​ Compatibility with the intended VRF system A reputable VRF copper joint supplier should be able to provide suitable technical information and product specifications for project verification. 3. Inspect Joint Dimensions Dimensional accuracy is particularly important for VRF refrigerant joints. Before installation, the branch connection should be compared with the approved piping design and manufacturer's requirements. Check: ●​ Main pipe diameter ●​ Branch pipe diameter ●​ Connection dimensions ●​ Branch orientation ●​ Joint geometry ●​ Overall fit This is especially important when using different VRF copper fittings within the same installation. A joint that does not properly match the connected pipe can make brazing difficult and increase the possibility of leakage. 4. Control the VRF Copper Joint Brazing Process VRF copper joint brazing is one of the most critical installation activities. The connection surfaces must be properly prepared before brazing. Dirt, oil, oxidation, and other contaminants should be removed according to the applicable installation procedure. During brazing, technicians should follow the VRF equipment manufacturer's requirements and use appropriate procedures for the refrigerant piping system.

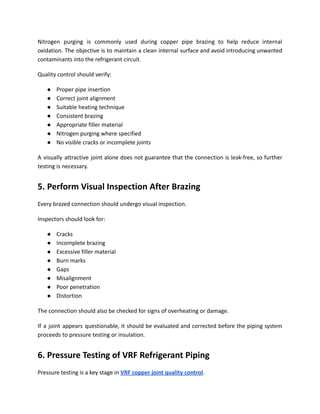

Nitrogen purging is commonly used during copper pipe brazing to help reduce internal oxidation. The objective is to maintain a clean internal surface and avoid introducing unwanted contaminants into the refrigerant circuit. Quality control should verify: ●​ Proper pipe insertion ●​ Correct joint alignment ●​ Suitable heating technique ●​ Consistent brazing ●​ Appropriate filler material ●​ Nitrogen purging where specified ●​ No visible cracks or incomplete joints A visually attractive joint alone does not guarantee that the connection is leak-free, so further testing is necessary. 5. Perform Visual Inspection After Brazing Every brazed connection should undergo visual inspection. Inspectors should look for: ●​ Cracks ●​ Incomplete brazing ●​ Excessive filler material ●​ Burn marks ●​ Gaps ●​ Misalignment ●​ Poor penetration ●​ Distortion The connection should also be checked for signs of overheating or damage. If a joint appears questionable, it should be evaluated and corrected before the piping system proceeds to pressure testing or insulation. 6. Pressure Testing of VRF Refrigerant Piping Pressure testing is a key stage in VRF copper joint quality control.

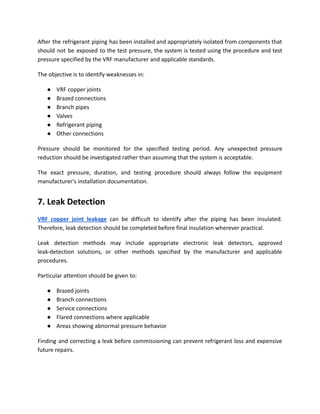

After the refrigerant piping has been installed and appropriately isolated from components that should not be exposed to the test pressure, the system is tested using the procedure and test pressure specified by the VRF manufacturer and applicable standards. The objective is to identify weaknesses in: ●​ VRF copper joints ●​ Brazed connections ●​ Branch pipes ●​ Valves ●​ Refrigerant piping ●​ Other connections Pressure should be monitored for the specified testing period. Any unexpected pressure reduction should be investigated rather than assuming that the system is acceptable. The exact pressure, duration, and testing procedure should always follow the equipment manufacturer's installation documentation. 7. Leak Detection VRF copper joint leakage can be difficult to identify after the piping has been insulated. Therefore, leak detection should be completed before final insulation wherever practical. Leak detection methods may include appropriate electronic leak detectors, approved leak-detection solutions, or other methods specified by the manufacturer and applicable procedures. Particular attention should be given to: ●​ Brazed joints ●​ Branch connections ●​ Service connections ●​ Flared connections where applicable ●​ Areas showing abnormal pressure behavior Finding and correcting a leak before commissioning can prevent refrigerant loss and expensive future repairs.

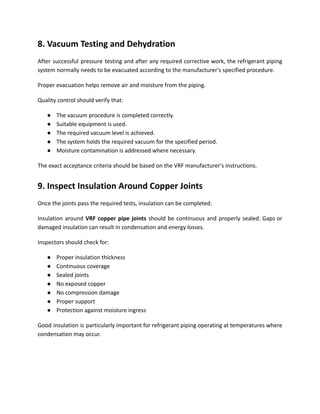

8. Vacuum Testing and Dehydration After successful pressure testing and after any required corrective work, the refrigerant piping system normally needs to be evacuated according to the manufacturer's specified procedure. Proper evacuation helps remove air and moisture from the piping. Quality control should verify that: ●​ The vacuum procedure is completed correctly. ●​ Suitable equipment is used. ●​ The required vacuum level is achieved. ●​ The system holds the required vacuum for the specified period. ●​ Moisture contamination is addressed where necessary. The exact acceptance criteria should be based on the VRF manufacturer's instructions. 9. Inspect Insulation Around Copper Joints Once the joints pass the required tests, insulation can be completed. Insulation around VRF copper pipe joints should be continuous and properly sealed. Gaps or damaged insulation can result in condensation and energy losses. Inspectors should check for: ●​ Proper insulation thickness ●​ Continuous coverage ●​ Sealed joints ●​ No exposed copper ●​ No compression damage ●​ Proper support ●​ Protection against moisture ingress Good insulation is particularly important for refrigerant piping operating at temperatures where condensation may occur.

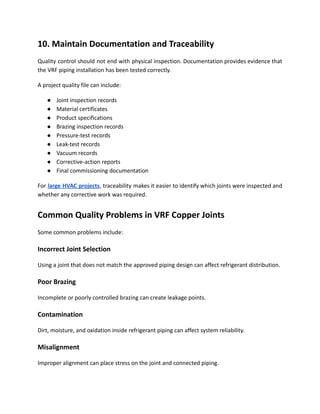

10. Maintain Documentation and Traceability Quality control should not end with physical inspection. Documentation provides evidence that the VRF piping installation has been tested correctly. A project quality file can include: ●​ Joint inspection records ●​ Material certificates ●​ Product specifications ●​ Brazing inspection records ●​ Pressure-test records ●​ Leak-test records ●​ Vacuum records ●​ Corrective-action reports ●​ Final commissioning documentation For large HVAC projects, traceability makes it easier to identify which joints were inspected and whether any corrective work was required. Common Quality Problems in VRF Copper Joints Some common problems include: Incorrect Joint Selection Using a joint that does not match the approved piping design can affect refrigerant distribution. Poor Brazing Incomplete or poorly controlled brazing can create leakage points. Contamination Dirt, moisture, and oxidation inside refrigerant piping can affect system reliability. Misalignment Improper alignment can place stress on the joint and connected piping.

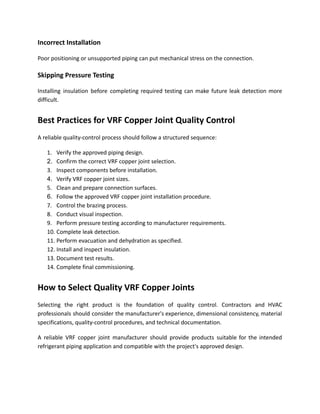

Incorrect Installation Poor positioning or unsupported piping can put mechanical stress on the connection. Skipping Pressure Testing Installing insulation before completing required testing can make future leak detection more difficult. Best Practices for VRF Copper Joint Quality Control A reliable quality-control process should follow a structured sequence: 1.​ Verify the approved piping design. 2.​ Confirm the correct VRF copper joint selection. 3.​ Inspect components before installation. 4.​ Verify VRF copper joint sizes. 5.​ Clean and prepare connection surfaces. 6.​ Follow the approved VRF copper joint installation procedure. 7.​ Control the brazing process. 8.​ Conduct visual inspection. 9.​ Perform pressure testing according to manufacturer requirements. 10.​Complete leak detection. 11.​Perform evacuation and dehydration as specified. 12.​Install and inspect insulation. 13.​Document test results. 14.​Complete final commissioning. How to Select Quality VRF Copper Joints Selecting the right product is the foundation of quality control. Contractors and HVAC professionals should consider the manufacturer's experience, dimensional consistency, material specifications, quality-control procedures, and technical documentation. A reliable VRF copper joint manufacturer should provide products suitable for the intended refrigerant piping application and compatible with the project's approved design.

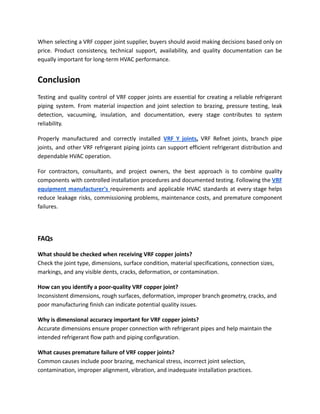

When selecting a VRF copper joint supplier, buyers should avoid making decisions based only on price. Product consistency, technical support, availability, and quality documentation can be equally important for long-term HVAC performance. Conclusion Testing and quality control of VRF copper joints are essential for creating a reliable refrigerant piping system. From material inspection and joint selection to brazing, pressure testing, leak detection, vacuuming, insulation, and documentation, every stage contributes to system reliability. Properly manufactured and correctly installed VRF Y joints, VRF Refnet joints, branch pipe joints, and other VRF refrigerant piping joints can support efficient refrigerant distribution and dependable HVAC operation. For contractors, consultants, and project owners, the best approach is to combine quality components with controlled installation procedures and documented testing. Following the VRF equipment manufacturer's requirements and applicable HVAC standards at every stage helps reduce leakage risks, commissioning problems, maintenance costs, and premature component failures. FAQs What should be checked when receiving VRF copper joints?​ Check the joint type, dimensions, surface condition, material specifications, connection sizes, markings, and any visible dents, cracks, deformation, or contamination. How can you identify a poor-quality VRF copper joint?​ Inconsistent dimensions, rough surfaces, deformation, improper branch geometry, cracks, and poor manufacturing finish can indicate potential quality issues. Why is dimensional accuracy important for VRF copper joints?​ Accurate dimensions ensure proper connection with refrigerant pipes and help maintain the intended refrigerant flow path and piping configuration. What causes premature failure of VRF copper joints?​ Common causes include poor brazing, mechanical stress, incorrect joint selection, contamination, improper alignment, vibration, and inadequate installation practices.

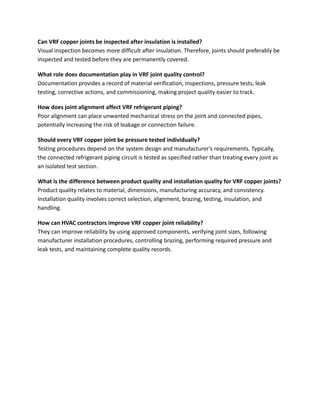

Can VRF copper joints be inspected after insulation is installed?​ Visual inspection becomes more difficult after insulation. Therefore, joints should preferably be inspected and tested before they are permanently covered. What role does documentation play in VRF joint quality control?​ Documentation provides a record of material verification, inspections, pressure tests, leak testing, corrective actions, and commissioning, making project quality easier to track. How does joint alignment affect VRF refrigerant piping?​ Poor alignment can place unwanted mechanical stress on the joint and connected pipes, potentially increasing the risk of leakage or connection failure. Should every VRF copper joint be pressure tested individually?​ Testing procedures depend on the system design and manufacturer's requirements. Typically, the connected refrigerant piping circuit is tested as specified rather than treating every joint as an isolated test section. What is the difference between product quality and installation quality for VRF copper joints?​ Product quality relates to material, dimensions, manufacturing accuracy, and consistency. Installation quality involves correct selection, alignment, brazing, testing, insulation, and handling. How can HVAC contractors improve VRF copper joint reliability?​ They can improve reliability by using approved components, verifying joint sizes, following manufacturer installation procedures, controlling brazing, performing required pressure and leak tests, and maintaining complete quality records.
