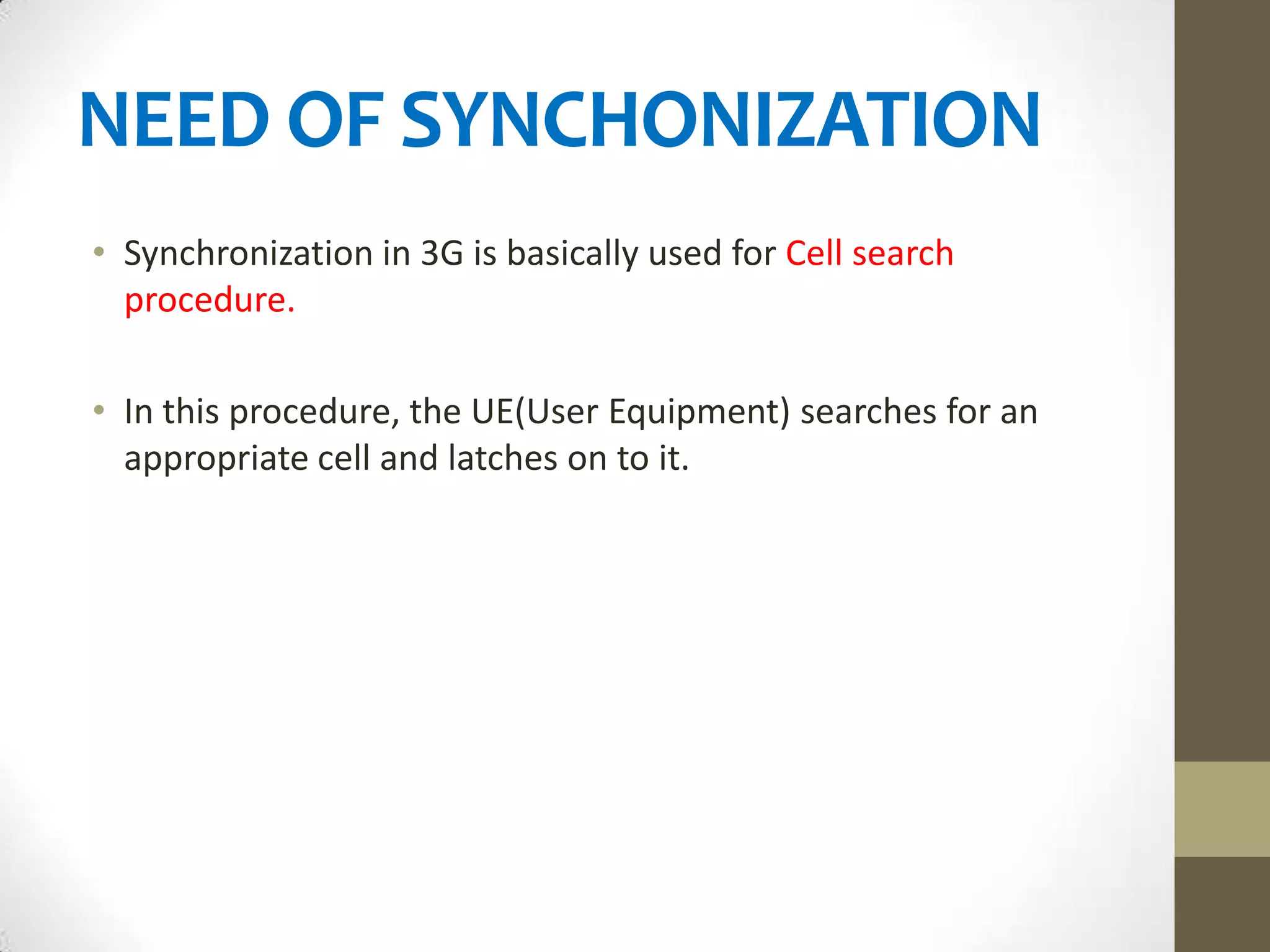

NEED OF SYNCHONIZATION
• Synchronization in 3G is basically used for Cell search
  procedure.

• In this procedure, the UE(User Equipment) searches for an
  appropriate cell and latches on to it.

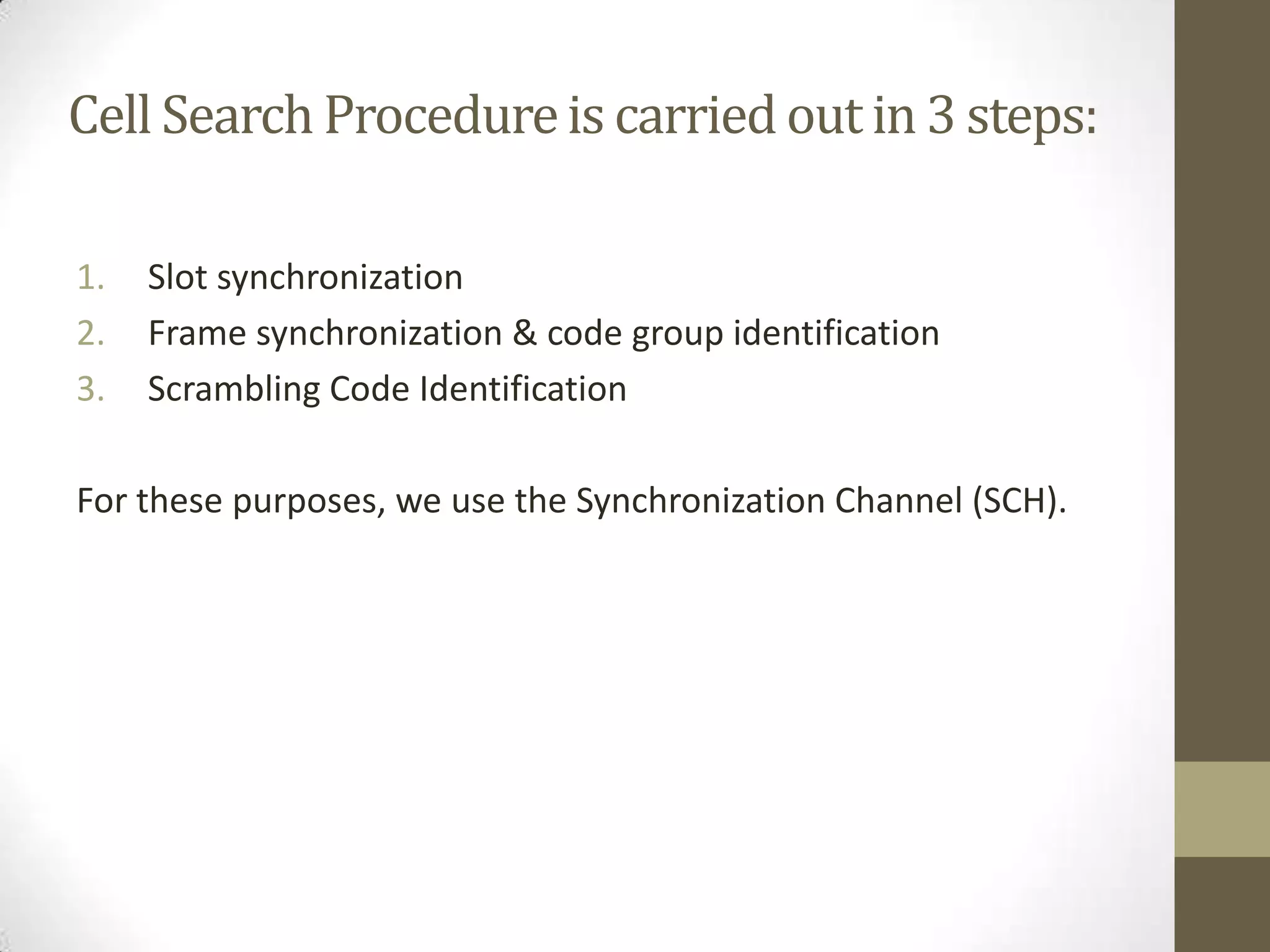

Cell Search Procedure is carried out in 3 steps:

1.   Slot synchronization
2.   Frame synchronization & code group identification
3.   Scrambling Code Identification

For these purposes, we use the Synchronization Channel (SCH).

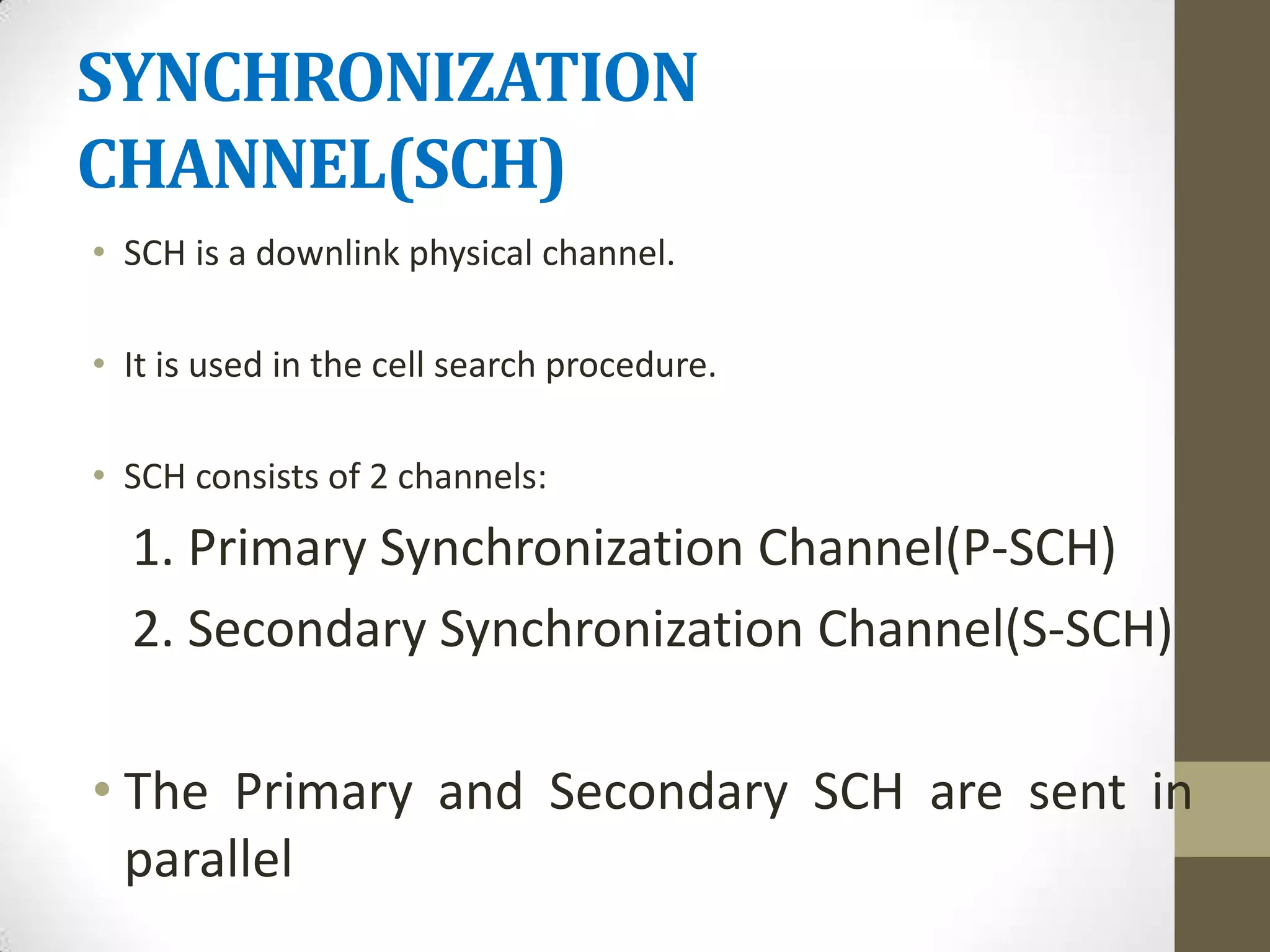

SYNCHRONIZATION
CHANNEL(SCH)
• SCH is a downlink physical channel.

• It is used in the cell search procedure.

• SCH consists of 2 channels:
  1. Primary Synchronization Channel(P-SCH)
  2. Secondary Synchronization Channel(S-SCH)

• The Primary and Secondary SCH are sent in
  parallel

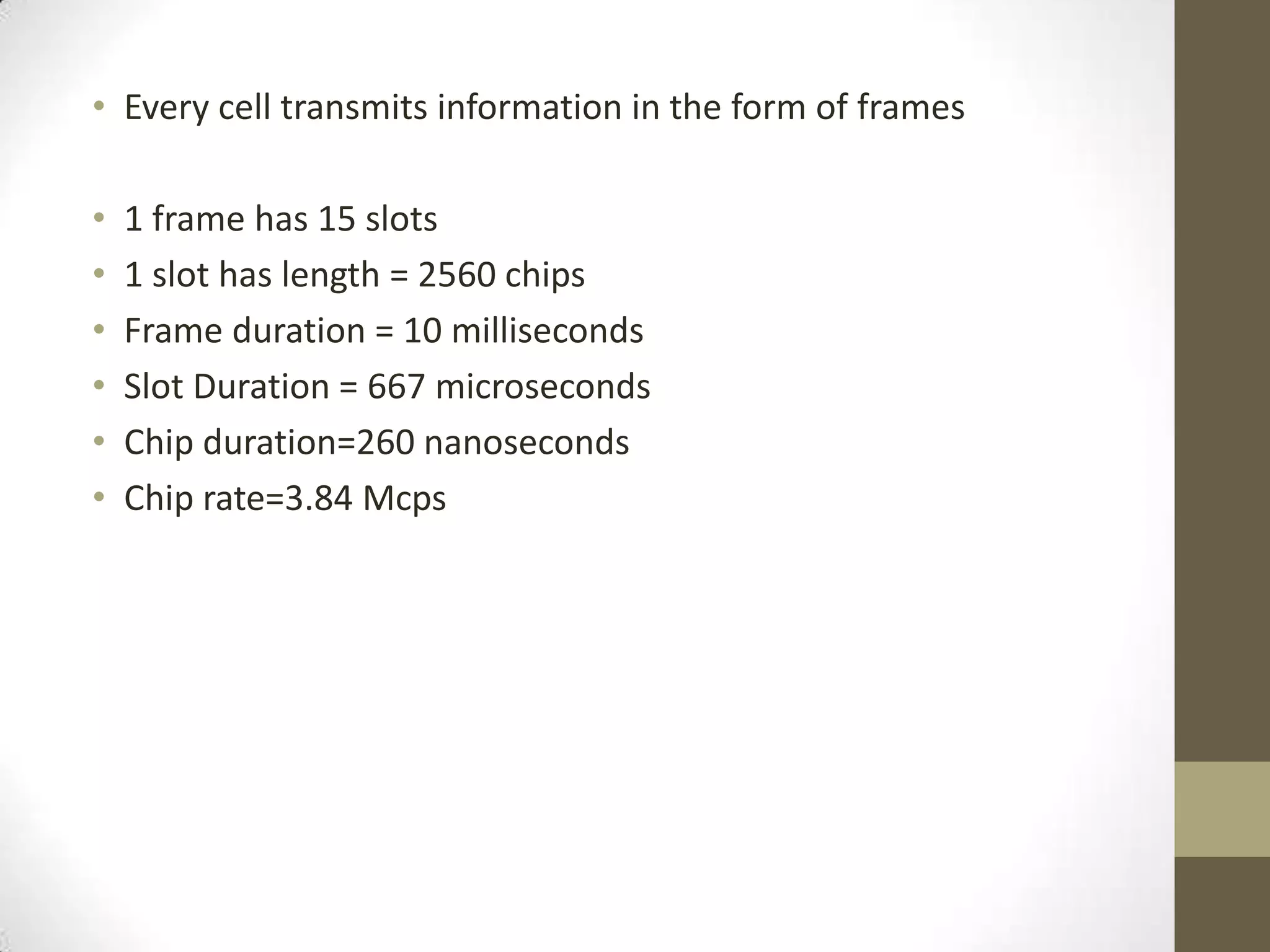

• Every cell transmits information in the form of frames

•   1 frame has 15 slots
•   1 slot has length = 2560 chips
•   Frame duration = 10 milliseconds
•   Slot Duration = 667 microseconds
•   Chip duration=260 nanoseconds
•   Chip rate=3.84 Mcps

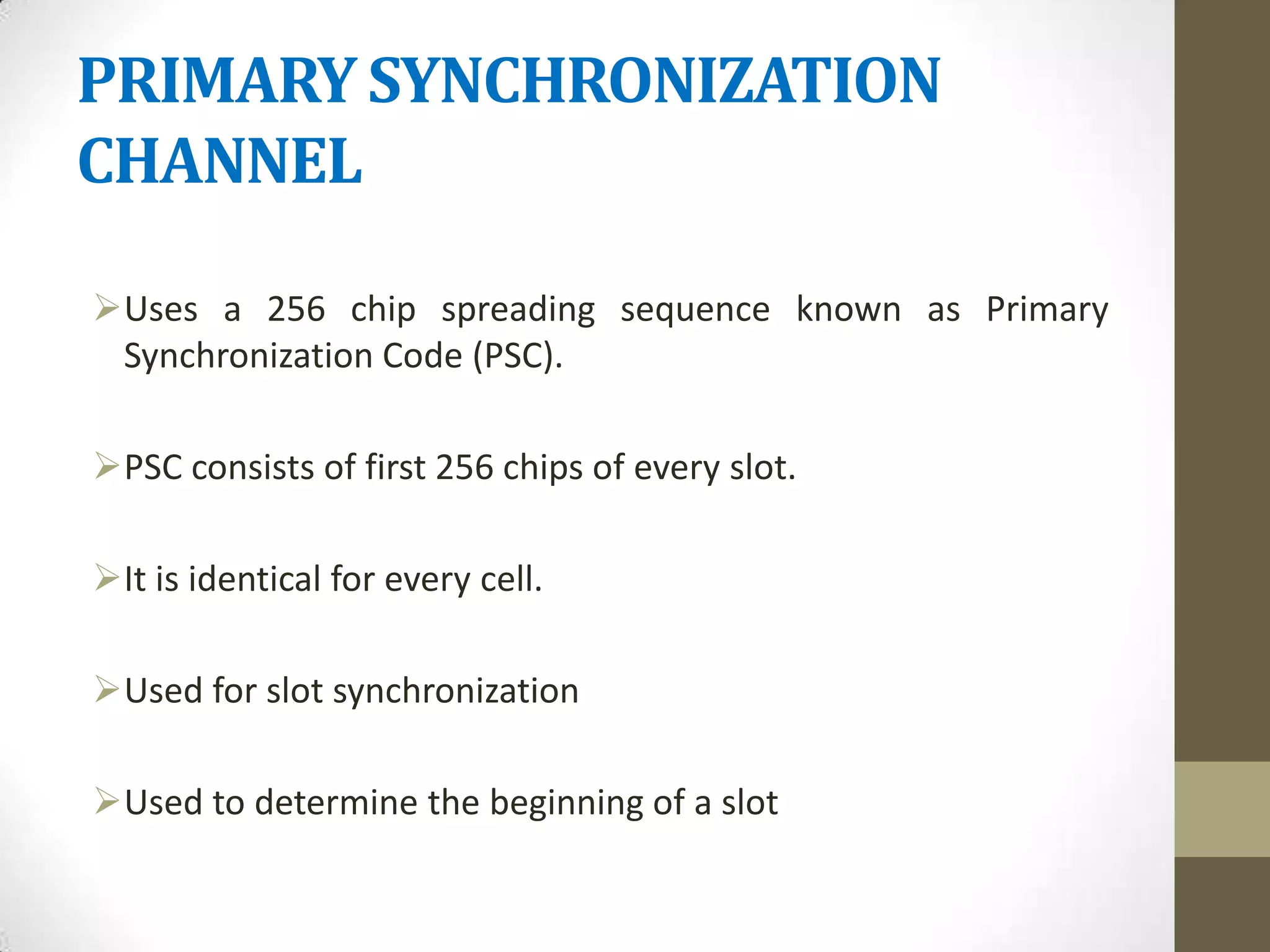

PRIMARY SYNCHRONIZATION
CHANNEL

Uses a 256 chip spreading sequence known as Primary
 Synchronization Code (PSC).

PSC consists of first 256 chips of every slot.

It is identical for every cell.

Used for slot synchronization

Used to determine the beginning of a slot

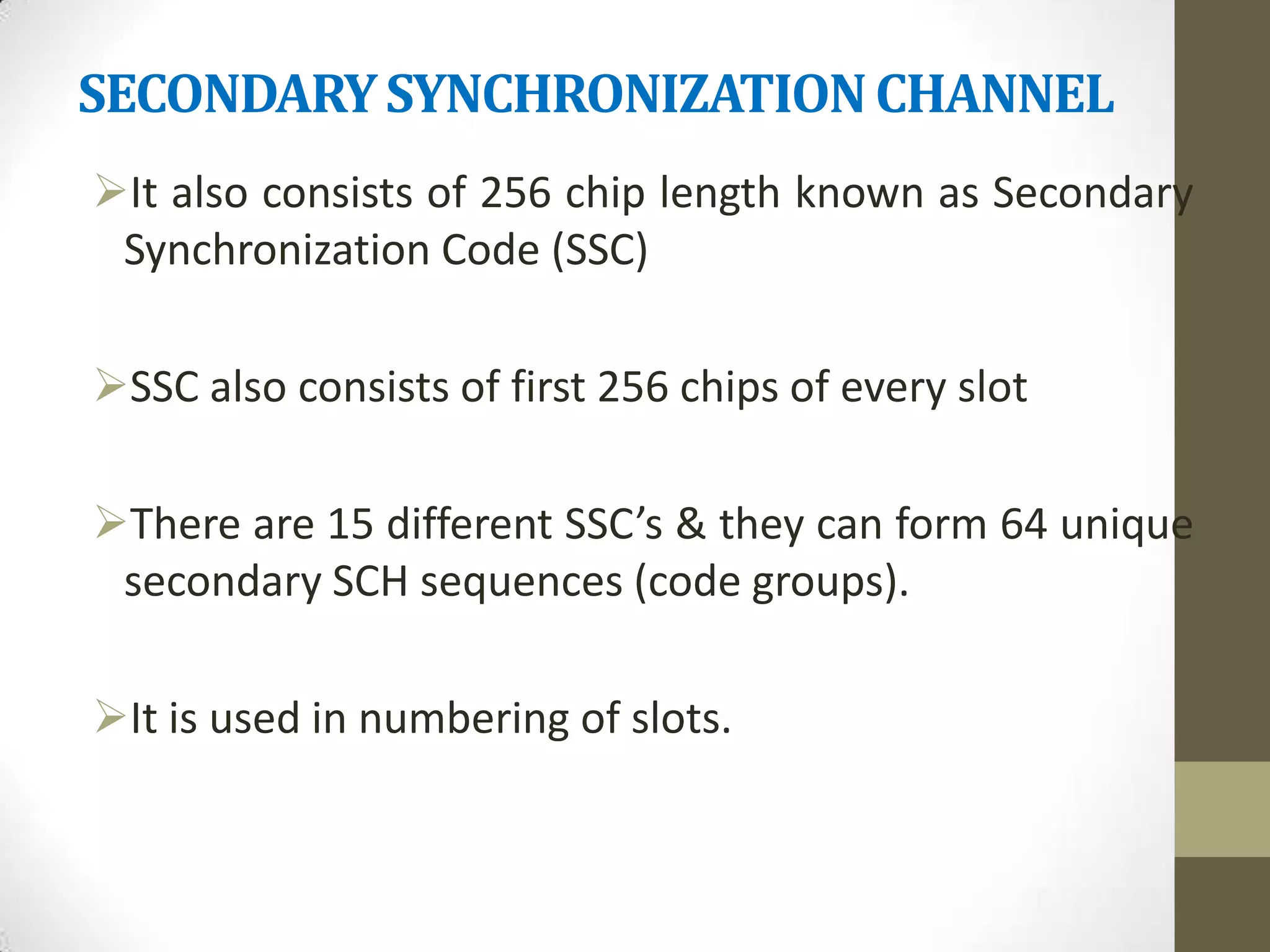

SECONDARY SYNCHRONIZATION CHANNEL
It also consists of 256 chip length known as Secondary
 Synchronization Code (SSC)

SSC also consists of first 256 chips of every slot

There are 15 different SSC’s & they can form 64 unique
 secondary SCH sequences (code groups).

It is used in numbering of slots.

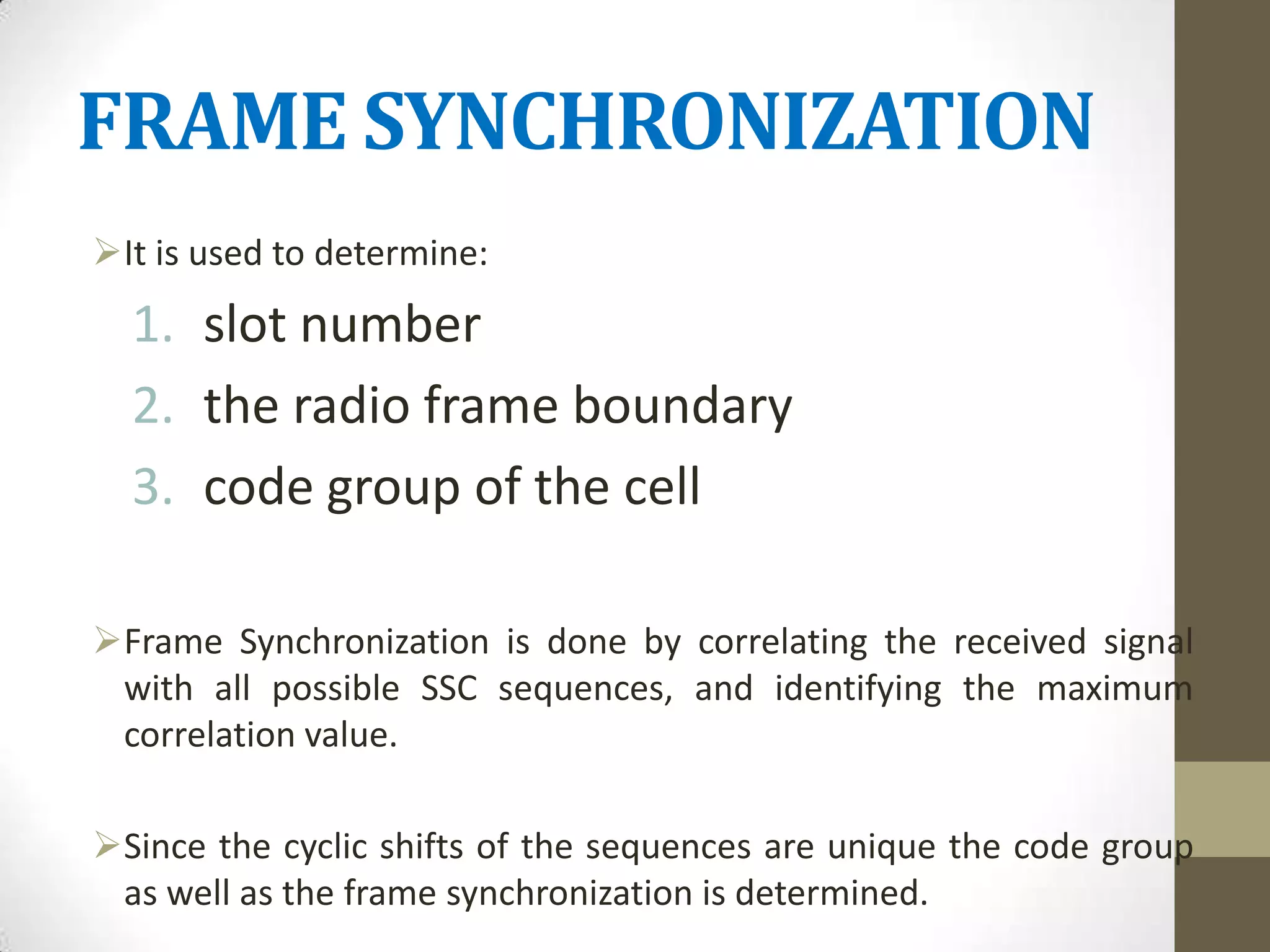

FRAME SYNCHRONIZATION
It is used to determine:
  1. slot number
  2. the radio frame boundary
  3. code group of the cell

Frame Synchronization is done by correlating the received signal
 with all possible SSC sequences, and identifying the maximum
 correlation value.

Since the cyclic shifts of the sequences are unique the code group
 as well as the frame synchronization is determined.

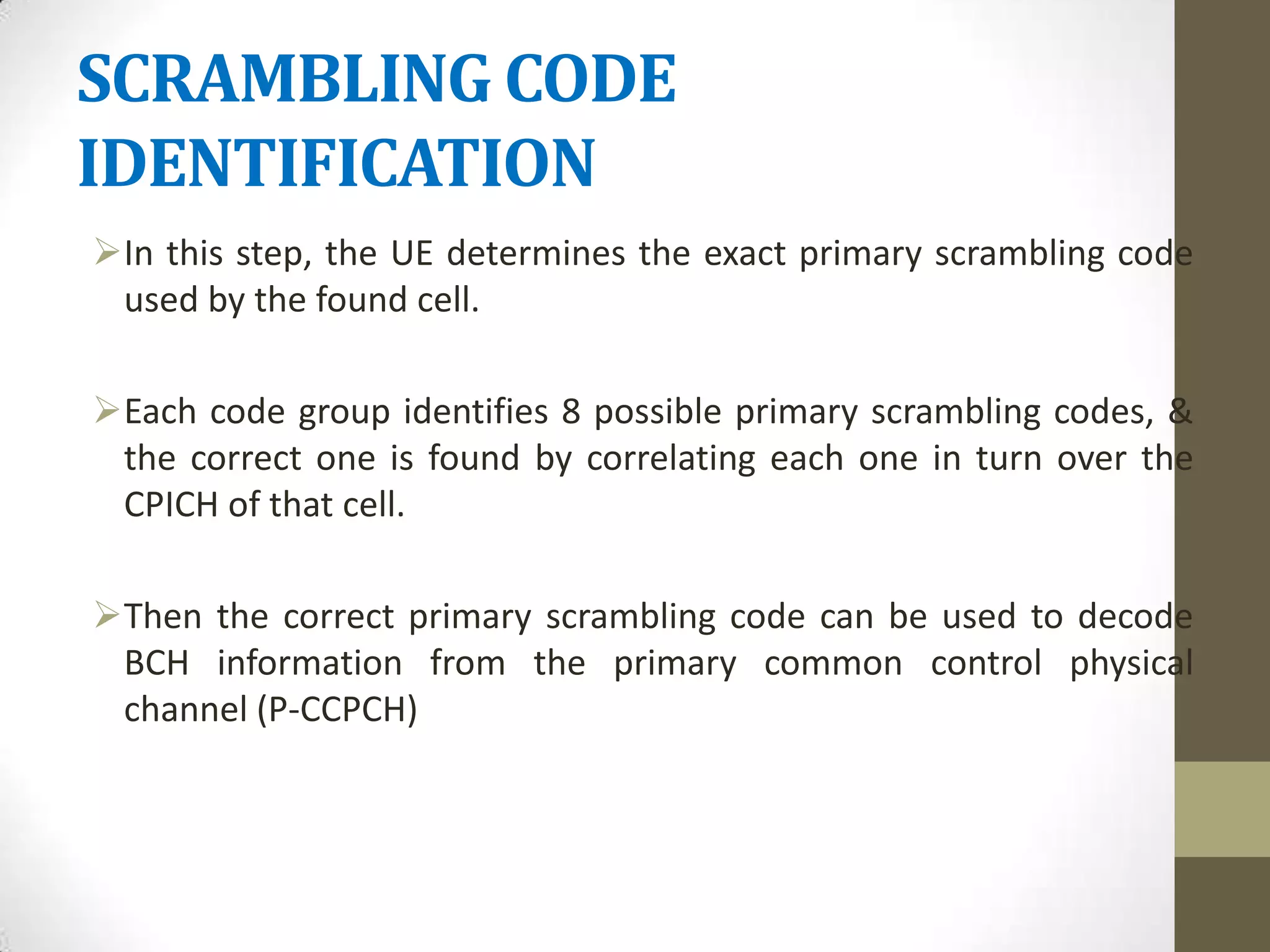

SCRAMBLING CODE
IDENTIFICATION
In this step, the UE determines the exact primary scrambling code
 used by the found cell.

Each code group identifies 8 possible primary scrambling codes, &
 the correct one is found by correlating each one in turn over the
 CPICH of that cell.

Then the correct primary scrambling code can be used to decode
 BCH information from the primary common control physical
 channel (P-CCPCH)

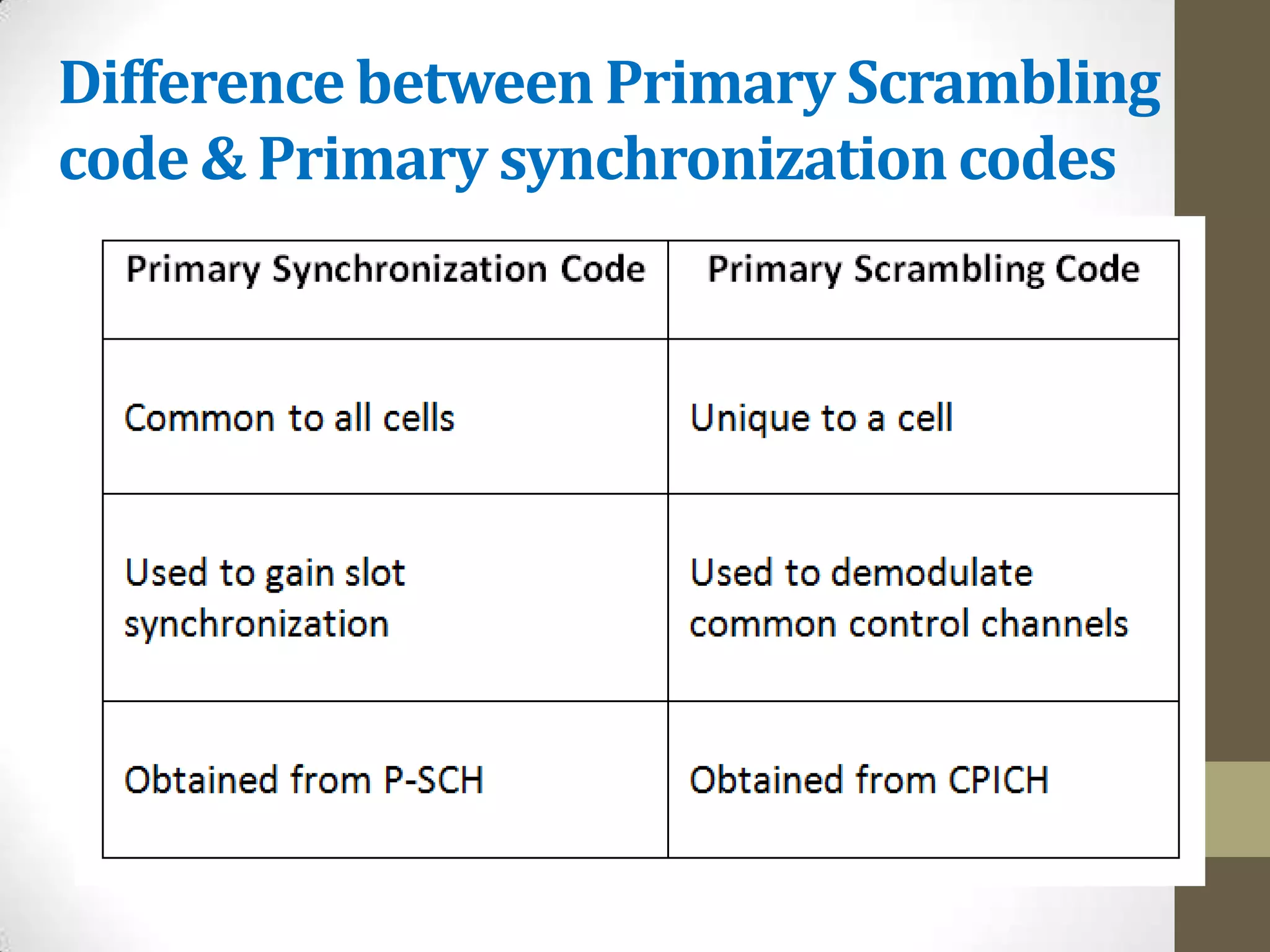

Difference between Primary Scrambling
code & Primary synchronization codes

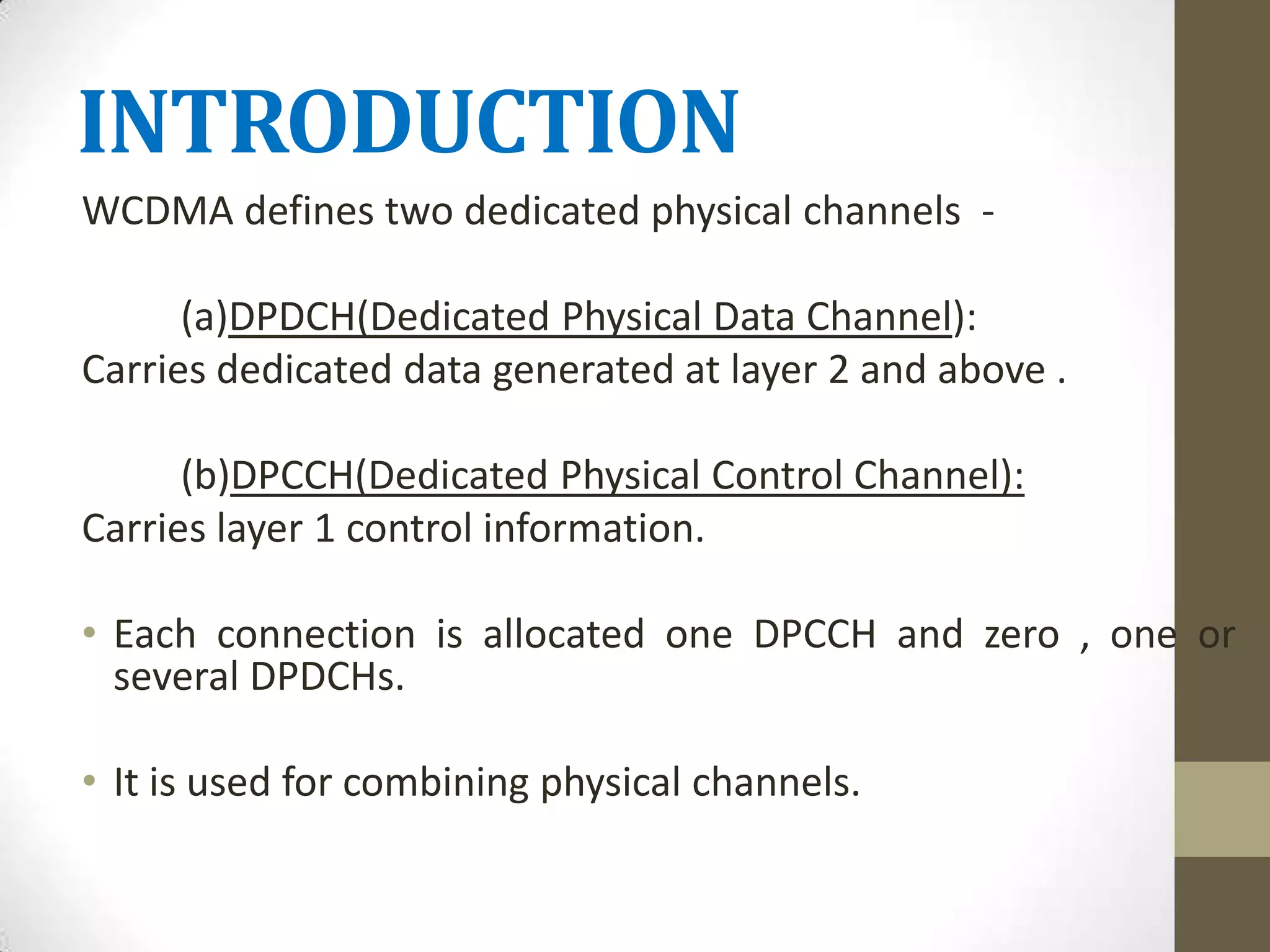

INTRODUCTION
WCDMA defines two dedicated physical channels -

      (a)DPDCH(Dedicated Physical Data Channel):
Carries dedicated data generated at layer 2 and above .

      (b)DPCCH(Dedicated Physical Control Channel):
Carries layer 1 control information.

• Each connection is allocated one DPCCH and zero , one or
  several DPDCHs.

• It is used for combining physical channels.

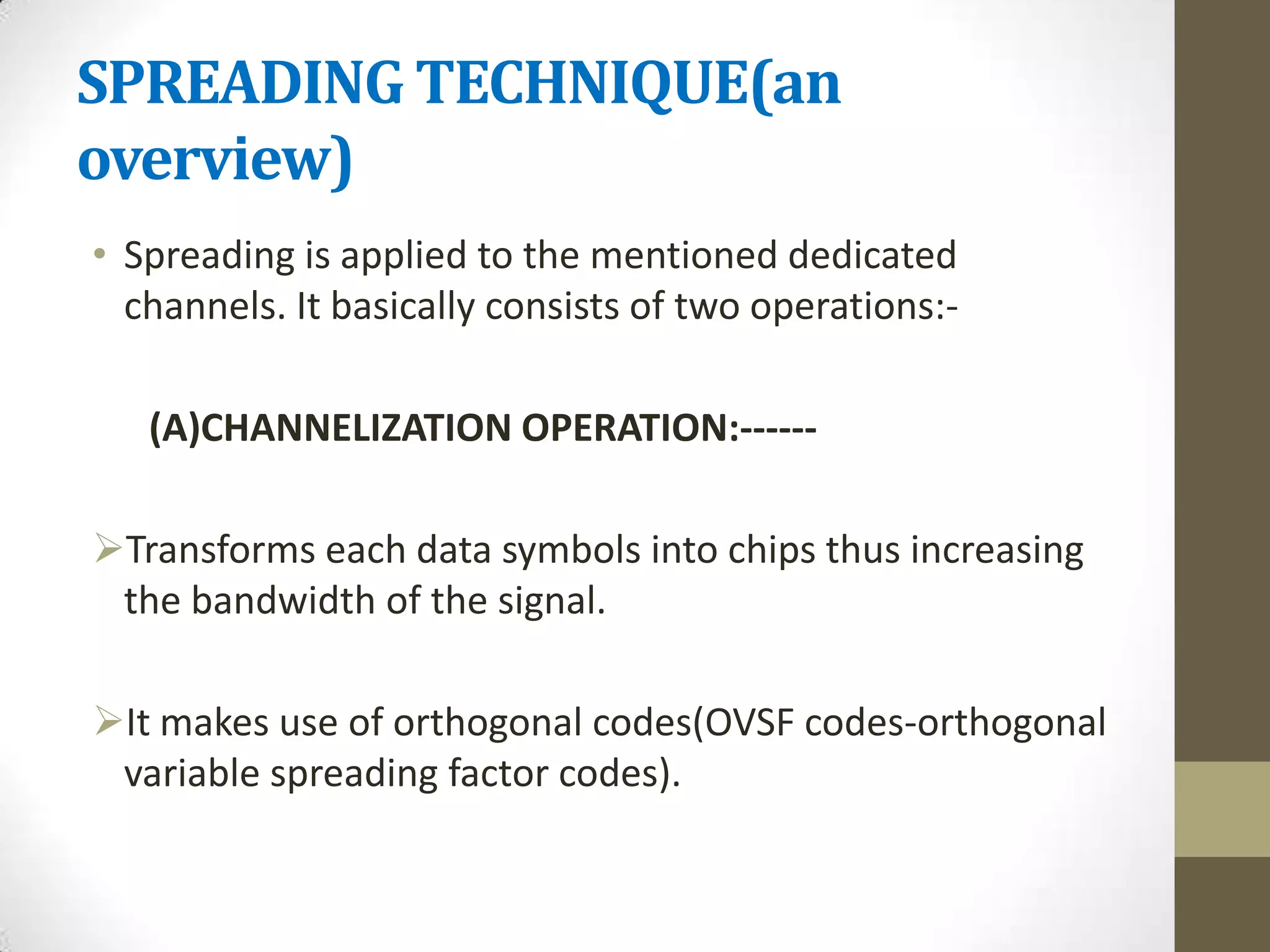

SPREADING TECHNIQUE(an
overview)
• Spreading is applied to the mentioned dedicated
  channels. It basically consists of two operations:-

   (A)CHANNELIZATION OPERATION:------

Transforms each data symbols into chips thus increasing
 the bandwidth of the signal.

It makes use of orthogonal codes(OVSF codes-orthogonal
 variable spreading factor codes).

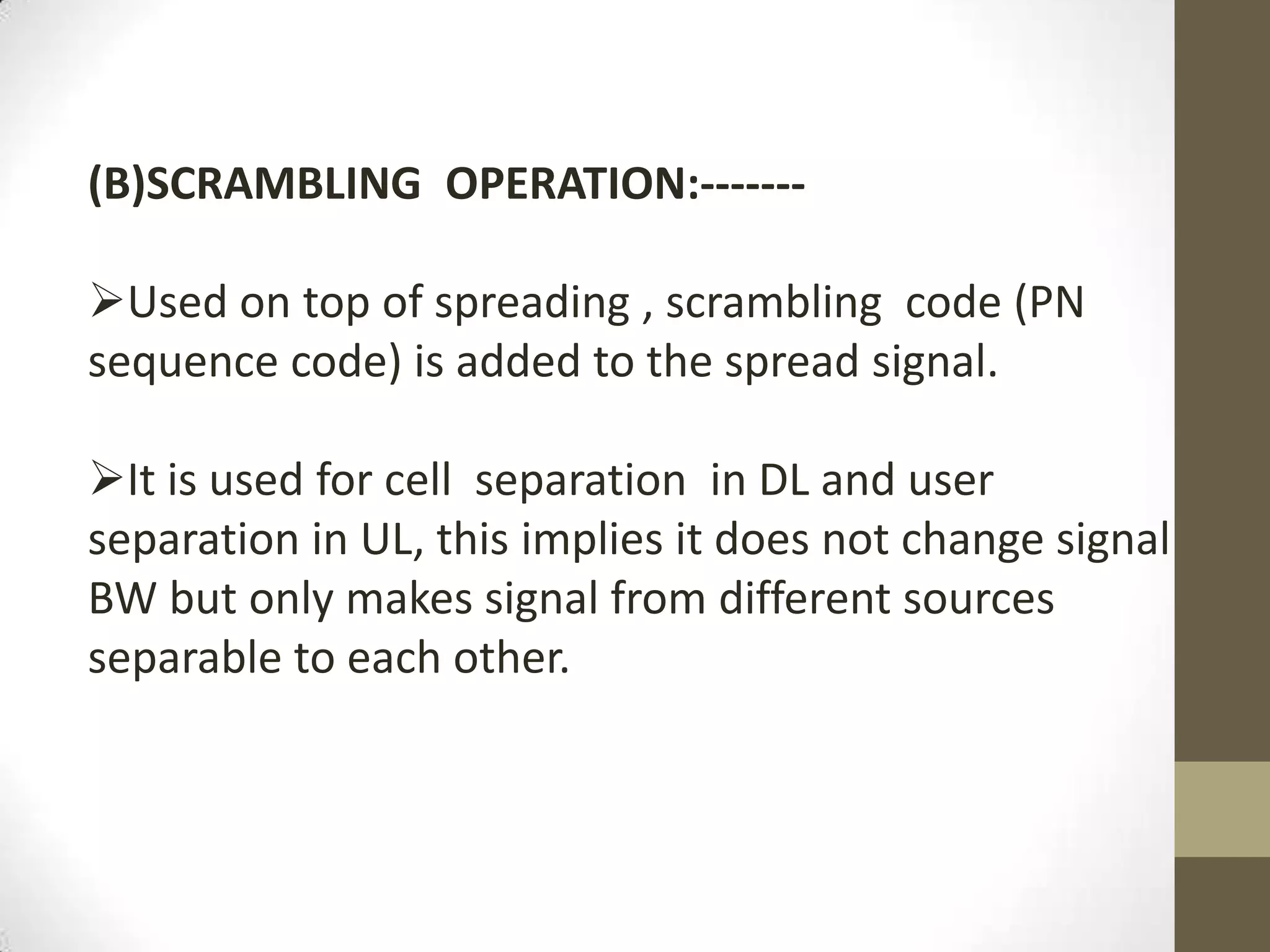

(B)SCRAMBLING OPERATION:-------

Used on top of spreading , scrambling code (PN
sequence code) is added to the spread signal.

It is used for cell separation in DL and user
separation in UL, this implies it does not change signal
BW but only makes signal from different sources
separable to each other.

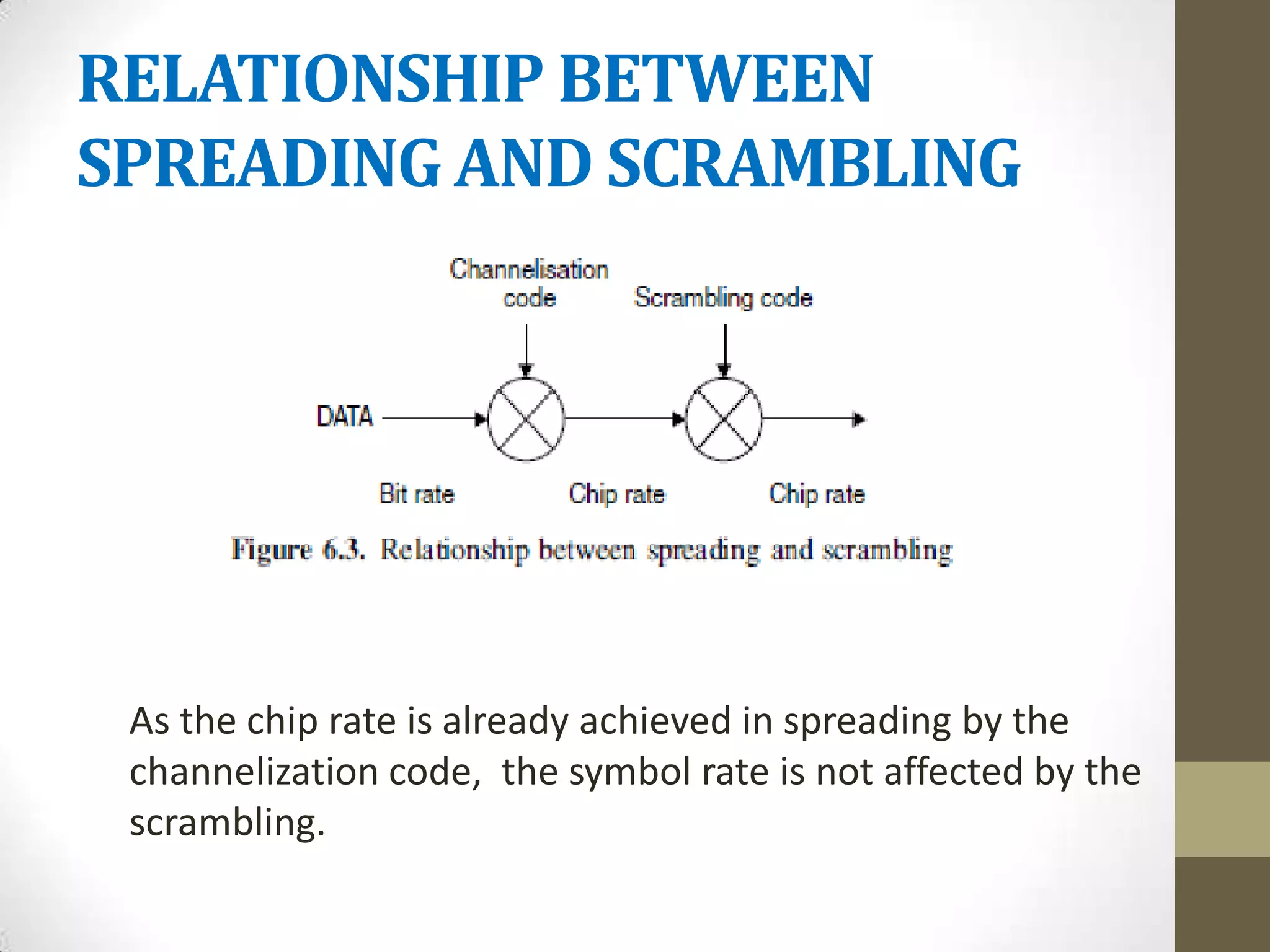

RELATIONSHIP BETWEEN
SPREADING AND SCRAMBLING




 As the chip rate is already achieved in spreading by the
 channelization code, the symbol rate is not affected by the
 scrambling.

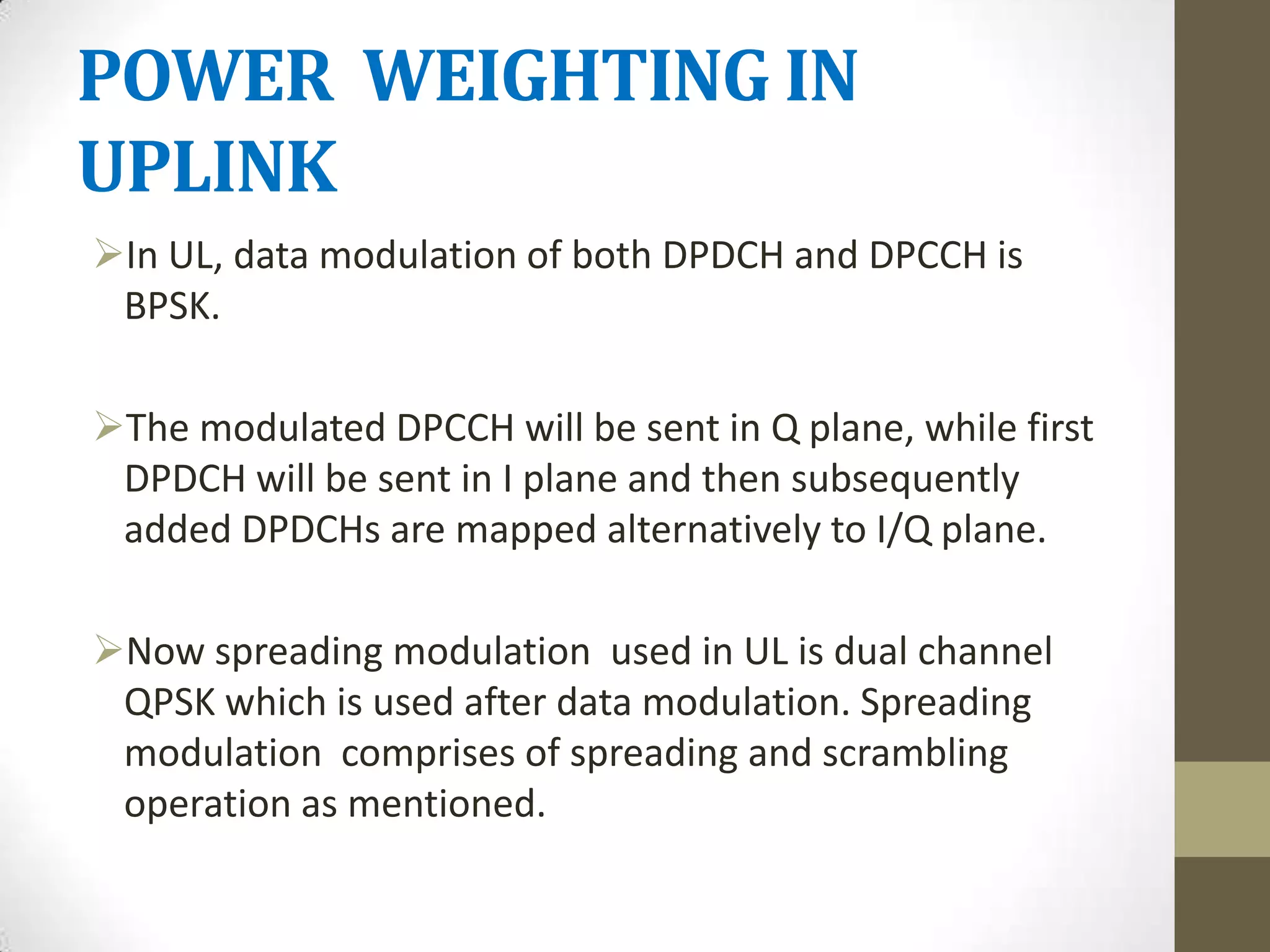

POWER WEIGHTING IN
UPLINK
In UL, data modulation of both DPDCH and DPCCH is
 BPSK.

The modulated DPCCH will be sent in Q plane, while first
 DPDCH will be sent in I plane and then subsequently
 added DPDCHs are mapped alternatively to I/Q plane.

Now spreading modulation used in UL is dual channel
 QPSK which is used after data modulation. Spreading
 modulation comprises of spreading and scrambling
 operation as mentioned.

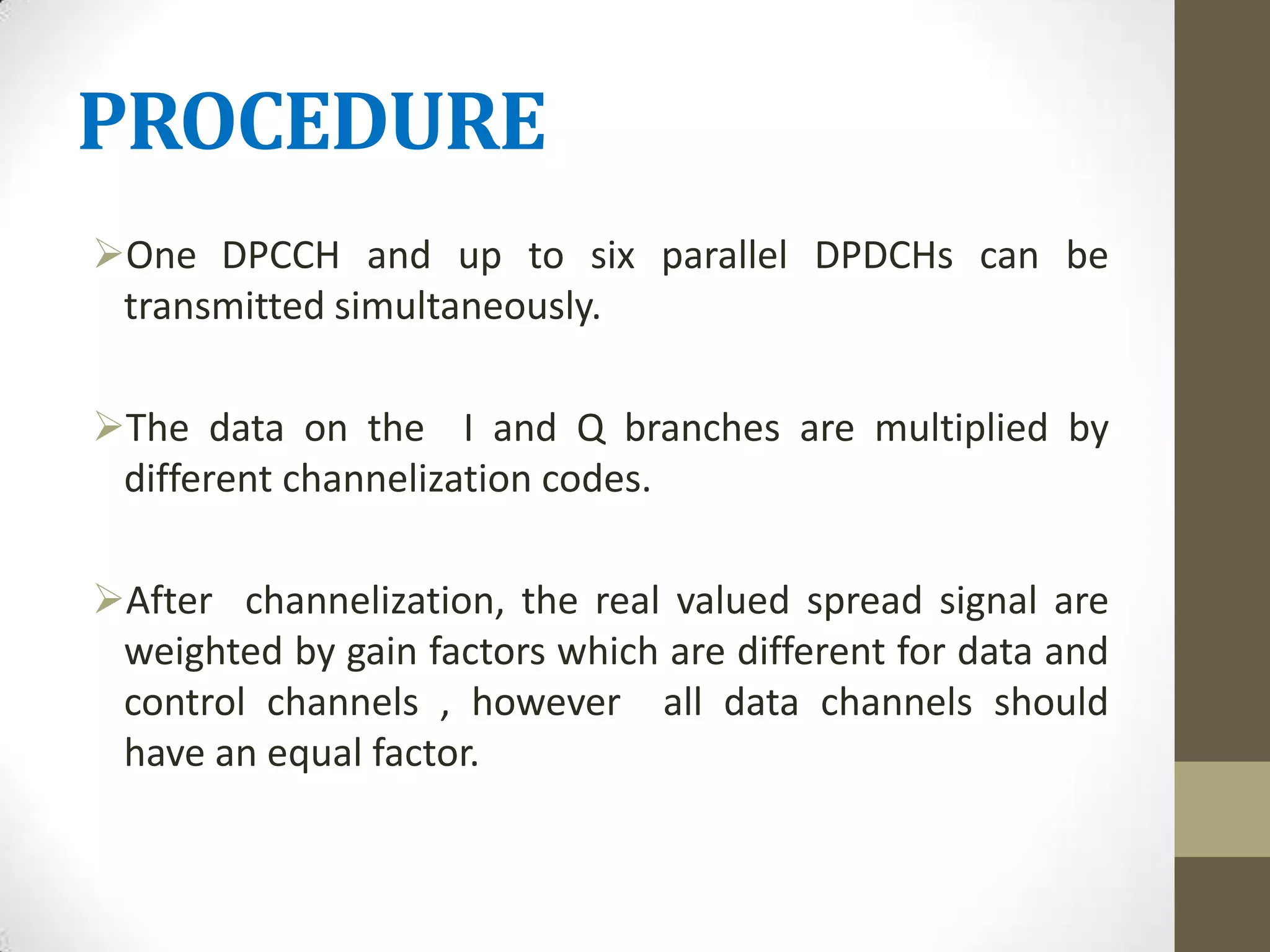

PROCEDURE
One DPCCH and up to six parallel DPDCHs can be
 transmitted simultaneously.

The data on the I and Q branches are multiplied by
 different channelization codes.

After channelization, the real valued spread signal are
 weighted by gain factors which are different for data and
 control channels , however all data channels should
 have an equal factor.

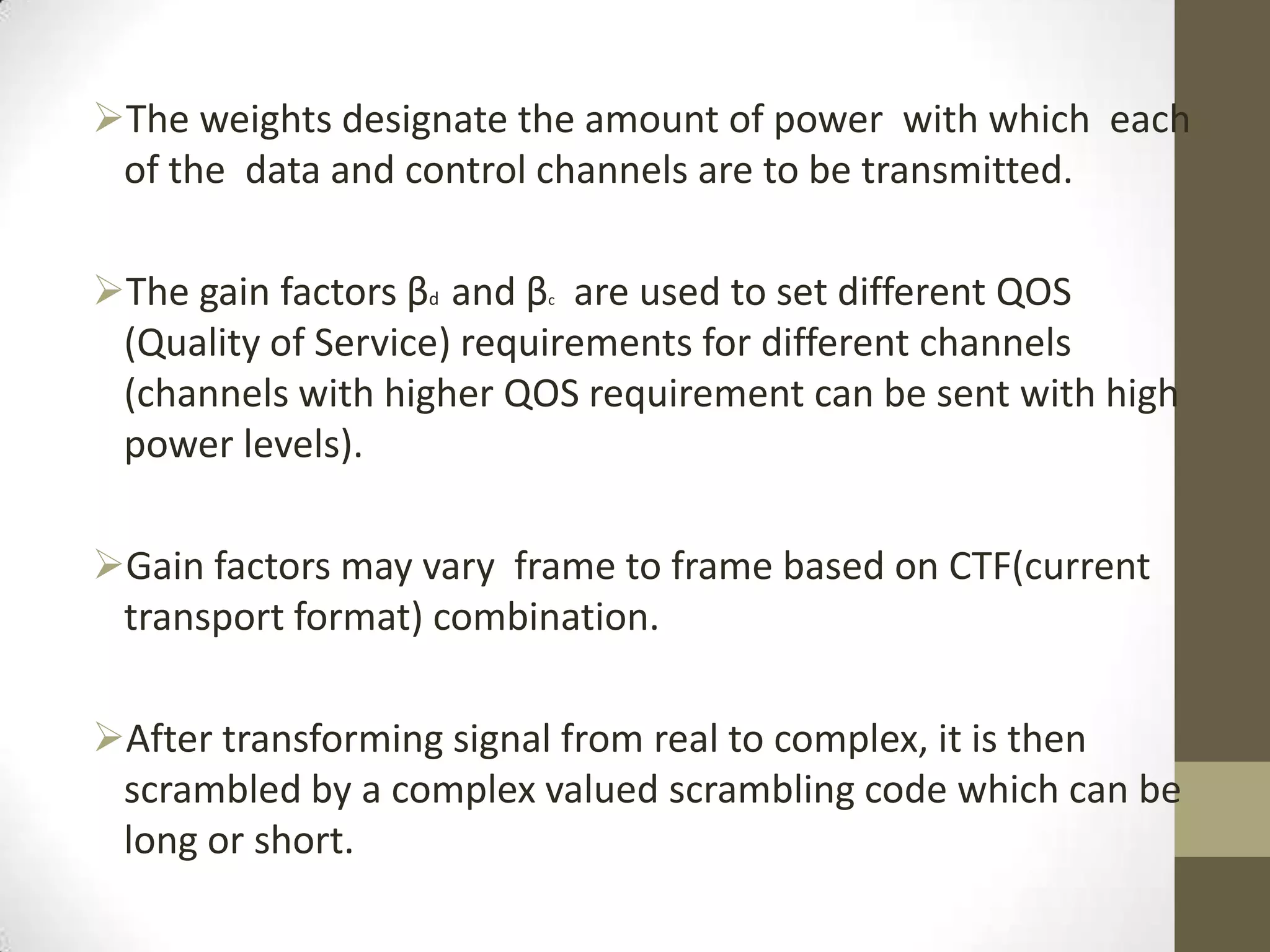

The weights designate the amount of power with which each
 of the data and control channels are to be transmitted.

The gain factors βd and β are used to set different QOS
                         c


 (Quality of Service) requirements for different channels
 (channels with higher QOS requirement can be sent with high
 power levels).

Gain factors may vary frame to frame based on CTF(current
 transport format) combination.

After transforming signal from real to complex, it is then
 scrambled by a complex valued scrambling code which can be
 long or short.

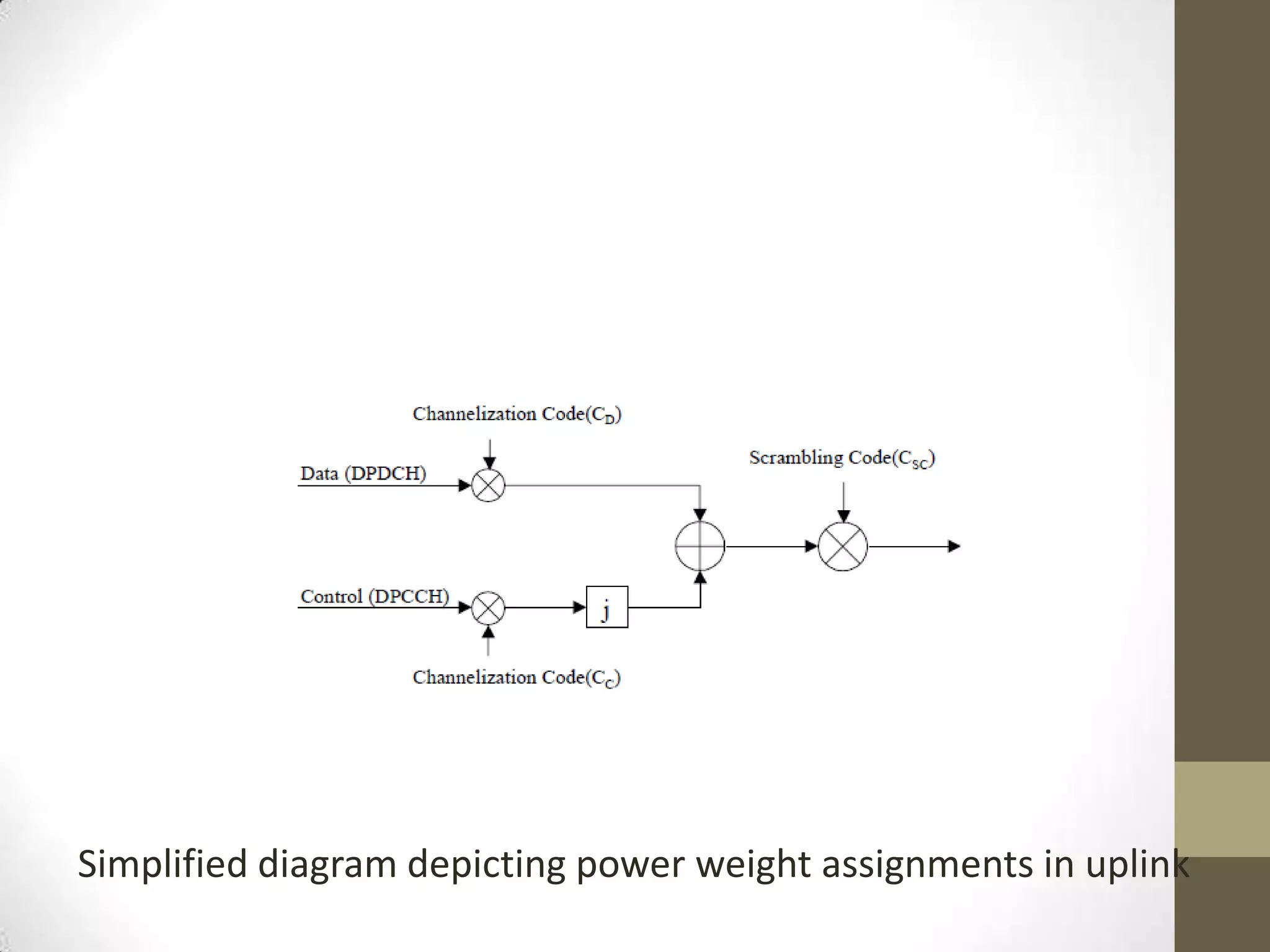

Simplified diagram depicting power weight assignments in uplink

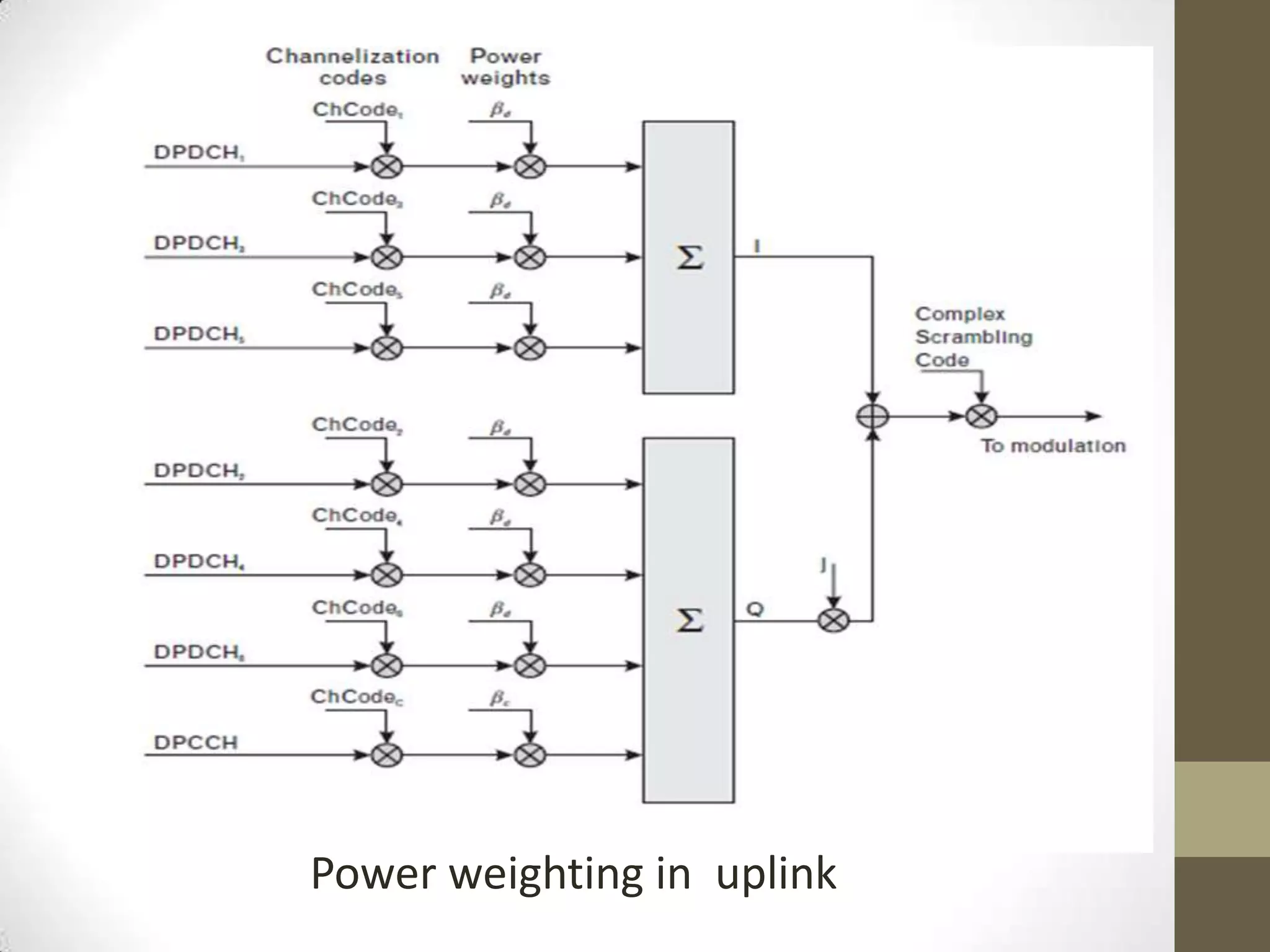

Power weighting in uplink

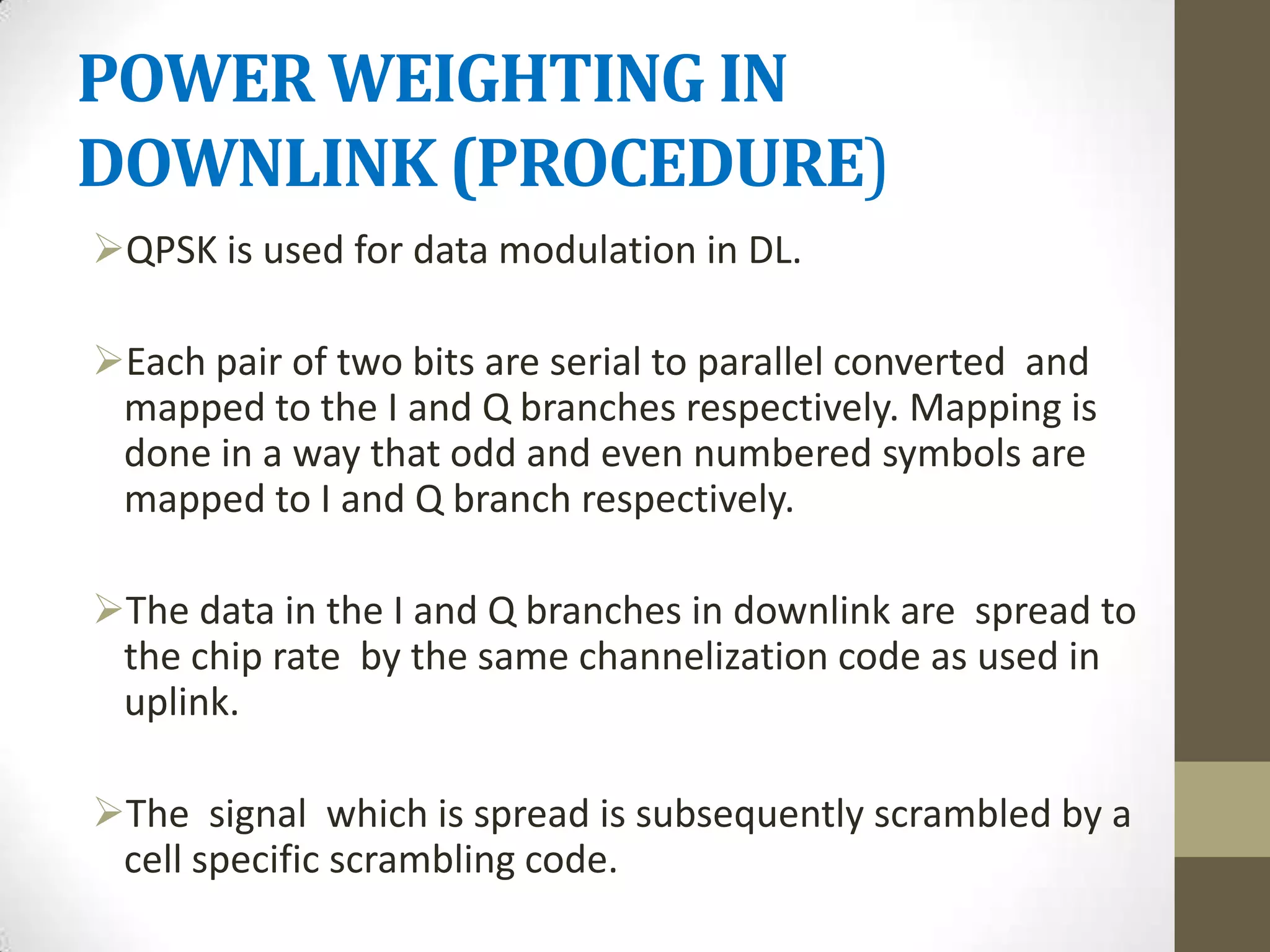

POWER WEIGHTING IN
DOWNLINK (PROCEDURE)
QPSK is used for data modulation in DL.

Each pair of two bits are serial to parallel converted and
 mapped to the I and Q branches respectively. Mapping is
 done in a way that odd and even numbered symbols are
 mapped to I and Q branch respectively.

The data in the I and Q branches in downlink are spread to
 the chip rate by the same channelization code as used in
 uplink.

The signal which is spread is subsequently scrambled by a
 cell specific scrambling code.

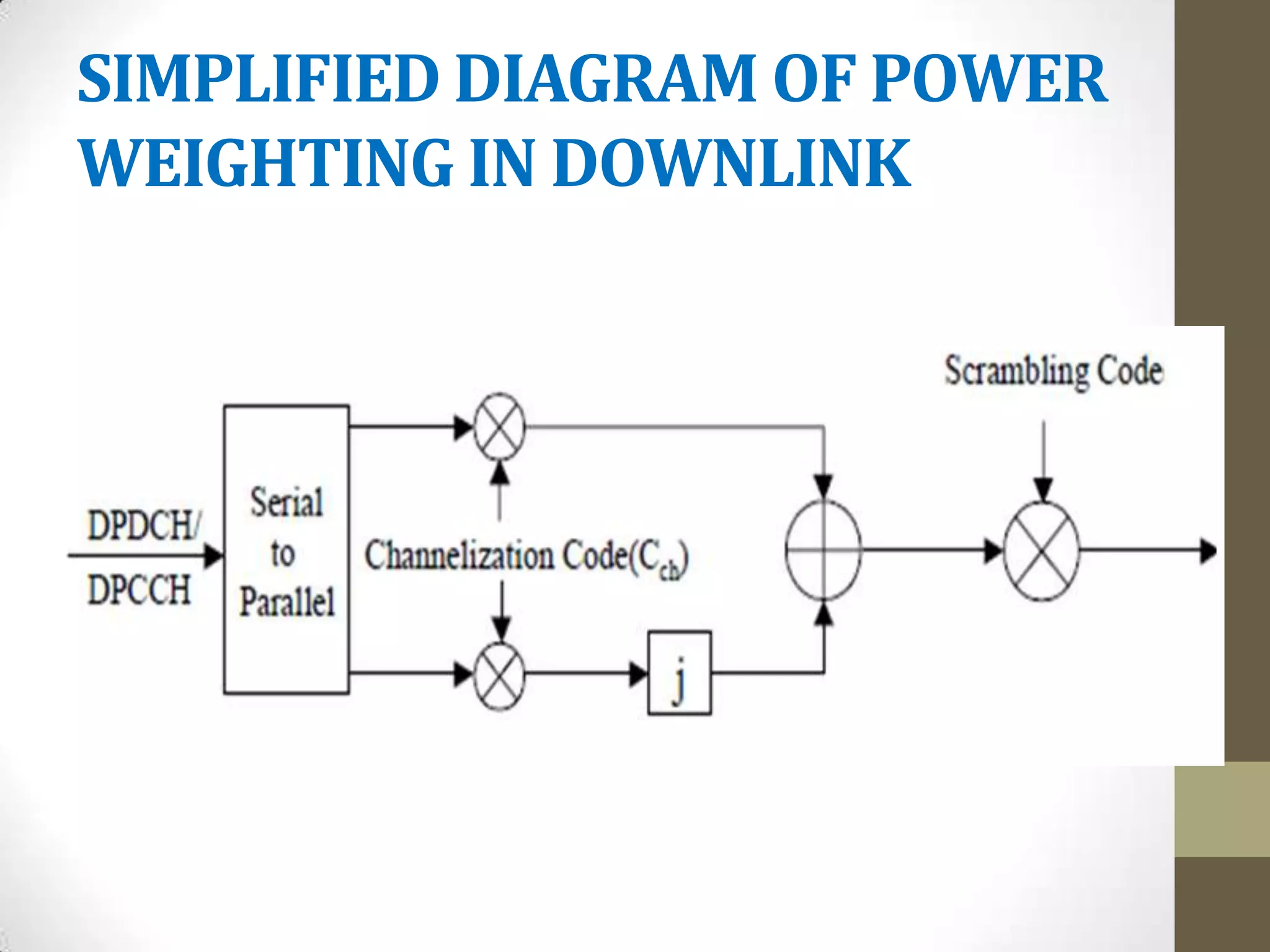

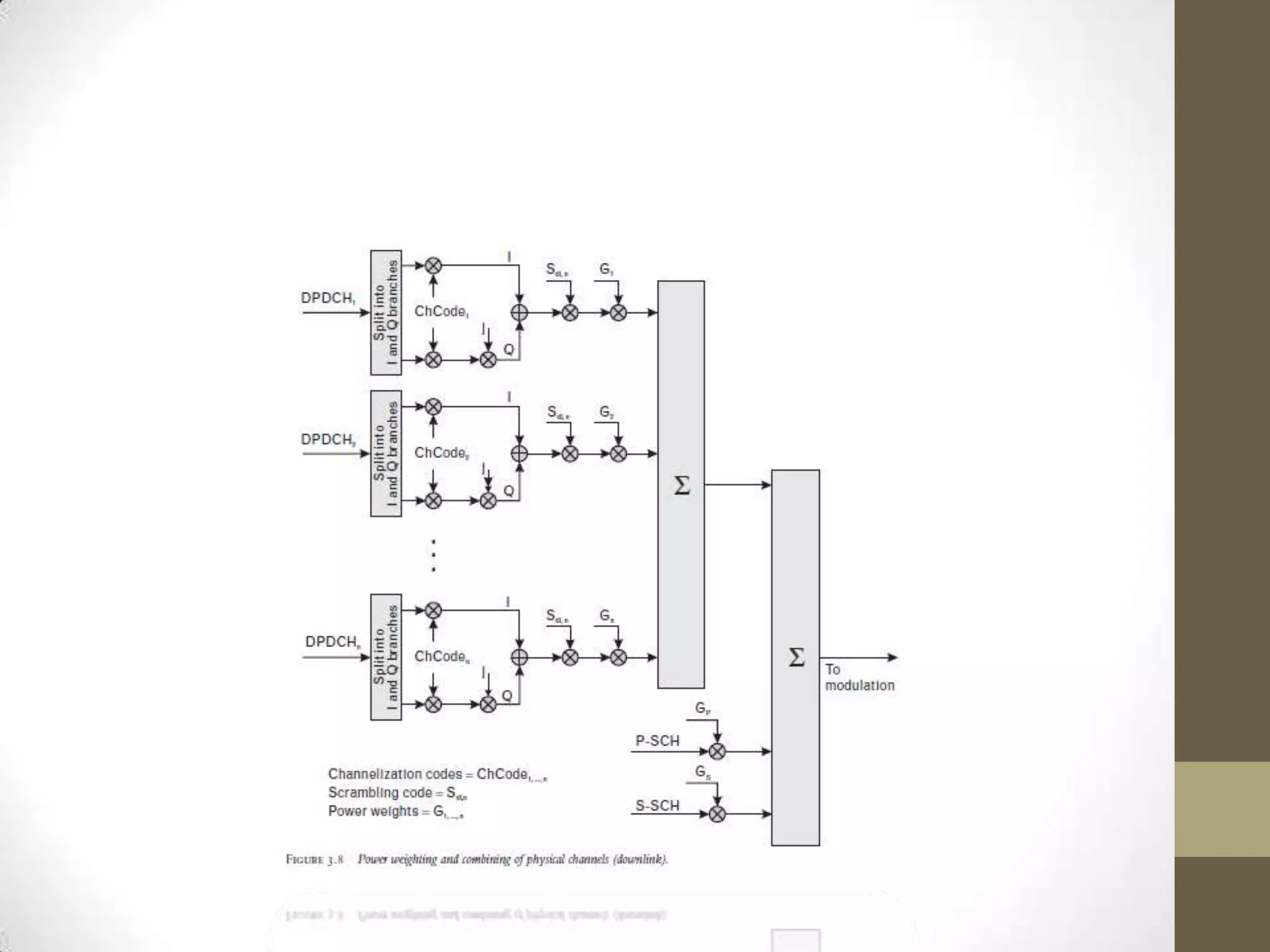

SIMPLIFIED DIAGRAM OF POWER
WEIGHTING IN DOWNLINK

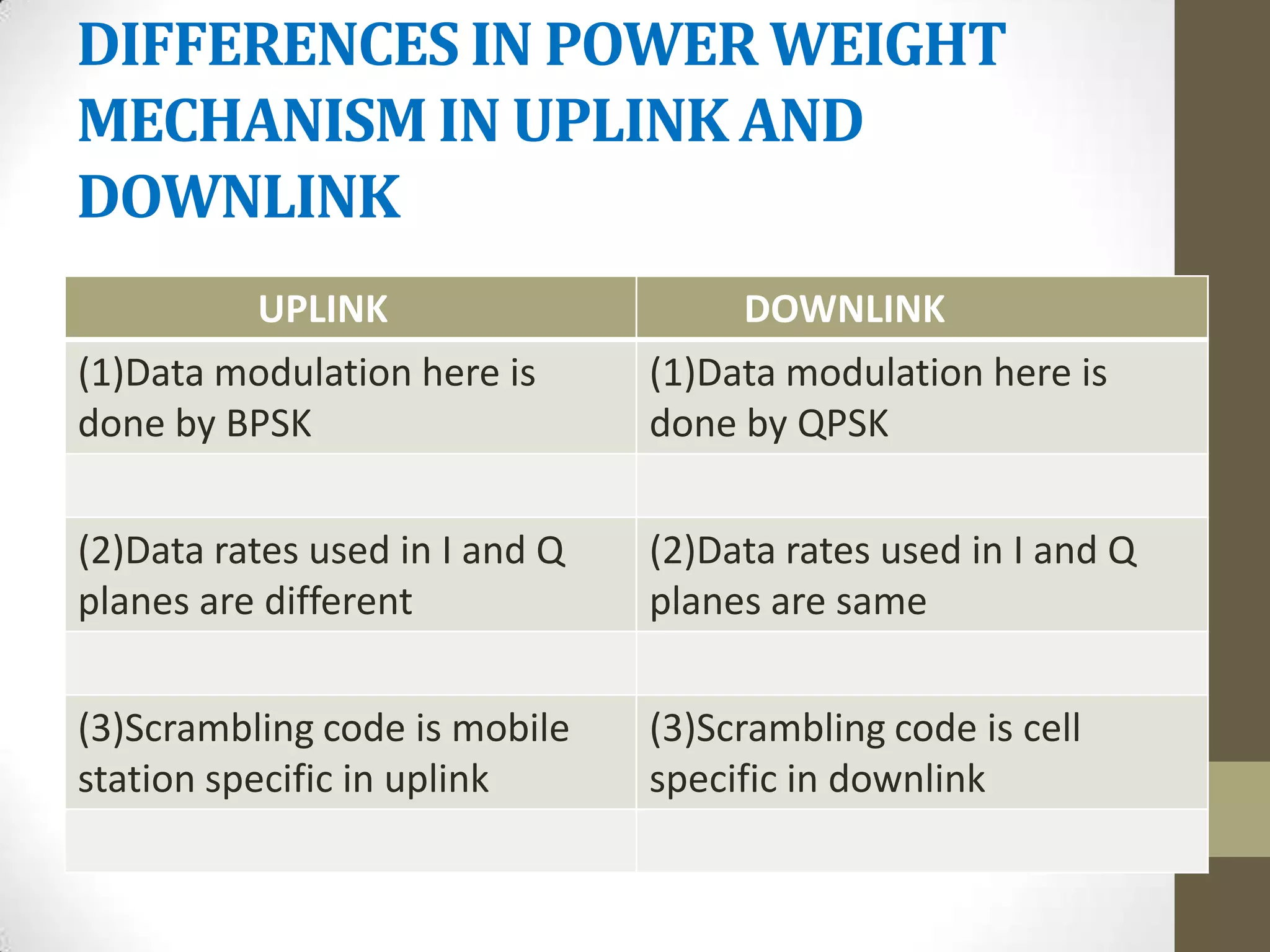

DIFFERENCES IN POWER WEIGHT
MECHANISM IN UPLINK AND
DOWNLINK
         UPLINK                      DOWNLINK
(1)Data modulation here is      (1)Data modulation here is
done by BPSK                    done by QPSK


(2)Data rates used in I and Q   (2)Data rates used in I and Q
planes are different            planes are same


(3)Scrambling code is mobile    (3)Scrambling code is cell
station specific in uplink      specific in downlink
•THANK
 YOU!!!!!!!
