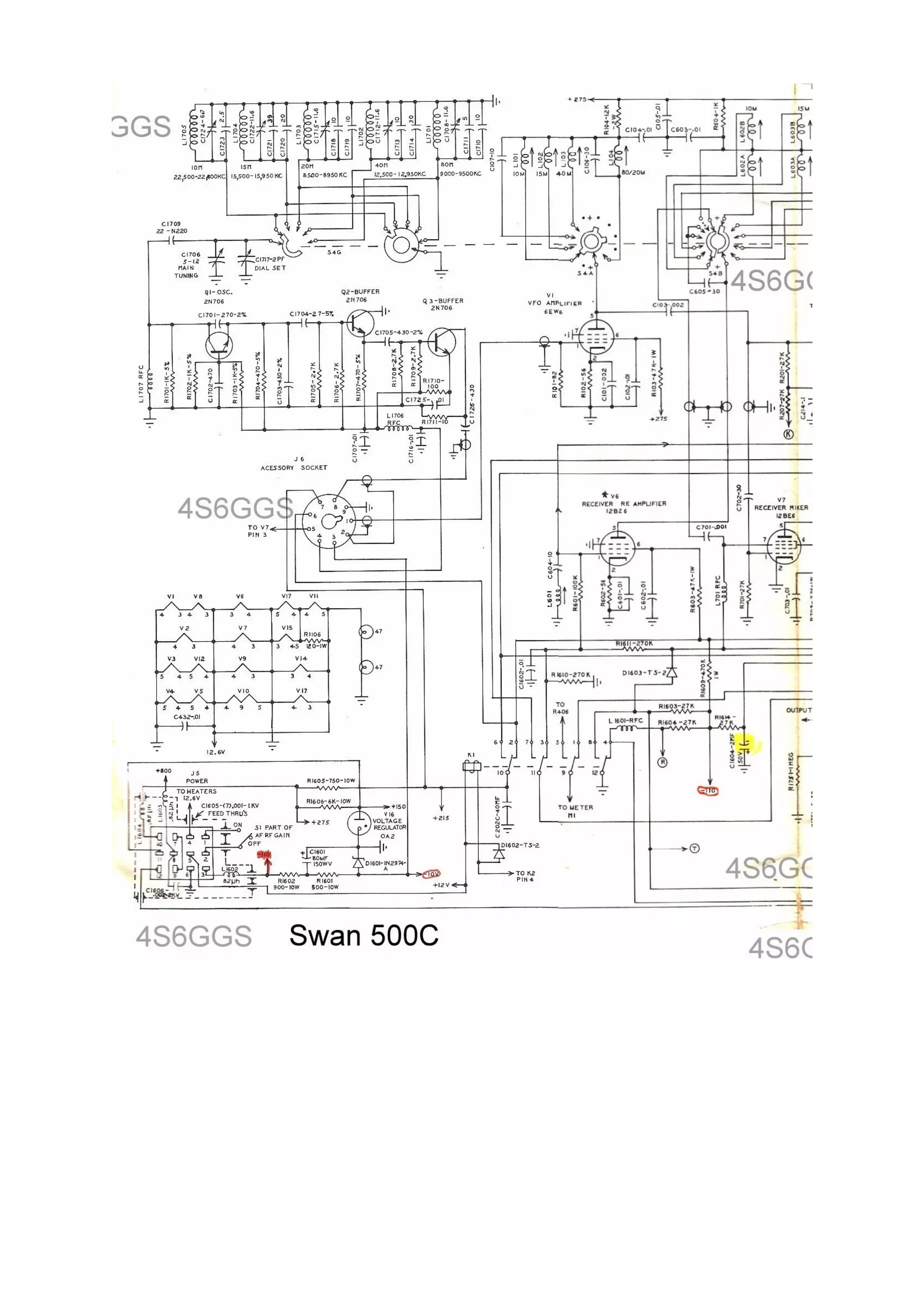

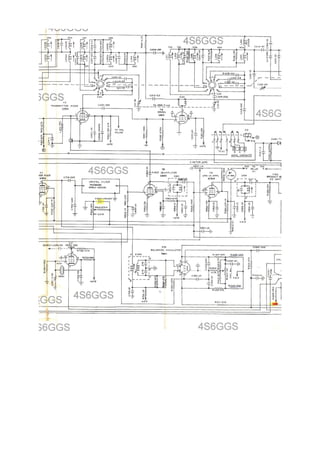

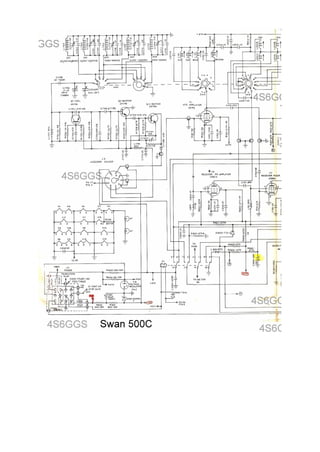

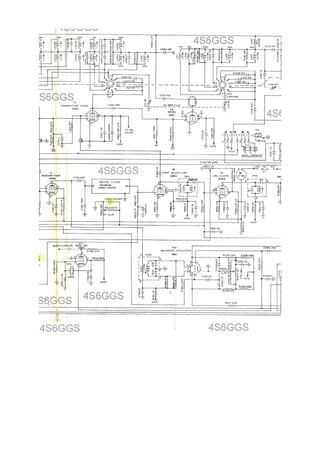

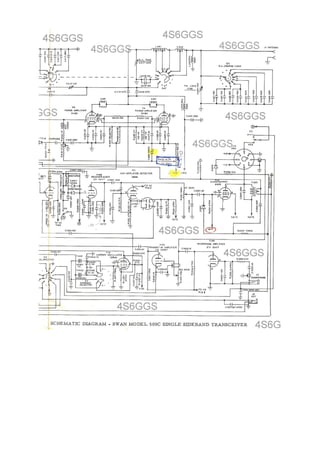

Swan 500c Diagram

Swan 500c Diagram Country: United States of America (USA) Manufacturer / Brand: Swan Electronics, Oceanside, CA Year: 1968 Type: Amateur Transmitter/Receiver (and Transceiver) Valves / Tubes 16: 6EW6 12BE6 6GK6 6LQ6 6LQ6 12BZ6 12BE6 6EW6 12BA6 12AX7 6BN8 6GK6 7360 12BA6 12AX7 0A2 12BA6 Semiconductors (the count is only for transistors) 3: Principle Superhet with RF-stage; ZF/IF 5500 kHz; 2 AF stage(s) Wave bands Short Wave (SW only) Details Power type and voltage Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) Power out 4 W (unknown quality) from Radiomuseum.org Model: SSB Transceiver 500C - Swan Electronics, Oceanside, Material Metal case Shape Tablemodel, low profile (big size). Dimensions (WHD) 330 x 170 x 300 mm / 13 x 6.7 x 11.8 inch Notes 10 - 80m amateur radio bands. External power supplies for ac operation and 12-volt dc operation. Net weight (2.2 lb = 1 kg) 8.1 kg / 17 lb 13.5 oz (17.841 lb)
