Toward Superfluid Deployment of Virtual Functions:
Exploiting Mobile Edge Computing for Video Streaming
Stefano Salsano(1), Luca Chiaraviglio(1), Nicola Blefari-Melazzi(1), Carlos Parada(2),
Francisco Fontes(2), Rufael Mekuria(3), Dirk Griffioen(3)
(1)CNIT / Univ. of Rome Tor Vergata, Italy; (2) Altice Labs, Portugal; (3) Unified Streaming, Netherlands
Soft5 Workshop - First International Workshop on Softwarized Infrastructures for 5G
and Fog Computing, in conjunction with ITC 29
Genoa, Italy - 8th September, 2017
A super-fluid, cloud-native, converged edge system
Outline
• Superfluidity project: goals and architecture
• Mobile Edge Computing (MEC)
• Video Streaming with Late Transmuxing (LTM)
• Combined MEC/LTM Video streaming testbed
2

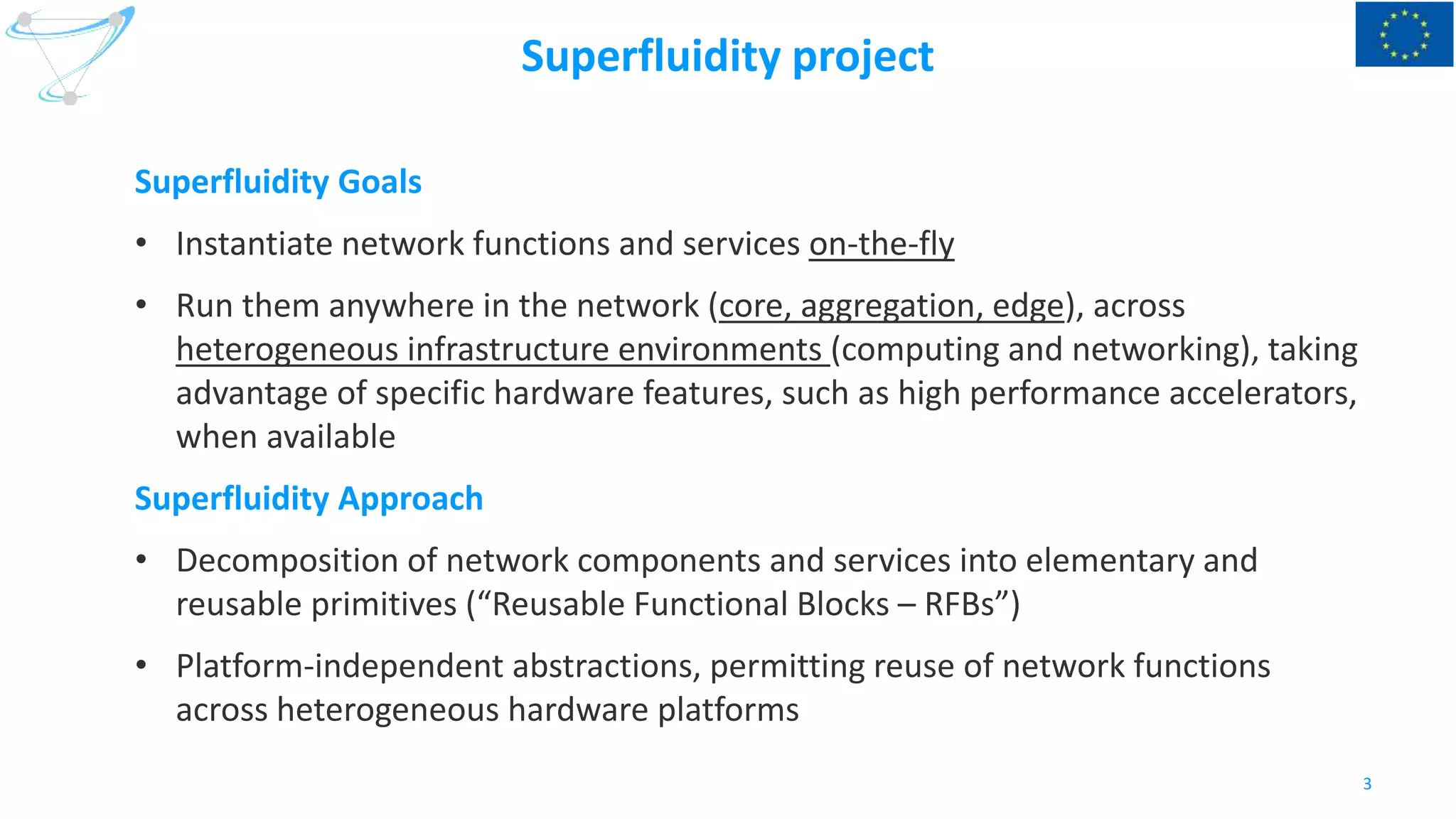

Superfluidity project
Superfluidity Goals
• Instantiate network functions and services on-the-fly
• Run them anywhere in the network (core, aggregation, edge), across
heterogeneous infrastructure environments (computing and networking), taking
advantage of specific hardware features, such as high performance accelerators,
when available
Superfluidity Approach
• Decomposition of network components and services into elementary and
reusable primitives (“Reusable Functional Blocks – RFBs”)
• Platform-independent abstractions, permitting reuse of network functions
across heterogeneous hardware platforms
3

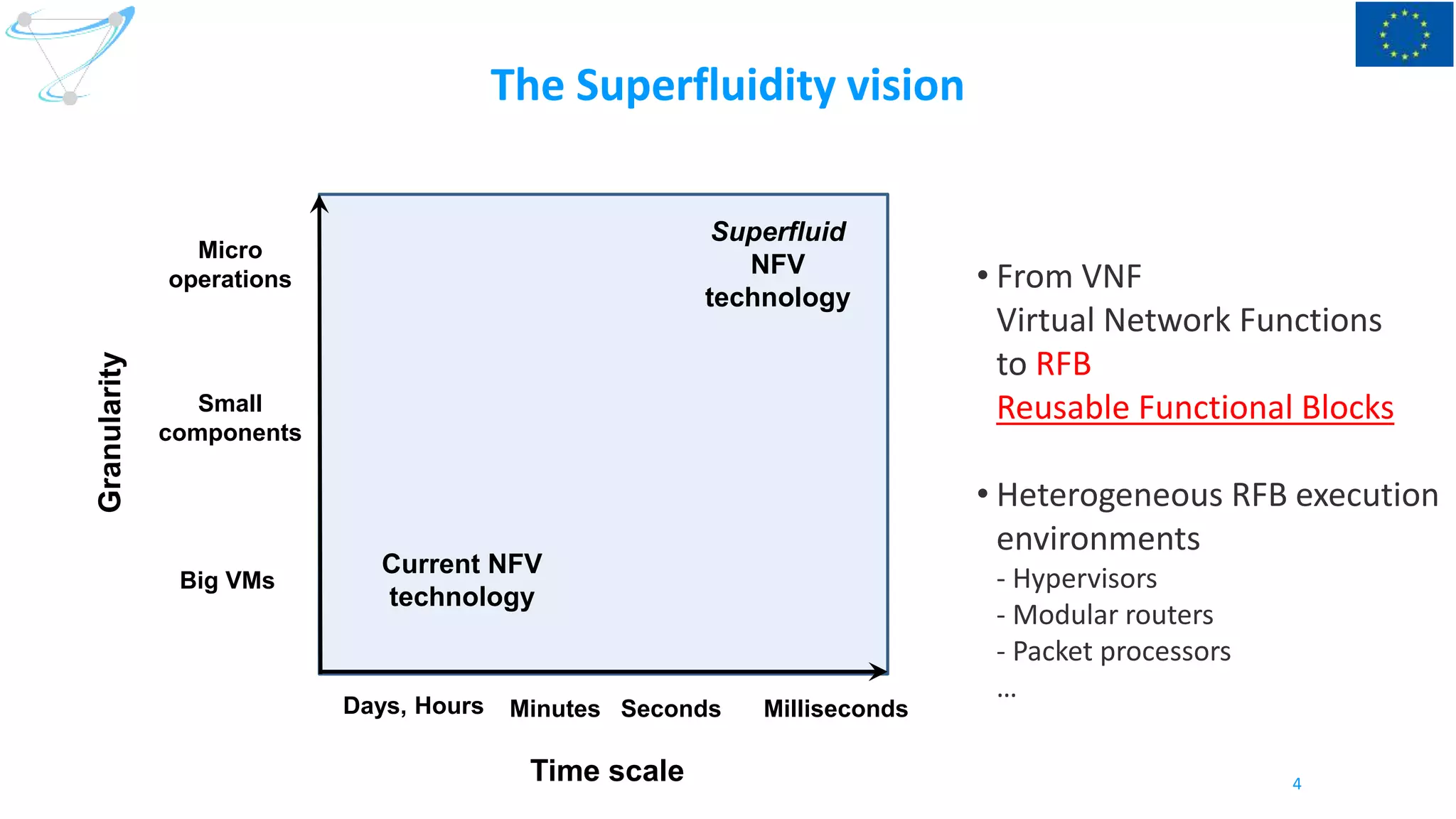

The Superfluidity vision
4
Current NFV
technology
Granularity
Time scale
Superfluid
NFV
technology
Days, Hours Minutes Seconds Milliseconds
Big VMs
Small
components
Micro
operations • From VNF
Virtual Network Functions
to RFB
Reusable Functional Blocks
• Heterogeneous RFB execution
environments
- Hypervisors
- Modular routers
- Packet processors
…

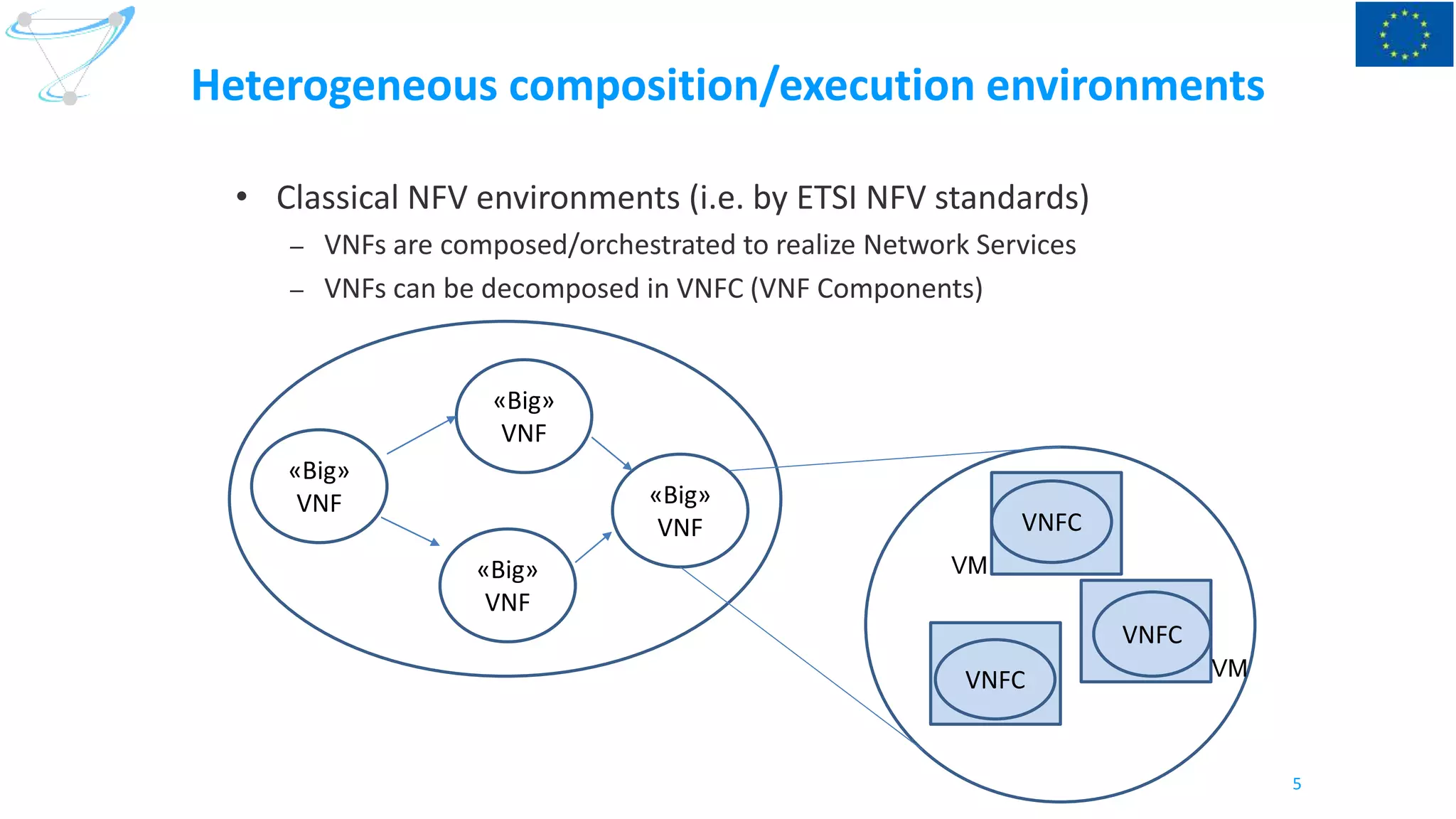

Heterogeneous composition/execution environments
5
• Classical NFV environments (i.e. by ETSI NFV standards)
– VNFs are composed/orchestrated to realize Network Services
– VNFs can be decomposed in VNFC (VNF Components)
«Big»
VNF
«Big»
VNF
«Big»
VNF
«Big»
VNF
VNFC
VNFC
VNFC
VM
VM

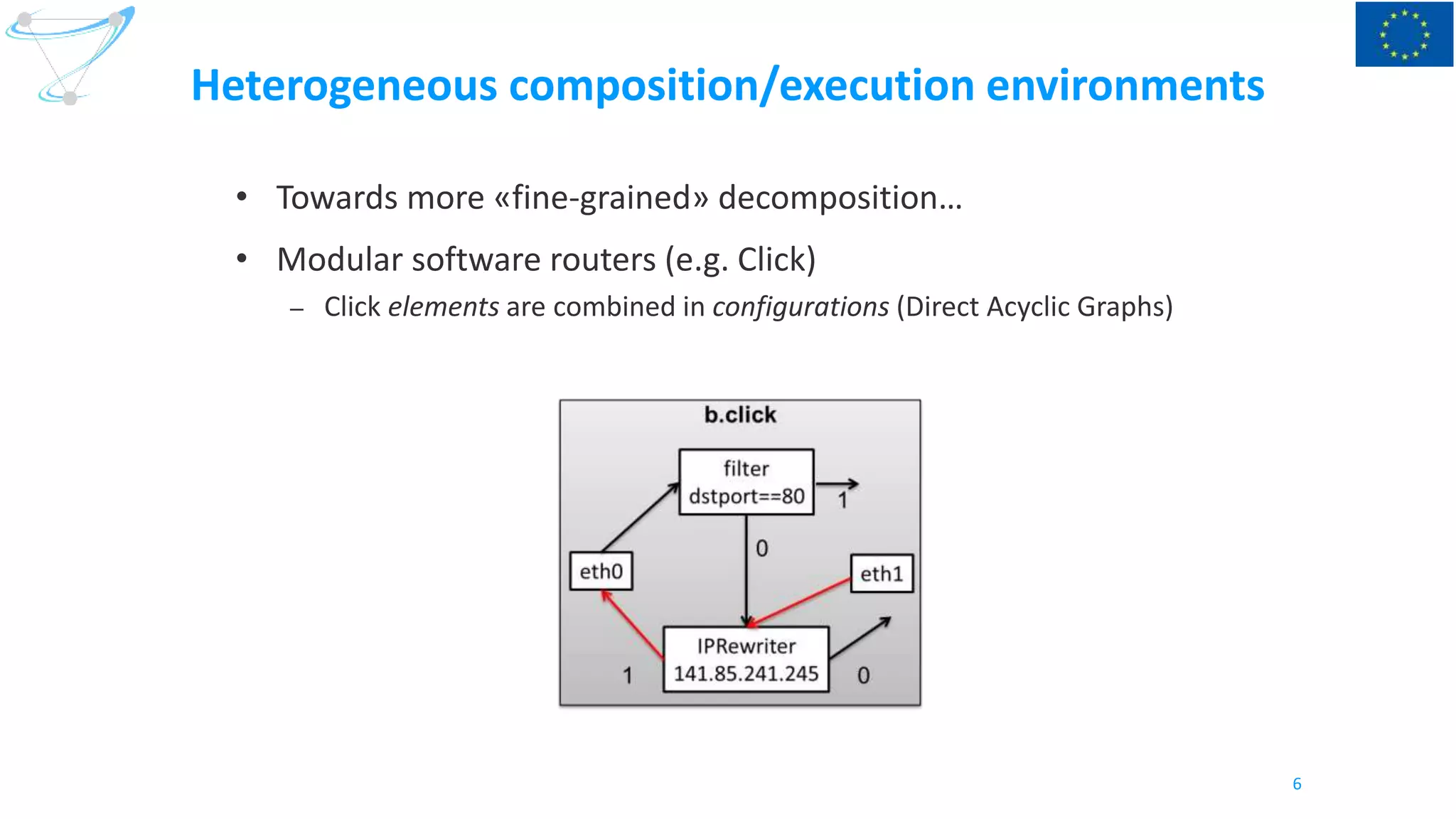

Heterogeneous composition/execution environments
6
• Towards more «fine-grained» decomposition…
• Modular software routers (e.g. Click)
– Click elements are combined in configurations (Direct Acyclic Graphs)
Heterogeneous composition/execution environments
7

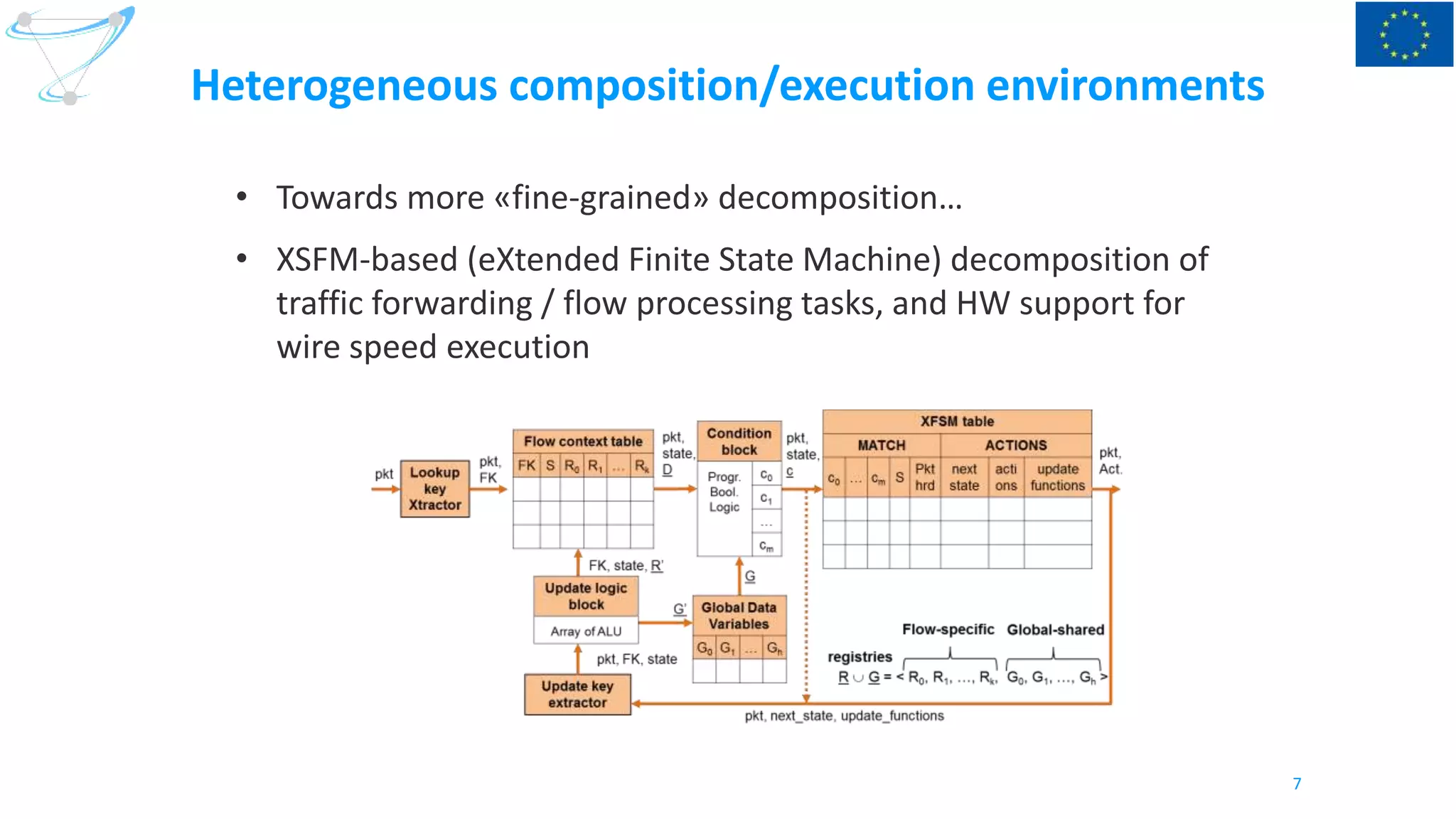

• Towards more «fine-grained» decomposition…
• XSFM-based (eXtended Finite State Machine) decomposition of
traffic forwarding / flow processing tasks, and HW support for
wire speed execution

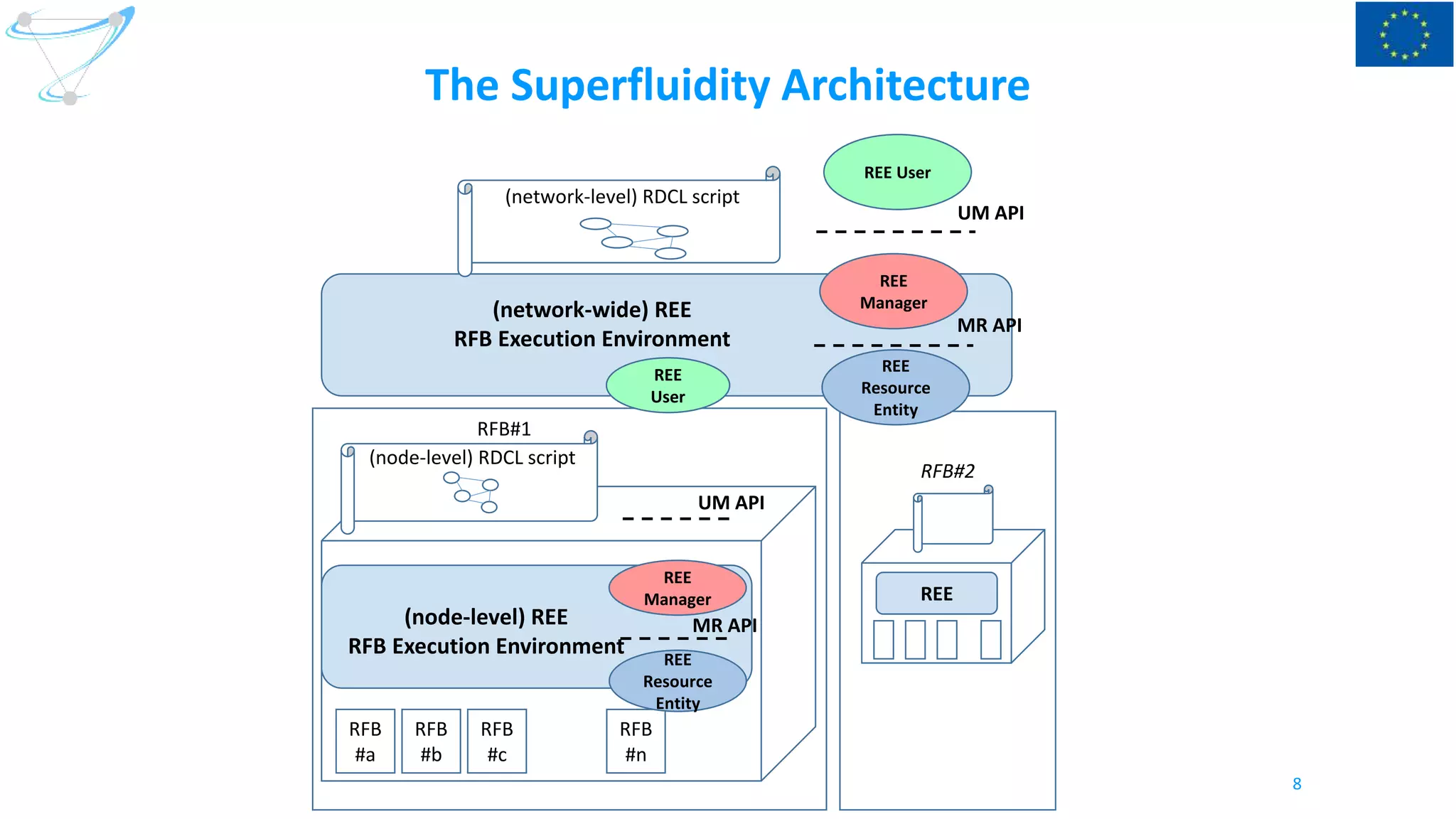

The Superfluidity Architecture
8
RFB
#a
RFB
#b
RFB
#c
RFB
#n
(node-level) RDCL script
REE
RFB#2
(network-level) RDCL script
REE
Manager
REE User
REE
Resource
Entity
UM API
MR API
REE
User
UM API
REE
Resource
Entity
REE
Manager
(network-wide) REE
RFB Execution Environment
RFB#1
MR API(node-level) REE
RFB Execution Environment

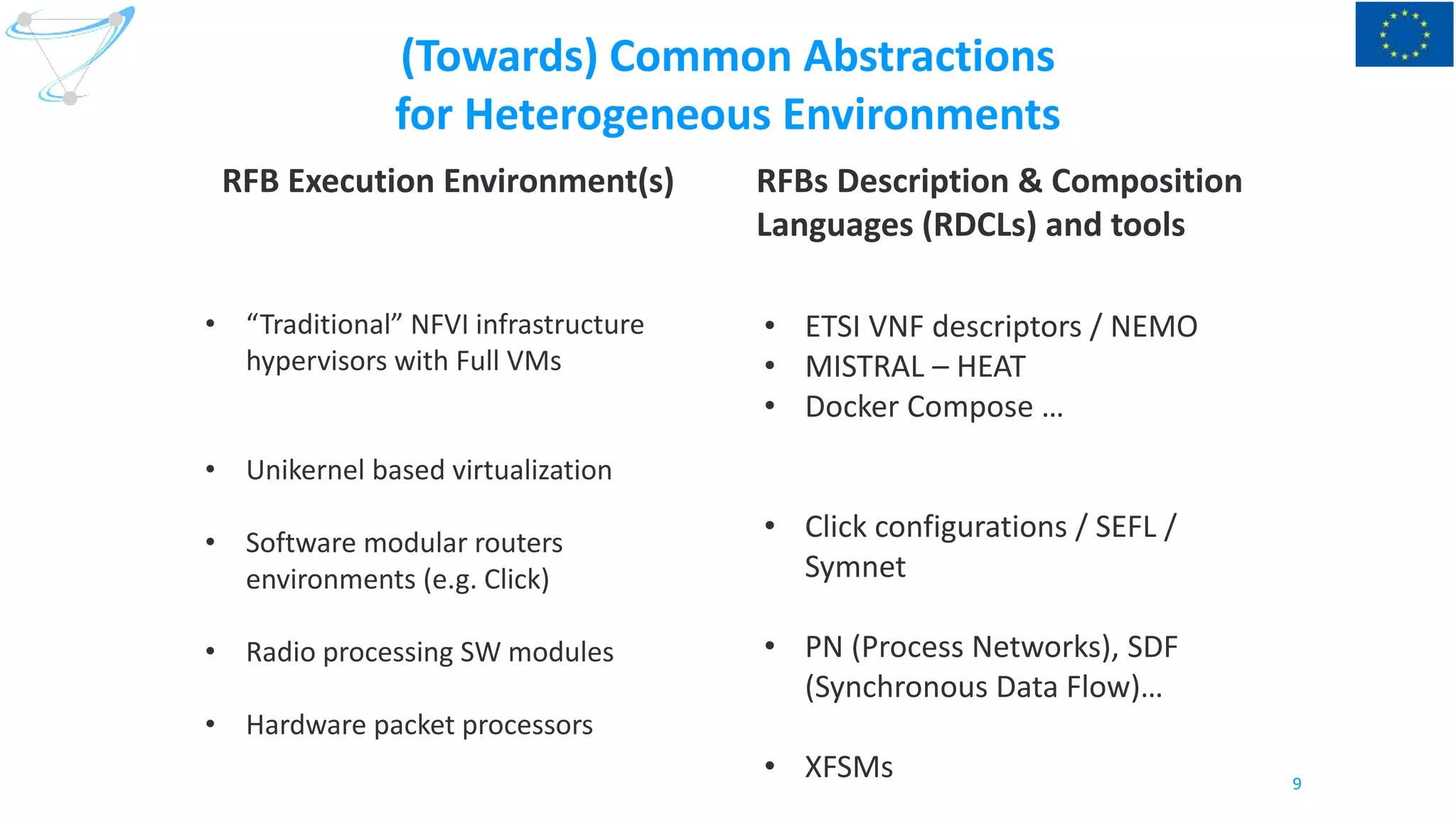

(Towards) Common Abstractions
for Heterogeneous Environments
9
RFB Execution Environment(s) RFBs Description & Composition
Languages (RDCLs) and tools
• “Traditional” NFVI infrastructure
hypervisors with Full VMs
• Unikernel based virtualization
• Software modular routers
environments (e.g. Click)
• Radio processing SW modules
• Hardware packet processors
• ETSI VNF descriptors / NEMO
• MISTRAL – HEAT
• Docker Compose …
• Click configurations / SEFL /
Symnet
• PN (Process Networks), SDF
(Synchronous Data Flow)…
• XFSMs

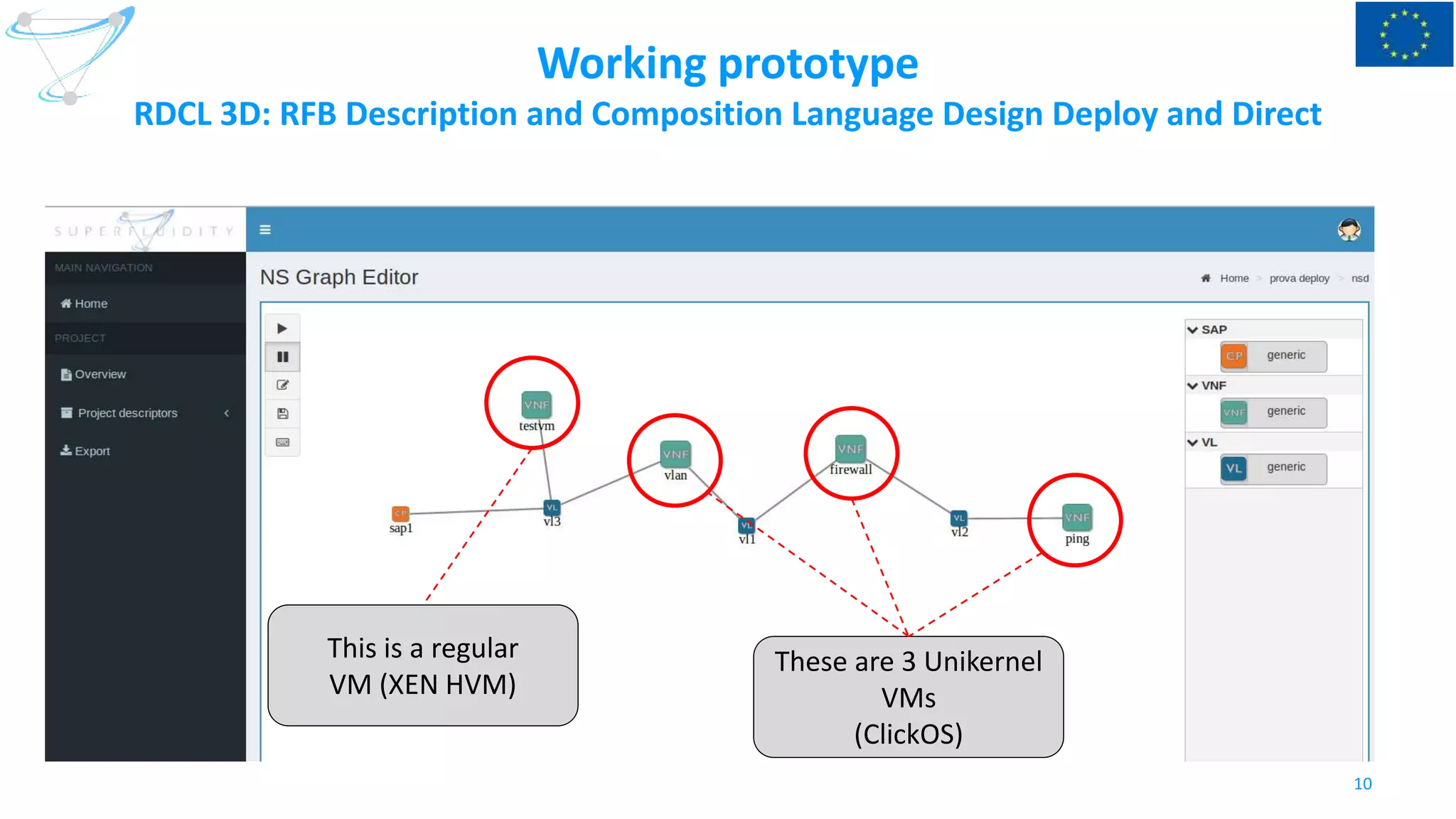

Working prototype
RDCL 3D: RFB Description and Composition Language Design Deploy and Direct
10
This is a regular
VM (XEN HVM)
These are 3 Unikernel
VMs
(ClickOS)

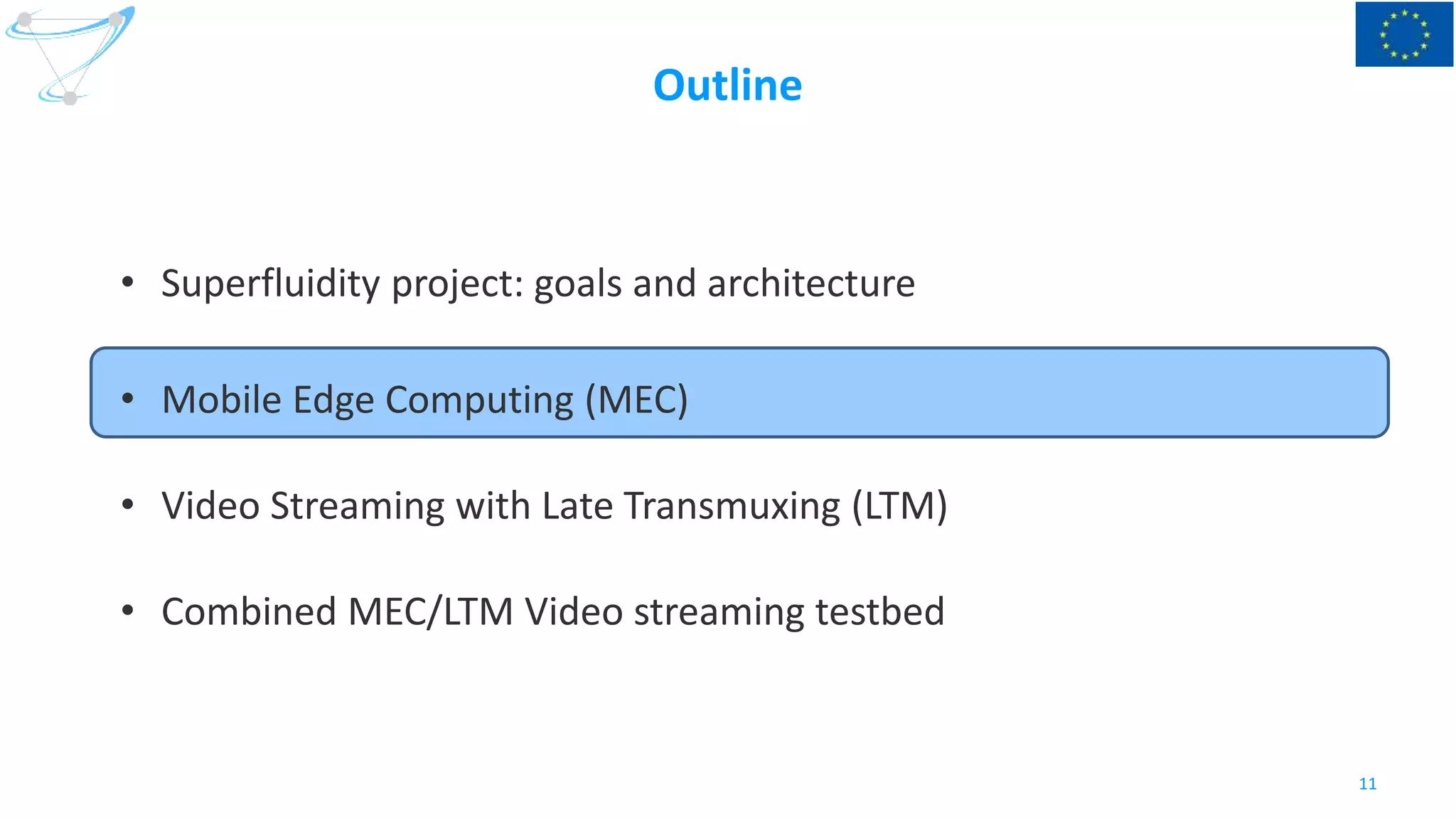

Outline
• Superfluidity project: goals and architecture
• Mobile Edge Computing (MEC)
• Video Streaming with Late Transmuxing (LTM)
• Combined MEC/LTM Video streaming testbed
11

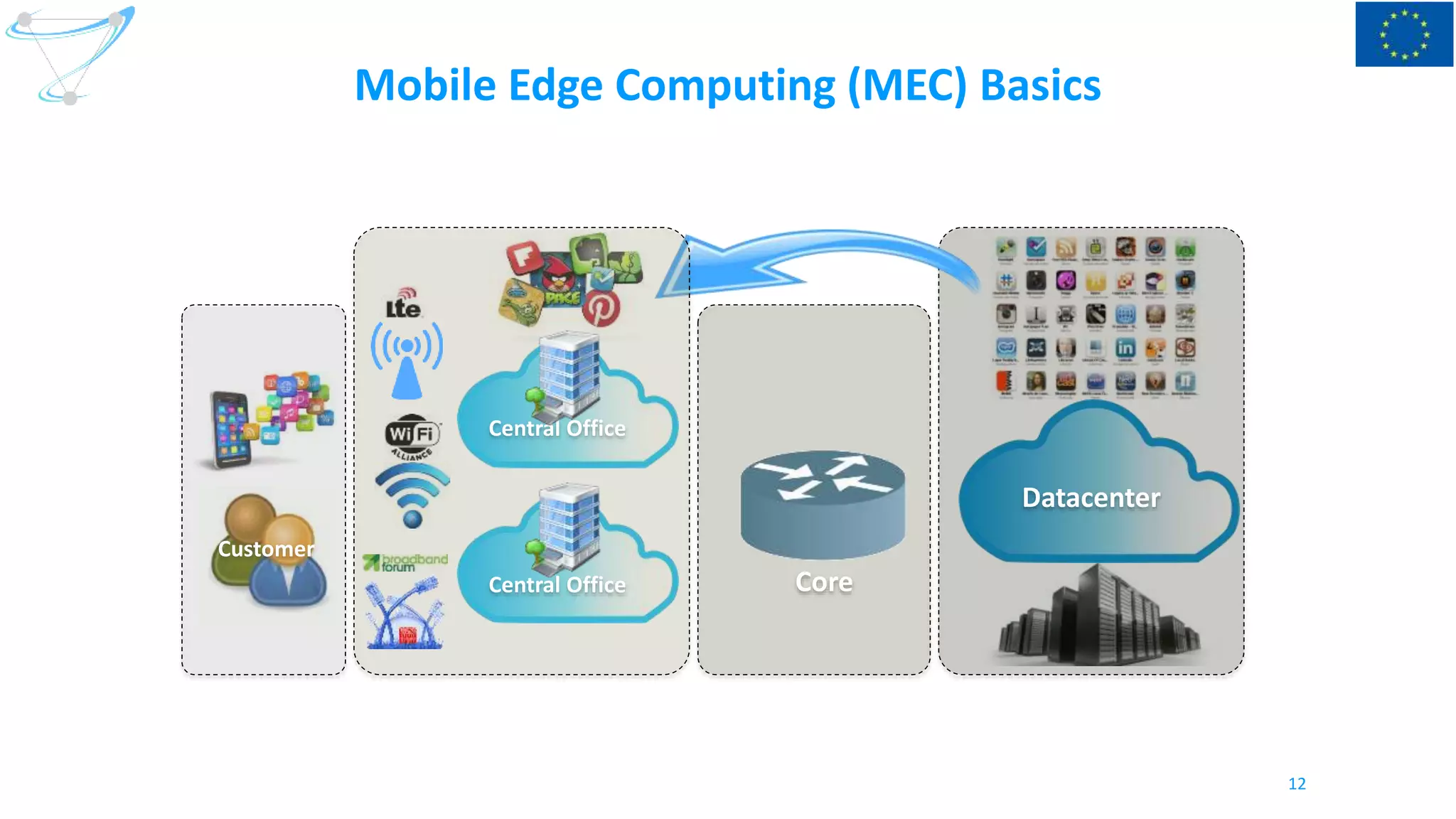

Mobile Edge Computing (MEC) Basics
12
Datacenter
Core
Central Office
Central Office
Customer

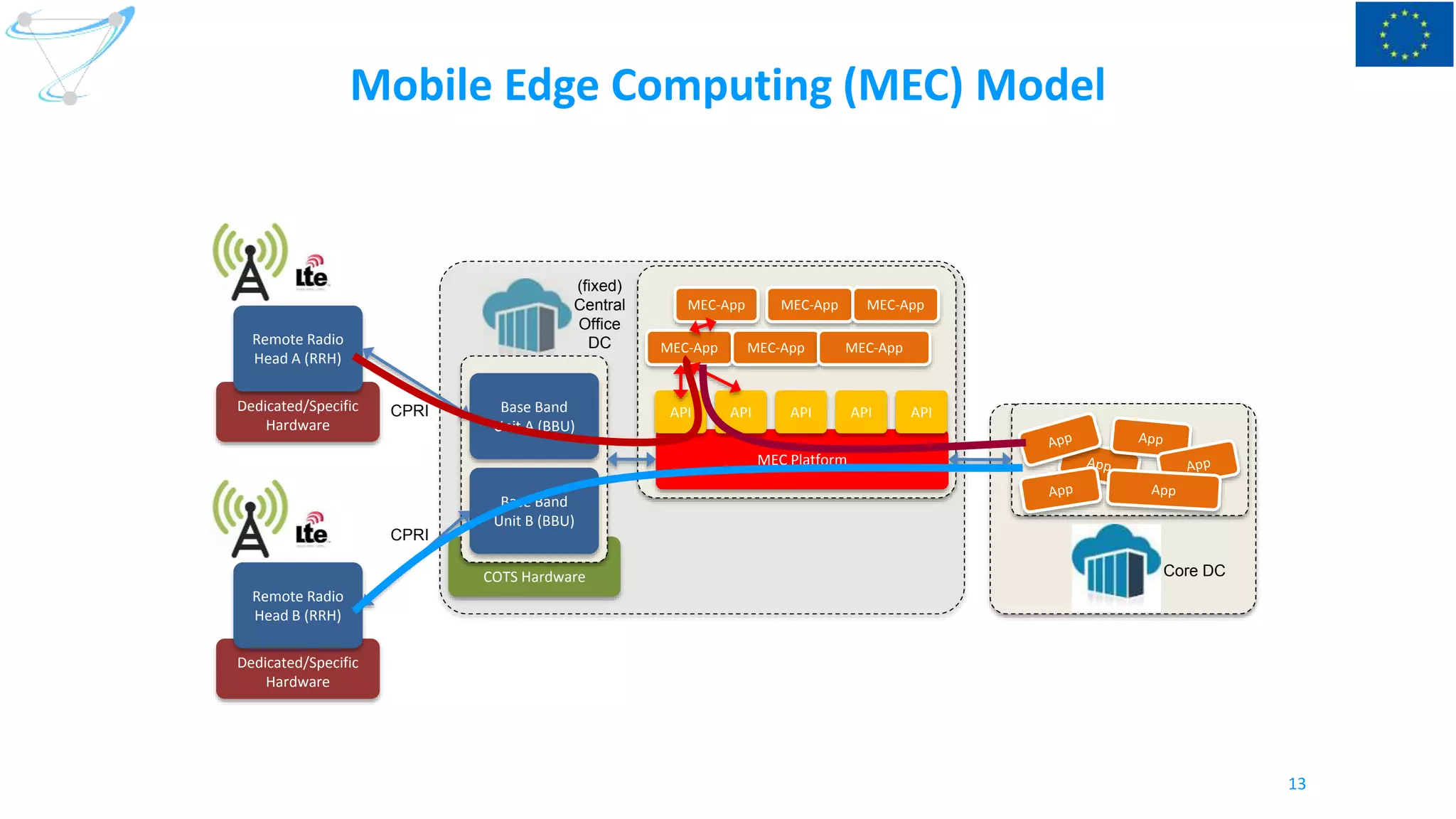

Mobile Edge Computing (MEC) Model
13
MEC Platform
Dedicated/Specific
Hardware
Dedicated/Specific
Hardware
COTS Hardware
Base Band
Unit B (BBU)
Base Band
Unit A (BBU)
Remote Radio
Head A (RRH)
Remote Radio
Head B (RRH)
CPRI
CPRI
(fixed)
Central
Office
DC
API API API API API
MEC-App MEC-App MEC-App
MEC-App MEC-App MEC-App
Core DC

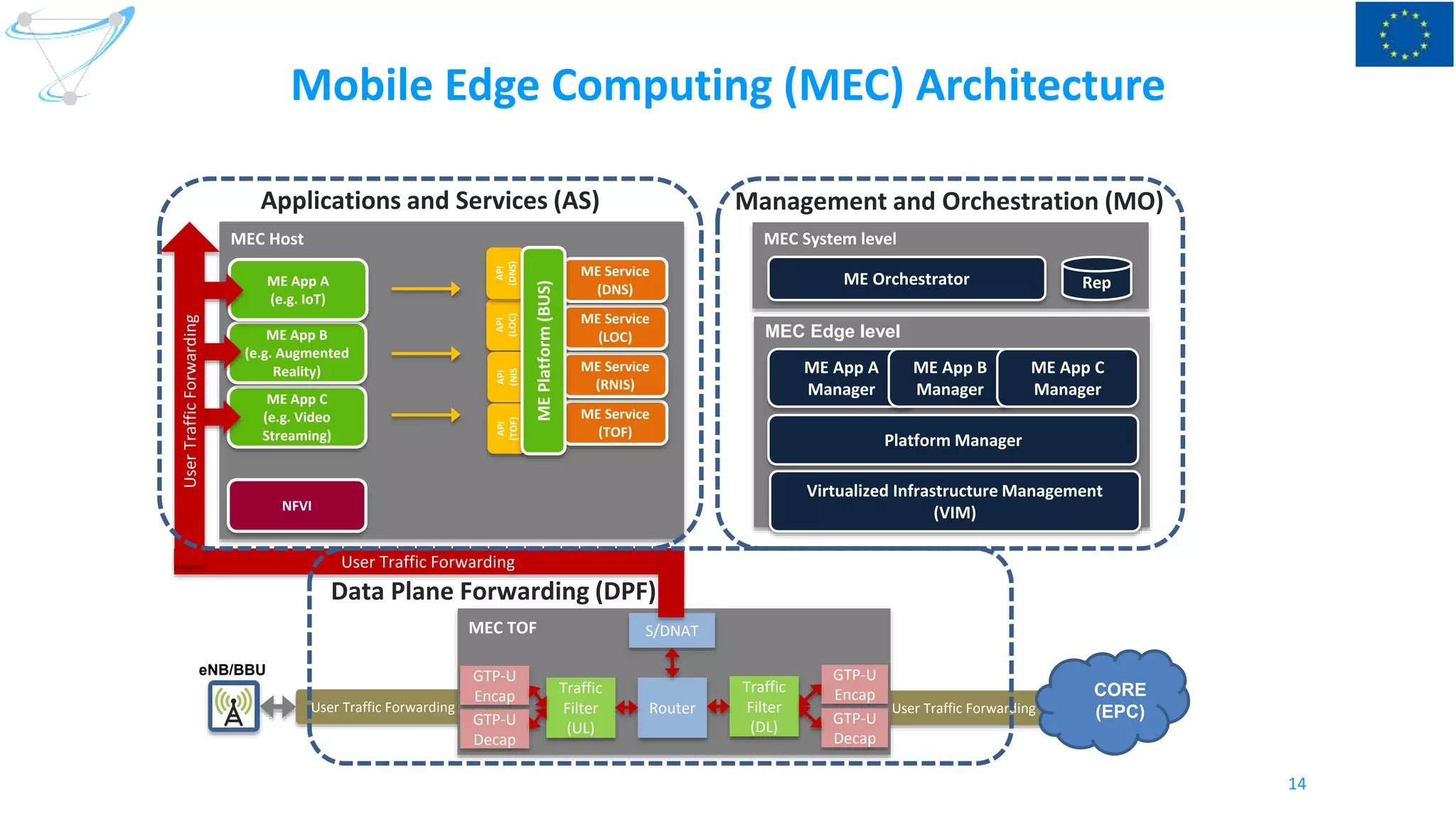

Mobile Edge Computing (MEC) Architecture
14
User Traffic Forwarding
eNB/BBU
User Traffic Forwarding
CORE
(EPC)
MEC TOF
GTP-U
Encap
S/DNAT
Traffic
Filter
(UL)
Router
Traffic
Filter
(DL)
GTP-U
Encap
MEC Host
ME Service
(TOF)
ME Service
(RNIS)
ME Service
(LOC)
ME Service
(DNS)
ME App C
(e.g. Video
Streaming)
ME App B
(e.g. Augmented
Reality)
ME App A
(e.g. IoT)
GTP-U
Decap
GTP-U
Decap
NFVI
User Traffic Forwarding
UserTrafficForwarding
API
(LOC)
API
(DNS)
API
(NIS
API
(TOF)
MEPlatform(BUS)
Applications and Services (AS)
Data Plane Forwarding (DPF)
MEC System level
ME Orchestrator
Virtualized Infrastructure Management
(VIM)
Platform Manager
ME App A
Manager
ME App B
Manager
ME App C
Manager
Rep
MEC Edge level
Management and Orchestration (MO)

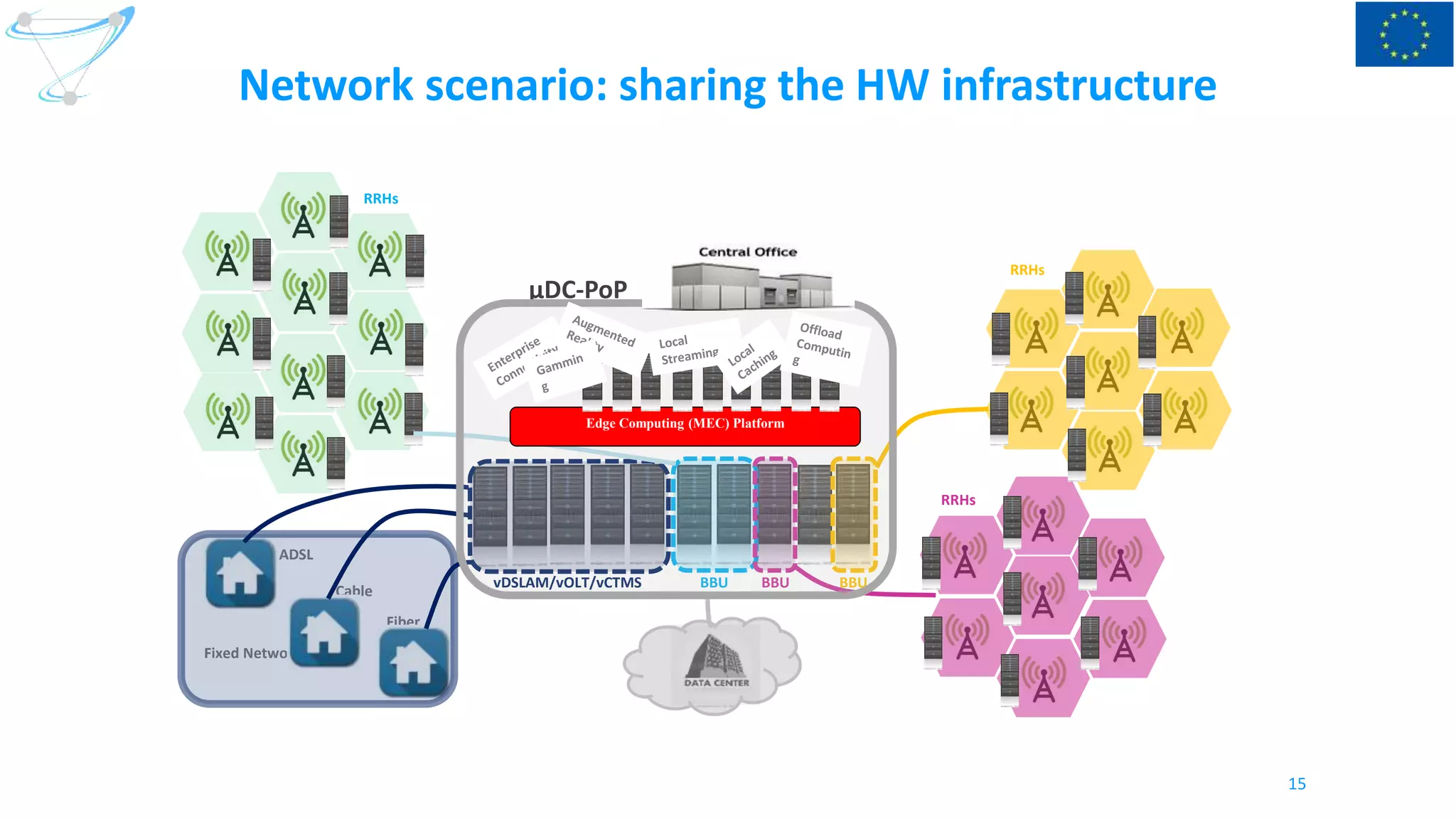

Network scenario: sharing the HW infrastructure
15
RRHs
RRHs
RRHs
ADSL
Cable
Fiber
Fixed Networks
vDSLAM/vOLT/vCTMS BBUBBU BBU
µDC-PoP
Edge Computing (MEC) Platform

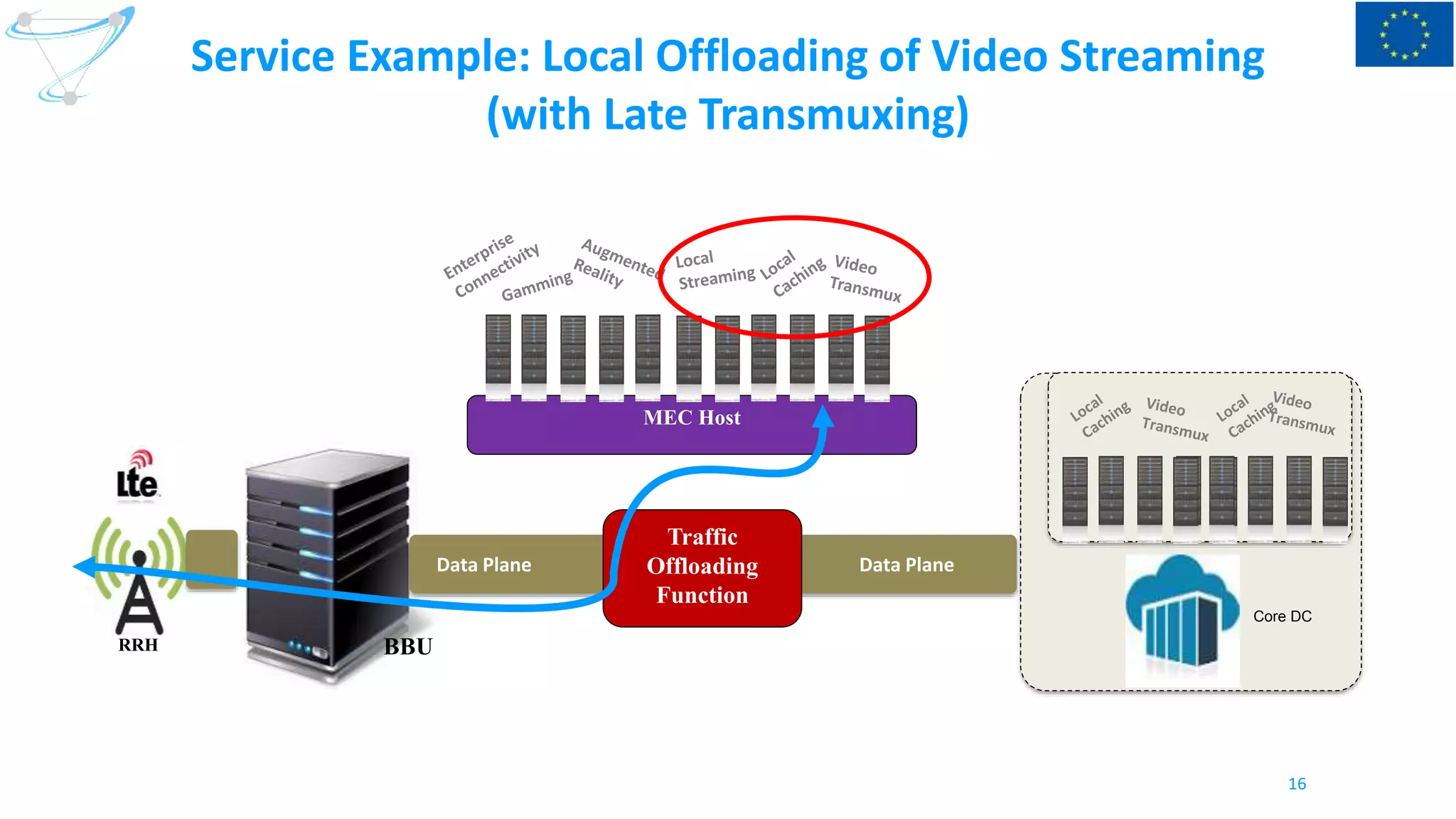

Service Example: Local Offloading of Video Streaming
(with Late Transmuxing)
16
Core DC
MEC Host
Data Plane Data Plane
Traffic
Offloading
Function
BBURRH
Outline
• Superfluidity project: goals and architecture
• Mobile Edge Computing (MEC)
• Video Streaming with Late Transmuxing (LTM)
• Combined MEC/LTM Video streaming testbed
17

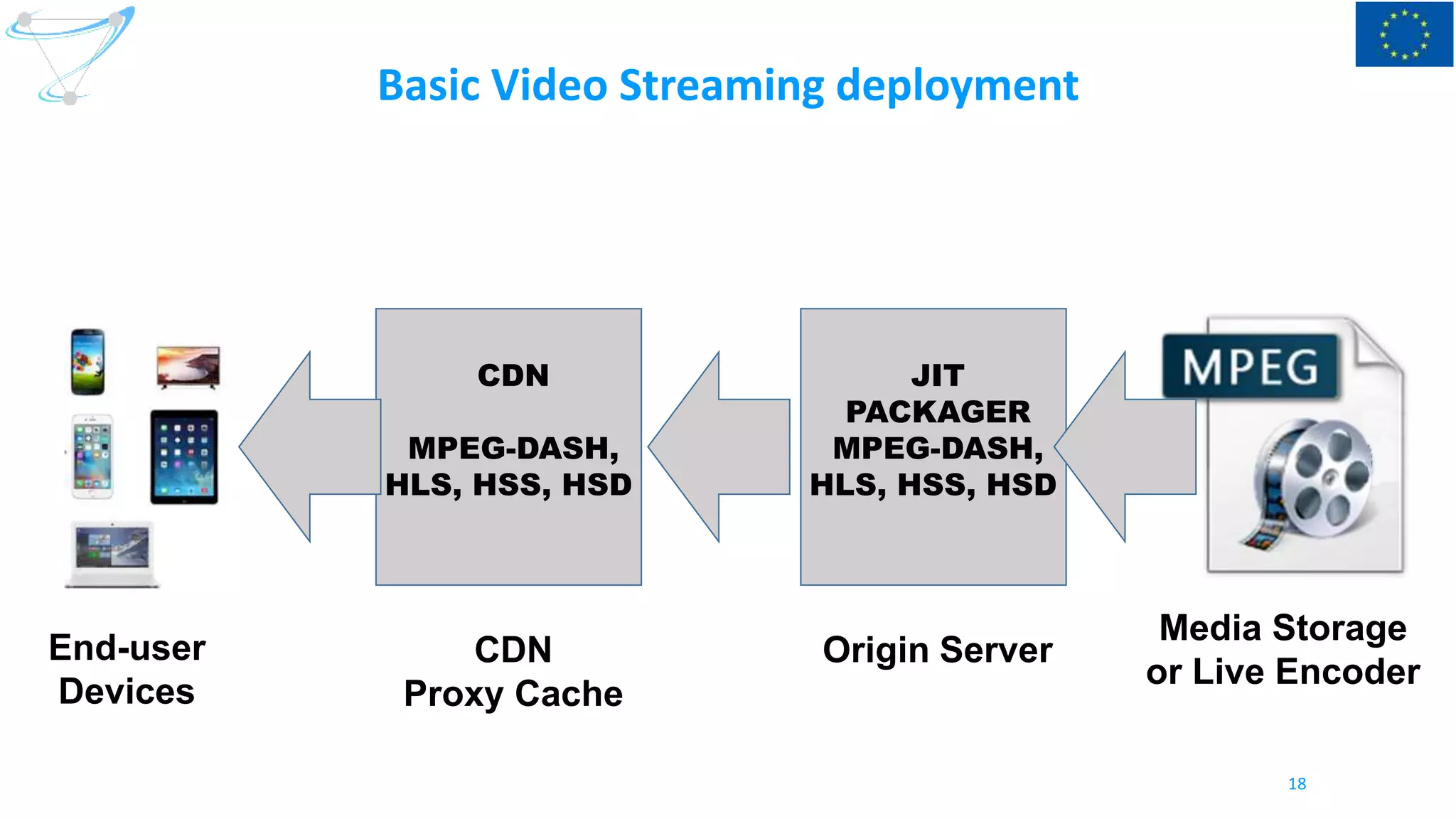

Basic Video Streaming deployment
18
JIT
PACKAGER
MPEG-DASH,
HLS, HSS, HSD
CDN
MPEG-DASH,
HLS, HSS, HSD
Media Storage
or Live Encoder
Origin ServerCDN
Proxy Cache
End-user
Devices

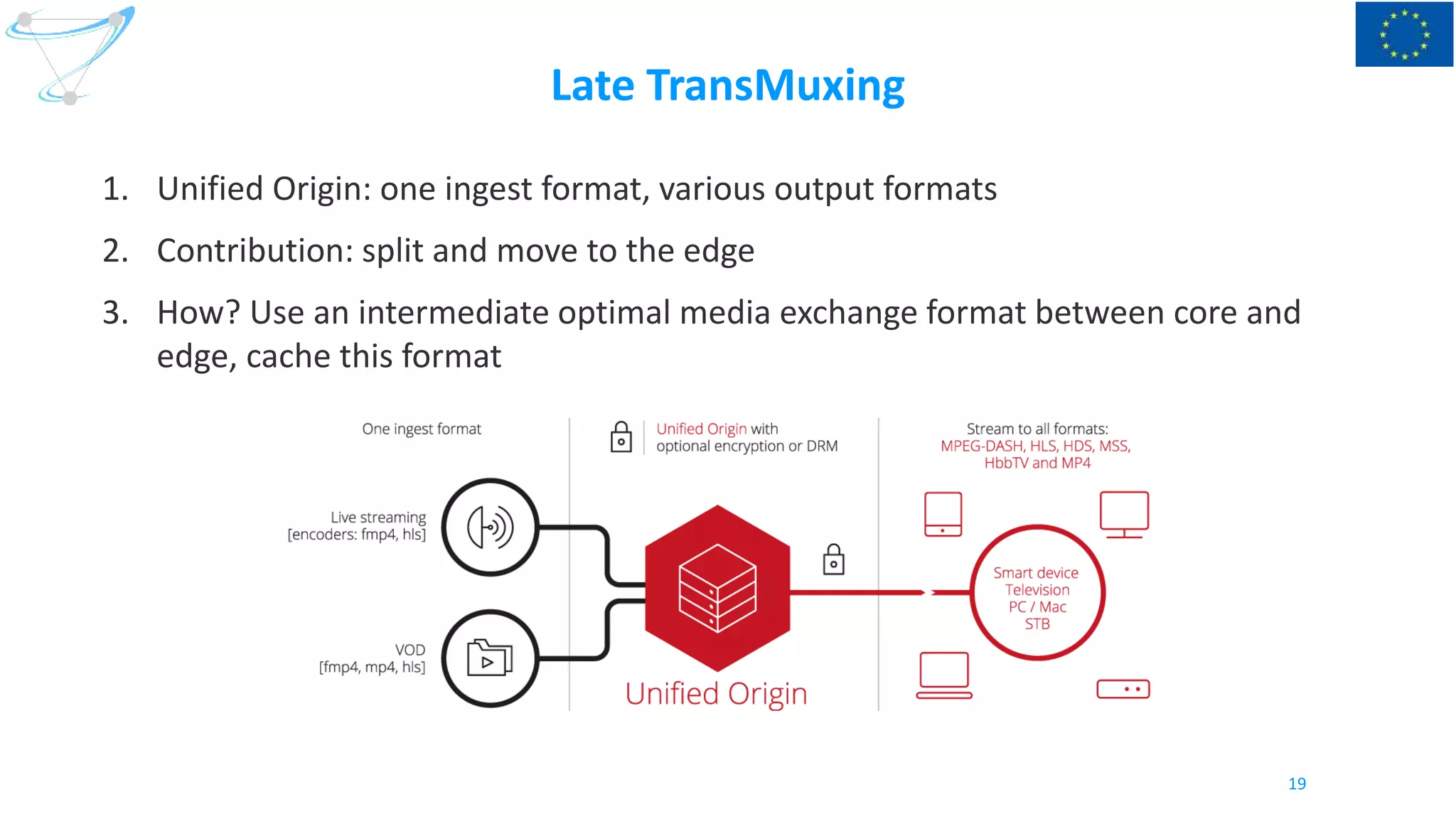

Late TransMuxing
19
1. Unified Origin: one ingest format, various output formats
2. Contribution: split and move to the edge
3. How? Use an intermediate optimal media exchange format between core and
edge, cache this format

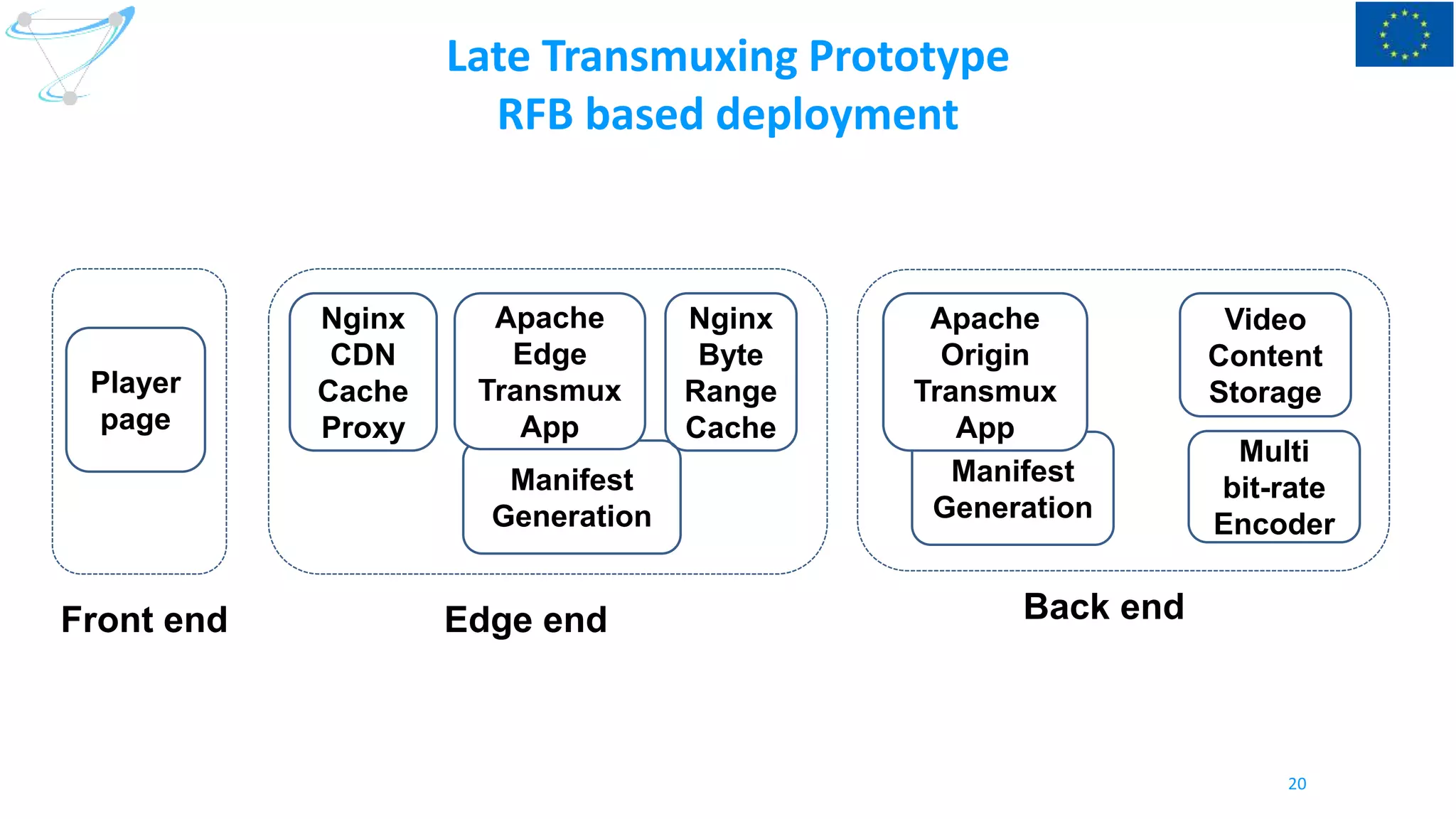

Late Transmuxing Prototype
RFB based deployment
20
Video
Content
Storage
Nginx
Byte
Range
Cache
Nginx
CDN
Cache
Proxy
Back endEdge end
Manifest
Generation
Apache
Origin
Transmux
App
Manifest
Generation
Apache
Edge
Transmux
App
Multi
bit-rate
Encoder
Front end
Player
page

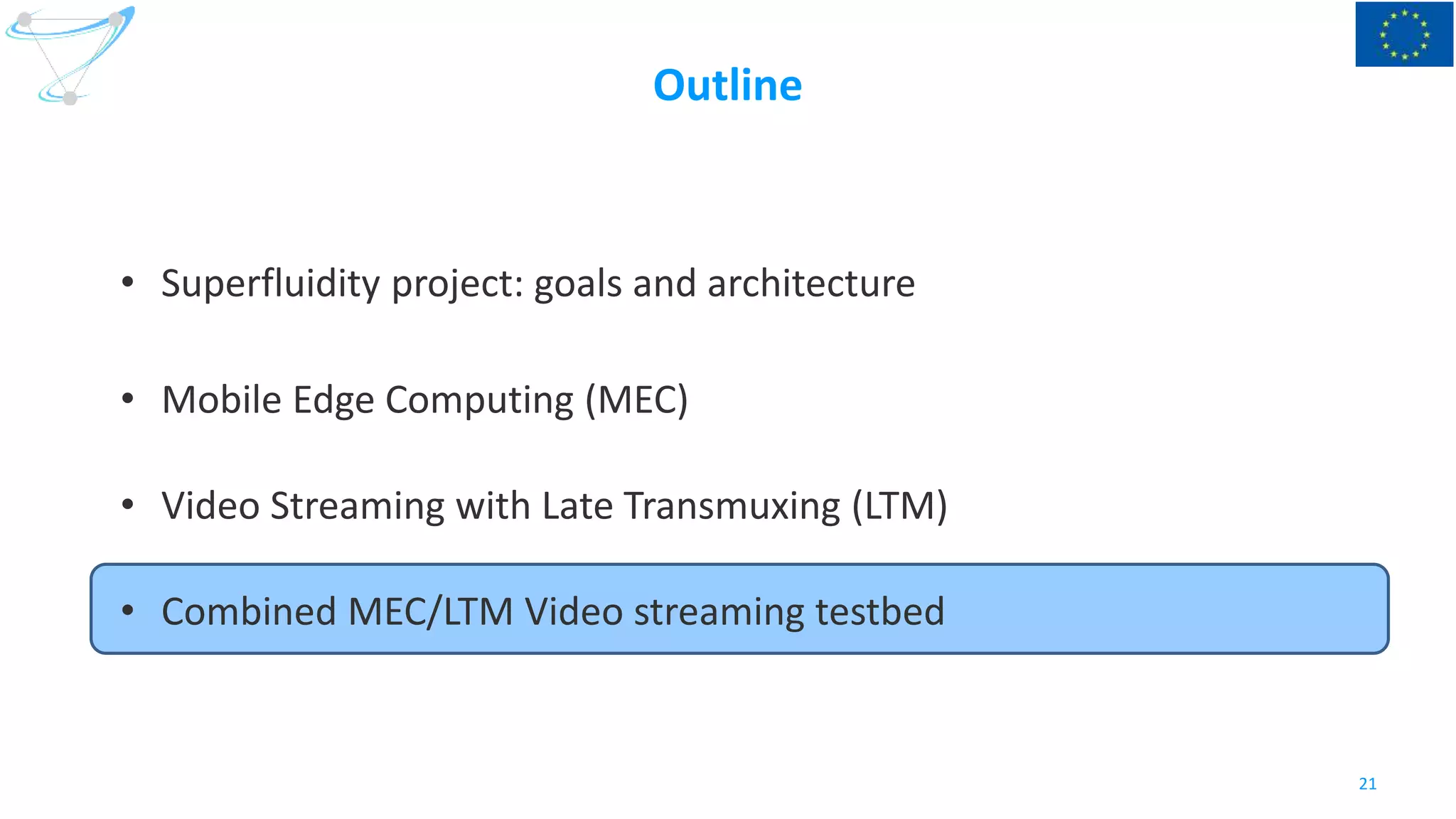

Outline
• Superfluidity project: goals and architecture
• Mobile Edge Computing (MEC)
• Video Streaming with Late Transmuxing (LTM)
• Combined MEC/LTM Video streaming testbed
21

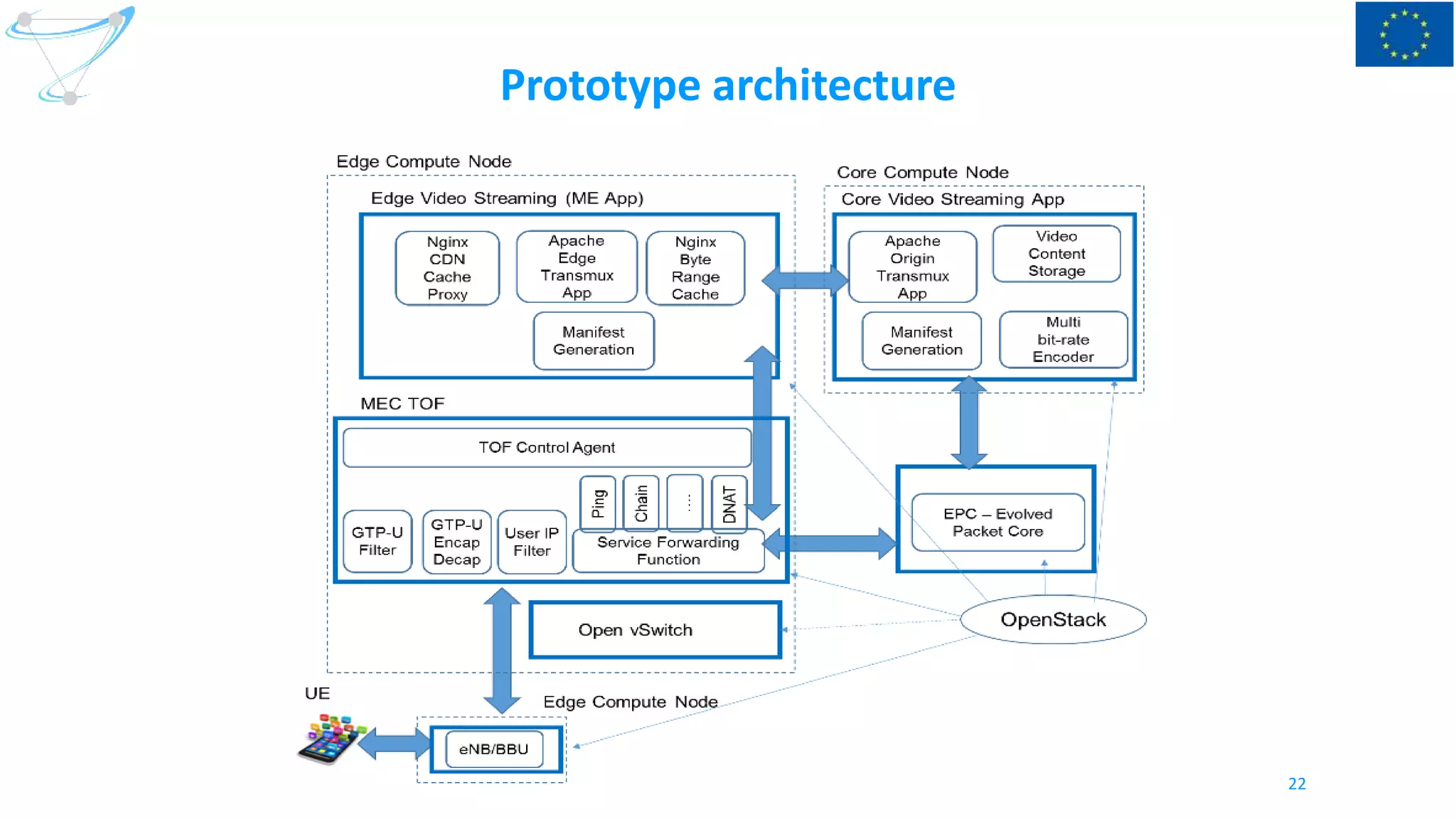

Prototype architecture
22

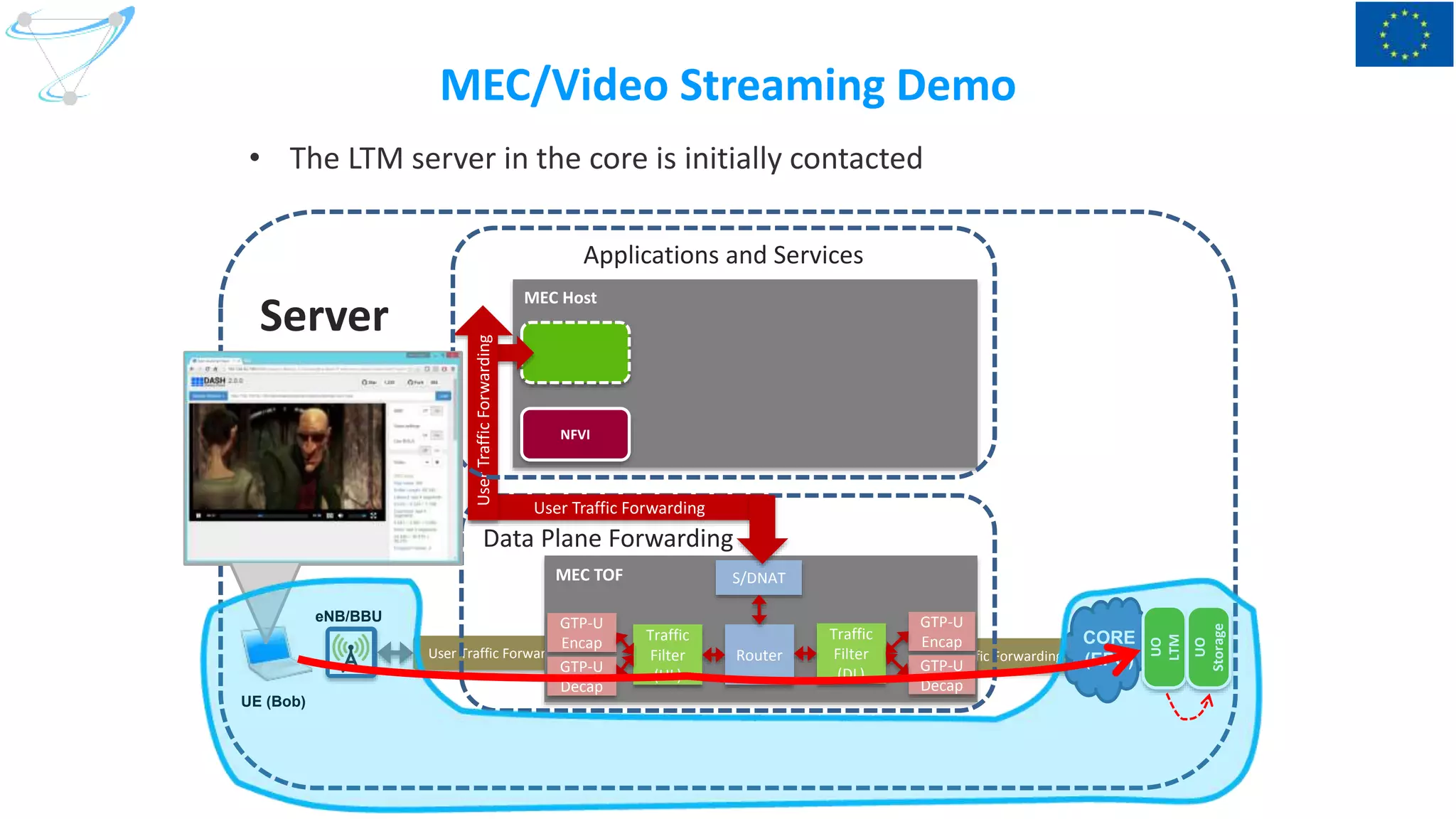

UE (Bob)
MEC/Video Streaming Demo
User Traffic Forwarding
eNB/BBU
User Traffic Forwarding
Server
MEC TOF
GTP-U
Encap
S/DNAT
Traffic
Filter
(UL)
Router
Traffic
Filter
(DL)
GTP-U
Encap
GTP-U
Decap
GTP-U
Decap
Data Plane Forwarding
MEC Host
NFVI
User Traffic Forwarding
UserTrafficForwarding
Applications and Services
• The LTM server in the core is initially contacted
CORE
(EPC)
UO
LTM
UO
Storage
MEC Host
NFVI
User Traffic Forwarding
Applications and Services
UserTrafficForwarding
UE (Bob)
MEC/Video Streaming Demo
User Traffic Forwarding
eNB/BBU
User Traffic Forwarding
Server
MEC TOF
GTP-U
Encap
S/DNAT
Traffic
Filter
(UL)
Router
Traffic
Filter
(DL)
GTP-U
Encap
GTP-U
Decap
GTP-U
Decap
Data Plane Forwarding
Unified
Origin
LTM
• The Management and Orchestration (MANO) layer instantiates the LTM
application in the edge (so far, MANO is just a manual script execution)
CORE
(EPC)
UO
LTM
UO
Storage
MEC Management
and Orchestrator
MEC Host
Unified
Origin
LTM
NFVI
User Traffic Forwarding
Applications and Services
UserTrafficForwarding
UE (Bob)
MEC/Video Streaming Demo
User Traffic Forwarding
eNB/BBU
User Traffic Forwarding
Server
MEC TOF
GTP-U
Encap
S/DNAT
Traffic
Filter
(UL)
Router
Traffic
Filter
(DL)
GTP-U
Encap
GTP-U
Decap
GTP-U
Decap
Data Plane Forwarding

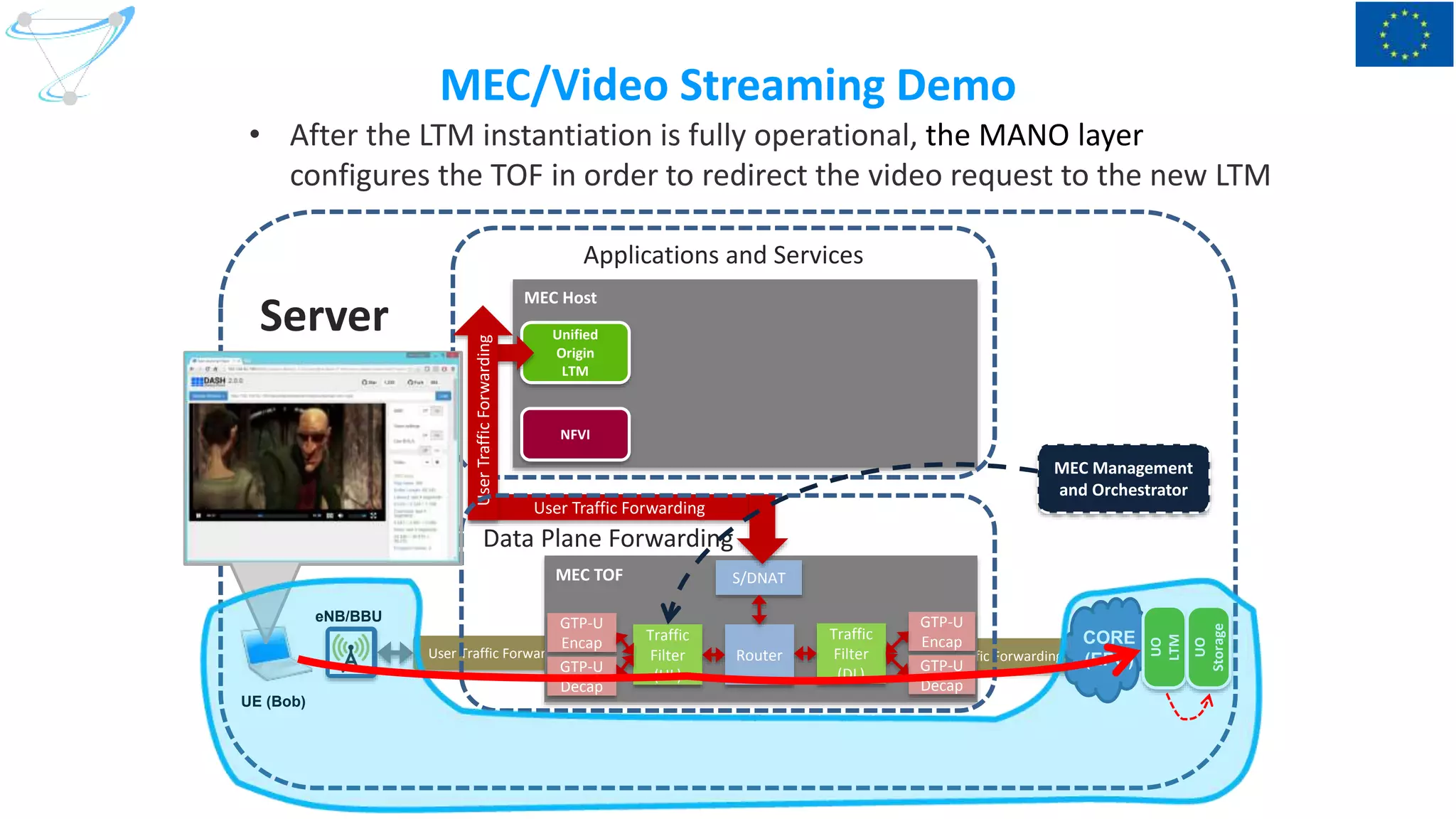

• After the LTM instantiation is fully operational, the MANO layer
configures the TOF in order to redirect the video request to the new LTM
CORE
(EPC)
UO
LTM
UO
Storage
MEC Management
and Orchestrator
MEC Host
Unified
Origin
LTM
NFVI
User Traffic Forwarding
Applications and Services
UserTrafficForwarding
UE (Bob)
MEC/Video Streaming Demo
User Traffic Forwarding
eNB/BBU
User Traffic Forwarding
Server
MEC TOF
GTP-U
Encap
S/DNAT
Traffic
Filter
(UL)
Router
Traffic
Filter
(DL)
GTP-U
Encap
GTP-U
Decap
GTP-U
Decap
Data Plane Forwarding
• The subscriber will, transparently, start getting the video service from
the edge LTM, which in turn accesses the central storage for contents
CORE
(EPC)
UO
LTM
UO
Storage

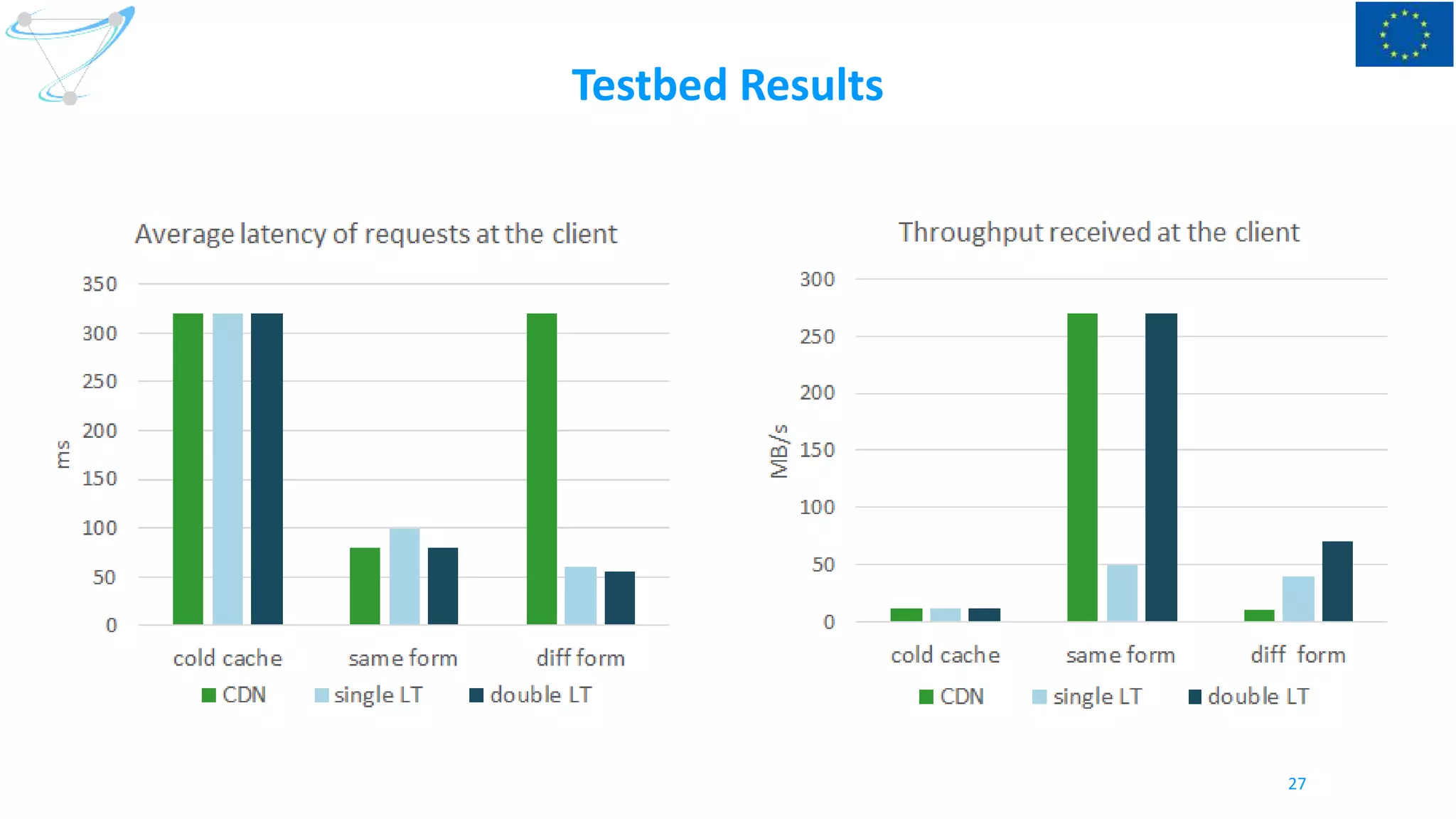

Testbed Results
27

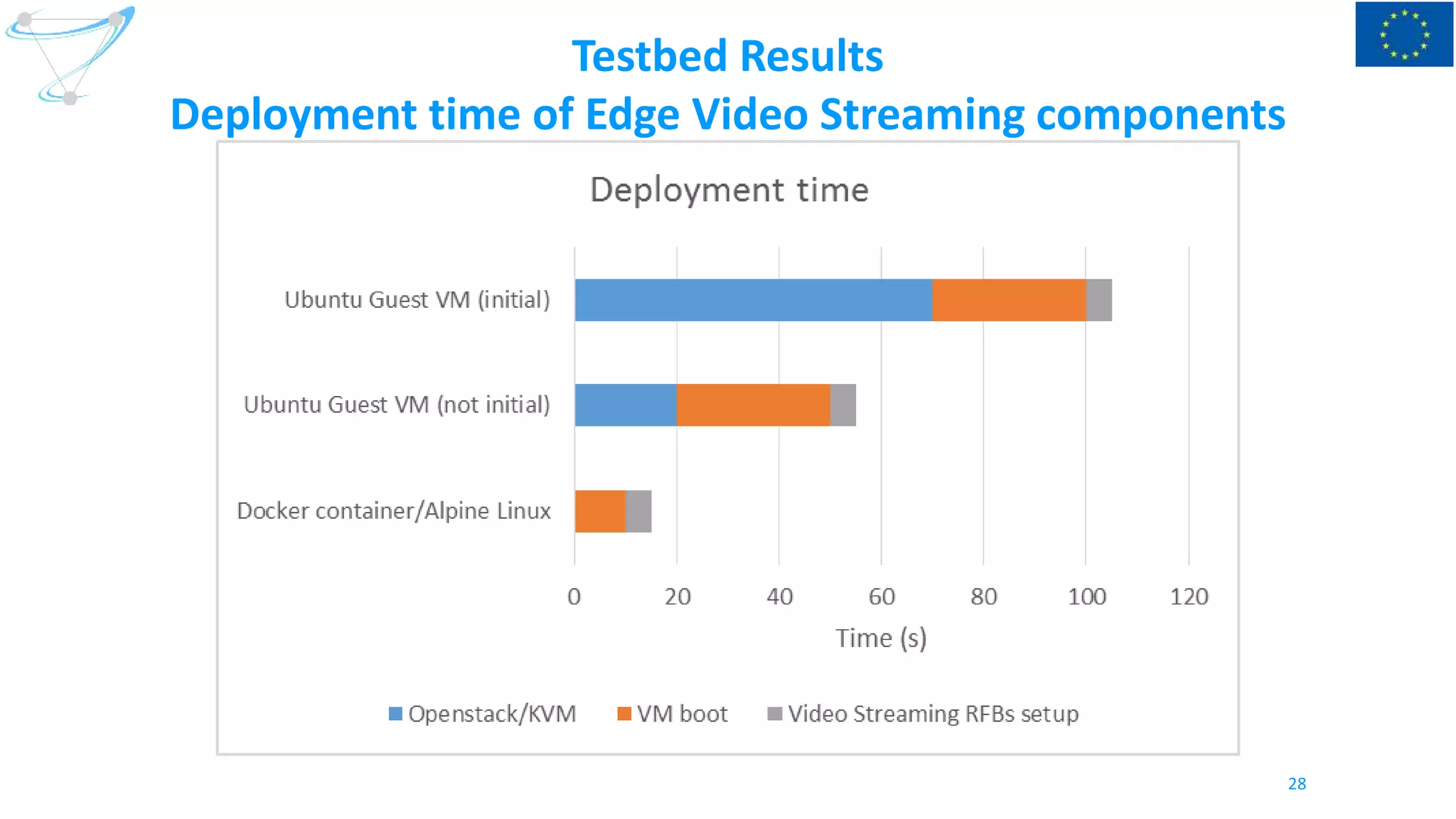

Testbed Results
Deployment time of Edge Video Streaming components
28
Thank you. Questions?
Contacts
Stefano Salsano
University of Rome Tor Vergata / CNIT
stefano.salsano@uniroma2.it
http://superfluidity.eu/
The work presented here only covers a subset of the work performed in the project
29

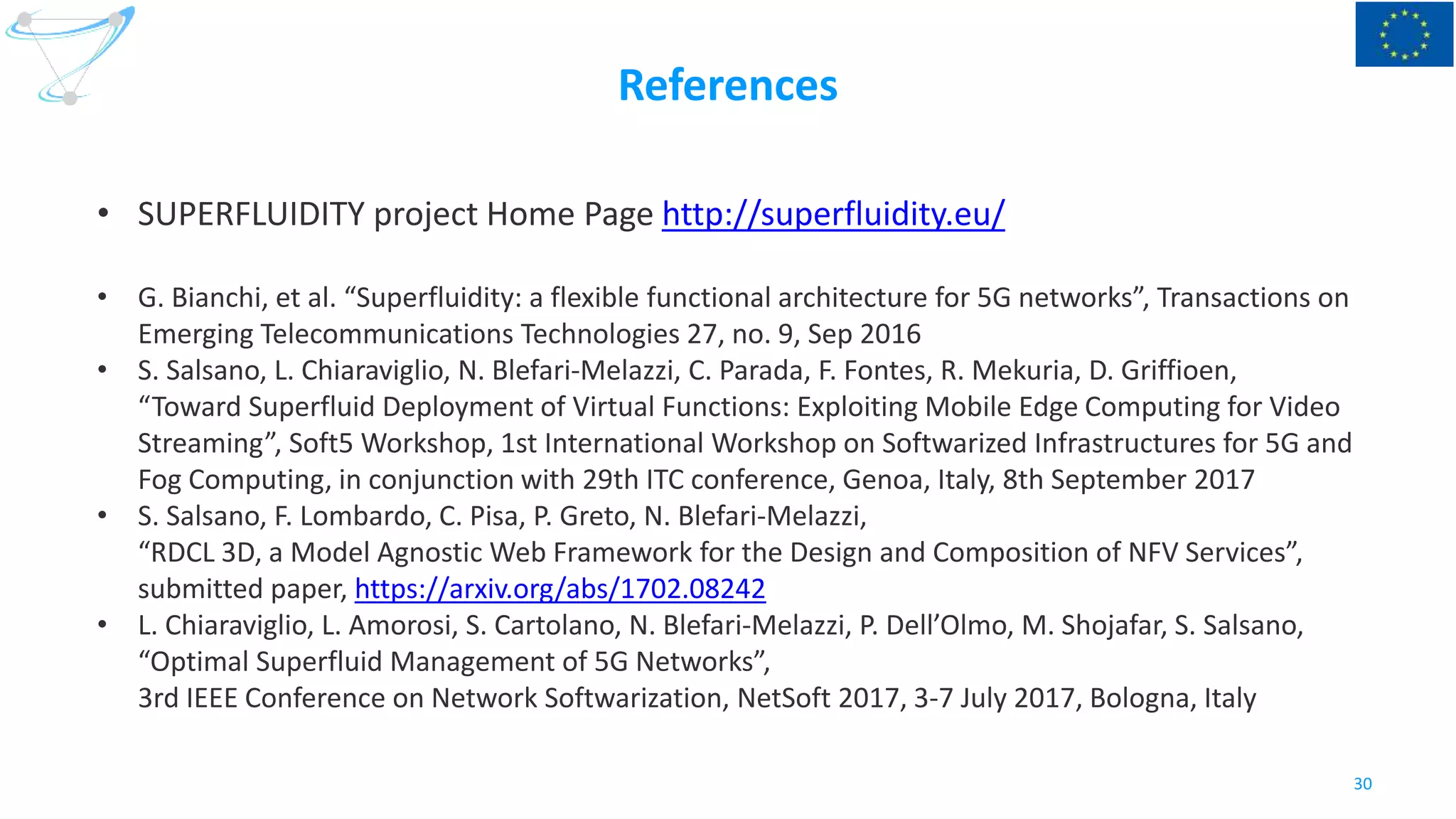

References
• SUPERFLUIDITY project Home Page http://superfluidity.eu/
• G. Bianchi, et al. “Superfluidity: a flexible functional architecture for 5G networks”, Transactions on
Emerging Telecommunications Technologies 27, no. 9, Sep 2016
• S. Salsano, L. Chiaraviglio, N. Blefari-Melazzi, C. Parada, F. Fontes, R. Mekuria, D. Griffioen,
“Toward Superfluid Deployment of Virtual Functions: Exploiting Mobile Edge Computing for Video
Streaming”, Soft5 Workshop, 1st International Workshop on Softwarized Infrastructures for 5G and
Fog Computing, in conjunction with 29th ITC conference, Genoa, Italy, 8th September 2017
• S. Salsano, F. Lombardo, C. Pisa, P. Greto, N. Blefari-Melazzi,
“RDCL 3D, a Model Agnostic Web Framework for the Design and Composition of NFV Services”,
submitted paper, https://arxiv.org/abs/1702.08242
• L. Chiaraviglio, L. Amorosi, S. Cartolano, N. Blefari-Melazzi, P. Dell’Olmo, M. Shojafar, S. Salsano,
“Optimal Superfluid Management of 5G Networks”,
3rd IEEE Conference on Network Softwarization, NetSoft 2017, 3-7 July 2017, Bologna, Italy
30
The SUPERFLUIDITY project has received funding from the European Union’s Horizon
2020 research and innovation programme under grant agreement No.671566
(Research and Innovation Action).
The information given is the author’s view and does not necessarily represent the view
of the European Commission (EC). No liability is accepted for any use that may be
made of the information contained.
31

More Related Content

What's hot

Testing Challenges and Approaches in Edge Computing
Testing Challenges and Approaches in Edge ComputingTesting Challenges and Approaches in Edge Computing
Testing Challenges and Approaches in Edge ComputingAxel Rennoch

NGMN Alliance Update
NGMN Alliance UpdateNGMN Alliance Update
NGMN Alliance UpdateITU

Lightweight Virtualized Containers For Open Platform for NFV* (OPNFV*)
Lightweight Virtualized Containers For Open Platform for NFV* (OPNFV*)Lightweight Virtualized Containers For Open Platform for NFV* (OPNFV*)
Lightweight Virtualized Containers For Open Platform for NFV* (OPNFV*)Michelle Holley

Implementing rina in 5 g networks ws
Implementing rina in 5 g networks wsImplementing rina in 5 g networks ws
Implementing rina in 5 g networks wsEduard Grasa

“Productizing Edge AI Across Applications and Verticals: Case Study and Insig...
“Productizing Edge AI Across Applications and Verticals: Case Study and Insig...“Productizing Edge AI Across Applications and Verticals: Case Study and Insig...
“Productizing Edge AI Across Applications and Verticals: Case Study and Insig...Edge AI and Vision Alliance

Easing the Path to Network Transformation - Network Transformation Experience...
Easing the Path to Network Transformation - Network Transformation Experience...Easing the Path to Network Transformation - Network Transformation Experience...
Easing the Path to Network Transformation - Network Transformation Experience...Liz Warner

Necos keynote UFRN Telecomday
Necos keynote UFRN TelecomdayNecos keynote UFRN Telecomday
Necos keynote UFRN TelecomdayAugusto Neto

Versal Premium ACAP for Network and Cloud Acceleration
Versal Premium ACAP for Network and Cloud AccelerationVersal Premium ACAP for Network and Cloud Acceleration
Versal Premium ACAP for Network and Cloud Accelerationinside-BigData.com

EU-Taiwan Workshop on 5G Research, PRISTINE introduction
EU-Taiwan Workshop on 5G Research, PRISTINE introductionEU-Taiwan Workshop on 5G Research, PRISTINE introduction
EU-Taiwan Workshop on 5G Research, PRISTINE introductionICT PRISTINE

RINA as a Clean-Slate Approach to Software Networks
RINA as a Clean-Slate Approach to Software Networks RINA as a Clean-Slate Approach to Software Networks
RINA as a Clean-Slate Approach to Software Networks ICT PRISTINE

Network function virtualization
Network function virtualizationNetwork function virtualization
Network function virtualizationSatish Chavan

Your Path to Edge Computing - Akraino Edge Stack Update
Your Path to Edge Computing - Akraino Edge Stack UpdateYour Path to Edge Computing - Akraino Edge Stack Update
Your Path to Edge Computing - Akraino Edge Stack UpdateLiz Warner

Linux Akraino Blueprint
Linux Akraino BlueprintLinux Akraino Blueprint
Linux Akraino BlueprintLiz Warner

5G Core Network - ZTE 5g Cloude ServCore
5G Core Network - ZTE 5g Cloude ServCore5G Core Network - ZTE 5g Cloude ServCore
5G Core Network - ZTE 5g Cloude ServCoreITU

5G Network Architecture and FMC
5G Network Architecture and FMC5G Network Architecture and FMC
5G Network Architecture and FMCITU

View Orchestration from Model Driven Engineering Prospective
View Orchestration from Model Driven Engineering ProspectiveView Orchestration from Model Driven Engineering Prospective
View Orchestration from Model Driven Engineering ProspectiveRichard Kuo

מונחים טכנולוגים למנהלי הדרכה באמדוקס
מונחים טכנולוגים למנהלי הדרכה באמדוקסמונחים טכנולוגים למנהלי הדרכה באמדוקס
מונחים טכנולוגים למנהלי הדרכה באמדוקסSamuel Dratwa

Building Next Generation Transport Networks
Building Next Generation Transport NetworksBuilding Next Generation Transport Networks
Building Next Generation Transport NetworksInfinera


What's hot (20)

Testing Challenges and Approaches in Edge Computing
Testing Challenges and Approaches in Edge ComputingTesting Challenges and Approaches in Edge Computing
Testing Challenges and Approaches in Edge Computing

5G is Now
5G is Now5G is Now
5G is Now

NGMN Alliance Update
NGMN Alliance UpdateNGMN Alliance Update
NGMN Alliance Update

Lightweight Virtualized Containers For Open Platform for NFV* (OPNFV*)
Lightweight Virtualized Containers For Open Platform for NFV* (OPNFV*)Lightweight Virtualized Containers For Open Platform for NFV* (OPNFV*)
Lightweight Virtualized Containers For Open Platform for NFV* (OPNFV*)

Implementing rina in 5 g networks ws
Implementing rina in 5 g networks wsImplementing rina in 5 g networks ws
Implementing rina in 5 g networks ws

“Productizing Edge AI Across Applications and Verticals: Case Study and Insig...
“Productizing Edge AI Across Applications and Verticals: Case Study and Insig...“Productizing Edge AI Across Applications and Verticals: Case Study and Insig...
“Productizing Edge AI Across Applications and Verticals: Case Study and Insig...

Easing the Path to Network Transformation - Network Transformation Experience...
Easing the Path to Network Transformation - Network Transformation Experience...Easing the Path to Network Transformation - Network Transformation Experience...
Easing the Path to Network Transformation - Network Transformation Experience...

Necos keynote UFRN Telecomday
Necos keynote UFRN TelecomdayNecos keynote UFRN Telecomday
Necos keynote UFRN Telecomday

Versal Premium ACAP for Network and Cloud Acceleration
Versal Premium ACAP for Network and Cloud AccelerationVersal Premium ACAP for Network and Cloud Acceleration
Versal Premium ACAP for Network and Cloud Acceleration

EU-Taiwan Workshop on 5G Research, PRISTINE introduction
EU-Taiwan Workshop on 5G Research, PRISTINE introductionEU-Taiwan Workshop on 5G Research, PRISTINE introduction
EU-Taiwan Workshop on 5G Research, PRISTINE introduction

RINA as a Clean-Slate Approach to Software Networks
RINA as a Clean-Slate Approach to Software Networks RINA as a Clean-Slate Approach to Software Networks
RINA as a Clean-Slate Approach to Software Networks

Network function virtualization
Network function virtualizationNetwork function virtualization
Network function virtualization

Your Path to Edge Computing - Akraino Edge Stack Update
Your Path to Edge Computing - Akraino Edge Stack UpdateYour Path to Edge Computing - Akraino Edge Stack Update
Your Path to Edge Computing - Akraino Edge Stack Update

Feec telecom-nw-softwarization-aug-2015
Feec telecom-nw-softwarization-aug-2015Feec telecom-nw-softwarization-aug-2015
Feec telecom-nw-softwarization-aug-2015

Linux Akraino Blueprint
Linux Akraino BlueprintLinux Akraino Blueprint
Linux Akraino Blueprint

5G Core Network - ZTE 5g Cloude ServCore
5G Core Network - ZTE 5g Cloude ServCore5G Core Network - ZTE 5g Cloude ServCore
5G Core Network - ZTE 5g Cloude ServCore

5G Network Architecture and FMC
5G Network Architecture and FMC5G Network Architecture and FMC
5G Network Architecture and FMC

View Orchestration from Model Driven Engineering Prospective
View Orchestration from Model Driven Engineering ProspectiveView Orchestration from Model Driven Engineering Prospective
View Orchestration from Model Driven Engineering Prospective

מונחים טכנולוגים למנהלי הדרכה באמדוקס
מונחים טכנולוגים למנהלי הדרכה באמדוקסמונחים טכנולוגים למנהלי הדרכה באמדוקס
מונחים טכנולוגים למנהלי הדרכה באמדוקס

Building Next Generation Transport Networks
Building Next Generation Transport NetworksBuilding Next Generation Transport Networks
Building Next Generation Transport Networks


Similar to Superfluid Deployment of Virtual Functions: Exploiting Mobile Edge Computing for Video Streaming

Superfluid Orchestration of heterogeneous Reusable Functional Blocks for 5G n...
Superfluid Orchestration of heterogeneous Reusable Functional Blocks for 5G n...Superfluid Orchestration of heterogeneous Reusable Functional Blocks for 5G n...
Superfluid Orchestration of heterogeneous Reusable Functional Blocks for 5G n...Stefano Salsano

Superfluid NFV: VMs and Virtual Infrastructure Managers speed-up for instanta...
Superfluid NFV: VMs and Virtual Infrastructure Managers speed-up for instanta...Superfluid NFV: VMs and Virtual Infrastructure Managers speed-up for instanta...
Superfluid NFV: VMs and Virtual Infrastructure Managers speed-up for instanta...Stefano Salsano

RDCL 3D, a Model Agnostic Web Framework for the Design and Composition of NFV...
RDCL 3D, a Model Agnostic Web Framework for the Design and Composition of NFV...RDCL 3D, a Model Agnostic Web Framework for the Design and Composition of NFV...
RDCL 3D, a Model Agnostic Web Framework for the Design and Composition of NFV...Stefano Salsano

Dataplane programming with eBPF: architecture and tools
Dataplane programming with eBPF: architecture and toolsDataplane programming with eBPF: architecture and tools
Dataplane programming with eBPF: architecture and toolsStefano Salsano

Pristine glif 2015
Pristine glif 2015Pristine glif 2015
Pristine glif 2015ICT PRISTINE

On SDN Research Topics - Christian Esteve Rothenberg
On SDN Research Topics - Christian Esteve RothenbergOn SDN Research Topics - Christian Esteve Rothenberg
On SDN Research Topics - Christian Esteve RothenbergCPqD

FIBRE project updates
FIBRE project updatesFIBRE project updates
FIBRE project updatesFIBRE Testbed

The Modern Telco Network: Defining The Telco Cloud
The Modern Telco Network: Defining The Telco CloudThe Modern Telco Network: Defining The Telco Cloud
The Modern Telco Network: Defining The Telco CloudMarco Rodrigues

Digital Media Production - Future Internet
Digital Media Production - Future InternetDigital Media Production - Future Internet
Digital Media Production - Future InternetMaarten Verwaest

Future Internet: Managing Innovation and Testbed
Future Internet: Managing Innovation and TestbedFuture Internet: Managing Innovation and Testbed
Future Internet: Managing Innovation and TestbedShinji Shimojo

Irati goals and achievements - 3rd RINA Workshop
Irati goals and achievements - 3rd RINA WorkshopIrati goals and achievements - 3rd RINA Workshop
Irati goals and achievements - 3rd RINA WorkshopEleni Trouva

Open Ethernet: an open-source approach to modern network design
Open Ethernet: an open-source approach to modern network designOpen Ethernet: an open-source approach to modern network design
Open Ethernet: an open-source approach to modern network designAlexander Petrovskiy

Software Stacks to enable SDN and NFV
Software Stacks to enable SDN and NFVSoftware Stacks to enable SDN and NFV
Software Stacks to enable SDN and NFVYoshihiro Nakajima

Eric Theis resume61.1
Eric Theis resume61.1Eric Theis resume61.1
Eric Theis resume61.1Eric Theis

Summit 16: Open Baton Overview
Summit 16: Open Baton OverviewSummit 16: Open Baton Overview
Summit 16: Open Baton OverviewOPNFV

OSHI - Open Source Hybrid IP/SDN networking @EWSDN14
OSHI - Open Source Hybrid IP/SDN networking @EWSDN14OSHI - Open Source Hybrid IP/SDN networking @EWSDN14
OSHI - Open Source Hybrid IP/SDN networking @EWSDN14Stefano Salsano

IRATI Experimentation, US-EU FIRE Workshop
IRATI Experimentation, US-EU FIRE WorkshopIRATI Experimentation, US-EU FIRE Workshop
IRATI Experimentation, US-EU FIRE WorkshopEleni Trouva


Similar to Superfluid Deployment of Virtual Functions: Exploiting Mobile Edge Computing for Video Streaming (20)

Superfluid Orchestration of heterogeneous Reusable Functional Blocks for 5G n...
Superfluid Orchestration of heterogeneous Reusable Functional Blocks for 5G n...Superfluid Orchestration of heterogeneous Reusable Functional Blocks for 5G n...
Superfluid Orchestration of heterogeneous Reusable Functional Blocks for 5G n...

Superfluid NFV: VMs and Virtual Infrastructure Managers speed-up for instanta...
Superfluid NFV: VMs and Virtual Infrastructure Managers speed-up for instanta...Superfluid NFV: VMs and Virtual Infrastructure Managers speed-up for instanta...
Superfluid NFV: VMs and Virtual Infrastructure Managers speed-up for instanta...

Japan's post K Computer
Japan's post K ComputerJapan's post K Computer
Japan's post K Computer

RDCL 3D, a Model Agnostic Web Framework for the Design and Composition of NFV...
RDCL 3D, a Model Agnostic Web Framework for the Design and Composition of NFV...RDCL 3D, a Model Agnostic Web Framework for the Design and Composition of NFV...
RDCL 3D, a Model Agnostic Web Framework for the Design and Composition of NFV...

Dataplane programming with eBPF: architecture and tools
Dataplane programming with eBPF: architecture and toolsDataplane programming with eBPF: architecture and tools
Dataplane programming with eBPF: architecture and tools

Pristine glif 2015
Pristine glif 2015Pristine glif 2015
Pristine glif 2015

On SDN Research Topics - Christian Esteve Rothenberg
On SDN Research Topics - Christian Esteve RothenbergOn SDN Research Topics - Christian Esteve Rothenberg
On SDN Research Topics - Christian Esteve Rothenberg

FIBRE project updates
FIBRE project updatesFIBRE project updates
FIBRE project updates

The Modern Telco Network: Defining The Telco Cloud
The Modern Telco Network: Defining The Telco CloudThe Modern Telco Network: Defining The Telco Cloud
The Modern Telco Network: Defining The Telco Cloud

Digital Media Production - Future Internet
Digital Media Production - Future InternetDigital Media Production - Future Internet
Digital Media Production - Future Internet

2017 dagstuhl-nfv-rothenberg
2017 dagstuhl-nfv-rothenberg2017 dagstuhl-nfv-rothenberg
2017 dagstuhl-nfv-rothenberg

Future Internet: Managing Innovation and Testbed
Future Internet: Managing Innovation and TestbedFuture Internet: Managing Innovation and Testbed
Future Internet: Managing Innovation and Testbed

Irati goals and achievements - 3rd RINA Workshop
Irati goals and achievements - 3rd RINA WorkshopIrati goals and achievements - 3rd RINA Workshop
Irati goals and achievements - 3rd RINA Workshop

Open Ethernet: an open-source approach to modern network design
Open Ethernet: an open-source approach to modern network designOpen Ethernet: an open-source approach to modern network design
Open Ethernet: an open-source approach to modern network design

Software Stacks to enable SDN and NFV
Software Stacks to enable SDN and NFVSoftware Stacks to enable SDN and NFV
Software Stacks to enable SDN and NFV

Eric Theis resume61.1
Eric Theis resume61.1Eric Theis resume61.1
Eric Theis resume61.1

guna_2015.DOC
guna_2015.DOCguna_2015.DOC
guna_2015.DOC

Summit 16: Open Baton Overview
Summit 16: Open Baton OverviewSummit 16: Open Baton Overview
Summit 16: Open Baton Overview

OSHI - Open Source Hybrid IP/SDN networking @EWSDN14
OSHI - Open Source Hybrid IP/SDN networking @EWSDN14OSHI - Open Source Hybrid IP/SDN networking @EWSDN14
OSHI - Open Source Hybrid IP/SDN networking @EWSDN14

IRATI Experimentation, US-EU FIRE Workshop
IRATI Experimentation, US-EU FIRE WorkshopIRATI Experimentation, US-EU FIRE Workshop
IRATI Experimentation, US-EU FIRE Workshop


More from Stefano Salsano

SRv6 experience for italy iPv6 council
SRv6 experience for italy iPv6 councilSRv6 experience for italy iPv6 council
SRv6 experience for italy iPv6 councilStefano Salsano

Ieee nfv-sdn-2020-srv6-tutorial
Ieee nfv-sdn-2020-srv6-tutorialIeee nfv-sdn-2020-srv6-tutorial
Ieee nfv-sdn-2020-srv6-tutorialStefano Salsano

Testbeds IntErconnections with L2 overlays - SRv6 for SFC
Testbeds IntErconnections with L2 overlays - SRv6 for SFCTestbeds IntErconnections with L2 overlays - SRv6 for SFC
Testbeds IntErconnections with L2 overlays - SRv6 for SFCStefano Salsano

Energy-efficient Path Allocation Heuristic for Service Function Chaining
Energy-efficient Path Allocation Heuristic for Service Function ChainingEnergy-efficient Path Allocation Heuristic for Service Function Chaining
Energy-efficient Path Allocation Heuristic for Service Function ChainingStefano Salsano

Extending OpenVIM R3 to support Unikernels (and Xen)
Extending OpenVIM R3 to support Unikernels (and Xen)Extending OpenVIM R3 to support Unikernels (and Xen)
Extending OpenVIM R3 to support Unikernels (and Xen)Stefano Salsano

D-STREAMON - NFV-capable distributed framework for network monitoring
D-STREAMON - NFV-capable distributed framework for network monitoringD-STREAMON - NFV-capable distributed framework for network monitoring
D-STREAMON - NFV-capable distributed framework for network monitoringStefano Salsano

Extending ETSI VNF descriptors and OpenVIM to support Unikernels
Extending ETSI VNF descriptors and OpenVIM to support UnikernelsExtending ETSI VNF descriptors and OpenVIM to support Unikernels
Extending ETSI VNF descriptors and OpenVIM to support UnikernelsStefano Salsano

Deploying of Unikernels in the NFV Infrastructure
Deploying of Unikernels in the NFV InfrastructureDeploying of Unikernels in the NFV Infrastructure
Deploying of Unikernels in the NFV InfrastructureStefano Salsano

The SCISSOR approach to establishing situational awareness in Industrial Cont...
The SCISSOR approach to establishing situational awareness in Industrial Cont...The SCISSOR approach to establishing situational awareness in Industrial Cont...
The SCISSOR approach to establishing situational awareness in Industrial Cont...Stefano Salsano

Tuning VIM performance for unikernels
Tuning VIM performance for unikernelsTuning VIM performance for unikernels
Tuning VIM performance for unikernelsStefano Salsano

Input for Cloud and mobile
Input for Cloud and mobileInput for Cloud and mobile
Input for Cloud and mobileStefano Salsano

Generalized Virtual Networking, an enabler for Service Centric Networking and...
Generalized Virtual Networking, an enabler for Service Centric Networking and...Generalized Virtual Networking, an enabler for Service Centric Networking and...
Generalized Virtual Networking, an enabler for Service Centric Networking and...Stefano Salsano


More from Stefano Salsano (13)

SRv6 experience for italy iPv6 council
SRv6 experience for italy iPv6 councilSRv6 experience for italy iPv6 council
SRv6 experience for italy iPv6 council

Ieee nfv-sdn-2020-srv6-tutorial
Ieee nfv-sdn-2020-srv6-tutorialIeee nfv-sdn-2020-srv6-tutorial
Ieee nfv-sdn-2020-srv6-tutorial

hpsr-2020-srv6-tutorial
hpsr-2020-srv6-tutorialhpsr-2020-srv6-tutorial
hpsr-2020-srv6-tutorial

Testbeds IntErconnections with L2 overlays - SRv6 for SFC
Testbeds IntErconnections with L2 overlays - SRv6 for SFCTestbeds IntErconnections with L2 overlays - SRv6 for SFC
Testbeds IntErconnections with L2 overlays - SRv6 for SFC

Energy-efficient Path Allocation Heuristic for Service Function Chaining
Energy-efficient Path Allocation Heuristic for Service Function ChainingEnergy-efficient Path Allocation Heuristic for Service Function Chaining
Energy-efficient Path Allocation Heuristic for Service Function Chaining

Extending OpenVIM R3 to support Unikernels (and Xen)
Extending OpenVIM R3 to support Unikernels (and Xen)Extending OpenVIM R3 to support Unikernels (and Xen)
Extending OpenVIM R3 to support Unikernels (and Xen)

D-STREAMON - NFV-capable distributed framework for network monitoring
D-STREAMON - NFV-capable distributed framework for network monitoringD-STREAMON - NFV-capable distributed framework for network monitoring
D-STREAMON - NFV-capable distributed framework for network monitoring

Extending ETSI VNF descriptors and OpenVIM to support Unikernels
Extending ETSI VNF descriptors and OpenVIM to support UnikernelsExtending ETSI VNF descriptors and OpenVIM to support Unikernels
Extending ETSI VNF descriptors and OpenVIM to support Unikernels

Deploying of Unikernels in the NFV Infrastructure
Deploying of Unikernels in the NFV InfrastructureDeploying of Unikernels in the NFV Infrastructure
Deploying of Unikernels in the NFV Infrastructure

The SCISSOR approach to establishing situational awareness in Industrial Cont...
The SCISSOR approach to establishing situational awareness in Industrial Cont...The SCISSOR approach to establishing situational awareness in Industrial Cont...
The SCISSOR approach to establishing situational awareness in Industrial Cont...

Tuning VIM performance for unikernels
Tuning VIM performance for unikernelsTuning VIM performance for unikernels
Tuning VIM performance for unikernels

Input for Cloud and mobile
Input for Cloud and mobileInput for Cloud and mobile
Input for Cloud and mobile

Generalized Virtual Networking, an enabler for Service Centric Networking and...
Generalized Virtual Networking, an enabler for Service Centric Networking and...Generalized Virtual Networking, an enabler for Service Centric Networking and...
Generalized Virtual Networking, an enabler for Service Centric Networking and...


Recently uploaded

Premier Mobile App Development Agency in USA.pdf
Premier Mobile App Development Agency in USA.pdfPremier Mobile App Development Agency in USA.pdf
Premier Mobile App Development Agency in USA.pdfappinfoedgeca

audience research (emma) 1.pptxkkkkkkkkkkkkkkkkk
audience research (emma) 1.pptxkkkkkkkkkkkkkkkkkaudience research (emma) 1.pptxkkkkkkkkkkkkkkkkk
audience research (emma) 1.pptxkkkkkkkkkkkkkkkkklolsDocherty

The Use of AI in Indonesia Election 2024: A Case Study
The Use of AI in Indonesia Election 2024: A Case StudyThe Use of AI in Indonesia Election 2024: A Case Study
The Use of AI in Indonesia Election 2024: A Case StudyDamar Juniarto

TORTOGEL TELAH MENJADI SALAH SATU PLATFORM PERMAINAN PALING FAVORIT.
TORTOGEL TELAH MENJADI SALAH SATU PLATFORM PERMAINAN PALING FAVORIT.TORTOGEL TELAH MENJADI SALAH SATU PLATFORM PERMAINAN PALING FAVORIT.
TORTOGEL TELAH MENJADI SALAH SATU PLATFORM PERMAINAN PALING FAVORIT.Tortogel

I’ll See Y’All Motherfuckers In Game 7 Shirt
I’ll See Y’All Motherfuckers In Game 7 ShirtI’ll See Y’All Motherfuckers In Game 7 Shirt
I’ll See Y’All Motherfuckers In Game 7 Shirtrahman018755

Cyber Security Services Unveiled: Strategies to Secure Your Digital Presence
Cyber Security Services Unveiled: Strategies to Secure Your Digital PresenceCyber Security Services Unveiled: Strategies to Secure Your Digital Presence
Cyber Security Services Unveiled: Strategies to Secure Your Digital PresencePC Doctors NET

Pvtaan Social media marketing proposal.pdf
Pvtaan Social media marketing proposal.pdfPvtaan Social media marketing proposal.pdf
Pvtaan Social media marketing proposal.pdfPvtaan

iThome_CYBERSEC2024_Drive_Into_the_DarkWeb
iThome_CYBERSEC2024_Drive_Into_the_DarkWebiThome_CYBERSEC2024_Drive_Into_the_DarkWeb
iThome_CYBERSEC2024_Drive_Into_the_DarkWebJie Liau

Topology of the Network class 8 .ppt pdf
Topology of the Network class 8 .ppt pdfTopology of the Network class 8 .ppt pdf
Topology of the Network class 8 .ppt pdfAnushkaTripathi61

Statistical Analysis of DNS Latencies.pdf
Statistical Analysis of DNS Latencies.pdfStatistical Analysis of DNS Latencies.pdf
Statistical Analysis of DNS Latencies.pdfOndejSur

How Do I Begin the Linksys Velop Setup Process?
How Do I Begin the Linksys Velop Setup Process?How Do I Begin the Linksys Velop Setup Process?
How Do I Begin the Linksys Velop Setup Process?Linksys Velop Login

Production 2024 sunderland culture final - Copy.pptx
Production 2024 sunderland culture final - Copy.pptxProduction 2024 sunderland culture final - Copy.pptx
Production 2024 sunderland culture final - Copy.pptxChloeMeadows1

Development Lifecycle.pptx for the secure development of apps
Development Lifecycle.pptx for the secure development of appsDevelopment Lifecycle.pptx for the secure development of apps
Development Lifecycle.pptx for the secure development of appscristianmanaila2

Thank You Luv I’ll Never Walk Alone Again T shirts
Thank You Luv I’ll Never Walk Alone Again T shirtsThank You Luv I’ll Never Walk Alone Again T shirts
Thank You Luv I’ll Never Walk Alone Again T shirtsrahman018755

Bug Bounty Blueprint : A Beginner's Guide
Bug Bounty Blueprint : A Beginner's GuideBug Bounty Blueprint : A Beginner's Guide
Bug Bounty Blueprint : A Beginner's GuideVarun Mithran

Reggie miller choke t shirtsReggie miller choke t shirts
Reggie miller choke t shirtsReggie miller choke t shirtsReggie miller choke t shirtsReggie miller choke t shirts
Reggie miller choke t shirtsReggie miller choke t shirtsrahman018755


Recently uploaded (16)

Premier Mobile App Development Agency in USA.pdf
Premier Mobile App Development Agency in USA.pdfPremier Mobile App Development Agency in USA.pdf
Premier Mobile App Development Agency in USA.pdf

audience research (emma) 1.pptxkkkkkkkkkkkkkkkkk
audience research (emma) 1.pptxkkkkkkkkkkkkkkkkkaudience research (emma) 1.pptxkkkkkkkkkkkkkkkkk
audience research (emma) 1.pptxkkkkkkkkkkkkkkkkk

The Use of AI in Indonesia Election 2024: A Case Study
The Use of AI in Indonesia Election 2024: A Case StudyThe Use of AI in Indonesia Election 2024: A Case Study
The Use of AI in Indonesia Election 2024: A Case Study

TORTOGEL TELAH MENJADI SALAH SATU PLATFORM PERMAINAN PALING FAVORIT.
TORTOGEL TELAH MENJADI SALAH SATU PLATFORM PERMAINAN PALING FAVORIT.TORTOGEL TELAH MENJADI SALAH SATU PLATFORM PERMAINAN PALING FAVORIT.
TORTOGEL TELAH MENJADI SALAH SATU PLATFORM PERMAINAN PALING FAVORIT.

I’ll See Y’All Motherfuckers In Game 7 Shirt
I’ll See Y’All Motherfuckers In Game 7 ShirtI’ll See Y’All Motherfuckers In Game 7 Shirt
I’ll See Y’All Motherfuckers In Game 7 Shirt

Cyber Security Services Unveiled: Strategies to Secure Your Digital Presence
Cyber Security Services Unveiled: Strategies to Secure Your Digital PresenceCyber Security Services Unveiled: Strategies to Secure Your Digital Presence
Cyber Security Services Unveiled: Strategies to Secure Your Digital Presence

Pvtaan Social media marketing proposal.pdf
Pvtaan Social media marketing proposal.pdfPvtaan Social media marketing proposal.pdf
Pvtaan Social media marketing proposal.pdf

iThome_CYBERSEC2024_Drive_Into_the_DarkWeb
iThome_CYBERSEC2024_Drive_Into_the_DarkWebiThome_CYBERSEC2024_Drive_Into_the_DarkWeb
iThome_CYBERSEC2024_Drive_Into_the_DarkWeb

Topology of the Network class 8 .ppt pdf
Topology of the Network class 8 .ppt pdfTopology of the Network class 8 .ppt pdf
Topology of the Network class 8 .ppt pdf

Statistical Analysis of DNS Latencies.pdf
Statistical Analysis of DNS Latencies.pdfStatistical Analysis of DNS Latencies.pdf
Statistical Analysis of DNS Latencies.pdf

How Do I Begin the Linksys Velop Setup Process?
How Do I Begin the Linksys Velop Setup Process?How Do I Begin the Linksys Velop Setup Process?
How Do I Begin the Linksys Velop Setup Process?

Production 2024 sunderland culture final - Copy.pptx
Production 2024 sunderland culture final - Copy.pptxProduction 2024 sunderland culture final - Copy.pptx
Production 2024 sunderland culture final - Copy.pptx

Development Lifecycle.pptx for the secure development of apps
Development Lifecycle.pptx for the secure development of appsDevelopment Lifecycle.pptx for the secure development of apps
Development Lifecycle.pptx for the secure development of apps

Thank You Luv I’ll Never Walk Alone Again T shirts
Thank You Luv I’ll Never Walk Alone Again T shirtsThank You Luv I’ll Never Walk Alone Again T shirts
Thank You Luv I’ll Never Walk Alone Again T shirts

Bug Bounty Blueprint : A Beginner's Guide
Bug Bounty Blueprint : A Beginner's GuideBug Bounty Blueprint : A Beginner's Guide
Bug Bounty Blueprint : A Beginner's Guide

Reggie miller choke t shirtsReggie miller choke t shirts
Reggie miller choke t shirtsReggie miller choke t shirtsReggie miller choke t shirtsReggie miller choke t shirts
Reggie miller choke t shirtsReggie miller choke t shirts


Superfluid Deployment of Virtual Functions: Exploiting Mobile Edge Computing for Video Streaming

  • 1. Toward Superfluid Deployment of Virtual Functions: Exploiting Mobile Edge Computing for Video Streaming Stefano Salsano(1), Luca Chiaraviglio(1), Nicola Blefari-Melazzi(1), Carlos Parada(2), Francisco Fontes(2), Rufael Mekuria(3), Dirk Griffioen(3) (1)CNIT / Univ. of Rome Tor Vergata, Italy; (2) Altice Labs, Portugal; (3) Unified Streaming, Netherlands Soft5 Workshop - First International Workshop on Softwarized Infrastructures for 5G and Fog Computing, in conjunction with ITC 29 Genoa, Italy - 8th September, 2017 A super-fluid, cloud-native, converged edge system
  • 2. Outline • Superfluidity project: goals and architecture • Mobile Edge Computing (MEC) • Video Streaming with Late Transmuxing (LTM) • Combined MEC/LTM Video streaming testbed 2
  • 3. Superfluidity project Superfluidity Goals • Instantiate network functions and services on-the-fly • Run them anywhere in the network (core, aggregation, edge), across heterogeneous infrastructure environments (computing and networking), taking advantage of specific hardware features, such as high performance accelerators, when available Superfluidity Approach • Decomposition of network components and services into elementary and reusable primitives (“Reusable Functional Blocks – RFBs”) • Platform-independent abstractions, permitting reuse of network functions across heterogeneous hardware platforms 3
  • 4. The Superfluidity vision 4 Current NFV technology Granularity Time scale Superfluid NFV technology Days, Hours Minutes Seconds Milliseconds Big VMs Small components Micro operations • From VNF Virtual Network Functions to RFB Reusable Functional Blocks • Heterogeneous RFB execution environments - Hypervisors - Modular routers - Packet processors …
  • 5. Heterogeneous composition/execution environments 5 • Classical NFV environments (i.e. by ETSI NFV standards) – VNFs are composed/orchestrated to realize Network Services – VNFs can be decomposed in VNFC (VNF Components) «Big» VNF «Big» VNF «Big» VNF «Big» VNF VNFC VNFC VNFC VM VM
  • 6. Heterogeneous composition/execution environments 6 • Towards more «fine-grained» decomposition… • Modular software routers (e.g. Click) – Click elements are combined in configurations (Direct Acyclic Graphs)
  • 7. Heterogeneous composition/execution environments 7 • Towards more «fine-grained» decomposition… • XSFM-based (eXtended Finite State Machine) decomposition of traffic forwarding / flow processing tasks, and HW support for wire speed execution
  • 8. The Superfluidity Architecture 8 RFB #a RFB #b RFB #c RFB #n (node-level) RDCL script REE RFB#2 (network-level) RDCL script REE Manager REE User REE Resource Entity UM API MR API REE User UM API REE Resource Entity REE Manager (network-wide) REE RFB Execution Environment RFB#1 MR API(node-level) REE RFB Execution Environment
  • 9. (Towards) Common Abstractions for Heterogeneous Environments 9 RFB Execution Environment(s) RFBs Description & Composition Languages (RDCLs) and tools • “Traditional” NFVI infrastructure hypervisors with Full VMs • Unikernel based virtualization • Software modular routers environments (e.g. Click) • Radio processing SW modules • Hardware packet processors • ETSI VNF descriptors / NEMO • MISTRAL – HEAT • Docker Compose … • Click configurations / SEFL / Symnet • PN (Process Networks), SDF (Synchronous Data Flow)… • XFSMs
  • 10. Working prototype RDCL 3D: RFB Description and Composition Language Design Deploy and Direct 10 This is a regular VM (XEN HVM) These are 3 Unikernel VMs (ClickOS)
  • 11. Outline • Superfluidity project: goals and architecture • Mobile Edge Computing (MEC) • Video Streaming with Late Transmuxing (LTM) • Combined MEC/LTM Video streaming testbed 11
  • 12. Mobile Edge Computing (MEC) Basics 12 Datacenter Core Central Office Central Office Customer
  • 13. Mobile Edge Computing (MEC) Model 13 MEC Platform Dedicated/Specific Hardware Dedicated/Specific Hardware COTS Hardware Base Band Unit B (BBU) Base Band Unit A (BBU) Remote Radio Head A (RRH) Remote Radio Head B (RRH) CPRI CPRI (fixed) Central Office DC API API API API API MEC-App MEC-App MEC-App MEC-App MEC-App MEC-App Core DC
  • 14. Mobile Edge Computing (MEC) Architecture 14 User Traffic Forwarding eNB/BBU User Traffic Forwarding CORE (EPC) MEC TOF GTP-U Encap S/DNAT Traffic Filter (UL) Router Traffic Filter (DL) GTP-U Encap MEC Host ME Service (TOF) ME Service (RNIS) ME Service (LOC) ME Service (DNS) ME App C (e.g. Video Streaming) ME App B (e.g. Augmented Reality) ME App A (e.g. IoT) GTP-U Decap GTP-U Decap NFVI User Traffic Forwarding UserTrafficForwarding API (LOC) API (DNS) API (NIS API (TOF) MEPlatform(BUS) Applications and Services (AS) Data Plane Forwarding (DPF) MEC System level ME Orchestrator Virtualized Infrastructure Management (VIM) Platform Manager ME App A Manager ME App B Manager ME App C Manager Rep MEC Edge level Management and Orchestration (MO)
  • 15. Network scenario: sharing the HW infrastructure 15 RRHs RRHs RRHs ADSL Cable Fiber Fixed Networks vDSLAM/vOLT/vCTMS BBUBBU BBU µDC-PoP Edge Computing (MEC) Platform
  • 16. Service Example: Local Offloading of Video Streaming (with Late Transmuxing) 16 Core DC MEC Host Data Plane Data Plane Traffic Offloading Function BBURRH
  • 17. Outline • Superfluidity project: goals and architecture • Mobile Edge Computing (MEC) • Video Streaming with Late Transmuxing (LTM) • Combined MEC/LTM Video streaming testbed 17
  • 18. Basic Video Streaming deployment 18 JIT PACKAGER MPEG-DASH, HLS, HSS, HSD CDN MPEG-DASH, HLS, HSS, HSD Media Storage or Live Encoder Origin ServerCDN Proxy Cache End-user Devices
  • 19. Late TransMuxing 19 1. Unified Origin: one ingest format, various output formats 2. Contribution: split and move to the edge 3. How? Use an intermediate optimal media exchange format between core and edge, cache this format
  • 20. Late Transmuxing Prototype RFB based deployment 20 Video Content Storage Nginx Byte Range Cache Nginx CDN Cache Proxy Back endEdge end Manifest Generation Apache Origin Transmux App Manifest Generation Apache Edge Transmux App Multi bit-rate Encoder Front end Player page
  • 21. Outline • Superfluidity project: goals and architecture • Mobile Edge Computing (MEC) • Video Streaming with Late Transmuxing (LTM) • Combined MEC/LTM Video streaming testbed 21
  • 23. UE (Bob) MEC/Video Streaming Demo User Traffic Forwarding eNB/BBU User Traffic Forwarding Server MEC TOF GTP-U Encap S/DNAT Traffic Filter (UL) Router Traffic Filter (DL) GTP-U Encap GTP-U Decap GTP-U Decap Data Plane Forwarding MEC Host NFVI User Traffic Forwarding UserTrafficForwarding Applications and Services • The LTM server in the core is initially contacted CORE (EPC) UO LTM UO Storage
  • 24. MEC Host NFVI User Traffic Forwarding Applications and Services UserTrafficForwarding UE (Bob) MEC/Video Streaming Demo User Traffic Forwarding eNB/BBU User Traffic Forwarding Server MEC TOF GTP-U Encap S/DNAT Traffic Filter (UL) Router Traffic Filter (DL) GTP-U Encap GTP-U Decap GTP-U Decap Data Plane Forwarding Unified Origin LTM • The Management and Orchestration (MANO) layer instantiates the LTM application in the edge (so far, MANO is just a manual script execution) CORE (EPC) UO LTM UO Storage MEC Management and Orchestrator
  • 25. MEC Host Unified Origin LTM NFVI User Traffic Forwarding Applications and Services UserTrafficForwarding UE (Bob) MEC/Video Streaming Demo User Traffic Forwarding eNB/BBU User Traffic Forwarding Server MEC TOF GTP-U Encap S/DNAT Traffic Filter (UL) Router Traffic Filter (DL) GTP-U Encap GTP-U Decap GTP-U Decap Data Plane Forwarding • After the LTM instantiation is fully operational, the MANO layer configures the TOF in order to redirect the video request to the new LTM CORE (EPC) UO LTM UO Storage MEC Management and Orchestrator
  • 26. MEC Host Unified Origin LTM NFVI User Traffic Forwarding Applications and Services UserTrafficForwarding UE (Bob) MEC/Video Streaming Demo User Traffic Forwarding eNB/BBU User Traffic Forwarding Server MEC TOF GTP-U Encap S/DNAT Traffic Filter (UL) Router Traffic Filter (DL) GTP-U Encap GTP-U Decap GTP-U Decap Data Plane Forwarding • The subscriber will, transparently, start getting the video service from the edge LTM, which in turn accesses the central storage for contents CORE (EPC) UO LTM UO Storage
  • 28. Testbed Results Deployment time of Edge Video Streaming components 28
  • 29. Thank you. Questions? Contacts Stefano Salsano University of Rome Tor Vergata / CNIT stefano.salsano@uniroma2.it http://superfluidity.eu/ The work presented here only covers a subset of the work performed in the project 29
  • 30. References • SUPERFLUIDITY project Home Page http://superfluidity.eu/ • G. Bianchi, et al. “Superfluidity: a flexible functional architecture for 5G networks”, Transactions on Emerging Telecommunications Technologies 27, no. 9, Sep 2016 • S. Salsano, L. Chiaraviglio, N. Blefari-Melazzi, C. Parada, F. Fontes, R. Mekuria, D. Griffioen, “Toward Superfluid Deployment of Virtual Functions: Exploiting Mobile Edge Computing for Video Streaming”, Soft5 Workshop, 1st International Workshop on Softwarized Infrastructures for 5G and Fog Computing, in conjunction with 29th ITC conference, Genoa, Italy, 8th September 2017 • S. Salsano, F. Lombardo, C. Pisa, P. Greto, N. Blefari-Melazzi, “RDCL 3D, a Model Agnostic Web Framework for the Design and Composition of NFV Services”, submitted paper, https://arxiv.org/abs/1702.08242 • L. Chiaraviglio, L. Amorosi, S. Cartolano, N. Blefari-Melazzi, P. Dell’Olmo, M. Shojafar, S. Salsano, “Optimal Superfluid Management of 5G Networks”, 3rd IEEE Conference on Network Softwarization, NetSoft 2017, 3-7 July 2017, Bologna, Italy 30
  • 31. The SUPERFLUIDITY project has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No.671566 (Research and Innovation Action). The information given is the author’s view and does not necessarily represent the view of the European Commission (EC). No liability is accepted for any use that may be made of the information contained. 31
