1. Stream Execution
with Clojure and Fork/Join
Alex Miller - @puredanger
Revelytix - http://revelytix.com

2. Contents
• Query execution - the problem
• Plan representation - plans in our program
• Processing components - building blocks
• Processing execution - executing plans
2

3. Query Execution

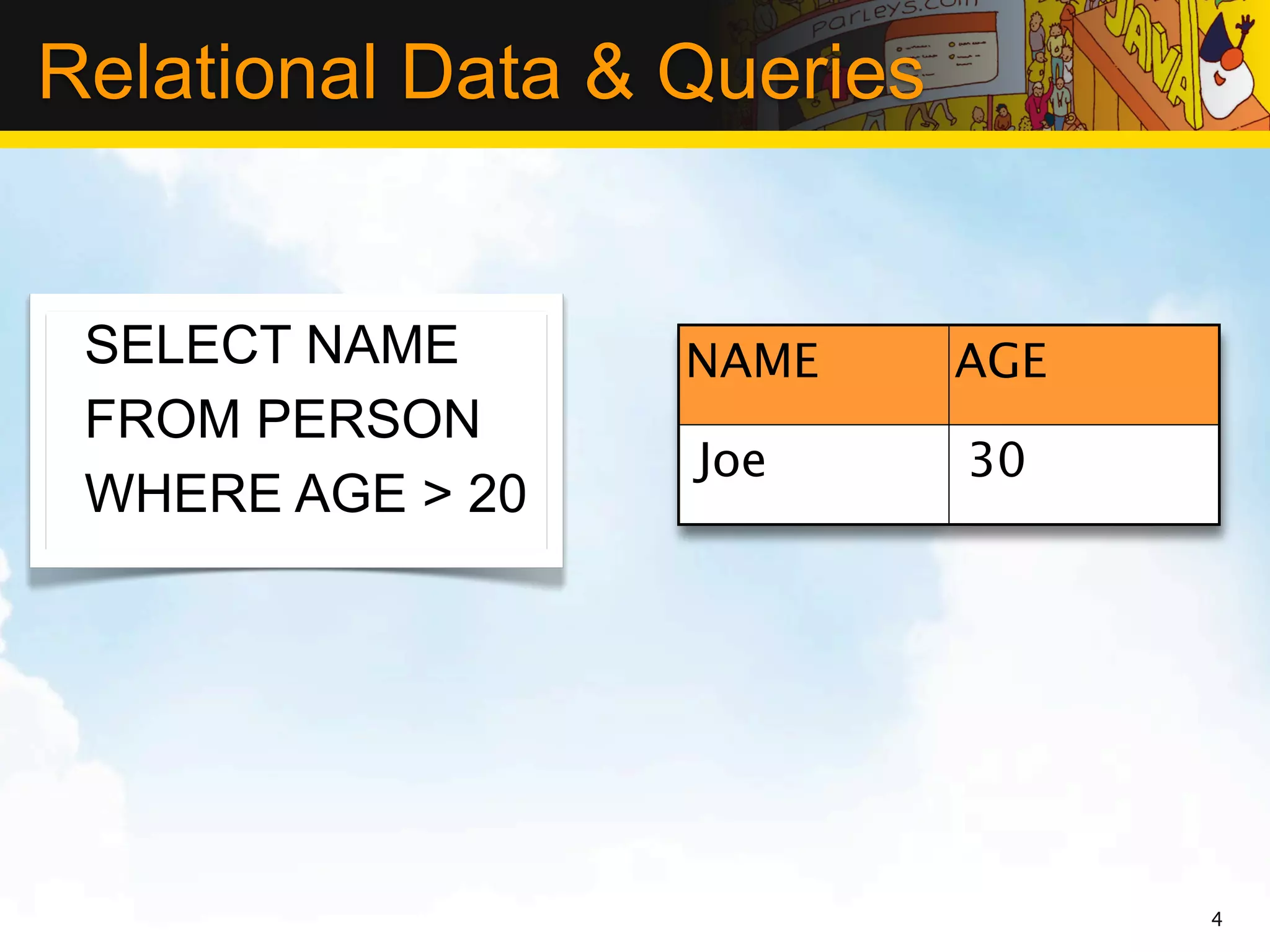

4. Relational Data & Queries
SELECT NAME NAME AGE
FROM PERSON
Joe 30
WHERE AGE > 20
4

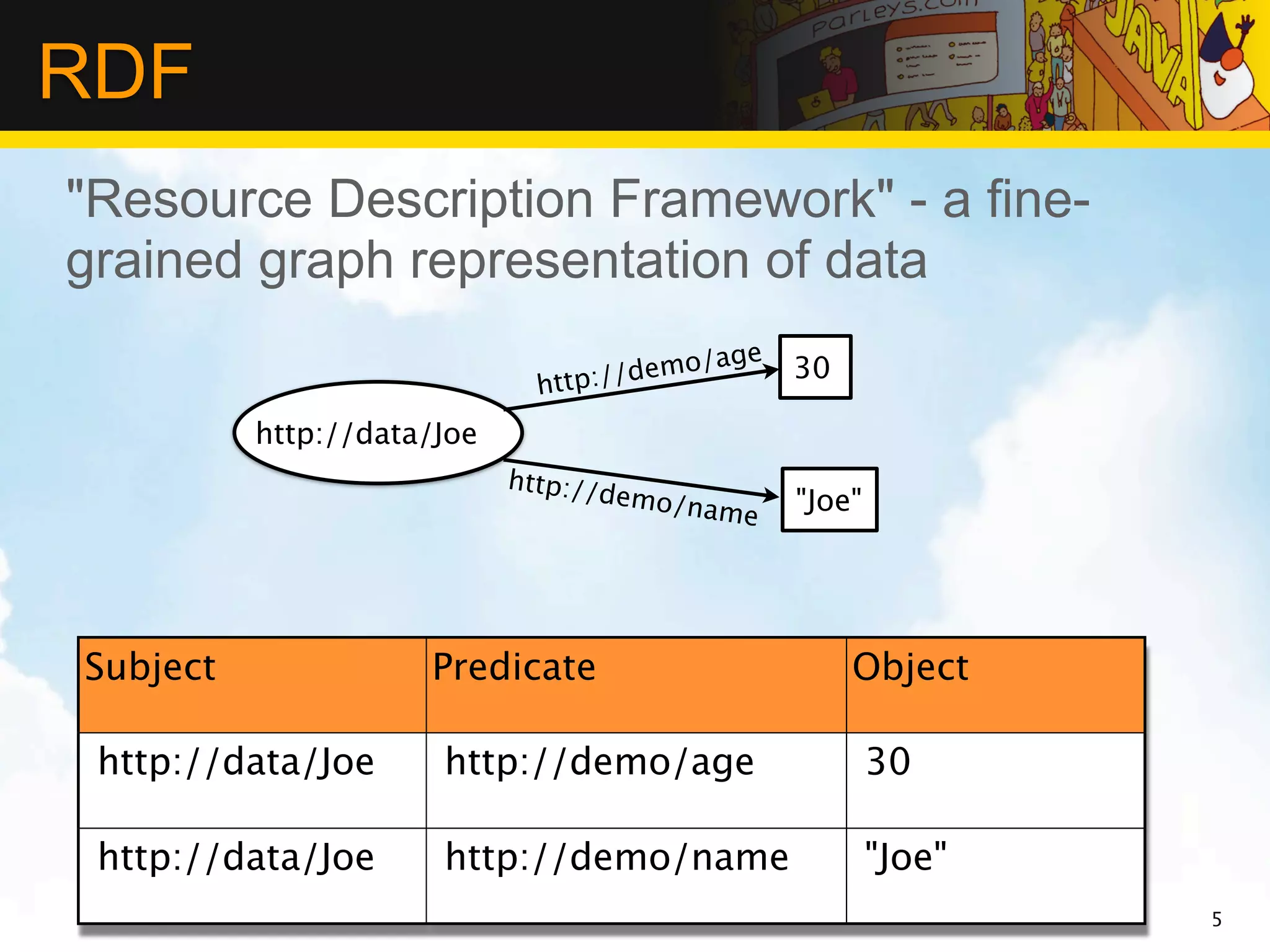

5. RDF
"Resource Description Framework" - a fine-
grained graph representation of data
o/ a ge 30
http : / / d em
http://data/Joe
http://
d emo/na "Joe"
me
Subject Predicate Object
http://data/Joe http://demo/age 30
http://data/Joe http://demo/name "Joe"
5

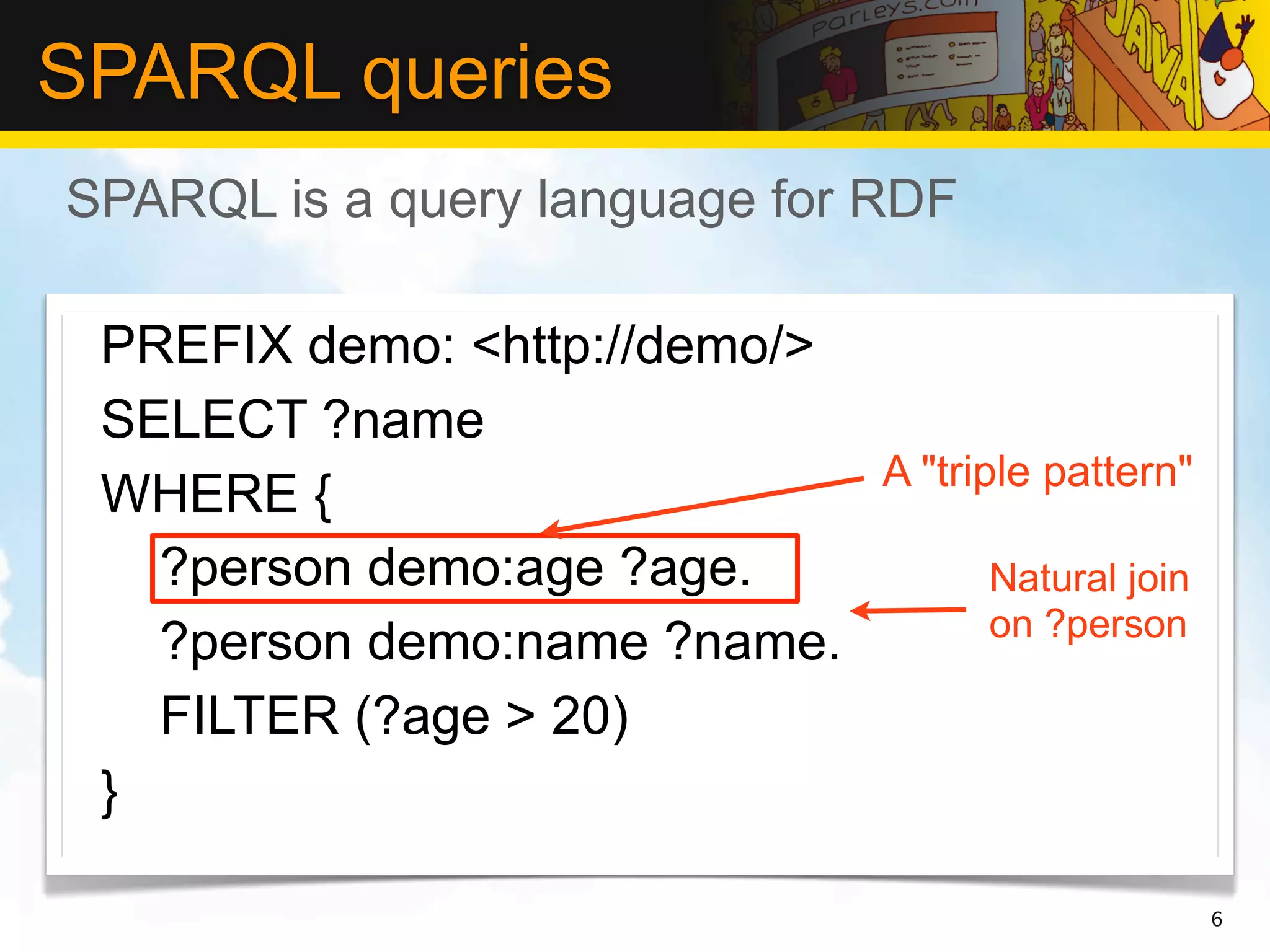

6. SPARQL queries
SPARQL is a query language for RDF
PREFIX demo: <http://demo/>
SELECT ?name
A "triple pattern"
WHERE {
?person demo:age ?age. Natural join
on ?person
?person demo:name ?name.
FILTER (?age > 20)
}
6

7. Relational-to-RDF
• W3C R2RML mappings define how to virtually
map a relational db into RDF
PREFIX demo: <http://demo/>
SELECT ?name SELECT NAME
WHERE { FROM PERSON
?person demo:age ?age. WHERE AGE > 20
?person demo:name ?name.
FILTER (?age > 20)
}
NAME AGE
emo/ag
e
30 Joe 30
http://d
http://data/Joe 7
http://
d emo/na "Joe"
me

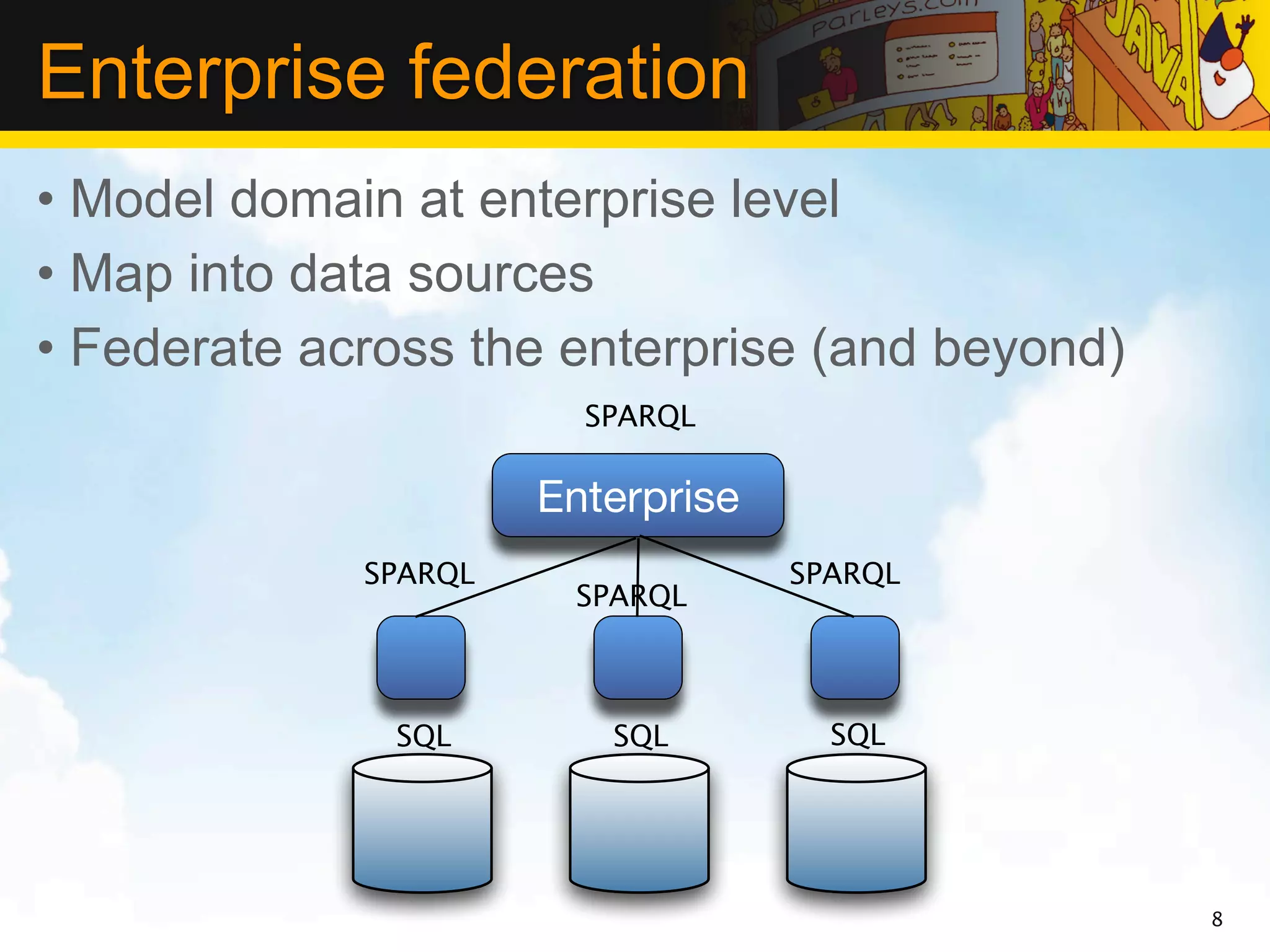

8. Enterprise federation
• Model domain at enterprise level
• Map into data sources
• Federate across the enterprise (and beyond)
SPARQL
Enterprise
SPARQL SPARQL
SPARQL
SQL SQL SQL
8

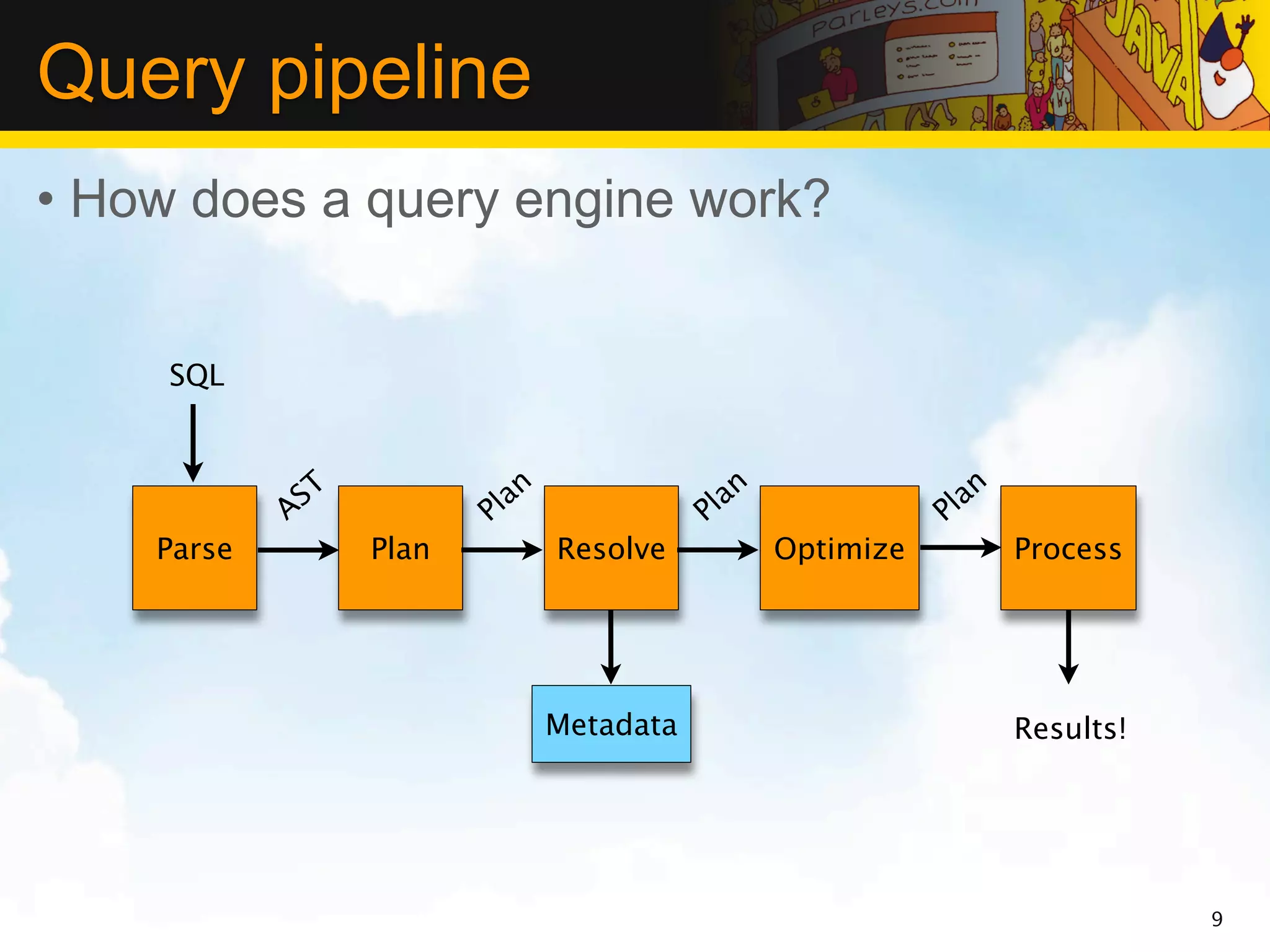

9. Query pipeline
• How does a query engine work?
SQL
ST an an an
A Pl Pl Pl
Parse Plan Resolve Optimize Process
Metadata Results!
9

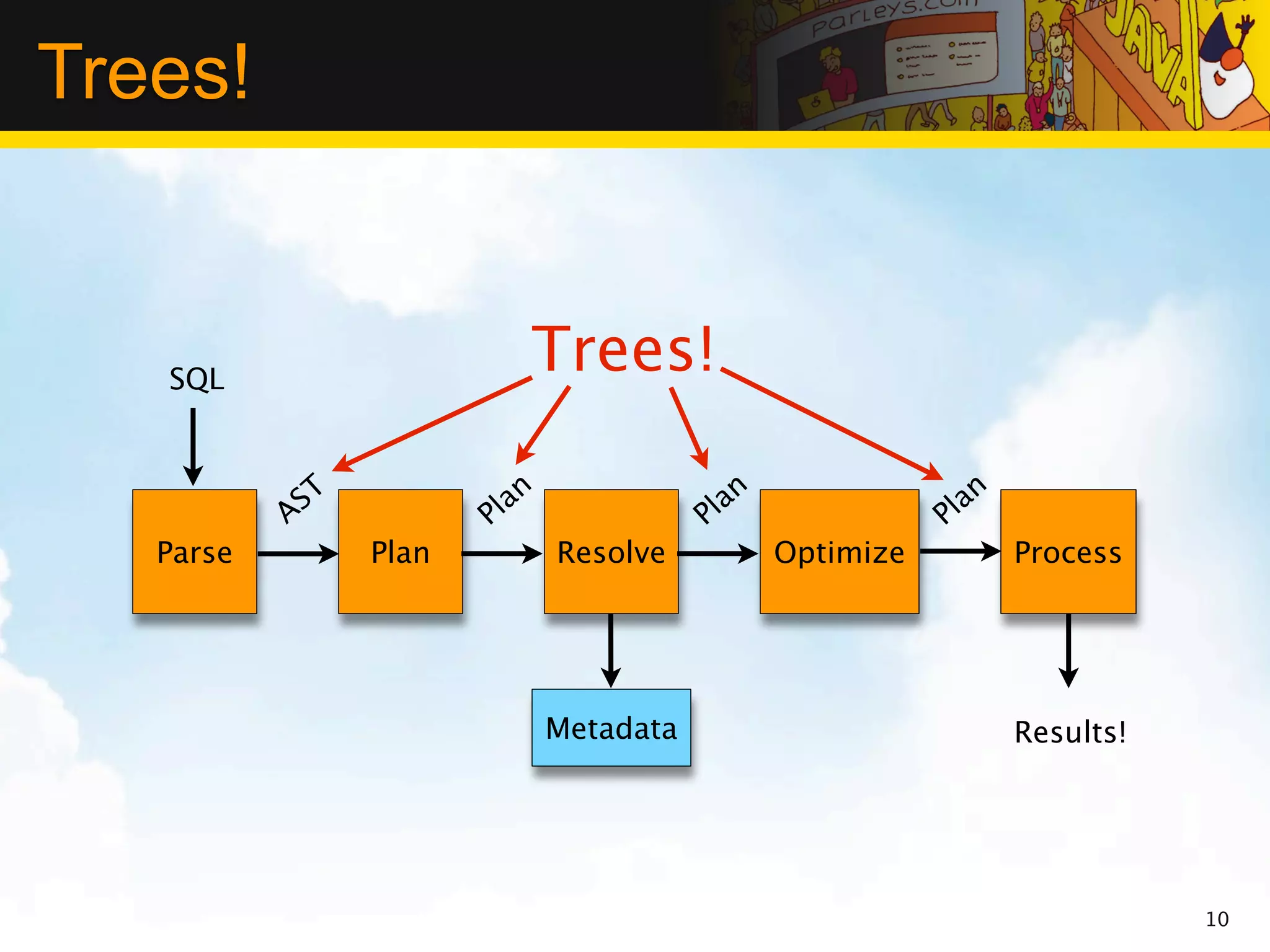

10. Trees!
SQL
Trees!
ST n n n
A Pla Pla Pla
Parse Plan Resolve Optimize Process
Metadata Results!
10

11. Plan
Representation

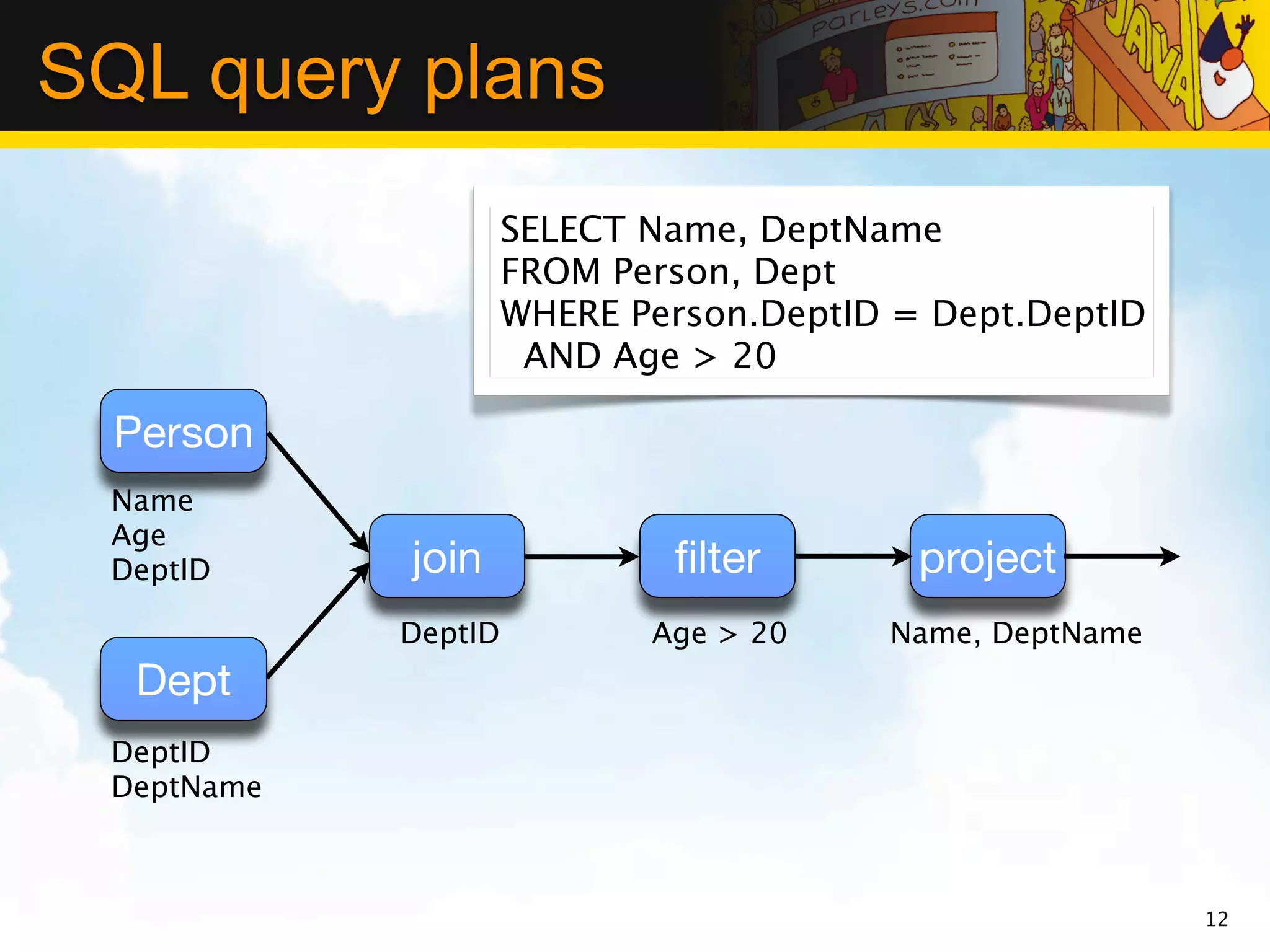

12. SQL query plans
SELECT Name, DeptName
FROM Person, Dept
WHERE Person.DeptID = Dept.DeptID
AND Age > 20
Person
Name
Age
DeptID join filter project
DeptID Age > 20 Name, DeptName
Dept
DeptID
DeptName
12

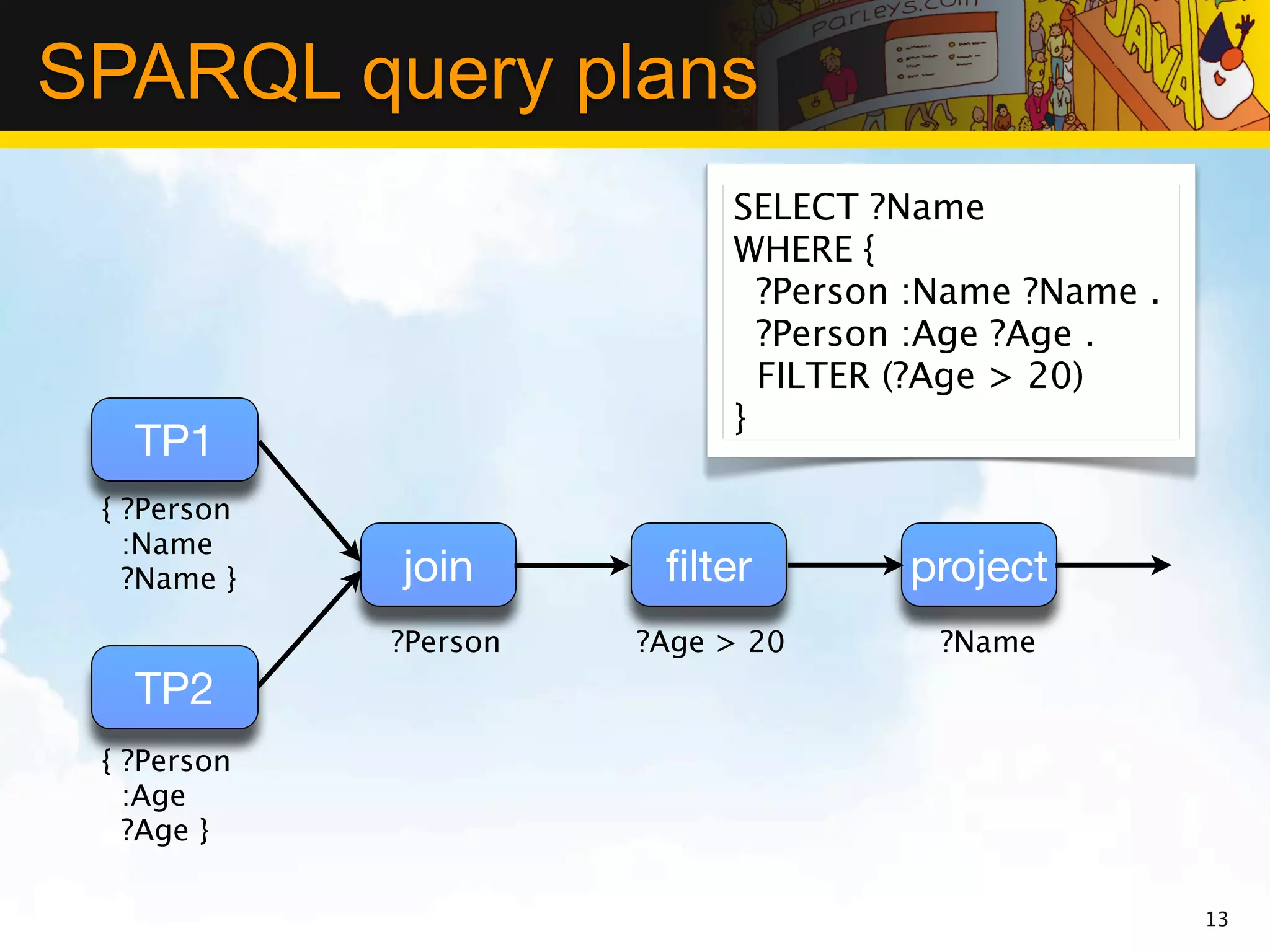

13. SPARQL query plans
SELECT ?Name
WHERE {
?Person :Name ?Name .
?Person :Age ?Age .
FILTER (?Age > 20)
}
TP1
{ ?Person
:Name
?Name } join filter project
?Person ?Age > 20 ?Name
TP2
{ ?Person
:Age
?Age }
13

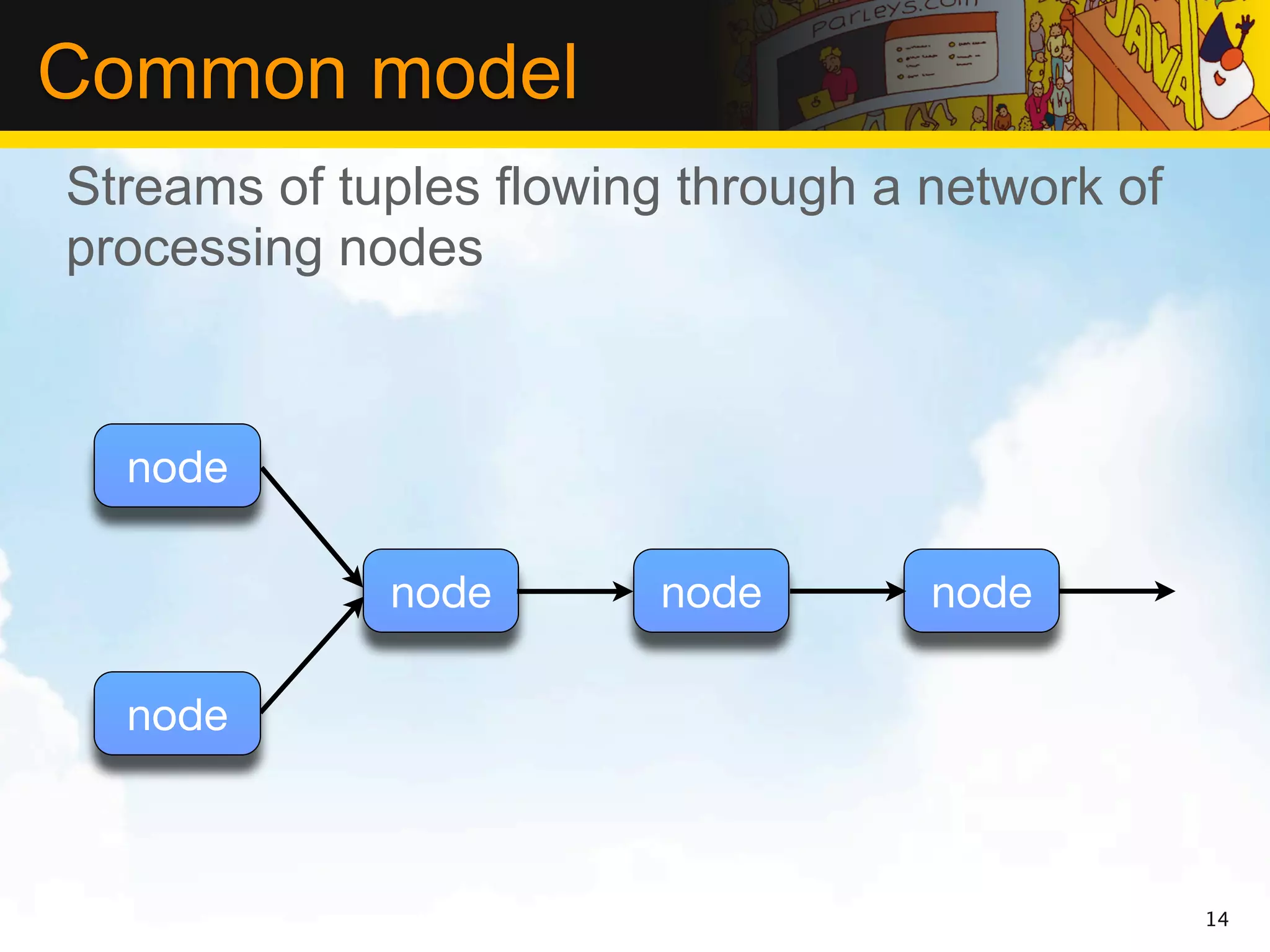

14. Common model
Streams of tuples flowing through a network of
processing nodes
node
node node node
node
14

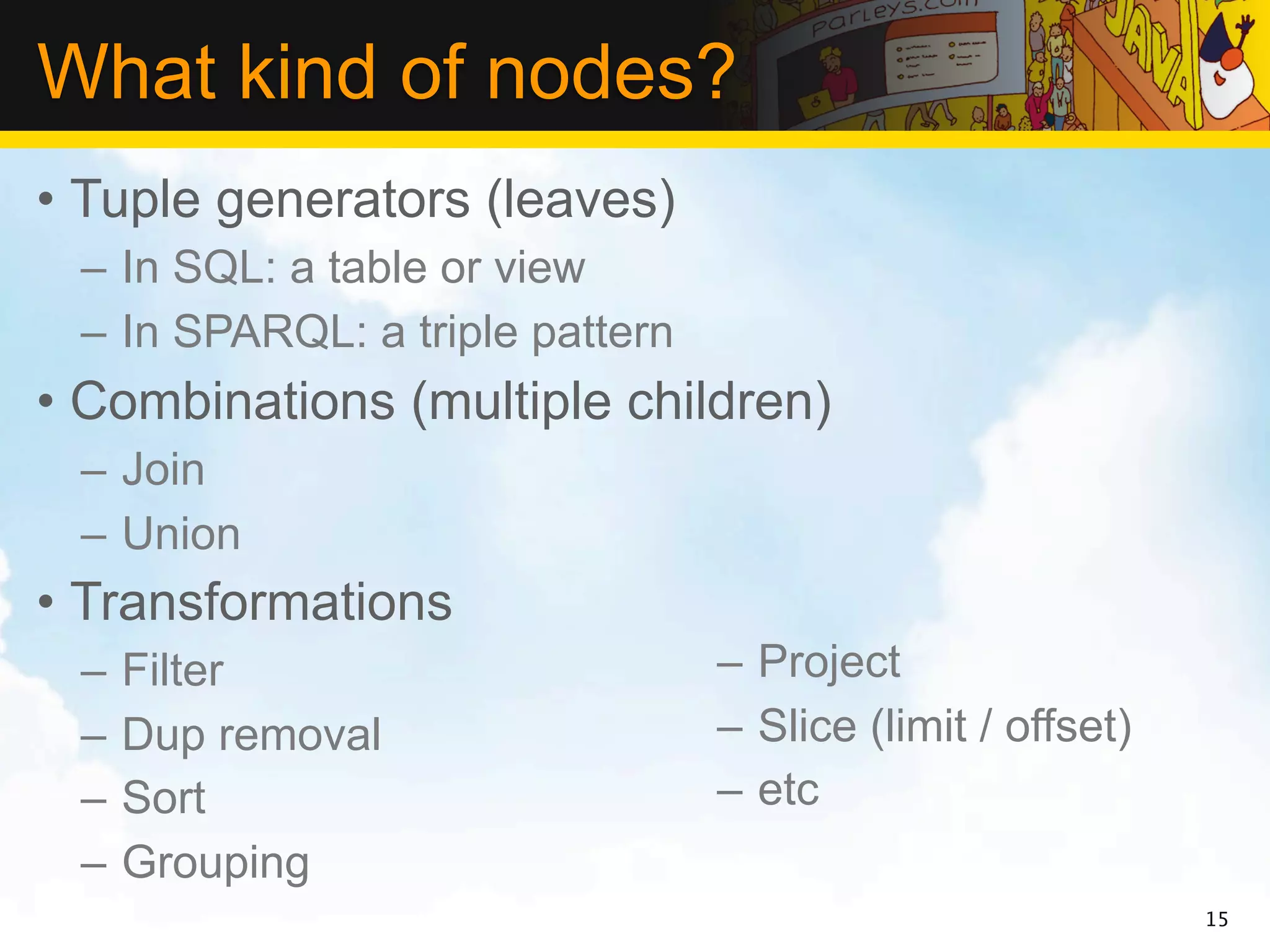

15. What kind of nodes?
• Tuple generators (leaves)
– In SQL: a table or view
– In SPARQL: a triple pattern
• Combinations (multiple children)
– Join
– Union
• Transformations
– Filter – Project
– Dup removal – Slice (limit / offset)
– Sort – etc
– Grouping
15

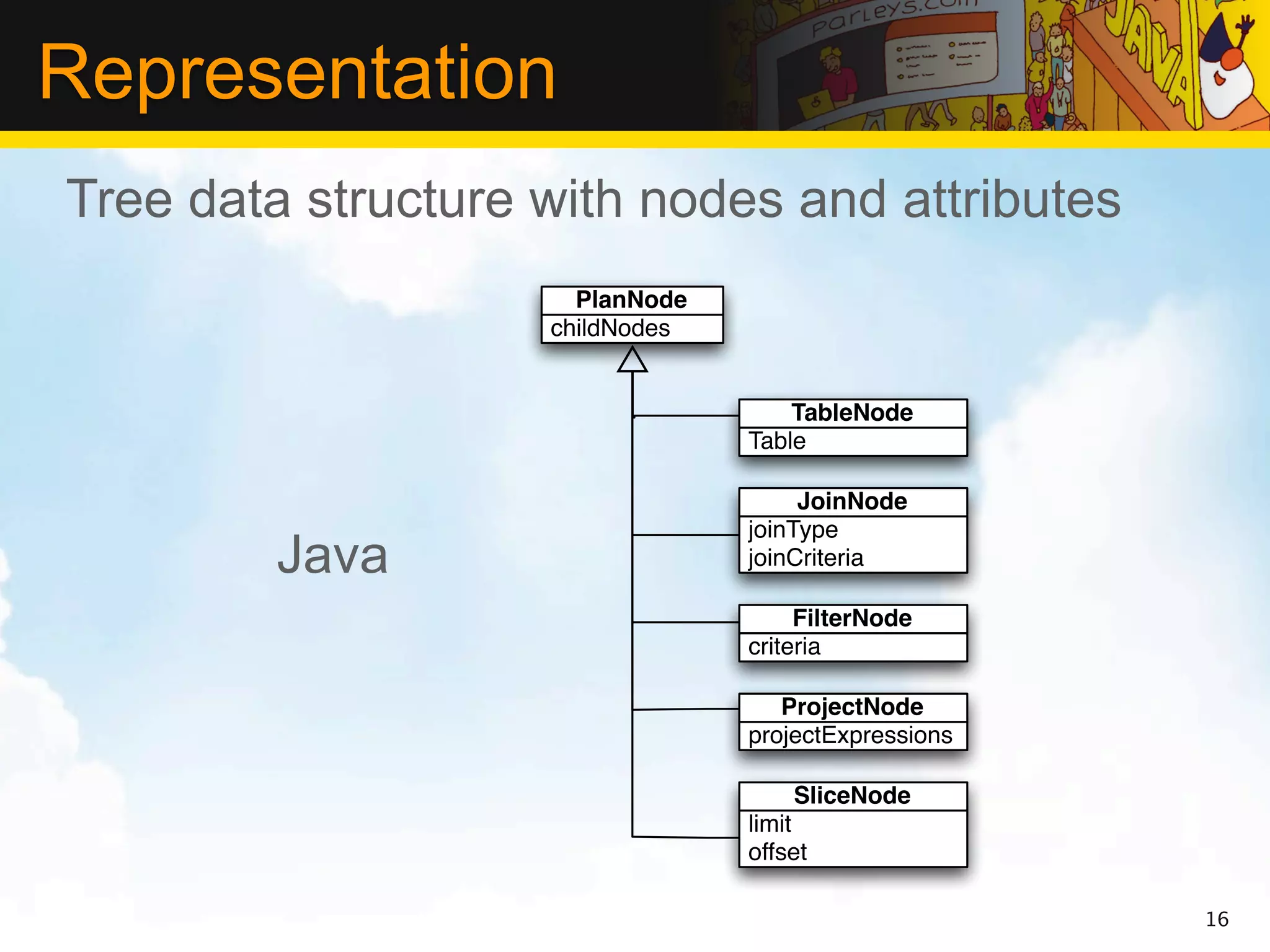

16. Representation
Tree data structure with nodes and attributes
PlanNode
childNodes
TableNode
Table
JoinNode
joinType
Java joinCriteria
FilterNode
criteria
ProjectNode
projectExpressions
SliceNode
limit
offset
16

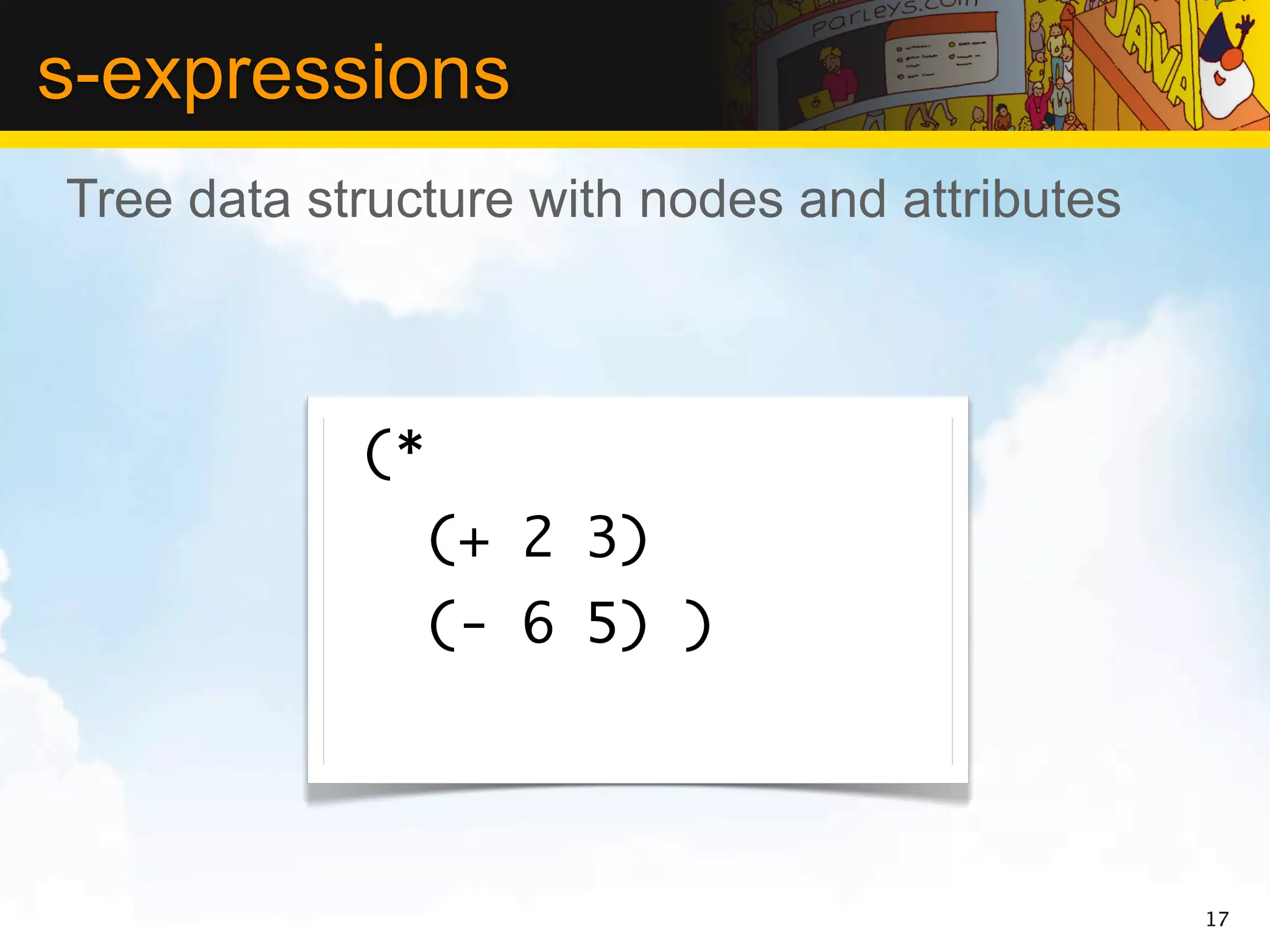

17. s-expressions
Tree data structure with nodes and attributes
(*
(+ 2 3)
(- 6 5) )
17

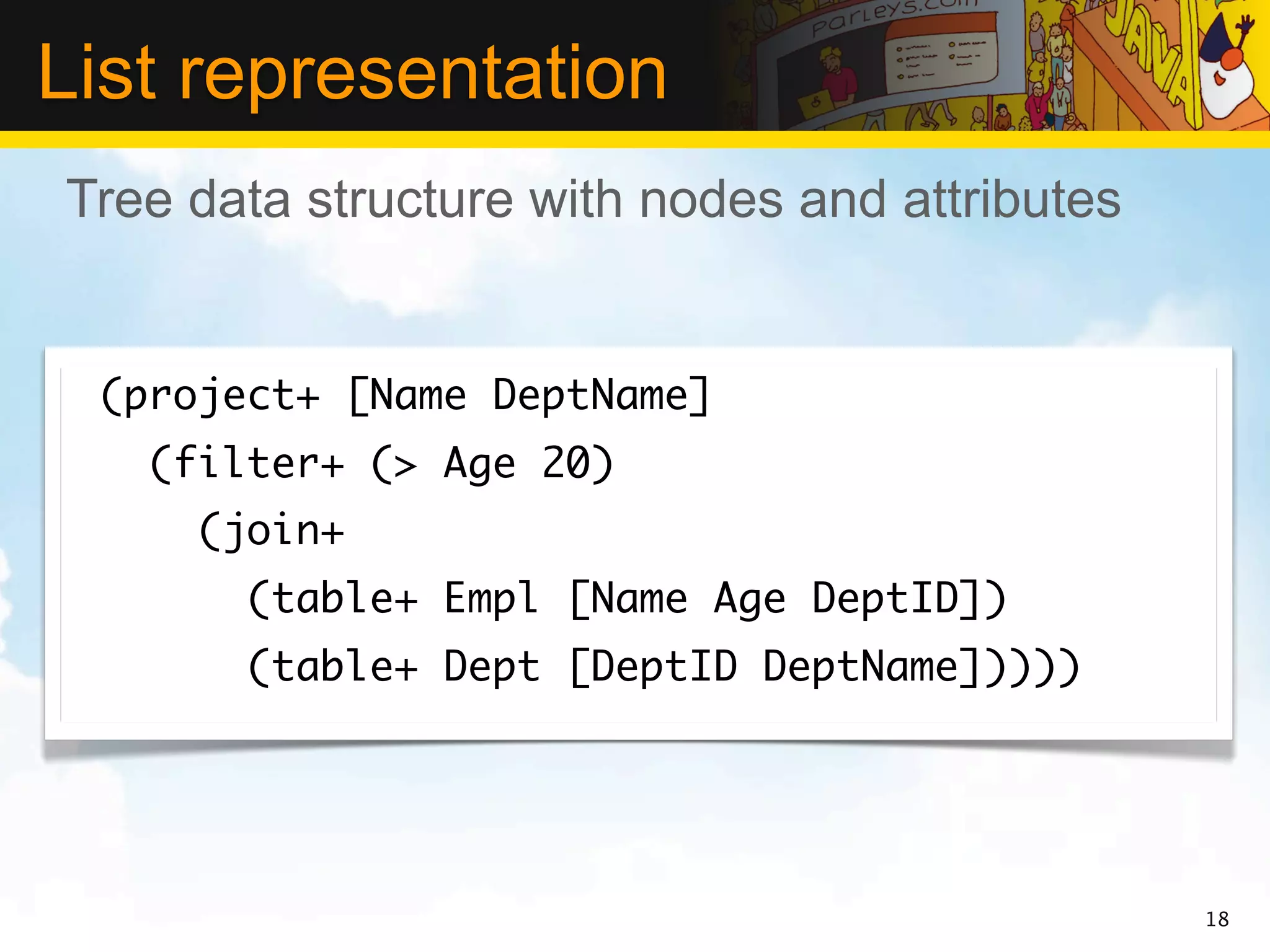

18. List representation
Tree data structure with nodes and attributes
(project+ [Name DeptName]
(filter+ (> Age 20)
(join+
(table+ Empl [Name Age DeptID])
(table+ Dept [DeptID DeptName]))))
18

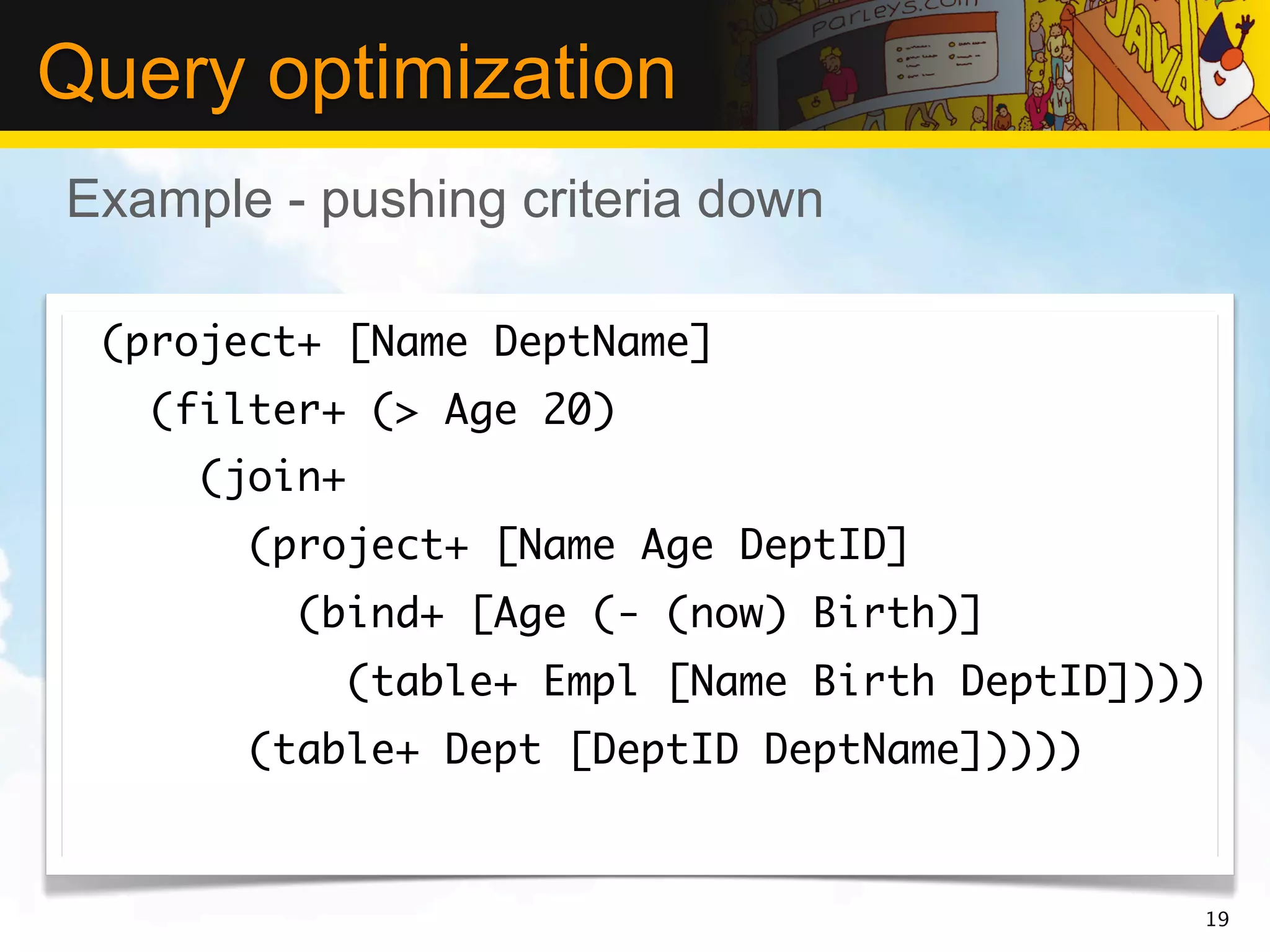

19. Query optimization
Example - pushing criteria down
(project+ [Name DeptName]
(filter+ (> Age 20)
(join+
(project+ [Name Age DeptID]
(bind+ [Age (- (now) Birth)]
(table+ Empl [Name Birth DeptID])))
(table+ Dept [DeptID DeptName]))))
19

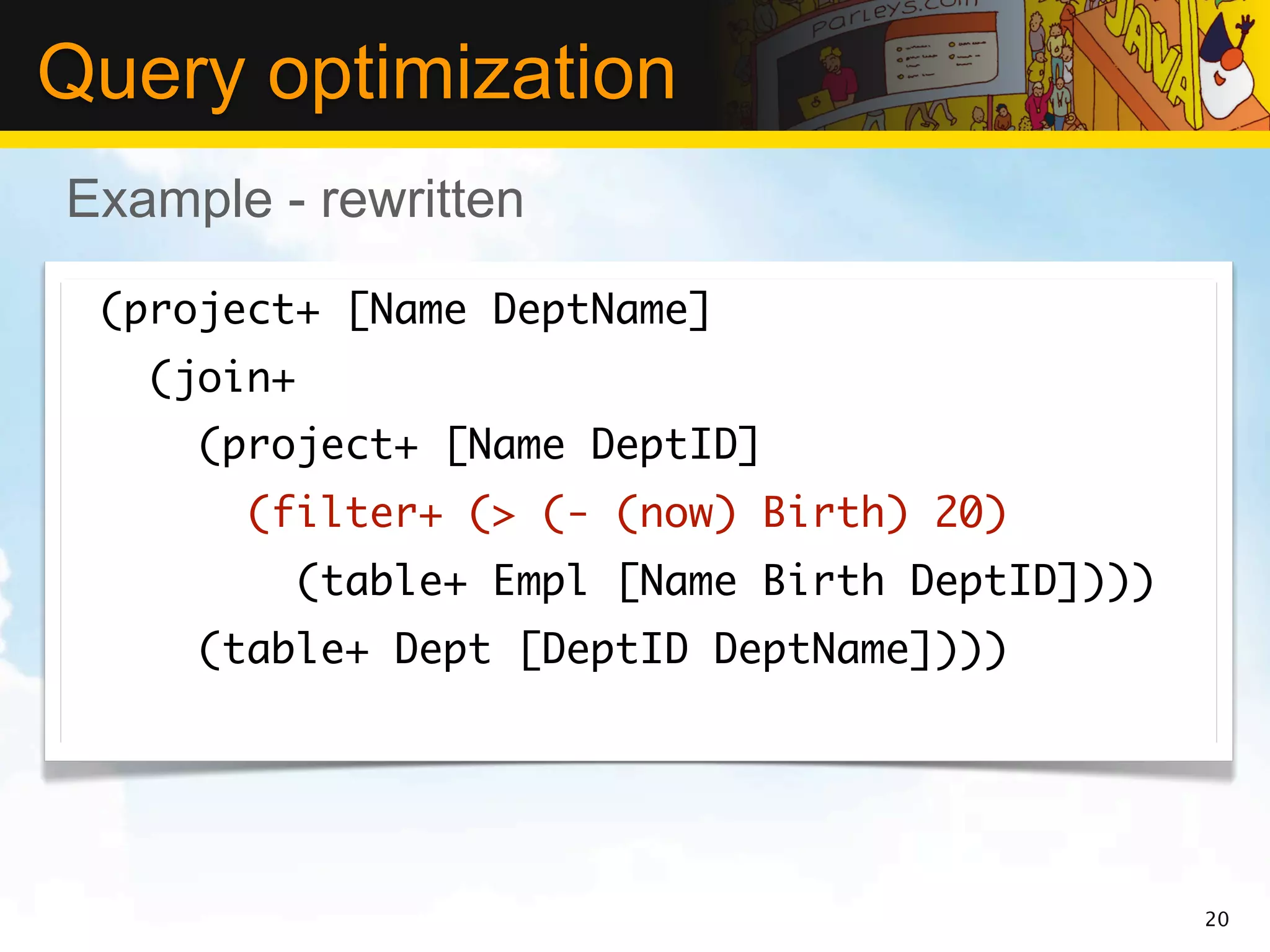

20. Query optimization
Example - rewritten
(project+ [Name DeptName]
(join+
(project+ [Name DeptID]
(filter+ (> (- (now) Birth) 20)
(table+ Empl [Name Birth DeptID])))
(table+ Dept [DeptID DeptName])))
20

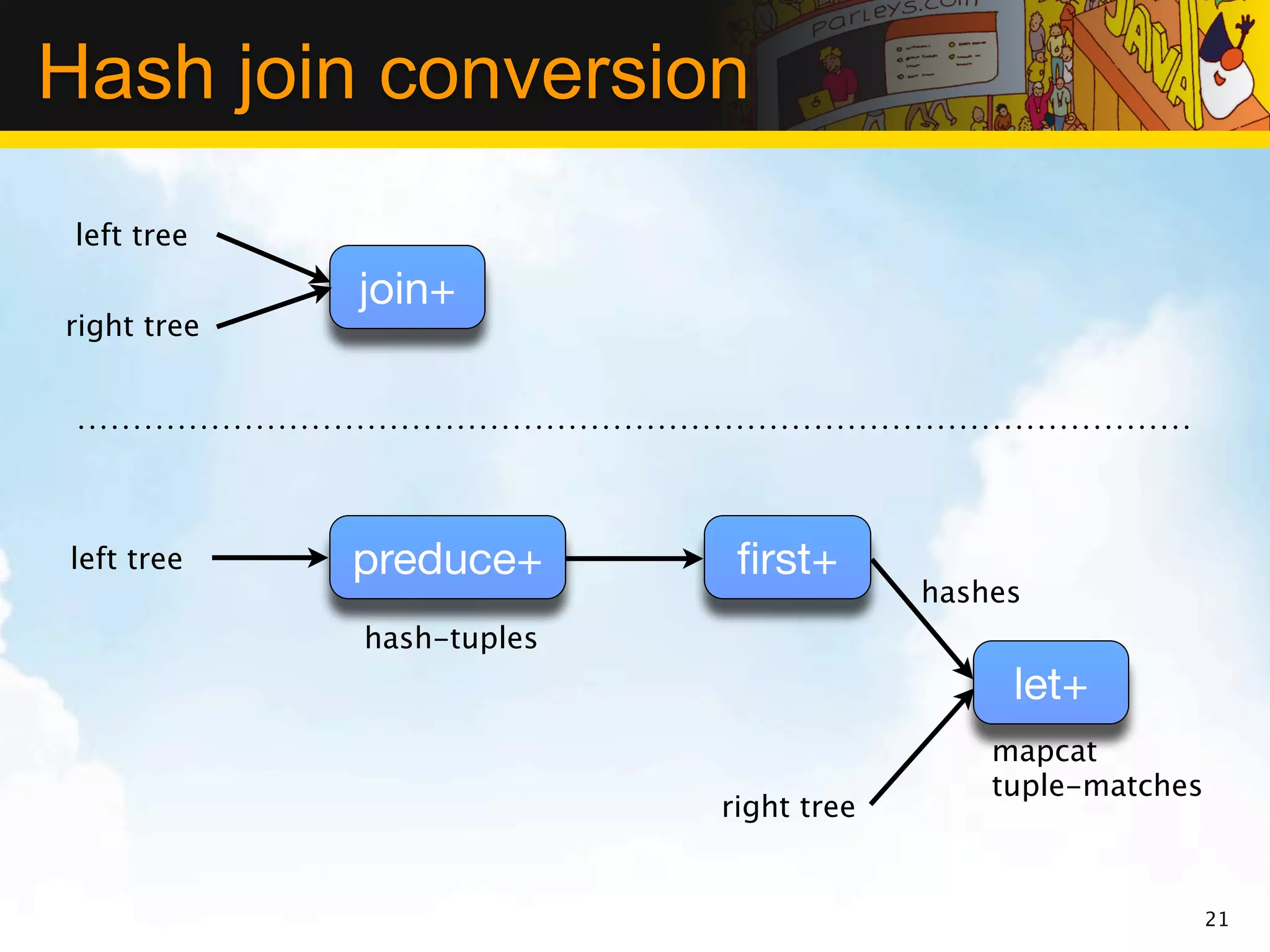

21. Hash join conversion
left tree
join+
right tree
left tree preduce+ first+
hashes
hash-tuples
let+
mapcat
tuple-matches
right tree
21

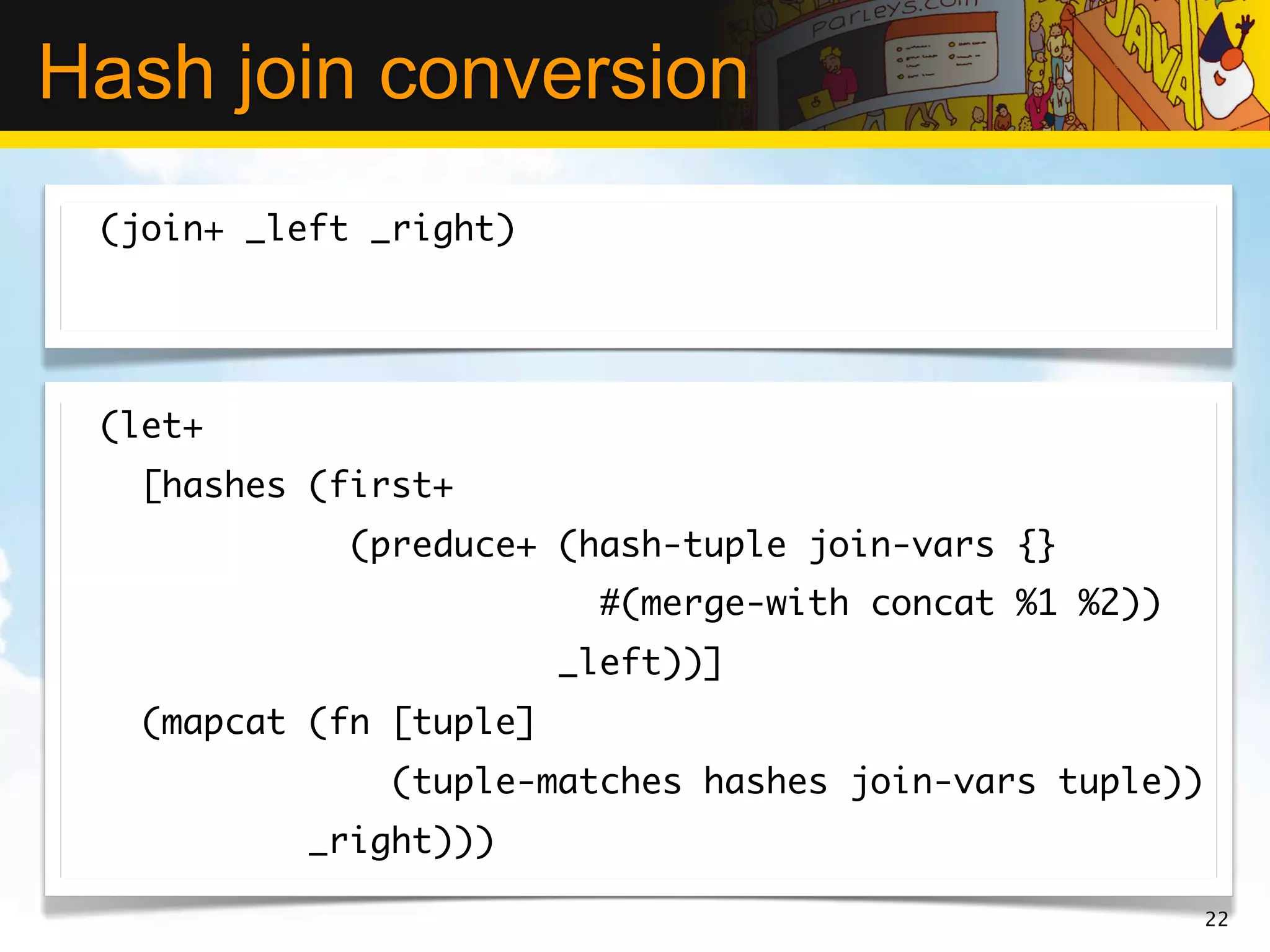

22. Hash join conversion
(join+ _left _right)
(let+
[hashes (first+
(preduce+ (hash-tuple join-vars {}
#(merge-with concat %1 %2))
_left))]
(mapcat (fn [tuple]
(tuple-matches hashes join-vars tuple))
_right)))
22

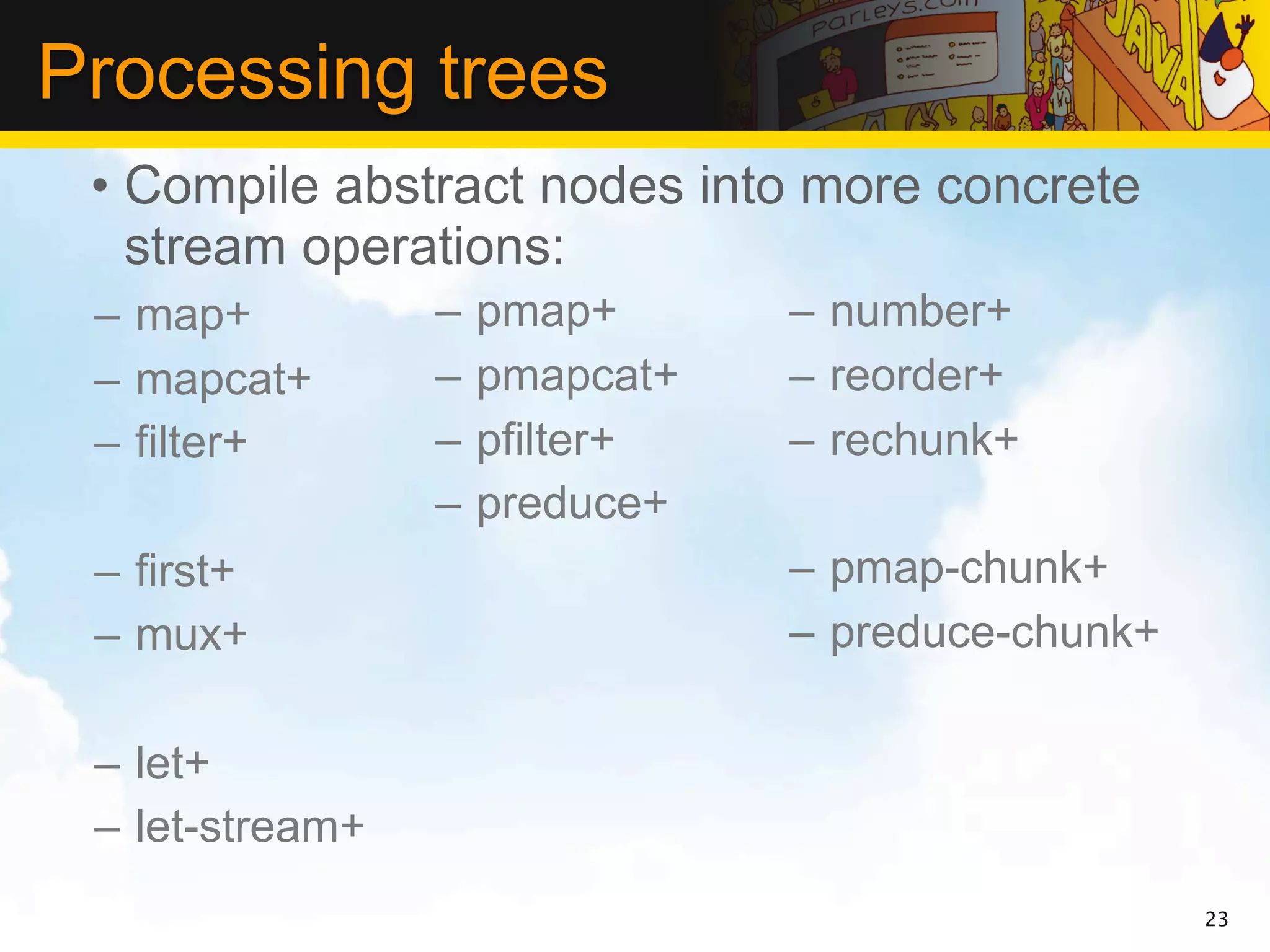

23. Processing trees
• Compile abstract nodes into more concrete
stream operations:
– map+ – pmap+ – number+
– mapcat+ – pmapcat+ – reorder+
– filter+ – pfilter+ – rechunk+
– preduce+
– first+ – pmap-chunk+
– mux+ – preduce-chunk+
– let+
– let-stream+
23

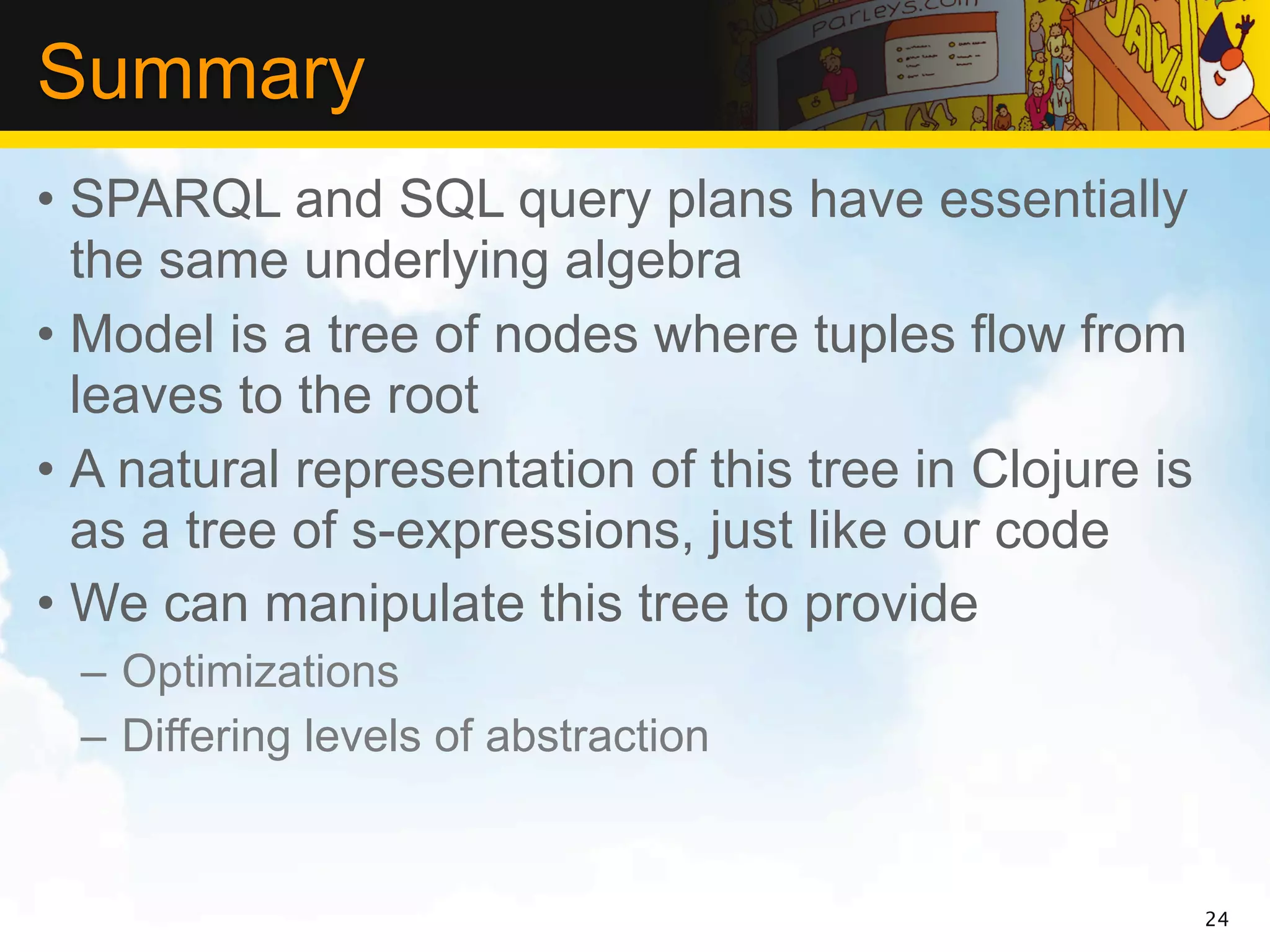

24. Summary
• SPARQL and SQL query plans have essentially
the same underlying algebra
• Model is a tree of nodes where tuples flow from
leaves to the root
• A natural representation of this tree in Clojure is
as a tree of s-expressions, just like our code
• We can manipulate this tree to provide
– Optimizations
– Differing levels of abstraction
24

25. Processing
Components

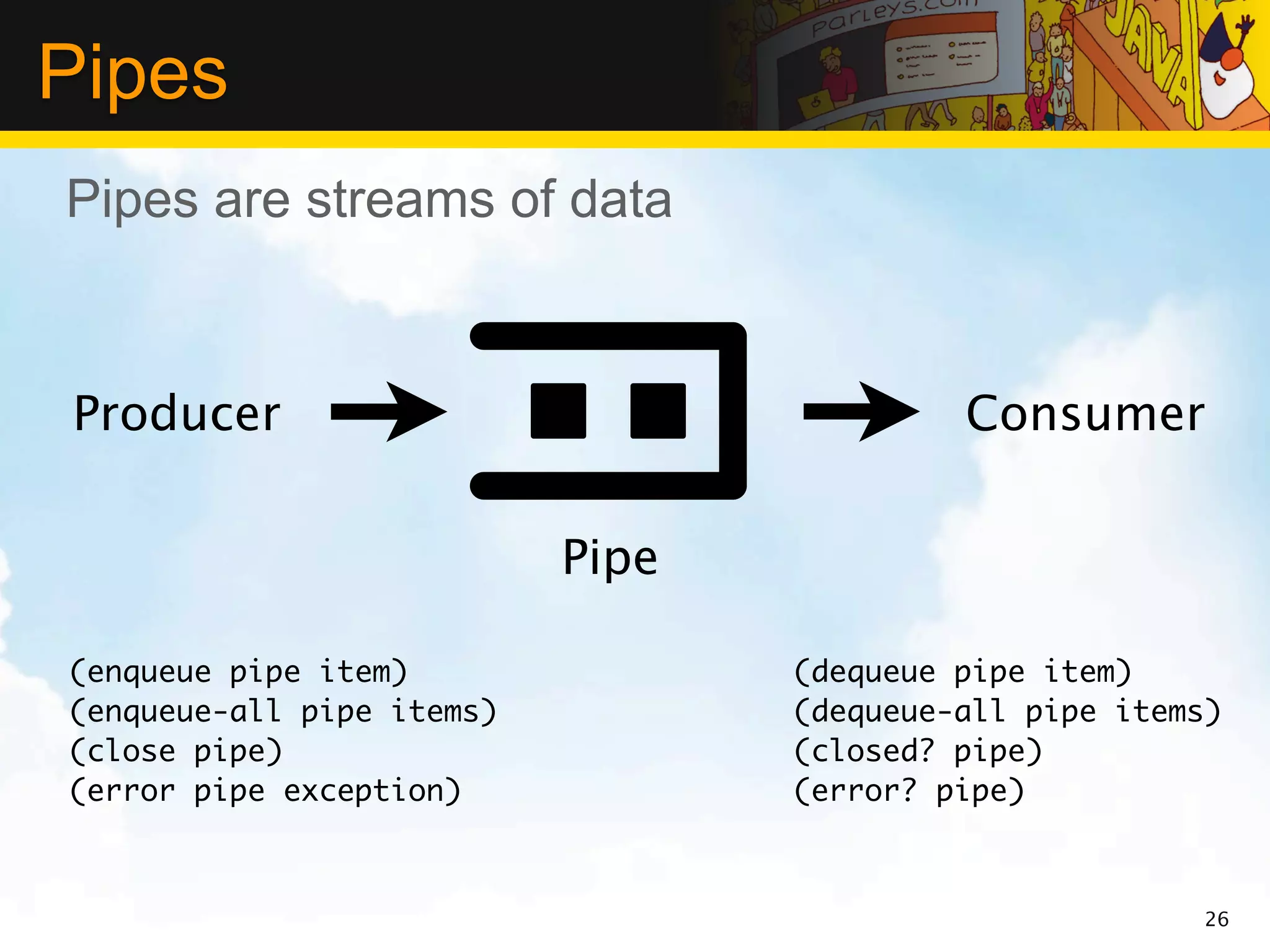

26. Pipes
Pipes are streams of data
Producer Consumer
Pipe
(enqueue pipe item) (dequeue pipe item)
(enqueue-all pipe items) (dequeue-all pipe items)
(close pipe) (closed? pipe)
(error pipe exception) (error? pipe)
26

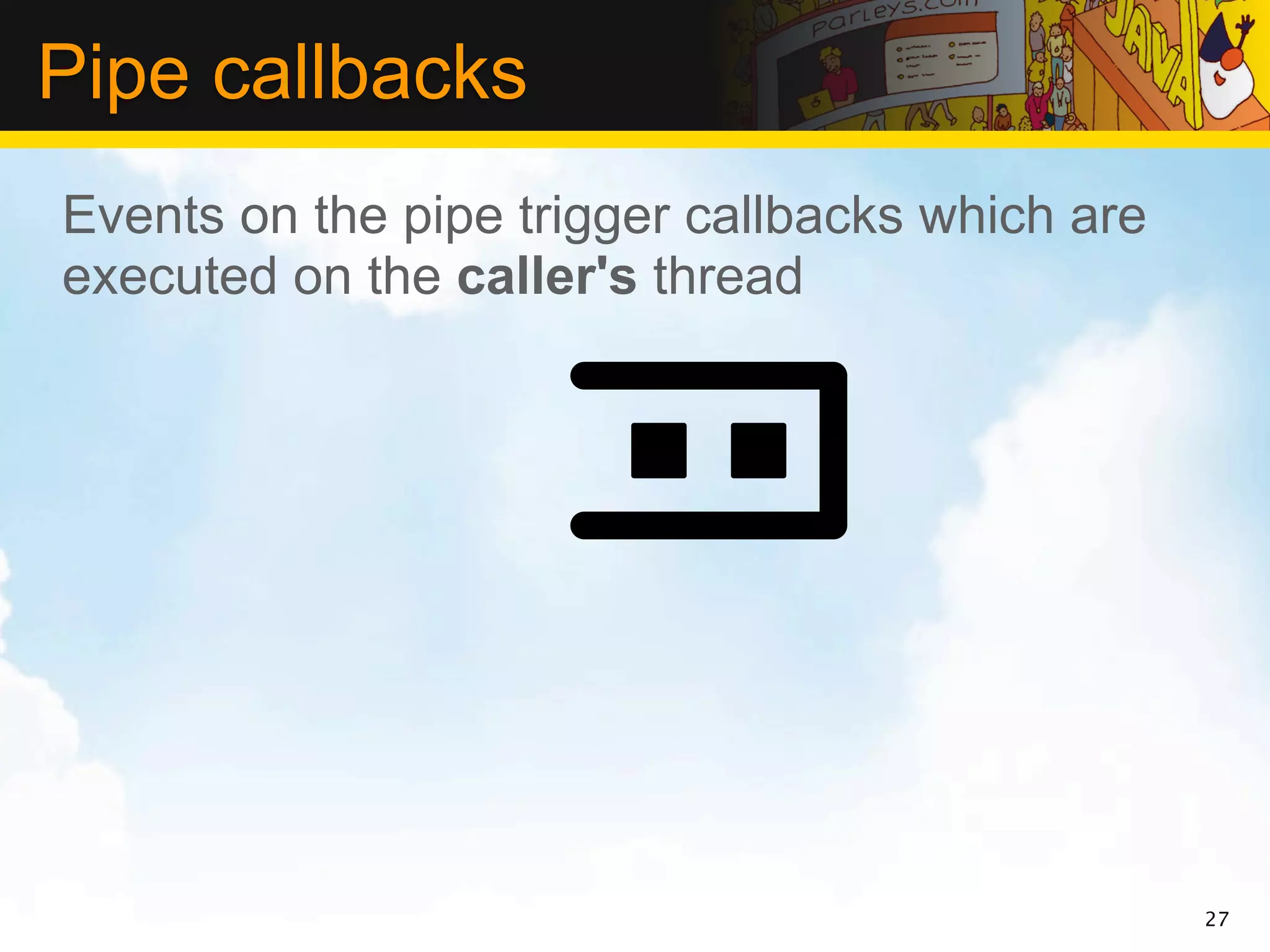

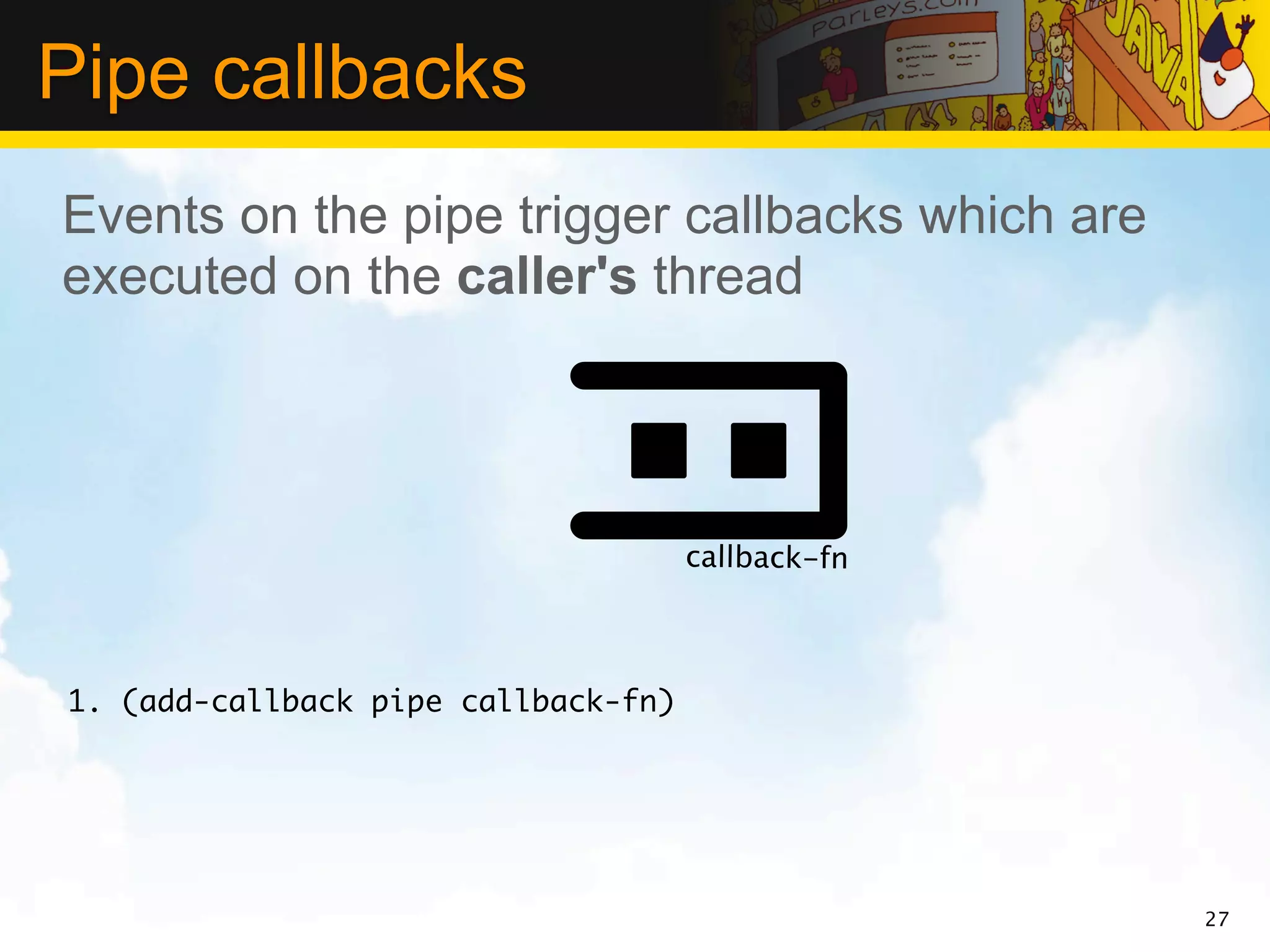

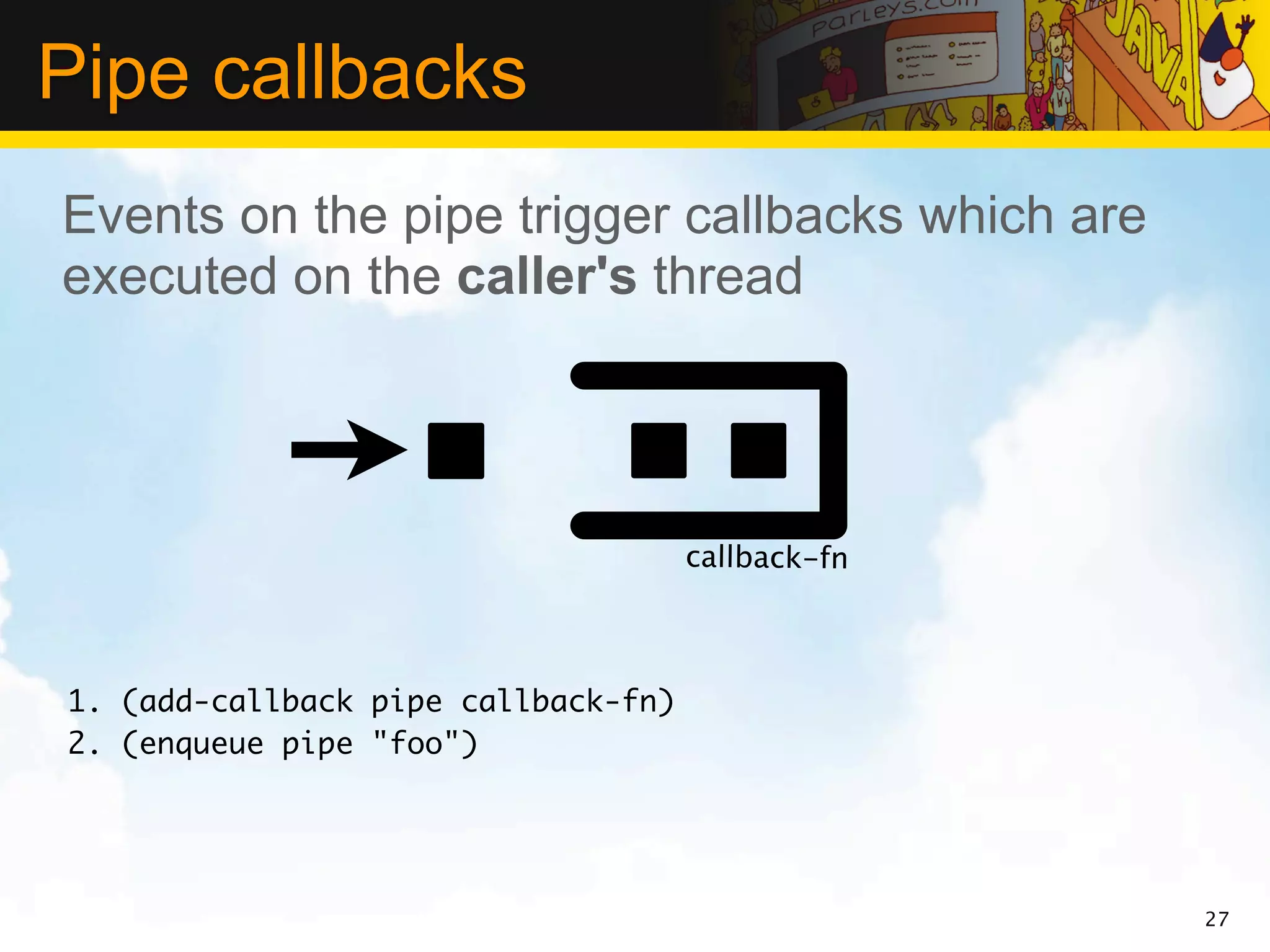

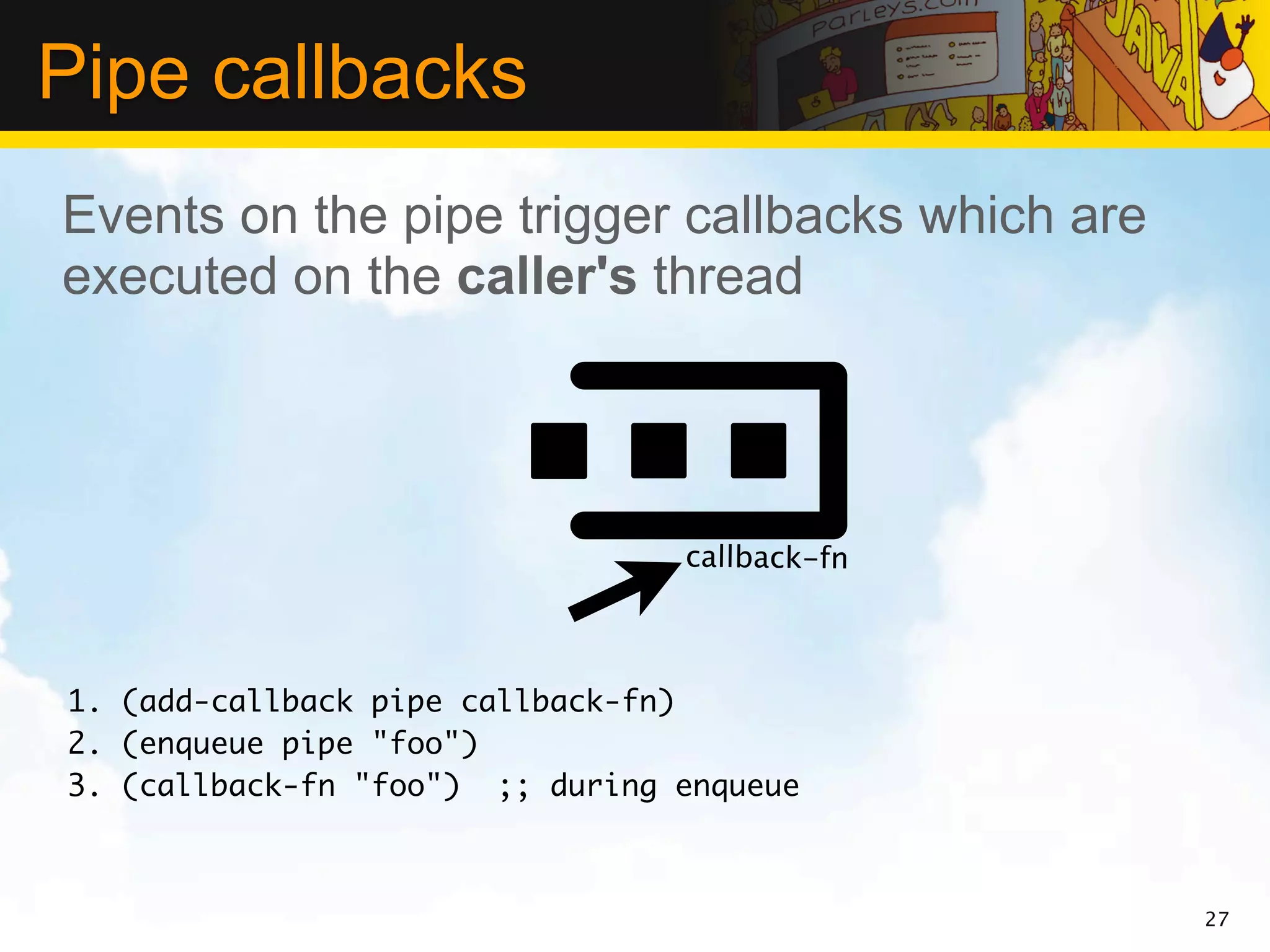

27. Pipe callbacks
Events on the pipe trigger callbacks which are
executed on the caller's thread
27

28. Pipe callbacks
Events on the pipe trigger callbacks which are
executed on the caller's thread
callback-fn
1. (add-callback pipe callback-fn)
27

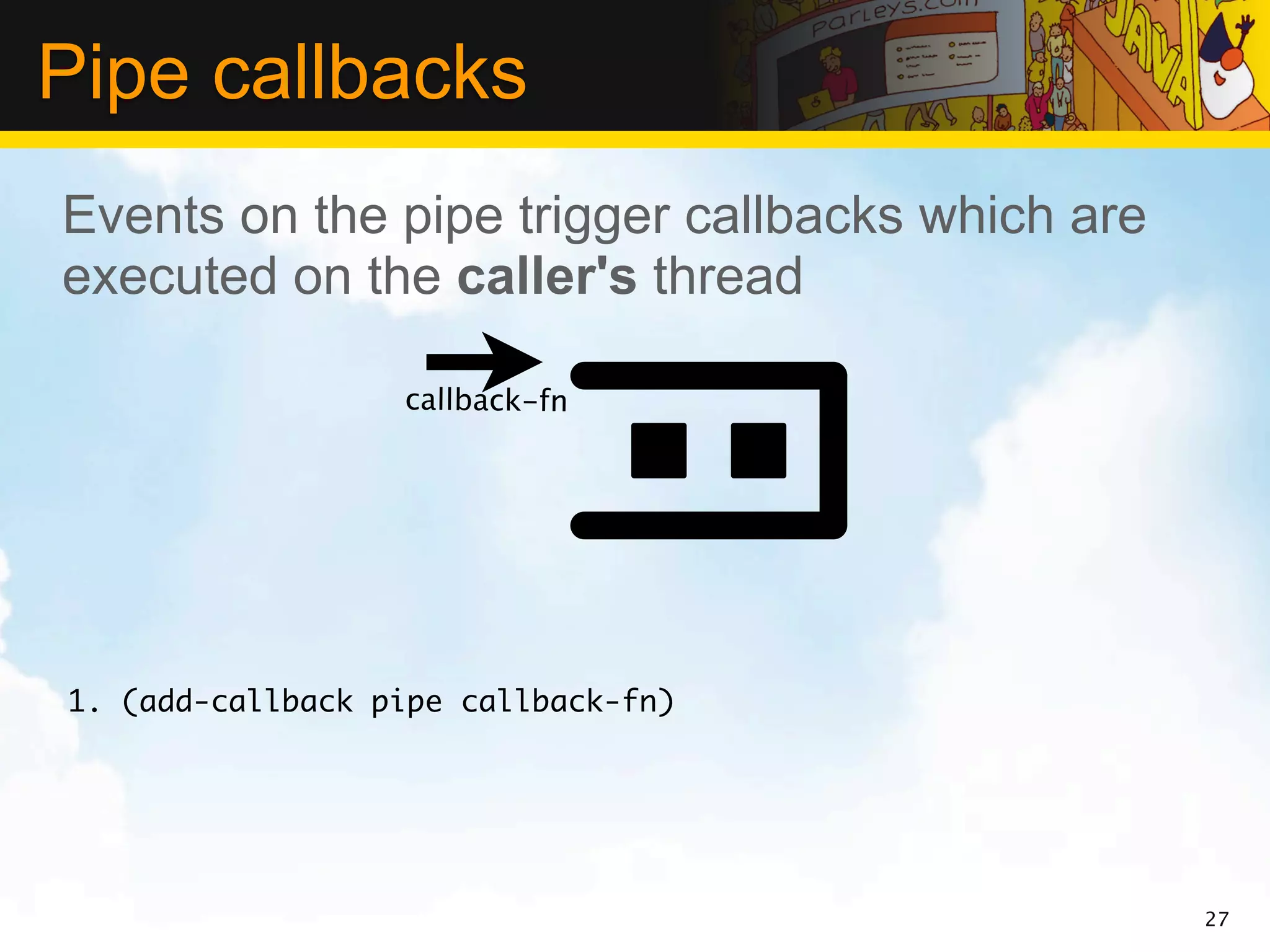

29. Pipe callbacks
Events on the pipe trigger callbacks which are
executed on the caller's thread
callback-fn
1. (add-callback pipe callback-fn)
27

30. Pipe callbacks
Events on the pipe trigger callbacks which are
executed on the caller's thread
callback-fn
1. (add-callback pipe callback-fn)
2. (enqueue pipe "foo")
27

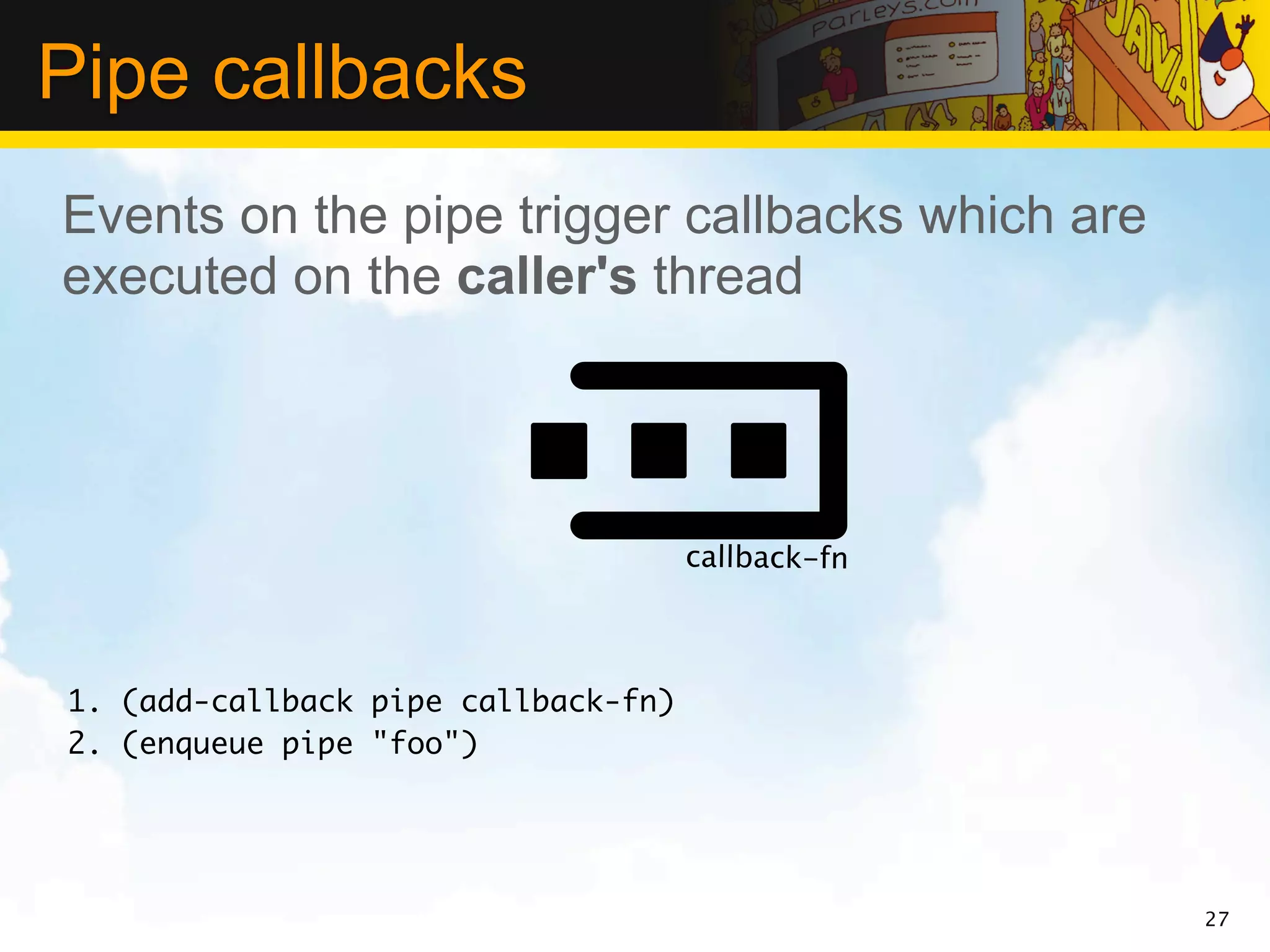

31. Pipe callbacks
Events on the pipe trigger callbacks which are
executed on the caller's thread
callback-fn
1. (add-callback pipe callback-fn)
2. (enqueue pipe "foo")
27

32. Pipe callbacks
Events on the pipe trigger callbacks which are
executed on the caller's thread
callback-fn
1. (add-callback pipe callback-fn)
2. (enqueue pipe "foo")
3. (callback-fn "foo") ;; during enqueue
27

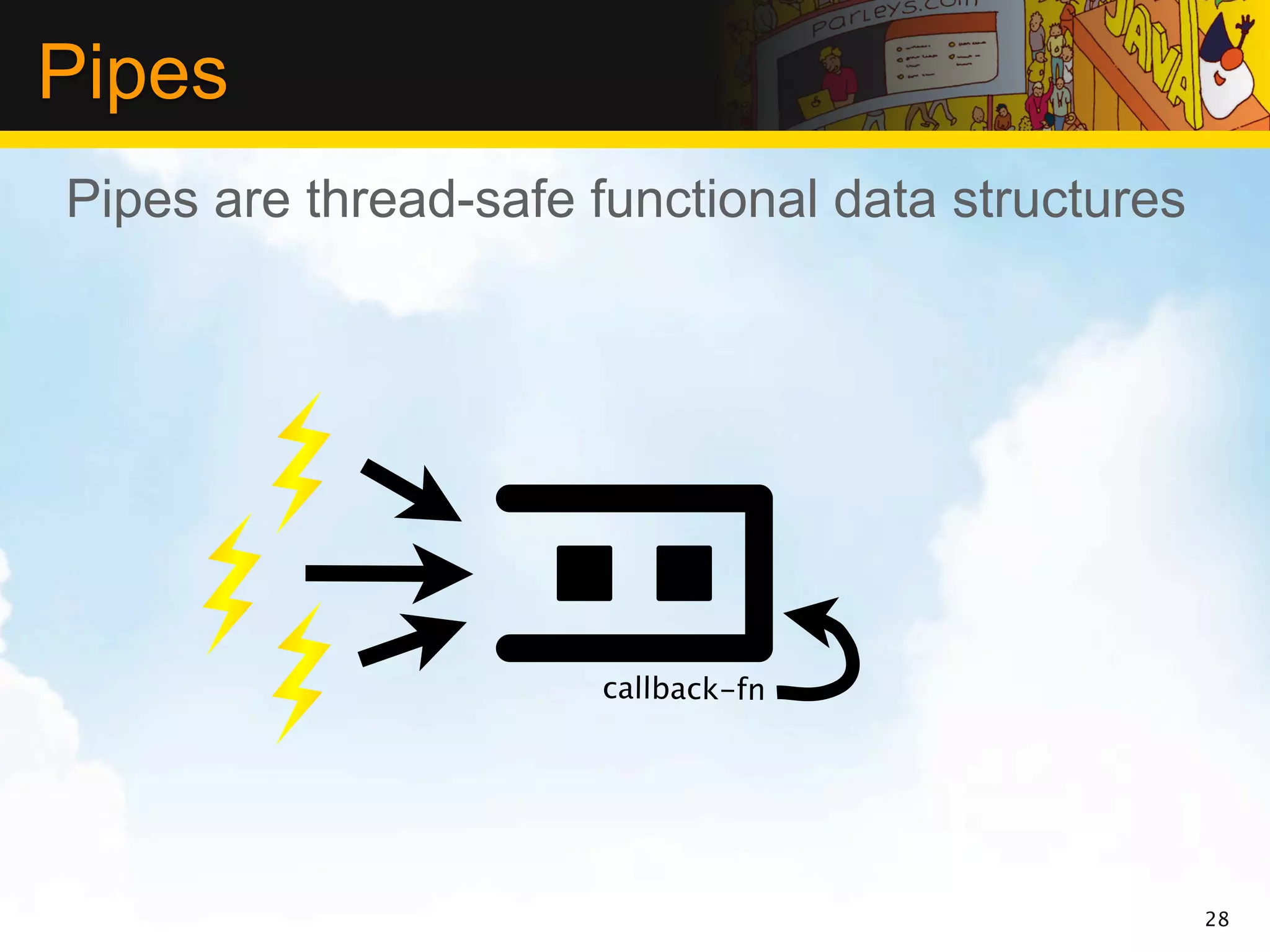

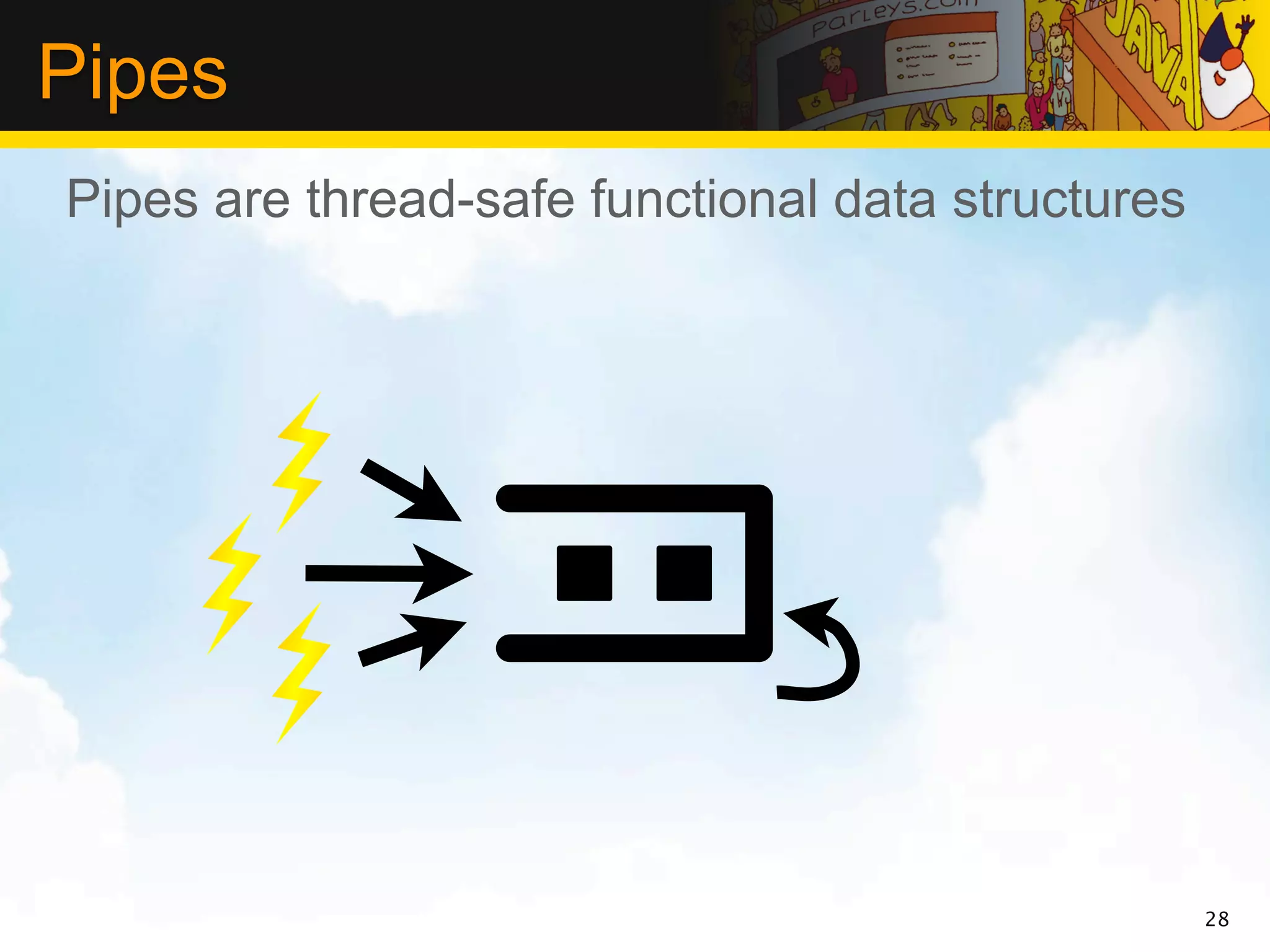

33. Pipes
Pipes are thread-safe functional data structures
28

34. Pipes
Pipes are thread-safe functional data structures
callback-fn
28

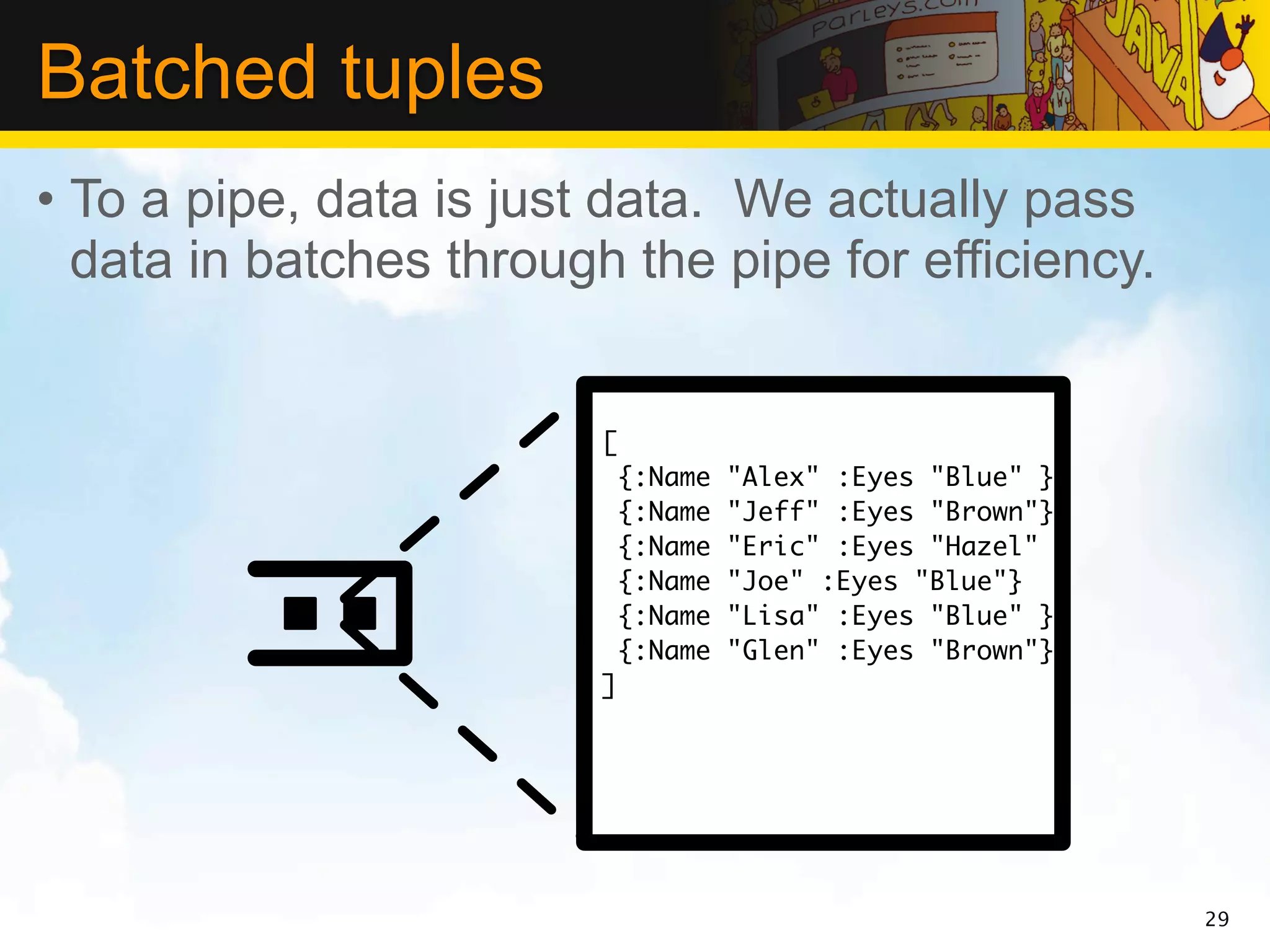

35. Batched tuples
• To a pipe, data is just data. We actually pass
data in batches through the pipe for efficiency.
[
{:Name "Alex" :Eyes "Blue" }
{:Name "Jeff" :Eyes "Brown"}
{:Name "Eric" :Eyes "Hazel" }
{:Name "Joe" :Eyes "Blue"}
{:Name "Lisa" :Eyes "Blue" }
{:Name "Glen" :Eyes "Brown"}
]
29

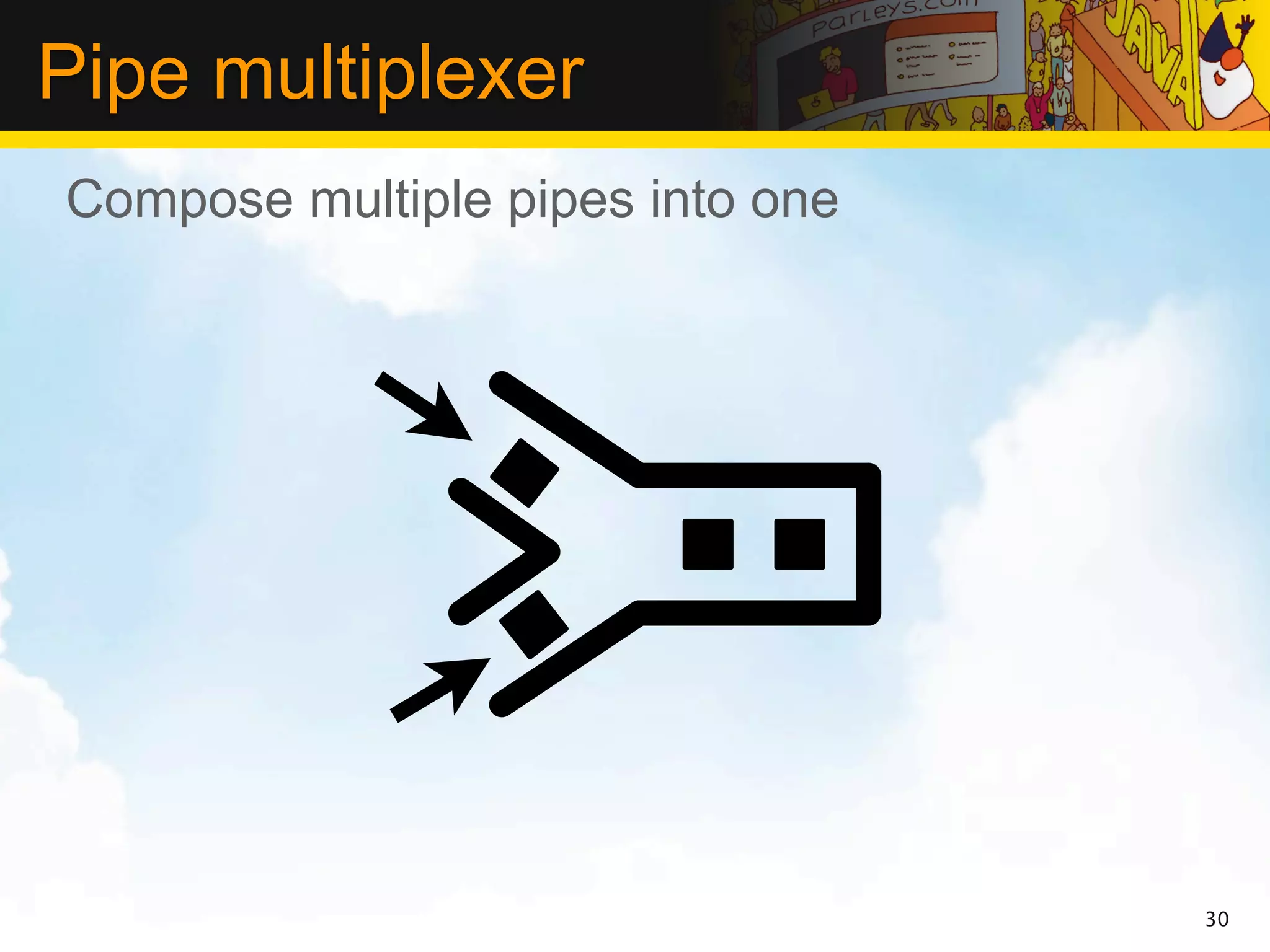

36. Pipe multiplexer
Compose multiple pipes into one
30

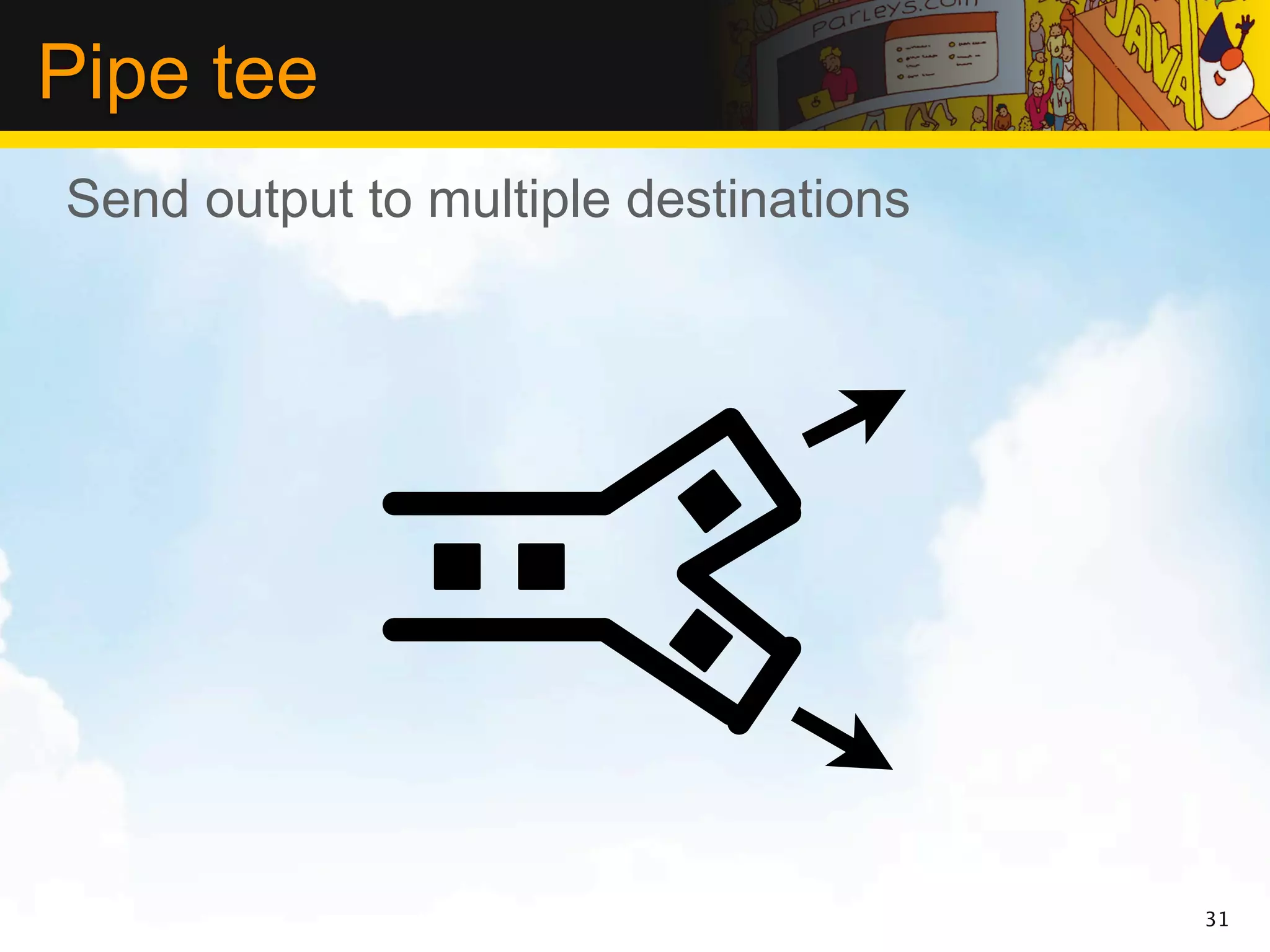

37. Pipe tee
Send output to multiple destinations
31

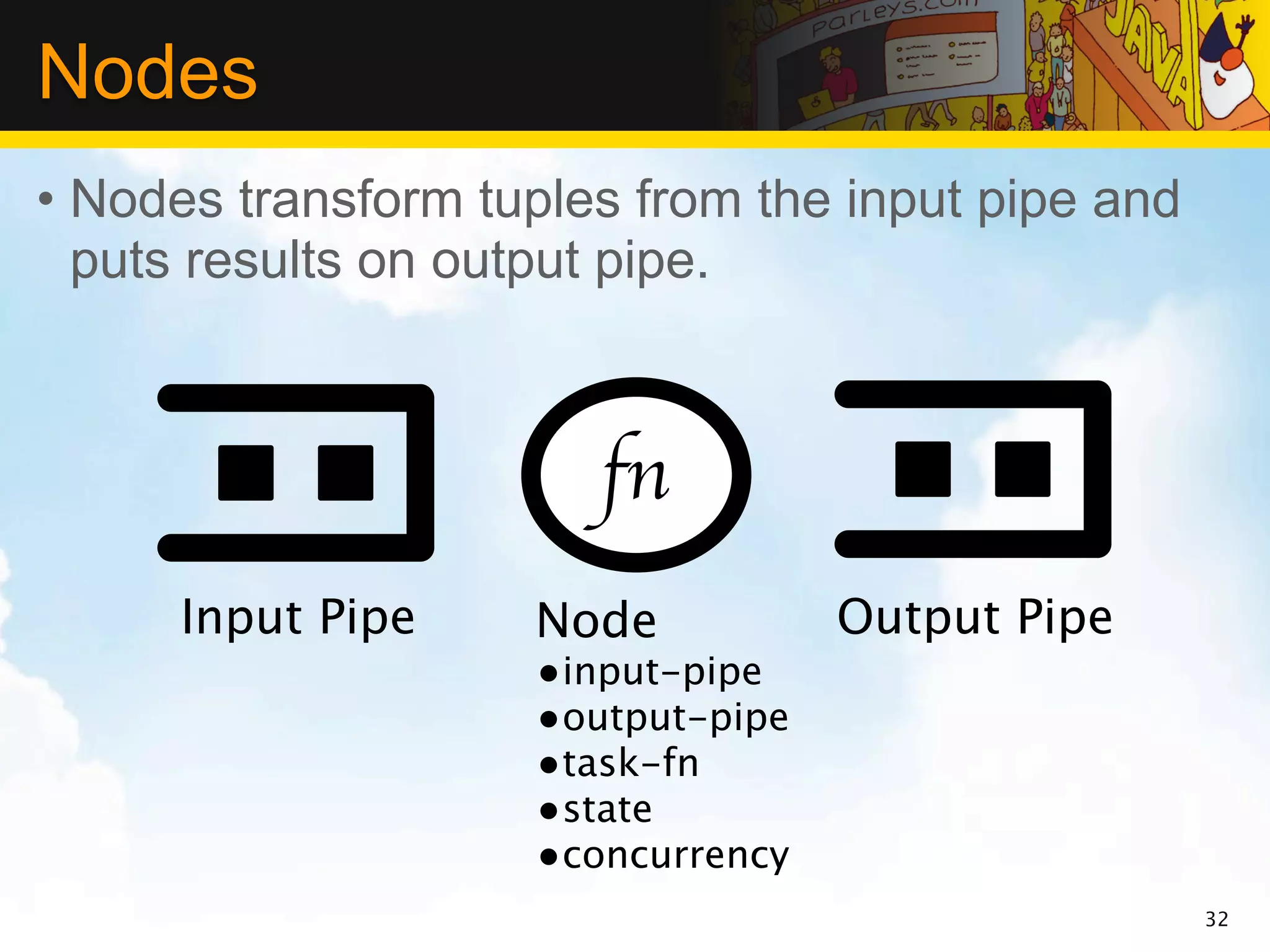

38. Nodes
• Nodes transform tuples from the input pipe and
puts results on output pipe.
fn
Input Pipe Node Output Pipe
•input-pipe
•output-pipe
•task-fn
•state
•concurrency
32

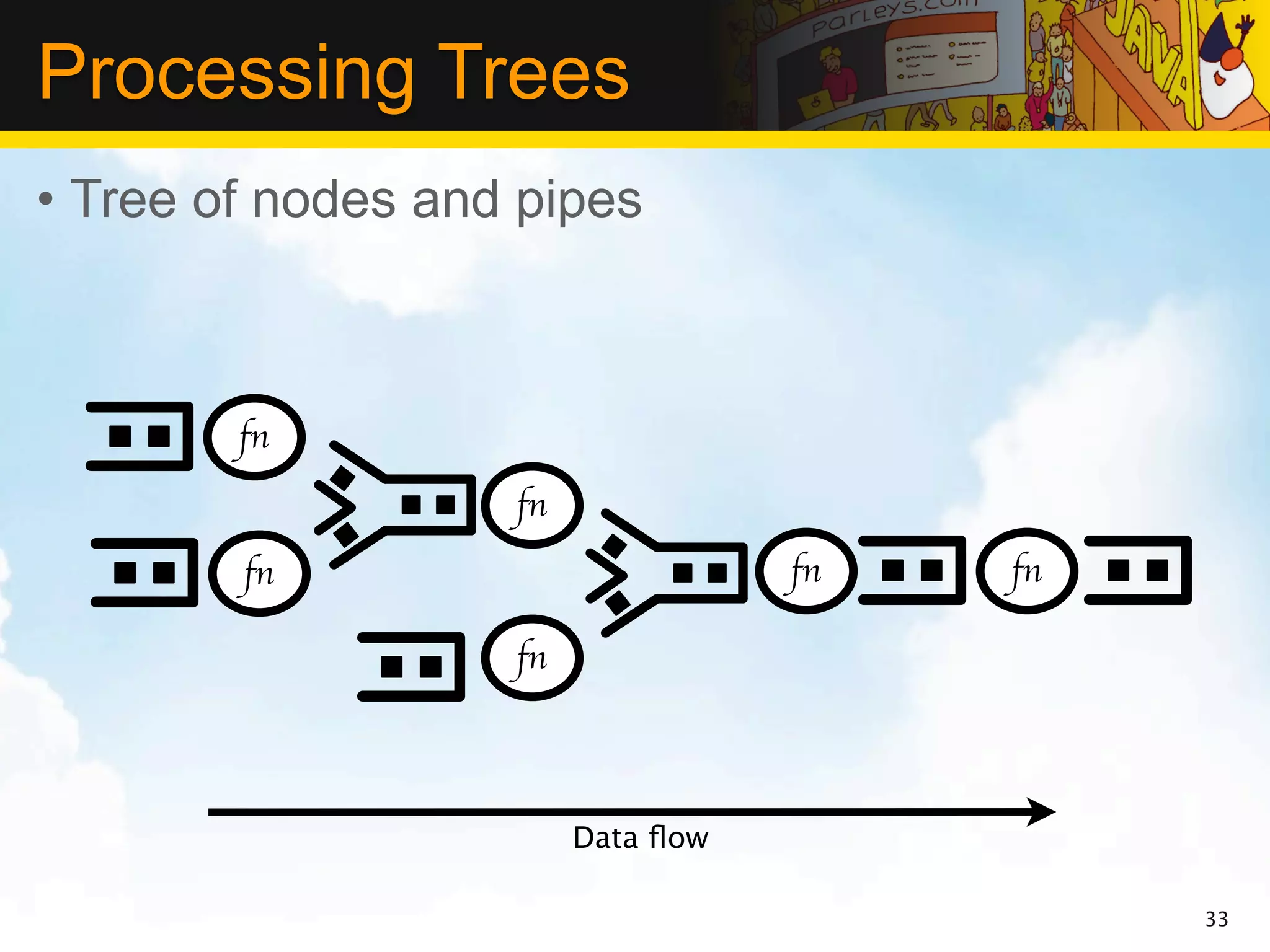

39. Processing Trees
• Tree of nodes and pipes
fn
fn
fn fn fn
fn
Data flow
33

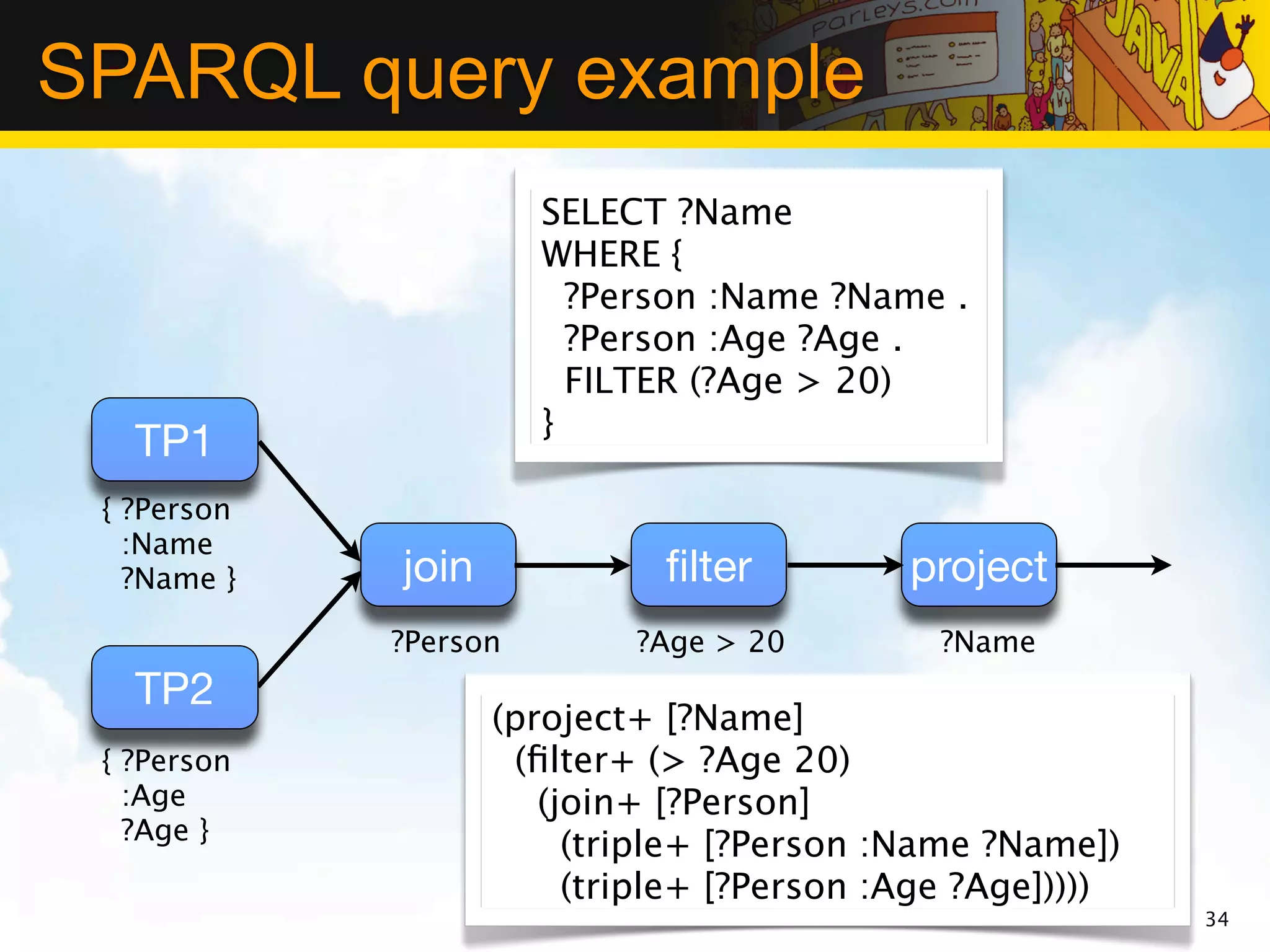

40. SPARQL query example
SELECT ?Name
WHERE {
?Person :Name ?Name .
?Person :Age ?Age .
FILTER (?Age > 20)
}
TP1
{ ?Person
:Name
?Name } join filter project
?Person ?Age > 20 ?Name
TP2
(project+ [?Name]
{ ?Person (filter+ (> ?Age 20)
:Age (join+ [?Person]
?Age }
(triple+ [?Person :Name ?Name])
(triple+ [?Person :Age ?Age]))))
34

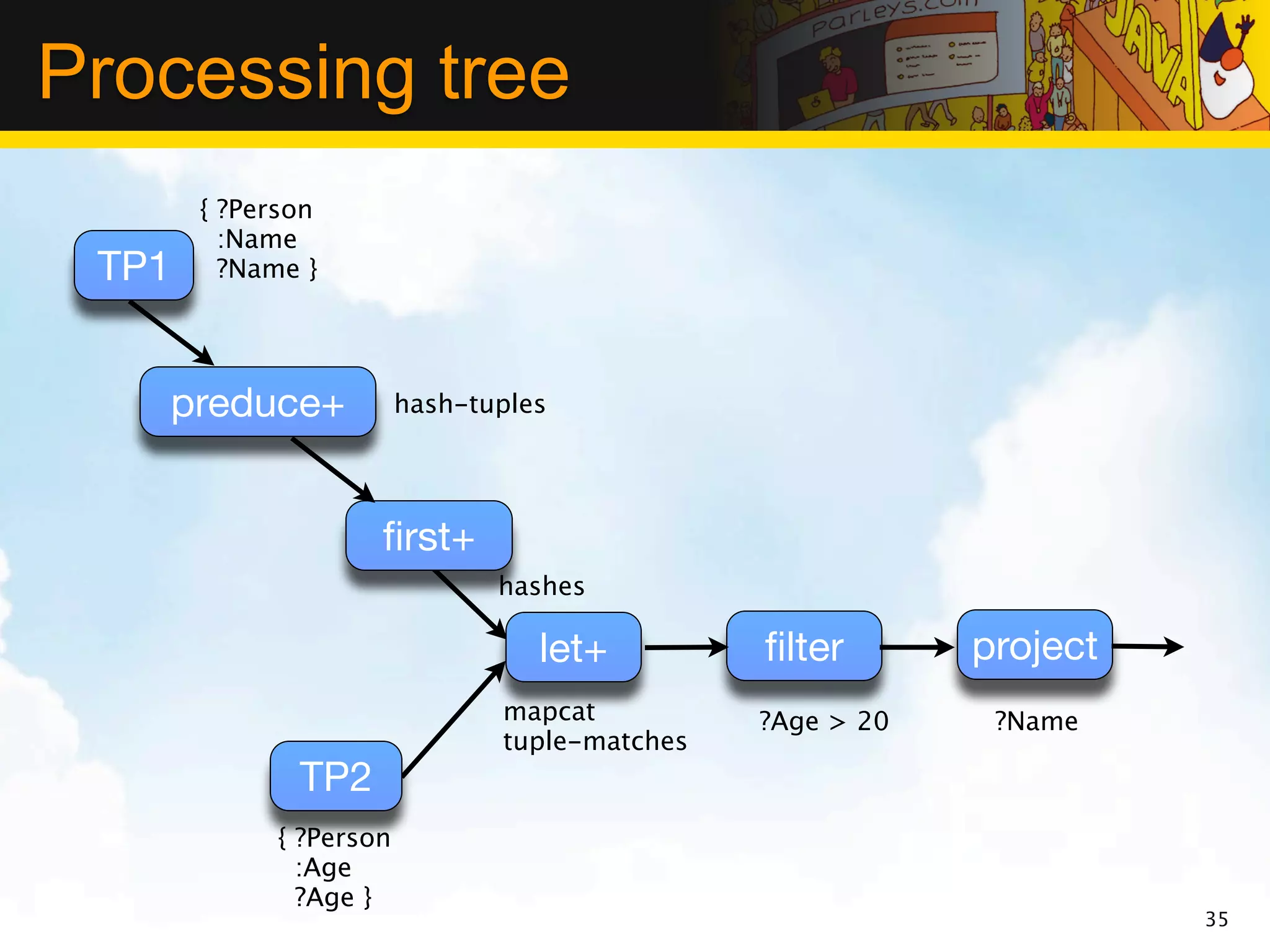

41. Processing tree
{ ?Person
:Name
TP1 ?Name }
preduce+ hash-tuples
first+
hashes
let+ filter project
mapcat ?Age > 20 ?Name
tuple-matches
TP2
{ ?Person
:Age
?Age }
35

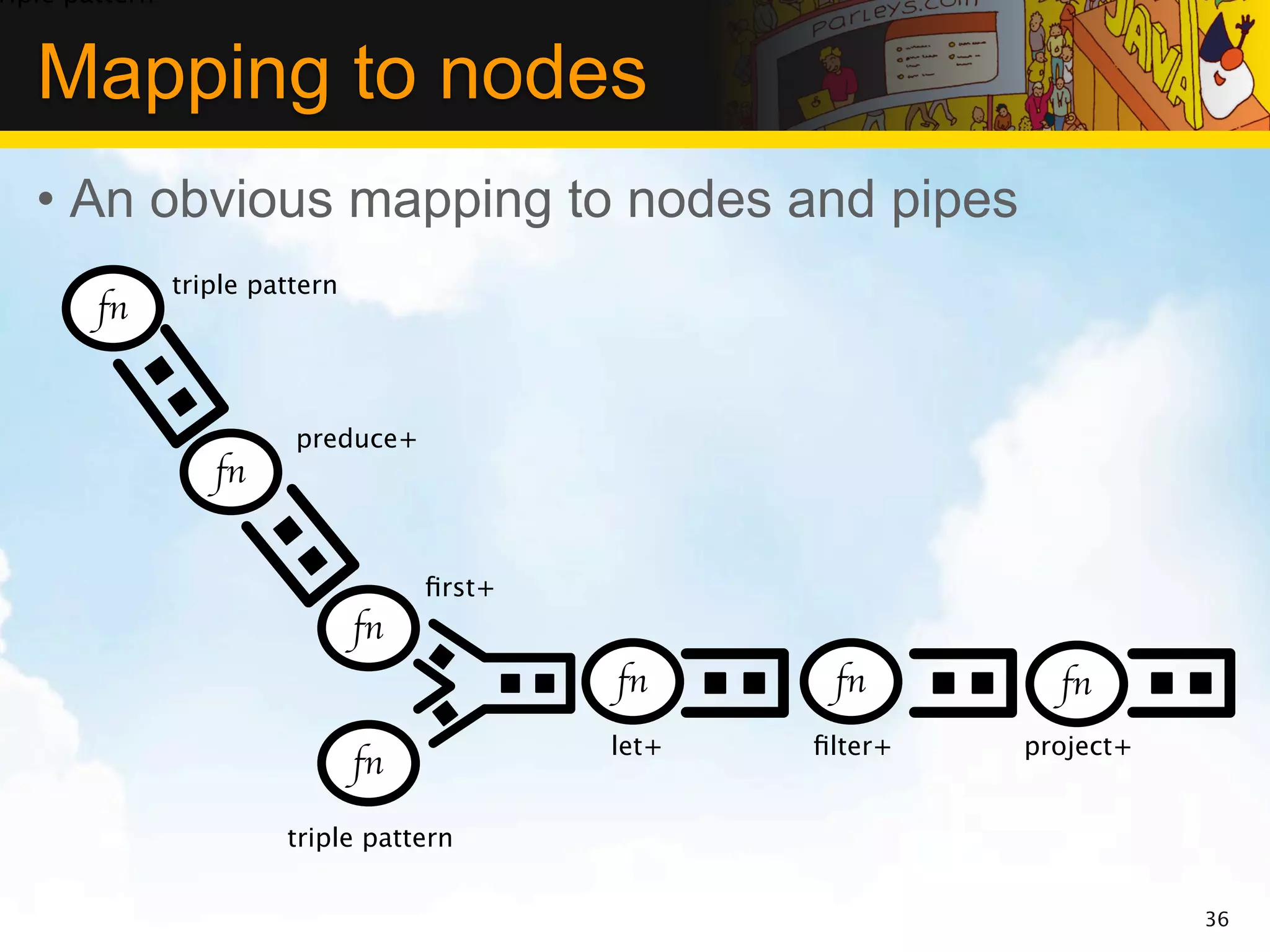

42. riple pattern
Mapping to nodes
• An obvious mapping to nodes and pipes
triple pattern
fn
preduce+
fn
first+
fn
fn fn fn
let+ filter+ project+
fn
triple pattern
36

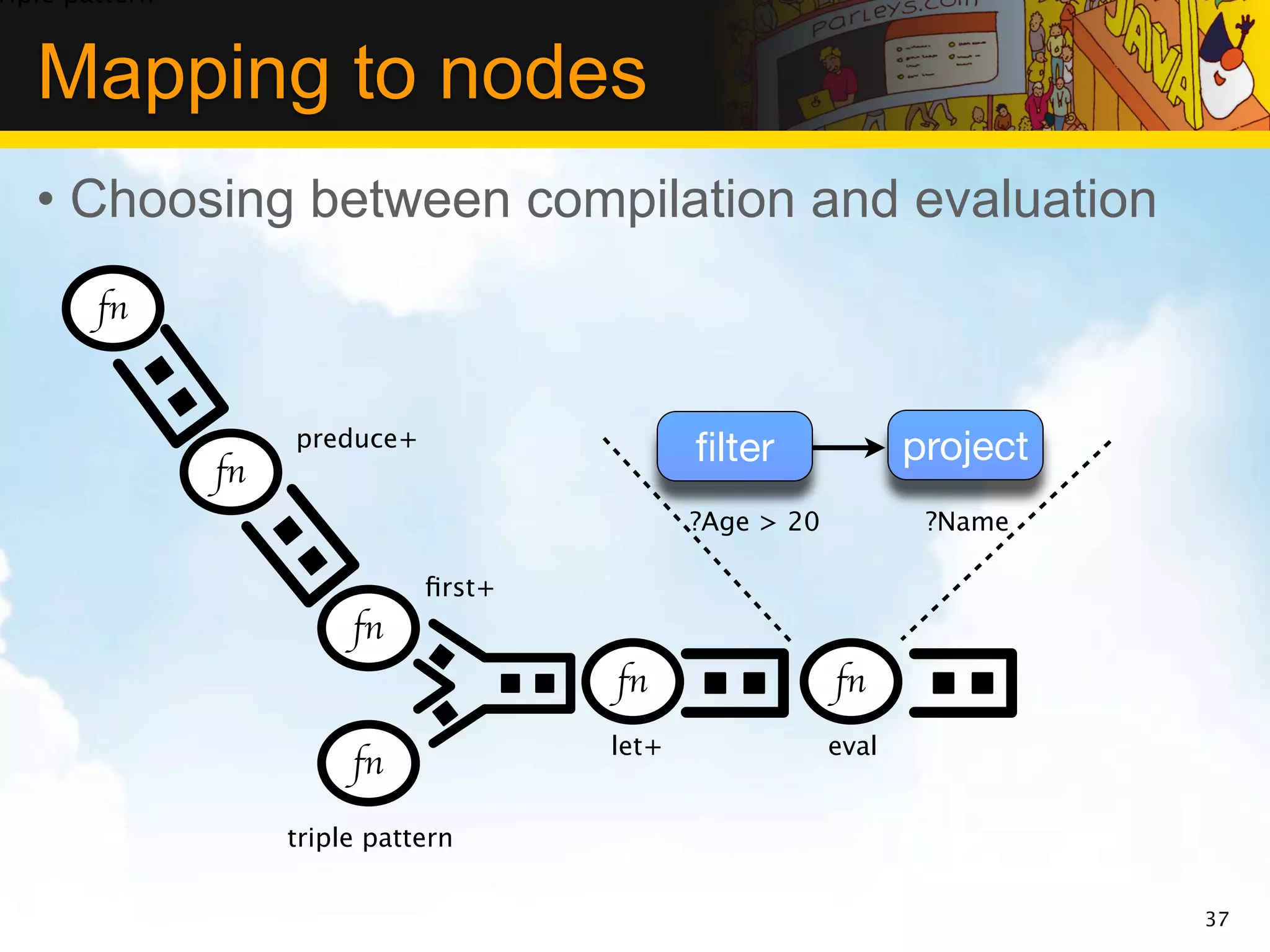

43. riple pattern
Mapping to nodes
• Choosing between compilation and evaluation
fn
preduce+
filter project
fn
?Age > 20 ?Name
first+
fn
fn fn
let+ eval
fn
triple pattern
37

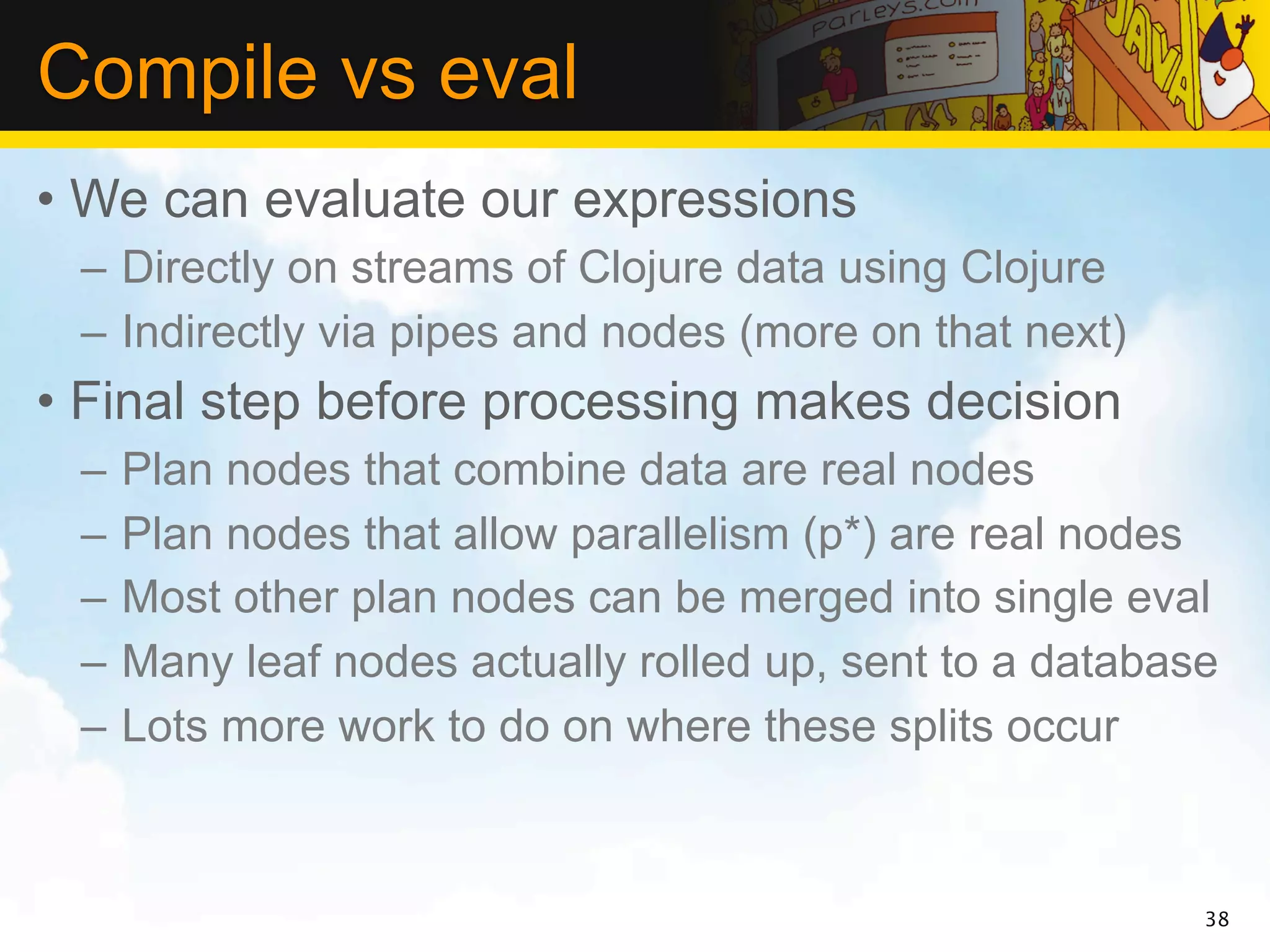

44. Compile vs eval
• We can evaluate our expressions
– Directly on streams of Clojure data using Clojure
– Indirectly via pipes and nodes (more on that next)
• Final step before processing makes decision
– Plan nodes that combine data are real nodes
– Plan nodes that allow parallelism (p*) are real nodes
– Most other plan nodes can be merged into single eval
– Many leaf nodes actually rolled up, sent to a database
– Lots more work to do on where these splits occur
38

45. Processing
Execution

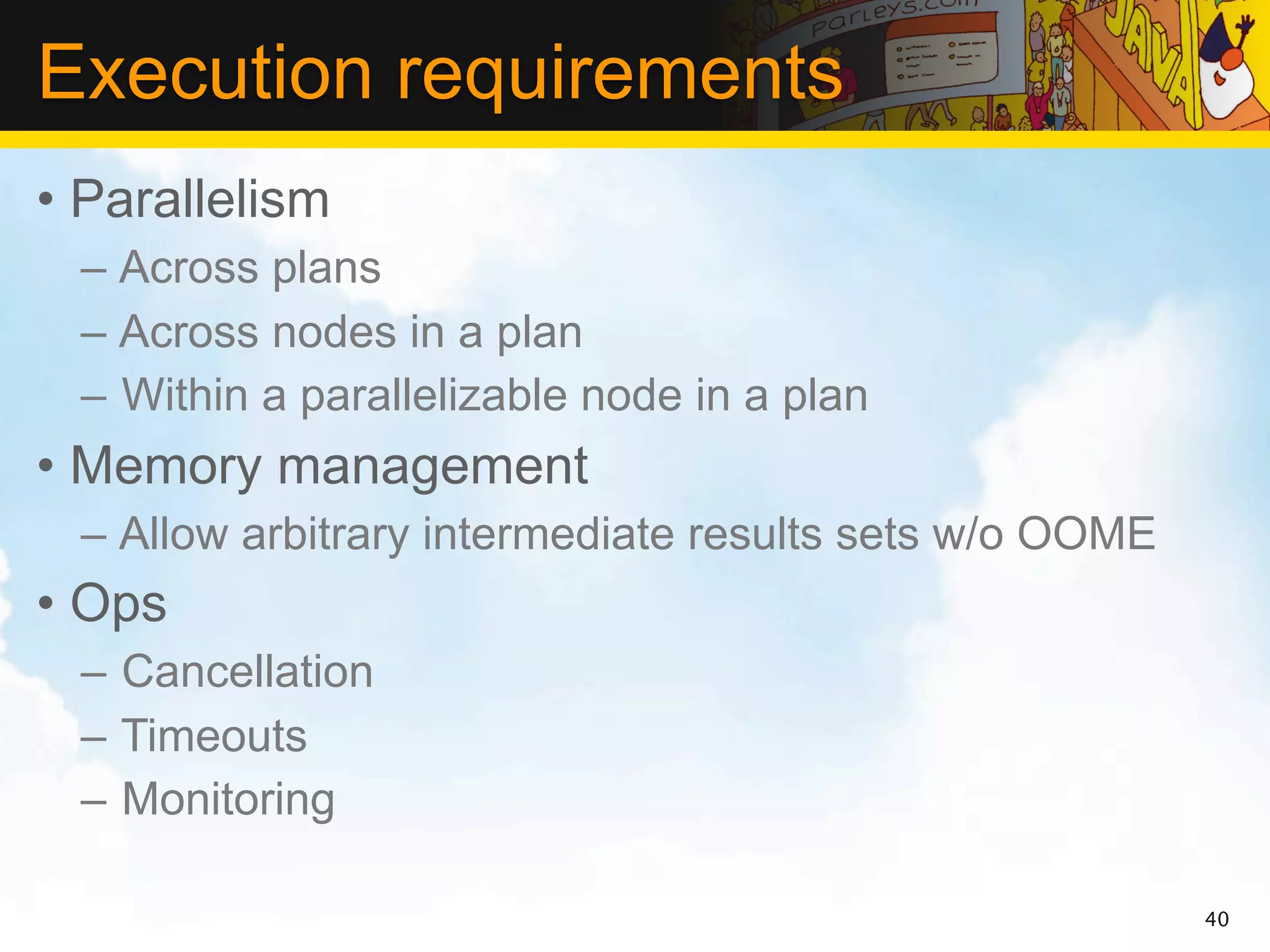

46. Execution requirements
• Parallelism
– Across plans
– Across nodes in a plan
– Within a parallelizable node in a plan
• Memory management
– Allow arbitrary intermediate results sets w/o OOME
• Ops
– Cancellation
– Timeouts
– Monitoring
40

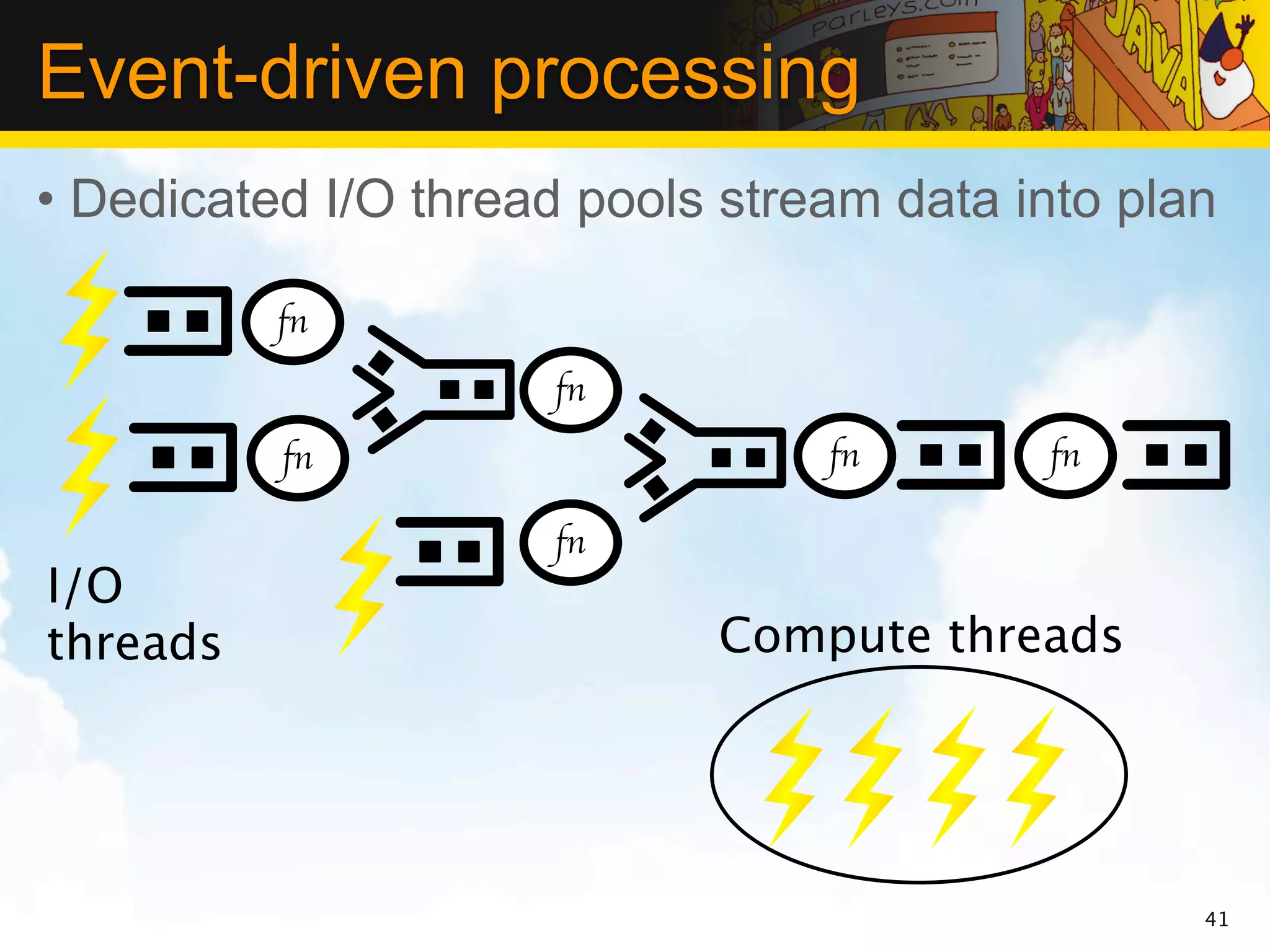

47. Event-driven processing
• Dedicated I/O thread pools stream data into plan
fn
fn
fn fn fn
fn
I/O
threads Compute threads
41

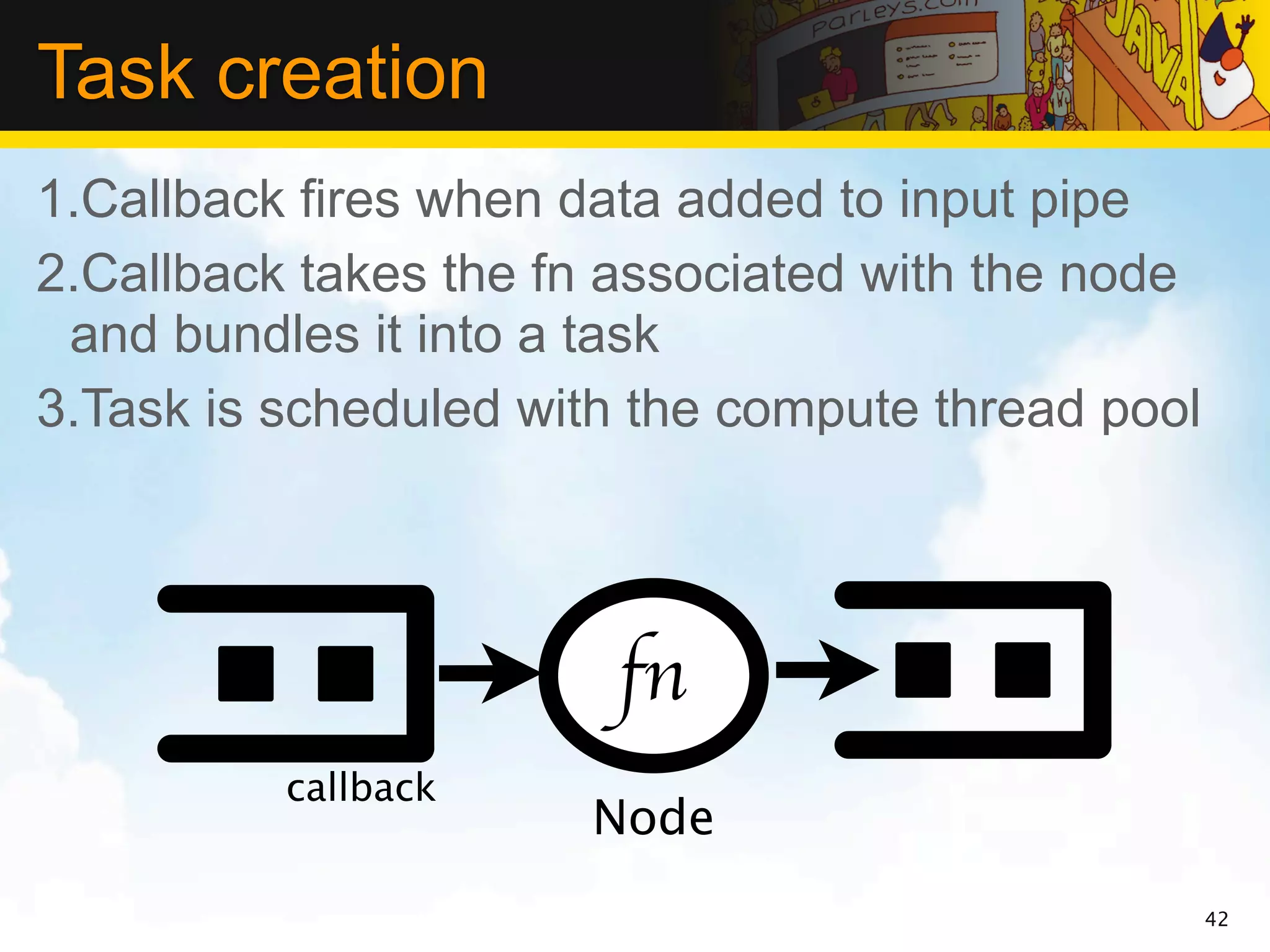

48. Task creation
1.Callback fires when data added to input pipe
2.Callback takes the fn associated with the node
and bundles it into a task
3.Task is scheduled with the compute thread pool
fn
callback
Node
42

49. Fork/join vs Executors
• Fork/join thread pool vs classic Executors
– Optimized for finer-grained tasks
– Optimized for larger numbers of tasks
– Optimized for more cores
– Works well on tasks with dependencies
– No contention on a single queue
– Work stealing for load balancing
Compute threads
43

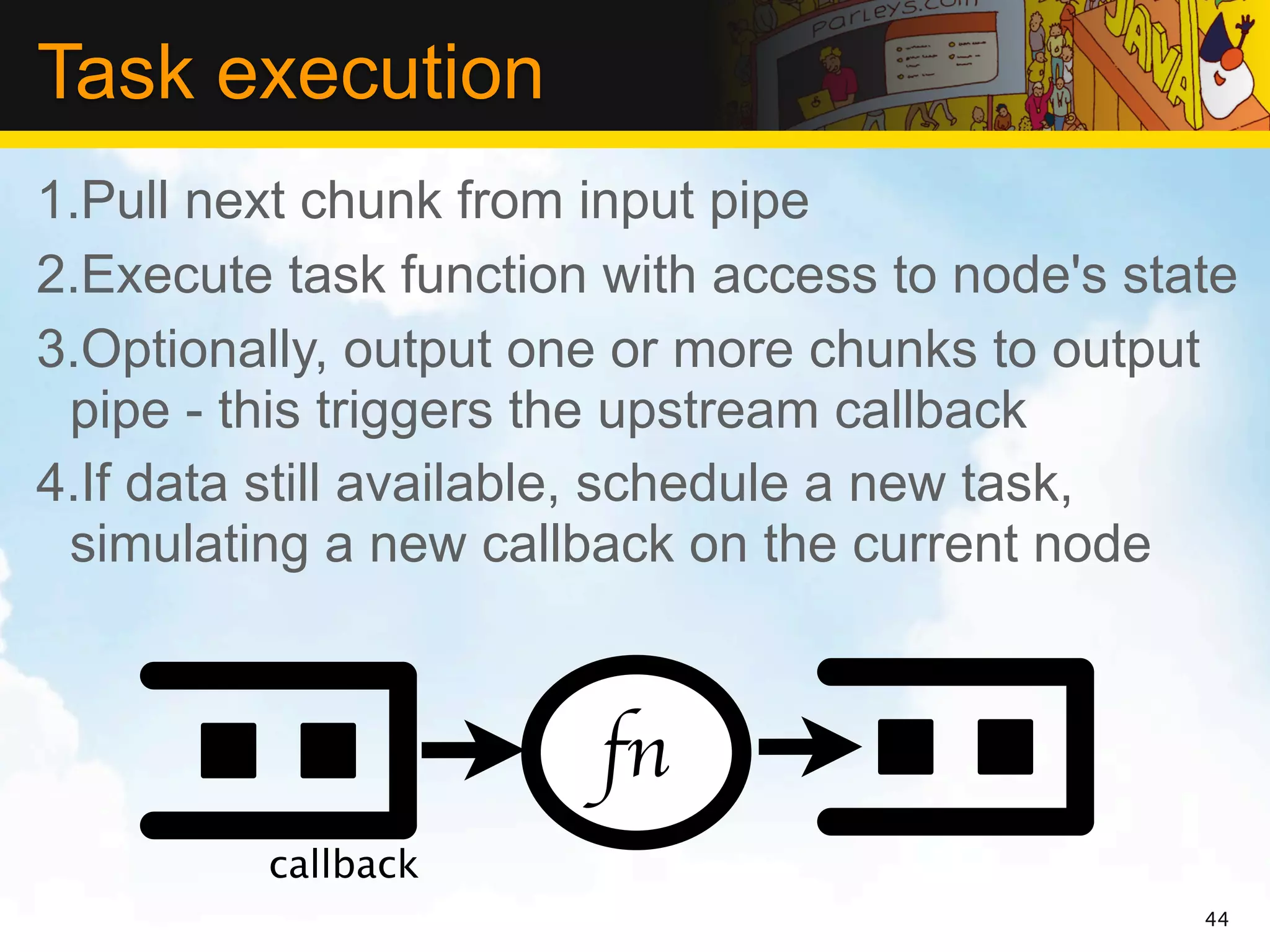

50. Task execution
1.Pull next chunk from input pipe
2.Execute task function with access to node's state
3.Optionally, output one or more chunks to output
pipe - this triggers the upstream callback
4.If data still available, schedule a new task,
simulating a new callback on the current node
fn
callback
44

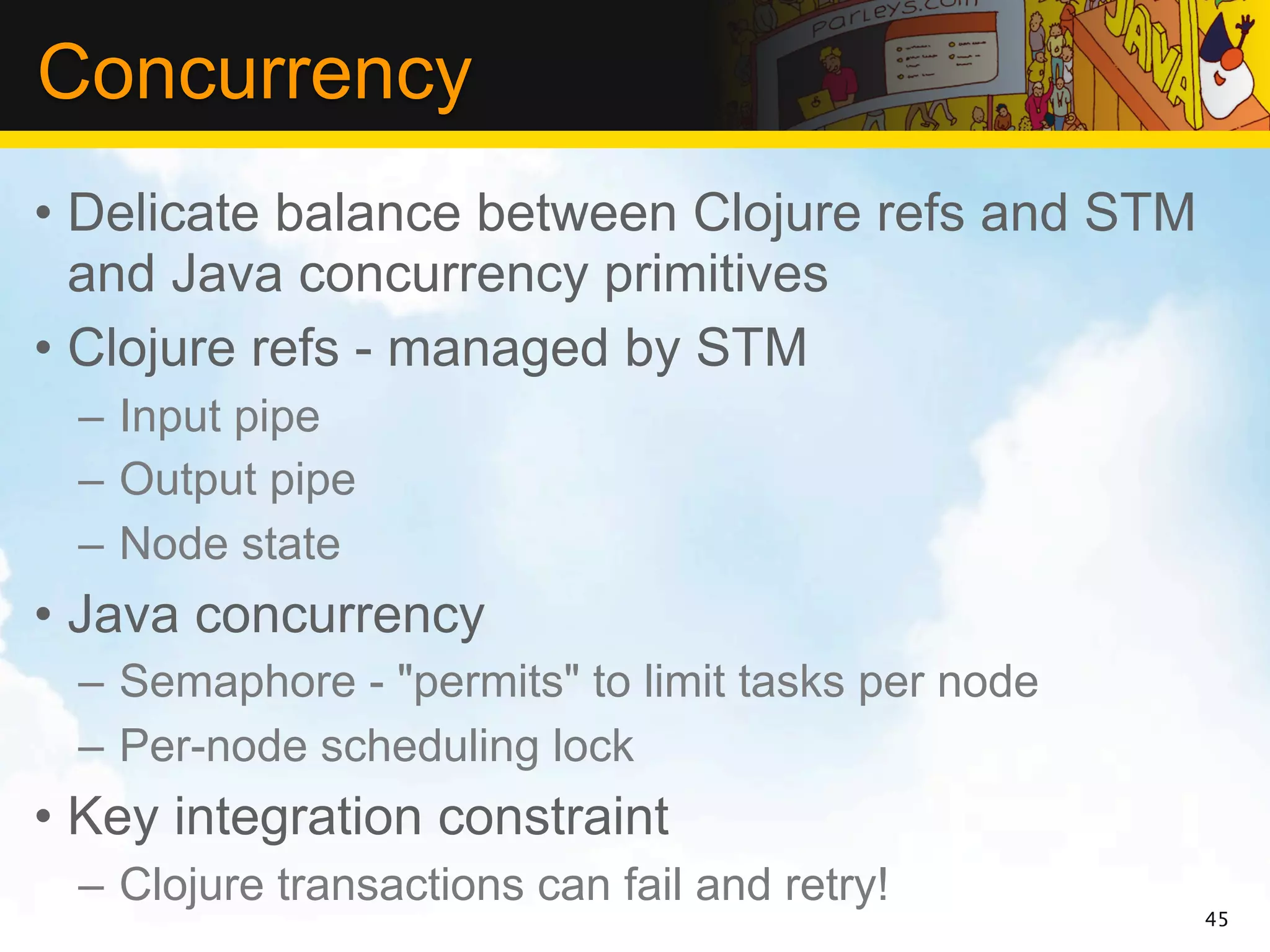

51. Concurrency
• Delicate balance between Clojure refs and STM
and Java concurrency primitives
• Clojure refs - managed by STM
– Input pipe
– Output pipe
– Node state
• Java concurrency
– Semaphore - "permits" to limit tasks per node
– Per-node scheduling lock
• Key integration constraint
– Clojure transactions can fail and retry!
45

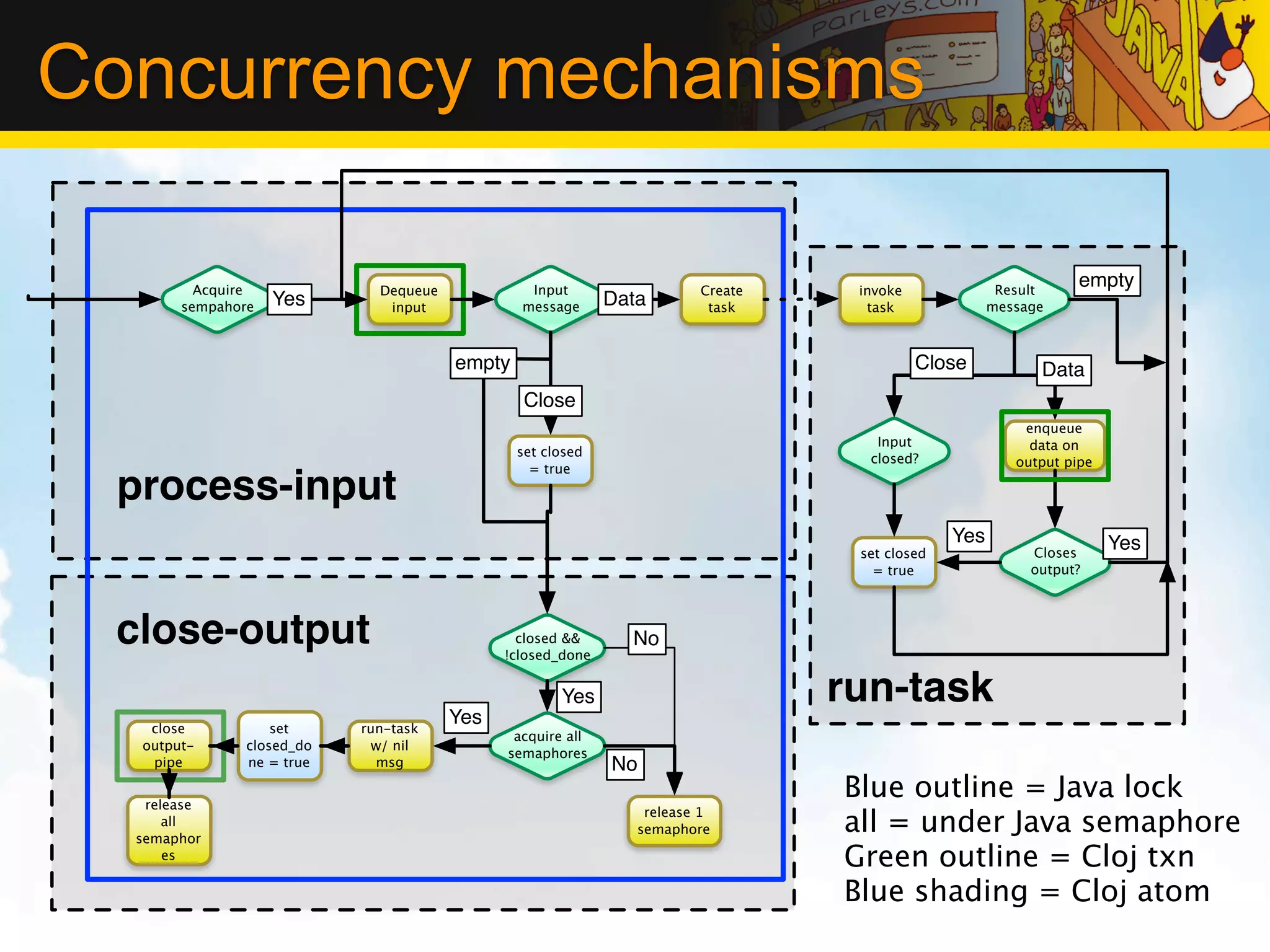

52. Concurrency mechanisms
Acquire Dequeue Input Create invoke Result
empty
sempahore Yes input message Data task task message
empty Close Data
Close
enqueue
Input data on
set closed
closed? output pipe
= true
process-input
Yes Yes
set closed Closes
= true output?
close-output closed &&
!closed_done
No
Yes run-task
close set run-task
Yes
acquire all
output- closed_do w/ nil
semaphores
pipe ne = true msg No
release
Blue outline = Java lock
all = under Java semaphore
release 1
all
semaphore
semaphor
es Green outline = Cloj txn
Blue shading = Cloj atom

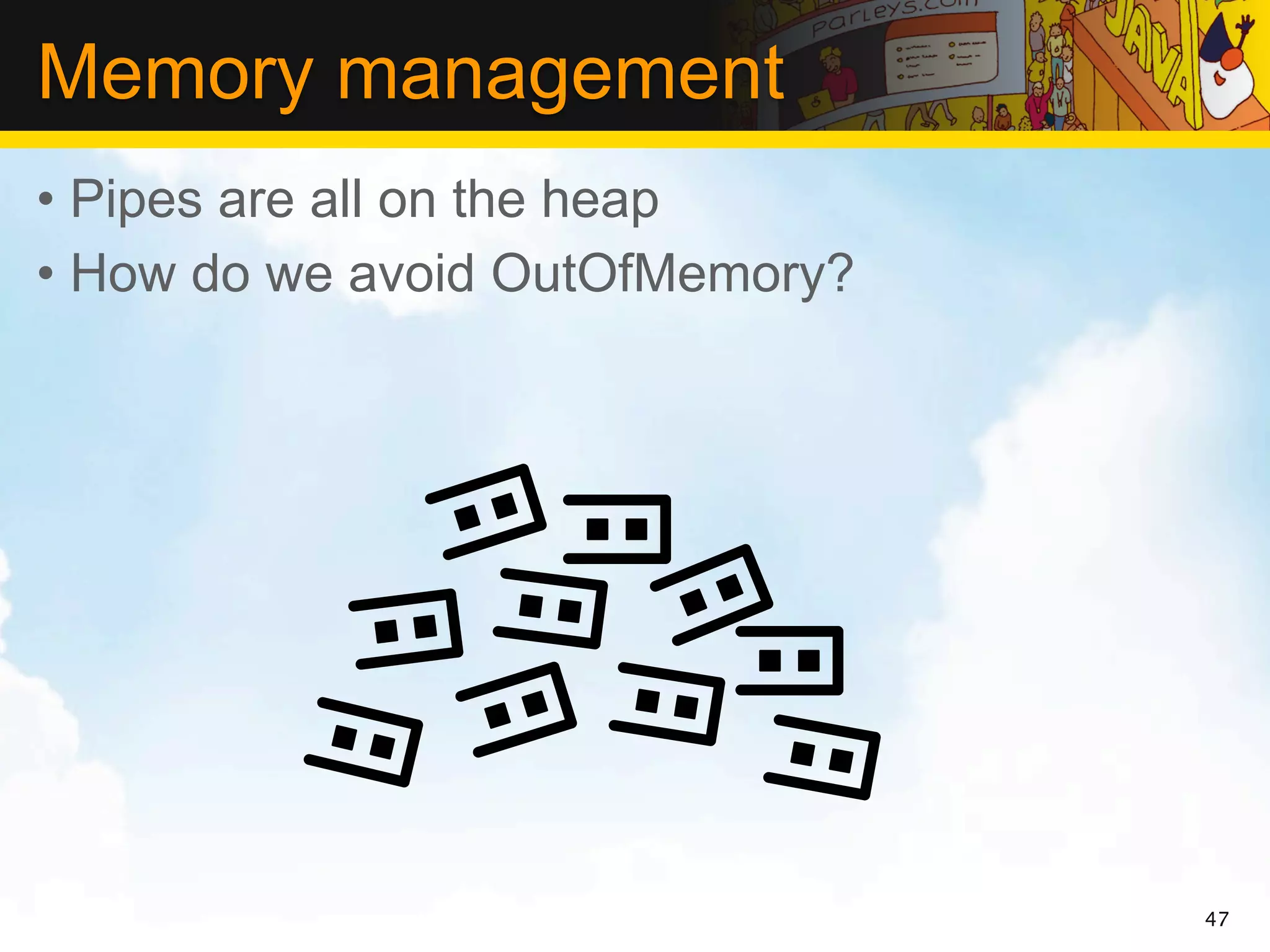

53. Memory management
• Pipes are all on the heap
• How do we avoid OutOfMemory?
47

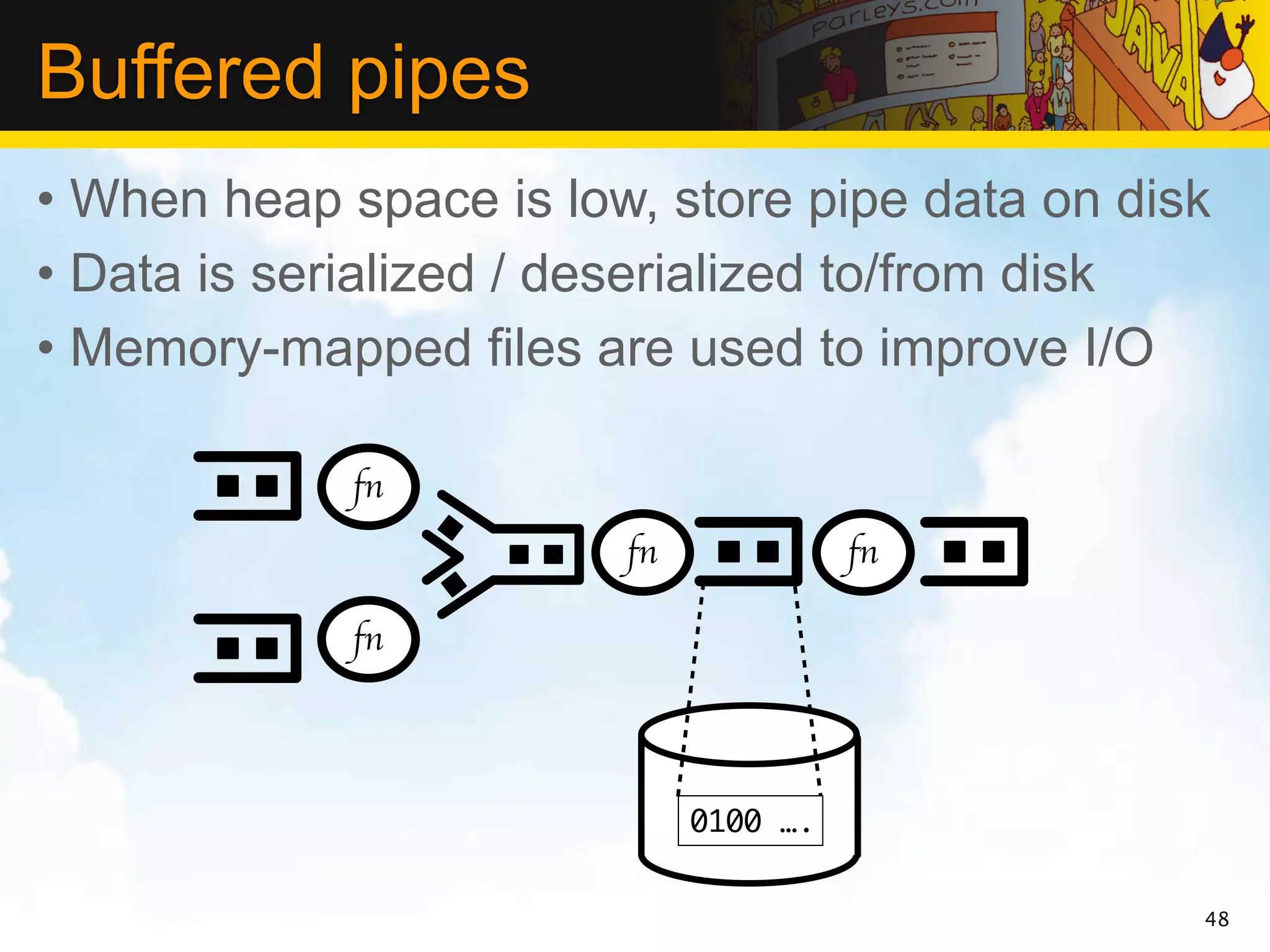

54. Buffered pipes
• When heap space is low, store pipe data on disk
• Data is serialized / deserialized to/from disk
• Memory-mapped files are used to improve I/O
fn
fn fn
fn
0100 ….
48

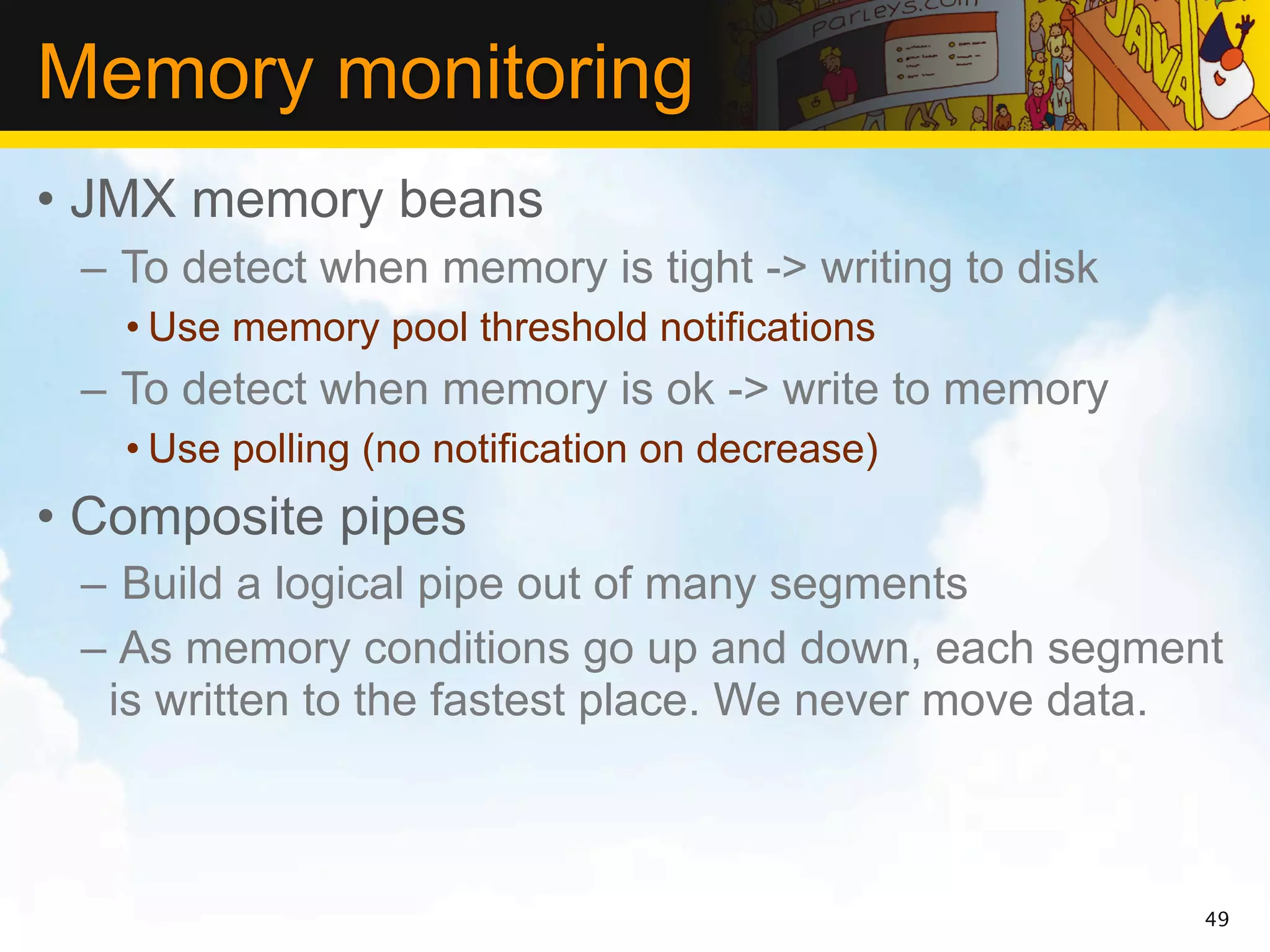

55. Memory monitoring
• JMX memory beans
– To detect when memory is tight -> writing to disk
• Use memory pool threshold notifications
– To detect when memory is ok -> write to memory
• Use polling (no notification on decrease)
• Composite pipes
– Build a logical pipe out of many segments
– As memory conditions go up and down, each segment
is written to the fastest place. We never move data.
49

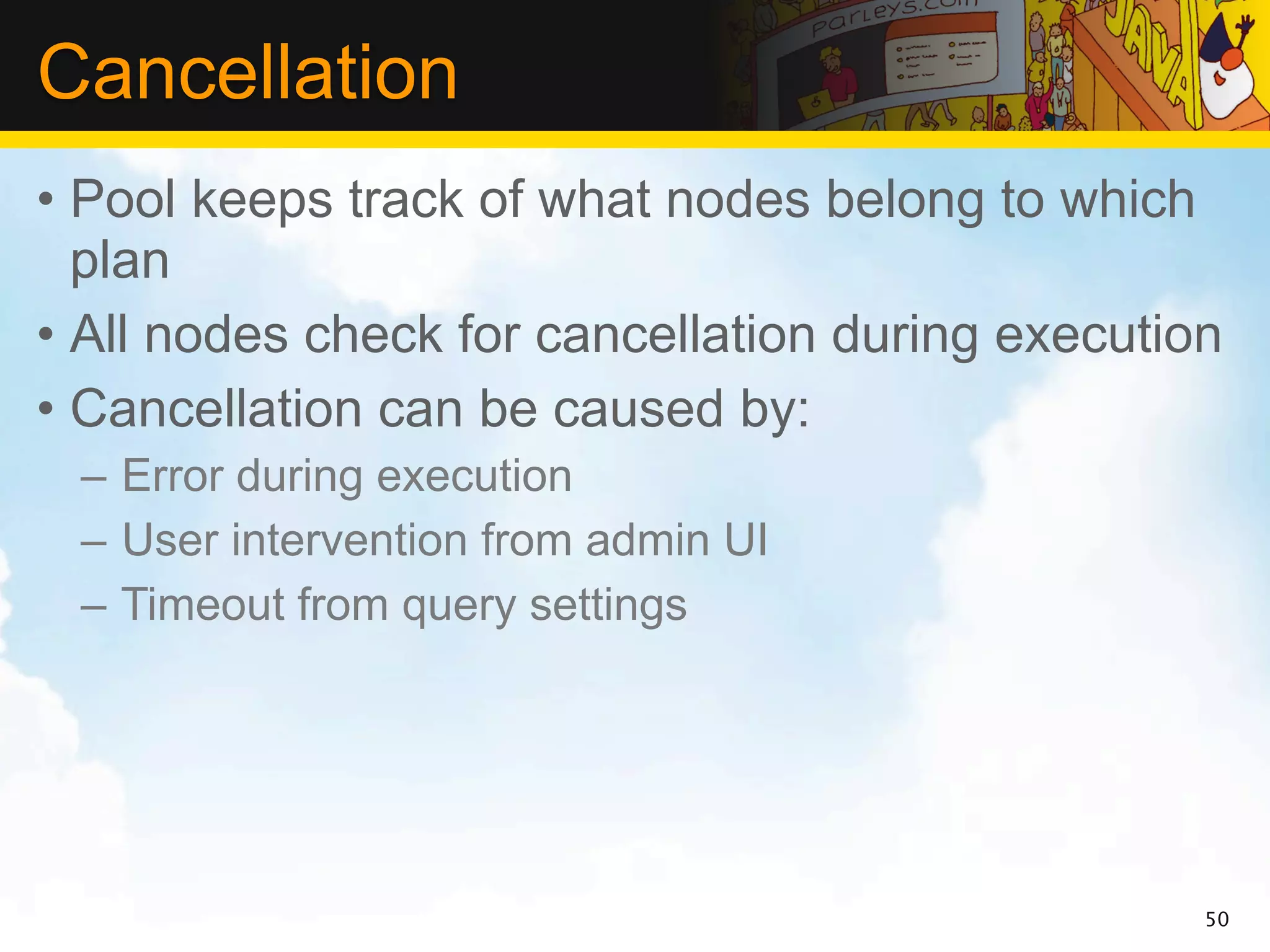

56. Cancellation
• Pool keeps track of what nodes belong to which
plan
• All nodes check for cancellation during execution
• Cancellation can be caused by:
– Error during execution
– User intervention from admin UI
– Timeout from query settings
50

57. Summary
• Data flow architecture
– Event-driven by arrival of data
– Compute threads never block
– Fork/join to handle scheduling of work
• Clojure as abstraction tool
– Expression tree lets us express plans concisely
– Also lets us manipulate them with tools in Clojure
– Lines of code
• Fork/join pool, nodes, pipes - 1200
• Buffer, serialization, memory monitor - 970
• Processor, compiler, eval - 1900
• Open source? Hmmmmmmmmmmm……. 51

58. Thanks...
Alex Miller
@puredanger
Revelytix, Inc.
