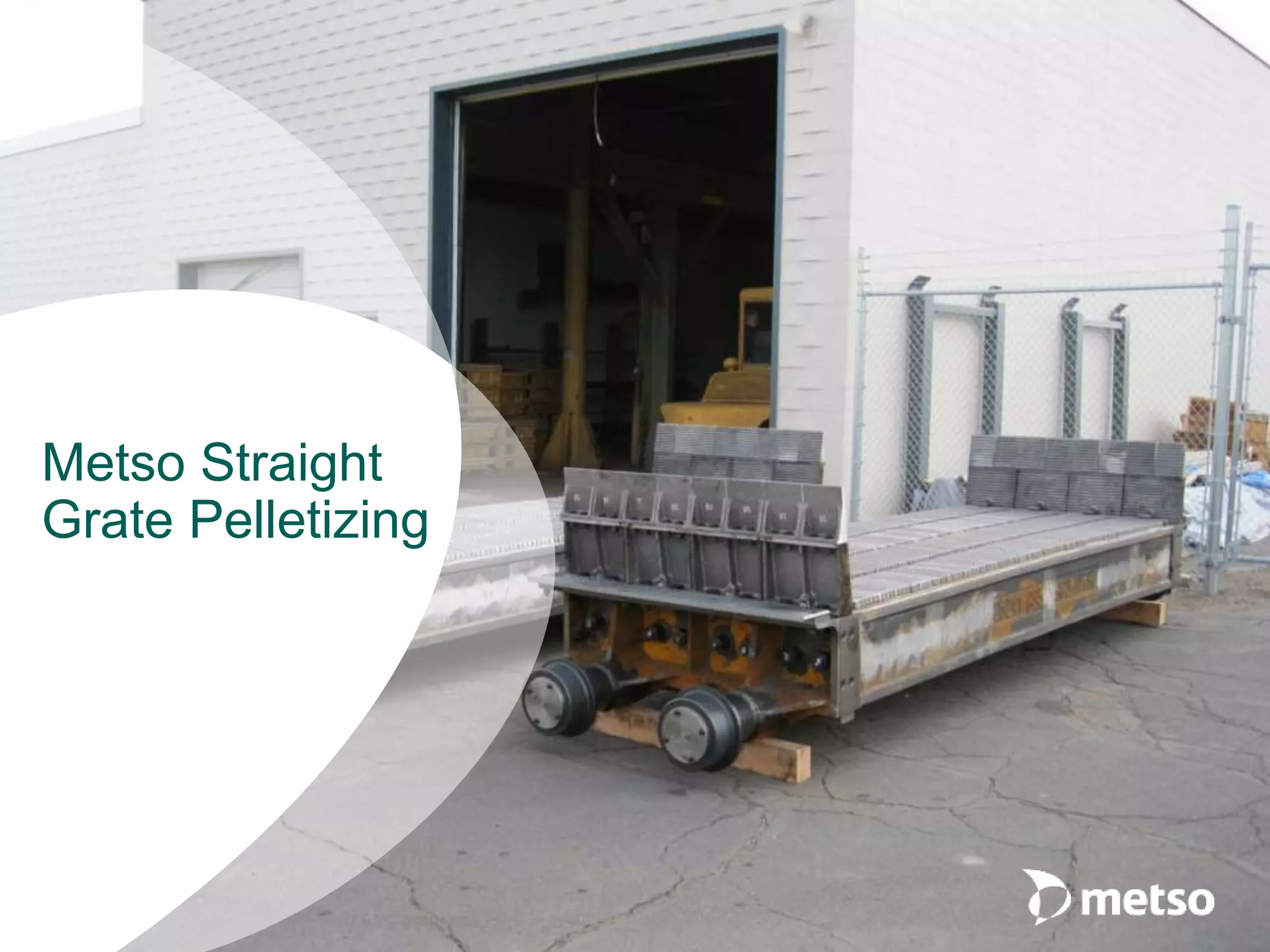

Metso Straight
Grate Pelletizing
Machine Sizes Machine sizes
• Width- 2.5 to 4 m (8’ to 13’ 1 ½”)
•Green Pellet Depth- 400 to 500 mm (16” to 20”)
• Process Length- 28 to 186 m (92’ to 610’)
• Overall Length - 38 to 197 m (126’ to 646’)
• Tonnage Rate - up to 7.5 M mtpy (Guaranteed)
© Metso
ReRceecnetn tm Maacchhiinneess S supupplipedlied
METSO
CONTRACT
© Metso
CUSTOMER LOCATION ORDER
DATE
STATUS MACHINE
WIDTH
PROCESS
LENGTH
OTHER EQUIPMENT
INCLUDED
11170 Jindal Steel & Power
Barbil, Orissa,
India
2006 In operation 4 m 116 m
Double Deck Roller Screen, Wide
Belt Feed Conveyor Feed
Conveyor
C503 Essar Steel
Paradeep , Orissa,
India
2008 In operation 4 m 186 m
Wide Belt Feed Conveyor,
Reciprocating Conveyor
C506 Essar Steel
Paradeep , Orissa,
India
2008
Under
construction
4 m 186 m
Wide Belt Feed Conveyor,
reciprocating head
C507 JSW
Toranagallu,
Karanatake, India
2010 In operation 4 m 116 m
C858 Essar Steel
Nashwauk,
Minnesota, USA
2011
Under
construction
4 m 186 m
Wide Belt Feed Conveyor,
Reciprocating Conveyor
C870 Monnet Raigarh, India 2011
Under
construction
4 m 84 m
C1760 Jindal Steel & Power
Barbil, Orissa,
India
2012 In operation 4 m 116 m
Double Deck Roller Screen,Wide
Belt Feed Conveyor,
Reciprocating Conveyor
C1806 Amba River Coke Dolvi, India 2012 In operation 4 m 116 m
C1937 Magnetation
Reynolds, Indiana,
USA
2012
Under
construction
4 m 96 m
Balling discs, Oscillating Feed
Conveyor
© Metso
RoRlleorll ecro nCvoenyvoeryor
© Metso
© Metso
Oscillating feed conveyor
© Metso
PallPeat llet
© Metso
Grate and Grate Bars
© Metso
Grate Locking Rod End Bar
Spacer Bar
Center Bar
Grate and grate bars
Relocated Grate Locking Rod Relocated grate locking rod
© Metso
Relocated Grate Locking Rod Relocated grate locking rod
© Metso
GraGterabtea rBar
© Metso
Grate bar quality- xray and dye penedrant testing
© Metso
Pallet Center Casting
Pallet center casting
© Metso
Pallet center casting quality control
© Metso
Y
Pallet center non destructive testing of initial
casting
© Metso
Pallet center surface quality- magnetic particle
© Metso
Pallet center surface quality - ultrasonic testing
© Metso
Pallet center
© Metso
Critical tolerance
dimensions
Pallet End Arrangement
© Metso
Upper Sidewalls
Lower Sidewalls
Pallet end arrangement
Upper sidewall
Upper Sidewall
© Metso
LowLeorw seird Seiwdeawllall
© Metso
© Metso
End Casting
EndE ncda sCtainsgting
© Metso
End Wear Bar
© Metso
Hood Seal Bar
Spring Seal
© Metso
Pallet end assembly
© Metso
Pallet wheel and roller assembly
© Metso
Pallet wheel and roller assembly
© Metso
Pallet wheel and roller assembly
Induction hardened
alloy steel forged
© Metso
wheel
Induction hardened
alloy steel forged
roller
Pallet wheel and roller assembly
© Metso
Tapered roller bearing for high load
capacity to handle large thrust loads
Pallet wheel and roller assembly
© Metso
Tapered roller bearing for high load
capacity to handle large thrust loads
Pallet wheel and roller assembly
© Metso
Manganese bronze
self lubricated
bushing
Pallet wheel and roller assembly
© Metso
Piston ring seals to
exclude dirt and retain
grease
© Metso
Hearth layer system
© Metso
Side layer system
© Metso
Dribble vanes
© Metso
Dribble chute
© Metso
Sprocket teeth
© Metso
Sprocket segment - sprocket insert
© Metso
© Metso
© Metso
© Metso
Machine drive
© Metso
© Metso
Counterweighted dead-plates
© Metso
One set of counterweighted deadplates
© Metso
© Metso
Pallet sag detection device
© Metso
On-the fly pallet removal
© Metso
Grate bar rapper
© Metso
Wabush grate bar rapper
© Metso
