Marcel Jankie is a solution architect for code quality at Micro Focus. Micro Focus offers several tools to help customers achieve better software faster through a proactive approach to requirement management, development, testing, and maintenance. Their tools integrate with development environments like Visual Studio, StarTeam, and Team Foundation Server to provide coverage analysis, automated testing, debugging, and system analysis capabilities. Micro Focus tools evolve over 25+ years of experience to help customers continuously integrate testing into their development process.

1. Marcel Jankie
Solution Architect Code Quality
“Better Software Faster”
International Region

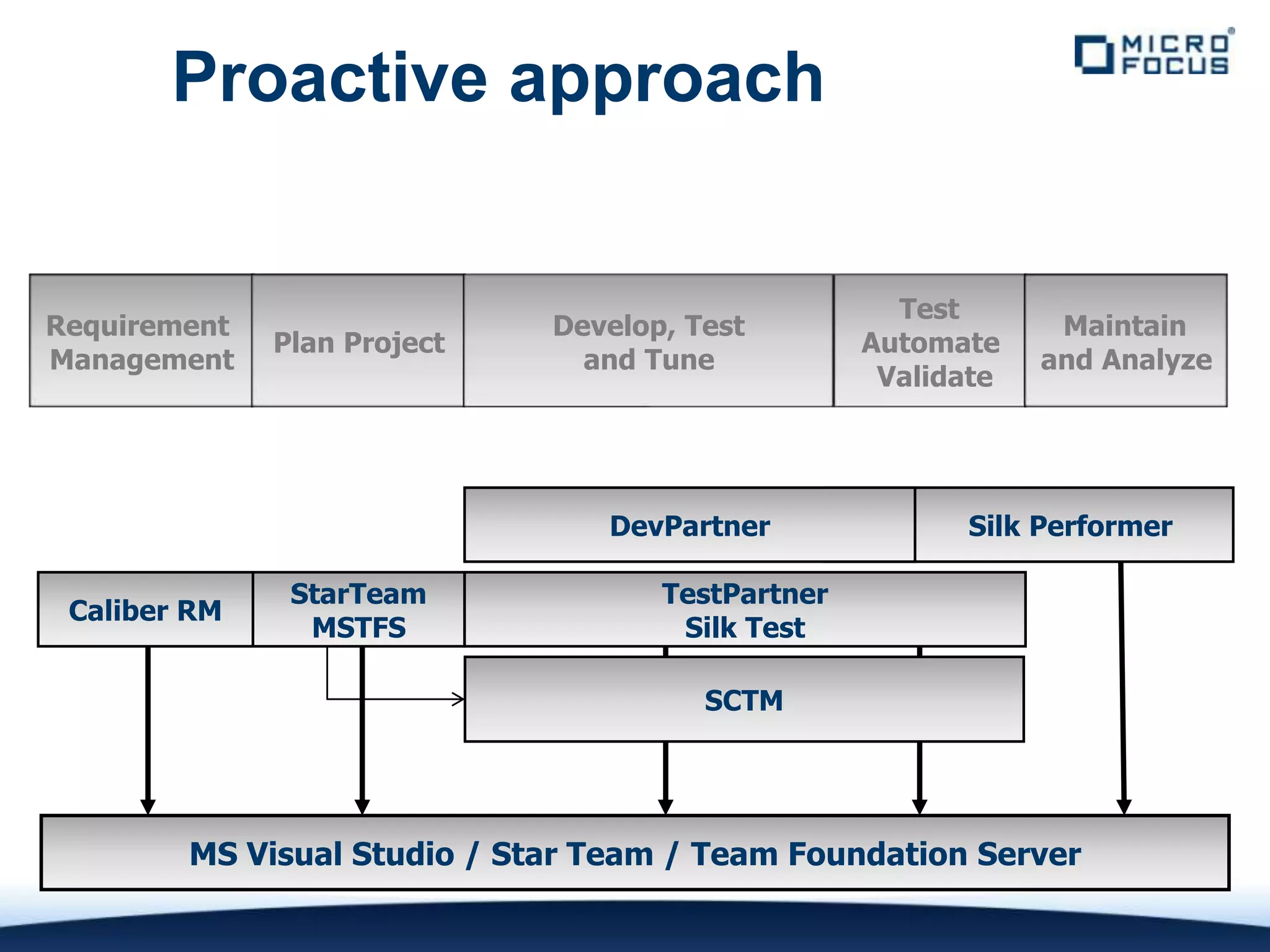

2. Proactive approach
Test
Requirement Develop, Test Maintain
Plan Project Automate
Management and Tune and Analyze
Validate
DevPartner Silk Performer
StarTeam TestPartner
Caliber RM
MSTFS Silk Test
SCTM
MS Visual Studio / Star Team / Team Foundation Server

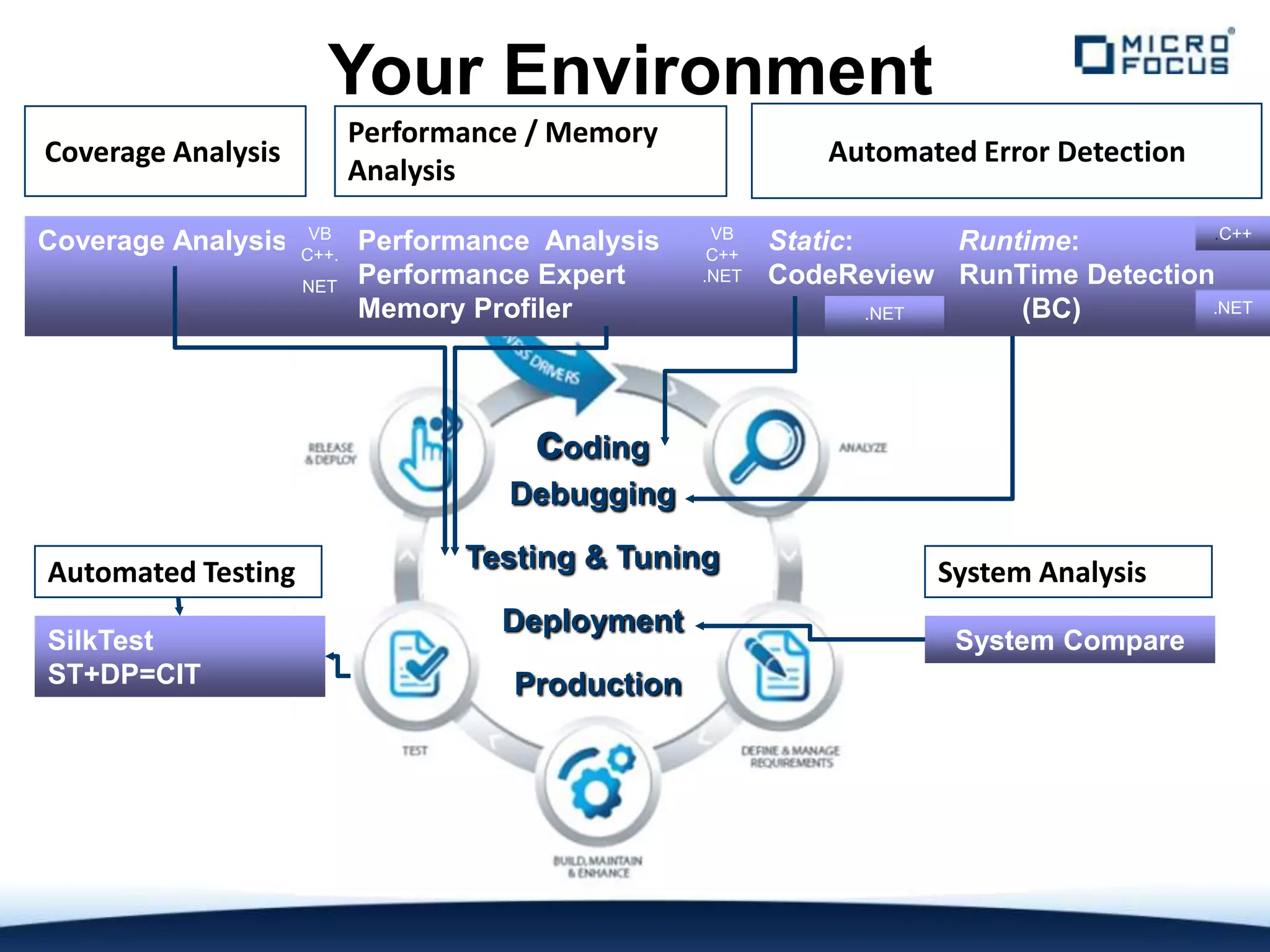

3. Your Environment
Performance / Memory
Coverage Analysis Automated Error Detection
Analysis
VB VB .C++
Coverage Analysis C++.
Performance Analysis C++
Static: Runtime:
NET Performance Expert .NET CodeReview RunTime Detection
Memory Profiler .NET (BC) .NET
coding
Debugging
Automated Testing Testing & Tuning System Analysis
Deployment
SilkTest System Compare
ST+DP=CIT Production

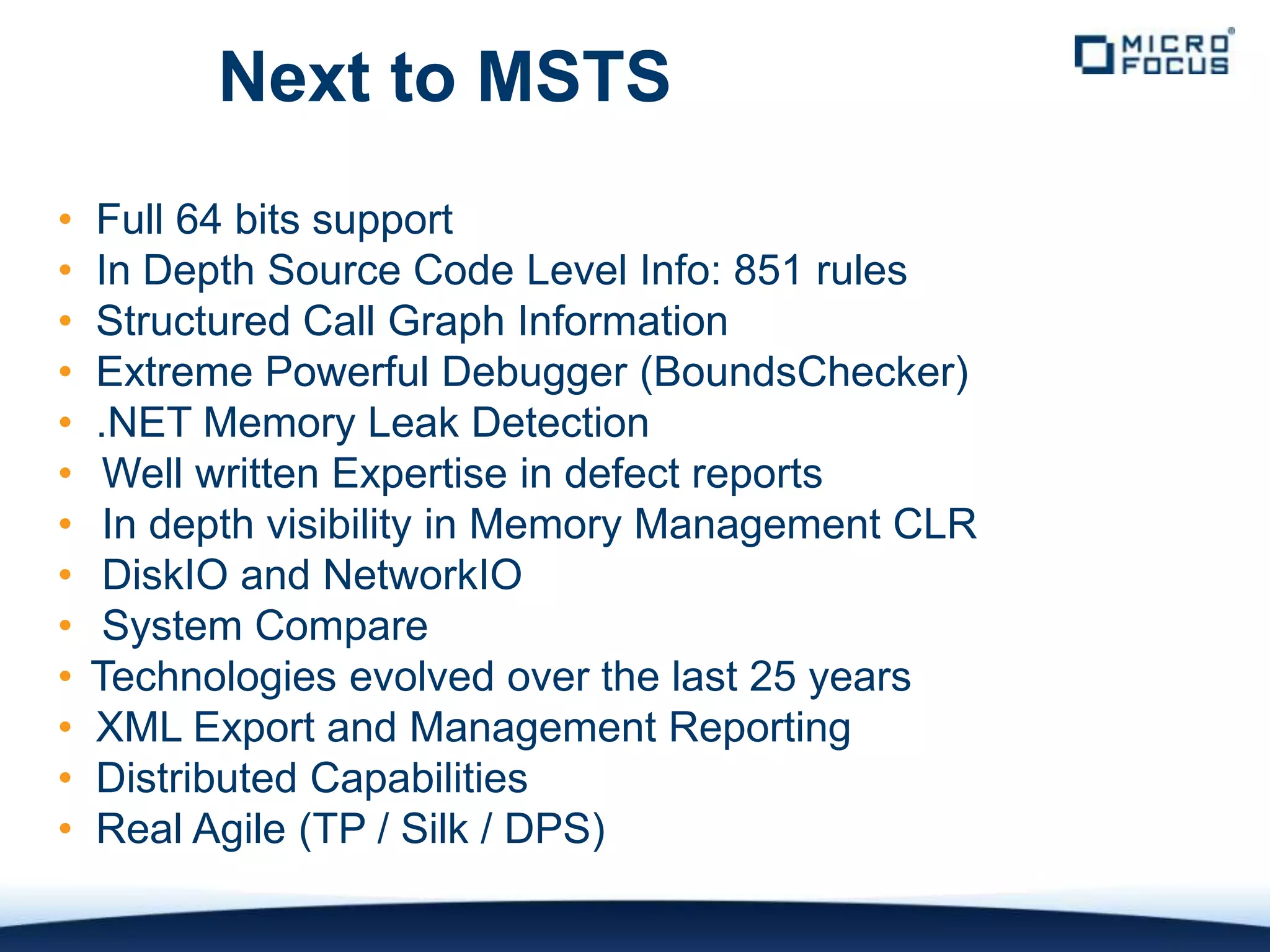

4. Next to MSTS
• Full 64 bits support
• In Depth Source Code Level Info: 851 rules
• Structured Call Graph Information
• Extreme Powerful Debugger (BoundsChecker)
• .NET Memory Leak Detection
• Well written Expertise in defect reports
• In depth visibility in Memory Management CLR
• DiskIO and NetworkIO
• System Compare
• Technologies evolved over the last 25 years
• XML Export and Management Reporting
• Distributed Capabilities
• Real Agile (TP / Silk / DPS)

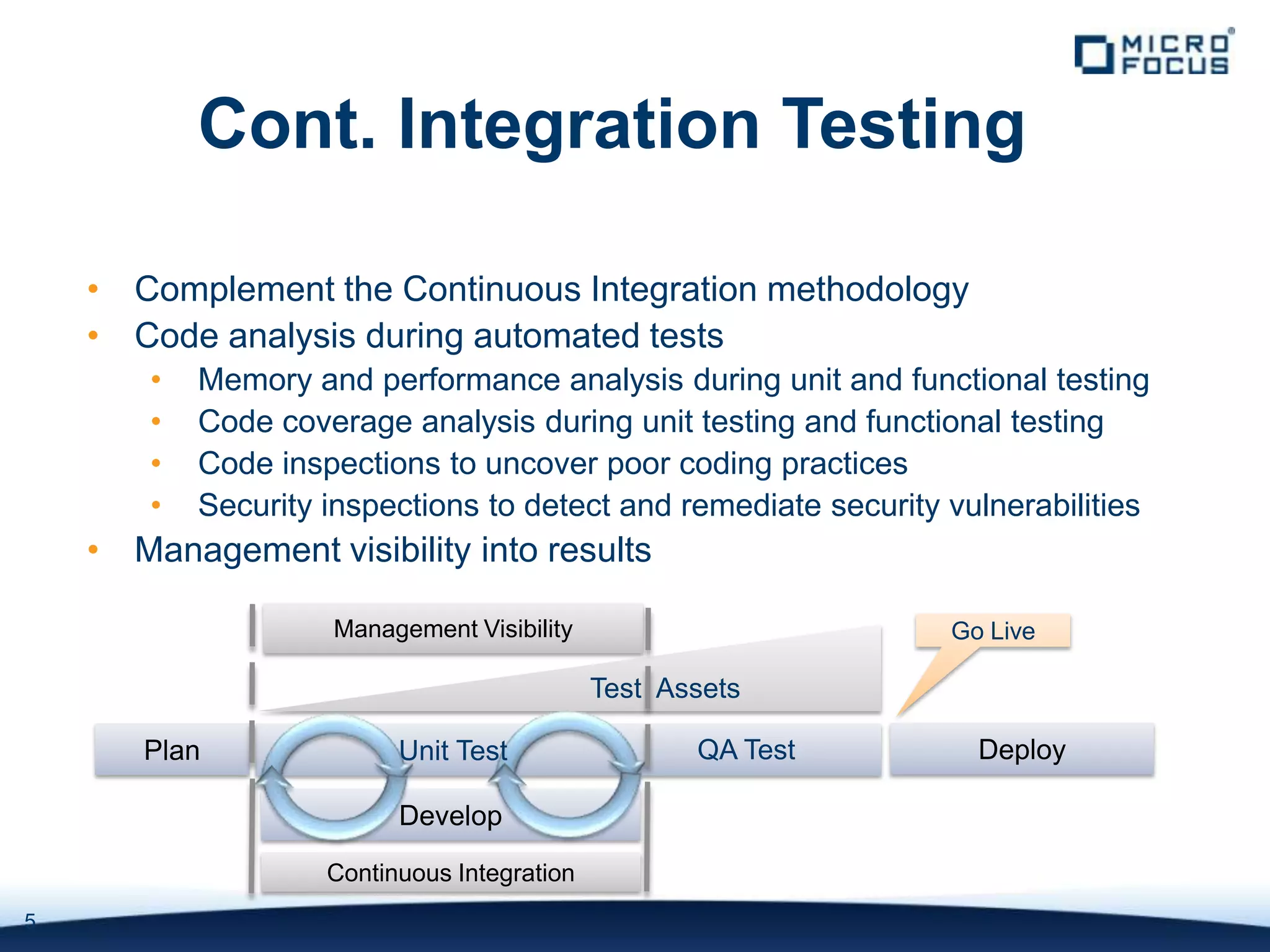

5. Cont. Integration Testing
• Complement the Continuous Integration methodology
• Code analysis during automated tests
• Memory and performance analysis during unit and functional testing
• Code coverage analysis during unit testing and functional testing
• Code inspections to uncover poor coding practices
• Security inspections to detect and remediate security vulnerabilities
• Management visibility into results
Management Visibility Go Live
Test Assets
Plan Unit Test QA Test Deploy
Develop
Continuous Integration
5

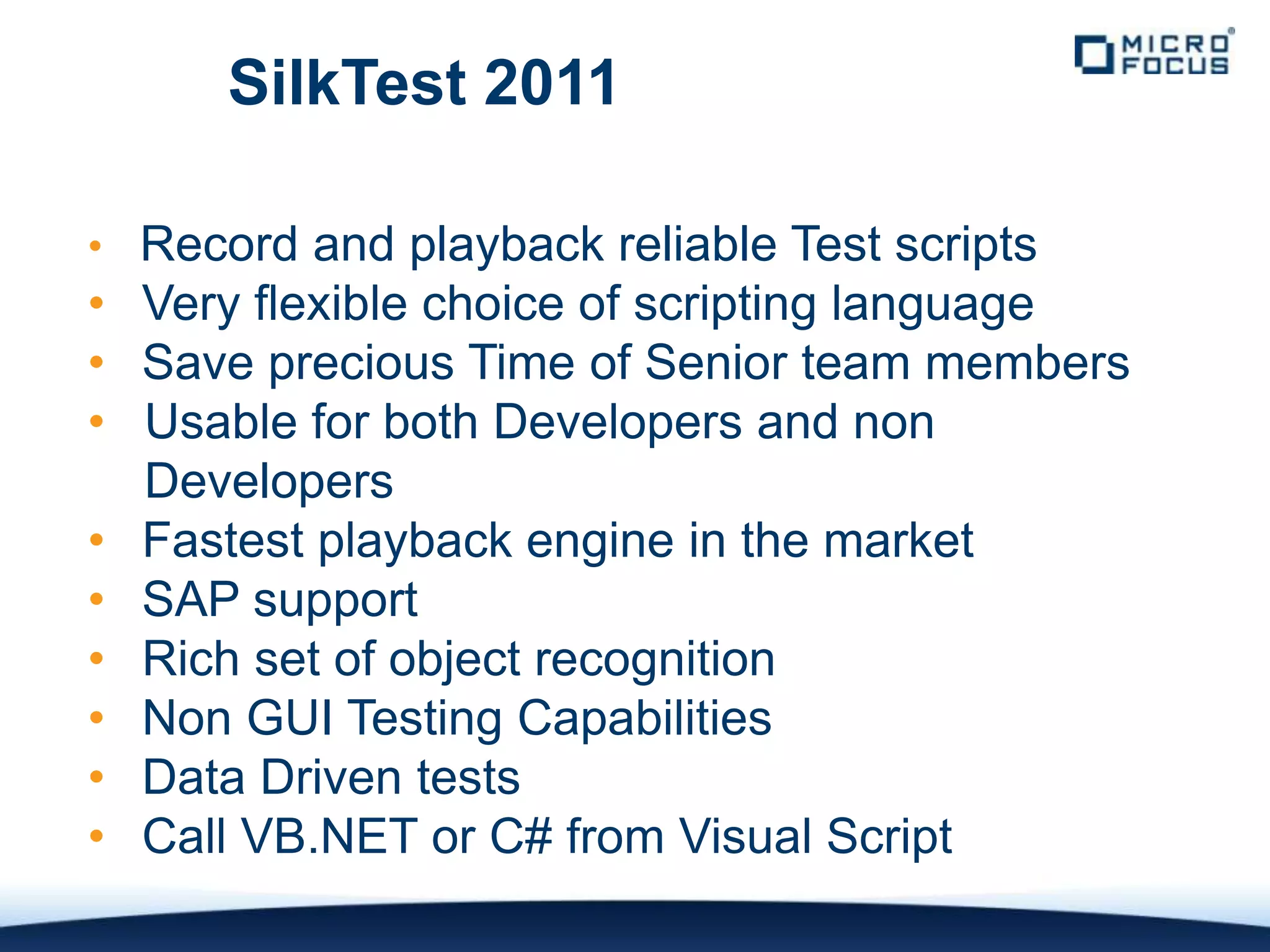

6. SilkTest 2011
• Record and playback reliable Test scripts
• Very flexible choice of scripting language
• Save precious Time of Senior team members
• Usable for both Developers and non
Developers
• Fastest playback engine in the market
• SAP support
• Rich set of object recognition
• Non GUI Testing Capabilities
• Data Driven tests
• Call VB.NET or C# from Visual Script

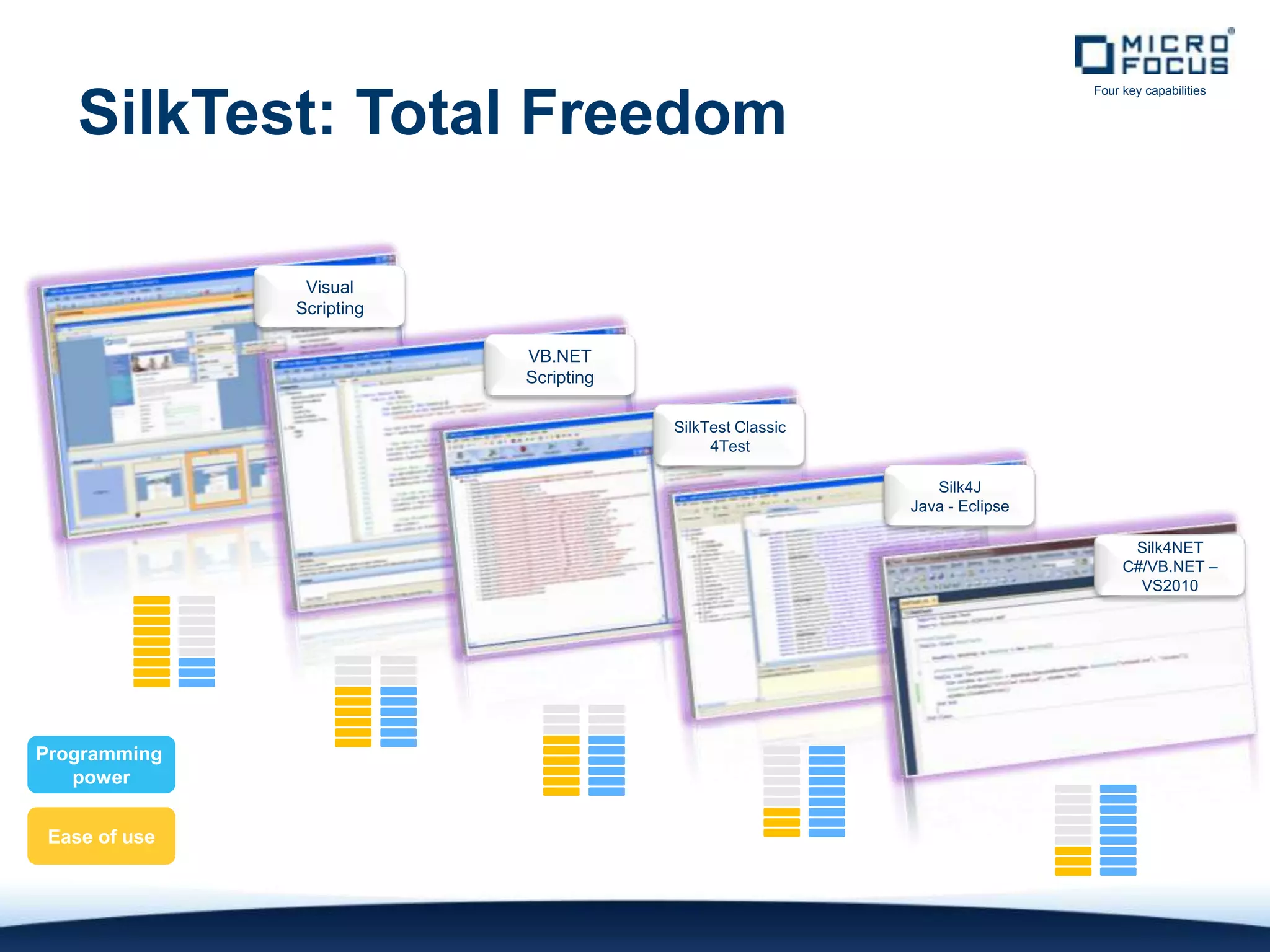

7. Four key capabilities
SilkTest: Total Freedom
Visual
Scripting
VB.NET
Scripting
SilkTest Classic
4Test
Silk4J
Java - Eclipse
Silk4NET
C#/VB.NET –
VS2010
Programming
power
Ease of use

8. 8

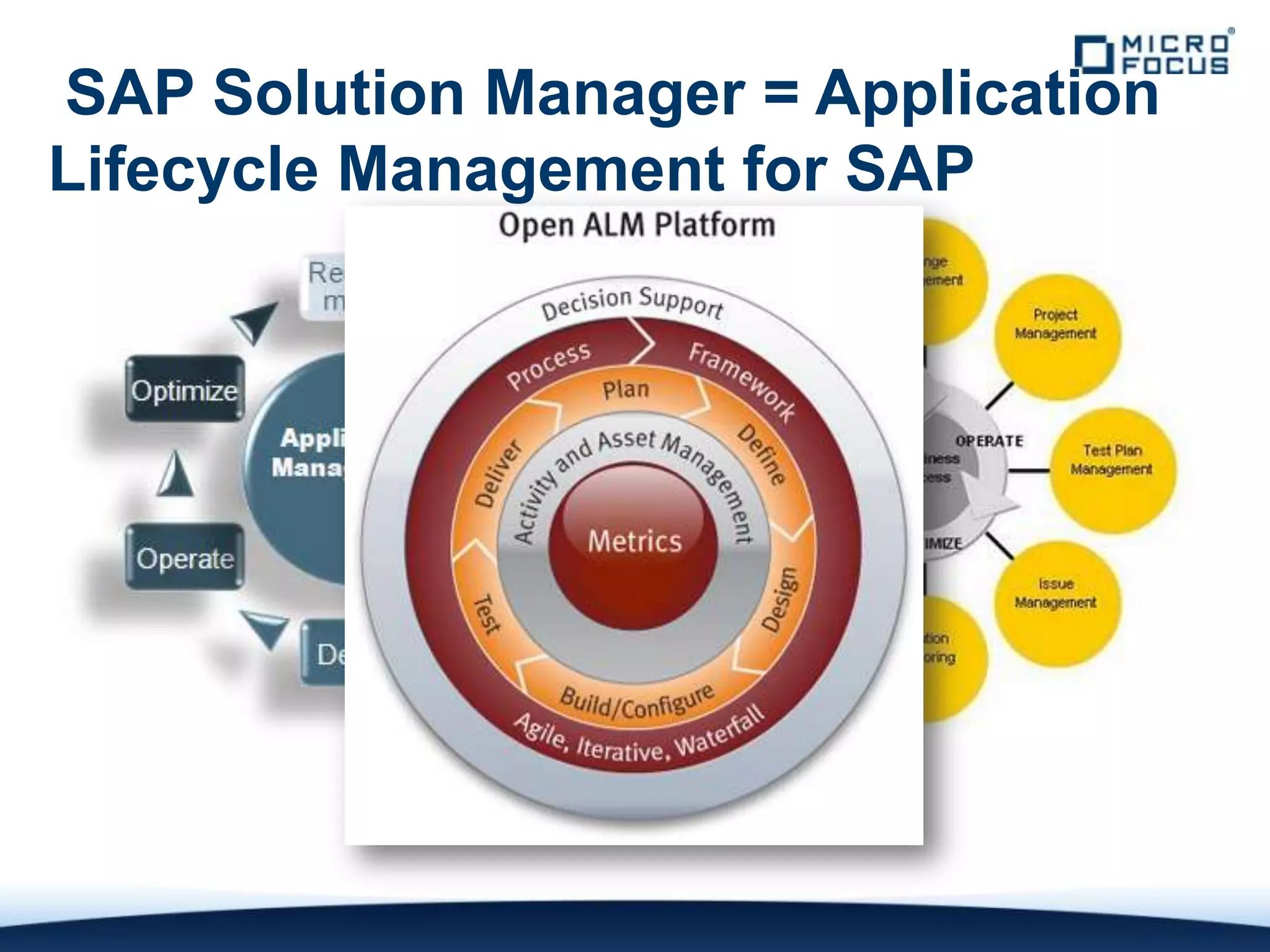

9. SAP Solution Manager = Application
Lifecycle Management for SAP

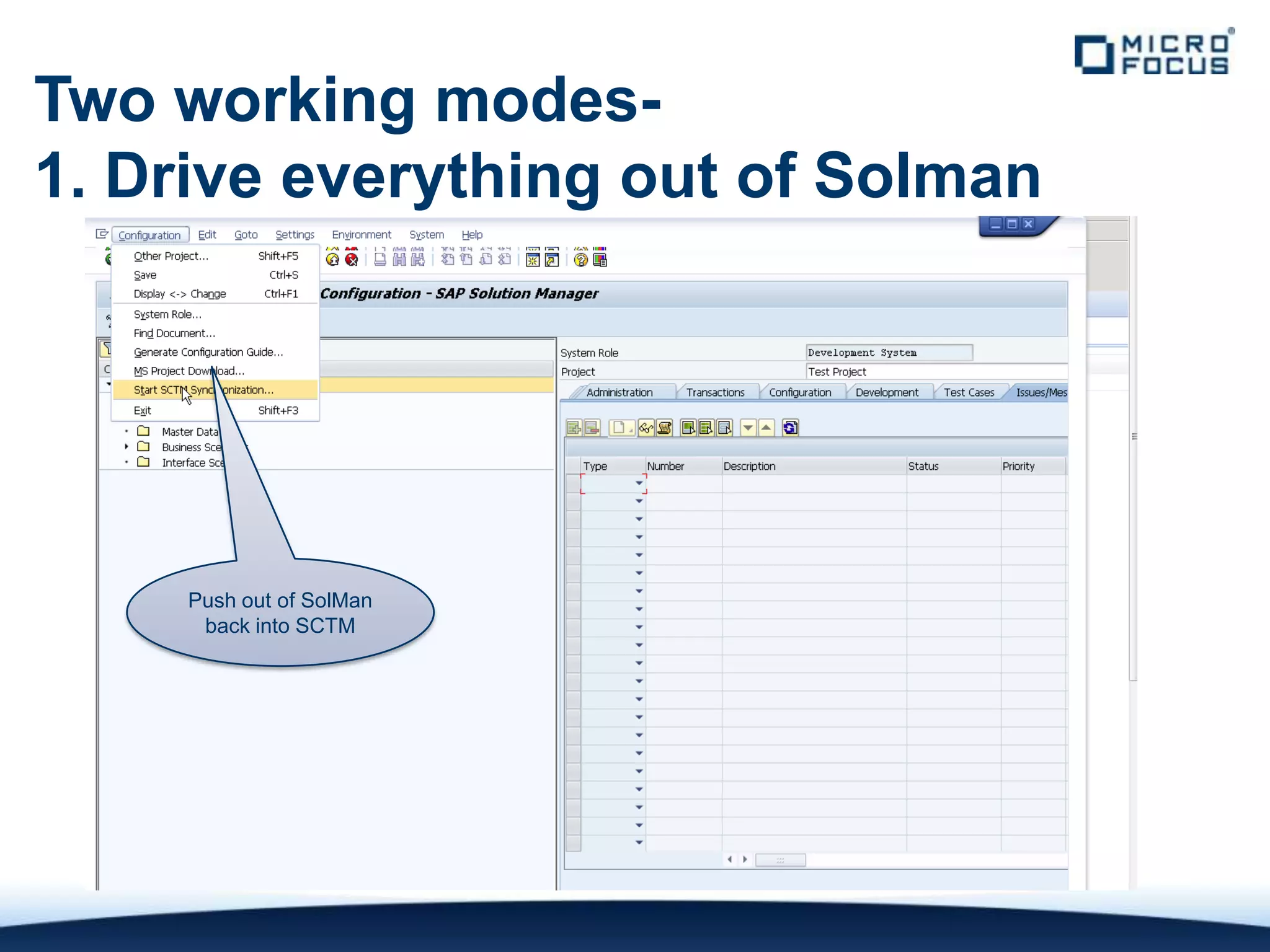

10. Two working modes-
1. Drive everything out of Solman
Push out of SolMan
back into SCTM

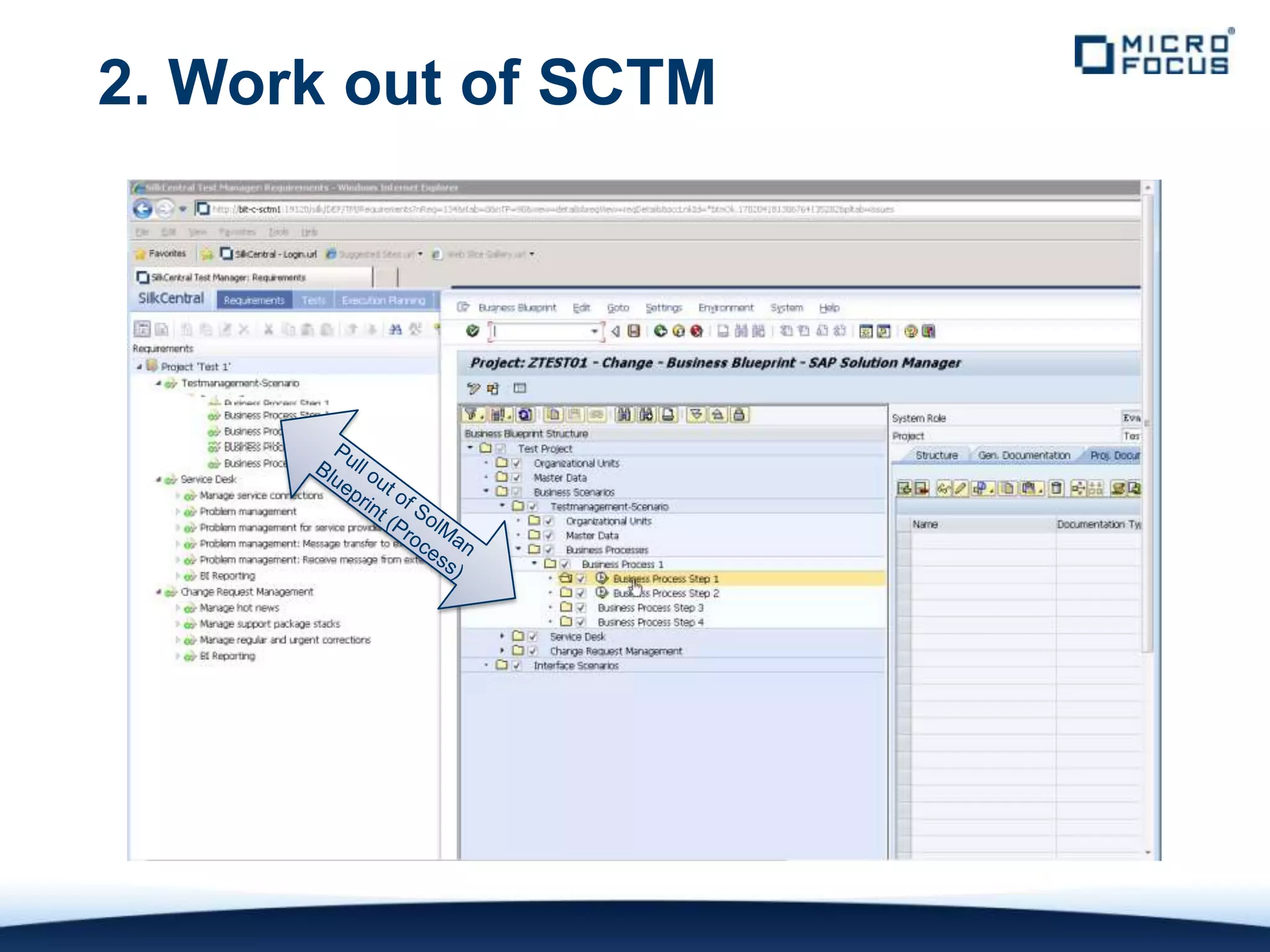

11. 2. Work out of SCTM

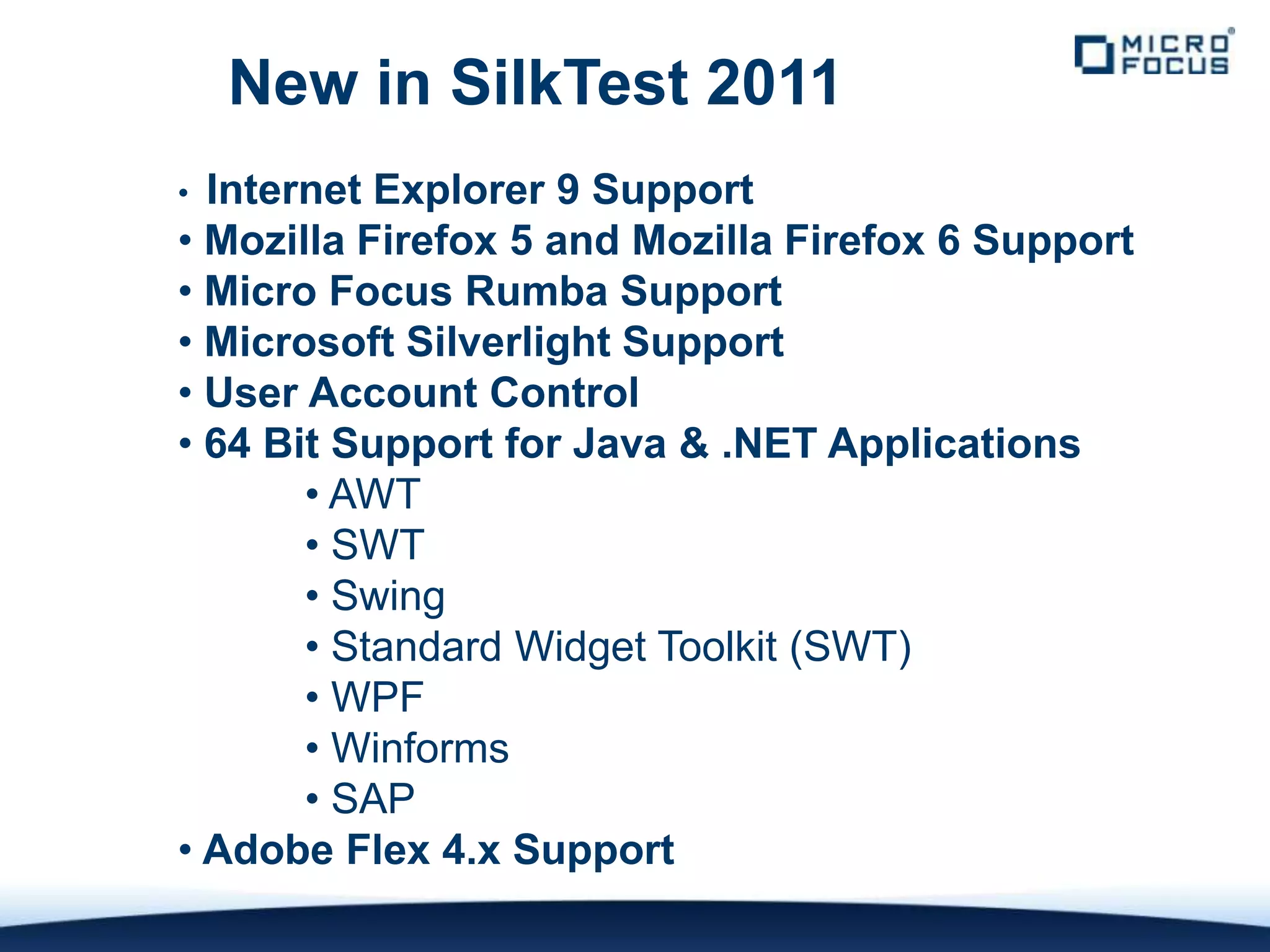

12. New in SilkTest 2011
• Internet Explorer 9 Support
• Mozilla Firefox 5 and Mozilla Firefox 6 Support
• Micro Focus Rumba Support
• Microsoft Silverlight Support
• User Account Control
• 64 Bit Support for Java & .NET Applications
• AWT
• SWT
• Swing
• Standard Widget Toolkit (SWT)
• WPF
• Winforms
• SAP
• Adobe Flex 4.x Support

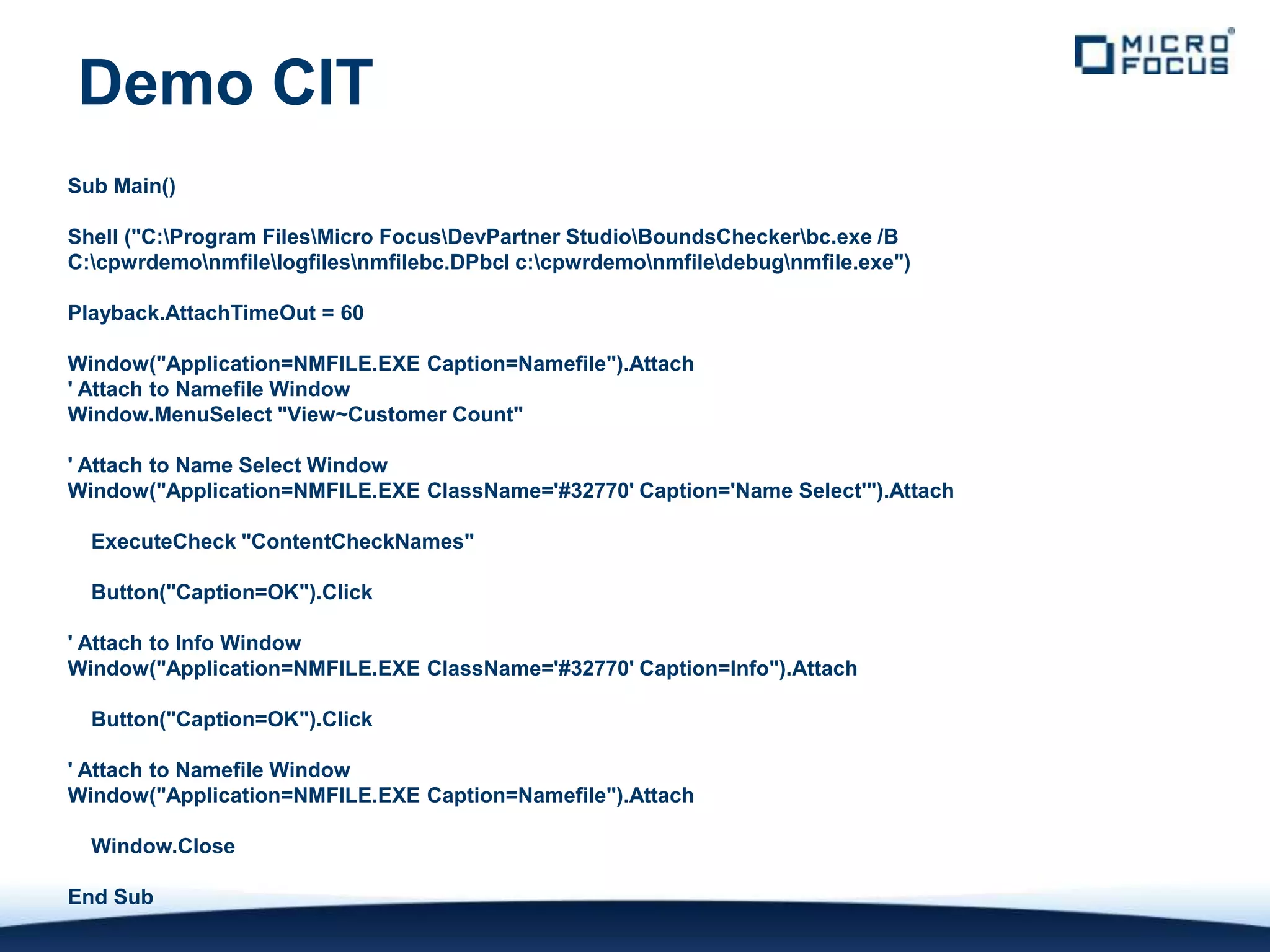

13. Demo CIT
Sub Main()
Shell ("C:Program FilesMicro FocusDevPartner StudioBoundsCheckerbc.exe /B
C:cpwrdemonmfilelogfilesnmfilebc.DPbcl c:cpwrdemonmfiledebugnmfile.exe")
Playback.AttachTimeOut = 60
Window("Application=NMFILE.EXE Caption=Namefile").Attach
' Attach to Namefile Window
Window.MenuSelect "View~Customer Count"
' Attach to Name Select Window
Window("Application=NMFILE.EXE ClassName='#32770' Caption='Name Select'").Attach
ExecuteCheck "ContentCheckNames"
Button("Caption=OK").Click
' Attach to Info Window
Window("Application=NMFILE.EXE ClassName='#32770' Caption=Info").Attach
Button("Caption=OK").Click
' Attach to Namefile Window
Window("Application=NMFILE.EXE Caption=Namefile").Attach
Window.Close
End Sub

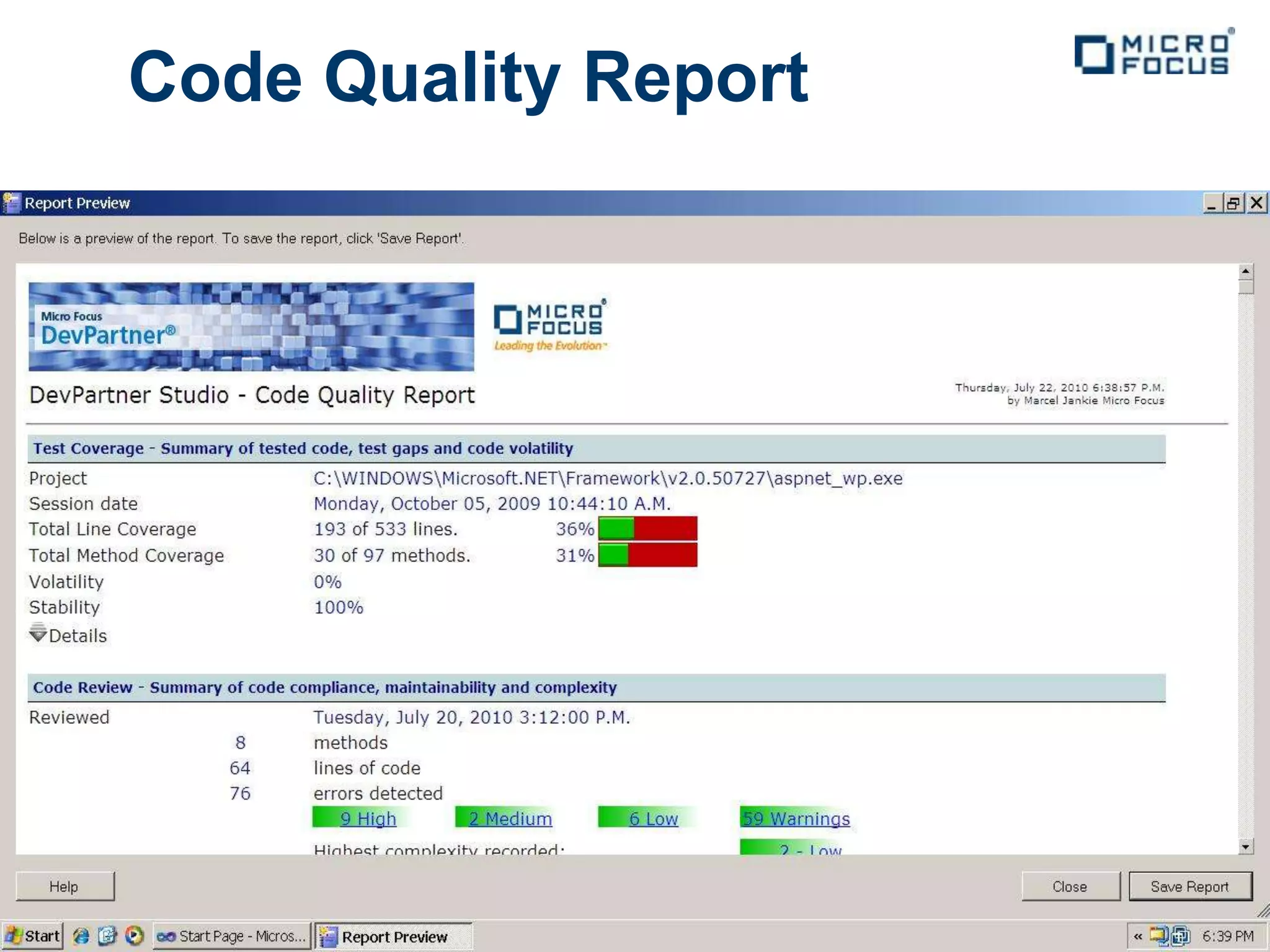

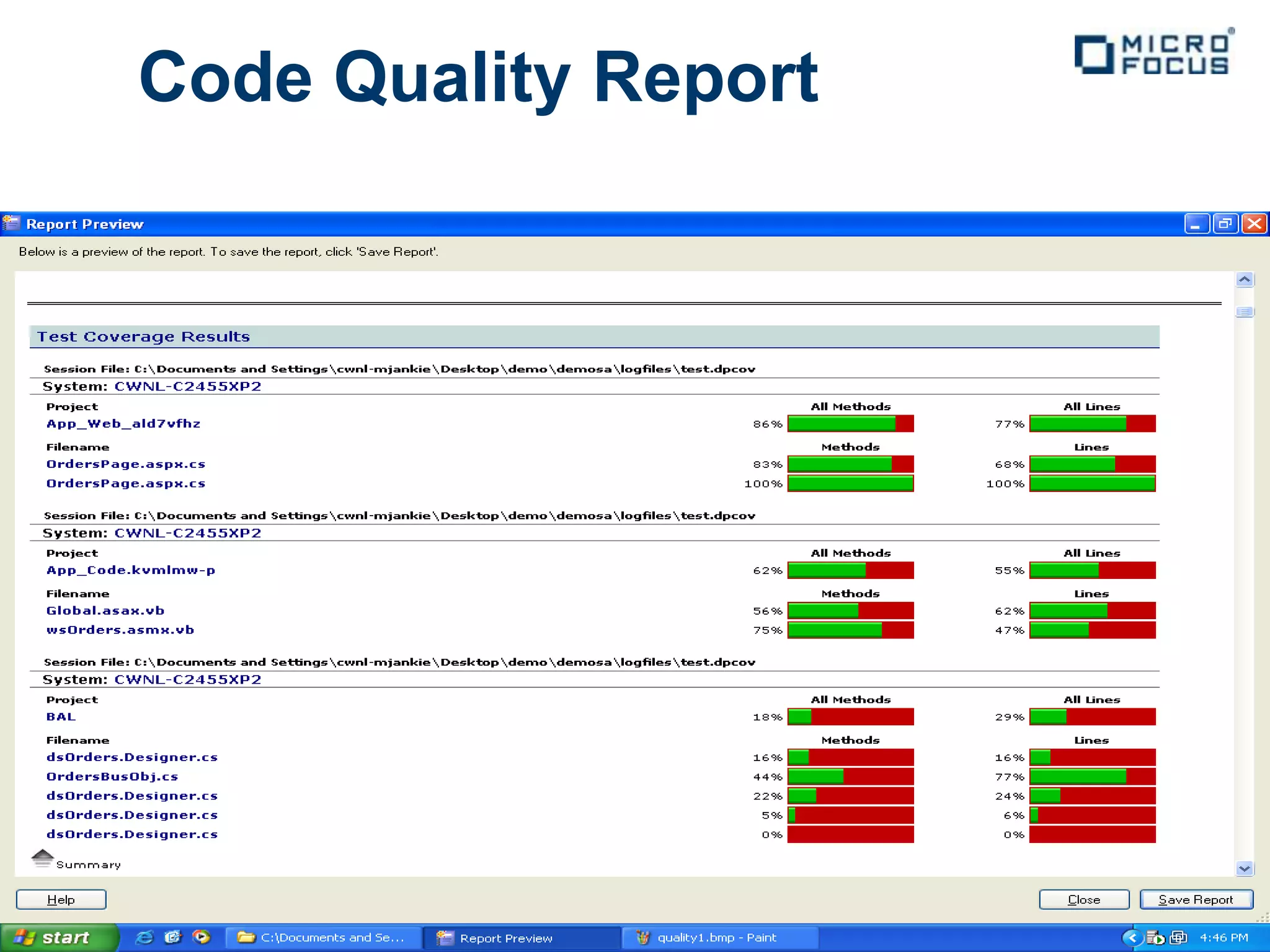

14. Code Quality Report

15. Code Quality Report

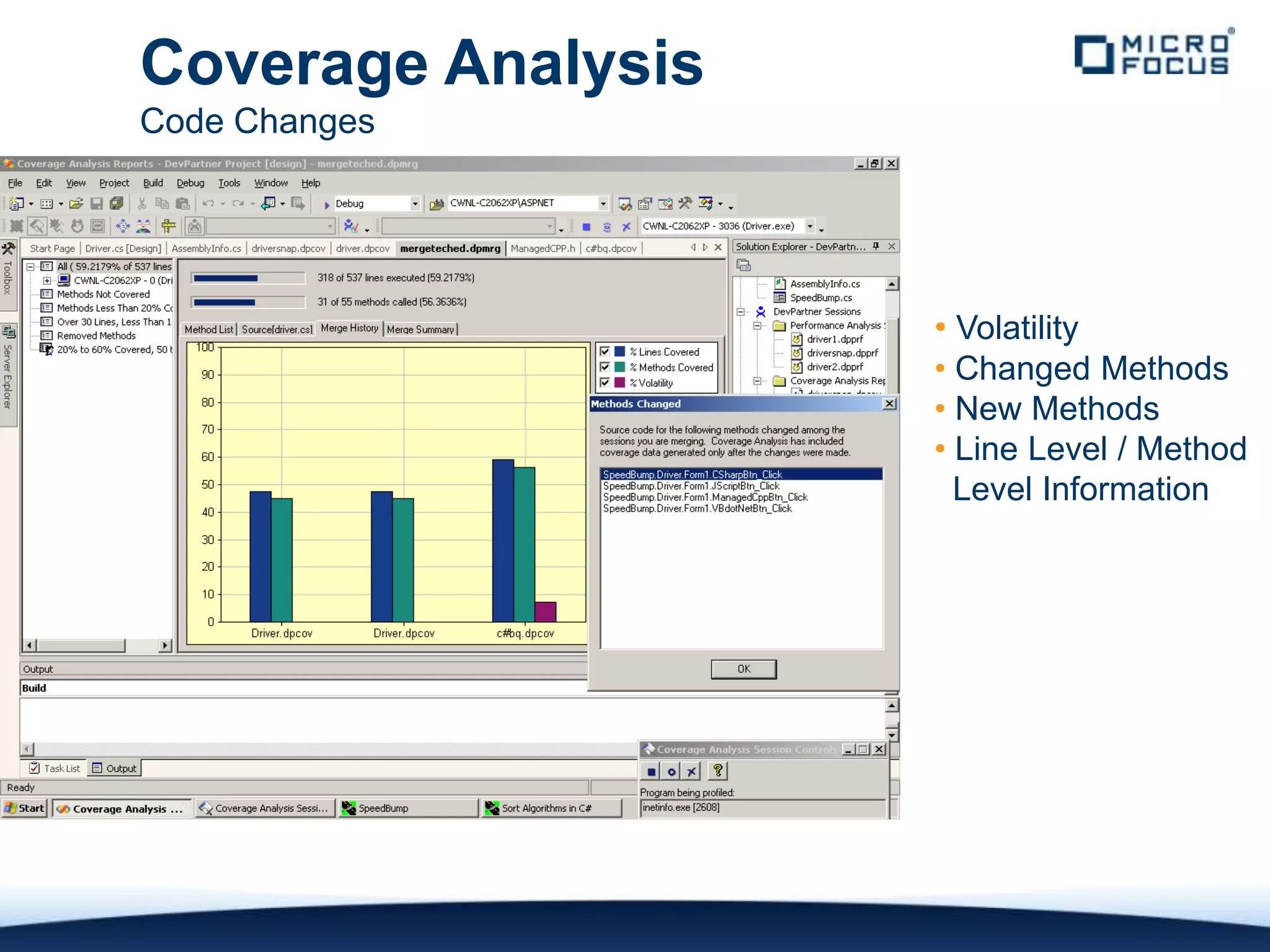

16. Coverage Analysis
Code Changes
• Volatility
• Changed Methods
• New Methods
• Line Level / Method
Level Information

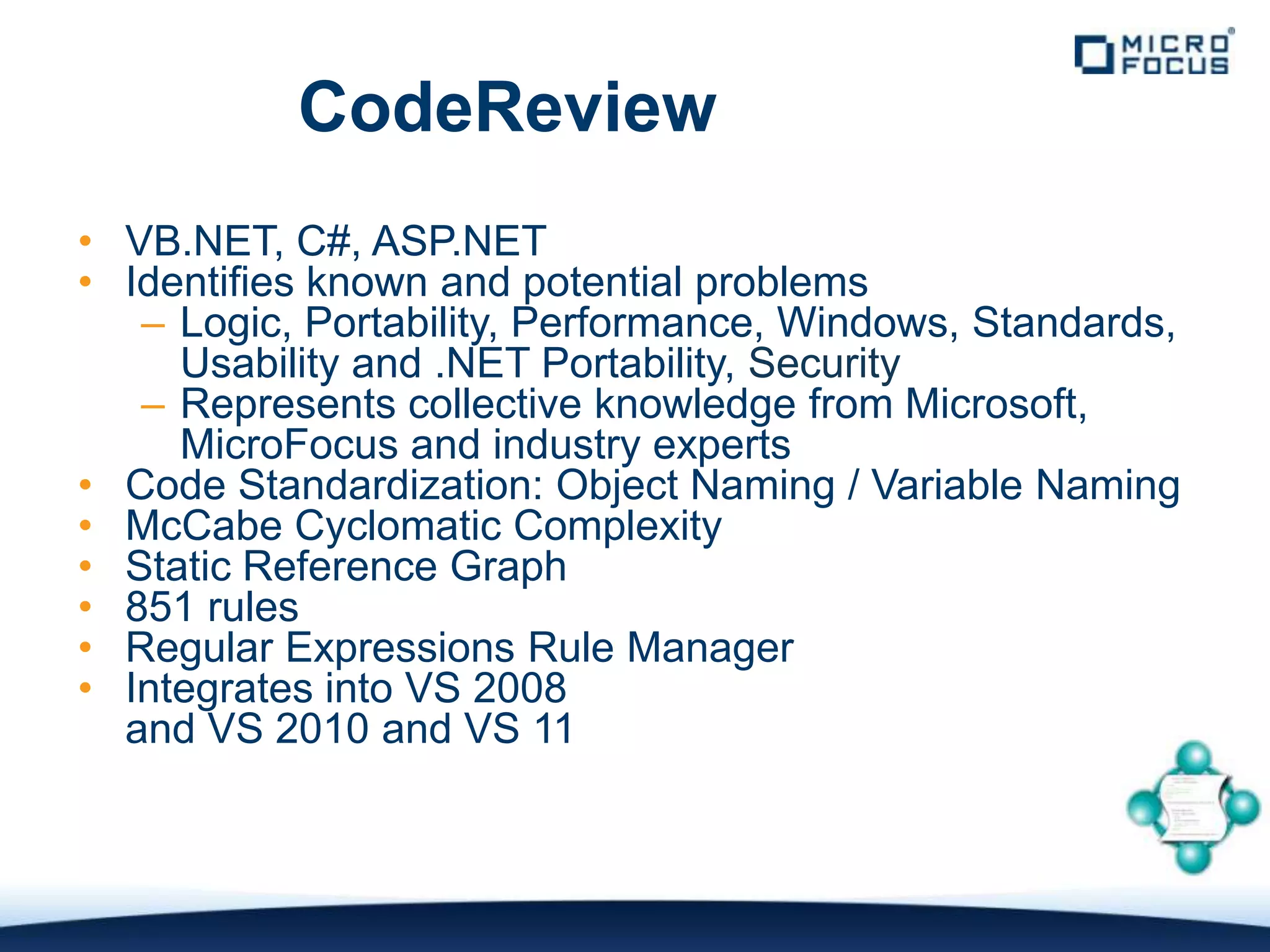

17. CodeReview
• VB.NET, C#, ASP.NET
• Identifies known and potential problems
– Logic, Portability, Performance, Windows, Standards,
Usability and .NET Portability, Security
– Represents collective knowledge from Microsoft,
MicroFocus and industry experts
• Code Standardization: Object Naming / Variable Naming
• McCabe Cyclomatic Complexity
• Static Reference Graph
• 851 rules
• Regular Expressions Rule Manager
• Integrates into VS 2008
and VS 2010 and VS 11

18. MSTFS Integration
DevPartner

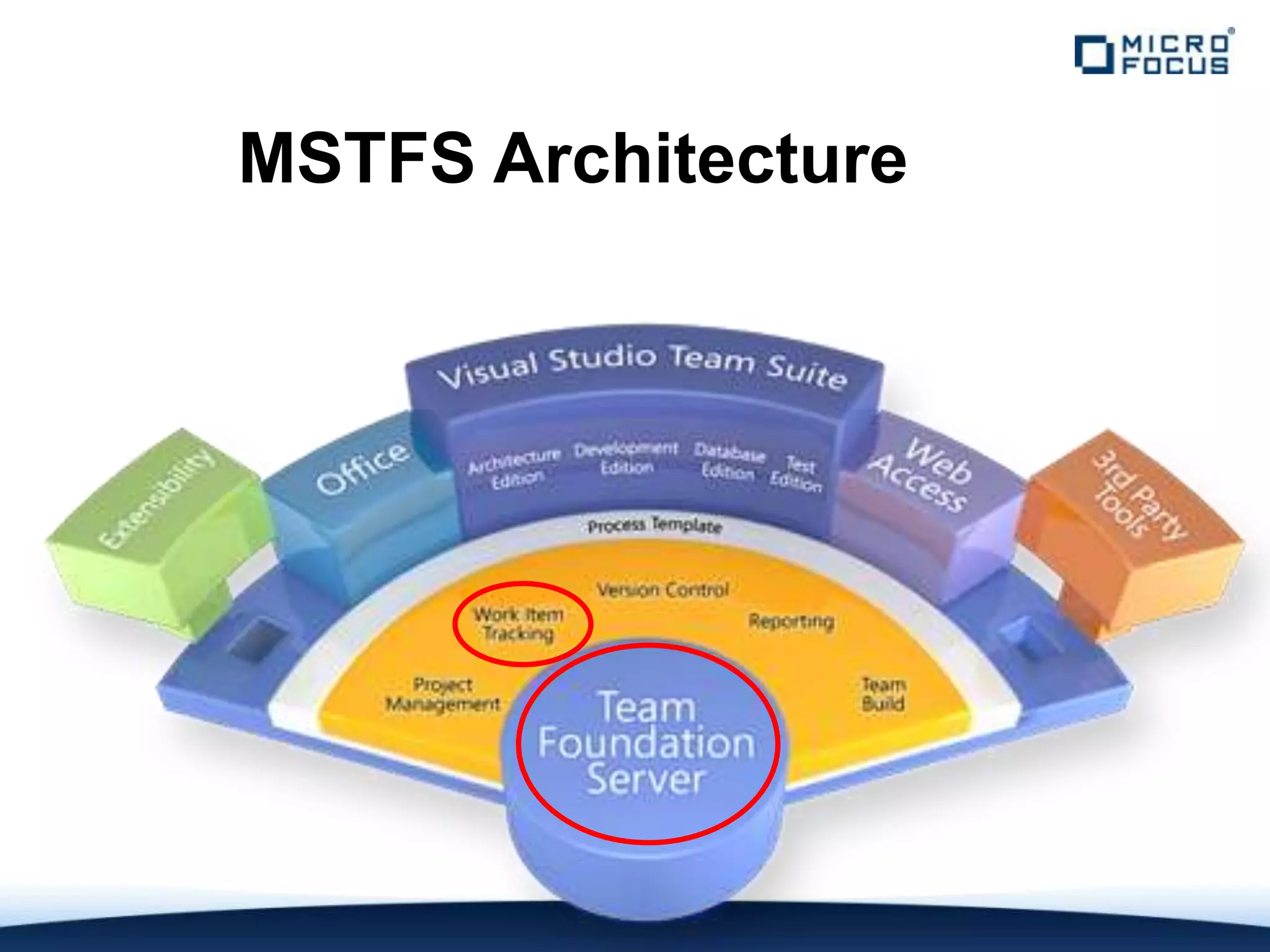

19. MSTFS Architecture

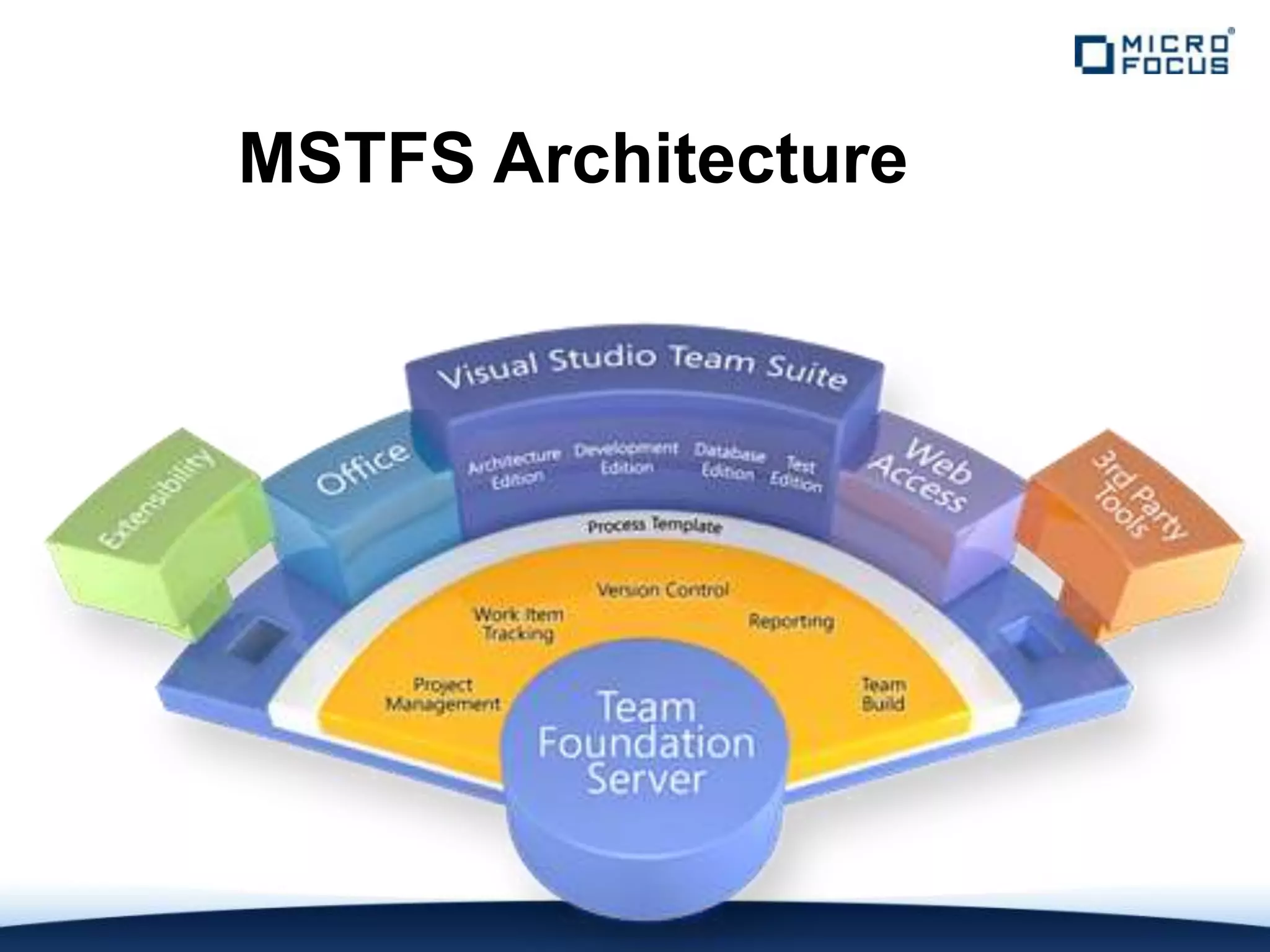

20. MSTFS Architecture

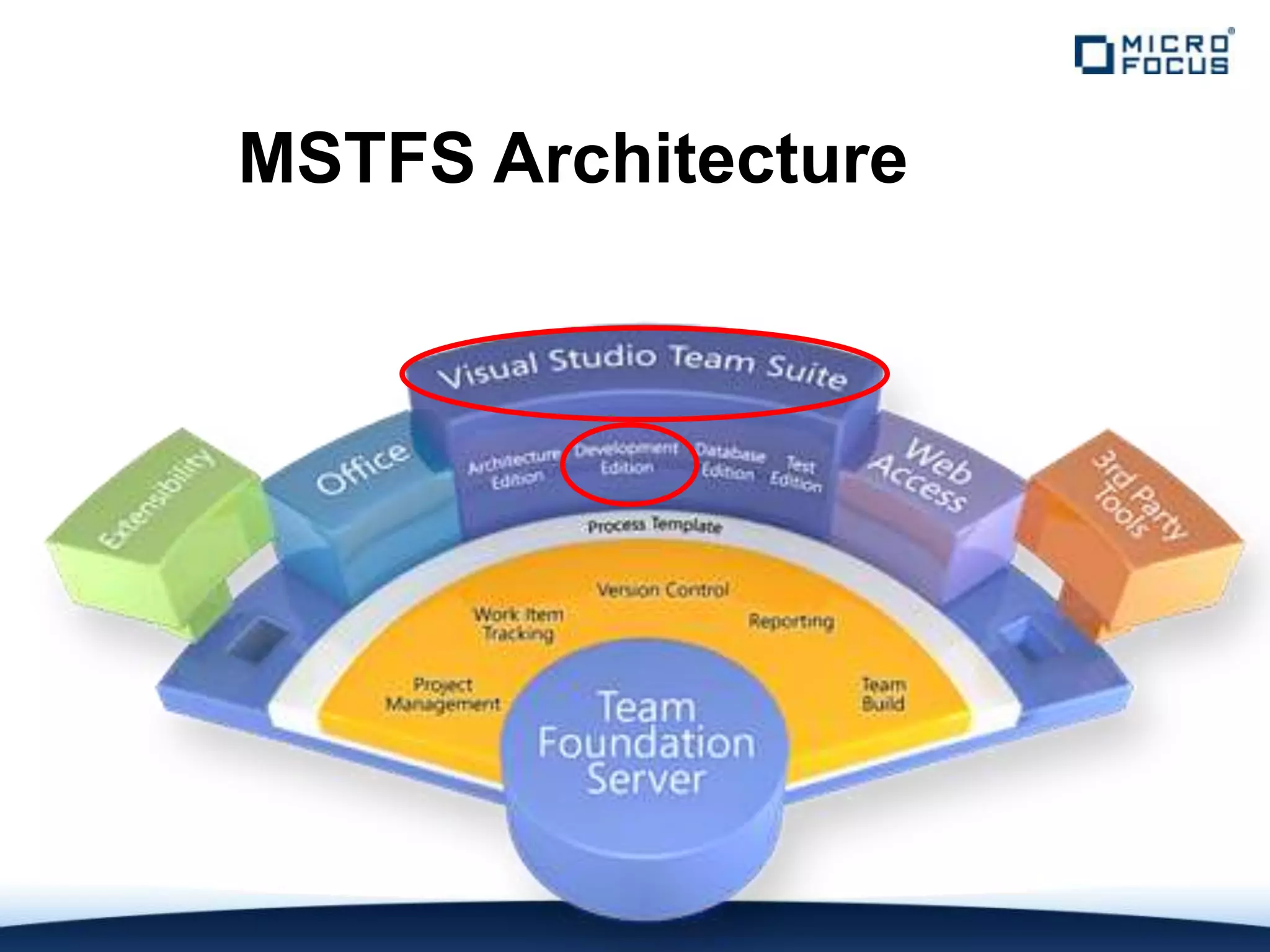

21. MSTFS Architecture

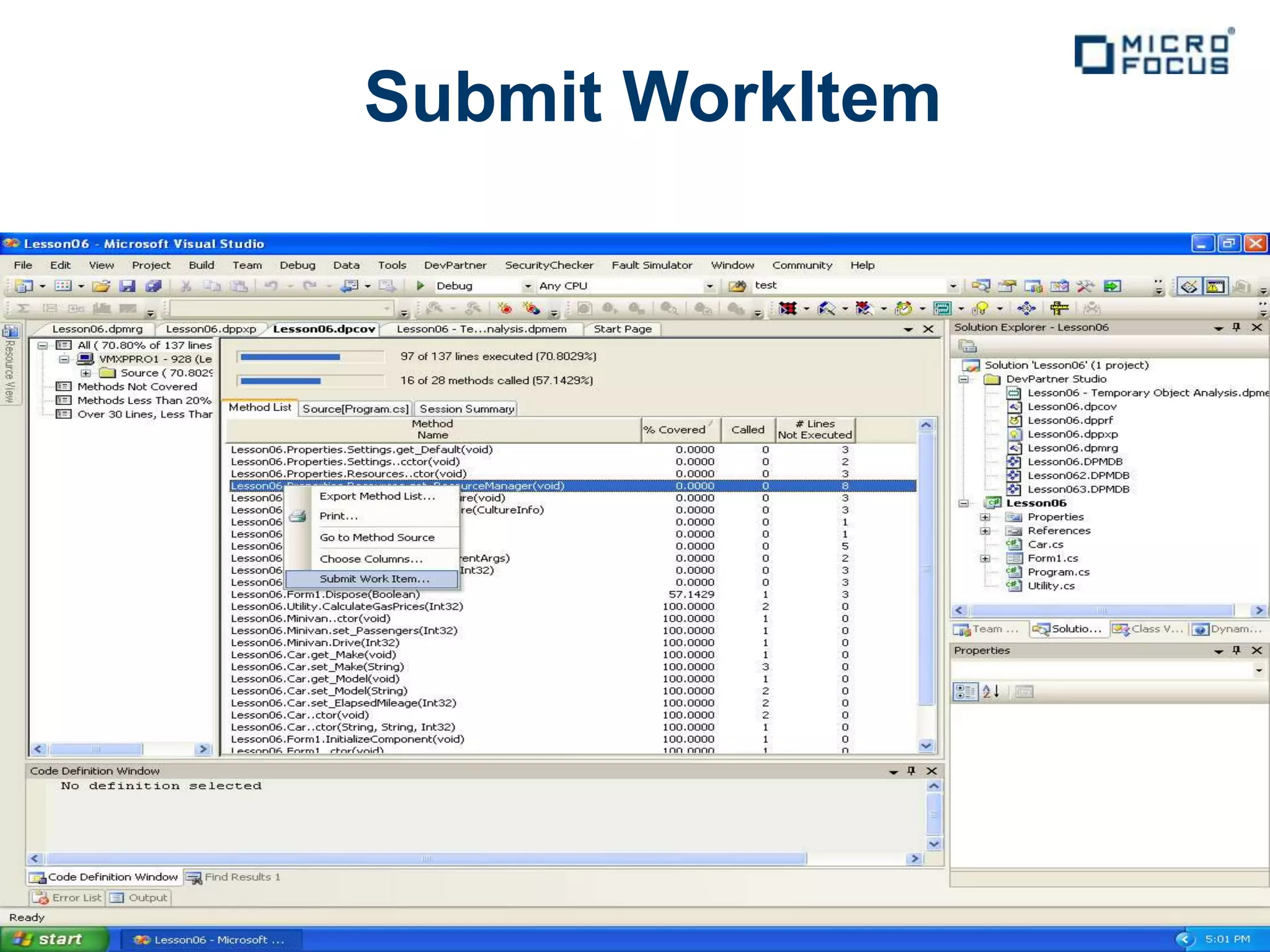

22. Submit WorkItem

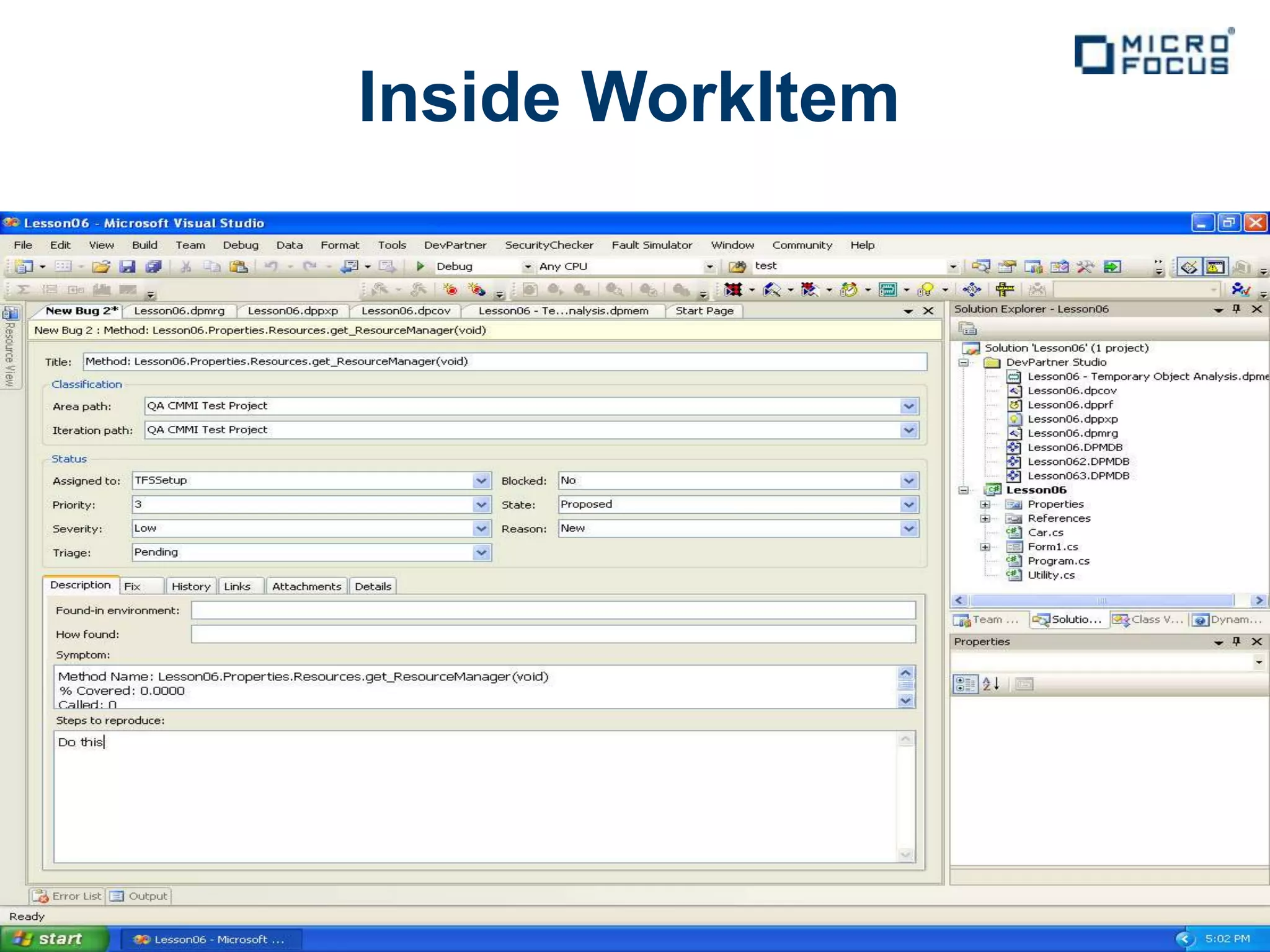

23. Inside WorkItem

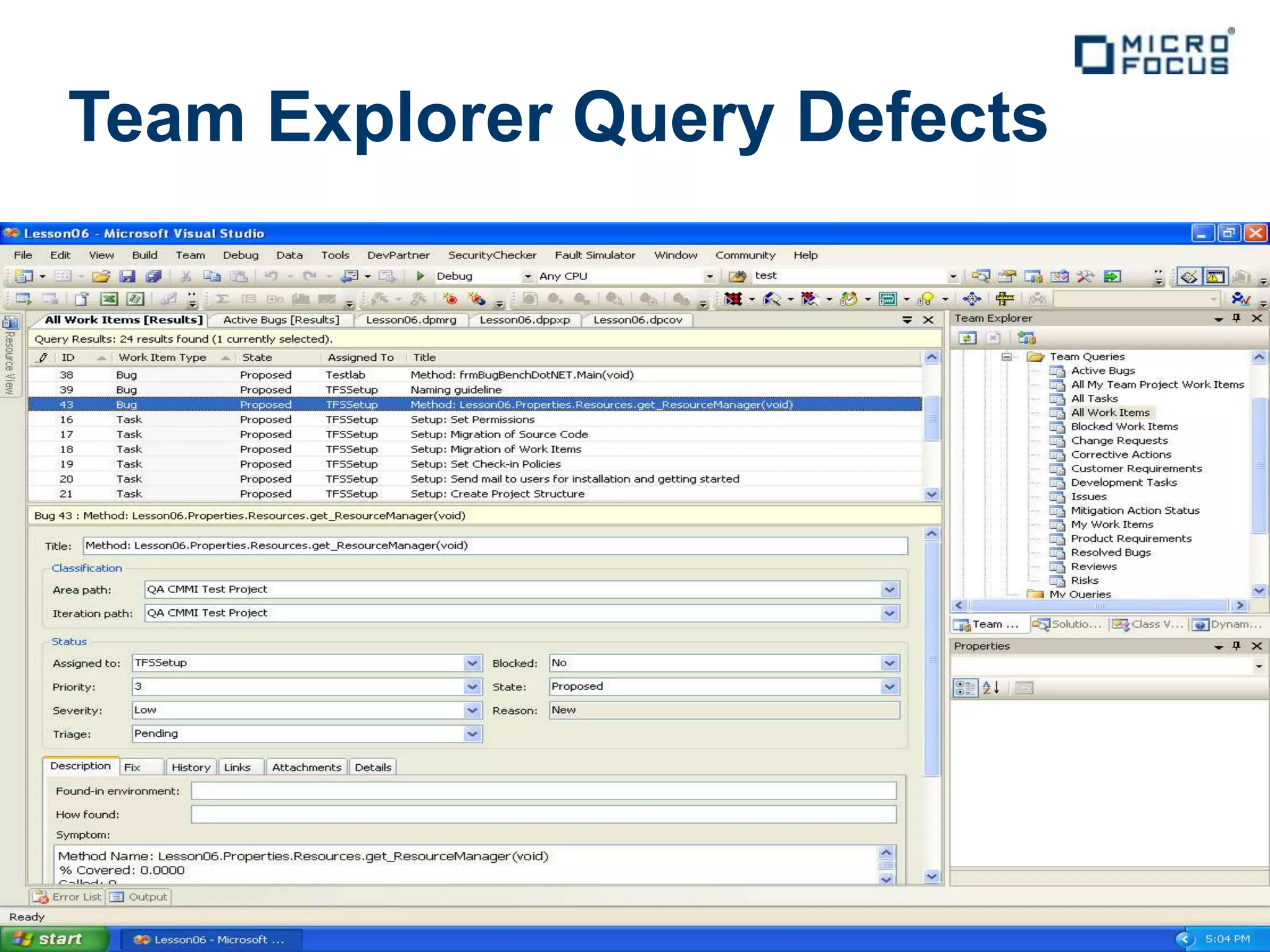

24. Team Explorer Query Defects

25. Testing Evolution
• Conventional
• Manual Testing
• Ad hoc Testing
• Sequential
• Waterfall
• Modern
• Continuous
• Agile
• Automated
• Efficient

26. •
Marcel Jankie
Solution Architect Code Quality
Marcel.Jankie@MicroFocus.com
Mobile : +31 (6) 23 94 96 87
