SPDY
- 1. SPDY

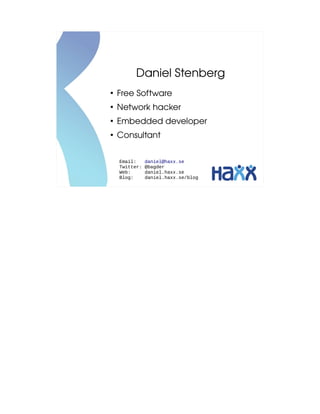

- 2. Daniel Stenberg ● Free Software ● Network hacker ● Embedded developer ● Consultant Email: daniel@haxx.se Twitter: @bagder Web: daniel.haxx.se Blog: daniel.haxx.se/blog

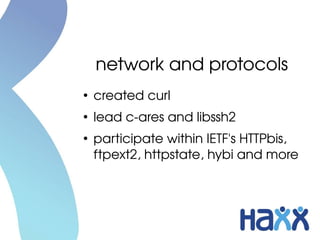

- 3. network and protocols ● created curl ● lead cares and libssh2 ● participate within IETF's HTTPbis, ftpext2, httpstate, hybi and more

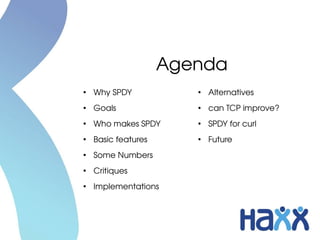

- 4. Agenda ● Why SPDY ● Alternatives ● Goals ● can TCP improve? ● Who makes SPDY ● SPDY for curl ● Basic features ● Future ● Some Numbers ● Critiques ● Implementations
- 5. Questions? ● interrupt! ● comment! ● remark!

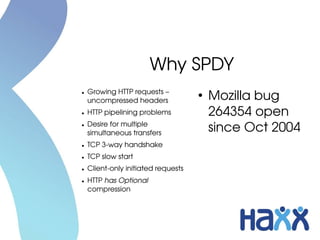

- 6. Why SPDY Growing HTTP requests – ● uncompressed headers ● Mozilla bug ● HTTP pipelining problems 264354 open ● Desire for multiple simultaneous transfers since Oct 2004 ● TCP 3way handshake ● TCP slow start ● Clientonly initiated requests ● HTTP has Optional compression

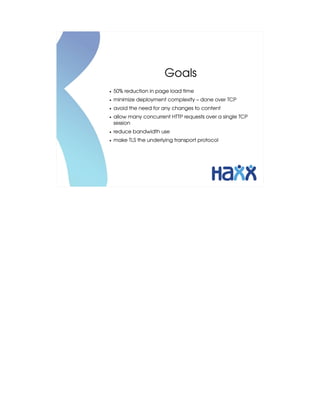

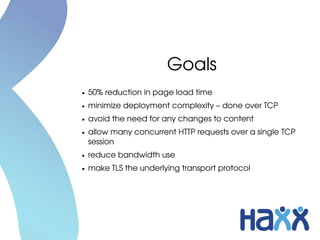

- 7. Goals ● 50% reduction in page load time ● minimize deployment complexity – done over TCP ● avoid the need for any changes to content ● allow many concurrent HTTP requests over a single TCP session ● reduce bandwidth use ● make TLS the underlying transport protocol

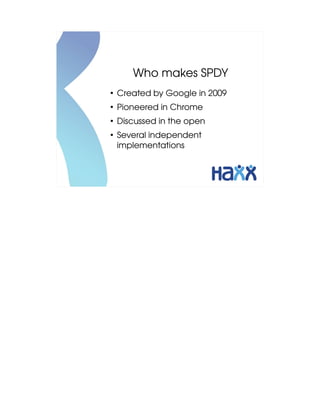

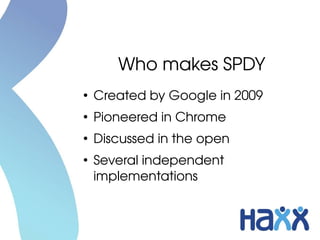

- 8. Who makes SPDY ● Created by Google in 2009 ● Pioneered in Chrome ● Discussed in the open ● Several independent implementations
- 9. Basic features ● Multiplexed streams ● Request prioritization ● HTTP header compression ● Serverinitiated streams

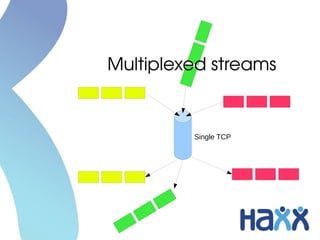

- 10. Multiplexed streams Single TCP

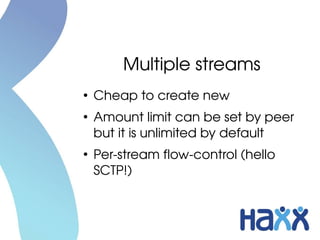

- 11. Multiple streams ● Cheap to create new ● Amount limit can be set by peer but it is unlimited by default ● Perstream flowcontrol (hello SCTP!)

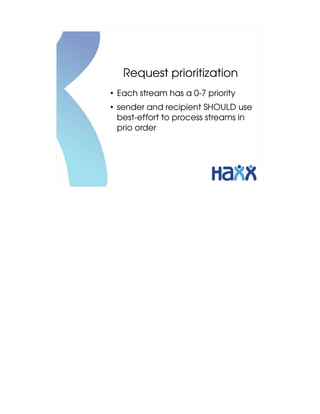

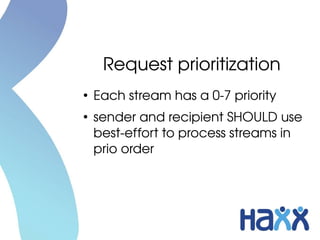

- 12. Request prioritization ● Each stream has a 07 priority ● sender and recipient SHOULD use besteffort to process streams in prio order

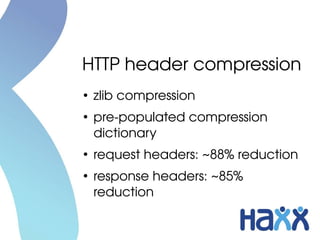

- 13. HTTP header compression ● zlib compression ● prepopulated compression dictionary ● request headers: ~88% reduction ● response headers: ~85% reduction

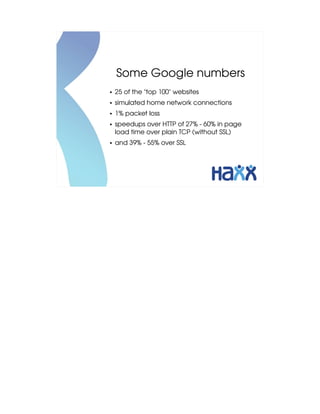

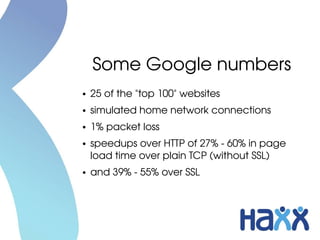

- 14. Some Google numbers ● 25 of the "top 100" websites ● simulated home network connections ● 1% packet loss ● speedups over HTTP of 27% 60% in page load time over plain TCP (without SSL) ● and 39% 55% over SSL
- 15. Critiques ● SSL makes hard to debug and prevents use in some schools and companies ● header compression prevents single header extraction, makes adding headers expensive adds memory use per connection ● server push is potentially wasteful when contents already cached
- 16. Some implementations ● Chrome ● Firefox ● Amazon Kindle Fire ● more!

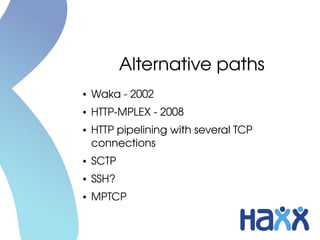

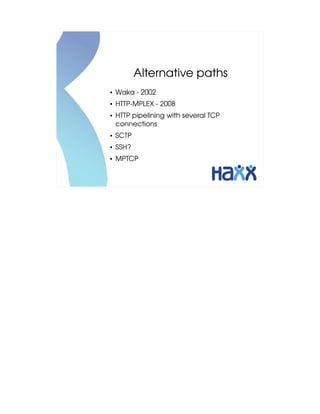

- 17. Alternative paths ● Waka 2002 ● HTTPMPLEX 2008 ● HTTP pipelining with several TCP connections ● SCTP ● SSH? ● MPTCP

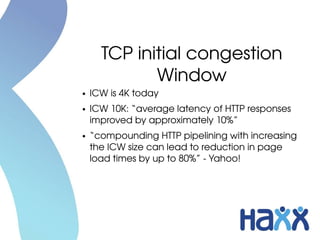

- 18. TCP initial congestion Window ● ICW is 4K today ● ICW 10K: “average latency of HTTP responses improved by approximately 10%” ● “compounding HTTP pipelining with increasing the ICW size can lead to reduction in page load times by up to 80%” Yahoo!

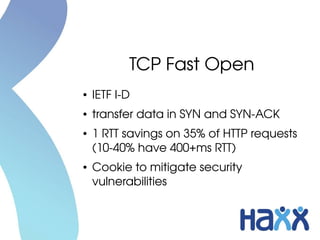

- 19. TCP Fast Open ● IETF ID ● transfer data in SYN and SYNACK ● 1 RTT savings on 35% of HTTP requests (1040% have 400+ms RTT) ● Cookie to mitigate security vulnerabilities

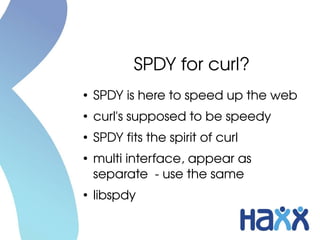

- 20. SPDY for curl? ● SPDY is here to speed up the web ● curl's supposed to be speedy ● SPDY fits the spirit of curl ● multi interface, appear as separate use the same ● libspdy

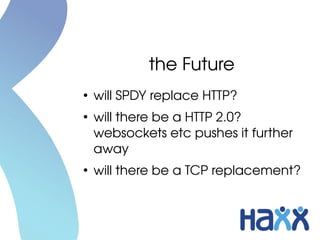

- 21. the Future ● will SPDY replace HTTP? ● will there be a HTTP 2.0? websockets etc pushes it further away ● will there be a TCP replacement?

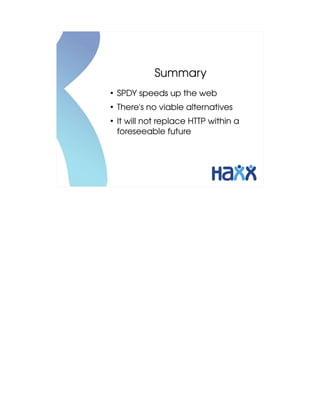

- 22. Summary ● SPDY speeds up the web ● There's no viable alternatives ● It will not replace HTTP within a foreseeable future
- 24. SPDY
- 25. Daniel Stenberg ● Free Software ● Network hacker ● Embedded developer ● Consultant Email: daniel@haxx.se Twitter: @bagder Web: daniel.haxx.se Blog: daniel.haxx.se/blog

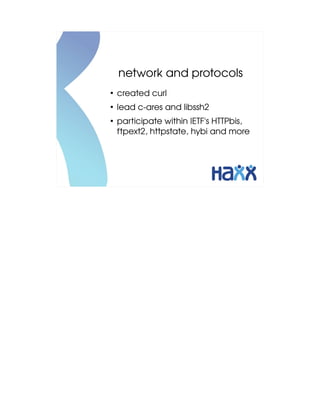

- 26. network and protocols ● created curl ● lead cares and libssh2 ● participate within IETF's HTTPbis, ftpext2, httpstate, hybi and more

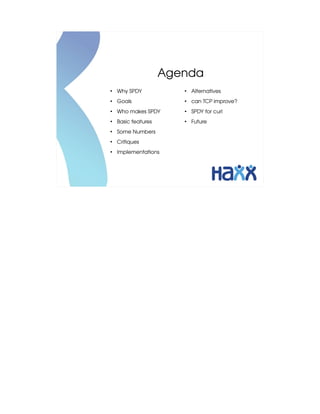

- 27. Agenda ● Why SPDY ● Alternatives ● Goals ● can TCP improve? ● Who makes SPDY ● SPDY for curl ● Basic features ● Future ● Some Numbers ● Critiques ● Implementations
- 28. Questions? ● interrupt! ● comment! ● remark!

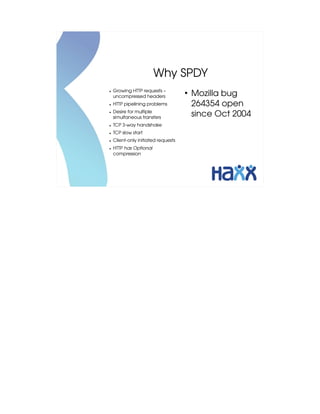

- 29. Why SPDY Growing HTTP requests – ● uncompressed headers ● Mozilla bug ● HTTP pipelining problems 264354 open ● Desire for multiple simultaneous transfers since Oct 2004 ● TCP 3way handshake ● TCP slow start ● Clientonly initiated requests ● HTTP has Optional compression
- 30. Goals ● 50% reduction in page load time ● minimize deployment complexity – done over TCP ● avoid the need for any changes to content ● allow many concurrent HTTP requests over a single TCP session ● reduce bandwidth use ● make TLS the underlying transport protocol
- 31. Who makes SPDY ● Created by Google in 2009 ● Pioneered in Chrome ● Discussed in the open ● Several independent implementations
- 32. Basic features ● Multiplexed streams ● Request prioritization ● HTTP header compression ● Serverinitiated streams
- 33. Multiplexed streams Single TCP

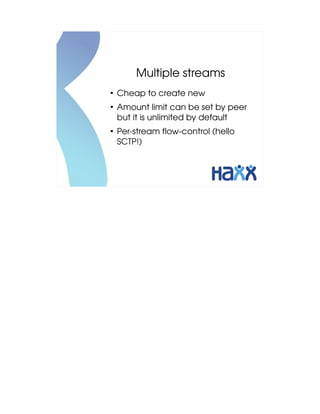

- 34. Multiple streams ● Cheap to create new ● Amount limit can be set by peer but it is unlimited by default ● Perstream flowcontrol (hello SCTP!)
- 35. Request prioritization ● Each stream has a 07 priority ● sender and recipient SHOULD use besteffort to process streams in prio order
- 36. HTTP header compression ● zlib compression ● prepopulated compression dictionary ● request headers: ~88% reduction ● response headers: ~85% reduction
- 37. Some Google numbers ● 25 of the "top 100" websites ● simulated home network connections ● 1% packet loss ● speedups over HTTP of 27% 60% in page load time over plain TCP (without SSL) ● and 39% 55% over SSL

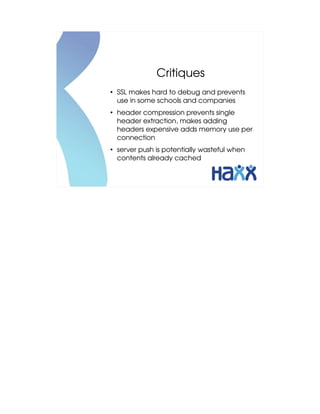

- 38. Critiques ● SSL makes hard to debug and prevents use in some schools and companies ● header compression prevents single header extraction, makes adding headers expensive adds memory use per connection ● server push is potentially wasteful when contents already cached
- 39. Some implementations ● Chrome ● Firefox ● Amazon Kindle Fire ● more!
- 40. Alternative paths ● Waka 2002 ● HTTPMPLEX 2008 ● HTTP pipelining with several TCP connections ● SCTP ● SSH? ● MPTCP
- 41. TCP initial congestion Window ● ICW is 4K today ● ICW 10K: “average latency of HTTP responses improved by approximately 10%” ● “compounding HTTP pipelining with increasing the ICW size can lead to reduction in page load times by up to 80%” Yahoo!
- 42. TCP Fast Open ● IETF ID ● transfer data in SYN and SYNACK ● 1 RTT savings on 35% of HTTP requests (1040% have 400+ms RTT) ● Cookie to mitigate security vulnerabilities

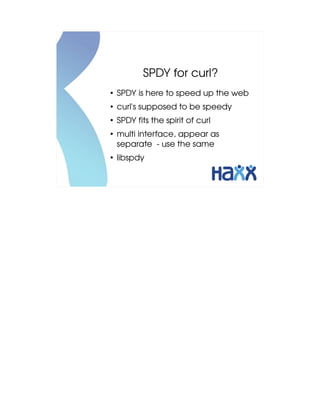

- 43. SPDY for curl? ● SPDY is here to speed up the web ● curl's supposed to be speedy ● SPDY fits the spirit of curl ● multi interface, appear as separate use the same ● libspdy

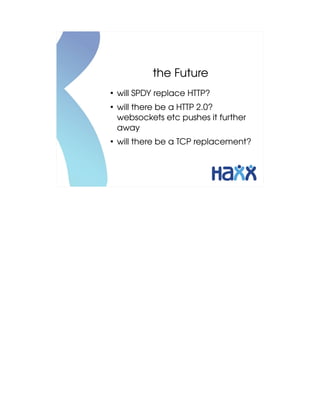

- 44. the Future ● will SPDY replace HTTP? ● will there be a HTTP 2.0? websockets etc pushes it further away ● will there be a TCP replacement?
- 45. Summary ● SPDY speeds up the web ● There's no viable alternatives ● It will not replace HTTP within a foreseeable future
