SOSHH® Industrial Powder Handling Connectors - Technical Drawings, Material Specs & Procurement Guide.pdf

FRONT ELEVATION (SECTION A-A)
Height
L
(Net
Gap)
øD (Inner Dia)
DETAIL B: SNAP ENGAGEMENT
Steel Spigot Groove
TPU Cuff
PLAN VIEW (TOP)
MATERIAL & TECHNICAL SPECIFICATIONS
• Application: Polyurethane powder handling connections
• Material Options: Polyether-TPU / Pure PTFE / Silicone
• Standard Thickness (t): 1.0 mm (Available 1.3mm / 1.5mm)
• Temp Range: -20°C to +90°C (TPU) | Up to 300°C (PTFE)
• Regulatory Compliance: FDA 21 CFR 177.1680 & ATEX
• Sealing Performance: 100% Dust-Free, Tool-Free 30s Quick Fit
CUSTOMER SPECIFICATION & ORDER FORM
Project / Ref: ___________________________________
Order Qty: _________________ Pieces / Sets
1. Critical Dimensions:
Inner Dia (øD): _____________ mm
Net Gap (L): _____________ mm
2. Material Selection:
[ ] 1.0mm Clear TPU [ ] 1.5mm Heavy TPU
[ ] Anti-Static (10^8 Ω) [ ] High Temp PTFE
3. Steel Spigots Required?
[ ] No (Sleeve Only)
[ ] Yes (SUS304) [ ] Yes (SUS316L)
BRAND / MANUFACTURER:
SOSHH® Industrial Equipment
DRAWING TITLE:
STANDARD SNAP-IN Q
TOLERANCE: ISO 2768-m UNITS: Millimeters (mm) DRAWN BY: Amin (Xu Yilong)
DWG NO: SOSHH-2026-001 SCALE: N.T.S SHEET 1 OF 13
⚠ QUALITY GUARANTEE: All SOSHH flexible connections ensure 100% dust-tight operation and comply with FDA/ATEX standards.
UNITS: All dimensions in millimeters (mm). Copyright © soshh.com. Direct Contact: AMIN@soshh.com

FRONT ELEVATION (ZERO PARASITIC FORCE)
Height
L
Max Fold Dia (Dmax)
KINEMATIC DETAIL: WEIGHING ACCURACY
Zero Parasitic Tare Force Principle:
1. Standard straight hoses act like springs (F = k*x).
This causes mechanical piping resistance errors.
2. The Outward Convoluted Fold creates a hinge effect.
Vertical stiffness (k) is eliminated (≈ 0).
PLAN VIEW
• Material Base: Ultra-Flexible Ether-TPU or Silicone
• Thickness: 0.5 mm to 1.0 mm (Ultra-thin wall for zero stiffness)
• Key Feature: Pre-formed Outward Expansion Hinge Fold
• Accuracy: 100% Gravimetric Accuracy on Load Cells
• Vibration Control: Absorbs and decouples high-frequency vibration.
• Compliance: FDA 21 CFR 177.1680
Project / Ref: ___________________________________
Inner Dia (øD): _____________ mm
Operating Gap (L): _____________ mm
2. Application Target:
[ ] Loss-In-Weight (LIW) Feeder
[ ] Bulk Hopper Scale / Load Cell Tank
3. Wall Material Spec:
[ ] 0.5mm Ultra-Soft TPU (Highest Accuracy)
[ ] 1.0mm TPU (Standard Durability)
DRAWING TITLE:
PRECISION WEIGHING

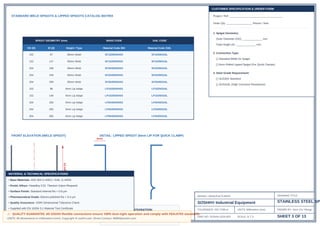

STANDARD WELD SPIGOTS & LIPPED SPIGOTS CATALOG MATRIX
SPIGOT GEOMETRY (mm) 304SS CODE 316L CODE
OD (D) ID (d) Height / Type Material Code 304 Material Code 316L
102 97 90mm Weld SF10290304SS SF10290316L
152 147 90mm Weld SF15290304SS SF15290316L
204 199 90mm Weld SF20490304SS SF20490316L
254 249 90mm Weld SF25490304SS SF25490316L
304 299 90mm Weld SF30490304SS SF30490316L
102 98 6mm Lip Adapt LP10250304SS LP10250316L
FRONT ELEVATION (WELD SPIGOT)
Outer Dia (OD)
Total
Height
(h)
DETAIL: LIPPED SPIGOT (6mm LIP FOR QUICK CLAMP)
6mm
MODULAR DUCTING INTEGRATION:
Lipped spigots allow tool-free connection to Jacob /
NORO pull-ring piping systems, eliminating site welding.
• Base Materials: AISI 304 (1.4301) / 316L (1.4404)
• Exotic Alloys: Hastelloy C22, Titanium (Upon Request)
• Surface Finish: Standard Internal Ra < 0.8 µm
• Pharmaceutical Grade: Electro-polished Ra < 0.4 µm
• Quality Assurance: 100% Dimensional Tolerance Check
• Supplied with EN 10204 3.1 Material Test Certificate
Project / Ref: ___________________________________
1. Spigot Geometry:
Outer Diameter (OD): _____________ mm
Total Height (h): _____________ mm
2. Connection Type:
[ ] Standard Weld-On Spigot
[ ] 6mm Rolled Lipped Spigot (For Quick Clamps)
3. Steel Grade Requirement:
[ ] SUS304 Standard
[ ] SUS316L (High Corrosion Resistance)
DRAWING TITLE:
STAINLESS STEEL SP

BLANKING CAP (VIEWING PORT)
Clear TPU Cap
BLANKING SOCK (OVERSIZE COLLECTION BIN)
Collection Bin
APPLICATION NOTES
Blanking Caps:
Securely snap into spigots to seal open pipelines
during washdown or act as inspection viewing ports.
Blanking Socks:
Ideal for capturing oversize debris rejected from
vibratory sifters. Easy disposal mechanism.
• Material Base: Clear Ether-based Polyurethane (TPU)
• Connection Interface: Standard Snap-In Cuff.
• Visibility: Transparent for easy internal inspection.
• Sealing: 100% dust & liquid tight.
• Regulatory Compliance: FDA 21 CFR & EU 10/2011.
Project / Ref: ___________________________________
Spigot Inner Dia (øD): _____________ mm
2. Component Selection:
[ ] Blanking Cap (Sight Glass / Sealing)
[ ] Blanking Sock / Bin (Oversize Collection)
DRAWING TITLE:
BLANKING CAPS & OV

FRONT ELEVATION: FLEXI-CONNECTOR (WIRE-REINFORCED)
316SS Coil
Height
L
FRONT ELEVATION: BULK BAG LOADER (INFLATABLE HEAD)
Air In
Pneumatic Inflatable Core
• Flexi Reinforcement: 316L Stainless Steel Helical Coil
• Vacuum Rating: Prevents collapse under negative pressure.
• Flexi-Light / Earthed: Available with ATEX terminal grounding.
• Bulk Bag Loader: Pneumatic core inflates to seal FIBC bags.
• Hygiene: Creates 100% dust-tight clamp on bag neck.
Project / Ref: ___________________________________
Inner Dia (øD): _____________ mm
Length (L): _____________ mm
2. Configuration Selection:
[ ] Flexi-Connector (Standard Wire Coil)
[ ] Flexi-Light (Thinner wire for flexibility)
[ ] Bulk Bag Loader (Inflatable Head)
3. ATEX Grounding Requirement:
[ ] Add Flexi-Earthed Terminal Lugs
DRAWING TITLE:
WIRE-REINFORCED CO

FRONT ELEVATION: TEFLEX NP BLACK (PURE PTFE)
Max Temp: 300°C
Static Dissipative 10^6 Ω
FRONT ELEVATION: TEFLEX OPAQUE
Max Temp: 300°C
Semi-Transparent / Flow Visible
• Material Core: Pure Non-Porous PTFE Film or Woven PTFE
• Temperature Limit: Continuous operation at 260°C to 300°C
• Chemical Resistance: Inert to Acids, Alkalis, Solvents
• Warning: Fabric coatings cannot withstand continuous 700°C.
• Static Control: Teflex Black is fully conductive (10^6 Ω)
• Regulatory Compliance: FDA 21 CFR 177.1550 & ATEX
Project / Ref: ___________________________________
Inner Dia (øD): _____________ mm
Length (L): _____________ mm
2. Teflex Formulation Target:
[ ] Teflex NP Black (Anti-Static 300°C)
[ ] Teflex Opaque (Semi-Transparent 300°C)
[ ] Teflex Woven (High Flex / Vibration 260°C)
3. Conveyed Medium:
Name: _______________ Max Temp: ______ °C
DRAWING TITLE:
TEFLEX SERIES - HIGH

FRONT ELEVATION: LM3 / LM4 WOVEN FABRIC
Breathable Woven Fabric
FRONT ELEVATION: FM1 NEEDLE FELT BREATHER BAG
Closed Top with Loop Handle
• LM3 Polypropylene: Sub-zero powder lines down to -70°C.
• LM4 Polyester: Hot powder venting up to 130°C (ATEX Compliant).
• FM1 Needle Felt: Dedicated air relief bag for hoppers/vessels.
• Function: Relieves displaced air pressure while retaining dust.
• Filtration Efficiency: Superior Sub-Micron Dust Retention.
Project / Ref: ___________________________________
Inner Dia (øD): _____________ mm
Length (L): _____________ mm
2. Fabric Selection:
[ ] LM3 Woven Polypropylene (-70°C)
[ ] LM4 Woven Polyester (130°C / ATEX)
[ ] FM1 Needle Felt (Hopper Venting Filter Bag)
DRAWING TITLE:
BREATHER BAGS & W

FRONT ELEVATION: CORNER CONNECTOR (110° BEND)
110° Bend
Offset
Alignment
FRONT ELEVATION: TAPERED CONICAL CONNECTOR
Vertical
Height
L
Top Dia D1
Bottom Dia D2
• 110° Bend Corner: Prevents CIP washdown liquid from pooling.
• Tapered Conical: Solves unequal spigot diameter connections.
• Advantage: Smooth inner walls prevent powder bridging.
• Material Options: Ether-TPU (040E), Scrim-Reinforced (060ES)
• FDA 21 CFR & EU 10/2011 Compliant
Project / Ref: ___________________________________
1. Select Fitting Type:
[ ] 110° Bend Corner Connector
[ ] Tapered Conical Reducer
2. Dimensions (mm):
Top / Main Dia (D1): _____________ mm
Bottom / Outlet Dia (D2): _____________ mm
Gap / Height (L): _____________ mm
3. Material:
[ ] Clear TPU [ ] Scrim-Reinforced TPU
DRAWING TITLE:
CORNER CONNECTOR

TR TOOL RELEASE & LOCK-OUT SYSTEM
<- Padlock & Tool Hole
Requires Tool to release. Prevents hand injury.
QUICK ACCESS SAMPLING PORT
Screw-In Port Welded to TPU Wall
For powder sampling & metal detector testing.
KEVLAR & BLACKOUT COVERS
Kevlar Flame Retardant
Provides fire protection &
over-pressure containment
in explosive ATEX zones.
100% Light Shield
Blocks UV/light to protect
photosensitive pharma
and food ingredients.
• TR System: Safety lock-out collar restricts removal near
rotating machinery. Ensures strict HSE compliance.
• Quick Access Port: Integrated screw-in testing port.
• Kevlar Cover: Fire protection & over-pressure containment.
• Black Out Cover: UV/Light shield for pharma applications.
Project / Ref: ___________________________________
Assigned to Connectors: _________________________
1. Access Control Systems:
[ ] TR Tool Release Collar
[ ] Padlock for Lock-Out
[ ] Integrated Quick Access Sampling Port
2. Protective Covers:
[ ] Kevlar Fire & Pressure Safety Cover
[ ] Black Out Light Shielding Cover
DRAWING TITLE:
PROTECTIVE COVERS

ROUND FLANGE FACE (TOP VIEW) Flange OD (D1)
Bolt Circle (Db)
CYLINDRICAL ELEVATION
Face-to-Face
L
• Flange Integration: Matches ANSI B16.5 / DIN PN16 / JIS piping.
• Base Fabric Options:
- Polyurethane (PU / TPU)
- Woven PTFE / Silicone coated Glassfiber
• Flange Construction: Fabric folded and punched.
• Internal Support: Optional vacuum rings for negative pressure.
Project / Ref: ___________________________________
1. Flange Dimensions (mm):
Pipe Inner Dia (D): _____________ mm
Face-to-Face Length (L): _____________ mm
Flange OD (D1): _____________ mm
Bolt Circle (Db): _____________ mm
Hole Diameter: _______ mm | Qty: ____ PCS
2. Material Selection:
[ ] TPU [ ] PTFE [ ] Silicone
[ ] Add Internal Vacuum Rings
DRAWING TITLE:
ROUND-TO-ROUND FL

RECTANGULAR FLANGE FACE (TOP VIEW)
⚠ 4-Corner Bolt Holes Mandatory
Inner Width A Inner
Height
B
ELEVATION
Face-to-Face
L
• Base Fabric Options: PU / PTFE / Silicone
• Flange Construction: Fabric folded and punched.
• Direction Rule: A = Horizontal Width, B = Vertical Height.
• CRITICAL NOTE: Rectangular / Square flanges MUST have
bolt holes positioned in the 4 corners to ensure uniform sealing.
Project / Ref: ___________________________________
1. Rectangular Dimensions (mm):
Inner Width (Horiz A): _____________ mm
Inner Height (Vert B): _____________ mm
Total Length (L): _____________ mm
2. Flange Specs:
Outer Flange (A1 x B1): _______ x _______ mm
Hole Pitch (Px x Py): _______ x _______ mm
Hole Diameter (ød): _______ mm | Qty: ____ PCS
3. Material: [ ] TPU [ ] PTFE [ ] Silicone
DRAWING TITLE:
SQUARE-TO-SQUARE

VENTING SURGE HOPPER SPIGOT (INTERNAL WEIR)
Internal Angled Weir Baffle Plate
Welded internal partition separates
air surge from powder drop streams
for 100% weighing accuracy.
ANTI-VACUUM SUPPORT RINGS
<-- Internal SUS304 Wire Rings
Encapsulated in wall to prevent
collapse under negative vacuum.
• Weir Plate: Custom welded 45° plate matches partitioned hoppers.
• Plate Material: AISI 304 / 316L Stainless Steel.
• Vacuum Rings: Internal 304SS wire rings support structure.
• Hygiene: Rings are encapsulated within TPU/fabric walls
to prevent powder accumulation traps.
Project / Ref: ___________________________________
1. Special Spigot / Baffle:
[ ] Venting Surge Hopper Spigot (With Weir Plate)
Flange Diameter (øD): _____________ mm
2. Vacuum Reinforcement (For Flexible Body):
[ ] Add Anti-Vacuum Rings
Quantity of Rings per Connector: ______ Rings
DRAWING TITLE:
VENTING SURGE HOP

MASTER PROCUREMENT SPECIFICATION & RFQ FORM
1. CUSTOMER & PROJECT INFO
Company Name: _________________________________________________ Contact / Email: _________________________________________________
Target Delivery / Port: _________________________________________________
2. APPLICATION ENVIRONMENT
[ ] Sifters / Shakers [ ] Weighing / Load Cell [ ] High Temp / Corrosive
3. PRODUCT SPECIFICATIONS
Geometry Type: [ ] Snap-In [ ] Weighing Bellows [ ] Flanged (R-R/S-S) [ ] Corner/Tapered
Material: [ ] Standard PU [ ] Teflex PTFE [ ] Woven Breather Fabric
Dimensions (Dia x Length): _____________________________________________
4. ACCESSORIES & SAFETY
[ ] Kevlar Cover [ ] Blackout Cover [ ] Vacuum Rings [ ] Tool Release Collar
5. AUTHORIZED SIGN-OFF
Signature / Stamp: ____________________________________ Date: ______ / ______ / 2026
DRAWING TITLE:
MASTER PROCUREME

SOSHH® Industrial Powder Handling Connectors - Technical Drawings, Material Specs & Procurement Guide.pdf

More Related Content

Recently uploaded

Featured
