Solutions for your Thermography Program Ed Kochanek, Certified ITC Thermographer
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Do you need? • Better imaging and resolution to quickly and easily identify a problem? • Work outdoors where its hard to view traditional LCD only thermal cameras? • Need to improve the time it takes to scan your facility and create that thermography report? • New or inexperience users? • Get the camera out of the locked closet and out in the field to be used? • Software that’s easy to use?
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. What is Thermal Imaging Invisible Visible
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Thermal and ROI • One find pays back initial investment • Multiple finds improve efficiency and performance of your facility • Documentation helps justify programs and improvements
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Electromagnetic Spectrum Visible: 0.4-0.7 m Midwave Infrared: 3-5 m Longwave Infrared: 7-14 m MW LW 1 µm 3 µm 5 µm 7 µm 14 µm.4 µm .7 µm
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. • IR waves are emitted by all objects • IR radiation increases with temperature How Does it Work?

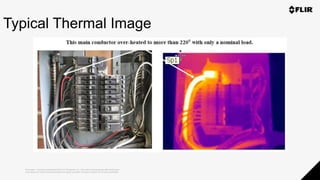

Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Typical Thermal Image
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. How to get the most out of your Program
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. LCD only Cameras – Outdoor usage 1. Can’t see what you looking at 2. Time consuming 3. Need readers if you are experienced like me 4. Traditional eye piece cameras are expensive 5. Sunglass makes it hard to see the screen

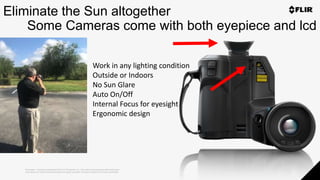

Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Eliminate the Sun altogether Some Cameras come with both eyepiece and lcd Work in any lighting condition Outside or Indoors No Sun Glare Auto On/Off Internal Focus for eyesight Ergonomic design
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. How Hot is Hot
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Criteria- How Hot is Hot Source: ANSI/NETA Standard for Acceptance Testing Specifications – 2017 – Page 227
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Resolution and Spot Size
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Resolution and Spot Size Popular Array Sizes • 320 X 240 = 76,800 or 307,200 • 640 X 480 = 307,200 or 1,228,800 • 1024 X 786 = 786,320 or 3,145,280
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Resolution and Spot Size

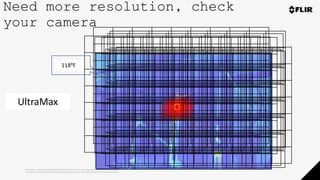

Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. 98⁰F118⁰F Need more resolution, check your camera UltraMax
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Optics for your camera
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Resolution and Spot Size Reference Temp 41 C • 76,800 Temp 60 C, Delta 19 C • 307,200 Temp 64 C, Delta 23 C • 786,320 Temp 71 C, Delta 30 C

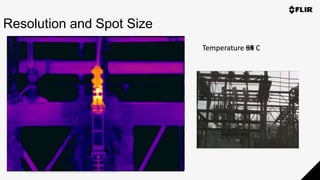

Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Resolution and Spot Size Temperature 85 CTemperature 89 CTemperature 94 C
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Resolution and Spot Size Reference Temp 27 C • 76,800 Temp 66 C, Delta 39 C • 307,200 Temp 77 C, Delta 50 C • 786,320 Temp 114 C, Delta 87 C 3,145,728 Pixels with a 2x telephoto lens
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. The lower the NETD the better NETD 20mK 640 x 480<30mK320 x 240 <50mK Image Quality is not all about Resolution
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited.

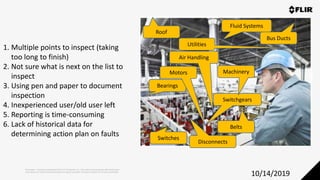

Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. 10/14/2019 Roof Disconnects Switches Belts Bearings Switchgears Air Handling Bus Ducts Utilities MachineryMotors Fluid Systems 1. Multiple points to inspect (taking too long to finish) 2. Not sure what is next on the list to inspect 3. Using pen and paper to document inspection 4. Inexperienced user/old user left 5. Reporting is time-consuming 6. Lack of historical data for determining action plan on faults

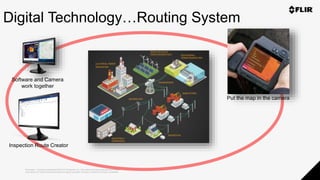

Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Digital Technology…Routing System Software and Camera work together Inspection Route Creator Put the map in the camera
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Where do I start first? Routing System
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. The value of Routing Previous Button Current Asset Next Button Tapping Current Asset Button Tapping Add comment Button 1. Inspections are efficient 2. New or experienced users will have similar performance 3. Lexicon is the same (important for recalling) 4. Consistency = Excellence
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Software and Reports • Drop and drag reporting • Route text is already there • Search for historical images • Trends are easier to see and track
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Did you know – Wi-Fi and Apps • Cameras can stream to your phone • Iphone and Android • Take images and analyze them • Create Reports on the fly • Email critical issues immediately
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Infrared Training… • Accurate temp measurement • Image clarity • Explains the physics • Typical predictive applications • Labs and examples • Software Support
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Summary • Viewfinder is very helpful outdoors • Resolution and Sensitivity is Critical • Simple, easy to use Software = Successful programs • Training ensures confidence and repeatability
Proprietary - Company Confidential ©2019 FLIR Systems Inc. Information and equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Questions and Thank You
