Purely Functional Data Structures
         for On-line LCA
            Edward Kmett

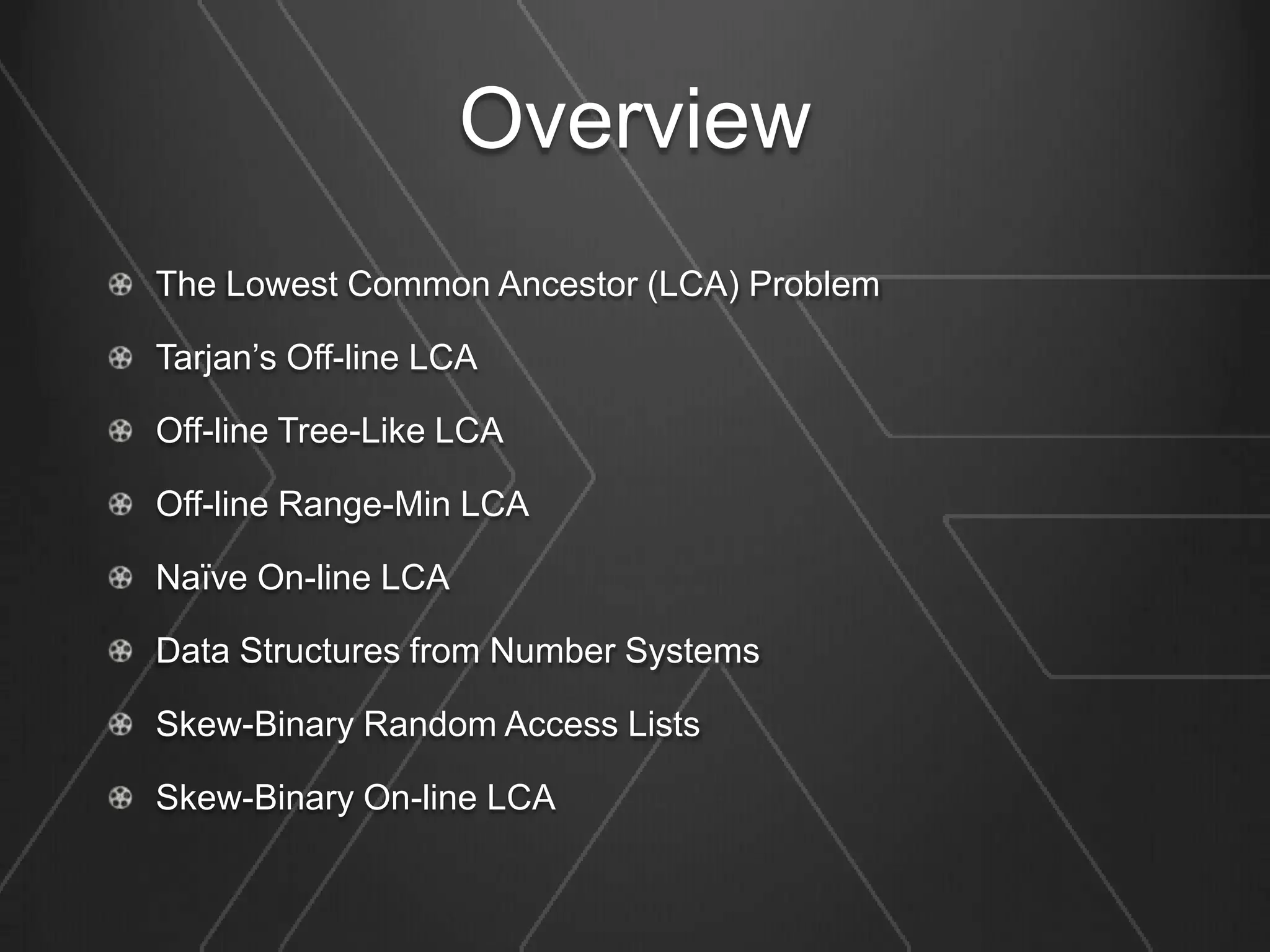

Overview
The Lowest Common Ancestor (LCA) Problem

Tarjan’s Off-line LCA

Off-line Tree-Like LCA

Off-line Range-Min LCA

Naïve On-line LCA

Data Structures from Number Systems

Skew-Binary Random Access Lists

Skew-Binary On-line LCA
The Lowest Common Ancestor Problem
Given a tree, and two nodes in the tree, find the lowest
entry in the tree that is an ancestor to both.


                         A

            B                         E

       C         D           F        G          I

                                      H         J
The Lowest Common Ancestor Problem
Given a tree and two nodes in the tree, find the lowest
entry in the tree that is an ancestor to both.

Applications:
  Computing Dominators in Flow Graphs
  Three-Way Merge Algorithms in Revision Control
  Common Word Roots/Suffixes
  Range-Min Query (RMQ) problems
  Computing Distance in a Tree
  …
The Lowest Common Ancestor Problem
Given a tree and two nodes in the tree, find the lowest
entry in the tree that is an ancestor to both.

First formalized by Aho, Hopcraft, and Ullman in 1973.

They provided ephemeral on-line and off-line versions of
the problem in terms of two operations, with their off-line
version of the algorithm requiring O(n log*(n)) and their
online version requiring O(n log n) steps.

Research has largely focused on the off-line versions of
this problem where you are given the entire tree a priori.
cons, link, or grow?
The original formulation of LCA was in terms of two
operations link x y which grafts an unattached tree x
on as a child of y, and lca x y which computes the
lowest common ancestor of x and y.

Alternately, we can work with lca x y and cons a
y, which returns a new extended version of the path y
grown downward with the globally unique node ID a, and

We can replace cons a y with a monadic grow y, which
tracks the variable supply internally. By using a concurrent
variable supply like the one supplied by the concurrent-
supply package enables you to grow the tree in parallel.
Tarjan’s Off-line LCA
In 1979, Robert Tarjan found a way to compute a
predetermined set of distinct LCA queries at the same
time given the complete tree by creatively using disjoint-
set forests in O(nα(n)). (This is stronger condition than the usual offline problem
statement.) TarjanOLCA(u)
  function
      MakeSet(u);
      u.ancestor := u;
      for each v in u.children do
           TarjanOLCA(v);
           Union(u,v);
           Find(u).ancestor := u;
      u.colour := black;
      for each v such that {u,v} in P do
           if v.colour == black
               print "The LCA of “+u+" and “+v+" is " + Find(v).ancestor;
Tarjan’s Off-line LCA
In 1979, Robert Tarjan found a way to compute a
predetermined set of distinct LCA queries at the same
time given the complete tree by creatively using disjoint-
set forests in O(nα(n)).

In 1983, Harold Gabow and Robert Tarjan improved the
asymptotics of the preceding algorithm to O(n) by noting
special-case opportunities not available in general
purpose disjoint-set forest problems.
Tree-Like Off-line LCA
In 1984, Dov Harel and Robert Tarjan provided the first
asymptotically optimal off-line solution, which converts the
tree in O(n) into a structure that can be queried in O(1).

In 1988, Baruch Scheiber and Uzi Vishkin simplified that
structure, by building arbitrary-fanout trees out of paths
and binary trees, and providing fast indexing into each
case.
Range-Min Off-line LCA
In 1993, Omer Berkman and Uzi Vishkin found another
conversion with the same O(n) preprocessing using an
Euler tour to convert the tree structure into a Range-Min
structure, that can be queried in O(1) time.
This was improved in 2000 by Michael Bender and Martin
Farach-Colton.
Alstrup, Gavoille, Kaplan and Rauhe focused on
distributing this algorithm.
Fischer and Heun reduced the memory requirements, but
also show logarithmically slower RMQ algorithms are
often faster the common problem sizes of today!
Backup Plans
Naïve On-line LCA
Build paths as lists of node IDs, using cons as you go.

    x = [5,4,3,2,1] :# 5
    y = [6,3,2,1] :# 4

To compute lca x y, first cut both lists to have the same
length.

    x’ = [4,3,2,1], y’ = [6,3,2,1], len = 4

Then keep dropping elements from both until the IDs
match.

    lca x y = [3,2,1] :# 3
Naïve On-line LCA
No preprocessing step.

O(h) LCA query time where h is the length of the path.

O(1) to extend a path.

No need to store the entire tree, just the paths you are
currently using. This helps with distribution and
parallelization.

As an on-line algorithm, the tree can grow without
requiring costly recalculations.
Naïve On-line LCA
To go faster we’d need to extract a common suffix in
sublinear time. Very Well…
Data Structures from
        Number Systems
We are already familiar with at least one data structure
derived from a number system.
    data Nat        = Zero | Succ Nat
    data List a = Nil        | Cons a (List a)


            O(1) succ grants us O(1) cons
Binary Random-Access
           Lists
We could construct a data structure from binary numbers
as well, where you have a linked list of “flags” with 2n
elements in them.

However, adding 1 to a binary number can affect all log n
digits in the number, yielding O(log n) cons.
Skew-Binary Numbers                         15   7 3   1

                                                       0

                                                       1

                                                       2

                                                   1   0
The nth digit has value2n+1-1,  and each
                                                   1   1
digit has a value of 0,1, or 2.                    1   2

                                                   2   0
We only allow a single 2 in the
                                                 1 0   0
number, which must be the first non-zero
                                                 1 0   1
digit.                                           1 0   2

                                                 1 1   0
Every natural number can be uniquely
                                                 1 1   1
represented by this scheme.
                                                 1 1   2

                                                 1 2   0
succ is an O(1) operation.
                                                 2 0   0

There are 2n+1-1 nodes in a complete tree    1   0 0   0

of height n.
Skew-Binary Random Access
             Lists
  We store a linked list of complete trees, where we are
  allowed to have two trees of the same size at the front of
  the list, but after that all trees are of strictly increasing
  height.
data Tree a = Tip a | Bin a (Tree a) (Tree a)
data Path a = Nil | Cons !Int !Int (Tree a) (Path a)

length :: Path a -> Int
length Nil = 0
length (Cons n _ _ _) = n




   I call these random-access lists a Path here, because of our use case.
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.




                                      1
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.




                  2                                       1
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.




                                      3

                            2                   1
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.




                       4                   3

                                 2                   1
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.




            5                    4                   3

                                           2                   1
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.




                   6                                     3

         5                  4                  2                   1
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.




                                      7

                         6                         3

                   5            4            2           1
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.




                         8            7

                         6                         3

                   5            4            2           1
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.


-- O(1)
cons :: a -> Path a -> Path a
cons a (Cons n w t (Cons _ w' t2 ts))
  | w == w' = Cons (n + 1) (2 * w + 1) (Bin a t t2) ts
cons a ts = Cons (length ts + 1) 1 (Tip a) ts
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.

lca :: Eq   a => Path a -> Path a -> Path a
lca xs ys   = case compare nxs nys of
    LT ->   lca' xs (keep nxs ys)
    EQ ->   lca' xs ys
    GT ->   lca' (keep nys xs) ys
  where
    nxs =   length xs
    nys =   length ys
Skew-Binary Keep
O(log (h - k)) to keep the top k elements of path of height
h
            keep 2 (fromList [6,5,4,3,2,1])




              6                                3

      5               4               2                1
Skew-Binary Keep
O(log (h - k)) to keep the top k elements of path of height
h
            keep 2 (fromList [6,5,4,3,2,1])
                           =
               keep 2 (fromList [3,2,1])




              6                                3

      5               4               2                1
Skew-Binary Keep
O(log (h - k)) to keep the top k elements of path of height
h
            keep 2 (fromList [6,5,4,3,2,1])




              6                                3

      5               4               2                1
Skew-Binary Keep
   O(log (h - k)) to keep the top k elements of path of height
   h
keep :: Int -> Path a -> Path a
keep _ Nil = Nil
keep k xs@(Cons n w t ts)
  | k >= n    = xs
  | otherwise = case compare k (n - w) of
    GT -> keepT (k - n + w) w t ts
    EQ -> ts
    LT -> keep k ts

consT :: Int -> Tree a -> Path a -> Path a
consT w t ts = Cons (w + length ts) w t ts

keepT :: Int -> Int -> Tree a -> Path a -> Path a
keepT n w (Bin _ l r) ts = case compare n w2 of
  LT              -> keepT n w2 r ts
  EQ              -> consT w2 r ts
  GT | n == w - 1 -> consT w2 l (consT w2 r ts)
     | otherwise -> keepT (n - w2) w2 l (consT w2 r ts)
  where w2 = div w 2
keepT _ _ _ ts = ts
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go.
     To compute lca x y, first cut both lists to have the same length.
     Then keep dropping elements until the IDs match.

lca :: Eq   a => Path a -> Path a -> Path a
lca xs ys   = case compare nxs nys of
    LT ->   lca' xs (keep nxs ys)
    EQ ->   lca' xs ys
    GT ->   lca' (keep nys xs) ys
  where
    nxs =   length xs
    nys =   length ys
Comparing Node IDs
 We can check to see if two paths have the same head or
 are both empty in O(1).

infix 4 ~=
(~=) :: Eq a => Path a -> Path a -> Bool
Nil ~= Nil = True
Cons _ _ s _ ~= Cons _ _ t _ = sameT s t
_ ~= _ = False

sameT :: Eq a => Tree a -> Tree a -> Bool
sameT xs ys = root xs == root ys

root :: Tree a -> a
root (Tip a)     = a
root (Bin a _ _) = a
Monotonicity
We can modify the algorithm
for keep into an algorithm that
takes any monotone predicate
that only transitions from False
to True once during the walk
up the path and yields a result
in O(log h)

We have exactly one shape for a given number of elements,
so we can walk the spine of the two random access lists at
the same time in lock-step. This lets us, modify this algorithm
to work with a pair of paths, because the shapes agree.

(~=) is monotone given using globally unique IDs.
Finding the Match
   lca’ requires the invariant that both paths have the same
   length. This is provided by the fact that lca, shown earlier,
   trims the lists first.

lca' :: Eq a => Path a -> Path a -> Path a
lca' h@(Cons _ w x xs) (Cons _ _ y ys)
  | sameT x y = h
  | xs ~= ys = lcaT w x y xs
  | otherwise = lca' xs ys
lca' _ _ = Nil

lcaT :: Eq a => Int -> Tree a -> Tree a -> Path a -> Path a
lcaT w (Bin _ la ra) (Bin _ lb rb) ts
  | sameT la lb = consT w2 la (consT w2 ra ts)
  | sameT ra rb = lcaT w2 la lb (consT w ra ts)
  | otherwise   = lcaT w2 ra rb ts
  where w2 = div w 2
lcaT _ _ _ ts = ts
Skew-Binary On-line LCA
Naïve On-line LCA:
     Build paths as lists of node IDs, using cons as you go. O(1)
     To compute lca x y, first cut both lists to have the same length. O(h)
     Then keep dropping elements until the IDs match. O(h)



Skew-Binary On-line LCA:
     Build paths as lists of node IDs, using cons as you go. O(1)
     To compute lca x y, first cut both lists to have the same length. O(log
     h)
     Then keep dropping elements until the IDs match. O(log h)
Skew-Binary On-line LCA
No preprocessing step.

O(log h) LCA query time where h is the length of the path.

O(1) to extend a path.

No need to store the entire tree, just the paths you are currently
using. This helps with distribution and parallelization when
working on large trees.

As an on-line algorithm, the tree can grow without requiring
costly recalculations.

Preserves all of the benefits of the naïve algorithm, while
drastically reducing the costs.
Now What?
We found that skew-binary random access lists can be used to
accelerate the naïve online LCA algorithm while retaining the
desirable properties.

You can install a working version of this algorithm from hackage

                     cabal install lca

Next time I’ll talk about the applications of this algorithm to a
“revision control” monad which can be used for parallel and
incremental computation in Haskell.

I am working with Daniel Peebles on a proof of correctness and
asymptotic performance in Agda.
Any Questions?

More Related Content

What's hot

unique_ptrにポインタ以外のものを持たせるとき
unique_ptrにポインタ以外のものを持たせるときunique_ptrにポインタ以外のものを持たせるとき
unique_ptrにポインタ以外のものを持たせるとき
Shintarou Okada

KorQuAD v2.0 소개
KorQuAD v2.0 소개KorQuAD v2.0 소개
KorQuAD v2.0 소개
LGCNSairesearch

C++ Template Metaprogramming
C++ Template MetaprogrammingC++ Template Metaprogramming
C++ Template MetaprogrammingAkira Takahashi

C++ Template Meta Programming の紹介@社内勉強会
C++ Template Meta Programming の紹介@社内勉強会C++ Template Meta Programming の紹介@社内勉強会
C++ Template Meta Programming の紹介@社内勉強会Akihiko Matuura

中3女子が狂える本当に気持ちのいい constexpr
中3女子が狂える本当に気持ちのいい constexpr中3女子が狂える本当に気持ちのいい constexpr
中3女子が狂える本当に気持ちのいい constexpr
Genya Murakami

Linqの速度測ってみた
Linqの速度測ってみたLinqの速度測ってみた
Linqの速度測ってみた
Core Concept Technologies

関数型プログラミング入門 with OCaml
関数型プログラミング入門 with OCaml関数型プログラミング入門 with OCaml
関数型プログラミング入門 with OCaml
Haruka Oikawa

constexpr関数はコンパイル時処理。これはいい。実行時が霞んで見える。cpuの嬌声が聞こえてきそうだ
constexpr関数はコンパイル時処理。これはいい。実行時が霞んで見える。cpuの嬌声が聞こえてきそうだconstexpr関数はコンパイル時処理。これはいい。実行時が霞んで見える。cpuの嬌声が聞こえてきそうだ
constexpr関数はコンパイル時処理。これはいい。実行時が霞んで見える。cpuの嬌声が聞こえてきそうだGenya Murakami

競技プログラミングのためのC++入門
競技プログラミングのためのC++入門競技プログラミングのためのC++入門
競技プログラミングのためのC++入門
natrium11321

C++の話(本当にあった怖い話)
C++の話(本当にあった怖い話)C++の話(本当にあった怖い話)
C++の話(本当にあった怖い話)
Yuki Tamura

C++コミュニティーの中心でC++をDISる
C++コミュニティーの中心でC++をDISるC++コミュニティーの中心でC++をDISる
C++コミュニティーの中心でC++をDISる
Hideyuki Tanaka

ret2dl resolve
ret2dl resolveret2dl resolve
ret2dl resolve
sounakano

ClojurianからみたElixir
ClojurianからみたElixirClojurianからみたElixir
ClojurianからみたElixir
Kent Ohashi

pyOpenCL 입문
pyOpenCL 입문pyOpenCL 입문
pyOpenCL 입문
Seongjun Kim

代数的実数とCADの実装紹介
代数的実数とCADの実装紹介代数的実数とCADの実装紹介
代数的実数とCADの実装紹介
Masahiro Sakai

C++のSTLのコンテナ型を概観する @ Ohotech 特盛 #10(2014.8.30)
C++のSTLのコンテナ型を概観する @ Ohotech 特盛 #10(2014.8.30)C++のSTLのコンテナ型を概観する @ Ohotech 特盛 #10(2014.8.30)
C++のSTLのコンテナ型を概観する @ Ohotech 特盛 #10(2014.8.30)
Hiro H.

NumPyが物足りない人へのCython入門
NumPyが物足りない人へのCython入門NumPyが物足りない人へのCython入門
NumPyが物足りない人へのCython入門
Shiqiao Du

yieldとreturnの話
yieldとreturnの話yieldとreturnの話
yieldとreturnの話
bleis tift


What's hot (20)

unique_ptrにポインタ以外のものを持たせるとき
unique_ptrにポインタ以外のものを持たせるときunique_ptrにポインタ以外のものを持たせるとき
unique_ptrにポインタ以外のものを持たせるとき

KorQuAD v2.0 소개
KorQuAD v2.0 소개KorQuAD v2.0 소개
KorQuAD v2.0 소개

Monad tutorial
Monad tutorialMonad tutorial
Monad tutorial

C++ Template Metaprogramming
C++ Template MetaprogrammingC++ Template Metaprogramming
C++ Template Metaprogramming

C++ Template Meta Programming の紹介@社内勉強会
C++ Template Meta Programming の紹介@社内勉強会C++ Template Meta Programming の紹介@社内勉強会
C++ Template Meta Programming の紹介@社内勉強会

中3女子が狂える本当に気持ちのいい constexpr
中3女子が狂える本当に気持ちのいい constexpr中3女子が狂える本当に気持ちのいい constexpr
中3女子が狂える本当に気持ちのいい constexpr

Linqの速度測ってみた
Linqの速度測ってみたLinqの速度測ってみた
Linqの速度測ってみた

関数型プログラミング入門 with OCaml
関数型プログラミング入門 with OCaml関数型プログラミング入門 with OCaml
関数型プログラミング入門 with OCaml

constexpr関数はコンパイル時処理。これはいい。実行時が霞んで見える。cpuの嬌声が聞こえてきそうだ
constexpr関数はコンパイル時処理。これはいい。実行時が霞んで見える。cpuの嬌声が聞こえてきそうだconstexpr関数はコンパイル時処理。これはいい。実行時が霞んで見える。cpuの嬌声が聞こえてきそうだ
constexpr関数はコンパイル時処理。これはいい。実行時が霞んで見える。cpuの嬌声が聞こえてきそうだ

競技プログラミングのためのC++入門
競技プログラミングのためのC++入門競技プログラミングのためのC++入門
競技プログラミングのためのC++入門

C++の話(本当にあった怖い話)
C++の話(本当にあった怖い話)C++の話(本当にあった怖い話)
C++の話(本当にあった怖い話)

C++コミュニティーの中心でC++をDISる
C++コミュニティーの中心でC++をDISるC++コミュニティーの中心でC++をDISる
C++コミュニティーの中心でC++をDISる

ret2dl resolve
ret2dl resolveret2dl resolve
ret2dl resolve

ClojurianからみたElixir
ClojurianからみたElixirClojurianからみたElixir
ClojurianからみたElixir

pyOpenCL 입문
pyOpenCL 입문pyOpenCL 입문
pyOpenCL 입문

Map
MapMap
Map

代数的実数とCADの実装紹介
代数的実数とCADの実装紹介代数的実数とCADの実装紹介
代数的実数とCADの実装紹介

C++のSTLのコンテナ型を概観する @ Ohotech 特盛 #10(2014.8.30)
C++のSTLのコンテナ型を概観する @ Ohotech 特盛 #10(2014.8.30)C++のSTLのコンテナ型を概観する @ Ohotech 特盛 #10(2014.8.30)
C++のSTLのコンテナ型を概観する @ Ohotech 特盛 #10(2014.8.30)

NumPyが物足りない人へのCython入門
NumPyが物足りない人へのCython入門NumPyが物足りない人へのCython入門
NumPyが物足りない人へのCython入門

yieldとreturnの話
yieldとreturnの話yieldとreturnの話
yieldとreturnの話


Similar to Purely Functional Data Structures for On-Line LCA

NoSQL - how it works (@pavlobaron)
NoSQL - how it works (@pavlobaron)NoSQL - how it works (@pavlobaron)
NoSQL - how it works (@pavlobaron)
Pavlo Baron

20121020 semi local-string_comparison_tiskin
20121020 semi local-string_comparison_tiskin20121020 semi local-string_comparison_tiskin
20121020 semi local-string_comparison_tiskin
Computer Science Club

Distributed Coordination
Distributed CoordinationDistributed Coordination
Distributed Coordination
Luis Galárraga

Review session2
Review session2Review session2
Review session2
NEEDY12345

Linear sorting
Linear sortingLinear sorting
Linear sorting
Krishna Chaytaniah

Encoding in sc
Encoding in scEncoding in sc
Encoding in sc
rajshreemuthiah

Short dec
Short decShort dec
Short dec
ITSAJJADKHAN

Lec27
Lec27Lec27
Questions datastructures-in-c-languege
Questions datastructures-in-c-languegeQuestions datastructures-in-c-languege
Questions datastructures-in-c-languege
bhargav0077

Compressing column-oriented indexes
Compressing column-oriented indexesCompressing column-oriented indexes
Compressing column-oriented indexes
Daniel Lemire

Skip Graphs and its Applications
Skip Graphs and its ApplicationsSkip Graphs and its Applications
Skip Graphs and its Applications
Ajay Bidyarthy

Q
QQ
Scalable membership management
Scalable membership management Scalable membership management
Scalable membership management
Vinay Setty

Computational Social Science, Lecture 06: Networks, Part II
Computational Social Science, Lecture 06: Networks, Part IIComputational Social Science, Lecture 06: Networks, Part II
Computational Social Science, Lecture 06: Networks, Part II
jakehofman

Wrapper induction construct wrappers automatically to extract information f...
Wrapper induction   construct wrappers automatically to extract information f...Wrapper induction   construct wrappers automatically to extract information f...
Wrapper induction construct wrappers automatically to extract information f...
George Ang

TREES.pptx
TREES.pptxTREES.pptx
Data Structure and Algorithms Huffman Coding Algorithm
Data Structure and Algorithms Huffman Coding AlgorithmData Structure and Algorithms Huffman Coding Algorithm
Data Structure and Algorithms Huffman Coding Algorithm
ManishPrajapati78

Clojure: The Art of Abstraction
Clojure: The Art of AbstractionClojure: The Art of Abstraction
Clojure: The Art of Abstraction
Alex Miller

2dig circ
2dig circ2dig circ
cfl2.pdf
cfl2.pdfcfl2.pdf
cfl2.pdf
TayNamBeng


Similar to Purely Functional Data Structures for On-Line LCA (20)

NoSQL - how it works (@pavlobaron)
NoSQL - how it works (@pavlobaron)NoSQL - how it works (@pavlobaron)
NoSQL - how it works (@pavlobaron)

20121020 semi local-string_comparison_tiskin
20121020 semi local-string_comparison_tiskin20121020 semi local-string_comparison_tiskin
20121020 semi local-string_comparison_tiskin

Distributed Coordination
Distributed CoordinationDistributed Coordination
Distributed Coordination

Review session2
Review session2Review session2
Review session2

Linear sorting
Linear sortingLinear sorting
Linear sorting

Encoding in sc
Encoding in scEncoding in sc
Encoding in sc

Short dec
Short decShort dec
Short dec

Lec27
Lec27Lec27
Lec27

Questions datastructures-in-c-languege
Questions datastructures-in-c-languegeQuestions datastructures-in-c-languege
Questions datastructures-in-c-languege

Compressing column-oriented indexes
Compressing column-oriented indexesCompressing column-oriented indexes
Compressing column-oriented indexes

Skip Graphs and its Applications
Skip Graphs and its ApplicationsSkip Graphs and its Applications
Skip Graphs and its Applications

Q
QQ
Q

Scalable membership management
Scalable membership management Scalable membership management
Scalable membership management

Computational Social Science, Lecture 06: Networks, Part II
Computational Social Science, Lecture 06: Networks, Part IIComputational Social Science, Lecture 06: Networks, Part II
Computational Social Science, Lecture 06: Networks, Part II

Wrapper induction construct wrappers automatically to extract information f...
Wrapper induction   construct wrappers automatically to extract information f...Wrapper induction   construct wrappers automatically to extract information f...
Wrapper induction construct wrappers automatically to extract information f...

TREES.pptx
TREES.pptxTREES.pptx
TREES.pptx

Data Structure and Algorithms Huffman Coding Algorithm
Data Structure and Algorithms Huffman Coding AlgorithmData Structure and Algorithms Huffman Coding Algorithm
Data Structure and Algorithms Huffman Coding Algorithm

Clojure: The Art of Abstraction
Clojure: The Art of AbstractionClojure: The Art of Abstraction
Clojure: The Art of Abstraction

2dig circ
2dig circ2dig circ
2dig circ

cfl2.pdf
cfl2.pdfcfl2.pdf
cfl2.pdf


Recently uploaded

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
shyamraj55

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

Infrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI modelsInfrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI models
Zilliz

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
Matthew Sinclair

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6
DianaGray10

Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxOcean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
SitimaJohn

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx
Brandon Minnick, MBA

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization
Zilliz

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing
Aftab Hussain

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Quotidiano Piemontese

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations
kumardaparthi1024

Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AIMind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI
Kumud Singh

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

How to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptxHow to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptx
danishmna97


Recently uploaded (20)

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

Infrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI modelsInfrastructure Challenges in Scaling RAG with Custom AI models
Infrastructure Challenges in Scaling RAG with Custom AI models

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6

Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxOcean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptx

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations

Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AIMind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

How to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptxHow to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptx


Purely Functional Data Structures for On-Line LCA

  • 1. Purely Functional Data Structures for On-line LCA Edward Kmett
  • 2. Overview The Lowest Common Ancestor (LCA) Problem Tarjan’s Off-line LCA Off-line Tree-Like LCA Off-line Range-Min LCA Naïve On-line LCA Data Structures from Number Systems Skew-Binary Random Access Lists Skew-Binary On-line LCA
  • 3. The Lowest Common Ancestor Problem Given a tree, and two nodes in the tree, find the lowest entry in the tree that is an ancestor to both. A B E C D F G I H J
  • 4.
  • 5. The Lowest Common Ancestor Problem Given a tree and two nodes in the tree, find the lowest entry in the tree that is an ancestor to both. Applications: Computing Dominators in Flow Graphs Three-Way Merge Algorithms in Revision Control Common Word Roots/Suffixes Range-Min Query (RMQ) problems Computing Distance in a Tree …
  • 6. The Lowest Common Ancestor Problem Given a tree and two nodes in the tree, find the lowest entry in the tree that is an ancestor to both. First formalized by Aho, Hopcraft, and Ullman in 1973. They provided ephemeral on-line and off-line versions of the problem in terms of two operations, with their off-line version of the algorithm requiring O(n log*(n)) and their online version requiring O(n log n) steps. Research has largely focused on the off-line versions of this problem where you are given the entire tree a priori.
  • 7. cons, link, or grow? The original formulation of LCA was in terms of two operations link x y which grafts an unattached tree x on as a child of y, and lca x y which computes the lowest common ancestor of x and y. Alternately, we can work with lca x y and cons a y, which returns a new extended version of the path y grown downward with the globally unique node ID a, and We can replace cons a y with a monadic grow y, which tracks the variable supply internally. By using a concurrent variable supply like the one supplied by the concurrent- supply package enables you to grow the tree in parallel.
  • 8. Tarjan’s Off-line LCA In 1979, Robert Tarjan found a way to compute a predetermined set of distinct LCA queries at the same time given the complete tree by creatively using disjoint- set forests in O(nα(n)). (This is stronger condition than the usual offline problem statement.) TarjanOLCA(u) function MakeSet(u); u.ancestor := u; for each v in u.children do TarjanOLCA(v); Union(u,v); Find(u).ancestor := u; u.colour := black; for each v such that {u,v} in P do if v.colour == black print "The LCA of “+u+" and “+v+" is " + Find(v).ancestor;
  • 9. Tarjan’s Off-line LCA In 1979, Robert Tarjan found a way to compute a predetermined set of distinct LCA queries at the same time given the complete tree by creatively using disjoint- set forests in O(nα(n)). In 1983, Harold Gabow and Robert Tarjan improved the asymptotics of the preceding algorithm to O(n) by noting special-case opportunities not available in general purpose disjoint-set forest problems.
  • 10. Tree-Like Off-line LCA In 1984, Dov Harel and Robert Tarjan provided the first asymptotically optimal off-line solution, which converts the tree in O(n) into a structure that can be queried in O(1). In 1988, Baruch Scheiber and Uzi Vishkin simplified that structure, by building arbitrary-fanout trees out of paths and binary trees, and providing fast indexing into each case.
  • 11. Range-Min Off-line LCA In 1993, Omer Berkman and Uzi Vishkin found another conversion with the same O(n) preprocessing using an Euler tour to convert the tree structure into a Range-Min structure, that can be queried in O(1) time. This was improved in 2000 by Michael Bender and Martin Farach-Colton. Alstrup, Gavoille, Kaplan and Rauhe focused on distributing this algorithm. Fischer and Heun reduced the memory requirements, but also show logarithmically slower RMQ algorithms are often faster the common problem sizes of today!
  • 13. Naïve On-line LCA Build paths as lists of node IDs, using cons as you go. x = [5,4,3,2,1] :# 5 y = [6,3,2,1] :# 4 To compute lca x y, first cut both lists to have the same length. x’ = [4,3,2,1], y’ = [6,3,2,1], len = 4 Then keep dropping elements from both until the IDs match. lca x y = [3,2,1] :# 3
  • 14. Naïve On-line LCA No preprocessing step. O(h) LCA query time where h is the length of the path. O(1) to extend a path. No need to store the entire tree, just the paths you are currently using. This helps with distribution and parallelization. As an on-line algorithm, the tree can grow without requiring costly recalculations.
  • 15. Naïve On-line LCA To go faster we’d need to extract a common suffix in sublinear time. Very Well…
  • 16. Data Structures from Number Systems We are already familiar with at least one data structure derived from a number system. data Nat = Zero | Succ Nat data List a = Nil | Cons a (List a) O(1) succ grants us O(1) cons
  • 17. Binary Random-Access Lists We could construct a data structure from binary numbers as well, where you have a linked list of “flags” with 2n elements in them. However, adding 1 to a binary number can affect all log n digits in the number, yielding O(log n) cons.
  • 18. Skew-Binary Numbers 15 7 3 1 0 1 2 1 0 The nth digit has value2n+1-1, and each 1 1 digit has a value of 0,1, or 2. 1 2 2 0 We only allow a single 2 in the 1 0 0 number, which must be the first non-zero 1 0 1 digit. 1 0 2 1 1 0 Every natural number can be uniquely 1 1 1 represented by this scheme. 1 1 2 1 2 0 succ is an O(1) operation. 2 0 0 There are 2n+1-1 nodes in a complete tree 1 0 0 0 of height n.
  • 19. Skew-Binary Random Access Lists We store a linked list of complete trees, where we are allowed to have two trees of the same size at the front of the list, but after that all trees are of strictly increasing height. data Tree a = Tip a | Bin a (Tree a) (Tree a) data Path a = Nil | Cons !Int !Int (Tree a) (Path a) length :: Path a -> Int length Nil = 0 length (Cons n _ _ _) = n I call these random-access lists a Path here, because of our use case.
  • 20. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match.
  • 21. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match.
  • 22. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. 1
  • 23. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. 2 1
  • 24. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. 3 2 1
  • 25. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. 4 3 2 1
  • 26. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. 5 4 3 2 1
  • 27. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. 6 3 5 4 2 1
  • 28. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. 7 6 3 5 4 2 1
  • 29. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. 8 7 6 3 5 4 2 1
  • 30. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. -- O(1) cons :: a -> Path a -> Path a cons a (Cons n w t (Cons _ w' t2 ts)) | w == w' = Cons (n + 1) (2 * w + 1) (Bin a t t2) ts cons a ts = Cons (length ts + 1) 1 (Tip a) ts
  • 31. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. lca :: Eq a => Path a -> Path a -> Path a lca xs ys = case compare nxs nys of LT -> lca' xs (keep nxs ys) EQ -> lca' xs ys GT -> lca' (keep nys xs) ys where nxs = length xs nys = length ys
  • 32. Skew-Binary Keep O(log (h - k)) to keep the top k elements of path of height h keep 2 (fromList [6,5,4,3,2,1]) 6 3 5 4 2 1
  • 33. Skew-Binary Keep O(log (h - k)) to keep the top k elements of path of height h keep 2 (fromList [6,5,4,3,2,1]) = keep 2 (fromList [3,2,1]) 6 3 5 4 2 1
  • 34. Skew-Binary Keep O(log (h - k)) to keep the top k elements of path of height h keep 2 (fromList [6,5,4,3,2,1]) 6 3 5 4 2 1
  • 35. Skew-Binary Keep O(log (h - k)) to keep the top k elements of path of height h keep :: Int -> Path a -> Path a keep _ Nil = Nil keep k xs@(Cons n w t ts) | k >= n = xs | otherwise = case compare k (n - w) of GT -> keepT (k - n + w) w t ts EQ -> ts LT -> keep k ts consT :: Int -> Tree a -> Path a -> Path a consT w t ts = Cons (w + length ts) w t ts keepT :: Int -> Int -> Tree a -> Path a -> Path a keepT n w (Bin _ l r) ts = case compare n w2 of LT -> keepT n w2 r ts EQ -> consT w2 r ts GT | n == w - 1 -> consT w2 l (consT w2 r ts) | otherwise -> keepT (n - w2) w2 l (consT w2 r ts) where w2 = div w 2 keepT _ _ _ ts = ts
  • 36. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. To compute lca x y, first cut both lists to have the same length. Then keep dropping elements until the IDs match. lca :: Eq a => Path a -> Path a -> Path a lca xs ys = case compare nxs nys of LT -> lca' xs (keep nxs ys) EQ -> lca' xs ys GT -> lca' (keep nys xs) ys where nxs = length xs nys = length ys
  • 37. Comparing Node IDs We can check to see if two paths have the same head or are both empty in O(1). infix 4 ~= (~=) :: Eq a => Path a -> Path a -> Bool Nil ~= Nil = True Cons _ _ s _ ~= Cons _ _ t _ = sameT s t _ ~= _ = False sameT :: Eq a => Tree a -> Tree a -> Bool sameT xs ys = root xs == root ys root :: Tree a -> a root (Tip a) = a root (Bin a _ _) = a
  • 38. Monotonicity We can modify the algorithm for keep into an algorithm that takes any monotone predicate that only transitions from False to True once during the walk up the path and yields a result in O(log h) We have exactly one shape for a given number of elements, so we can walk the spine of the two random access lists at the same time in lock-step. This lets us, modify this algorithm to work with a pair of paths, because the shapes agree. (~=) is monotone given using globally unique IDs.
  • 39. Finding the Match lca’ requires the invariant that both paths have the same length. This is provided by the fact that lca, shown earlier, trims the lists first. lca' :: Eq a => Path a -> Path a -> Path a lca' h@(Cons _ w x xs) (Cons _ _ y ys) | sameT x y = h | xs ~= ys = lcaT w x y xs | otherwise = lca' xs ys lca' _ _ = Nil lcaT :: Eq a => Int -> Tree a -> Tree a -> Path a -> Path a lcaT w (Bin _ la ra) (Bin _ lb rb) ts | sameT la lb = consT w2 la (consT w2 ra ts) | sameT ra rb = lcaT w2 la lb (consT w ra ts) | otherwise = lcaT w2 ra rb ts where w2 = div w 2 lcaT _ _ _ ts = ts
  • 40. Skew-Binary On-line LCA Naïve On-line LCA: Build paths as lists of node IDs, using cons as you go. O(1) To compute lca x y, first cut both lists to have the same length. O(h) Then keep dropping elements until the IDs match. O(h) Skew-Binary On-line LCA: Build paths as lists of node IDs, using cons as you go. O(1) To compute lca x y, first cut both lists to have the same length. O(log h) Then keep dropping elements until the IDs match. O(log h)
  • 41. Skew-Binary On-line LCA No preprocessing step. O(log h) LCA query time where h is the length of the path. O(1) to extend a path. No need to store the entire tree, just the paths you are currently using. This helps with distribution and parallelization when working on large trees. As an on-line algorithm, the tree can grow without requiring costly recalculations. Preserves all of the benefits of the naïve algorithm, while drastically reducing the costs.
  • 42. Now What? We found that skew-binary random access lists can be used to accelerate the naïve online LCA algorithm while retaining the desirable properties. You can install a working version of this algorithm from hackage cabal install lca Next time I’ll talk about the applications of this algorithm to a “revision control” monad which can be used for parallel and incremental computation in Haskell. I am working with Daniel Peebles on a proof of correctness and asymptotic performance in Agda.
