NAUGHTY LITTLE SCAMPS
e ‘art’ of sketching interfaces
Anatomy of a sketch

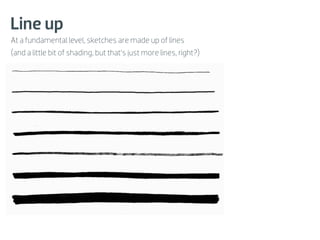

Line up
At a fundamental level, sketches are made up of lines
(and a little bit of shading, but that’s just more lines, right?)

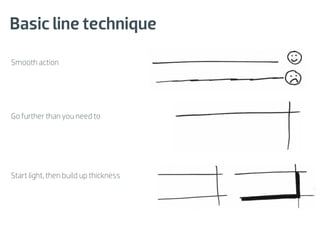

Basic line technique

Smooth action




Go further than you need to




Start light, then build up thickness

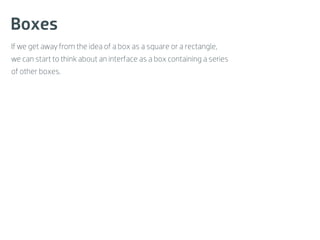

Boxes
If we get away from the idea of a box as a square or a rectangle,
we can start to think about an interface as a box containing a series
of other boxes.

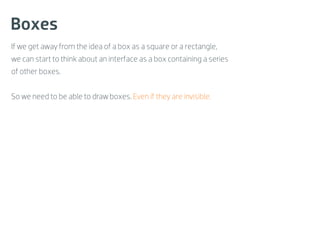

Boxes
If we get away from the idea of a box as a square or a rectangle,
we can start to think about an interface as a box containing a series
of other boxes.


So we need to be able to draw boxes. Even if they are invisible.
Boxes
If we get away from the idea of a box as a square or a rectangle,
we can start to think about an interface as a box containing a series
of other boxes.


So we need to be able to draw boxes. Even if they are invisible.




                                                                        [invisible box]

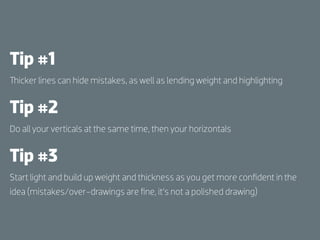

Tip #1
 icker lines can hide mistakes, as well as lending weight and highlighting
Tip #1
  icker lines can hide mistakes, as well as lending weight and highlighting


Tip #2
Do all your verticals at the same time, then your horizontals

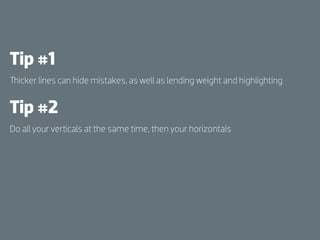

Tip #1
  icker lines can hide mistakes, as well as lending weight and highlighting


Tip #2
Do all your verticals at the same time, then your horizontals


Tip #3
Start light and build up weight and thickness as you get more confident in the
idea (mistakes/over-drawings are fine, it’s not a polished drawing)
Are you sitting comfortably?

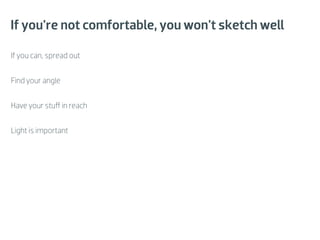

If you're not comfortable, you won't sketch well

If you can, spread out


Find your angle


Have your stuff in reach


Light is important

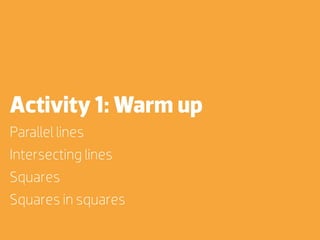

Activity 1: Warm up
Parallel lines
Intersecting lines
Squares
Squares in squares

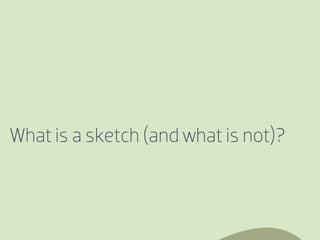

What is a sketch (and what is not)?
<opinion><rant>

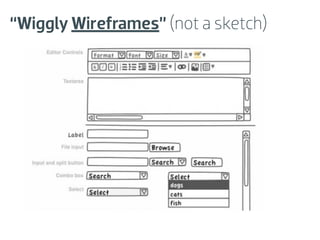

“Wiggly Wireframes” (not a sketch)
Hand-drawn wireframes (not a sketch)
</rant></opinion>

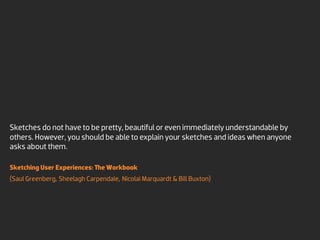

Sketches do not have to be pretty, beautiful or even immediately understandable by
others. However, you should be able to explain your sketches and ideas when anyone
asks about them.

Sketching User Experiences:    e Workbook
(Saul Greenberg, Sheelagh Carpendale, Nicolai Marquardt & Bill Buxton)
Why Sketch?

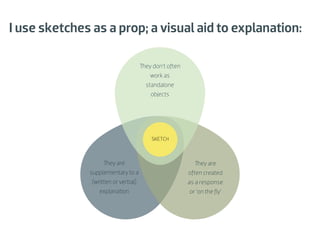

I use sketches as a prop; a visual aid to explanation:

                                     ey don’t often
                                       work as
                                     standalone
                                       objects




                                       SKETCH



                      ey are                                ey are
              supplementary to a                      often created
               (written or verbal)                    as a response
                  explanation                          or ‘on the fly’

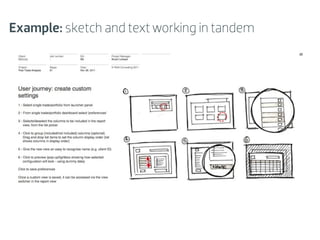

Example: sketch and text working in tandem
Why use sketches?
(paraphrasing Bill Buxton and my Dad)


Sketches give you the freedom to make mistakes and think openly


  ey can be done at speed - explore lots of ideas quickly


You can record ideas without getting lost in the detail


  ey are easy to discuss, share and critique with others


To have fun (too often forgotten)

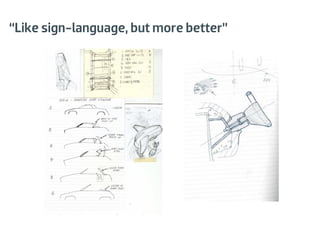

“Like sign-language, but more better”

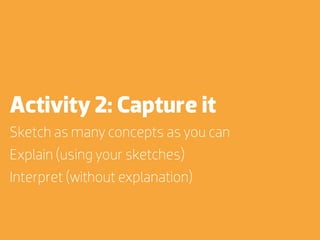

Activity 2: Capture it
Sketch as many concepts as you can
Explain (using your sketches)
Interpret (without explanation)

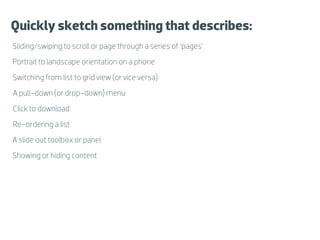

Quickly sketch something that describes:
Sliding/swiping to scroll or page through a series of ‘pages’
Portrait to landscape orientation on a phone
Switching from list to grid view (or vice versa)
A pull-down (or drop-down) menu
Click to download
Re-ordering a list
A slide out toolbox or panel
Showing or hiding content
Tools of the Trade

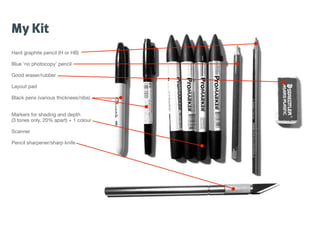

My Kit
Hard graphite pencil (H or HB)

Blue ‘no photocopy’ pencil

Good eraser/rubber

Layout pad

Black pens (various thickness/nibs)


Markers for shading and depth
(3 tones only, 20% apart) + 1 colour

Scanner

Pencil sharpener/sharp knife

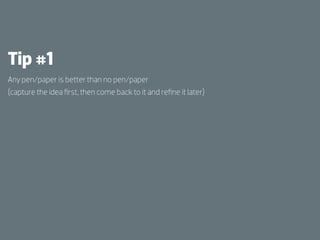

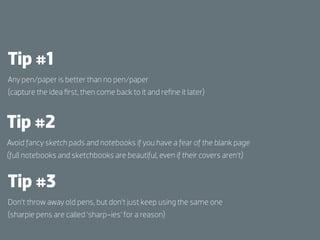

Tip #1
Any pen/paper is better than no pen/paper
(capture the idea first, then come back to it and refine it later)
Tip #1
Any pen/paper is better than no pen/paper
(capture the idea first, then come back to it and refine it later)



Tip #2
Avoid fancy sketch pads and notebooks if you have a fear of the blank page
(full notebooks and sketchbooks are beautiful, even if their covers aren’t)

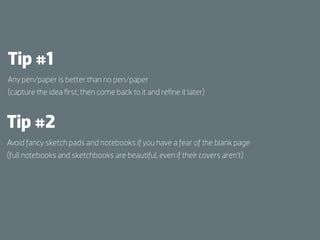

Tip #1
Any pen/paper is better than no pen/paper
(capture the idea first, then come back to it and refine it later)



Tip #2
Avoid fancy sketch pads and notebooks if you have a fear of the blank page
(full notebooks and sketchbooks are beautiful, even if their covers aren’t)


Tip #3
Don’t throw away old pens, but don’t just keep using the same one
(sharpie pens are called ‘sharp-ies’ for a reason)

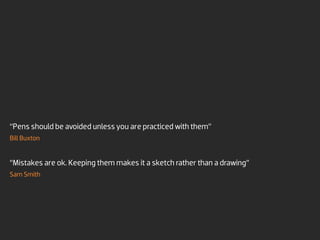

“Pens should be avoided unless you are practiced with them”
Bill Buxton
“Pens should be avoided unless you are practiced with them”
Bill Buxton


“Mistakes are ok. Keeping them makes it a sketch rather than a drawing”
Sam Smith
e devil is in the
(lack of) detail
Sketches as impressionism
As soon as you start to get into detail you are drawing (not sketching) and in danger
of you, and the people you share your sketches with, focusing on the wrong thing.

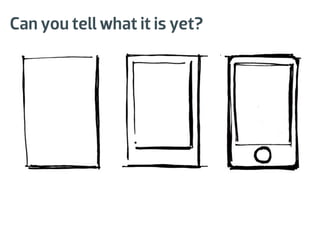

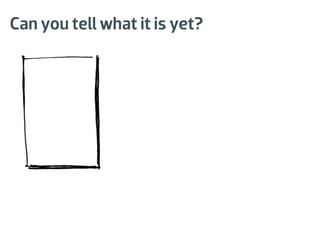

Can you tell what it is yet?

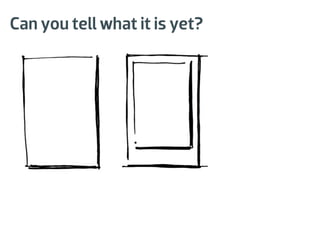

Can you tell what it is yet?
Can you tell what it is yet?

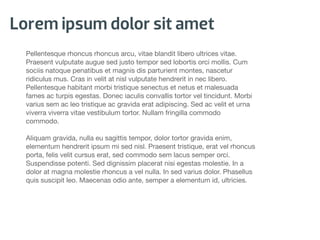

Lorem ipsum dolor sit amet
  Pellentesque rhoncus rhoncus arcu, vitae blandit libero ultrices vitae.
  Praesent vulputate augue sed justo tempor sed lobortis orci mollis. Cum
  sociis natoque penatibus et magnis dis parturient montes, nascetur
  ridiculus mus. Cras in velit at nisl vulputate hendrerit in nec libero.
  Pellentesque habitant morbi tristique senectus et netus et malesuada
  fames ac turpis egestas. Donec iaculis convallis tortor vel tincidunt. Morbi
  varius sem ac leo tristique ac gravida erat adipiscing. Sed ac velit et urna
  viverra viverra vitae vestibulum tortor. Nullam fringilla commodo
  commodo.

  Aliquam gravida, nulla eu sagittis tempor, dolor tortor gravida enim,
  elementum hendrerit ipsum mi sed nisl. Praesent tristique, erat vel rhoncus
  porta, felis velit cursus erat, sed commodo sem lacus semper orci.
  Suspendisse potenti. Sed dignissim placerat nisi egestas molestie. In a
  dolor at magna molestie rhoncus a vel nulla. In sed varius dolor. Phasellus
  quis suscipit leo. Maecenas odio ante, semper a elementum id, ultricies.

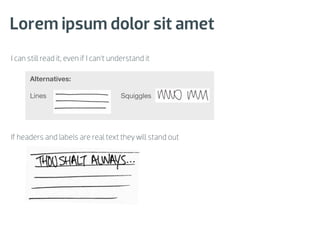

Lorem ipsum dolor sit amet
I can still read it, even if I can’t understand it

      Alternatives:

      Lines                            Squiggles




If headers and labels are real text they will stand out

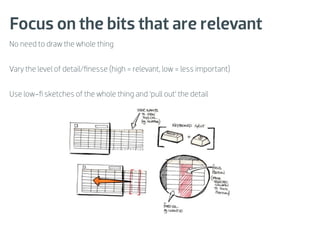

Focus on the bits that are relevant
No need to draw the whole thing


Vary the level of detail/finesse (high = relevant, low = less important)


Use low-fi sketches of the whole thing and ‘pull out’ the detail
Activity 3: Focus
Show me just as much as you need to

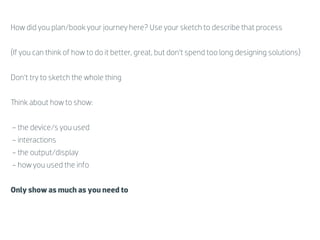

How did you plan/book your journey here? Use your sketch to describe that process


(If you can think of how to do it better, great, but don’t spend too long designing solutions)


Don’t try to sketch the whole thing


  ink about how to show:


- the device/s you used
- interactions
- the output/display
- how you used the info


Only show as much as you need to
Give us a clue (Labelling)
Good labels saved many a bad sketch

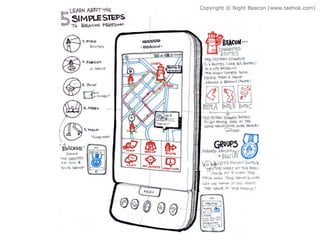

Copyright © Night Beacon (www.taehok.com)

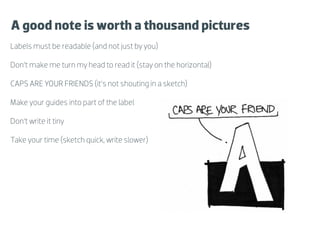

A good note is worth a thousand pictures
Labels must be readable (and not just by you)

Don’t make me turn my head to read it (stay on the horizontal)

CAPS ARE YOUR FRIENDS (it’s not shouting in a sketch)

Make your guides into part of the label

Don’t write it tiny

Take your time (sketch quick, write slower)
Activity 4: Writing
AAAAA
AN ARMY OF ANTS
ANNOTATE

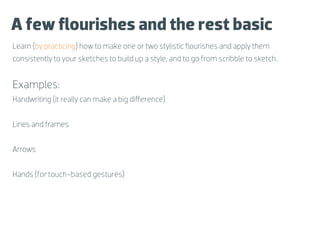

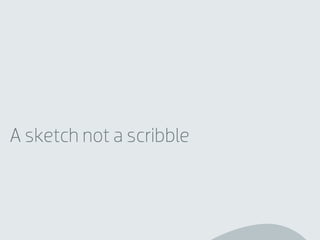

A sketch not a scribble
A few flourishes and the rest basic
Learn (by practicing) how to make one or two stylistic flourishes and apply them
consistently to your sketches to build up a style, and to go from scribble to sketch.


Examples:
Handwriting (it really can make a big difference)


Lines and frames

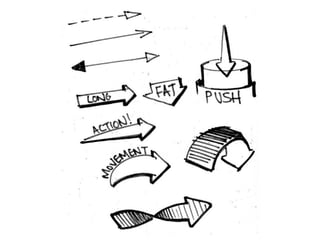

Arrows


Hands (for touch-based gestures)

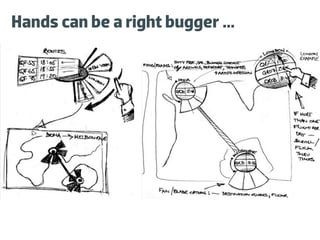

Hands can be a right bugger ...
... but they don’t have to be

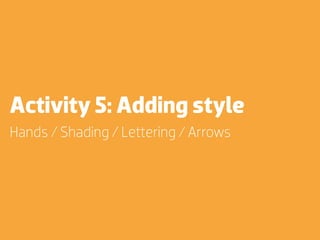

Activity 5: Adding style
Hands / Shading / Lettering / Arrows
Sketching Interaction

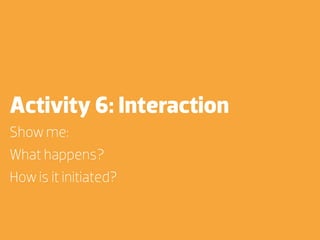

Activity 6: Interaction
Show me:
What happens?
How is it initiated?

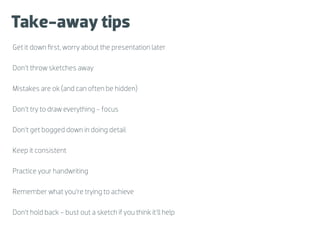

Take-away tips
Get it down first, worry about the presentation later

Don’t throw sketches away

Mistakes are ok (and can often be hidden)

Don’t try to draw everything - focus

Don’t get bogged down in doing detail

Keep it consistent

Practice your handwriting

Remember what you’re trying to achieve

Don’t hold back - bust out a sketch if you think it’ll help

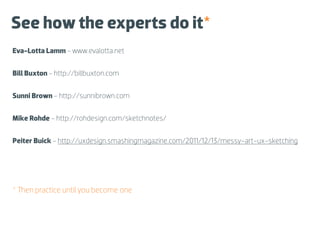

See how the experts do it*
Eva-Lotta Lamm - www.evalotta.net


Bill Buxton - http://billbuxton.com


Sunni Brown - http://sunnibrown.com


Mike Rohde - http://rohdesign.com/sketchnotes/


Peiter Buick - http://uxdesign.smashingmagazine.com/2011/12/13/messy-art-ux-sketching




*   en practice until you become one
A call to arms
A lot of us spend precious hours creating heavy documentation that is dated before it is
completed. Sometimes this is appropriate, but most times it isn’t.

  is year, re-imagine the way you work. Resolve to develop your prototyping skills. Get
good at sketching in front of people. Learn to facilitate design conversations.
Experiment. Question old methods ... ese are exciting times—shape the future!

Sarah B. Nelson - Tapir and Tine
ank You
         Sam (@pub)
Jason (@jasonmesut)




                      RMA
                      Design Driven Innovation
