CITOOLKIT CITOOLKIT CITOOLKIT Check Sheet Simplifying Data Collection and Quality Control with Check Sheets

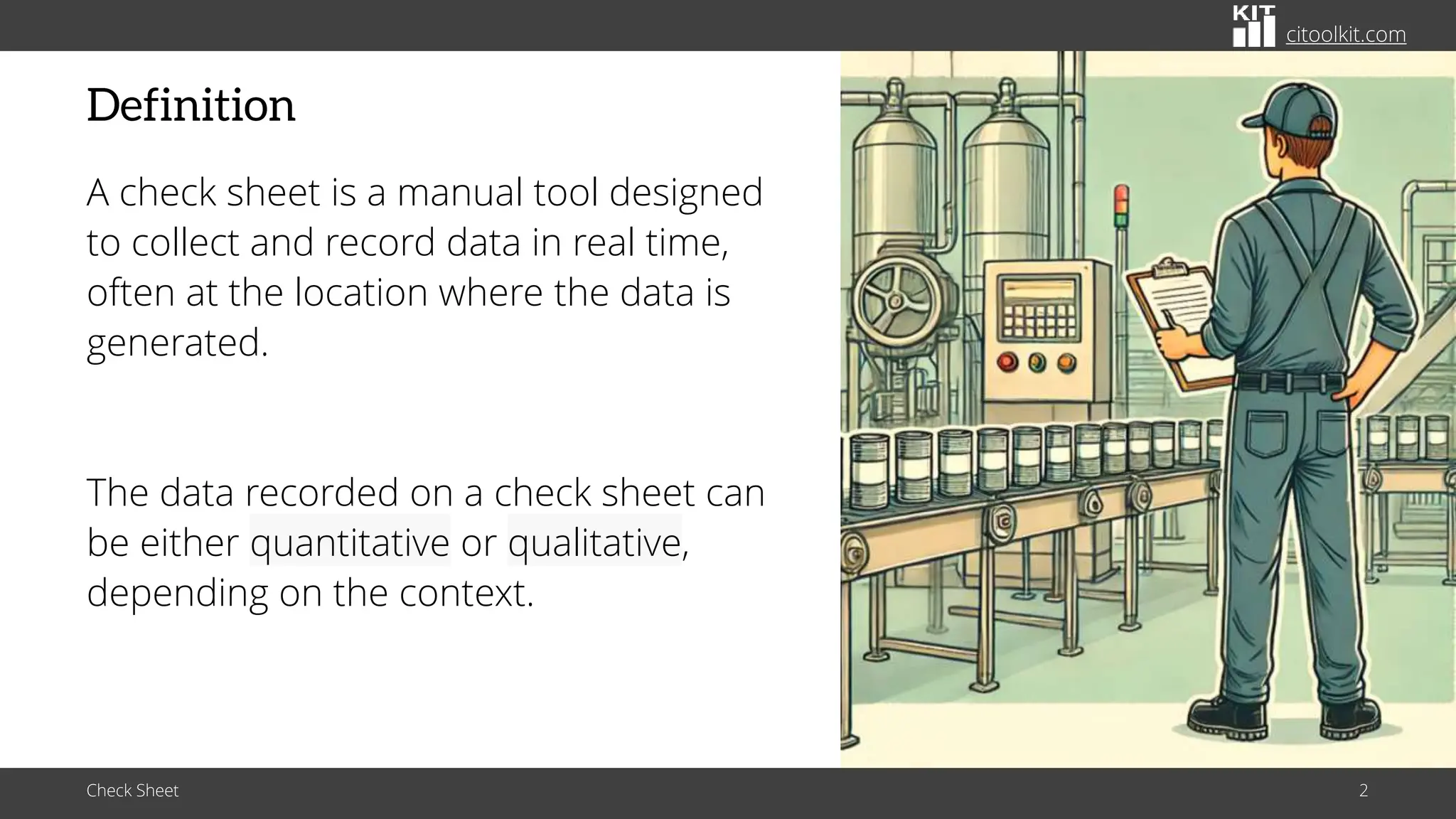

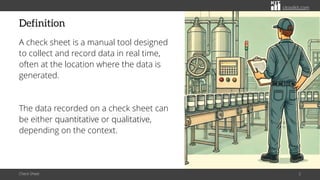

citoolkit.com citoolkit.com citoolkit.com Definition A check sheet is a manual tool designed to collect and record data in real time, often at the location where the data is generated. The data recorded on a check sheet can be either quantitative or qualitative, depending on the context. Check Sheet 2
citoolkit.com citoolkit.com citoolkit.com Definition Its primary purpose is to simplify and organize data collection while helping analysts identify facts, insights, and patterns that support further analysis. Check Sheet 3 In many cases, the recording is done so the patterns are easily seen while the data are being taken.
citoolkit.com citoolkit.com citoolkit.com Definition // Check Sheet 4 The term can also include any kind of form that is designed for organized manual data collection. “ “ it can be used on a temporary basis, like during a project, or be established for routine activities.
citoolkit.com citoolkit.com citoolkit.com Applications Check sheets have applications in many areas. Check Sheet 5 Safety Inspections For example, recording unsafe conditions and hazards Customer Feedback For example, recording customer complaints by type or frequency Quality Control For example, recording defect types and frequencies Inventory Management For example, tracking stock levels and shortages Process Monitoring For example, recording cycle times and downtime events Maintenance Tracking For example, tracking maintenance tasks Where else?
citoolkit.com citoolkit.com citoolkit.com Applications – Quality Control A check sheet is most linked to quality control activities. It is often used to collect and organize quality-related data, such as identifying and categorizing defects by type, location, or cause. Check Sheet 6
citoolkit.com citoolkit.com citoolkit.com Applications – Quality Control Quality control check sheets can be designed in many formats . . . It can take the form of a defect tally sheet to monitor defective products or services. It can be a visual representation, such as a diagram highlighting areas on a product where defects occur. Check Sheet 7
citoolkit.com citoolkit.com citoolkit.com Applications – Process Improvement Check sheets help identify cycle times, downtime events, inefficiencies, and bottlenecks within processes to streamline workflows and enhance overall efficiency. Check Sheet 8 They help teams quantify issues, uncover root causes, and provide clear insights into process variations.
citoolkit.com citoolkit.com citoolkit.com Applications – Project Management Check sheets are useful for tracking task completion and milestone achievements to ensure progress is effectively managed. Check Sheet 9 They help identify delays or bottlenecks early and allow for timely interventions to keep the project on track.
citoolkit.com citoolkit.com citoolkit.com Applications – Research Check sheets enable researchers to record observations accurately and identify insights for further analysis. Check Sheet 10 These insights enables researchers to test hypotheses, validate findings, or explore relationships between different factors.
citoolkit.com citoolkit.com citoolkit.com Other Applications Check Sheet 11 Health and Safety Tracks unsafe behaviors and incidents, monitor unsafe conditions, and ensure compliance with safety regulations. Customer Feedback Tracks customer complaints and allows to systematically record and categorize complaints as they arise. Supplier Management Helps monitoring supplier performance metrics, such as delivery times, product quality, and quantities.
citoolkit.com citoolkit.com citoolkit.com Other Applications Check Sheet 12 Maintenance and Equipment Management Tracks maintenance activities and identifies wear, tear and repair needs for machinery and equipment. Inventory Management Monitors stock levels, tracks item movement, and records replenishment activities within inventory systems. Example: Machine cleaning and lubrication check sheets. Machine Items to clean 1. 2. 3. Items to lubricate 1. 2. 3.
citoolkit.com citoolkit.com citoolkit.com Benefits Check Sheet 13 Ensures consistency of data recording 02 Allows for recording essential contextual and descriptive information 03 Enables quick visualization of patterns and trends 05 Serve as valuable input to other analyses 06 Allows immediate identification of issues during inspections 04 Simplifies data collection to identify defects and issues 01
citoolkit.com citoolkit.com citoolkit.com Types Check sheets are available in many types and formats, each has a unique purpose and can be customized to meet specific requirements. Check Sheet 14 The possibilities are not limited to these examples. Analysts are encouraged to use their creativity to design check sheets that more effectively meet their specific needs. Tally Chart Measles Chart Tally Chart Primary Types
citoolkit.com citoolkit.com citoolkit.com Types – Tally Chart A simple and effective tool for tracking and recording the frequency of issues or events. It is commonly used to capture data, such as defects or customer complaints. Often use groups of five for easy counting. Check Sheet 15 Results can be presented later through bar charts or histograms. 2 5 3 7
citoolkit.com citoolkit.com citoolkit.com Types – Measles Chart A visual tool used to represent the location and density of failures on . . . Check Sheet 16 Markers or dots on a drawing make it easy to identify areas where defects occur most frequently. A product A document A system A process map It is commonly applied in many fields, including manufacturing, customer service, and geographic tracking.
citoolkit.com citoolkit.com citoolkit.com Types – Checklist A simple check sheet designed to ensure that activities or steps are completed to meet required standards or objectives. It helps overcome memory limitations and serves as a guide for inspections and audits. Check Sheet 17 Example: Safe entrance checklist to a manufacturing facility. Common examples include audit checklists and quality checklists for manufactured goods. ❑ Is the PPE properly worn? ❑ Are you carrying only authorized tools or items required for work? ❑ Have you passed the required safety orientation? ❑ Is your ID badge visible and valid for entry to this area? ❑ Have you sanitized your hands or followed the health protocol before entry? ❑ Do you understand the emergency evacuation routes and nearest exits? Notes: • Any "No" response requires immediate resolution before proceeding. • Report any unsafe conditions to the safety officer immediately.
citoolkit.com citoolkit.com citoolkit.com Additional Components Many additional components can be added to the primary types . . . . Check Sheet 18 Additionally, check sheets could include lists of items or categories (such as defects, suppliers, inspection criteria, or performance metrics), depending on the intended purpose and the data to be captured. Sections for Comments, Observations, etc. Fields to Capture Quantitative Data (Time durations) # Header Details (Data fields for time, date, etc.) Sections for Trends and Basic Analysis #
citoolkit.com citoolkit.com citoolkit.com Practical Examples Many practical examples can be developed based on the primary types . . . Check Sheet 19 Cause-and -Effect Time Observation Defect Classification Operation Monitoring Traveler Audit
citoolkit.com citoolkit.com citoolkit.com Defect Classification Check Sheet Used to record and categorize different types of defects or errors during an observation. It includes predefined defect categories and allows for counting or tally marking to prioritize defect types and analyze trends. The resulting data can be used to generate a Pareto chart for easier representation of defect frequency. Check Sheet 20 Records and categorizes defects observed during the quality control process in a production line. Header information Defect categories and tally marks Other Observations Summary and Trends
citoolkit.com citoolkit.com citoolkit.com Cause-and-Effect Check Sheet Used to identify and record potential causes of an effect in a process. It links defects or errors to their possible root causes and categorizes them into predefined groups, such as . . . Check Sheet 21 Records potential causes of defects and categorizes them into predefined groups for root cause analysis. Header information Possible causes, cause categories and tally marks Other Observations Analysis and Trends Machine Method Material Measurement
citoolkit.com citoolkit.com citoolkit.com Traveler Check Sheet Used to track a product, component, or document as it moves through various stages in a process. It travels with the item across departments and workstations to record specific data, observations and approvals at each stage. Check Sheet 22 Tracks and records data, observations, and approvals at each stage (of a manufacturing process for example). Header information Process Stages Tracking Table Overall Quality Assessment Other Observations #
citoolkit.com citoolkit.com citoolkit.com Time Observation Check Sheet Used to track the time-related aspects of a process or activity. For example, it can be used to monitor the duration of a process at a specific production line, workstation, or department to identify delays, inefficiencies, and bottlenecks. Check Sheet 23 Tracks time-related aspects of a process or activity to identify delays, bottlenecks, and inefficiencies. Header information Observation Table (All steps and time data) Summary Analysis Insights and Recommendations #
citoolkit.com citoolkit.com citoolkit.com Operation Monitoring Check Sheet Used to track whether an operation or process runs within set parameters. It typically includes sections for recording operational metrics, time data, and anything that may affect the performance or outcomes of the process. For example, it can track machine temperatures or cycle times to ensure the operation meets specifications. Check Sheet 24 Tracks if an operation or process runs within set parameters and identifies factors affecting performance. Header information Monitoring Table (Parameters) Observations Summary Metrics Pre-Operation Checklist #
citoolkit.com citoolkit.com citoolkit.com Audit Check Sheet Designed to guide auditors through systematic audits of standards, policies, or regulations. It includes a checklist along with sections for observations and comments and may include sections for compliance ratings and recommendations. Check Sheet 25 Guides through systematic audits of standards and regulations (in a manufacturing facility for example). Header information Detailed Observations Compliance Ratings Recommendations Audit Checklist

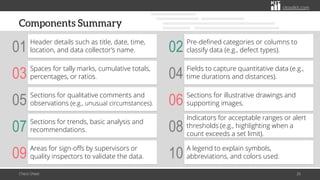

citoolkit.com citoolkit.com citoolkit.com Components Summary Check Sheet 26 Header details such as title, date, time, location, and data collector’s name. 01 Spaces for tally marks, cumulative totals, percentages, or ratios. 03 Sections for qualitative comments and observations (e.g., unusual circumstances). 05 Sections for trends, basic analysis and recommendations. 07 Pre-defined categories or columns to classify data (e.g., defect types). 02 Fields to capture quantitative data (e.g., time durations and distances). 04 Sections for illustrative drawings and supporting images. 06 Indicators for acceptable ranges or alert thresholds (e.g., highlighting when a count exceeds a set limit). 08 Areas for sign-offs by supervisors or quality inspectors to validate the data. 09 A legend to explain symbols, abbreviations, and colors used. 10

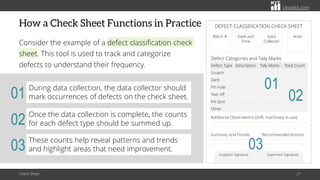

citoolkit.com citoolkit.com citoolkit.com How a Check Sheet Functions in Practice Consider the example of a defect classification check sheet. This tool is used to track and categorize defects to understand their frequency. Check Sheet 27 Inspector Signature Supervisor Signature Batch # Date and Time Data Collector Area DEFECT CLASSIFICATION CHECK SHEET Defect Categories and Tally Marks Additional Observations (shift, machinary in use): Summary and Trends: Recommended Actions: Defect Type Description Tally Marks Total Count Scratch Dent Pin hole Tear off Ink spot Other During data collection, the data collector should mark occurrences of defects on the check sheet. 01 Once the data collection is complete, the counts for each defect type should be summed up. 02 These counts help reveal patterns and trends and highlight areas that need improvement. 03 01 02 03
citoolkit.com citoolkit.com citoolkit.com How a Check Sheet Functions in Practice – Types of Defects Check Sheet 28 Defects may be related to measurable characteristics. Examples: Weight, size, color, shape, texture, or any other quantifiable attribute. They may be a binary outcome. Examples: Whether a component is present or missing, or whether a product passes or fails inspection.
citoolkit.com citoolkit.com citoolkit.com How a Check Sheet Functions in Practice Check Sheet 29 Inspector Signature Supervisor Signature Batch # Date and Time Data Collector Area DEFECT CLASSIFICATION CHECK SHEET Defect Categories and Tally Marks Additional Observations (shift, machinary in use): ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ Summary and Trends: _________________________________________________ _________________________________________________ _________________________________________________ _________________________________________________ Recommended Actions: _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ DEFECT TYPE / CATEGORY DESCRIPTION TALLY MARKS TOTAL COUNT Scratch Dent Pin hole Tear off Ink spot Other
citoolkit.com citoolkit.com citoolkit.com Other Examples Check Sheet 30 Inspector Signature Supervisor Signature Batch # Date and Time Data Collector Process CAUSE-AND-EFFECT CHECK SHEET Potential Causes Additional Observations (shift, environment, etc.): Root Cause (if known): Summary and Trends: Category Issue Tally Marks Total Count Machine Material Method Measure Man Inspector Signature Supervisor Signature Item Date Start and End Time Data Collector TRAVELER CHECK SHEET Process Stages Tracking Table Corrective Actions Taken: Overall Quality Pass/Fail: Stages with Most Issues: Delays or Defects: Inspector Signature Supervisor Signature Process Date/Time Shift/Area Observer TIME OBSERVATION CHECK SHEET Observation Table Bottleneck Analysis: Recommendations: Overall Deviation: Steps with Delays: Step/Time Start End Elapsed Expected Deviation Step 1 Step 2 Step 3 Step 4 Total Time Stage Start/End Time Data Recorded Issues Receiving Quantity Processing Materials Used Inspection Defect Count Packaging Package Type Dispatch Quantity
citoolkit.com citoolkit.com citoolkit.com Other Examples Check Sheet 31 Inspector Signature Supervisor Signature Audit Title Date/Area Audit Type Auditor AUDIT CHECK SHEET Audit Checklist Compliance Ratings: Recommendations: Key findings: Deviations from STD: Audit Area Criteria Compliant? Notes Employee safety practices 1,2,3 Machine Maintenance 1,2,3 Quality control 1,2,3 Material storage 1,2,3 Waste disposal 1,2,3 Inspector Signature Supervisor Signature Process / Operation Date/Shift Workstation Observer OPERATION MONITORING CHECK SHEET Monitoring Table Summary Metrics: Recommendations: Pre-Operation Checklist All safety measures in place Instruments calibrated and functioning Set parameters displayed and visible Parameter Set Value Observed Value Within Range? Temperature Pressure Conveyor Speed Output Quantity Rejects/Defects
citoolkit.com citoolkit.com citoolkit.com Designing and Using Check Sheets Check Sheet 32 Check sheets are easy to design and straightforward to use. They require minimal training for effective data collection and analysis. It is recommended to design the check sheet in collaboration with the team who will use it.
citoolkit.com citoolkit.com citoolkit.com Designing and Using Check Sheets Check Sheet 33 Clearly determine what the check sheet will be used for • Determine the type and format to be used such as tracking defects, monitoring processes, or verifying activities completion. • Specify the data to be collected including details like events, categories, metrics, or processes.
citoolkit.com citoolkit.com citoolkit.com Designing and Using Check Sheets Check Sheet 34 Determine the appropriate time frame for data collection • This could be daily, weekly, or for a specific period depending on the process, area to be observed, or standard to be followed.
citoolkit.com citoolkit.com citoolkit.com Designing and Using Check Sheets Check Sheet 35 Design the structure and layout that fits the data requirements • Choose the type of check sheet (e.g., tally chart, defect classification, or process monitoring). • List all relevant categories, items, or parameters to be recorded. • These might include defect types, process steps, or time intervals.
citoolkit.com citoolkit.com citoolkit.com Designing and Using Check Sheets Check Sheet 36 Complete the template design by clearly labeling its sections and components • Include space for observations, notes, or recommendations if necessary.
citoolkit.com citoolkit.com citoolkit.com Designing and Using Check Sheets Check Sheet 37 Try out the check sheet in a real observation setting • Run a trial with a small sample to ensure the check sheet is easy to use. • Make any adjustments to improve its usability or effectiveness. • Provide instructions and training to those who will be using the check sheet to ensure they understand how to complete it properly.
citoolkit.com citoolkit.com citoolkit.com Designing and Using Check Sheets Check Sheet 38 Proceed with actual data collection by completing the required sections • Distribute the check sheet to the assigned data collectors for actual use. • Periodically review the data collected on the check sheet to ensure completeness, consistency, and accuracy.
citoolkit.com citoolkit.com citoolkit.com Designing and Using Check Sheets Check Sheet 39 Once the data collection is complete, tally the entries and prepare the data for analysis • Analyze the data to uncover valuable insights by identifying trends and patterns. • Use findings to identify areas for improvement and make informed decisions.
citoolkit.com citoolkit.com citoolkit.com Designing and Using Check Sheets Check Sheet 40 Integrate the check sheet into the quality or operational systems for consistent use • Based on feedback and the results of data analysis, make any necessary adjustments to improve the effectiveness of the check sheet.
citoolkit.com citoolkit.com citoolkit.com Example – Weekly Defect Tracking Check Sheet The following is a simple check sheet to track weekly defects for a production line. Check Sheet 41 WEEKLY DEFECT TRACKING SHEET Defect Type Saturday Sunday Monday Tuesday Wednesday Thursday Friday Total / Defect Scratch l lll llll lll llll llll llll llll ll lll 35 Dent llll llll llll lll llll llll l llll llll llll ll 45 Pin hole l ll l lll 7 Tear off ll llll lll ll llll lll l 19 Ink spot l lll l l 6 HME llll llll llll llll llll ll ll 27 Packaging ll llll l l llll llll 17 Other l ll 3 Total / Day 20 19 37 20 25 20 18 Process Prepared By Reviewed By Date Range Additional sections can be included to record key information, such as summary and trends.
citoolkit.com citoolkit.com citoolkit.com Example – Incoming Material Inspection Check Sheet A manufacturing organization uses an incoming material inspection check sheet to record details about aluminum coils received from various suppliers. Check Sheet 42 This check sheet captures data such as supplier details and any surface defects observed during inspection. INCOMING MATERIAL INSPECTION FORM Coil # Supplier Scratch Dent Pin hole Other type Date & Time 110424 Hydro 310424 Alcan X Tear-off 310426 Alcan X 110436 Hydro Tear-off 200122 Wise X X 410351 Novelis 201133 Wise X 200292 Wise X X Total Non-Defective Coils Observed Defective Coils % Most Common Defect Type Most Defective Coil Supplier Total Defective Coils Observed
citoolkit.com citoolkit.com citoolkit.com Example – Traveler Check Sheet The following is an example of a traveler check sheet used by an online ordering store. Check Sheet 43 TRAVELER CHECK SHEET – ONLINE ORDERING PROCESS Process Step Time Issues Comments Order Taking 2.25 minutes Incorrect customer details recorded. Customer's phone number Order Preparation 6.50 minutes One missing item in order. A bottle of soda Order Packing 1.75 minutes Damaged packaging materials used. A torn cardboard box Delivery 34.3 minutes Late delivery to the customer. Delivered 15 minutes later Inspector Signature Supervisor Signature Order # Order Customer Location Date Payment Amount Corrective Actions Taken:
citoolkit.com citoolkit.com citoolkit.com Example – Issue Tracking Check Sheet This check sheet is designed to document and analyze delivery issues in a restaurant. Check Sheet 44 RESTAURANT DELIVERY ISSUE TRACKING SHEET Issue Time Food Order Issue Category Order Time Waiter Cook Follow-up Action 2:15 PM Mixed Grill Delayed 20 minutes Timeliness 1:25 PM Adam Sara Apologized 2:33 PM Kebab Served cold Quality 2:09 PM Sami Sara Reheated and re-served 2:46 PM Hommos Missing bread Accuracy 2:38 PM Ali Layla Delivered missing item 2:55 PM Fattoush Salad Dressing missing Accuracy 2:40 PM Zak Layla Added dressing Inspector Signature Supervisor Signature Branch ID Data Supervisor Inspector Shift Comments and Recommendation: Summary and Trends:
citoolkit.com citoolkit.com citoolkit.com Further Information – Contextual Data Encourage recording contextual data, such as dates, names, locations, and other relevant details, as it allows to: Trace back to the source of the data for verification. Helps analyze trends, patterns and root causes. Provides information for future reference. Check Sheet 45 Contextual data refers to the background information that provides a broader understanding of the primary data. “ “
citoolkit.com citoolkit.com citoolkit.com Further Information – Acceptable Ranges and Alert Thresholds These elements are included to highlight whether the measured values are within expected or safe limits and to identify any deviations require attention. Check Sheet 46 These are the upper and lower boundaries of acceptable performance. Any value outside this range would indicate a non-conforming product. Acceptable Ranges 4.1 4.3 4.5 4.7 4.9 5.1 USL LSL These are critical points that trigger immediate action if exceeded. Example: If the vibration level of a machine exceeds a threshold of 10 mm/s, it may signal a need for maintenance to prevent failure. Alert Thresholds
citoolkit.com citoolkit.com citoolkit.com Further Information - Combination Check Sheet Combines multiple types of data collection in one check sheet. For example, a quality control sheet used in manufacturing can include sections to: Track defect frequency. Categorize defect types. Pinpoint their visual locations for better analysis. Include a checklist to verify compliance with quality standards. Check Sheet 47
citoolkit.com citoolkit.com citoolkit.com Further Information - Real-Time Frequency Distribution Check Sheets When evaluating the probability distribution of a process, it is common to record all process data first and construct a frequency distribution later. However, a specialized type of check sheet can be used to build the frequency distribution in real time as the process is being observed. Check Sheet 48 Counts lll lllll lllll lllll lllll 23 lll lllll lllll lllll lllll lllll lllll 33 llll lllll lllll lllll lllll lllll 29 llll lllll lllll lllll 19 lll lllll 8 ll 2 0 l 1 ll lllll 7 USL LSL
citoolkit.com citoolkit.com citoolkit.com Further Information – Updating Check Sheets Check sheets should be reviewed periodically (or during project closure) to improve them for future use by incorporating lessons learned and addressing any limitations identified during their application. Check Sheet 49
citoolkit.com citoolkit.com citoolkit.com Further Information – Challenges Check Sheet 50 Excessive dependence of checklists may hinder performance when dealing with a time-critical situation Checklists should not be used as a replacement for common sense Observers should also explore items that do not appear on the check sheets
