Simplify, Isolate and Scale
with RabbitMQ
John Blackmore - @johnblackmore

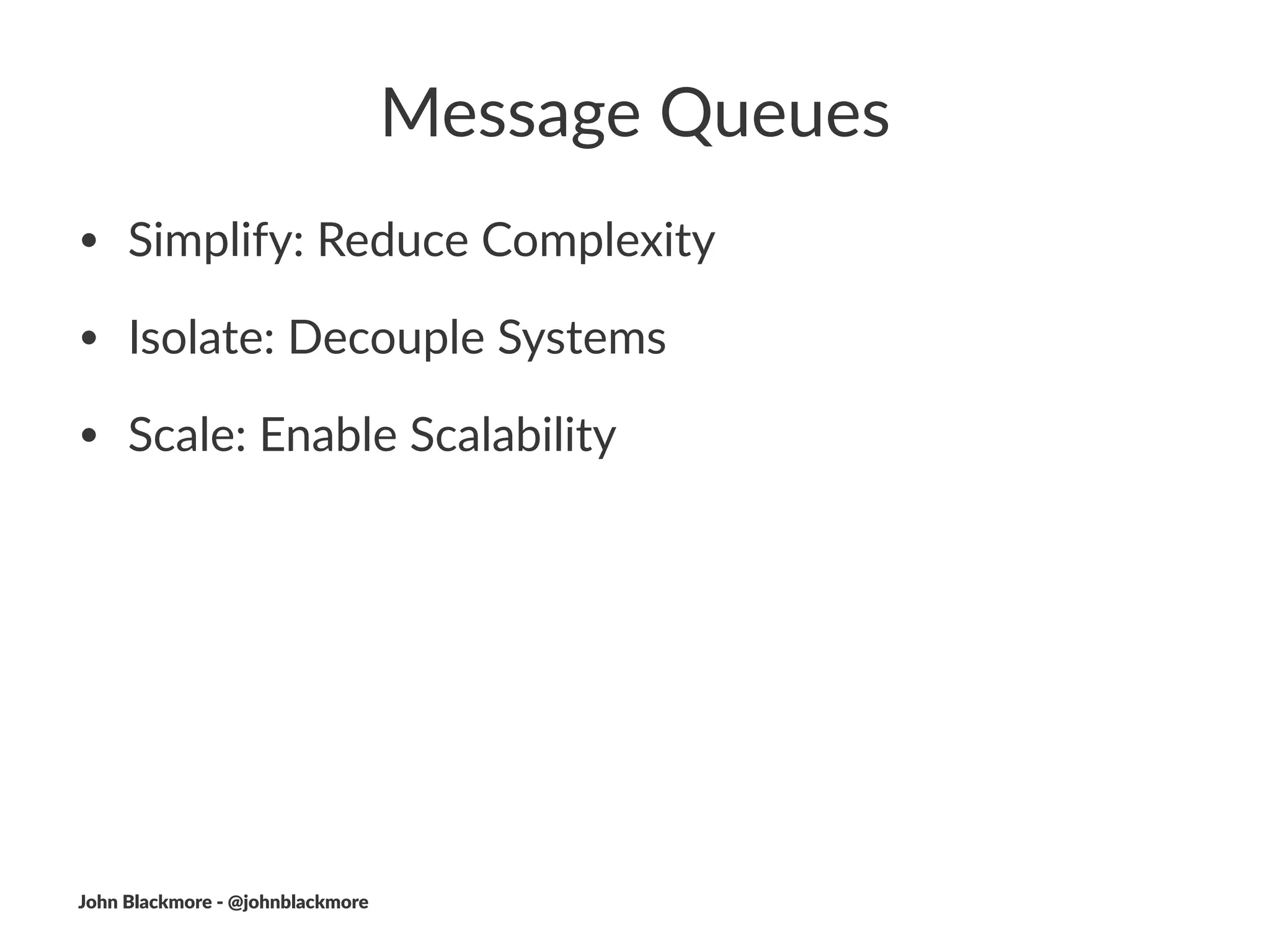

Message Queues
• Simplify: Reduce Complexity
• Isolate: Decouple Systems
• Scale: Enable Scalability
John Blackmore - @johnblackmore
What is a message queue?
John Blackmore - @johnblackmore
Simple Queue
• Producer sends messages to a queue
• Consumer receives messages from a queue
• Queue buffers messages un8l they are processed
John Blackmore - @johnblackmore
Why is this Useful?
• "Fire and Forget" Commands
• Decoupling Systems
• Asynchronous Processing
• Parallel Processing
• Fault Tolerance
John Blackmore - @johnblackmore
www.rabbitmq.com
John Blackmore - @johnblackmore
RabbitMQ: Exchanges
John Blackmore - @johnblackmore
Exchange Types
Most common Exchange types:
• Direct: Messages are routed to queues along
bindings that exactly match the rou9ng key.
• Fanout: Messages are routed to all bound queues,
rou9ng key ignored.
• Topic: Messages are routed to queues along
bindings that pa@ern match the rou9ng key.
John Blackmore - @johnblackmore
RabbitMQ Examples
github.com/johnblackmore/rabbitmq-examples-php
John Blackmore - @johnblackmore
New User Emails
• As part of new registra0on a welcome email is sent
• Sending the email takes 1-3 seconds on average
• Under high traffic, the web server can max-out
Underlying Problem:
• Sending email can take a long 0me
John Blackmore - @johnblackmore
New User Emails - Exis/ng Code
// register the new user, then send the welcome email
mail('new.user@example.com', 'Welcome to GroupBuyWidgets!', 'Thanks for signing up.');
• Pro: Simple, easy to read
• Con: Takes a long .me, Blocks un.l email is sent
Solu%on:
• Queue the emails for asynchronous processing
John Blackmore - @johnblackmore
New User Emails - Diagram
• Producer: Registra1on Script on Web Server
• Consumer: Background Worker on Applica7on
Server
• Direct Exchange with Single Queue
John Blackmore - @johnblackmore
New User Emails - Producer
use PhpAmqpLibConnectionAMQPStreamConnection;
use PhpAmqpLibMessageAMQPMessage;
// Connect to RabbitMQ and open a channel
$connection = new AMQPStreamConnection('localhost', 5672, 'guest', 'guest');
$channel = $connection->channel();
// We will push onto the "email" exchange
$channel->exchange_declare('email', 'direct', false, false, false, false, false);
// Compose the message i.e the email.
$payload = json_encode([
'to' => 'new.user@example.com',
'subject' => 'Welcome to GroupBuyWidgets!',
'body' => 'Thanks for signing up.',
]);
// Wrap the payload and publish to the exchange
$message = new AMQPMessage($payload, ['delivery_mode' => 2]);
$channel->basic_publish($message, 'email', 'email.send');
John Blackmore - @johnblackmore
New User Emails - Benchmarks
Apache Benchmark, 100 requests, 5 connec6ons:
Non Queued
==========
Time taken for tests: 41.232 seconds
Requests per second: 2.43 [#/sec] (mean)
Time per request: 2061.575 [ms] (mean)
Queued
======
Time taken for tests: 6.186 seconds
Requests per second: 16.17 [#/sec] (mean)
Time per request: 309.310 [ms] (mean)
John Blackmore - @johnblackmore
Batch Processing Payments
Problem:
• Lots of data records to process.
• Processing is 3me cri3cal.
Solu%on:
• Parallel Processing
• Mul%ple Consumers
John Blackmore - @johnblackmore
Batch Processing Payments
Number of Consumers | Time to Process
-----------------------|----------------------
1 | 4 - 7 Hours
10 | 25 - 40 Minutes
100 | < 4 Minutes
John Blackmore - @johnblackmore
More RabbitMQ Examples
• Publish/Subscribe - Sending the same message to
mul7ple queues.
• Rou7ng & Topic - Receiving messages selec7vely,
or based on a paAern.
• Remote Procedure Calls - Receiving replies using
anonymous exclusive callback queues.
h"p://www.rabbitmq.com/getstarted.html
John Blackmore - @johnblackmore
Ques%ons?
Twi$er: @johnblackmore
Web: johnblackmore.com
Email: john@johnblackmore.com
github.com/johnblackmore/rabbitmq-examples-php
John Blackmore - @johnblackmore
Sources
• RabbitMQ Tutorials
• AMQP 0-9-1 Model Explained
• Ge=ng Started with RabbitMQ and CloudAMQP
• DigitalOcean - Install and Manage RabbitMQ
