SIMPLE SERIAL DISPLAY YOU  CAN  BUILD THIS ON YOUR OWN – NO SOLDERING REQUIRED

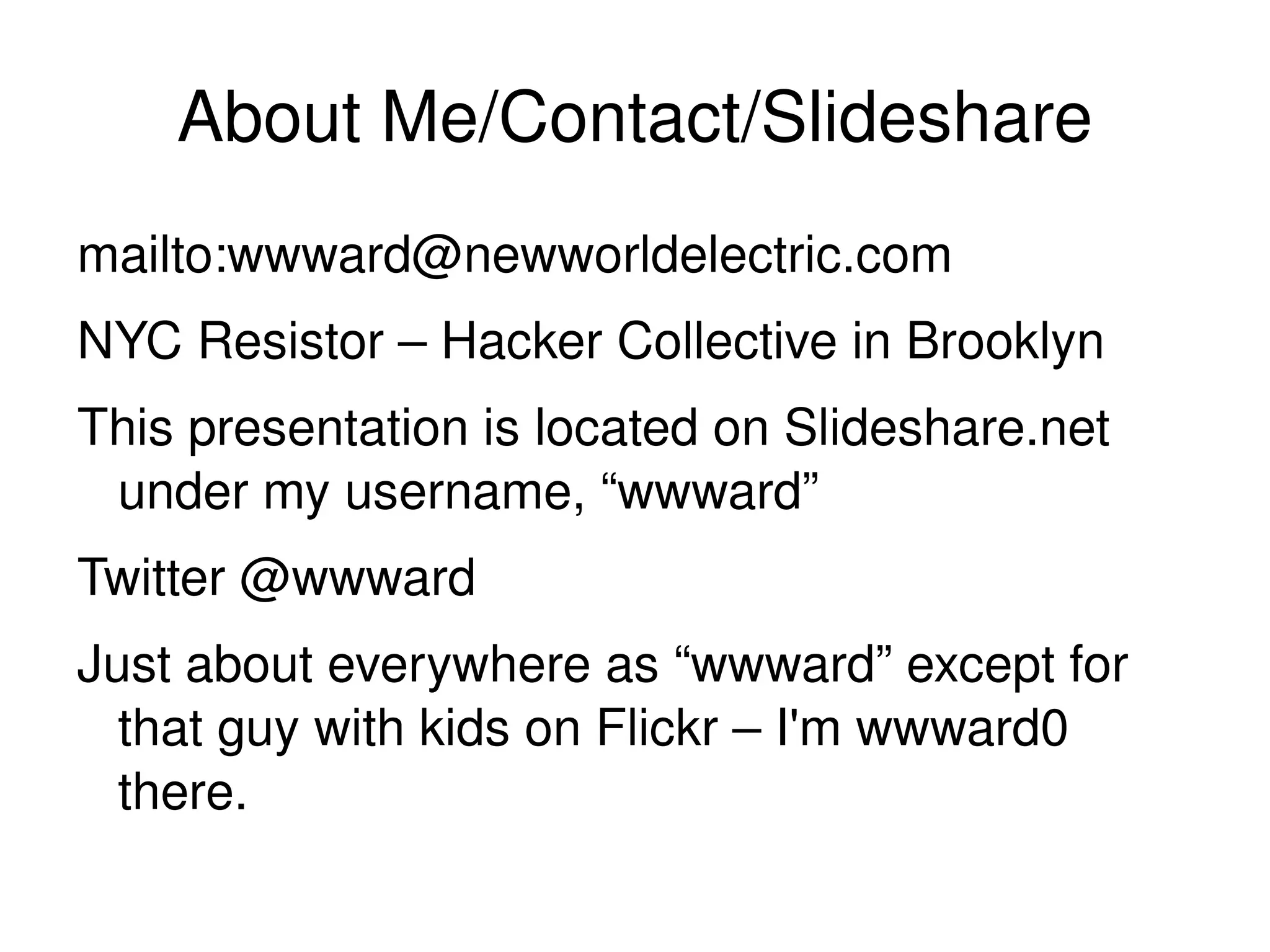

About Me/Contact/Slideshare mailto:wwward@newworldelectric.com
NYC Resistor – Hacker Collective in Brooklyn
This presentation is located on Slideshare.net under my username, “wwward”
Twitter @wwward
Just about everywhere as “wwward” except for that guy with kids on Flickr – I'm wwward0 there.

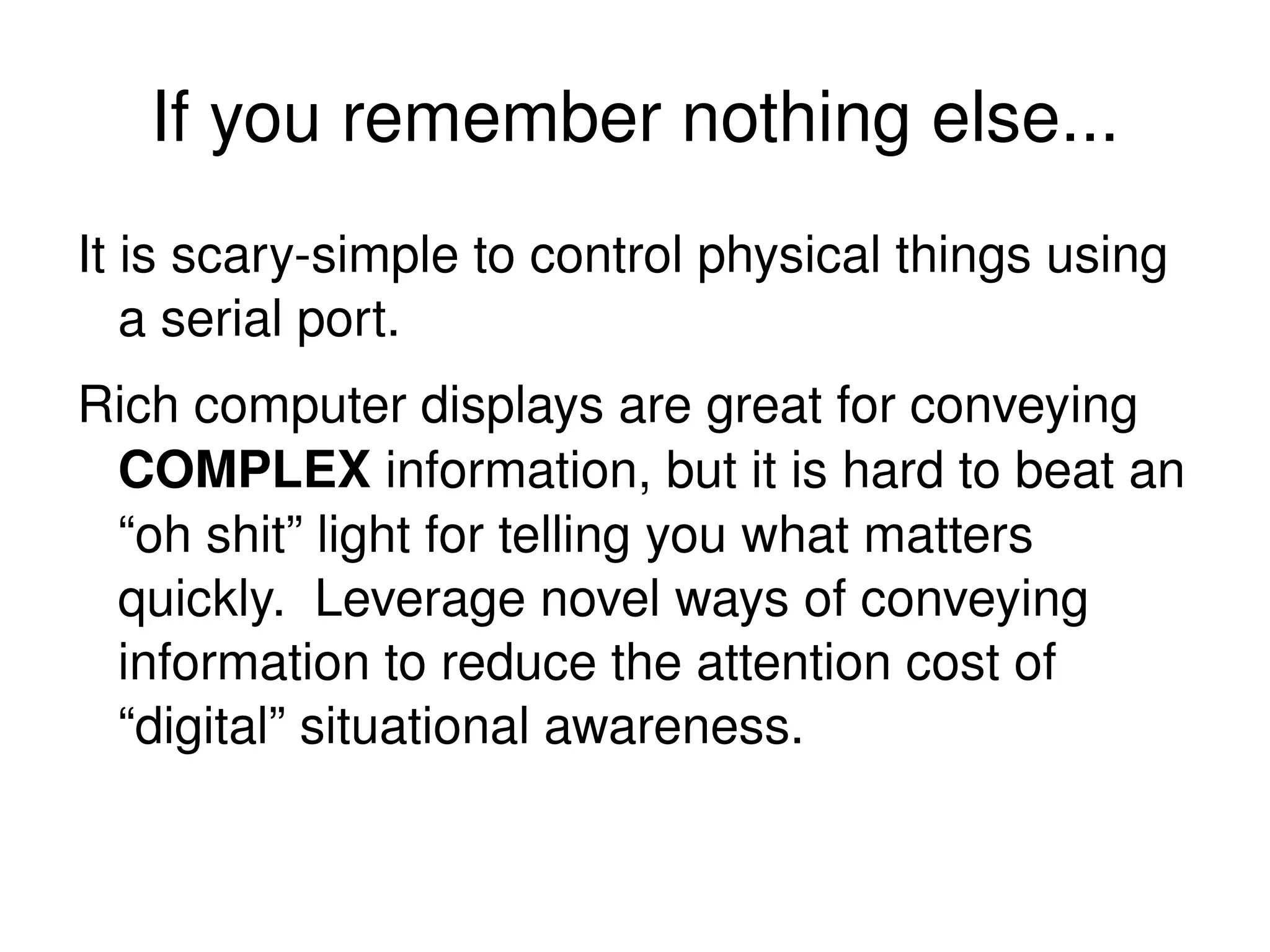

If you remember nothing else... It is scary-simple to control physical things using a serial port.
Rich computer displays are great for conveying  COMPLEX  information, but it is hard to beat an “oh shit” light for telling you what matters quickly.  Leverage novel ways of conveying information to reduce the attention cost of “digital” situational awareness.

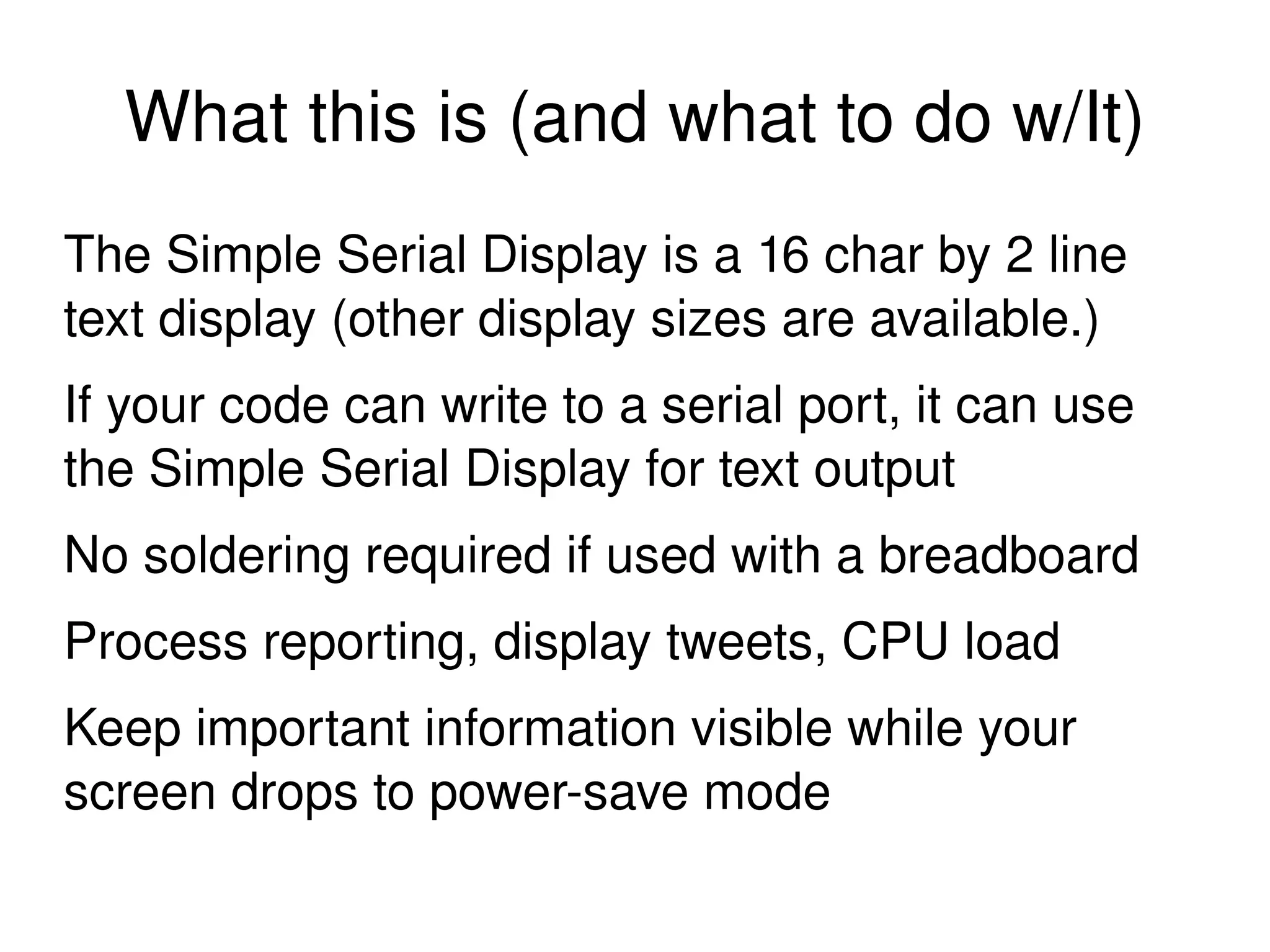

What this is (and what to do w/It) The Simple Serial Display is a 16 char by 2 line text display (other display sizes are available.)
If your code can write to a serial port, it can use the Simple Serial Display for text output
No soldering required if used with a breadboard
Process reporting, display tweets, CPU load
