This document discusses the server roles and architecture of a SharePoint 2010 web application. It describes the roles of the web front end server, application server, and SQL server. It explains that some resources like core pages and controls come from the file system, while others like list items and documents come from the SQL database. It also notes that modifying files that ship with SharePoint is not supported and can lead to out-of-sync servers, and that custom files should be added through solution packages instead of directly to the SharePoint root.

1. SharePoint 2010 Web Application ArchitectureAyman El-HattabTechnology Solution ProfessionalMEA Center of ExpertiseSharePoint MVPayman@aymanelhattab.comwww.aymanelhattab.com

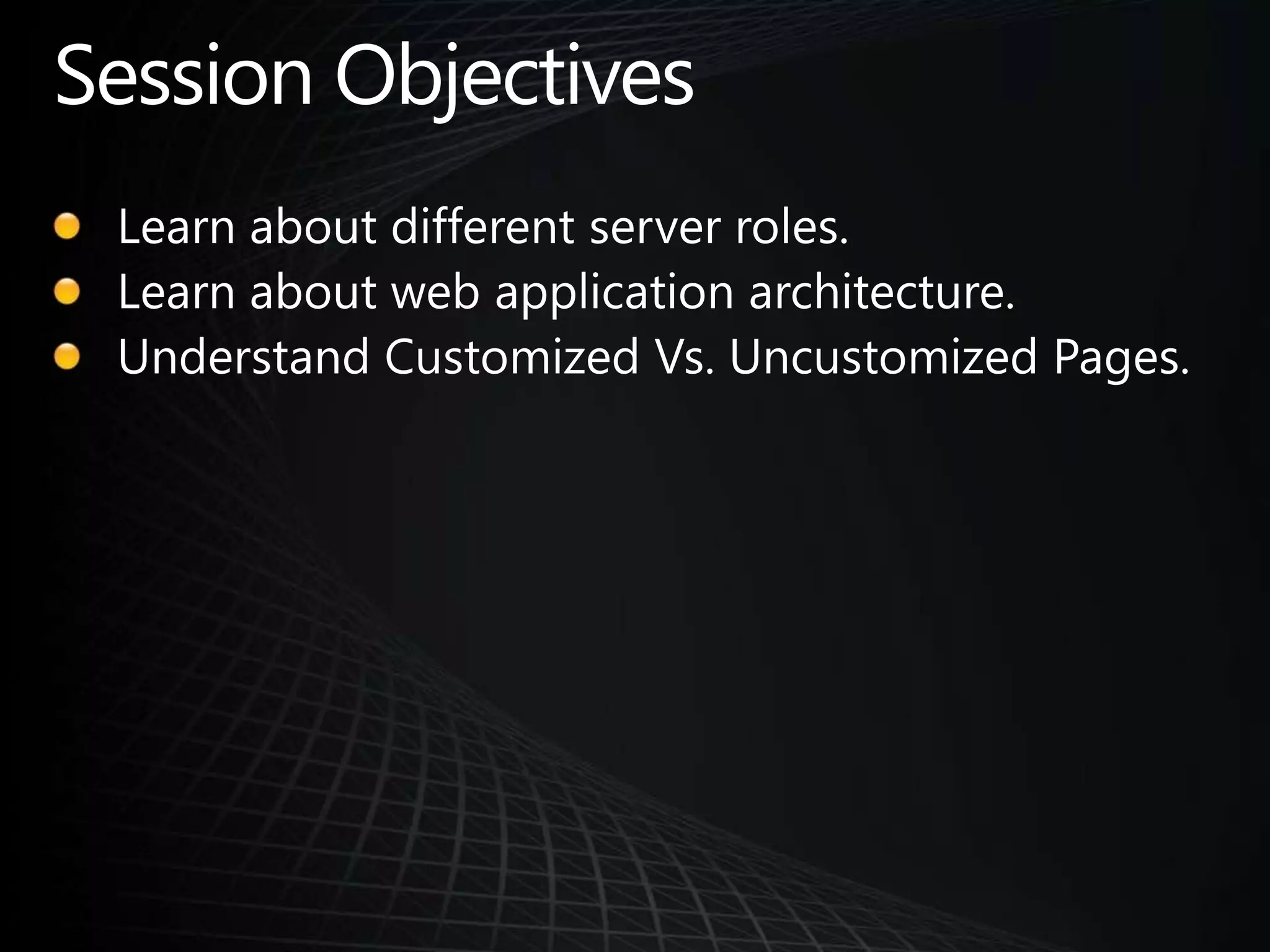

2. Session ObjectivesLearn about different server roles.Learn about web application architecture.Understand Customized Vs. Uncustomized Pages.

3. SharePoint Server RolesWeb Front End: Is a server that hosts web applications that users access with a browser or other types of clients. A large farm will contain multiple Web Front Ends.

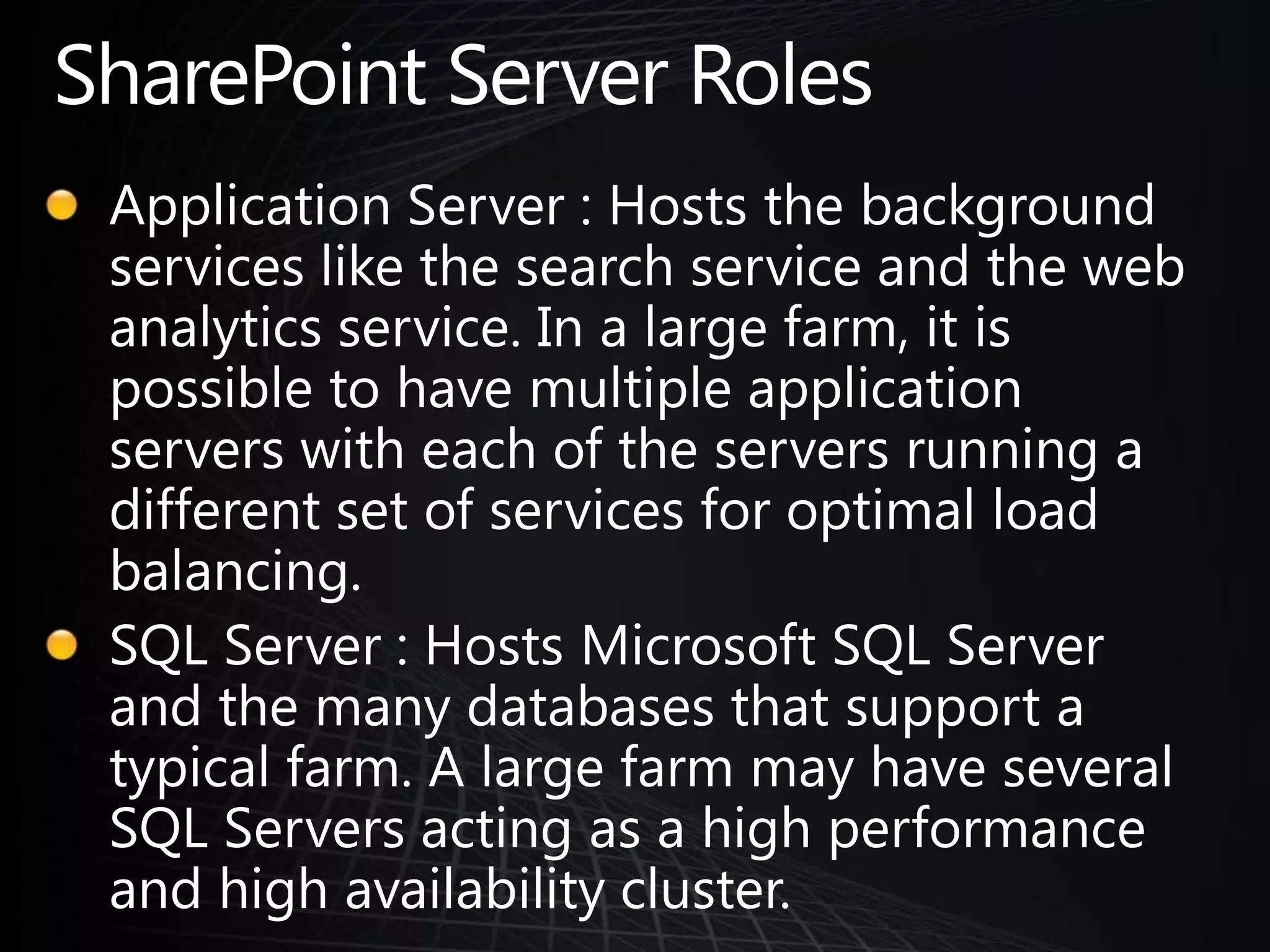

4. SharePoint Server RolesApplication Server : Hosts the background services like the search service and the web analytics service. In a large farm, it is possible to have multiple application servers with each of the servers running a different set of services for optimal load balancing.SQL Server : Hosts Microsoft SQL Server and the many databases that support a typical farm. A large farm may have several SQL Servers acting as a high performance and high availability cluster.

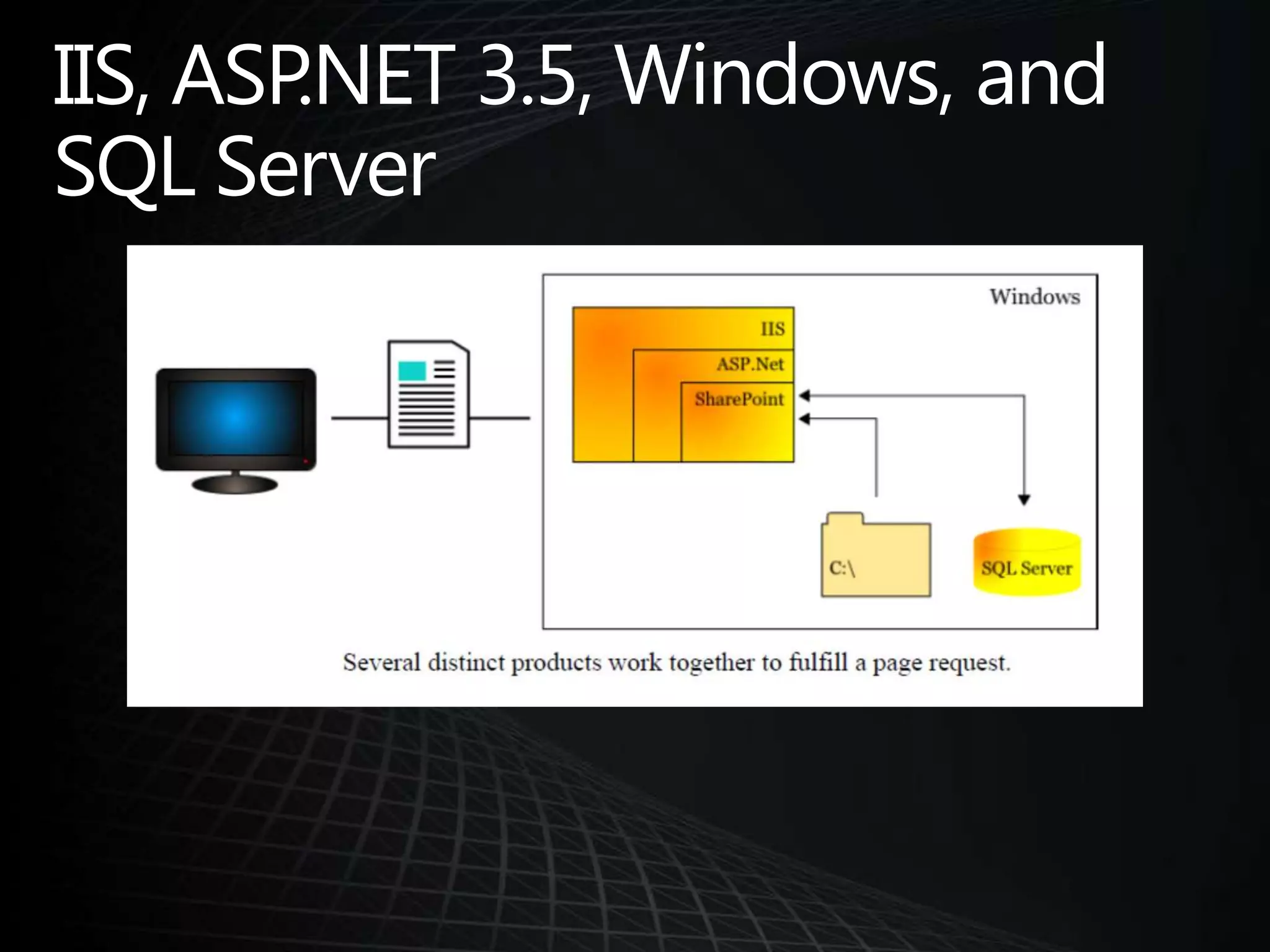

5. IIS, ASP.NET 3.5, Windows, and SQL Server

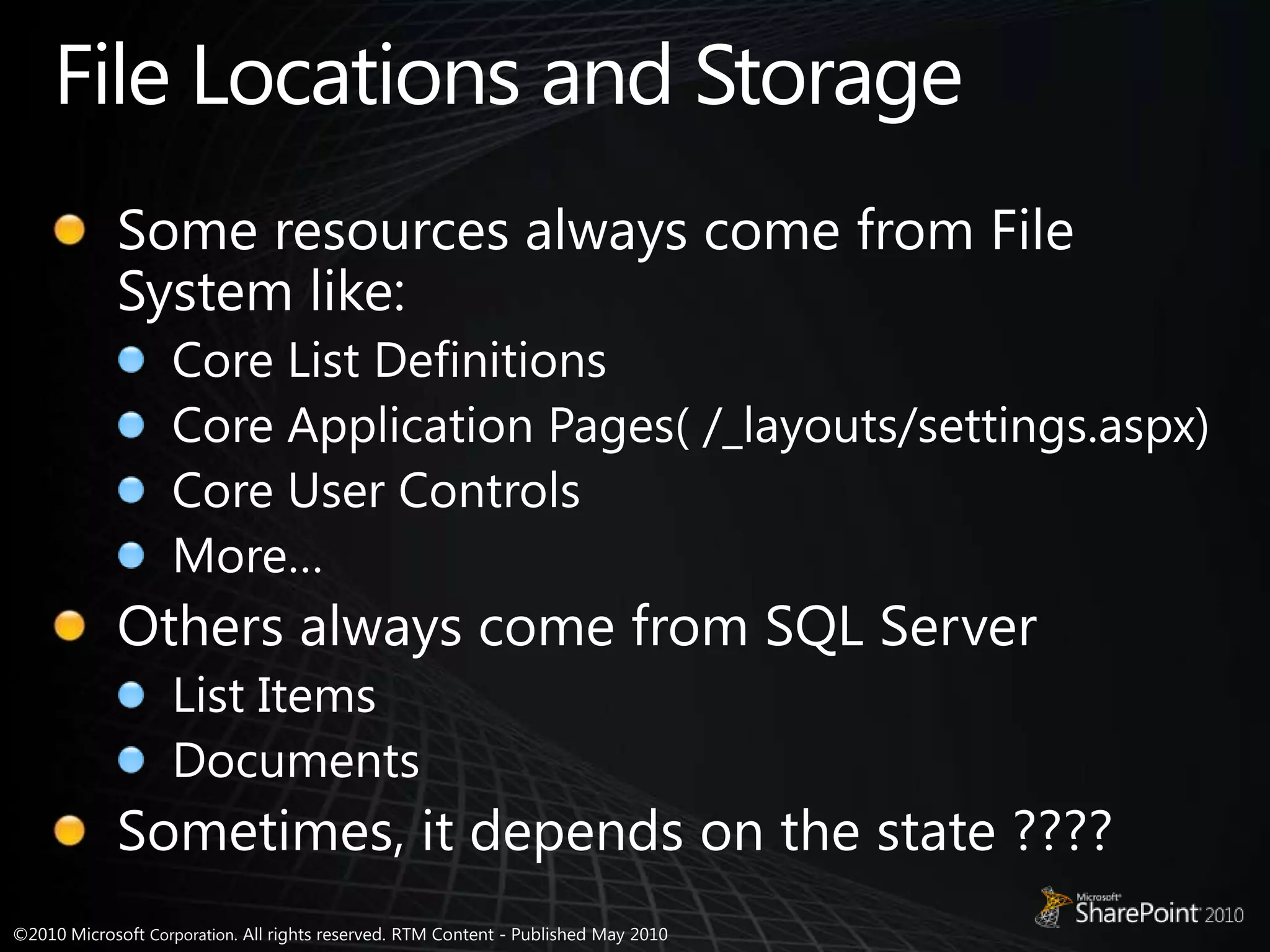

6. File Locations and StorageSome resources always come from File System like:Core List DefinitionsCore Application Pages( /_layouts/settings.aspx)Core User ControlsMore…Others always come from SQL ServerList ItemsDocumentsSometimes, it depends on the state ????

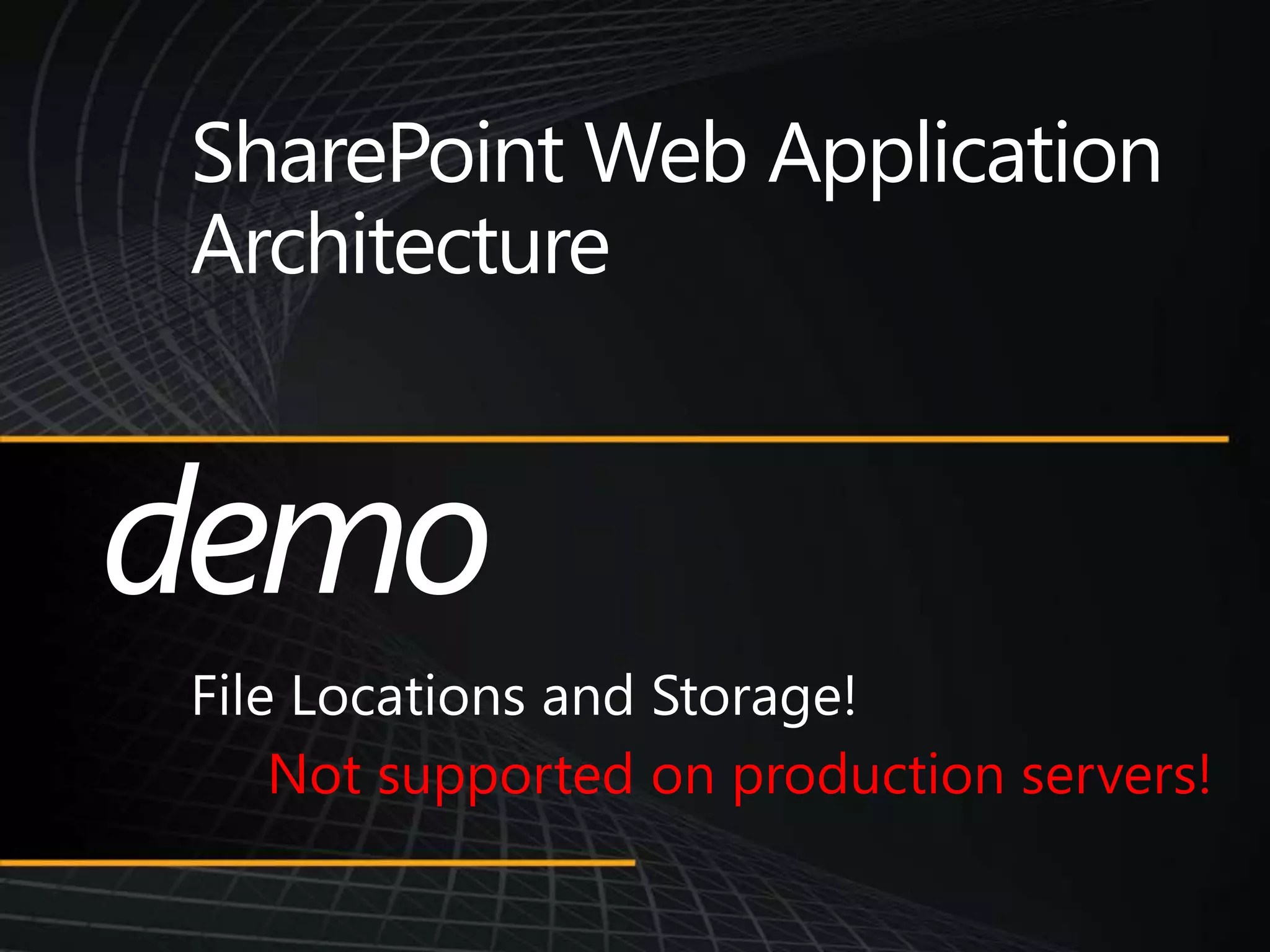

7. SharePoint Web Application ArchitectureFile Locations and Storage!demoNot supported on production servers!

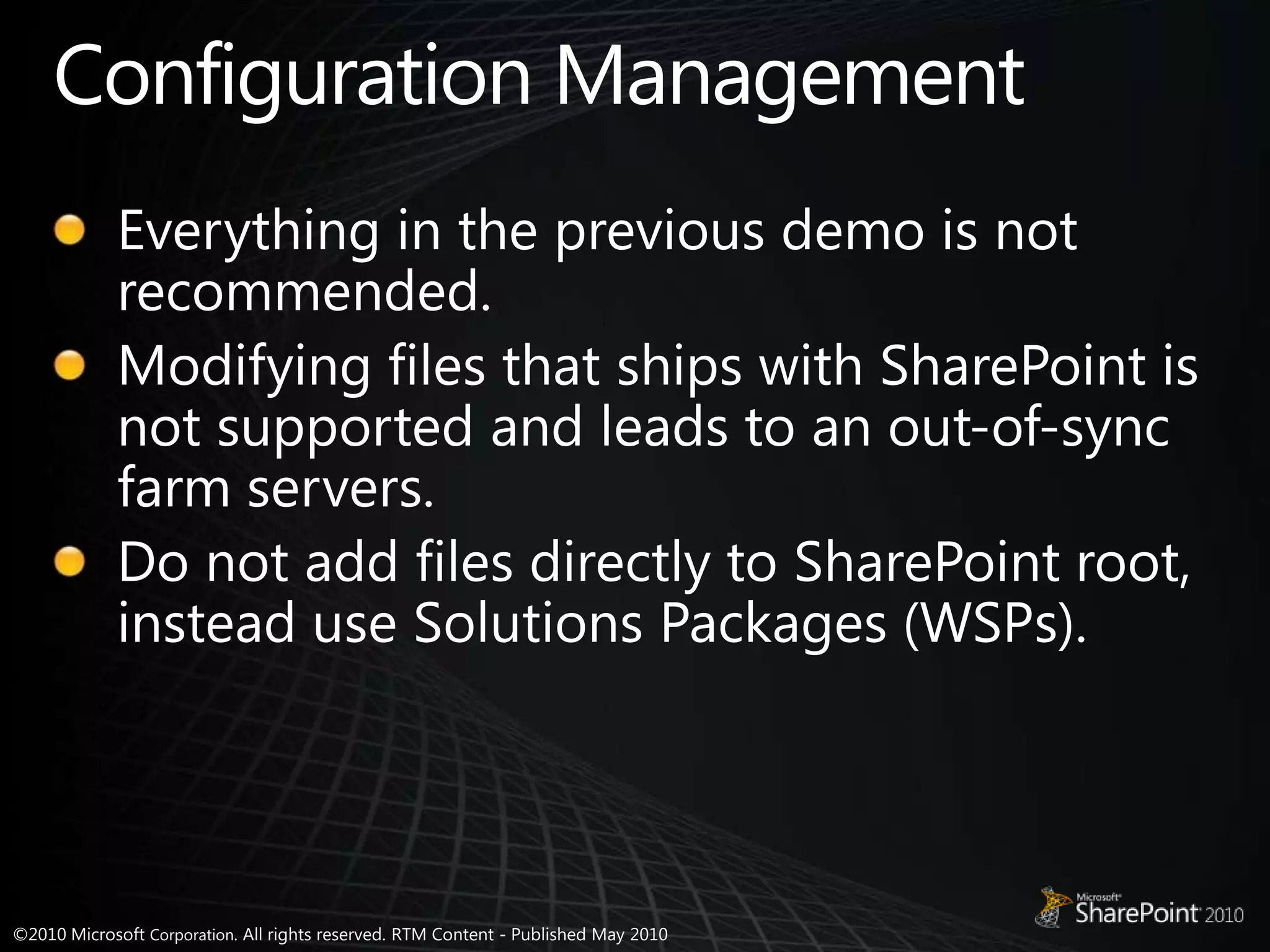

8. Configuration ManagementEverything in the previous demo is not recommended.Modifying files that ships with SharePoint is not supported and leads to an out-of-sync farm servers.Do not add files directly to SharePoint root, instead use Solutions Packages (WSPs).
