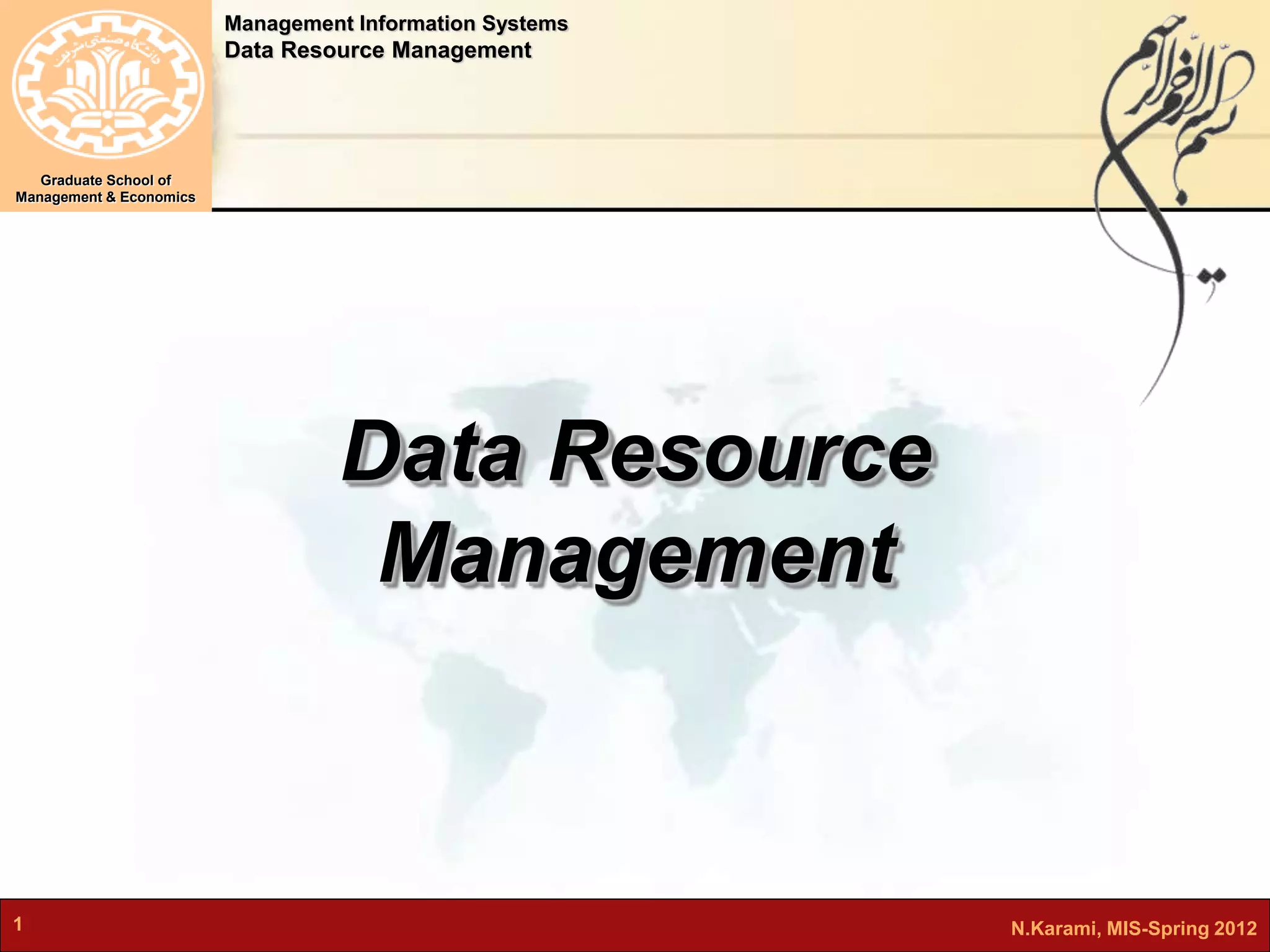

1. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
Data Resource
Management
1 N.Karami, MIS-Spring 2012

2. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

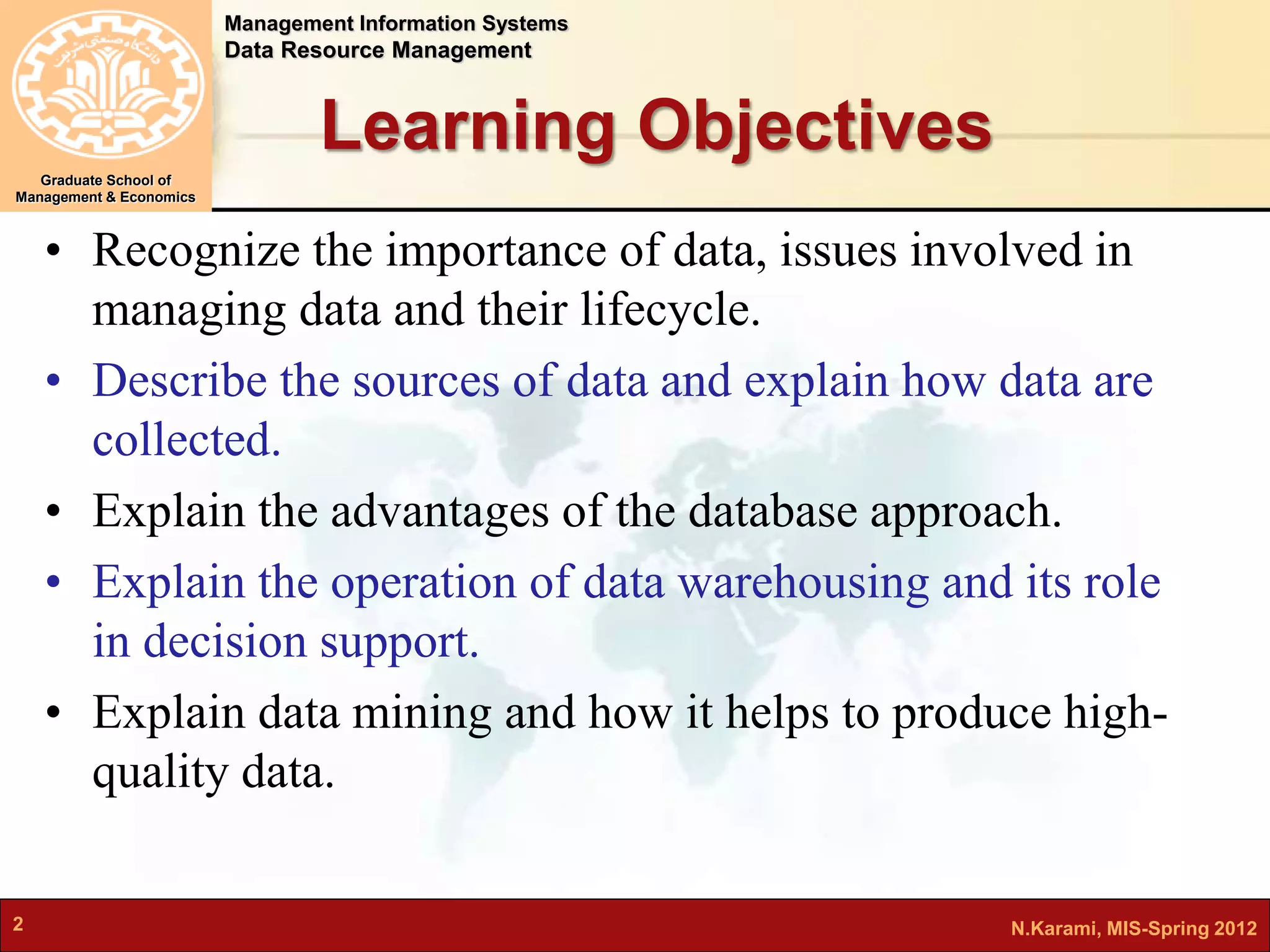

Learning Objectives
• Recognize the importance of data, issues involved in
managing data and their lifecycle.
• Describe the sources of data and explain how data are
collected.
• Explain the advantages of the database approach.
• Explain the operation of data warehousing and its role
in decision support.
• Explain data mining and how it helps to produce high-quality
data.
2 N.Karami, MIS-Spring 2012

3. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

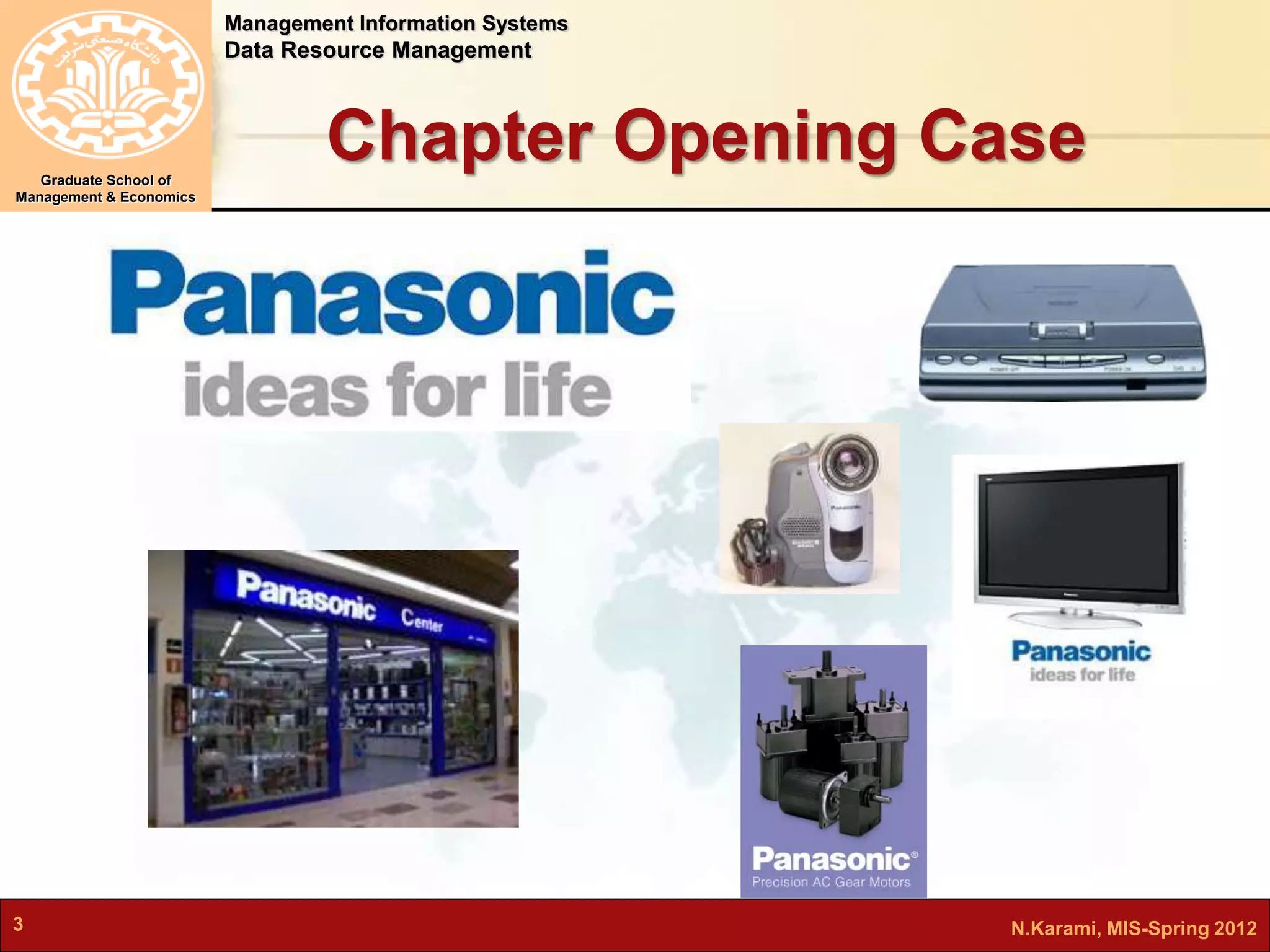

Chapter Opening Case
3 N.Karami, MIS-Spring 2012

4. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
Chapter Opening Case (continued)
Products
Orders
Pull Model
Push Model
4 N.Karami, MIS-Spring 2012

5. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

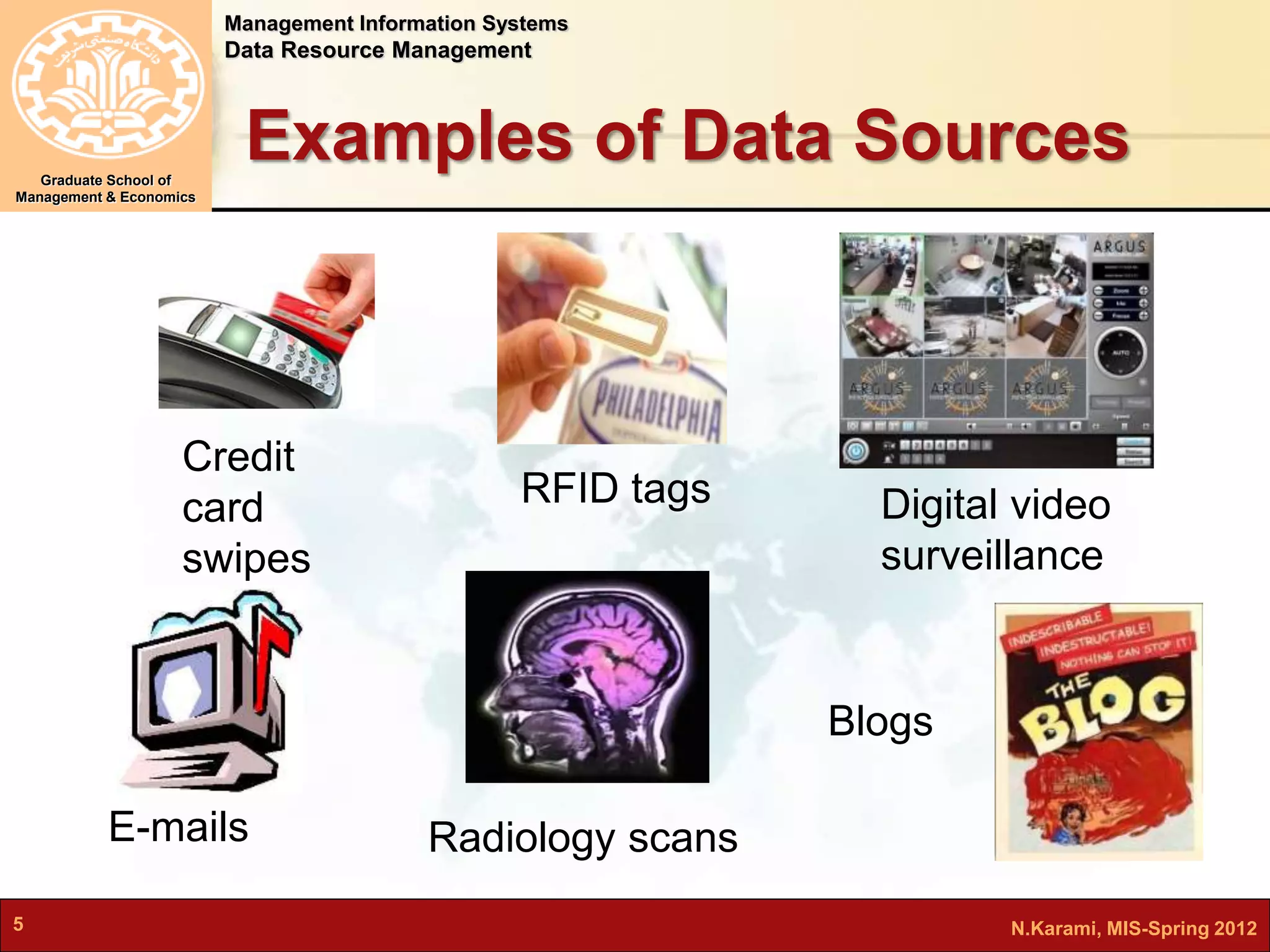

Examples of Data Sources
Credit
card
swipes
E-mails
RFID tags Digital video
surveillance
Radiology scans
Blogs
5 N.Karami, MIS-Spring 2012

6. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

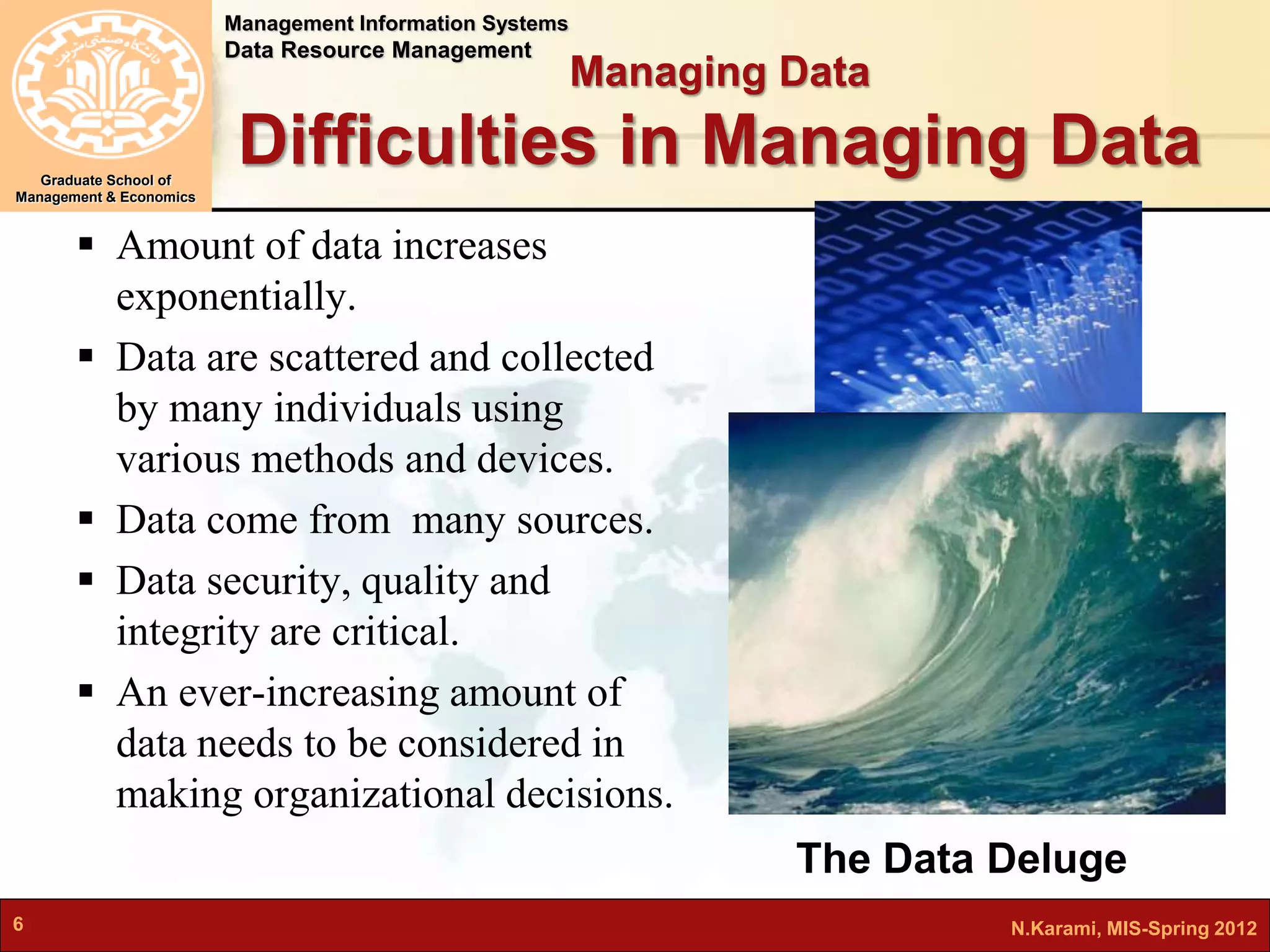

Managing Data
Difficulties in Managing Data
 Amount of data increases
exponentially.
 Data are scattered and collected
by many individuals using
various methods and devices.
 Data come from many sources.
 Data security, quality and
integrity are critical.
 An ever-increasing amount of
data needs to be considered in
making organizational decisions.
The Data Deluge
6 N.Karami, MIS-Spring 2012

7. Management Information Systems
Data Resource Management
Graduate School of
Managing Data

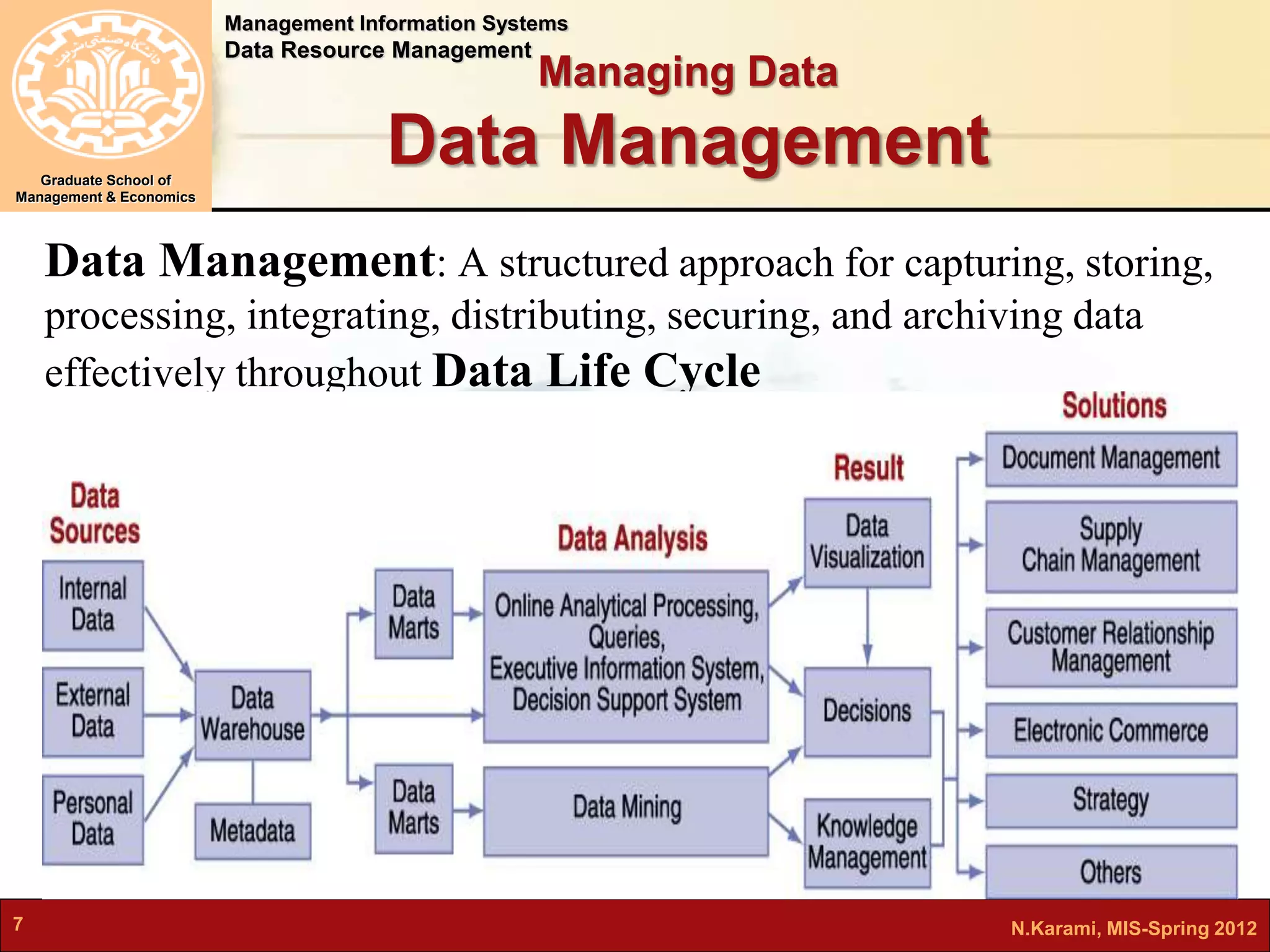

Data Management
Management & Economics
Data Management: A structured approach for capturing, storing,
processing, integrating, distributing, securing, and archiving data
effectively throughout Data Life Cycle
7 N.Karami, MIS-Spring 2012

8. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

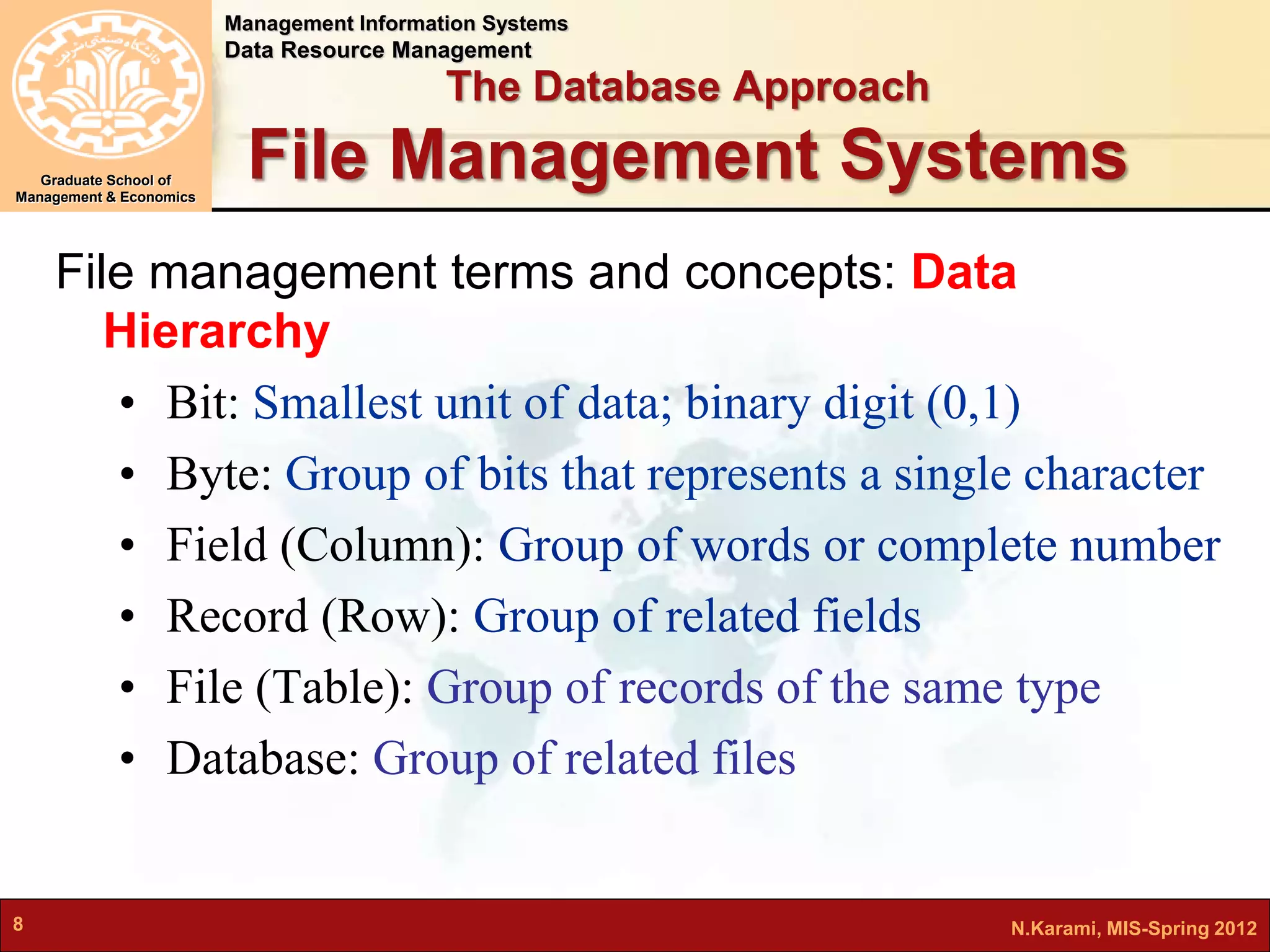

The Database Approach
File Management Systems
File management terms and concepts: Data
Hierarchy
• Bit: Smallest unit of data; binary digit (0,1)
• Byte: Group of bits that represents a single character
• Field (Column): Group of words or complete number
• Record (Row): Group of related fields
• File (Table): Group of records of the same type
• Database: Group of related files
8 N.Karami, MIS-Spring 2012

9. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
The Database Approach

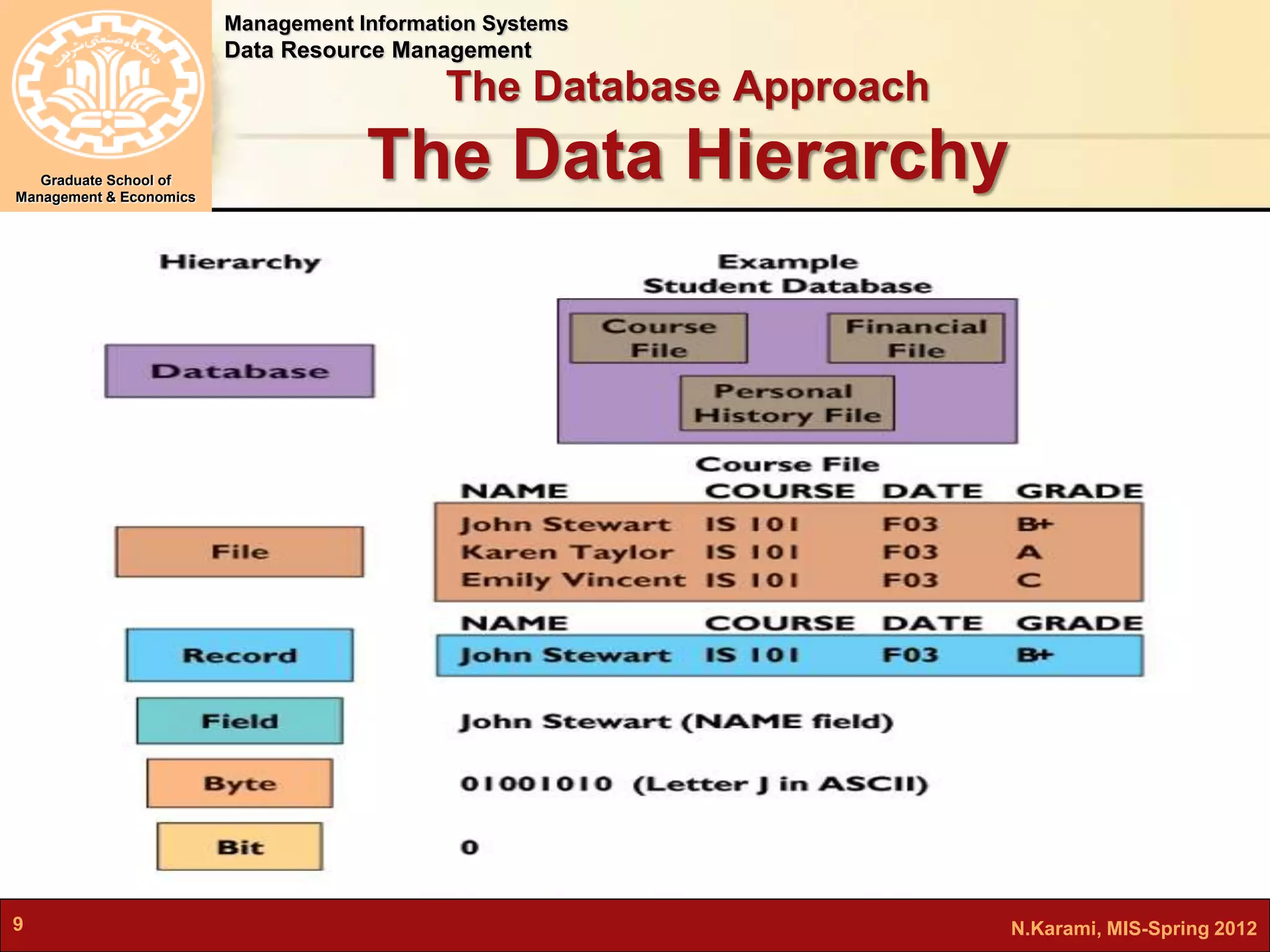

The Data Hierarchy
9 N.Karami, MIS-Spring 2012

10. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

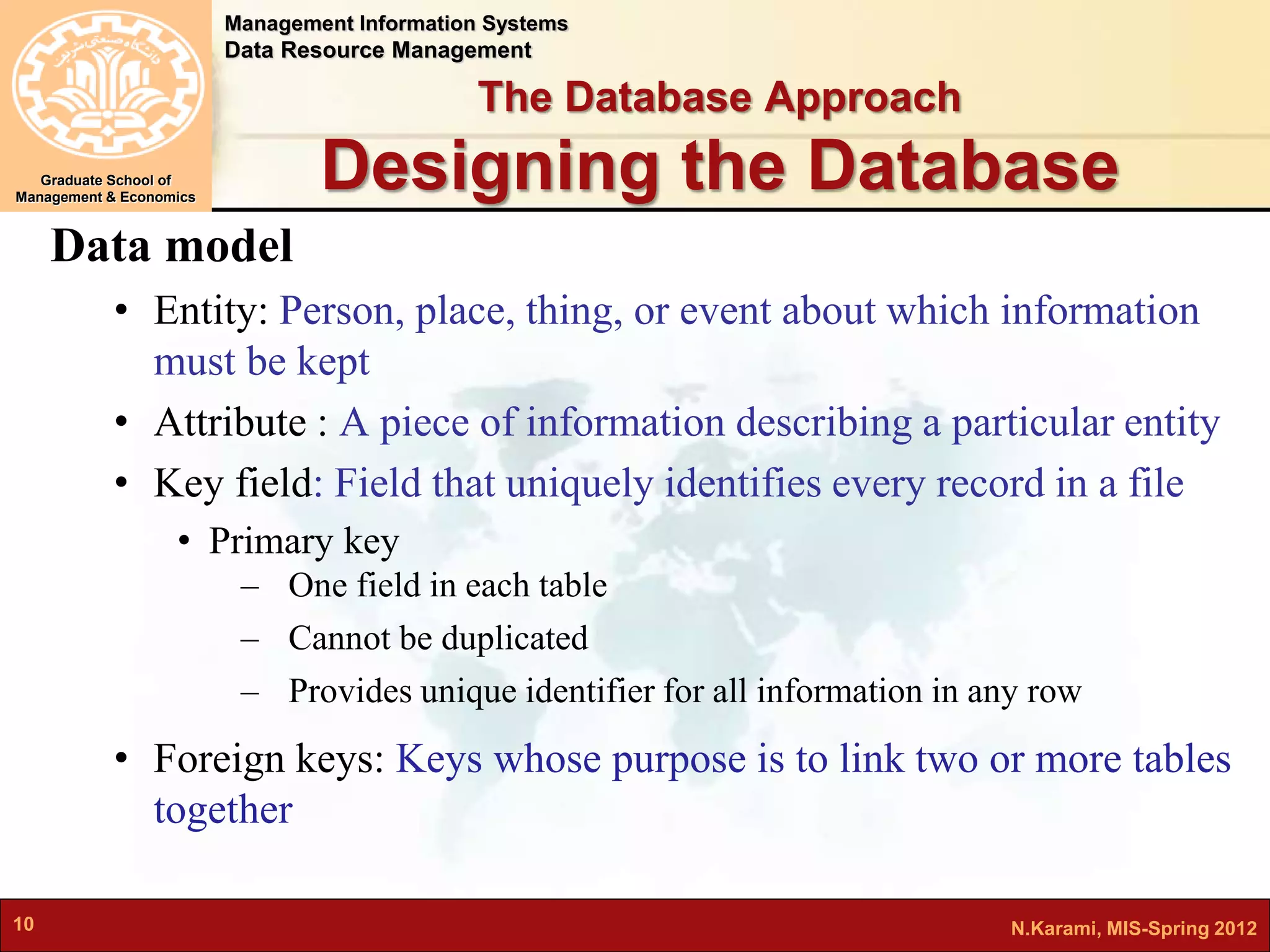

The Database Approach
Designing the Database
Data model
• Entity: Person, place, thing, or event about which information
must be kept
• Attribute : A piece of information describing a particular entity
• Key field: Field that uniquely identifies every record in a file
• Primary key
– One field in each table
– Cannot be duplicated
– Provides unique identifier for all information in any row
• Foreign keys: Keys whose purpose is to link two or more tables
together
10 N.Karami, MIS-Spring 2012

11. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
The Database Approach

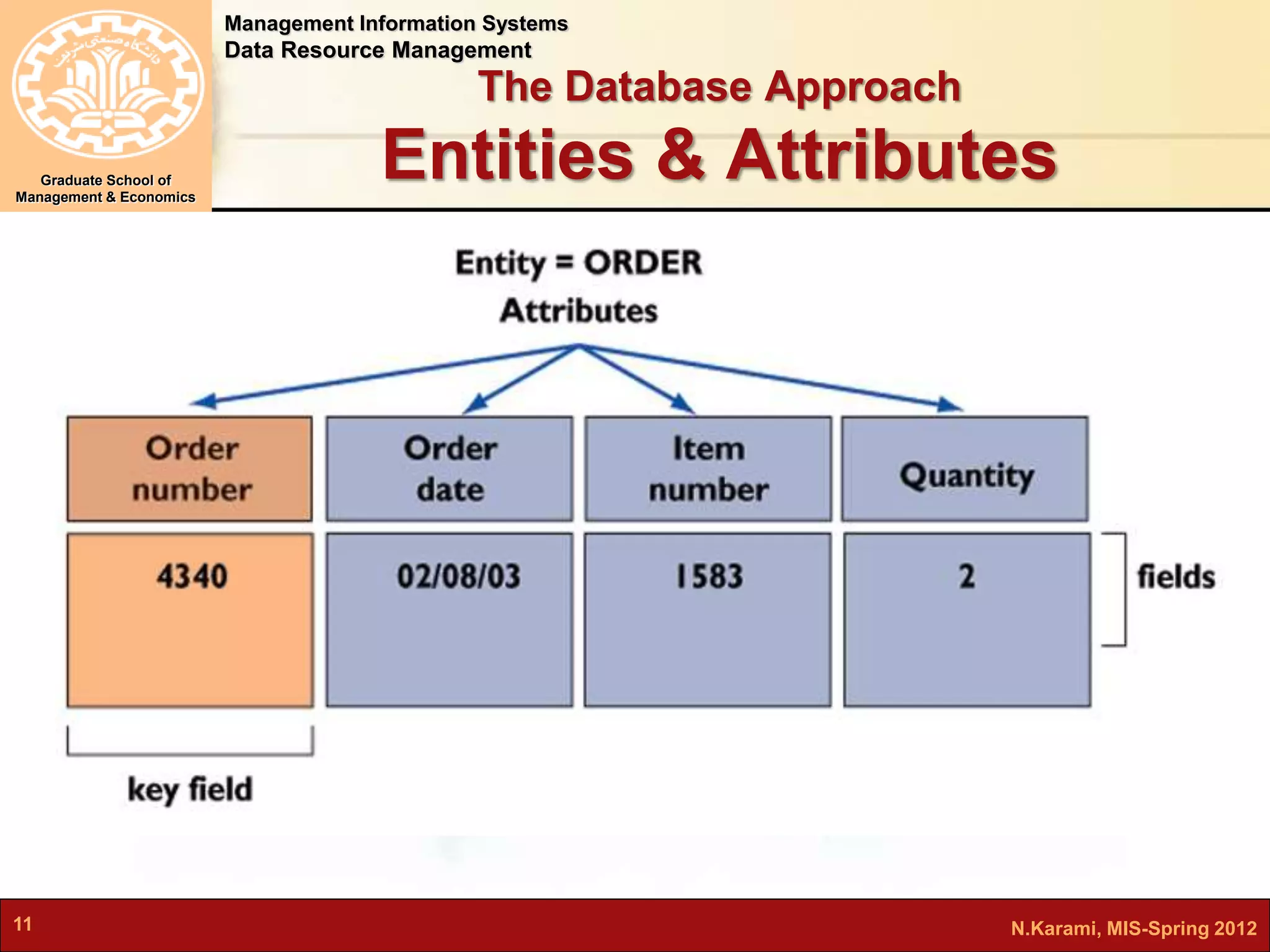

Entities & Attributes
11 N.Karami, MIS-Spring 2012

12. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
The Database Approach

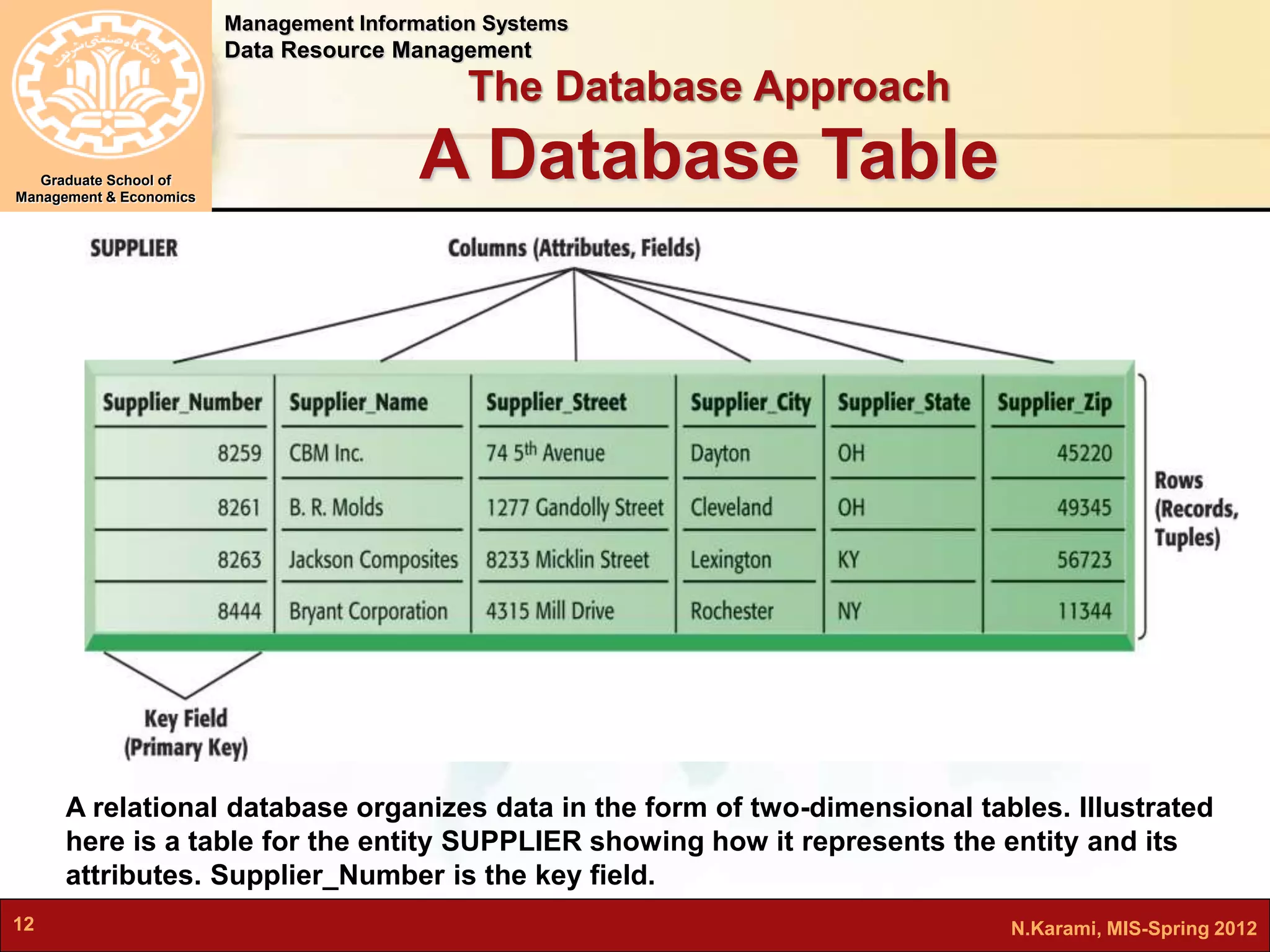

A Database Table
A relational database organizes data in the form of two-dimensional tables. Illustrated
here is a table for the entity SUPPLIER showing how it represents the entity and its
attributes. Supplier_Number is the key field.
12 N.Karami, MIS-Spring 2012

13. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
The Database Approach

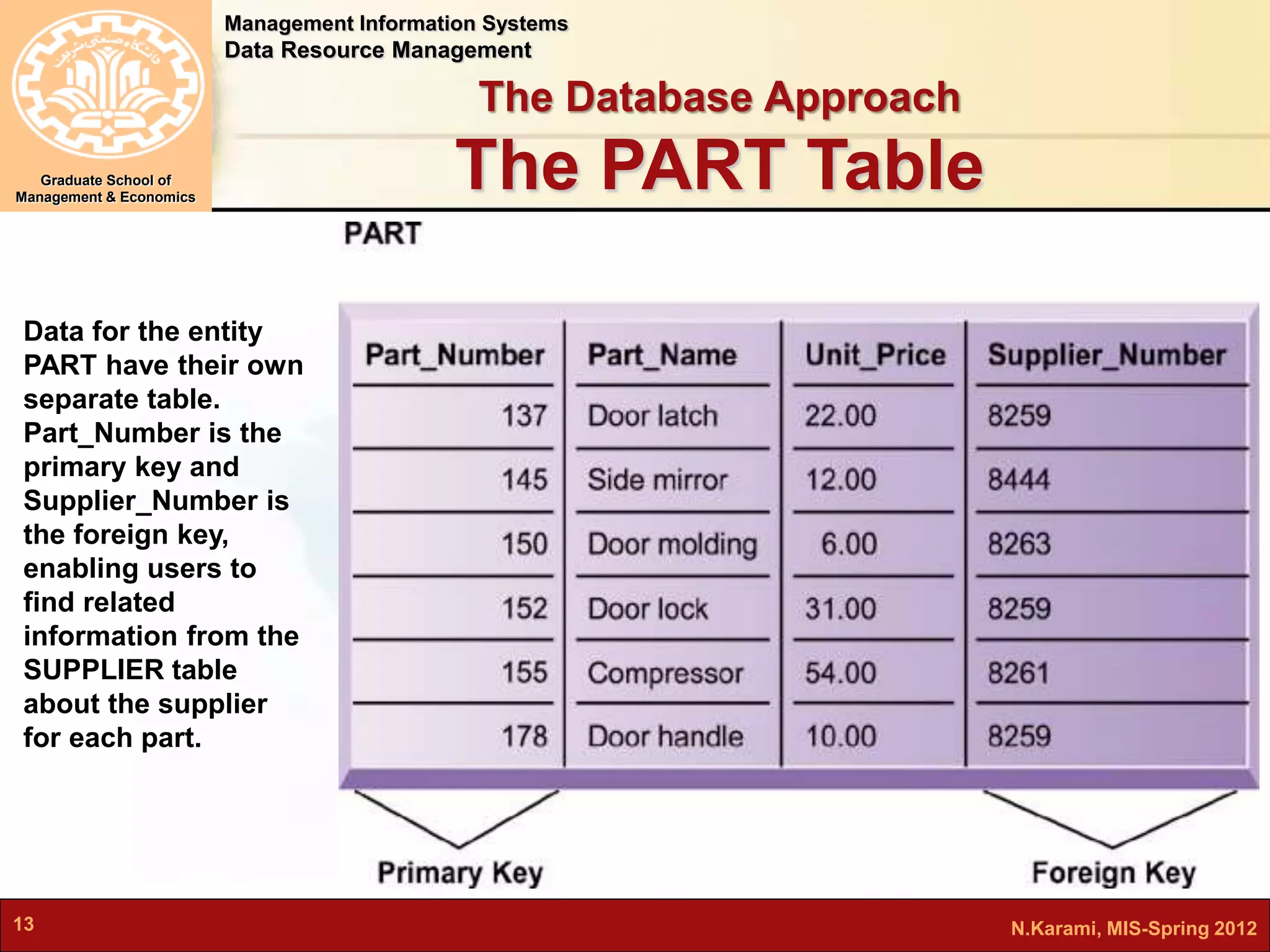

The PART Table
Data for the entity
PART have their own
separate table.
Part_Number is the
primary key and
Supplier_Number is
the foreign key,
enabling users to
find related
information from the
SUPPLIER table
about the supplier
for each part.
13 N.Karami, MIS-Spring 2012

14. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

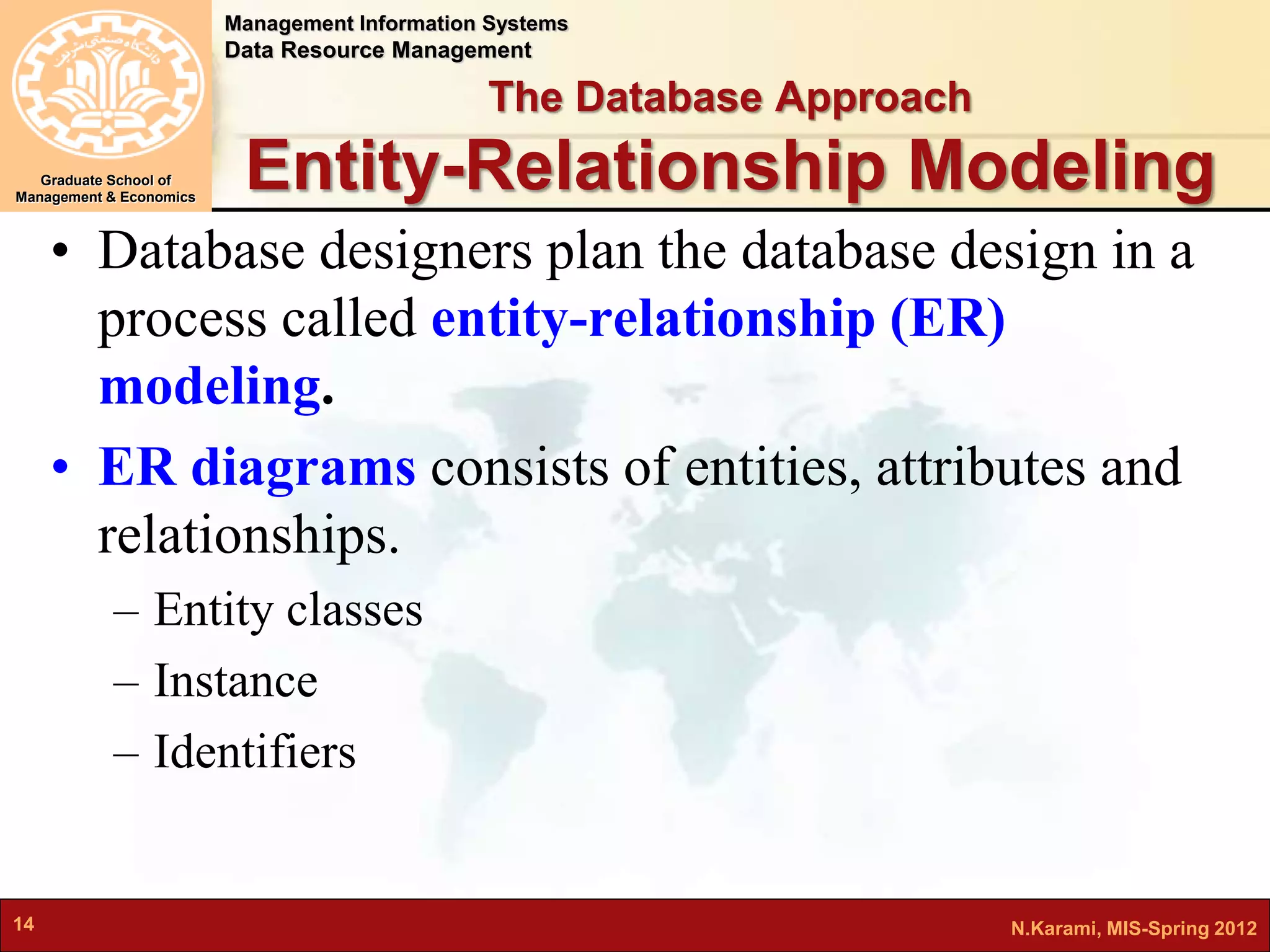

The Database Approach
Entity-Relationship Modeling
• Database designers plan the database design in a
process called entity-relationship (ER)
modeling.
• ER diagrams consists of entities, attributes and
relationships.
– Entity classes
– Instance
– Identifiers
14 N.Karami, MIS-Spring 2012

15. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
The Database Approach

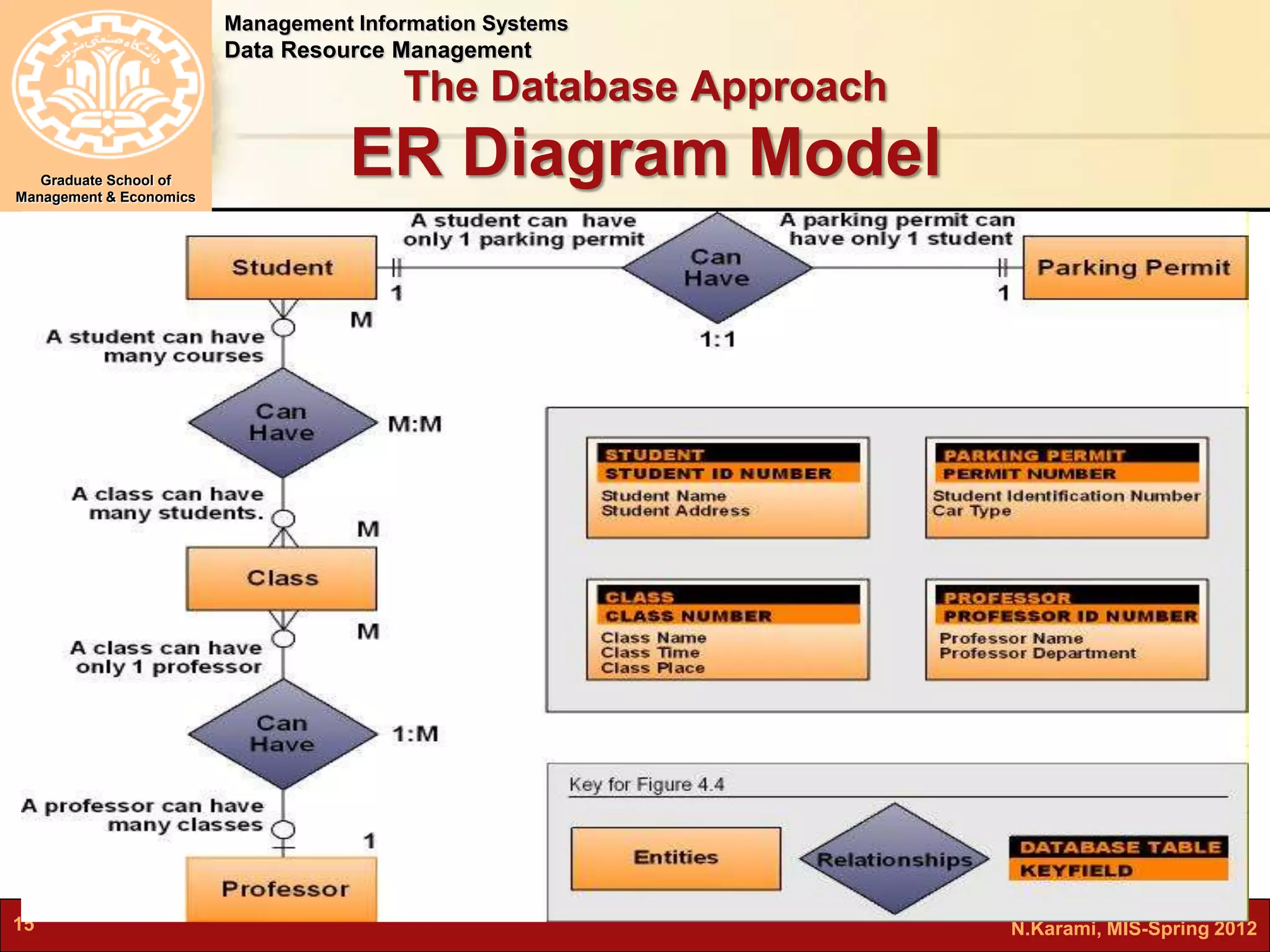

ER Diagram Model
15 N.Karami, MIS-Spring 2012

16. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
The Database Approach

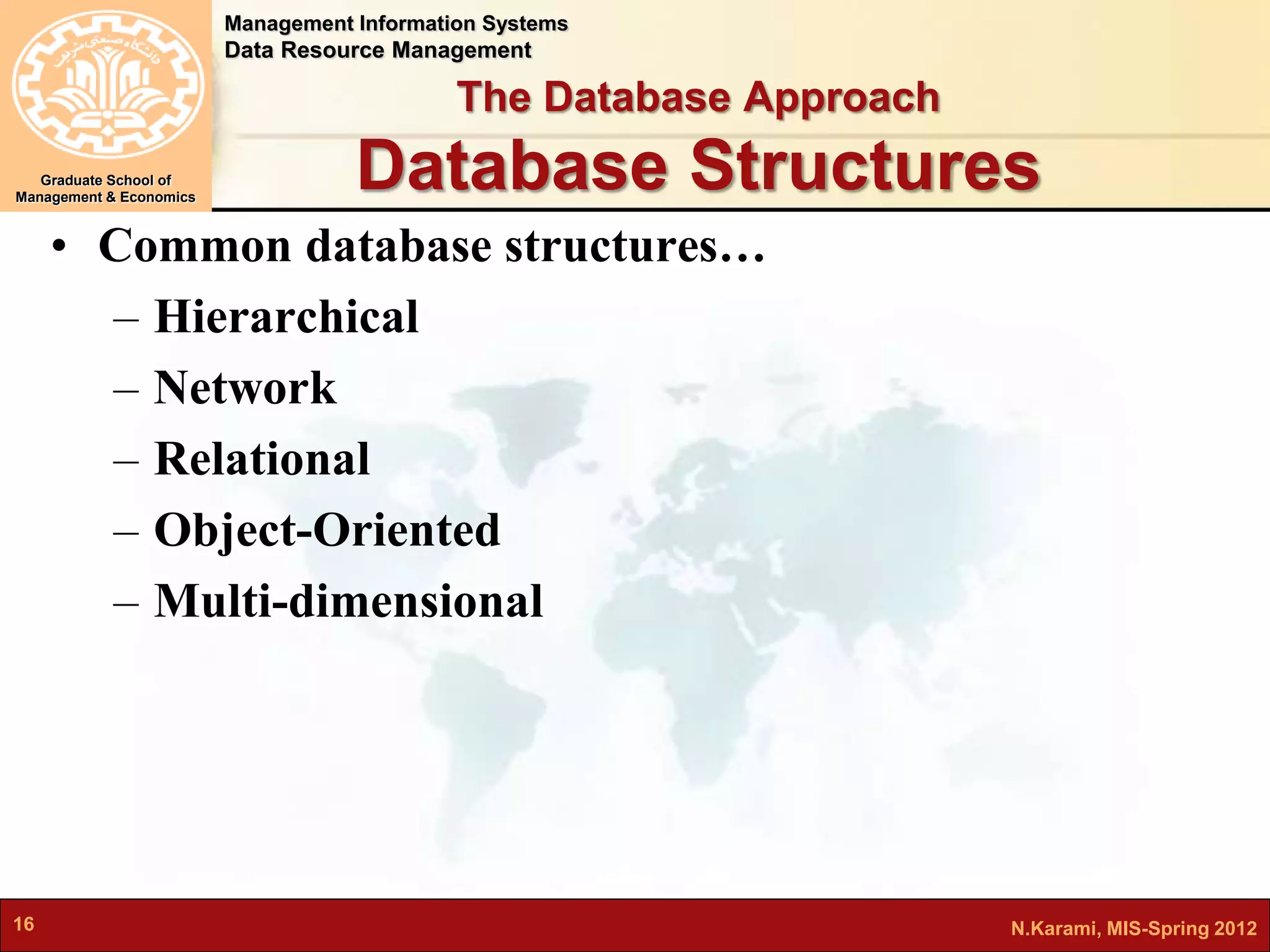

Database Structures
• Common database structures…
– Hierarchical
– Network
– Relational
– Object-Oriented
– Multi-dimensional
16 N.Karami, MIS-Spring 2012

17. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
The Database Approach

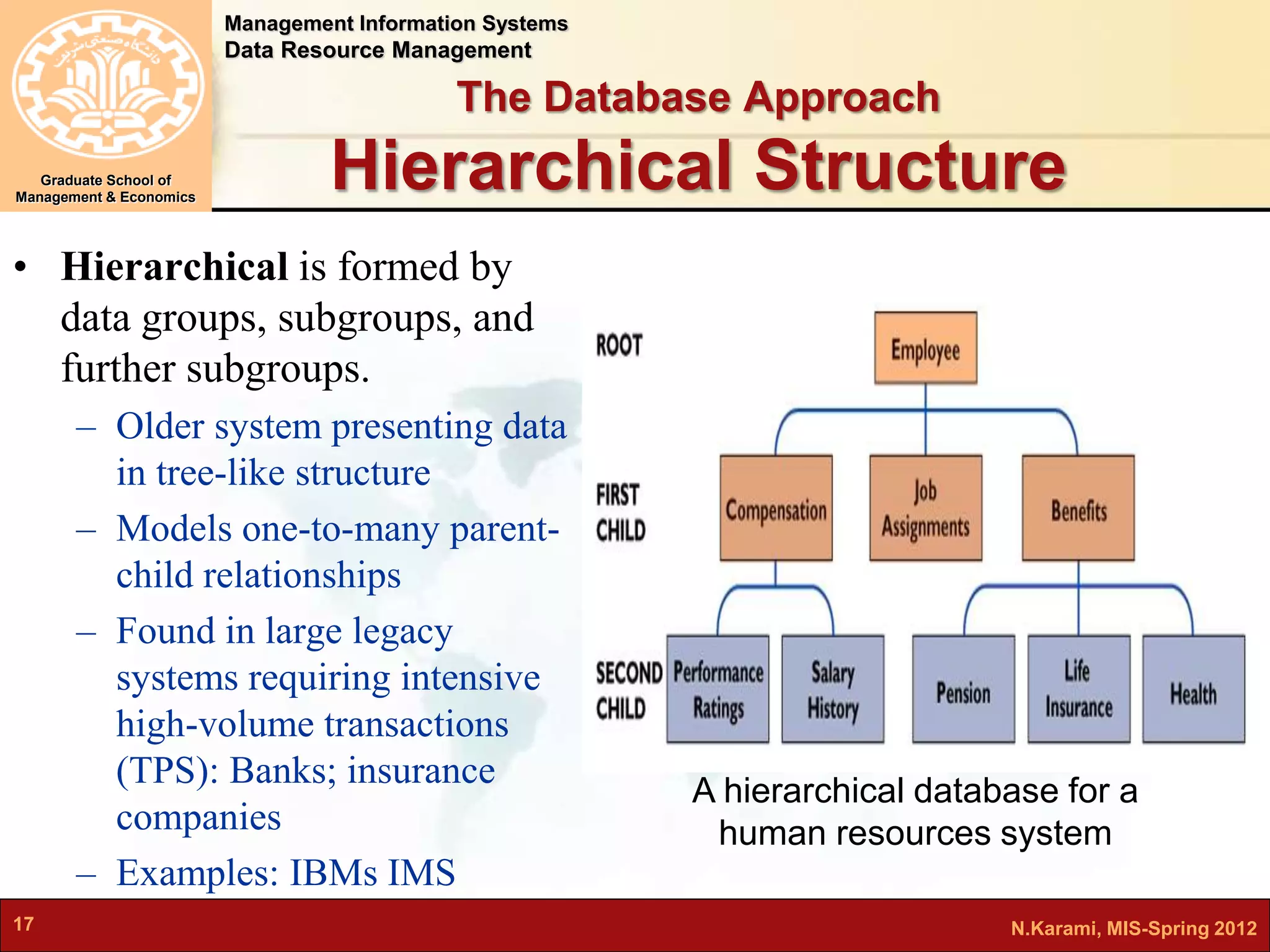

Hierarchical Structure
• Hierarchical is formed by
data groups, subgroups, and
further subgroups.
– Older system presenting data
in tree-like structure
– Models one-to-many parent-child
relationships
– Found in large legacy
systems requiring intensive
high-volume transactions
(TPS): Banks; insurance
companies
– Examples: IBMs IMS
A hierarchical database for a
human resources system
17 N.Karami, MIS-Spring 2012

18. Management Information Systems
Data Resource Management
Graduate School of
The Database Approach

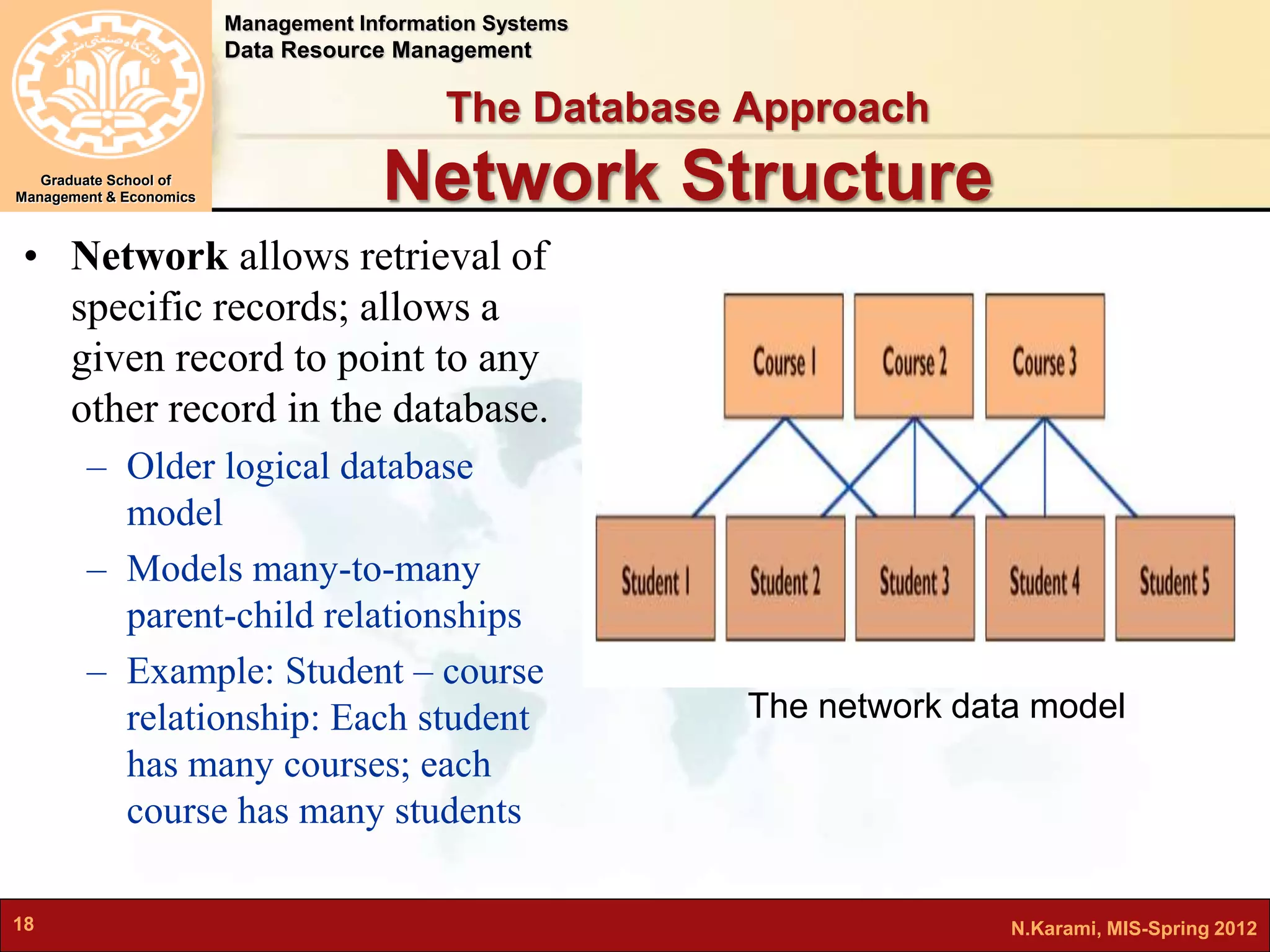

Network Structure
Management & Economics
• Network allows retrieval of
specific records; allows a
given record to point to any
other record in the database.
– Older logical database
model
– Models many-to-many
parent-child relationships
– Example: Student – course
relationship: Each student
has many courses; each
course has many students
The network data model
18 N.Karami, MIS-Spring 2012

19. Management Information Systems
Data Resource Management
Graduate School of
The Database Approach

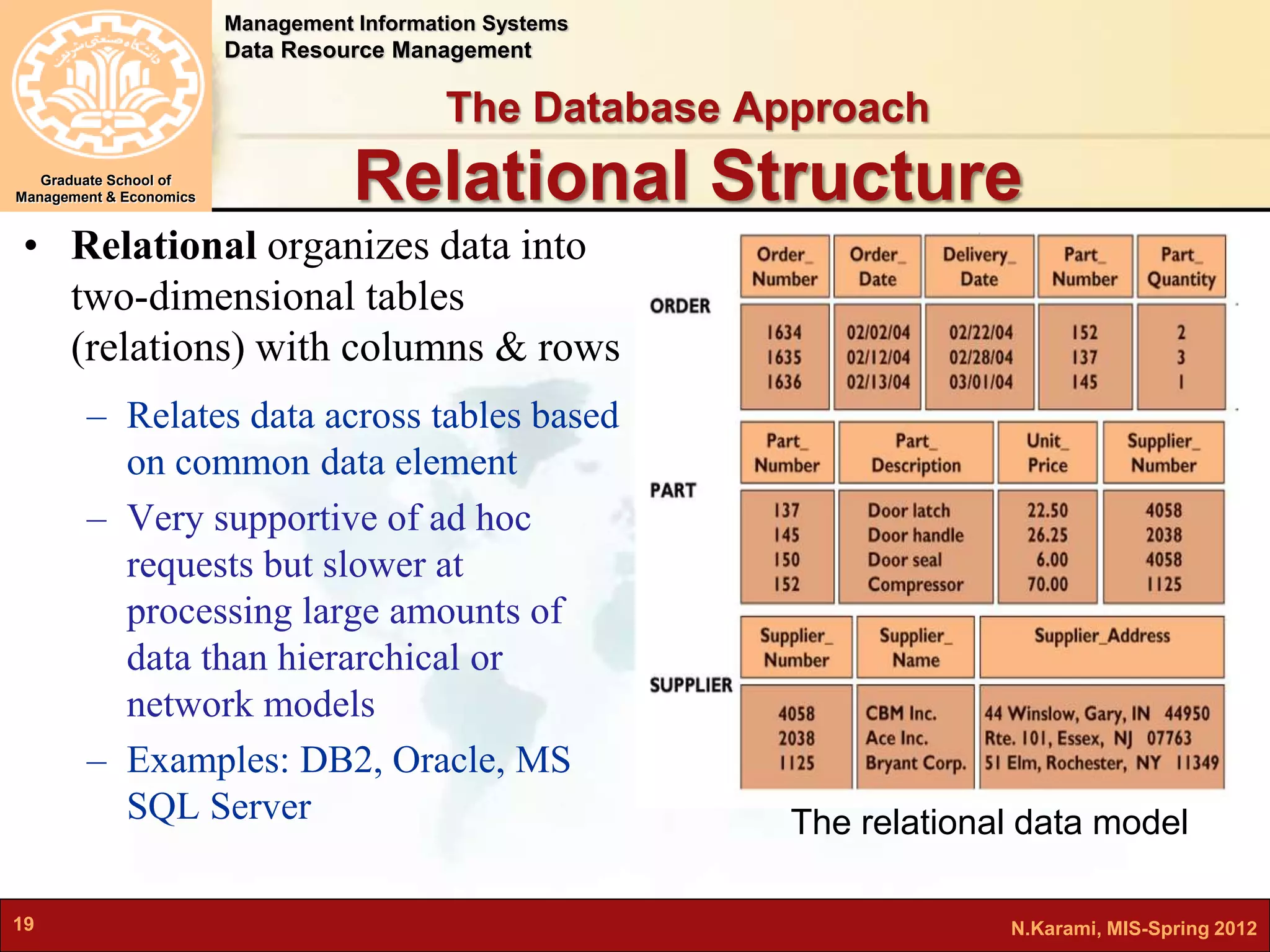

Relational Structure
Management & Economics
• Relational organizes data into
two-dimensional tables
(relations) with columns & rows
– Relates data across tables based
on common data element
– Very supportive of ad hoc
requests but slower at
processing large amounts of
data than hierarchical or
network models
– Examples: DB2, Oracle, MS
SQL Server
The relational data model
19 N.Karami, MIS-Spring 2012

20. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
The Database Approach

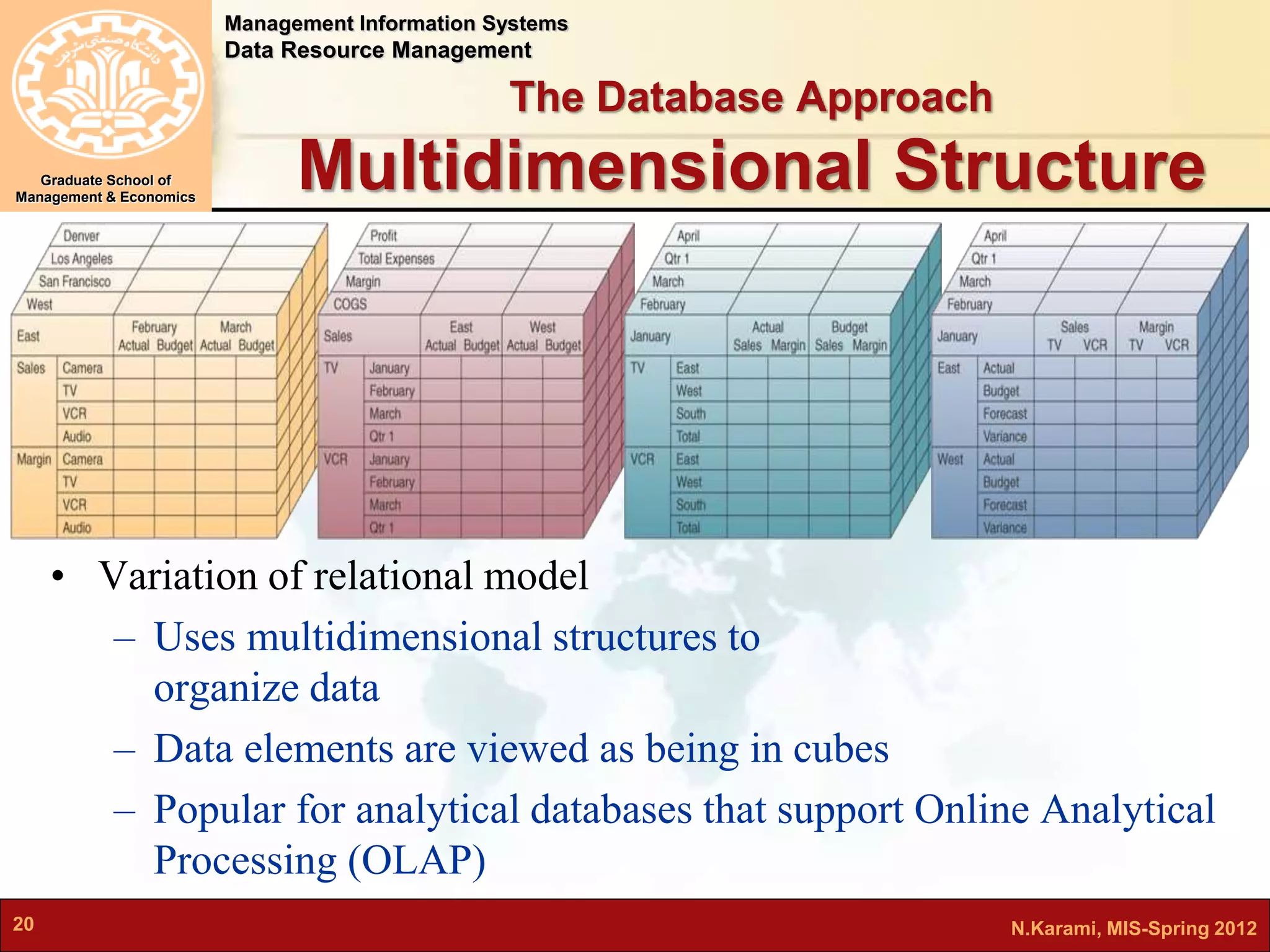

Multidimensional Structure
• Variation of relational model
– Uses multidimensional structures to
organize data
– Data elements are viewed as being in cubes
– Popular for analytical databases that support Online Analytical
Processing (OLAP)
20 N.Karami, MIS-Spring 2012

21. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics
The Database Approach

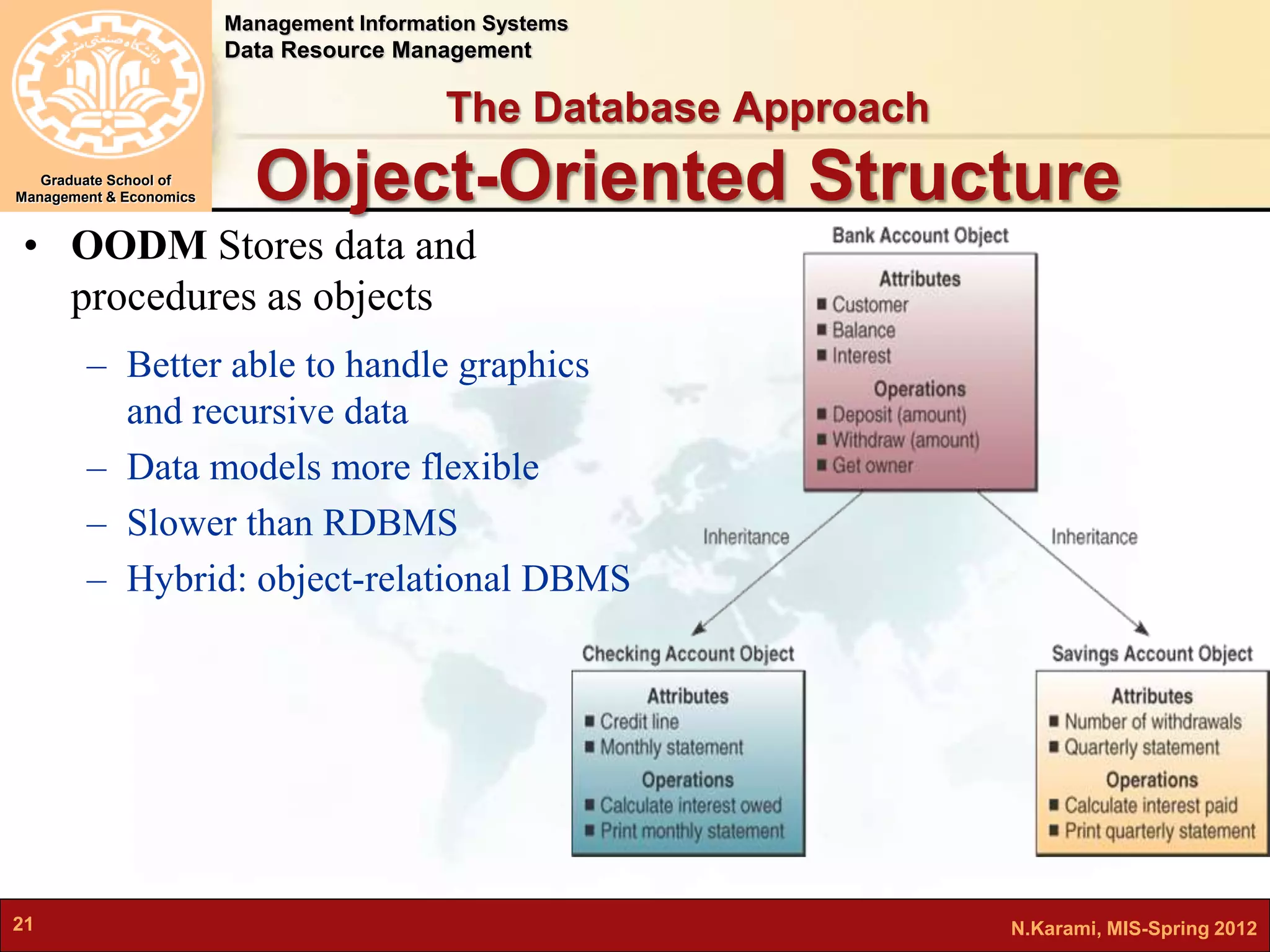

Object-Oriented Structure
• OODM Stores data and
procedures as objects
– Better able to handle graphics
and recursive data
– Data models more flexible
– Slower than RDBMS
– Hybrid: object-relational DBMS
21 N.Karami, MIS-Spring 2012

22. Management Information Systems
Data Resource Management
Graduate School of

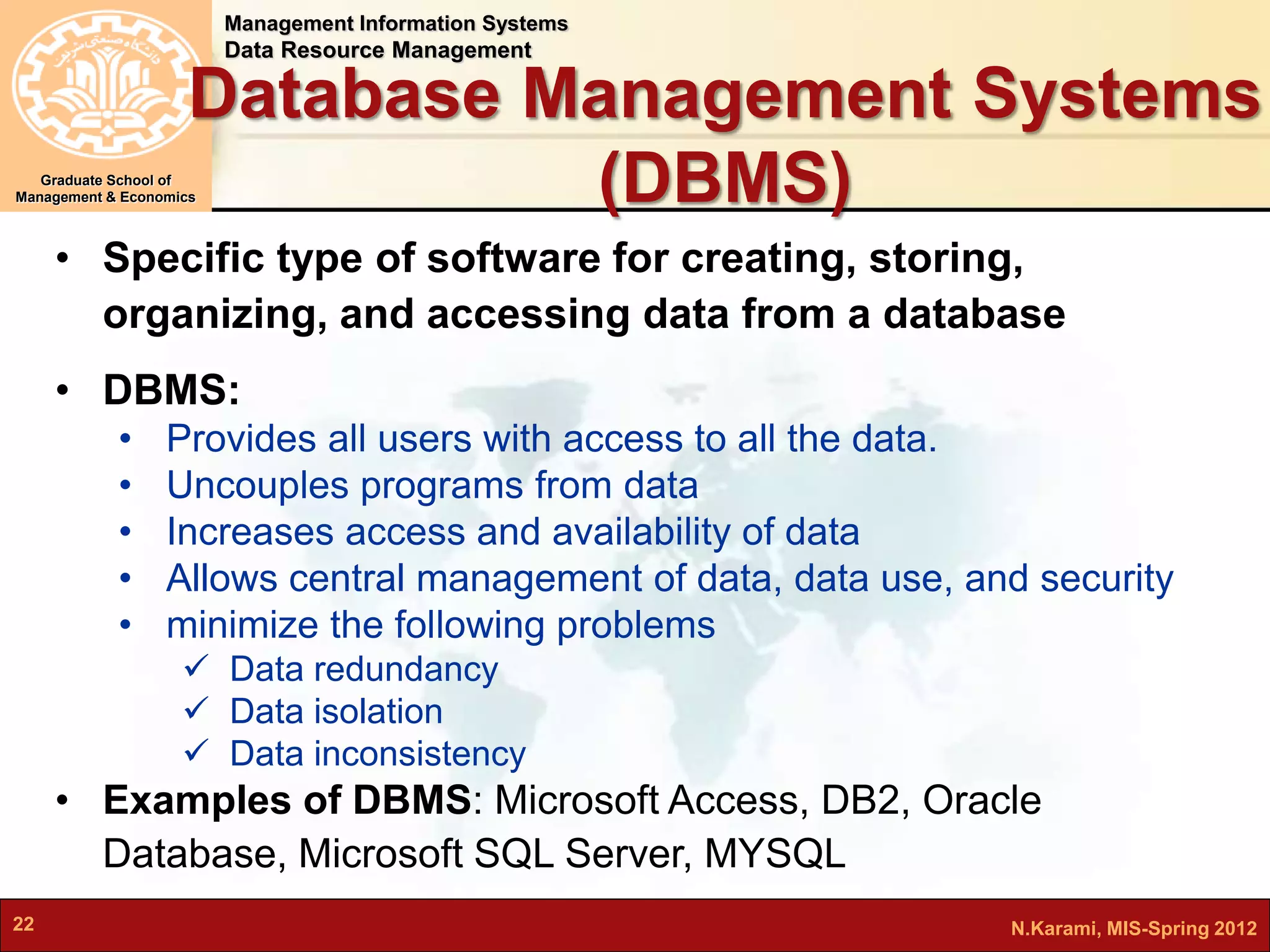

Database Management Systems
(DBMS)
Management & Economics
• Specific type of software for creating, storing,
organizing, and accessing data from a database
• DBMS:
• Provides all users with access to all the data.
• Uncouples programs from data
• Increases access and availability of data
• Allows central management of data, data use, and security
• minimize the following problems
 Data redundancy
 Data isolation
 Data inconsistency
• Examples of DBMS: Microsoft Access, DB2, Oracle
Database, Microsoft SQL Server, MYSQL
22 N.Karami, MIS-Spring 2012

23. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

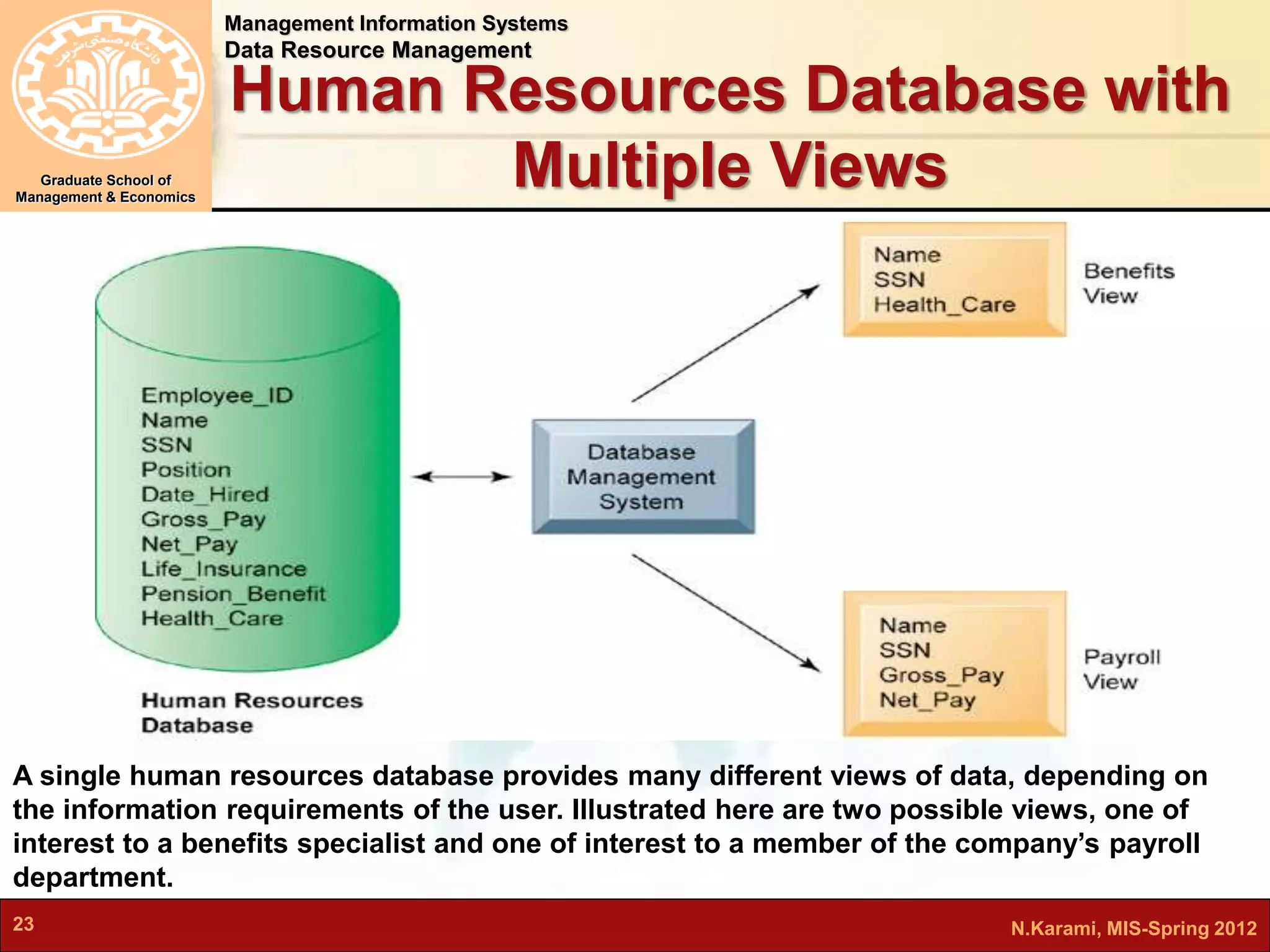

Human Resources Database with
Multiple Views
A single human resources database provides many different views of data, depending on
the information requirements of the user. Illustrated here are two possible views, one of
interest to a benefits specialist and one of interest to a member of the company’s payroll
department.
23 N.Karami, MIS-Spring 2012

24. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

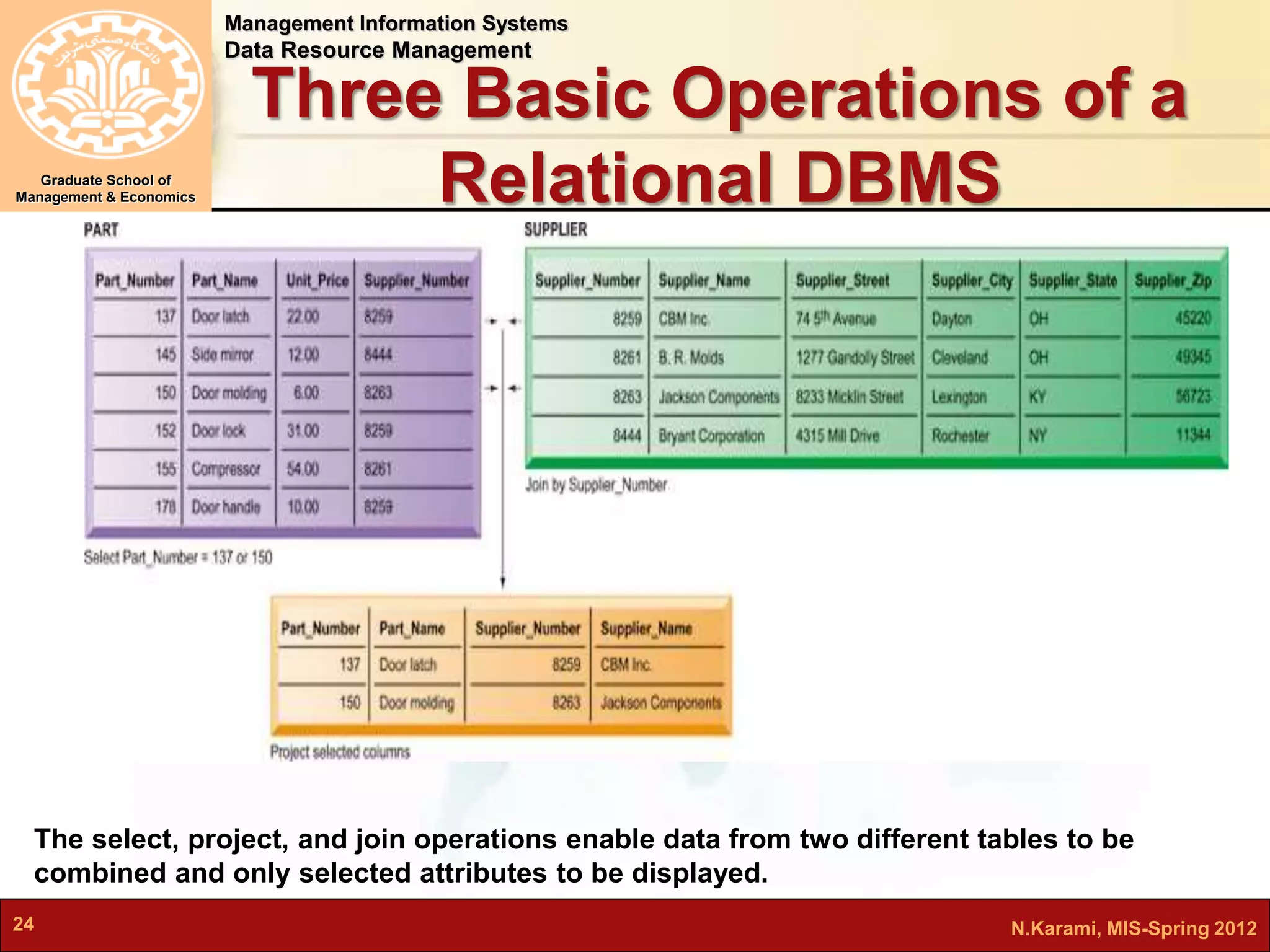

Three Basic Operations of a
Relational DBMS
The select, project, and join operations enable data from two different tables to be
combined and only selected attributes to be displayed.
24 N.Karami, MIS-Spring 2012

25. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

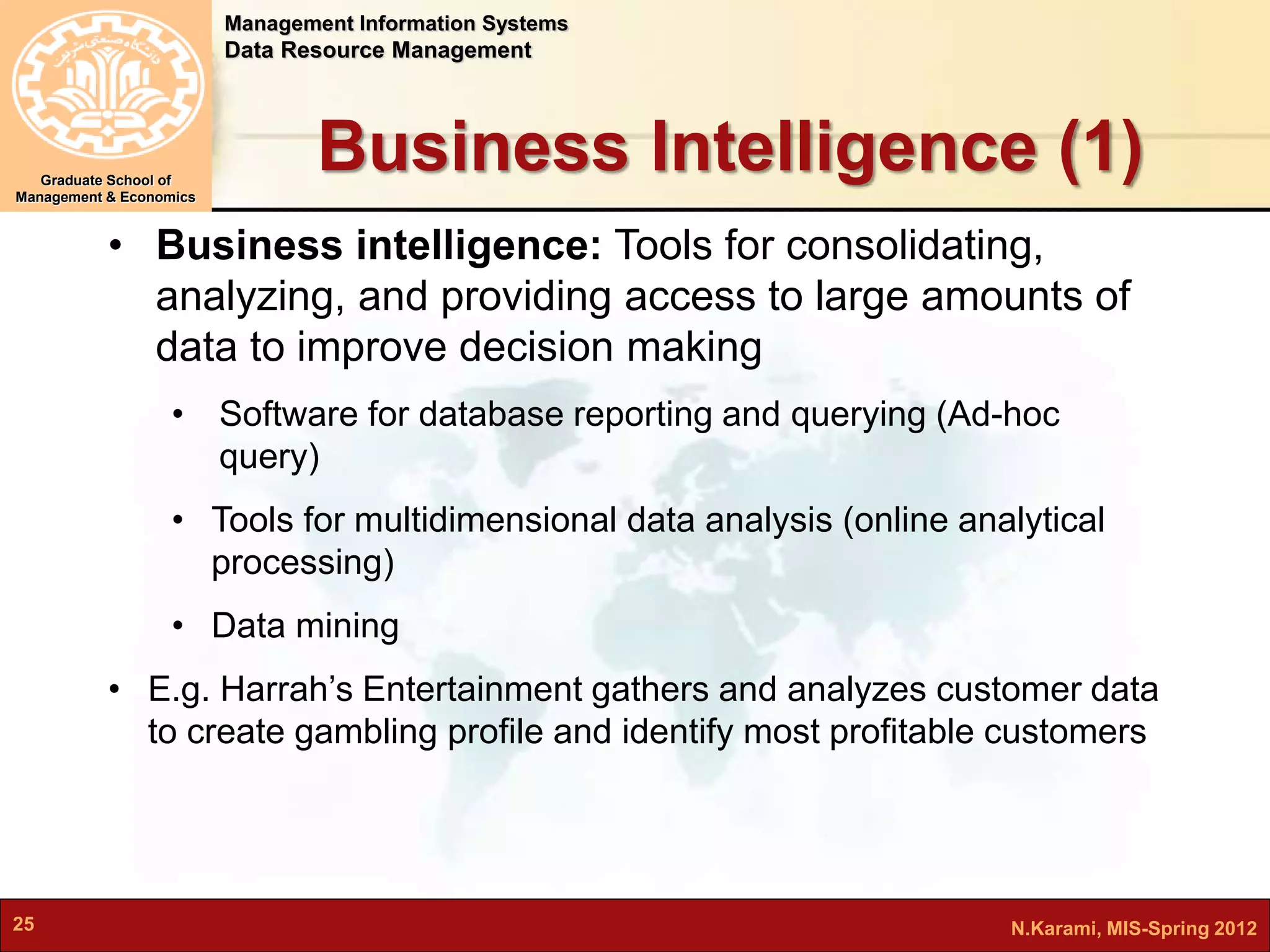

Business Intelligence (1)
• Business intelligence: Tools for consolidating,
analyzing, and providing access to large amounts of
data to improve decision making
• Software for database reporting and querying (Ad-hoc
query)
• Tools for multidimensional data analysis (online analytical
processing)
• Data mining
• E.g. Harrah’s Entertainment gathers and analyzes customer data
to create gambling profile and identify most profitable customers
25 N.Karami, MIS-Spring 2012

26. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

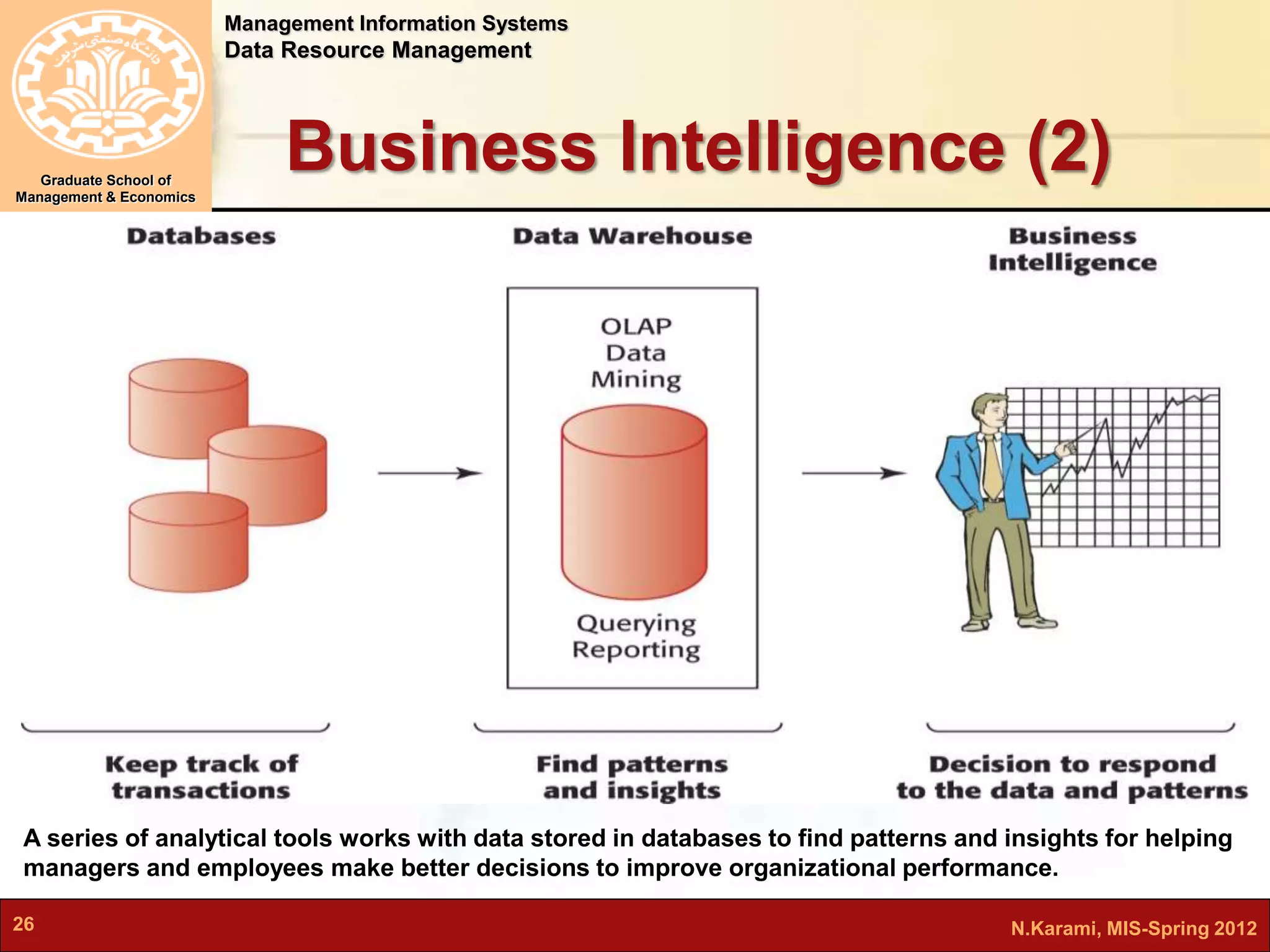

Business Intelligence (2)
A series of analytical tools works with data stored in databases to find patterns and insights for helping
managers and employees make better decisions to improve organizational performance.
26 N.Karami, MIS-Spring 2012

27. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

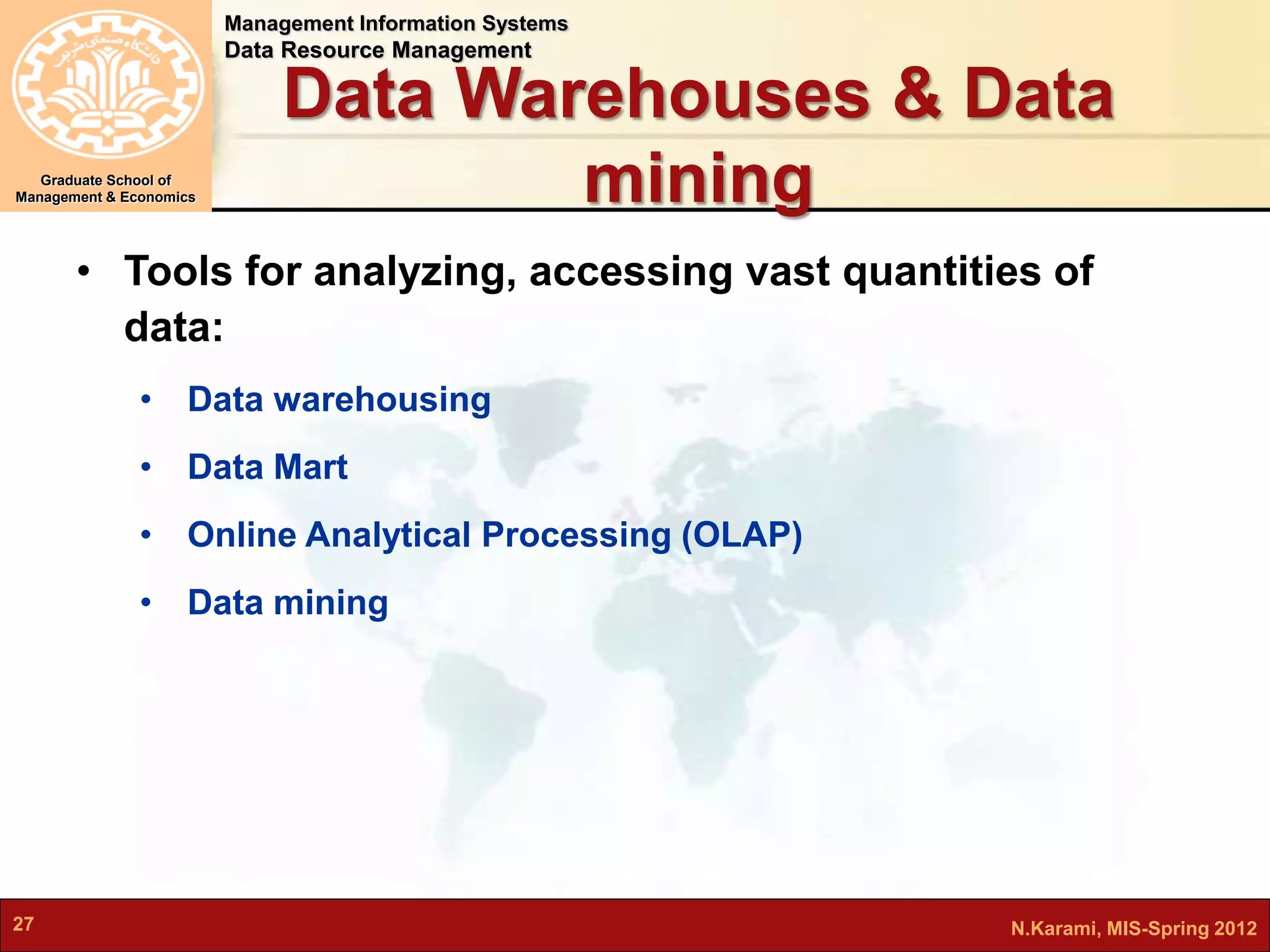

Data Warehouses & Data
mining
• Tools for analyzing, accessing vast quantities of
data:
• Data warehousing
• Data Mart
• Online Analytical Processing (OLAP)
• Data mining
27 N.Karami, MIS-Spring 2012

28. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

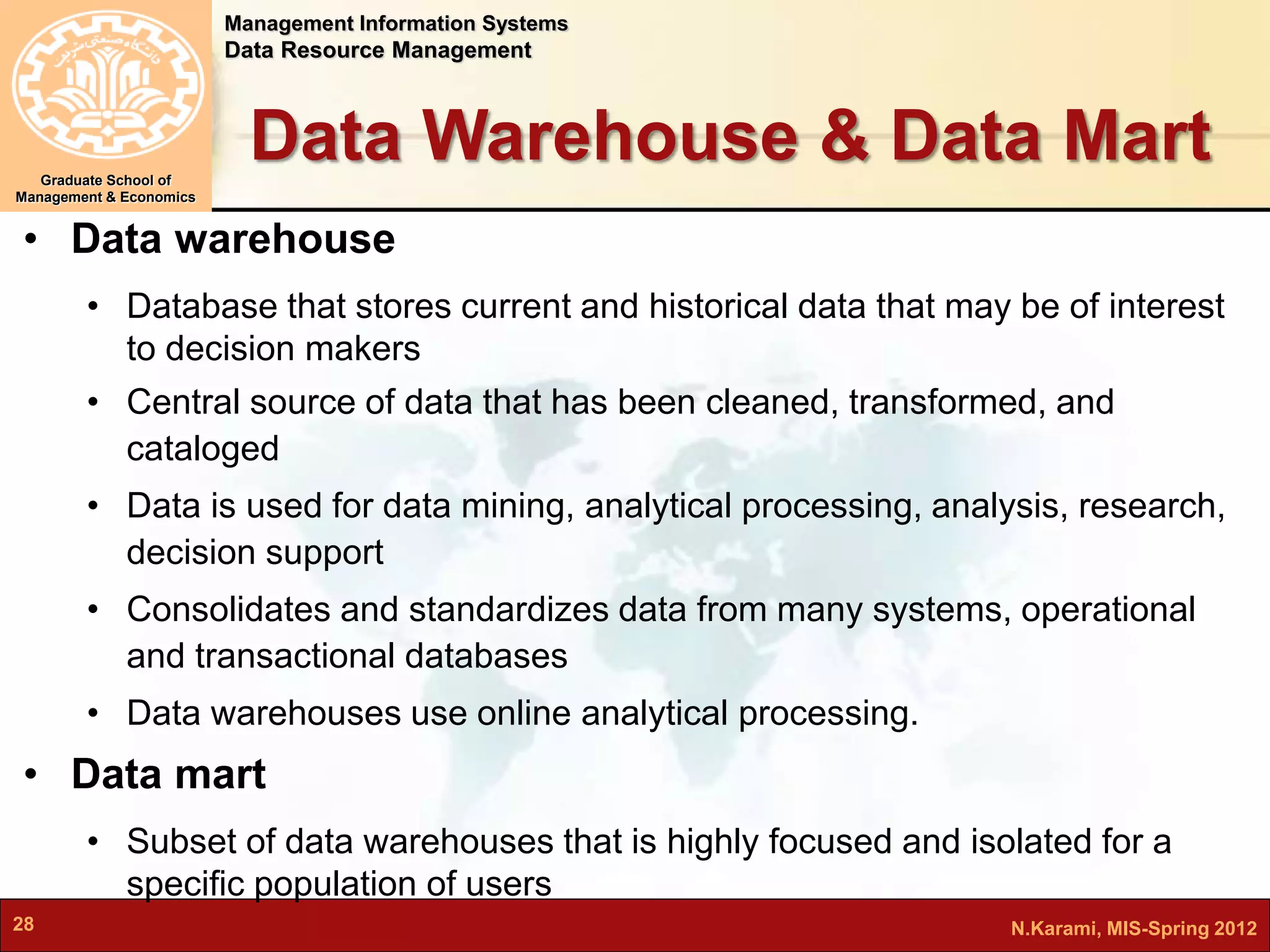

Data Warehouse & Data Mart
• Data warehouse
• Database that stores current and historical data that may be of interest
to decision makers
• Central source of data that has been cleaned, transformed, and
cataloged
• Data is used for data mining, analytical processing, analysis, research,
decision support
• Consolidates and standardizes data from many systems, operational
and transactional databases
• Data warehouses use online analytical processing.
• Data mart
• Subset of data warehouses that is highly focused and isolated for a
specific population of users
28 N.Karami, MIS-Spring 2012

29. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

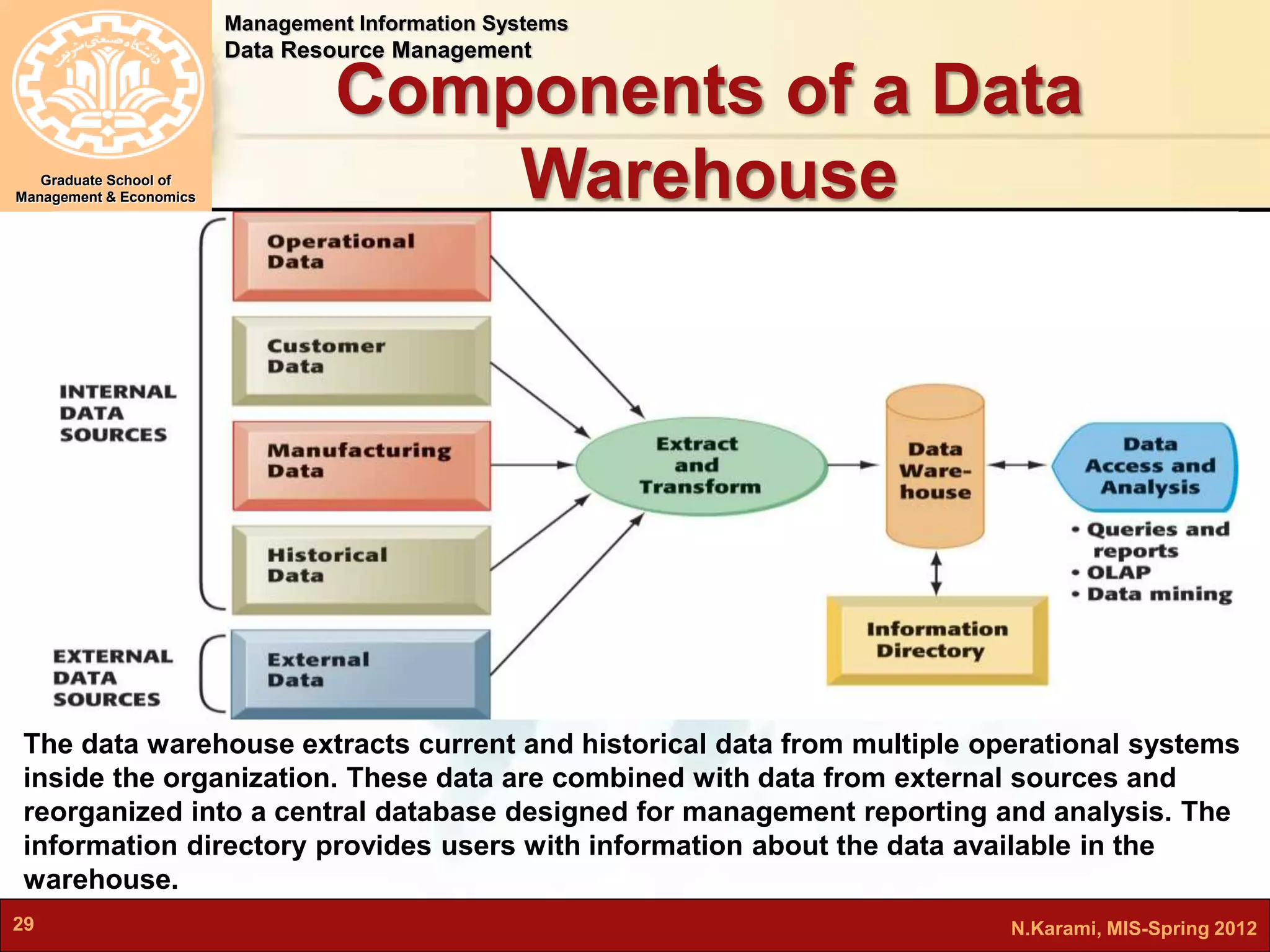

Components of a Data
Warehouse
The data warehouse extracts current and historical data from multiple operational systems
inside the organization. These data are combined with data from external sources and
reorganized into a central database designed for management reporting and analysis. The
information directory provides users with information about the data available in the
warehouse.
29 N.Karami, MIS-Spring 2012

30. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

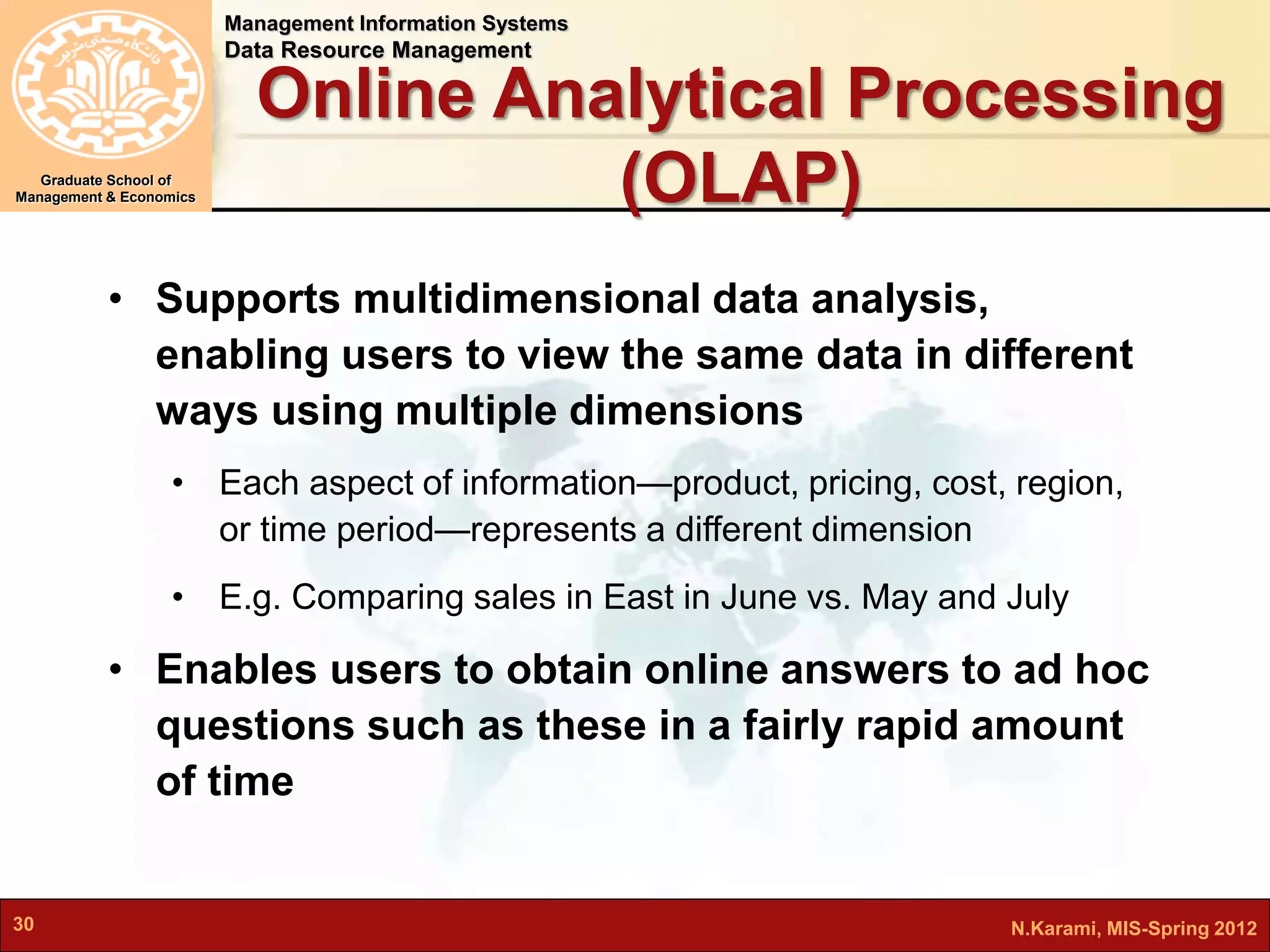

Online Analytical Processing
(OLAP)
• Supports multidimensional data analysis,
enabling users to view the same data in different
ways using multiple dimensions
• Each aspect of information—product, pricing, cost, region,
or time period—represents a different dimension
• E.g. Comparing sales in East in June vs. May and July
• Enables users to obtain online answers to ad hoc
questions such as these in a fairly rapid amount
of time
30 N.Karami, MIS-Spring 2012

31. Management Information Systems
Data Resource Management
Graduate School of
Management & Economics

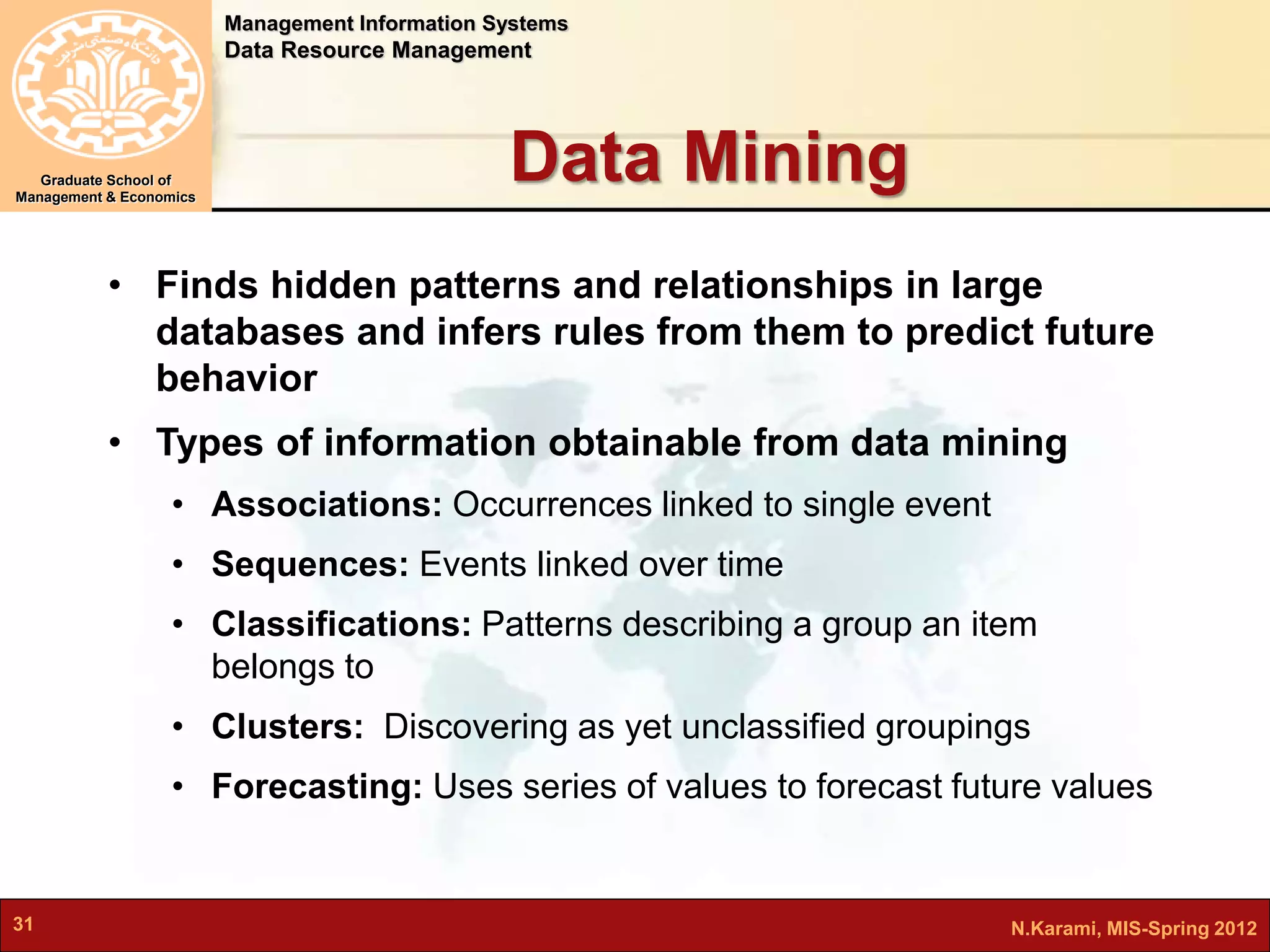

Data Mining
• Finds hidden patterns and relationships in large
databases and infers rules from them to predict future
behavior
• Types of information obtainable from data mining
• Associations: Occurrences linked to single event
• Sequences: Events linked over time
• Classifications: Patterns describing a group an item
belongs to
• Clusters: Discovering as yet unclassified groupings
• Forecasting: Uses series of values to forecast future values
31 N.Karami, MIS-Spring 2012
