The document contains VHDL code that implements a Moore finite state machine (FSM) with 3 states (s1, s2, s3) to detect a sequence of 3 ones. The FSM has an input x, a clock clk, a reset rst, and an output z. It transitions between states and sets z based on the current state and value of x on each clock edge. A testbench simulates the FSM by applying a repeating sequence of ones to x over multiple clock cycles while monitoring z.
This section presents the VHDL code for a Moore FSM Sequence Detector that recognizes the sequence '111', defining states and state transitions.
These slides describe the test bench for the FSM, detailing component declaration, signal initialization, clock generation, and input stimulus for testing the FSM.

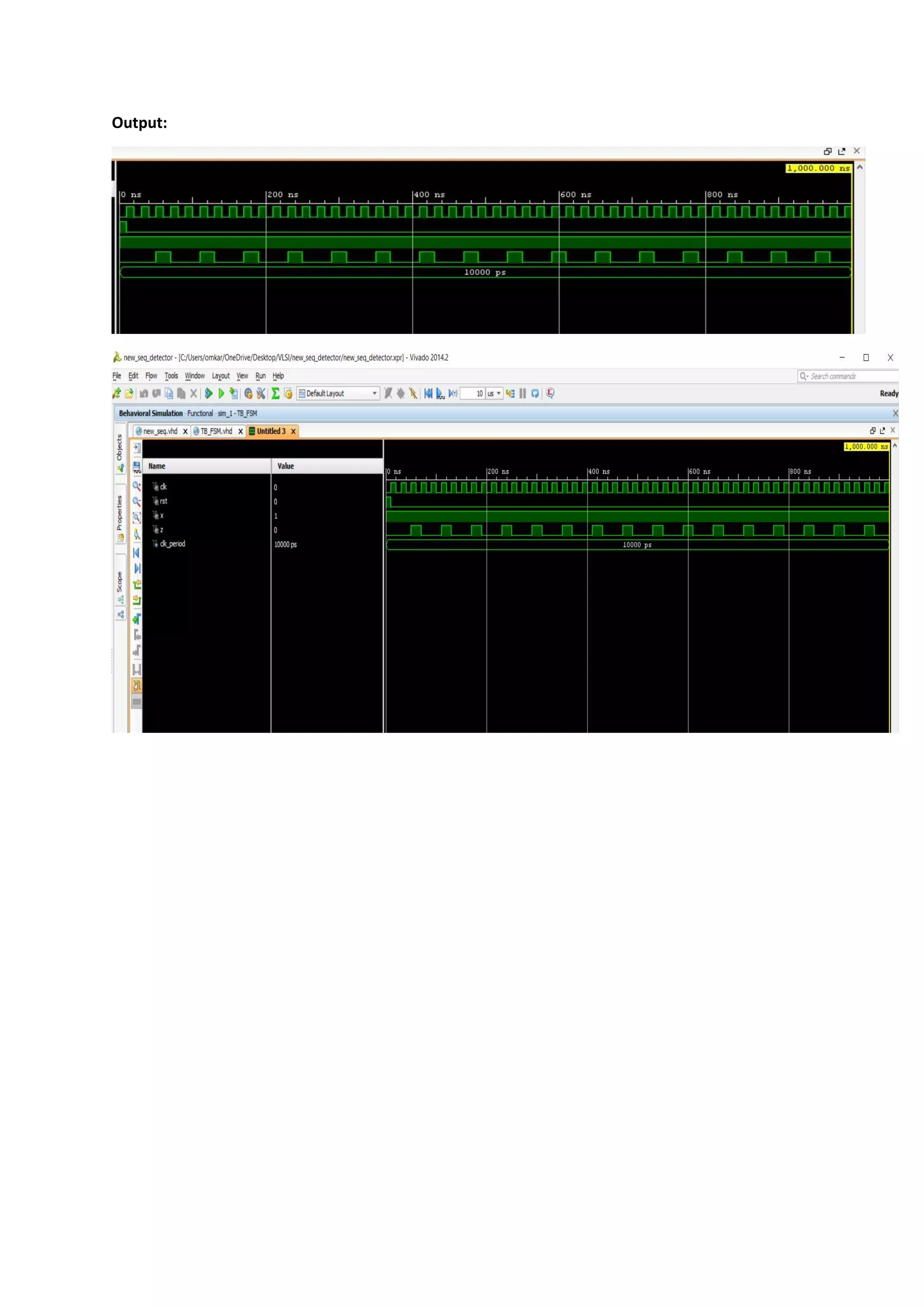

This slide summarizes the test bench output section of the FSM, although specific output details are not provided.
Code: (Sequence Detectorfor 111)
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity FSM is
Port ( clk : in STD_LOGIC;
rst : in STD_LOGIC;
x : in STD_LOGIC;
z : out STD_LOGIC);
end FSM;
architecture Behavioral of FSM is
type state_type is (s1,s2,s3);
signal state :state_type;
begin
-- Sequential memory of the VHDL MOORE FSM Sequence Detector
process(clk,rst)
begin
if(rst='1') then
state <= s1;
z<='0';
elsif(clk'event and clk='1') then
case state is
when s1=>
if x='1' then
state <= s2;
z<='0';
else
state <= s1;
z<='0';
end if;
when s2=>
2.
if x='1' then
state<= s3;
z<='0';
else
state <= s1;
z<='0';
end if;
when s3=>
if x='1' then

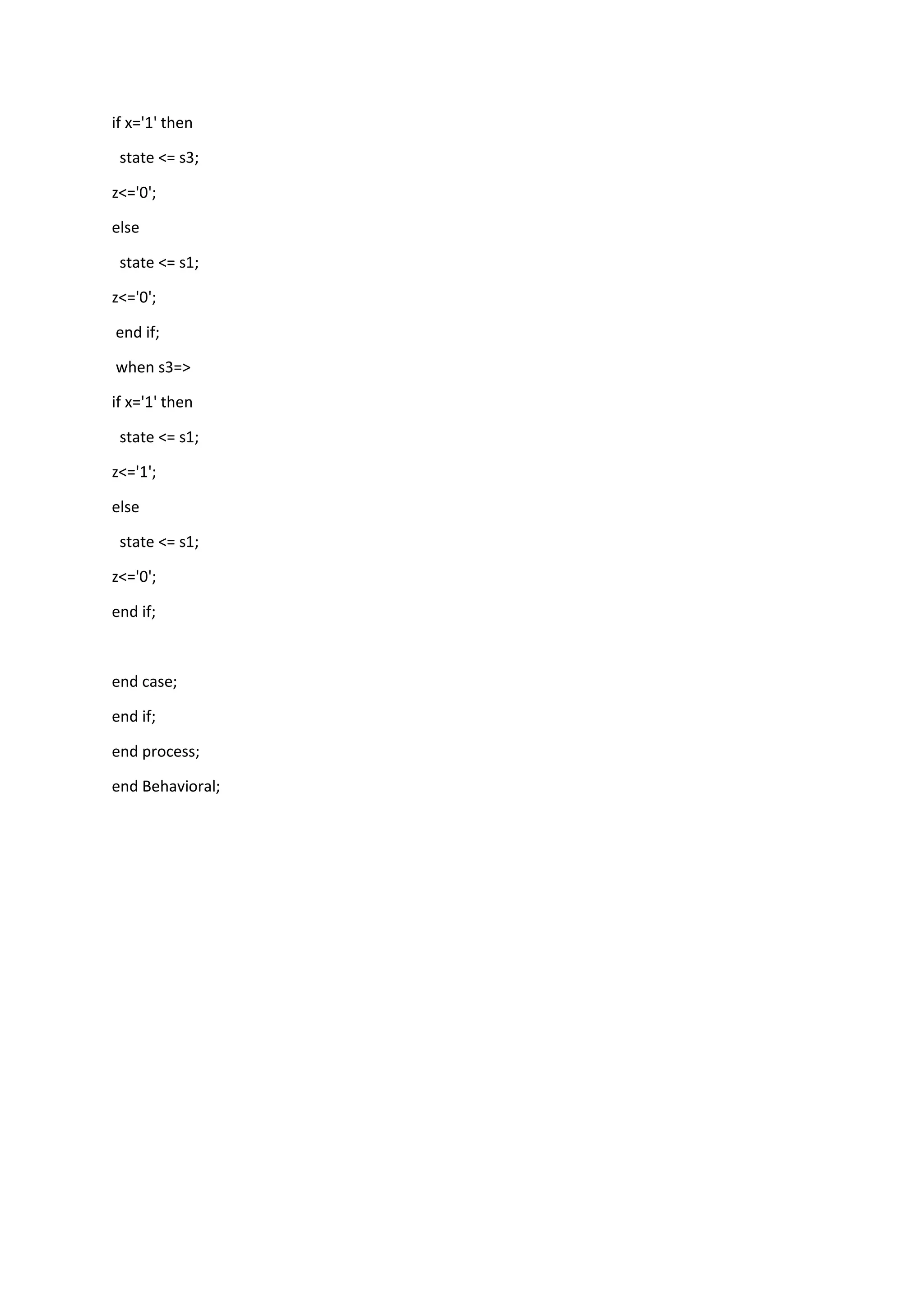

state <= s1;
z<='1';
else
state <= s1;
z<='0';
end if;
end case;
end if;
end process;
end Behavioral;
3.
Code: (Test bench)
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;
-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--USE ieee.numeric_std.ALL;
ENTITY TB_FSM IS
END TB_FSM;
ARCHITECTURE behavior OF TB_FSM IS
-- Component Declaration for the Unit Under Test (UUT)
COMPONENT FSM
PORT(
clk : IN std_logic;
rst : IN std_logic;
x : IN std_logic;
z : OUT std_logic
);
END COMPONENT;
--Inputs
signal clk : std_logic := '0';
signal rst : std_logic := '0';
signal x : std_logic := '0';
--Outputs

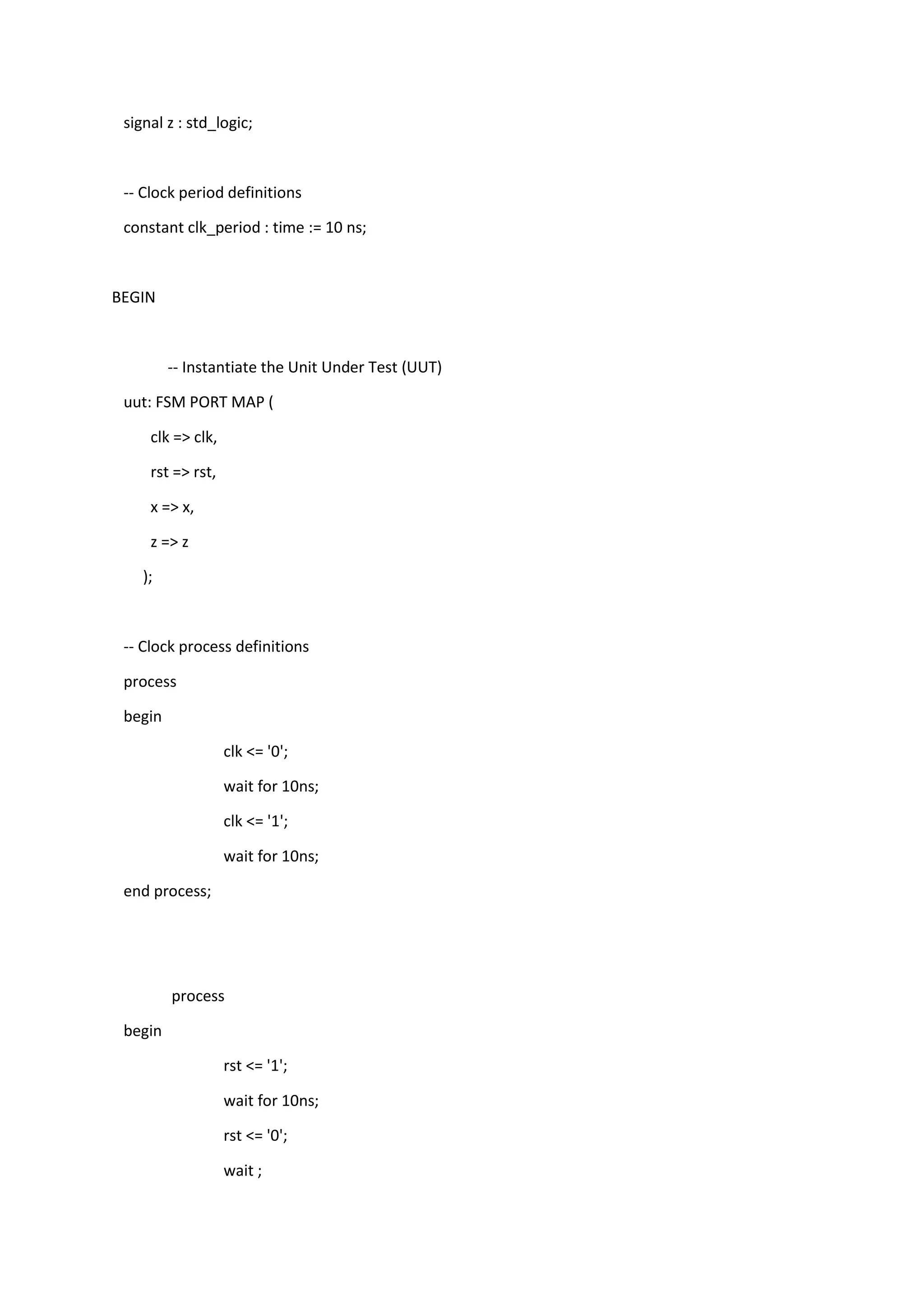

4.
signal z :std_logic;
-- Clock period definitions
constant clk_period : time := 10 ns;
BEGIN
-- Instantiate the Unit Under Test (UUT)
uut: FSM PORT MAP (
clk => clk,
rst => rst,
x => x,
z => z
);
-- Clock process definitions
process
begin
clk <= '0';
wait for 10ns;
clk <= '1';
wait for 10ns;
end process;
process
begin
rst <= '1';
wait for 10ns;
rst <= '0';
wait ;
5.
end process;

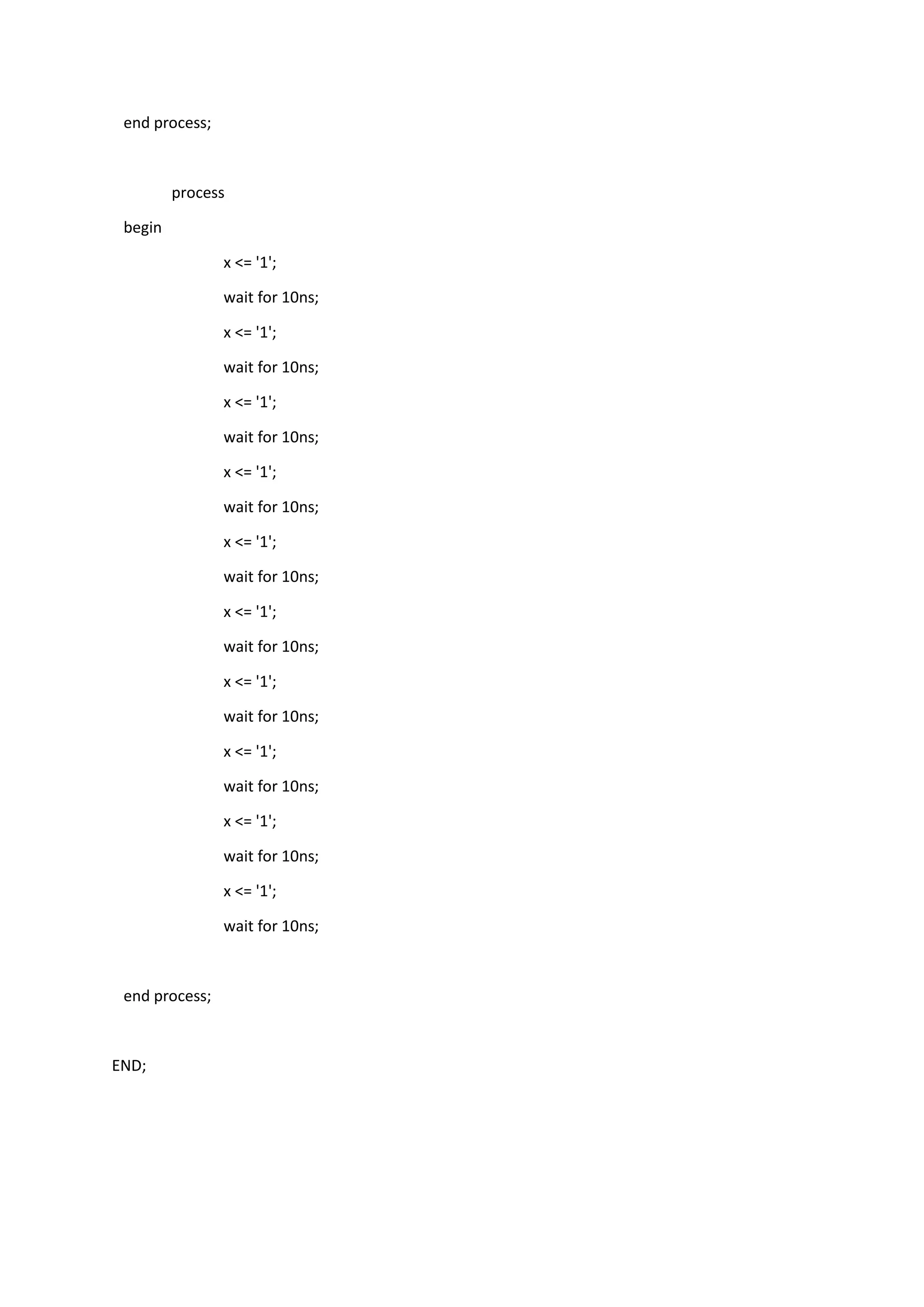

process
begin
x <='1';
wait for 10ns;
x <= '1';
wait for 10ns;
x <= '1';
wait for 10ns;
x <= '1';
wait for 10ns;
x <= '1';
wait for 10ns;
x <= '1';
wait for 10ns;
x <= '1';
wait for 10ns;
x <= '1';
wait for 10ns;
x <= '1';
wait for 10ns;
x <= '1';
wait for 10ns;
end process;
END;
