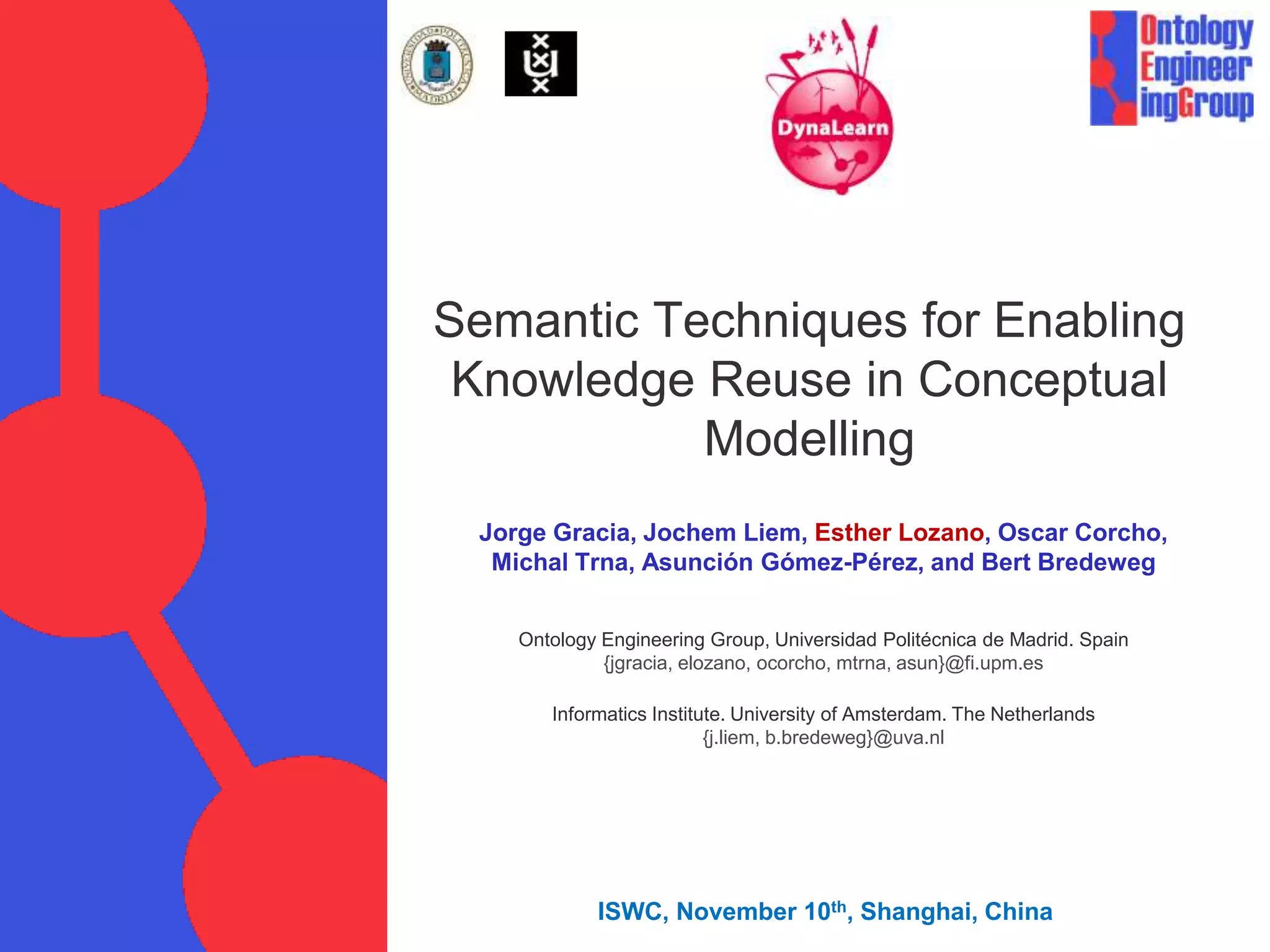

Semantic Techniques for Enabling
Knowledge Reuse in Conceptual
Modelling
Jorge Gracia, Jochem Liem, Esther Lozano, Oscar Corcho,
Michal Trna, Asunción Gómez-Pérez, and Bert Bredeweg
Ontology Engineering Group, Universidad Politécnica de Madrid. Spain
{jgracia, elozano, ocorcho, mtrna, asun}@fi.upm.es
Informatics Institute. University of Amsterdam. The Netherlands
{j.liem, b.bredeweg}@uva.nl
ISWC, November 10th, Shanghai, China

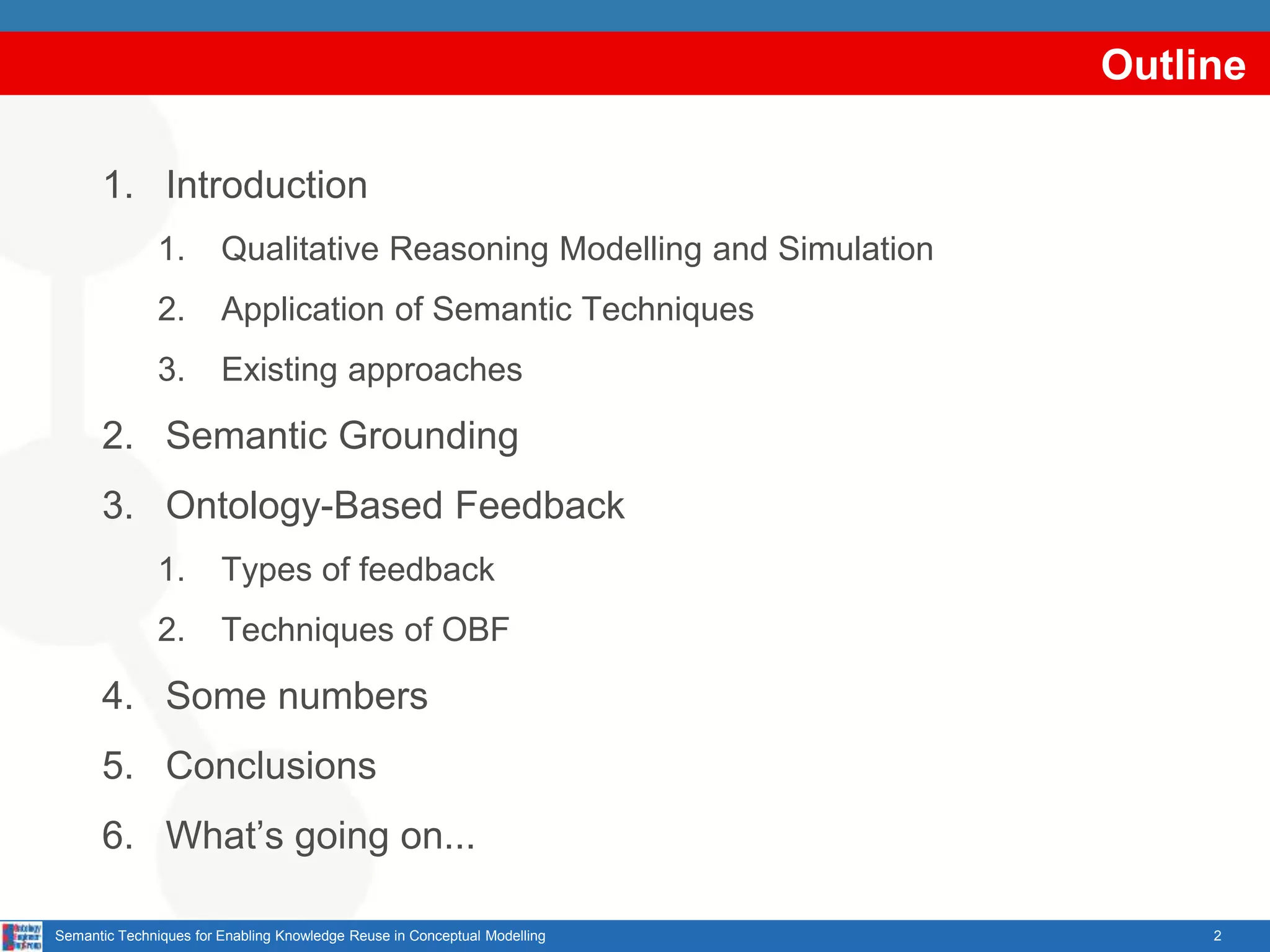

Outline
2
1. Introduction
1. Qualitative Reasoning Modelling and Simulation
2. Application of Semantic Techniques
3. Existing approaches
2. Semantic Grounding
3. Ontology-Based Feedback
1. Types of feedback
2. Techniques of OBF
4. Some numbers
5. Conclusions
6. What’s going on...
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Introduction
• Conceptual representation of physical
systems
• Prediction of the system behaviour
through reasoning
• Simulation
• Qualitative (important landmarks no
numerical details)
• Separation of structure and behaviour
• Multiple domains of application
• Environmental science
• Physics
• Economy
• ...
3
Qualitative Reasoning
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Introduction
• Learning by modelling approach
• Learners formally express and test their
conceptual knowledge about systems
in an educational context
• Desirable features:
– Shared learning environment, where
expert and learner models are uploaded
– Quality feedback extracted from the
common knowledge
4
QR in science and education
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
QR Modelling and Simulation
5
Knowledge Representation
Entity hierarchy Scenario
Quantity:
The dynamic aspects of
the system
Influence:
Natality determines δSize
Proportionality:
δSize determines δNatality
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Semantic Techniques
• Bridging the gap between the loosely and imprecise
terminology used by a learner and the well-defined semantics
of an ontology
• Relating the QR models created by other learners or experts in
order to automate the acquisition of feedback and
recommendations
6
How semantic techniques could help?
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Semantic Techniques
7
DynaLearn
http://hcs.science.uva.nl/projects/DynaLearn/
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Semantic Techniques
8
Student
Model
Grounding
OWL export
Semantic repository
Quality feedback
Online ontologies
Modelling tool The Web
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Existing approaches
• QR modelling and simulation tools: Betty’s brain, Stella
• Not grounding of terms to a common vocabulary
• Not quality feedback from other models
• Conceptual modelling techniques: CmapTools
• Concepts maps for knowledge representation
• Collaborative use
• No use of Semantic Web to maximize interoperability
• Not common shared vocabularies
• Semantic techniques to enhance collaborative learning:
DEPTH (Design Patterns Teaching Help System)
• Focused on software engineering education
• Supports recommendation more rather than quality feedback
9
Related work
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Outline
10
1. Introduction
1. Qualitative Reasoning Modelling and Simulation
2. Application of Semantic Techniques
3. Existing approaches
2. Semantic Grounding
3. Ontology-Based Feedback
1. Types of feedback
2. Techniques of OBF
4. Some numbers
5. Conclusions
6. What’s going on...
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Semantic Grounding
11
http://dbpedia.org/resource/Mortality_rate
http://dbpedia.org/resource/Population
http://www.anchorTerm.owl#NumberOf
Expert/teacher Student
grounding
Semantic repository
Anchor ontology
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Semantic Grounding
• Ensure lexical and semantic correctness of terms
• Ensure the interoperability among models
• Extraction of a common domain knowledge
• Detection of inconsistencies and contradictions between
models
• Inference of new, non declared, knowledge
• Assist the model construction with feedback and
recommendations
12
Benefits of grounding
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Outline
13
1. Introduction
1. Qualitative Reasoning Modelling and Simulation
2. Application of Semantic Techniques
3. Existing approaches
2. Semantic Grounding
3. Ontology-Based Feedback
1. Types of feedback
2. Techniques of OBF
4. Some numbers
5. Conclusions
6. What’s going on...
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Types of OBF
• Ontology matching based feedback
• Improvements of terminology
• Missing and extra terms in the learner model
− Missing hierarchical relations
• Semantic reasoning based feedback:
Inconsistency between hierarchies of models
• Structure comparison based feedback:
Differences between model structures
14Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Modules of OBF
15
Ontology
Matching
Semantic
Reasoner
Missing/Extra
Ontology Elements
List of
differences
Structure
Comparison
Grounding-Based
Alignment
Learner Model
+
Reference Model
Inconsistency
between Hierarchies
Differences between
Model Structures
Improvement of
Terminology
Preliminary
mappings
List of equivalent
terms
Grounding-Based Alignment
• In the learner model:
• In the reference model:
• Resulting preliminary mapping:
16
Ontology Matching
• Ontology matching tool: CIDER
• Input of the ontology matching tool
• Learner model with preliminary mappings
• Reference model
• Output: set of mappings (Alignment API format)
17
J. Gracia and E. Mena. Ontology matching with CIDER: Evaluation report for the OAEI 2008. In Proc. of 3rd Ontology Matching Workshop
(OM’08), at ISWC’08, Karlsruhe, Germany, volume 431, pages 140-146. CEUR-WS, October 2008
Ontology Matching
18
Improvement of terminology
Learner model: Reference model:
equivalent terms with different label
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Ontology Matching
19
Missing and extra terms in the learner model
Learner model: Reference model:
missing term
extra term
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Ontology Matching
20
Missing hierarchical relationships
Reference model:
missing term
equivalent terms
Learner model:
subclass of
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Semantic Reasoning
21
Inconsistency between hierarchies
Reference model:
Learner model:
equivalent terms
Disjoint classes
INCONSISTENT
HIERARCHIES!
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Structure Comparison
22
Missing QR structures
Learner model: Reference model:
missing model structures
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Outline
23
1. Introduction
1. Qualitative Reasoning Modelling and Simulation
2. Application of Semantic Techniques
3. Existing approaches
2. Semantic Grounding
3. Ontology-Based Feedback
1. Types of feedback
2. Techniques of OBF
4. Some numbers
5. Conclusions
6. What’s going on...
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Experimental Evaluation
Q1. Are Semantic Web resources suitable for
grounding specific domain vocabularies?
Q2. Are the state-of-the-art ontology matching tools
suitable for the alignment of QR models?
24
Some Research Questions
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Q1 – Semantic Web resources
Knowledge source Coverage Ratio
DBpedia 72%
OpenCyc 69%
WordNet 45%
Watson 47%
25
Tested 1686 different English words coming from DynaLearn glossaries
Knowledge source Coverage Ratio
DBpedia + Yahoo Spelling Suggestion 78%
What if we fix spelling errors and suggest nearby terms?: “fiter feeding”  “filter feeding”
Coverage Study
What if we combine several sources?:
Knowledge source Coverage Ratio
DBpedia + OpenCyc 87%
DBpedia + Watson 73%
Dbpedia + WordNet 72%
Dbpedia + OpenCyc + WordNet + Watson 88%
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Q1 – Semantic Web resources
• Tested 909 English labels covered by DBpedia, randomly selected from
DynaLearn glossaries
• Asked 8 expert evaluators, each one evaluated between 200-300
groundings. Each grounding was double-evaluated
• Question: For each grounded term, are all the relevant meanings that
you have in mind contained in the set of grounding candidates? If yes,
mark the relevant ones.
• Average accuracy: 83%
26
Accuracy Study
Inter-evaluator Agreement Level
Polysemy Agr eement (any) Cohen's Kappa
21,35 85% 0,47
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Q2 - Ontology Matching
• Golden standard defined by experts
• Eight QR models grouped by pairs
• Semantic equivalences between them were identified
• Result: reference alignment file
• Separated ontology alignment: CIDER, Falcon
• Each produced alignment was compared to the golden standard
27
Model Matching Experiment
Precision Recall
CIDER 92% 95%
Falcon 67% 95%
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
W. Hu and Y. Qu. Falcon-ao: A practical ontology matching system. Journal of Web Semantics, 6(3):237-239, 2008
Outline
1. Introduction
1. Qualitative Reasoning Modelling and Simulation
2. Application of Semantic Techniques
3. Existing approaches
2. Semantic Grounding
3. Ontology-Based Feedback
1. Types of Feedback
2. Techniques of OBF
4. Some numbers
5. Conclusions
6. What’s going on...
28Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Conclusions
• Support the creation of semantically networked models to
share and reuse conceptual knowledge
• QR models are exported into an ontological language and
grounded to an external common vocabulary
• Ontology matching techniques used to get quality feedback
29
Conclusions
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Outline
1. Introduction
1. Qualitative Reasoning Modelling and Simulation
2. Application of Semantic Techniques
3. Existing approaches
2. Semantic Grounding
3. Ontology-Based Feedback
1. Types of feedback
2. Techniques of OBF
4. Some numbers
5. Conclusions
6. What’s going on...
30Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
What’s going on…
31
Future Work
• Run usability studies on our ontology-based feedback
• Enrich our ontology matching based techniques with
advanced metrics
• Provide OBF results through the virtual characters
• Model recommendation based on the community of users
• Use our system in the academic domain to support
semantic-guided learning
• Publish this semantic data in the web of Linked Data
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
What’s going on…
32
OBF through virtual characters
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
Differences in terminology 2/8
The quantity Death rate of your model is
equivalent to the quantity Mortality of the
reference model. More info.
Do you want to rename the term as Mortality?
Yes No
Thanks for your attention!
33
Jorge Gracia
Facultad de Informática
Universidad Politécnica de Madrid
Campus de Montegancedo sn
28660 Boadilla del Monte, Madrid
http://www.oeg-upm.net
jgracia@delicias.dia.fi.upm.es
Phone: 34.91.3363670
Fax: 34.91.3524819
Some images under Creative Commons licence :
http://www.flickr.com/photos/binkley27/2969227096/
http://www.flickr.com/photos/tauntingpanda/14782257/
http://www.flickr.com/photos/rainforest_harley/232636845/
Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling

More Related Content

What's hot

JISC LADIE project Learning Design In Education
JISC LADIE project Learning Design In EducationJISC LADIE project Learning Design In Education
JISC LADIE project Learning Design In Education
grainne

EBank evaluation
EBank evaluationEBank evaluation
EBank evaluation
grainne

E assessment
E assessmentE assessment
E assessment
Magdy Mahdy

RALF (Redesigning Assessment and Learning with feedback in the VLEs) Project
RALF (Redesigning Assessment and Learning with feedback in the VLEs) ProjectRALF (Redesigning Assessment and Learning with feedback in the VLEs) Project
RALF (Redesigning Assessment and Learning with feedback in the VLEs) Project
Diogo Casanova

2015-11-19 Venia Legendi: Vladimir Tomberg
2015-11-19 Venia Legendi: Vladimir Tomberg2015-11-19 Venia Legendi: Vladimir Tomberg
2015-11-19 Venia Legendi: Vladimir Tomberg
ifi8106tlu

Xiao Hu "Overview of the Space of Learning Analytics and Educational Data Min...
Xiao Hu "Overview of the Space of Learning Analytics and Educational Data Min...Xiao Hu "Overview of the Space of Learning Analytics and Educational Data Min...
Xiao Hu "Overview of the Space of Learning Analytics and Educational Data Min...
CITE

2015 11-17 Venia Legendi Kairit Tammets
2015 11-17 Venia Legendi Kairit Tammets2015 11-17 Venia Legendi Kairit Tammets
2015 11-17 Venia Legendi Kairit Tammets
ifi8106tlu

A learning design toolkit for creating effective learning activities
A learning design toolkit for creating effective learning activitiesA learning design toolkit for creating effective learning activities
A learning design toolkit for creating effective learning activities
grainne

The User Side of Personalization: How Personalization Affects the Users
The User Side of Personalization: How Personalization Affects the UsersThe User Side of Personalization: How Personalization Affects the Users
The User Side of Personalization: How Personalization Affects the Users
Peter Brusilovsky

Project-based Collaborative Learning Environment with Context-aware Education...
Project-based Collaborative Learning Environment with Context-aware Education...Project-based Collaborative Learning Environment with Context-aware Education...
Project-based Collaborative Learning Environment with Context-aware Education...
Zoran Jeremic

2016-05-31 Venia Legendi (CEITER): Adolfo Ruiz Calleja
2016-05-31 Venia Legendi (CEITER): Adolfo Ruiz Calleja2016-05-31 Venia Legendi (CEITER): Adolfo Ruiz Calleja
2016-05-31 Venia Legendi (CEITER): Adolfo Ruiz Calleja
ifi8106tlu

PhD Dissertation
PhD DissertationPhD Dissertation
PhD Dissertation
Zoran Jeremic

An insight into Educational Data Mining at Muğla Sıtkı Koçman University, Turkey
An insight into Educational Data Mining at Muğla Sıtkı Koçman University, TurkeyAn insight into Educational Data Mining at Muğla Sıtkı Koçman University, Turkey
An insight into Educational Data Mining at Muğla Sıtkı Koçman University, Turkey
strehlst

Human Interfaces to Artificial Intelligence in Education
Human Interfaces to Artificial Intelligence in EducationHuman Interfaces to Artificial Intelligence in Education
Human Interfaces to Artificial Intelligence in Education
Peter Brusilovsky

DialogPlus toolkit
DialogPlus toolkitDialogPlus toolkit
DialogPlus toolkit
grainne

Learning analytics are more than a technology
Learning analytics are more than a technologyLearning analytics are more than a technology
Learning analytics are more than a technology
Dragan Gasevic

Bridging the gap: e-learning research
Bridging the gap: e-learning researchBridging the gap: e-learning research
Bridging the gap: e-learning research
grainne

Conole Jisc Lxp
Conole Jisc LxpConole Jisc Lxp
Conole Jisc Lxp
grainne

The OER quality debate: explaining academics’ attitudes about quality
The OER quality debate: explaining academics’ attitudes about qualityThe OER quality debate: explaining academics’ attitudes about quality
The OER quality debate: explaining academics’ attitudes about quality
Global OER Graduate Network

E-learning research methodological issues
E-learning research methodological issuesE-learning research methodological issues
E-learning research methodological issues
grainne


What's hot (20)

JISC LADIE project Learning Design In Education
JISC LADIE project Learning Design In EducationJISC LADIE project Learning Design In Education
JISC LADIE project Learning Design In Education

EBank evaluation
EBank evaluationEBank evaluation
EBank evaluation

E assessment
E assessmentE assessment
E assessment

RALF (Redesigning Assessment and Learning with feedback in the VLEs) Project
RALF (Redesigning Assessment and Learning with feedback in the VLEs) ProjectRALF (Redesigning Assessment and Learning with feedback in the VLEs) Project
RALF (Redesigning Assessment and Learning with feedback in the VLEs) Project

2015-11-19 Venia Legendi: Vladimir Tomberg
2015-11-19 Venia Legendi: Vladimir Tomberg2015-11-19 Venia Legendi: Vladimir Tomberg
2015-11-19 Venia Legendi: Vladimir Tomberg

Xiao Hu "Overview of the Space of Learning Analytics and Educational Data Min...
Xiao Hu "Overview of the Space of Learning Analytics and Educational Data Min...Xiao Hu "Overview of the Space of Learning Analytics and Educational Data Min...
Xiao Hu "Overview of the Space of Learning Analytics and Educational Data Min...

2015 11-17 Venia Legendi Kairit Tammets
2015 11-17 Venia Legendi Kairit Tammets2015 11-17 Venia Legendi Kairit Tammets
2015 11-17 Venia Legendi Kairit Tammets

A learning design toolkit for creating effective learning activities
A learning design toolkit for creating effective learning activitiesA learning design toolkit for creating effective learning activities
A learning design toolkit for creating effective learning activities

The User Side of Personalization: How Personalization Affects the Users
The User Side of Personalization: How Personalization Affects the UsersThe User Side of Personalization: How Personalization Affects the Users
The User Side of Personalization: How Personalization Affects the Users

Project-based Collaborative Learning Environment with Context-aware Education...
Project-based Collaborative Learning Environment with Context-aware Education...Project-based Collaborative Learning Environment with Context-aware Education...
Project-based Collaborative Learning Environment with Context-aware Education...

2016-05-31 Venia Legendi (CEITER): Adolfo Ruiz Calleja
2016-05-31 Venia Legendi (CEITER): Adolfo Ruiz Calleja2016-05-31 Venia Legendi (CEITER): Adolfo Ruiz Calleja
2016-05-31 Venia Legendi (CEITER): Adolfo Ruiz Calleja

PhD Dissertation
PhD DissertationPhD Dissertation
PhD Dissertation

An insight into Educational Data Mining at Muğla Sıtkı Koçman University, Turkey
An insight into Educational Data Mining at Muğla Sıtkı Koçman University, TurkeyAn insight into Educational Data Mining at Muğla Sıtkı Koçman University, Turkey
An insight into Educational Data Mining at Muğla Sıtkı Koçman University, Turkey

Human Interfaces to Artificial Intelligence in Education
Human Interfaces to Artificial Intelligence in EducationHuman Interfaces to Artificial Intelligence in Education
Human Interfaces to Artificial Intelligence in Education

DialogPlus toolkit
DialogPlus toolkitDialogPlus toolkit
DialogPlus toolkit

Learning analytics are more than a technology
Learning analytics are more than a technologyLearning analytics are more than a technology
Learning analytics are more than a technology

Bridging the gap: e-learning research
Bridging the gap: e-learning researchBridging the gap: e-learning research
Bridging the gap: e-learning research

Conole Jisc Lxp
Conole Jisc LxpConole Jisc Lxp
Conole Jisc Lxp

The OER quality debate: explaining academics’ attitudes about quality
The OER quality debate: explaining academics’ attitudes about qualityThe OER quality debate: explaining academics’ attitudes about quality
The OER quality debate: explaining academics’ attitudes about quality

E-learning research methodological issues
E-learning research methodological issuesE-learning research methodological issues
E-learning research methodological issues


Viewers also liked

Applications for Social Networking Strategies in an Agency Context: Exploitin...
Applications for Social Networking Strategies in an Agency Context: Exploitin...Applications for Social Networking Strategies in an Agency Context: Exploitin...
Applications for Social Networking Strategies in an Agency Context: Exploitin...
BoaB Team

Social Media Strategies for Schools for OASBO Conference
Social Media Strategies for Schools for OASBO ConferenceSocial Media Strategies for Schools for OASBO Conference
Social Media Strategies for Schools for OASBO Conference
Shane Haggerty

Linkedin Slideshare Driving Force Btec
Linkedin Slideshare   Driving Force BtecLinkedin Slideshare   Driving Force Btec
Linkedin Slideshare Driving Force Btec
Ian Littlefield

"Unë do t'ju tregoj të ardhmen 1"
"Unë do t'ju tregoj të ardhmen 1""Unë do t'ju tregoj të ardhmen 1"
"Unë do t'ju tregoj të ardhmen 1"
guest121301

The threat to small business retirement savings
The threat to small business retirement savingsThe threat to small business retirement savings
The threat to small business retirement savings
U.S. Chamber of Commerce

Performance-Based Funding – A New Era in Accountability?
Performance-Based Funding – A New Era in Accountability?Performance-Based Funding – A New Era in Accountability?
Performance-Based Funding – A New Era in Accountability?
Ludmila Adamovica

CP2 Newport Beach 2010
CP2 Newport Beach 2010CP2 Newport Beach 2010
CP2 Newport Beach 2010
nb4less

Subway in Lisbon
Subway in Lisbon Subway in Lisbon
Subway in Lisbon
Lavennder M

Ux och design som konverterar del 3
Ux och design som konverterar del 3Ux och design som konverterar del 3
Ux och design som konverterar del 3
Wipcore

Humans & Machines Ethics Canvas
Humans & Machines Ethics CanvasHumans & Machines Ethics Canvas
Humans & Machines Ethics Canvas
Piush Vaish

Презентация агентства PRCI.Storytellers
Презентация агентства PRCI.StorytellersПрезентация агентства PRCI.Storytellers
Презентация агентства PRCI.Storytellers
Коммуникационное агентство PRSI.Storytellers

Storytelling + Experiences: Ingredients of a Successful Redesign
Storytelling + Experiences: Ingredients of a Successful RedesignStorytelling + Experiences: Ingredients of a Successful Redesign
Storytelling + Experiences: Ingredients of a Successful Redesign
mStoner, Inc.

Why is ECD the Bona Fide Foundation for the SDGs - Pia Rebello Britto, Senior...
Why is ECD the Bona Fide Foundation for the SDGs - Pia Rebello Britto, Senior...Why is ECD the Bona Fide Foundation for the SDGs - Pia Rebello Britto, Senior...
Why is ECD the Bona Fide Foundation for the SDGs - Pia Rebello Britto, Senior...
unicefmne

Glassdoor Summit: Ana Recio
Glassdoor Summit: Ana RecioGlassdoor Summit: Ana Recio
Glassdoor Summit: Ana Recio
Glassdoor


Viewers also liked (14)

Applications for Social Networking Strategies in an Agency Context: Exploitin...
Applications for Social Networking Strategies in an Agency Context: Exploitin...Applications for Social Networking Strategies in an Agency Context: Exploitin...
Applications for Social Networking Strategies in an Agency Context: Exploitin...

Social Media Strategies for Schools for OASBO Conference
Social Media Strategies for Schools for OASBO ConferenceSocial Media Strategies for Schools for OASBO Conference
Social Media Strategies for Schools for OASBO Conference

Linkedin Slideshare Driving Force Btec
Linkedin Slideshare   Driving Force BtecLinkedin Slideshare   Driving Force Btec
Linkedin Slideshare Driving Force Btec

"Unë do t'ju tregoj të ardhmen 1"
"Unë do t'ju tregoj të ardhmen 1""Unë do t'ju tregoj të ardhmen 1"
"Unë do t'ju tregoj të ardhmen 1"

The threat to small business retirement savings
The threat to small business retirement savingsThe threat to small business retirement savings
The threat to small business retirement savings

Performance-Based Funding – A New Era in Accountability?
Performance-Based Funding – A New Era in Accountability?Performance-Based Funding – A New Era in Accountability?
Performance-Based Funding – A New Era in Accountability?

CP2 Newport Beach 2010
CP2 Newport Beach 2010CP2 Newport Beach 2010
CP2 Newport Beach 2010

Subway in Lisbon
Subway in Lisbon Subway in Lisbon
Subway in Lisbon

Ux och design som konverterar del 3
Ux och design som konverterar del 3Ux och design som konverterar del 3
Ux och design som konverterar del 3

Humans & Machines Ethics Canvas
Humans & Machines Ethics CanvasHumans & Machines Ethics Canvas
Humans & Machines Ethics Canvas

Презентация агентства PRCI.Storytellers
Презентация агентства PRCI.StorytellersПрезентация агентства PRCI.Storytellers
Презентация агентства PRCI.Storytellers

Storytelling + Experiences: Ingredients of a Successful Redesign
Storytelling + Experiences: Ingredients of a Successful RedesignStorytelling + Experiences: Ingredients of a Successful Redesign
Storytelling + Experiences: Ingredients of a Successful Redesign

Why is ECD the Bona Fide Foundation for the SDGs - Pia Rebello Britto, Senior...
Why is ECD the Bona Fide Foundation for the SDGs - Pia Rebello Britto, Senior...Why is ECD the Bona Fide Foundation for the SDGs - Pia Rebello Britto, Senior...
Why is ECD the Bona Fide Foundation for the SDGs - Pia Rebello Britto, Senior...

Glassdoor Summit: Ana Recio
Glassdoor Summit: Ana RecioGlassdoor Summit: Ana Recio
Glassdoor Summit: Ana Recio


Similar to Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling

2012 01 20 (upm) emadrid ocorcho upm dynalearn tecnologias semanticas en cont...
2012 01 20 (upm) emadrid ocorcho upm dynalearn tecnologias semanticas en cont...2012 01 20 (upm) emadrid ocorcho upm dynalearn tecnologias semanticas en cont...
2012 01 20 (upm) emadrid ocorcho upm dynalearn tecnologias semanticas en cont...
eMadrid network

DynaLearn: Problem-based learning supported by semantic techniques
DynaLearn: Problem-based learning supported by semantic techniquesDynaLearn: Problem-based learning supported by semantic techniques
DynaLearn: Problem-based learning supported by semantic techniques
Oscar Corcho

Experimenting with eXtreme Design (EKAW2010)
Experimenting with eXtreme Design (EKAW2010)Experimenting with eXtreme Design (EKAW2010)
Experimenting with eXtreme Design (EKAW2010)
evabl444

Domain Modeling for Personalized Learning
Domain Modeling for Personalized LearningDomain Modeling for Personalized Learning
Domain Modeling for Personalized Learning
Peter Brusilovsky

Assessing cognitive presence using automated learning analytics methods
Assessing cognitive presence using automated learning analytics methodsAssessing cognitive presence using automated learning analytics methods
Assessing cognitive presence using automated learning analytics methods
Vitomir Kovanovic

Methods for Ontology Design Patterns reuse
Methods for Ontology Design Patterns reuseMethods for Ontology Design Patterns reuse
Methods for Ontology Design Patterns reuse
Valentina Presutti

Module Code SD3012 Module NameArtificia.docx
Module Code SD3012 Module NameArtificia.docxModule Code SD3012 Module NameArtificia.docx
Module Code SD3012 Module NameArtificia.docx
moirarandell

Knowledge Patterns SSSW2016
Knowledge Patterns SSSW2016Knowledge Patterns SSSW2016
Knowledge Patterns SSSW2016
Aldo Gangemi

A Reuse-based Lightweight Method for Developing Linked Data Ontologies and Vo...
A Reuse-based Lightweight Method for Developing Linked Data Ontologies and Vo...A Reuse-based Lightweight Method for Developing Linked Data Ontologies and Vo...
A Reuse-based Lightweight Method for Developing Linked Data Ontologies and Vo...
María Poveda Villalón

SemTech Survey - Web Science 2009 Conference
SemTech Survey - Web Science 2009 ConferenceSemTech Survey - Web Science 2009 Conference
SemTech Survey - Web Science 2009 Conference
thanassis

A Simplified Agile Methodology for Ontology Development
A Simplified Agile Methodology for Ontology DevelopmentA Simplified Agile Methodology for Ontology Development
A Simplified Agile Methodology for Ontology Development
University of Bologna

Linking Heterogeneous Scholarly Data Sources in an Interoperable Setting: the...
Linking Heterogeneous Scholarly Data Sources in an Interoperable Setting: the...Linking Heterogeneous Scholarly Data Sources in an Interoperable Setting: the...
Linking Heterogeneous Scholarly Data Sources in an Interoperable Setting: the...
Platforma Otwartej Nauki

Adaptive Learning Systems: A review of Adaptation.
Adaptive Learning Systems: A review of Adaptation.Adaptive Learning Systems: A review of Adaptation.
Adaptive Learning Systems: A review of Adaptation.
Peter Brusilovsky

A Semantic-rich Framework for Learning Software Patterns
A Semantic-rich Framework for Learning Software PatternsA Semantic-rich Framework for Learning Software Patterns
A Semantic-rich Framework for Learning Software Patterns
Zoran Jeremic

Xiangen Hu - WESST - AutoTutor, an implementation of Conversation-Based Intel...
Xiangen Hu - WESST - AutoTutor, an implementation of Conversation-Based Intel...Xiangen Hu - WESST - AutoTutor, an implementation of Conversation-Based Intel...
Xiangen Hu - WESST - AutoTutor, an implementation of Conversation-Based Intel...
NUS Institute of Applied Learning Sciences and Educational Technology

Expert Perceptions of the Feasibility of MOOCs
Expert Perceptions of the Feasibility of MOOCsExpert Perceptions of the Feasibility of MOOCs
Expert Perceptions of the Feasibility of MOOCs
Shalin Hai-Jew

Harnessing Textbooks for High-Quality Labeled Data: An Approach to Automatic ...
Harnessing Textbooks for High-Quality Labeled Data: An Approach to Automatic ...Harnessing Textbooks for High-Quality Labeled Data: An Approach to Automatic ...
Harnessing Textbooks for High-Quality Labeled Data: An Approach to Automatic ...
Sergey Sosnovsky

Master's Seminar
Master's SeminarMaster's Seminar
Master's Seminar
Bhagwan Kamble

OnCourse Instructional Design Model
OnCourse Instructional Design ModelOnCourse Instructional Design Model
OnCourse Instructional Design Model
Heather Mendoza

Orchestrating collaborative technology-enhanced ecosystems: How to support te...
Orchestrating collaborative technology-enhanced ecosystems: How to support te...Orchestrating collaborative technology-enhanced ecosystems: How to support te...
Orchestrating collaborative technology-enhanced ecosystems: How to support te...
Yannis


Similar to Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling (20)

2012 01 20 (upm) emadrid ocorcho upm dynalearn tecnologias semanticas en cont...
2012 01 20 (upm) emadrid ocorcho upm dynalearn tecnologias semanticas en cont...2012 01 20 (upm) emadrid ocorcho upm dynalearn tecnologias semanticas en cont...
2012 01 20 (upm) emadrid ocorcho upm dynalearn tecnologias semanticas en cont...

DynaLearn: Problem-based learning supported by semantic techniques
DynaLearn: Problem-based learning supported by semantic techniquesDynaLearn: Problem-based learning supported by semantic techniques
DynaLearn: Problem-based learning supported by semantic techniques

Experimenting with eXtreme Design (EKAW2010)
Experimenting with eXtreme Design (EKAW2010)Experimenting with eXtreme Design (EKAW2010)
Experimenting with eXtreme Design (EKAW2010)

Domain Modeling for Personalized Learning
Domain Modeling for Personalized LearningDomain Modeling for Personalized Learning
Domain Modeling for Personalized Learning

Assessing cognitive presence using automated learning analytics methods
Assessing cognitive presence using automated learning analytics methodsAssessing cognitive presence using automated learning analytics methods
Assessing cognitive presence using automated learning analytics methods

Methods for Ontology Design Patterns reuse
Methods for Ontology Design Patterns reuseMethods for Ontology Design Patterns reuse
Methods for Ontology Design Patterns reuse

Module Code SD3012 Module NameArtificia.docx
Module Code SD3012 Module NameArtificia.docxModule Code SD3012 Module NameArtificia.docx
Module Code SD3012 Module NameArtificia.docx

Knowledge Patterns SSSW2016
Knowledge Patterns SSSW2016Knowledge Patterns SSSW2016
Knowledge Patterns SSSW2016

A Reuse-based Lightweight Method for Developing Linked Data Ontologies and Vo...
A Reuse-based Lightweight Method for Developing Linked Data Ontologies and Vo...A Reuse-based Lightweight Method for Developing Linked Data Ontologies and Vo...
A Reuse-based Lightweight Method for Developing Linked Data Ontologies and Vo...

SemTech Survey - Web Science 2009 Conference
SemTech Survey - Web Science 2009 ConferenceSemTech Survey - Web Science 2009 Conference
SemTech Survey - Web Science 2009 Conference

A Simplified Agile Methodology for Ontology Development
A Simplified Agile Methodology for Ontology DevelopmentA Simplified Agile Methodology for Ontology Development
A Simplified Agile Methodology for Ontology Development

Linking Heterogeneous Scholarly Data Sources in an Interoperable Setting: the...
Linking Heterogeneous Scholarly Data Sources in an Interoperable Setting: the...Linking Heterogeneous Scholarly Data Sources in an Interoperable Setting: the...
Linking Heterogeneous Scholarly Data Sources in an Interoperable Setting: the...

Adaptive Learning Systems: A review of Adaptation.
Adaptive Learning Systems: A review of Adaptation.Adaptive Learning Systems: A review of Adaptation.
Adaptive Learning Systems: A review of Adaptation.

A Semantic-rich Framework for Learning Software Patterns
A Semantic-rich Framework for Learning Software PatternsA Semantic-rich Framework for Learning Software Patterns
A Semantic-rich Framework for Learning Software Patterns

Xiangen Hu - WESST - AutoTutor, an implementation of Conversation-Based Intel...
Xiangen Hu - WESST - AutoTutor, an implementation of Conversation-Based Intel...Xiangen Hu - WESST - AutoTutor, an implementation of Conversation-Based Intel...
Xiangen Hu - WESST - AutoTutor, an implementation of Conversation-Based Intel...

Expert Perceptions of the Feasibility of MOOCs
Expert Perceptions of the Feasibility of MOOCsExpert Perceptions of the Feasibility of MOOCs
Expert Perceptions of the Feasibility of MOOCs

Harnessing Textbooks for High-Quality Labeled Data: An Approach to Automatic ...
Harnessing Textbooks for High-Quality Labeled Data: An Approach to Automatic ...Harnessing Textbooks for High-Quality Labeled Data: An Approach to Automatic ...
Harnessing Textbooks for High-Quality Labeled Data: An Approach to Automatic ...

Master's Seminar
Master's SeminarMaster's Seminar
Master's Seminar

OnCourse Instructional Design Model
OnCourse Instructional Design ModelOnCourse Instructional Design Model
OnCourse Instructional Design Model

Orchestrating collaborative technology-enhanced ecosystems: How to support te...
Orchestrating collaborative technology-enhanced ecosystems: How to support te...Orchestrating collaborative technology-enhanced ecosystems: How to support te...
Orchestrating collaborative technology-enhanced ecosystems: How to support te...


More from Oscar Corcho

Organisational Interoperability in Practice at Universidad Politécnica de Madrid
Organisational Interoperability in Practice at Universidad Politécnica de MadridOrganisational Interoperability in Practice at Universidad Politécnica de Madrid
Organisational Interoperability in Practice at Universidad Politécnica de Madrid
Oscar Corcho

Introducción a los Datos Abiertos - Open Data Day 2020
Introducción a los Datos Abiertos - Open Data Day 2020Introducción a los Datos Abiertos - Open Data Day 2020
Introducción a los Datos Abiertos - Open Data Day 2020
Oscar Corcho

Open Data (and Software, and other Research Artefacts) - A proper management
Open Data (and Software, and other Research Artefacts) -A proper managementOpen Data (and Software, and other Research Artefacts) -A proper management
Open Data (and Software, and other Research Artefacts) - A proper management
Oscar Corcho

Adiós a los ficheros, hola a los grafos de conocimientos estadísticos
Adiós a los ficheros, hola a los grafos de conocimientos estadísticosAdiós a los ficheros, hola a los grafos de conocimientos estadísticos
Adiós a los ficheros, hola a los grafos de conocimientos estadísticos
Oscar Corcho

Ontology Engineering at Scale for Open City Data Sharing
Ontology Engineering at Scale for Open City Data SharingOntology Engineering at Scale for Open City Data Sharing
Ontology Engineering at Scale for Open City Data Sharing
Oscar Corcho

Situación de las iniciativas de Open Data internacionales (y algunas recomen...
Situación de las iniciativas de Open Data internacionales (y algunas recomen...Situación de las iniciativas de Open Data internacionales (y algunas recomen...
Situación de las iniciativas de Open Data internacionales (y algunas recomen...
Oscar Corcho

STARS4ALL - Contaminación Lumínica
STARS4ALL - Contaminación LumínicaSTARS4ALL - Contaminación Lumínica
STARS4ALL - Contaminación Lumínica
Oscar Corcho

Towards Reproducible Science: a few building blocks from my personal experience
Towards Reproducible Science: a few building blocks from my personal experienceTowards Reproducible Science: a few building blocks from my personal experience
Towards Reproducible Science: a few building blocks from my personal experience
Oscar Corcho

Publishing Linked Statistical Data: Aragón, a case study
Publishing Linked Statistical Data: Aragón, a case studyPublishing Linked Statistical Data: Aragón, a case study
Publishing Linked Statistical Data: Aragón, a case study
Oscar Corcho

An initial analysis of topic-based similarity among scientific documents base...
An initial analysis of topic-based similarity among scientific documents base...An initial analysis of topic-based similarity among scientific documents base...
An initial analysis of topic-based similarity among scientific documents base...
Oscar Corcho

Linked Statistical Data 101
Linked Statistical Data 101Linked Statistical Data 101
Linked Statistical Data 101
Oscar Corcho

Aplicando los principios de Linked Data en AEMET
Aplicando los principios de Linked Data en AEMETAplicando los principios de Linked Data en AEMET
Aplicando los principios de Linked Data en AEMET
Oscar Corcho

Ojo Al Data 100 - Call for sharing session at IODC 2016
Ojo Al Data 100 - Call for sharing session at IODC 2016Ojo Al Data 100 - Call for sharing session at IODC 2016
Ojo Al Data 100 - Call for sharing session at IODC 2016
Oscar Corcho

Educando sobre datos abiertos: desde el colegio a la universidad
Educando sobre datos abiertos: desde el colegio a la universidadEducando sobre datos abiertos: desde el colegio a la universidad
Educando sobre datos abiertos: desde el colegio a la universidad
Oscar Corcho

STARS4ALL general presentation at ALAN2016
STARS4ALL general presentation at ALAN2016STARS4ALL general presentation at ALAN2016
STARS4ALL general presentation at ALAN2016
Oscar Corcho

Generación de datos estadísticos enlazados del Instituto Aragonés de Estadística
Generación de datos estadísticos enlazados del Instituto Aragonés de EstadísticaGeneración de datos estadísticos enlazados del Instituto Aragonés de Estadística
Generación de datos estadísticos enlazados del Instituto Aragonés de Estadística
Oscar Corcho

Presentación de la red de excelencia de Open Data y Smart Cities
Presentación de la red de excelencia de Open Data y Smart CitiesPresentación de la red de excelencia de Open Data y Smart Cities
Presentación de la red de excelencia de Open Data y Smart Cities
Oscar Corcho

Why do they call it Linked Data when they want to say...?
Why do they call it Linked Data when they want to say...?Why do they call it Linked Data when they want to say...?
Why do they call it Linked Data when they want to say...?
Oscar Corcho

Linked Statistical Data: does it actually pay off?
Linked Statistical Data: does it actually pay off?Linked Statistical Data: does it actually pay off?
Linked Statistical Data: does it actually pay off?
Oscar Corcho

Slow-cooked data and APIs in the world of Big Data: the view from a city per...
Slow-cooked data and APIs in the world of Big Data: the view from a city per...Slow-cooked data and APIs in the world of Big Data: the view from a city per...
Slow-cooked data and APIs in the world of Big Data: the view from a city per...
Oscar Corcho


More from Oscar Corcho (20)

Organisational Interoperability in Practice at Universidad Politécnica de Madrid
Organisational Interoperability in Practice at Universidad Politécnica de MadridOrganisational Interoperability in Practice at Universidad Politécnica de Madrid
Organisational Interoperability in Practice at Universidad Politécnica de Madrid

Introducción a los Datos Abiertos - Open Data Day 2020
Introducción a los Datos Abiertos - Open Data Day 2020Introducción a los Datos Abiertos - Open Data Day 2020
Introducción a los Datos Abiertos - Open Data Day 2020

Open Data (and Software, and other Research Artefacts) - A proper management
Open Data (and Software, and other Research Artefacts) -A proper managementOpen Data (and Software, and other Research Artefacts) -A proper management
Open Data (and Software, and other Research Artefacts) - A proper management

Adiós a los ficheros, hola a los grafos de conocimientos estadísticos
Adiós a los ficheros, hola a los grafos de conocimientos estadísticosAdiós a los ficheros, hola a los grafos de conocimientos estadísticos
Adiós a los ficheros, hola a los grafos de conocimientos estadísticos

Ontology Engineering at Scale for Open City Data Sharing
Ontology Engineering at Scale for Open City Data SharingOntology Engineering at Scale for Open City Data Sharing
Ontology Engineering at Scale for Open City Data Sharing

Situación de las iniciativas de Open Data internacionales (y algunas recomen...
Situación de las iniciativas de Open Data internacionales (y algunas recomen...Situación de las iniciativas de Open Data internacionales (y algunas recomen...
Situación de las iniciativas de Open Data internacionales (y algunas recomen...

STARS4ALL - Contaminación Lumínica
STARS4ALL - Contaminación LumínicaSTARS4ALL - Contaminación Lumínica
STARS4ALL - Contaminación Lumínica

Towards Reproducible Science: a few building blocks from my personal experience
Towards Reproducible Science: a few building blocks from my personal experienceTowards Reproducible Science: a few building blocks from my personal experience
Towards Reproducible Science: a few building blocks from my personal experience

Publishing Linked Statistical Data: Aragón, a case study
Publishing Linked Statistical Data: Aragón, a case studyPublishing Linked Statistical Data: Aragón, a case study
Publishing Linked Statistical Data: Aragón, a case study

An initial analysis of topic-based similarity among scientific documents base...
An initial analysis of topic-based similarity among scientific documents base...An initial analysis of topic-based similarity among scientific documents base...
An initial analysis of topic-based similarity among scientific documents base...

Linked Statistical Data 101
Linked Statistical Data 101Linked Statistical Data 101
Linked Statistical Data 101

Aplicando los principios de Linked Data en AEMET
Aplicando los principios de Linked Data en AEMETAplicando los principios de Linked Data en AEMET
Aplicando los principios de Linked Data en AEMET

Ojo Al Data 100 - Call for sharing session at IODC 2016
Ojo Al Data 100 - Call for sharing session at IODC 2016Ojo Al Data 100 - Call for sharing session at IODC 2016
Ojo Al Data 100 - Call for sharing session at IODC 2016

Educando sobre datos abiertos: desde el colegio a la universidad
Educando sobre datos abiertos: desde el colegio a la universidadEducando sobre datos abiertos: desde el colegio a la universidad
Educando sobre datos abiertos: desde el colegio a la universidad

STARS4ALL general presentation at ALAN2016
STARS4ALL general presentation at ALAN2016STARS4ALL general presentation at ALAN2016
STARS4ALL general presentation at ALAN2016

Generación de datos estadísticos enlazados del Instituto Aragonés de Estadística
Generación de datos estadísticos enlazados del Instituto Aragonés de EstadísticaGeneración de datos estadísticos enlazados del Instituto Aragonés de Estadística
Generación de datos estadísticos enlazados del Instituto Aragonés de Estadística

Presentación de la red de excelencia de Open Data y Smart Cities
Presentación de la red de excelencia de Open Data y Smart CitiesPresentación de la red de excelencia de Open Data y Smart Cities
Presentación de la red de excelencia de Open Data y Smart Cities

Why do they call it Linked Data when they want to say...?
Why do they call it Linked Data when they want to say...?Why do they call it Linked Data when they want to say...?
Why do they call it Linked Data when they want to say...?

Linked Statistical Data: does it actually pay off?
Linked Statistical Data: does it actually pay off?Linked Statistical Data: does it actually pay off?
Linked Statistical Data: does it actually pay off?

Slow-cooked data and APIs in the world of Big Data: the view from a city per...
Slow-cooked data and APIs in the world of Big Data: the view from a city per...Slow-cooked data and APIs in the world of Big Data: the view from a city per...
Slow-cooked data and APIs in the world of Big Data: the view from a city per...


Recently uploaded

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx
heathfieldcps1

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
RAHUL

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.
Dr. Shivangi Singh Parihar

How to deliver Powerpoint Presentations.pptx
How to deliver Powerpoint  Presentations.pptxHow to deliver Powerpoint  Presentations.pptx
How to deliver Powerpoint Presentations.pptx
HajraNaeem15

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
Nguyen Thanh Tu Collection

How to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold MethodHow to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold Method
Celine George

Reimagining Your Library Space: How to Increase the Vibes in Your Library No ...
Reimagining Your Library Space: How to Increase the Vibes in Your Library No ...Reimagining Your Library Space: How to Increase the Vibes in Your Library No ...
Reimagining Your Library Space: How to Increase the Vibes in Your Library No ...
Diana Rendina

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Mohd Adib Abd Muin, Senior Lecturer at Universiti Utara Malaysia

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory
Celine George

NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptxNEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
iammrhaywood

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)
Academy of Science of South Africa

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM
Celine George

MARY JANE WILSON, A “BOA MÃE” .
MARY JANE WILSON, A “BOA MÃE”           .MARY JANE WILSON, A “BOA MÃE”           .
MARY JANE WILSON, A “BOA MÃE” .
Colégio Santa Teresinha

How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17
Celine George

Digital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental DesignDigital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental Design
amberjdewit93

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17
Celine George

Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
National Information Standards Organization (NISO)

Cognitive Development Adolescence Psychology
Cognitive Development Adolescence PsychologyCognitive Development Adolescence Psychology
Cognitive Development Adolescence Psychology
paigestewart1632

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf
TechSoup

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand


Recently uploaded (20)

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx

LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UPLAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP
LAND USE LAND COVER AND NDVI OF MIRZAPUR DISTRICT, UP

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.

How to deliver Powerpoint Presentations.pptx
How to deliver Powerpoint  Presentations.pptxHow to deliver Powerpoint  Presentations.pptx
How to deliver Powerpoint Presentations.pptx

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...

How to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold MethodHow to Build a Module in Odoo 17 Using the Scaffold Method
How to Build a Module in Odoo 17 Using the Scaffold Method

Reimagining Your Library Space: How to Increase the Vibes in Your Library No ...
Reimagining Your Library Space: How to Increase the Vibes in Your Library No ...Reimagining Your Library Space: How to Increase the Vibes in Your Library No ...
Reimagining Your Library Space: How to Increase the Vibes in Your Library No ...

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory

NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptxNEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx
NEWSPAPERS - QUESTION 1 - REVISION POWERPOINT.pptx

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM

MARY JANE WILSON, A “BOA MÃE” .
MARY JANE WILSON, A “BOA MÃE”           .MARY JANE WILSON, A “BOA MÃE”           .
MARY JANE WILSON, A “BOA MÃE” .

How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17

Digital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental DesignDigital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental Design

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17

Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...
Pollock and Snow "DEIA in the Scholarly Landscape, Session One: Setting Expec...

Cognitive Development Adolescence Psychology
Cognitive Development Adolescence PsychologyCognitive Development Adolescence Psychology
Cognitive Development Adolescence Psychology

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT


Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling

  • 1. Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling Jorge Gracia, Jochem Liem, Esther Lozano, Oscar Corcho, Michal Trna, Asunción Gómez-Pérez, and Bert Bredeweg Ontology Engineering Group, Universidad Politécnica de Madrid. Spain {jgracia, elozano, ocorcho, mtrna, asun}@fi.upm.es Informatics Institute. University of Amsterdam. The Netherlands {j.liem, b.bredeweg}@uva.nl ISWC, November 10th, Shanghai, China
  • 2. Outline 2 1. Introduction 1. Qualitative Reasoning Modelling and Simulation 2. Application of Semantic Techniques 3. Existing approaches 2. Semantic Grounding 3. Ontology-Based Feedback 1. Types of feedback 2. Techniques of OBF 4. Some numbers 5. Conclusions 6. What’s going on... Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 3. Introduction • Conceptual representation of physical systems • Prediction of the system behaviour through reasoning • Simulation • Qualitative (important landmarks no numerical details) • Separation of structure and behaviour • Multiple domains of application • Environmental science • Physics • Economy • ... 3 Qualitative Reasoning Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 4. Introduction • Learning by modelling approach • Learners formally express and test their conceptual knowledge about systems in an educational context • Desirable features: – Shared learning environment, where expert and learner models are uploaded – Quality feedback extracted from the common knowledge 4 QR in science and education Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 5. QR Modelling and Simulation 5 Knowledge Representation Entity hierarchy Scenario Quantity: The dynamic aspects of the system Influence: Natality determines δSize Proportionality: δSize determines δNatality Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 6. Semantic Techniques • Bridging the gap between the loosely and imprecise terminology used by a learner and the well-defined semantics of an ontology • Relating the QR models created by other learners or experts in order to automate the acquisition of feedback and recommendations 6 How semantic techniques could help? Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 8. Semantic Techniques 8 Student Model Grounding OWL export Semantic repository Quality feedback Online ontologies Modelling tool The Web Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 9. Existing approaches • QR modelling and simulation tools: Betty’s brain, Stella • Not grounding of terms to a common vocabulary • Not quality feedback from other models • Conceptual modelling techniques: CmapTools • Concepts maps for knowledge representation • Collaborative use • No use of Semantic Web to maximize interoperability • Not common shared vocabularies • Semantic techniques to enhance collaborative learning: DEPTH (Design Patterns Teaching Help System) • Focused on software engineering education • Supports recommendation more rather than quality feedback 9 Related work Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 10. Outline 10 1. Introduction 1. Qualitative Reasoning Modelling and Simulation 2. Application of Semantic Techniques 3. Existing approaches 2. Semantic Grounding 3. Ontology-Based Feedback 1. Types of feedback 2. Techniques of OBF 4. Some numbers 5. Conclusions 6. What’s going on... Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 12. Semantic Grounding • Ensure lexical and semantic correctness of terms • Ensure the interoperability among models • Extraction of a common domain knowledge • Detection of inconsistencies and contradictions between models • Inference of new, non declared, knowledge • Assist the model construction with feedback and recommendations 12 Benefits of grounding Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 13. Outline 13 1. Introduction 1. Qualitative Reasoning Modelling and Simulation 2. Application of Semantic Techniques 3. Existing approaches 2. Semantic Grounding 3. Ontology-Based Feedback 1. Types of feedback 2. Techniques of OBF 4. Some numbers 5. Conclusions 6. What’s going on... Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 14. Types of OBF • Ontology matching based feedback • Improvements of terminology • Missing and extra terms in the learner model − Missing hierarchical relations • Semantic reasoning based feedback: Inconsistency between hierarchies of models • Structure comparison based feedback: Differences between model structures 14Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 15. Modules of OBF 15 Ontology Matching Semantic Reasoner Missing/Extra Ontology Elements List of differences Structure Comparison Grounding-Based Alignment Learner Model + Reference Model Inconsistency between Hierarchies Differences between Model Structures Improvement of Terminology Preliminary mappings List of equivalent terms
  • 16. Grounding-Based Alignment • In the learner model: • In the reference model: • Resulting preliminary mapping: 16
  • 17. Ontology Matching • Ontology matching tool: CIDER • Input of the ontology matching tool • Learner model with preliminary mappings • Reference model • Output: set of mappings (Alignment API format) 17 J. Gracia and E. Mena. Ontology matching with CIDER: Evaluation report for the OAEI 2008. In Proc. of 3rd Ontology Matching Workshop (OM’08), at ISWC’08, Karlsruhe, Germany, volume 431, pages 140-146. CEUR-WS, October 2008
  • 18. Ontology Matching 18 Improvement of terminology Learner model: Reference model: equivalent terms with different label Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 19. Ontology Matching 19 Missing and extra terms in the learner model Learner model: Reference model: missing term extra term Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 20. Ontology Matching 20 Missing hierarchical relationships Reference model: missing term equivalent terms Learner model: subclass of Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 21. Semantic Reasoning 21 Inconsistency between hierarchies Reference model: Learner model: equivalent terms Disjoint classes INCONSISTENT HIERARCHIES! Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 22. Structure Comparison 22 Missing QR structures Learner model: Reference model: missing model structures Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 23. Outline 23 1. Introduction 1. Qualitative Reasoning Modelling and Simulation 2. Application of Semantic Techniques 3. Existing approaches 2. Semantic Grounding 3. Ontology-Based Feedback 1. Types of feedback 2. Techniques of OBF 4. Some numbers 5. Conclusions 6. What’s going on... Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 24. Experimental Evaluation Q1. Are Semantic Web resources suitable for grounding specific domain vocabularies? Q2. Are the state-of-the-art ontology matching tools suitable for the alignment of QR models? 24 Some Research Questions Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 25. Q1 – Semantic Web resources Knowledge source Coverage Ratio DBpedia 72% OpenCyc 69% WordNet 45% Watson 47% 25 Tested 1686 different English words coming from DynaLearn glossaries Knowledge source Coverage Ratio DBpedia + Yahoo Spelling Suggestion 78% What if we fix spelling errors and suggest nearby terms?: “fiter feeding”  “filter feeding” Coverage Study What if we combine several sources?: Knowledge source Coverage Ratio DBpedia + OpenCyc 87% DBpedia + Watson 73% Dbpedia + WordNet 72% Dbpedia + OpenCyc + WordNet + Watson 88% Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 26. Q1 – Semantic Web resources • Tested 909 English labels covered by DBpedia, randomly selected from DynaLearn glossaries • Asked 8 expert evaluators, each one evaluated between 200-300 groundings. Each grounding was double-evaluated • Question: For each grounded term, are all the relevant meanings that you have in mind contained in the set of grounding candidates? If yes, mark the relevant ones. • Average accuracy: 83% 26 Accuracy Study Inter-evaluator Agreement Level Polysemy Agr eement (any) Cohen's Kappa 21,35 85% 0,47 Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 27. Q2 - Ontology Matching • Golden standard defined by experts • Eight QR models grouped by pairs • Semantic equivalences between them were identified • Result: reference alignment file • Separated ontology alignment: CIDER, Falcon • Each produced alignment was compared to the golden standard 27 Model Matching Experiment Precision Recall CIDER 92% 95% Falcon 67% 95% Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling W. Hu and Y. Qu. Falcon-ao: A practical ontology matching system. Journal of Web Semantics, 6(3):237-239, 2008
  • 28. Outline 1. Introduction 1. Qualitative Reasoning Modelling and Simulation 2. Application of Semantic Techniques 3. Existing approaches 2. Semantic Grounding 3. Ontology-Based Feedback 1. Types of Feedback 2. Techniques of OBF 4. Some numbers 5. Conclusions 6. What’s going on... 28Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 29. Conclusions • Support the creation of semantically networked models to share and reuse conceptual knowledge • QR models are exported into an ontological language and grounded to an external common vocabulary • Ontology matching techniques used to get quality feedback 29 Conclusions Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 30. Outline 1. Introduction 1. Qualitative Reasoning Modelling and Simulation 2. Application of Semantic Techniques 3. Existing approaches 2. Semantic Grounding 3. Ontology-Based Feedback 1. Types of feedback 2. Techniques of OBF 4. Some numbers 5. Conclusions 6. What’s going on... 30Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 31. What’s going on… 31 Future Work • Run usability studies on our ontology-based feedback • Enrich our ontology matching based techniques with advanced metrics • Provide OBF results through the virtual characters • Model recommendation based on the community of users • Use our system in the academic domain to support semantic-guided learning • Publish this semantic data in the web of Linked Data Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling
  • 32. What’s going on… 32 OBF through virtual characters Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling Differences in terminology 2/8 The quantity Death rate of your model is equivalent to the quantity Mortality of the reference model. More info. Do you want to rename the term as Mortality? Yes No
  • 33. Thanks for your attention! 33 Jorge Gracia Facultad de Informática Universidad Politécnica de Madrid Campus de Montegancedo sn 28660 Boadilla del Monte, Madrid http://www.oeg-upm.net jgracia@delicias.dia.fi.upm.es Phone: 34.91.3363670 Fax: 34.91.3524819 Some images under Creative Commons licence : http://www.flickr.com/photos/binkley27/2969227096/ http://www.flickr.com/photos/tauntingpanda/14782257/ http://www.flickr.com/photos/rainforest_harley/232636845/ Semantic Techniques for Enabling Knowledge Reuse in Conceptual Modelling

Editor's Notes

  1. QR models are conceptual model. Purpose is communication Conceptual models have an inherent ontology (particular perspective on the world) QR models are domain independent (all domains that can be described by system dynamics) Allows both scientific theories to be captured, but also thoughts of students QR models allow simulations. However they are qualitative in nature Qualitative means important values are made explicit Heavy metal concentration = {zero, positive, legal limit, illegal}. Its an abstraction from numerical values. QR models use a compositional modelling paradigm. That is, each distinct model part is represented as a model fragment. There is a strict separation of structure and behaviour. The structure describes the components of the system. The behaviour describes the dynamic aspects of the system. This separation allows the correct model fragments to be found that apply to a particular system. A simulation is based on an initial situation (scenario). The result of a simulation is a state graph. Each state represents a possible situation the system can be in. The transitions indicate how the system can change from one situation to another. Within DynaLearn domain experts are creating models to support an environmental science curriculum. There will be 100s of expert models in a semantic repository. Learners will also upload their models to the repository. We want to use this resource. Grounding makes this possible.
  2. Model = QR model as a type of conceptual model (not the same as a model in logics…)
  3. - Semantic Repository to storage the models and domain vocabularies - Grounding of terms to the common vocabulary - Ontology-based feedback on the quality of the models - Recommendation of models and model fragments based on model features or collaborative filtering
