This document proposes a semantic octree framework that unifies recognition, reconstruction, and representation of 3D scenes using an octree constrained higher order Markov random field. It combines associative higher-order random fields (AHRF) for semantic segmentation with octree-based volumetric mapping. The framework takes stereo images as input, generates point clouds and class hypotheses, then fuses the data into an octree. Inference over the octree voxels assigns labels to produce a semantically labelled 3D scene. The approach allows for efficient access and manipulation of 3D models through the octree representation.

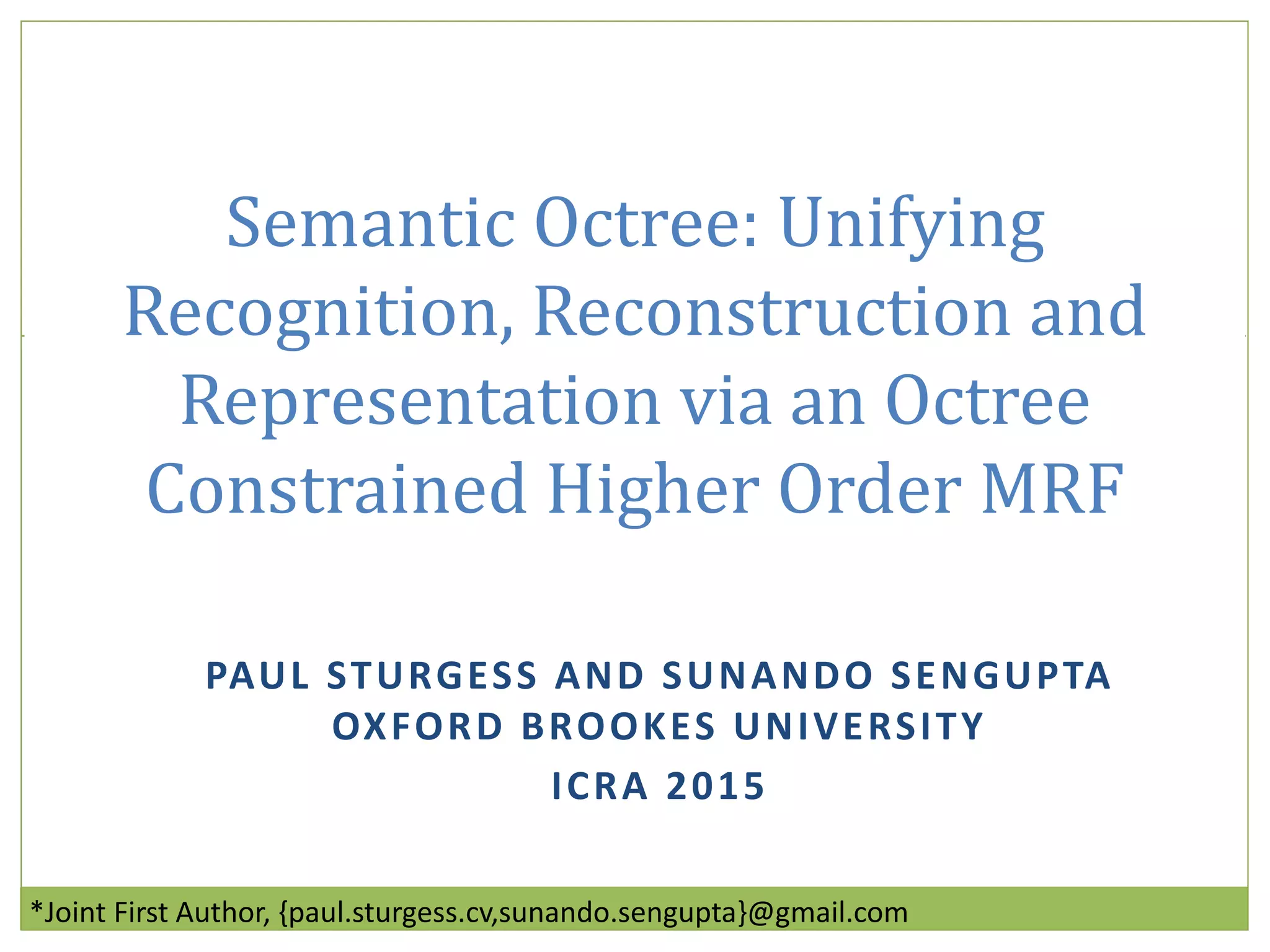

1. PAUL STURGESS AND SUNANDO SENGUPTA
OXFORD BROOKES UNIVERSITY
ICRA 2015
Semantic Octree: Unifying
Recognition, Reconstruction and
Representation via an Octree
Constrained Higher Order MRF
*Joint First Author, {paul.sturgess.cv,sunando.sengupta}@gmail.com

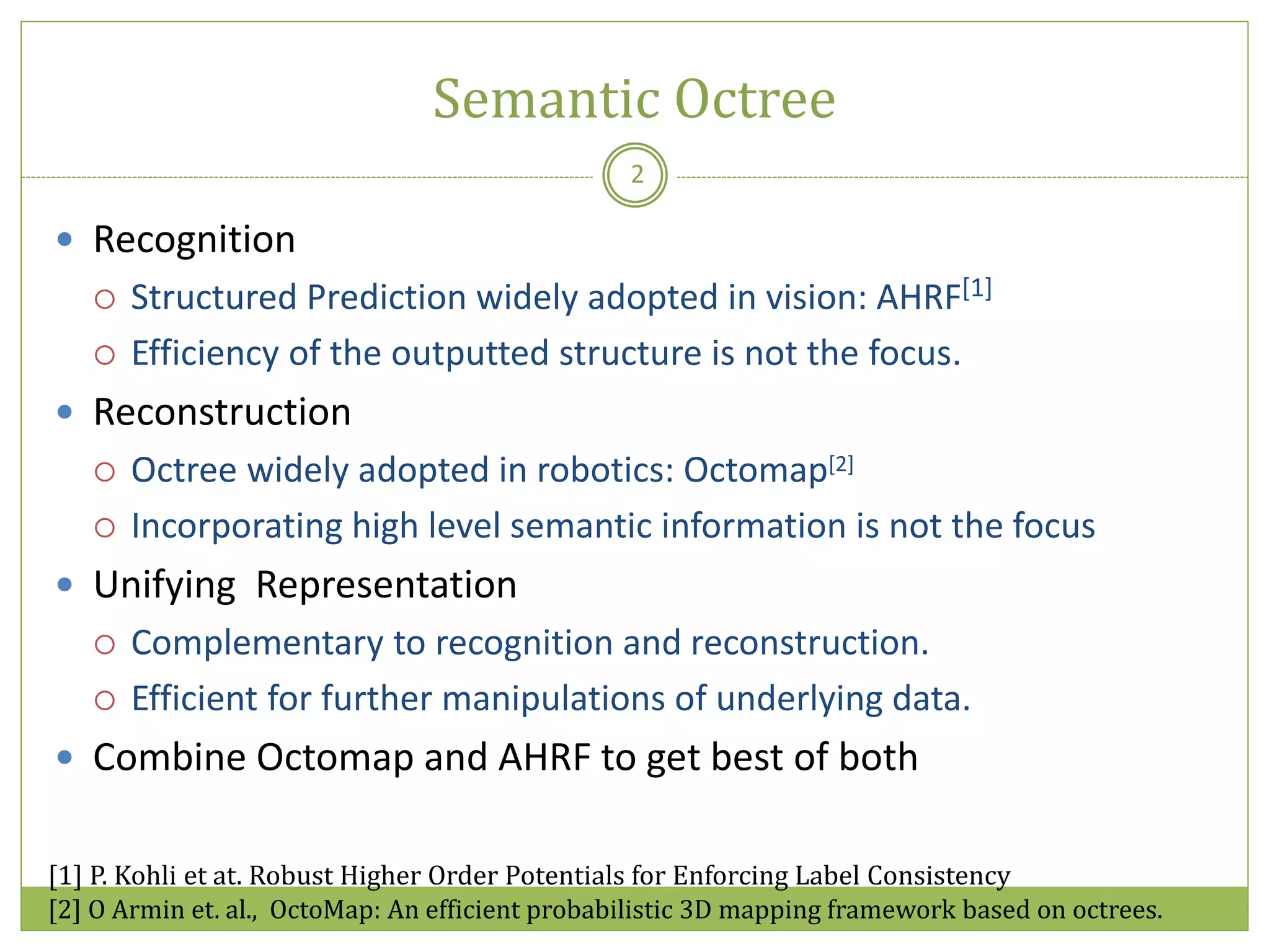

2. Semantic Octree
 Recognition
 Structured Prediction widely adopted in vision: AHRF[1]
 Efficiency of the outputted structure is not the focus.
 Reconstruction
 Octree widely adopted in robotics: Octomap[2]
 Incorporating high level semantic information is not the focus
 Unifying Representation
 Complementary to recognition and reconstruction.
 Efficient for further manipulations of underlying data.
 Combine Octomap and AHRF to get best of both
2
[1] P. Kohli et at. Robust Higher Order Potentials for Enforcing Label Consistency
[2] O Armin et. al., OctoMap: An efficient probabilistic 3D mapping framework based on octrees.

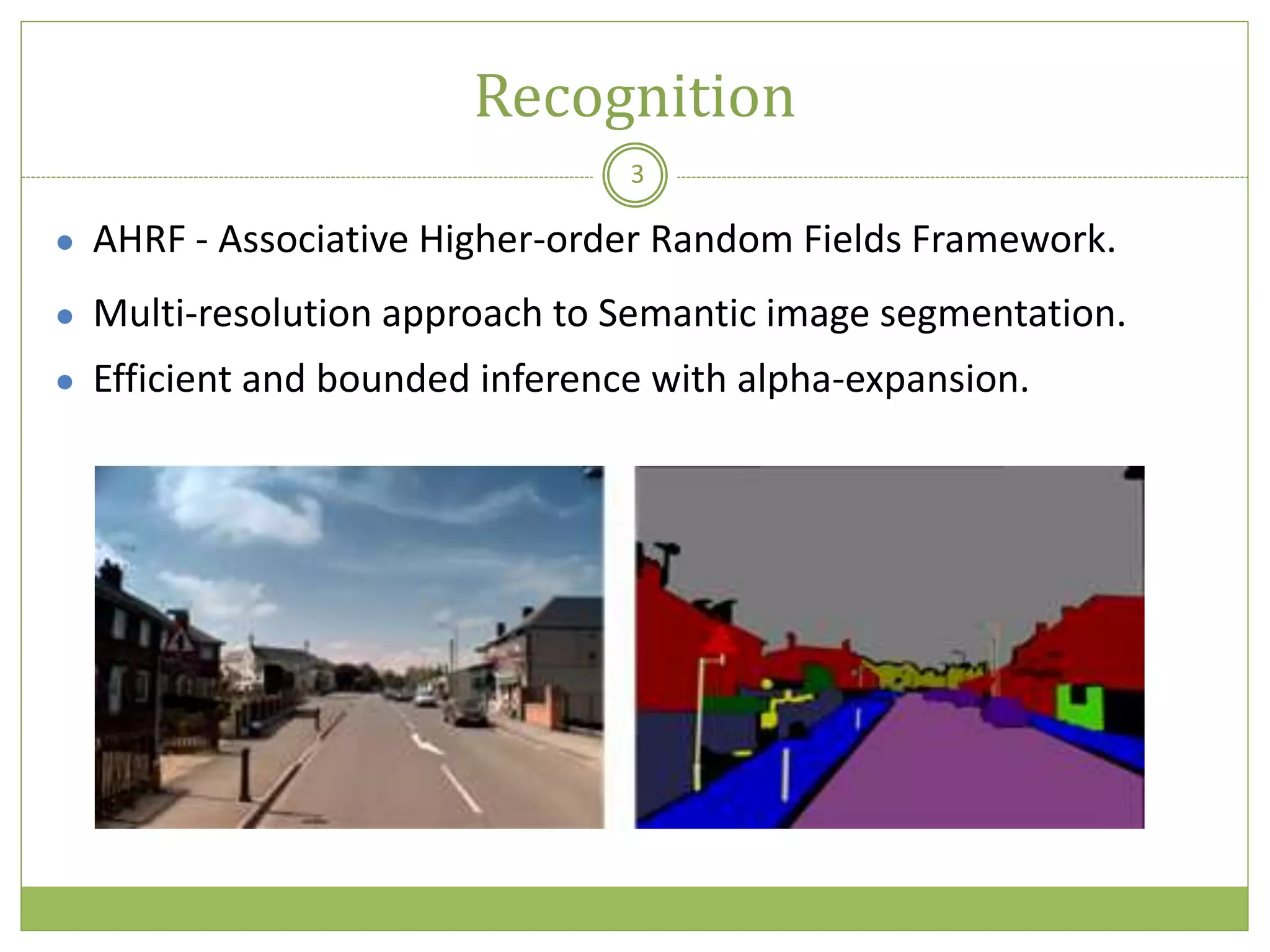

3. Recognition
3
● AHRF - Associative Higher-order Random Fields Framework.
● Multi-resolution approach to Semantic image segmentation.
● Efficient and bounded inference with alpha-expansion.

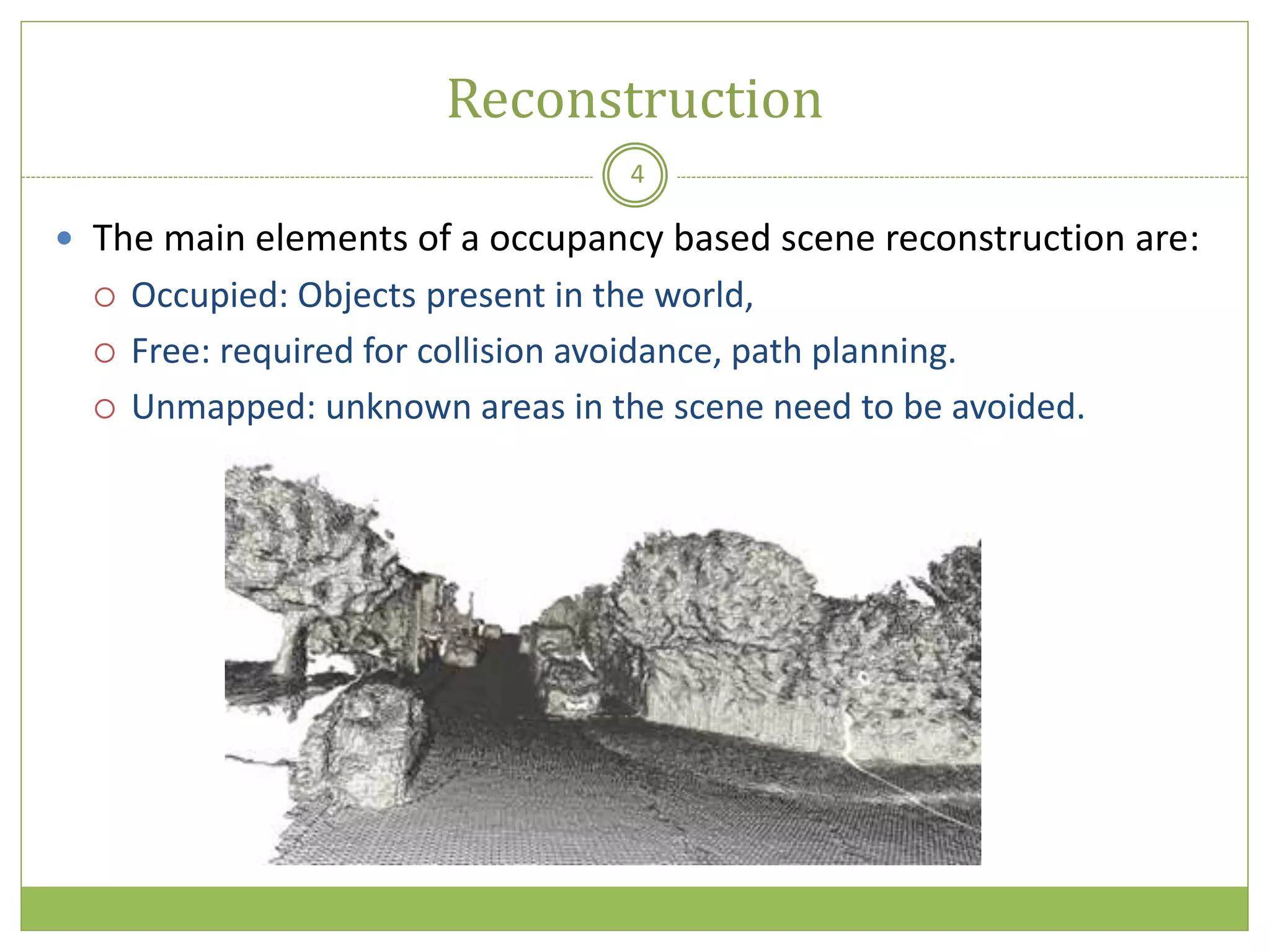

4. Reconstruction
4
 The main elements of a occupancy based scene reconstruction are:
 Occupied: Objects present in the world,
 Free: required for collision avoidance, path planning.
 Unmapped: unknown areas in the scene need to be avoided.

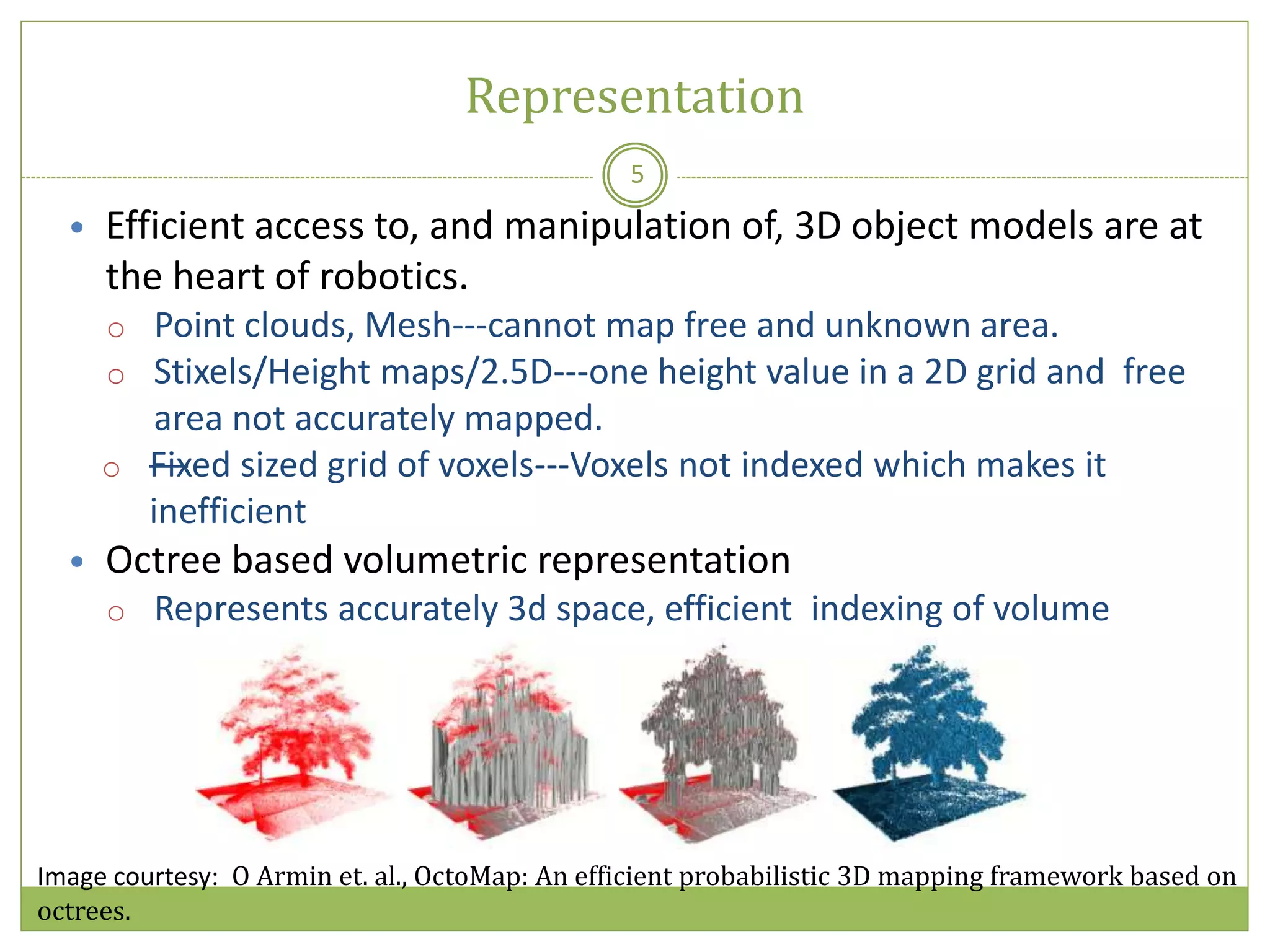

5. Representation
5
• Efficient access to, and manipulation of, 3D object models are at
the heart of robotics.
o Point clouds, Mesh---cannot map free and unknown area.
o Stixels/Height maps/2.5D---one height value in a 2D grid and free
area not accurately mapped.
o —Fixed sized grid of voxels---Voxels not indexed which makes it
inefficient
• Octree based volumetric representation
o Represents accurately 3d space, efficient indexing of volume
Image courtesy: O Armin et. al., OctoMap: An efficient probabilistic 3D mapping framework based on
octrees.

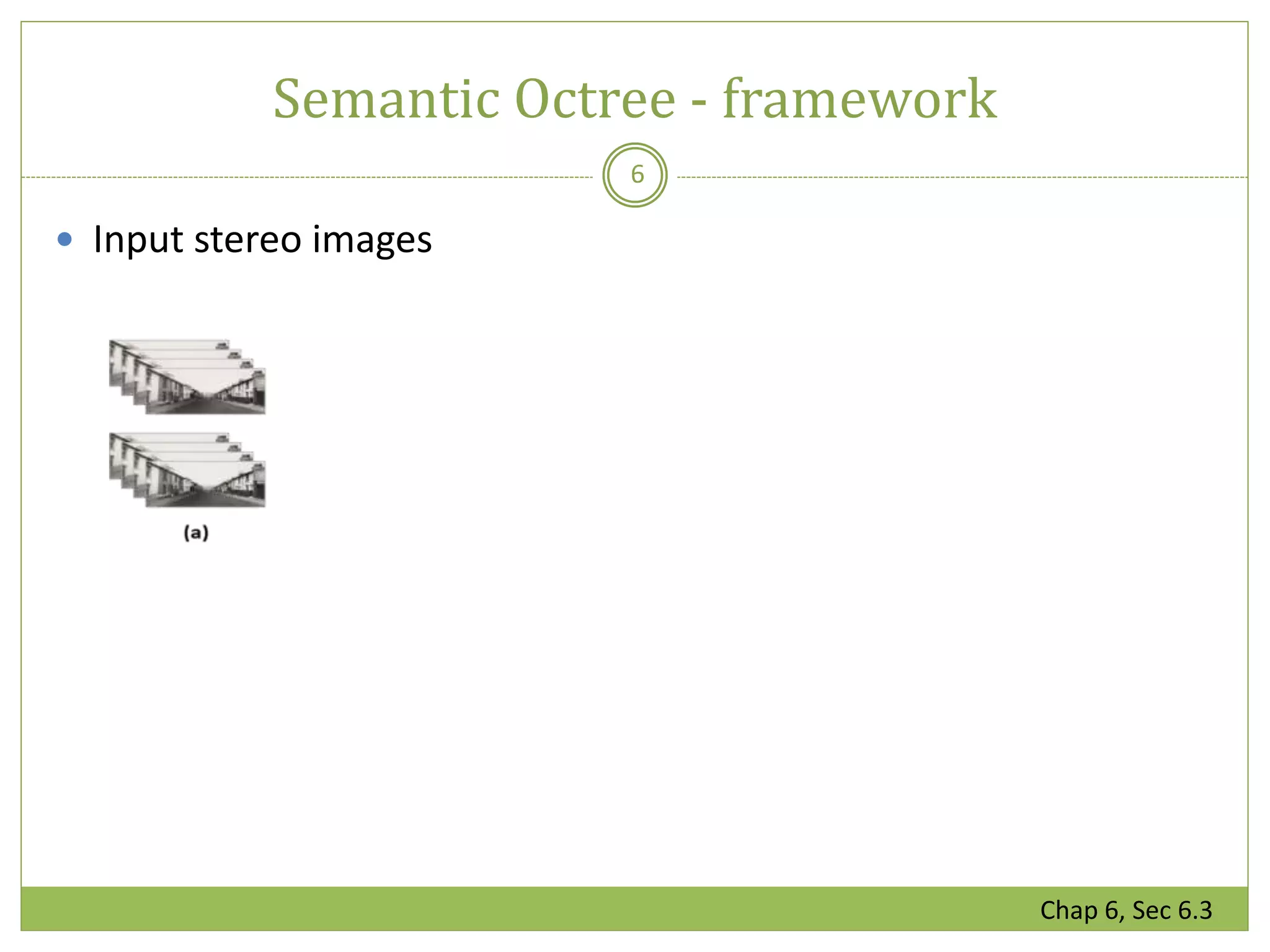

6. Semantic Octree - framework
6
 Input stereo images
Chap 6, Sec 6.3

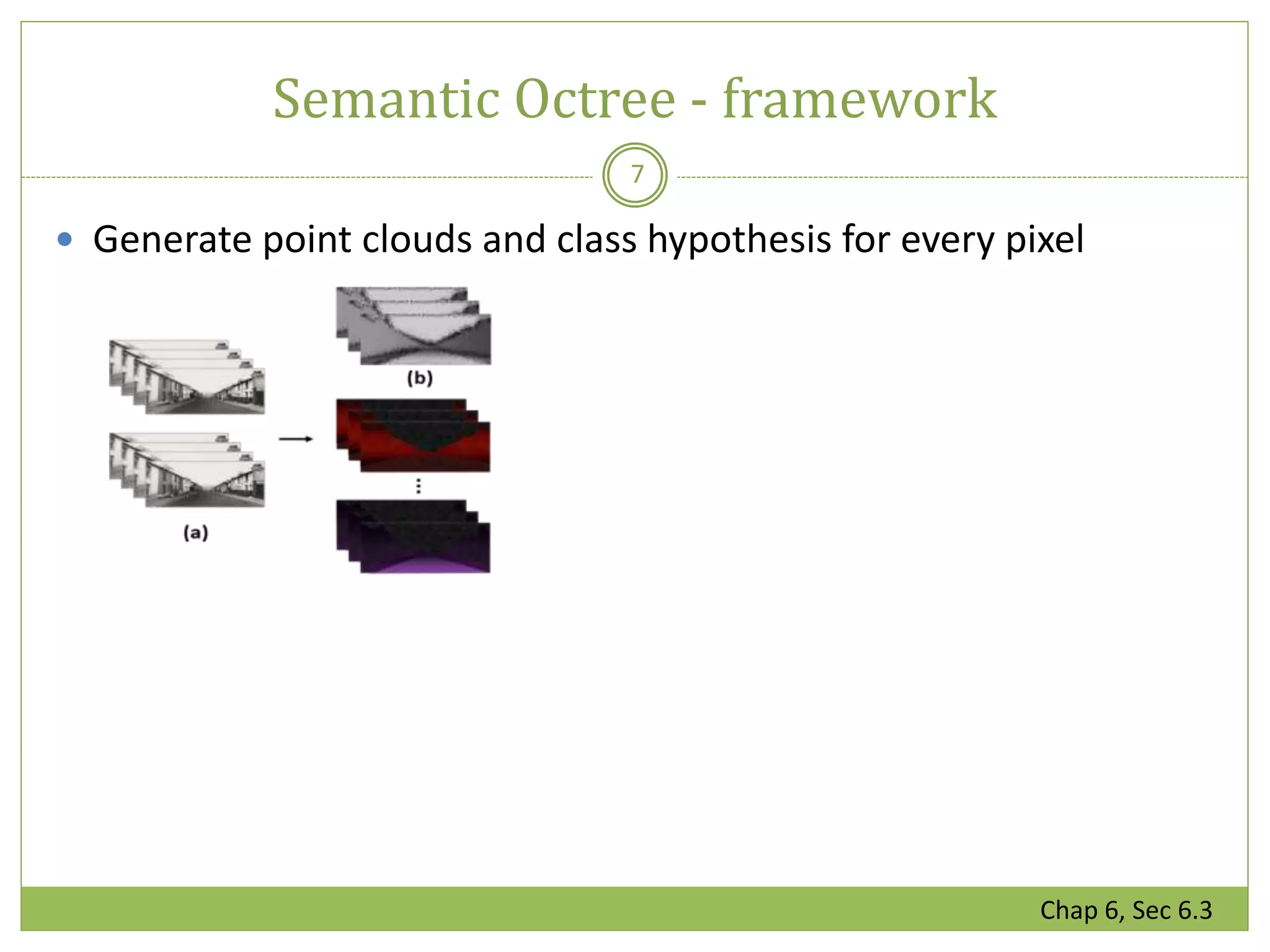

7. Semantic Octree - framework
7
 Generate point clouds and class hypothesis for every pixel
Chap 6, Sec 6.3

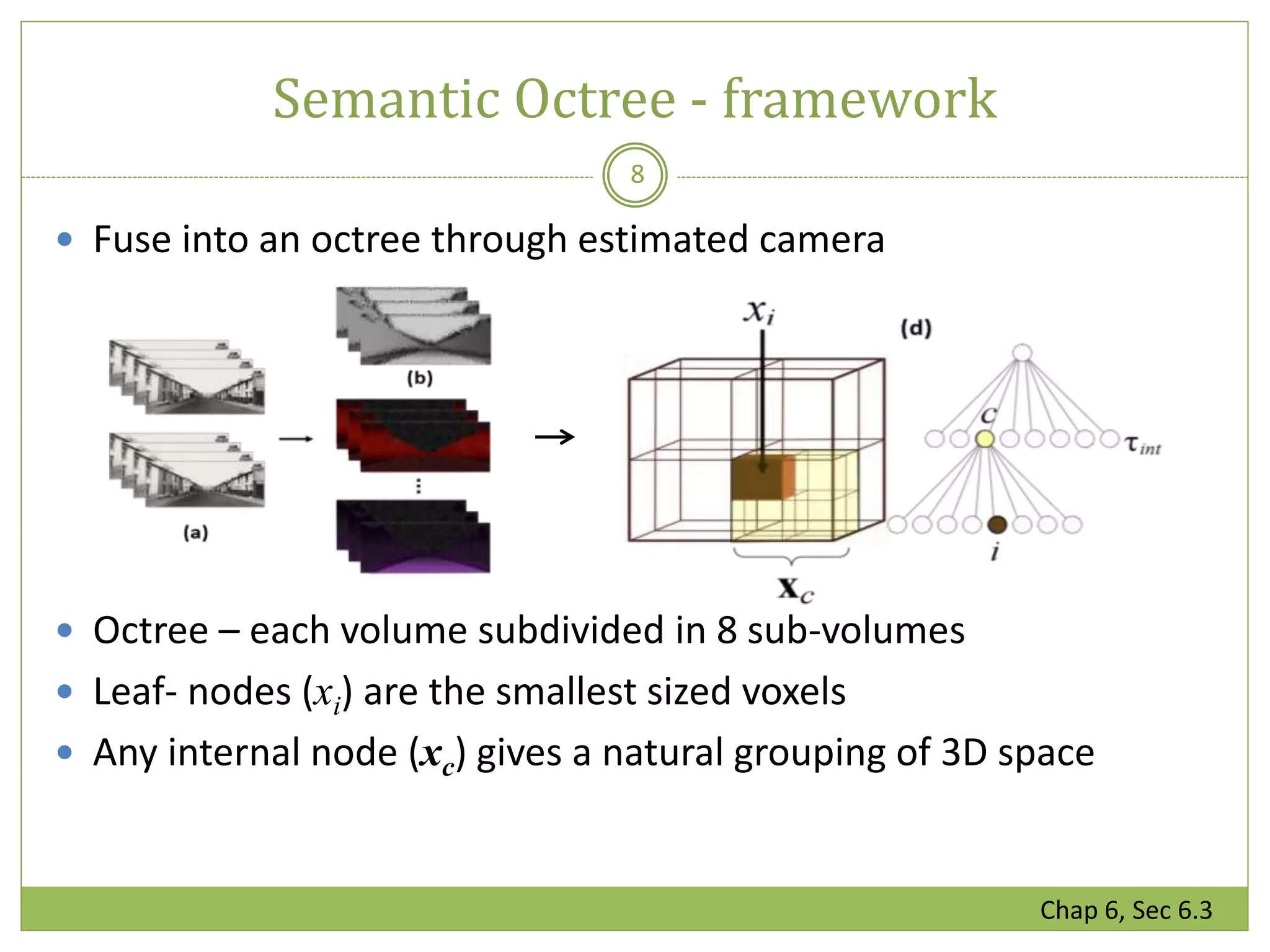

8. Semantic Octree - framework
8
 Fuse into an octree through estimated camera
 Octree – each volume subdivided in 8 sub-volumes
 Leaf- nodes (xi) are the smallest sized voxels
 Any internal node (xc) gives a natural grouping of 3D space
Chap 6, Sec 6.3

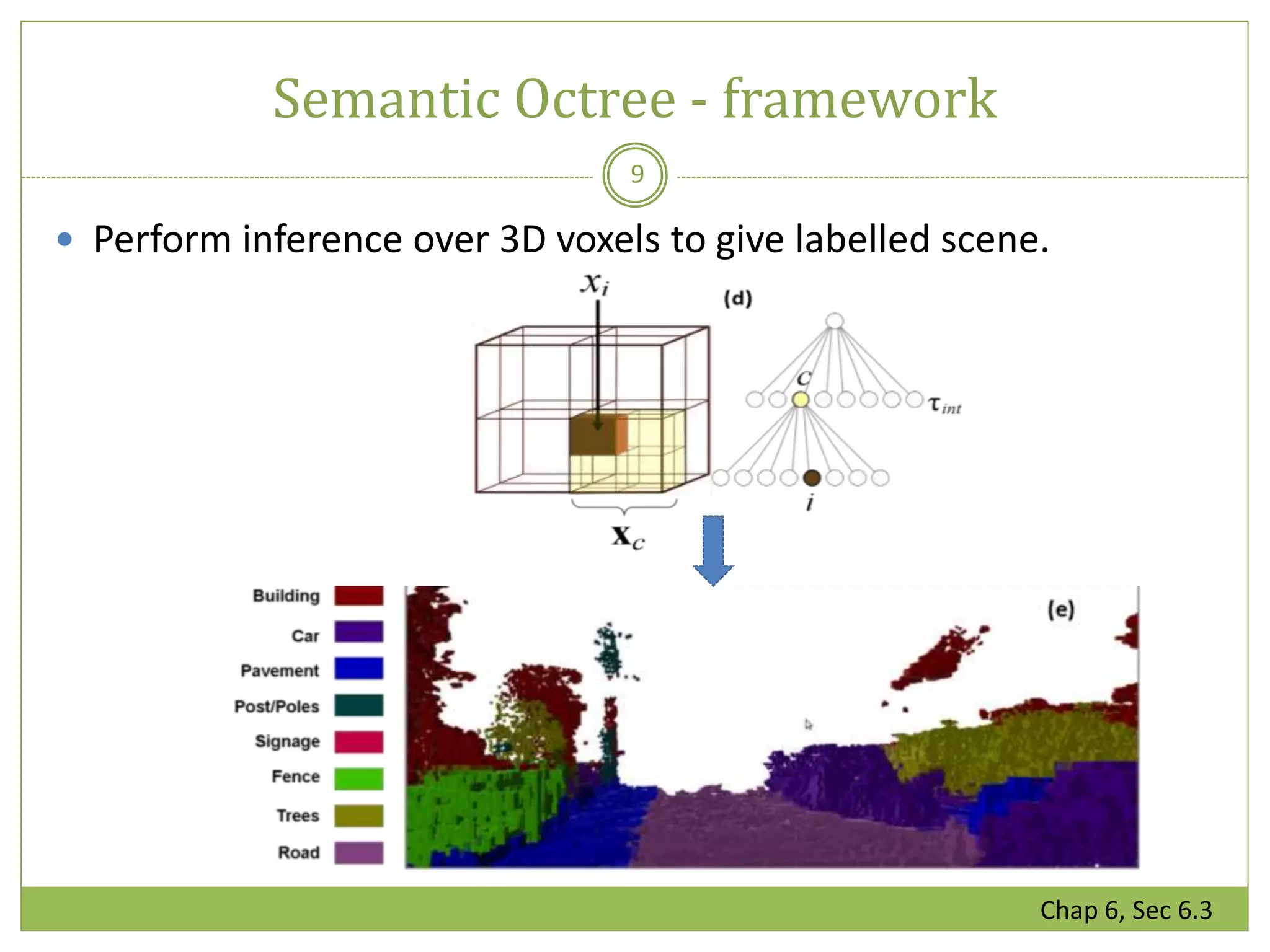

9. Semantic Octree - framework
9
 Perform inference over 3D voxels to give labelled scene.
Chap 6, Sec 6.3

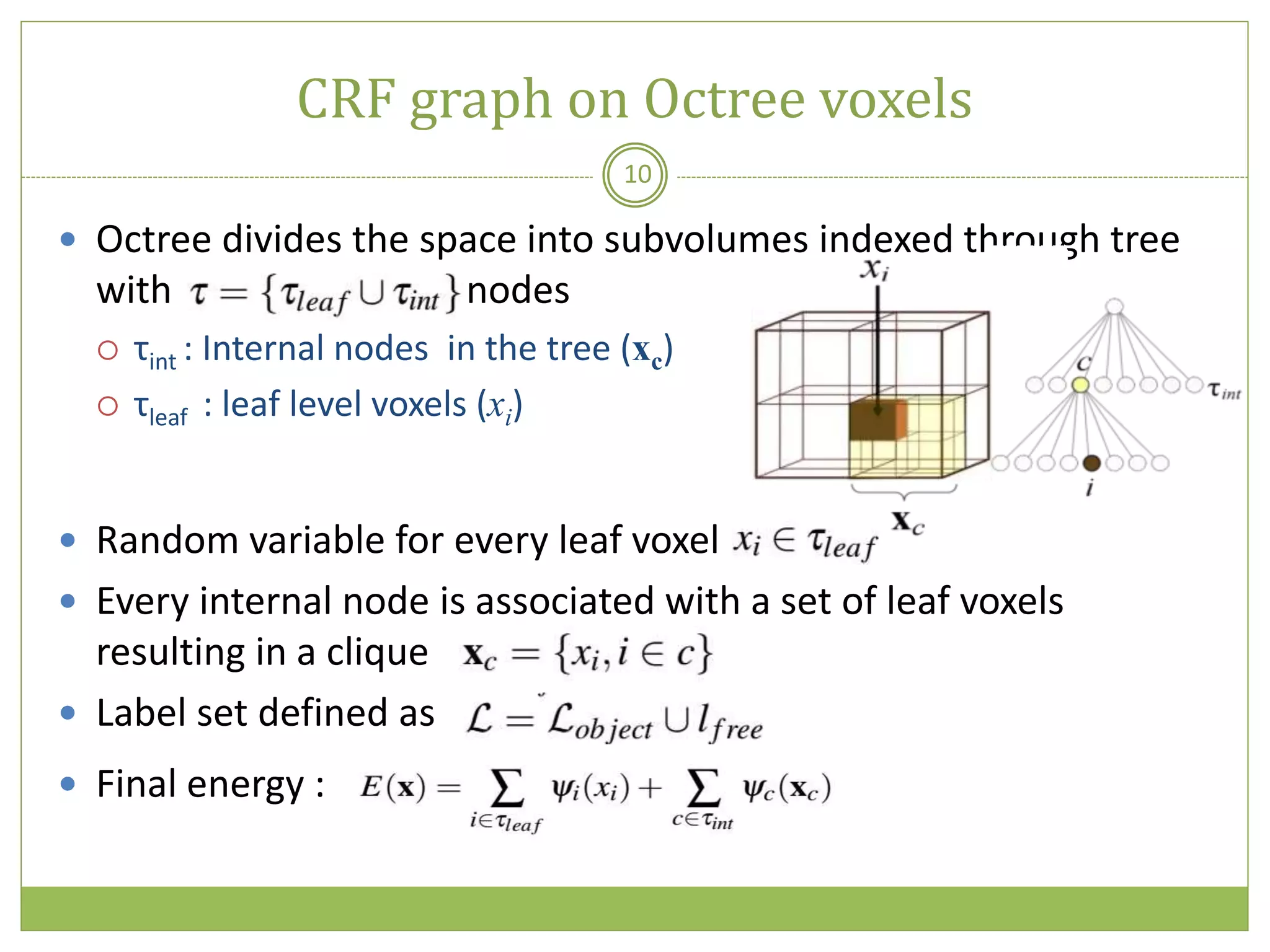

10. CRF graph on Octree voxels
10
 Octree divides the space into subvolumes indexed through tree
with nodes
 τint : Internal nodes in the tree (xc)
 τleaf : leaf level voxels (xi)
 Random variable for every leaf voxel
 Every internal node is associated with a set of leaf voxels
resulting in a clique
 Label set defined as
 Final energy :

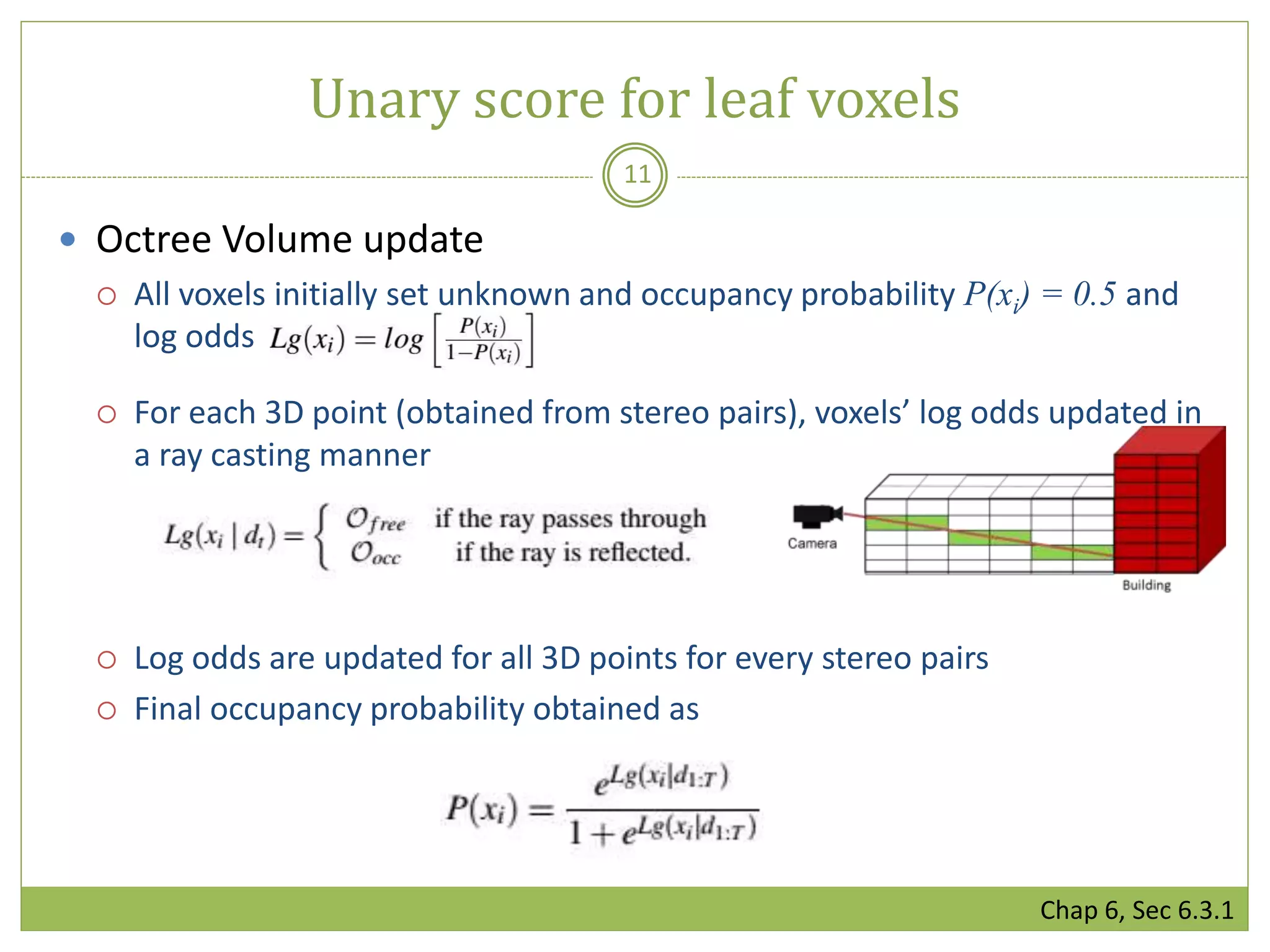

11.  Octree Volume update
 All voxels initially set unknown and occupancy probability P(xi) = 0.5 and
log odds
 For each 3D point (obtained from stereo pairs), voxels’ log odds updated in
a ray casting manner
 Log odds are updated for all 3D points for every stereo pairs
 Final occupancy probability obtained as
Unary score for leaf voxels
11
Chap 6, Sec 6.3.1

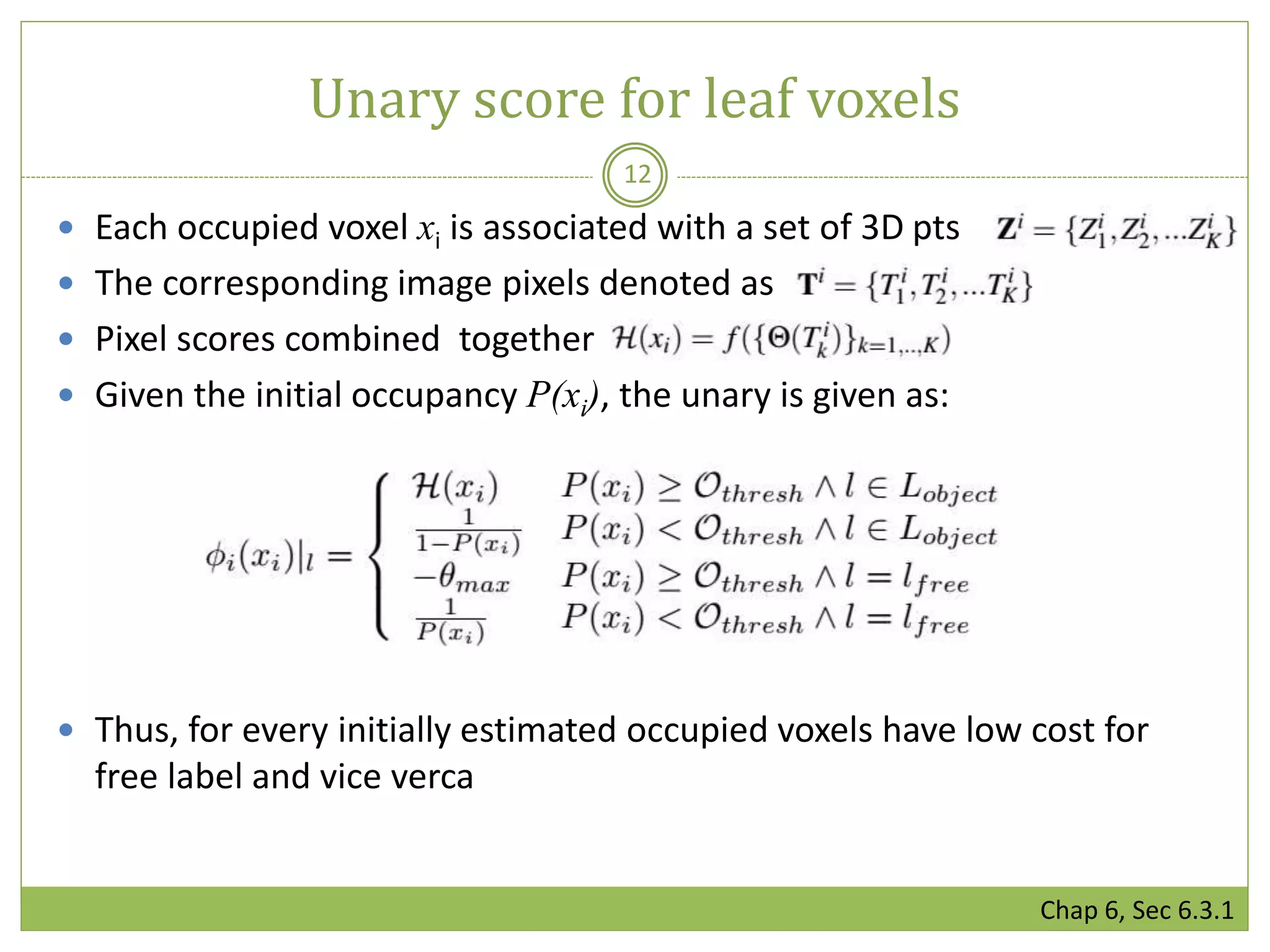

12.  Each occupied voxel xi is associated with a set of 3D pts
 The corresponding image pixels denoted as
 Pixel scores combined together
 Given the initial occupancy P(xi), the unary is given as:
 Thus, for every initially estimated occupied voxels have low cost for
free label and vice verca
Unary score for leaf voxels
12
Chap 6, Sec 6.3.1

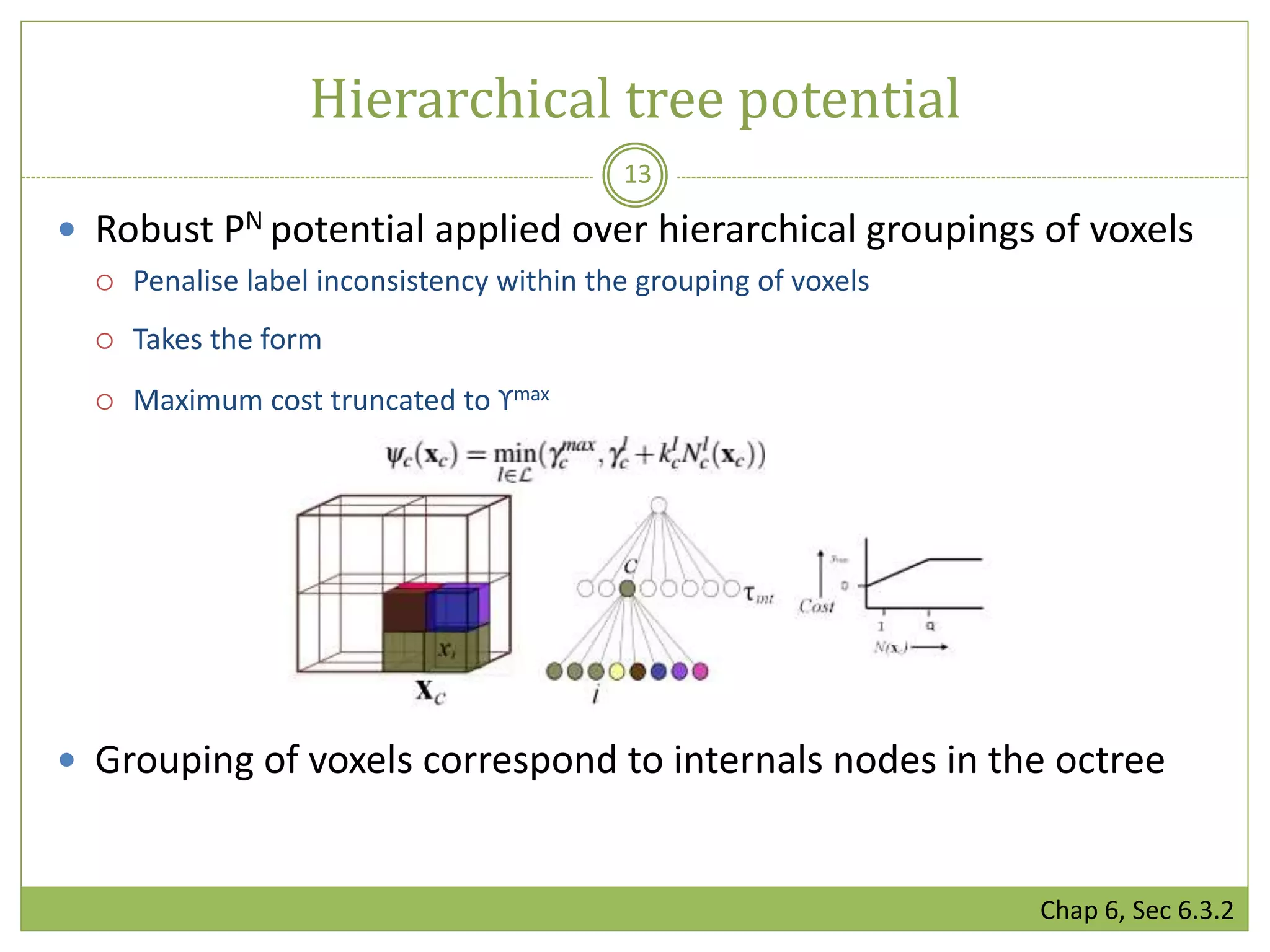

13.  Robust PN potential applied over hierarchical groupings of voxels
 Penalise label inconsistency within the grouping of voxels
 Takes the form
 Maximum cost truncated to ϒmax
 Grouping of voxels correspond to internals nodes in the octree
Hierarchical tree potential
13
Chap 6, Sec 6.3.2

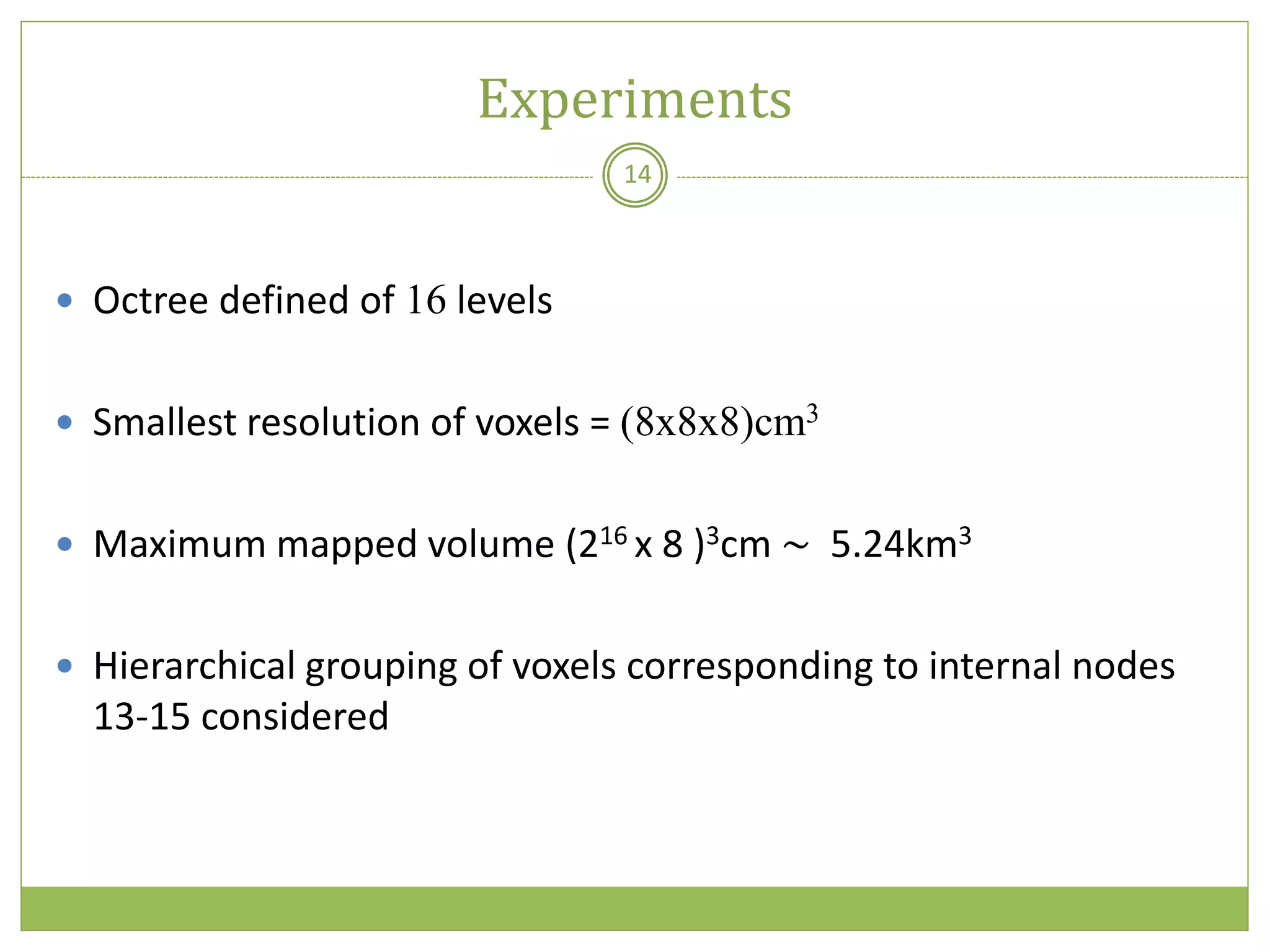

14. Experiments
14
 Octree defined of 16 levels
 Smallest resolution of voxels = (8x8x8)cm3
 Maximum mapped volume (216 x 8 )3cm ~ 5.24km3
 Hierarchical grouping of voxels corresponding to internal nodes
13-15 considered

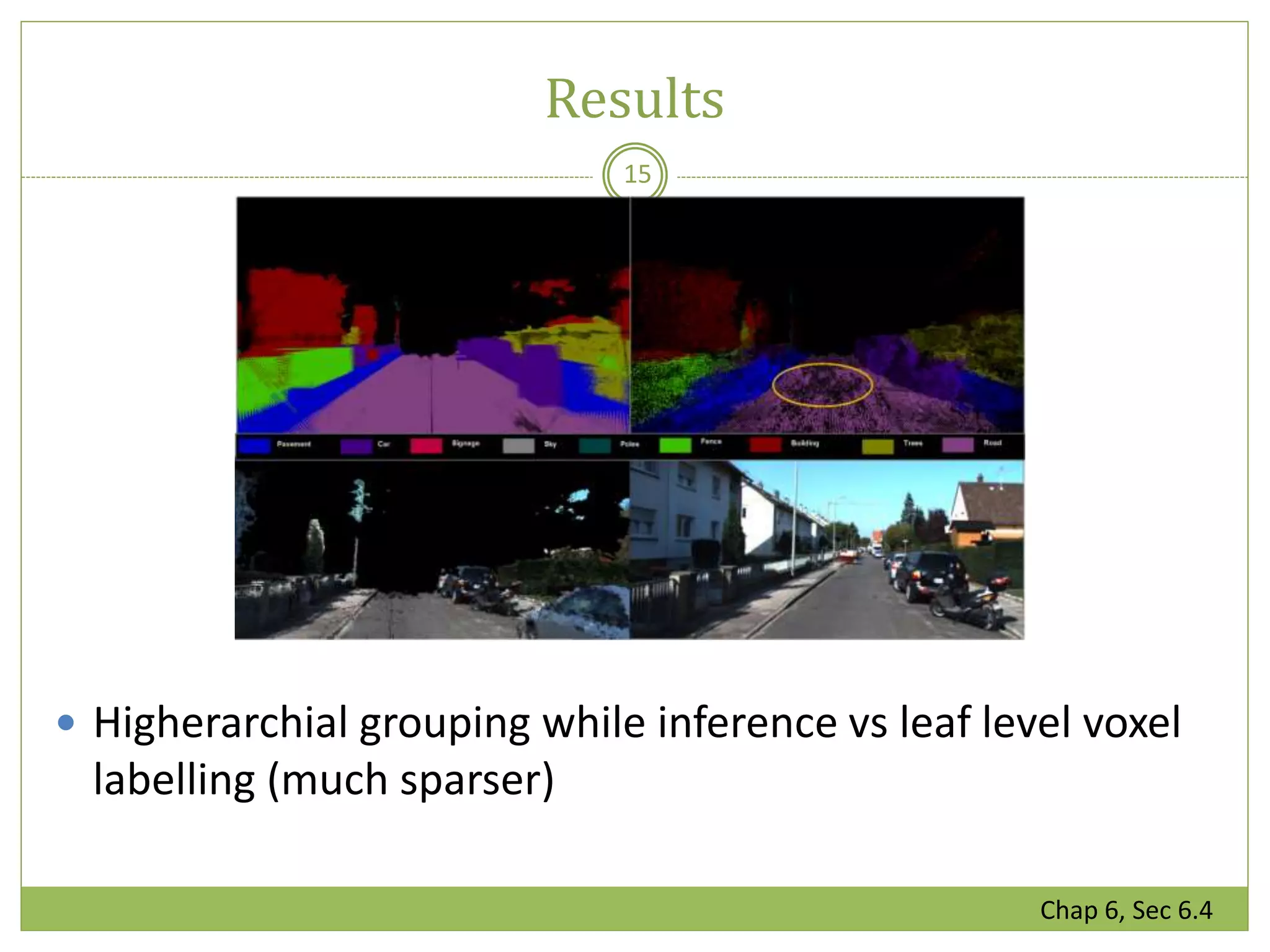

15. Results
15
 Higherarchial grouping while inference vs leaf level voxel
labelling (much sparser)
Chap 6, Sec 6.4

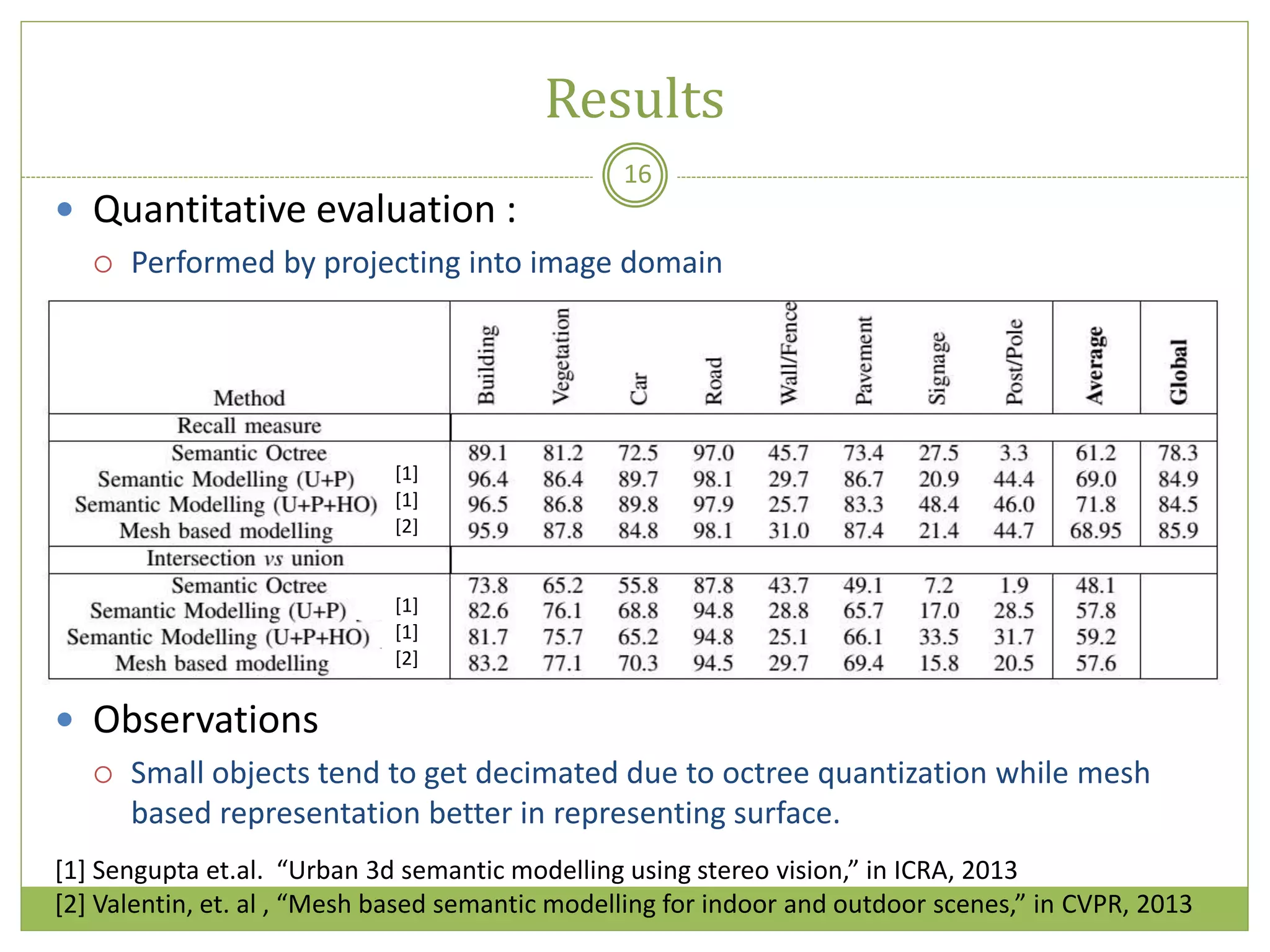

16.  Quantitative evaluation :
 Performed by projecting into image domain
 Observations
 Small objects tend to get decimated due to octree quantization while mesh
based representation better in representing surface.
Results
16
[1] Sengupta et.al. “Urban 3d semantic modelling using stereo vision,” in ICRA, 2013
[2] Valentin, et. al , “Mesh based semantic modelling for indoor and outdoor scenes,” in CVPR, 2013
[2]
[1]
[1]
[2]
[1]
[1]

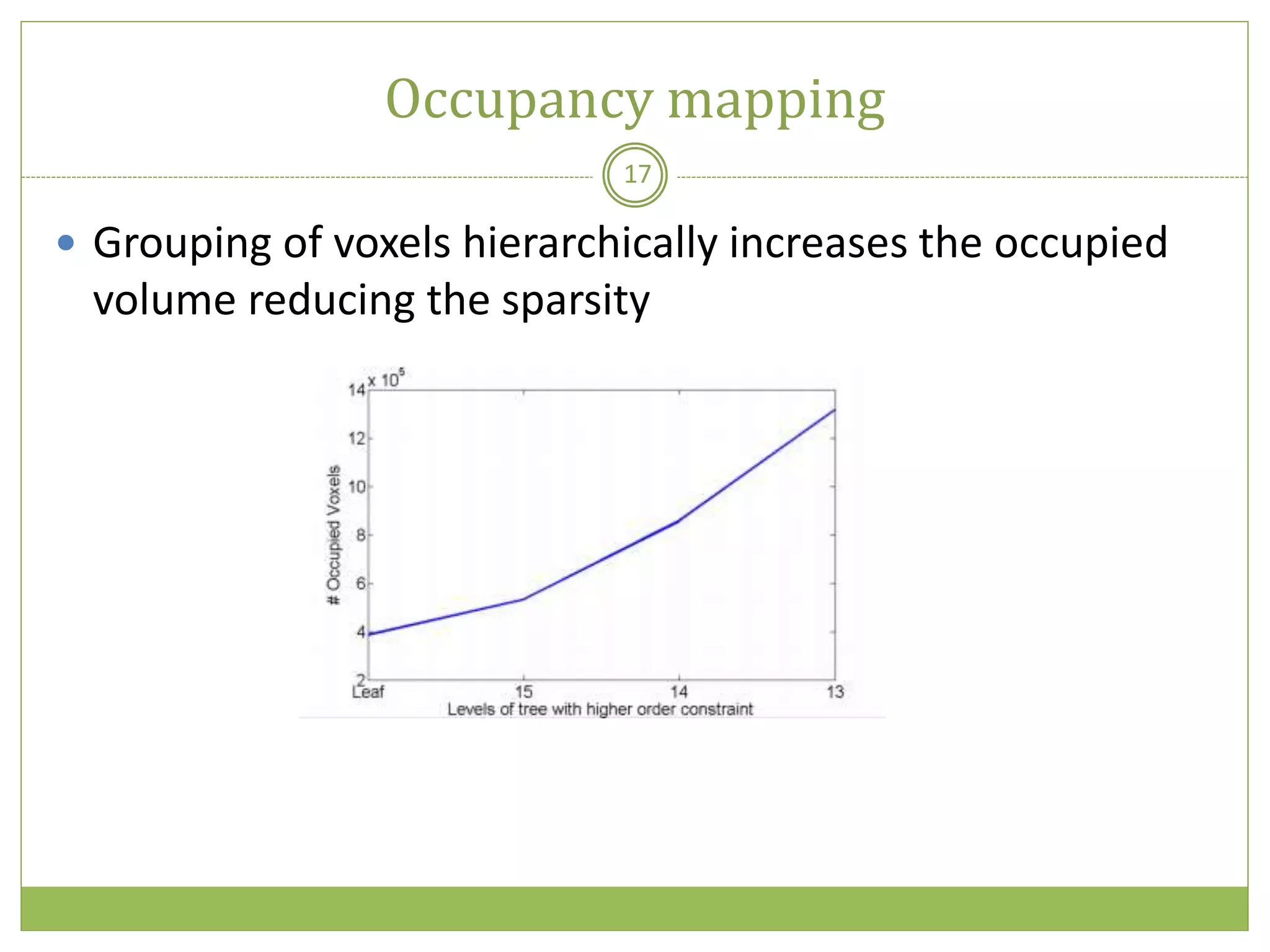

17. Occupancy mapping
17
 Grouping of voxels hierarchically increases the occupied
volume reducing the sparsity

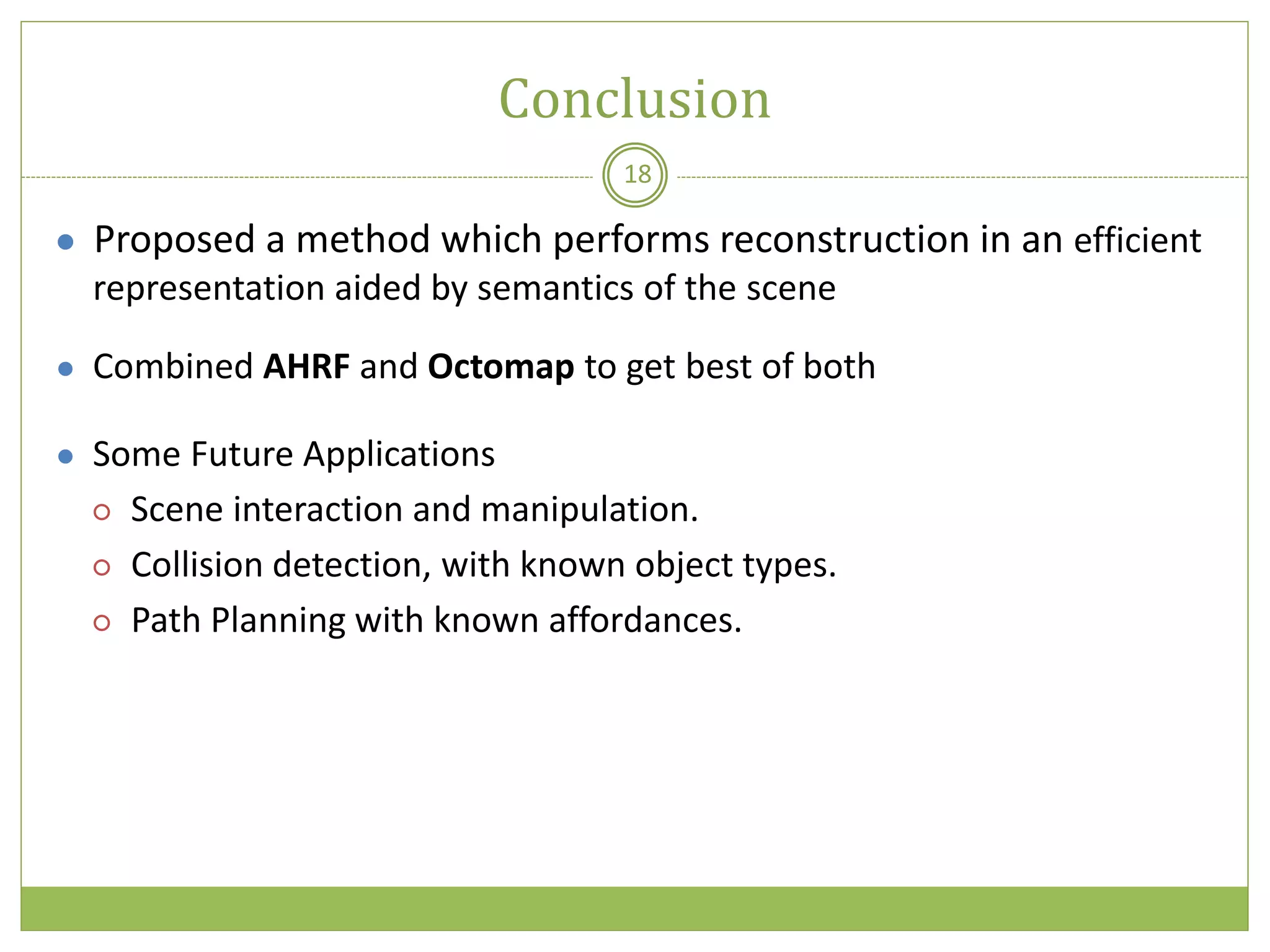

18. Conclusion
18
● Proposed a method which performs reconstruction in an efficient
representation aided by semantics of the scene
● Combined AHRF and Octomap to get best of both
● Some Future Applications
○ Scene interaction and manipulation.
○ Collision detection, with known object types.
○ Path Planning with known affordances.
