The document discusses the scalability of CloudStack. It states that CloudStack can currently manage 10,000 resources per management server node. Testing shows it can scale to managing 30,000 physical resources with 30,000 VMs using 4 management server nodes. To scale further, it balances incoming requests across worker thread pools and offloads long-running requests to job threads. One challenge is tasks like VM synchronization that increase with more resources; using a peer-to-peer approach where resources sync directly can scale better than a central stats collector. It also discusses techniques like auto-balancing workloads across management servers as they are added.

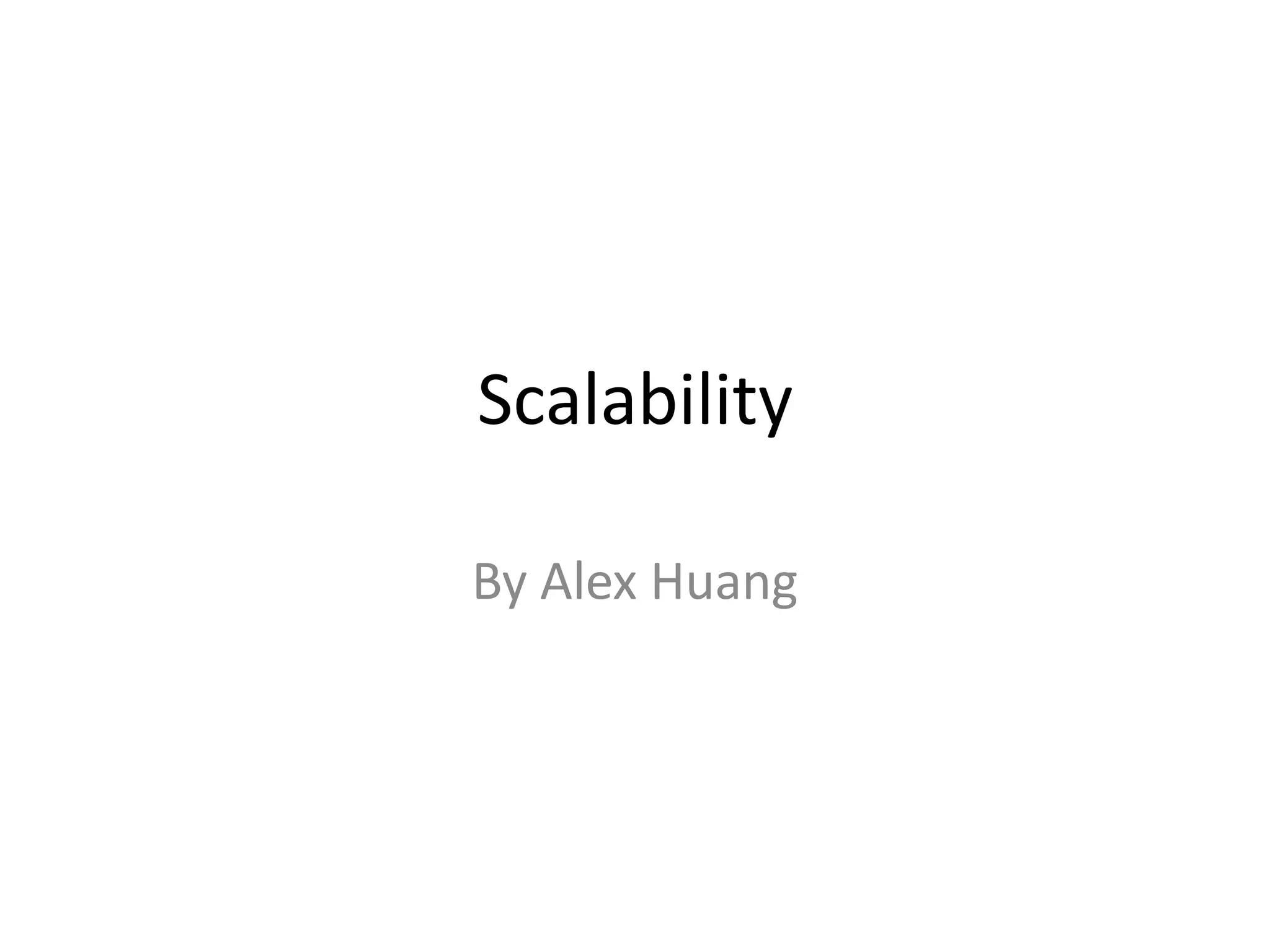

1. CloudStack Scalability
By Alex Huang

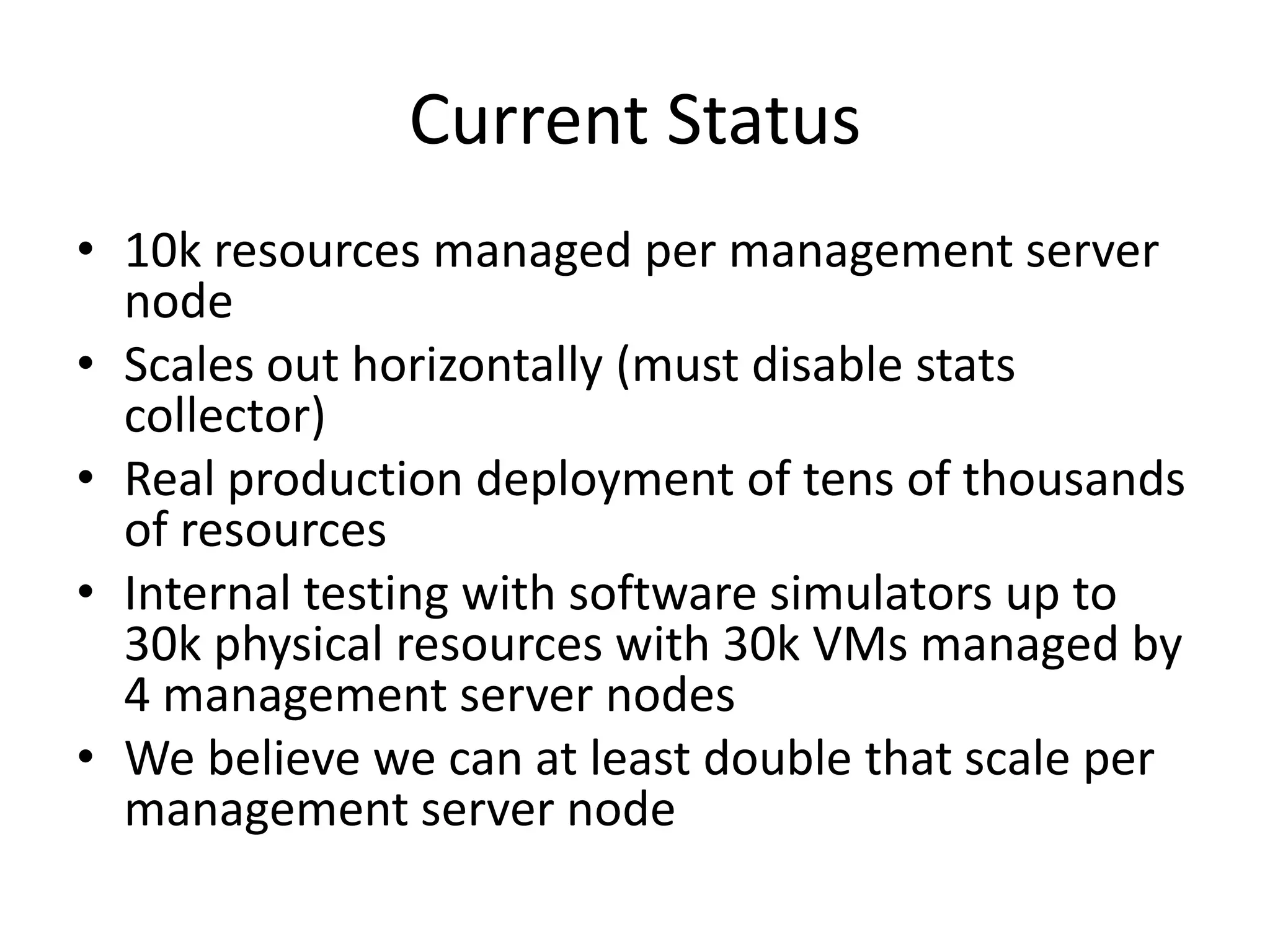

2. Current Status
• 10k resources managed per management server
node
• Scales out horizontally (must disable stats
collector)
• Real production deployment of tens of thousands
of resources
• Internal testing with software simulators up to
30k physical resources with 30k VMs managed by
4 management server nodes
• We believe we can at least double that scale per
management server node

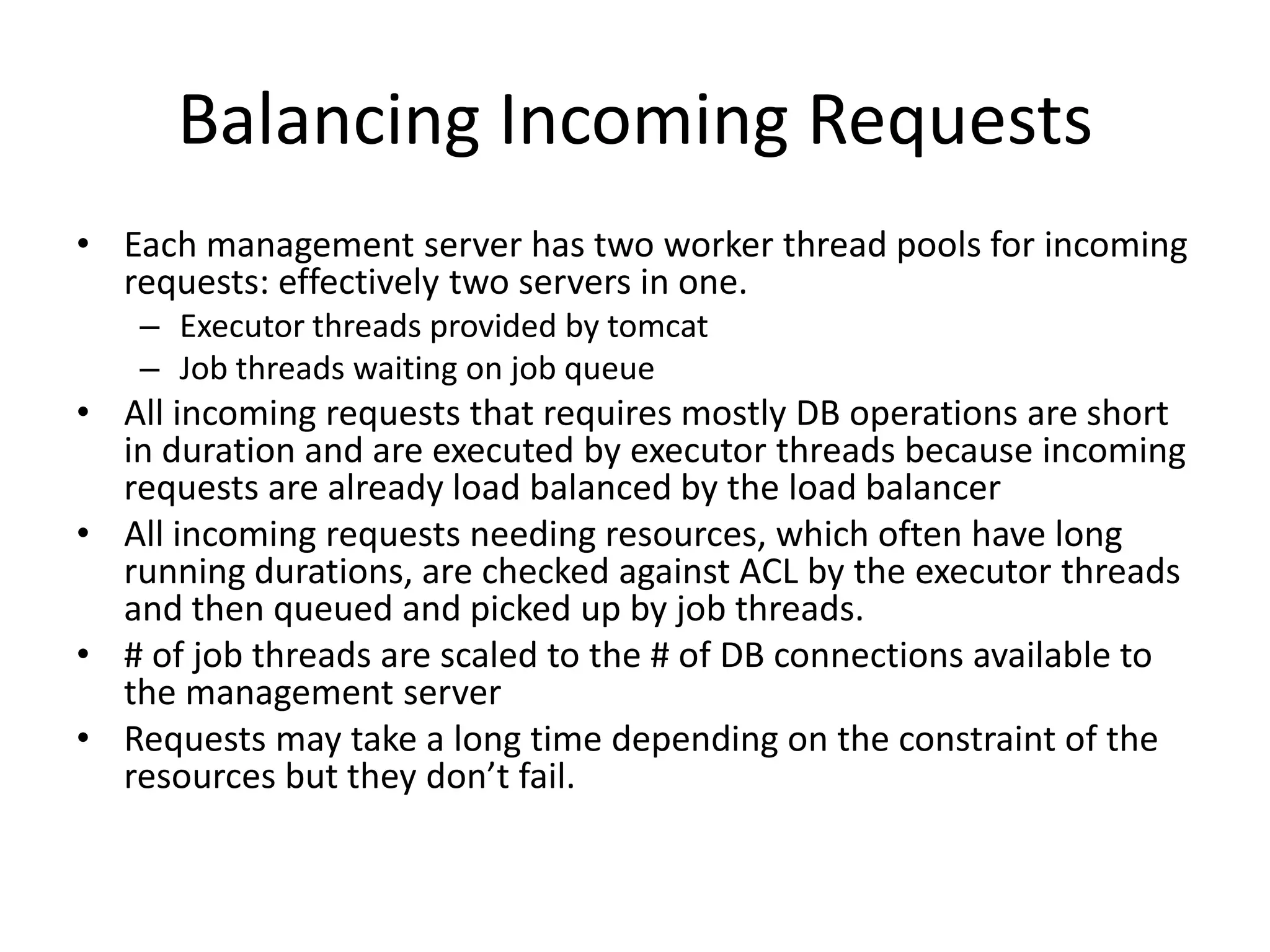

3. Balancing Incoming Requests
• Each management server has two worker thread pools for incoming
requests: effectively two servers in one.
– Executor threads provided by tomcat
– Job threads waiting on job queue
• All incoming requests that requires mostly DB operations are short
in duration and are executed by executor threads because incoming
requests are already load balanced by the load balancer
• All incoming requests needing resources, which often have long
running durations, are checked against ACL by the executor threads
and then queued and picked up by job threads.
• # of job threads are scaled to the # of DB connections available to
the management server
• Requests may take a long time depending on the constraint of the
resources but they don’t fail.

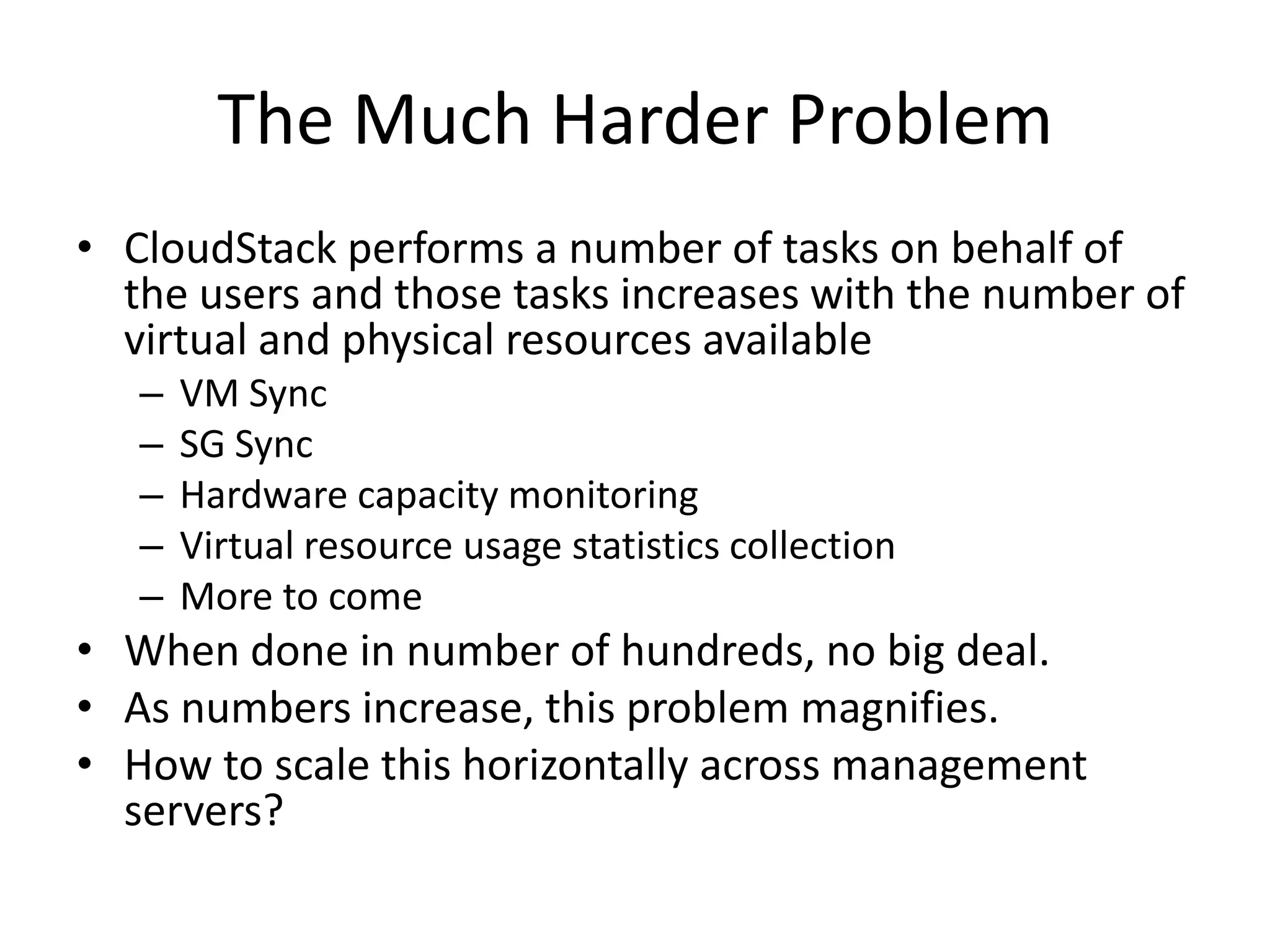

4. The Much Harder Problem
• CloudStack performs a number of tasks on behalf of
the users and those tasks increases with the number of
virtual and physical resources available
– VM Sync
– SG Sync
– Hardware capacity monitoring
– Virtual resource usage statistics collection
– More to come
• When done in number of hundreds, no big deal.
• As numbers increase, this problem magnifies.
• How to scale this horizontally across management
servers?

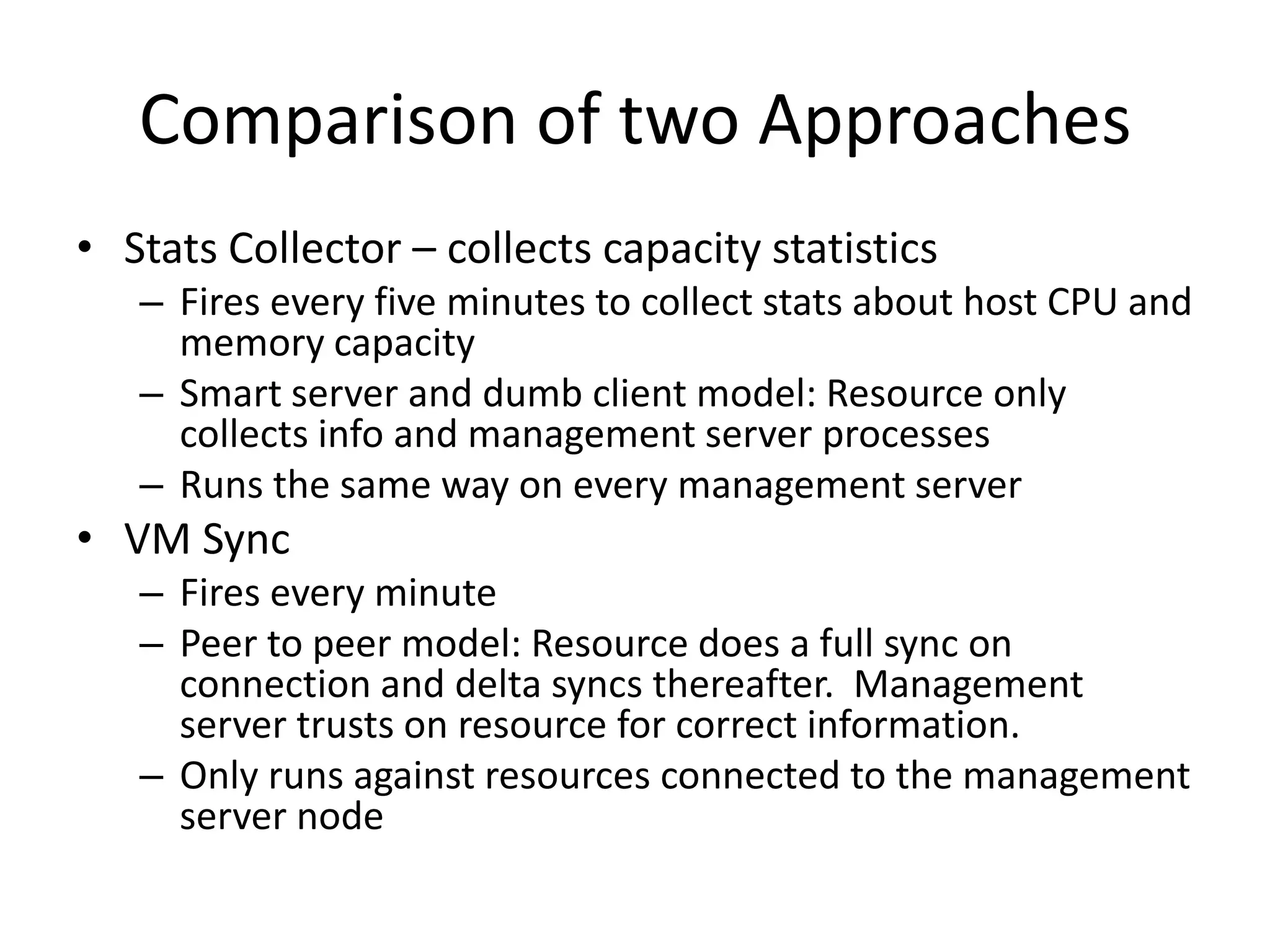

5. Comparison of two Approaches
• Stats Collector – collects capacity statistics
– Fires every five minutes to collect stats about host CPU and
memory capacity
– Smart server and dumb client model: Resource only
collects info and management server processes
– Runs the same way on every management server
• VM Sync
– Fires every minute
– Peer to peer model: Resource does a full sync on
connection and delta syncs thereafter. Management
server trusts on resource for correct information.
– Only runs against resources connected to the management
server node

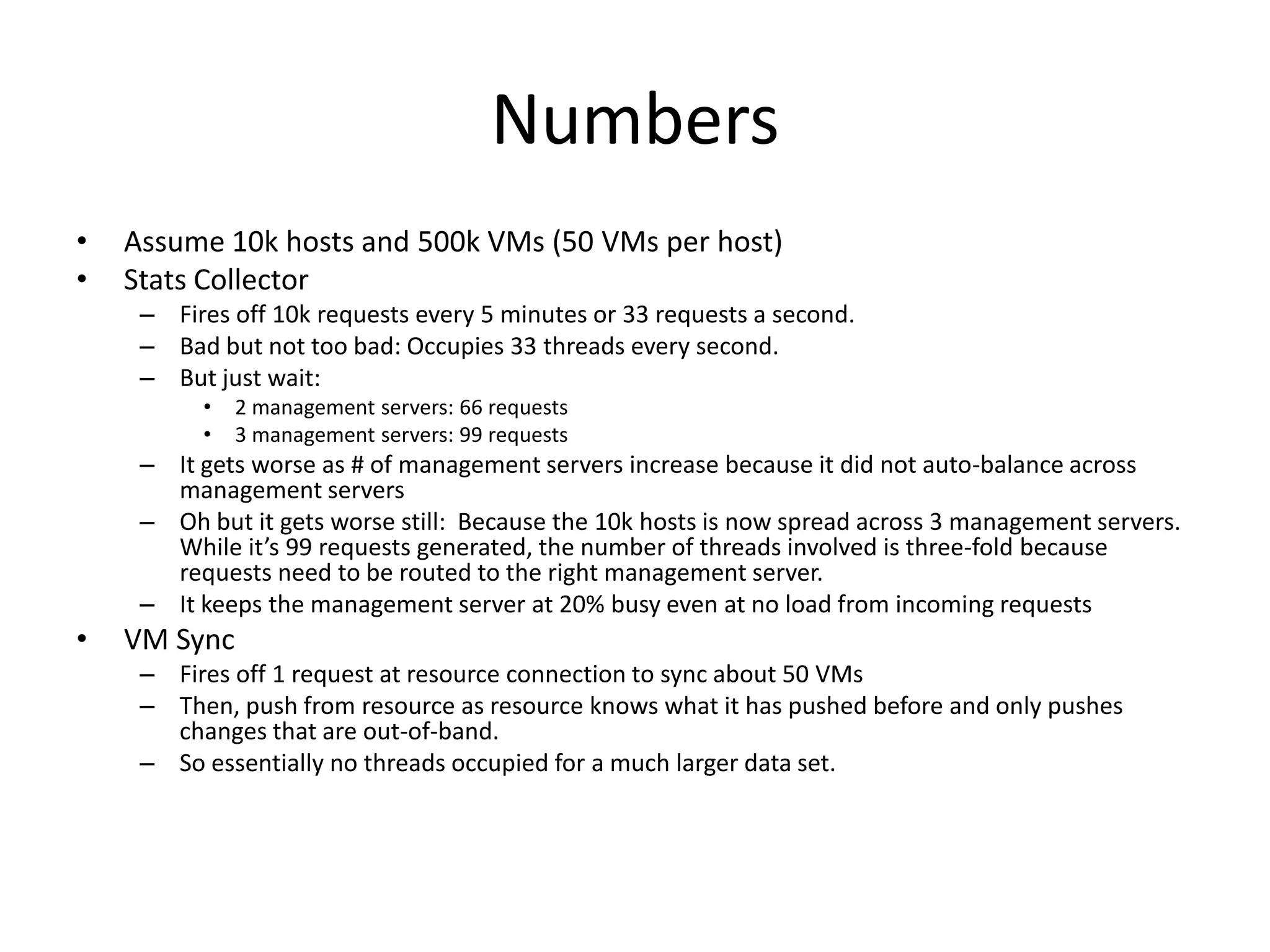

6. Numbers
• Assume 10k hosts and 500k VMs (50 VMs per host)
• Stats Collector
– Fires off 10k requests every 5 minutes or 33 requests a second.
– Bad but not too bad: Occupies 33 threads every second.
– But just wait:
• 2 management servers: 66 requests
• 3 management servers: 99 requests
– It gets worse as # of management servers increase because it did not auto-balance across
management servers
– Oh but it gets worse still: Because the 10k hosts is now spread across 3 management servers.
While it’s 99 requests generated, the number of threads involved is three-fold because
requests need to be routed to the right management server.
– It keeps the management server at 20% busy even at no load from incoming requests
• VM Sync
– Fires off 1 request at resource connection to sync about 50 VMs
– Then, push from resource as resource knows what it has pushed before and only pushes
changes that are out-of-band.
– So essentially no threads occupied for a much larger data set.

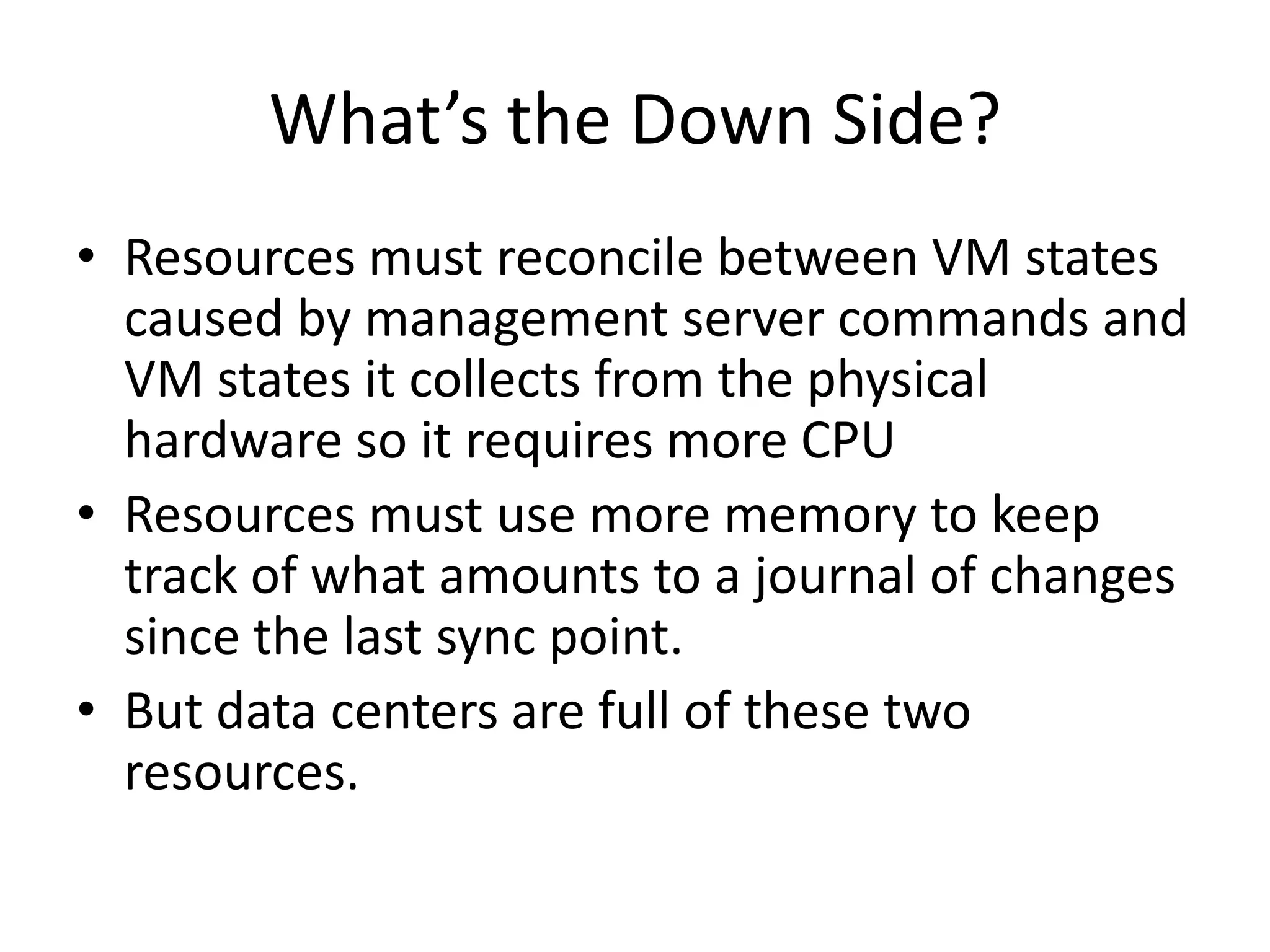

7. What’s the Down Side?
• Resources must reconcile between VM states
caused by management server commands and
VM states it collects from the physical
hardware so it requires more CPU
• Resources must use more memory to keep
track of what amounts to a journal of changes
since the last sync point.
• But data centers are full of these two
resources.

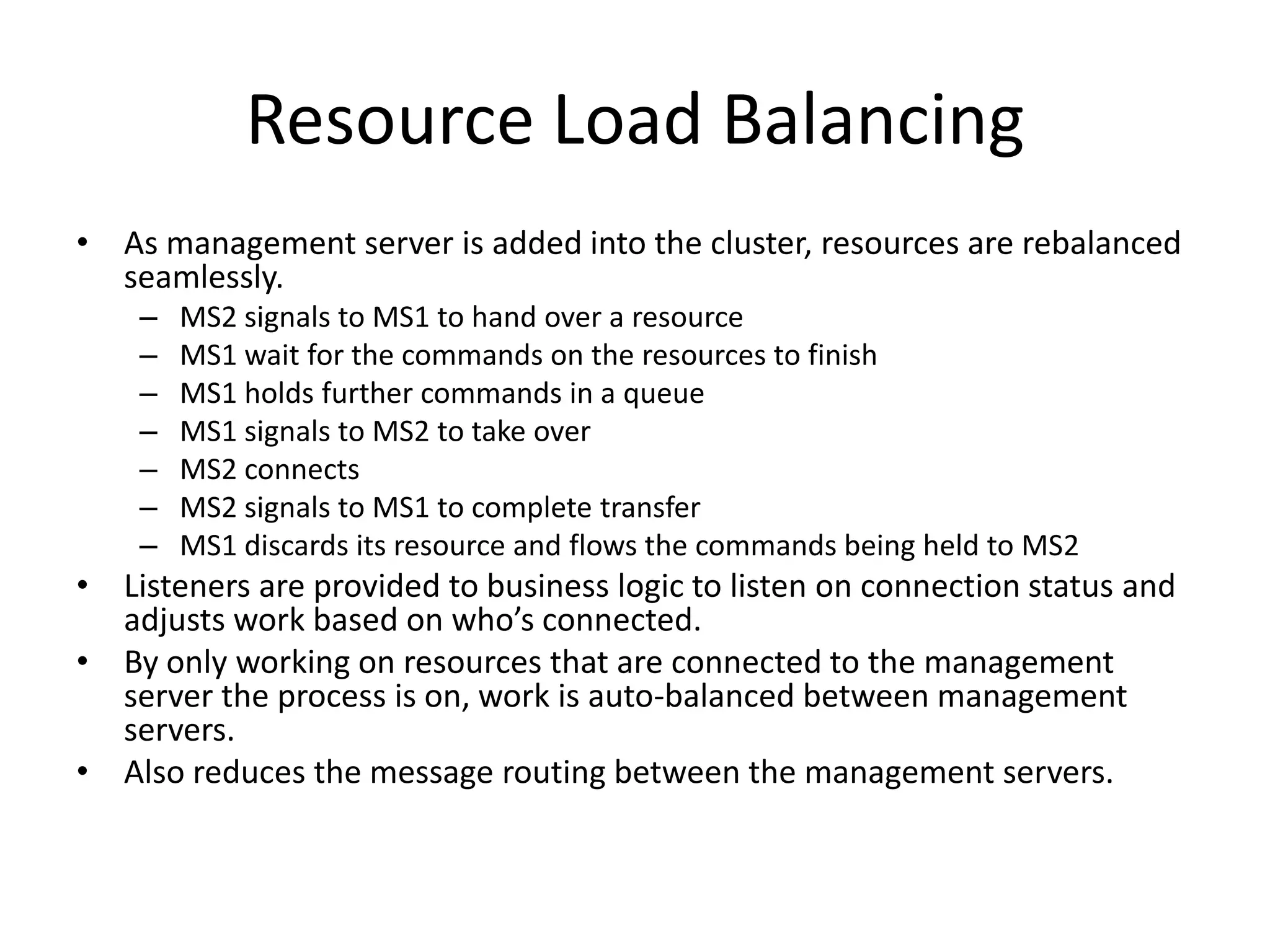

8. Resource Load Balancing
• As management server is added into the cluster, resources are rebalanced
seamlessly.
– MS2 signals to MS1 to hand over a resource
– MS1 wait for the commands on the resources to finish
– MS1 holds further commands in a queue
– MS1 signals to MS2 to take over
– MS2 connects
– MS2 signals to MS1 to complete transfer
– MS1 discards its resource and flows the commands being held to MS2
• Listeners are provided to business logic to listen on connection status and
adjusts work based on who’s connected.
• By only working on resources that are connected to the management
server the process is on, work is auto-balanced between management
servers.
• Also reduces the message routing between the management servers.

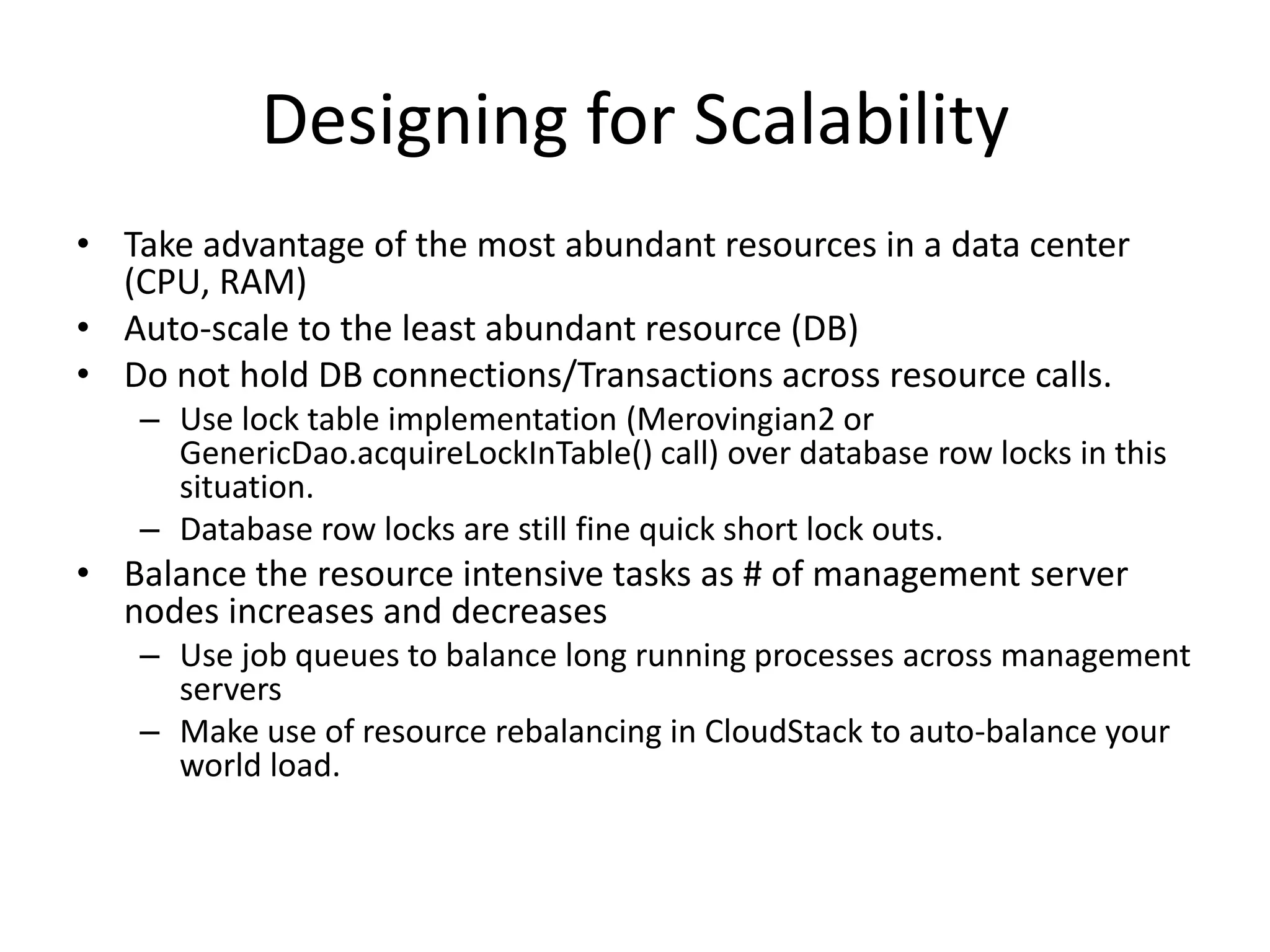

9. Designing for Scalability
• Take advantage of the most abundant resources in a data center
(CPU, RAM)
• Auto-scale to the least abundant resource (DB)
• Do not hold DB connections/Transactions across resource calls.
– Use lock table implementation (Merovingian2 or
GenericDao.acquireLockInTable() call) over database row locks in this
situation.
– Database row locks are still fine quick short lock outs.
• Balance the resource intensive tasks as # of management server
nodes increases and decreases
– Use job queues to balance long running processes across management
servers
– Make use of resource rebalancing in CloudStack to auto-balance your
world load.

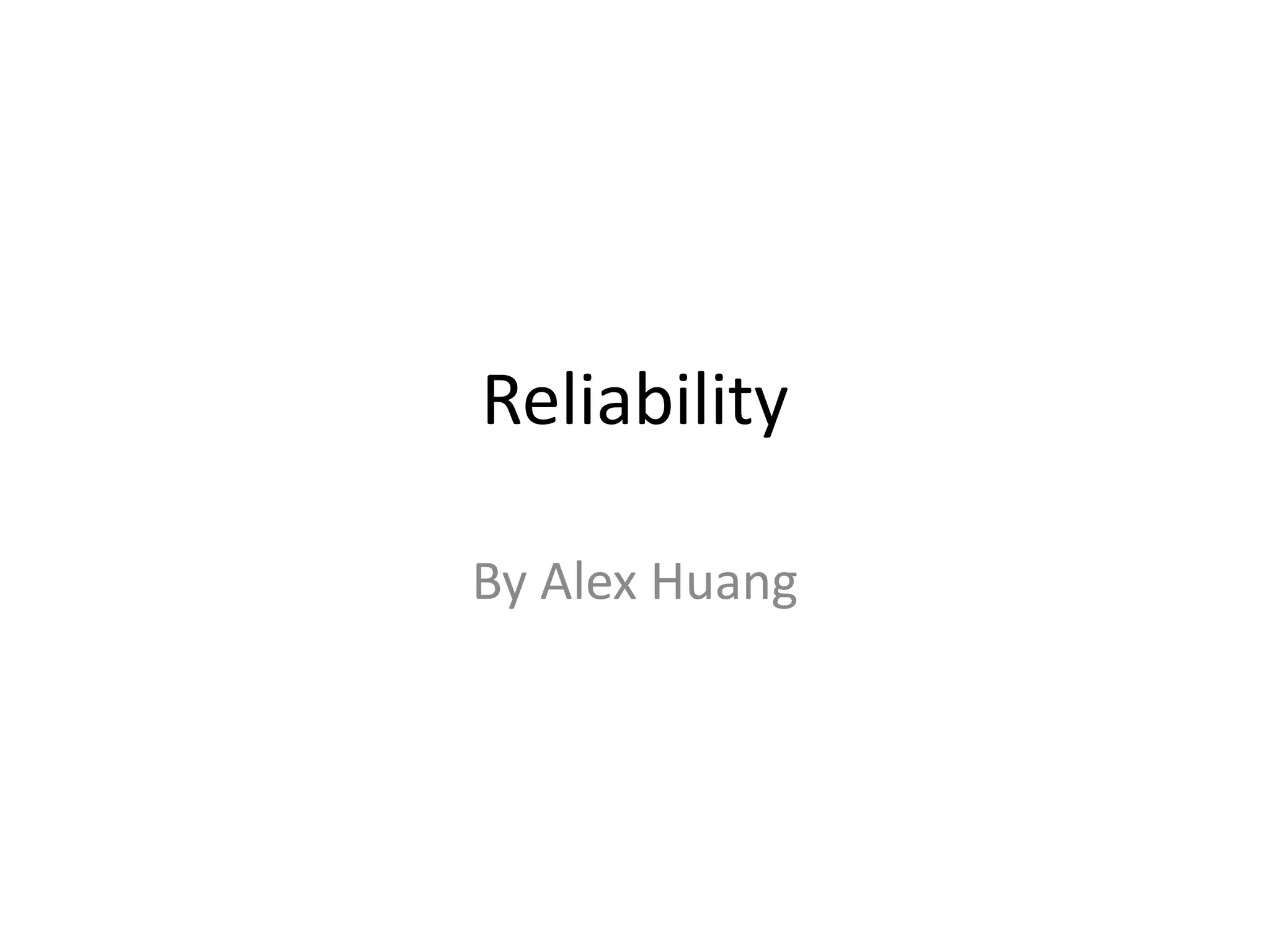

10. Reliability
By Alex Huang

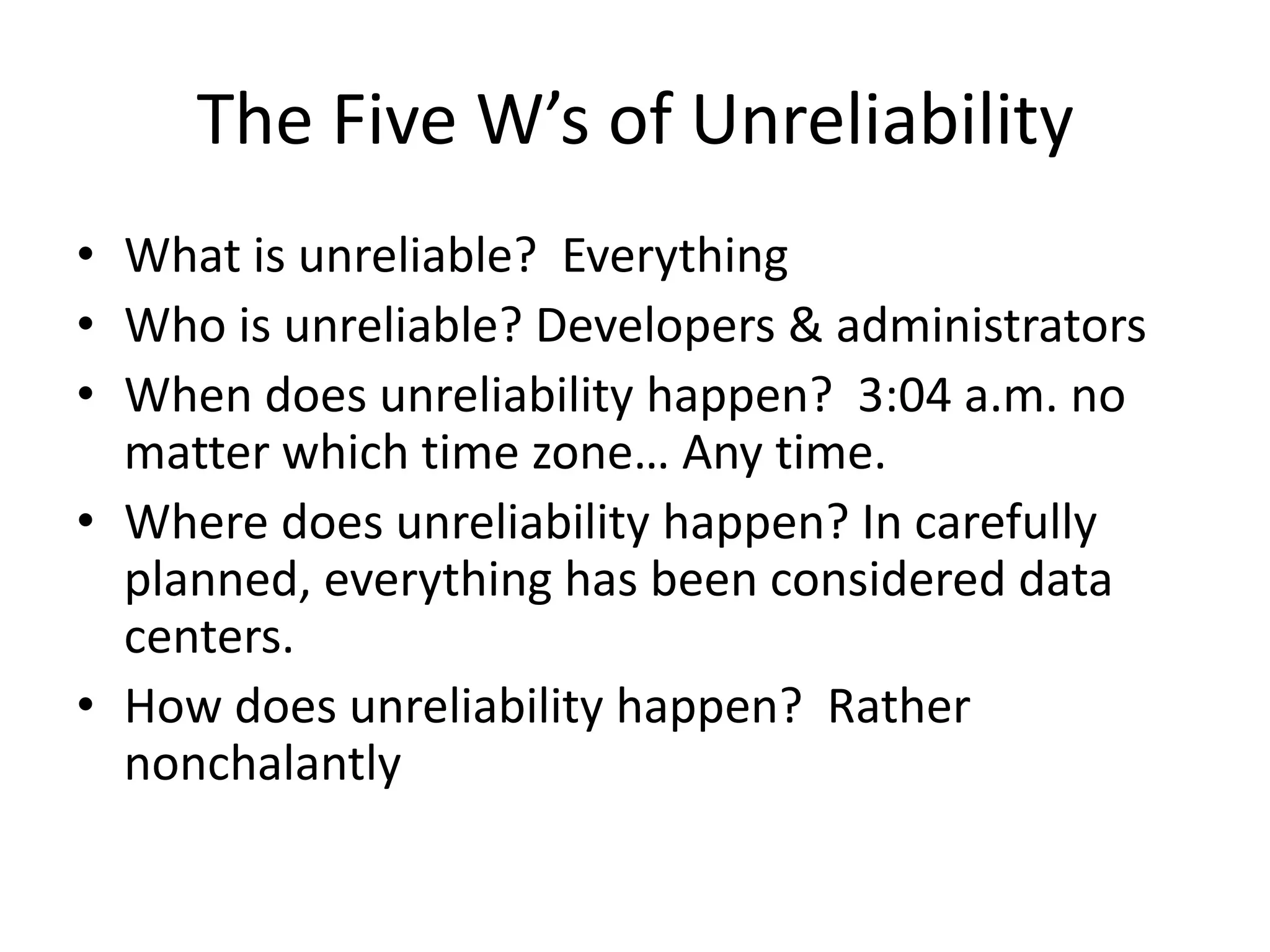

11. The Five W’s of Unreliability
• What is unreliable? Everything
• Who is unreliable? Developers & administrators
• When does unreliability happen? 3:04 a.m. no
matter which time zone… Any time.
• Where does unreliability happen? In carefully
planned, everything has been considered data
centers.
• How does unreliability happen? Rather
nonchalantly

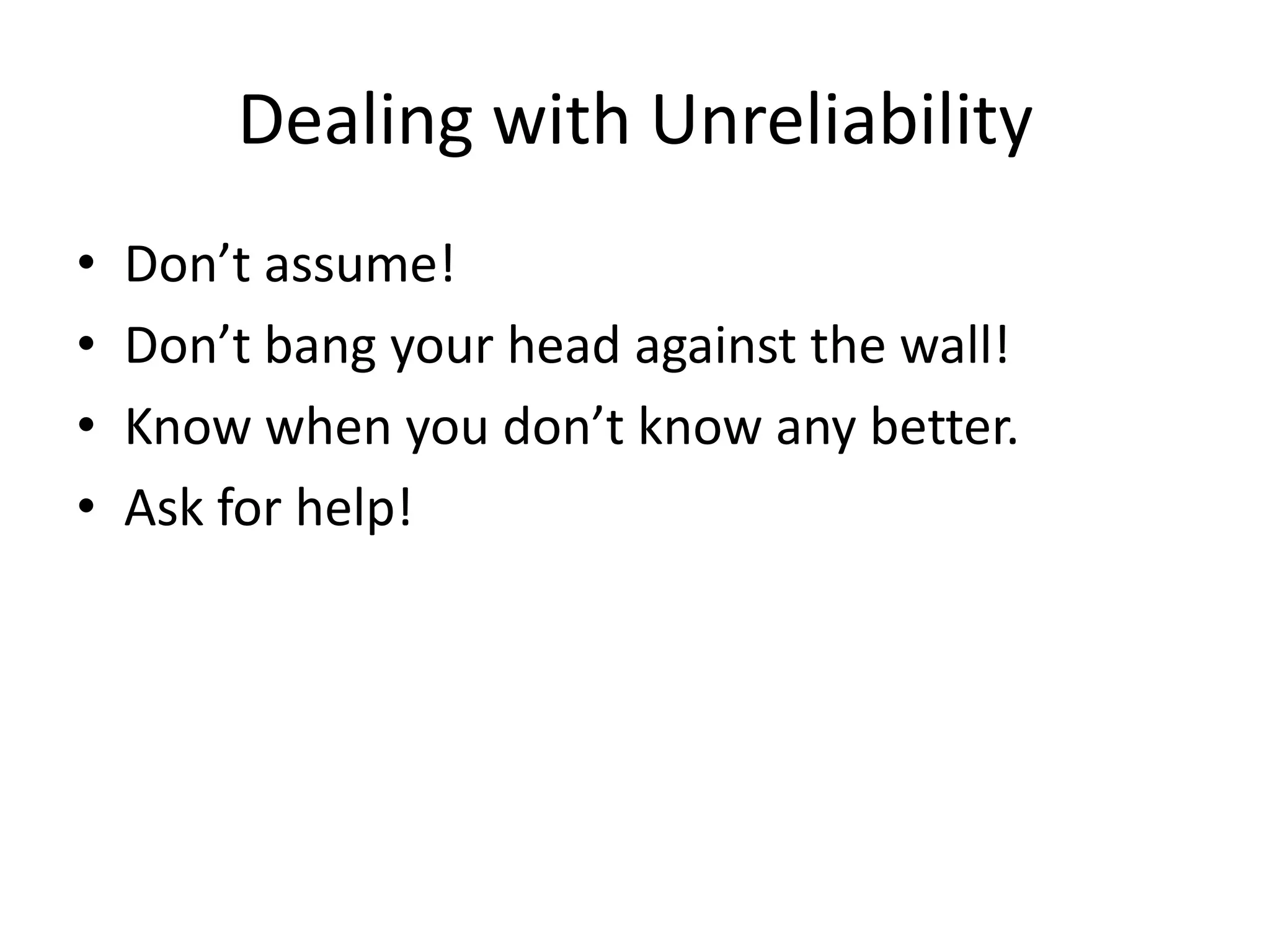

12. Dealing with Unreliability
• Don’t assume!
• Don’t bang your head against the wall!
• Know when you don’t know any better.
• Ask for help!

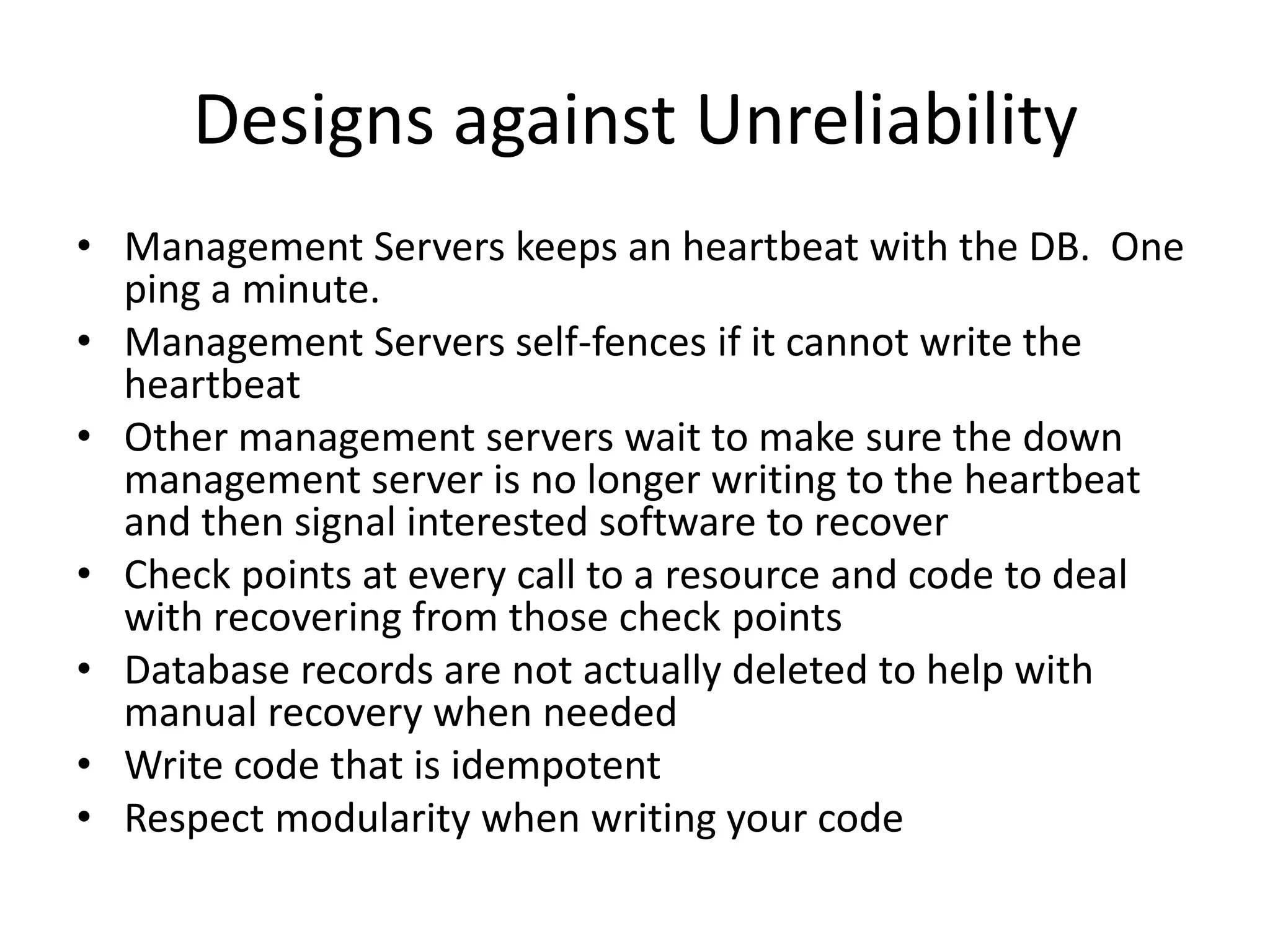

13. Designs against Unreliability
• Management Servers keeps an heartbeat with the DB. One
ping a minute.
• Management Servers self-fences if it cannot write the
heartbeat
• Other management servers wait to make sure the down
management server is no longer writing to the heartbeat
and then signal interested software to recover
• Check points at every call to a resource and code to deal
with recovering from those check points
• Database records are not actually deleted to help with
manual recovery when needed
• Write code that is idempotent
• Respect modularity when writing your code
