The document discusses the implementation of a rule-driven, fully-configurable asset tracking system using GIS to support preventive maintenance activities at Memphis Light, Gas and Water (MLGW). It highlights business drivers for asset management, the integration of Oracle Enterprise Asset Management with ESRI's GIS solutions, and the benefits of a configured tracking system for asset lifecycle management. The project aims to enhance asset identification, description, and maintenance through effective GIS and enterprise systems integration.

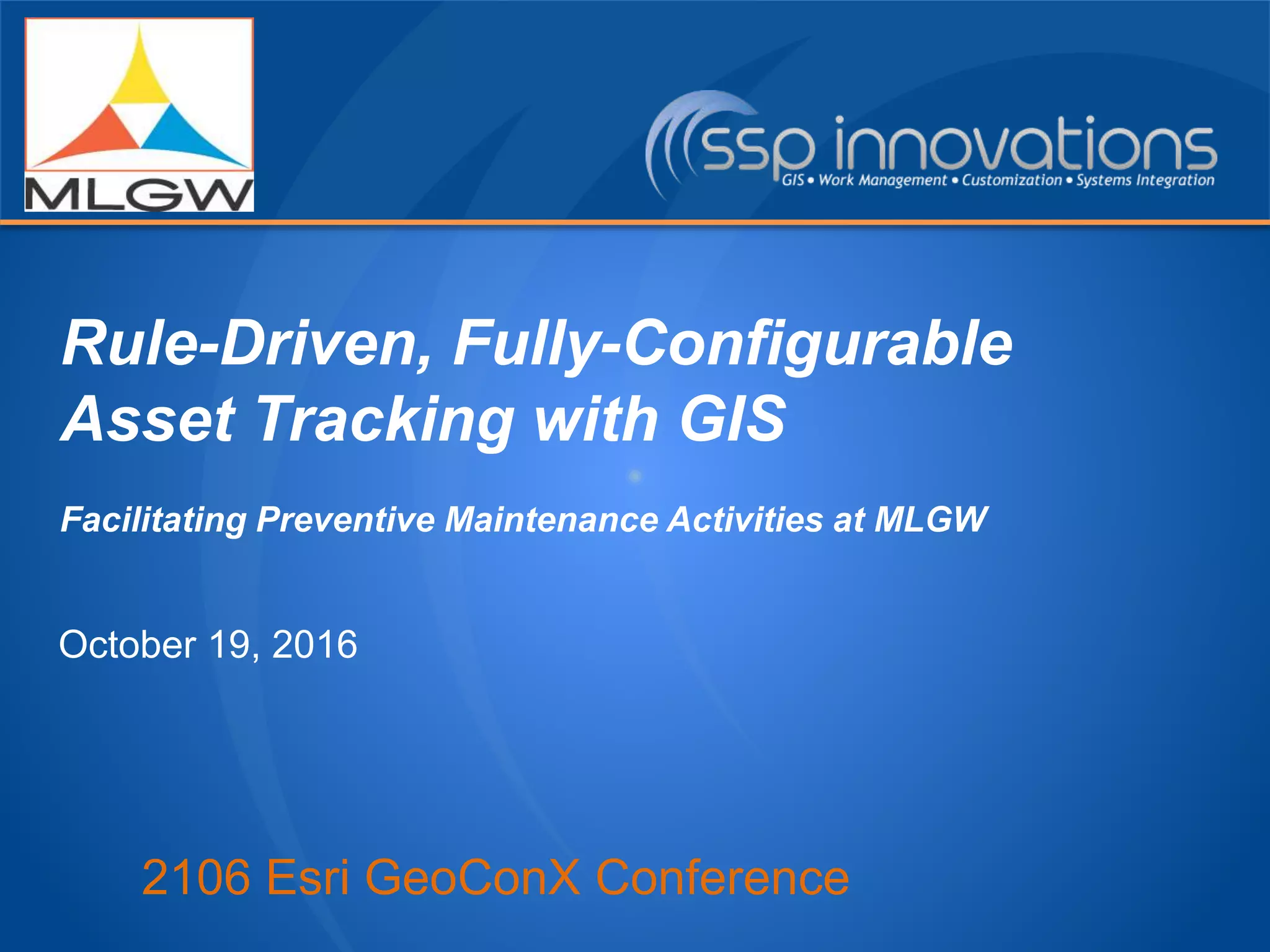

1. 2106 Esri GeoConX Conference
Rule-Driven, Fully-Configurable
Asset Tracking with GIS
Facilitating Preventive Maintenance Activities at MLGW
October 19, 2016

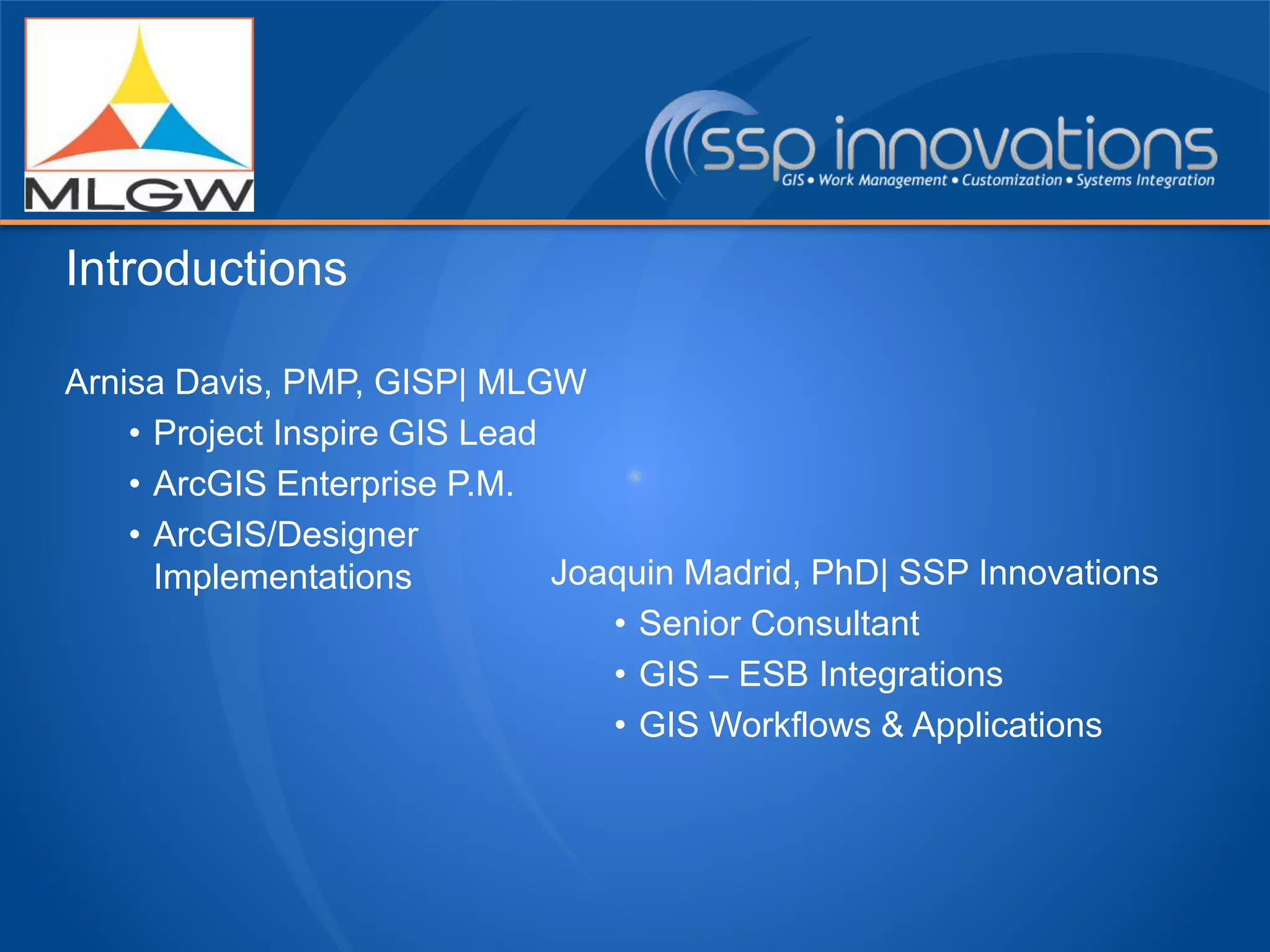

2. Arnisa Davis, PMP, GISP| MLGW
• Project Inspire GIS Lead
• ArcGIS Enterprise P.M.
• ArcGIS/Designer
Implementations Joaquin Madrid, PhD| SSP Innovations
• Senior Consultant
• GIS – ESB Integrations
• GIS Workflows & Applications
Introductions

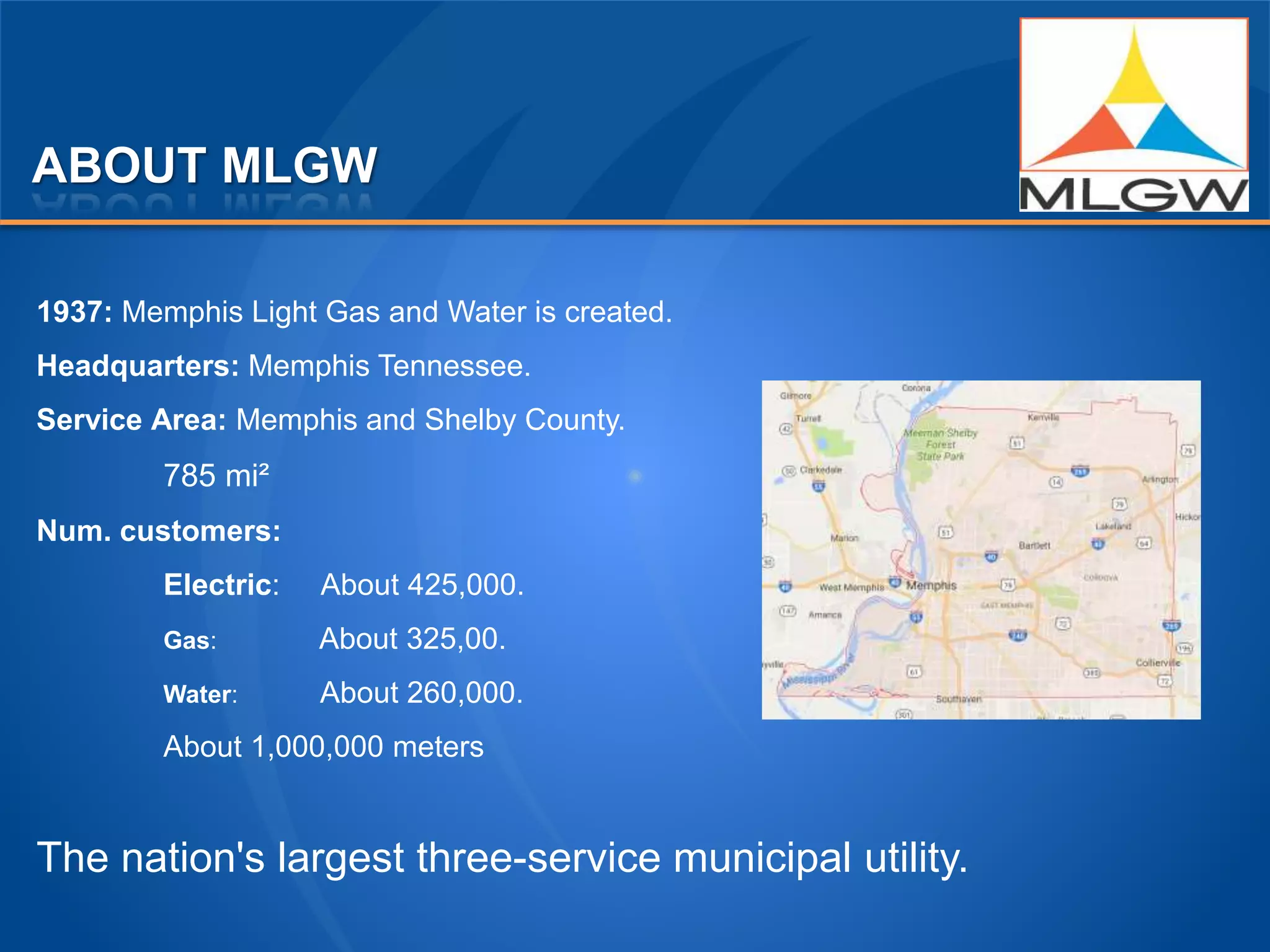

3. ABOUT MLGW
1937: Memphis Light Gas and Water is created.
Headquarters: Memphis Tennessee.
Service Area: Memphis and Shelby County.
785 mi²
Num. customers:
Electric: About 425,000.
Gas: About 325,00.
Water: About 260,000.
About 1,000,000 meters
The nation's largest three-service municipal utility.

4. ABOUT SSP
• Eleven-year old GIS consulting company
• Work exclusively in the U.S. utility/telecom industries
• Team of ~35 Based in the Denver area
• 100% of our work is performed at utilities & telecoms with Esri-based GIS
• 100% aligned with Esri platform strategy
• 70+ clients; 100+ combined years working with Esri software
• Industry-leading reputation for quality, successful solutions to requirements

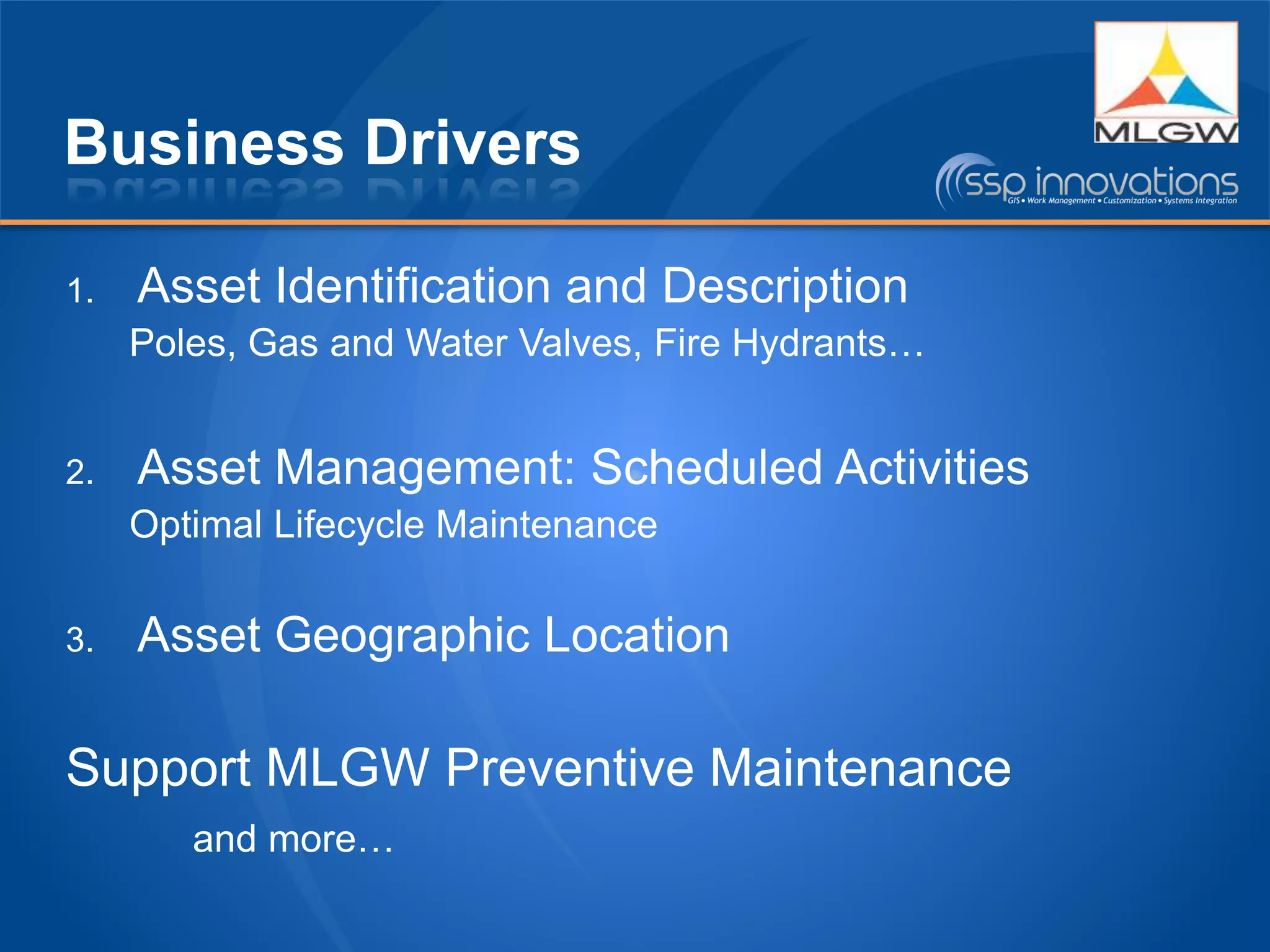

5. Business Drivers
1. Asset Identification and Description
Poles, Gas and Water Valves, Fire Hydrants…
2. Asset Management: Scheduled Activities
Optimal Lifecycle Maintenance
3. Asset Geographic Location
Support MLGW Preventive Maintenance
and more…

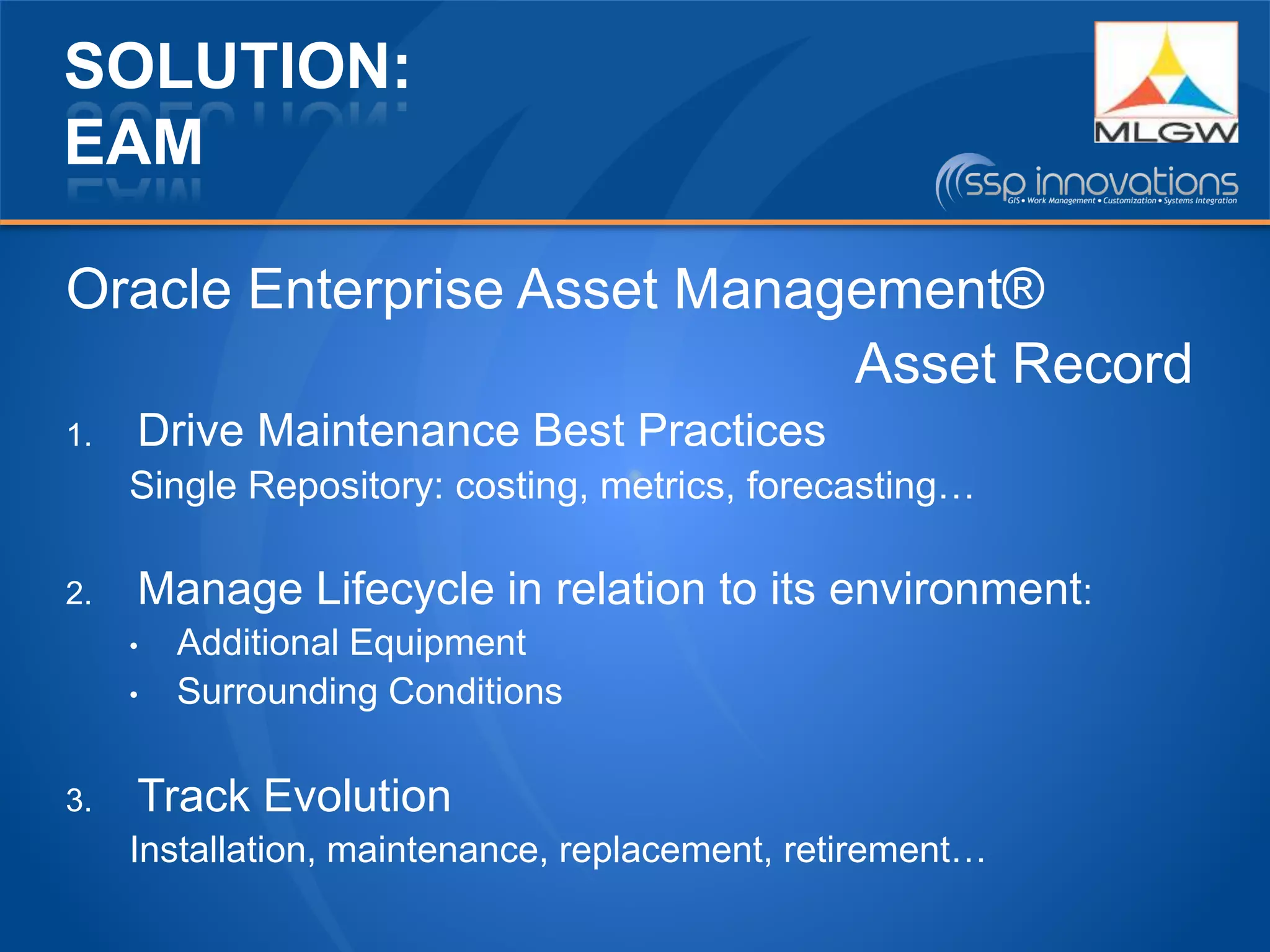

6. SOLUTION:
EAM
Oracle Enterprise Asset Management®
Asset Record
1. Drive Maintenance Best Practices
Single Repository: costing, metrics, forecasting…
2. Manage Lifecycle in relation to its environment:
• Additional Equipment
• Surrounding Conditions
3. Track Evolution
Installation, maintenance, replacement, retirement…

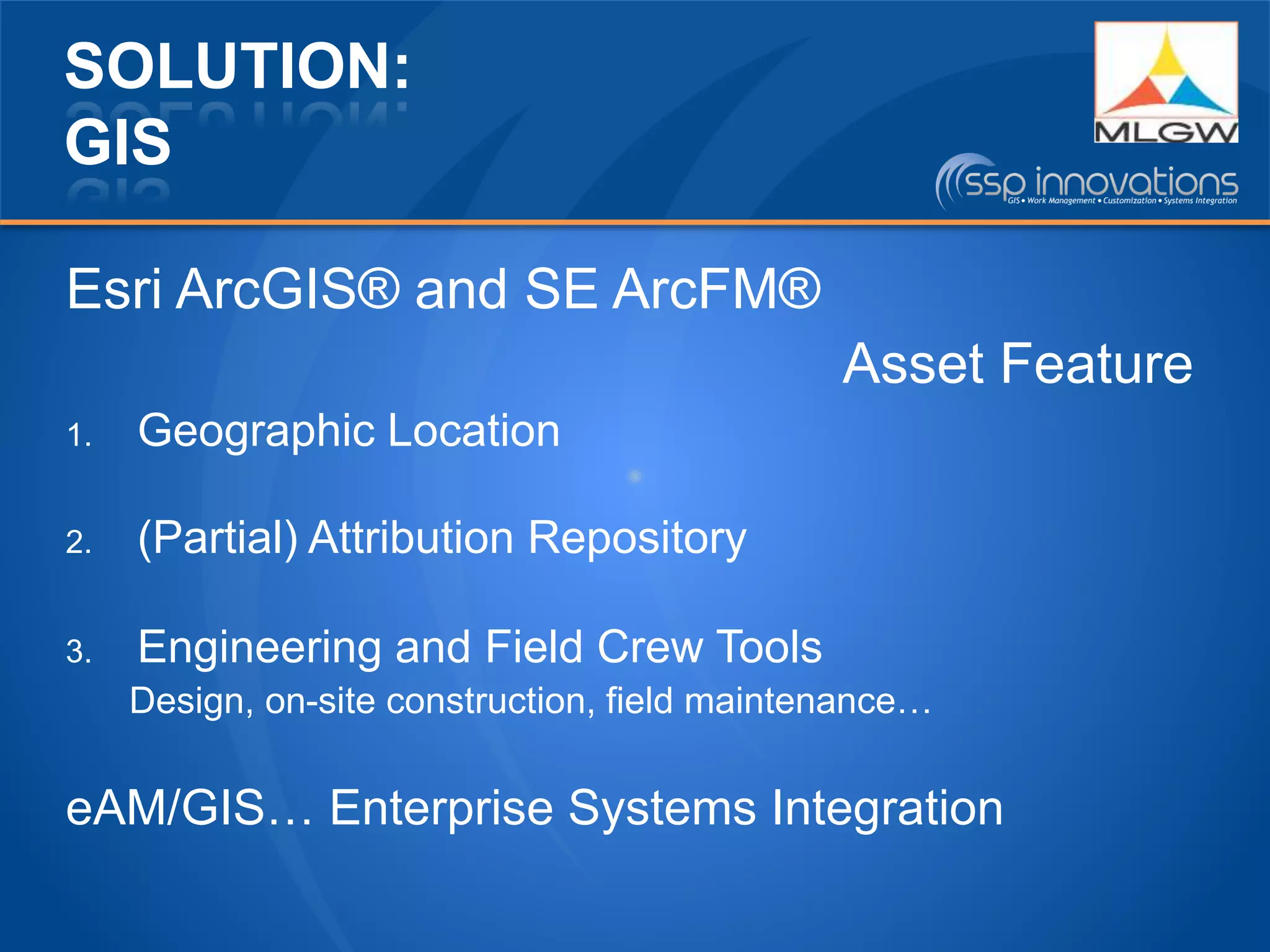

7. SOLUTION:
GIS
Esri ArcGIS® and SE ArcFM®
Asset Feature
1. Geographic Location
2. (Partial) Attribution Repository
3. Engineering and Field Crew Tools
Design, on-site construction, field maintenance…
eAM/GIS… Enterprise Systems Integration

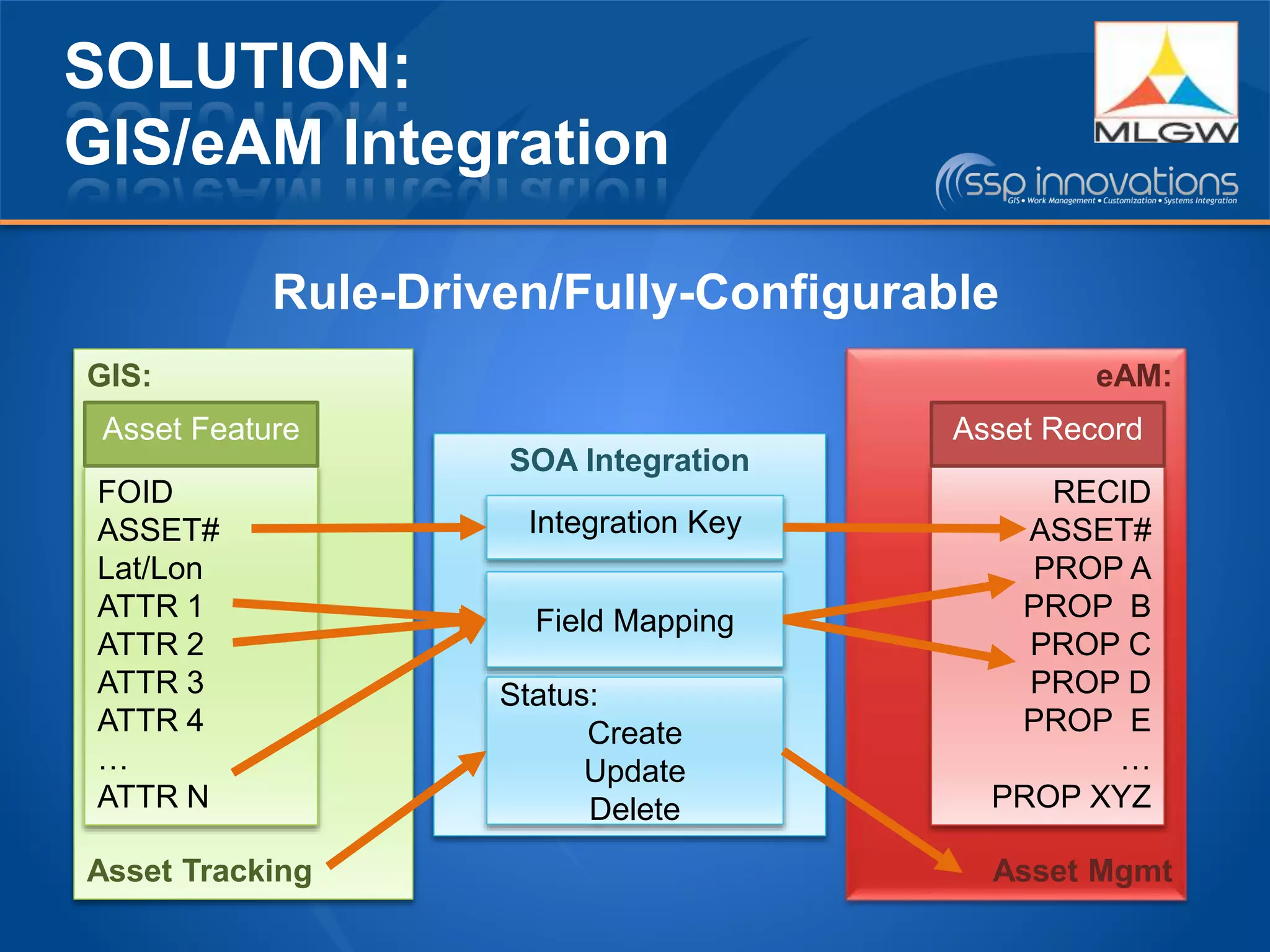

8. GIS:
Asset Tracking
SOLUTION:
GIS/eAM Integration
FOID
ASSET#
Lat/Lon
ATTR 1
ATTR 2
ATTR 3
ATTR 4
…
ATTR N
SOA Integration
Asset Feature
eAM:
Asset Mgmt
RECID
ASSET#
PROP A
PROP B
PROP C
PROP D
PROP E
…
PROP XYZ
Asset Record
Integration Key
Field Mapping
Rule-Driven/Fully-Configurable
Status:
Create
Update
Delete

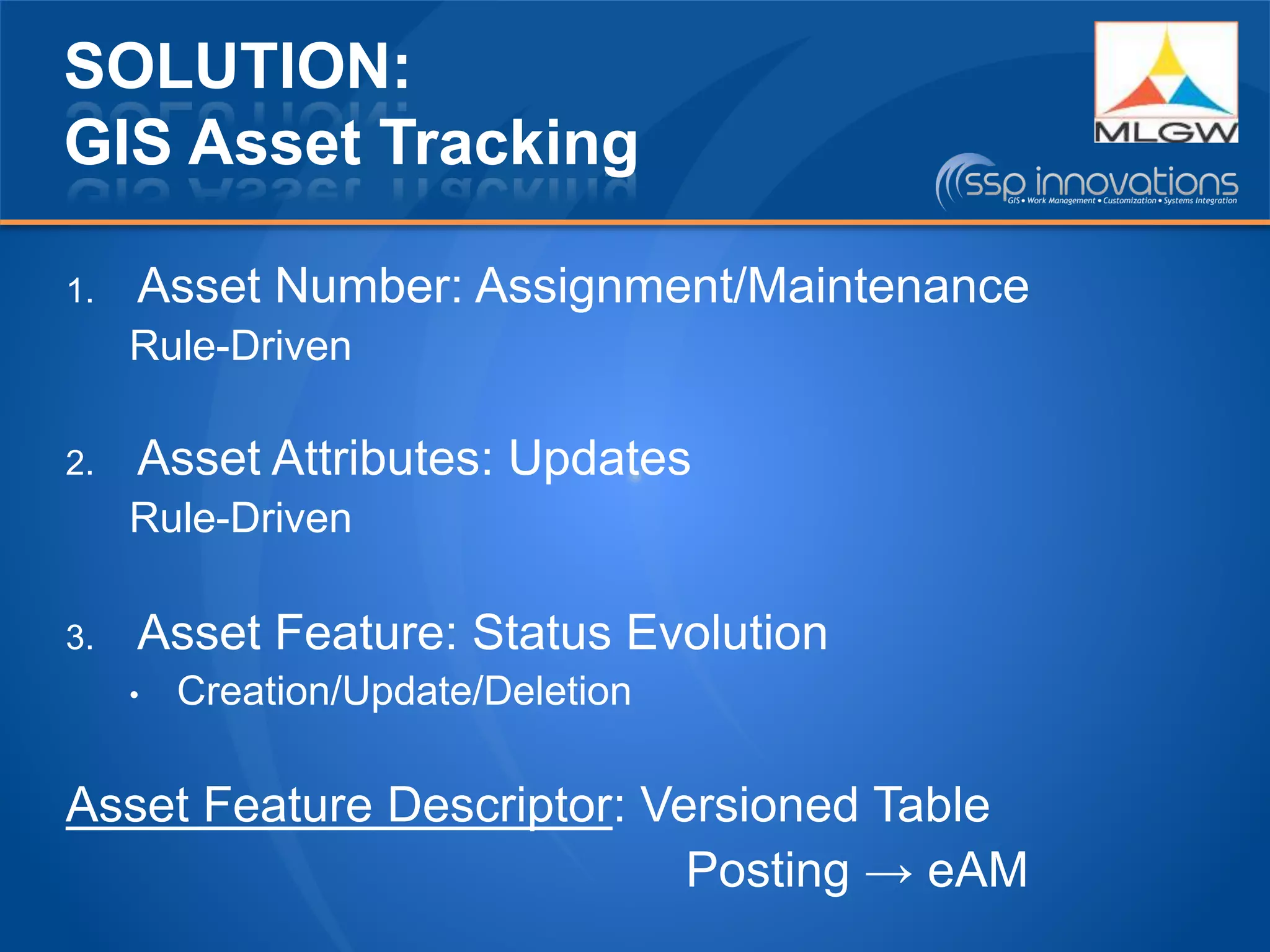

9. SOLUTION:
GIS Asset Tracking
1. Asset Number: Assignment/Maintenance
Rule-Driven
2. Asset Attributes: Updates
Rule-Driven
3. Asset Feature: Status Evolution
• Creation/Update/Deletion
Asset Feature Descriptor: Versioned Table
Posting → eAM

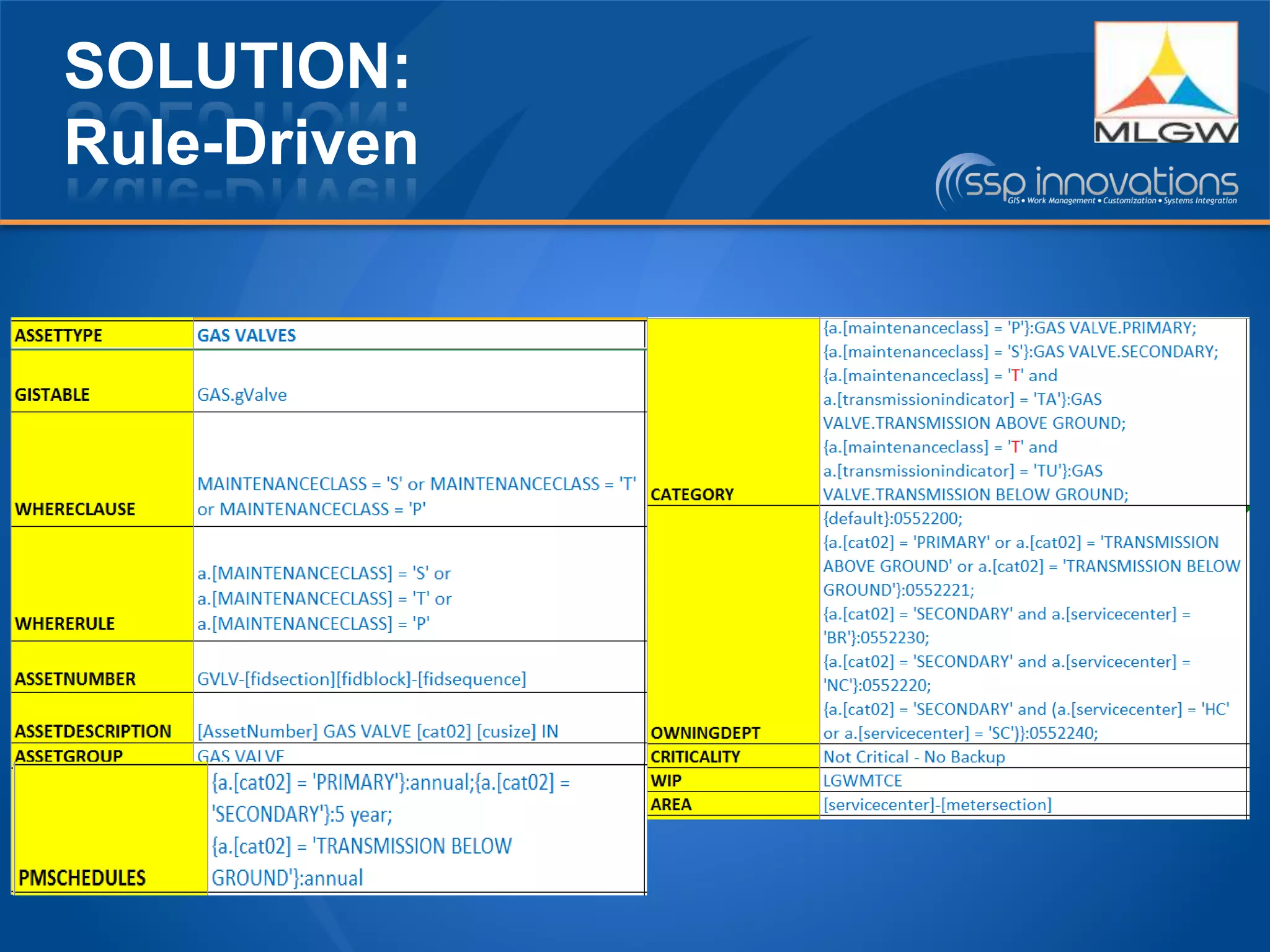

10. SOLUTION:
Rule-Driven

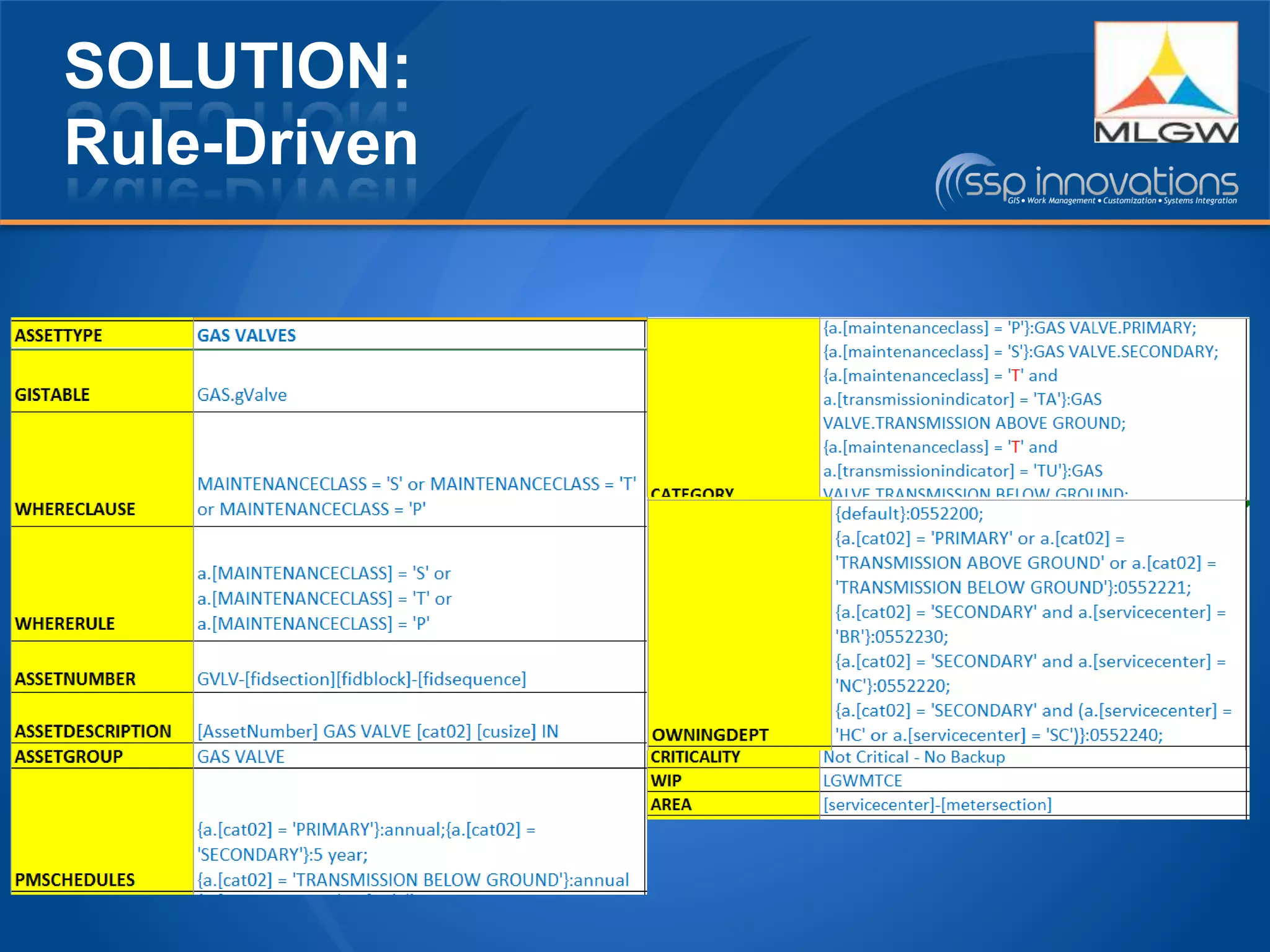

11. SOLUTION:
Rule-Driven

12. SOLUTION:
Rule-Driven

13. SOLUTION:
GIS/eAM Integration

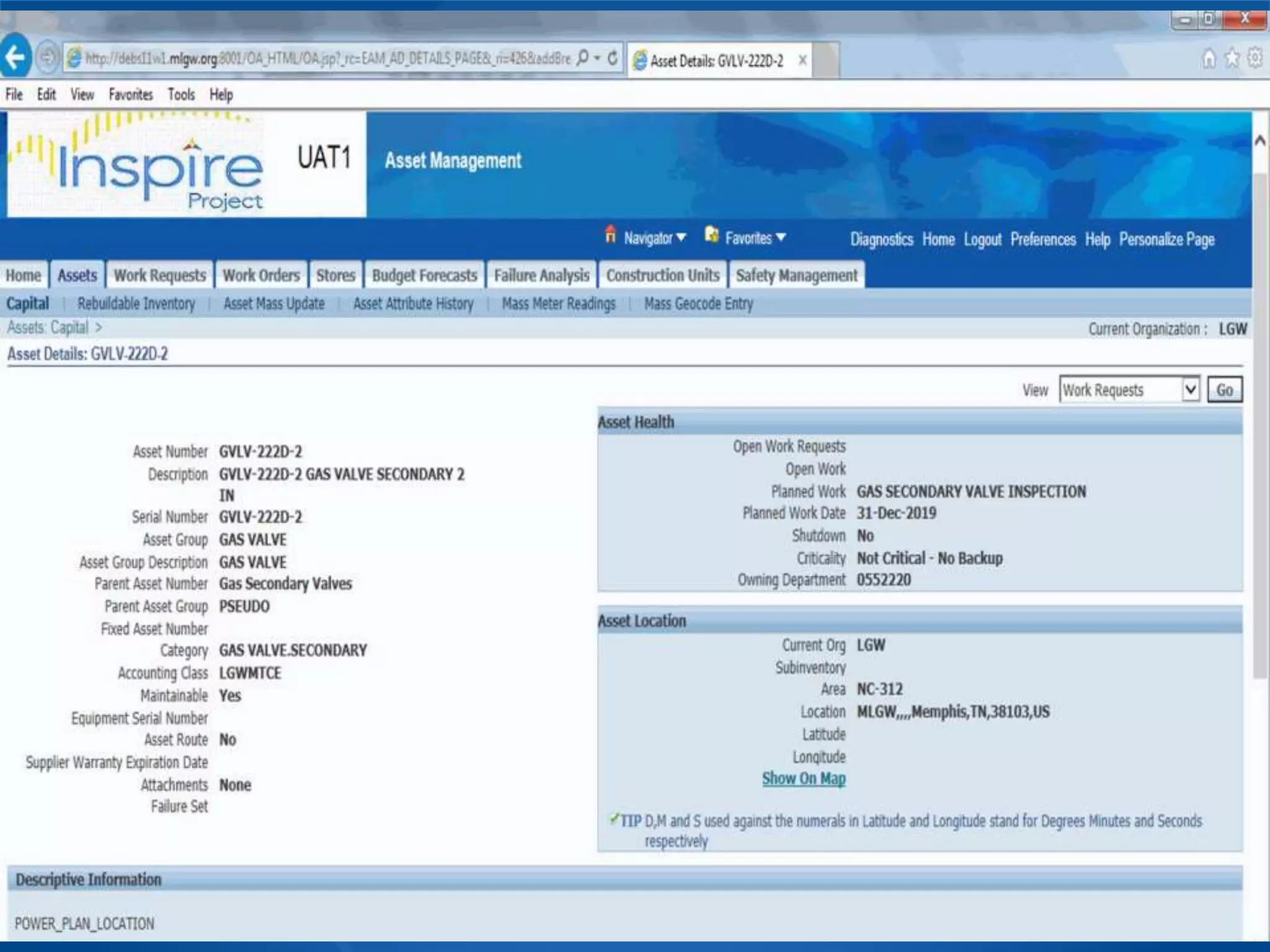

14. SOLUTION:
GIS/eAM Integration

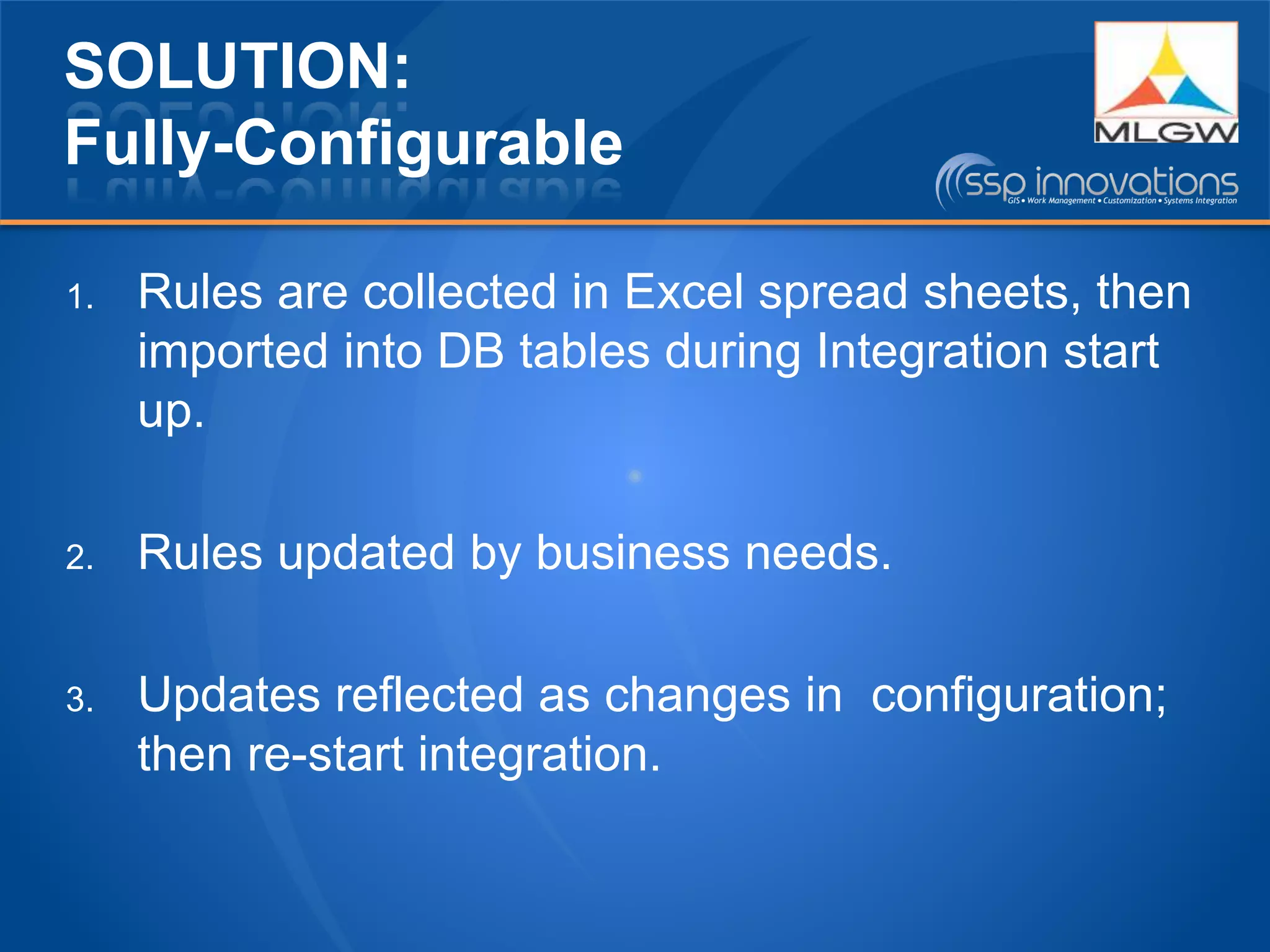

15. SOLUTION:
Fully-Configurable
1. Rules are collected in Excel spread sheets, then
imported into DB tables during Integration start
up.
2. Rules updated by business needs.
3. Updates reflected as changes in configuration;
then re-start integration.

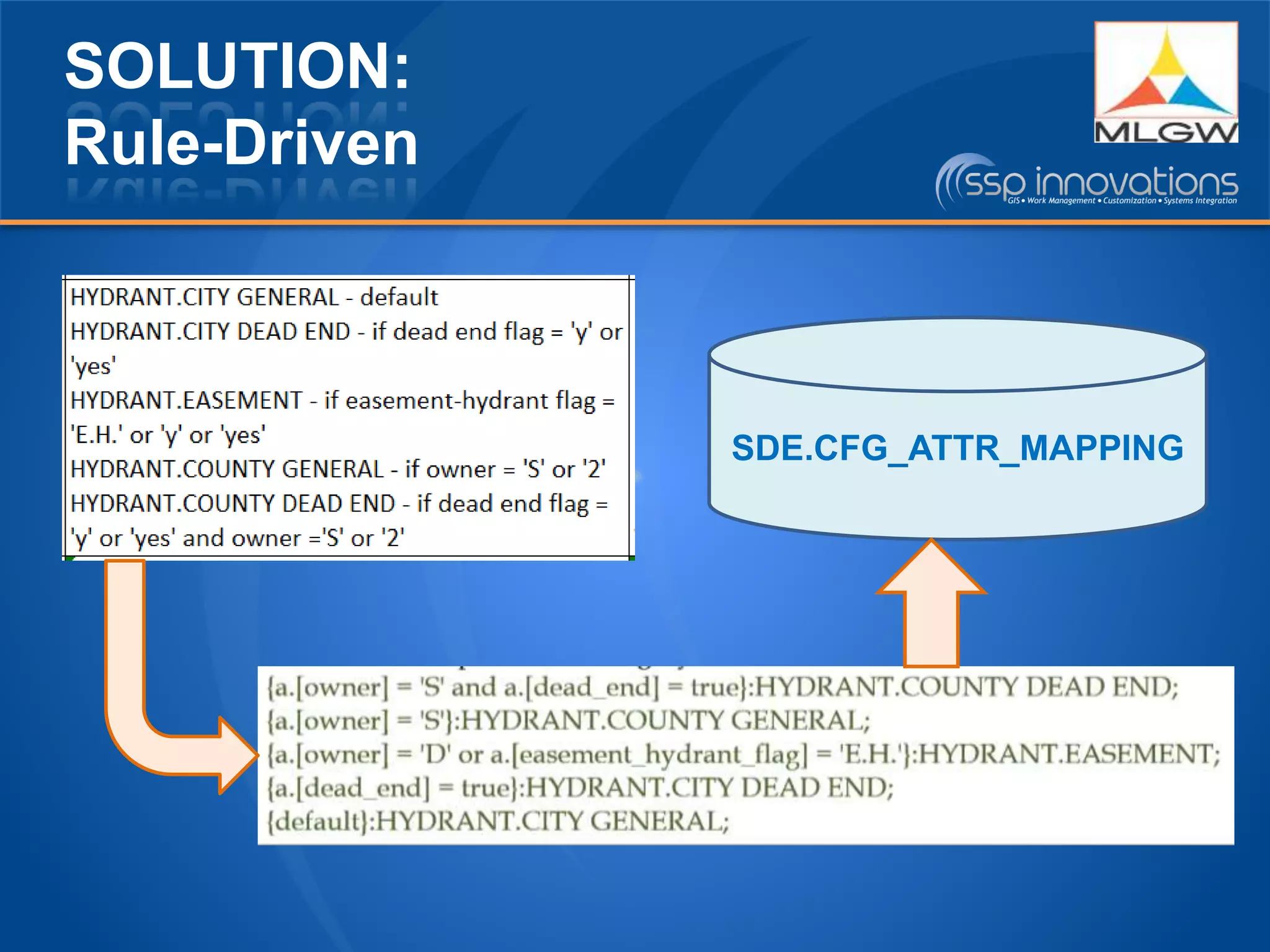

16. SOLUTION:
Rule-Driven
SDE.CFG_ATTR_MAPPING

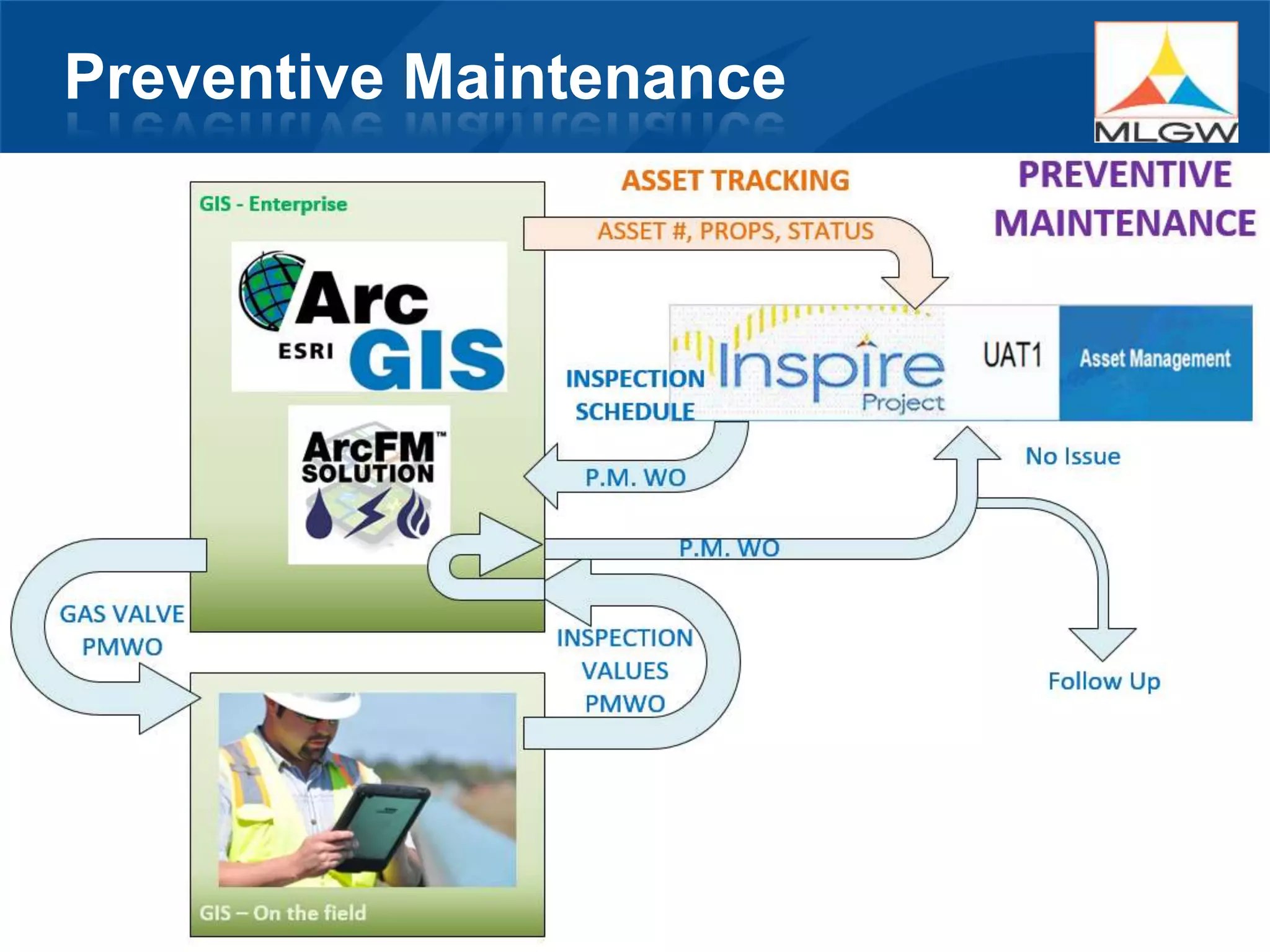

17. Preventive Maintenance

18. Business Benefits
1. Rule-Driven/Fully-Configurable Asset Tracking
2. Asset Location and Description
3. Asset Management Lifecycle
Support MLGW Preventive Maintenance
and more…

19. Questions?
Arnisa Davis
adavis@mlgw.org
www.mlgw.com
Joaquin Madrid
joaquin.madrid@sspinnovations.com
www.sspinnovations.com
