Robotic Process Automation Chapters 1 to 5 Complete technical guide covering RPA Foundations, UiPath Ecosystem, Control Flow, Recorders, Exception Handling, Document & Office Automation, Mail & File Systems. RPA Masterclass Series Slide 1 Dr. N. Juber Rahman, AP, SRCAS, CBE
Chapter 1: RPA Foundations Chapter 2: Control Flow Chapter 3: Recorders & UI Chapter 4: Office Automation Chapter 5: Mail & File Systems RPA History & Market Growth Vendor Ecosystem (UiPath, AA, Blue Prism) UiPath Stack (Studio, Robot, Orchestrator) RPA Types & Workflow Basics Decision & Loop Structures (If, While, For Each) Assign, Delay, Break & Switch Variables, Data Types & Scope Arguments & Data Tables Recording Types (Basic, Desktop, Web) Input & Output Methods Screen Scraping (FullText, Native, OCR) Exception Handling & Debugging Word Automation (Set Bookmark, Read, Replace, PDF) Excel Automation (COM Scope vs Workbook File Parsing) PowerPoint Presentation Automation & Dynamic Tables Mail Integration (Gmail, Outlook, IMAP, SMTP) Email Filtering, Attachment Processing & Archiving File System Operations, Directory Scanning & CSV Manipulation Curriculum Overview Curriculum Overview Slide 2

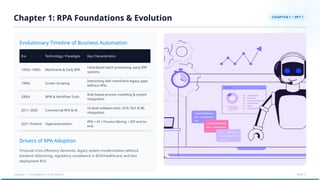

Evolutionary Timeline of Business Automation Era Technology / Paradigm Key Characteristics 1950s–1980s Mainframe & Early BPA Centralized batch processing, early ERP systems. 1990s Screen Scraping Interacting with mainframe legacy apps without APIs. 2000s BPM & Workflow Tools Rule-based process modeling & system integration. 2011–2020 Commercial RPA & AI UI-level software bots, OCR, NLP & ML integration. 2021–Present Hyperautomation RPA + AI + Process Mining + IDP end-to- end. Drivers of RPA Adoption Financial crisis efficiency demands, legacy system modernization without backend refactoring, regulatory compliance in BFSI/Healthcare, and fast deployment ROI. Chapter 1: RPA Foundations & Evolution Chapter 1: Foundations & Evolution Slide 3
Automation Anywhere UiPath Blue Prism What Should Be Automated? Automation Techniques Spectrum Cloud-native RPA platform. IQ Bot for cognitive document processing. Bot Store ecosystem for pre-built components. Bot Insight real-time operational analytics. Complete End-to-End Automation Stack. Studio (Design), Robot (Execute), Orchestrator (Manage). AI Center & Intelligent Document Understanding. Extensive drag-and-drop activity libraries. Enterprise-grade, secure & scalable architecture. Digital Workforce central administration. Object Studio & Process Studio modular separation. Partner-centric deployment model. Repetitive, high-volume, time-consuming tasks. Rule-based processes with structured digital inputs. High-risk manual processes prone to human error. Pre-RPA: Macros, Shell Scripts & IT Runbooks. RPA Core: UI Desktop & Web Automation, Wrappers, APIs. Cognitive / Intelligent: Machine Learning, Computer Vision & IDP. Chapter 1: RPA Platforms Comparison Chapter 1: Platform Ecosystem Slide 4
UiPath Core Architecture Triad 1. UiPath Studio: Graphical IDE for developers to build workflows visually using sequences, flowcharts, and state machines. 2. UiPath Robot: Execution agent on client/server host. Runs tasks compiled from Studio. 3. UiPath Orchestrator: Centralized web-based management server for scheduling, monitoring, license management, assets, queues, and audit logs. UiPath Studio Panels Overview Classification of RPA Robots Robot Type Operational Characteristics & Use Cases Attended RPA Triggers directly on employee workstation. Operates alongside humans for front-office assistance (call centers, desk validation). Unattended RPA Runs autonomously in background/virtual machine, managed remotely by Orchestrator. Ideal for high-volume back-office batch jobs. Hybrid RPA Combines attended human verification with unattended back- office processing loops. Cognitive / AI Handles unstructured data (emails, PDFs) using OCR, NLP, and Machine Learning models. Activities Panel: Search and drag pre-built activities. Properties Panel: Configure activity parameters & arguments. Project Panel: File explorer, dependencies & version control (TFS/SVN). Output Panel: Execution logs, trace details & debugging output. Chapter 1: UiPath Stack & Robot Types Chapter 1: UiPath Stack Slide 5
Core Decision & Iteration Blocks Utility Activities Assign Activity: Assigns values or calculated expression results to variables. Delay Activity: Pauses workflow execution for a defined duration (`hh:mm:ss`). Workflow Types Comparison Workflow Type Best For Key Feature Sequence Linear, step-by-step processes Simple, continuous execution flow without complex branching. Flowchart Complex processes with decision paths Supports multi-branching logical decisions and visual loops. State Machine Large enterprise automation (REFramework) Uses finite states, transitions, entry/exit actions & event triggers. If Activity: Evaluates boolean condition; executes Then block if true, Else block if false. Switch Activity: Routes execution to multiple branches based on an expression outcome (Integer, String, TypeArgument). While Loop: Evaluates condition before executing loop body. Do While Loop: Executes loop body at least once before evaluating condition. For Each Activity: Iterates through collections, arrays, or data tables sequentially. Break Activity: Forces immediate termination of a loop. Chapter 2: UiPath Control Flow Architecture Chapter 2: Control Flow Slide 6
Essential DataTable Manipulation Methods Variables & Types UiPath Arguments Data Structures GenericValue: Proprietary UiPath auto- converting dynamic type. String: Enclosed in quotes (`"Text"`). Int32 / Double: Numeric computations. Boolean: `True` / `False` flags. DateTime: System time parsing (`Now`). Pass data between different workflows. In: Input passed to invoked child workflow. Out: Output passed back to caller. In/Out: Two-way data exchange. Naming convention: `in_Config`, `out_Result`. Arrays (`T[]`): Fixed-size indexed storage. Lists (`List `): Dynamic resizing collection. Dictionaries: Key-value pair lookup (`Dictionary `). DataTable: Tabular memory structure (rows/columns). Build Data Table: Interactively define columns, data types, and initial schema in Studio. Filter Data Table: Apply logical conditions to keep or remove specific rows matching rules. For Each Row: Iterate through each `DataRow` inside a `DataTable` memory object. Chapter 2: Data Structures & Manipulation Chapter 2: Data Manipulation Slide 7
UiPath Recorders Overview Recorder Container / Selector Type Best Used For Basic No containers, full selectors per activity Single, independent actions on standalone controls. Desktop Attach Window container + partial selectors Multiple desktop application actions (Faster execution). Web Open/Attach Browser + Simulate input Web browser tasks (Chrome, IE, Edge). Citrix / Image Manual image anchors & OCR selectors Virtualized apps, VNC, RDP, SAP & non-accessible UIs. UI Automation Input Methods Default Hardware Events: 100% compatibility, uses physical mouse/keyboard, cannot run in background. Window Messages: Sends OS messages directly to control, supports background execution & hotkeys. Simulate Click/Type: 100% fast background execution, auto-clears fields, does not support hardware hotkeys. Chapter 3: UiPath Recording & UI Interaction Chapter 3: Recorders & Input Slide 8
Screen Scraping Methods Comparison Method Speed Accuracy Background Key Characteristics FullText 10/10 100% Yes Default method. Extracts hidden text. No screen coordinates. Native 8/10 100% No Uses GDI rendering. Extracts word screen positions/coordinates. OCR Engine 3/10 ~98% No Works on images, Citrix & virtualized apps (Tesseract / Modi). Debugging Capabilities Includes Breakpoints (`F9`), Step Into (`F11`), Step Over (`F10`), Locals Panel inspection, Call Stack analysis, and Trace logging (`.etl` files). UiPath Exception Handling Architecture System Exception: Technical failures (File Not Found, Selector Timeout, Network Failure). Handled via retry scopes & recovery logic. Business Exception: Violations of business rules (e.g., Invalid Account ID, Insufficient Balance). Logged without technical retries. Chapter 3: Scraping & Exception Handling Chapter 3: Scraping & Exceptions Slide 9
Microsoft Word Automation Activities Excel Execution Architectures Application Scope (COM Interop): Requires MS Excel installed. Supports macros (`.xlsm`), real-time formula evaluation, and formatting. Workbook Integration (Direct XML): No Office installation required. Extremely fast background XML parsing (File must be closed). Critical Excel Automation Operations Operation Key Architectural Considerations Read Range / Write Range Snapshots worksheet cells directly into an in-memory `DataTable` variable to decouple processing from Excel UI. Row Deletion Index Shift Critical Pitfall: Forward loops skip rows when deleting. Always iterate row indices in reverse order ($n to 0$). Boundary Discovery Filters out "Ghost Rows" (cells with cosmetic styling but no data) to find true Used Range boundaries. PDF Export Setup Applies page orientation (Landscape) and column fitting rules prior to rasterization. Use Word File: Root scope container for Word interactions. Set Bookmark Content: Dynamically replaces predefined Word bookmarks with runtime text. Replace Text / Picture: Replaces placeholders or logos across the document. Read Text / Append Text: Extracts document content or appends log signatures. Save Document as PDF: Converts formatted Word `.docx` into immutable `.pdf`. Chapter 4: Word & Excel Automation Chapter 4: Word & Excel Slide 10

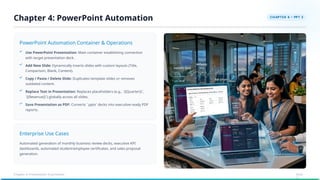

PowerPoint Automation Container & Operations Enterprise Use Cases Automated generation of monthly business review decks, executive KPI dashboards, automated student/employee certificates, and sales proposal generation. Use PowerPoint Presentation: Main container establishing connection with target presentation deck. Add New Slide: Dynamically inserts slides with custom layouts (Title, Comparison, Blank, Content). Copy / Paste / Delete Slide: Duplicates template slides or removes outdated content. Replace Text in Presentation: Replaces placeholders (e.g., `{{Quarter}}`, `{{Revenue}}`) globally across all slides. Save Presentation as PDF: Converts `.pptx` decks into executive-ready PDF reports. Chapter 4: PowerPoint Automation Chapter 4: Presentation Automation Slide 11
Mail Integration Activities Key Mail Protocols Supported IMAP / POP3: Retrieve incoming emails from web servers. SMTP: Outbound mail transfer protocol. Exchange / Outlook API: Native enterprise mail server integration. End-to-End Automated Email Pipeline Use Gmail / Outlook Scope: Secure authentication container for API & desktop client connections. For Each Email: Loops through messages in selected folders (`Inbox`, `Custom Labels`). Save Email Attachments: Automatically downloads attached invoices, PDFs, or CSV files to directory. Send / Forward Email: Composes HTML-formatted dynamic emails with attachments. Move / Archive / Delete Email: Organizes processed messages into archive subfolders. Chapter 5: Mail Automation Architecture Chapter 5: Mail Automation Slide 12
File & Directory Manipulation Activities Activity Name Operational Purpose Create / Delete Folder Generates dynamic project directories or cleans up temp folders. Copy / Move File Duplicates or transfers files between source and archive paths. Path Exists Validates existence of file/folder before executing file I/O operations. Read / Write Text File Reads plain text / log files into string variables or overwrites content. Compress / Extract (Zip) Creates `.zip` archives for backup or extracts incoming archive packages. CSV & Batch Directory Processing Read CSV / Write CSV: Directly transforms structured CSV files into `DataTable` memory objects without requiring Excel installation. Get Files in Folder: Returns a string array (`String[]`) of file paths inside a target directory matching wildcards (e.g., `*.xlsx`). File Properties: Extracts File Name, Extension, File Size, Creation Date, and Last Modified Date for automated filtering. Chapter 5: File System Automation Chapter 5: File Systems Slide 13
Q&A Robotic Process Automation (RPA) & UiPath RPA Masterclass Series Slide 14
