RIPE is a deliberately vulnerable C program that attacks itself to allow evaluation of countermeasures. It contains 850 working buffer overflow attack forms that target different code locations, injection techniques, and functions. RIPE evaluates the effectiveness of 8 countermeasures at preventing these attacks. The most effective were Ubuntu 9.10 with W^X and CRED, prohibiting 89% of attacks. CRED and LibsafePlus+TIED were also highly effective, prohibiting 79% and 77% respectively. ProPolice was less effective at 40%. RIPE provides an extensive testbed for systematically evaluating buffer overflow defenses.

1. RIPE: Runtime Intrusion
Prevention Evaluator
John Wilander, Nick Nikiforakis,Yves Younan,
Mariam Kamkar, and Wouter Joosen

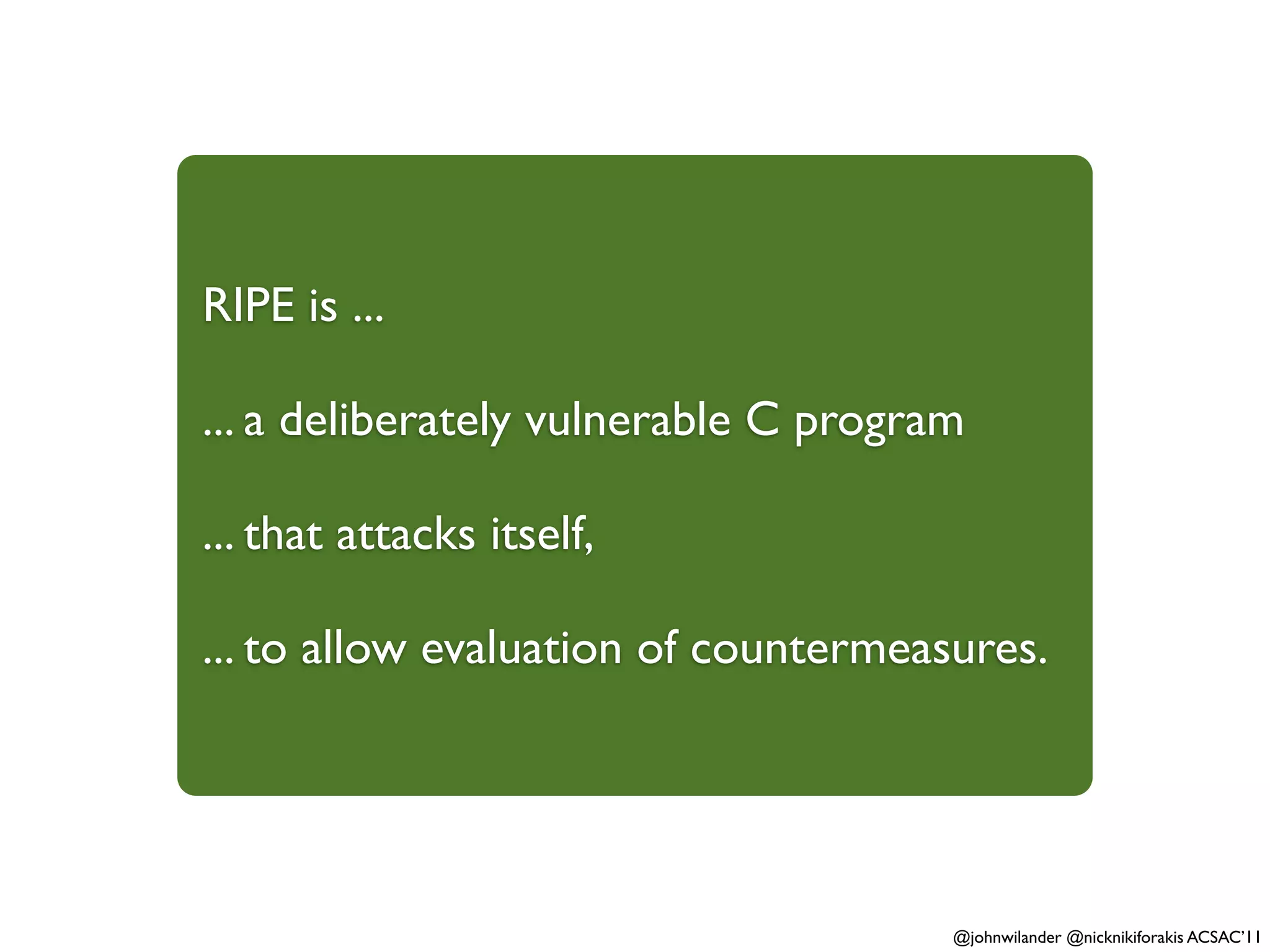

2. RIPE is ...
... a deliberately vulnerable C program
... that attacks itself,
... to allow evaluation of countermeasures.
@johnwilander @nicknikiforakis ACSAC’11

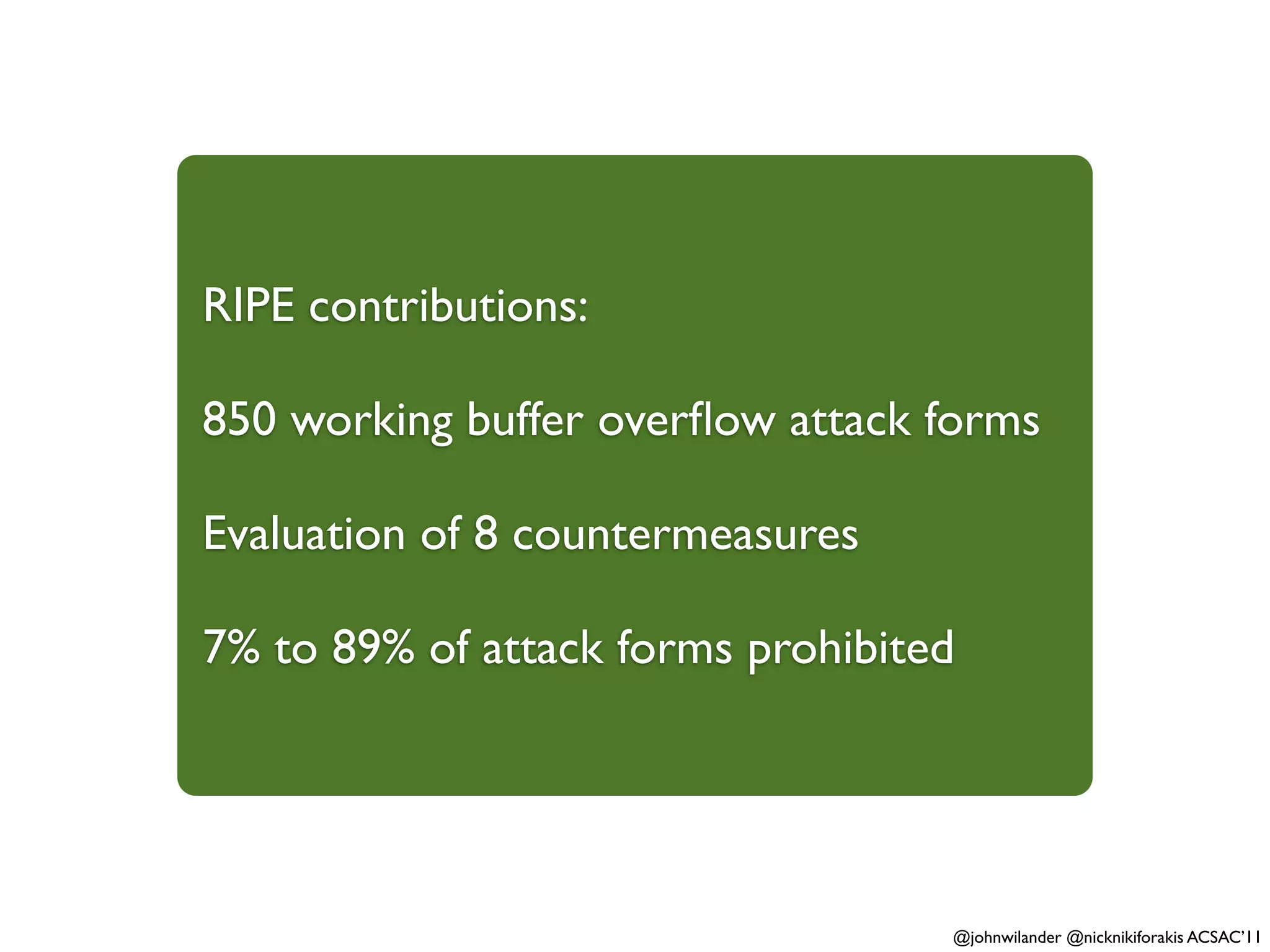

3. RIPE contributions:
850 working buffer overflow attack forms
Evaluation of 8 countermeasures
7% to 89% of attack forms prohibited
@johnwilander @nicknikiforakis ACSAC’11

4. RIPE download (MIT license):
https://github.com/johnwilander/RIPE
@johnwilander @nicknikiforakis ACSAC’11

5. A Quick Look at
How RIPE Works
@johnwilander @nicknikiforakis ACSAC’11

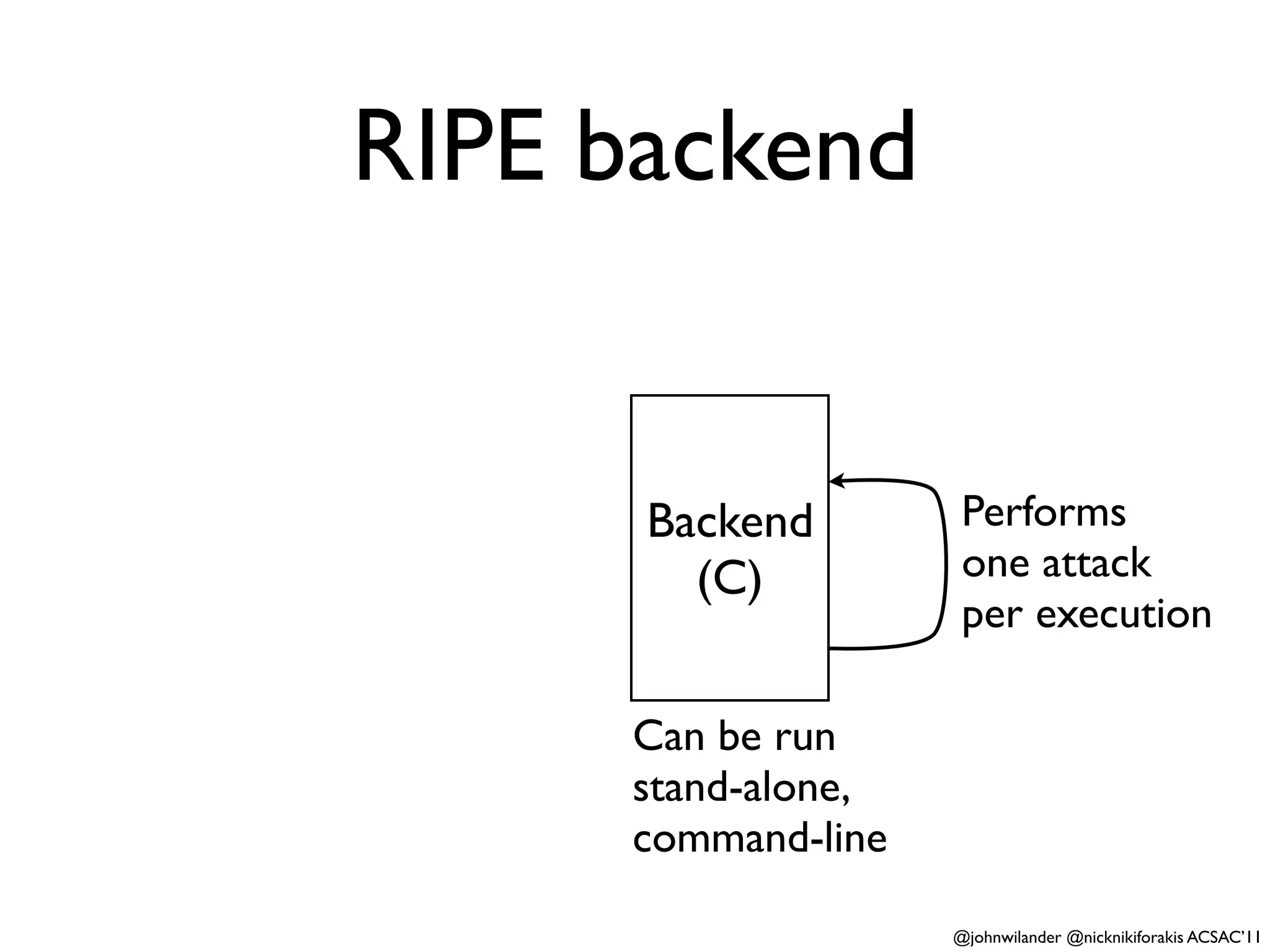

6. RIPE backend
Backend Performs
(C) one attack
per execution
Can be run
stand-alone,
command-line
@johnwilander @nicknikiforakis ACSAC’11

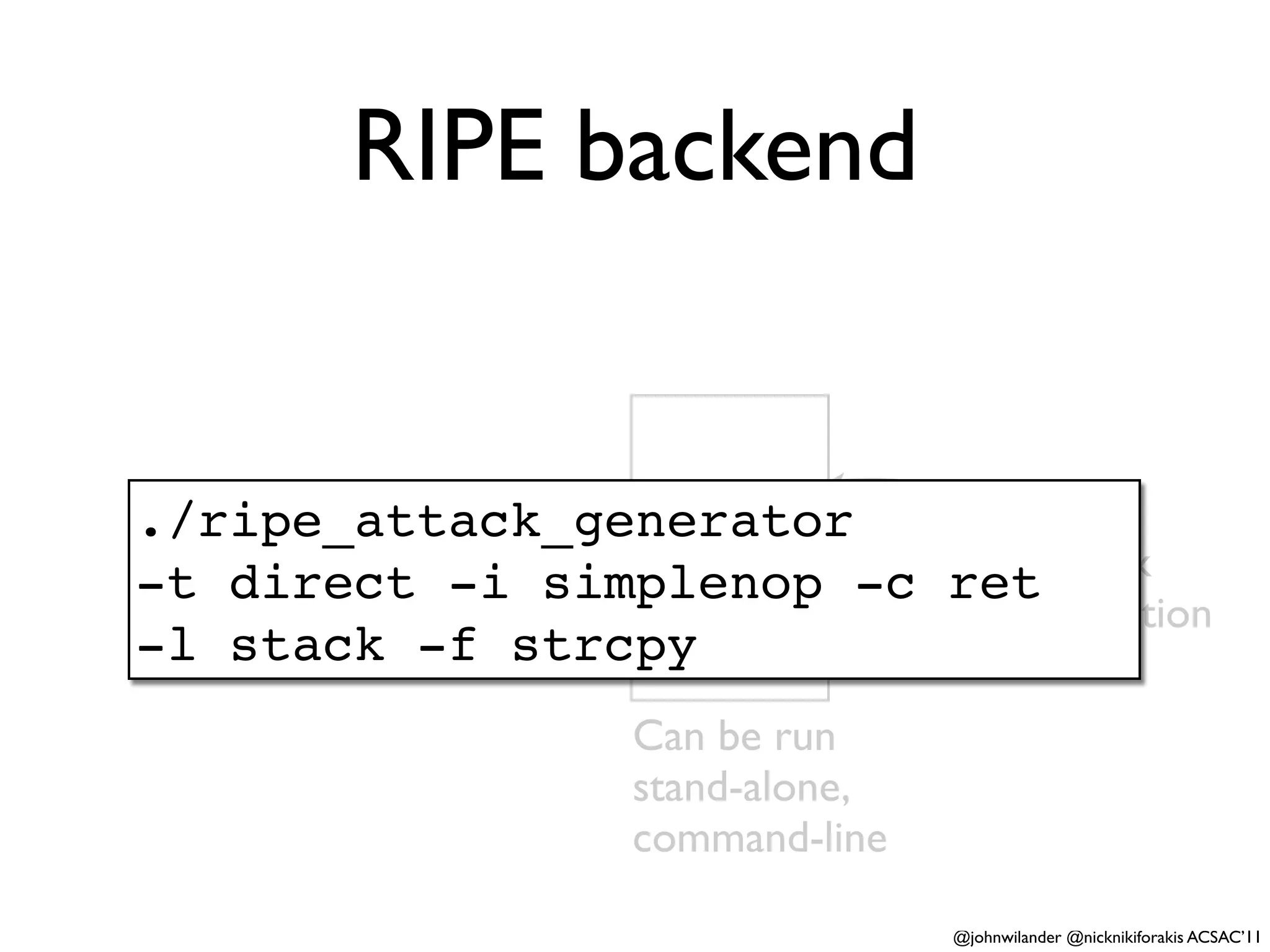

7. RIPE backend
Backend
./ripe_attack_generator Performs
(C)
-t direct -i simplenop -c one attack
ret
per execution
-l stack -f strcpy
Can be run
stand-alone,
command-line
@johnwilander @nicknikiforakis ACSAC’11

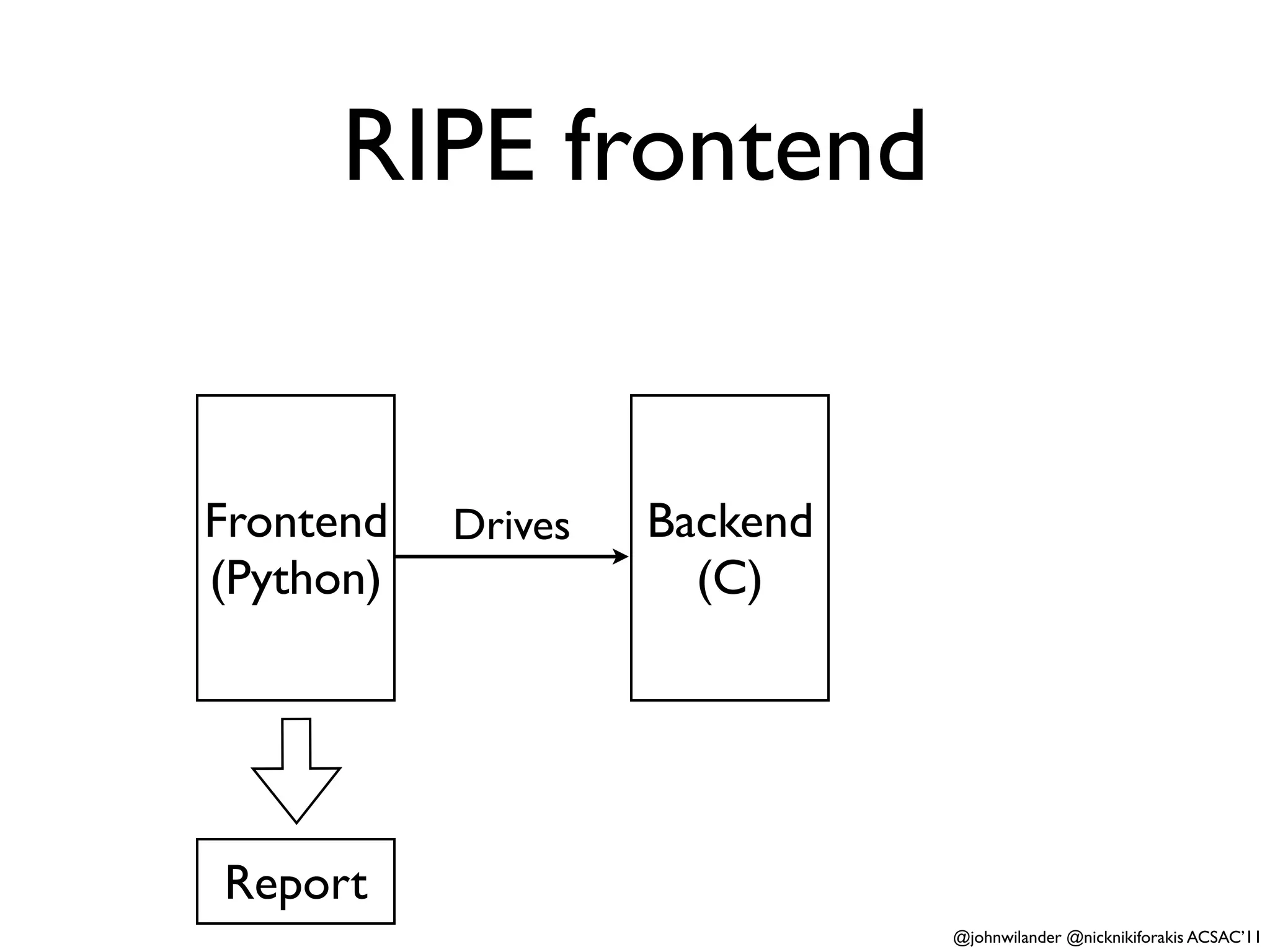

8. RIPE frontend
Frontend Drives Backend
(Python) (C)
Report
@johnwilander @nicknikiforakis ACSAC’11

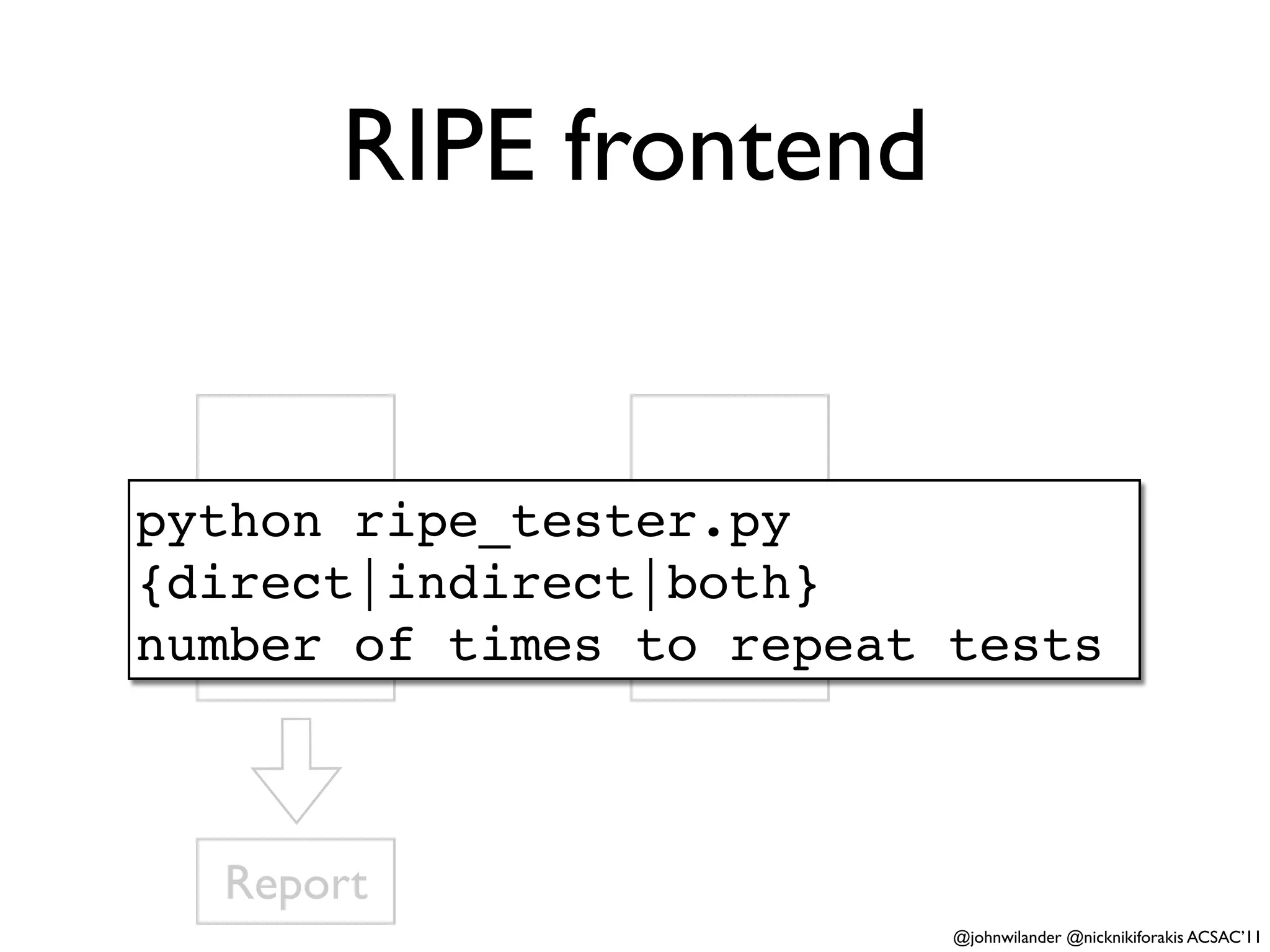

9. RIPE frontend
Frontend Drives Backend
python ripe_tester.py
(Python) (C)
{direct|indirect|both}
number of times to repeat tests
Report
@johnwilander @nicknikiforakis ACSAC’11

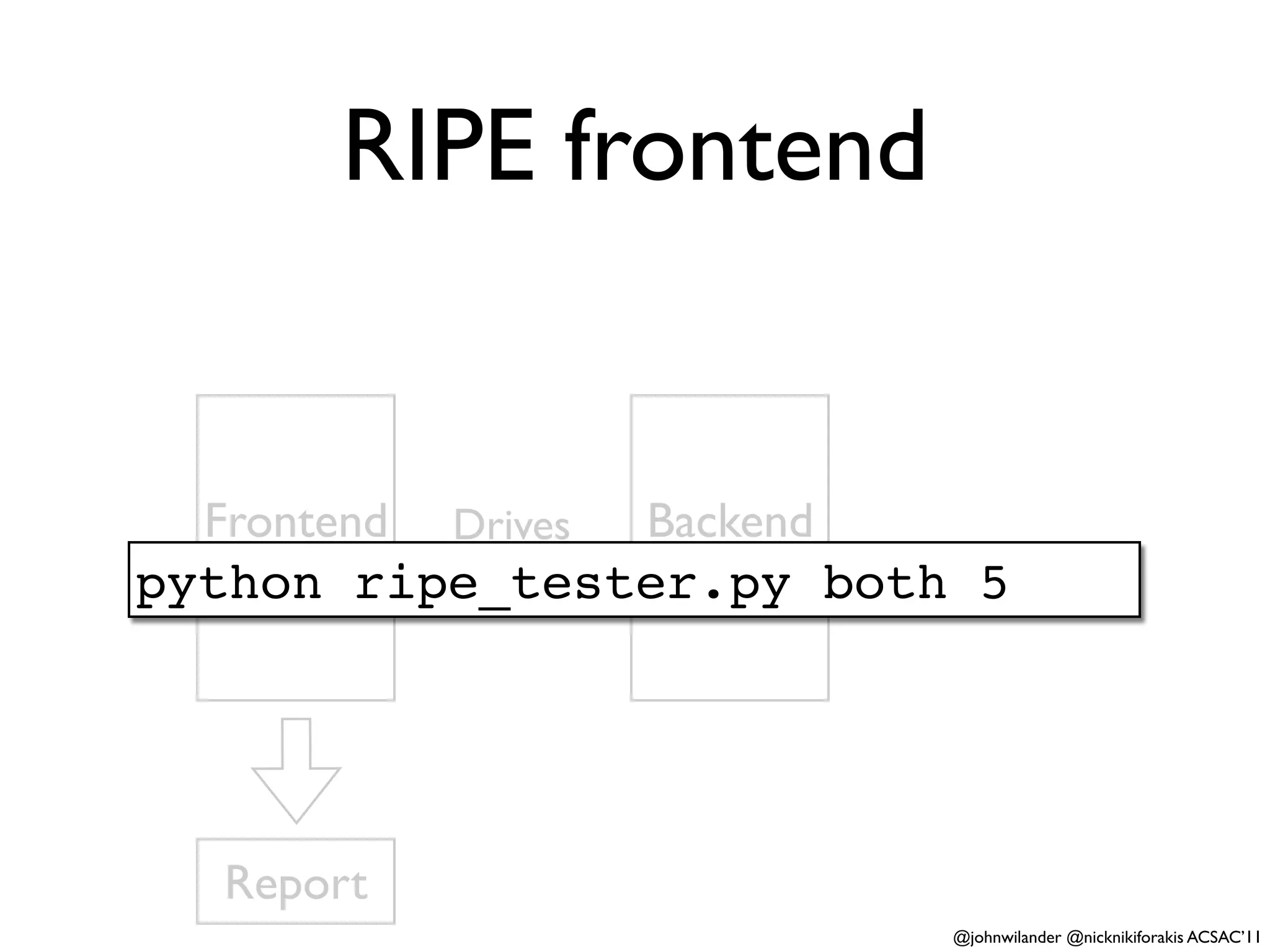

10. RIPE frontend
Frontend Drives Backend
(Python) (C)
python ripe_tester.py both 5
Report
@johnwilander @nicknikiforakis ACSAC’11

11. Which Attack Forms
are Possible?
@johnwilander @nicknikiforakis ACSAC’11

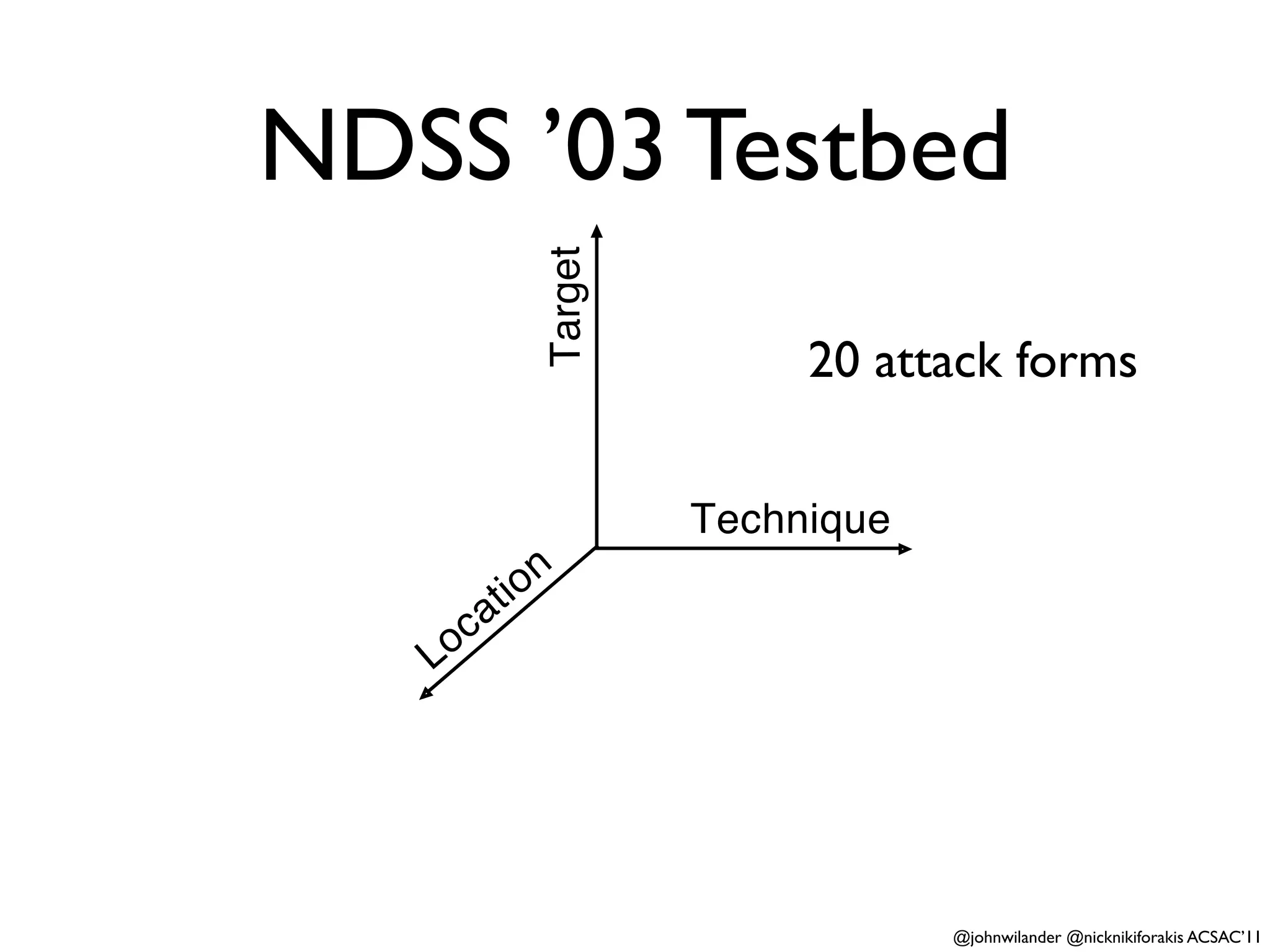

12. NDSS ’03 Testbed
Target
20 attack forms
Technique
ti on
o ca
L
@johnwilander @nicknikiforakis ACSAC’11

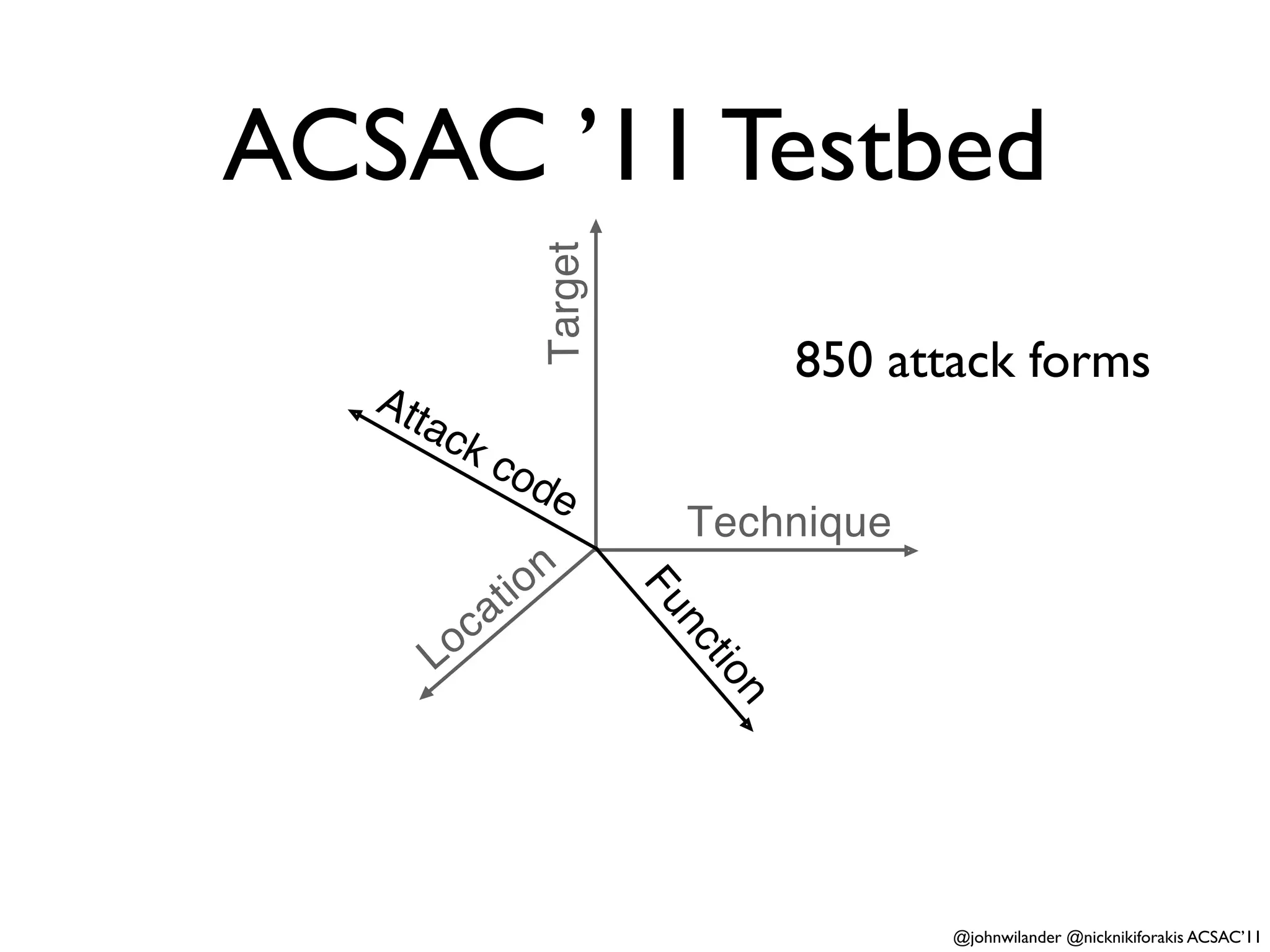

13. ACSAC ’11 Testbed
Target
850 attack forms
Att
ac
kc
od
e
Technique
o n
ti
oc
a Fu
L nc
tio
n
@johnwilander @nicknikiforakis ACSAC’11

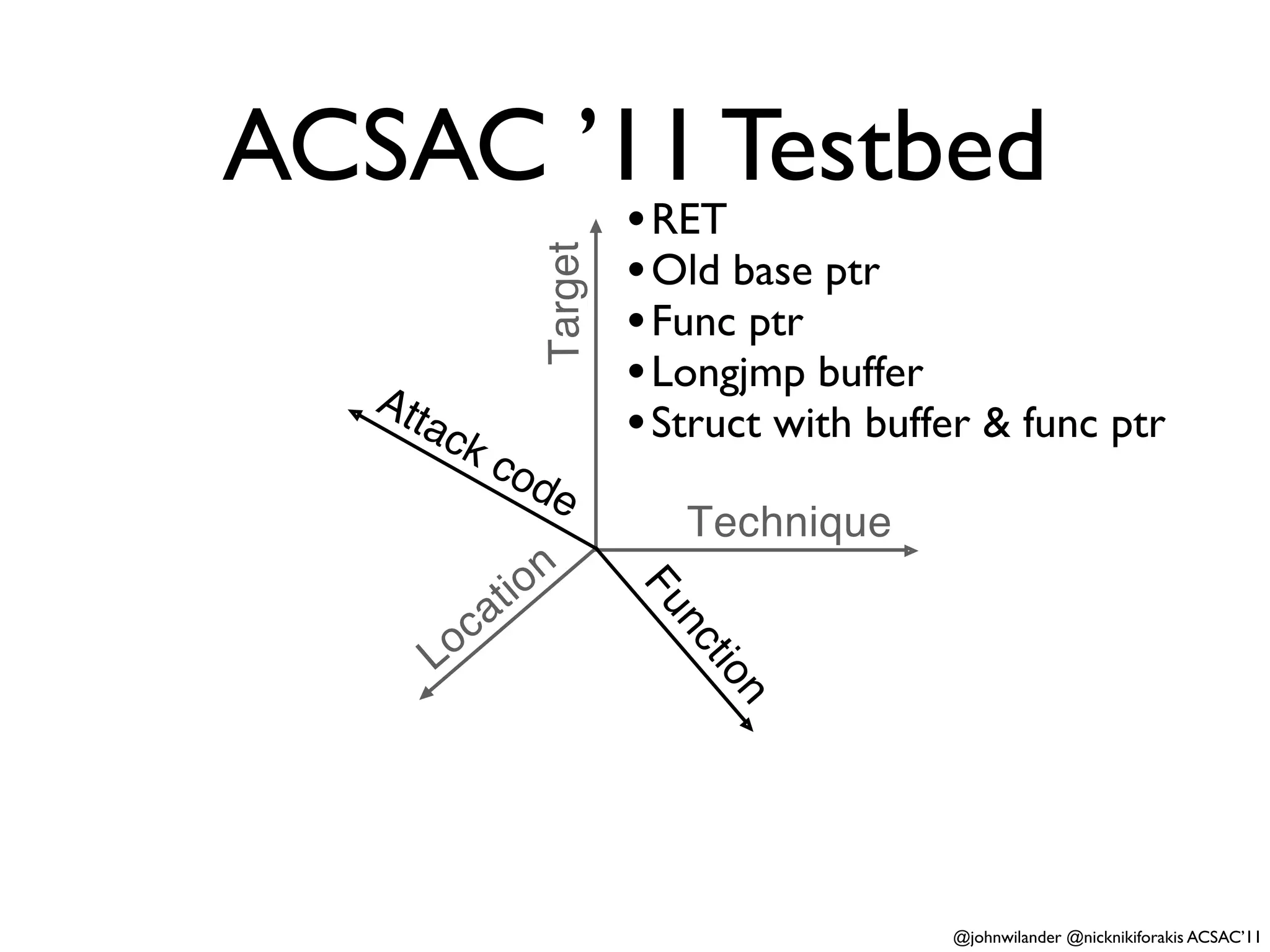

14. ACSAC ’11 Testbed
• RET
• Old base ptr
Target
• Func ptr
Att • Longjmp buffer
ac
kc • Struct with buffer & func ptr
od
e
Technique
o n
ti
oc
a Fu
L nc
tio
n
@johnwilander @nicknikiforakis ACSAC’11

15. ACSAC ’11 Testbed
Target
Att
ac
kc
od
e
Technique • Direct
ti o n • Indirect
oc
a Fu
L nc
tio
n
@johnwilander @nicknikiforakis ACSAC’11

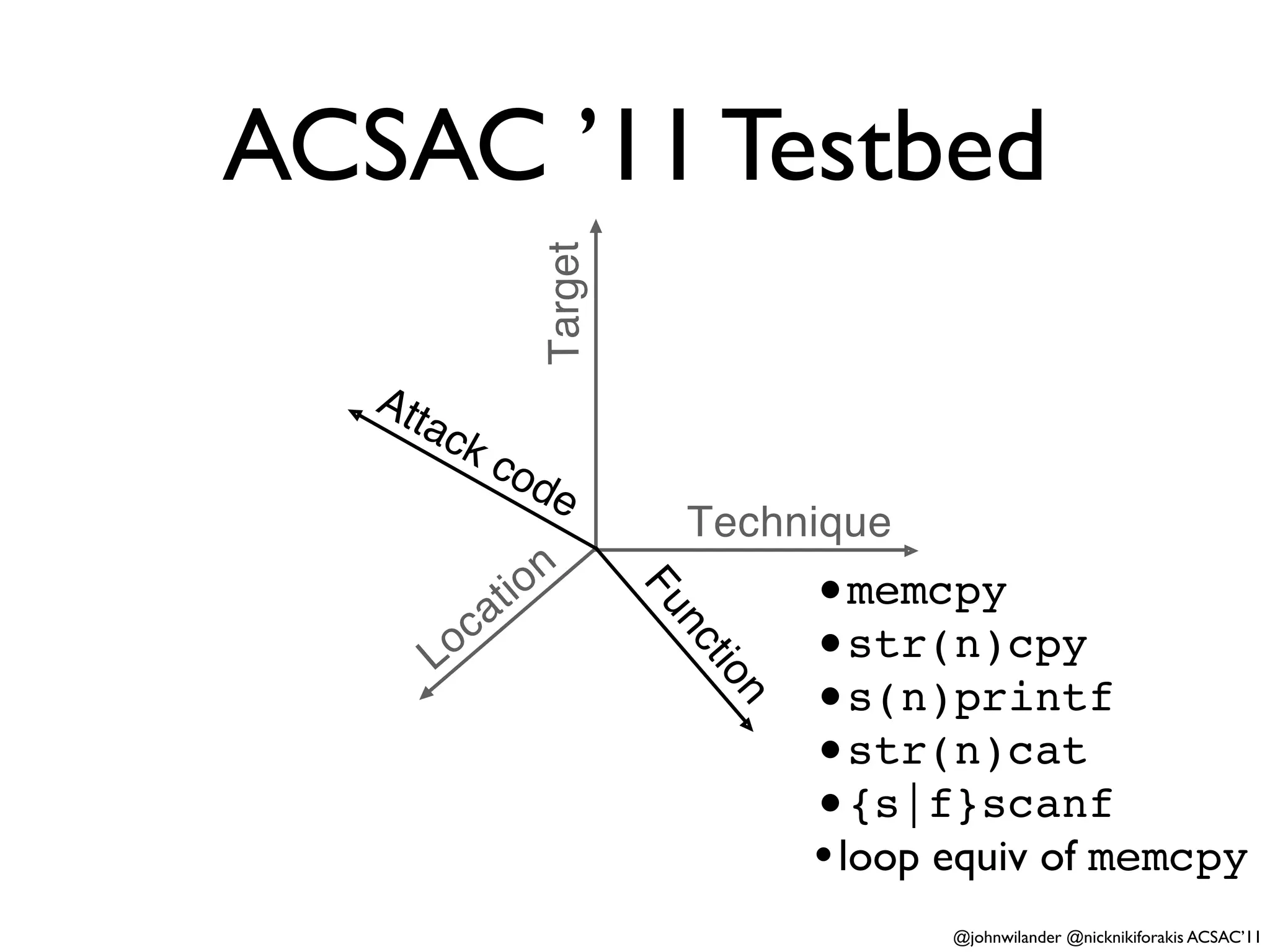

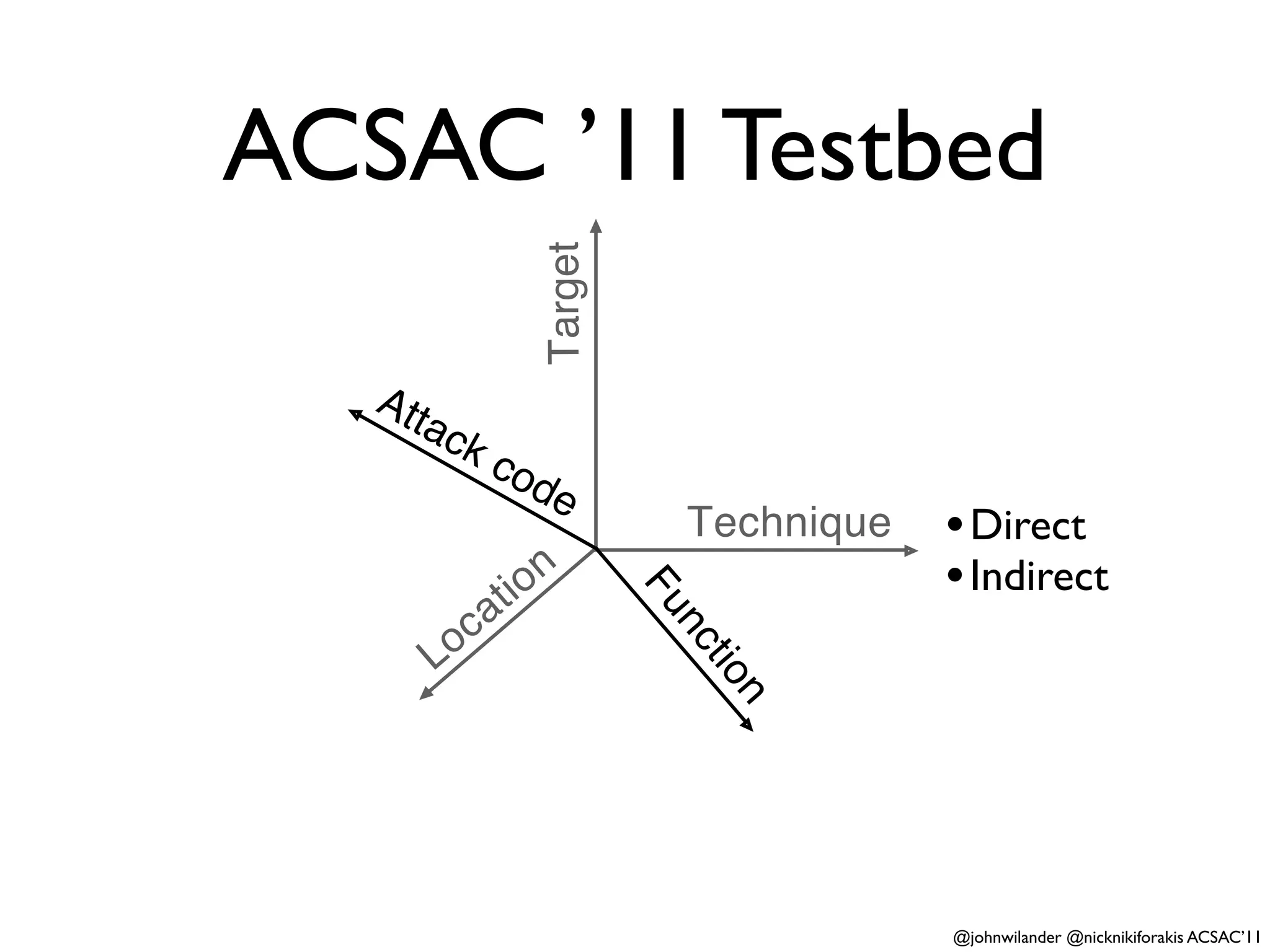

16. ACSAC ’11 Testbed
Target
Att
ac
kc
od
e
Technique
o n
ti •memcpy
oc
a Fu •str(n)cpy
L nc
tio •s(n)printf
n
•str(n)cat
•{s|f}scanf
• loop equiv of memcpy
@johnwilander @nicknikiforakis ACSAC’11

17. ACSAC ’11 Testbed
Target
Att
ac
kc
od
e
Technique
o n
ti
oc
a Fu
L nc
tio

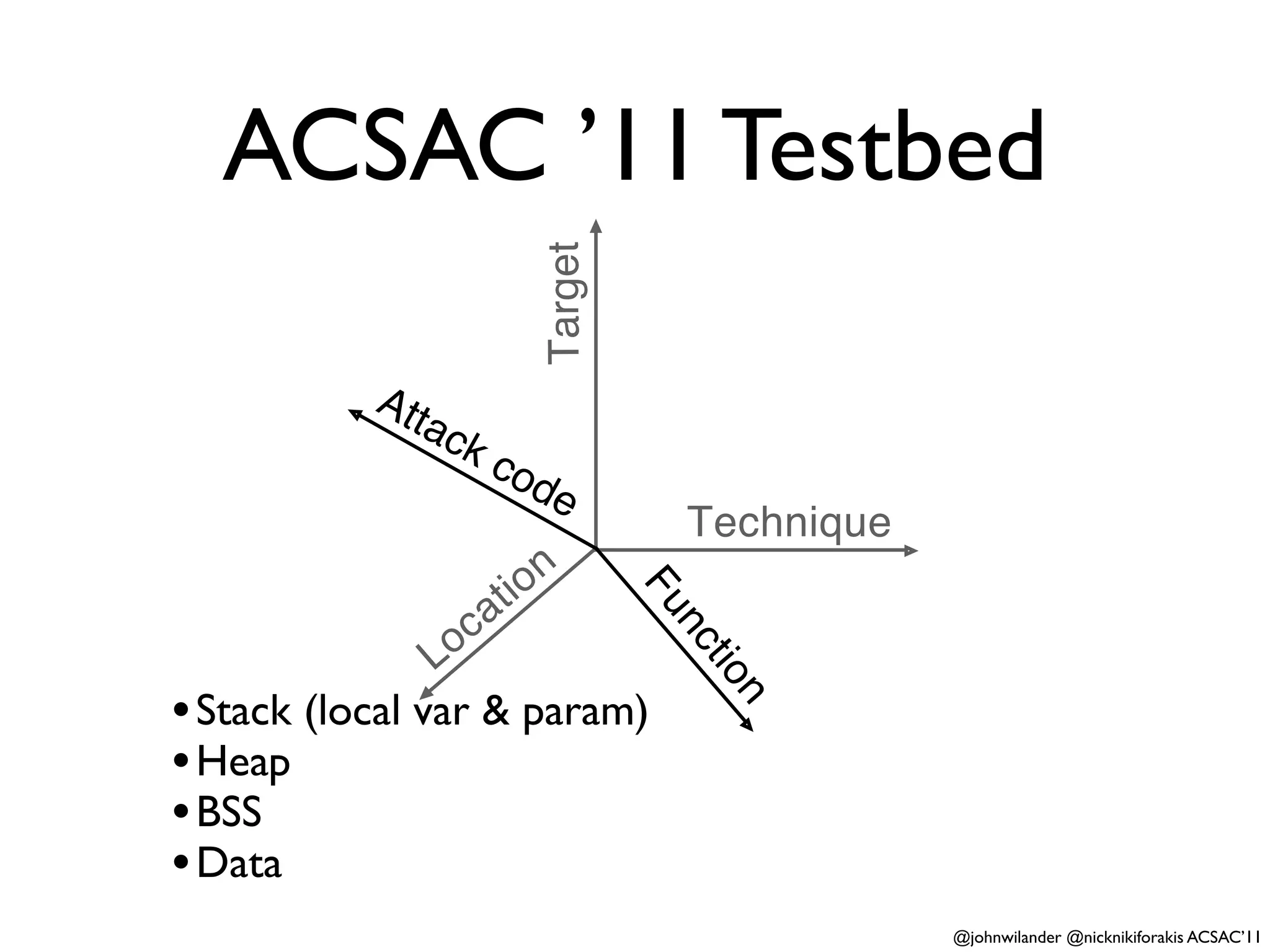

• Stack (local var & param) n
• Heap
• BSS
• Data
@johnwilander @nicknikiforakis ACSAC’11

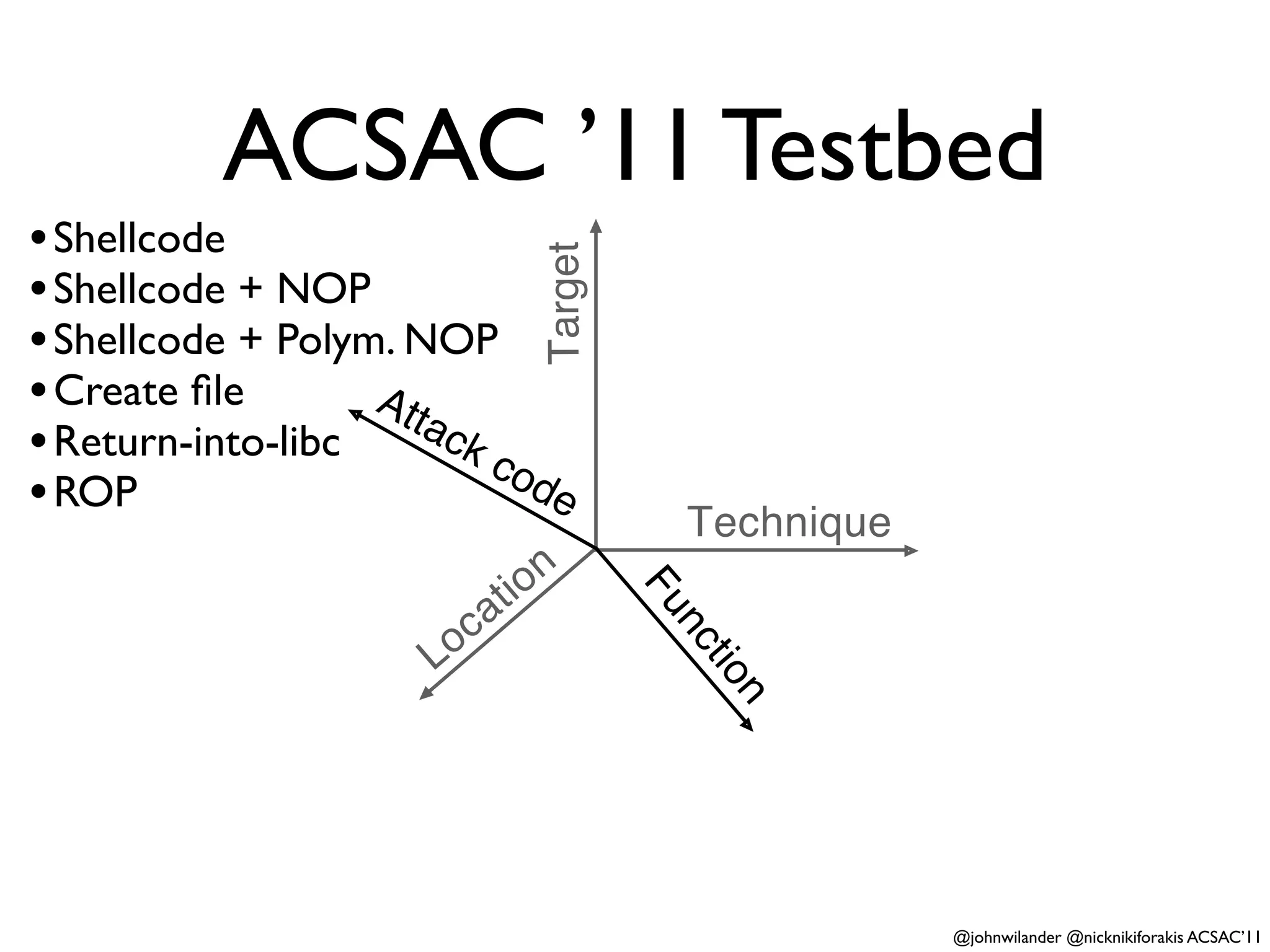

18. ACSAC ’11 Testbed
• Shellcode
Target
• Shellcode + NOP
• Shellcode + Polym. NOP
• Create file Att
ac
• Return-into-libc kc
od
• ROP e
Technique
o n
ti
oc
a Fu
L nc
tio
n
@johnwilander @nicknikiforakis ACSAC’11

19. Examples of
Attack Forms
@johnwilander @nicknikiforakis ACSAC’11

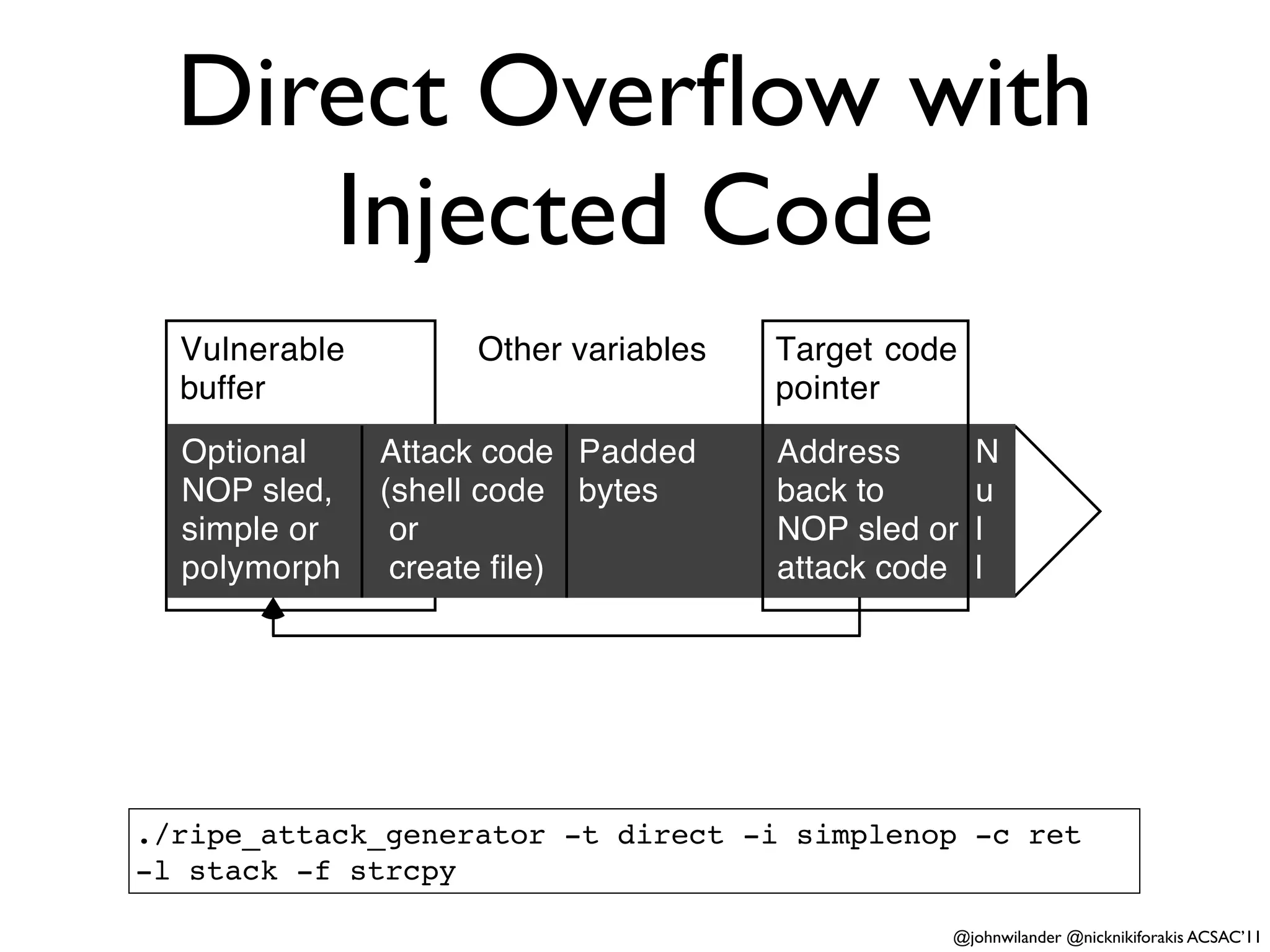

20. Direct Overflow with
Injected Code
Vulnerable Other variables Target code
buffer pointer
Optional Attack code Padded Address N
NOP sled, (shell code bytes back to u
simple or or NOP sled or l
polymorph create file) attack code l
./ripe_attack_generator -t direct -i simplenop -c ret
-l stack -f strcpy
@johnwilander @nicknikiforakis ACSAC’11

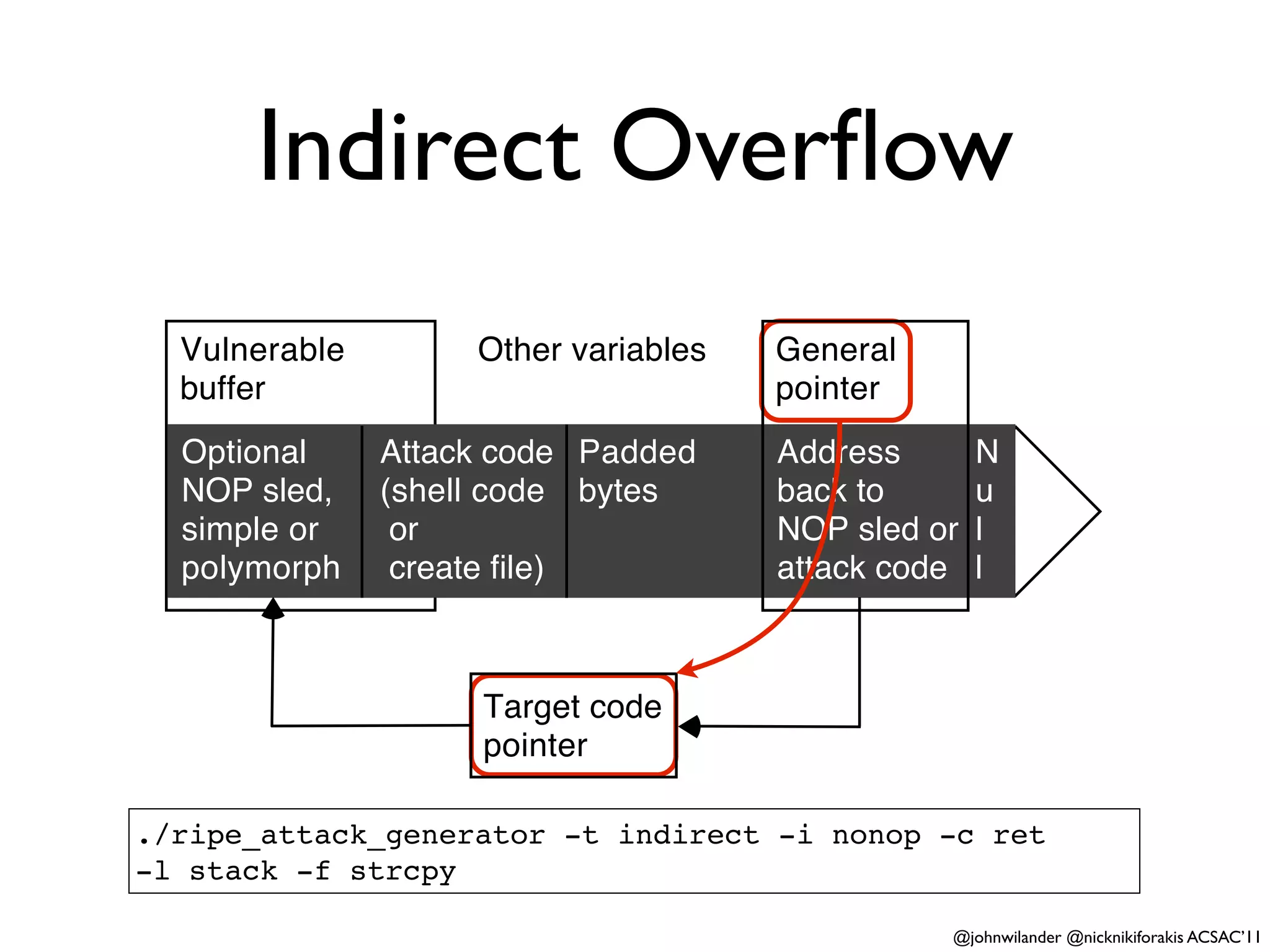

21. Indirect Overflow
Vulnerable Other variables General
buffer pointer
Optional Attack code Padded Address N
NOP sled, (shell code bytes back to u
simple or or NOP sled or l
polymorph create file) attack code l
Target code
pointer
./ripe_attack_generator -t indirect -i nonop -c ret
-l stack -f strcpy
@johnwilander @nicknikiforakis ACSAC’11

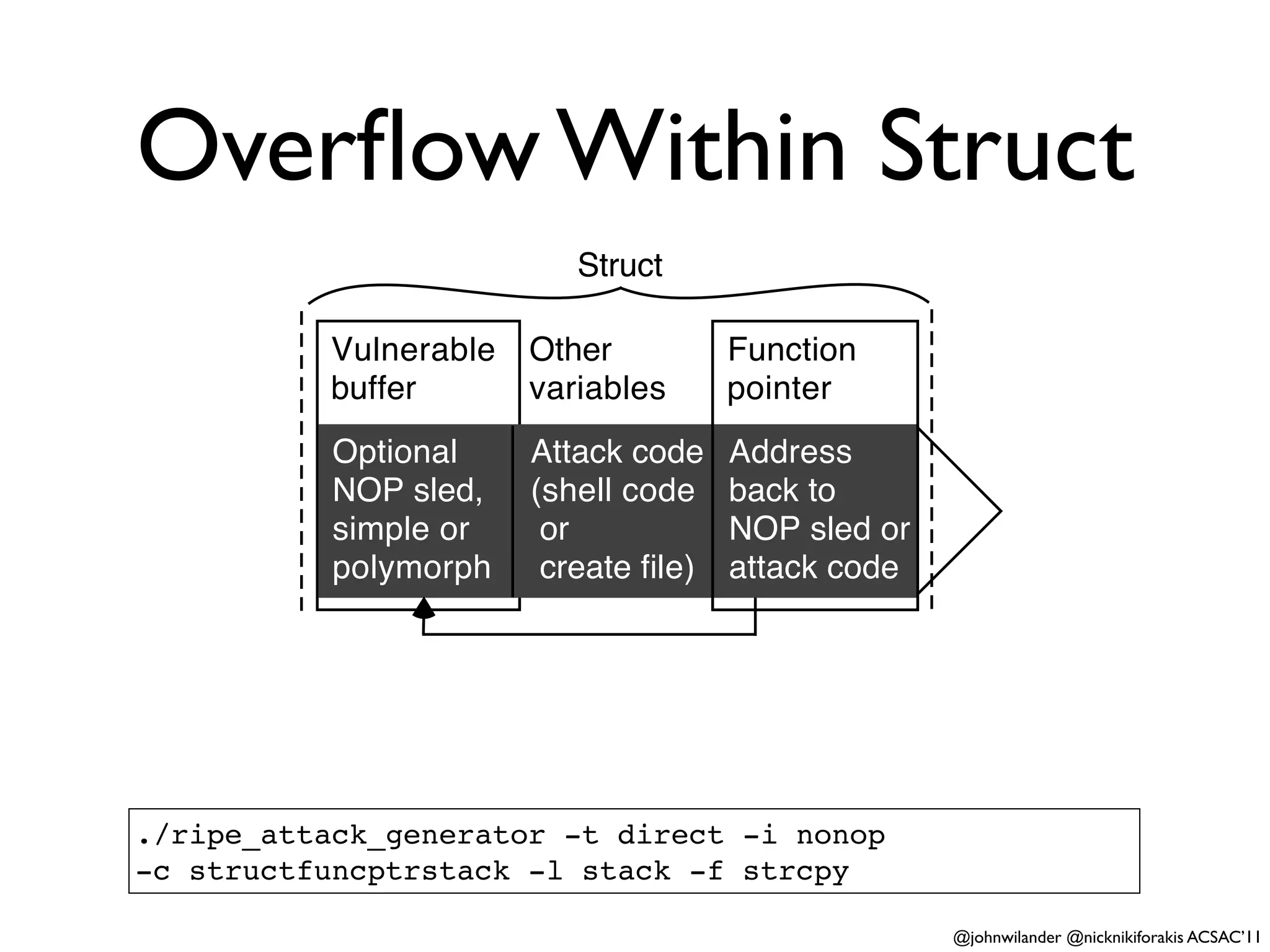

22. Overflow Within Struct
Struct
Vulnerable Other Function
buffer variables pointer
Optional Attack code Address
NOP sled, (shell code back to
simple or or NOP sled or
polymorph create file) attack code
./ripe_attack_generator -t direct -i nonop
-c structfuncptrstack -l stack -f strcpy
@johnwilander @nicknikiforakis ACSAC’11

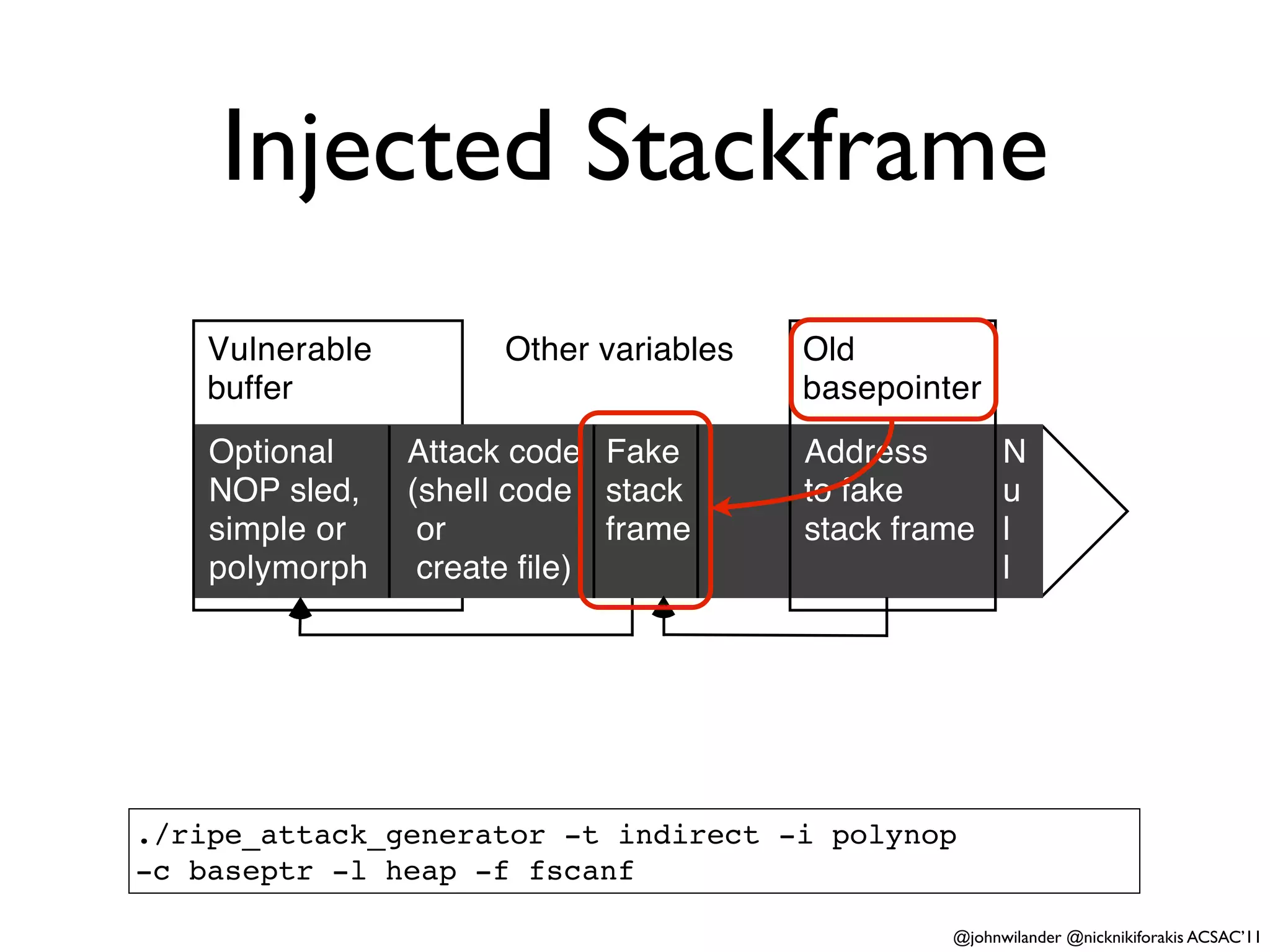

23. Injected Stackframe
Vulnerable Other variables Old
buffer basepointer
Optional Attack code Fake Address N
NOP sled, (shell code stack to fake u
simple or or frame stack frame l
polymorph create file) l
./ripe_attack_generator -t indirect -i polynop
-c baseptr -l heap -f fscanf
@johnwilander @nicknikiforakis ACSAC’11

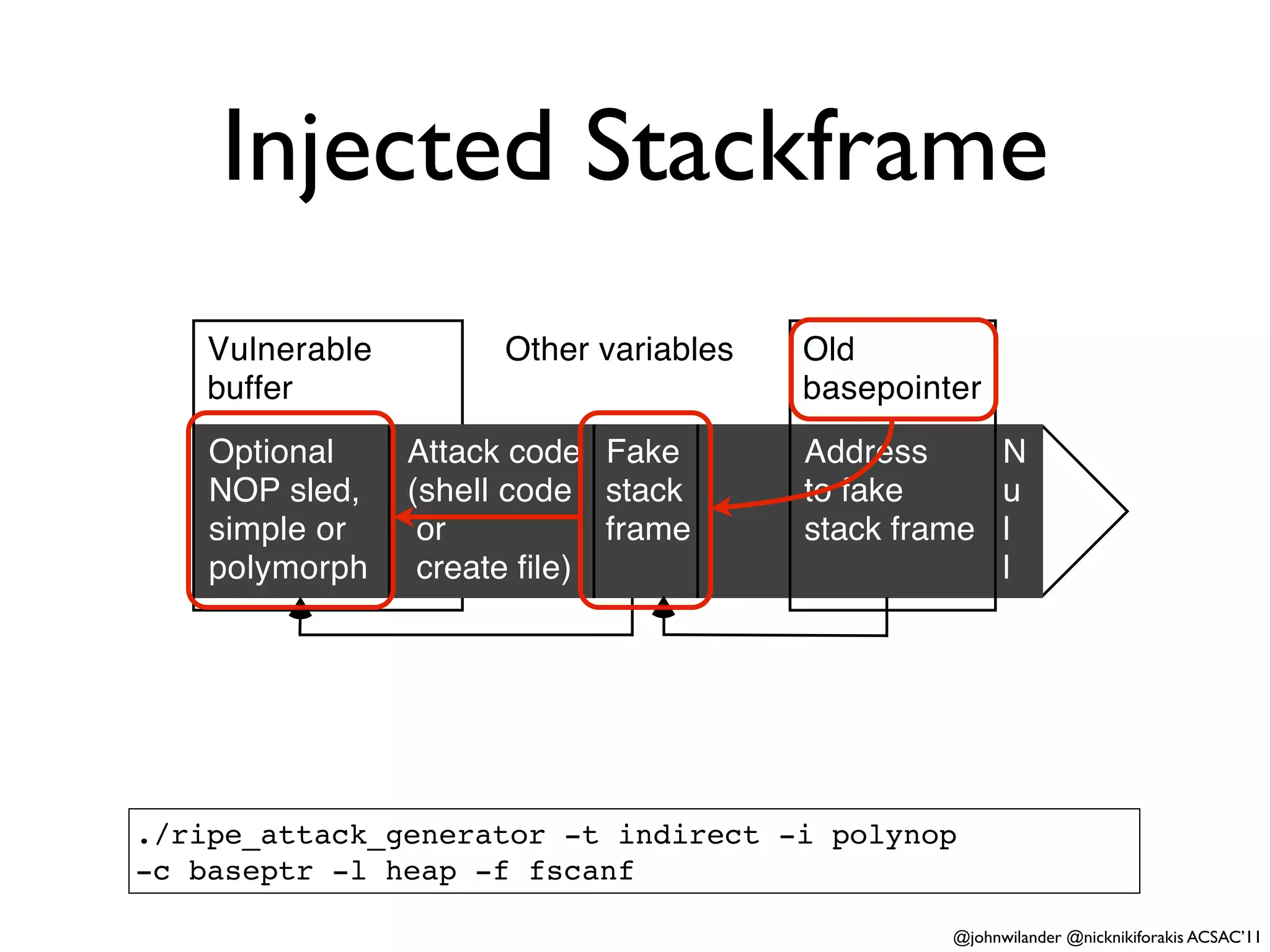

24. Injected Stackframe
Vulnerable Other variables Old
buffer basepointer
Optional Attack code Fake Address N
NOP sled, (shell code stack to fake u
simple or or frame stack frame l
polymorph create file) l
./ripe_attack_generator -t indirect -i polynop
-c baseptr -l heap -f fscanf
@johnwilander @nicknikiforakis ACSAC’11

25. All in all, 850 working
attack forms
@johnwilander @nicknikiforakis ACSAC’11

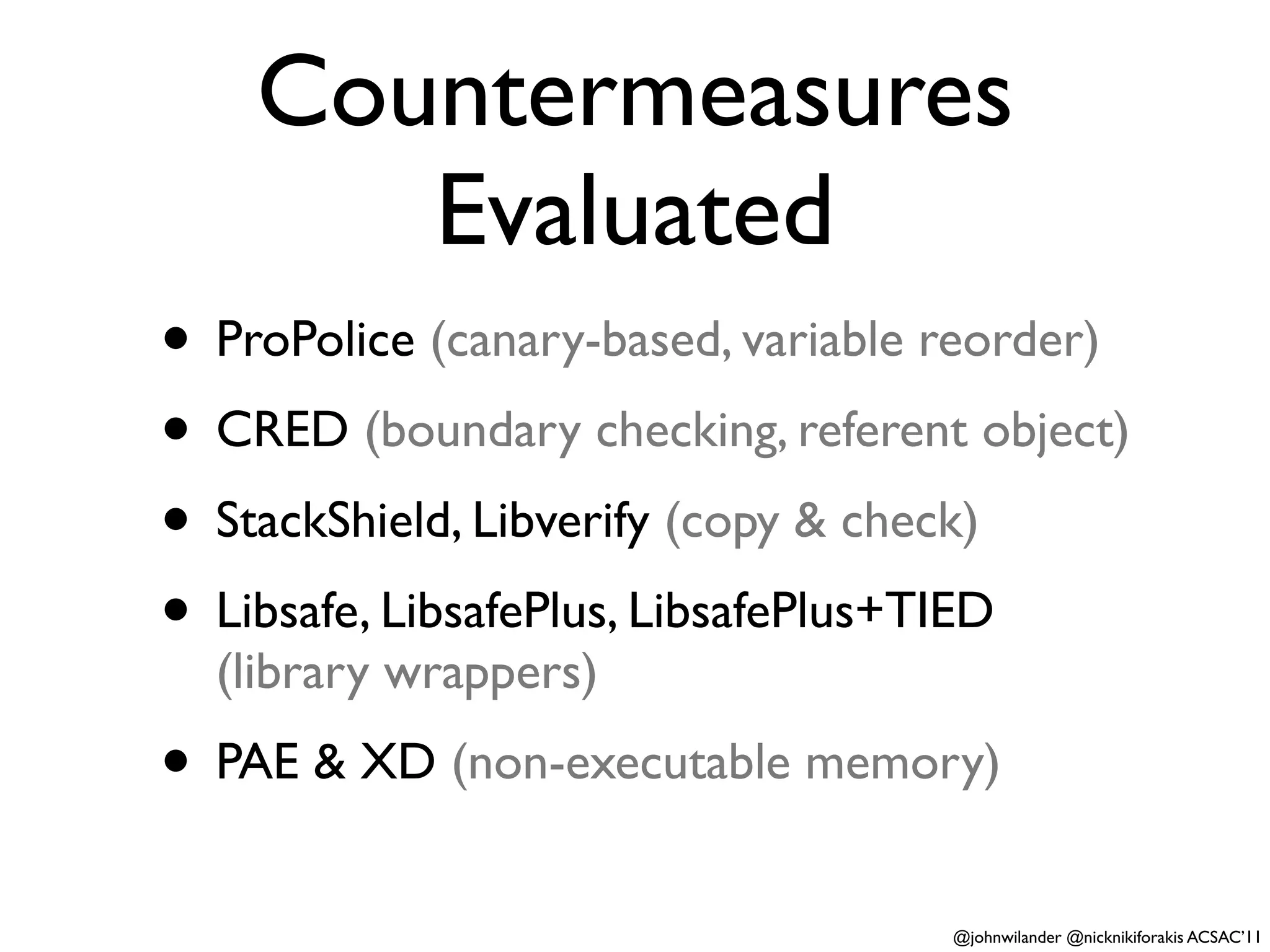

26. Countermeasures
Evaluated
• ProPolice (canary-based, variable reorder)
• CRED (boundary checking, referent object)
• StackShield, Libverify (copy & check)
• Libsafe, LibsafePlus, LibsafePlus+TIED
(library wrappers)
• PAE & XD (non-executable memory)
@johnwilander @nicknikiforakis ACSAC’11

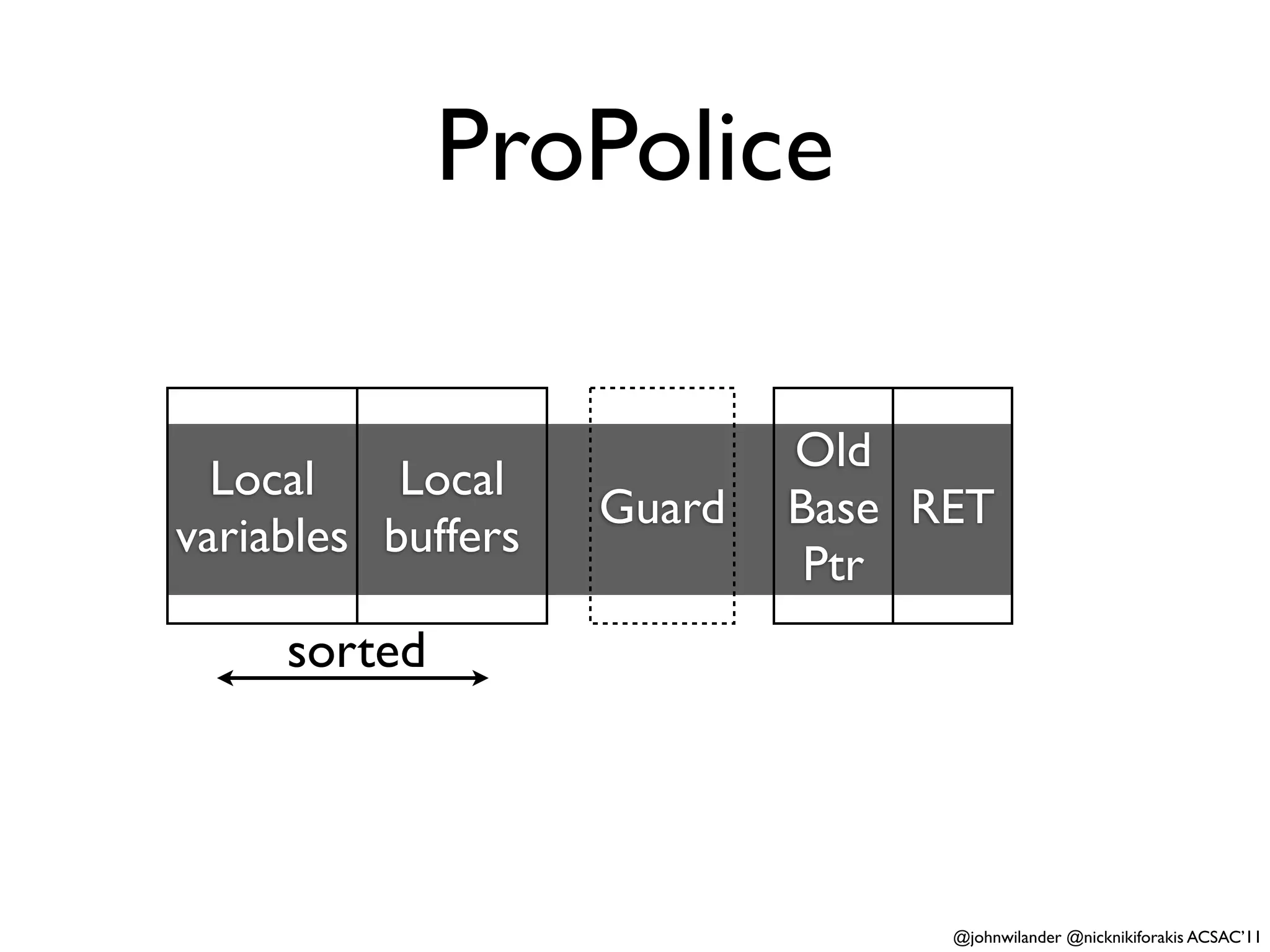

27. ProPolice
Old
Local Local
Guard Base RET
variables buffers
Ptr
sorted
@johnwilander @nicknikiforakis ACSAC’11

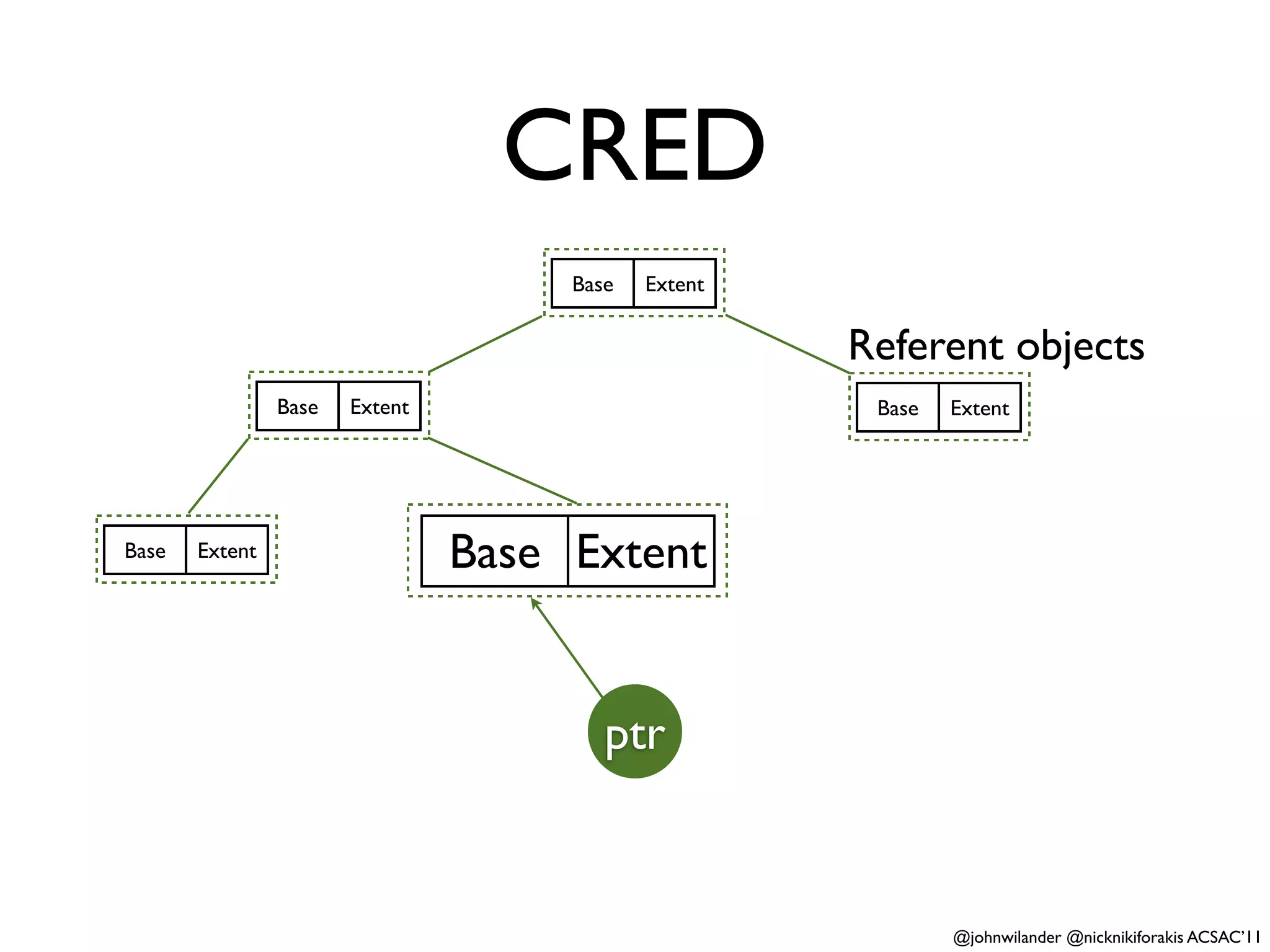

28. CRED
Base Extent
Referent objects
Base Extent Base Extent
Base Extent Base Extent
ptr
@johnwilander @nicknikiforakis ACSAC’11

29. CRED
Base Extent
Base Extent Base Extent
Base Extent Base Extent
Any pointer dereferencing
has to stay within bounds ptr
@johnwilander @nicknikiforakis ACSAC’11

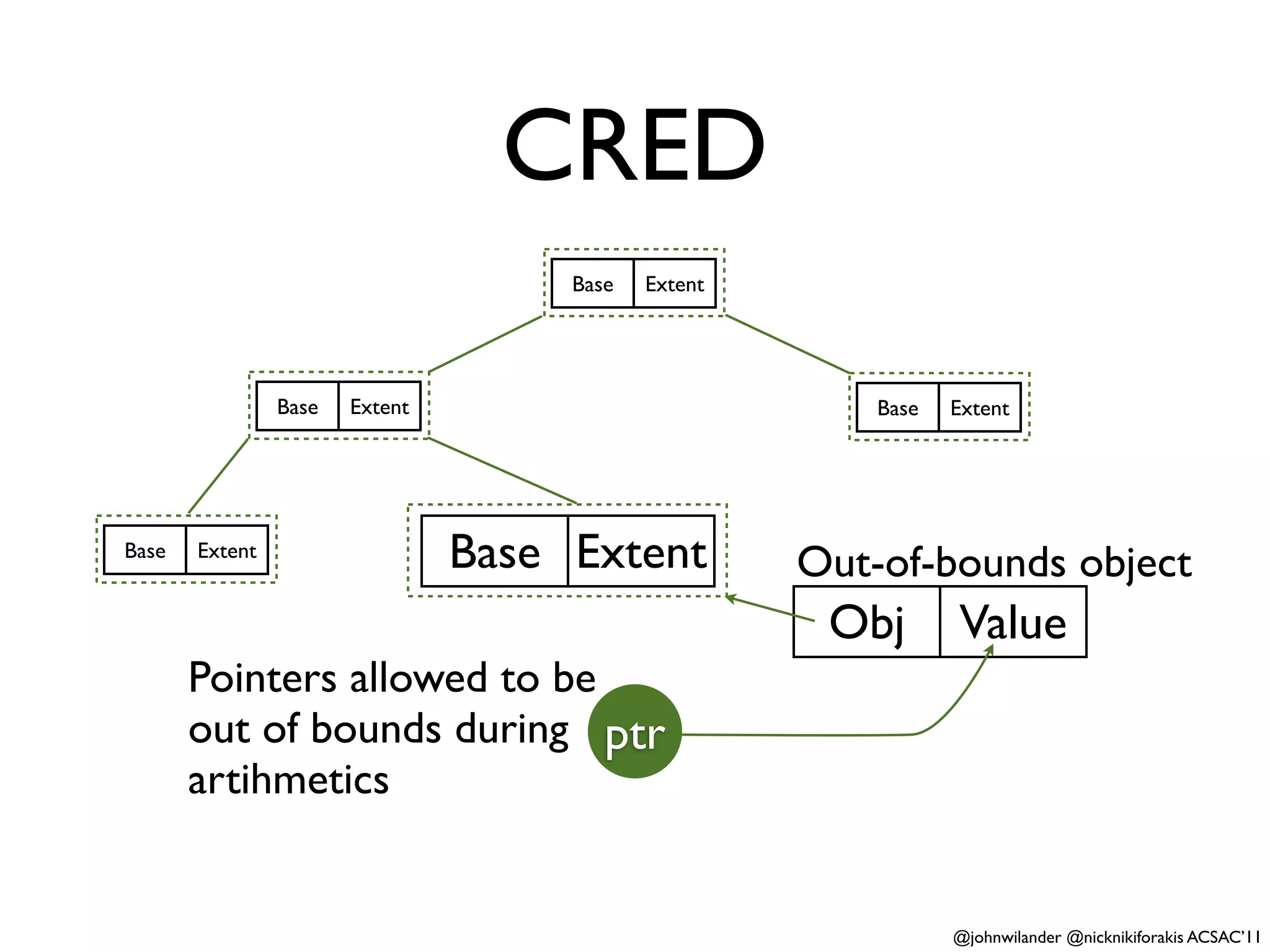

30. CRED
Base Extent
Base Extent Base Extent
Base Extent Base Extent Out-of-bounds object
Obj Value
Pointers allowed to be
out of bounds during ptr
artihmetics
@johnwilander @nicknikiforakis ACSAC’11

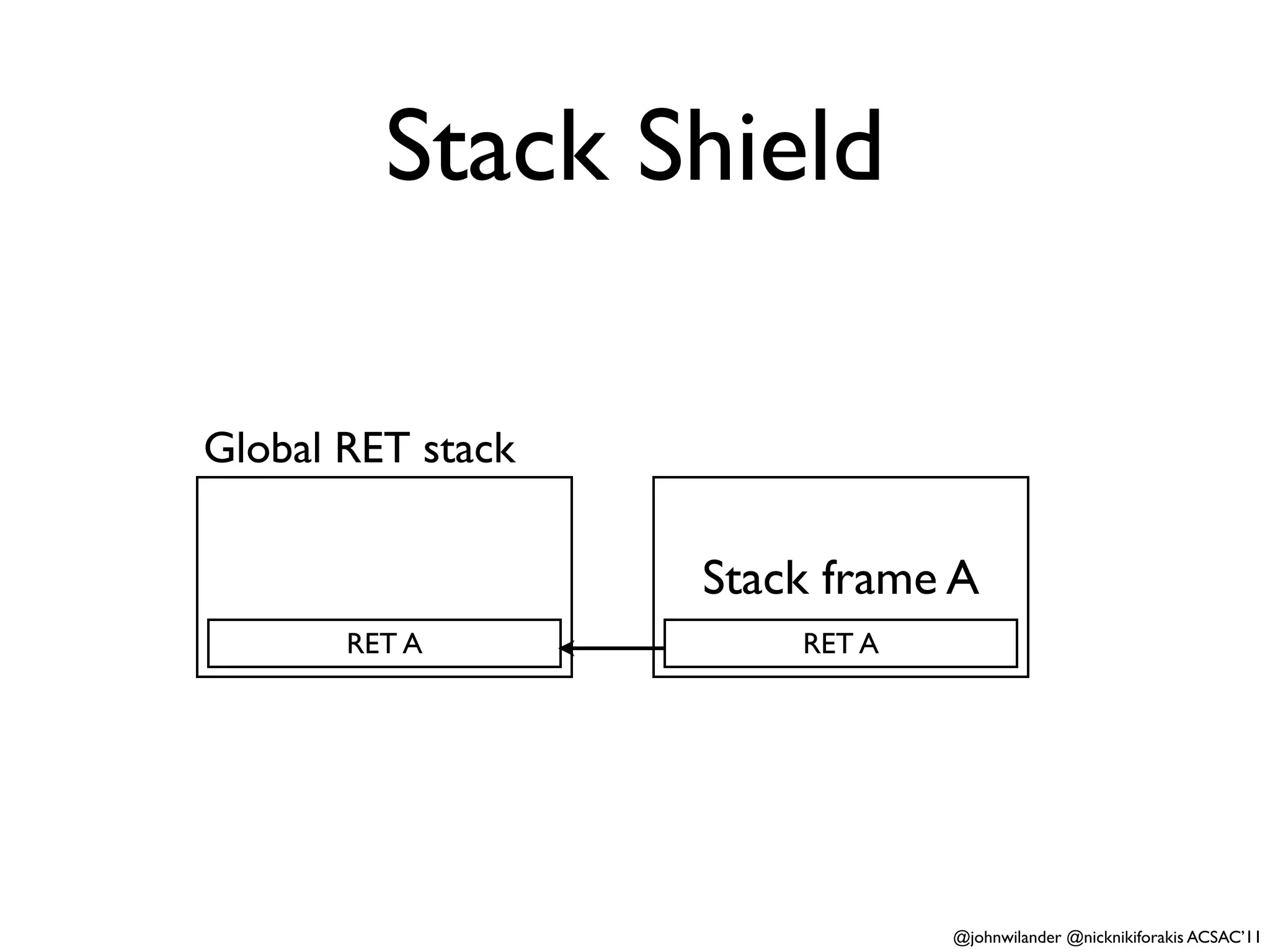

31. Stack Shield
Global RET stack
Stack frame A
RET A RET A
@johnwilander @nicknikiforakis ACSAC’11

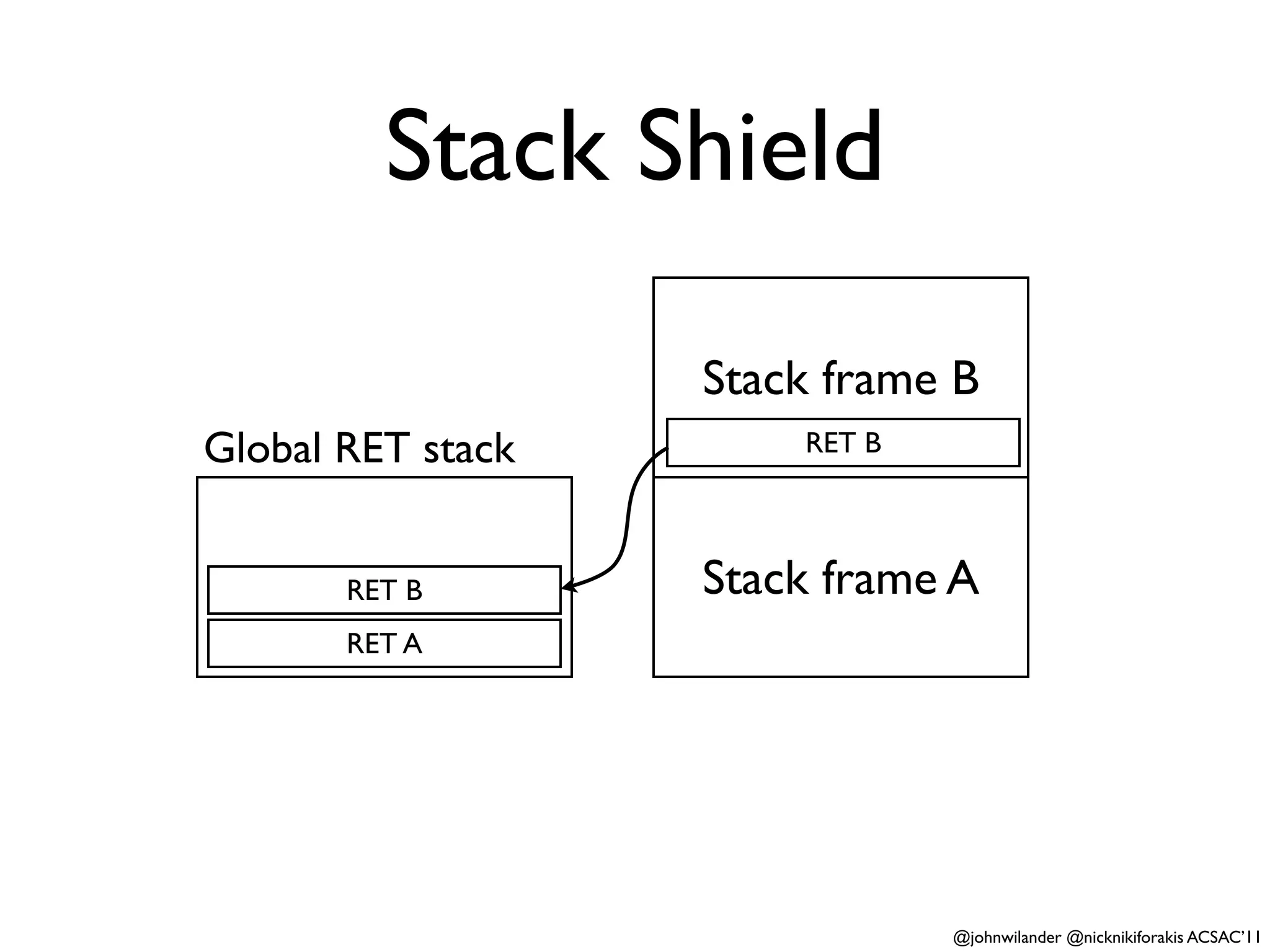

32. Stack Shield
Stack frame B
Global RET stack RET B
RET B Stack frame A
RET A
@johnwilander @nicknikiforakis ACSAC’11

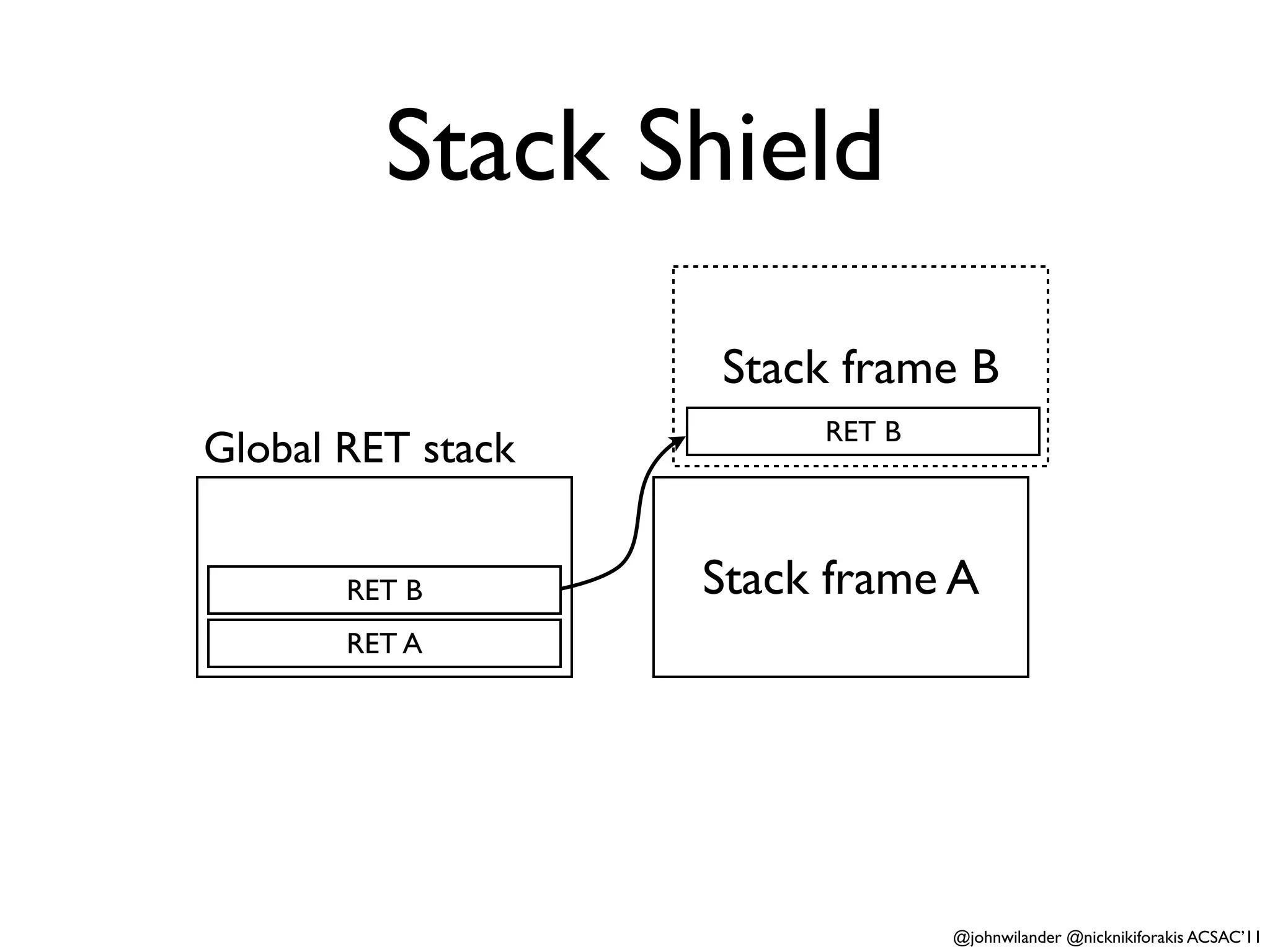

33. Stack Shield
Stack frame B
RET B
Global RET stack
RET B Stack frame A
RET A
@johnwilander @nicknikiforakis ACSAC’11

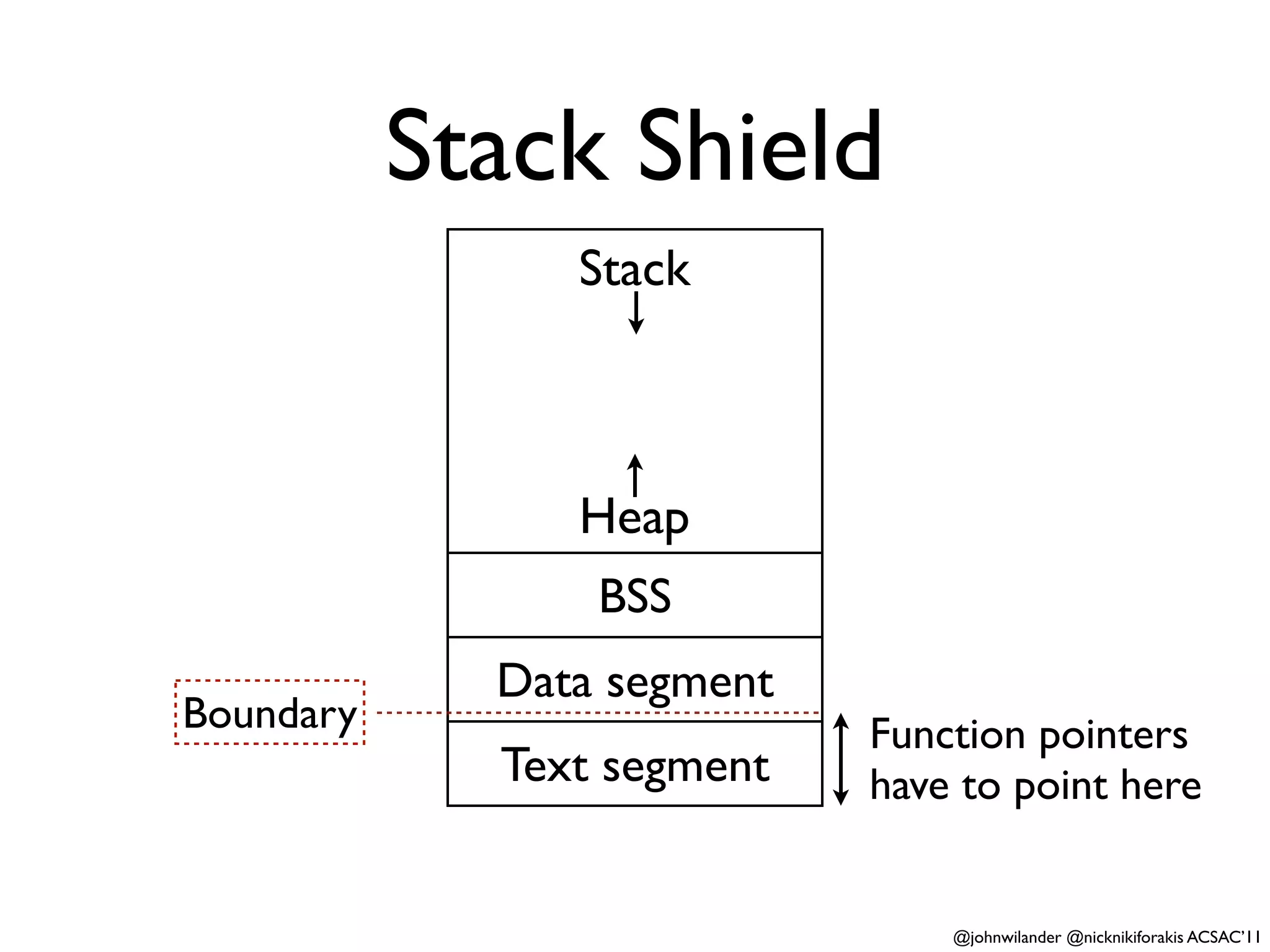

34. Stack Shield
Stack
Heap
BSS
Data segment
Boundary Function pointers
Text segment have to point here
@johnwilander @nicknikiforakis ACSAC’11

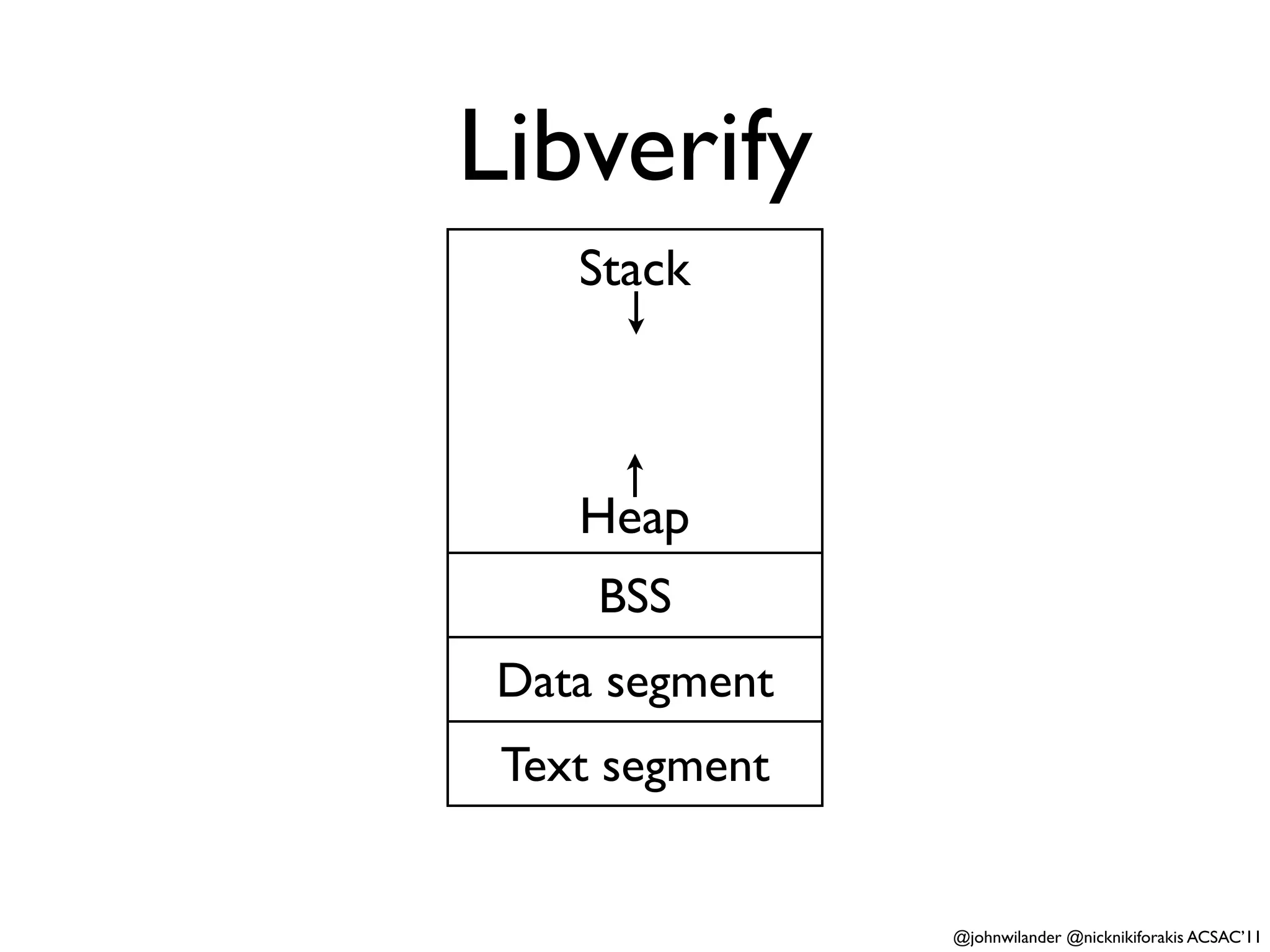

35. Libverify
Stack
Heap
BSS
Data segment
Text segment
@johnwilander @nicknikiforakis ACSAC’11

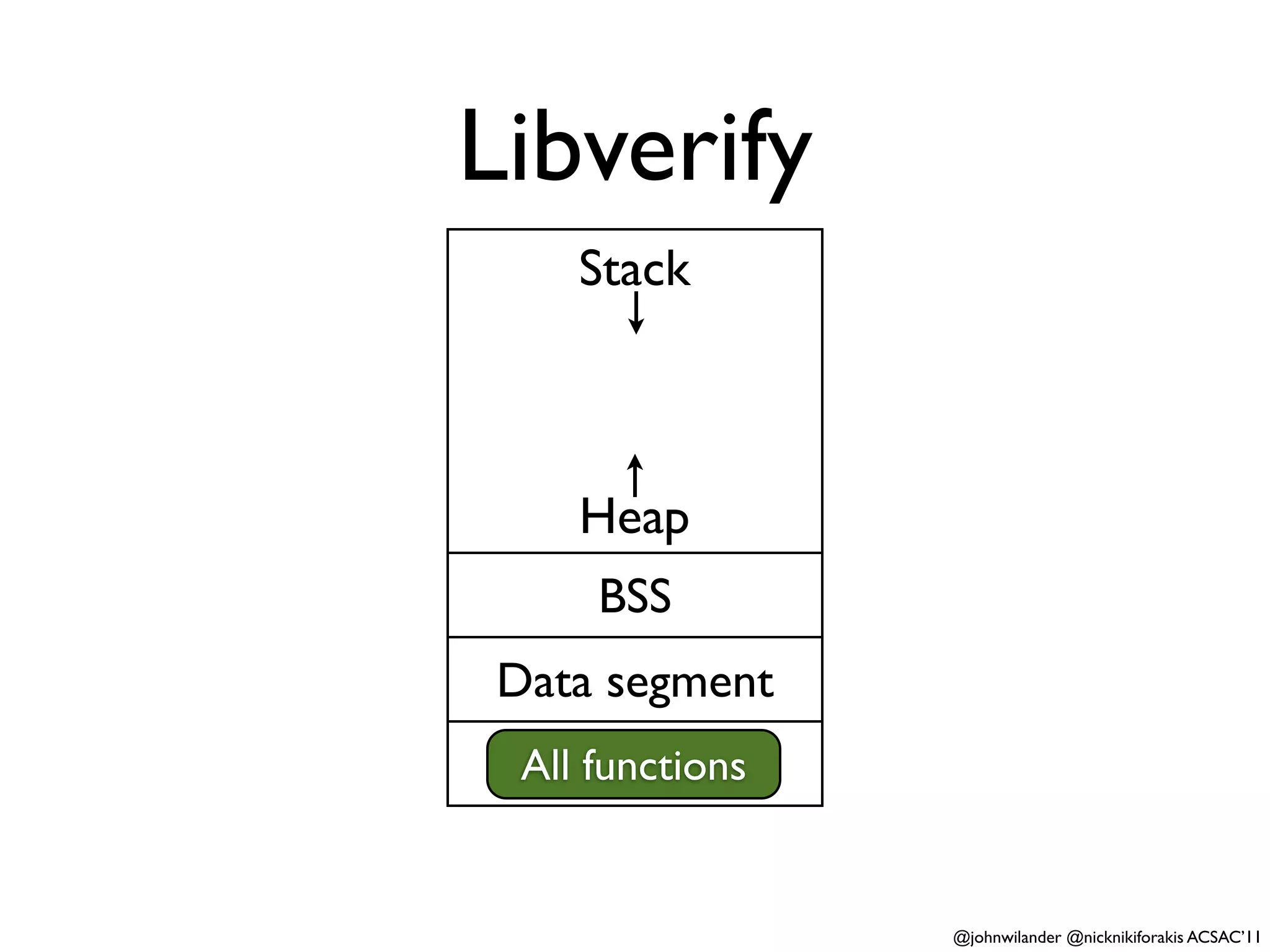

36. Libverify
Stack
Heap
BSS
Data segment
Textfunctions
All segment
@johnwilander @nicknikiforakis ACSAC’11

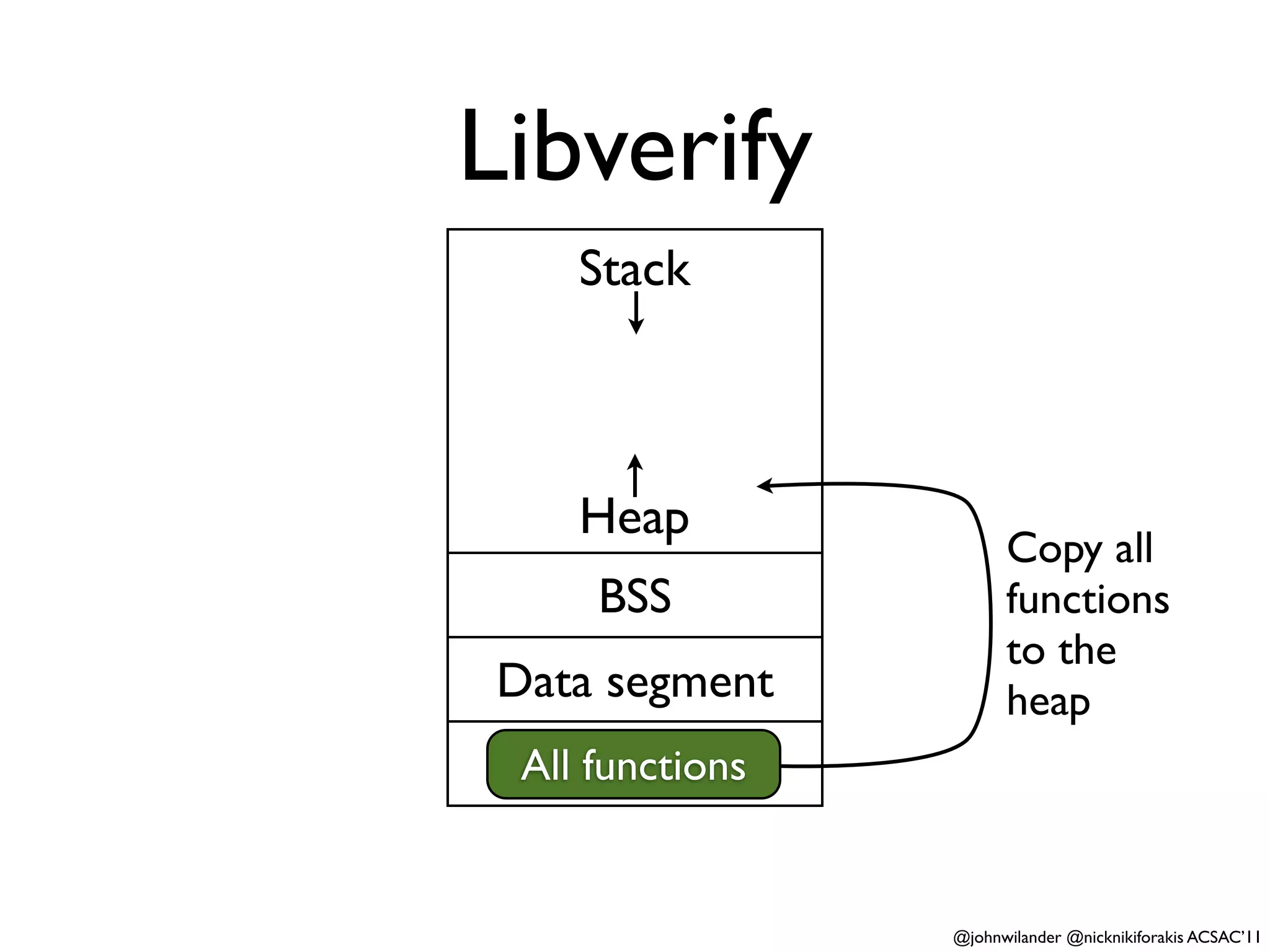

37. Libverify
Stack
Heap
Copy all
BSS functions
to the
Data segment heap
Textfunctions
All segment
@johnwilander @nicknikiforakis ACSAC’11

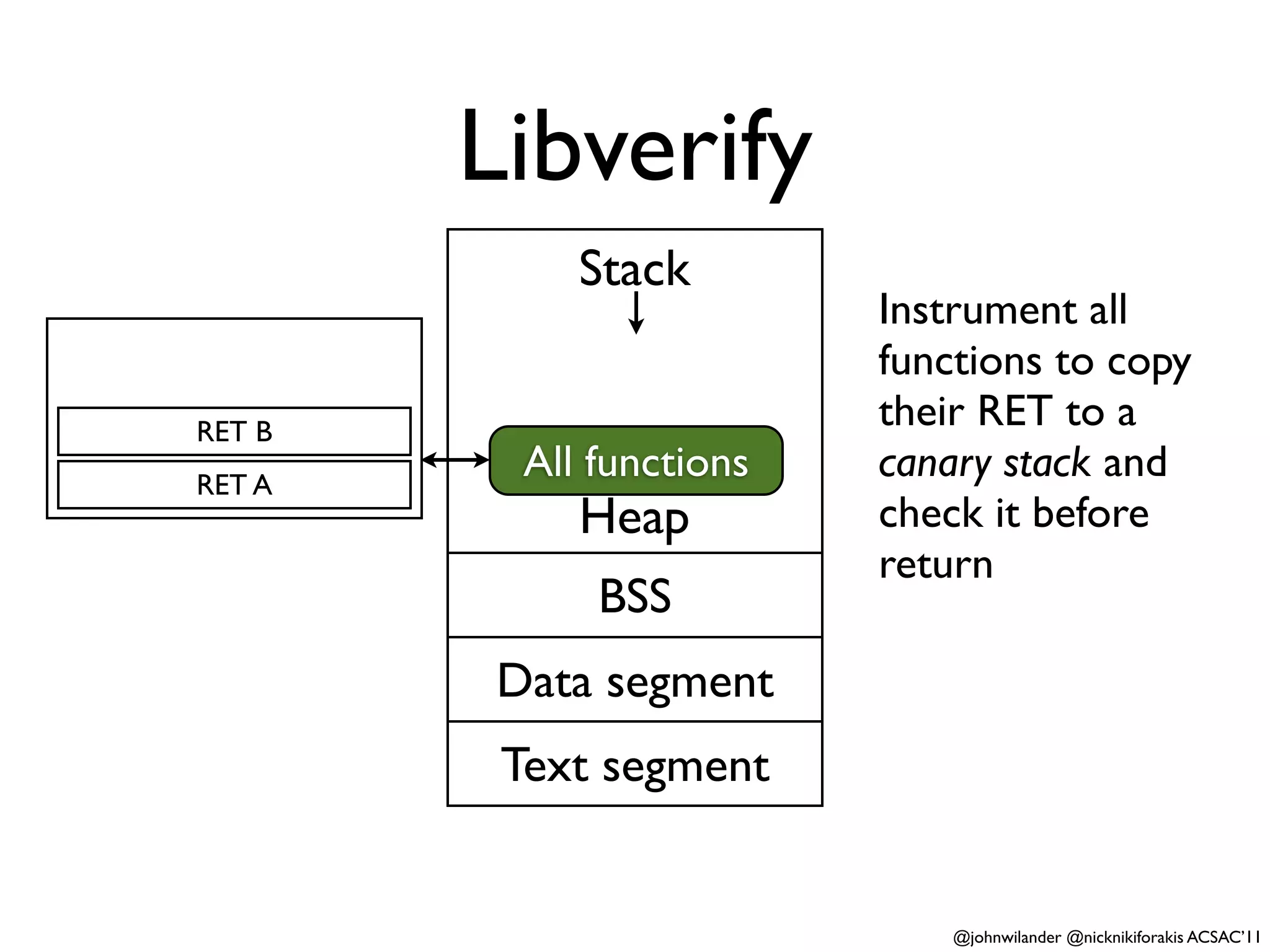

38. Libverify
Stack
Instrument all
functions to copy
RET B
their RET to a
RET A
All functions canary stack and
Heap check it before
return
BSS
Data segment
Text segment
@johnwilander @nicknikiforakis ACSAC’11

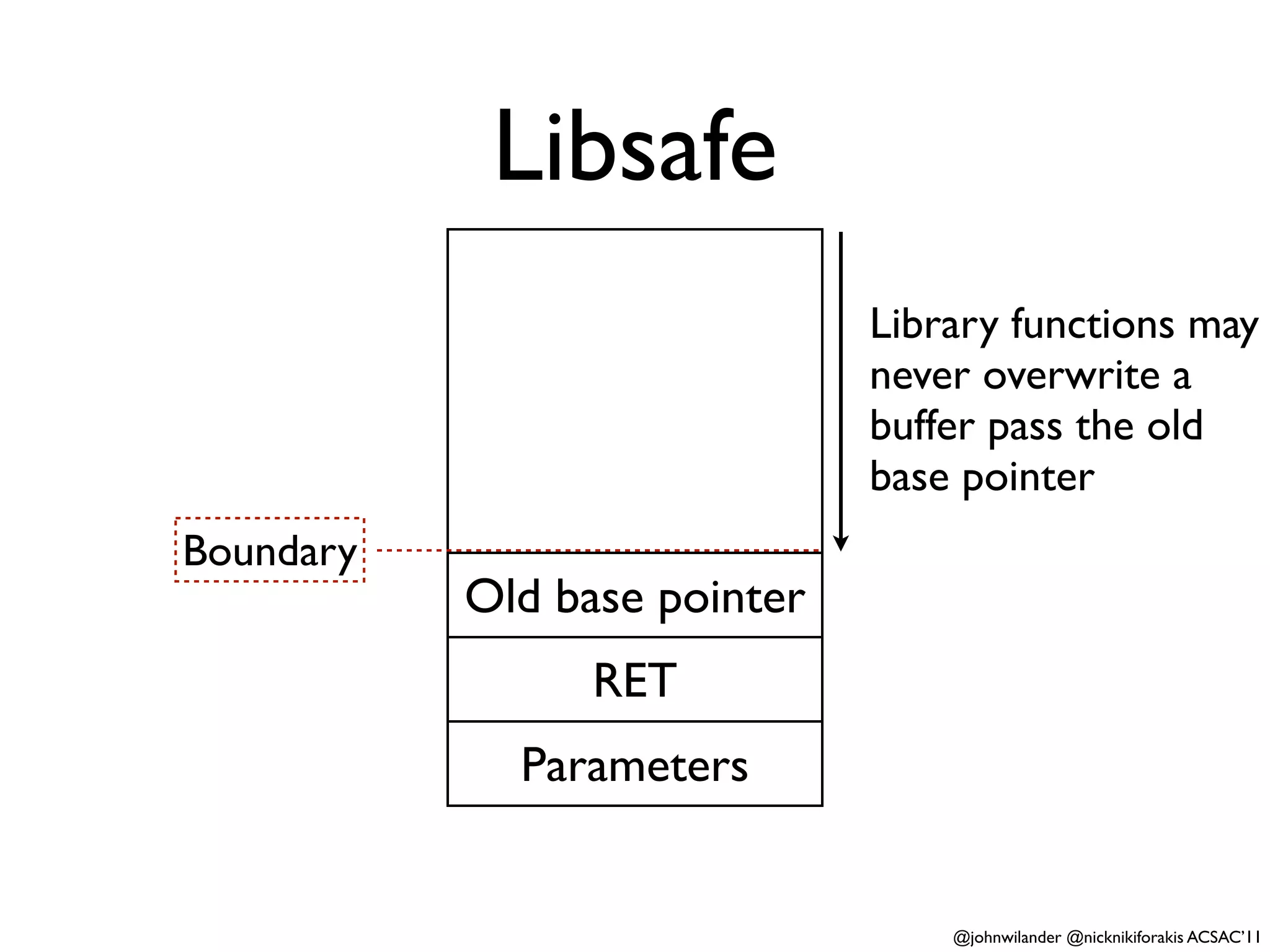

39. Libsafe
Library functions may
never overwrite a
buffer pass the old
base pointer
Boundary
Old base pointer
RET
Parameters
@johnwilander @nicknikiforakis ACSAC’11

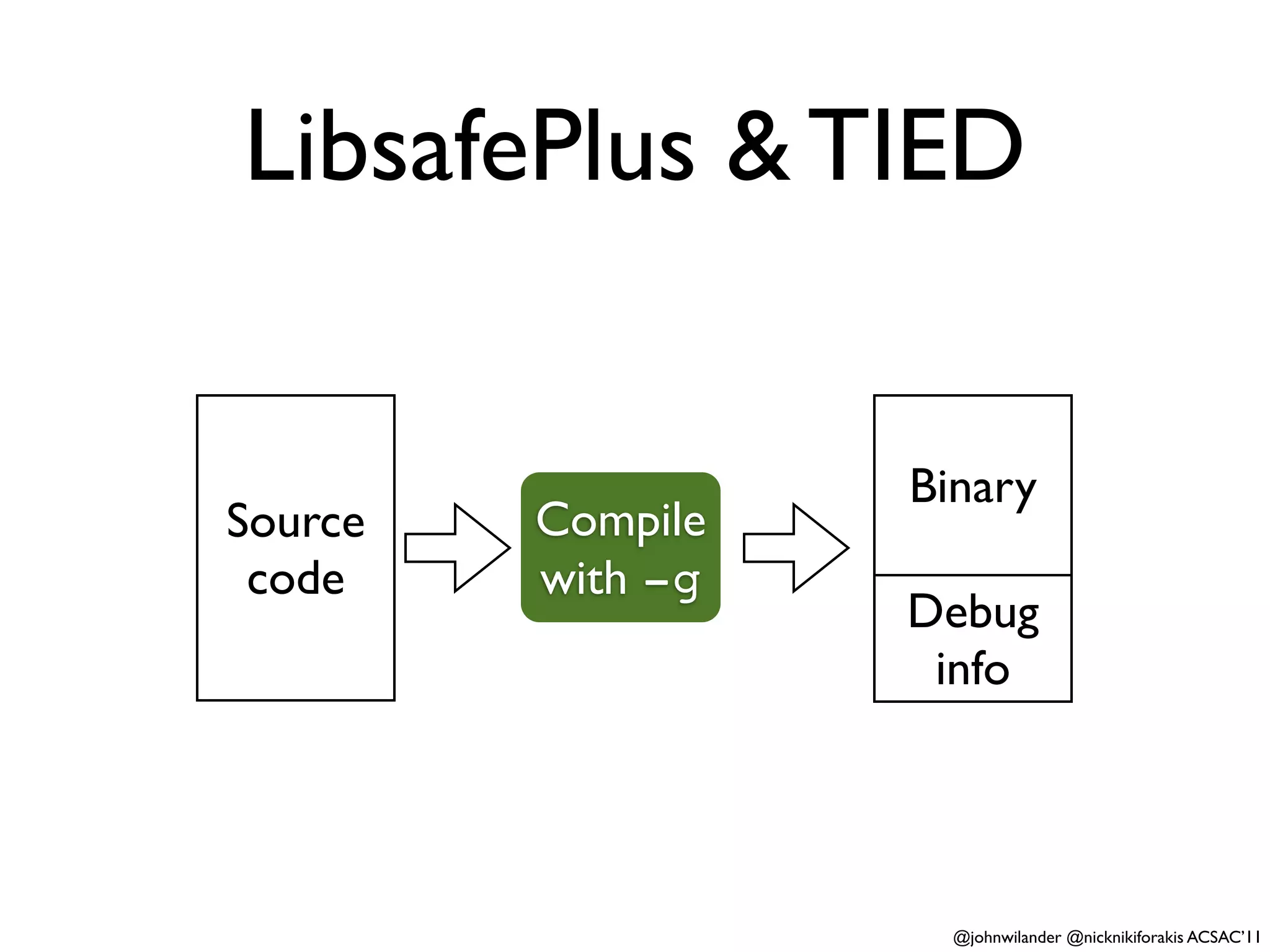

40. LibsafePlus & TIED
Binary
Source Compile
code with -g
Debug
info
@johnwilander @nicknikiforakis ACSAC’11

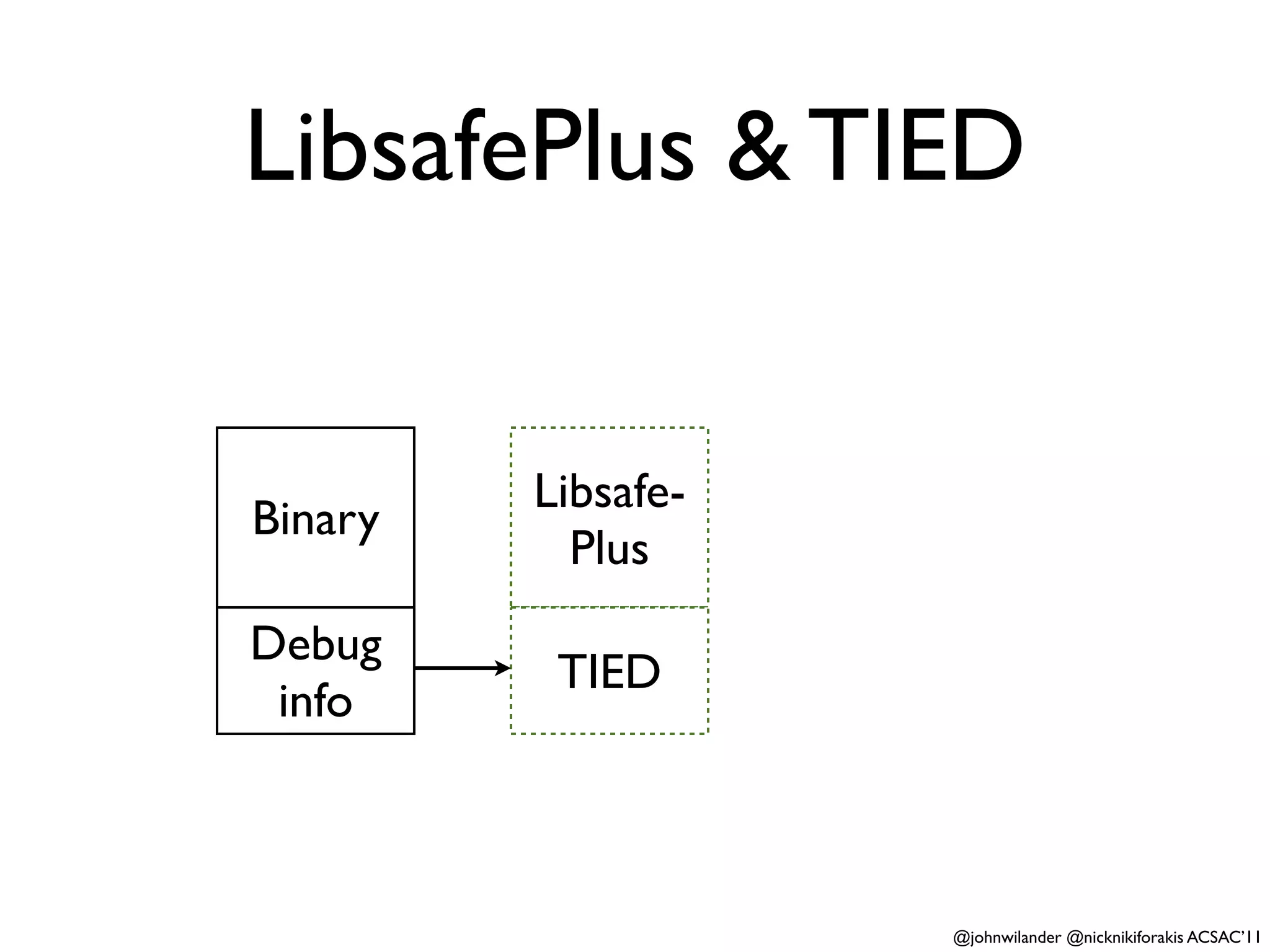

41. LibsafePlus & TIED
Libsafe-
Binary
Plus
Debug
TIED
info
@johnwilander @nicknikiforakis ACSAC’11

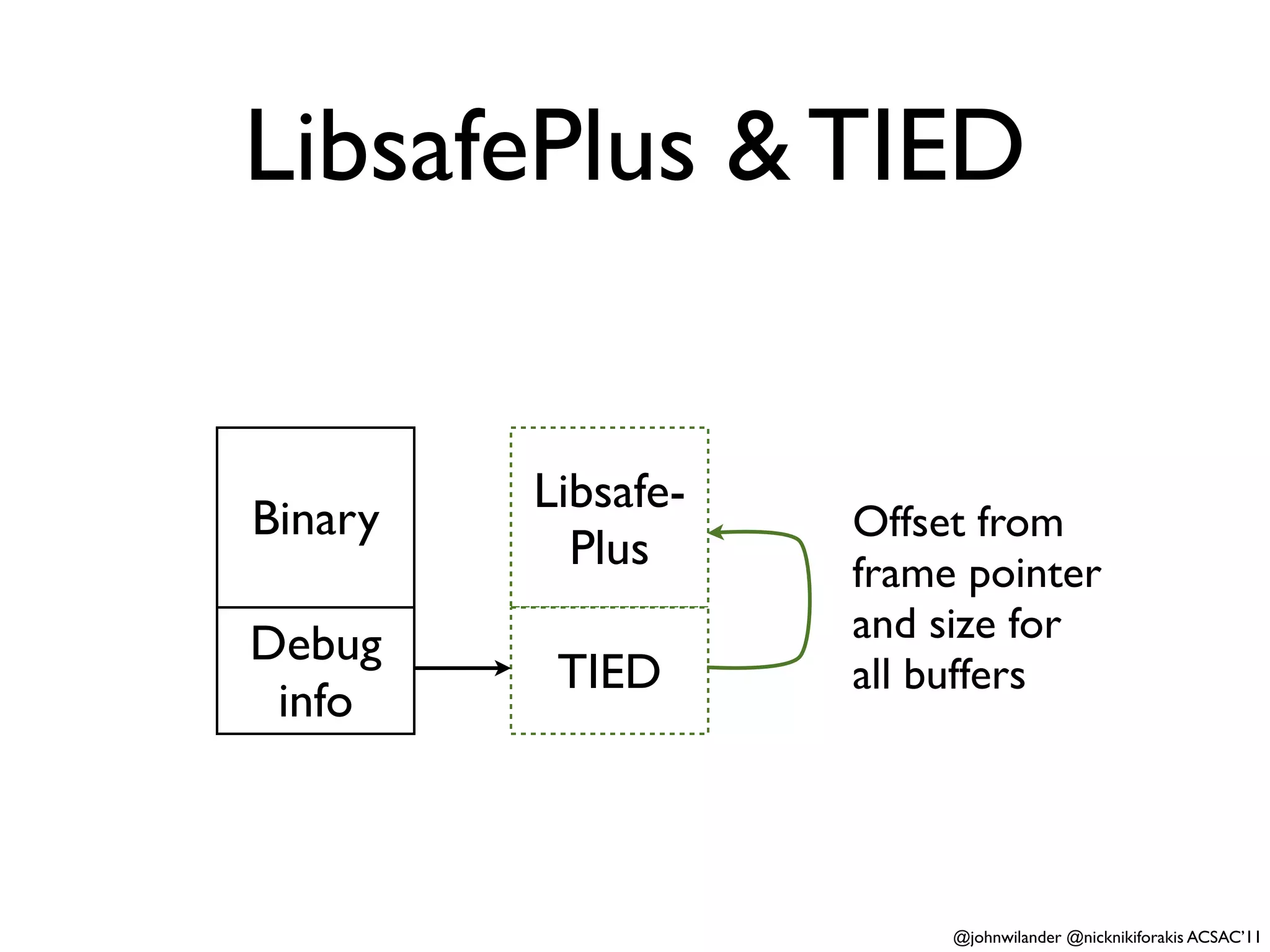

42. LibsafePlus & TIED
Libsafe-
Binary Offset from
Plus frame pointer
Debug and size for
TIED all buffers
info
@johnwilander @nicknikiforakis ACSAC’11

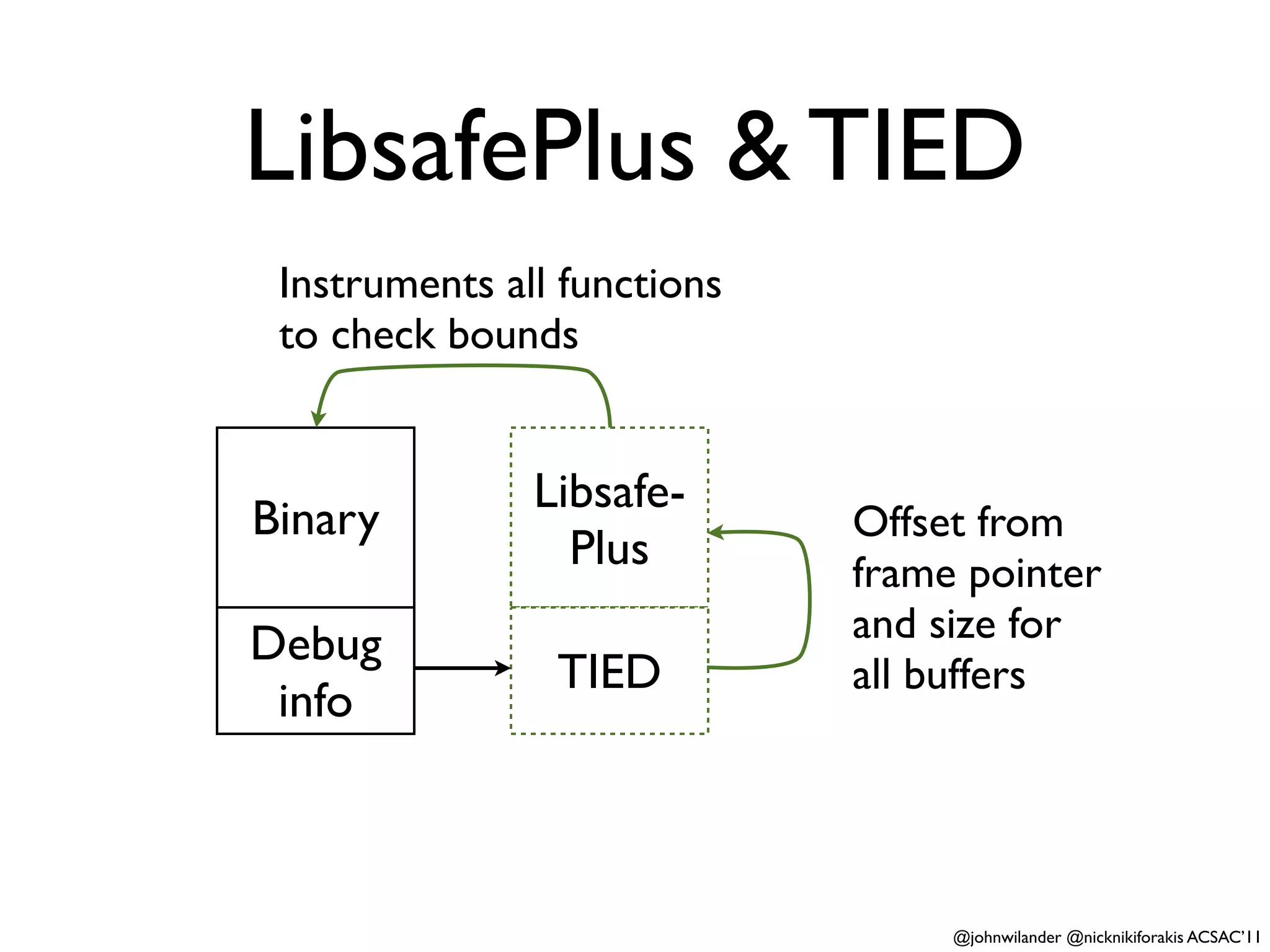

43. LibsafePlus & TIED
Instruments all functions
to check bounds
Libsafe-
Binary Offset from
Plus frame pointer
Debug and size for
TIED all buffers
info
@johnwilander @nicknikiforakis ACSAC’11

44. Non-Executable
Memory (XD + PAE)
Stack W
W⊻X Heap W
writable XOR executable
BSS W
Data segment W
Text segment X
@johnwilander @nicknikiforakis ACSAC’11

45. Empirical Evaluation
Results
@johnwilander @nicknikiforakis ACSAC’11

46. Results
Effective Successful Partly Failed
attacks successful attacks
-ness
Ubuntu 6.06 (no protection) 0% 99% 1% 0%
Libsafe 7% 91% 2% 7%
LibsafePlus 19% 79% 2% 19%
StackShield 36% 63% 1% 36%
ProPolice 40% 59% 1% 40%
LibsafePlus + TIED 77% 20% 3% 77%
CRED 79% 20% 0.5% 79%
Ubuntu 9.10 (W⊻X + CRED) 89% 9% 1% 89%
@johnwilander @nicknikiforakis ACSAC’11

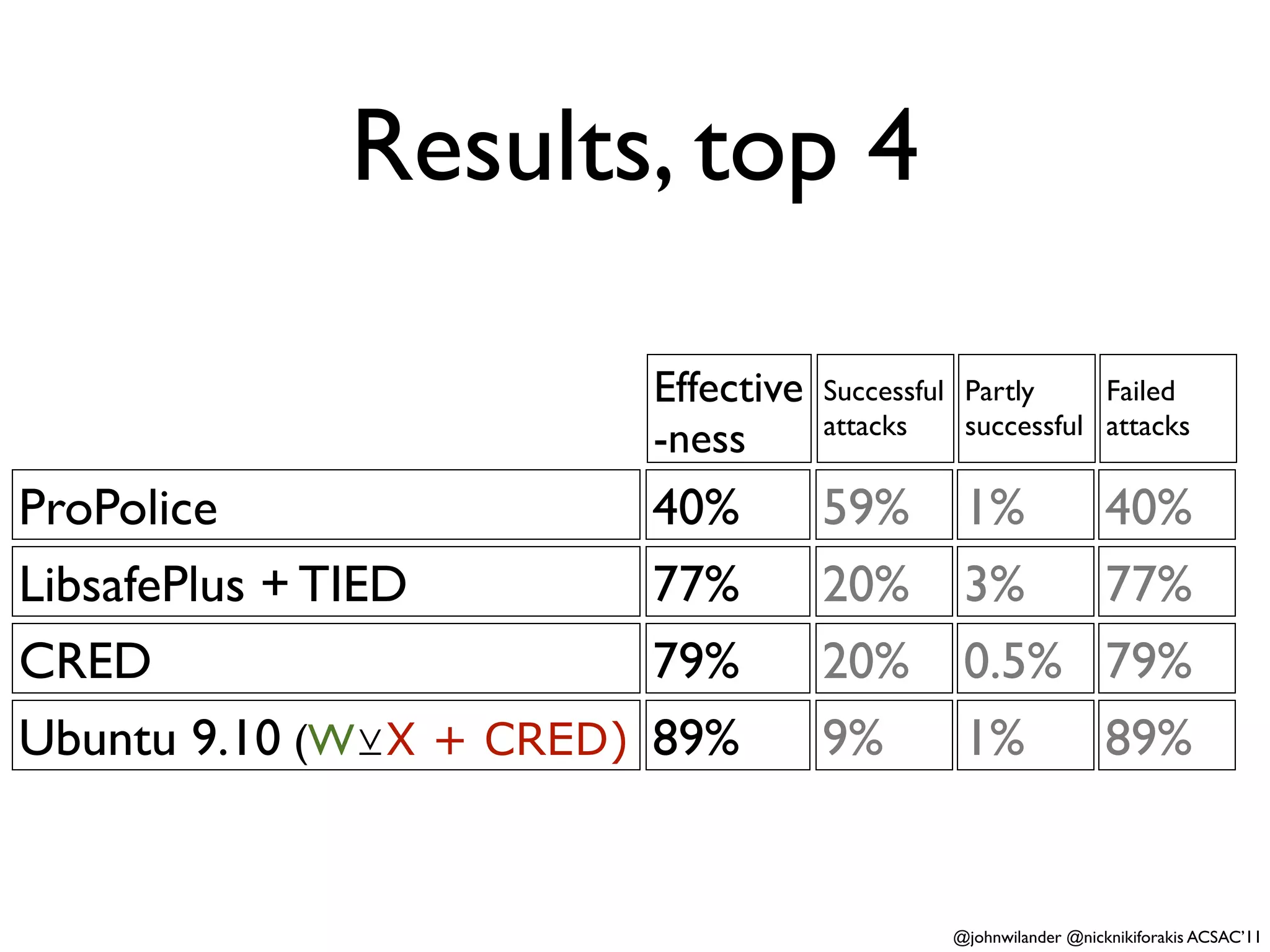

47. Results, top 4
Effective Successful Partly Failed
attacks successful attacks
-ness
ProPolice 40% 59% 1% 40%
LibsafePlus + TIED 77% 20% 3% 77%
CRED 79% 20% 0.5% 79%
Ubuntu 9.10 (W⊻X + CRED) 89% 9% 1% 89%
@johnwilander @nicknikiforakis ACSAC’11

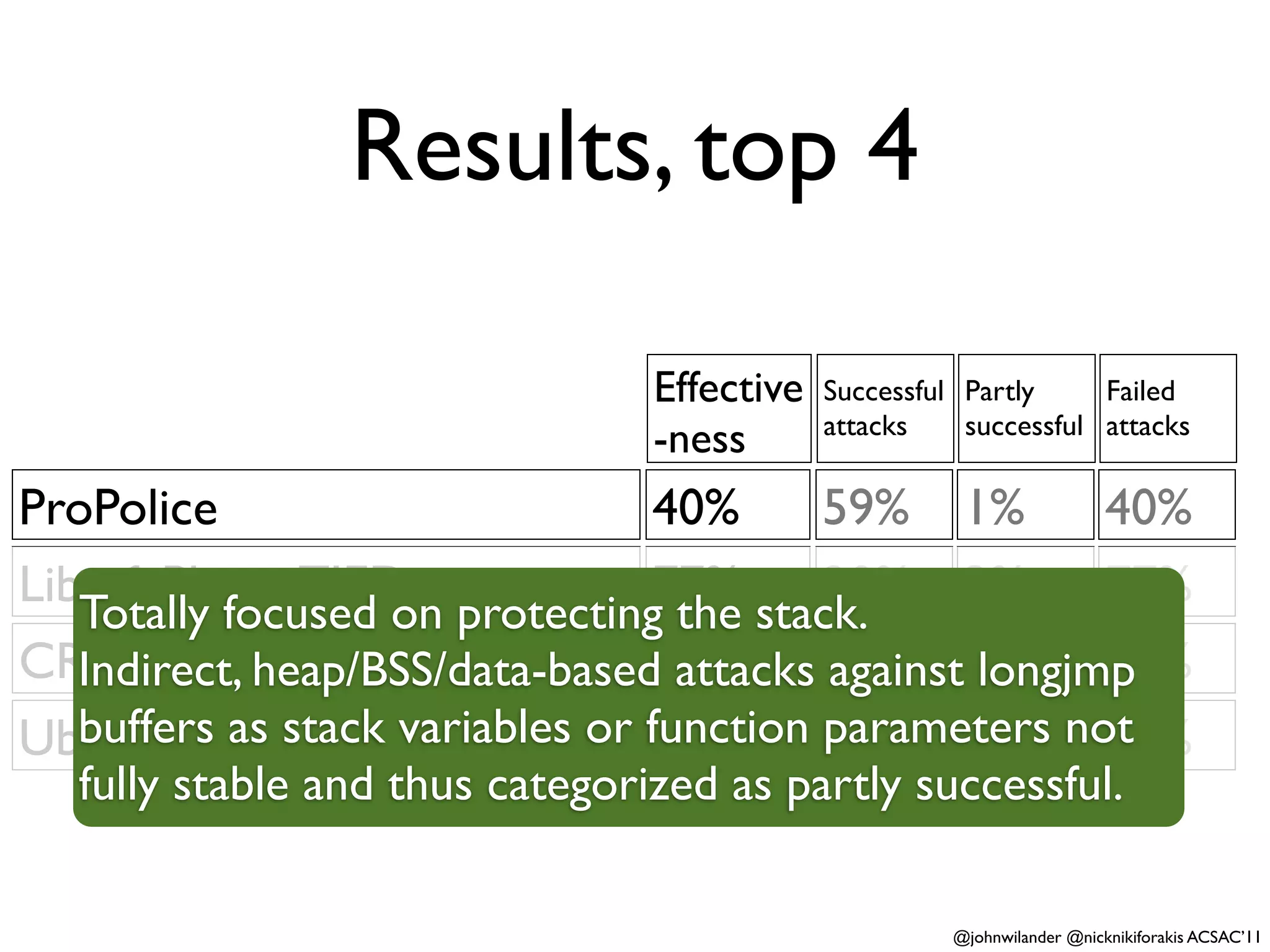

48. Results, top 4
Effective Successful Partly Failed
attacks successful attacks
-ness
ProPolice 40% 59% 1% 40%
LibsafePlus + TIED 77% 20% 3% 77%
Totally focused on protecting the stack.
CRED
Indirect, heap/BSS/data-based79%
attacks 20% 0.5% 79%
against longjmp
Ubuntu 9.10stack variables or function 9%
buffers as (W⊻X + CRED) 89% parameters not
1% 89%
fully stable and thus categorized as partly successful.
@johnwilander @nicknikiforakis ACSAC’11

49. Results, top 4
Effective Successful Partly Failed
attacks successful attacks
-ness
ProPolice 40% 59% 1% 40%
LibsafePlus + TIED 77% 20% 3% 77%

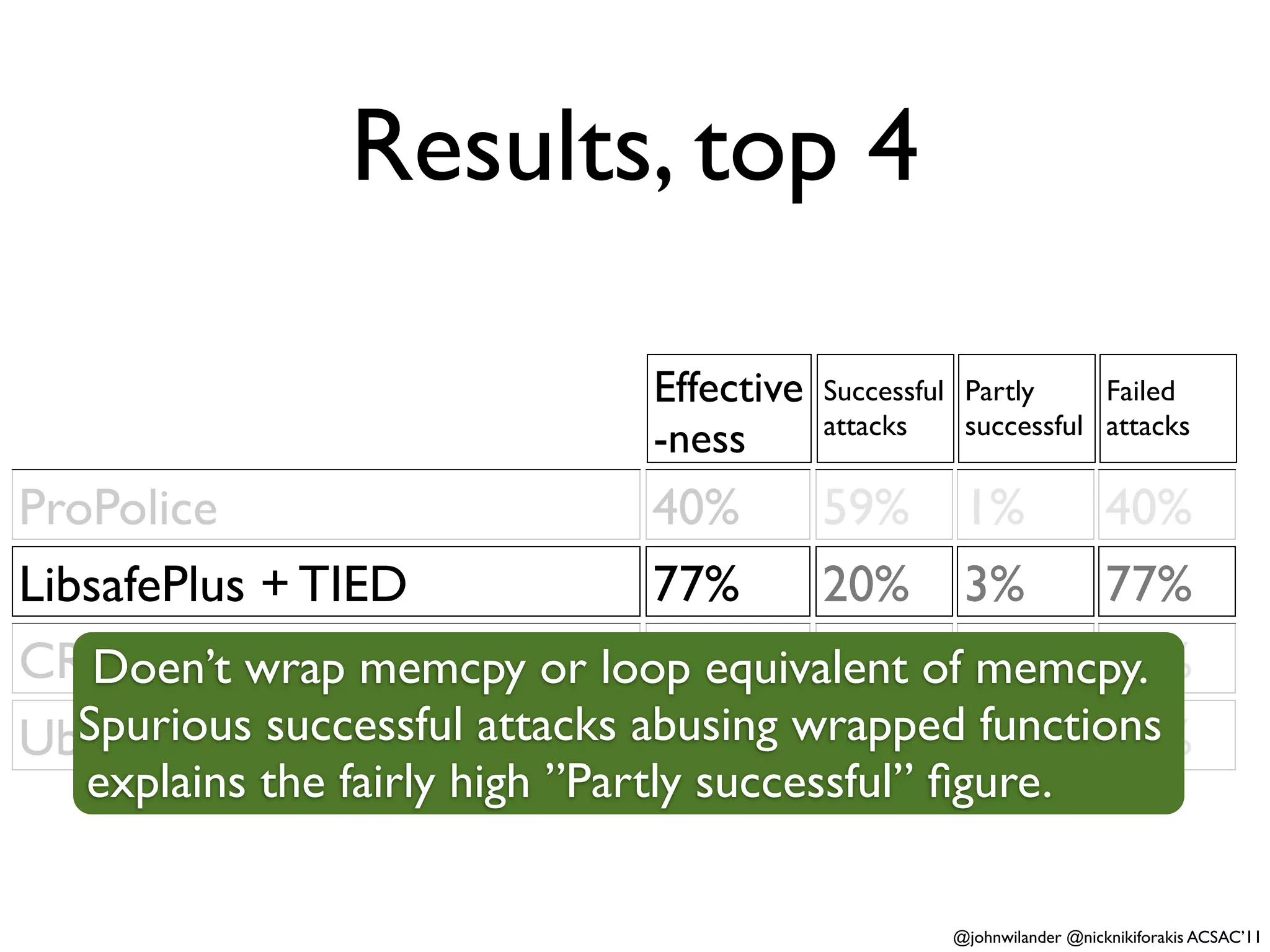

CREDDoen’t wrap memcpy or loop equivalent of 0.5% 79%
79% 20% memcpy.
Ubuntu 9.10 (W⊻X + attacks abusing wrapped1%
Spurious successful CRED) 89% 9% functions
89%
explains the fairly high ”Partly successful” figure.
@johnwilander @nicknikiforakis ACSAC’11

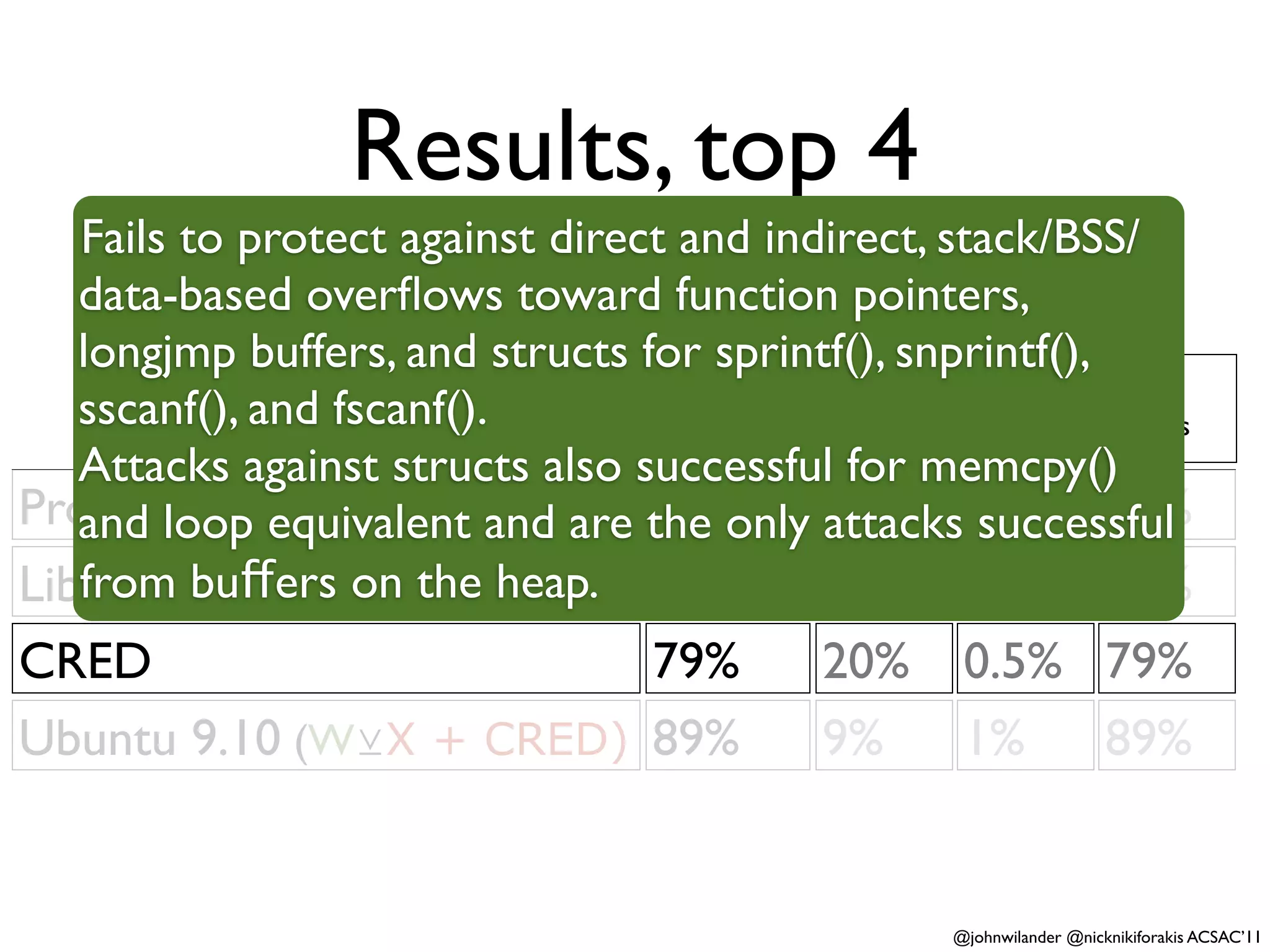

50. Results, top 4
Fails to protect against direct and indirect, stack/BSS/
data-based overflows toward function pointers,
longjmp buffers, and structs for sprintf(), snprintf(),
Effective Successful Partly Failed
sscanf(), and fscanf(). attacks successful attacks
-ness
Attacks against structs also successful for memcpy()
ProPolice equivalent and are the only 59% 1%
and loop 40% attacks successful 40%
LibsafePlus + TIED the heap. 77%
from buffers on 20% 3% 77%
CRED 79% 20% 0.5% 79%
Ubuntu 9.10 (W⊻X + CRED) 89% 9% 1% 89%
@johnwilander @nicknikiforakis ACSAC’11

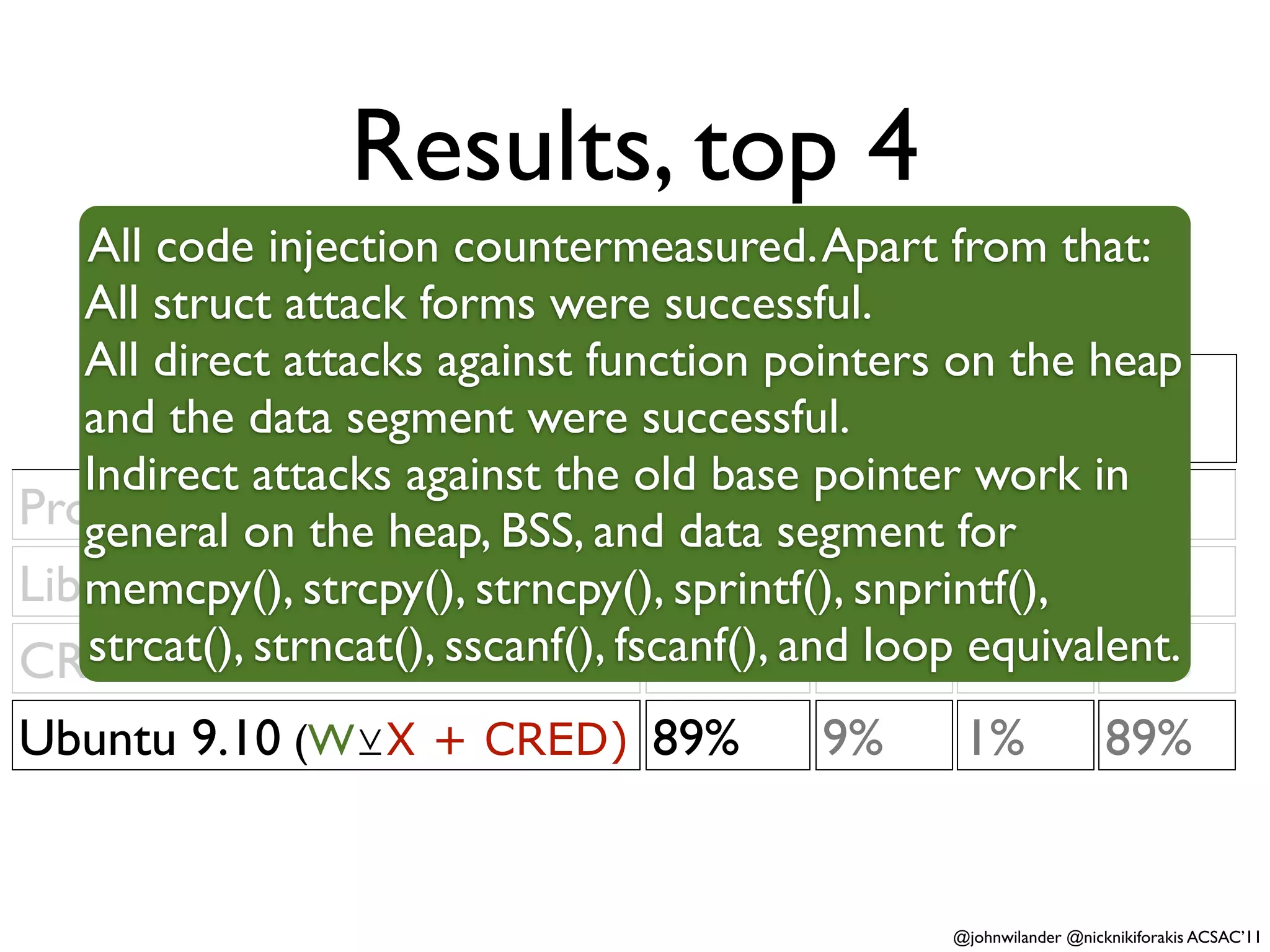

51. Results, top 4
All code injection countermeasured. Apart from that:
All struct attack forms were successful.
All direct attacks against function pointers on the heap
Effective Successful Partly Failed
and the data segment were successful.
-ness attacks successful attacks
Indirect attacks against the old base pointer work in
ProPolice on the heap, BSS, and data segment for
general 40% 59% 1% 40%
LibsafePlus + TIED strncpy(), sprintf(), snprintf(), 77%
memcpy(), strcpy(), 77% 20% 3%
strcat(), strncat(), sscanf(), fscanf(), and loop 0.5% 79%
CRED 79% 20% equivalent.
Ubuntu 9.10 (W⊻X + CRED) 89% 9% 1% 89%
@johnwilander @nicknikiforakis ACSAC’11

52. Related Work
@johnwilander @nicknikiforakis ACSAC’11

53. Dynamic Overflow Detecion
by Zhivich, Leek, and Lippmann
@johnwilander @nicknikiforakis ACSAC’11

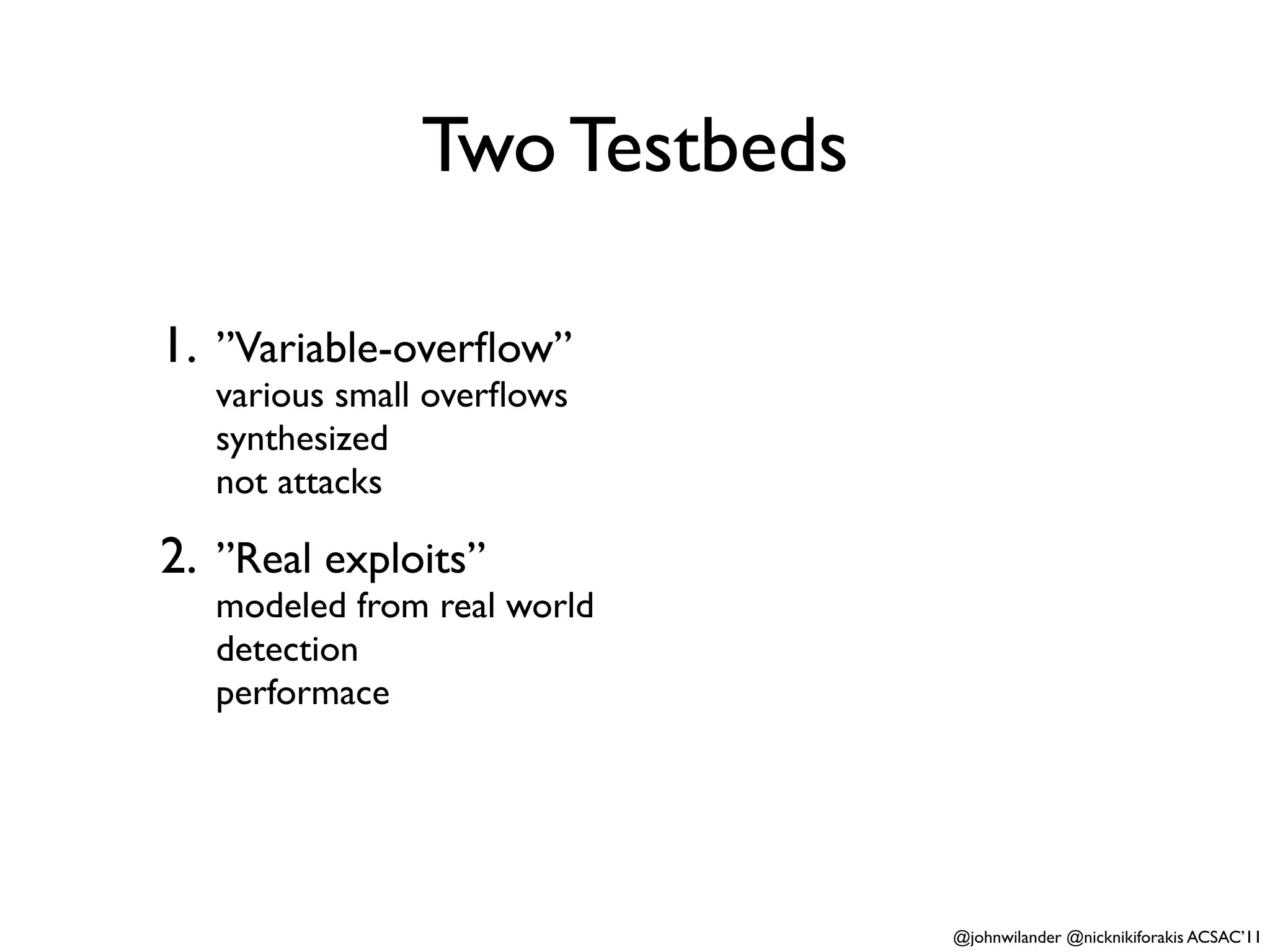

54. Two Testbeds
1. ”Variable-overflow”
various small overflows
synthesized
not attacks
2. ”Real exploits”
modeled from real world
detection
performace
@johnwilander @nicknikiforakis ACSAC’11

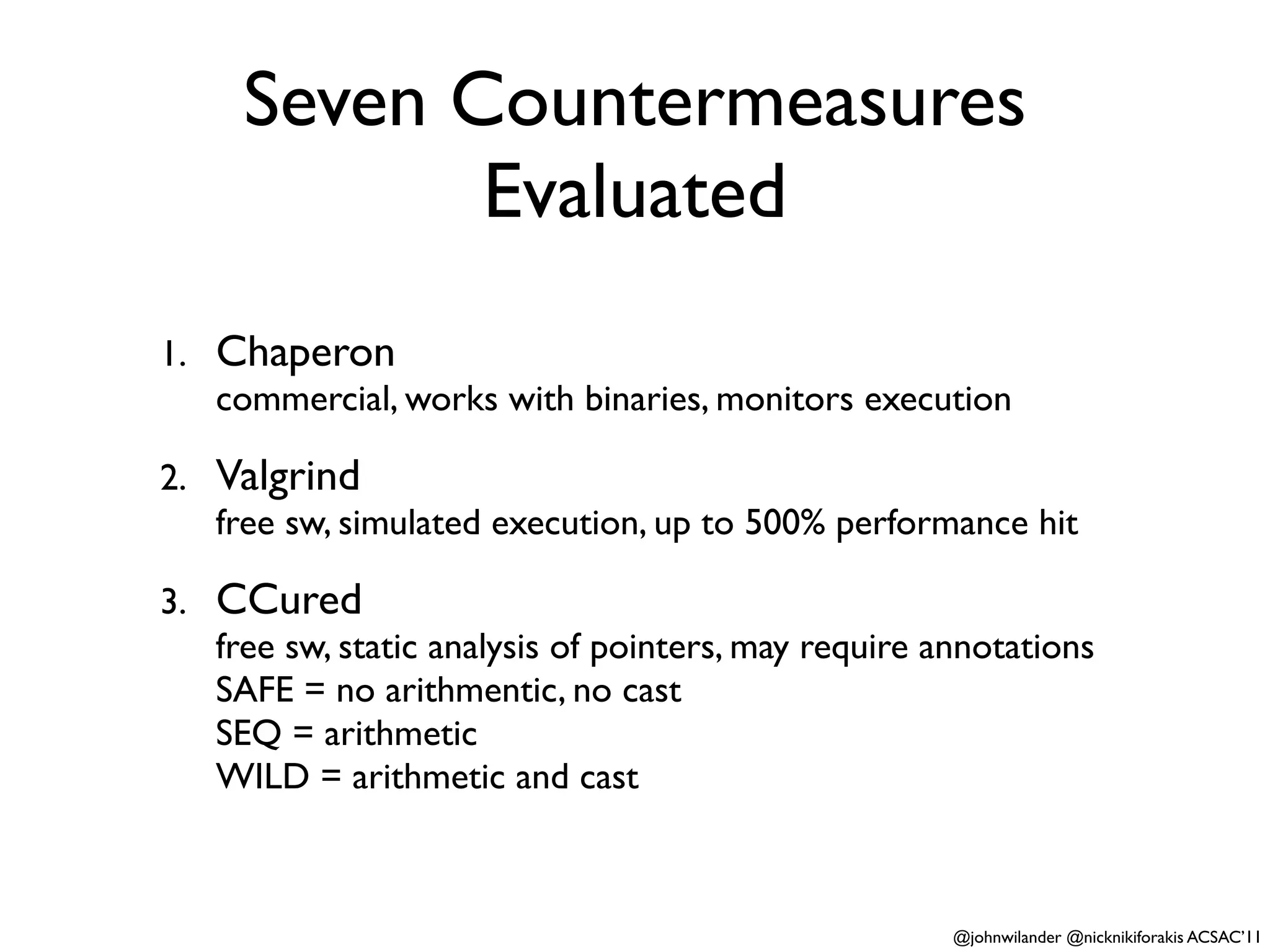

55. Seven Countermeasures
Evaluated
1. Chaperon
commercial, works with binaries, monitors execution
2. Valgrind
free sw, simulated execution, up to 500% performance hit
3. CCured
free sw, static analysis of pointers, may require annotations
SAFE = no arithmentic, no cast
SEQ = arithmetic
WILD = arithmetic and cast
@johnwilander @nicknikiforakis ACSAC’11

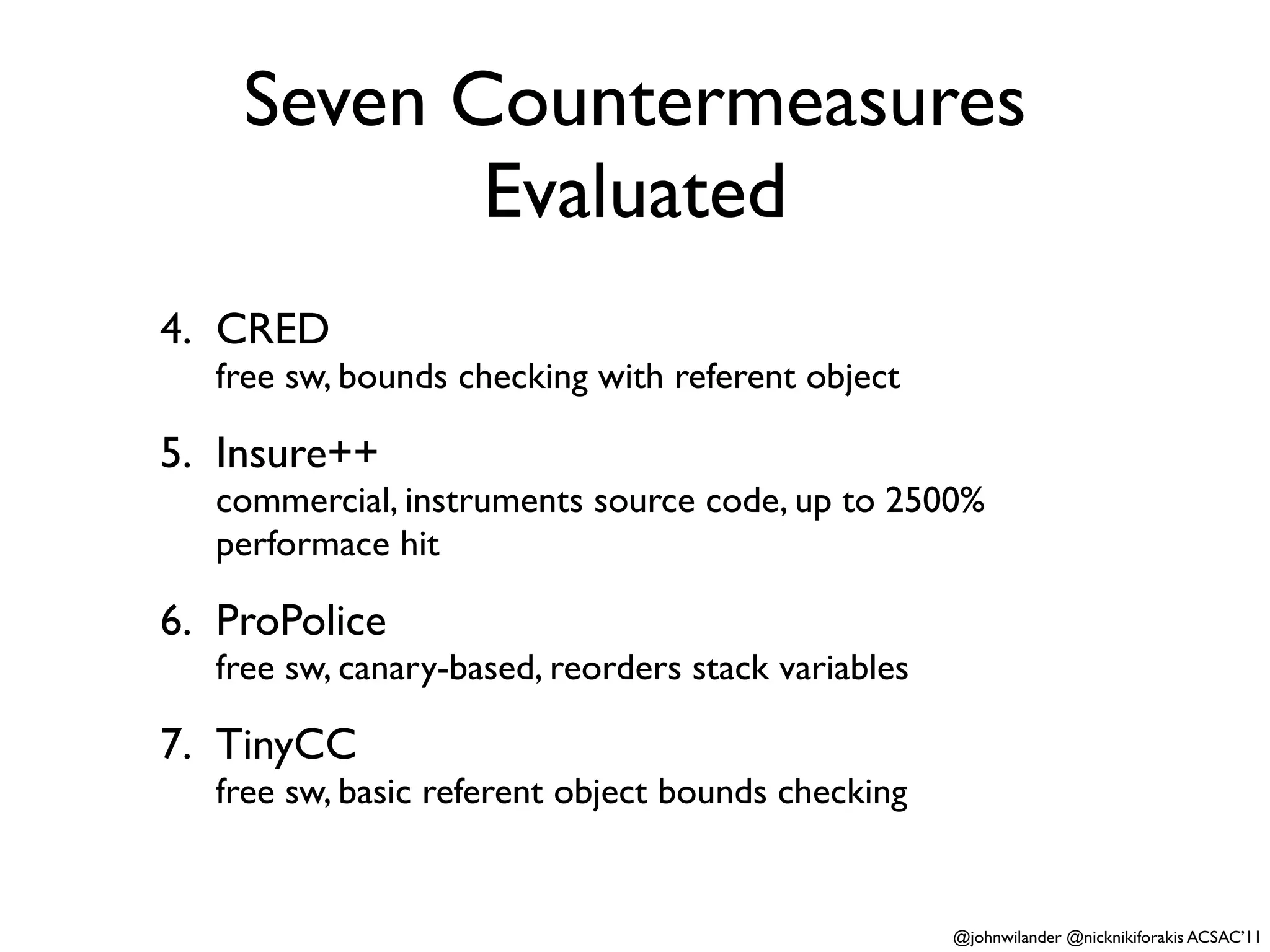

56. Seven Countermeasures
Evaluated
4. CRED
free sw, bounds checking with referent object
5. Insure++
commercial, instruments source code, up to 2500%
performace hit
6. ProPolice
free sw, canary-based, reorders stack variables
7. TinyCC
free sw, basic referent object bounds checking
@johnwilander @nicknikiforakis ACSAC’11

57. Results (Zhivich, Leek, and Lippmann)
@johnwilander @nicknikiforakis ACSAC’11

58. Results (Zhivich, Leek, and Lippmann)
@johnwilander @nicknikiforakis ACSAC’11

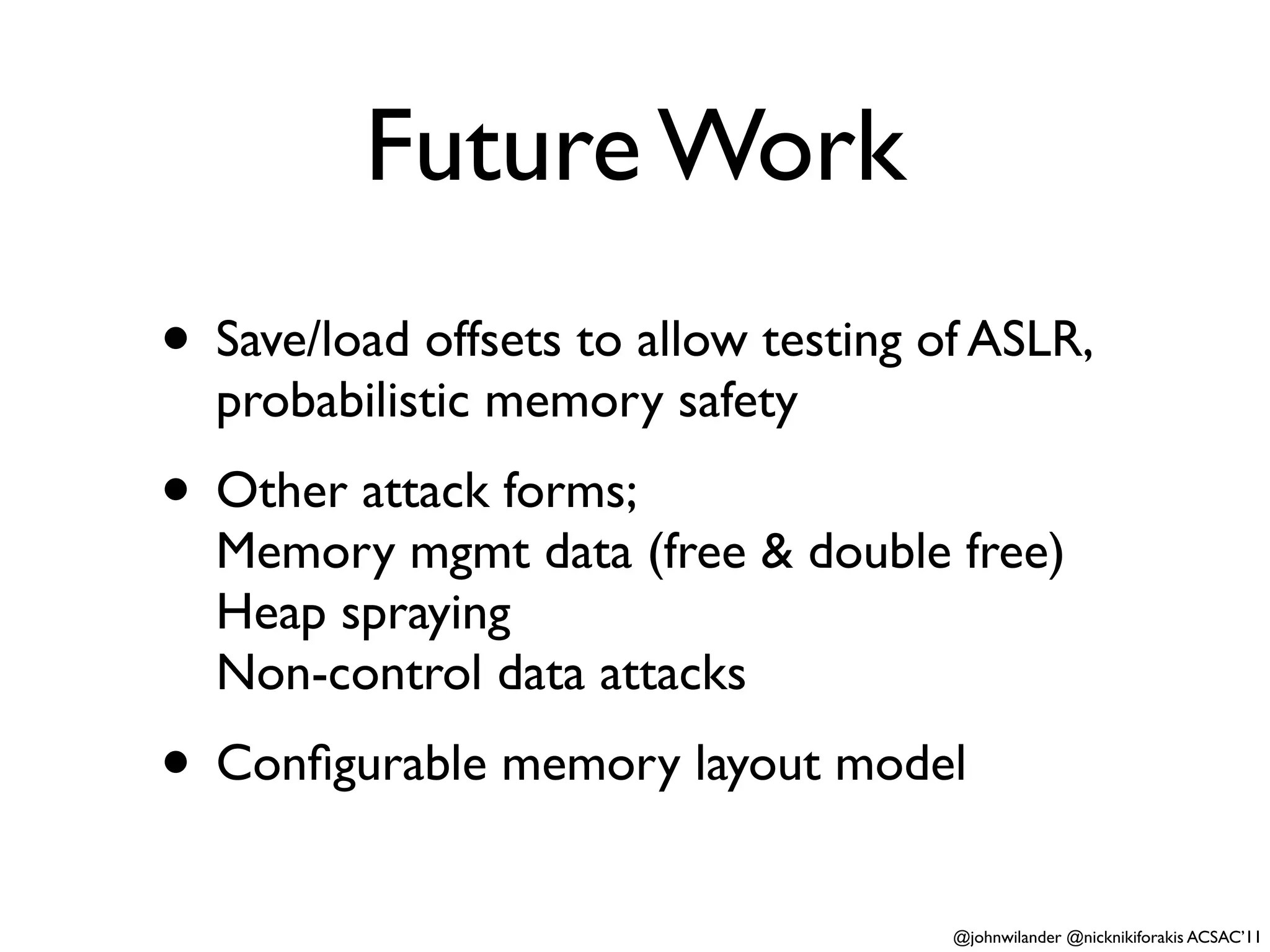

59. Future Work
• Save/load offsets to allow testing of ASLR,
probabilistic memory safety
• Other attack forms;
Memory mgmt data (free & double free)
Heap spraying
Non-control data attacks
• Configurable memory layout model
@johnwilander @nicknikiforakis ACSAC’11

60. Slides http://www.slideshare.net/johnwilander/
ripe-runtime-intrusion-prevention-evaluator
@johnwilander
john.wilander@gmail.com
