Reverse Engineering Architectural Feature Models Case Study: FraSCAti software architect Mathieu Acher1, Anthony Cleve2 ,Philippe Collet1,       Philippe Merle3, Laurence Duchien3, Philippe Lahire1 1 University of Nice Sophia Antipolis (France), MODALIS team (CNRS, I3S Laboratory) 2 PReCISEResearch Centre, University of Namur, Belgium 3 INRIA Lille-Nord Europe, Univ. Lille 1 - CNRS UMR 8022, France

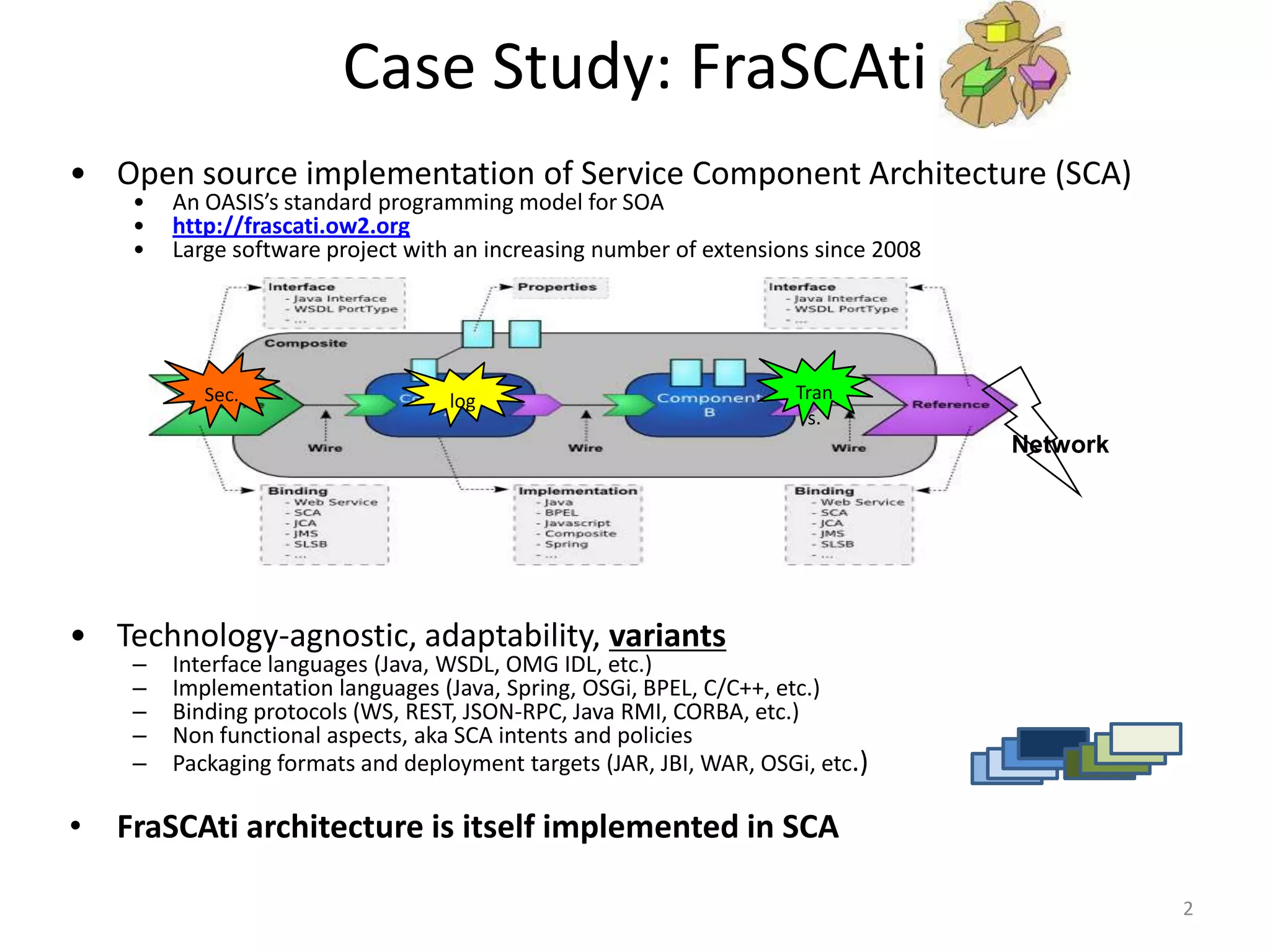

Case Study: FraSCAti ,[object Object]
An OASIS’s standard programming model for SOA
http://frascati.ow2.org
Large software project with an increasing number of extensions since 2008
Technology-agnostic, adaptability, variantsInterface languages (Java, WSDL, OMG IDL, etc.) Implementation languages (Java, Spring, OSGi, BPEL, C/C++, etc.) Binding protocols (WS, REST, JSON-RPC, Java RMI, CORBA, etc.) Non functional aspects, aka SCA intents and policies Packaging formats and deployment targets (JAR, JBI, WAR, OSGi, etc.) ,[object Object],Trans. Sec. log Network 2
FraSCAti Extensible Architecture in SCA (excerpt) Variability Variability Variability Variability Variability Variability 3
Whatwewant : FraSCAti« à la carte » ,[object Object],API + membrane controllers ,[object Object],Around 2Mb for EMF & SCA MM ,[object Object],Using JDK6 compiler ,[object Object]
40Mb	All FraSCAti 1.3 features4 Variability
Variability “the ability of a system to be efficiently extended, changed, customized or configured for use in a particular context”  MikaelSvahnberg, Jilles van Gurp, and Jan Bosch (2005) 5
FraSCAtias a Software Product Line Variability 6
Challenge: Modeling Variability “central to the software product line paradigm is the modeling and management of variability, that is, the commonalities and differences in the applications” 	Klaus Pohl (2005) 7
8 Variability Model How to reverse engineer the variability model of an architecture? Architecture e.g., see discussions at SAVA workshop
9 Variability Model FraSCAti Architecture
10 Defacto standard for modeling variability Formal semantics, reasoning techniques, tools Feature Model FraSCAti Architecture explicit representation of legal variants authorized by FraSCati
Feature Model Hiearchyof Features + Variability (incl. constraints) Compact representation of a set of configurations Scope: restrict legal variants authorized by FraSCati 11 Set of Configurations
12 FraSCAti Architecture Feature Model Configuration Derived FraSCAti Architecture
13 Not all combinations of architectural elements are valid Implementation_BPEL “requires” Interface_WSDL ; Implementation_Spring “requires” MM_SCA ; Set of  Safe Variants authorized by FraSCAti Scope is too large Feature Model FraSCAti Architecture
Illegal  Variant  14
15 Set of  Safe Variants authorized by FraSCAti Scope is too narrow Feature Model FraSCAti Architecture
16 Unused flexibility
How to obtain theFeature Model of FraSCAti Architecture? 17 Lopez et al., On the Need of Safe Software Product Line Architectures.  (ECSA’10)
18 - Error-prone ,[object Object],+ Architecture Knowledge + Scoping Decisions  Philippe Merle, software architect of FraSCAti
Extraction Process - Error-prone ,[object Object],+ Architecture Knowledge + Scoping Decisions  19 1 2 - Documentation of Software Artefacts ,[object Object],+ Automation
Extraction Process 20 1 2
Automated Extraction 21 150%: rough over approximation of legal configurations Mapping between architectural elements and plugins Projection on architectural elements
Projection by Example Formal semantics and automation details in the paper see also “Acher et al., Slicing Feature Models”, ASE’11 22
23 Architectural 150% FM: 50 features, 1011 configurations Plugin FM: 41 features Mapping: 158 constraints Reinforced Architectural FM: 106 configurations
Extraction Process 24 1 2
Consistency of the Extracted Feature Model?              50 features,              more than 106 configurationsWe need (1) automated reasoning techniques(2) to put the Software Architect in the Loop 25
26
Reconciliation of Feature Models Vocabulary differs 32 “common” features automatically detected  5 manual correspondences specified Granularity differs (more or less details) Not detected by the automated procedure for 2 features Intentionally forget by the software architect (or not) for 13 features Basic edit techniques are not sufficient to reconcile feature models Extensive use of slicing operator Once reconciled, techniques needed to understand “differences” between the two feature models  27
