• 1.
  #mongodbdays chicago Introduction toReplication and Replica Sets J. Randall Hunt Hackathoner, MongoDB
• 2.

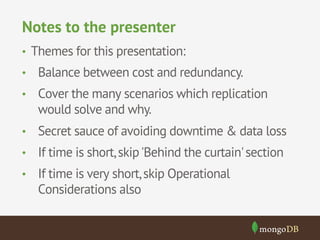

  Notes to thepresenter •  Themes for this presentation: •  Balance between cost and redundancy. •  Cover the many scenarios which replication would solve and why. •  Secret sauce of avoiding downtime & data loss •  If time is short, skip 'Behind the curtain' section •  If time is very short, skip Operational Considerations also
• 3.
  Why Replication? •  Howmany have faced node failures? •  How many have been woken up from sleep to do a fail-over(s)? •  How many have experienced issues due to network latency? •  Different uses for data –  Normal processing –  Simple analytics
• 4.
  Agenda •  Replica SetsLifecycle •  Developing with Replica Sets •  Operational Considerations
• 5.
  Replica Set Lifestyle
• 6.
  Node 1 Node 2 Node3 Replica Set – Creation
• 7.
  Node 1 Node 2 Secondary Secondary Heartbeat ica Primary ReplicaSet – Initialize Re pl n o ati lic tio n p Re Node 3
• 8.
  Node 1 Secondary Primary Election Heartbeat Node3 Replica Set – Failure Node 2 Secondary
• 9.
  Node 1 Replication Secondary Node 2 Primary Heartbeat Node3 Replica Set – Failover
• 10.
  Node 1 Replication Secondary Node 2 Primary Re pl ica tio n Heartbeat Node3 Recovery Replica Set – Recovery
• 11.
  Node 1 Replication Secondary Node 2 Primary Re pl ica tio n Heartbeat Node3 Secondary Replica Set – Recovered
• 12.
  Replica Set Roles& Configuration
• 13.
  Node 1 Node 2 Secondary Arbiter Heartbeat on ati lic p Re Node3 Primary Replica Set Roles
• 14.
  Configuration Options > conf= { _id: ”empire", members: [ { _id: 0, host: 'vader.deathstar.mil'}, { _id: 1, host: 'tarkin.deathstar.mil'}, { _id: 2, host: 'palpatine.deathstar.mil'} ] } > rs.initiate(conf)
• 15.
  Configuration Options > conf= { _id: ”empire", members: [ Primary DC { _id: 0, host: 'vader.deathstar.mil', priority: 3}, { _id: 1, host: 'tarkin.deathstar.mil', priority: 2}, { _id: 2, host: 'palpatine.deathstar.mil'} ] } > rs.initiate(conf)
• 16.
  Configuration Options > conf= { _id: ”empire", members: [ { _id: 0, host: 'vader.deathstar.mil', priority: 3}, { _id: 1, host: 'tarkin.deathstar.mil', priority: 2}, { _id: 2, host: 'palpatine.deathstar.mil'}, { _id: 3, host: 'marajade.empire.mil', hidden: true} ] } > rs.initiate(conf) Analytics node
• 17.
  Configuration Options > conf= { _id: "myset", members: [ { _id: 0, host: 'vader.deathstar.mil', priority: 3}, { _id: 1, host: 'tarkin.deathstar.mil', priority: 2}, { _id: 2, host: 'palpatine.deathstar.mil'}, { _id: 3, host: 'marajade.empire.mil', hidden: true}, { _id: 4, host: 'thrawn.empire.mil', hidden: true, slaveDelay: 3600} ] }} > rs.initiate(conf) Backup node
• 18.
  Developing with Replica Sets
• 19.
  Client Application Write Read Driver Primary Secondary Strong Consistency Secondary
• 20.
  Client Application Driver Re a Delayed Consistency d Secondary a Re d Write Primary Secondary
• 21.
  Write Concern •  Networkacknowledgement •  Wait for error •  Wait for journal sync •  Wait for replication
• 22.
  Driver write Primary apply in memory Unacknowledged
• 23.
  Primary getLastError Driver apply in memory MongoDB Acknowledged(wait for error)
• 24.
  j:true write Primary getLastError Driver apply in memory write to journal Waitfor Journal Sync
• 25.
  w:2 write Primary getLastError Driver replicate apply in memory Secondary Wait forReplication
• 26.
  Tagging •  Control wheredata is written to, and read from •  Each member can have one or more tags –  tags: {dc: "ny"} –  tags: {dc: "ny", subnet: "192.168", rack: "row3rk7"} •  Replica set defines rules for write concerns •  Rules can change without changing app code
• 27.
  Tagging Example { _id :"mySet", members : [ {_id : 0, host : "frodo", tags : {"dc": "ny"}}, {_id : 1, host : "sam", tags : {"dc": "ny"}}, {_id : 2, host : "merry", tags : {"dc": "sf"}}, {_id : 3, host : "pippin", tags : {"dc": "sf"}}, {_id : 4, host : "gandalf", tags : {"dc": "cloud"}}], settings : { getLastErrorModes : { allDCs : {"dc" : 3}, someDCs : {"dc" : 2}} } } > db.blogs.insert({...}) > db.runCommand({getLastError : 1, w : "someDCs"})
• 28.
  W:allDCs write Primary (SF) getLastError Driver replicate apply in memory Secondary(NY) replicate Secondary (Cloud) Wait for Replication (Tagging)
• 29.
  Read Preference Modes • 5 modes –  primary (only) - Default –  primaryPreferred –  secondary –  secondaryPreferred –  Nearest When more than one node is possible, closest node is used for reads (all modes but primary)
• 30.
  Tagged Read Preference • Custom read preferences •  Control where you read from by (node) tags –  E.g. { "disk": "ssd", "use": "reporting" } •  Use in conjunction with standard read preferences –  Except primary
• 31.
  Operational Considerations
• 32.
  Maintenance and Upgrade • No downtime •  Rolling upgrade/maintenance –  Start with Secondary –  Primary last
• 33.
  Replica Set –1 Data Center •  Single datacenter Datacenter Member 1 Member 2 Datacenter 2 Member 3 •  Single switch & power •  Points of failure: –  Power –  Network –  Data center –  Two node failure •  Automatic recovery of single node crash
• 34.
  Replica Set –2 Data Centers Datacenter 1 Member 1 Member 2 Datacenter 2 Member 3 Multi data center DR node for safety Can’t do multi data center durable write safely since only 1 node in remote DC
• 35.

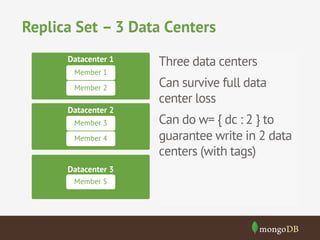

  Replica Set –3 Data Centers Datacenter 1 Member 1 Member 2 Datacenter 2 Member 3 Member 4 Datacenter 3 Member 5 Three data centers Can survive full data center loss Can do w= { dc : 2 } to guarantee write in 2 data centers (with tags)
• 36.
  Behind the Curtain
• 37.
  Implementation details •  Heartbeatevery 2 seconds –  Times out in 10 seconds •  Local DB (not replicated) –  system.replset –  oplog.rs •  Capped collection •  Idempotent version of operation stored
• 38.

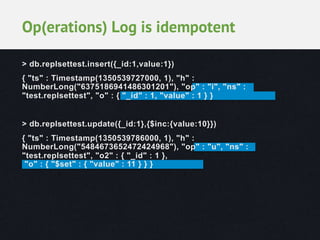

  Op(erations) Log isidempotent > db.replsettest.insert({_id:1,value:1}) { "ts" : Timestamp(1350539727000, 1), "h" : NumberLong("6375186941486301201"), "op" : "i", "ns" : "test.replsettest", "o" : { "_id" : 1, "value" : 1 } } > db.replsettest.update({_id:1},{$inc:{value:10}}) { "ts" : Timestamp(1350539786000, 1), "h" : NumberLong("5484673652472424968"), "op" : "u", "ns" : "test.replsettest", "o2" : { "_id" : 1 }, "o" : { "$set" : { "value" : 11 } } }
• 39.
  Single operation canhave many entries > db.replsettest.update({},{$set:{name : ”foo”}, false, true}) { "ts" : Timestamp(1350540395000, 1), "h" : NumberLong("-4727576249368135876"), "op" : "u", "ns" : "test.replsettest", "o2" : { "_id" : 2 }, "o" : { "$set" : { "name" : "foo" } } } { "ts" : Timestamp(1350540395000, 2), "h" : NumberLong("-7292949613259260138"), "op" : "u", "ns" : "test.replsettest", "o2" : { "_id" : 3 }, "o" : { "$set" : { "name" : "foo" } } } { "ts" : Timestamp(1350540395000, 3), "h" : NumberLong("-1888768148831990635"), "op" : "u", "ns" : "test.replsettest", "o2" : { "_id" : 1 }, "o" : { "$set" : { "name" : "foo" } } }
• 40.
  Recent improvements •  Readpreference support with sharding –  Drivers too •  Improved replication over WAN/high-latency networks •  rs.syncFrom command •  buildIndexes setting •  replIndexPrefetch setting
• 41.
  Just Use It Usereplica sets Easy to setup –  Try on a single machine Check doc page for RS tutorials –  http://docs.mongodb.org/manual/replication/#tutorials
• 42.
  Questions?
• 43.
  #mongodbdays seattle Thank You J.Randall Hunt Hackathoner, MongoDB @jrhunt, randall@mongodb.com
