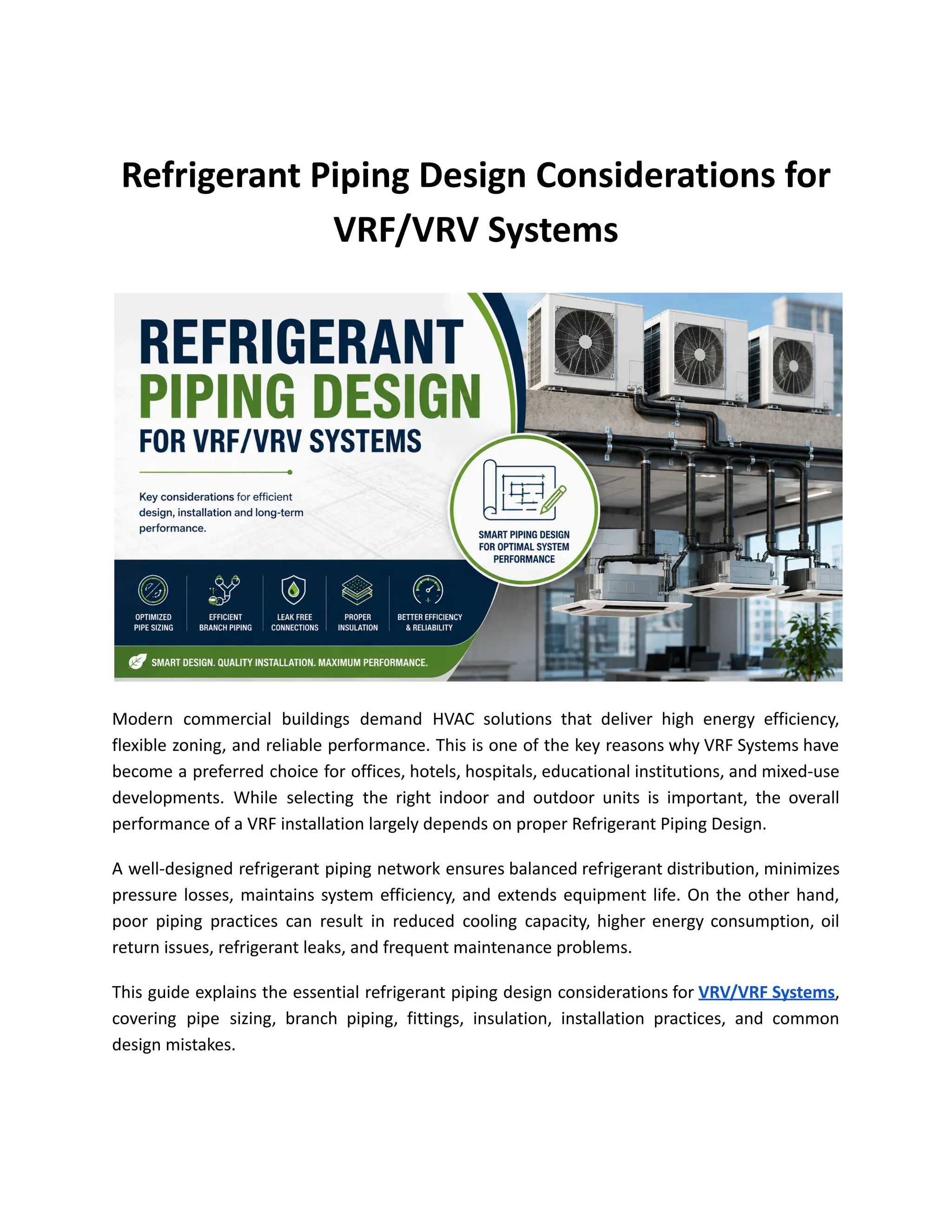

  Refrigerant Piping DesignConsiderations for VRF/VRV Systems Modern commercial buildings demand HVAC solutions that deliver high energy efficiency, flexible zoning, and reliable performance. This is one of the key reasons why VRF Systems have become a preferred choice for offices, hotels, hospitals, educational institutions, and mixed-use developments. While selecting the right indoor and outdoor units is important, the overall performance of a VRF installation largely depends on proper Refrigerant Piping Design. A well-designed refrigerant piping network ensures balanced refrigerant distribution, minimizes pressure losses, maintains system efficiency, and extends equipment life. On the other hand, poor piping practices can result in reduced cooling capacity, higher energy consumption, oil return issues, refrigerant leaks, and frequent maintenance problems. This guide explains the essential refrigerant piping design considerations for VRV/VRF Systems, covering pipe sizing, branch piping, fittings, insulation, installation practices, and common design mistakes.
• 2.

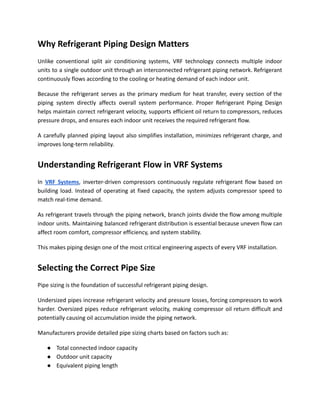

  Why Refrigerant PipingDesign Matters Unlike conventional split air conditioning systems, VRF technology connects multiple indoor units to a single outdoor unit through an interconnected refrigerant piping network. Refrigerant continuously flows according to the cooling or heating demand of each indoor unit. Because the refrigerant serves as the primary medium for heat transfer, every section of the piping system directly affects overall system performance. Proper Refrigerant Piping Design helps maintain correct refrigerant velocity, supports efficient oil return to compressors, reduces pressure drops, and ensures each indoor unit receives the required refrigerant flow. A carefully planned piping layout also simplifies installation, minimizes refrigerant charge, and improves long-term reliability. Understanding Refrigerant Flow in VRF Systems In VRF Systems, inverter-driven compressors continuously regulate refrigerant flow based on building load. Instead of operating at fixed capacity, the system adjusts compressor speed to match real-time demand. As refrigerant travels through the piping network, branch joints divide the flow among multiple indoor units. Maintaining balanced refrigerant distribution is essential because uneven flow can affect room comfort, compressor efficiency, and system stability. This makes piping design one of the most critical engineering aspects of every VRF installation. Selecting the Correct Pipe Size Pipe sizing is the foundation of successful refrigerant piping design. Undersized pipes increase refrigerant velocity and pressure losses, forcing compressors to work harder. Oversized pipes reduce refrigerant velocity, making compressor oil return difficult and potentially causing oil accumulation inside the piping network. Manufacturers provide detailed pipe sizing charts based on factors such as: ●​ Total connected indoor capacity ●​ Outdoor unit capacity ●​ Equivalent piping length
• 3.

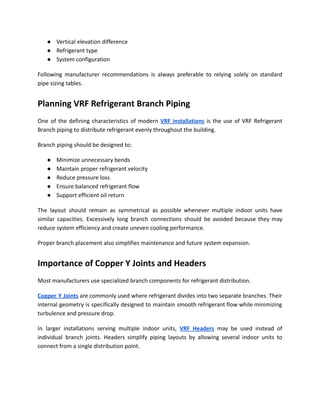

  ●​ Vertical elevationdifference ●​ Refrigerant type ●​ System configuration Following manufacturer recommendations is always preferable to relying solely on standard pipe sizing tables. Planning VRF Refrigerant Branch Piping One of the defining characteristics of modern VRF installations is the use of VRF Refrigerant Branch piping to distribute refrigerant evenly throughout the building. Branch piping should be designed to: ●​ Minimize unnecessary bends ●​ Maintain proper refrigerant velocity ●​ Reduce pressure loss ●​ Ensure balanced refrigerant flow ●​ Support efficient oil return The layout should remain as symmetrical as possible whenever multiple indoor units have similar capacities. Excessively long branch connections should be avoided because they may reduce system efficiency and create uneven cooling performance. Proper branch placement also simplifies maintenance and future system expansion. Importance of Copper Y Joints and Headers Most manufacturers use specialized branch components for refrigerant distribution. Copper Y Joints are commonly used where refrigerant divides into two separate branches. Their internal geometry is specifically designed to maintain smooth refrigerant flow while minimizing turbulence and pressure drop. In larger installations serving multiple indoor units, VRF Headers may be used instead of individual branch joints. Headers simplify piping layouts by allowing several indoor units to connect from a single distribution point.
• 4.

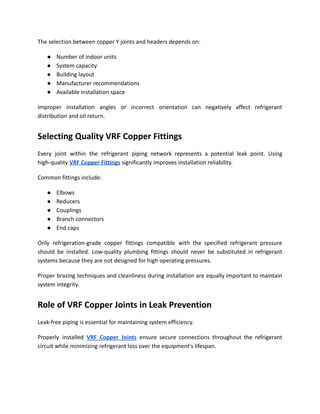

  The selection betweencopper Y joints and headers depends on: ●​ Number of indoor units ●​ System capacity ●​ Building layout ●​ Manufacturer recommendations ●​ Available installation space Improper installation angles or incorrect orientation can negatively affect refrigerant distribution and oil return. Selecting Quality VRF Copper Fittings Every joint within the refrigerant piping network represents a potential leak point. Using high-quality VRF Copper Fittings significantly improves installation reliability. Common fittings include: ●​ Elbows ●​ Reducers ●​ Couplings ●​ Branch connectors ●​ End caps Only refrigeration-grade copper fittings compatible with the specified refrigerant pressure should be installed. Low-quality plumbing fittings should never be substituted in refrigerant systems because they are not designed for high operating pressures. Proper brazing techniques and cleanliness during installation are equally important to maintain system integrity. Role of VRF Copper Joints in Leak Prevention Leak-free piping is essential for maintaining system efficiency. Properly installed VRF Copper Joints ensure secure connections throughout the refrigerant circuit while minimizing refrigerant loss over the equipment's lifespan.
• 5.

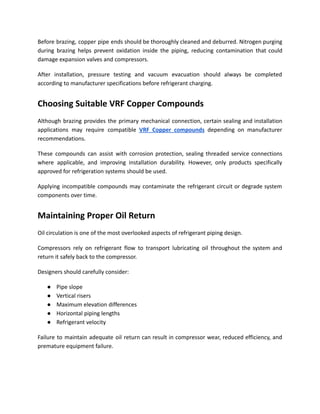

  Before brazing, copperpipe ends should be thoroughly cleaned and deburred. Nitrogen purging during brazing helps prevent oxidation inside the piping, reducing contamination that could damage expansion valves and compressors. After installation, pressure testing and vacuum evacuation should always be completed according to manufacturer specifications before refrigerant charging. Choosing Suitable VRF Copper Compounds Although brazing provides the primary mechanical connection, certain sealing and installation applications may require compatible VRF Copper compounds depending on manufacturer recommendations. These compounds can assist with corrosion protection, sealing threaded service connections where applicable, and improving installation durability. However, only products specifically approved for refrigeration systems should be used. Applying incompatible compounds may contaminate the refrigerant circuit or degrade system components over time. Maintaining Proper Oil Return Oil circulation is one of the most overlooked aspects of refrigerant piping design. Compressors rely on refrigerant flow to transport lubricating oil throughout the system and return it safely back to the compressor. Designers should carefully consider: ●​ Pipe slope ●​ Vertical risers ●​ Maximum elevation differences ●​ Horizontal piping lengths ●​ Refrigerant velocity Failure to maintain adequate oil return can result in compressor wear, reduced efficiency, and premature equipment failure.
• 6.

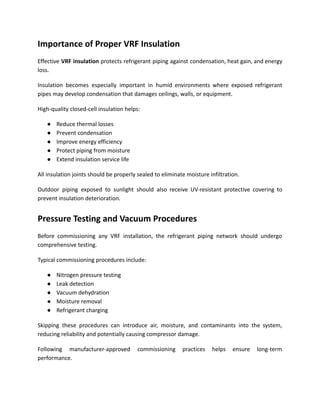

  Importance of ProperVRF Insulation Effective VRF insulation protects refrigerant piping against condensation, heat gain, and energy loss. Insulation becomes especially important in humid environments where exposed refrigerant pipes may develop condensation that damages ceilings, walls, or equipment. High-quality closed-cell insulation helps: ●​ Reduce thermal losses ●​ Prevent condensation ●​ Improve energy efficiency ●​ Protect piping from moisture ●​ Extend insulation service life All insulation joints should be properly sealed to eliminate moisture infiltration. Outdoor piping exposed to sunlight should also receive UV-resistant protective covering to prevent insulation deterioration. Pressure Testing and Vacuum Procedures Before commissioning any VRF installation, the refrigerant piping network should undergo comprehensive testing. Typical commissioning procedures include: ●​ Nitrogen pressure testing ●​ Leak detection ●​ Vacuum dehydration ●​ Moisture removal ●​ Refrigerant charging Skipping these procedures can introduce air, moisture, and contaminants into the system, reducing reliability and potentially causing compressor damage. Following manufacturer-approved commissioning practices helps ensure long-term performance.
• 7.

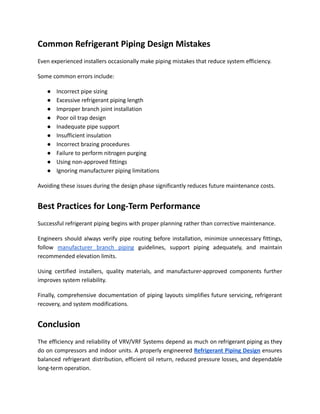

  Common Refrigerant PipingDesign Mistakes Even experienced installers occasionally make piping mistakes that reduce system efficiency. Some common errors include: ●​ Incorrect pipe sizing ●​ Excessive refrigerant piping length ●​ Improper branch joint installation ●​ Poor oil trap design ●​ Inadequate pipe support ●​ Insufficient insulation ●​ Incorrect brazing procedures ●​ Failure to perform nitrogen purging ●​ Using non-approved fittings ●​ Ignoring manufacturer piping limitations Avoiding these issues during the design phase significantly reduces future maintenance costs. Best Practices for Long-Term Performance Successful refrigerant piping begins with proper planning rather than corrective maintenance. Engineers should always verify pipe routing before installation, minimize unnecessary fittings, follow manufacturer branch piping guidelines, support piping adequately, and maintain recommended elevation limits. Using certified installers, quality materials, and manufacturer-approved components further improves system reliability. Finally, comprehensive documentation of piping layouts simplifies future servicing, refrigerant recovery, and system modifications. Conclusion The efficiency and reliability of VRV/VRF Systems depend as much on refrigerant piping as they do on compressors and indoor units. A properly engineered Refrigerant Piping Design ensures balanced refrigerant distribution, efficient oil return, reduced pressure losses, and dependable long-term operation.
• 8.

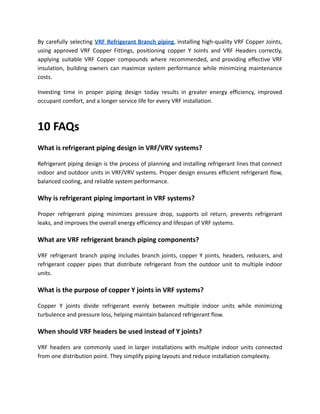

  By carefully selectingVRF Refrigerant Branch piping, installing high-quality VRF Copper Joints, using approved VRF Copper Fittings, positioning copper Y Joints and VRF Headers correctly, applying suitable VRF Copper compounds where recommended, and providing effective VRF insulation, building owners can maximize system performance while minimizing maintenance costs. Investing time in proper piping design today results in greater energy efficiency, improved occupant comfort, and a longer service life for every VRF installation. 10 FAQs What is refrigerant piping design in VRF/VRV systems? Refrigerant piping design is the process of planning and installing refrigerant lines that connect indoor and outdoor units in VRF/VRV systems. Proper design ensures efficient refrigerant flow, balanced cooling, and reliable system performance. Why is refrigerant piping important in VRF systems? Proper refrigerant piping minimizes pressure drop, supports oil return, prevents refrigerant leaks, and improves the overall energy efficiency and lifespan of VRF systems. What are VRF refrigerant branch piping components? VRF refrigerant branch piping includes branch joints, copper Y joints, headers, reducers, and refrigerant copper pipes that distribute refrigerant from the outdoor unit to multiple indoor units. What is the purpose of copper Y joints in VRF systems? Copper Y joints divide refrigerant evenly between multiple indoor units while minimizing turbulence and pressure loss, helping maintain balanced refrigerant flow. When should VRF headers be used instead of Y joints? VRF headers are commonly used in larger installations with multiple indoor units connected from one distribution point. They simplify piping layouts and reduce installation complexity.
• 9.

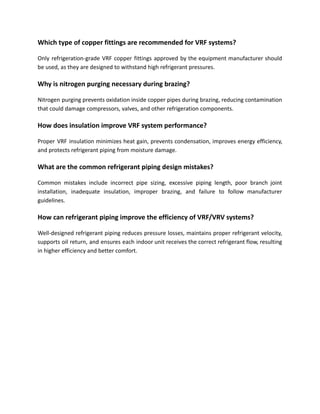

  Which type ofcopper fittings are recommended for VRF systems? Only refrigeration-grade VRF copper fittings approved by the equipment manufacturer should be used, as they are designed to withstand high refrigerant pressures. Why is nitrogen purging necessary during brazing? Nitrogen purging prevents oxidation inside copper pipes during brazing, reducing contamination that could damage compressors, valves, and other refrigeration components. How does insulation improve VRF system performance? Proper VRF insulation minimizes heat gain, prevents condensation, improves energy efficiency, and protects refrigerant piping from moisture damage. What are the common refrigerant piping design mistakes? Common mistakes include incorrect pipe sizing, excessive piping length, poor branch joint installation, inadequate insulation, improper brazing, and failure to follow manufacturer guidelines. How can refrigerant piping improve the efficiency of VRF/VRV systems? Well-designed refrigerant piping reduces pressure losses, maintains proper refrigerant velocity, supports oil return, and ensures each indoor unit receives the correct refrigerant flow, resulting in higher efficiency and better comfort.
