HTML5 Games
with CreateJS
DAVID KELLEHER
JOIND.IN/14719

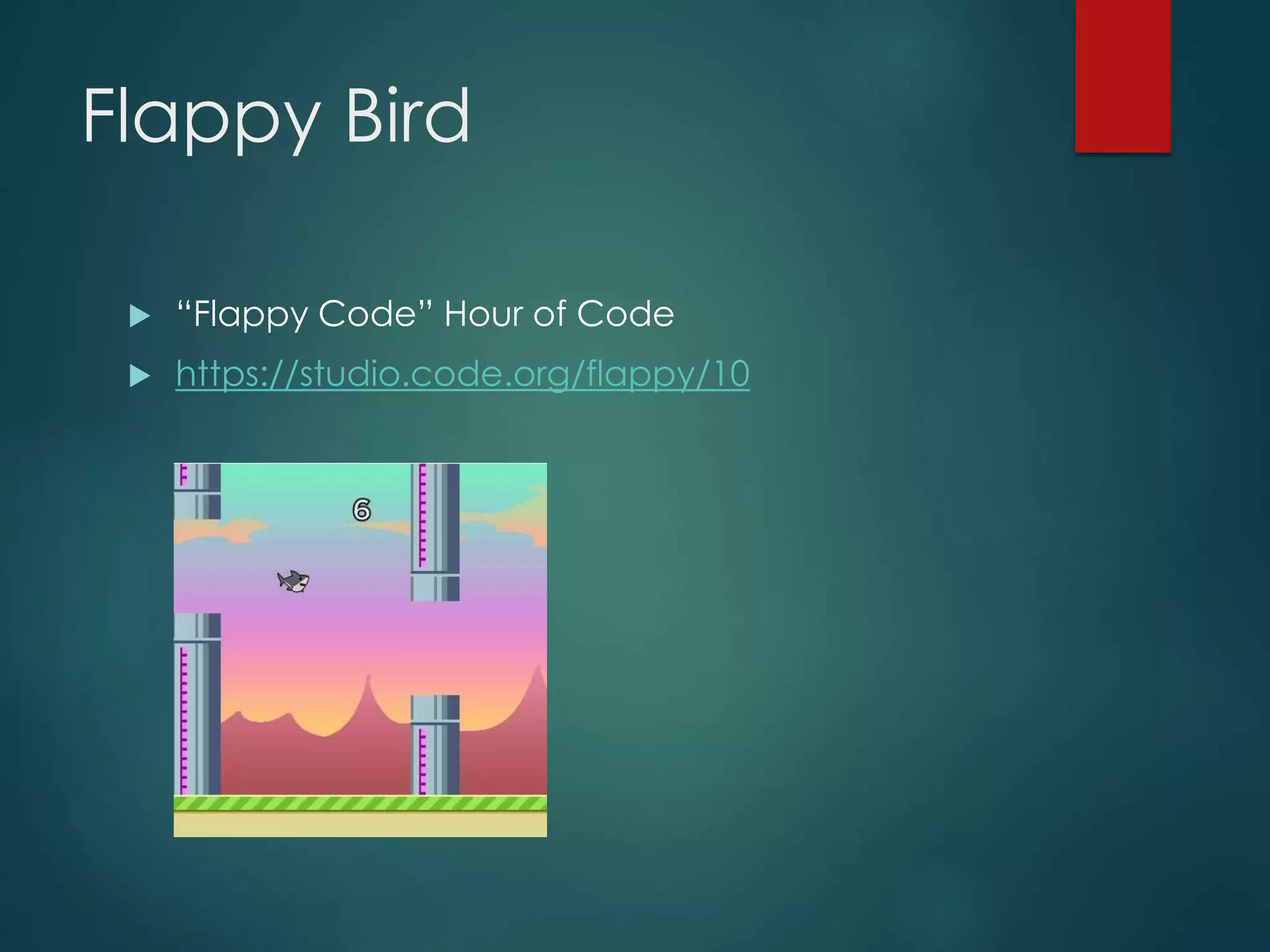

Flappy Bird
 “Flappy Code” Hour of Code
 https://studio.code.org/flappy/10

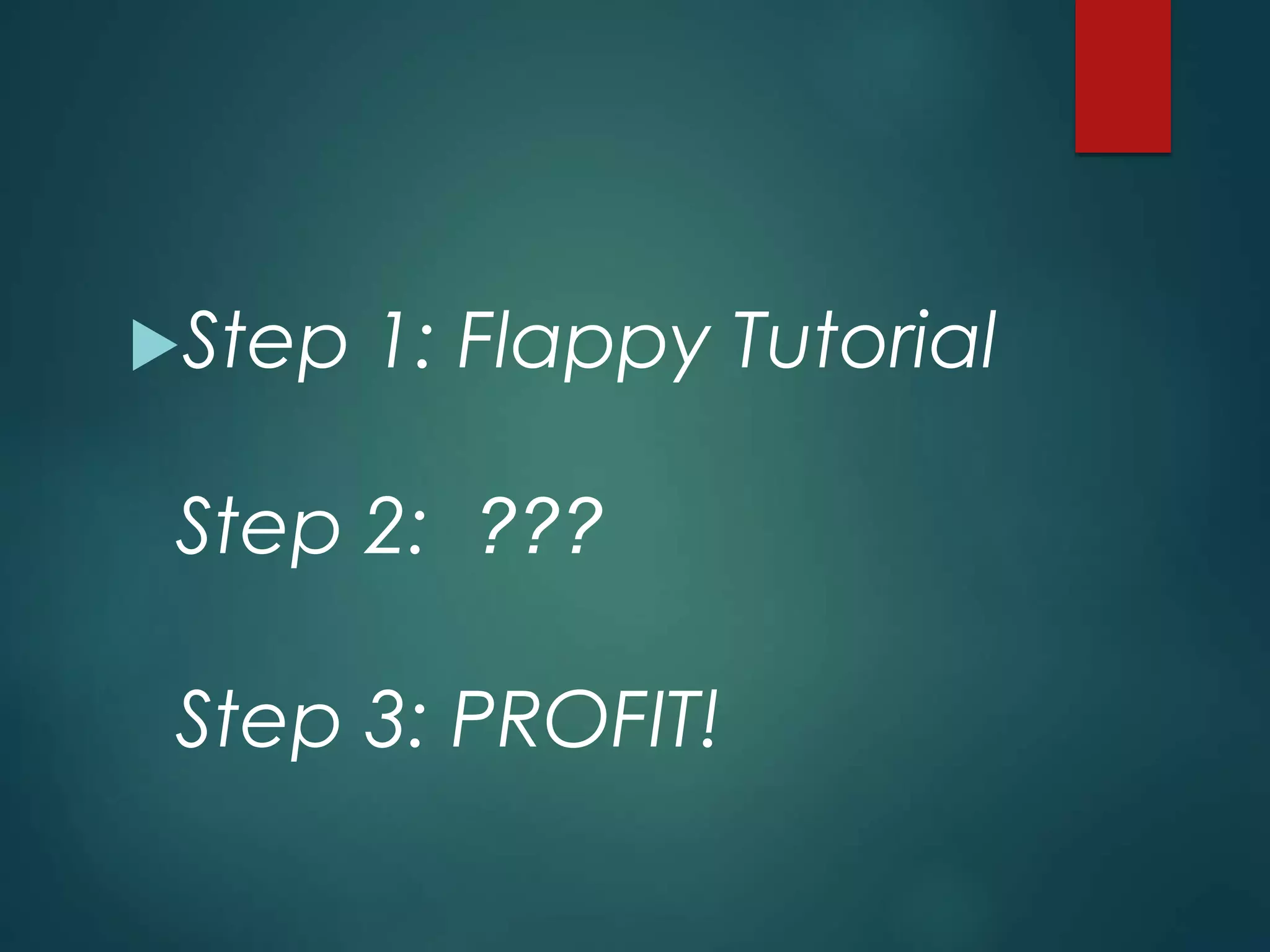

Step 1: Flappy Tutorial
Step 2: ???
Step 3: PROFIT!

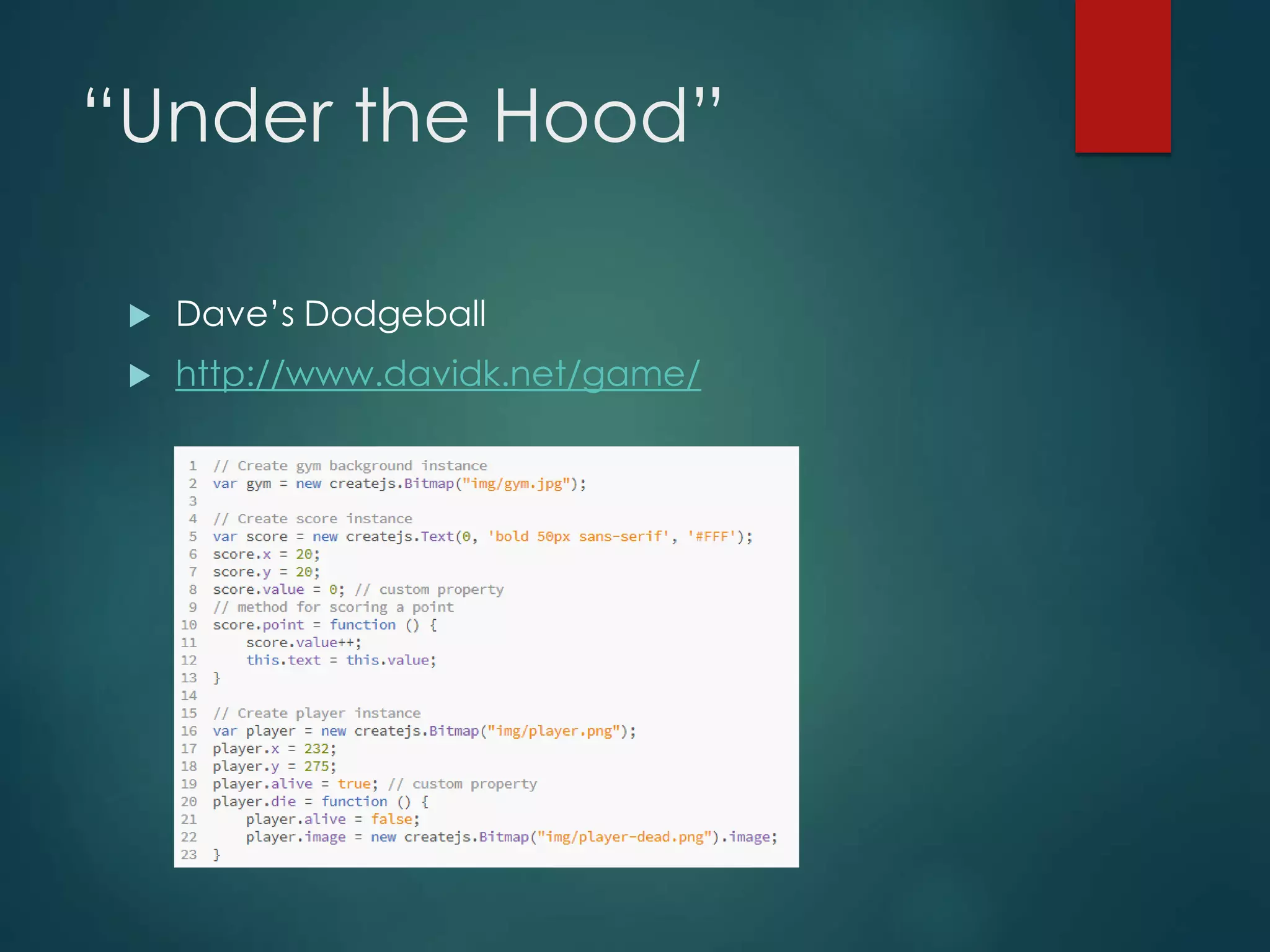

“Under the Hood”
 Dave’s Dodgeball
 http://www.davidk.net/game/

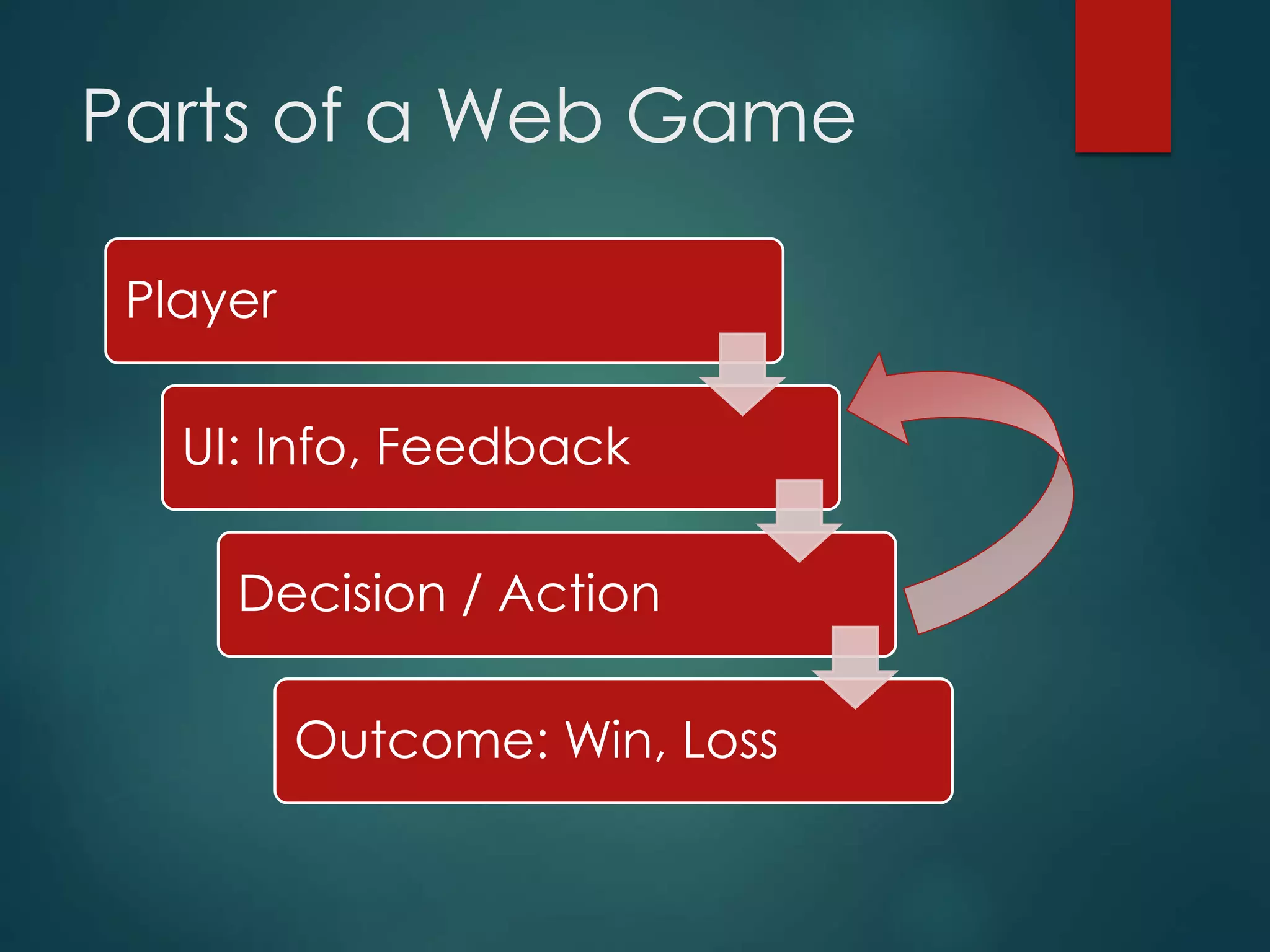

Game Theory
Player
UI: Info, Feedback
Decision / Action
Outcome: Win, Loss
Parts of a Web Game

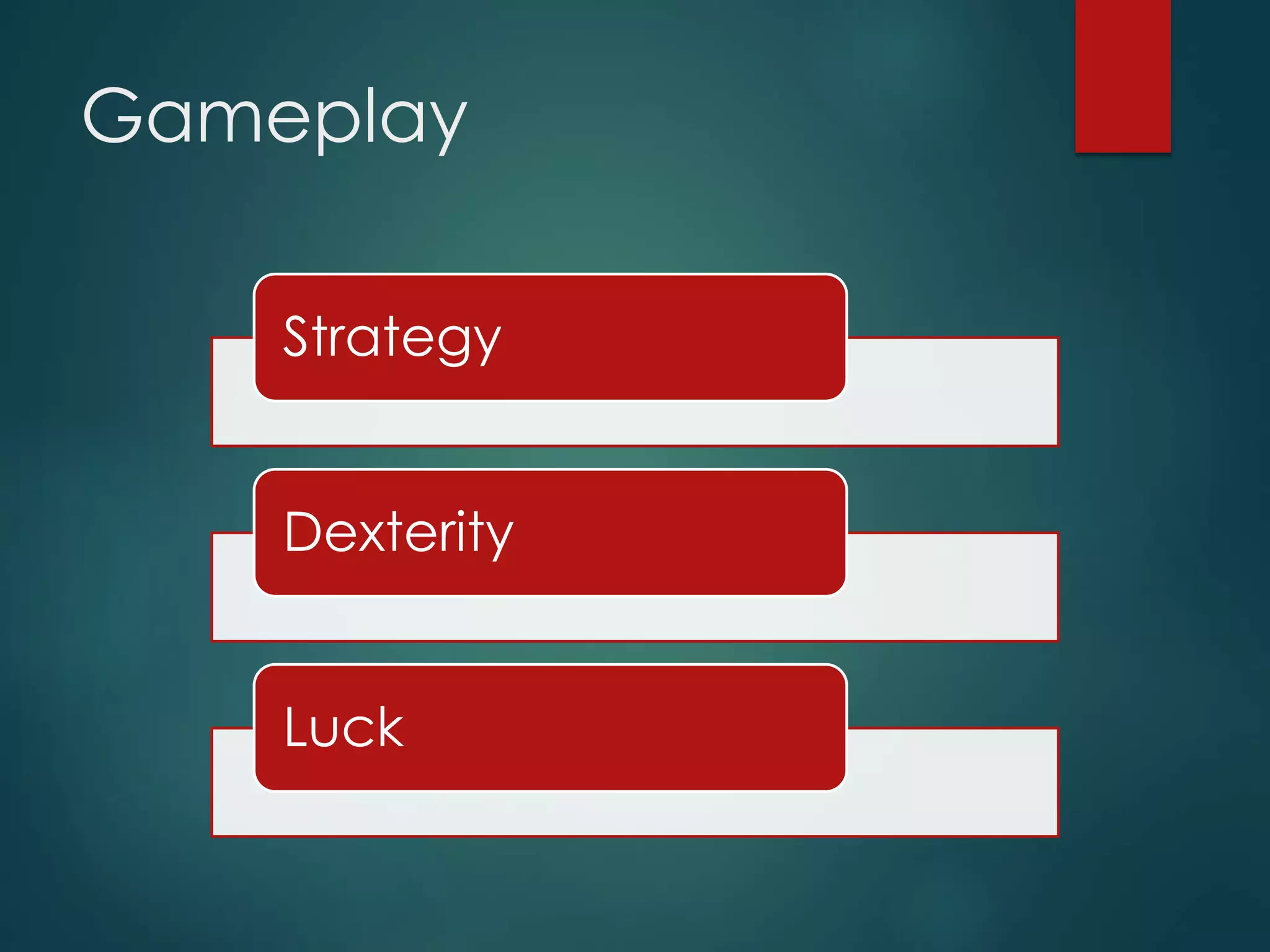

Strategy
Dexterity
Luck
Gameplay

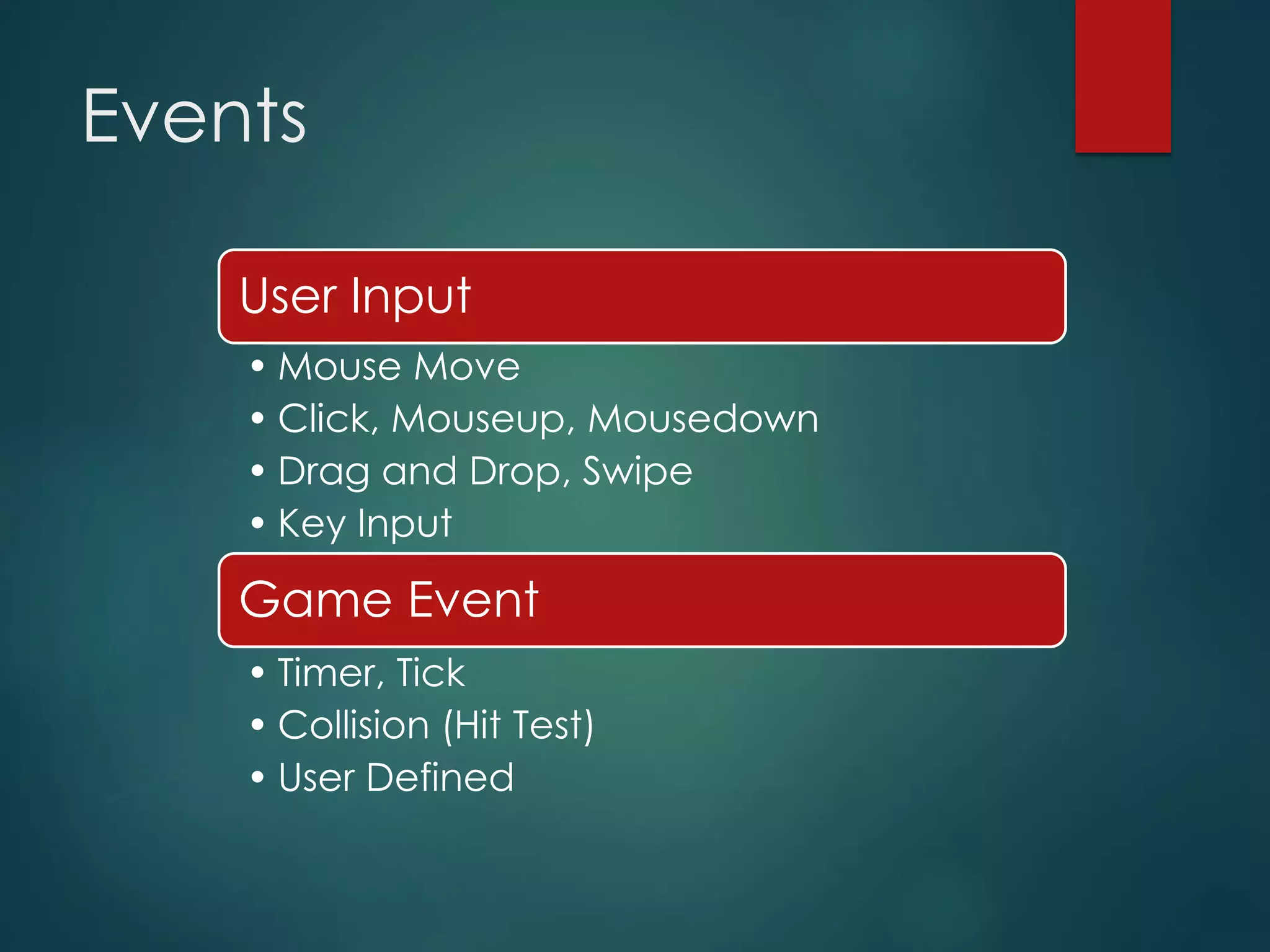

Events
User Input
• Mouse Move
• Click, Mouseup, Mousedown
• Drag and Drop, Swipe
• Key Input
Game Event
• Timer, Tick
• Collision (Hit Test)
• User Defined

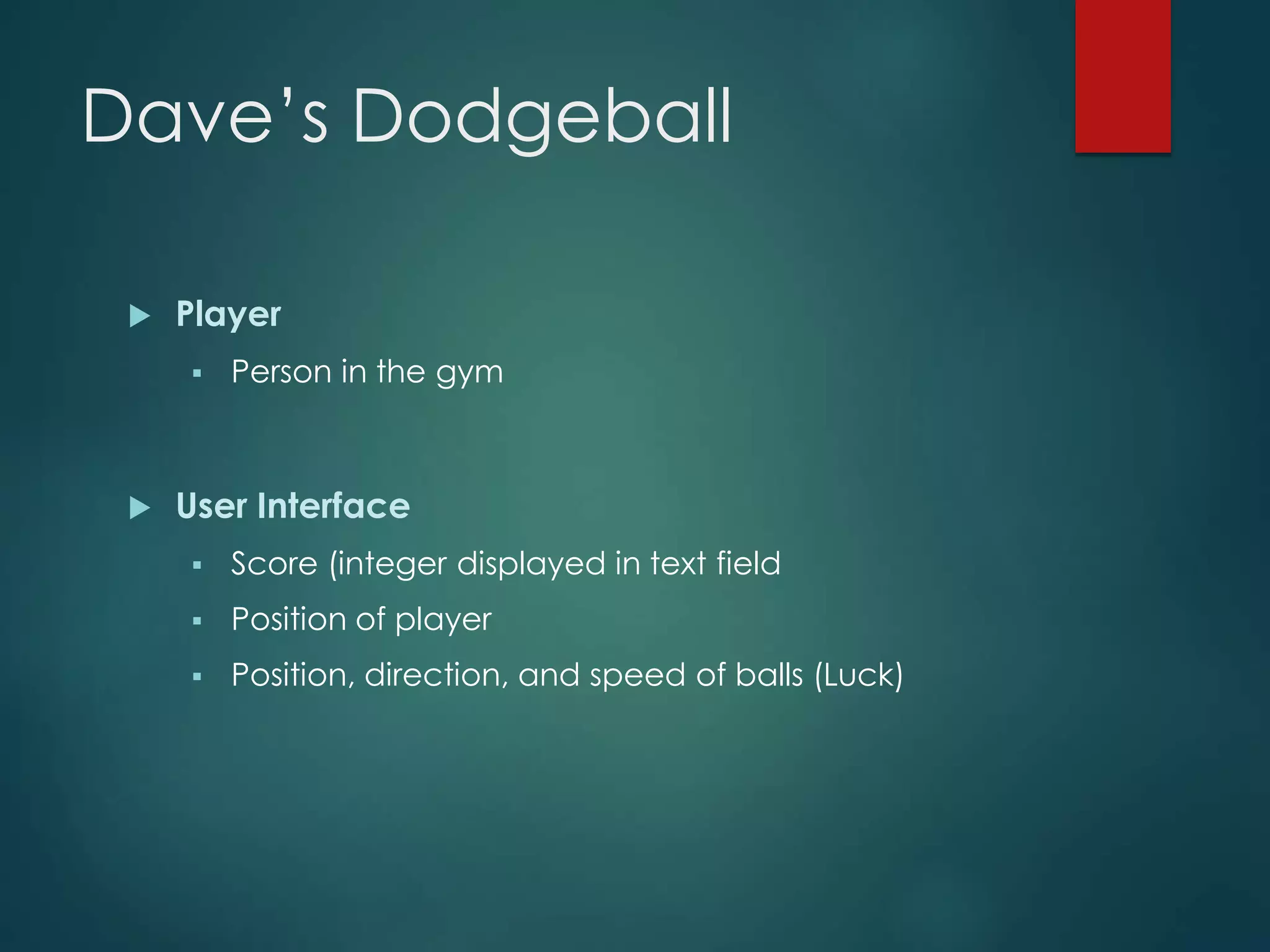

Dave’s Dodgeball
 Player
 Person in the gym
 User Interface
 Score (integer displayed in text field
 Position of player
 Position, direction, and speed of balls (Luck)

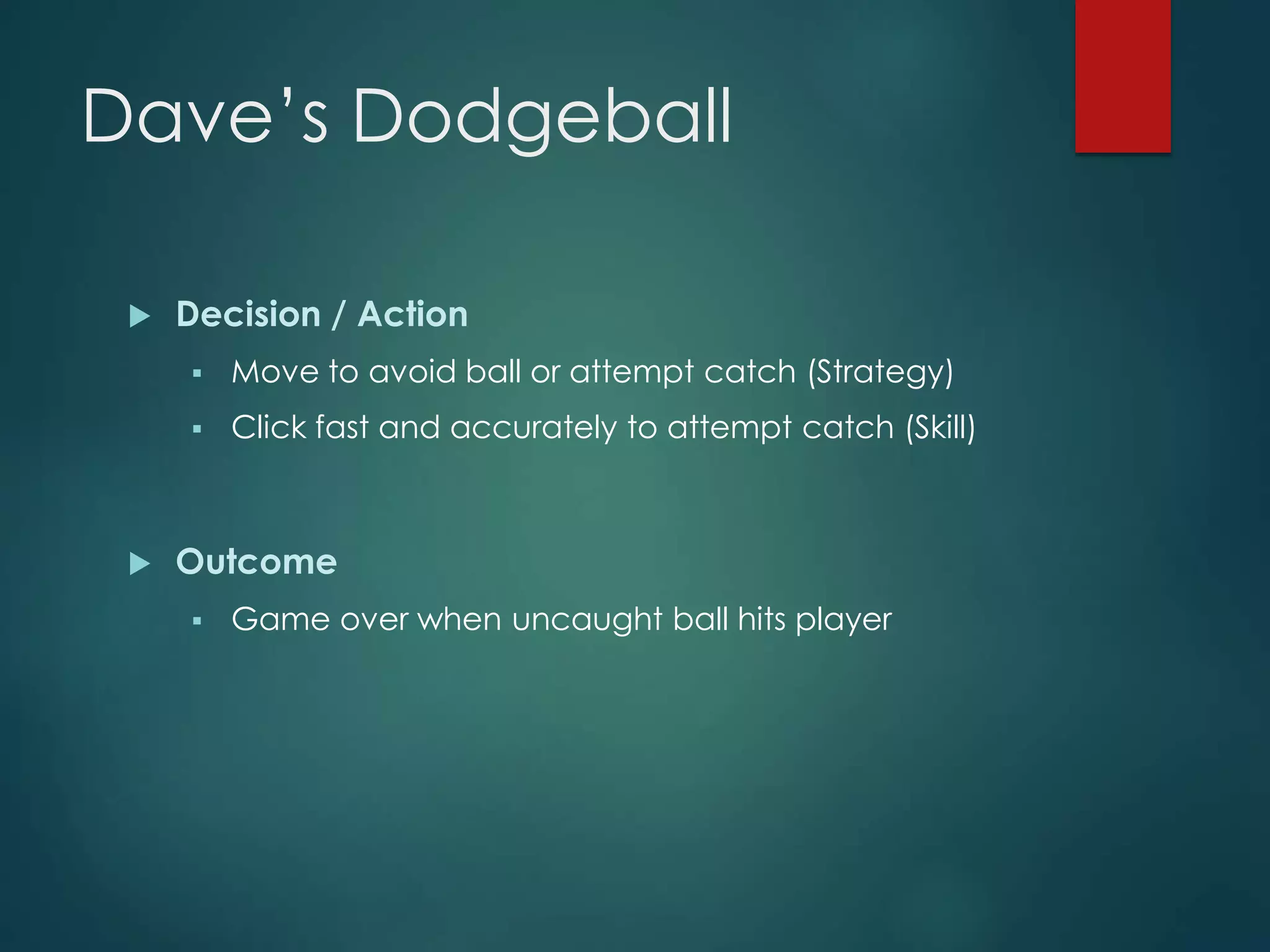

Dave’s Dodgeball
 Decision / Action
 Move to avoid ball or attempt catch (Strategy)
 Click fast and accurately to attempt catch (Skill)
 Outcome
 Game over when uncaught ball hits player

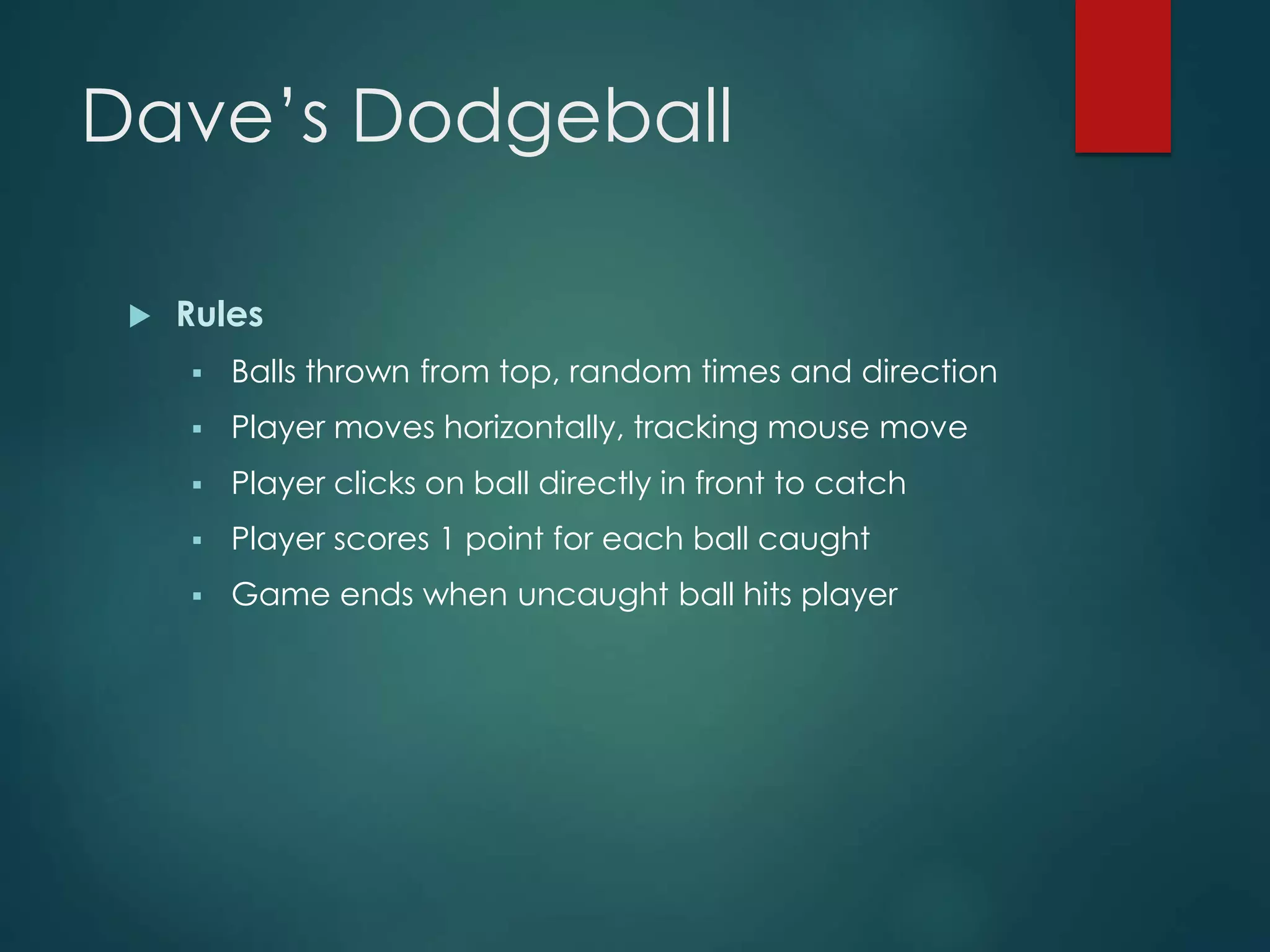

Dave’s Dodgeball
 Rules
 Balls thrown from top, random times and direction
 Player moves horizontally, tracking mouse move
 Player clicks on ball directly in front to catch
 Player scores 1 point for each ball caught
 Game ends when uncaught ball hits player
Variations

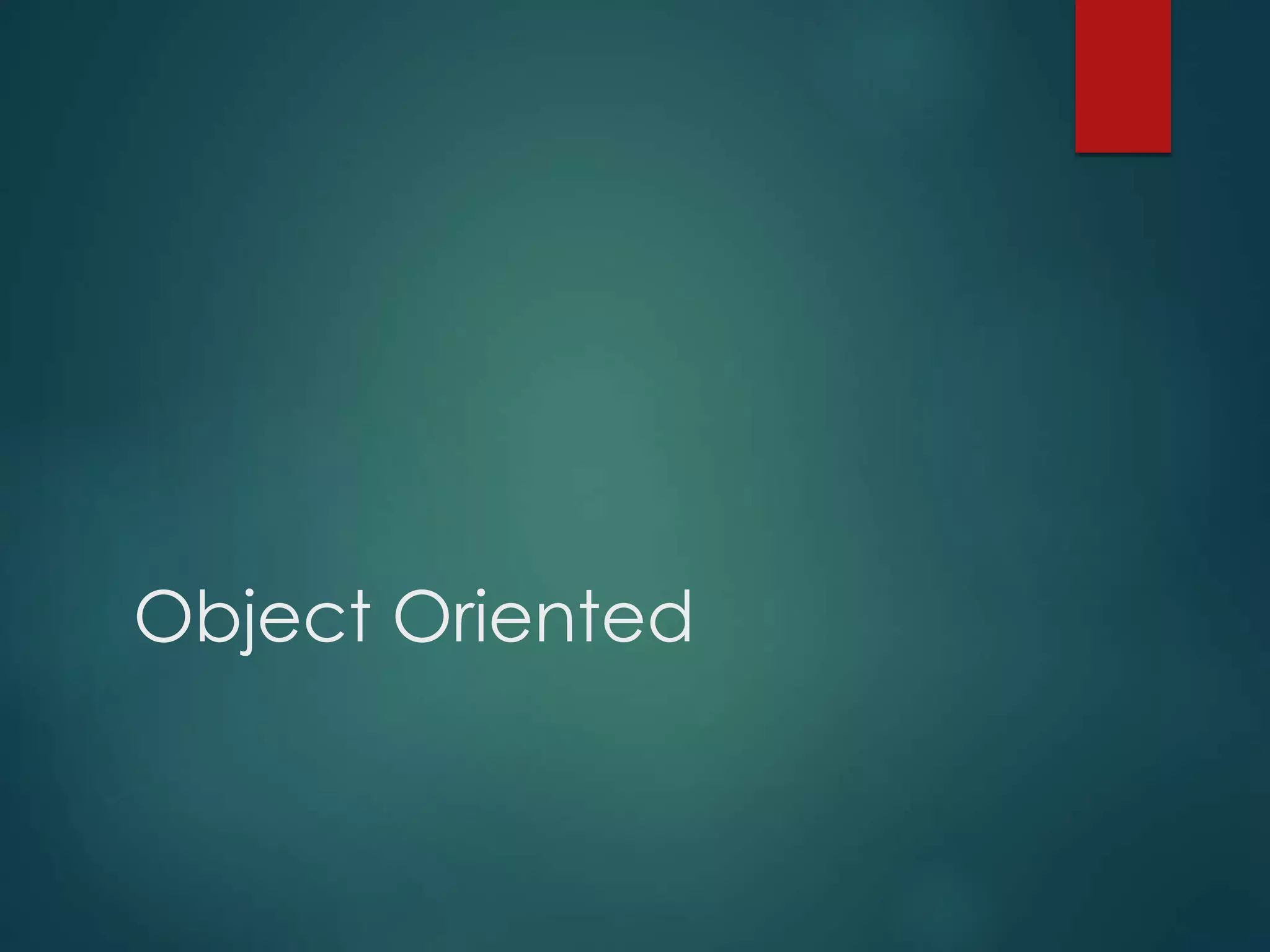

Object Oriented

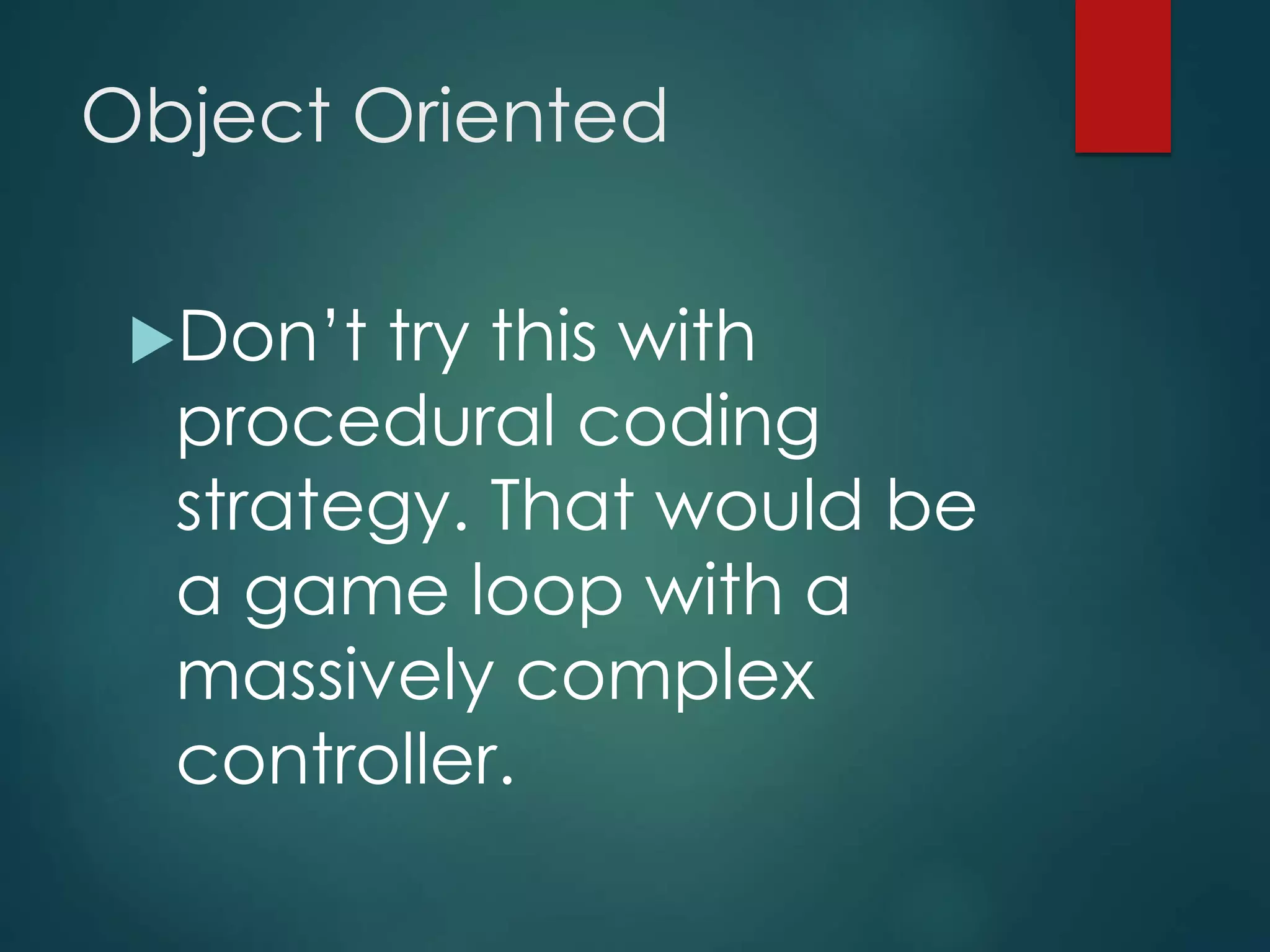

Object Oriented
Don’t try this with
procedural coding
strategy. That would be
a game loop with a
massively complex
controller.

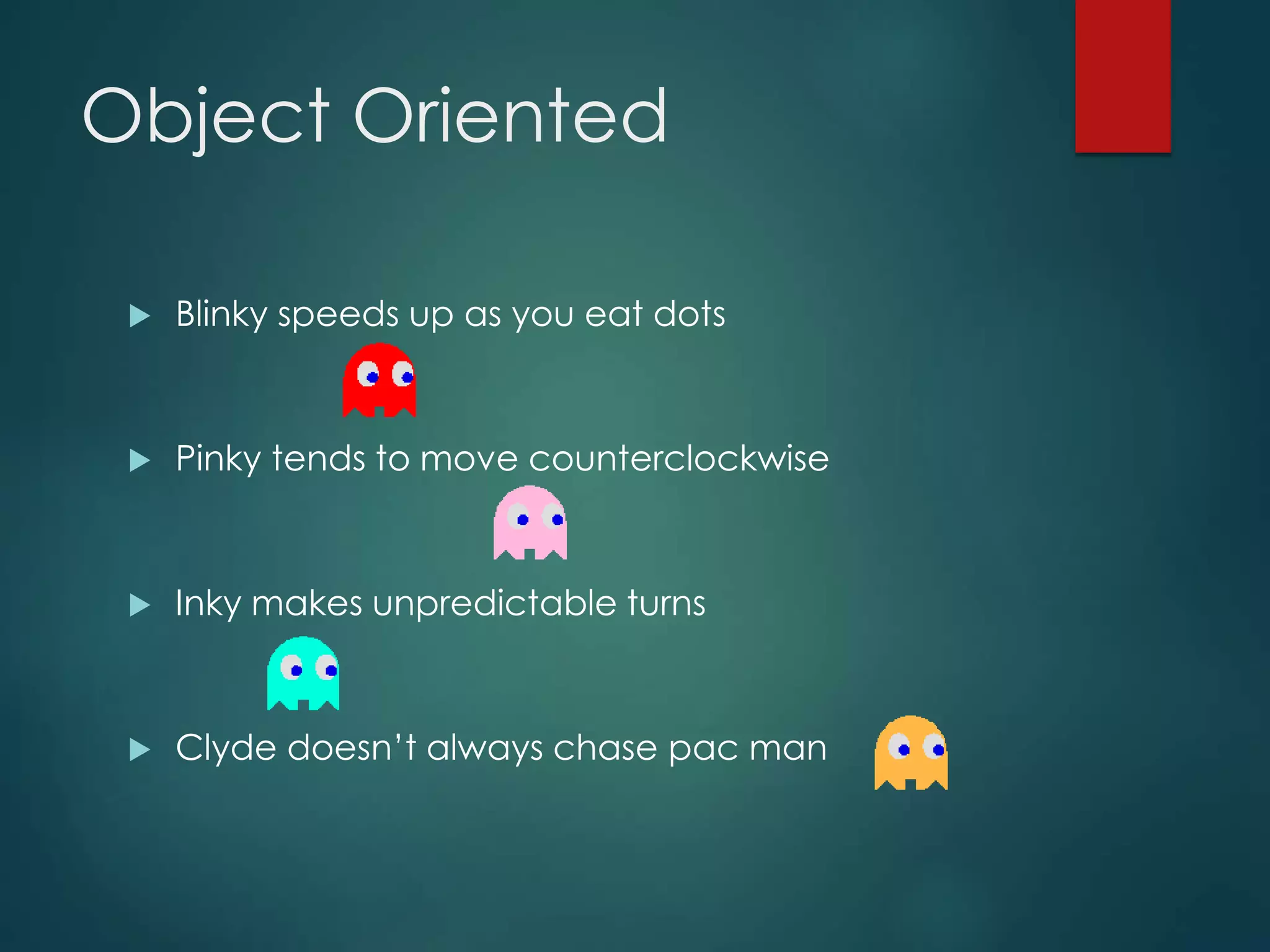

Object Oriented
 Blinky speeds up as you eat dots
 Pinky tends to move counterclockwise
 Inky makes unpredictable turns
 Clyde doesn’t always chase pac man

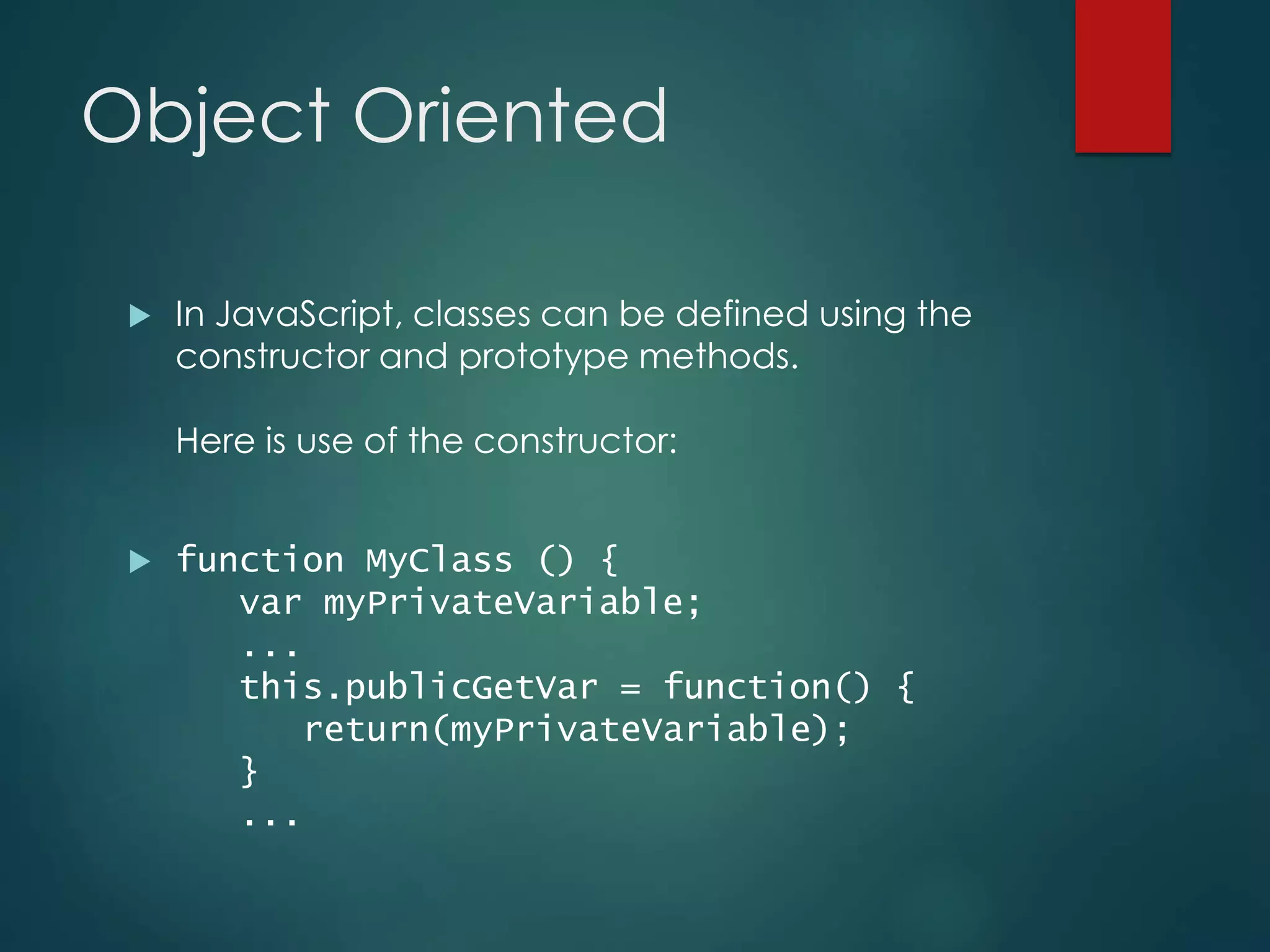

Object Oriented
 In JavaScript, classes can be defined using the
constructor and prototype methods.
Here is use of the constructor:
 function MyClass () {
var myPrivateVariable;
...
this.publicGetVar = function() {
return(myPrivateVariable);
}
...

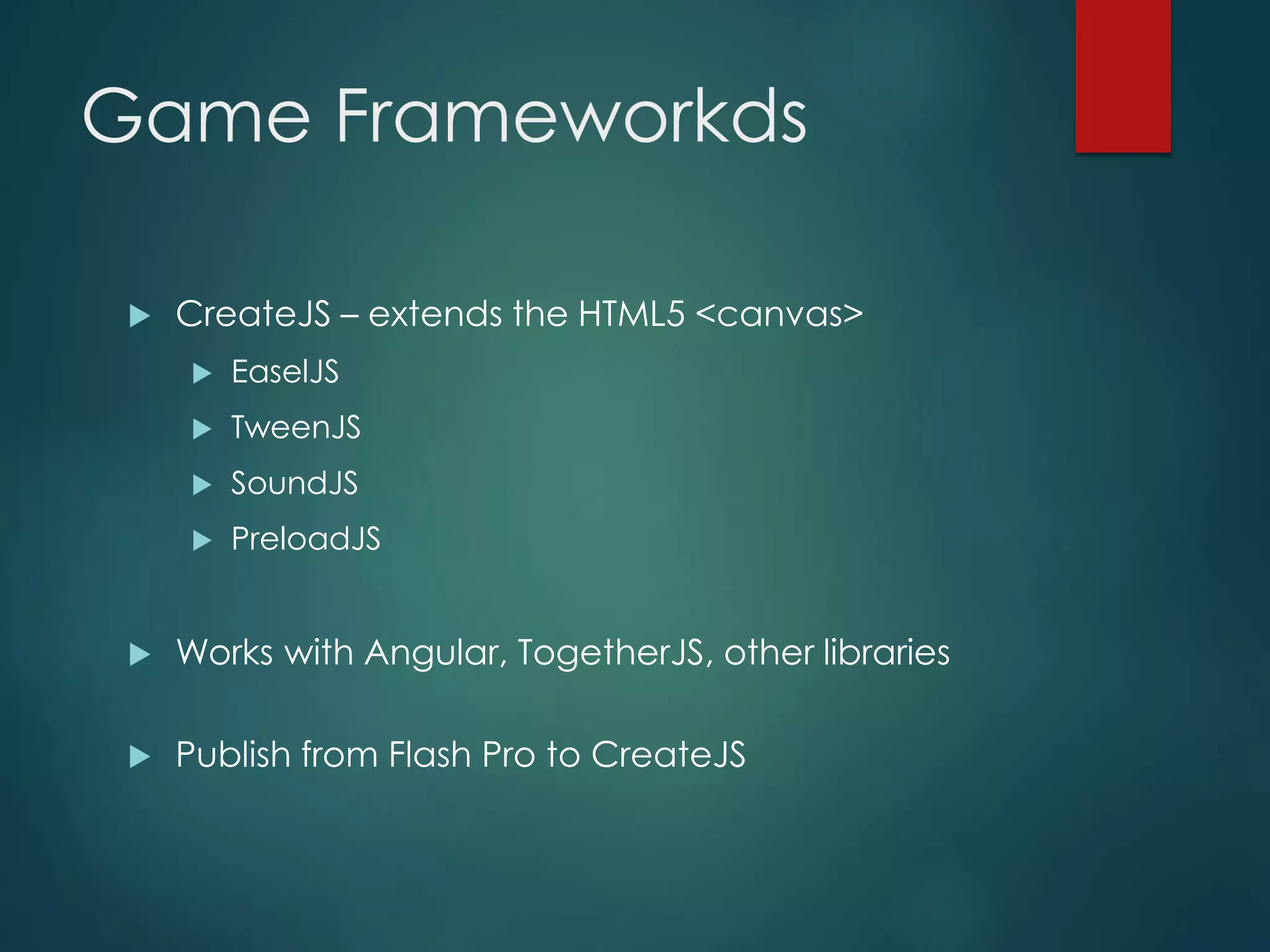

Game Frameworkds
 CreateJS – extends the HTML5 <canvas>
 EaselJS
 TweenJS
 SoundJS
 PreloadJS
 Works with Angular, TogetherJS, other libraries
 Publish from Flash Pro to CreateJS

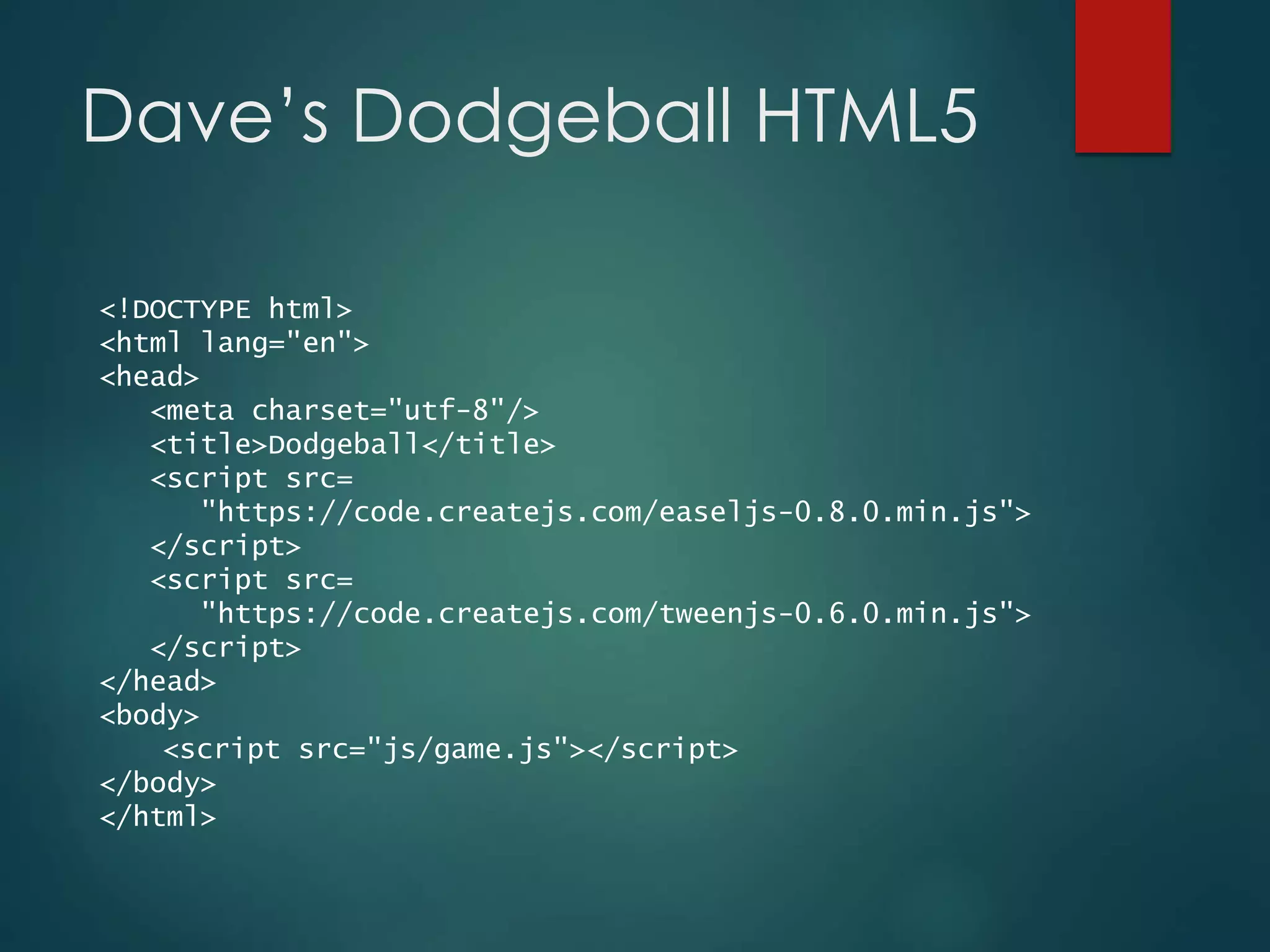

Dave’s Dodgeball HTML5
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8"/>
<title>Dodgeball</title>
<script src=
"https://code.createjs.com/easeljs-0.8.0.min.js">
</script>
<script src=
"https://code.createjs.com/tweenjs-0.6.0.min.js">
</script>
</head>
<body>
<script src="js/game.js"></script>
</body>
</html>

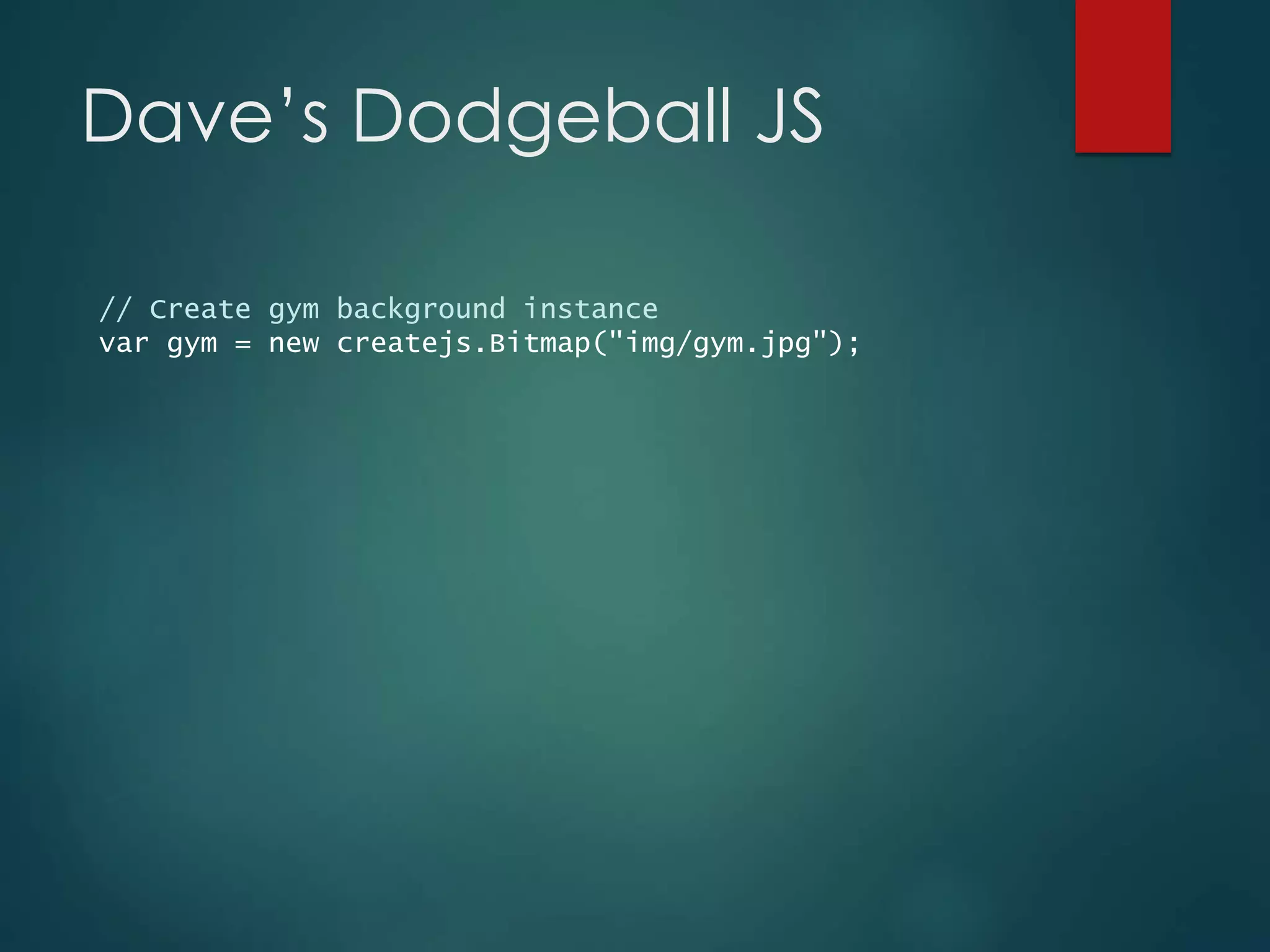

Dave’s Dodgeball JS
// Create gym background instance
var gym = new createjs.Bitmap("img/gym.jpg");

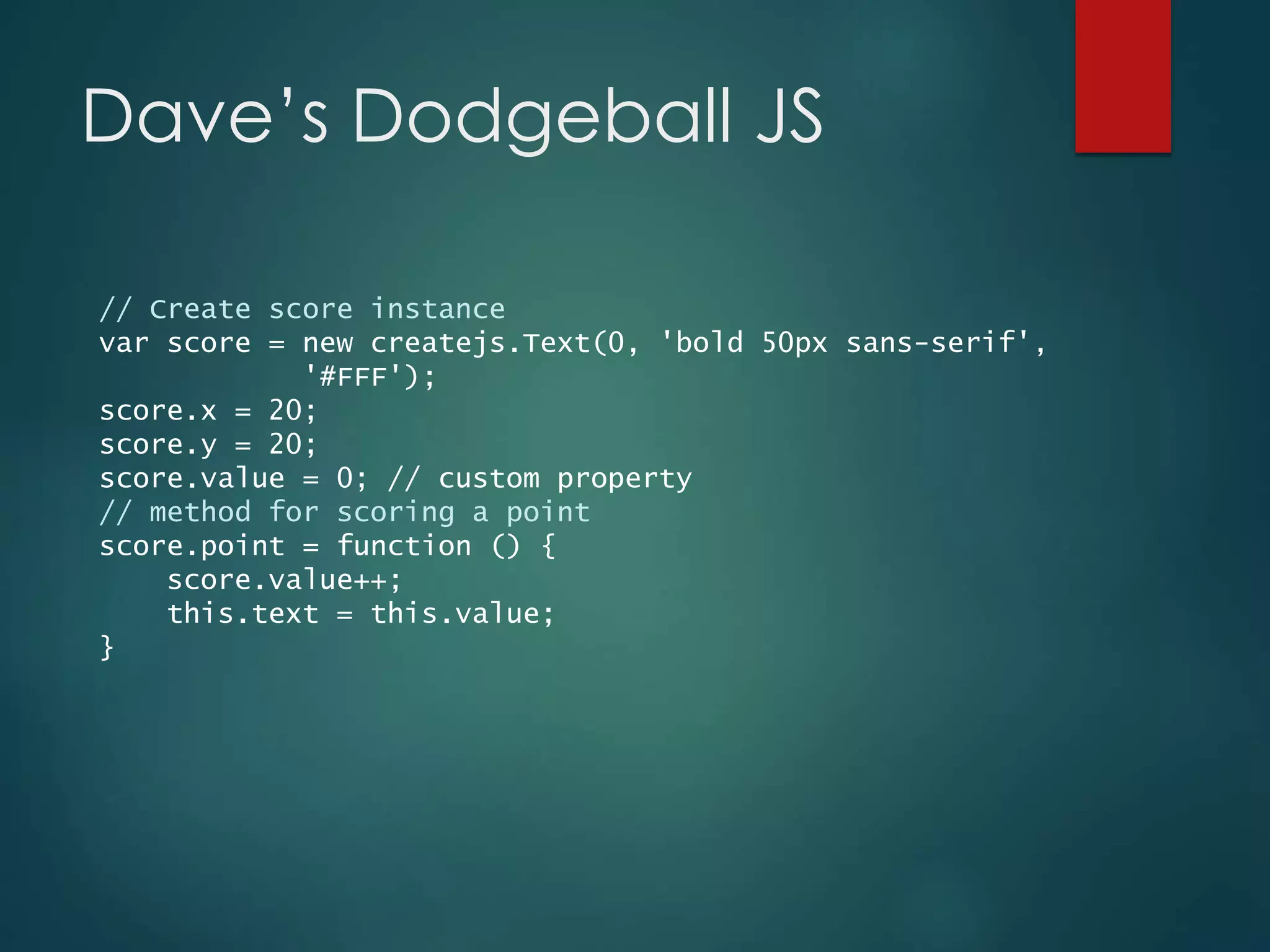

Dave’s Dodgeball JS
// Create score instance
var score = new createjs.Text(0, 'bold 50px sans-serif',
'#FFF');
score.x = 20;
score.y = 20;
score.value = 0; // custom property
// method for scoring a point
score.point = function () {
score.value++;
this.text = this.value;
}

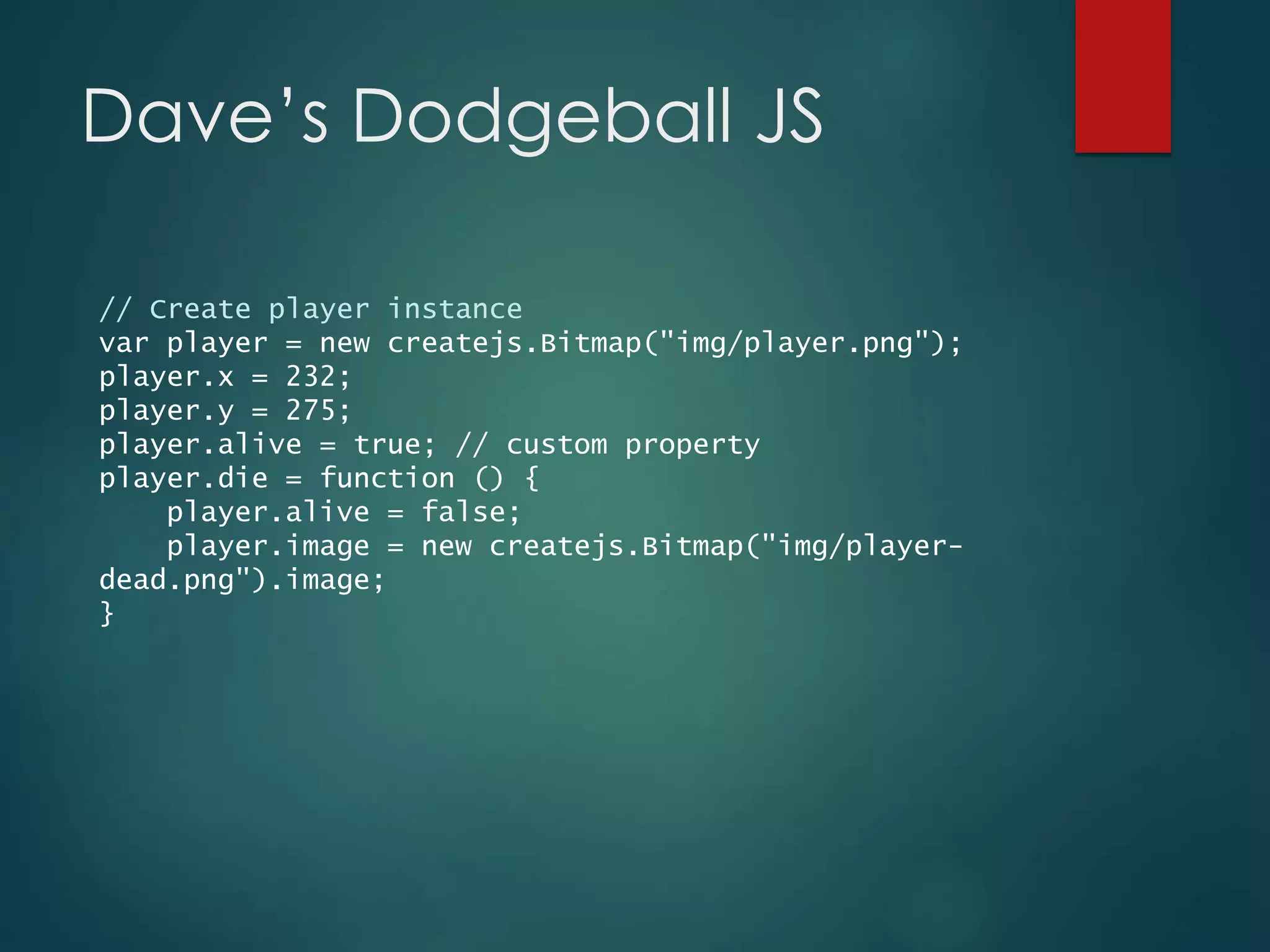

Dave’s Dodgeball JS
// Create player instance
var player = new createjs.Bitmap("img/player.png");
player.x = 232;
player.y = 275;
player.alive = true; // custom property
player.die = function () {
player.alive = false;
player.image = new createjs.Bitmap("img/player-
dead.png").image;
}

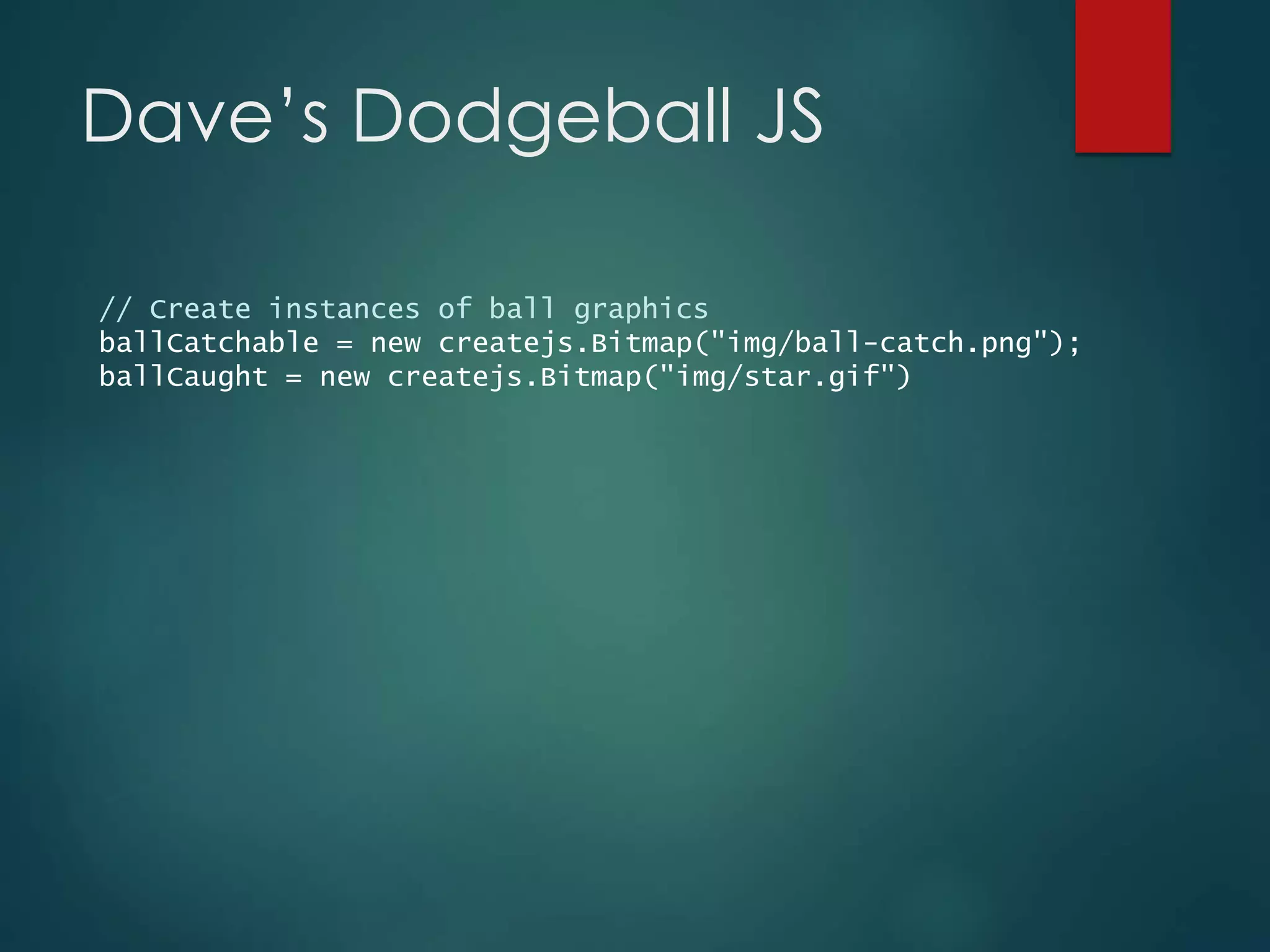

Dave’s Dodgeball JS
// Create instances of ball graphics
ballCatchable = new createjs.Bitmap("img/ball-catch.png");
ballCaught = new createjs.Bitmap("img/star.gif")

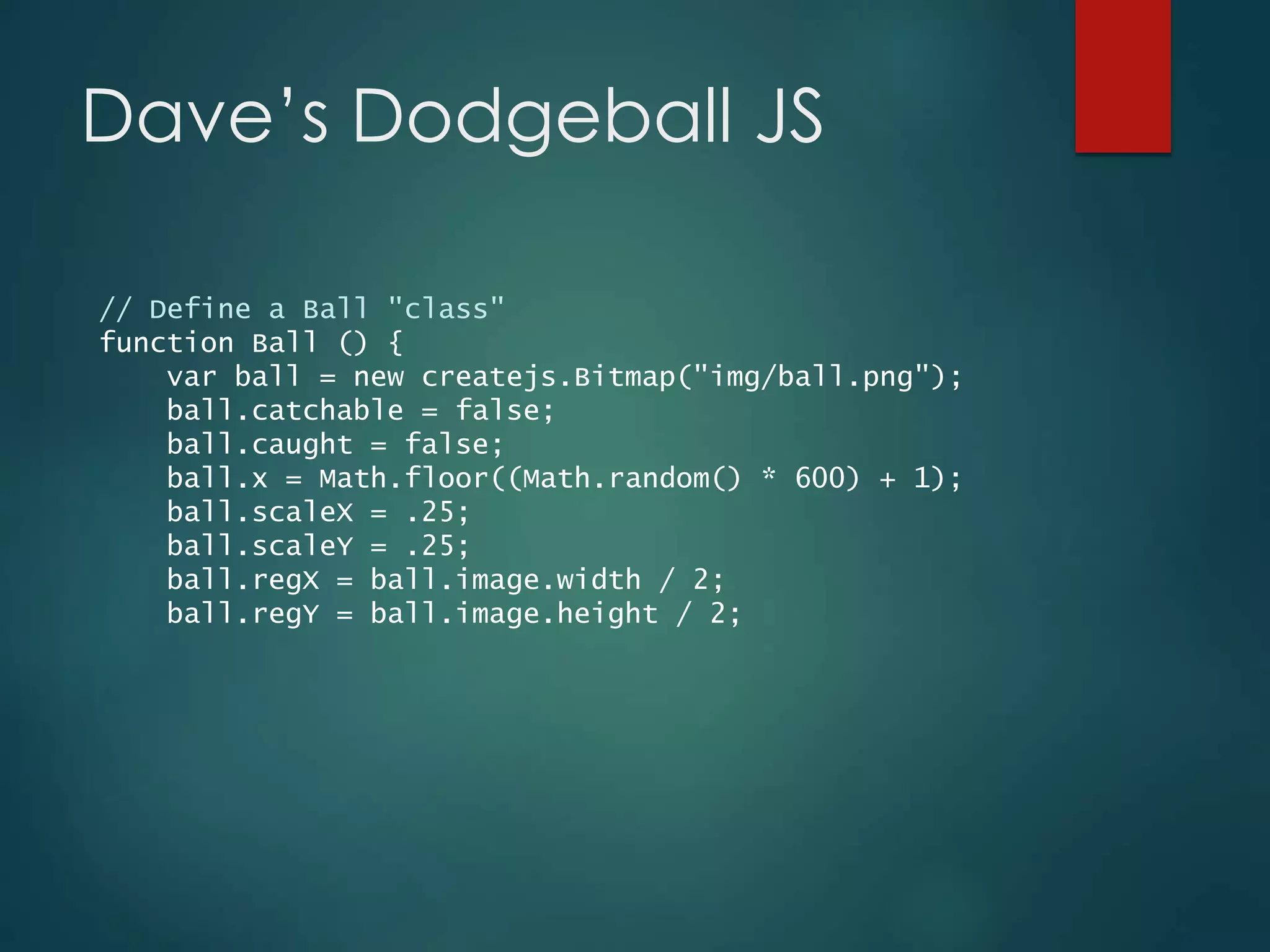

Dave’s Dodgeball JS
// Define a Ball "class"
function Ball () {
var ball = new createjs.Bitmap("img/ball.png");
ball.catchable = false;
ball.caught = false;
ball.x = Math.floor((Math.random() * 600) + 1);
ball.scaleX = .25;
ball.scaleY = .25;
ball.regX = ball.image.width / 2;
ball.regY = ball.image.height / 2;

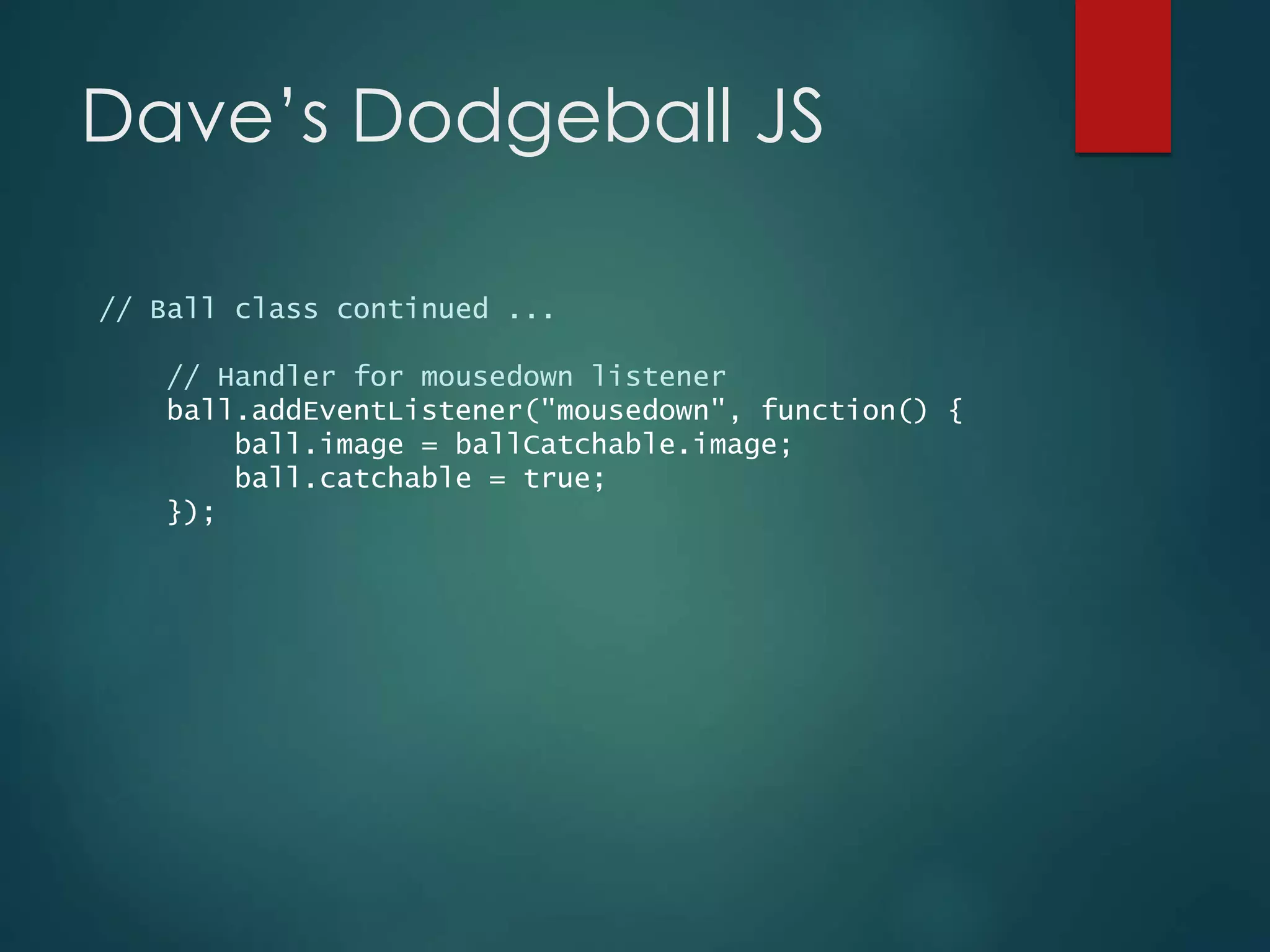

Dave’s Dodgeball JS
// Ball class continued ...
// Handler for mousedown listener
ball.addEventListener("mousedown", function() {
ball.image = ballCatchable.image;
ball.catchable = true;
});

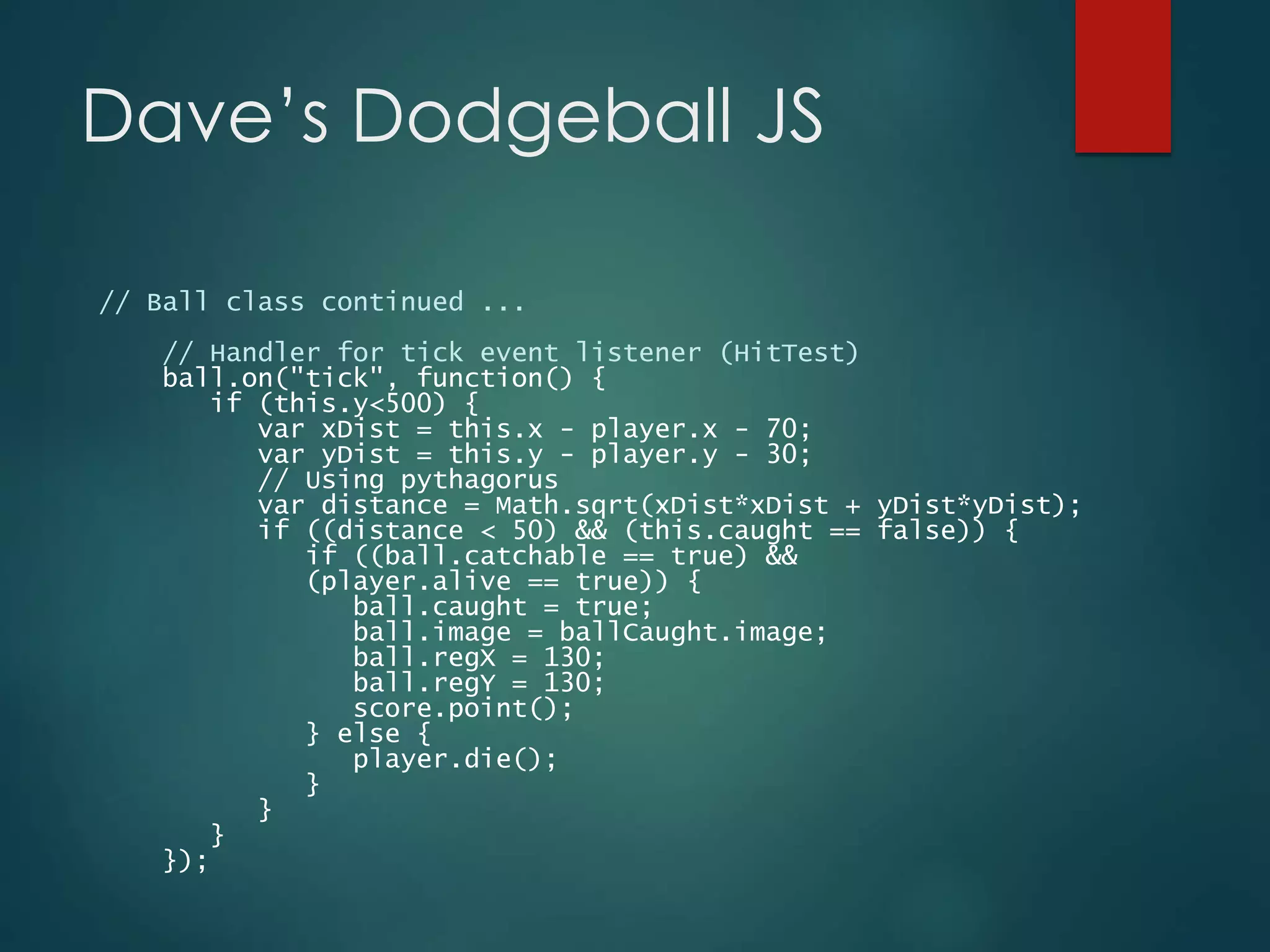

Dave’s Dodgeball JS
// Ball class continued ...
// Handler for tick event listener (HitTest)
ball.on("tick", function() {
if (this.y<500) {
var xDist = this.x - player.x - 70;
var yDist = this.y - player.y - 30;
// Using pythagorus
var distance = Math.sqrt(xDist*xDist + yDist*yDist);
if ((distance < 50) && (this.caught == false)) {
if ((ball.catchable == true) &&
(player.alive == true)) {
ball.caught = true;
ball.image = ballCaught.image;
ball.regX = 130;
ball.regY = 130;
score.point();
} else {
player.die();
}
}
}
});

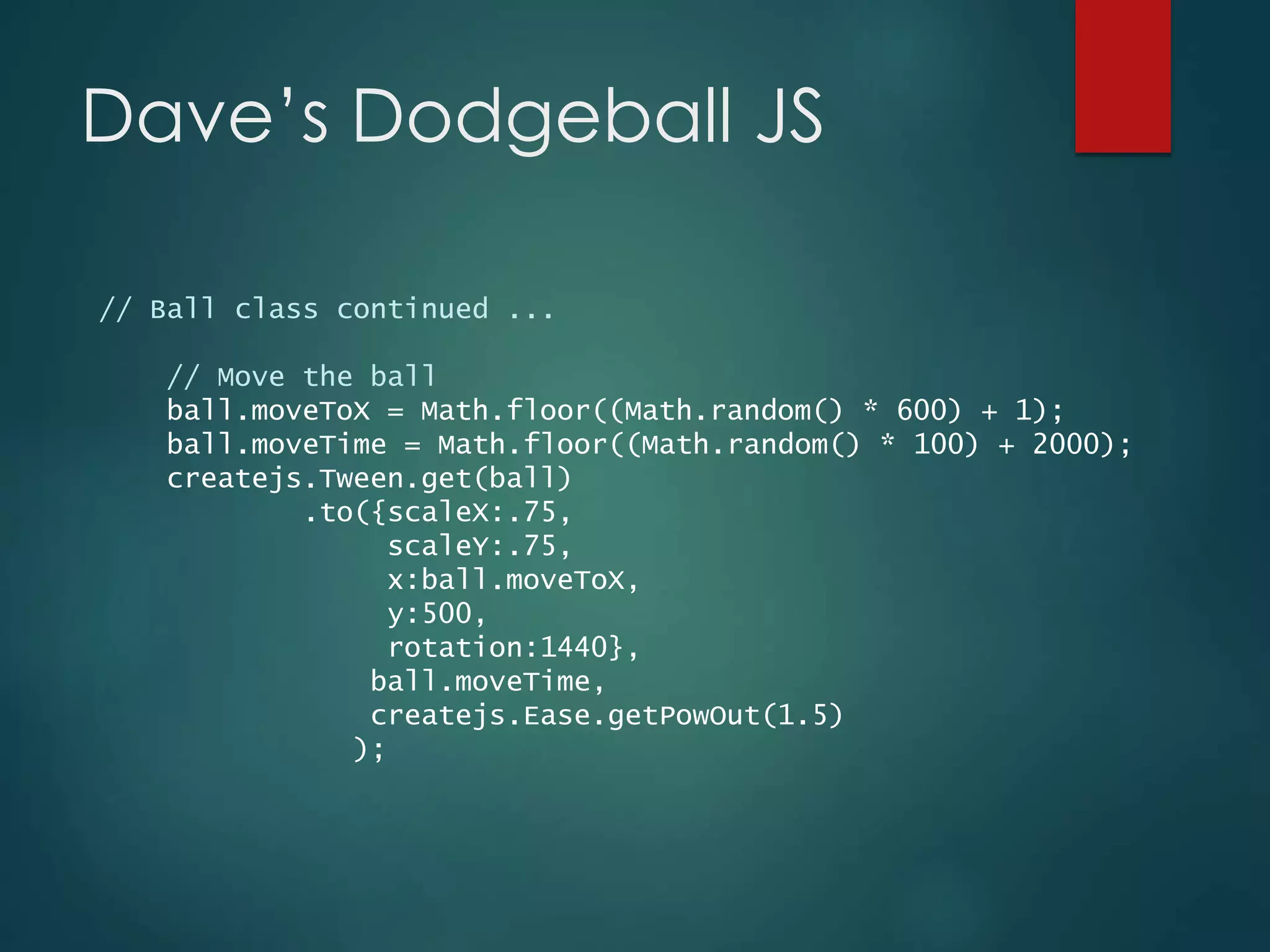

Dave’s Dodgeball JS
// Ball class continued ...
// Move the ball
ball.moveToX = Math.floor((Math.random() * 600) + 1);
ball.moveTime = Math.floor((Math.random() * 100) + 2000);
createjs.Tween.get(ball)
.to({scaleX:.75,
scaleY:.75,
x:ball.moveToX,
y:500,
rotation:1440},
ball.moveTime,
createjs.Ease.getPowOut(1.5)
);

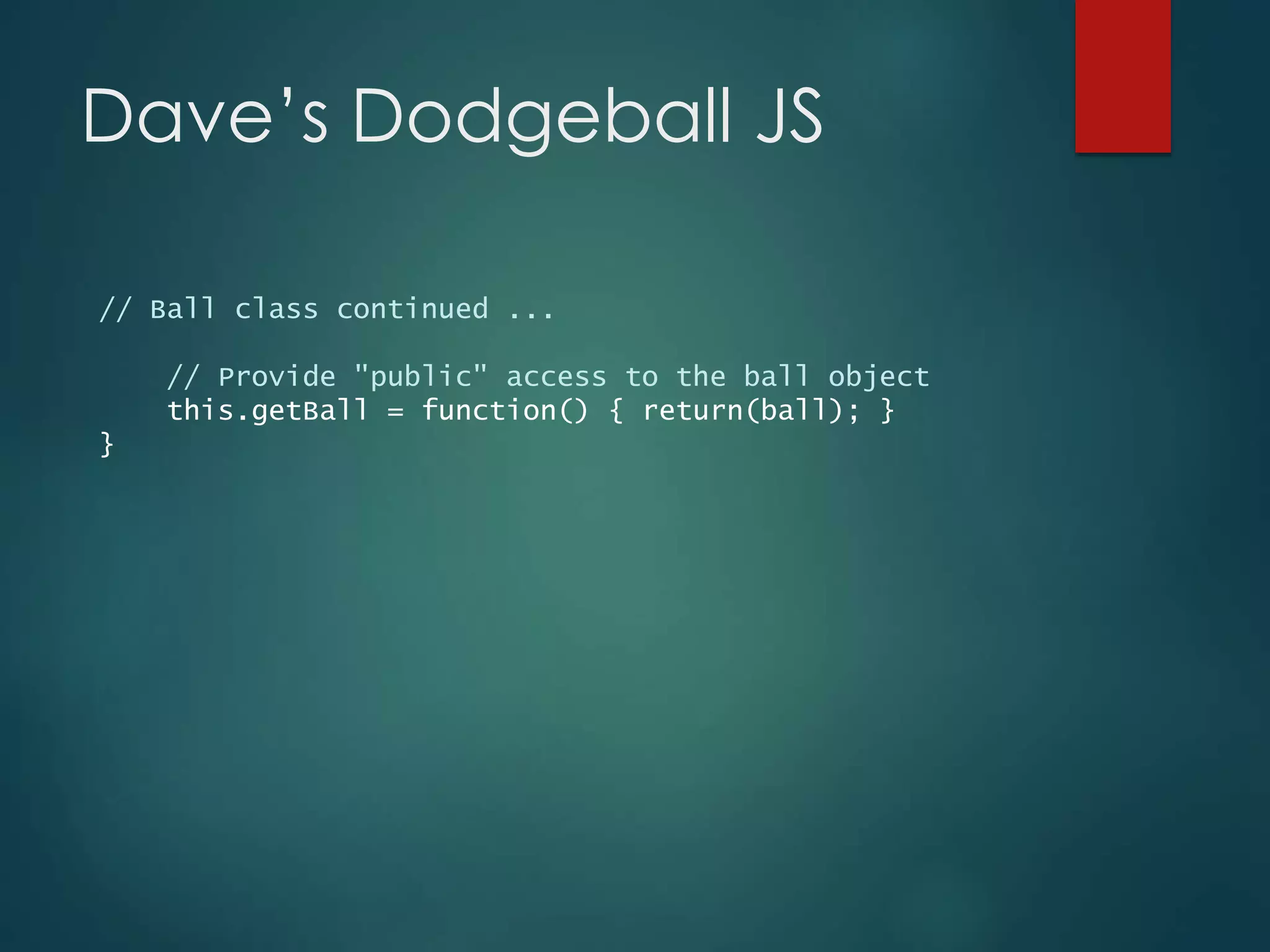

Dave’s Dodgeball JS
// Ball class continued ...
// Provide "public" access to the ball object
this.getBall = function() { return(ball); }
}

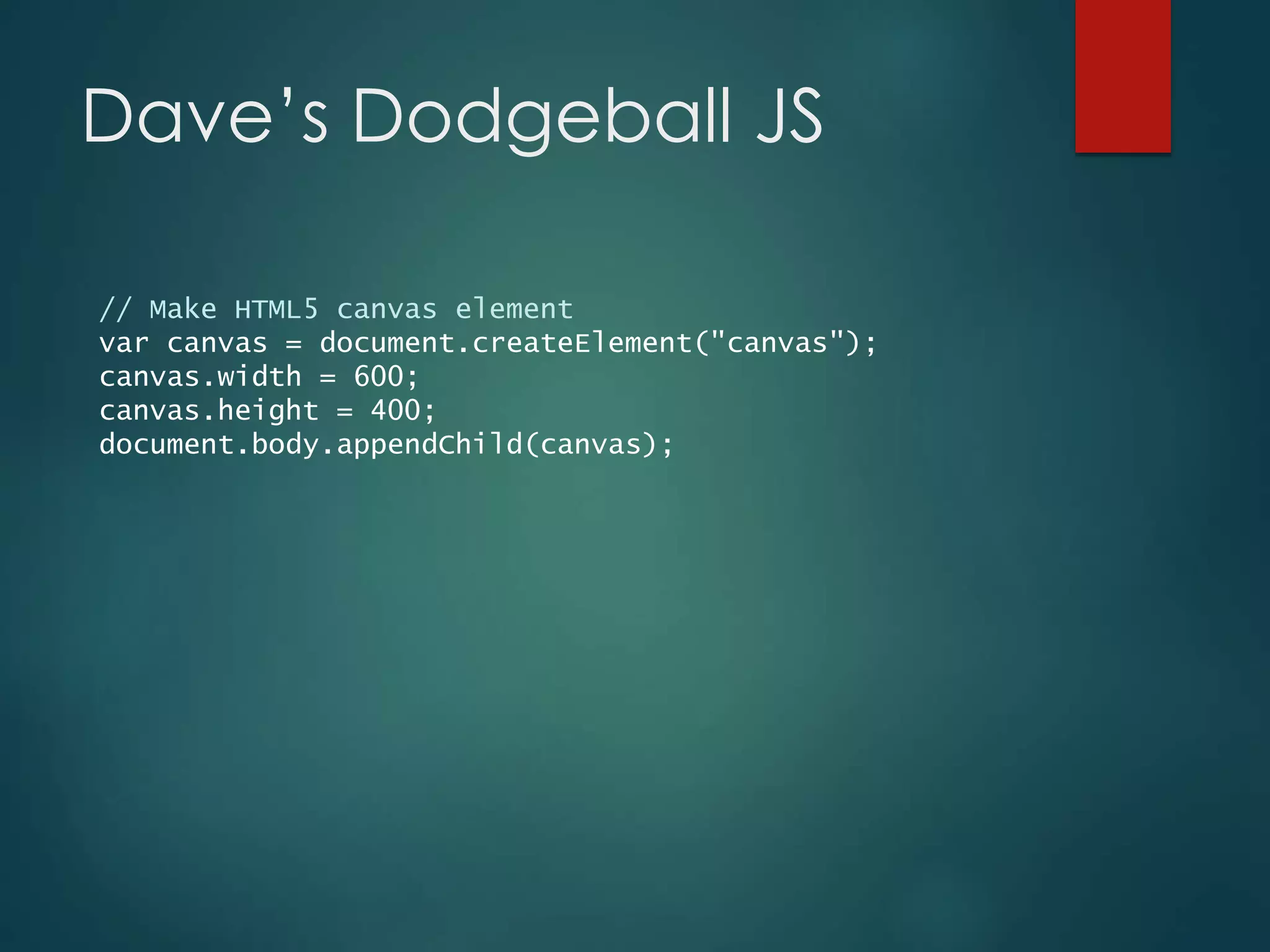

Dave’s Dodgeball JS
// Make HTML5 canvas element
var canvas = document.createElement("canvas");
canvas.width = 600;
canvas.height = 400;
document.body.appendChild(canvas);

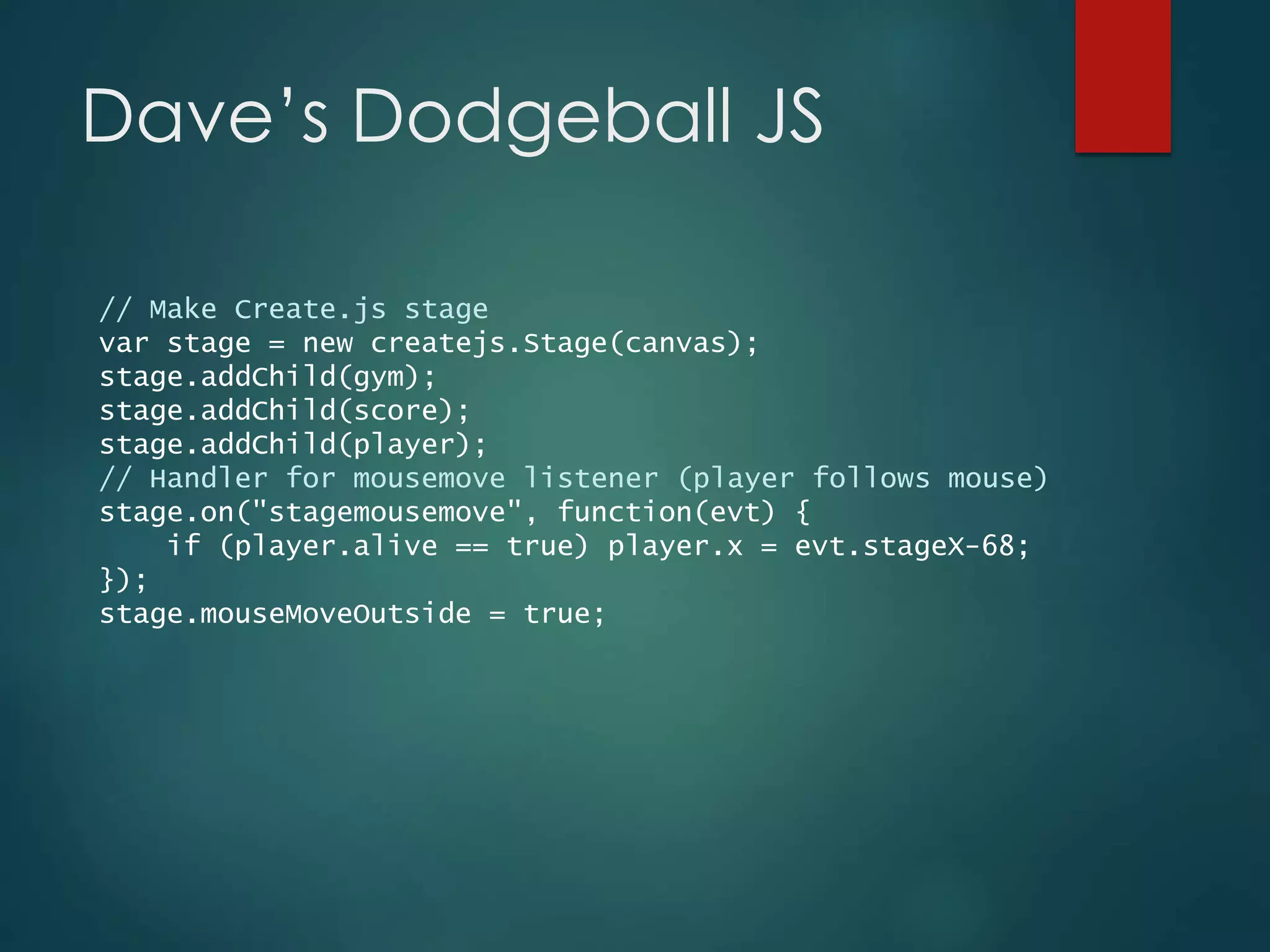

Dave’s Dodgeball JS
// Make Create.js stage
var stage = new createjs.Stage(canvas);
stage.addChild(gym);
stage.addChild(score);
stage.addChild(player);
// Handler for mousemove listener (player follows mouse)
stage.on("stagemousemove", function(evt) {
if (player.alive == true) player.x = evt.stageX-68;
});
stage.mouseMoveOutside = true;

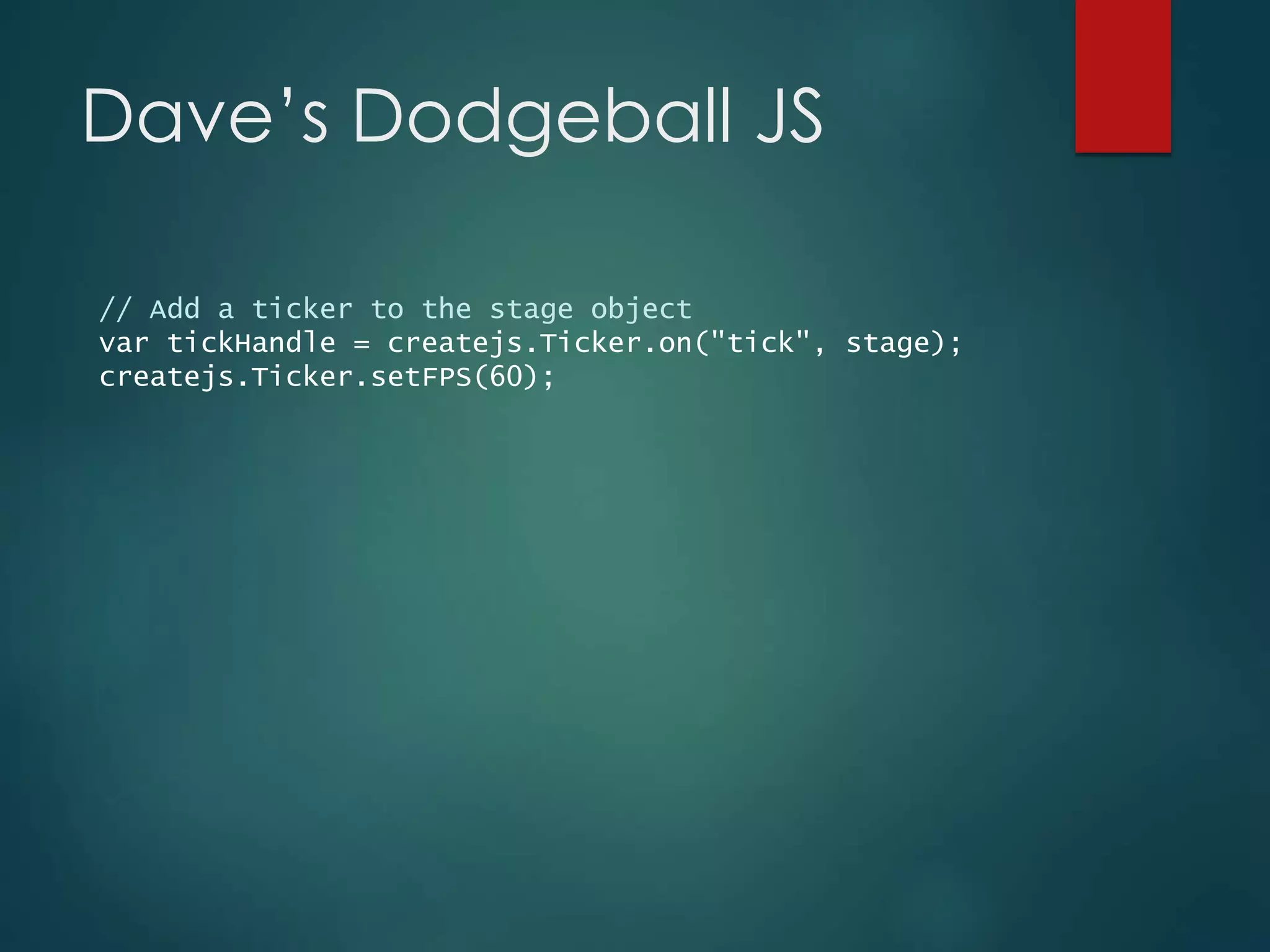

Dave’s Dodgeball JS
// Add a ticker to the stage object
var tickHandle = createjs.Ticker.on("tick", stage);
createjs.Ticker.setFPS(60);

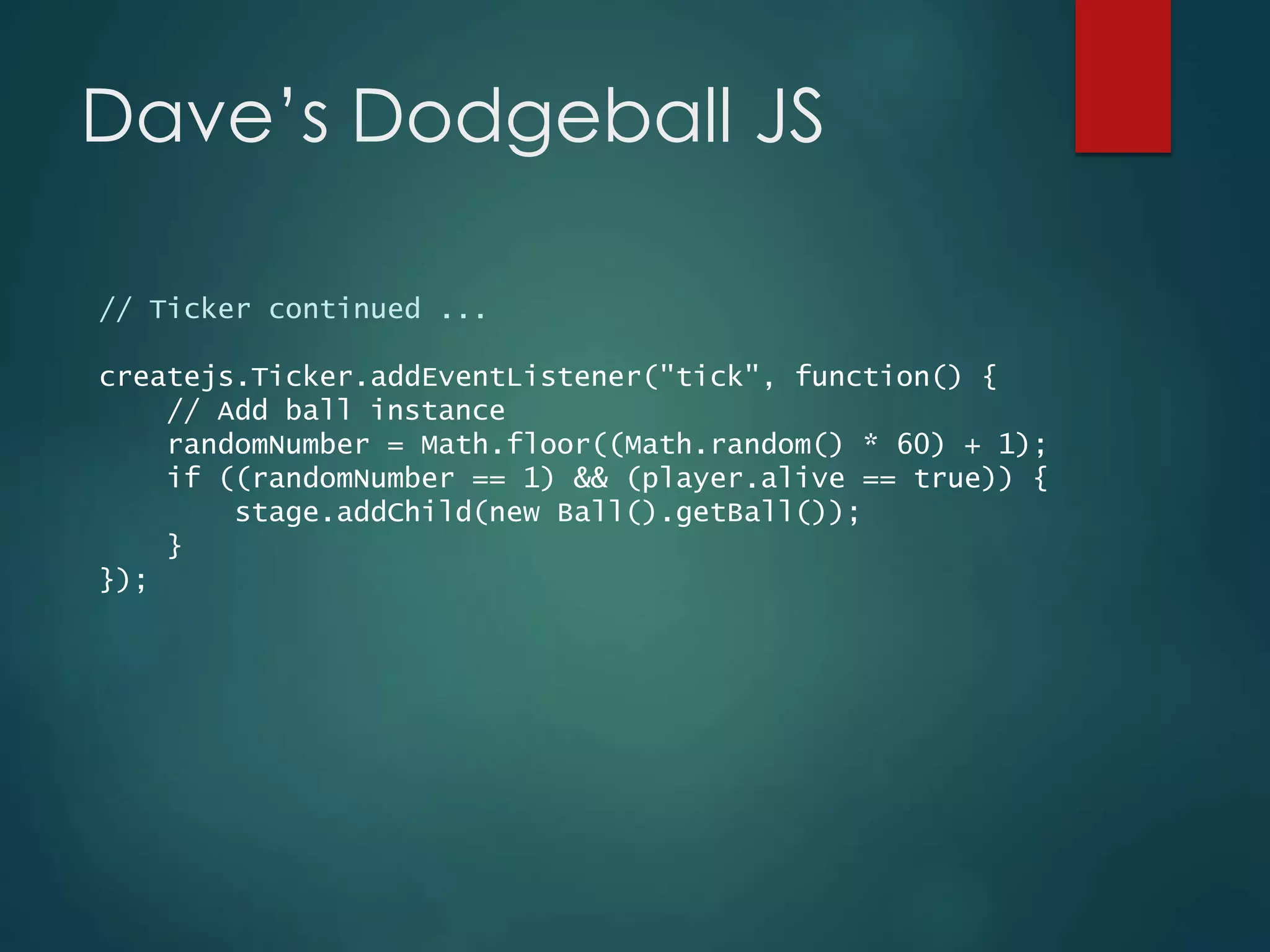

Dave’s Dodgeball JS
// Ticker continued ...
createjs.Ticker.addEventListener("tick", function() {
// Add ball instance
randomNumber = Math.floor((Math.random() * 60) + 1);
if ((randomNumber == 1) && (player.alive == true)) {
stage.addChild(new Ball().getBall());
}
});

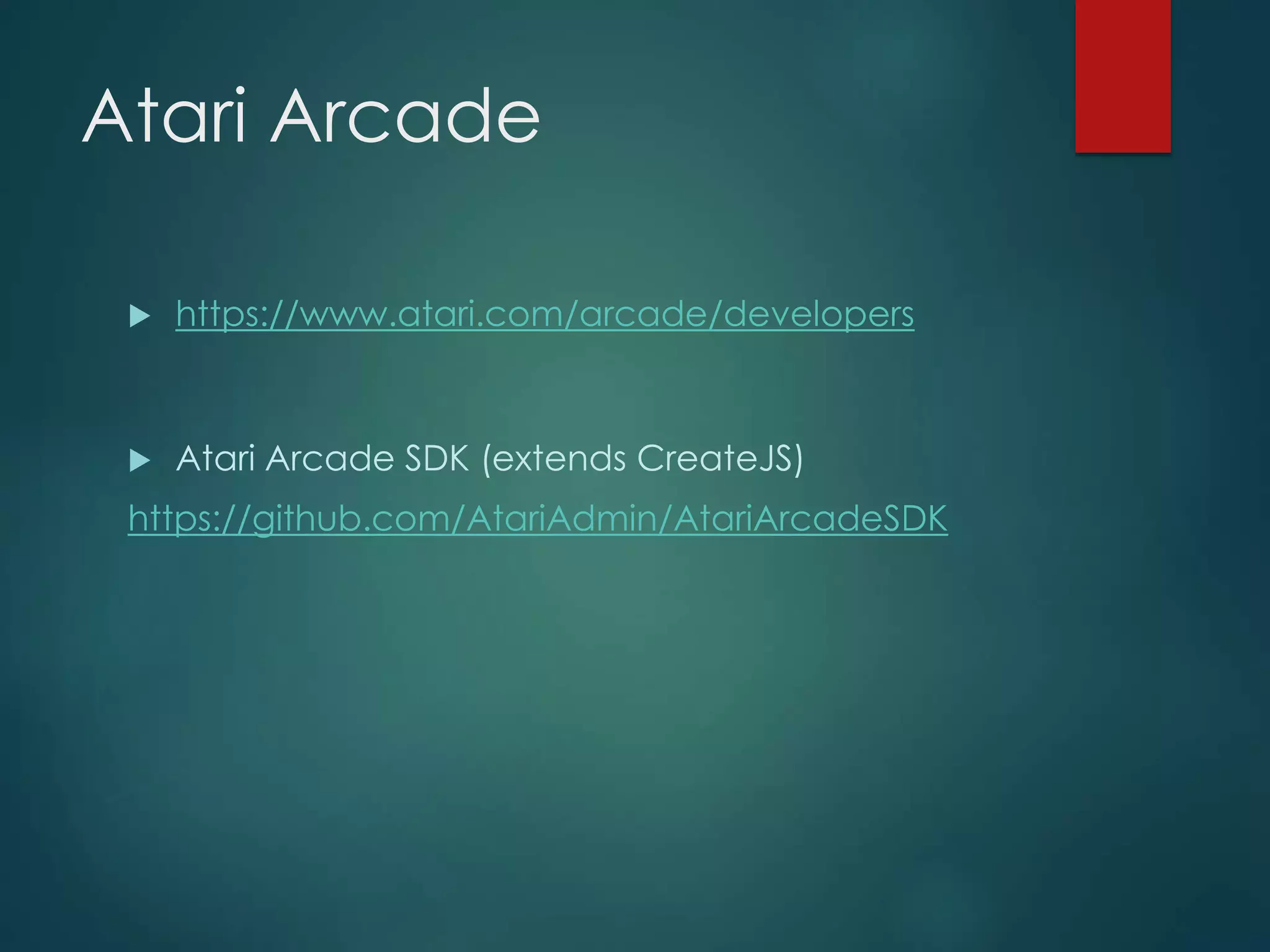

Atari Arcade
 https://www.atari.com/arcade/developers
 Atari Arcade SDK (extends CreateJS)
https://github.com/AtariAdmin/AtariArcadeSDK
HTML5 Games
with CreateJS
DAVID KELLEHER
JOIND.IN/14719
