1. ReactiveCocoa made
Simple with Swift!
@ColinEberhardt
ShinobiControls

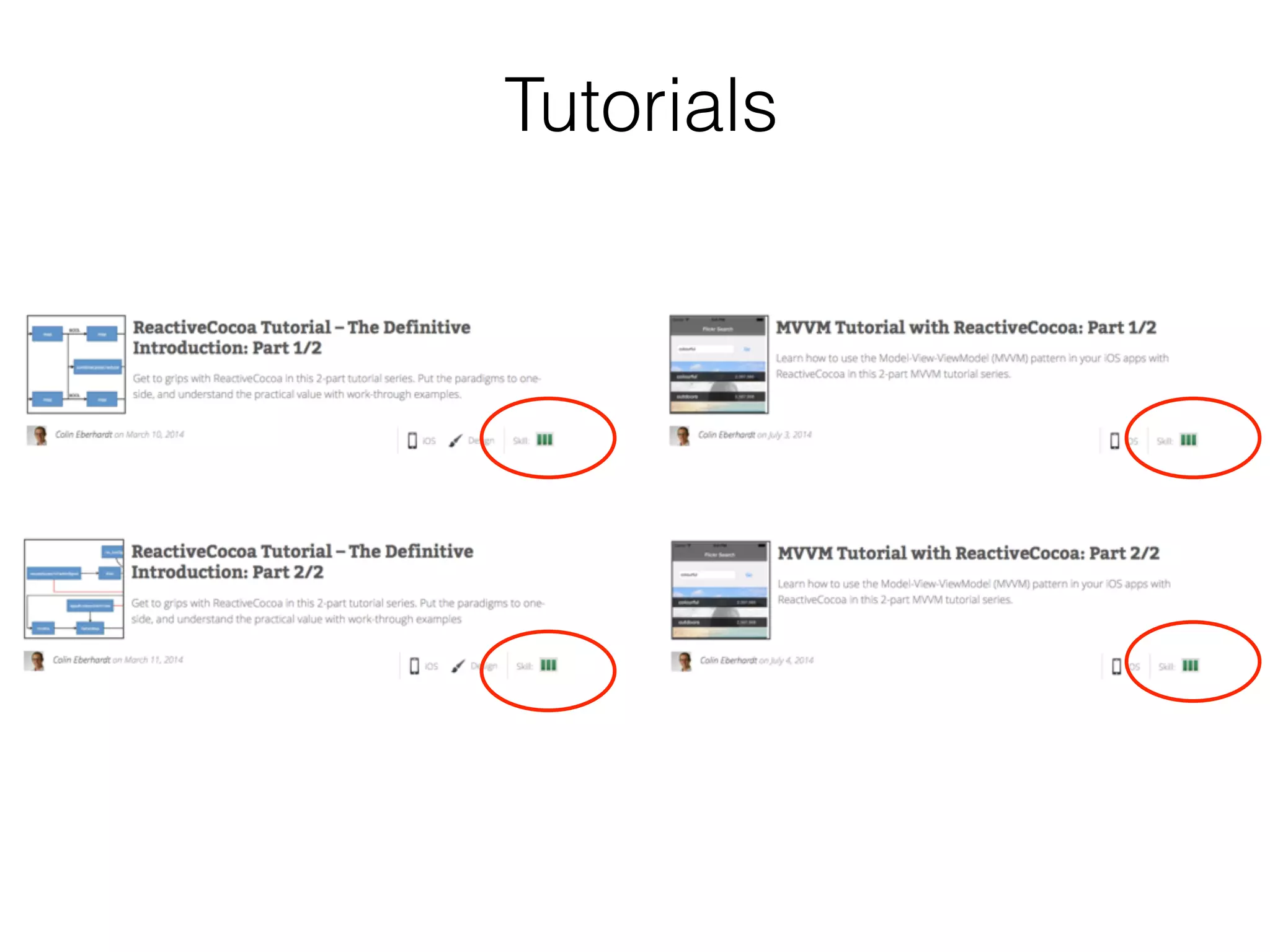

2. Tutorials

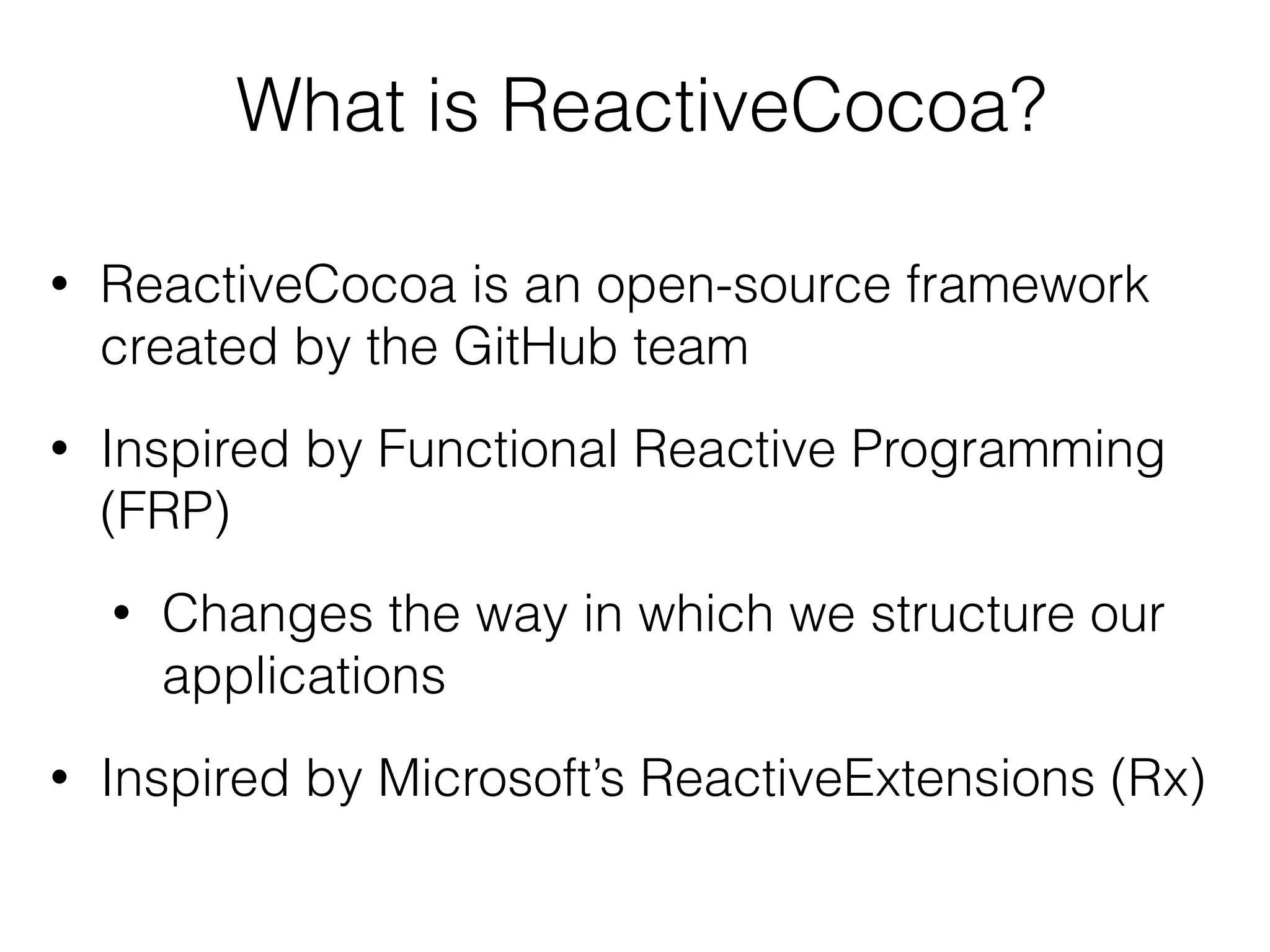

3. What is ReactiveCocoa?
• ReactiveCocoa is an open-source framework
created by the GitHub team
• Inspired by Functional Reactive Programming
(FRP)
• Changes the way in which we structure our
applications
• Inspired by Microsoft’s ReactiveExtensions (Rx)

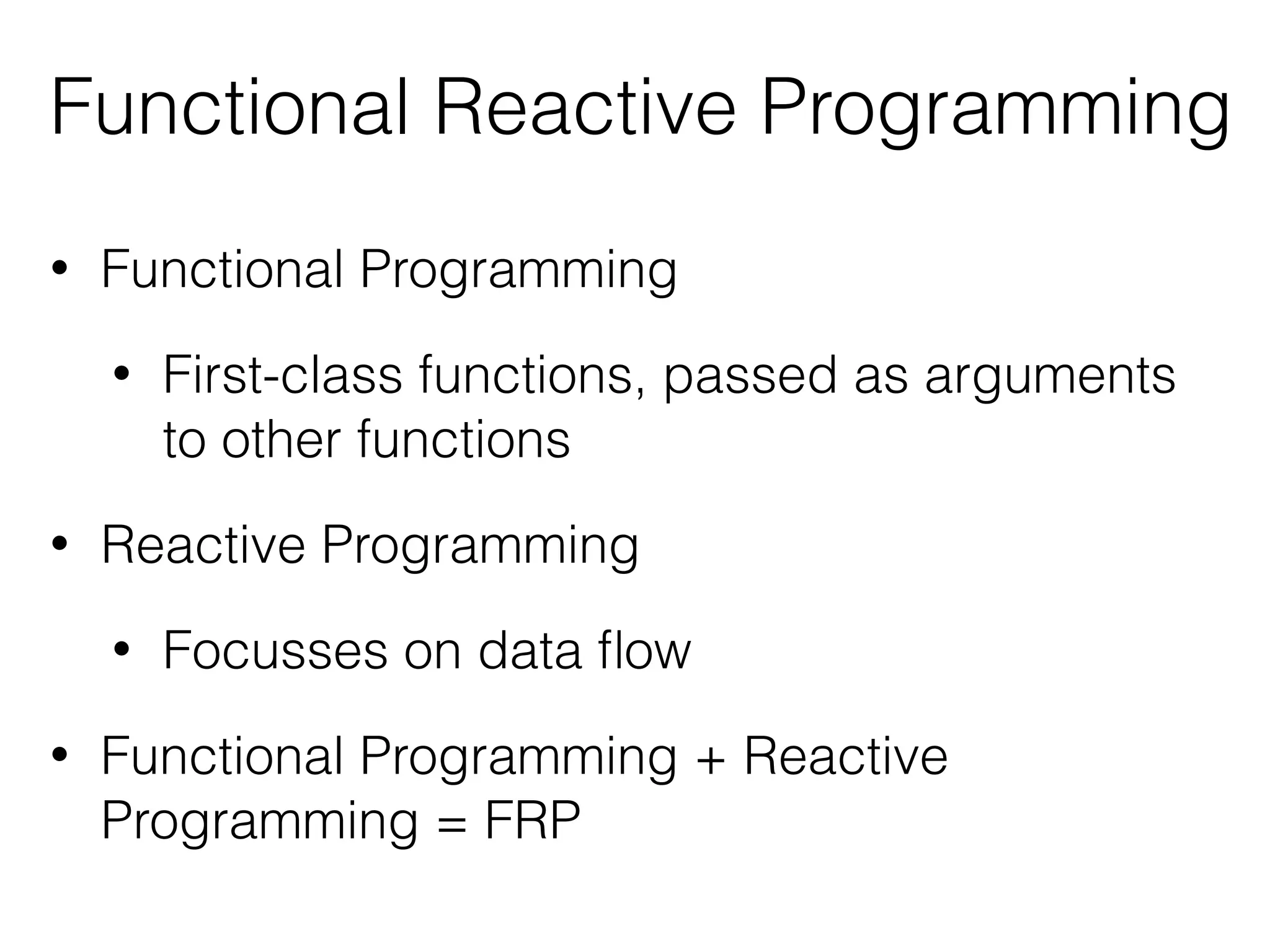

4. Functional Reactive Programming
• Functional Programming
• First-class functions, passed as arguments
to other functions
• Reactive Programming
• Focusses on data flow
• Functional Programming + Reactive
Programming = FRP

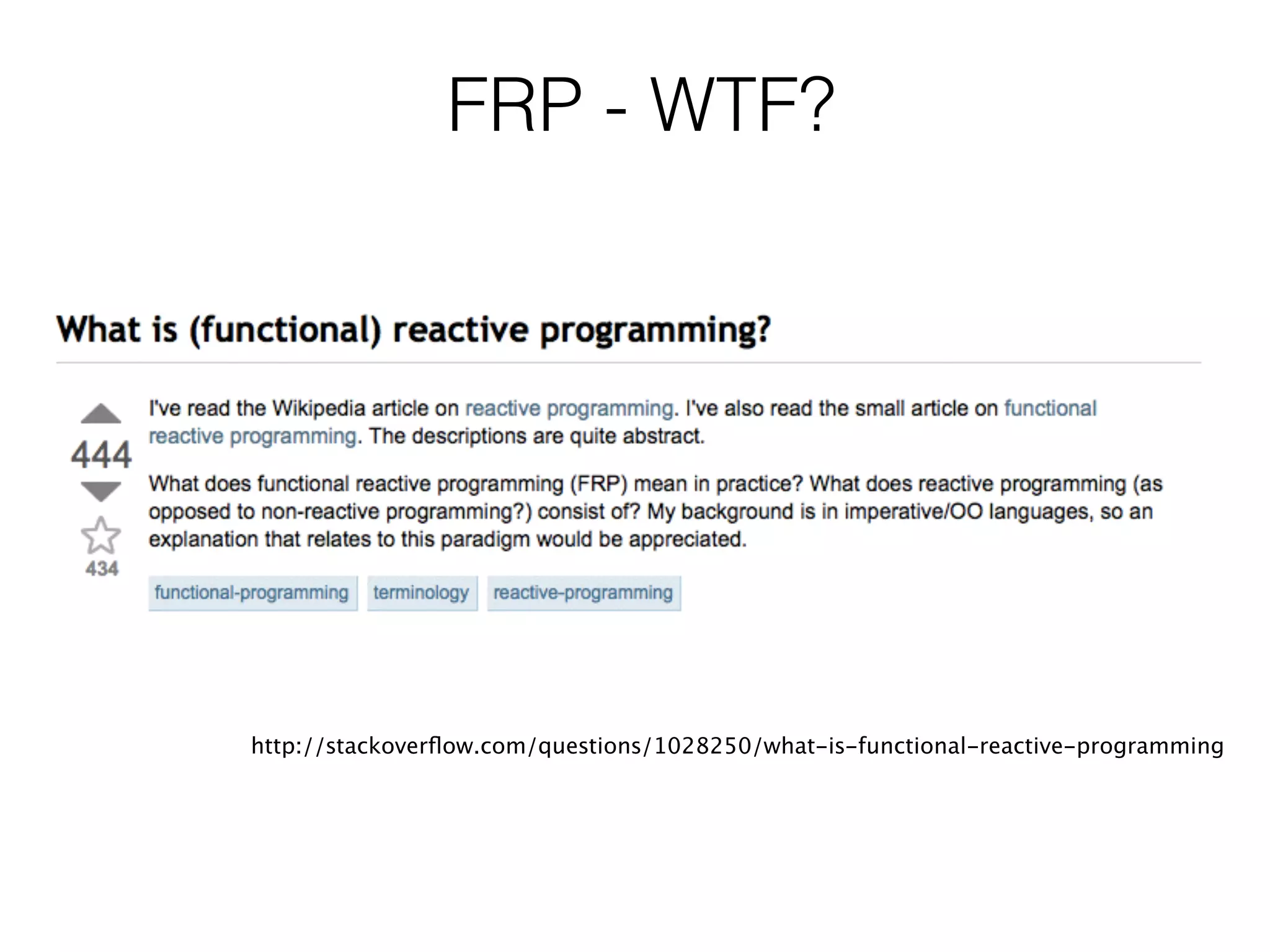

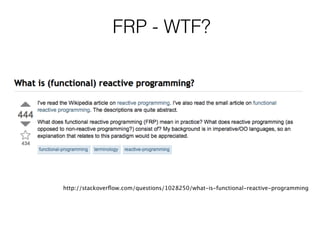

5. FRP - WTF?
http://stackoverflow.com/questions/1028250/what-is-functional-reactive-programming

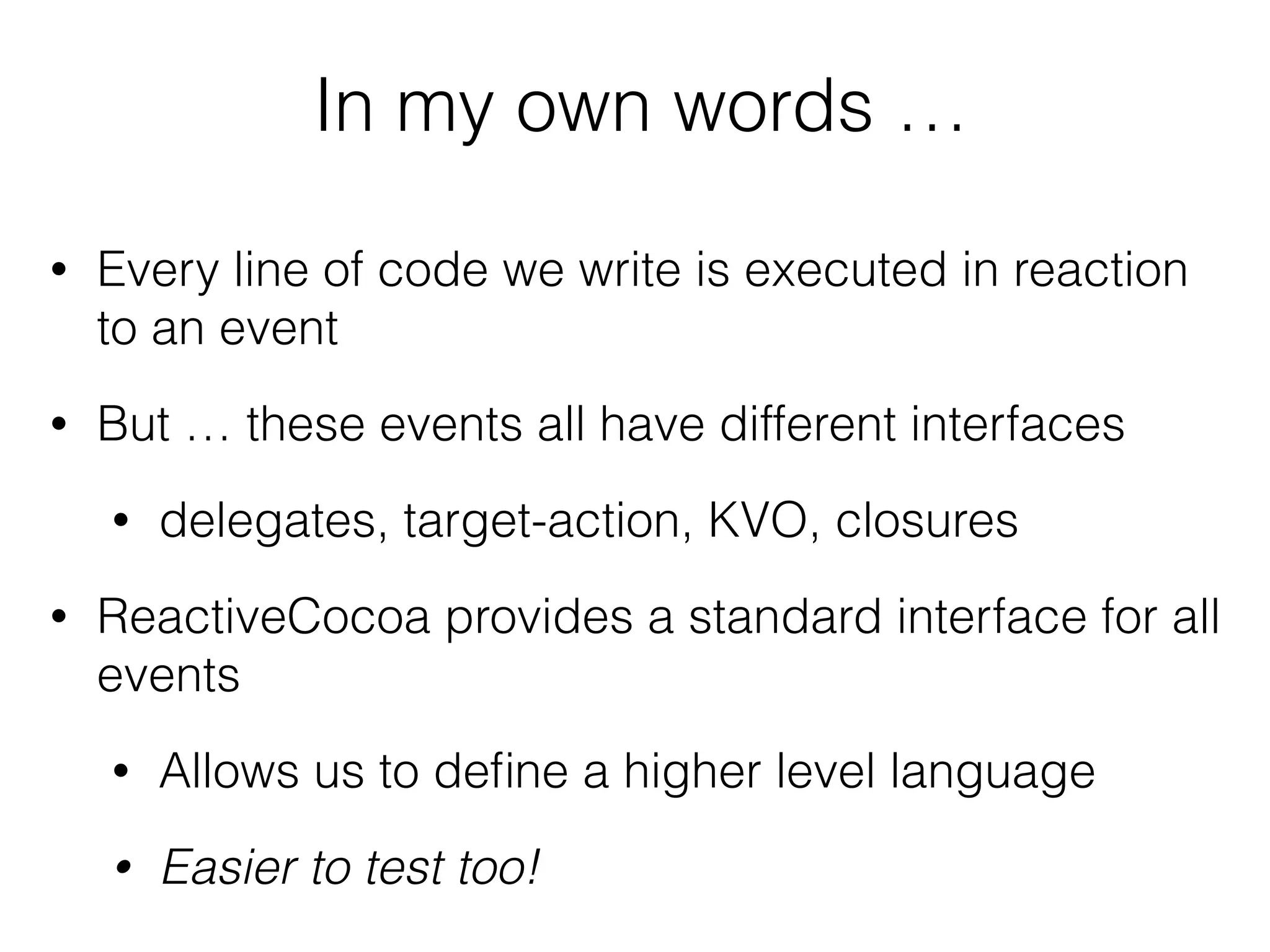

6. In my own words …
• Every line of code we write is executed in reaction
to an event
• But … these events all have different interfaces
• delegates, target-action, KVO, closures
• ReactiveCocoa provides a standard interface for all
events
• Allows us to define a higher level language
• Easier to test too!

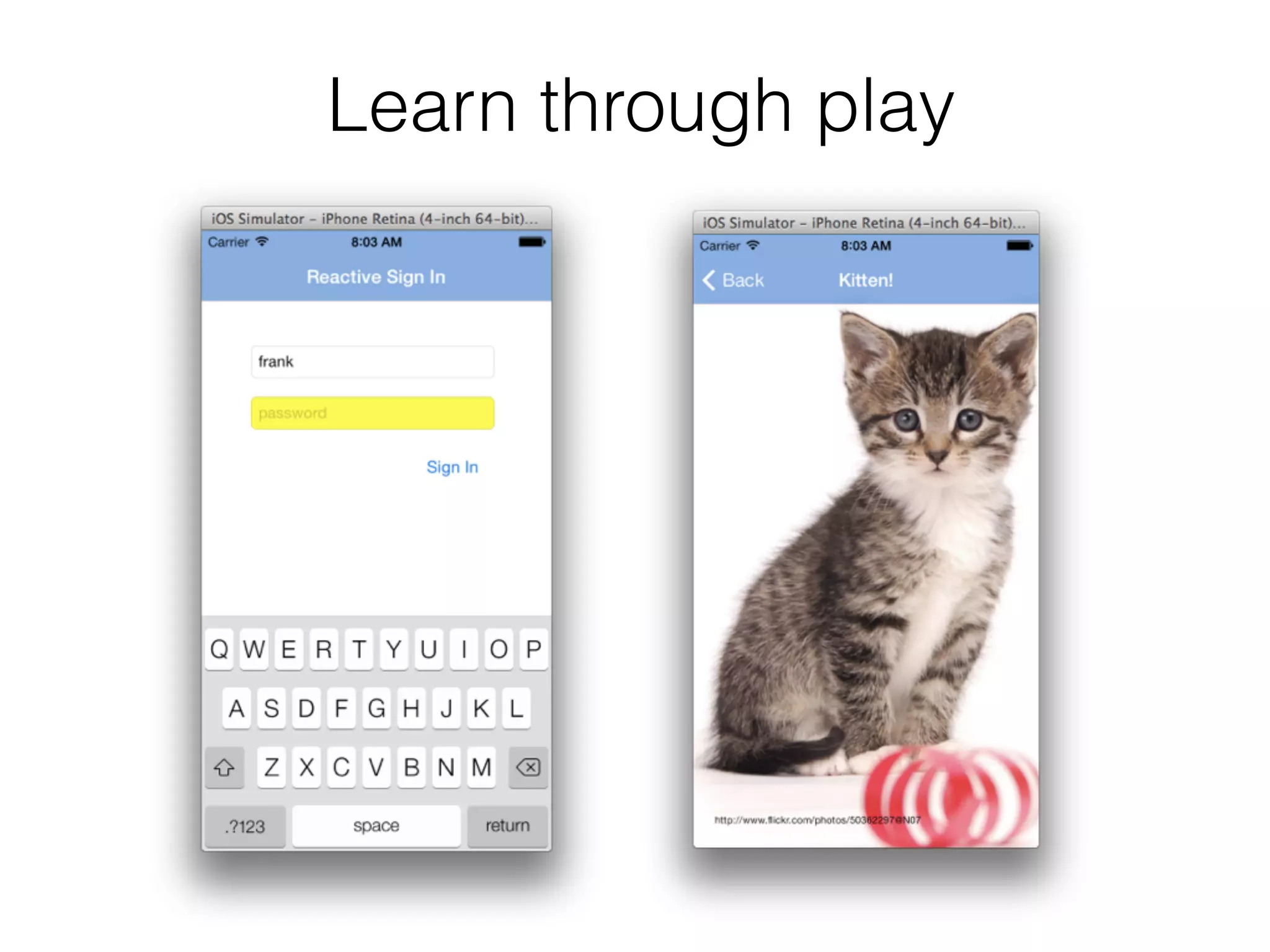

7. Learn through play

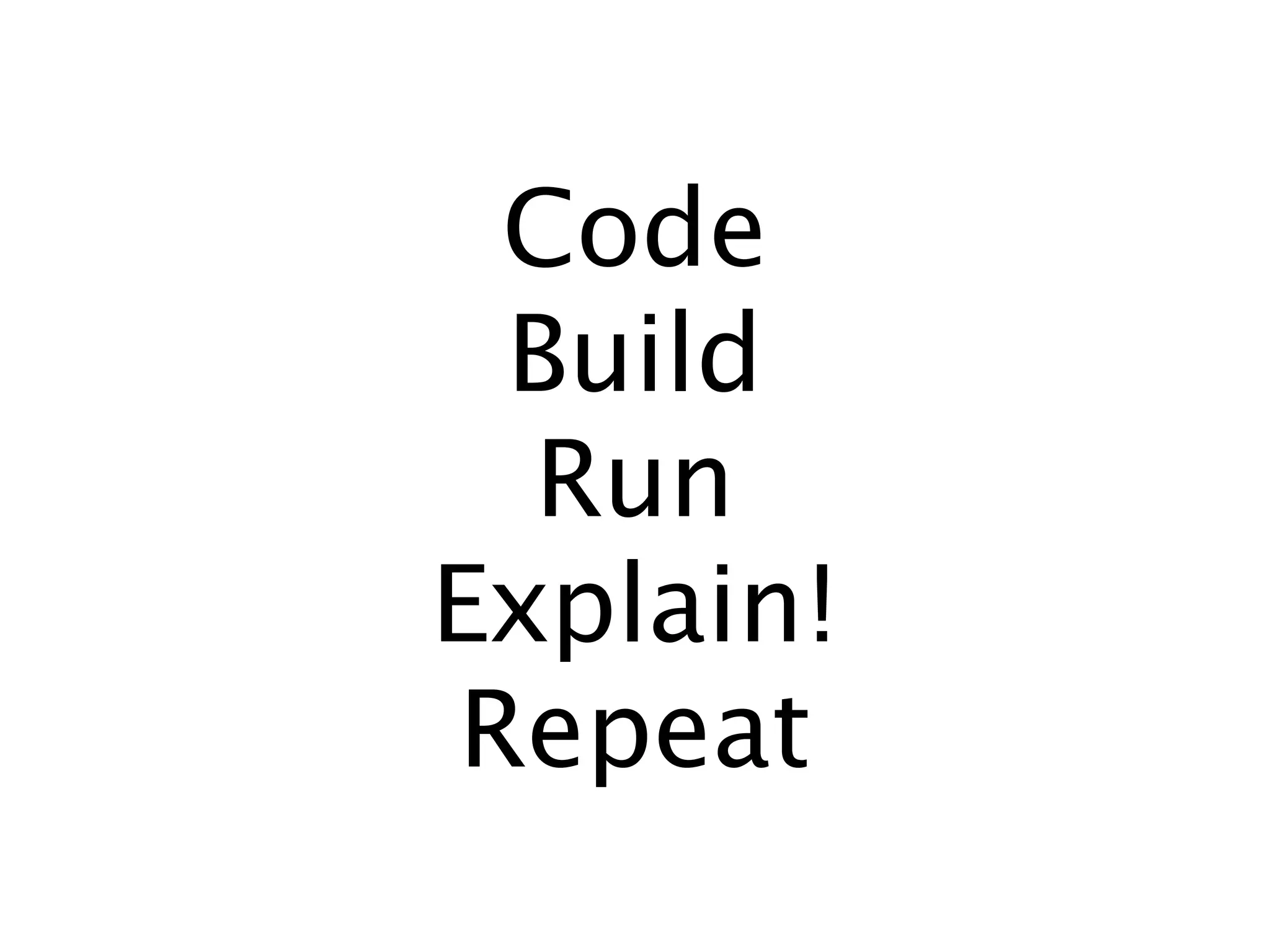

8. Code
Build
Run
Explain!
Repeat

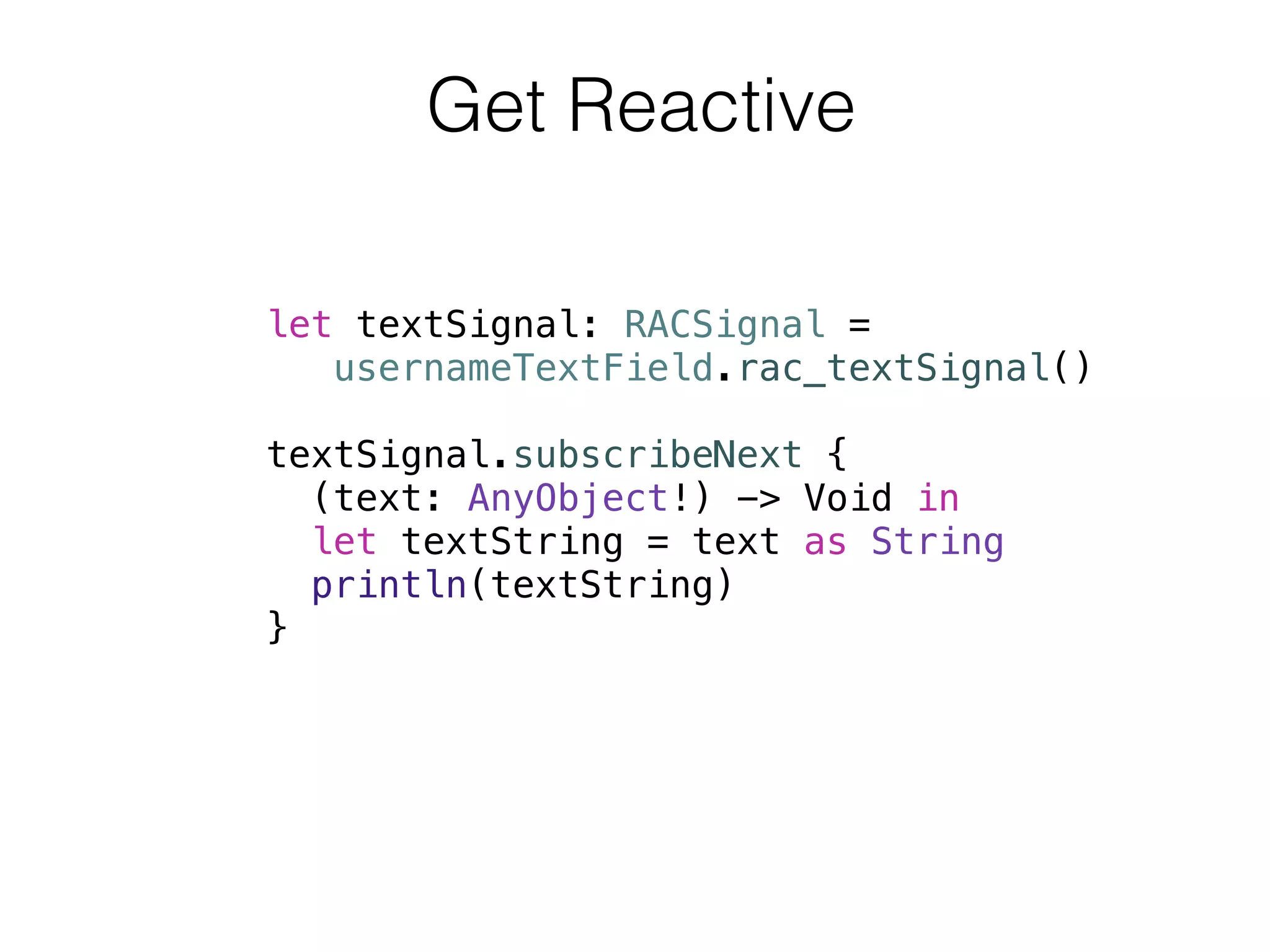

9. Get Reactive
let textSignal: RACSignal =
usernameTextField.rac_textSignal()
!
textSignal.subscribeNext {
(text: AnyObject!) -> Void in
let textString = text as String
println(textString)
}

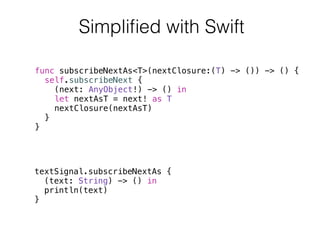

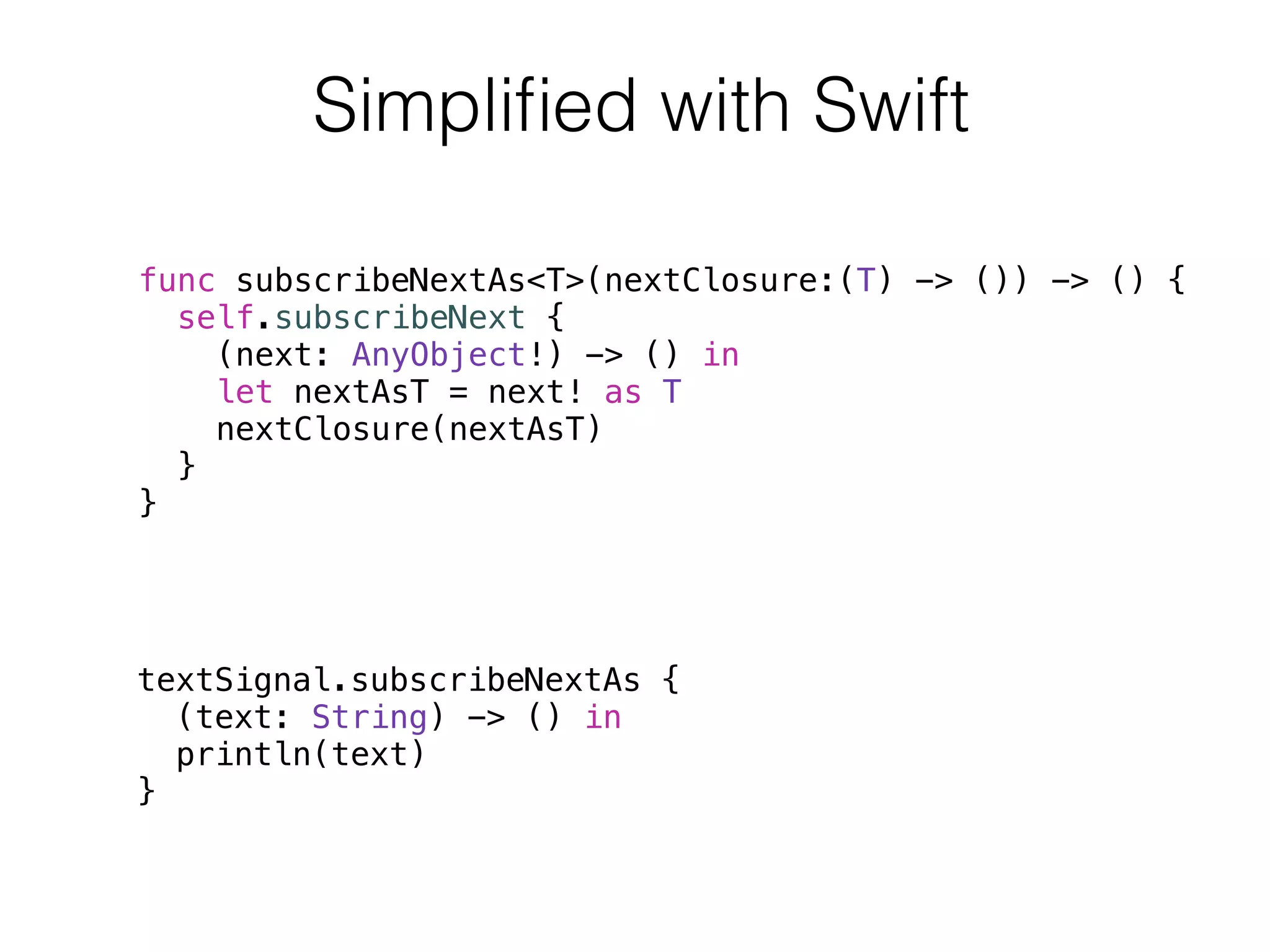

10. Simplified with Swift
func subscribeNextAs<T>(nextClosure:(T) -> ()) -> () {
self.subscribeNext {
(next: AnyObject!) -> () in
let nextAsT = next! as T
nextClosure(nextAsT)
}
}
textSignal.subscribeNextAs {
(text: String) -> () in
println(text)
}

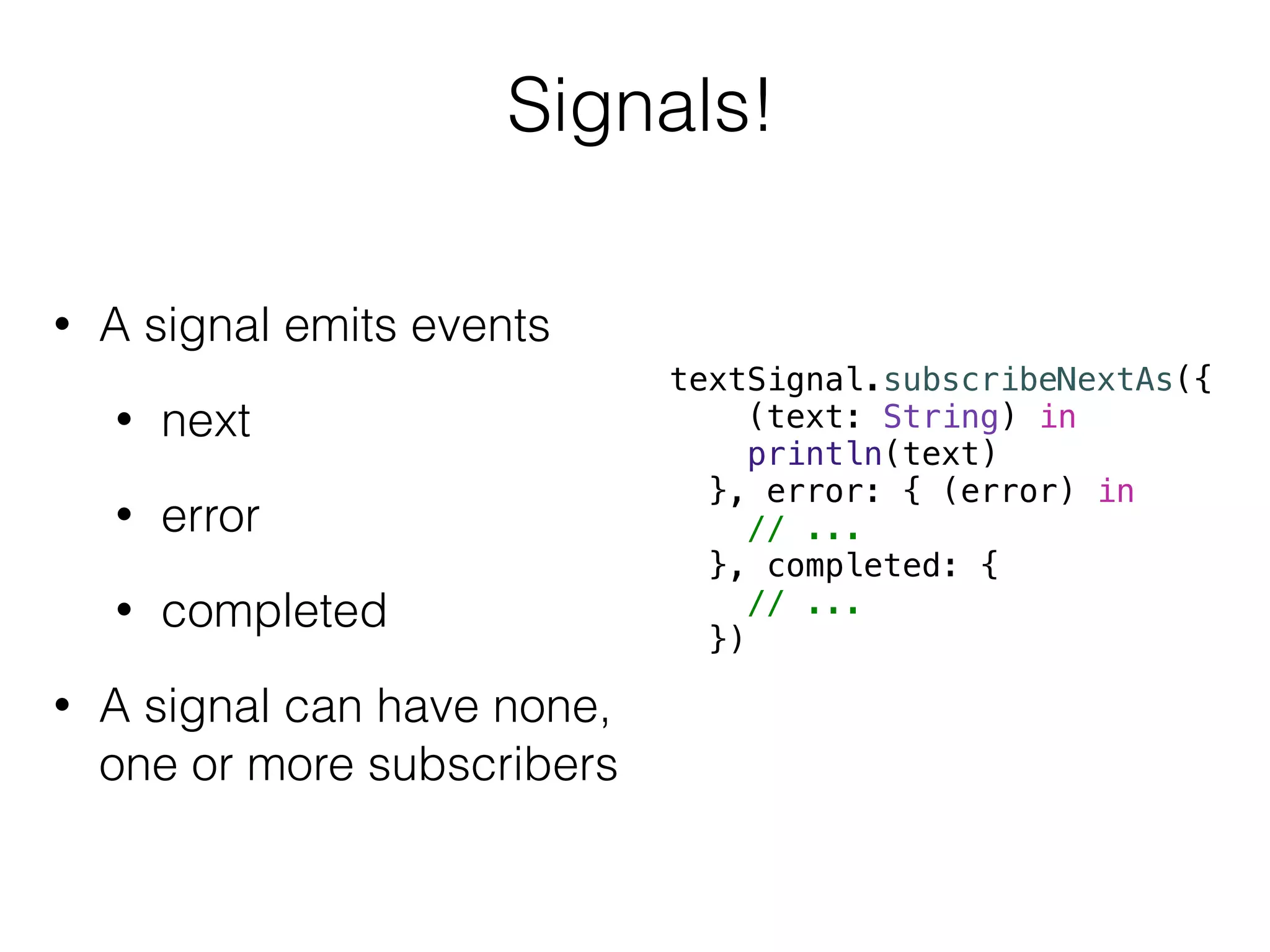

11. Signals!
• A signal emits events
• next
• error
• completed
• A signal can have none,
one or more subscribers
textSignal.subscribeNextAs({
(text: String) in
println(text)
}, error: { (error) in
// ...
}, completed: {
// ...
})

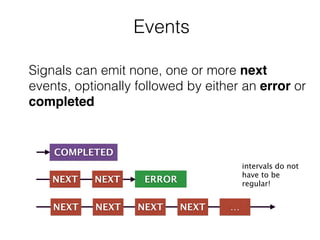

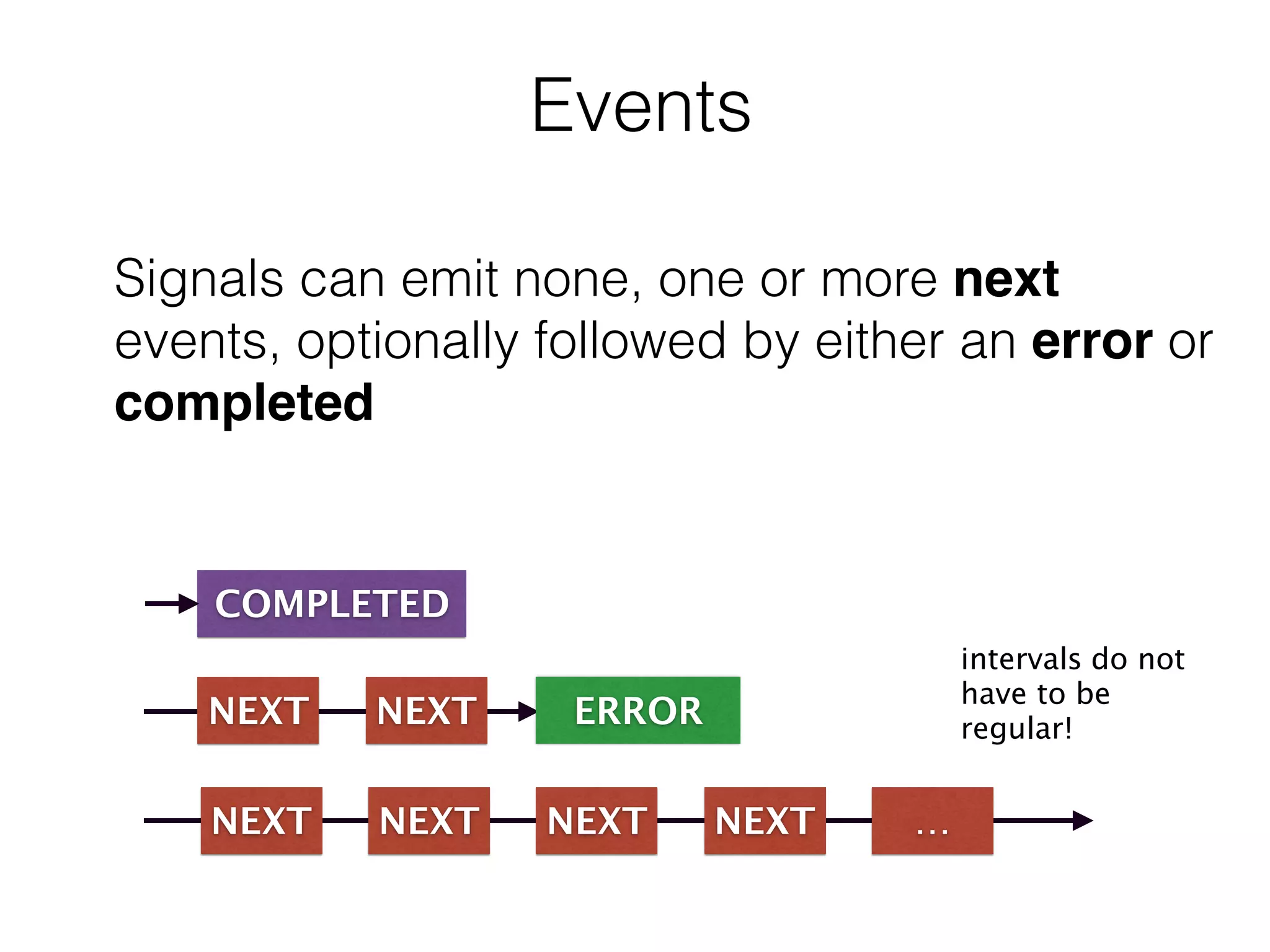

12. Events
Signals can emit none, one or more next
events, optionally followed by either an error or
completed
COMPLETED
NEXT NEXT ERROR
NEXT NEXT NEXT NEXT …
intervals do not
have to be
regular!

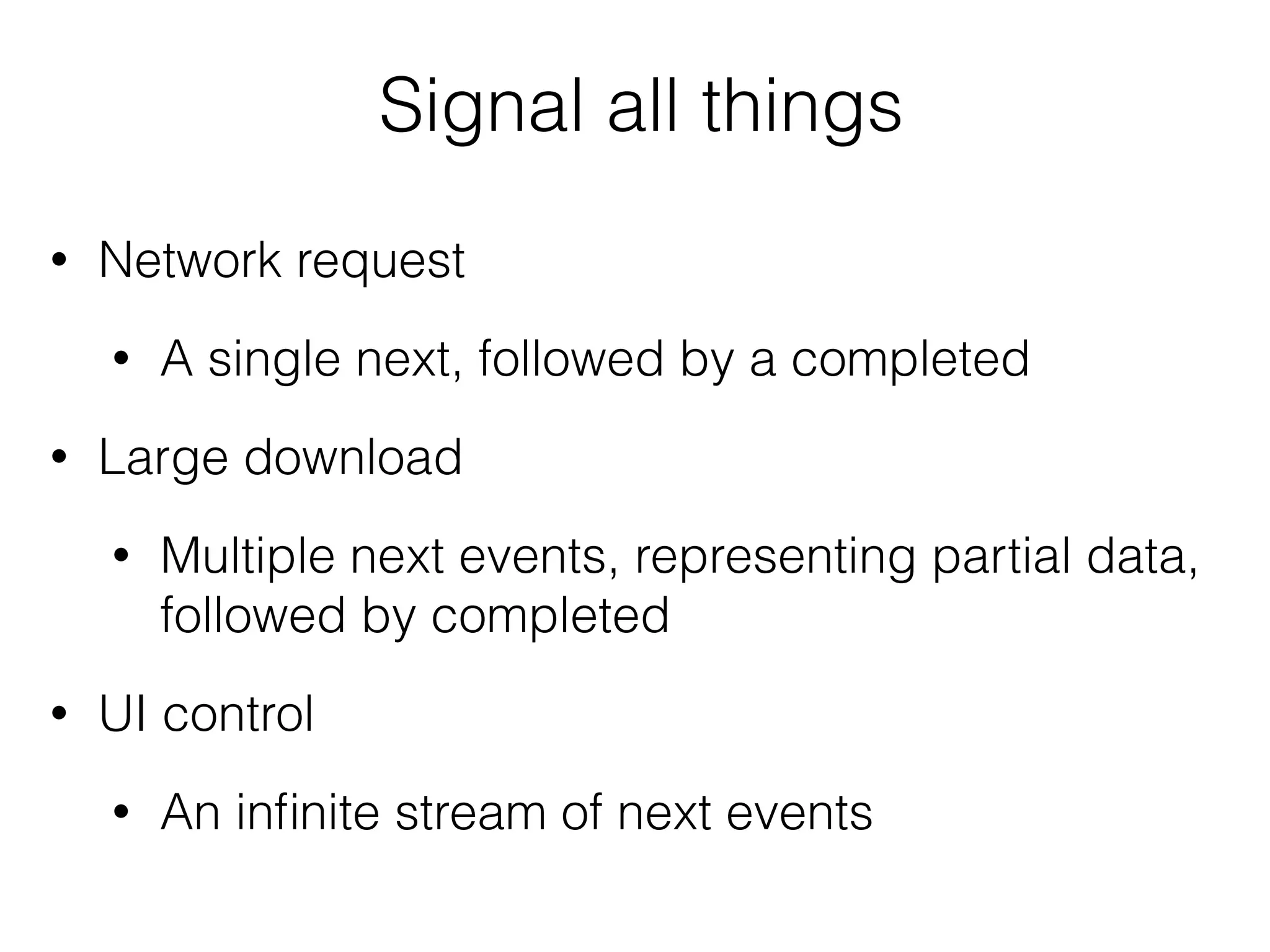

13. Signal all things
• Network request
• A single next, followed by a completed
• Large download
• Multiple next events, representing partial data,
followed by completed
• UI control
• An infinite stream of next events

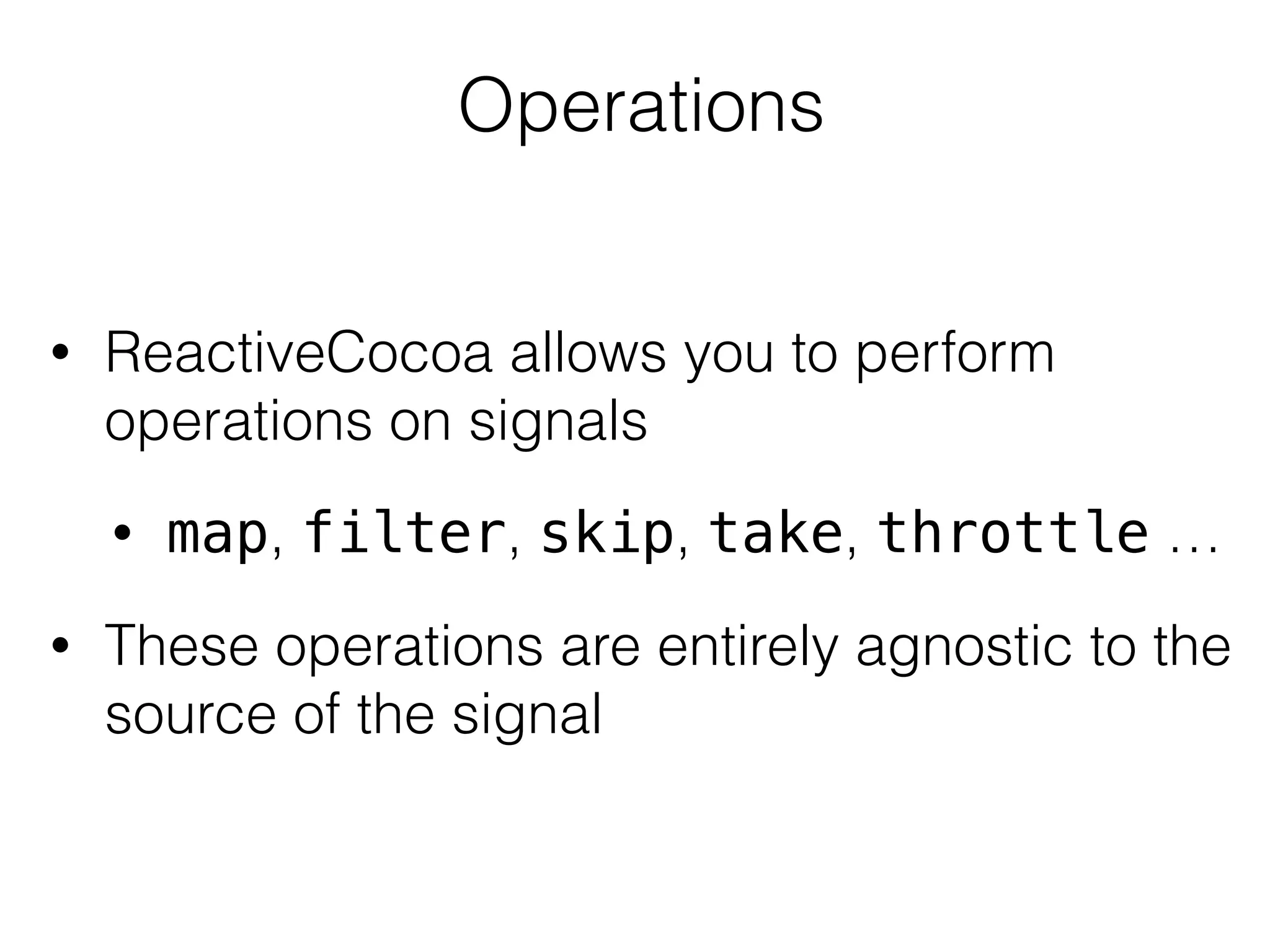

14. Operations
• ReactiveCocoa allows you to perform
operations on signals
• map, filter, skip, take, throttle …
• These operations are entirely agnostic to the
source of the signal

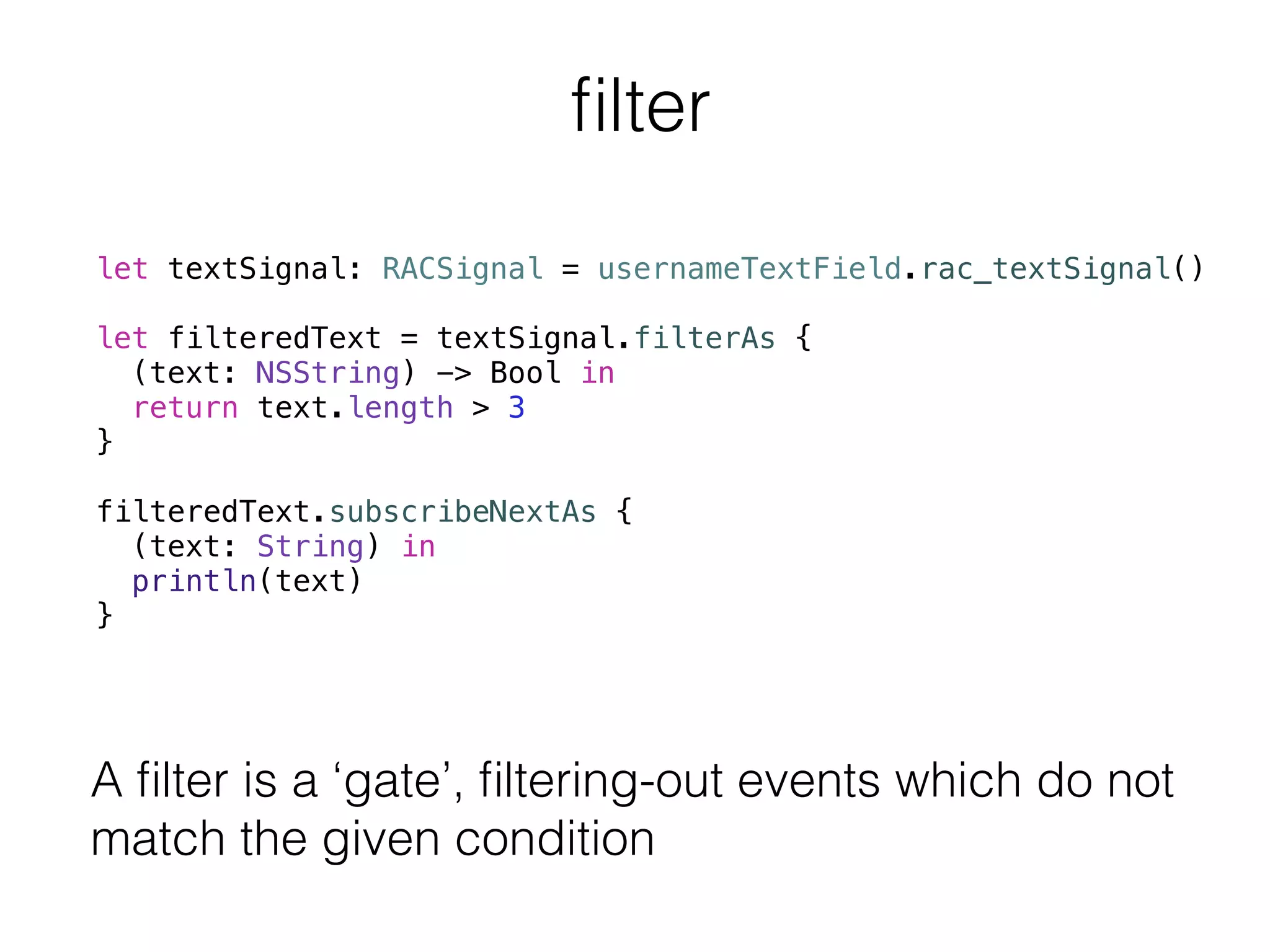

15. filter
let textSignal: RACSignal = usernameTextField.rac_textSignal()
!
let filteredText = textSignal.filterAs {
(text: NSString) -> Bool in
return text.length > 3
}
!
filteredText.subscribeNextAs {
(text: String) in
println(text)
}
A filter is a ‘gate’, filtering-out events which do not
match the given condition

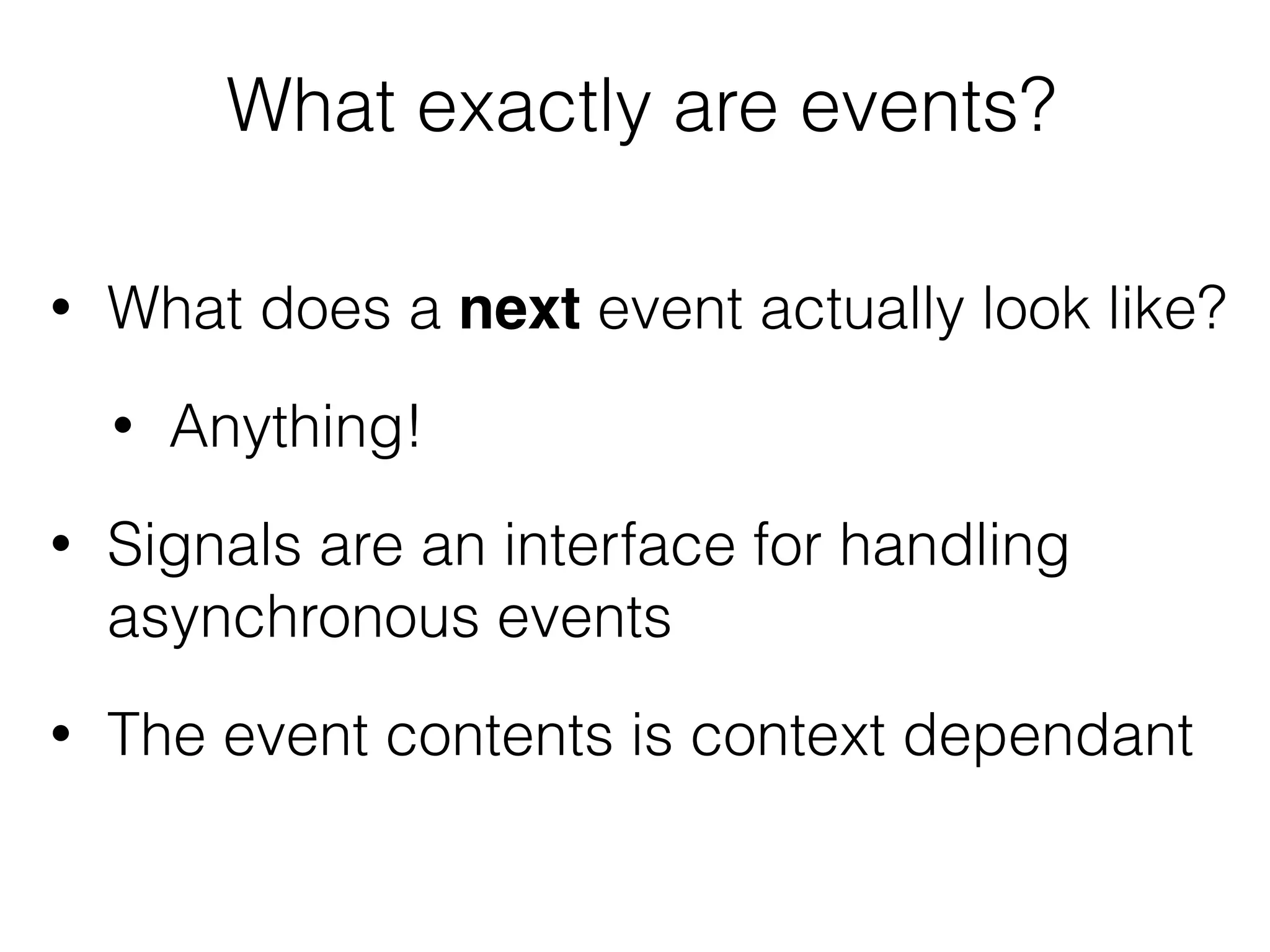

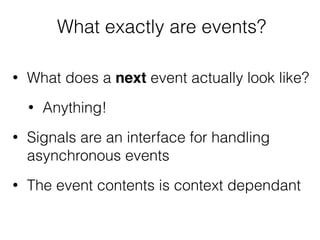

16. What exactly are events?
• What does a next event actually look like?
• Anything!
• Signals are an interface for handling
asynchronous events
• The event contents is context dependant

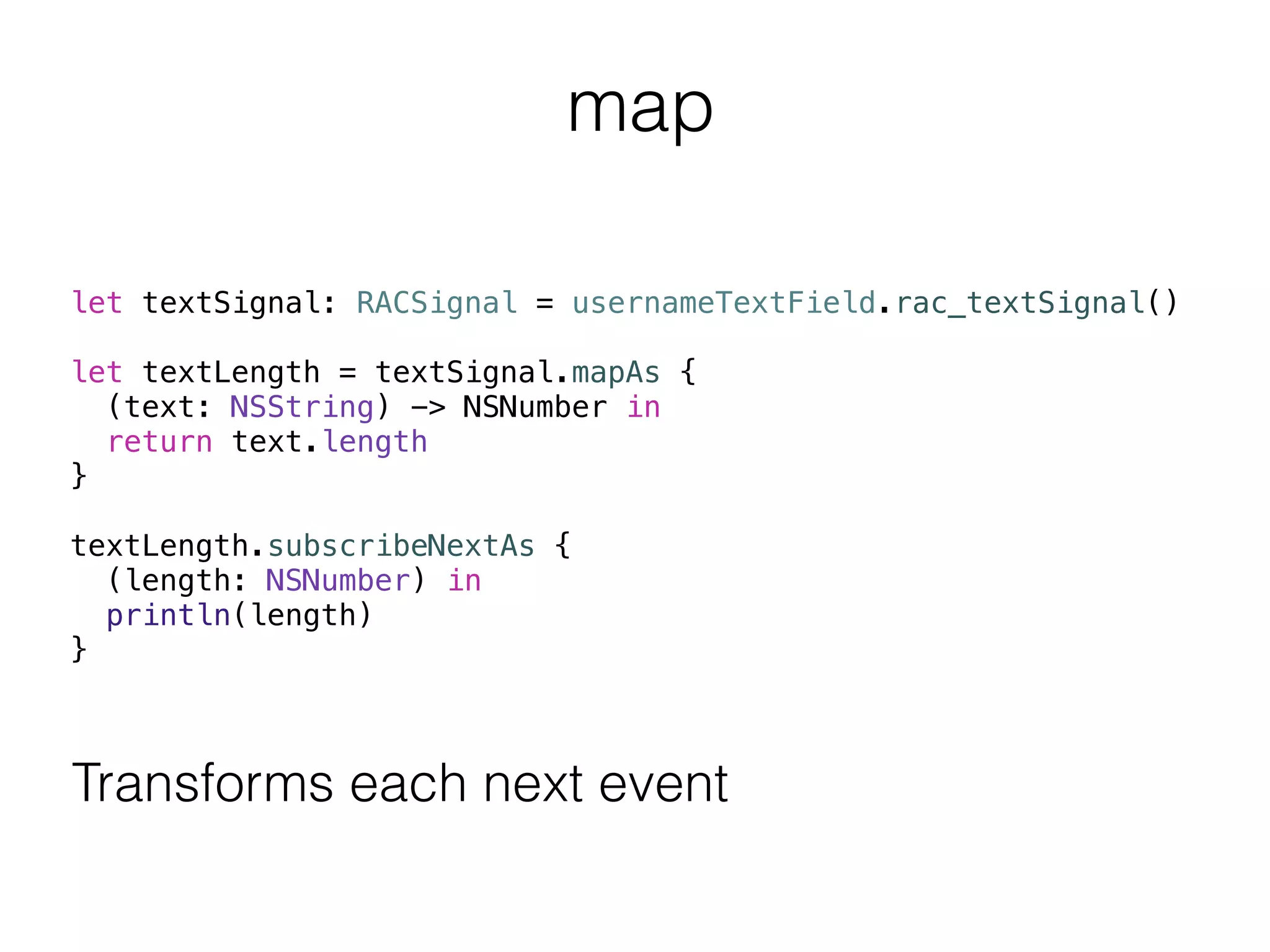

17. map
let textSignal: RACSignal = usernameTextField.rac_textSignal()
!
let textLength = textSignal.mapAs {
(text: NSString) -> NSNumber in
return text.length
}
!
textLength.subscribeNextAs {
(length: NSNumber) in
println(length)
}
Transforms each next event

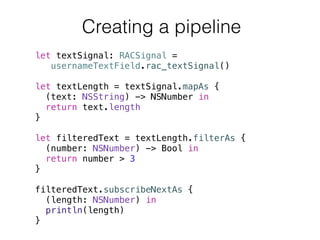

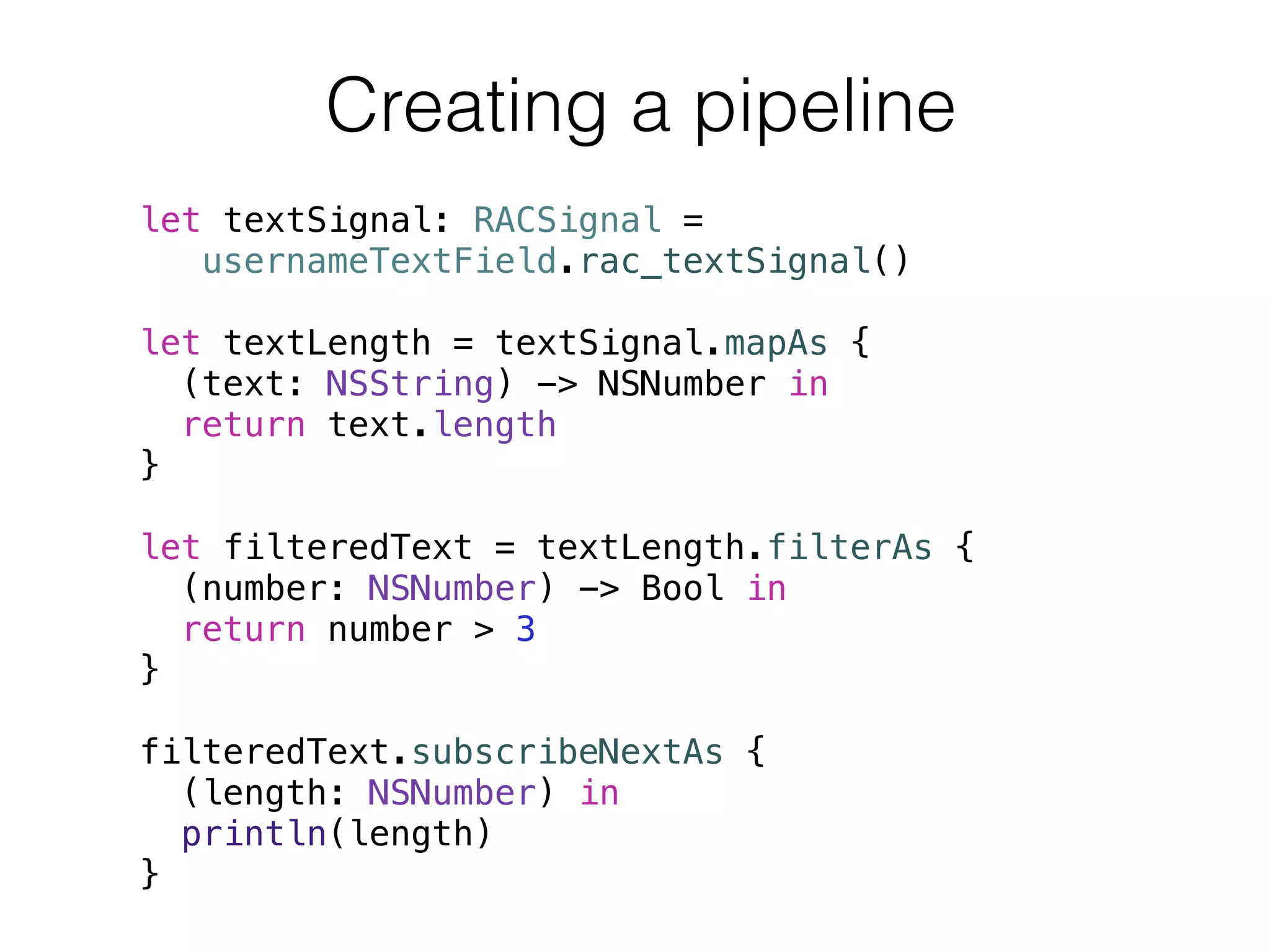

18. Creating a pipeline
let textSignal: RACSignal =
usernameTextField.rac_textSignal()
!
let textLength = textSignal.mapAs {
(text: NSString) -> NSNumber in
return text.length
}
!
let filteredText = textLength.filterAs {
(number: NSNumber) -> Bool in
return number > 3
}
!
filteredText.subscribeNextAs {
(length: NSNumber) in
println(length)
}

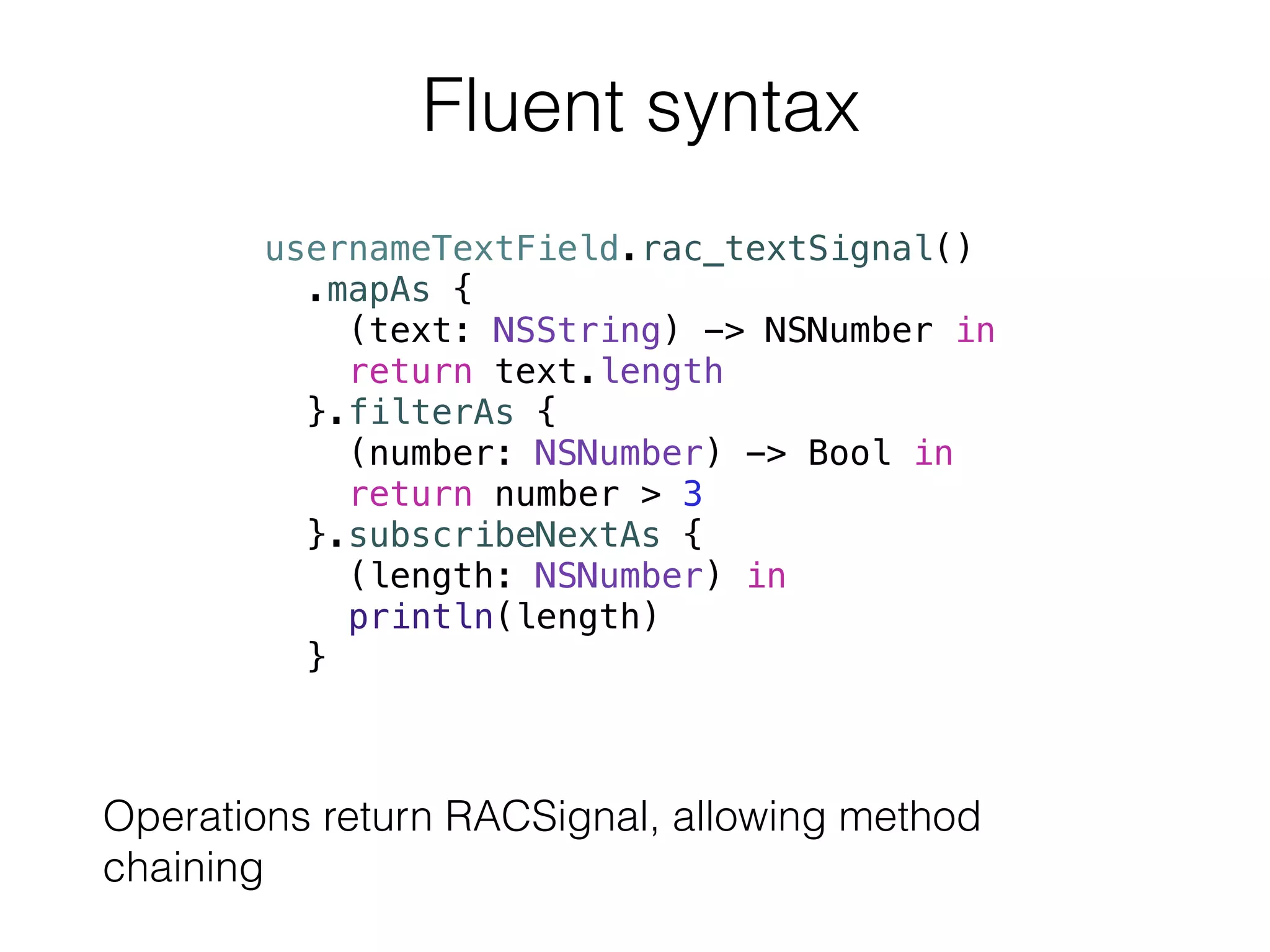

19. Fluent syntax
usernameTextField.rac_textSignal()
.mapAs {
(text: NSString) -> NSNumber in
return text.length
}.filterAs {
(number: NSNumber) -> Bool in
return number > 3
}.subscribeNextAs {
(length: NSNumber) in
println(length)
}
Operations return RACSignal, allowing method
chaining

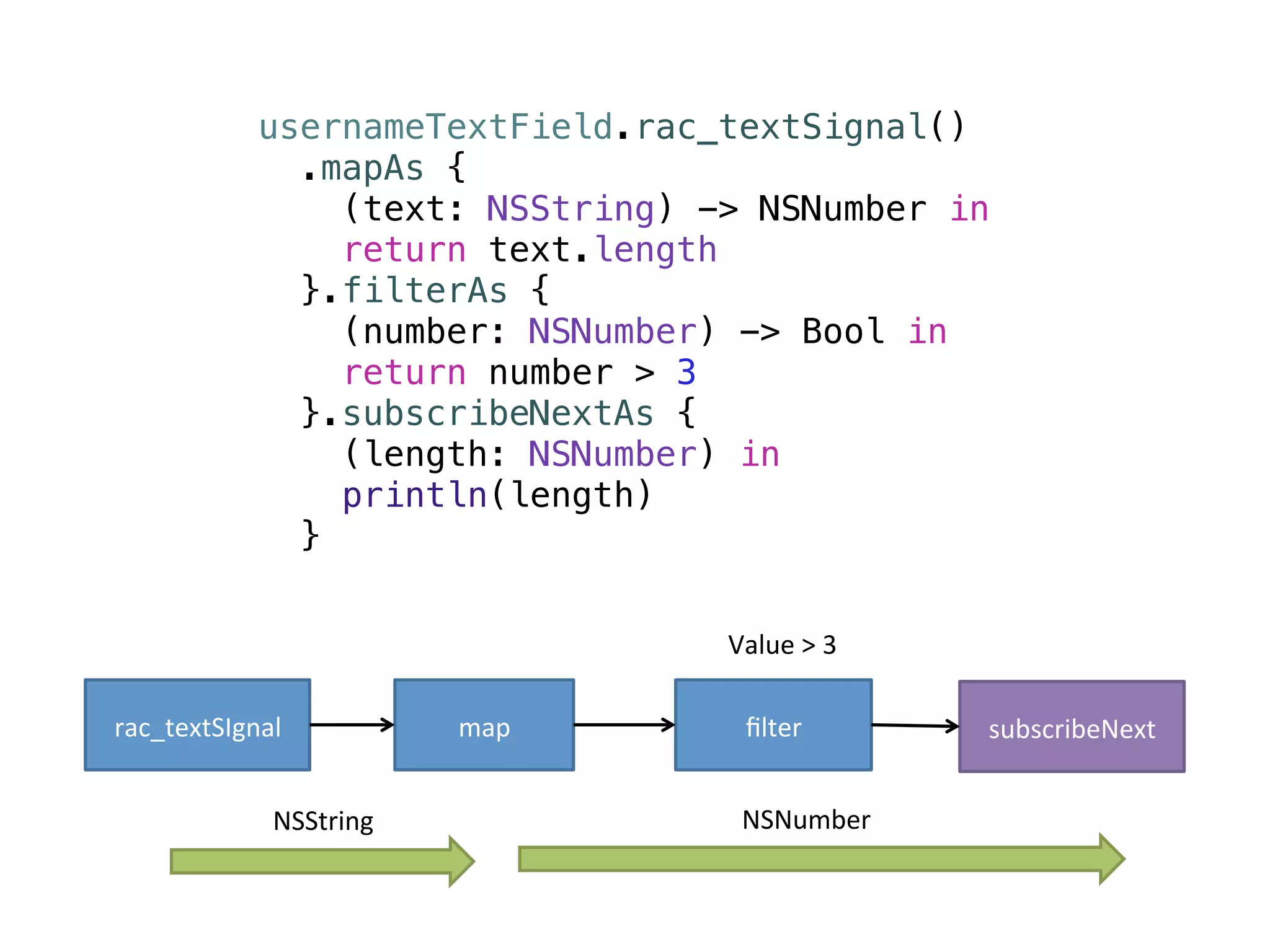

20. rac_textSignal()
.mapAs {
(text: NSString) -> NSNumber in
return text.length
}.filterAs {
(number: NSNumber) -> Bool in
return number > 3
}.subscribeNextAs {
(length: NSNumber) in
println(length)
}
Value->-3-
rac_textSIgnal- map-
filter- subscribeNext-
NSString- NSNumber-usernameTextField.

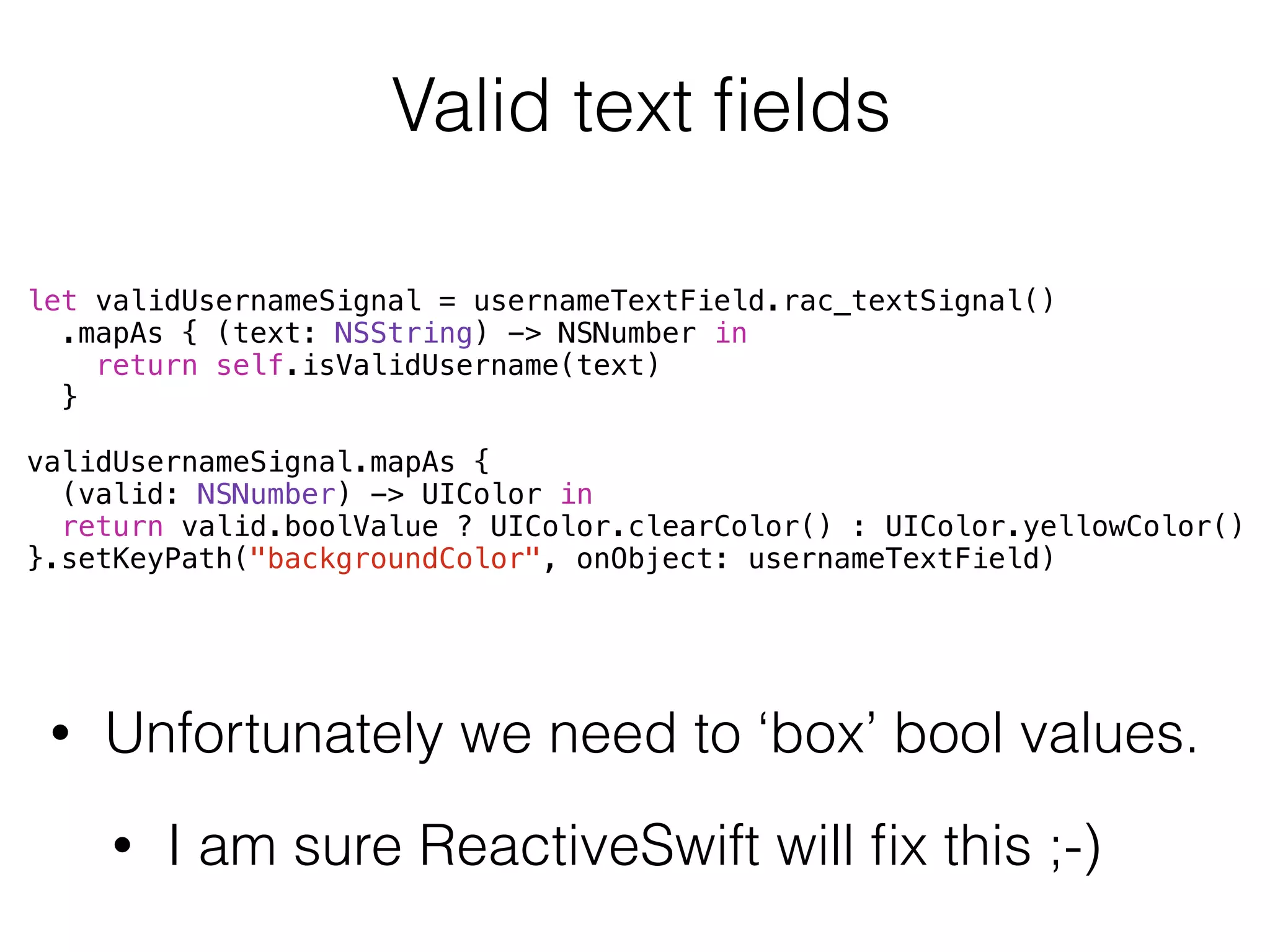

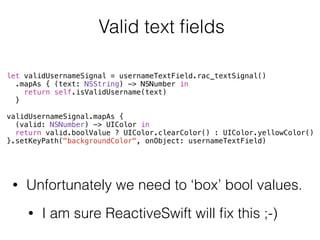

21. Valid text fields
let validUsernameSignal = usernameTextField.rac_textSignal()
.mapAs { (text: NSString) -> NSNumber in
return self.isValidUsername(text)
}
!
validUsernameSignal.mapAs {
(valid: NSNumber) -> UIColor in
return valid.boolValue ? UIColor.clearColor() : UIColor.yellowColor()
}.setKeyPath("backgroundColor", onObject: usernameTextField)
• Unfortunately we need to ‘box’ bool values.
• I am sure ReactiveSwift will fix this ;-)

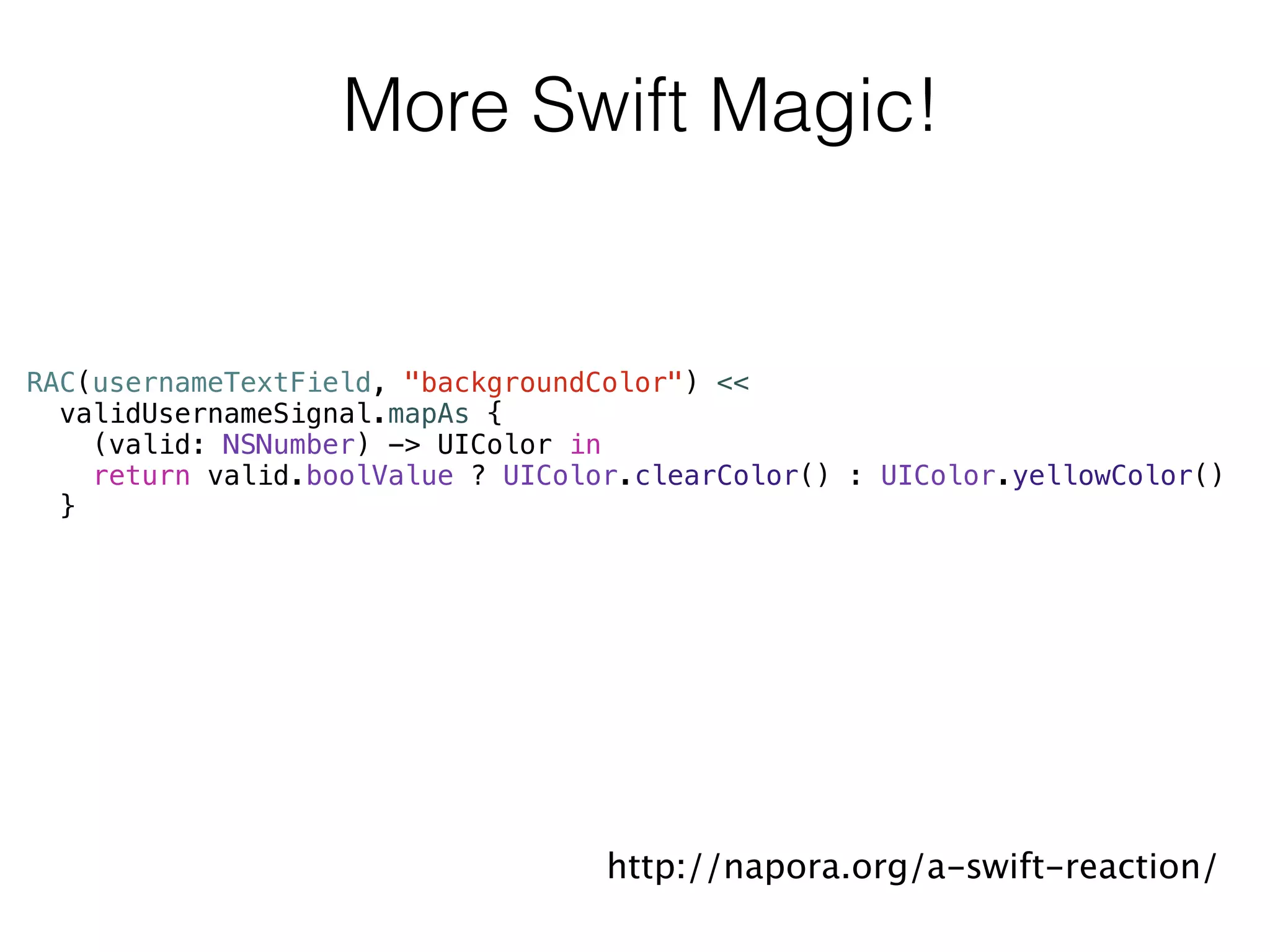

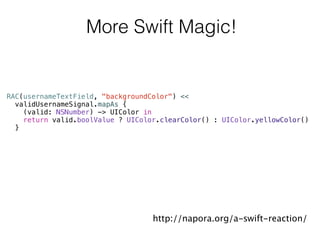

22. More Swift Magic!
!!
RAC(usernameTextField, "backgroundColor") <<
validUsernameSignal.mapAs {
(valid: NSNumber) -> UIColor in
return valid.boolValue ? UIColor.clearColor() : UIColor.yellowColor()
}
http://napora.org/a-swift-reaction/

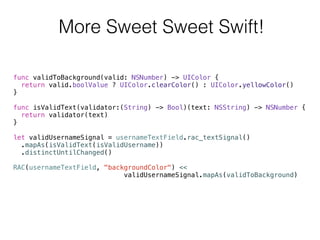

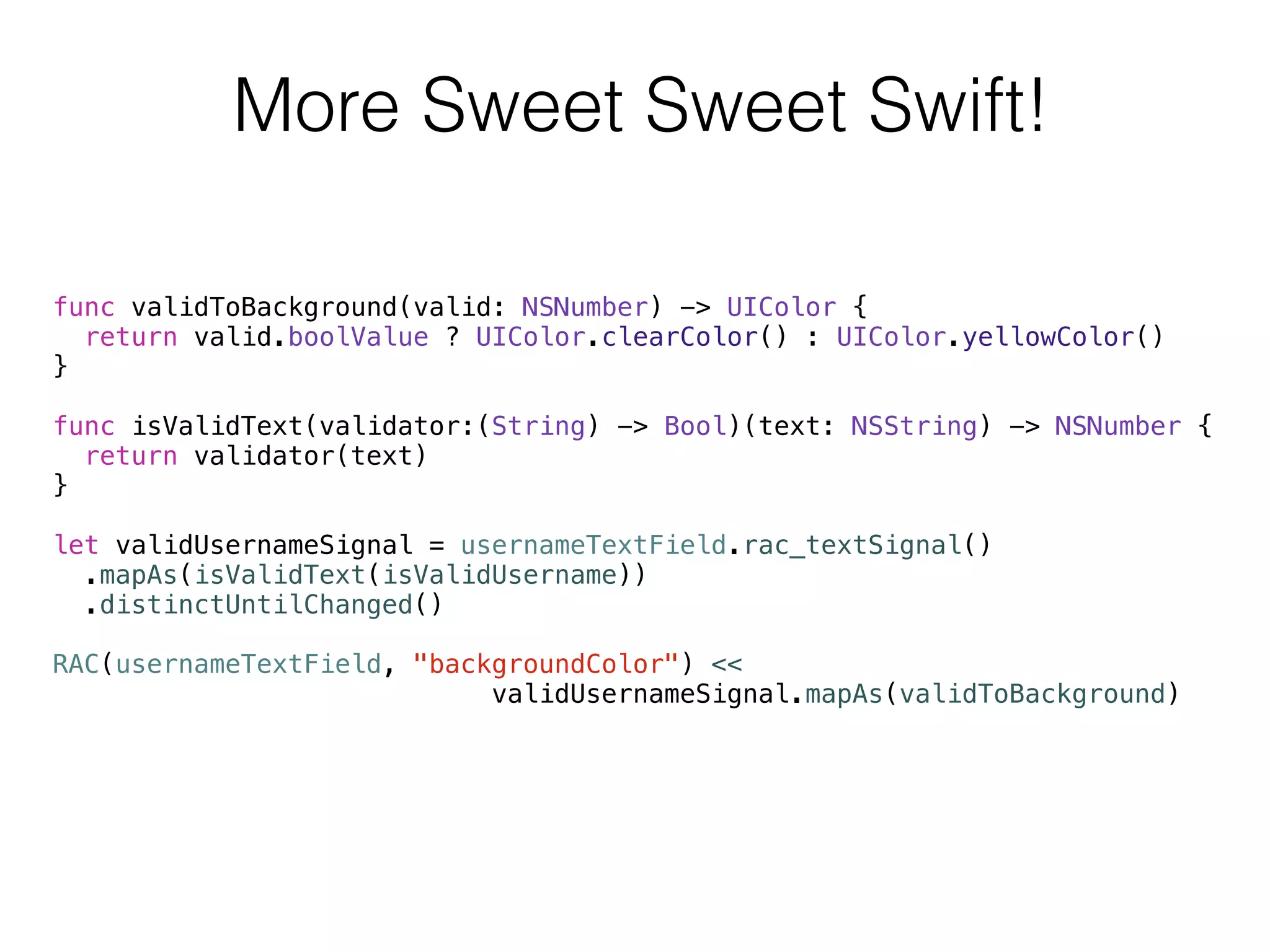

23. More Sweet Sweet Swift!
func validToBackground(valid: NSNumber) -> UIColor {
return valid.boolValue ? UIColor.clearColor() : UIColor.yellowColor()
}
!
func isValidText(validator:(String) -> Bool)(text: NSString) -> NSNumber {
return validator(text)
}
!
let validUsernameSignal = usernameTextField.rac_textSignal()
.mapAs(isValidText(isValidUsername))
.distinctUntilChanged()
!
RAC(usernameTextField, "backgroundColor") <<
validUsernameSignal.mapAs(validToBackground)

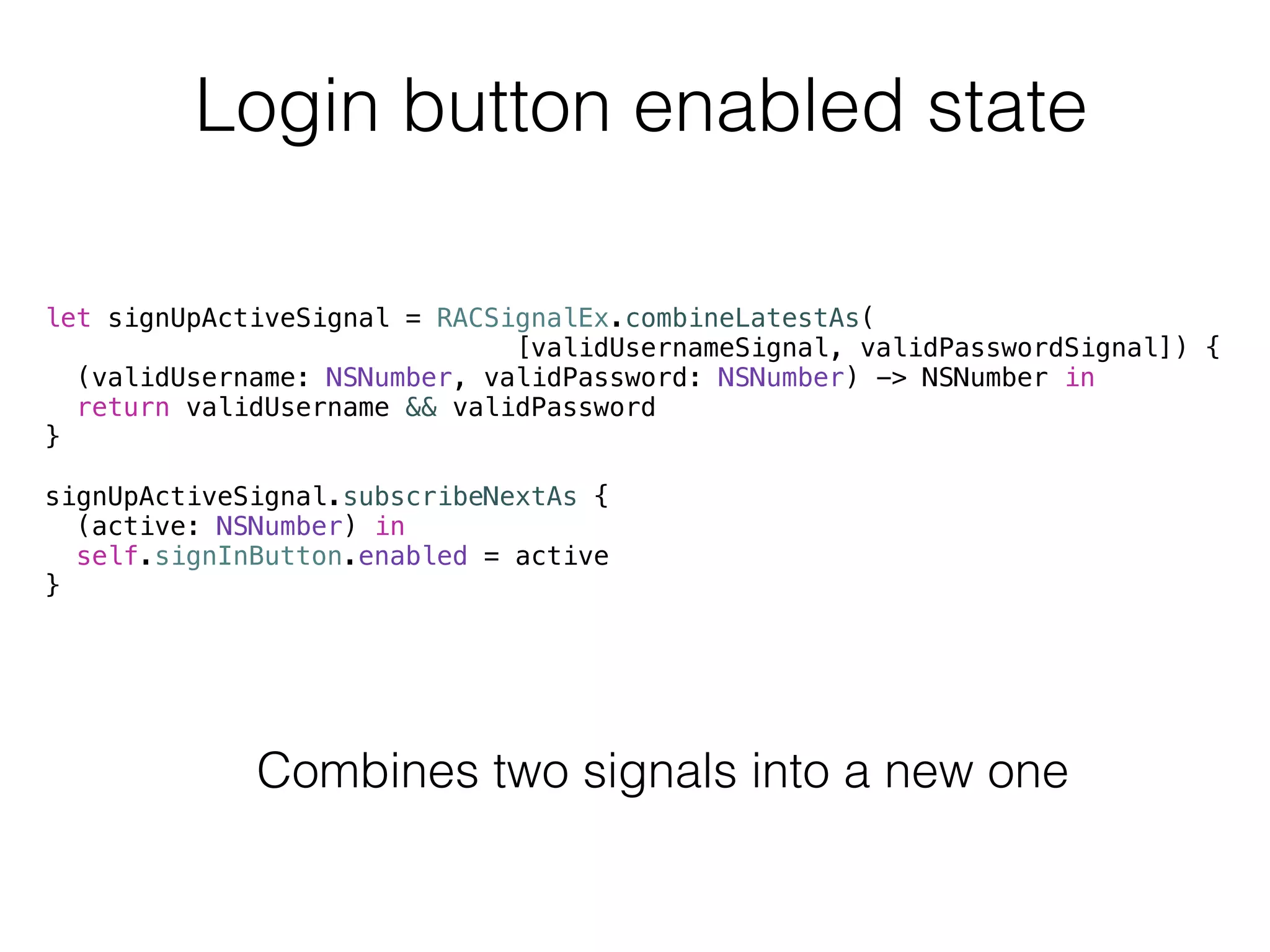

26. Login button enabled state
let signUpActiveSignal = RACSignalEx.combineLatestAs(
[validUsernameSignal, validPasswordSignal]) {
(validUsername: NSNumber, validPassword: NSNumber) -> NSNumber in
return validUsername && validPassword
}
!
signUpActiveSignal.subscribeNextAs {
(active: NSNumber) in
self.signInButton.enabled = active
}
Combines two signals into a new one

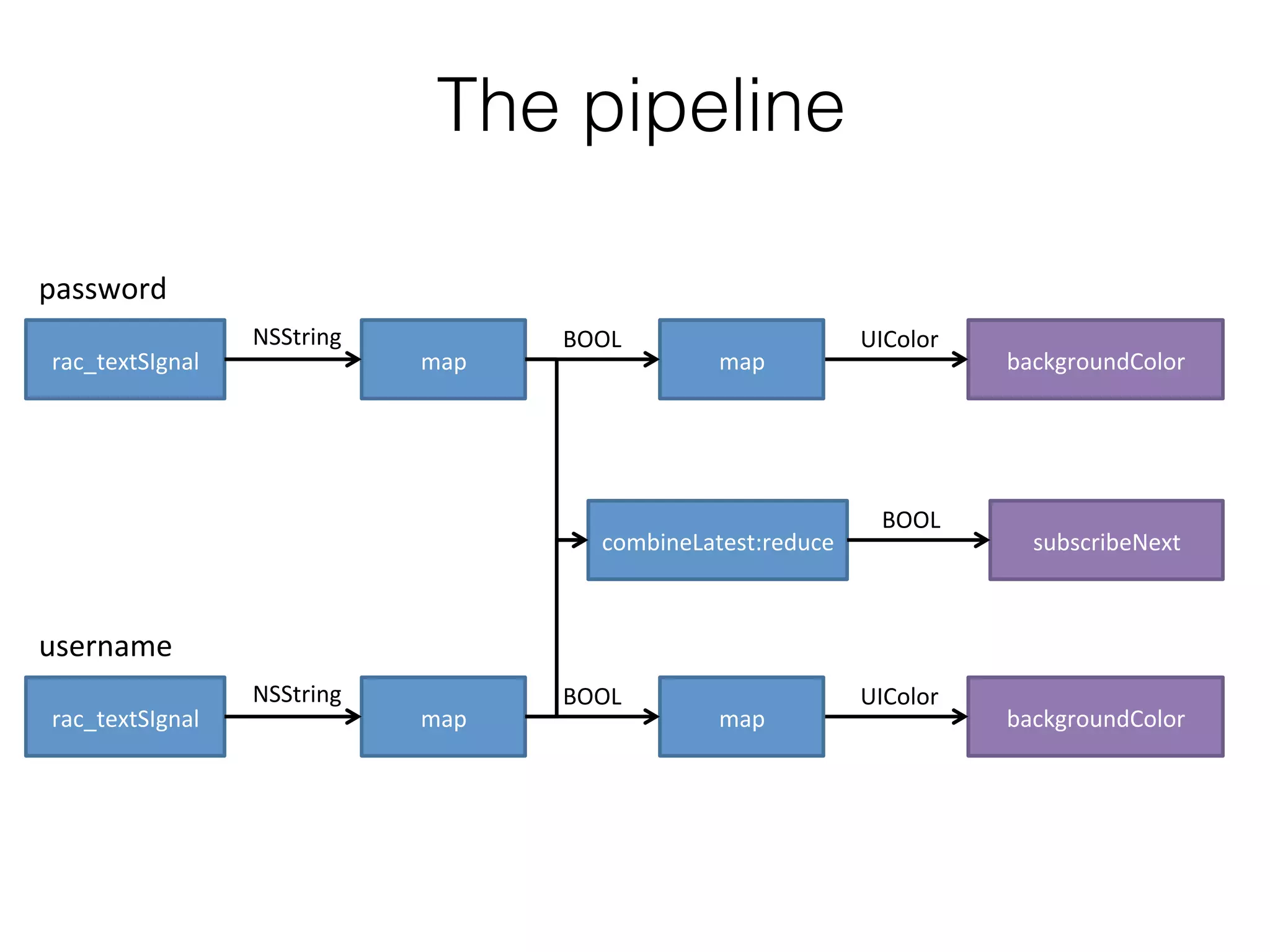

27. The pipeline
NSString- BOOL- UIColor-password-rac_
rac_textSIgnal- map- map- backgroundColor-
BOOL-
reduce- subscribeNext-
NSString- BOOL- UIColor-username-combineLatest:
textSIgnal- map- map- backgroundColor-

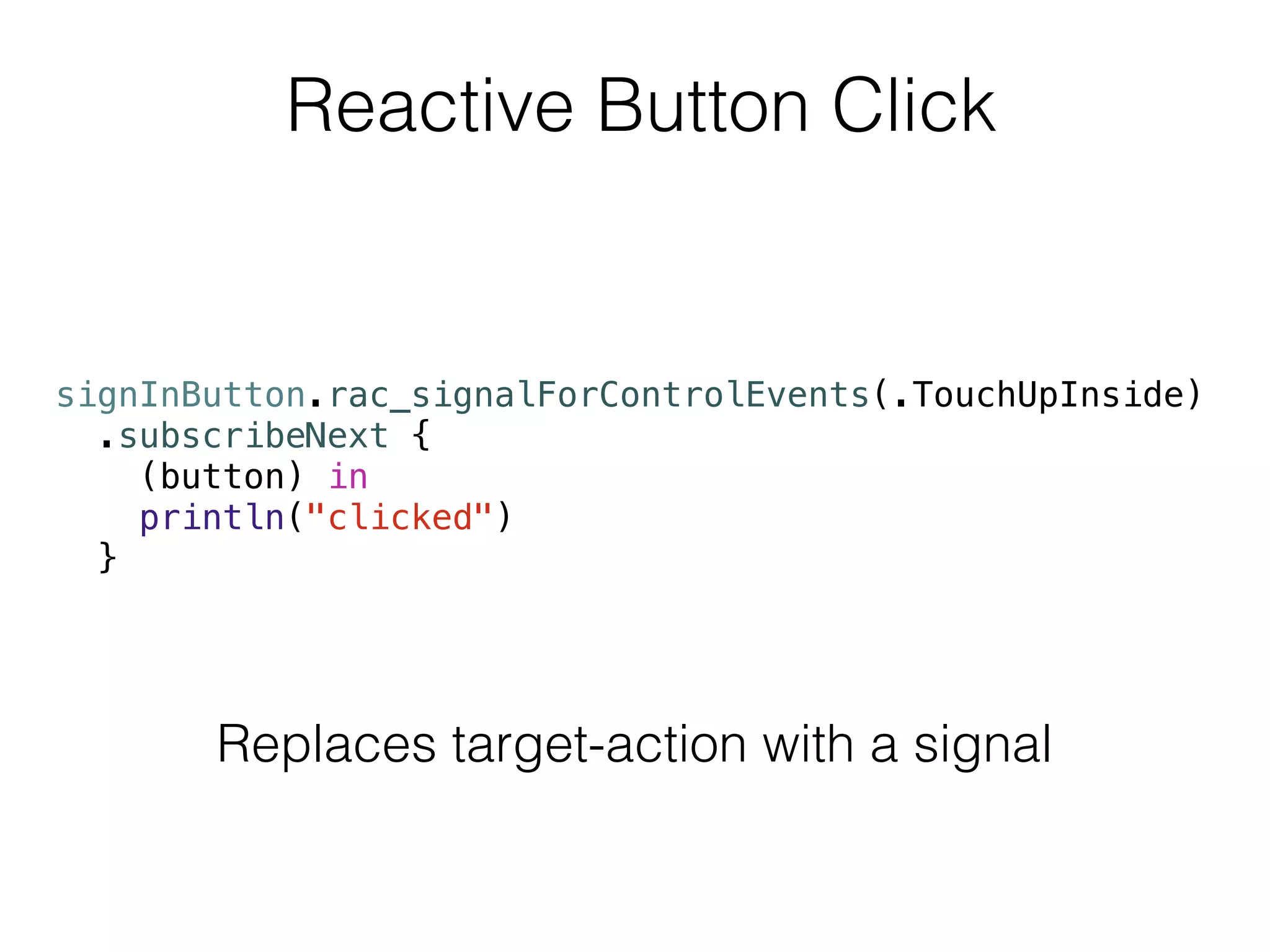

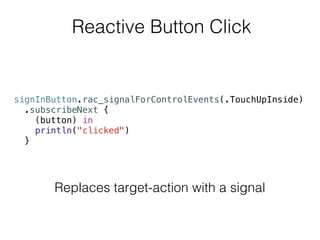

28. Reactive Button Click
signInButton.rac_signalForControlEvents(.TouchUpInside)
.subscribeNext {
(button) in
println("clicked")
}
Replaces target-action with a signal

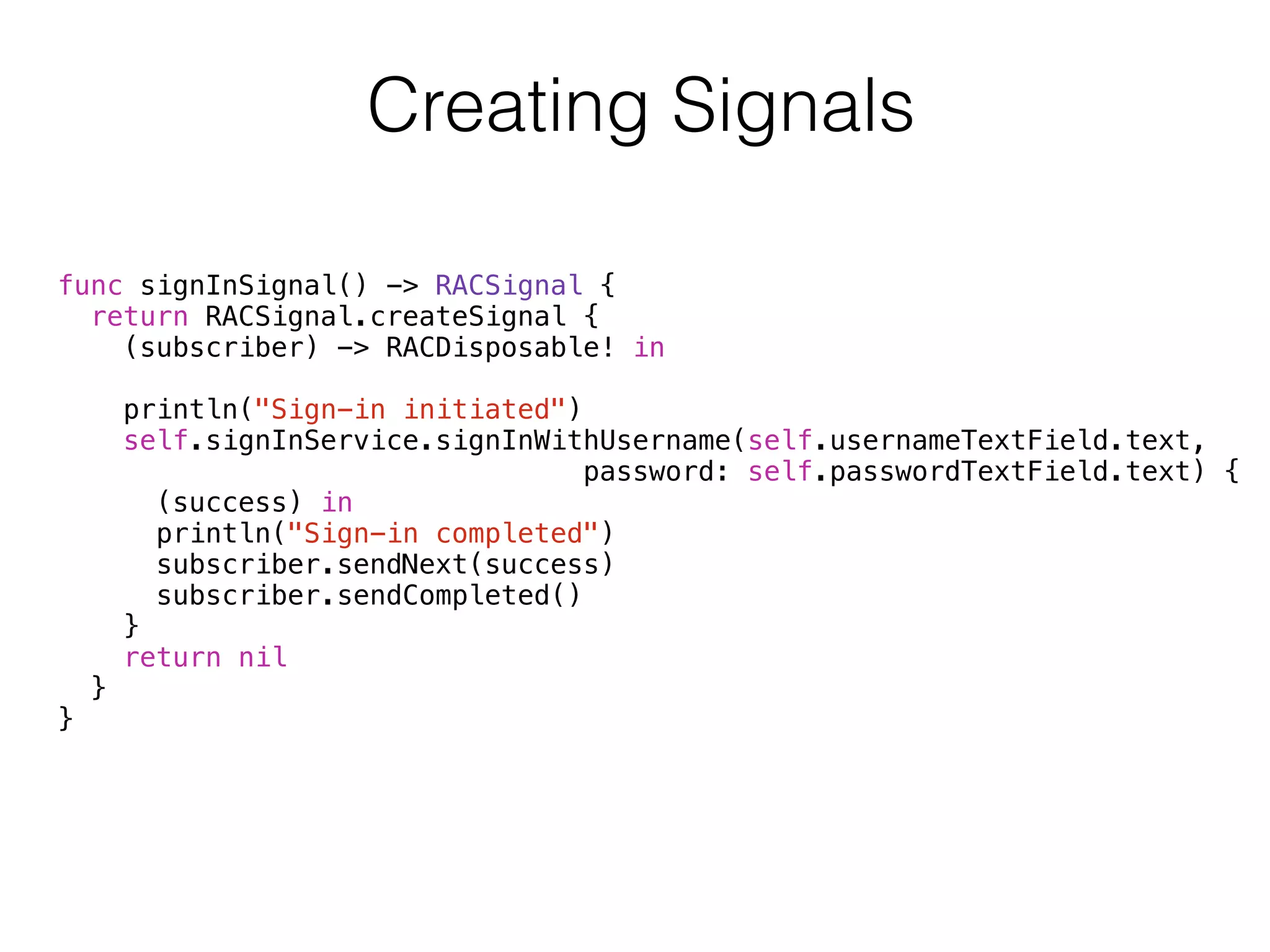

29. Creating Signals
func signInSignal() -> RACSignal {
return RACSignal.createSignal {
(subscriber) -> RACDisposable! in
println("Sign-in initiated")
self.signInService.signInWithUsername(self.usernameTextField.text,
password: self.passwordTextField.text) {
(success) in
println("Sign-in completed")
subscriber.sendNext(success)
subscriber.sendCompleted()
}
return nil
}
}

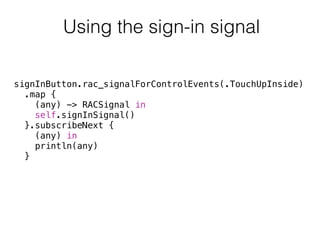

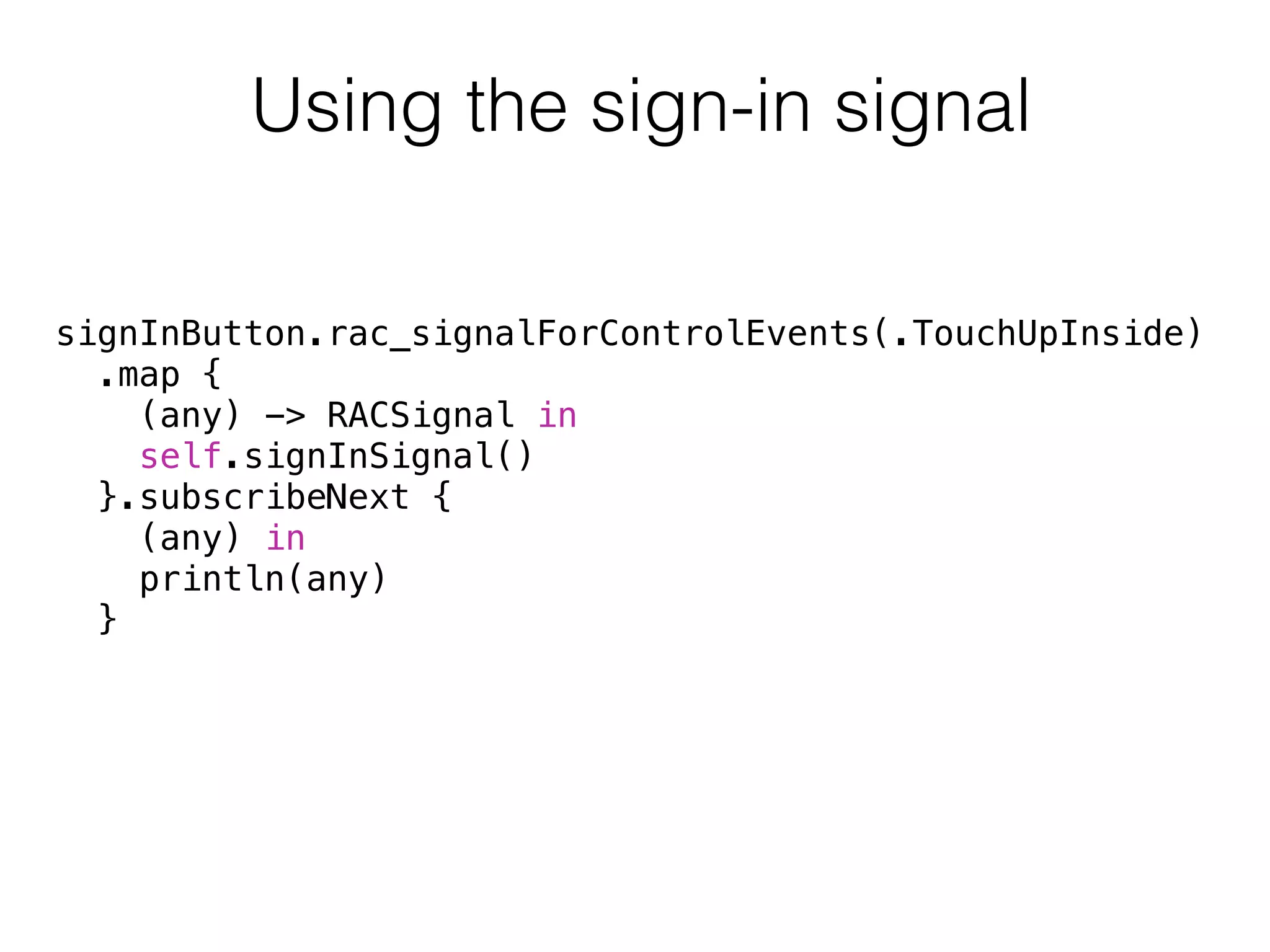

30. Using the sign-in signal
signInButton.rac_signalForControlEvents(.TouchUpInside)
.map {
(any) -> RACSignal in
self.signInSignal()
}.subscribeNext {
(any) in
println(any)
}

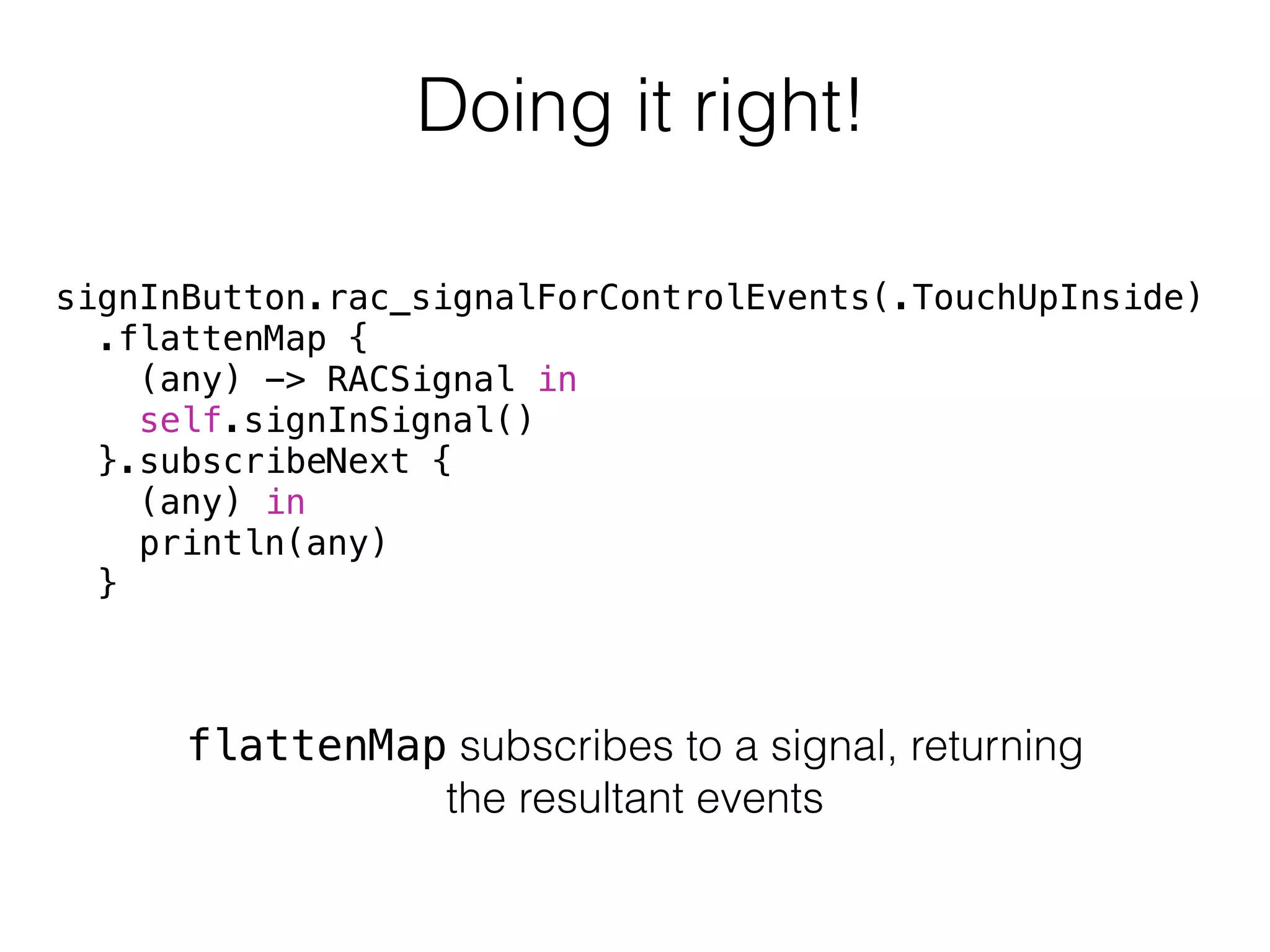

31. Doing it right!
signInButton.rac_signalForControlEvents(.TouchUpInside)
.flattenMap {
(any) -> RACSignal in
self.signInSignal()
}.subscribeNext {
(any) in
println(any)
}
flattenMap subscribes to a signal, returning
the resultant events

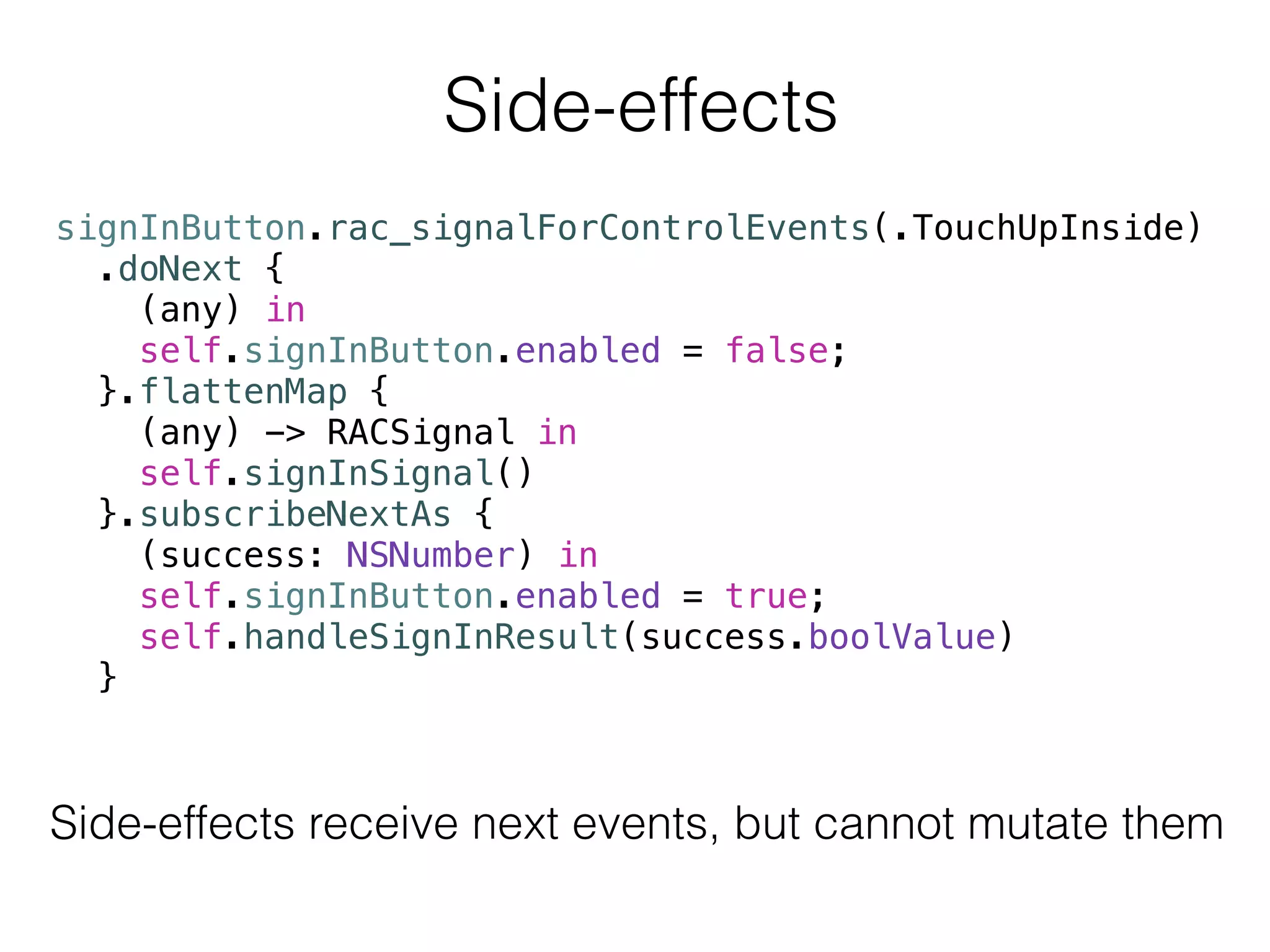

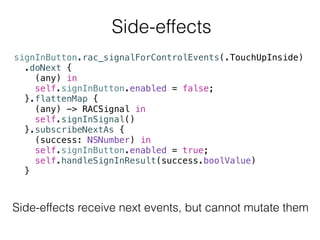

32. Side-effects
signInButton.rac_signalForControlEvents(.TouchUpInside)
.doNext {
(any) in
self.signInButton.enabled = false;
}.flattenMap {
(any) -> RACSignal in
self.signInSignal()
}.subscribeNextAs {
(success: NSNumber) in
self.signInButton.enabled = true;
self.handleSignInResult(success.boolValue)
}
Side-effects receive next events, but cannot mutate them

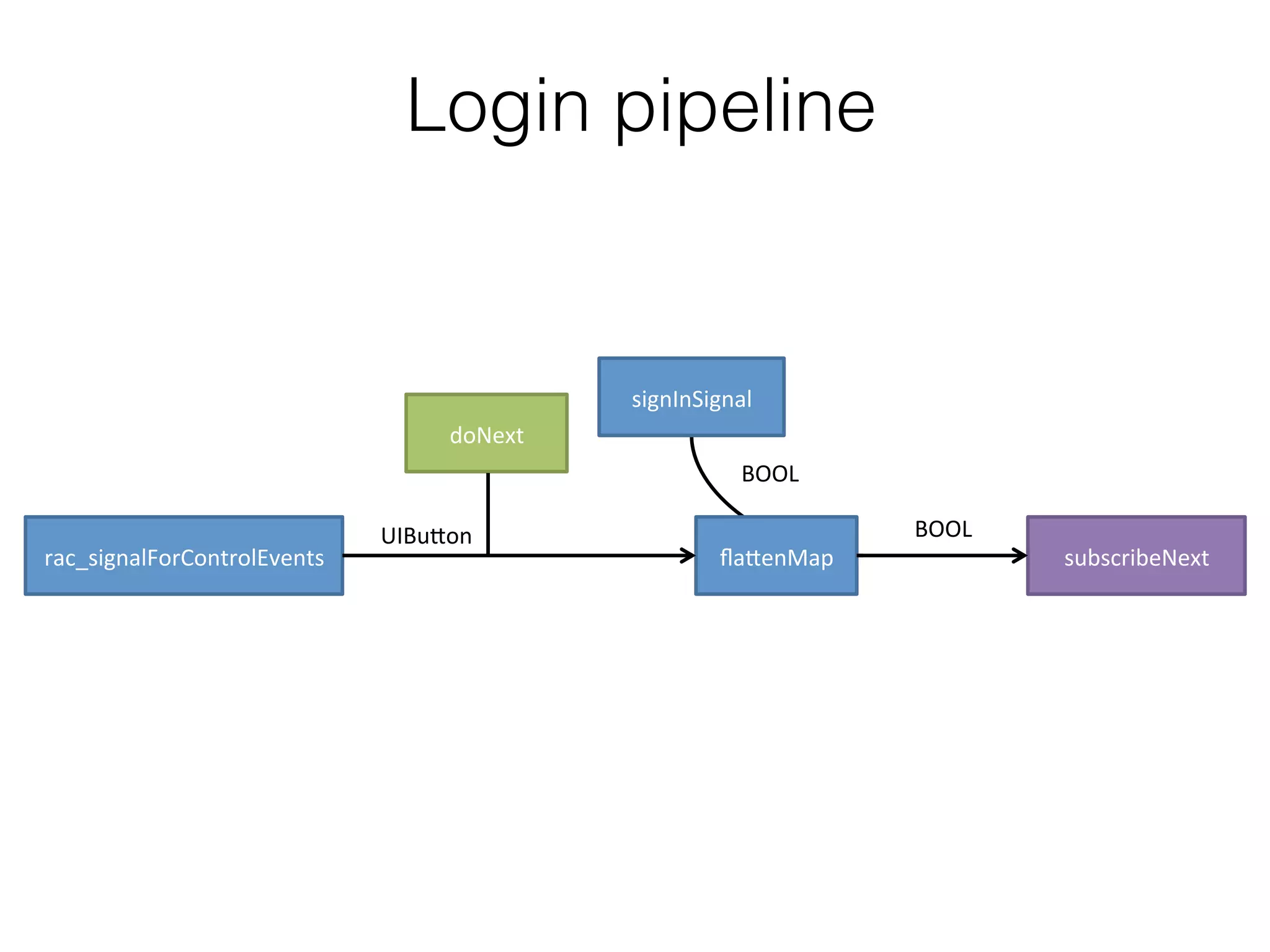

33. Login pipeline
doNext1
signInSignal1
BOOL1
UIBu3on1 BOOL1
rac_signalForControlEvents11 fla3enMap1 subscribeNext1

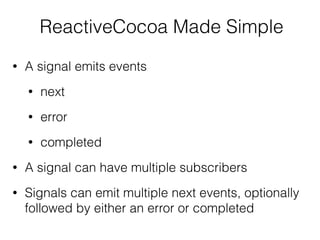

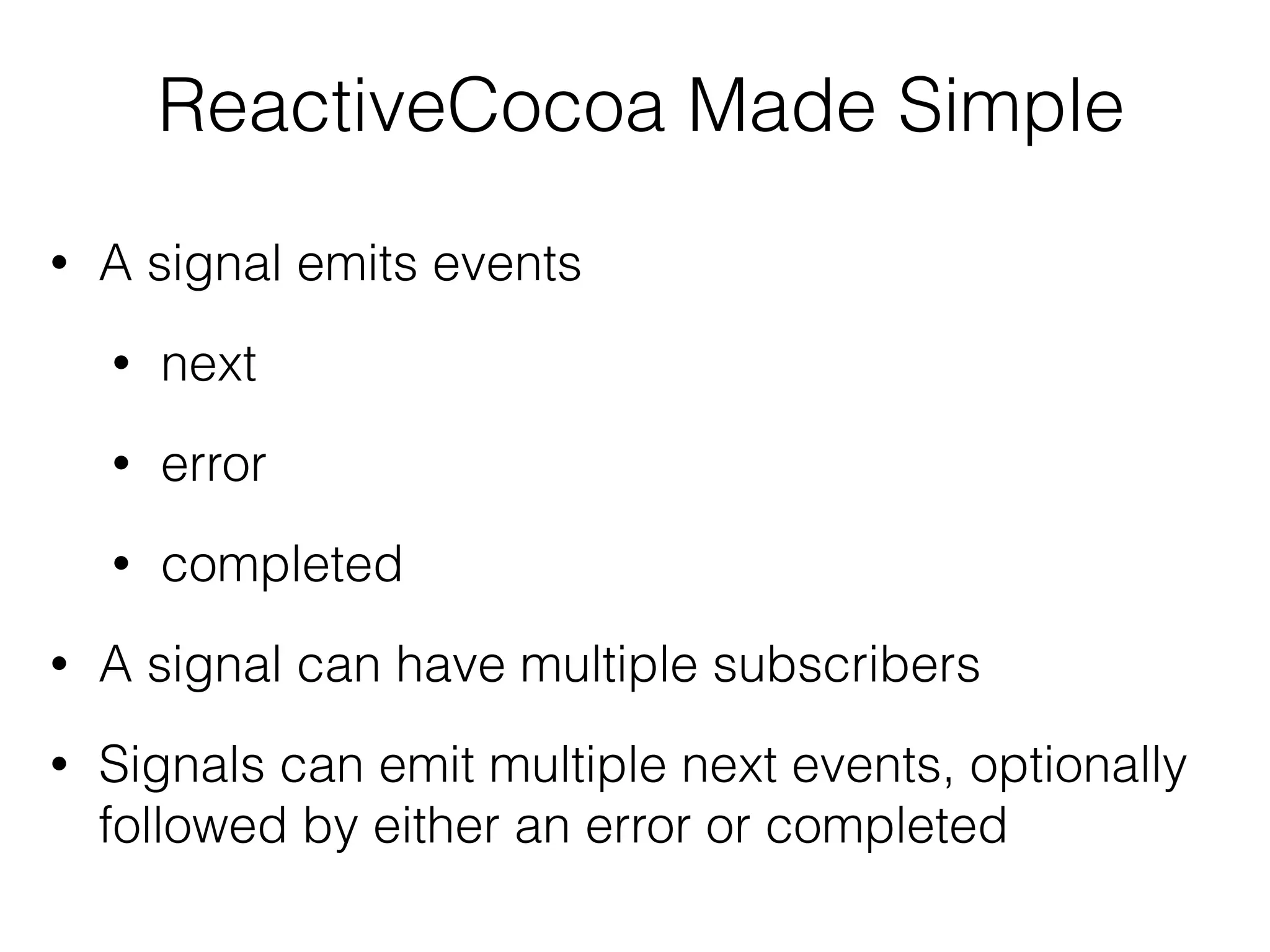

34. ReactiveCocoa Made Simple
• A signal emits events
• next
• error
• completed
• A signal can have multiple subscribers
• Signals can emit multiple next events, optionally
followed by either an error or completed

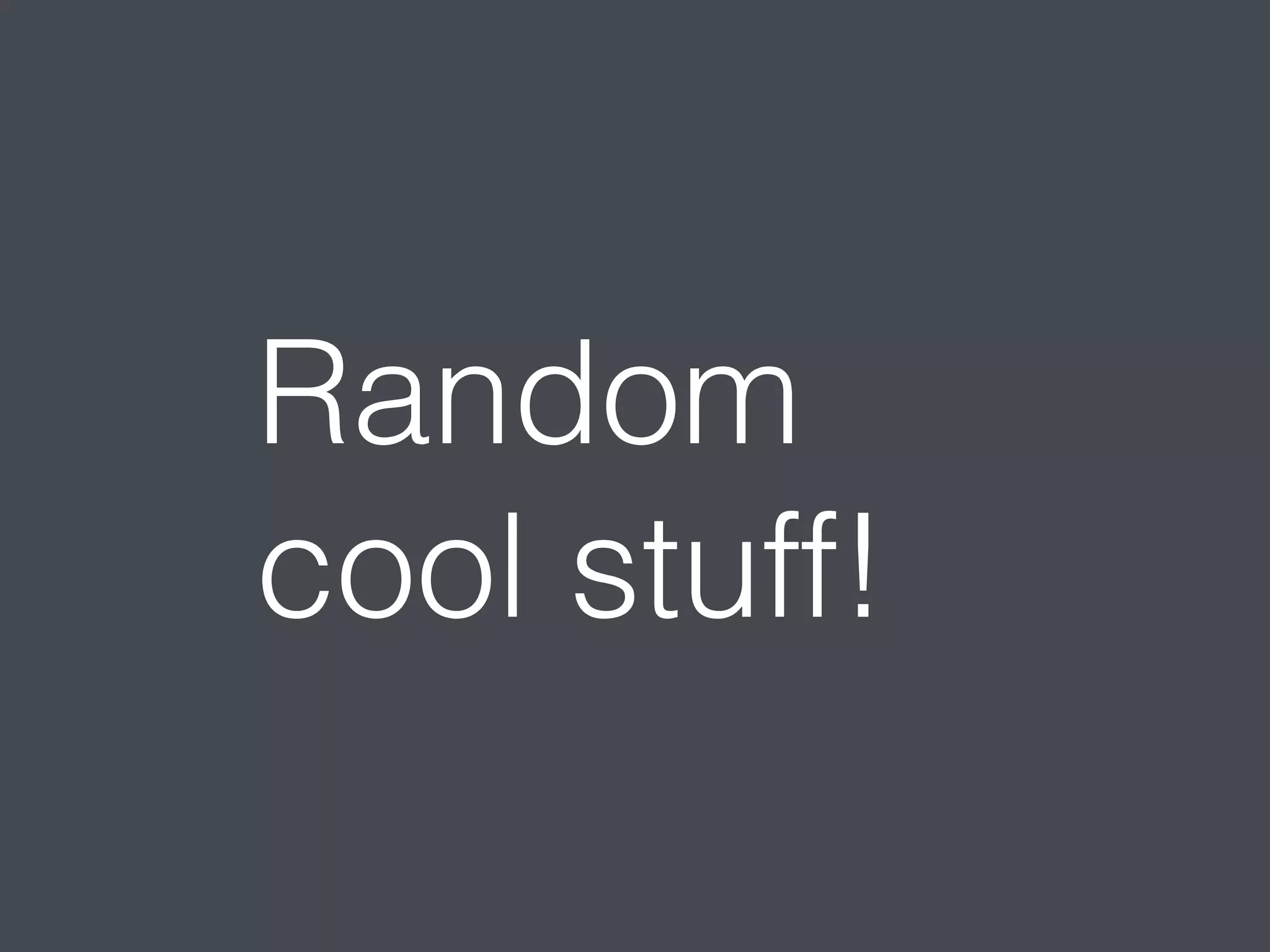

35. Random
cool stuff!

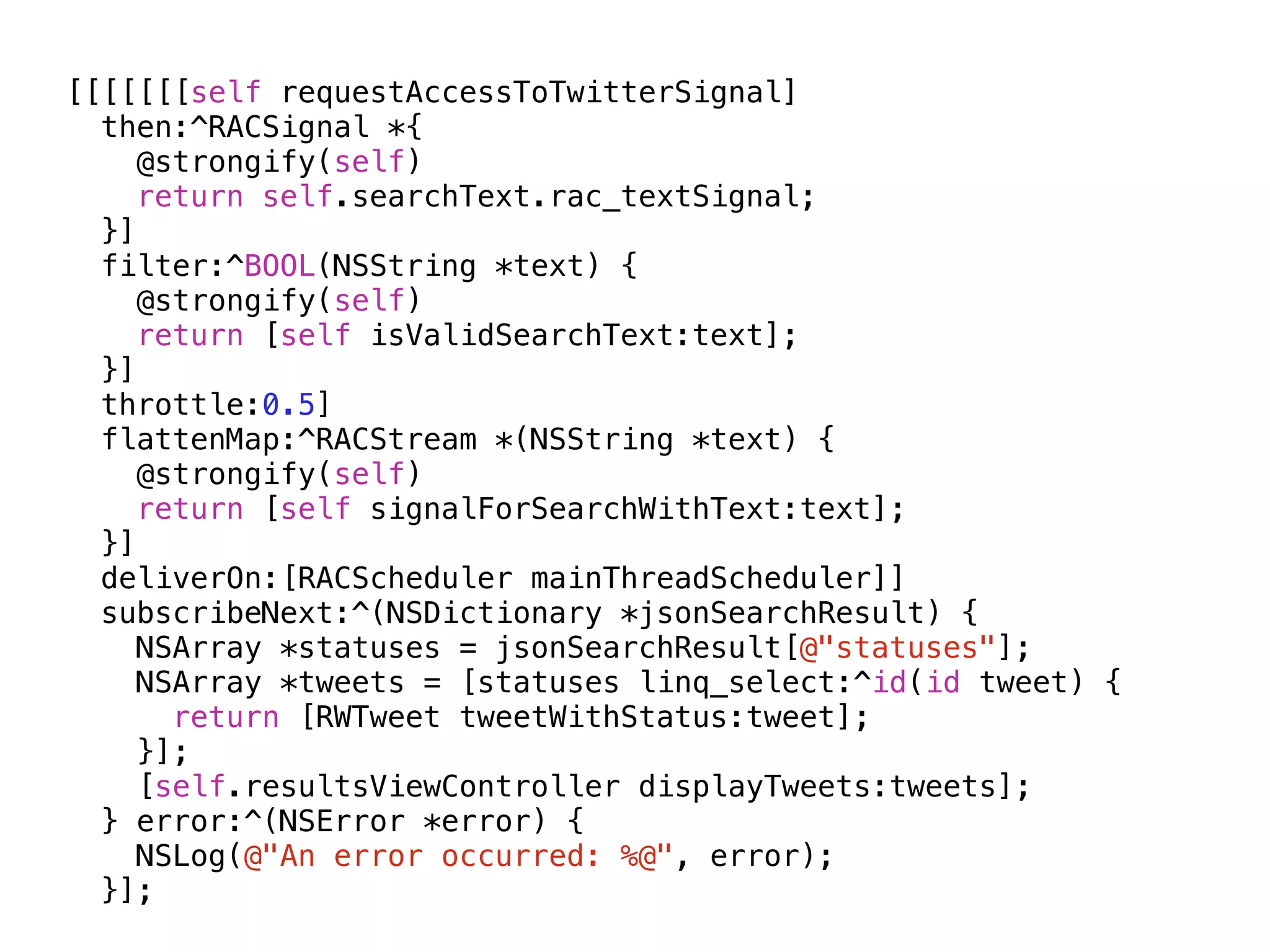

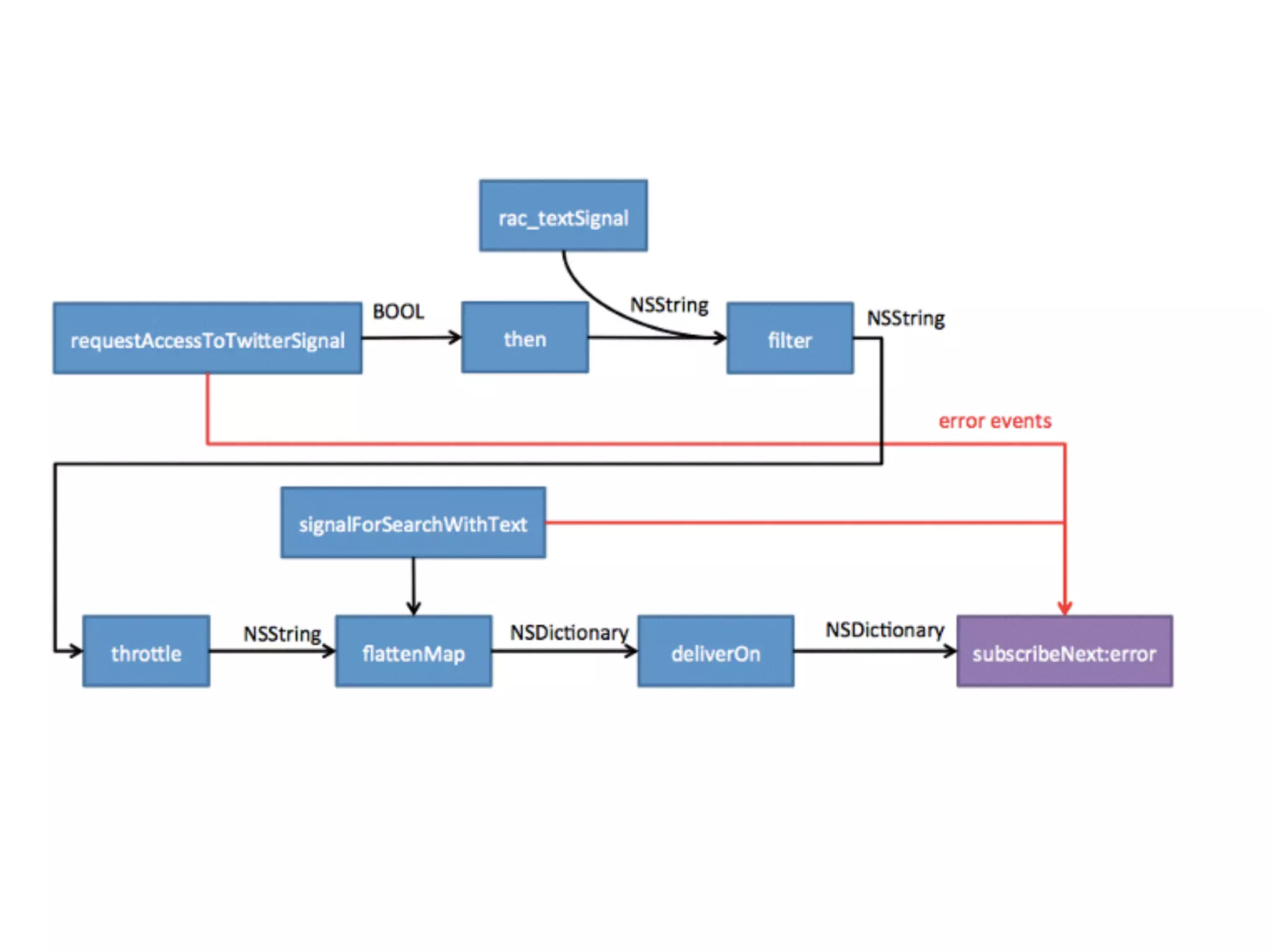

37. [[[[[[[self requestAccessToTwitterSignal]
then:^RACSignal *{
@strongify(self)
return self.searchText.rac_textSignal;
}]
filter:^BOOL(NSString *text) {
@strongify(self)
return [self isValidSearchText:text];
}]
throttle:0.5]
flattenMap:^RACStream *(NSString *text) {
@strongify(self)
return [self signalForSearchWithText:text];
}]
deliverOn:[RACScheduler mainThreadScheduler]]
subscribeNext:^(NSDictionary *jsonSearchResult) {
NSArray *statuses = jsonSearchResult[@"statuses"];
NSArray *tweets = [statuses linq_select:^id(id tweet) {
return [RWTweet tweetWithStatus:tweet];
}];
[self.resultsViewController displayTweets:tweets];
} error:^(NSError *error) {
NSLog(@"An error occurred: %@", error);
}];

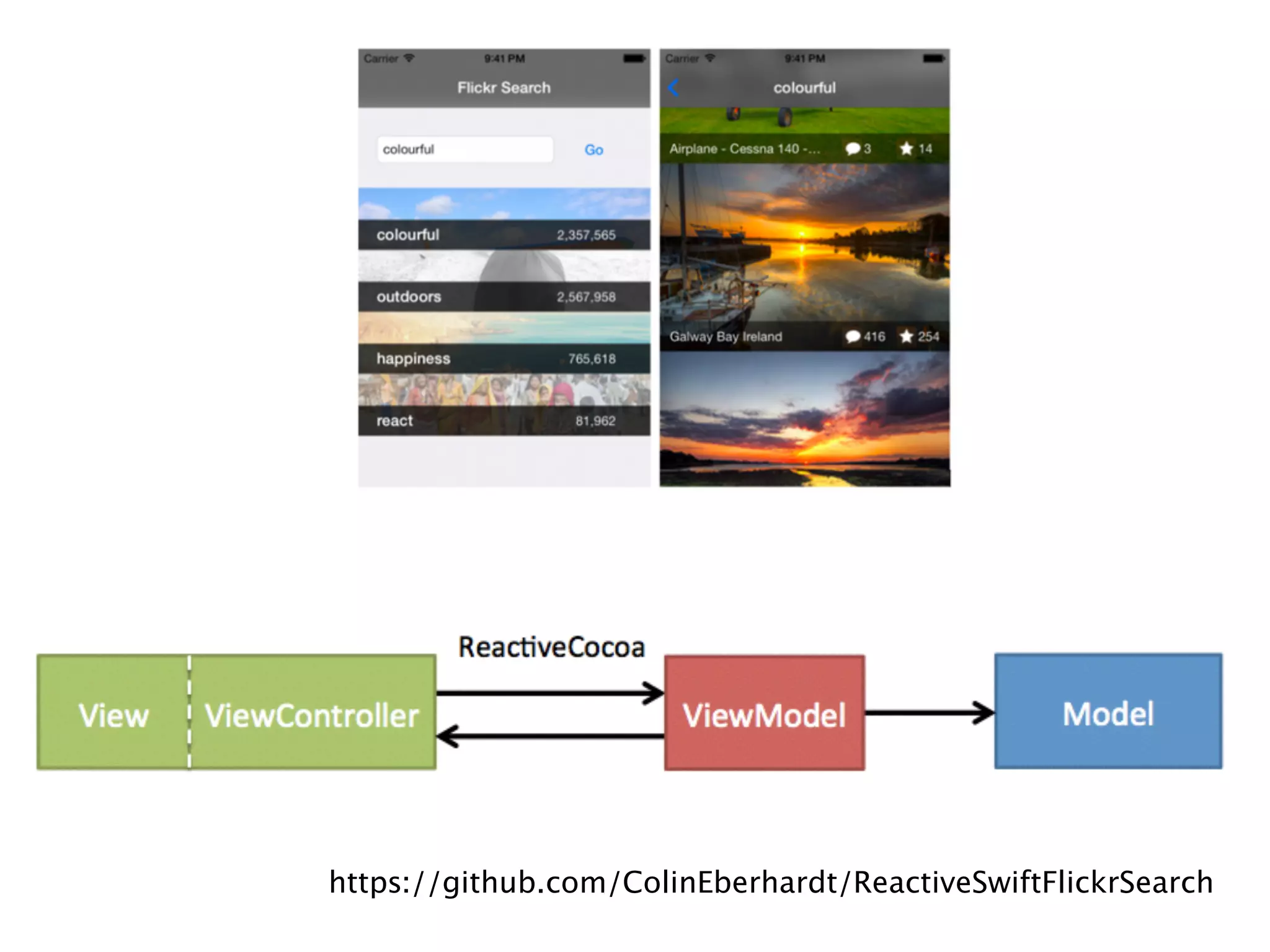

39. https://github.com/ColinEberhardt/ReactiveSwiftFlickrSearch

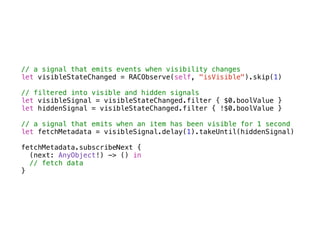

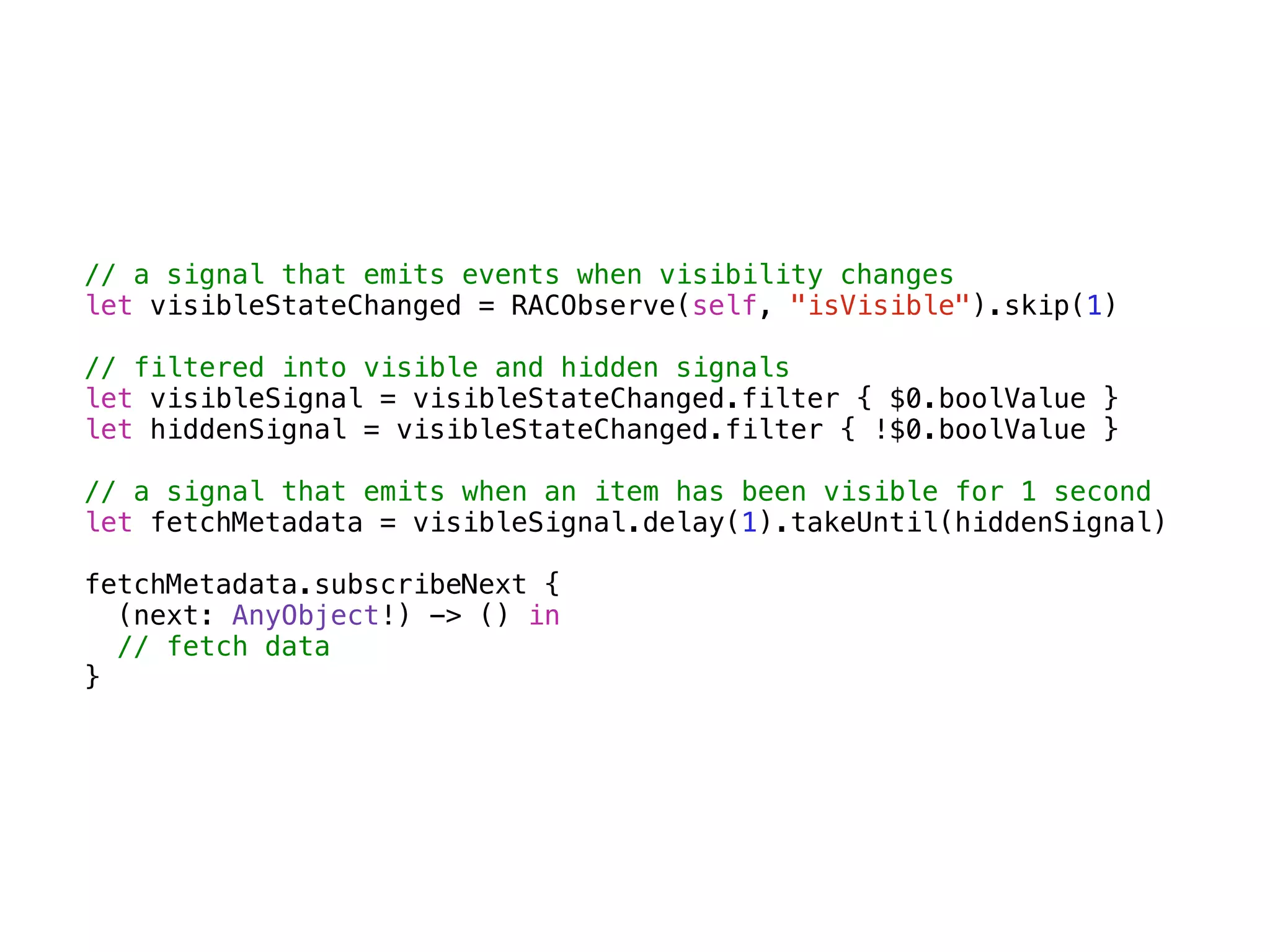

41. // a signal that emits events when visibility changes
let visibleStateChanged = RACObserve(self, "isVisible").skip(1)
!
// filtered into visible and hidden signals
let visibleSignal = visibleStateChanged.filter { $0.boolValue }
let hiddenSignal = visibleStateChanged.filter { !$0.boolValue }
!
// a signal that emits when an item has been visible for 1 second
let fetchMetadata = visibleSignal.delay(1).takeUntil(hiddenSignal)
!
fetchMetadata.subscribeNext {
(next: AnyObject!) -> () in
// fetch data
}

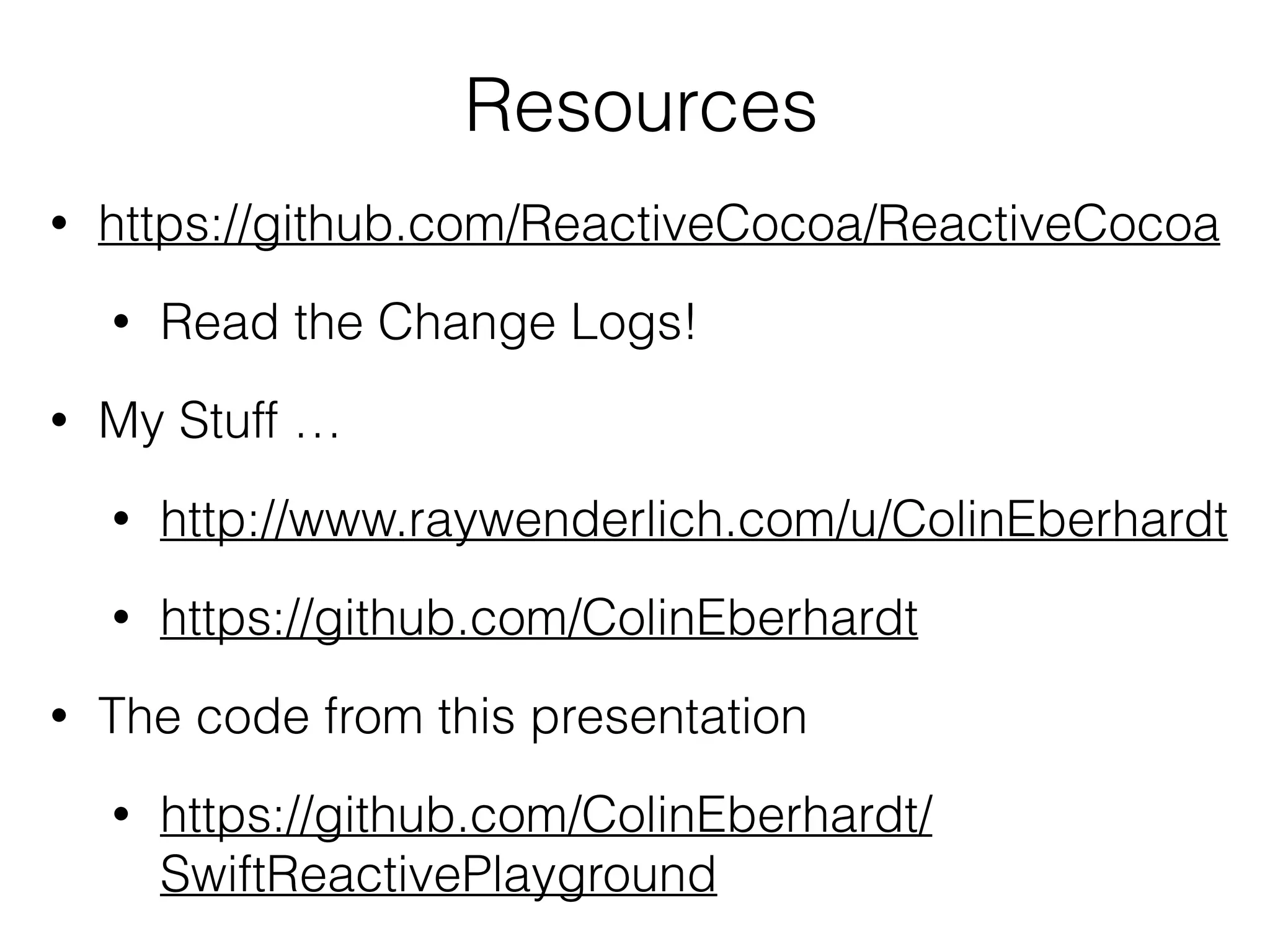

42. Resources
• https://github.com/ReactiveCocoa/ReactiveCocoa
• Read the Change Logs!
• My Stuff …
• http://www.raywenderlich.com/u/ColinEberhardt
• https://github.com/ColinEberhardt
• The code from this presentation
• https://github.com/ColinEberhardt/
SwiftReactivePlayground

43. ReactiveCocoa made
Simple with Swift!
@ColinEberhardt
ShinobiControls
