RASPBERRY Pi.pptx
- 1.
- 2. What is aRaspberry Pi Raspberry Pi is the name of a series of single-board computers made by the Raspberry Pi Foundation, a UK charity that aims to educate people in computing and create easier access to computing education. The Raspberry Pi launched in 2012, and there have been several iterations and variations released since then. The original Pi had a single-core 700MHz CPU and just 256MB RAM, and the latest model has a quad-core CPU clocking in at over 1.5GHz, and 4GB RAM. The price point for Raspberry Pi has always been under $100 (usually around $35 USD), most notably the Pi Zero, which costs just $5. All over the world, people use the Raspberry Pi to learn programming skills, build hardware projects, do home automation, implement Kubernetes clusters and Edge computing, and even use them in industrial applications. The Raspberry Pi is a very cheap computer that runs Linux, but it also provides a set of GPIO (general purpose input/output) pins, allowing you to control electronic components for physical computing and explore the Internet of Things (IoT).

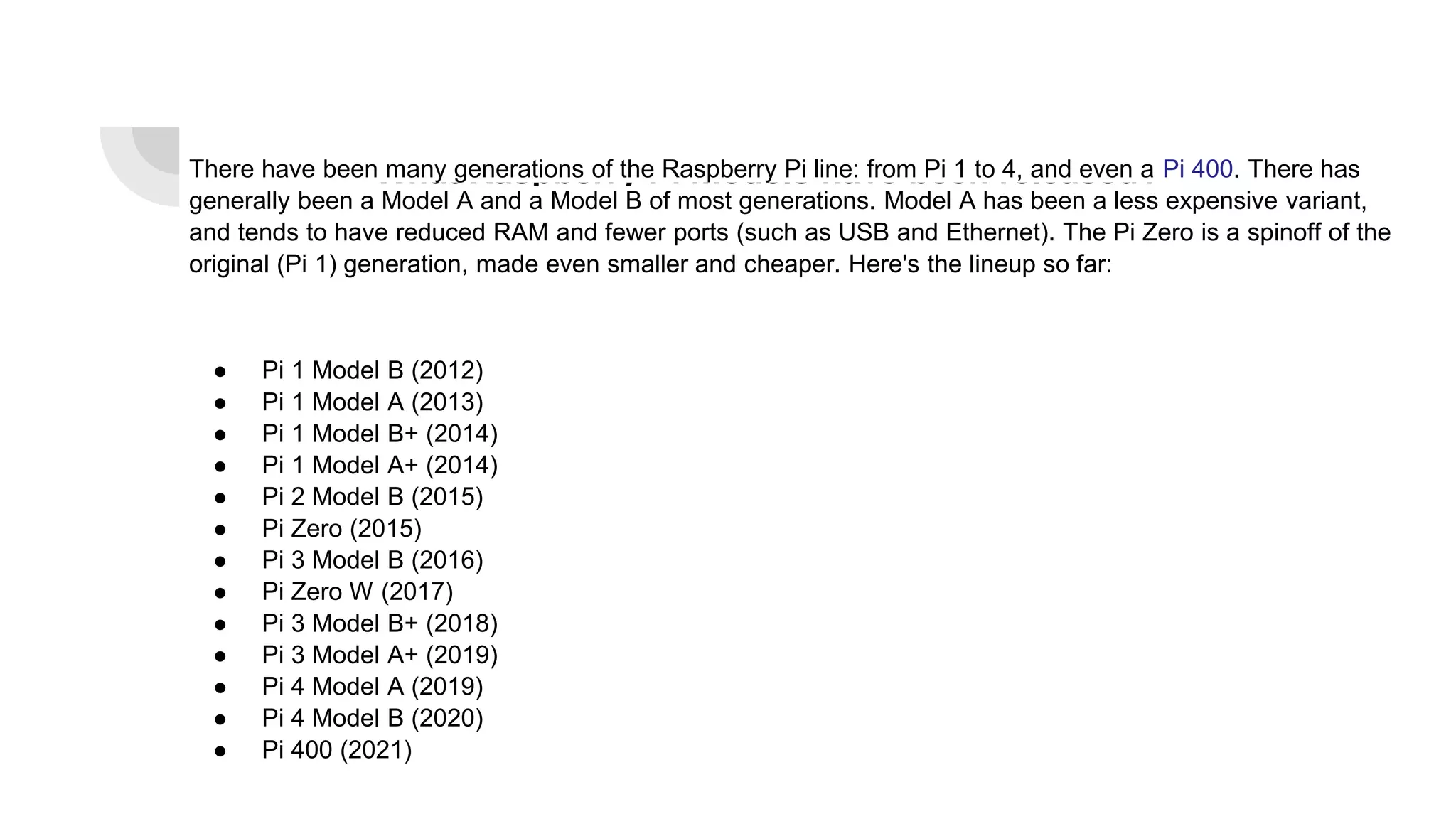

- 3. What Raspberry Pimodels have been released? There have been many generations of the Raspberry Pi line: from Pi 1 to 4, and even a Pi 400. There has generally been a Model A and a Model B of most generations. Model A has been a less expensive variant, and tends to have reduced RAM and fewer ports (such as USB and Ethernet). The Pi Zero is a spinoff of the original (Pi 1) generation, made even smaller and cheaper. Here's the lineup so far: ● Pi 1 Model B (2012) ● Pi 1 Model A (2013) ● Pi 1 Model B+ (2014) ● Pi 1 Model A+ (2014) ● Pi 2 Model B (2015) ● Pi Zero (2015) ● Pi 3 Model B (2016) ● Pi Zero W (2017) ● Pi 3 Model B+ (2018) ● Pi 3 Model A+ (2019) ● Pi 4 Model A (2019) ● Pi 4 Model B (2020) ● Pi 400 (2021)

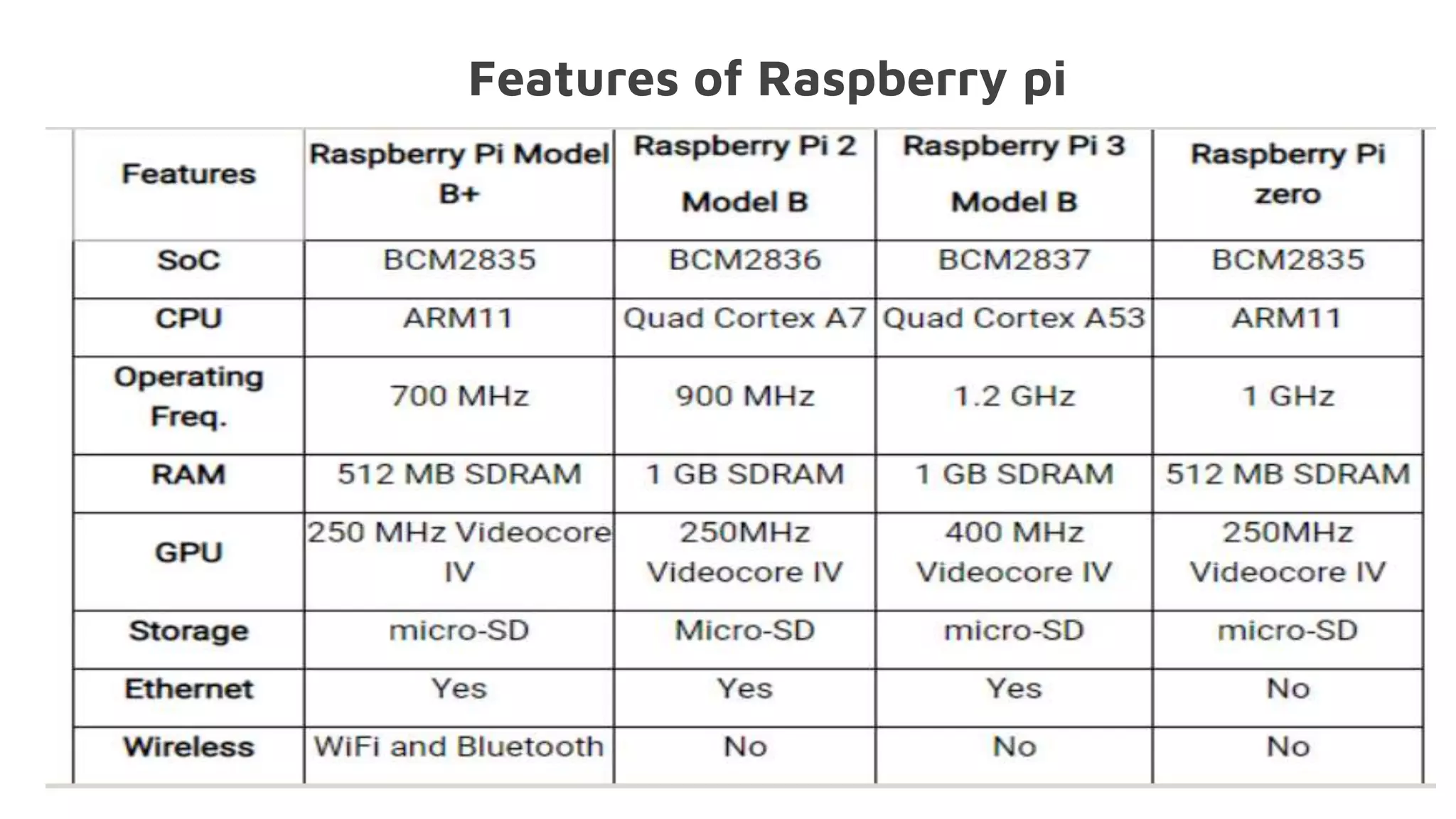

- 4.

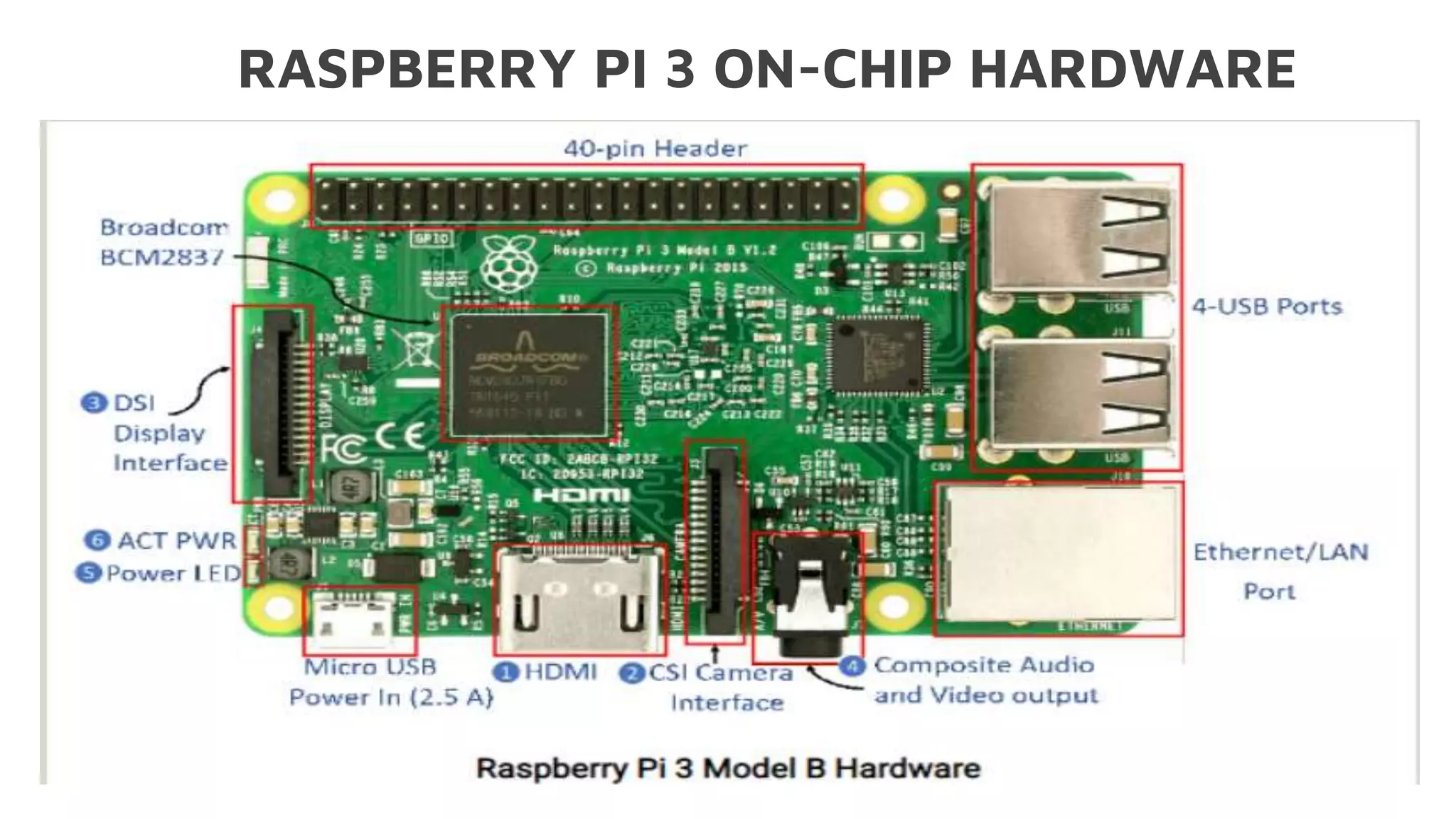

- 5. RASPBERRY PI 3ON-CHIP HARDWARE

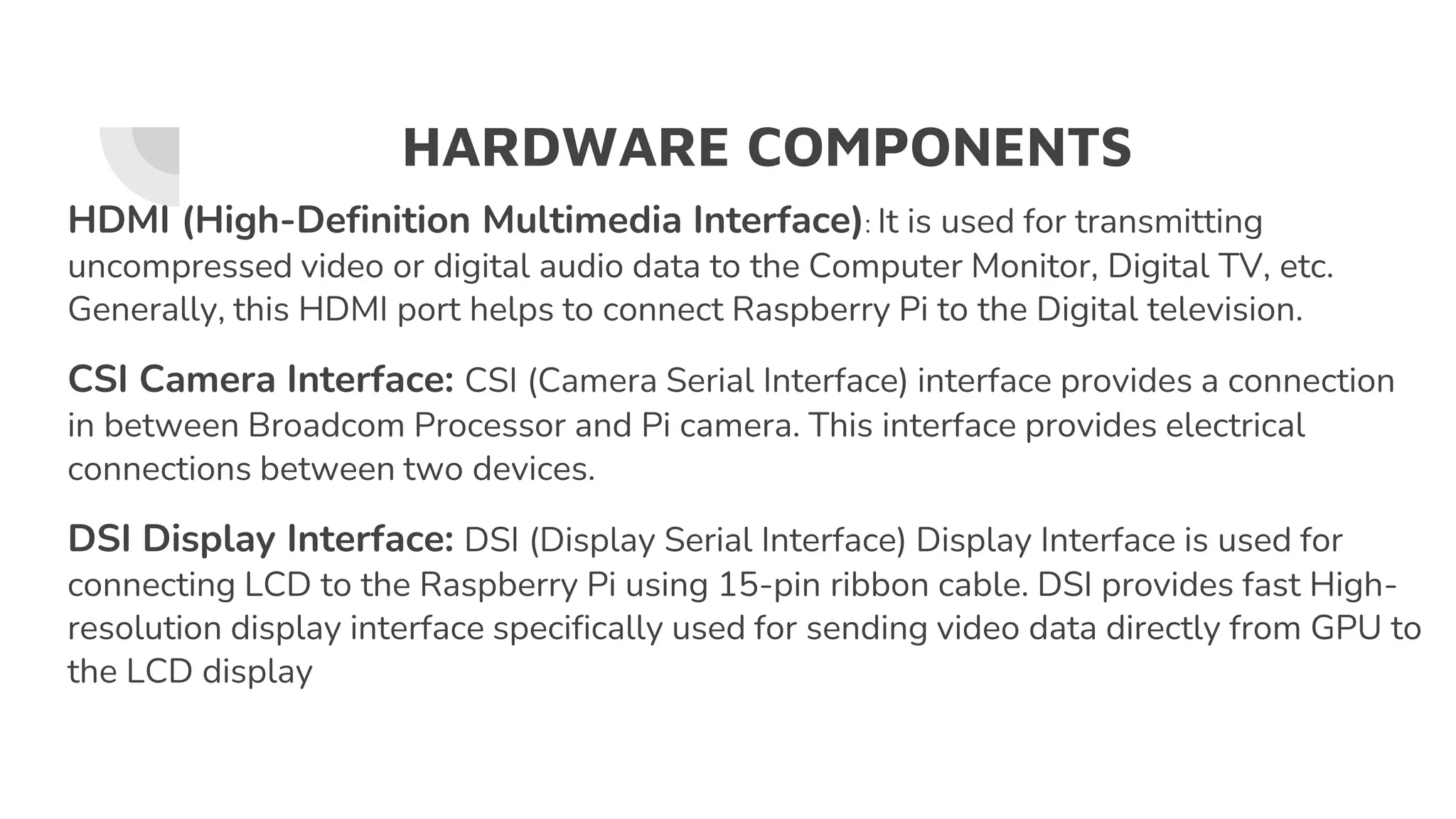

- 6. HARDWARE COMPONENTS HDMI (High-DefinitionMultimedia Interface): It is used for transmitting uncompressed video or digital audio data to the Computer Monitor, Digital TV, etc. Generally, this HDMI port helps to connect Raspberry Pi to the Digital television. CSI Camera Interface: CSI (Camera Serial Interface) interface provides a connection in between Broadcom Processor and Pi camera. This interface provides electrical connections between two devices. DSI Display Interface: DSI (Display Serial Interface) Display Interface is used for connecting LCD to the Raspberry Pi using 15-pin ribbon cable. DSI provides fast High- resolution display interface specifically used for sending video data directly from GPU to the LCD display
- 7. HARDWARE COMPONENTS Composite Videoand Audio Output: The composite Video and Audio output port carries video along with audio signal to the Audio/Video systems. Power LED: It is a RED colored LED which is used for Power indication. This LED will turn ON when Power is connected to the Raspberry Pi. It is connected to 5V directly and will start blinking whenever the supply voltage drops below 4.63V. ACT PWR: ACT PWR is Green LED which shows the SD card activity.

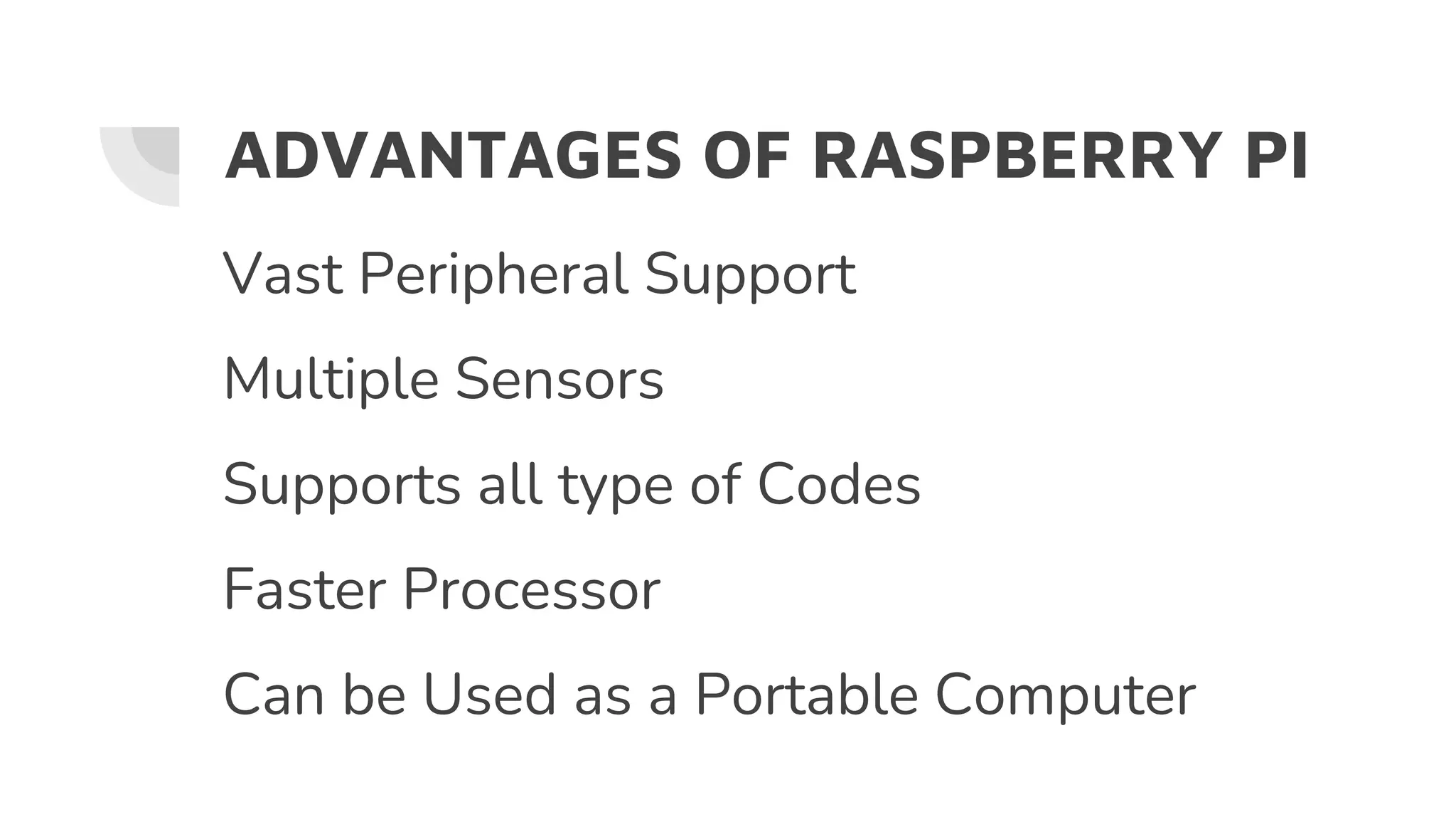

- 8. ADVANTAGES OF RASPBERRYPI Vast Peripheral Support Multiple Sensors Supports all type of Codes Faster Processor Can be Used as a Portable Computer

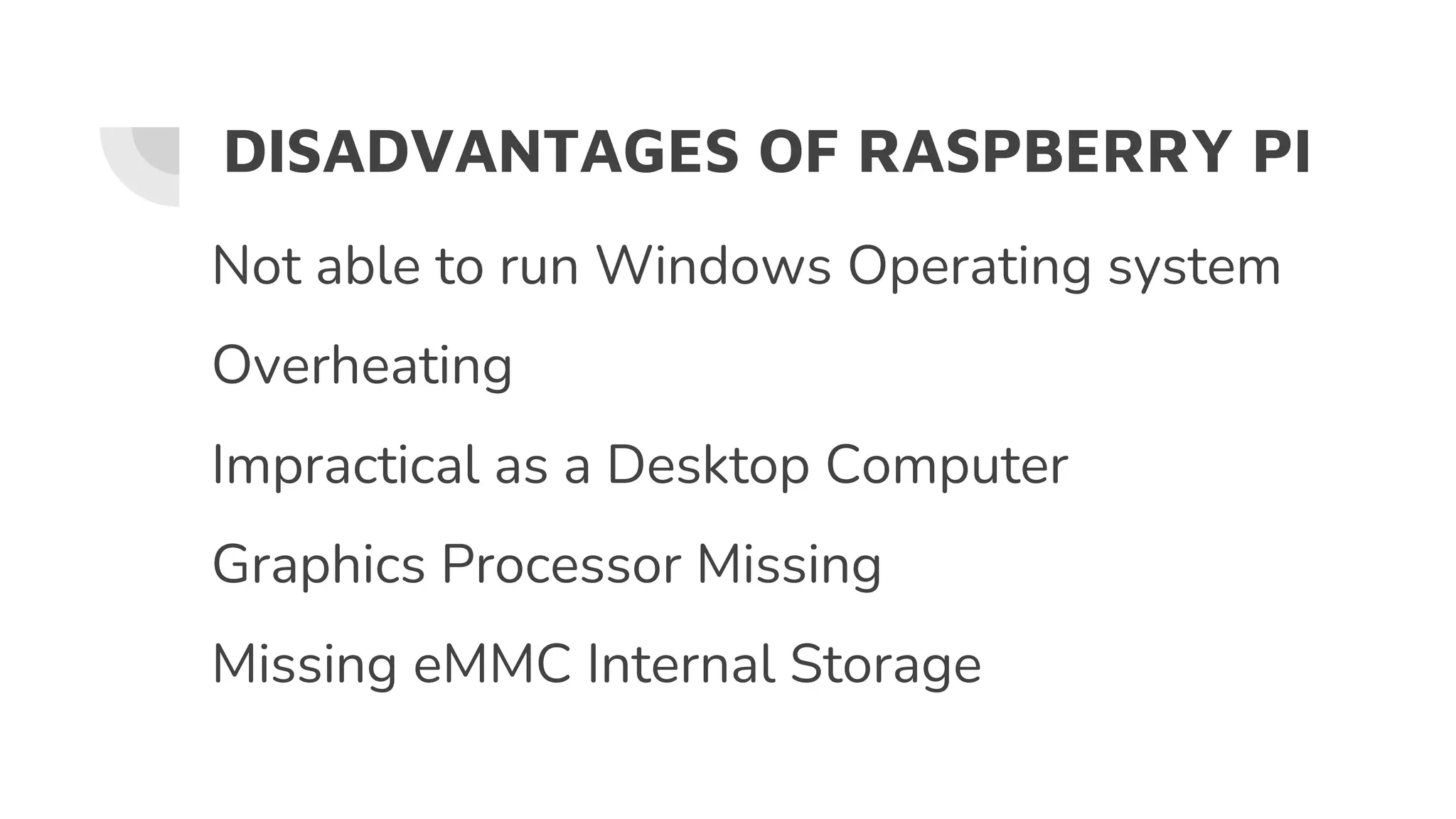

- 9. DISADVANTAGES OF RASPBERRYPI Not able to run Windows Operating system Overheating Impractical as a Desktop Computer Graphics Processor Missing Missing eMMC Internal Storage
- 10. APPLICATIONS Raspberry Pi AsDesktop. Home Automation System Based On Raspberry Pi. Raspberry Pi Based Camcorder. The ZeroPhone – Raspberry Pi Based Smartphone. XBox Zero – Raspberry Pi Based XBox Controller. Raspberry Pi Based Google AI Assistant. Raspberry Pi Based Home Arcade System. Wireless Print Serve
