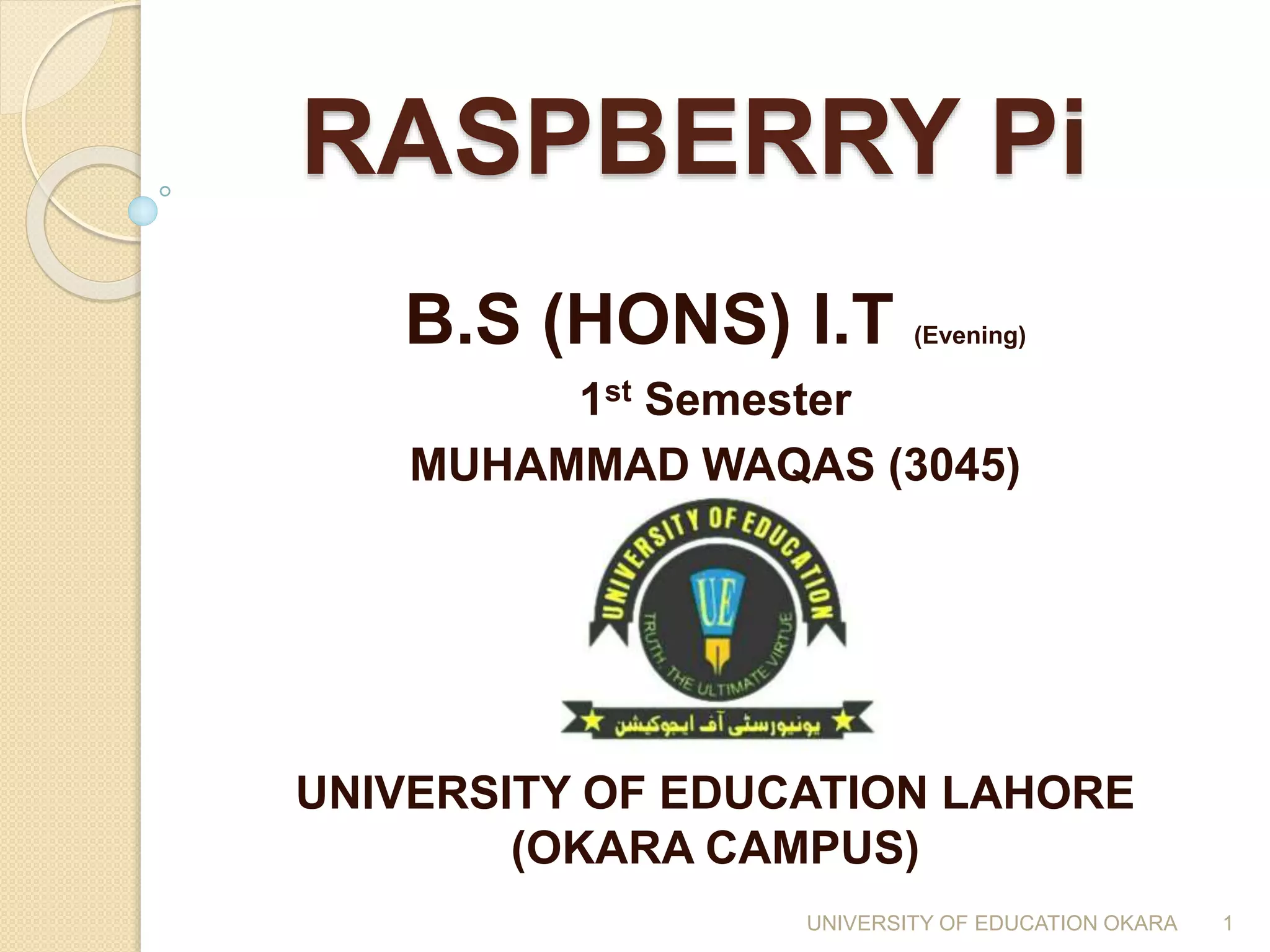

1. RASPBERRY Pi
B.S (HONS) I.T (Evening)
1st Semester
MUHAMMAD WAQAS (3045)
UNIVERSITY OF EDUCATION LAHORE
(OKARA CAMPUS)
1UNIVERSITY OF EDUCATION OKARA

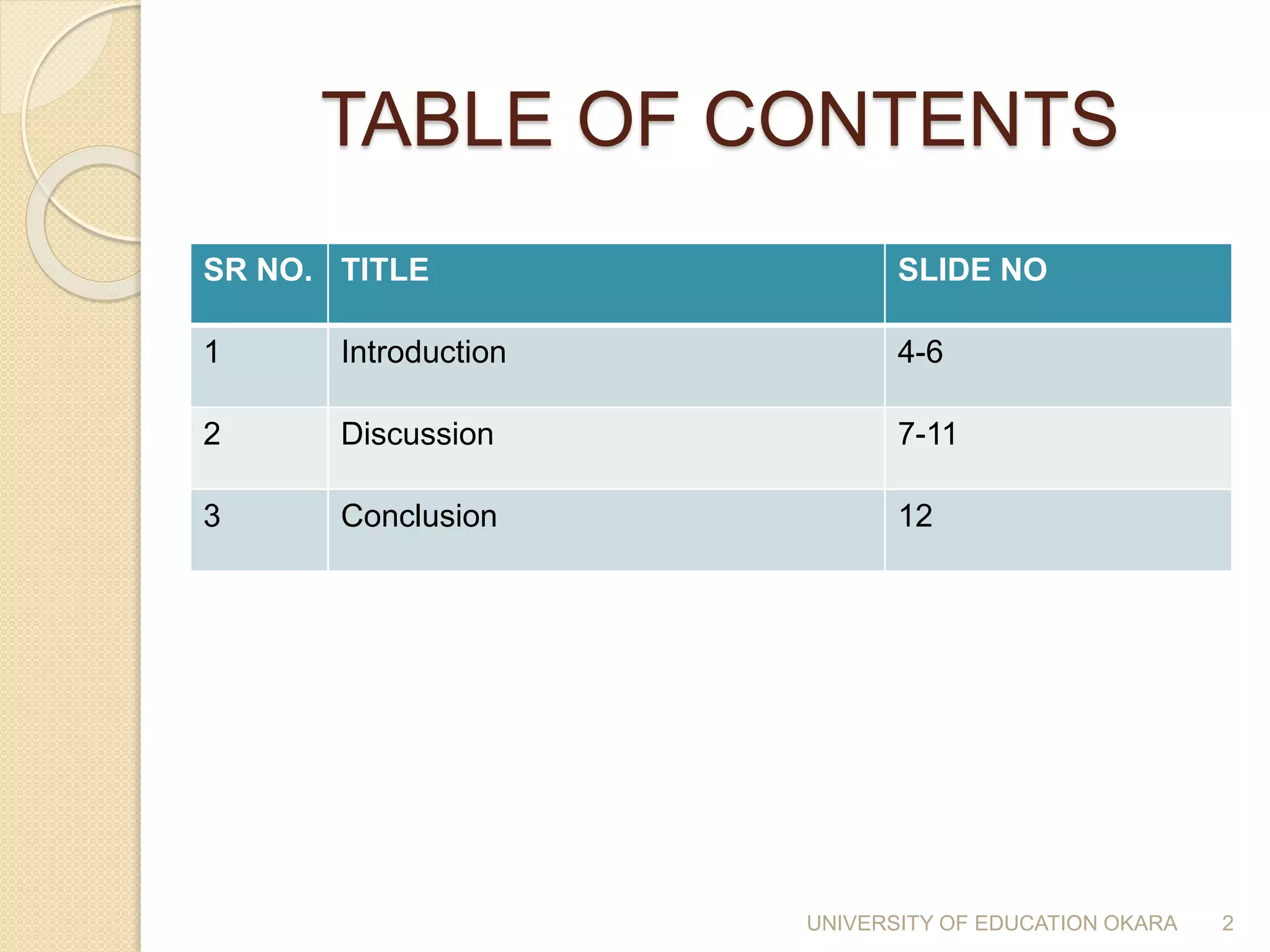

2. TABLE OF CONTENTS
SR NO. TITLE SLIDE NO
1 Introduction 4-6
2 Discussion 7-11
3 Conclusion 12
2UNIVERSITY OF EDUCATION OKARA

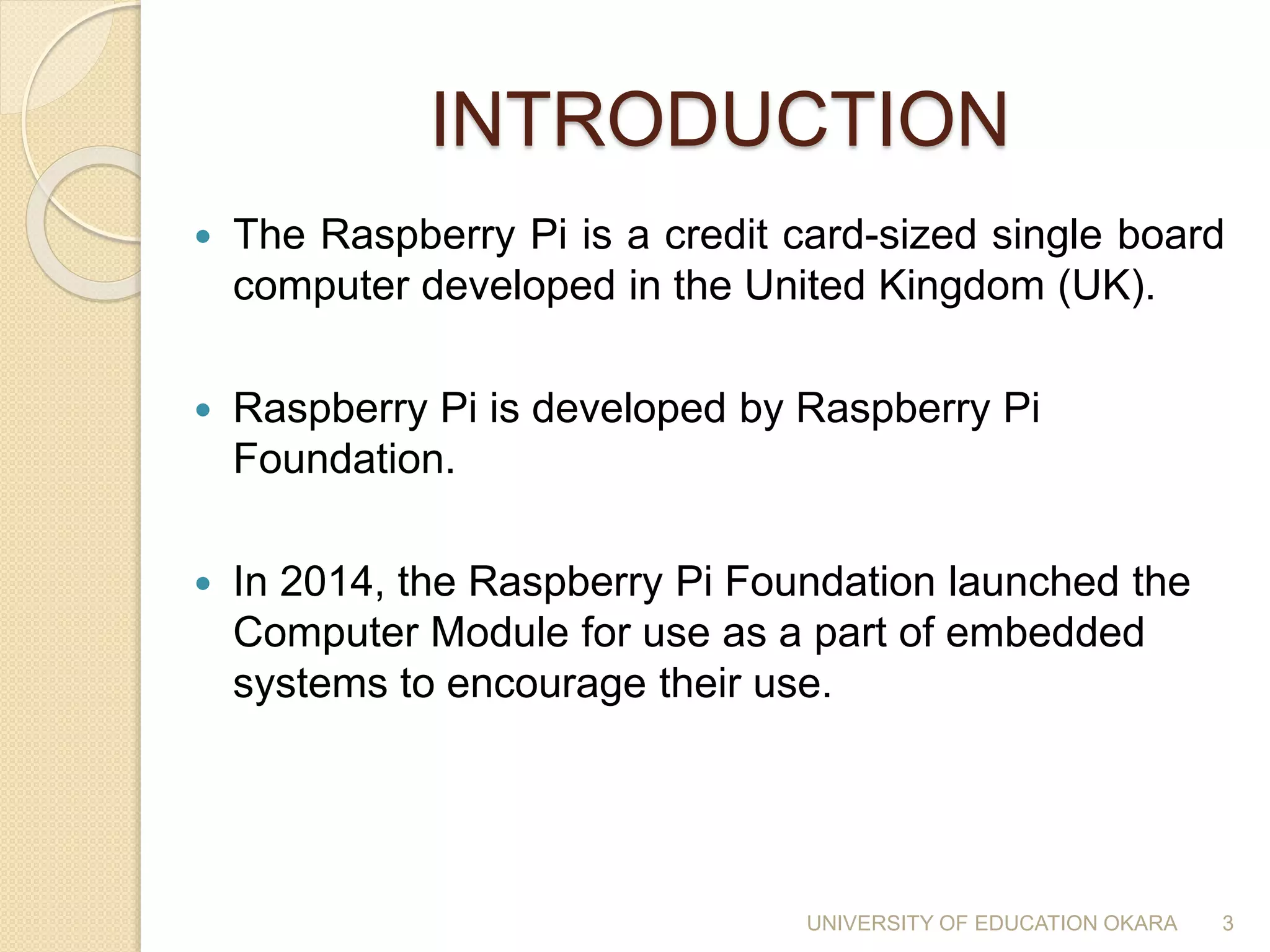

3. INTRODUCTION
 The Raspberry Pi is a credit card-sized single board
computer developed in the United Kingdom (UK).
 Raspberry Pi is developed by Raspberry Pi
Foundation.
 In 2014, the Raspberry Pi Foundation launched the
Computer Module for use as a part of embedded
systems to encourage their use.
3UNIVERSITY OF EDUCATION OKARA

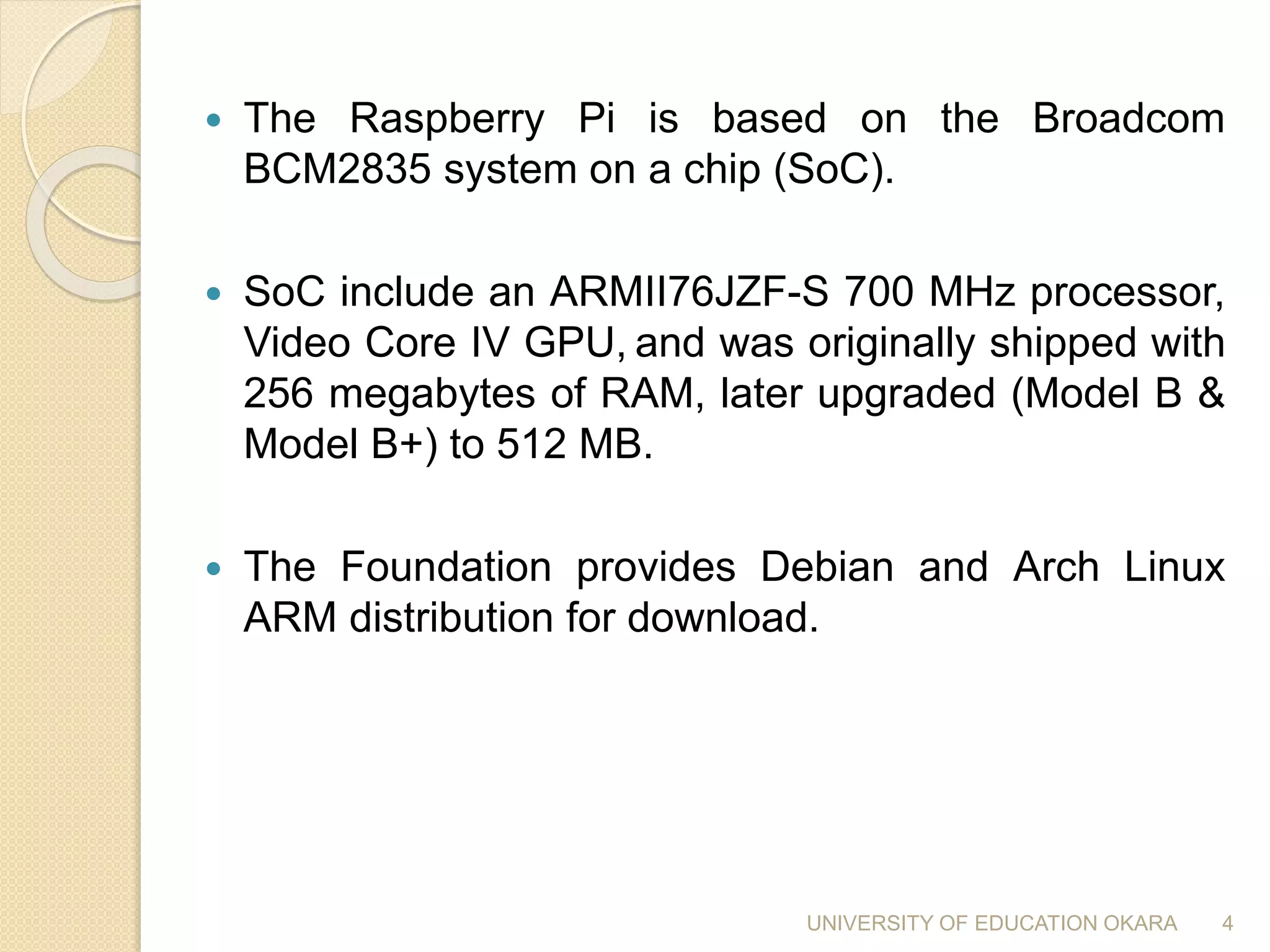

4.  The Raspberry Pi is based on the Broadcom
BCM2835 system on a chip (SoC).
 SoC include an ARMII76JZF-S 700 MHz processor,
Video Core IV GPU, and was originally shipped with
256 megabytes of RAM, later upgraded (Model B &
Model B+) to 512 MB.
 The Foundation provides Debian and Arch Linux
ARM distribution for download.
4UNIVERSITY OF EDUCATION OKARA

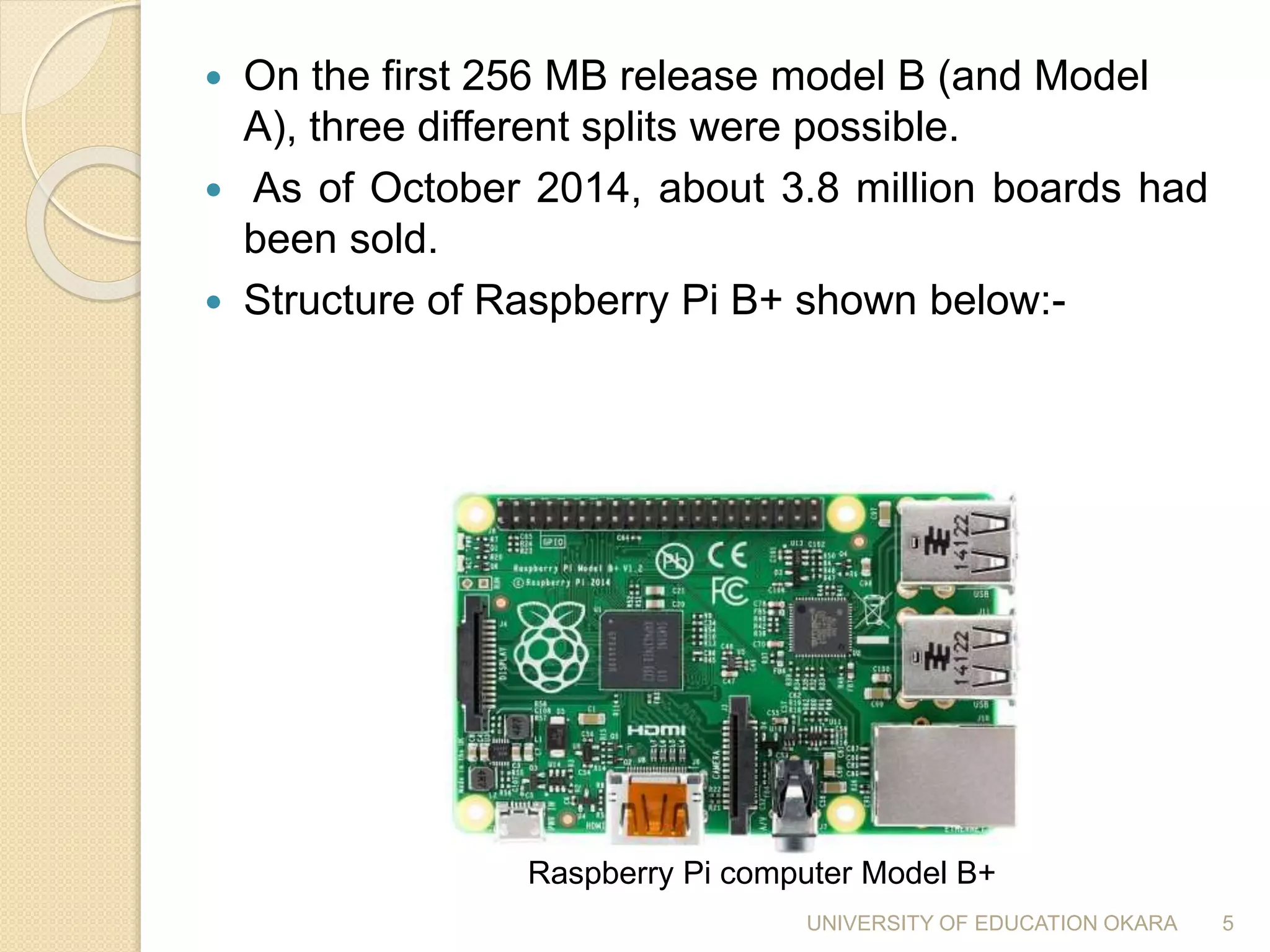

5.  On the first 256 MB release model B (and Model
A), three different splits were possible.
 As of October 2014, about 3.8 million boards had
been sold.
 Structure of Raspberry Pi B+ shown below:-
Raspberry Pi computer Model B+
5UNIVERSITY OF EDUCATION OKARA

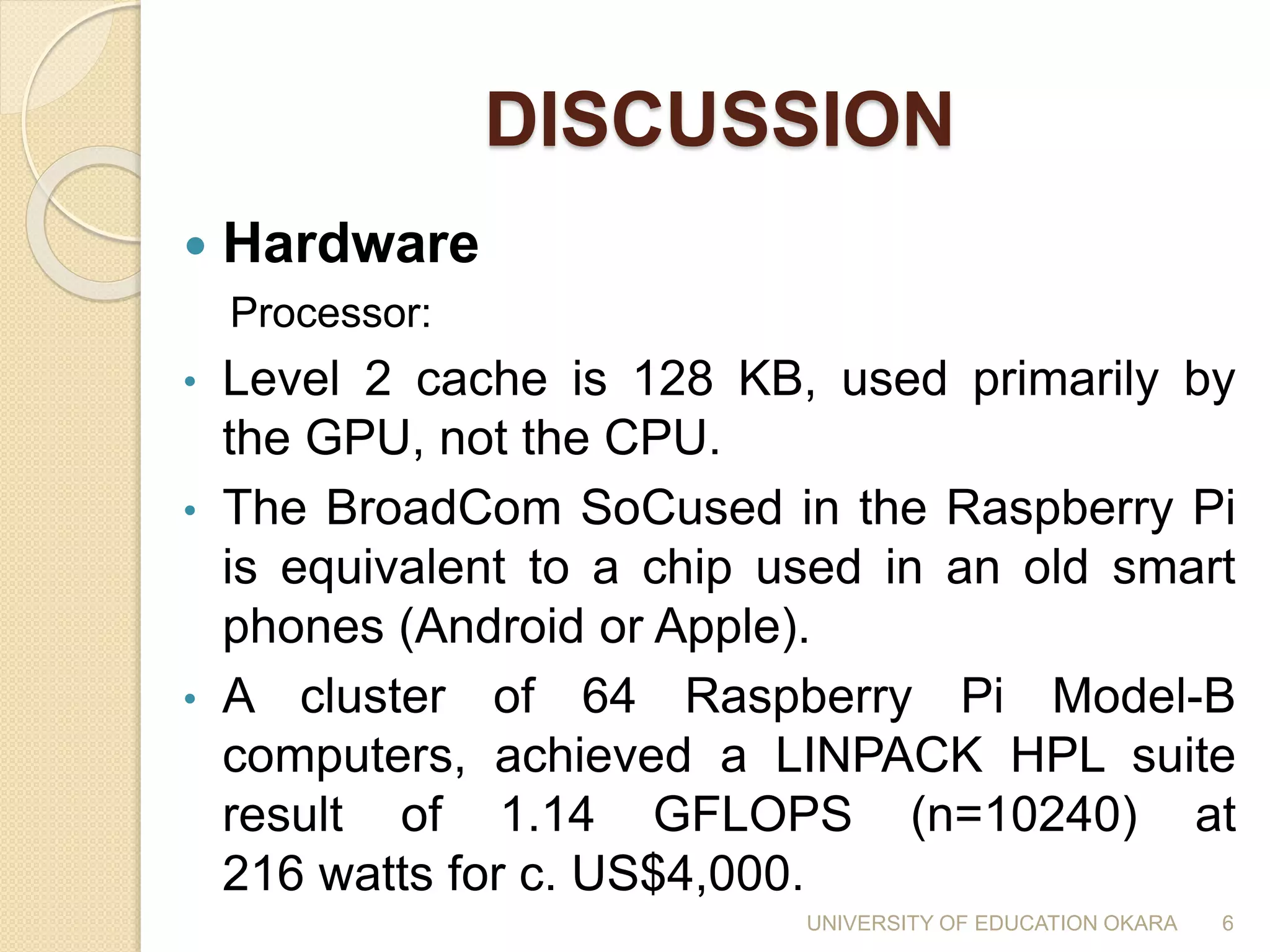

6. DISCUSSION
 Hardware
Processor:
• Level 2 cache is 128 KB, used primarily by
the GPU, not the CPU.
• The BroadCom SoCused in the Raspberry Pi
is equivalent to a chip used in an old smart
phones (Android or Apple).
• A cluster of 64 Raspberry Pi Model-B
computers, achieved a LINPACK HPL suite
result of 1.14 GFLOPS (n=10240) at
216 watts for c. US$4,000.
6UNIVERSITY OF EDUCATION OKARA

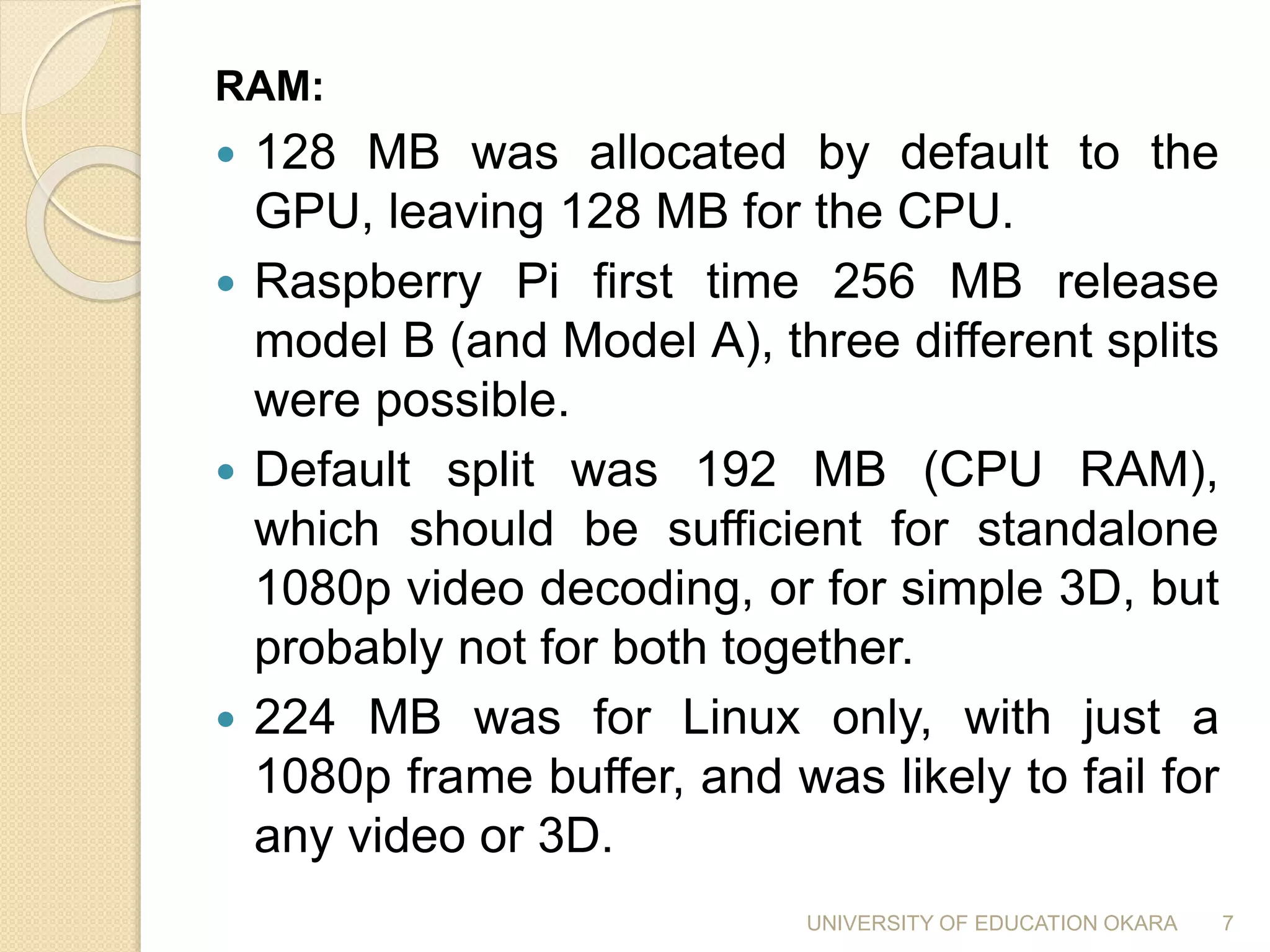

7. RAM:
 128 MB was allocated by default to the
GPU, leaving 128 MB for the CPU.
 Raspberry Pi first time 256 MB release
model B (and Model A), three different splits
were possible.
 Default split was 192 MB (CPU RAM),
which should be sufficient for standalone
1080p video decoding, or for simple 3D, but
probably not for both together.
 224 MB was for Linux only, with just a
1080p frame buffer, and was likely to fail for
any video or 3D.
7UNIVERSITY OF EDUCATION OKARA

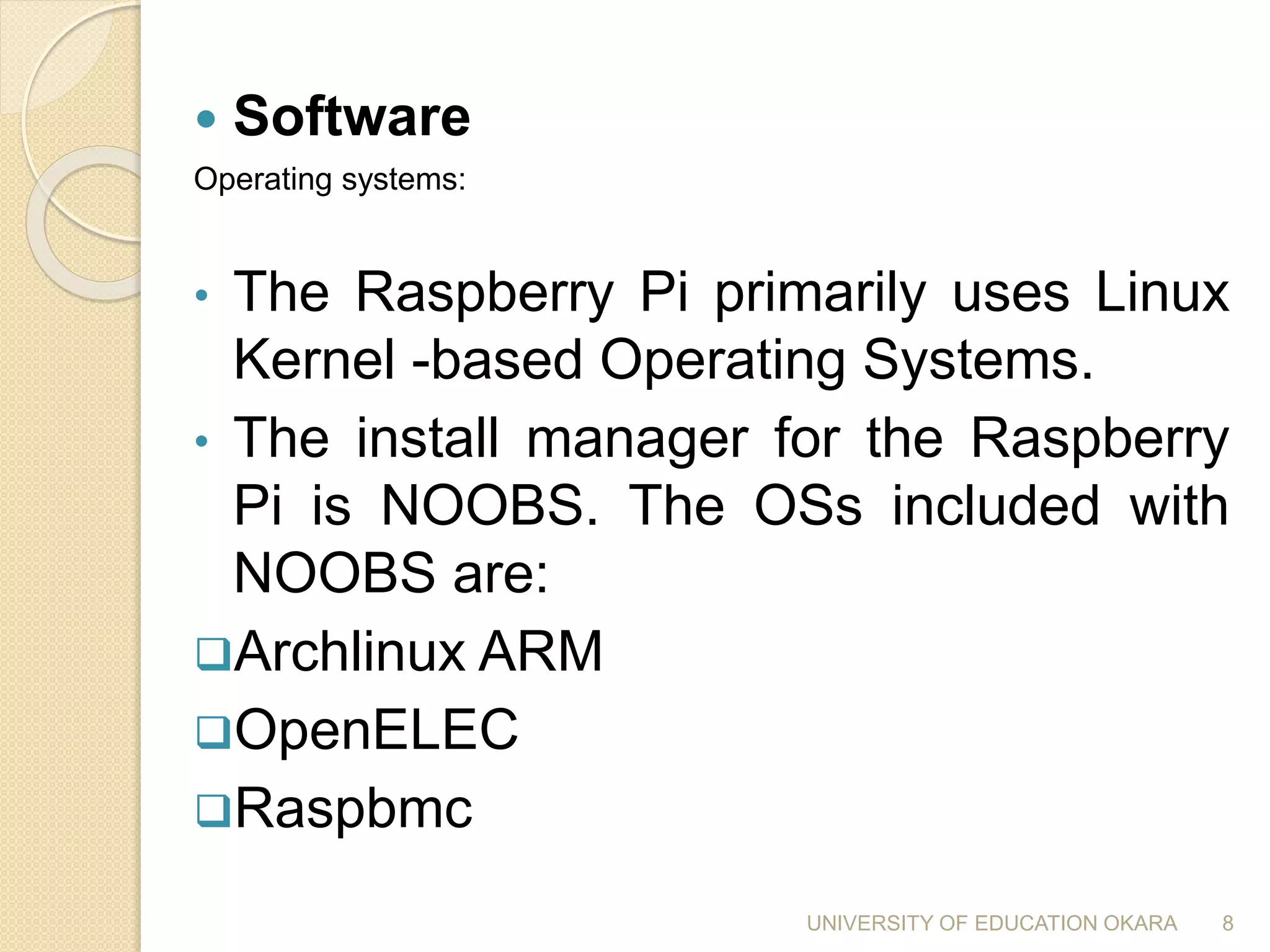

8.  Software
Operating systems:
• The Raspberry Pi primarily uses Linux
Kernel -based Operating Systems.
• The install manager for the Raspberry
Pi is NOOBS. The OSs included with
NOOBS are:
Archlinux ARM
OpenELEC
Raspbmc
8UNIVERSITY OF EDUCATION OKARA

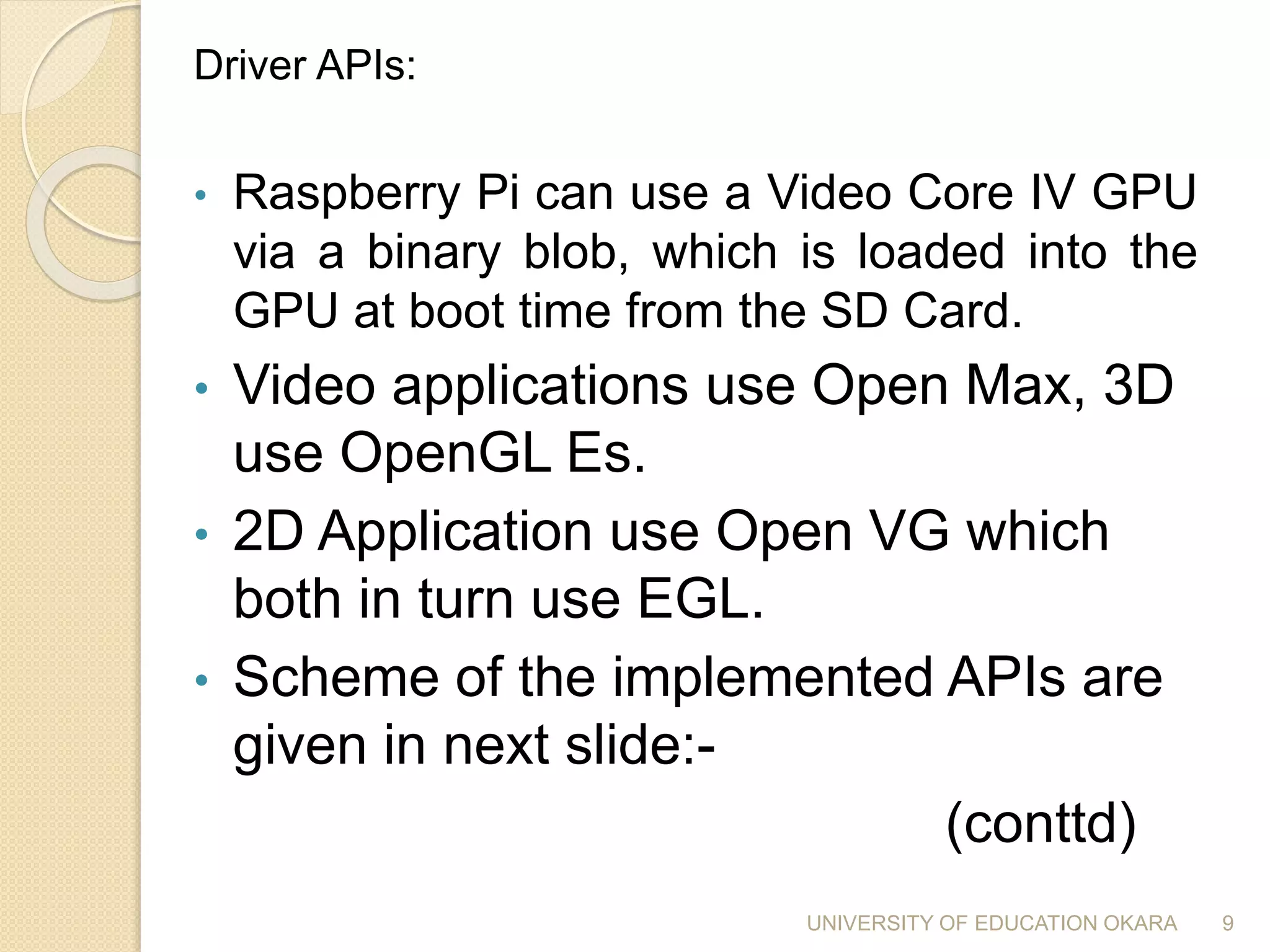

9. Driver APIs:
• Raspberry Pi can use a Video Core IV GPU
via a binary blob, which is loaded into the
GPU at boot time from the SD Card.
• Video applications use Open Max, 3D
use OpenGL Es.
• 2D Application use Open VG which
both in turn use EGL.
• Scheme of the implemented APIs are
given in next slide:-
(conttd)
9UNIVERSITY OF EDUCATION OKARA

10. Scheme of the implemented APIs
10UNIVERSITY OF EDUCATION OKARA

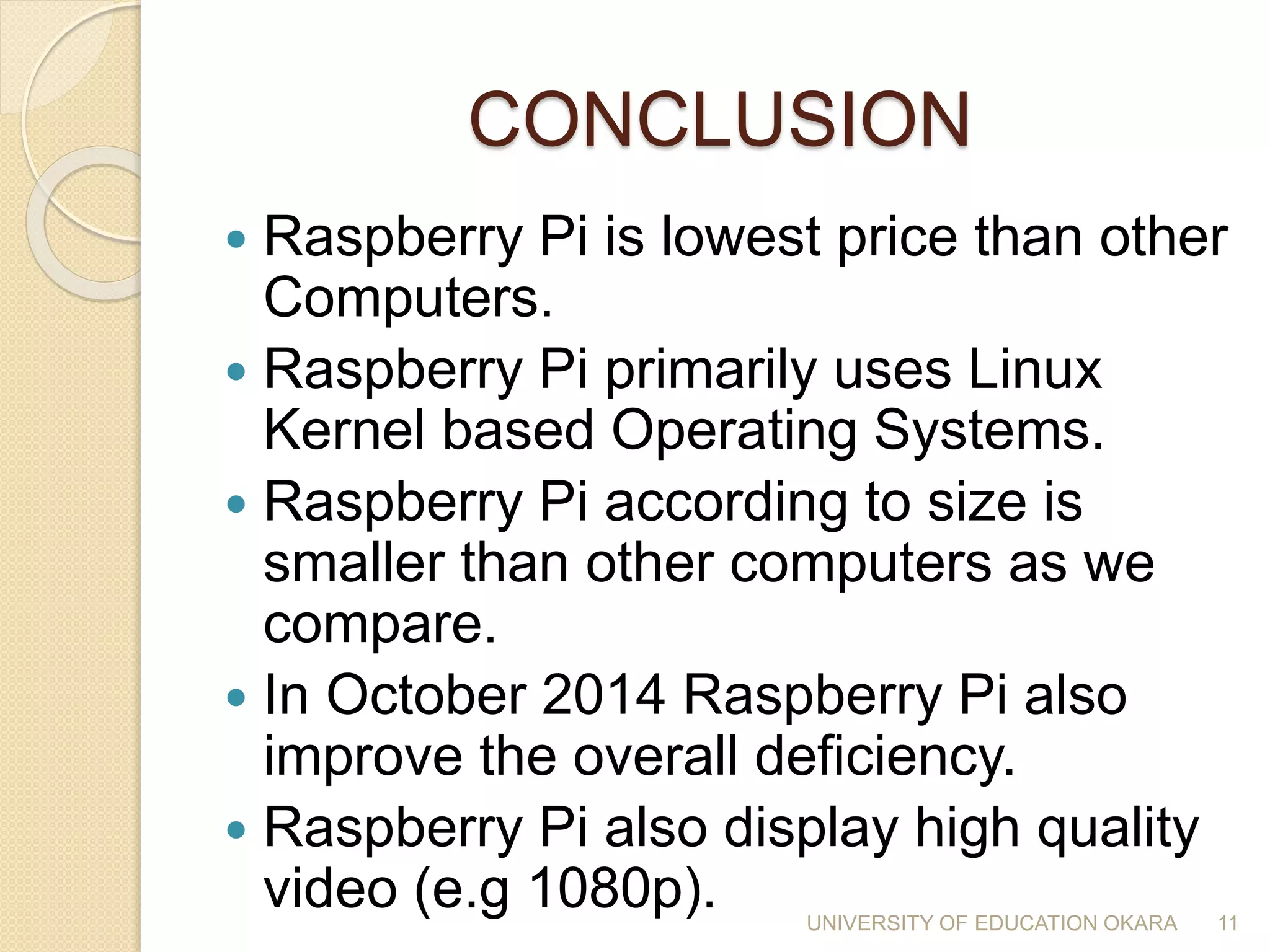

11. CONCLUSION
 Raspberry Pi is lowest price than other
Computers.
 Raspberry Pi primarily uses Linux
Kernel based Operating Systems.
 Raspberry Pi according to size is
smaller than other computers as we
compare.
 In October 2014 Raspberry Pi also
improve the overall deficiency.
 Raspberry Pi also display high quality
video (e.g 1080p). 11UNIVERSITY OF EDUCATION OKARA
